Effects of silver doping at the A-site on the structure, surface morphology, and magnetic behavior of La_1−xAg_xSrMn₂O_5+δ (x = 0.1 and 0.2)

Abstract

This study explores the impact of silver substitution at the A-site on the structural, morphological, and magnetic properties of La_1−xAg_xSrMn₂O_5+δ compounds, specifically for doping levels x = 0.1 and 0.2. The samples were synthesized using a conventional solid-state reaction method. X-ray diffraction (XRD) analysis confirmed that both compositions crystallize in a single-phase orthorhombic structure with the Pnma space group. Surface morphology and grain distribution were characterized via scanning electron microscopy (SEM), revealing microstructural changes associated with Ag doping. Temperature-dependent magnetization measurements indicate that Ag substitution leads to a reduction in overall magnetization, while the Curie temperature (T_p), associated with the ferromagnetic-to-paramagnetic transition, remains essentially unaffected. This transition was identified from the derivative of the magnetization versus temperature curves. At lower temperatures, subtle anomalies in the magnetization data suggest the possible emergence of short-range antiferromagnetic interactions or charge ordering tendencies, without evidence of a distinct AFM phase transition. Magnetocaloric properties were also evaluated, showing notable variations in magnetic entropy change (−ΔS_m) near the transition temperatures. The compounds exhibit relatively high values of relative cooling power (RCP), highlighting their potential for magnetic refrigeration applications.

---

1. Introduction

The rapid advancement of science and technology over recent decades has led to an urgent demand for multifunctional materials that can address a variety of global challenges, including energy sustainability, environmental remediation, and green manufacturing.^1–30 Innovative materials research spans a diverse spectrum from eco-compensatory watershed management and carbon footprint mitigation in forestry products^31–45 to novel nanomaterials for heavy metal pollutant capture and advanced geopolymers for soil remediation.^46–70 The convergence of environmental science, materials chemistry, and applied physics has accelerated the development of high-performance compounds that can integrate energy efficiency, environmental safety, and scalable manufacturing.^71–85 For example, engineered materials exhibiting tailored electromagnetic responses, corrosion resistance, and tunable phase behavior are essential for applications ranging from magnetic refrigeration and energy harvesting to advanced catalysis and sensor technologies.^86–91

Within the realm of functional materials, perovskite-type oxides have garnered significant interest due to their remarkable structural flexibility and rich spectrum of electronic, magnetic, and catalytic properties.^92–100 Their tunability through compositional modifications and doping strategies enables precise control over crystallographic phases and physical behaviors, rendering them suitable for emerging technologies such as magneto resistive devices, spintronics, and environmentally benign refrigeration systems.^101–111 The interplay between crystal structure, defect chemistry, and microstructural morphology determines their overall performance, necessitating advanced synthesis and characterization techniques, including solid-state reaction methods, X-ray diffraction, and electron microscopy.^112–120 These techniques facilitate understanding how grain boundaries, oxygen vacancies, and dopant distribution influence magnetic ordering, electronic transport, and phase stability.^121–126

Perovskite manganites, with the general formula Ln_1−xA_xMnO₃ (Ln = La, Pr, Nd; A = Sr, Ca, Ba, Ag), represent a particularly compelling class of materials where charge, spin, and lattice degrees of freedom interact intricately to give rise to phenomena such as colossal magnetoresistance, metal–insulator transitions, and complex magnetic phase diagrams.^127,128 The substitution of A-site cations modulates the Mn³⁺/Mn⁴⁺ ratio, directly impacting the double-exchange mechanism that governs ferromagnetic metallicity, while also affecting electron–phonon coupling linked to Jahn–Teller distortions.^129,130 This delicate balance results in temperature-dependent magnetic transitions, including ferromagnetic, antiferromagnetic, and charge-ordered states, which can be fine-tuned by doping level and oxygen stoichiometry.^131,132 Moreover, these manganite's exhibit significant magnetocaloric effects near their Curie temperatures, positioning them as promising candidates for energy-efficient magnetic refrigeration technologies that offer environmentally friendly alternatives to conventional gas compression cooling.^133,134

Among the various dopants, silver (Ag) substitution at the A-site is of particular interest due to its distinctive ionic radius and electronic properties, which influence microstructure, magnetic interactions, and grain boundary effects differently compared to more commonly used divalent cations.^135,136 Although silver doping has shown potential in enhancing magnetoresistance and modifying phase stability, systematic studies on its effects on La_1−xAg_xSrMn₂O_5+δ compounds remain scarce. Additionally, the impact of silver incorporation on magnetocaloric properties and low-temperature magnetic ordering phenomena such as antiferromagnetism or charge ordering warrants thorough investigation to better understand the underlying mechanisms and optimize functional performance.

This study aims to fill these gaps by synthesizing La_1−xAg_xSrMn₂O_5+δ (x = 0.1, 0.2) compounds via conventional solid-state reaction and characterizing their structural, morphological, and magnetic properties using X-ray diffraction, scanning electron microscopy, and magnetization measurements. We further evaluate their magnetocaloric potential through analysis of magnetic entropy change and relative cooling power, thereby contributing to the broader goal of developing advanced manganite materials for energy-efficient cooling and multifunctional applications. Our findings offer new insights into the role of silver doping at the A-site in tuning magnetic transitions and microstructure–property relationships in complex oxide systems, with implications extending across materials science and sustainable technology sectors.

2. Synthesis and characterization

2.1. Sample preparation

Polycrystalline samples of La_1−xAg_xSrMn₂O_5+δ (abbreviated as LASMO), with doping levels x = 0.1 and x = 0.2, were synthesized using the conventional solid-state reaction method, a widely used approach for preparing complex oxide ceramics due to its simplicity, scalability, and effectiveness in forming thermodynamically stable phases. This method allows for precise control over stoichiometry, is cost-effective, and suitable for preparing bulk quantities of high-purity compounds. It is particularly effective in promoting solid-state diffusion between precursor oxides and carbonates when subjected to high-temperature treatment. High-purity precursors La₂O₃, SrCO₃, MnO₂, and Ag₂CO₃ (≥99.9%) were used as starting materials. To ensure chemical stability and prevent moisture contamination, La₂O₃ was pre-calcined at 700 °C for several hours to remove any adsorbed water or carbonate impurities that could affect stoichiometry. Appropriate stoichiometric amounts of each precursor were calculated to match the nominal composition of La_1−xAg_xSrMn₂O_5+δ. The powders were thoroughly ground and homogenized using an agate mortar and pestle for several hours to achieve a uniform fine mixture, which is critical for promoting complete reaction and ensuring phase homogeneity.

The homogenized mixtures were then pressed into cylindrical pellets approximately 12 mm in diameter and 2 mm thick using a uniaxial hydraulic press. These pellets were subjected to multiple calcination steps in the temperature range of 700 °C to 1200 °C, each lasting around 20 hours, with intermediate grindings to enhance reaction completeness and improve crystallinity. These thermal treatments facilitate diffusion of the cations and oxygen, allowing for the formation of the desired layered perovskite structure. The general chemical reaction involved in the formation of LASMO via the solid-state route can be expressed as:

(1 − x)La₂O₃ + _xAg₂CO₃ + SrCO₃ + 2MnO₂ → 2La_1−xAg_xSrMn₂O_5+δ + 2CO₂↑

This equation represents the solid-state formation of the target compound, where La³⁺, Ag⁺, and Sr²⁺ occupy the A-site positions, while Mn ions are at the B-site of the layered perovskite structure. The oxygen non-stoichiometry (δ) accounts for any excess oxygen due to partial oxidation or reduction during heating, especially considering the variable valence states of Mn. After the final sintering step, the synthesized samples were characterized by X-ray diffraction (XRD) using powdered specimens to confirm phase purity, determine the crystal structure, and extract lattice parameters. These measurements ensure that the final products are structurally homogeneous and crystallize in the expected phase before proceeding to surface and magnetic analyses.

2.2. Sample characterization

To comprehensively evaluate the structural, microstructural, and magnetic properties of the synthesized LASMO compounds (x = 0.1 and 0.2), a combination of advanced characterization techniques was employed. X-ray diffraction was used as the primary method for structural analysis. Room-temperature measurements were performed using an X'Pert MPD Philips diffractometer equipped with a CuKα radiation source (λ = 1.54060 Å). The XRD data were collected over a wide 2θ range with a fine step size and long counting time to ensure high-resolution data suitable for phase identification, crystal structure confirmation, and lattice parameter refinement. These analyses allow the detection of any secondary phases, identification of the space group, and assessment of how Ag substitution at the A-site influences the orthorhombic perovskite structure. Rietveld refinement can be further applied to extract detailed structural parameters and quantify phase purity.

The surface morphology and grain size distribution were investigated using Scanning Electron Microscopy with a TESCAN Vega 3 system. The powders were dispersed and mounted on conductive stubs and then coated with a thin layer of carbon using a vacuum sputter coater to eliminate surface charging under the electron beam and to enhance image clarity. SEM imaging provided insights into the microstructural features of the samples, including grain connectivity, porosity, and texture, all of which influence the material's magnetic and transport properties. Any changes in grain morphology due to varying Ag content can also be correlated with magnetic performance. To explore the magnetic behavior, temperature-dependent magnetization measurements were conducted using a Superconducting Quantum Interference Device (SQUID) magnetometer, one of the most sensitive tools for detecting magnetic signals. The magnetization M(T) was recorded over the temperature range 5 K to 400 K under an applied magnetic field of 0.05 T. This range covers both low-temperature ordering phenomena and the high-temperature ferromagnetic–paramagnetic (FM–PM) transition, allowing accurate determination of the Curie temperature (T_p) and other magnetic transition points. The derivative of the M(T) curve was analyzed to pinpoint T_p more precisely. Additionally, from these magnetization data, the magnetocaloric effect (MCE) was evaluated through the calculation of the magnetic entropy change (ΔS_m) using the Maxwell relation. The corresponding relative cooling power (RCP) values were derived to assess the efficiency and applicability of these materials in magnetic refrigeration technologies.

3. Results and discussion

3.1. Qualitative analysis

Qualitative elemental analysis of the synthesized samples (x = 0.1 and 0.2) was carried out using Energy Dispersive X-ray Spectroscopy (EDX), a technique that detects characteristic X-rays emitted from a sample surface when excited by an electron beam, allowing for the identification of constituent elements. As shown in Fig. 1, both samples exhibit EDX spectra consistent with the expected elemental composition based on the starting precursors. For x = 0.1 (Fig. 1a), the spectrum obtained from region 1 shows clear peaks for La (lanthanum), Ag (silver), Sr (strontium), Mn (manganese), and O (oxygen), indicating successful incorporation of all target elements. Similarly, the sample, x = 0.2 (Fig. 1b), with EDX data from region 3, reveals the same elemental peaks, further confirming consistent composition across different synthesis batches. The relatively similar spectral profiles and peak intensities between both samples suggest uniform elemental distribution and successful synthesis without contamination. These results collectively confirm that the intended multi-element composition was effectively achieved in both samples, validating the reliability and reproducibility of the synthesis process.

Fig. 1 Spectra obtained by EDS analysis and Grain morphology in a powder of La_1−xAg_xSrMn₂O_5+δ ((a) x = 0.1 and (b) x = 0.2).

3.2. Morphological study

The morphological characteristics of the LASMO samples were investigated using SEM, a high-resolution technique that reveals surface features and particle distribution. Fig. 2 shows SEM micrographs of the silver-doped samples with compositions x = 0.1 (Fig. 2a) and x = 0.2 (Fig. 2b), both imaged at the same magnification for direct comparison. The micrographs reveal that the samples are composed of densely packed agglomerates of crystallites, suggesting a compact and interconnected microstructure, which is favorable for enhanced transport properties.¹³⁷ Both compositions exhibit relatively uniform morphology, with consistently distributed grains across the observed areas. Notably, the silver-doped samples display slightly larger grain sizes than the undoped LaSrMn₂O₅ parent compound, which typically shows finer particles. Based on SEM image analysis, the average grain sizes were estimated to be around 258 nm for the x = 0.1 sample and 238 nm for the x = 0.2 sample, respectively. These subtle variations in grain size may be attributed to the influence of Ag doping on the growth kinetics during the synthesis process, potentially promoting grain coarsening at lower doping levels.

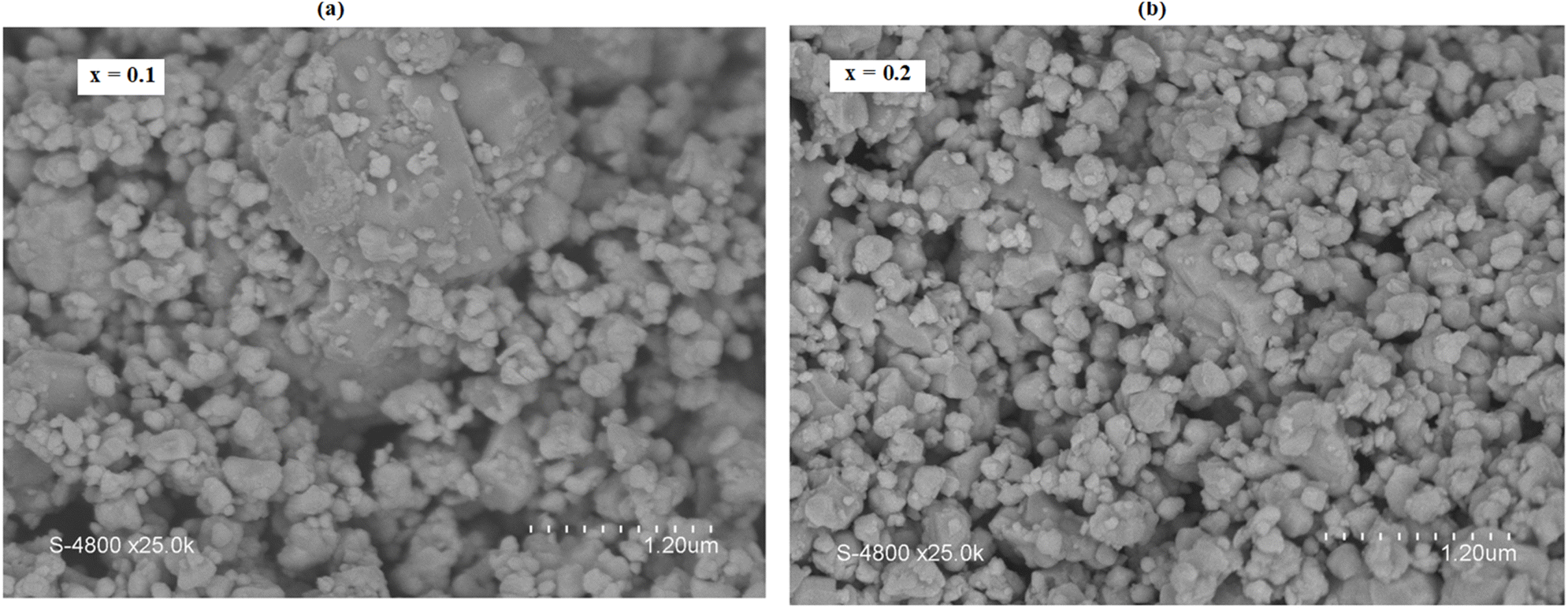

Fig. 2 SEM micrographs of the LASMO series: (a and b) respectively for compositions x = 0.1 and x = 0.2.

3.3. Structural study by X-ray diffraction

X-ray diffraction patterns of LASMO compounds with doping levels x = 0.1 and 0.2 were collected at ambient temperature across a 2θ range of 20° to 91°, using a step size of 0.016°. The measurements were performed with Cu Kα radiation (λ = 1.54051 Å) as the X-ray source. Structural refinement of the recorded diffraction data was carried out using the Rietveld method implemented in the FullProf software suite.¹³⁸ The XRD analysis confirmed that all samples crystallize in a single-phase orthorhombic structure, consistent with the Pnma space group. During refinement, atomic positions and isotropic displacement parameters were incrementally optimized. However, the thermal vibration parameters for oxygen atoms could not be accurately determined due to limitations inherent in X-ray scattering from light elements. The refinement process yielded a strong correlation between the experimental and calculated diffraction patterns, as illustrated in Fig. 3. The refined structural parameters, including lattice constants, atomic coordinates, and residual factors (R_B, R_F, and χ²), are summarized in Table 1, indicating good fit quality and structural consistency across the series.

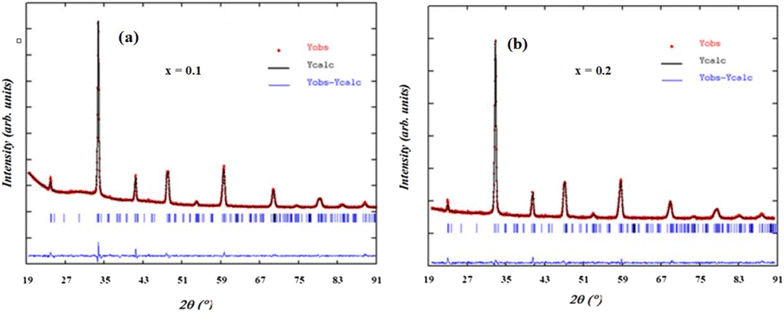

Fig. 3 Calculated, observed, and difference X-ray diffraction patterns for La_1−xAg_xSrMn₂O_5+δ ((a) x = 0.1 and (b) x = 0.2).

Table 1 Structural parameters of La_1−xAg_xSrMn₂O_5+δ (x = 0.1 and x = 0.2) compounds obtained as a result of structural refinement by the Rietveld method

Samples	a (Å)	b (Å)	c (Å)	V (Å^3)	RB (%)	RF (%)	χ^2
x = 0.1	5.450(5)	15.410(2)	5.495(7)	462.110(1)	4.6	1.4	1.5
x = 0.2	5.456(1)	15.409(5)	5.497(5)	462.206(5)	3.8	5.2	1.8

---

The incorporation of silver ions in place of lanthanum does not induce a structural phase transition in the LASMO compounds; however, it does significantly influence the lattice parameters. The observed changes in lattice constants with increasing Ag content can primarily be attributed to differences in ionic radii. As silver concentration increases, the lattice parameters a and c exhibit an upward trend, while parameter b decreases slightly. This anisotropic behavior results in an overall increase in the unit cell volume as the Ag substitution level rises. While the enlargement of the lattice can be partially explained by the larger ionic radius of Ag⁺ (1.42 Å) compared to La³⁺ (1.36 Å),¹³⁹ additional factors must be considered. Notably, silver doping may also influence the Mn valence state by increasing the concentration of Mn⁴⁺ ions, because of Ag⁺ substituting La³⁺ at the A-site. This compensatory increase in Mn⁴⁺ alters the Mn³⁺/Mn⁴⁺ ratio, which helps maintain charge neutrality. Since Mn³⁺ ions contribute more strongly to Jahn–Teller distortions than Mn⁴⁺, changes in their relative abundance can subtly influence lattice dimensions and local structural distortions. It is worth noting that the lattice parameter b values reported here (∼15.41 Å) are approximately double the conventional Pnma cell dimension (typically ∼7.7 Å). This is due to the use of a doubled unit cell setting along the b-axis, which is commonly employed for layered perovskite structures and allows for the accommodation of potential superstructure effects, such as cation ordering, oxygen-vacancy modulation, or A-site layer alternation. This approach has been widely used in structurally similar manganites and is justified here by the observed reflection splitting and satisfactory Rietveld refinement indicators. It should be emphasized that this unit cell doubling along the b-axis does not indicate the formation of a double perovskite structure (A₂BB′O₆ type), as no B-site ordering or structural symmetry change was observed in the XRD patterns. X-ray powder diffraction is also an effective technique for determining the average crystallite size, often referred to as the coherent domain size, as well as for assessing lattice defects through analysis of peak broadening. Additionally, the average grain size of the material was estimated using the XRD peaks and the Scherer formula.¹⁴⁰

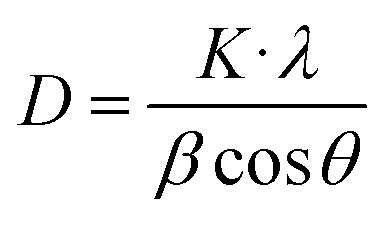

In this equation, K is a constant (0.89), D represents the average crystallite size, λ denotes the X-ray wavelength (1.54051 Å), β is the full width at half maximum (FWHM) of the diffraction peak, and θ is the Bragg diffraction angle corresponding to that peak. The calculated average crystallite sizes (D) were found to be 31.9 nm for the sample with x = 0.1 and 28.2 nm for x = 0.2, indicating that an increase in Ag content leads to a reduction in crystallite size. It is noteworthy that the particle sizes determined by SEM are larger than these crystallite dimensions. This discrepancy suggests that each particle observed under SEM comprises multiple crystallites, likely aggregated due to internal interactions or defects such as vacancies and dislocations.

3.4. Magnetic properties

Magnetic measurements as a function of temperature were carried out using a SQUID magnetometer. An external magnetic field of 0.05 T was applied while recording data over a temperature range from 5 K to 400 K. From these measurements, the ferromagnetic-to-paramagnetic transition temperature (T_C) was determined by analyzing the derivative curves (dM/dT) as a function of temperature under the applied field. The observed width of this magnetic transition is influenced by the magnitude of the applied field; theoretically, T_C is defined as the temperature at which spontaneous magnetization emerges in the absence of an external field. However, because a field must be applied to obtain a measurable signal, it inevitably induces a magnetic moment above the intrinsic transition temperature, resulting in a broader transition profile. To balance these effects, we selected a field strength of 0.05 T sufficiently low to minimize transition broadening while still providing a significant magnetization signal.

To investigate the magnetic behavior of our samples, magnetization measurements were conducted as a function of temperature. Fig. 4 illustrates the thermal evolution of magnetization under an applied magnetic field of 0.05 T for La_1−xAg_xSrMn₂O_5+δ compounds with x = 0.1 and 0.2. As the temperature decreases, the magnetization curves clearly indicate a transition from the paramagnetic to the ferromagnetic state, with transition temperatures around 365 K, 366 K, and 367 K. The precise T_C marking the shift from the ferromagnetically ordered phase to the paramagnetic phase was determined from the derivative curves of magnetization with respect to temperature, as shown in Fig. 5. Notably, our time-dependent magnetization measurements reveal that T_C remains essentially constant across the different compounds. Interestingly, at low temperatures, a decline in magnetization is observed, which has been attributed to the formation of antiferromagnetic domains and/or the emergence of a charge-ordered phase. Additionally, Fig. 6 displays the M(H) isotherms for LASMO samples (x = 0, 0.1, and 0.2), recorded over a temperature range of 10 to 390 K with applied magnetic fields varying from 0 to 5 T.

Fig. 4 Variation of the magnetization as a function of temperature for x = 0, x = 0.1 and x = 0.2.

Fig. 5 Variation of the derivative of the magnetization (dM/dT) as a function of the temperature, of the compounds La_1−xAg_xSrMn₂O_5+δ for x = 0.1 and 0.2.

Fig. 6 Magnetization versus magnetic applied field at various temperatures for the samples La_1−xAg_xSrMn₂O_5+δ with x = 0, x = 0.1 and x = 0.2.

The M(H) isotherms further verify the ferromagnetic nature of the samples at low temperatures. For temperatures below T_C, the magnetization increases sharply and quickly reaches saturation under only a weak applied field. In contrast, when T exceeds T_C, the material exhibits paramagnetic behavior, resulting in nearly linear magnetization curves as the field varies. The saturation magnetization values are approximately 5.4 μ_B per Mn for x = 0.1 and 4.2 μ_B per Mn for x = 0.2 (see Fig. 6). This reduction in saturation magnetization with higher Ag content is likely due to an enhanced presence of antiferromagnetic or charge-ordered states, which favor antiferromagnetic coupling at low temperatures.

Fig. 7 shows a typical curve of the variation of M² versus H/M (Arrott curves) for the compound LASMO (x = 0.1 and x = 0.2). We notice that, for T < T_C, all samples present isotherms with positive slopes which implies that the ferromagnetic–paramagnetic transition is of the second order. The Arrott curves also allow to determine the Curie temperature from the isotherm passing through the origin. The value of the Curie temperature T_C deduced from these Arott curves is very close to that deduced from the M(T) curve. The observed nanometric grain sizes are expected to affect the magnetic behavior of the LASMO samples. Reduced grain dimensions can lead to enhanced surface to volume ratios, which in turn increase the influence of surface spin disorder and grain boundary effects. These factors can suppress long-range ferromagnetic ordering, contributing to the observed decrease in saturation magnetization with increasing Ag content. Additionally, nanoscale effects may promote magnetic inhomogeneities or spin frustration, which could also explain the subtle low-temperature anomalies suggestive of competing magnetic interactions. Therefore, both chemical doping and nanoscale morphology likely act in concert to shape the overall magnetic response of these compounds. In addition, Ag⁺ substitution is expected to increase Mn⁴⁺ concentration and modify the Mn³⁺/Mn⁴⁺ ratio, the Curie temperature remains nearly unchanged across the doping range. This could be due to a compensation between increased hole doping and structural effects such as lattice distortions or changes in bond angles, which moderate the net effect on double exchange interactions. Further investigation, including direct oxygen stoichiometry measurements and electronic structure analysis, is necessary to fully understand this magnetic stability.

Fig. 7 Arrott curves for La_1−xAg_xSrMn₂O_5+δ with x = 0, x = 0.1 and x = 0.2.

3.5. Study of the magnetocaloric effect

Magnetic entropy, which plays a crucial role in the magnetocaloric effect (MCE), can be determined from magnetization isotherms recorded under varying applied magnetic fields. According to classical thermodynamic principles, the magnetic entropy is linked to magnetization (M), external magnetic field (μ₀H), and absolute temperature (T) through the Maxwell relation:^141,142

To avoid the challenges of direct adiabatic measurements, we derived magnetic entropy change (ΔS_m) from isothermal magnetization data. The entropy change, corresponding to a field variation from 0 to H_max, is computed using:

The MCE refers to the reversible thermal change observed when a magnetic material undergoes a transition from an ordered ferromagnetic (FM) to a disordered paramagnetic (PM) state. Near the Curie temperature (T_C), this leads to a peak in magnetic entropy change.

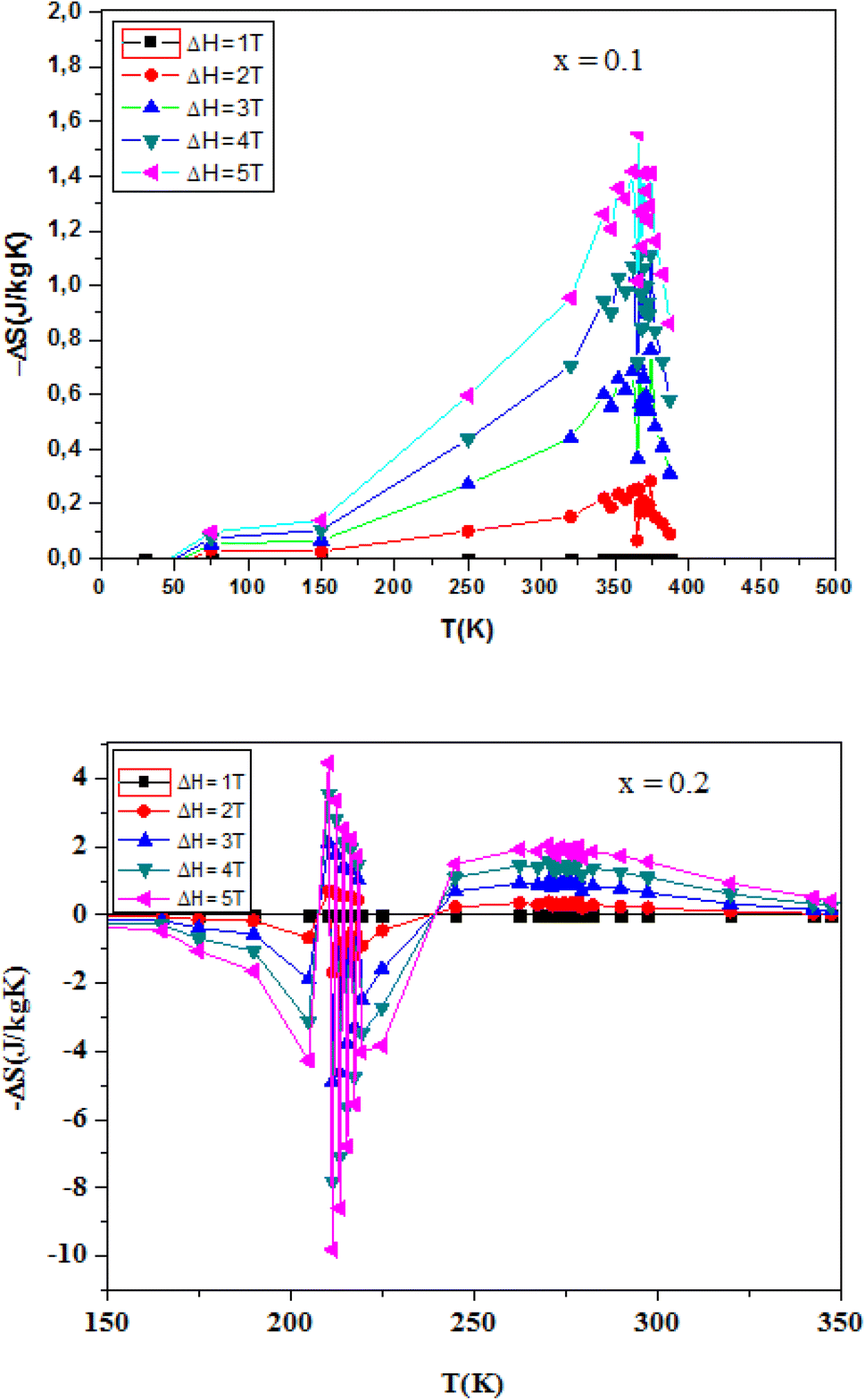

Fig. 8 illustrates the temperature dependence of the absolute magnetic entropy change |ΔS_m| for La_1−xAg_xSrMn₂O_5+δ compounds with x = 0.0, 0.1, and 0.2, under different applied magnetic fields. For comparison, the undoped parent compound (x = 0) was also analyzed under the same conditions. The peak value of ΔS^max_M is observed near T_C and increases with field strength. The results show that ΔS^max_M increases systematically with Ag content: 1.28 J kg⁻¹ K⁻¹ for x = 0, 1.55 J kg⁻¹ K⁻¹ for x = 0.1, and 2.07 J kg⁻¹ K⁻¹ for x = 0.2 under an applied field of 5 T. These values are relatively high compared to other manganites, indicating enhanced fluctuations in magnetic order near the FM–PM transition.

Fig. 8 Variation of the magnetic entropy as a function of the temperature and the magnetic field of the compounds La_1−xAg_xSrMn₂O_5+δ (x = 0.1 and x = 0.2).

While the value of ΔS^max_M is an important parameter, it does not fully characterize a material's refrigeration efficiency. The relative cooling power (RCP) which accounts for both the magnitude and breadth of the entropy change is equally crucial. RCP is calculated as:

RCP = |ΔS^max_M|δT^FWHM (4)

where δT_FWHM represents the width of the ΔS_M peak at half maximum.

Table 2 summarizes the ΔS^max_M, δT^FWHM, and RCP values for the samples at 5 T. Interestingly, although the Ag-doped samples show higher ΔS^max_M values, the undoped sample (x = 0) exhibits the highest RCP (177.12 J kg⁻¹) due to its broader ΔS_m peak. This highlights a trade-off between entropy magnitude and working temperature range, both of which are critical for real-world refrigeration applications. Overall, the LASMO compounds demonstrate promising MCE properties and tunability via silver substitution. These observations suggest that Ag substitution not only enhances the magnetic entropy change but also modifies the temperature span over which the effect occurs, likely due to alterations in the Mn³⁺/Mn⁴⁺ ratio and exchange interactions. The broader ΔS_m peak observed in the undoped sample may be indicative of more gradual magnetic transitions, while the sharper, higher peaks in Ag-doped compositions reflect stronger but narrower thermal responses. This tunability of MCE characteristics via compositional control offers valuable flexibility for optimizing materials based on specific operational requirements, such as compactness, thermal stability, or operating temperature range in practical systems. Moreover, the relatively high RCP and |ΔS_m| values across all compositions underscore the robustness of the layered structure in sustaining significant magnetothermal responses.

Table 2 RCP values for La_1−xAg_xSrMn₂O_5+δ (x = 0, 0.1 and x = 0.2) samples

Composition	|ΔS^maxM| (J kg^−1 K^−1)	δT^FWHM (K)	RCP (J kg^−1)
LaSrMn2O5+δ	1.28	136.5	174.72
La0.9Ag0.1SrMn2O5+δ	1.55	106.1	164.455
La0.8Ag0.2SrMn2O5+δ	2.07	72.5	150.207

---

4. Conclusion

The La_1−xAg_xSrMn₂O_5+δ samples were successfully synthesized via the solid-state reaction method and systematically characterized through structural, morphological, and magnetic analyses. X-ray diffraction, combined with Rietveld refinement, confirmed that all compounds crystallize in a single-phase orthorhombic structure with space group Pnma, without any detectable structural phase transition upon Ag substitution. SEM analysis revealed densely packed crystallites with slight grain coarsening in Ag-doped samples. Magnetic measurements showed that all compositions undergo a second-order paramagnetic–ferromagnetic (PM–FM) transition.

The saturation magnetization was found to decrease with increasing Ag content, while the magnetic entropy change (−ΔS_m) increased, accompanied by a reduction in relative cooling power (RCP). These trends are consistent with enhanced double exchange interactions and altered Mn valence distribution due to Ag incorporation. While the oxygen non-stoichiometry (δ) was not determined in this study, it is anticipated to influence the Mn³⁺/Mn⁴⁺ ratio and, consequently, the material's magnetic and electronic behavior. Future investigations will focus on quantifying δ to better understand its impact on the structure of property relationships in these systems. Overall, the results suggest that Ag-doped LASMO compounds possess promising magnetocaloric properties and could serve as potential candidates for magnetic refrigeration applications.

Data availability

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Author contributions

Sonia Soltani: conceptualization, methodology, supervision, writing – original draft. Mokhtar Hjiri: experimental design, data curation, formal analysis, writing – review & editing. Abdullah M. Aldukhayel: investigation, resources, validation. Manel Essid: characterization (XRD, SEM), data interpretation. Anouar Jbeli: magnetic measurements, data analysis. Nouf Ahmed Althumairi: funding acquisition, project administration, writing review & editing. All authors have read and agreed to the published version of the manuscript.

Conflicts of interest

The authors declare that they have no conflict of interest related to this work.

Acknowledgements

The authors extend their appreciation to the Deanship of Research and Graduate Studies at King Khalid University for funding this work through Large Research Project under grant number RGP2/148/46.

References

1. J.-yu Yang, et al., Retracted Article: The PI3K/Akt and NF-κB signaling pathways are involved in the protective effects of Lithocarpus polystachyus (sweet tea) on APAP-induced oxidative stress injury in mice, RSC Adv., 2020, 10(31), 18044–18053.
2. G. Huang, et al., Isolation and Identification of Chemical Constituents from Zhideke Granules by Ultra-Performance Liquid Chromatography Coupled with Mass Spectrometry, J. Anal. Methods Chem., 2020, 1(2020), 8889607.
3. X. Sui, et al., High spatial resolution recording of near-infrared hologram based on photo-induced phase transition of vanadium dioxide film, Opt. Lett., 2015, 40(7), 1595–1598.
4. S. Xiu-Bao, et al., Research on the response model of microbolometer, Chin. Phys. B, 2010, 19(10), 108702.
5. X. Sui, et al., Response model of resistance-type microbolometer, Opt. Rev., 2010, 17, 525–531.
6. X. Sui, et al., Multi-sampling and filtering technology of IRFPA, Optik, 2011, 122(12), 1037–1041.
7. X. Sui, Q. Chen and G. Gu, Adaptive bias voltage driving technique of uncooled infrared focal plane array, Optik, 2013, 124(20), 4274–4277.
8. Y. Zhiquan, et al., Types and space distribution characteristics of debris flow disasters along China-Pakistan Highway, Electron. J. Geotech. Eng., 2016, 21, 191–200.
9. J. Gao, Friction coefficient estimation of the clutch in automatic transmission based on improved persistent excitation condition, 2017 Chinese Automation Congress (CAC), IEEE, 2017.
10. Wu Zhengzhi, et al., Preliminary studies on diagnostic cast of peptic ulcer based on saliva proteome and bioinformatics, 2011 4th International Conference on Biomedical Engineering and Informatics (BMEI), IEEE, 2011, vol. 3.
11. Z.-zhi Wu, et al., Preliminary study on saliva proteomics of different furs in digestive system diseases, 2009 IEEE International Symposium on IT in Medicine & Education, IEEE, 2009, vol. 1.
12. Z.-zhi Wu, et al., Effect of Natural Brain-Kenetine on variance of Gene expression profiles in MSC and hippocampus of AD rats analyzed by Gene chips and bioinformatics techniques, 2008 IEEE International Symposium on IT in Medicine and Education, IEEE, 2008.
13. A. C. J. Huango, et al., Natural cerebrolysin induces neuronal differentiation in bone marrow mesenchymal stem cells, Neural Regener. Res., 2009, 4, 178–185.
14. Z. Wu, et al., Study on relationship between the thickness of tongue fur and the expressions of apoptosis-related genes of the tongue epithelial cells in patients with diseases of the digestive system, J. Tradit. Chin. Med., 2007, 27(2), 148–152.
15. Z. WU, et al., Quantitative study of tiantai I on superoxidative dismutase and lipofuscin in relevant cerebral areas of spontaneous Alzheimer disease in mice, Chin. J. Tissue Eng. Res., 2005, 178–181.
16. Z.-Z. Wu, Effects of Tiantai No. 1 on relative neuropeptides of spontaneous aged dementia mice, Chin. J. Neurosci., 2004, 20, 167–170.
17. W. U. Zhengzhi, L. I. Ming and J. I. A. Xiuqin, Changes of neuronal nitric oxide synthase in relevant cerebral regions in spontaneous senile dementia model and regulation of Tiantai I, Chin. J. Tissue Eng. Res., 2005, 244–247.
18. C. Wang, et al., On-demand airport slot management: tree-structured capacity profile and coadapted fire-break setting and slot allocation, Transp. A: Transp. Sci., 2024, 1–35.
19. D. Ye, et al., PO-SRPP: A decentralized pivoting path planning method for self-reconfigurable satellites, IEEE Trans. Ind. Electron., 2024, 71(11), 14318–14327.
20. Y. Xiao, Y. Yang, D. Ye and J. Zhang, Quantitative precision second-order temporal transformation-based pose control for spacecraft proximity operations, IEEE Trans. Aerosp. Electron. Syst., 2025, 61(2), 1931–1941.
21. Y. Xiao, Y. Yang, D. Ye and Y. Zhao, Scaling-transformation based attitude tracking control for rigid spacecraft with prescribed time and prescribed bound, IEEE Trans. Aerosp. Electron. Syst., 2025, 61(1), 433–442.
22. H. H. Zhang, et al., 5G base station antenna array with heatsink radome, IEEE Trans. Antennas Propag., 2024, 72(3), 2270–2278.
23. H. Lv, J. Zeng, Z. Zhu, S. Dong and W. Li, Study on prestress distribution and structural performance of heptagonal six-five-strut alternated cable dome with inner hole, Structures, 2024, 65, 106724.
24. J. Du, et al., Solidification microstructure reconstruction and its effects on phase transformation, grain boundary transformation mechanism, and mechanical properties of TC4 alloy welded joint, Metall. Mater. Trans. A, 2024, 55(4), 1193–1206.
25. S. Lv, et al., Effect of axial misalignment on the microstructure, mechanical, and corrosion properties of magnetically impelled arc butt welding joint, Mater. Today Commun., 2024, 40, 109866.
26. T. Yue, et al., Monascus pigment-protected bone marrow-derived stem cells for heart failure treatment, Bioact. Mater., 2024, 42, 270–283.
27. Y. Hou, et al., Assortative mating on blood type: Evidence from one million Chinese pregnancies, Proc. Natl. Acad. Sci. U. S. A., 2022, 119.51, e2209643119.
28. Provably Efficient Service Function Chain Embedding and Protection in Edge Networks.
29. X. Yi, R. Zhao and Y. Lin, The impact of nighttime car body lighting on pedestrians' distraction: A virtual reality simulation based on bottom-up attention mechanism, Saf. Sci., 2024, 180, 106633.
30. H. Liao, et al., Ropinirole suppresses LPS-induced periodontal inflammation by inhibiting the NAT10 in an ac4C-dependent manner, BMC Oral Health, 2024, 24(1), 510.
31. Z. Zhang, M. Lin, D. Li, R. Wu, R. Lin and C. Yang, An AUV-Enabled Dockable Platform for Long-Term Dynamic and Static Monitoring of Marine Pastures, IEEE J. Ocean. Eng., 2025, 50(1), 276–293.
32. B. Zhu, et al., KNN-based single crystal high frequency transducer for intravascular photoacoustic imaging, 2017 IEEE International Ultrasonics Symposium (IUS), IEEE, 2017.
33. B. P. Zhu, et al., Lead zirconate titanate thick film with enhanced electrical properties for high frequency transducer applications, Appl. Phys. Lett., 2008, 93(1), 012905.
34. Li-C. Zhao, et al., Fast and Sensitive LC-DAD-ESI/MS Method for Analysis of Saikosaponins c, a, and d from the Roots of Bupleurum Falcatum (Sandaochaihu), Molecules, 2011, 16(2), 1533–1543.
35. L. Zhao, et al., Rubidium salt can effectively relieve the symptoms of DSS-induced ulcerative colitis, Biomed. Pharmacother., 2024, 181, 117574.
36. L. Zhao, et al., Effect of Cyclocarya paliurus on hypoglycemic effect in type 2 diabetic mice, Medical science monitor: internatioXiu-Bao, Sui, et al., Research on the response model of microbolometer, Chin. Phys. B, 2019, 19(10), 2976.
37. S.-X. Yang, et al., Extraction of flavonoids from Cyclocarya paliurus (Juglandaceae) leaves using ethanol/salt aqueous two-phase system coupled with ultrasonic, J. Food Process. Preserv., 2020, 44(6), e14469.
38. Z. Wu, et al., Influence of Tiantai No. 1 Recipe on learning and memory function of spontaneous Alzheimer disease models, Chin. J. Tissue Eng. Res., 2005, 180–181.
39. Z. Wu, et al., Effects of serum containing natural cerebrolysin on glucose-regulated protein 78 and CCAAT enhancer-binding protein homologous protein expression in neuronal PC12 cells following tunicamycin-induced endoplasmic reticulum stress, Neural Regener. Res., 2009, 4(2), 92–97.
40. Z. Z. WU, et al., Effect of Tiantai No. 1 on beta-amyloid-induced neurotoxicity and NF-kappa B and cAMP responsive element-binding protein, Chin. J. Integr. Med., 2008, 14(4), 286–292.
41. Z. Wu, et al., Study on saliva proteome and bioinformatics in patients with chronic gastritis, 2011 IEEE International Symposium on IT in Medicine and Education, IEEE, 2011, vol. 1.
42. F.-juan Huang, and Z.-zhi Wu., From unusual sequences to human diseases, Medicine Sciences and Bioengineering: Proceedings of the 2014 International Conference on Medicine Sciences and Bioengineering (ICMSB2014), Kunming, Yunnan, China, August 16-17, 2014, CRC Press, 2015.
43. G. Tian, et al., Leg-bathing in decoction in treating rheumatism, experimented on rats and demonstrated by visualization of knee joint synovium, Acta Med. Mediterr., 2016, 32(6), 1873–1879.
44. G. Tian, et al., Evidence-based traditional Chinese medicine research: two decades of development, its impact, and breakthrough, J. Evid. Base Med., 2021, 14(1), 65–74.
45. G.-H. Tian, et al., Electroacupuncture treatment alleviates central poststroke pain by inhibiting brain neuronal apoptosis and aberrant astrocyte activation, Neural Plast., 2016, 1(2016), 1437148.
46. G. Tian, et al., Therapeutic effects of wenxin keli in cardiovascular diseases: an experimental and mechanism overview, Front. Pharmacol., 2018, 9, 1005.
47. G.-H. Tian, et al., Long-term stimulation with electroacupuncture at DU20 and ST36 rescues hippocampal neuron through attenuating cerebral blood flow in spontaneously hypertensive rats, J. Evidence-Based Complementary Altern. Med., 2013, 1, 482947.
48. G. Tian, et al., Can a holistic view facilitate the development of intelligent traditional Chinese medicine? A survey, IEEE Trans. Comput. Soc. Syst., 2023, 10(2), 700–713.
49. J. Zhai, et al., Acupuncture for constipation in patients with stroke: protocol of a systematic review and meta-analysis, BMJ Open, 2018, 8(3), e020400.
50. Y. Wu, et al., Causal association between circulating inflammatory markers and sciatica development: a Mendelian randomization study, Front. Neurol., 2024, 15, 1380719.
51. Yi-Yi Lin, et al., Effect of Siegesbeckiae Herba in treating chronic pain, China J. Chin. Mater. Med., 2020, 45(8), 1851–1858.
52. Yi Lin, et al., Acupuncture combined with Chinese herbal medicine for discogenic low back pain: protocol for a multicentre, randomised controlled trial, BMJ Open, 2024, 14(11), e088898.
53. J. J. Yang, Analysis of clinical medication characteristics of zedoary turmeric oil injection based on real world data, Chin. J. New Drugs, 2023, 32(5), 547–552.
54. X. Li, et al., The analgesic mechanism of Xi Shao Formula research on neuropathic pain based on metabolomics, J. Tradit. Chin. Med. Sci., 2023, 10(4), 448–460.
55. X.-Yi Li, et al., Medication rules of traditional Chinese medicine compounds for pain, Zhongguo Zhongyao Zazhi, 2023, 3386–3393.
56. D. Xiang, et al., HCMPE-Net: an unsupervised network for underwater image restoration with multi-parameter estimation based on homology constraint, Opt Laser. Technol., 2025, 186, 112616.
57. D. Xiang, et al., HCMPE-Net: an unsupervised network for underwater image restoration with multi-parameter estimation based on homology constraint, Opt Laser. Technol., 2025, 186, 112616.
58. M. Feng, C. Yan, Z. Wu, W. Dong, Y. Wang and A. Mian, History-enhanced 3D scene graph reasoning from RGB-D sequences, IEEE Trans. Circ. Syst. Video Technol., 2025 DOI:10.1109/TCSVT.2025.3548308.
59. Y. Yu, et al., CrowdFPN: crowd counting via scale-enhanced and location-aware feature pyramid network, Appl. Intell., 2025, 55(5), 1–13.
60. Y. Guan, Z. Cui and W. Zhou, Reconstruction in off-axis digital holography based on hybrid clustering and the fractional Fourier transform, Opt Laser. Technol., 2025, 186, 112622.
61. Z. L. Ni, et al., Numerical Analysis of Ultrasonic Spot Welding of Cu/Cu Joints, J. Mater. Eng. Perform., 2025, 1–12.
62. M.-X. Zhang, et al., Technical performance, surgical workload and patient outcomes of robotic and laparoscopic surgery for pediatric choledochal cyst: a multicenter retrospective cohort and propensity score-matched study, Hepatobiliary Surg. Nutr., 2025, https://hbsn.amegroups.org/article/view/135228.
63. M. Zhang, et al., Robotic-Assisted Proctosigmoidectomy vs. Laparoscopic-Assisted Soave Pull-Through for Hirschsprung's Disease: Medium-Term Outcomes From a Prospective Multicenter Study, Ann. Surg., 2023, 10–1097.
64. Y. Huang, et al., Travel and regional development: a quantitative analysis of China, J. Reg. Sci., 2025 DOI:10.1111/jors.12760.
65. Z. Ni, et al., Improving the weldability and mechanical property of ultrasonic spot welding of Cu sheets through a surface gradient structure, J. Mater. Res. Technol., 2025, 36, 2652–2668.
66. Z. Yu, et al., A generalized Faustmann model with multiple carbon pools, For. Pol. Econ., 2024, 169, 103363.
67. X. Xiang, et al., Flavor profile of 4-isothiocyanato-1-butene in microwave rapeseed oil and its anti-inflammatory properties in vitro, J. Agric. Food Chem., 2025, 73(17), 10520–10530.
68. Z. Yu, et al., Optimal harvest decisions for the management of carbon sequestration forests under price uncertainty and risk preferences, For. Pol. Econ., 2023, 151, 102957.
69. J. Xu, et al., Study on fuel injection stability improvement in marine low-speed dual-fuel engines, Appl. Therm. Eng., 2024, 253, 123729.
70. Y. Nie, C. Ji and H. Yang, The forest ecological footprint distribution of Chinese log imports, For. Pol. Econ., 2010, 12(3), 231–235.
71. J. Sheng, R. Ding and H. Yang, Corporate green innovation in an aging population: Evidence from Chinese listed companies, Technol. Forecast. Soc. Change, 2024, 202, 123307.
72. T. Peng, Z. Ning and H. Yang, Embodied CO2 in China's trade of harvested wood products based on an MRIO model, Ecol. Indic., 2022, 137, 108742.
73. S. Zhang, Y. Yang and H. Yang, A meshless symplectic algorithm for nonlinear wave equation using highly accurate RBFs quasi-interpolation, Appl. Math. Comput., 2017, 314, 110–120.
74. J. Sheng, R. Zhang and H. Yang, Inter-basin water transfers and water rebound effects: The South-North water transfer Project in China, J. Hydrol., 2024, 638, 131516.
75. R. Fei, et al., Deep core node information embedding on networks with missing edges for community detection, Inf. Sci., 2025, 707, 122039.
76. T. Qiu, et al., Electrochemistry and DFT study of galvanic interaction on the surface of monoclinic pyrrhotite (0 0 1) and galena (1 0 0), Int. J. Min. Sci. Technol., 2024, 34(8), 1151–1162.
77. H. Yan, et al., Adsorption mechanism of hydrated Lu (OH) ²⁺ and Al (OH)²⁺ ions on the surface of kaolinite, Powder Technol., 2022, 407, 117611.
78. S. Qiu, et al., Theoretical investigation of hydrated [Lu (OH) 2]⁺ adsorption on kaolinite (0 0 1) surface with DFT calculations, Appl. Surf. Sci., 2021, 565, 150473.
79. D. Zhu, et al., Molecular dynamics simulation of aluminum inhibited leaching during ion-adsorbed type rare earth ore leaching process, J. Rare Earths, 2019, 37(12), 1334–1340.
80. S. Qiu, et al., Investigation of protonation and deprotonation processes of kaolinite and its effect on the adsorption stability of rare earth elements, Colloids Surf., A, 2022, 642, 128596.
81. H. Yan, et al., Compound leaching behavior and regularity of ionic rare earth ore, Powder Technol., 2018, 333, 106–114.
82. D. Zhang, et al., Investigation of injection and flow characteristics in an electronic injector featuring a novel control valve, Energy Convers. Manage., 2025, 327, 119609.
83. M. Feng, C. Yan, Z. Wu, W. Dong, Y. Wang and A. Mian, Hyperrectangle embedding for debiased 3D scene graph prediction from RGB sequences, IEEE Trans. Pattern Anal. Mach. Intell., 2025 DOI:10.1109/TPAMI.2025.3560090.
84. Li-Na Ding, et al., A GDSL motif-containing lipase modulates Sclerotinia sclerotiorum resistance in Brassica napus, Plant Physiol., 2024, 196(4), 2973–2988.
85. Y.-Z. Wu, et al., Antimicrobial peptides: classification, mechanism, and application in plant disease resistance, Probiotics Antimicrob. Proteins, 2025, 1–15.
86. Z. Chen, et al., Dynamic model and vibration of rack vehicle on curve line, Veh. Syst. Dyn., 2025, 1–19.
87. Z. Chen, et al., Creep behaviour between resilient wheels and rails in a metro system, Veh. Syst. Dyn., 2025, 1–21.
88. F. Qindong, et al., Coupling coordination analysis of urban social vulnerability and human activity intensity, Environ. Res. Commun., 2025, 7(3), 035009.
89. F. Qindong, Q. Lu and X. Yang, Spatiotemporal assessment of recreation ecosystem service flow from green spaces in Zhengzhou's main urban area, Humanit. Soc. Sci. Commun., 2025, 12(1), 1–14.
90. Q. Long, et al., Influence mechanism of leaching agent anions on the leaching of aluminium impurities in ionic-type rare earth ores: A DFT simulation combined with experimental verification, Sep. Purif. Technol., 2025, 354, 128768.
91. X. Qin, et al., Simulation and design of T-shaped barrier tops including periodic split ring resonator arrays for increased noise reduction, Appl. Acoust., 2025, 236, 110751.
92. H. Yang, X. Zhang and Y. Hong, Classification, production, and carbon stock of harvested wood products in China from 1961 to 2012, BioResources, 2014, 9(3), 4311–4322.
93. H. Yang and X. Zhang, A rethinking of the production approach in IPCC: its objectiveness in China, Sustainability, 2016, 8(3), 216.
94. H. Yang, et al., A decade trend of total factor productivity of key state-owned forestry enterprises in China, Forests, 2016, 7(5), 97.
95. H. Yang, Y. Nie and C. Ji, Study on China's timber resource shortage and import structure: natural forest protection program outlook, 1998 to 2008, For. Prod. J., 2010, 60(5), 408–414.
96. H. Yang and Li. Xi, Potential variation in opportunity cost estimates for REDD+ and its causes, For. Pol. Econ., 2018, 95, 138–146.
97. Y. Hongqiang, et al., China's wood furniture manufacturing industry: industrial cluster and export competitiveness, For. Prod. J., 2012, 62(3), 214–221.
98. J. Sheng and H. Yang, Collaborative models and uncertain water quality in payments for watershed services: China's Jiuzhou River eco-compensation, Ecosyst. Serv., 2024, 70, 101671.
99. J. Sheng and H. Yang, Linking water markets with payments for watershed services: the eastern route of China's South-North Water Transfer Project, Agric. Water Manag., 2024, 295, 108733.
100. A. Geng, J. Chen and H. Yang, Assessing the greenhouse gas mitigation potential of harvested wood products substitution in China, Environ. Sci. Technol., 2019, 53(3), 1732–1740.
101. A. Geng, H. Zhang and H. Yang, Greenhouse gas reduction and cost efficiency of using wood flooring as an alternative to ceramic tile: A case study in China, J. Clean. Prod., 2017, 166, 438–448.
102. X. Li, X. Zhang and H. Yang, Estimating the opportunity costs of avoiding oil palm-based deforestation in Indonesia: Implications for REDD+, Chin. J. Popul. Resour. Environ., 2020, 18(1), 9–15.
103. X. Yin, et al., Targeted sonodynamic therapy platform for holistic integrative Helicobacter pylori therapy, Adv. Sci., 2025, 12(2), 2408583.
104. D. O. N. G. Yali, High-temperature deformation measurement using optical imaging digital image correlation: Status, challenge and future, Chin. J. Aeronaut., 2025, 103472.
105. Y. Wang, et al., Balancing Intermediates Formation on Atomically Pd-Bridged Cu/Cu₂O Interfaces for Kinetics-Matching Electrocatalytic C–N Coupling Reaction, Angew. Chem., Int. Ed., 2025, e202503011.
106. S. Yu, et al., An inclined groove and its optimization design method for improving the energy performance at the saddle zone of axial flow pumps, Energy, 2025, 136527.
107. J. Li, et al., A simple and efficient three-dimensional spring element model for pore seepage problems, Engineering Analysis with Boundary Elements, 2025, 176, 106225.
108. C. Ma, et al., A multi-scale spatial–temporal interaction fusion network for digital twin-based thermal error compensation in precision machine tools, Expert Syst. Appl., 2025, 127812.
109. H. Wang, et al., Magnetic properties, critical behavior, and magnetocaloric effect of Nd_1−xSr_xMnO₃ (0.2 ≤ x ≤ 0.5): The role of Sr doping concentration, J. Appl. Phys., 2024, 136(9) DOI:10.1063/5.0229032.
110. X. Huang, et al., Effects of Sodium Sources on Nonaqueous Precipitation Synthesis of β′′-Al₂O₃ and Formation Mechanism of Uniform Ionic Channels, Langmuir, 2025 DOI:10.1021/acs.langmuir.4c04641.
111. K. Liu, et al., Pixel-Level Noise Mining for Weakly Supervised Salient Object Detection, IEEE Transact. Neural Networks Learn. Syst., 2025 DOI:10.1109/TNNLS.2025.3575255.
112. B. Bai, et al., Temperature-driven migration of heavy metal Pb²⁺ along with moisture movement in unsaturated soils, Int. J. Heat Mass Transfer, 2020, 153, 119573.
113. B. Bai, et al., A high-strength red mud–fly ash geopolymer and the implications of curing temperature, Powder Technol., 2023, 416, 118242.
114. B. Bai, et al., The remediation efficiency of heavy metal pollutants in water by industrial red mud particle waste, Environ. Technol. Innovation, 2022, 28, 102944.
115. P. Guo, et al., Enhanced iodine capture by nano-copper particles modified benzimidazole-based molded porous carbon, Appl. Surf. Sci., 2025, 163754.
116. Y. Zhao, et al., Frequency insensitive electromagnetic absorption core-shell sandwich structure with excellent electromagnetic damage tolerance, Composites, Part B, 2025, 289, 111946.
117. B. Bai, et al., Corrosion effect of acid/alkali on cementitious red mud-fly ash materials containing heavy metal residues, Environ. Technol. Innovation, 2024, 33, 103485.
118. Y. Zhao, et al., Excellent angular and electrical performance damage tolerance of wave-absorbing laminate via gradient ATA design, Compos. Commun., 2024, 46, 101838.
119. T. Fan, et al., Nucleation and growth of L12-Al3RE particles in aluminum alloys: A first-principles study, J. Rare Earths, 2023, 41(7), 1116–1126.
120. B. Bai, et al., A novel thermodynamic constitutive model of coarse-grained soils considering the particle breakage, Transp. Geotech., 2025, 50, 101462.
121. Y. Zhao, et al., 3D phase gradient induced surface wave torsion metastructure for anomalous electromagnetic damage tolerance, Compos. Sci. Technol., 2025, 111088.
122. B. Bai, et al., Granular Thermodynamic Migration Model Suitable for High-Alkalinity Red Mud Filtrates and Test Verification, Int. J. Numer. Anal. Methods Geomech., 2025 DOI:10.1002/nag.3946.
123. Y. Shen, Q. Lu and Y. Li, Design criterion and analysis of hybrid-excited Vernier reluctance linear machine with slot Halbach PM arrays, IEEE Trans. Ind. Electron., 2022, 70(5), 5074–5084.
124. B. Bai, J. Chen and B. Zhang, Flowing-water remediation simulation experiments of lead-contaminated soil using UCB technology, Int. J. Phytorem., 2025, 27(6), 761–770.
125. B. Bai, et al., A granular thermodynamic framework-based coupled multiphase-substance flow model considering temperature driving effect, J. Rock Mech. Geotech. Eng., 2024 DOI:10.1016/j.jrmge.2024.11.017.
126. B. Bai, et al., A thermodynamic multi-field model for unsaturated sulfate-saline soils considering crystallization process, Comput. Geotech., 2025, 184, 107251.
127. N. Mtiraoui, et al., Magnetic and magnetocaloric properties in Nd_1-3xBa_xCa_x Sr_xMnO₃ (x= 0.11 and 0.133) perovskite manganites, J. Solid State Chem., 2021, 294, 121847.
128. W. Xia, et al., Research progress in rare earth-doped perovskite manganite oxide nanostructures, Nanoscale Res. Lett., 2020, 15(1), 9.
129. F. Tayari, et al., Progress and Developments in the Fabrication and Characterization of Metal Halide Perovskites for Photovoltaic Applications, Nanomaterials, 2025, 15(8), 613.
130. C. N. R. Rao, Novel materials, materials design and synthetic strategies: recent, Trends in Chemistry of Materials: Selected Research Papers of CNR Rao 1, 2008, p. 3.
131. F. Tayari, et al., A Comprehensive Review of Recent Advances in Perovskite Materials: Electrical, Dielectric, and Magnetic Properties, Inorganics, 2025, 13(3), 67.
132. S. Hammouda, Effect of rare earth ion size on ordering processes in rare earth ferrites RFe₂O₄ by R= LuxY_1−xFe₂O₄ substitution study, Diss. Master thesis, Al-Quds University, 2016 (cited on page 17), 2015.
133. T. Gottschall, et al., Making a cool choice: the materials library of magnetic refrigeration, Adv. Energy Mater., 2019, 9(34), 1901322.
134. T. O. Owolabi, et al., Ensemble-based support vector regression with gravitational search algorithm optimization for estimating magnetic relative cooling power of manganite refrigerant in magnetic refrigeration application, J. Supercond. Novel Magn., 2019, 32, 2107–2118.
135. N. Nazir and M. Ikram, Tuning of the structural, morphological, dielectric, and magnetoresistance properties of Gd₂NiMnO₆ double perovskite by Ca doping, Phys. B, 2022, 632, 413734.
136. R. Dhahri, et al., Enhanced electrical and magnetic properties of barium manganese titanium oxide perovskite ceramics synthesized by solid-state reaction, J. Mater. Sci.: Mater. Electron., 2025, 36(1), 30.
137. F. Tayari, et al., Investigating Fe-doped Ba_0.67Ni_0.33Mn_1−xFe_xO₃ (x= 0, 0.2) ceramics: insights into electrical and dielectric behaviors, RSC Adv., 2024, 14(18), 12561–12573.
138. F. Tayari, et al., Crystal Structural Characteristics and Electrical Properties of Novel Sol-Gel Synthesis of Ceramic Bi_0.75Ba_0.25(FeMn)_0.5O₃, Materials, 2024, 15, 3797.
139. R. D. Shannon, Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides, Acta Crystallogr., Sect. A, 1976, A32, 751–767.
140. F. Tayari, et al., Exploring Enhanced Structural and Dielectric Properties in Ag-Doped Sr(NiNb)_0.5O₃ Perovskite Ceramic for Advanced Energy Storage, Ceramics, 2024, 7(3), 958–974.
141. J. S. Amaral, et al., Magnetocaloric effect in Er-and Eu-substituted ferromagnetic La-Sr manganites, J. Magn. Magn. Mater., 2005, 290, 686–689.
142. M. E. McHenry and D. E. Laughlin, Magnetic moment and magnetization, Charact. Mater., 2012, 2, 25.

---
