DOI:
10.1039/D5MA00391A
(Paper)
Mater. Adv., 2025, Advance Article
Insights into structural, luminescence and temperature-dependent emission characteristics of Ca2Al2O5:Dy3+ phosphors for advanced lighting applications†
Received
23rd April 2025
, Accepted 19th June 2025
First published on 7th July 2025
Abstract
This research synthesized and thoroughly examined novel Ca2Al2O5:Dy3+ phosphors to assess their potential for solid-state lighting and temperature-sensing applications. X-ray diffraction (XRD) verified the formation of a cubic phase with Dy3+ ions successfully integrated into the Ca2Al2O5 host lattice. Photoluminescence (PL) analysis showed distinct blue (483 nm), yellow (575 nm), and weak red (663 nm) emissions, corresponding to the 4F9/2 → 6H15/2, 4F9/2 → 6H13/2, and 4F9/2 → 6H11/2 transitions of Dy3+, respectively. The study identified that a 2 mol% concentration of Dy3+ is the ideal doping to achieve optimal luminescence, and the emission falls in the cool white light region. The optical study was used to ascertain the optical band gap, and the band gap of the host matrix decreases upon doping (from 5.01 eV to 4.83 eV) as new defect energy levels appear between the valence band and the conduction band. Temperature-dependent photoluminescence (TDPL) studies demonstrated excellent thermal stability, with the phosphors retaining significant luminescence intensity even at elevated temperatures. These phosphors exhibit appreciable thermal quenching behaviour and possess an activation energy of 0.20051 eV, underscoring their resilience at high temperatures. These results highlight the promising optical performance and thermal durability of Ca2Al2O5:Dy3+ phosphors, making them strong candidates for white LEDs and temperature-sensitive optoelectronic devices.
1. Introduction
Phosphor materials are vital in advancing light-emitting technologies, acting as a key element in fields such as solid-state lighting, display systems, and radiation detection. When activated by different energy sources, including ultraviolet light, heat, or electrical fields, these substances exhibit luminescence, effectively converting energy into visible light. Their high quantum efficiency and customizable emission characteristics make them indispensable in devices like light-emitting diodes (LEDs), fluorescent lamps, and electroluminescent displays. With the increasing demand for energy-efficient lighting solutions, developing high-performance phosphors with robust thermal stability and strong emission intensity has become a primary focus in materials research.1,2
The properties of a phosphor, including its emission wavelength, intensity, afterglow, and thermal quenching behaviour, are influenced by the combination of its host lattice and the dopant ions. Numerous host-dopant pairings have been developed to achieve superior emission qualities. For instance, YAG:Ce3+ is frequently utilized in white LEDs due to its broad yellow emission, which blends with blue light to create white light.3,4 Other significant systems include (Sr,Ca)S:Eu for red emission in fluorescent lamps,5 Zn2SiO4:Mn for use in flat panel displays,6 and BaMgAl10O17:Eu2+ for blue emission in LED displays.7 Long-lasting phosphors like SrAl2O4:Eu2+,Dy3+ are particularly valued for emergency lighting and glow-in-the-dark uses.8–10 Moreover, phosphors based on nitrides11–13 and oxynitrides14–16 are noted for their high quantum efficiency and thermal stability, making them excellent red emitters in LEDs. Similarly, hosts made of silicate,17–19 borate,20–22 aluminate,23,24 vanadate,25–27 and fluoride28–30 when doped with rare-earth ions offer a variety of optical properties suitable for lasers,31,32 displays,33–35 bioimaging,36,37 and up-conversion applications.38–40
Among these, aluminate-based phosphors have gained considerable attention due to their excellent chemical stability, long afterglow, and suitability for high-temperature applications.41,42 There are reports on structural and luminescence properties of Sr4Al14O25:Eu/Dy,41 electronic structure and high-pressure luminescence studies of Sr4Al14O25:Mn,42 JO analysis of LaAlO3:Tm,43 luminescence of LaAlO3:Eu,44 computational and spectroscopic study of Eu/Nd doped MAl2O4 (M = Ca, Sr, Ba), radioluminescence of SrAl2O4:Eu,Sm,Dy,45 emission studies of SrAl2O4:Er,46 Eu/Dy,47,48 CaAl2O4:Eu/Nd,49 Pr,50 Sm,51 thermoluminescence characteristics of CaAl2O4:Dy,Sm,Tm,52 trap depth analysis of CaAl2O4:Tb,53 LaMgAl11O19:Eu,54 temperature dependent luminescence studies of BaMgAl10O17:Ce,Tb,55 luminescence features of BaMgAl10O17:Eu,56–58 Cr,59 BaMgAl10O17:Mn,60 BaMgAl10O17:Eu,Yb,61 BaMgAl10O17:Dy,62 SrMgAl10O17:Eu,Dy,63 SrMgAl10O17:Mn,Eu,64 Ca2Al2O5:Eu,65,66 and mechanoluminescence studies of SrMgAl10O17:Eu67 phosphors.
After thoroughly reviewing the literature, we selected Ca2Al2O5 as the host matrix and Dy3+ as the dopant. Ca2Al2O5 phosphors are renowned for their outstanding thermal and chemical stability, even in high-temperature and challenging environmental conditions. This characteristic makes them ideal for applications involving high-power or high-temperature lighting. The Ca2Al2O5 system can be produced through a cost-effective solid-state method using readily available raw materials (CaCO3 and Al2O3). In contrast to well-known hosts like SrAl2O4 or YAG, Ca2Al2O5 has not been extensively studied, especially in Dy3+ doping. To our knowledge, only one prior study has explored Dy3+ in this host, and it did not provide a comprehensive analysis of structural, luminescence, and temperature-dependent emission properties. Since the studies are limited to Ca2Al2O5:Dy, the present work focuses on the structural, morphological, and luminescence properties along with in-depth analysis of crystallite size, correlation between dopant concentration and luminescence features. Furthermore, the temperature-dependent luminescence characteristics are explored with critical insights into activation energy and FWHM variation. Thermal stability and activation energy contribute to designing and optimizing tools for elevated temperature applications such as solid-state lighting and display applications.
2. Experimental details
2.1 Sample synthesis
The Ca2Al2O5:Dy (CAO–Dy) phosphors were prepared by varying the amount of Dy3+ from 1 mol% to 5 mol%. The precursors CaCO3, Al2O3, and Dy2O3 were taken in stoichiometric ratios and mixed well in a mortar for 45 minutes. To ensure homogenous mixing, we added ethanol while grinding the sample. The mixture was calcined at 1300 °C for 8 hours at a heating rate of 5 °C min−1. The samples were collected after attaining room temperature for further characterization.
2.2 Characterization techniques
The structural studies are conducted using a Rigaku Miniflex 600 (5th generation) device, which employs K-α radiation (λ = 1.54 Å), voltage maintained at 40 kV and current at 15 mA. A SHIMADZU-IRSpirit ATR-FTIR spectrometer is utilized to identify functional groups. The morphology of the samples is analyzed with SEM technique using a Sigma Zeiss instrument. Diffuse reflectance data is gathered with a PerkinElmer Lambda 900 spectrophotometer. The emission characteristics are recorded utilizing a JASCO-FP 8500. The variation in luminescence properties with temperature is obtained with an Agilent Cary Eclipse Fluorescence Spectrophotometer.
3. Results and discussion
3.1 X-ray diffraction (XRD) study
The synthesized samples' phase confirmation and crystal structure are obtained by XRD analysis. Fig. 1(a) shows the XRD peaks of CAO–Dy samples, which match the COD code – 1525613 pattern. There is no appreciable peak shift with changing dopant concentration, and the crystal structure remains unaltered upon doping. Fig. 1(b) shows the crystal structure of the CAO unit cell. The Rietveld refinement was performed to ascertain the lattice parameters, volume, and phase purity (Fig. 1(c)). This analysis indicated the formation of a cubic lattice with space group I
3d, crystal parameters a = b = c = 11.9953 Å, and α = β = γ = 90°, and the volume is 1725.97 Å3. No impurity peaks were observed in the XRD pattern. The reliability factors obtained are Rp: 32% and Rwp: 33%, with structural coordinates and occupation detailed in Table 1. As depicted in Fig. 2(b), the refinement data shows an excellent fit with χ2 = 2.74.
 |

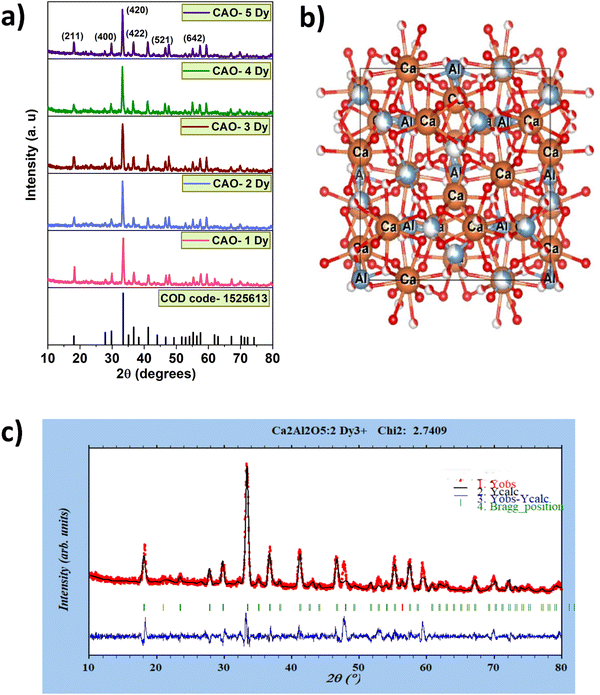

| Fig. 1 (a) XRD pattern of CAO phosphor for varying Dy3+ concentration, and (b) CAO unit cell, (c) Rietveld refinement of CAO–2 Dy sample. | |
Table 1 Sample notation
Chemical formula |
Notation |
Ca2Al2O5:1 mol% Dy |
CAO–1 Dy |
Ca2Al2O5:2 mol% Dy |
CAO–2 Dy |
Ca2Al2O5:3 mol% Dy |
CAO–3 Dy |
Ca2Al2O5:4 mol% Dy |
CAO–4 Dy |
Ca2Al2O5:5 mol% Dy |
CAO–5 Dy |
 |
| Fig. 2 (a)–(e) Crystallite analysis using the SSP method for CAO–Dy samples. | |
To explore the dopant's occupation site, we must focus on the dopant ion's ionic radii and the cation being replaced in the host matrix.68 For each cation and dopant pair for a different coordination number (CN), the acceptable percentage difference value (R) is calculated as per the following equation.
|
 | (1) |
where
Rh is the host cation radius, CN is the coordination number, and
Rd is the radius of the dopant ion. If
R is well below 30%, the substitution of dopant to the respective cationic site is confirmed. The calculation for the
R-value is given in the
Table 2. From
Table 2,
R < 30% for Ca
2+–Dy
3+ combination; hence we can confirm the occupation of dopant ion in Ca
2+ sites.
69,70 The crystallite size of CAO–Dy samples is calculated using the Debye–Scherrer equation and size-strain plot (SSP) approach. The crystallite size affects the diffraction pattern and the luminescence features of phosphors. The crystallite size varies with dopant concentration and is calculated using the following Debye–Scherrer equation
71,72 |
 | (2) |
λ is the X-ray wavelength (1.54 Å),
β is the full-width half maximum of the XRD peak, and
k is a constant taken as 0.9. The crystallite size variation is also determined using the SSP method, where the higher angle reflections are given less weight as they have lower precisions. The Lorentzian function and Gaussian functions are used to illustrate the crystallite size profile and the strain profile, respectively, as per the following equation,
73,74 |
 | (3) |
where
K is 0.75, which depends on the shape of the particles,
ε is the strain,
dhkl is the interplanar spacing. By taking the slope (
K/
D) of (
dhklβhkl![[thin space (1/6-em)]](https://www.rsc.org/images/entities/char_2009.gif)
cos
θ)
2 vs. (
dhkl2βhkl![[thin space (1/6-em)]](https://www.rsc.org/images/entities/char_2009.gif)
cos
θ) graph, the crystallite size can be calculated (
Fig. 2).
Table 3 gives the variation in crystallite size of CAO–Dy phosphors calculated using Debye–Sherrer and SSP methods.
Table 2 R values for different cation-dopant combinations
Ca2+–Dy3+ pair |
CN of Ca2+ |
Rh (CN) |
CN of Dy3+ |
Rd (CN) |
R (%) |
6 |
1 |
6 |
0.912 |
8.8 |
6 |
1 |
8 |
1.027 |
2.7 |
8 |
1.12 |
6 |
0.912 |
18.57 |
8 |
1.12 |
8 |
1.027 |
20.30 |
Al3+–Dy3+ pair |
CN of Al3+ |
Rh (CN) |
CN of Dy3+ |
Rd (CN) |
R (%) |
6 |
0.535 |
6 |
0.912 |
70.40 |
6 |
0.535 |
8 |
1.027 |
91.90 |
Table 3 Crystallite size variation using Scherrer's formula and SSP approach
Sample name |
2θ (degrees) |
FWHM (degrees) |
Scherrer's method D (nm) |
SSP method D (nm) |
CAO–1 Dy |
33.415 |
0.4124 |
20.10 |
75.30 |
CAO–2 Dy |
33.2474 |
0.4477 |
18.50 |
68.20 |
CAO–3 Dy |
33.2023 |
0.3594 |
23.05 |
66.72 |
CAO–4 Dy |
33.2158 |
0.3692 |
22.44 |
66.85 |
CAO–5 Dy |
33.1194 |
0.3928 |
21.10 |
68.50 |
The average crystallite size of CAO–Dy samples was 18–23 nm using Scherrer's method and 66–75 nm range for the SSP method. This difference might be attributed to the inclusion of strain in the latter method.
3.2 Fourier transform infrared (FTIR) spectroscopy
The vibrational functional groups of phosphor samples are identified using FTIR spectroscopy. Fig. 3 shows the vibrational bands in the CAO host matrix and Dy3+ doped CAO. Region 1 (in Fig. 3) displays bands at 745 cm−1 and 806 cm−1, corresponding to Ca–O vibrations.75 The same bands appear in the Dy3+ doped sample as well. As the dopant occupies Ca2+ sites, there is no peak shift (shift is within error limit) or band appearance/disappearance upon Dy3+ doping, confirming the unaltered structure of the host matrix upon doping. The regions identified as 2 and 3 (Fig. 3) are assigned to Al–O vibrations, having bands at 514 and 571 cm−1.76
 |
| Fig. 3 FTIR spectra of CAO host and CAO–2 Dy samples. | |
3.3 Scanning electron microscopy (SEM)

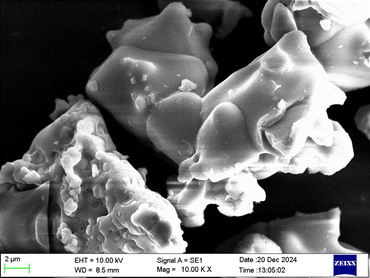

The morphological features of CAO–Dy samples are shown in the Fig. 4. Highly agglomerated microstructure accompanied by porous morphology is obtained for the prepared sample.77 The shape of the particles is irregular, and accurate particle measurement is impossible.78
 |

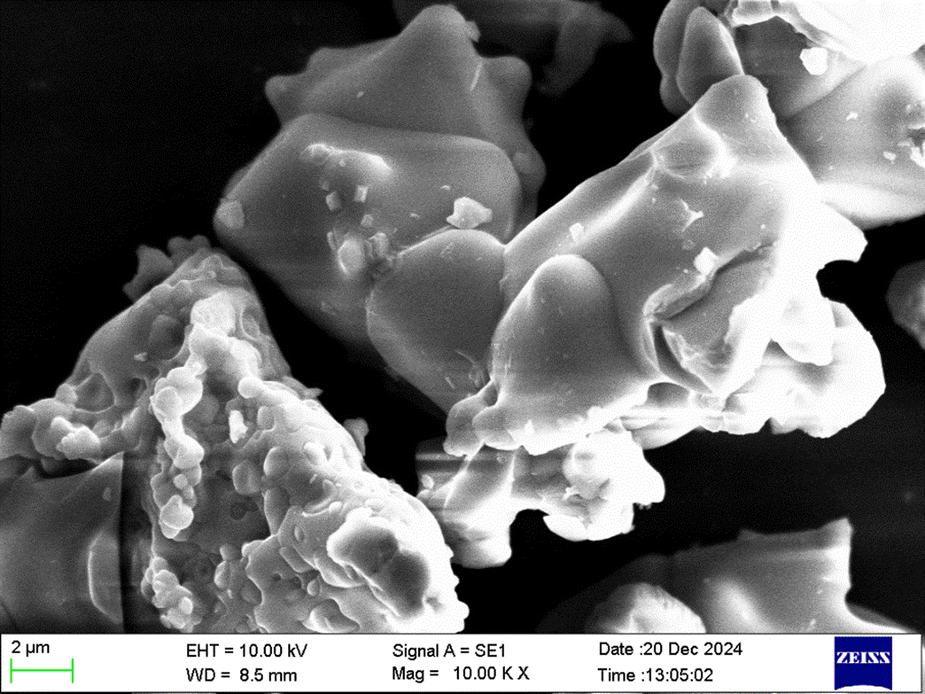

| Fig. 4 Surface morphology of CAO–2 Dy phosphor. | |
3.4 Optical studies
Fig. 5(a) gives the Diffuse reflectance (DR) spectra of CAO–2 Dy phosphor, the peaks are centred at 490 nm, 792 nm, 880 nm, 1060 nm, 1252 nm, 1380 nm, and 1650 nm attributed to transitions 6H15/2 → 4F9/2, 6H15/2 → 6F5/2, 6H15/2 → 6F7/2, 6H15/2 → 6H7/2, 6H15/2 → 6F11/2, 6H15/2 → 6H9/2, and 6H15/2 → 6H11/2 respectively. These transitions are further used to identify the nature of bonding between the dopant ion and the host matrix ligand. The nephelauxetic ratio (β) and bonding parameter (δ) are given using the following equations79 |
 | (4) |
Nc and νa are the energies of the Dy3+ transitions in the host matrix and the aqueous solutions, respectively.80 |
 | (5) |
where βavg is the average value of β for observed transitions, if δ < 0, the bonding is ionic, and δ > 0 corresponds to covalent bonding. Table 4 gives the values of β and δ for the Dy3+ transitions.
 |
| Fig. 5 (a) DR spectrum of CAO–2 Dy phosphor, (b) optical band gap of pure and doped CAO samples. | |
Table 4 Bonding parameter calculation for CAO–2 Dy
Sl. number |
Transition from 6H15/2 to |
νc (cm−1) |
νa (cm−1) |
β |
1 |
4F9/2 |
20 963 |
21 100 |
0.9935 |
2 |
6F5/2 |
12 323 |
12 400 |
0.9938 |
3 |
6F7/2 |
10 926 |
11 000 |
0.9932 |
4 |
6H7/2 |
9014 |
9100 |
0.9905 |
5 |
6F11/2 |
7667 |
7700 |
0.9957 |
6 |
6H9/2 |
7637 |
7692 |
0.9928 |
7 |
6H11/2 |
5835 |
5850 |
0.9974 |
βavg |
0.9938 |
Since the δ value is 0.00623, the Dy3+–ligand bond is covalent for the prepared phosphor samples. A similar covalent nature of dopant-ligand covalent band is reported in previous studies.81–83
The optical energy band gap of pure and optimized CAO–2 Dy samples is calculated using Tauc plot, using the following equation,84,85
|
 | (6) |
|
 | (7) |
where
F(
R) is the Kubelka Munk function,
Eg is the energy band gap of the material,
E is the energy of incident radiation, and
R is the sample's reflectance. The value of
n differs based on the type of bandgap observed. For direct band gap,
n = 0.5 and for indirect bandgap,
n = 2. For the synthesized CAO and CAO–2 Dy samples, the best fit is observed for
n = 0.5, and the
x-intercept of (
F(
R)
hν)
2 vs. photon energy plot gives the energy gap (
Fig. 5(b)). The band gap of pure CAO is 5.01 eV; upon doping, the band gap decreases to 4.83 eV. This bandgap reduction is attributed to forming defect states between the forbidden gap by adding Dy
3+ ions. Such a decreasing trend in the energy gap is observed and reported in the literature.
86–88
3.5 Photoluminescence (PL) analysis
The luminescence properties of Dy-doped CAO phosphors are crucial for understanding their potential applications in solid-state lighting. The excitation spectrum of Dy-doped CAO samples is recorded for a fixed emission wavelength of 575 nm (given in Fig. 6(a)). There are excitation peaks observed at 295 nm, 325 nm, 351 nm, 387 nm, 426 nm, 454 nm, and 465 nm corresponding to the transitions 6H15/2 → 4D7/2, 6H15/2 → 6P3/2, 6H15/2 → 6P7/2, 6H15/2 → 4M21/2, 6H15/2 → 4G11/2, 6H15/2 → 4I15/2 and 6H15/2 → 4F9/2 respectively.89,90 The 351 nm peak corresponding to 6H15/2 → 6P7/2 is the excitation wavelength to record the emission spectra (Fig. 6(b)). Dy3+ characteristic emission peaks are obtained at 483 nm (4F9/2 → 6H15/2), 575 nm (4F9/2 → 6H13/2), and 663 nm (4F9/2 → 6H11/2).91 The emission intensity shows an increasing trend with Dy3+ concentration up to 2 mol%, beyond which the PL intensity reduces (Fig. 6(c)). The reason for the variation in PL intensity is correlated with dopant concentration, which is called concentration quenching. The quenching in PL intensity can be explained using cross-relaxation (CR) paths between neighbouring Dy3+ ions. Fig. 7 illustrates the energy level diagram and the potential cross-relaxation pathways for the Dy3+ ions.92 In this context, we identify three distinct energy transfer (ET) channels between identical Dy3+ ions within the CAO host, designated CR1, CR2, and CR3. The ET channels result in non-radiative energy transfer; hence, the emission intensity decreases. The ET transitions are given below.93,94
CR1: 4F9/2 → 6F9/2 + 6H7/2 ≈ 6H15/2 → 6F5/2 |
CR2: 4F9/2 → 6F11/2 + 6H9/2 ≈ 6H15/2 → 6F3/2 |
CR3: 4F9/2 → 6F3/2 ≈ 6H15/2 → 6F11/2 + 6H9/2 |
In addition to the cross-relaxation mechanism, the ET can be associated with the multipolar or exchange interactions among Dy3+ ions. The mode of ET is determined by estimating the critical radius Rc using the below equation, |
 | (8) |
where the unit cell volume, V = 1725.97 Å3, optimum concentration; Xc = 0.02, and N = 2. The value of Rc = 43.517 Å. As the critical distance exceeds 5 Å, indicating that concentration quenching results from multipolar interaction. Several multipolar interactions exist, including dipole–dipole, dipole–quadrupole, and quadrupole–quadrupole. Dexter's theory95 can be employed to determine the specific multipolar interaction in CAO–Dy phosphors (eqn (9)). |
 | (9) |
The relationship between log
I/x and log
x exhibit a slope of −(θ/3), where θ serves as an indicator of the multipolar interaction type (Fig. 8(a)). Specifically, θ values of 6, 8, and 10 correspond to dipole–dipole, dipole–quadrupole, and quadrupole–quadrupole reactions. An analysis of the graph depicting log(I/x) against log(x) reveals a slope of −1.73537. Given that θ ≈ 5.20 approximates 6, the data suggests that dipole–dipole interactions predominantly govern the energy transfer mechanism.96,97 The reduction in PL intensity could be related to substituting the Dy3+ ion into the Ca2+ site. The charge imbalance leads to the formation of defects. The probable defects introduced to maintain charge neutrality are oxygen vacancies (Vo) and cationic vacancies (VCa). These defects act as electron traps, reducing the emission intensity.98,99
 |
| Fig. 6 (a) Excitation spectrum of CAO–2 Dy phosphor, (b) emission spectra of CAO samples for different dopant concentrations, and (c) variation in PL intensity as a function of Dy3+ concentration. | |
 |

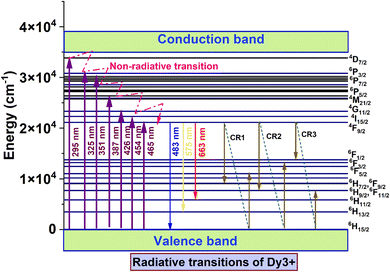

| Fig. 7 Energy level diagram of Dy3+ ion showing radiative transitions and cross-relaxation paths. | |
 |

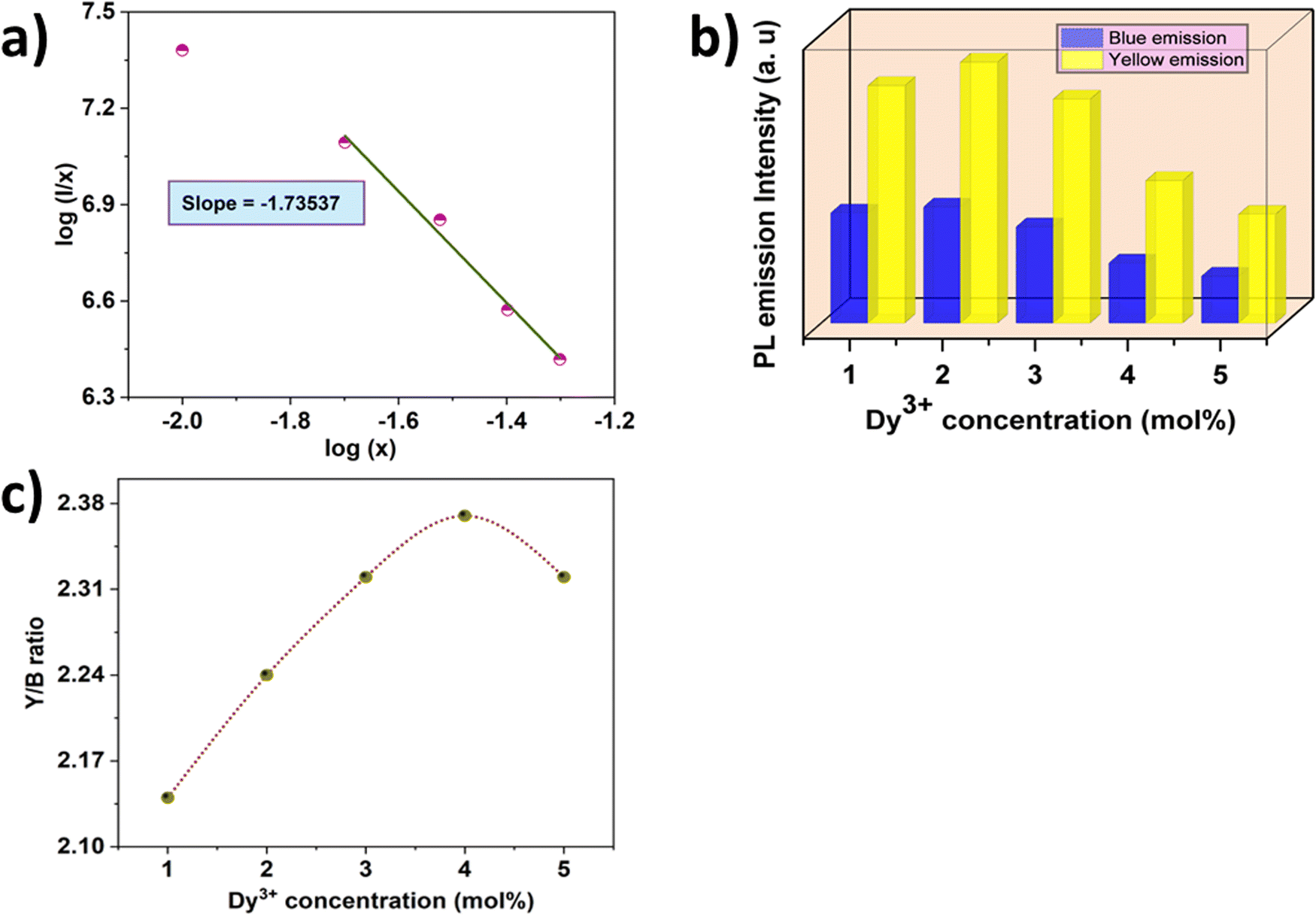

| Fig. 8 (a) log(I/x) versus log(x) plot for CAO–Dy samples, (b) relative intensity comparison of blue and yellow emission, and (c) Y/B ratio of CAO–Dy phosphors. | |
The intense yellow emission (4F9/2 → 6H13/2) due to electric dipole is more intense than the magnetic dipole transition corresponding to the blue emission (4F9/2 → 6H15/2). Thus, we can specify that the Dy3+ ions do not occupy inversion symmetry sites as the hyper-sensitive electric dipole transition is dominant (Fig. 8(b)). The magnetic dipole transition will be predominant if the dopant ions occupy inversion symmetry sites.100 The Y/B ratios for CAO–Dy samples are 2.15, 2.24, 2.32, 2.37, and 2.32 for 1, 2, 3, 4, and 5 mol% of dopant concentration (Fig. 8(c)). As the (Y/B) > 1, the emission appears to be yellowish-white light rather than pure white light.101,102
3.6 Photometric analysis
The tristimulus values determine the colour coordinates of the prepared phosphor sample (refer to eqn (S1)–(S6), ESI†),103
In the Fig. 9, the colour coordinates fall in the yellowish-white region, and the colour purity is estimated using the below formula104
|
 | (10) |
The coordinates (
x0,
y0), (
xs,
ys), and (
xd,
yd) represent the epicentre of convergence (0.332, 0.186), coordinates of the phosphor sample, and coordinates of the dominant emission, respectively. The correlated colour temperature is determined using McCamy's formula
105 |
CCT = −449n3 + 3525n2 − 6823n + 5520.33
| (11) |
where
n is the slope of the inverse line,
n = (
x −
x0)/(
y −
y0).
 |
| Fig. 9 Chromaticity diagram of CAO–Dy samples. | |
The colour rendering index (CRI) measures how accurately a light source displays colours by comparing it to an ideal or natural lighting benchmark. The quality of light source is evaluated depending on the range of CRI value. The CRI range is 68–72, corresponding to a good light source with high accuracy in colour appearance.
Table 5 gives the colour coordinates, colour purity, and CRI and CCT values of CAO–Dy phosphors. Table 6 compares emission wavelength, Colour coordinates, CCT, CP, and CRI values of other phosphors and the present work. The synthesized CAO–Dy phosphors emit cool white light (CCT > 4000 K) with good CRI value; hence, they have potential cool/neutral light generation applications.
Table 5 CIE coordinates and CCT values of CAO–Dy phosphors
Sample code |
CIE coordinates (xs, ys) |
Colour purity (%) |
CRI |
CCT (K) |
CAO–1 Dy |
(0.3666, 0.3858) |
54 |
71 |
4445 |
CAO–2 Dy |
(0.3737, 0.3934) |
57 |
69 |
4291 |
CAO–3 Dy |
(0.3763, 0.3972) |
57 |
68 |
4244 |
CAO–4 Dy |
(0.3666, 0.3855) |
54 |
69 |
4443 |
CAO–5 Dy |
(0.3441, 0.3545) |
42 |
72 |
5047 |
Table 6 Comparison of CIE coordinates, colour purity, CRI and CCT values of the optimized phosphor with previously reported works
Phosphor |
Emission wavelength (nm) |
CIE coordinates (xs, ys) |
Colour purity (%) |
CRI |
CCT (K) |
Ref. |
Ba2TeP2O9:Dy3+ |
573 |
(0.3981, 0.4333) |
55.3 |
— |
3926 |
106 |
CaZn2(PO4)2:Dy3+ |
572 |
(0.3251, 0.3482) |
— |
80 |
5815 |
107 |
Y2CaB10O19:Dy3+ |
577 |
(0.3188, 0.3233) |
16.2 |
77 |
6209 |
108 |
Y2O3:Dy3+ |
575 |
(0.2650, 0.3880) |
— |
33 |
8199 |
109 |
GdSr2AlO5:Dy3+ |
582 |
(0.3396, 0.3851) |
17.6 |
— |
5272 |
110 |
NaSrPO4:Dy3+ |
576 |
(0.2700, 0.3000) |
— |
— |
10150 |
111 |
CaLiLa (PO4)2:Dy3+ |
573 |
(0.2750, 0.3006) |
— |
— |
— |
112 |
SrLu(PO4)3:Dy3+ |
575 |
(0.3740, 0.4070) |
— |
— |
— |
113 |
K3ZnB5O10:Dy3+ |
575 |
(0.2560, 0.2580) |
— |
— |
— |
114 |
Y2MoO6:Dy3+ |
575 |
(0.3391, 0.3458) |
91 |
— |
5218 |
115 |
Ca2Al2O5:Dy3+ |
575 |
(0.3737, 0.3934) |
57 |
69 |
4291 |
This work |
3.7 Lifetime analysis
Monitoring the excitation wavelength at 351 nm and the emission wavelength at 575 nm allowed the determination of the luminescence lifetime of the Ca2Al2O5:xDy3+ [x = 1, 2, 3, 4, and 5 mol%] phosphors. Fig. 10(a) displays the decay profile, which displays the intensity as a function of decay lifetime. A single exponential decay function fit was used to further examine the experimental data, and equation was represented as follows,116,117 |
 | (12) |
Here τ is the component of the decay lifetimes, A is the fitting parameter and I0 the initial fluorescence intensity. The single exponential fit is done and shown in Fig. 10(b).
 |
| Fig. 10 (a) Fluorescence decay lifetime spectra for different concentration of Dy3+ in Ca2Al2O5 phosphors. (b) Single exponential fit for the 2 mol% Dy3+. (c) Auzel's fitting curve showing variation of fluorescence lifetime with Dy3+ concentrations. | |
The prepared Ca2Al2O5:xDy3+ [x = 1, 2, 3, 4, and 5 mol%] phosphor samples had calculated average lifetimes of 0.8722 ms, 0.9925 ms, 0.9276 ms, 0.8928 ms, and 0.8827 ms respectively. The average lifetime increases for 2 mol% and gradually decreases as the doping concentration rises, indicating that the energy transfer activities between Dy3+ ions. Auzel's hypothetical model118,119 was used to assess this trend, and Fig. 10(c) shows the fitted profile.
|
 | (13) |
In this relation,
τc is the lifetime at doping concentration
c,
c0 is the critical concentration, and
N is the number of phonons generated. 1.073 ms is the intrinsic radiative lifetime (
τ0). The following formula may be used to determine the non-radiative relaxation rate (
knr) given the radiative lifespan (
τ0) and the empirically obtained average lifetime (
τavg).
120 |
 | (14) |
One important metric for evaluating the optical performance of rare earth doped phosphors is quantum efficiency. It may be quantitatively stated in terms of radiative and non-radiative transition rates, as well as the excited-state lifespan, and is defined as the ratio of emitted to absorbed light intensity. The efficiency of energy conversion in luminous materials is determined by this metric, which offers a direct measurement of quantum efficiency. The quantum efficiency can be expressed numerically as,
121 |
 | (15) |
The calculated average lifetime, nonradiative relaxation rate, and quantum efficiency are listed in
Table 7.
Table 7 Decay time, non radiative relaxation rate and quantum efficiency of prepared Ca2Al2O5:xDy3+ [x = 1, 2, 3, 4, and 5 mol%] phosphors
Dy3+ concentration (mol%) |
τc (ms) |
knr (s−1) |
η (%) |
1 |
0.87224 |
214.507 |
81.28 |
2 |
0.99253 |
75.55977 |
92.50 |
3 |
0.9276 |
146.0844 |
86.44 |
4 |
0.89284 |
188.0551 |
83.20 |
5 |
0.88279 |
200.8058 |
82.27 |
3.8 Temperature dependent photoluminescence (TDPL)
Furthermore, the TDPL properties of the optimized CAO–2 Dy were extensively examined to evaluate its thermal stability and emission behaviour at elevated temperatures. The TDPL spectra have the characteristic emission peaks of Dy3+ recorded from 303 K to 483 K. A gradual reduction in photoluminescence intensity was observed as the temperature increased (Fig. 11(a)). Thermal quenching is mainly attributed to the increased formation of defect states at higher temperatures, facilitating non-radiative relaxation routes. As a result, non-radiative recombination processes become more dominant than radiative ones, reducing emission intensity.122 Fig. 11(b) illustrates the variation in normalized emission intensity at wavelengths of 483 nm, 575 nm, and 663 nm as a function of temperature. The normalized intensities exhibit a consistent decline, indicative of the quenching trend observed in the TDPL spectra, thereby confirming the temperature sensitivity of the luminescence process.
 |
| Fig. 11 (a) TDPL spectra of CAO–2 Dy sample, (b) normalized intensity variation, (c) FWHM variation for different emissions, and (d) activation energy graph of CAO–2 Dy phosphor. | |
Notably, the emission peaks at 483 nm and 576 nm exhibit almost identical quenching behaviour, suggesting that thermal disturbances similarly affect these transitions and may originate from closely related energy levels within the Dy3+ ion.123,124 Fig. 11(c) illustrates how the full width at half maximum (FWHM) of the same emission bands varies with temperature. As the temperature increases, the FWHM values for the 483 nm and 575 nm emissions increase, whereas the 663 nm emission experiences a narrowing of FWHM. The spectral broadening is correlated with the increased phonon interactions at higher temperatures. There are reported models explaining the spectral broadening and enhanced phonon interactions in rare earth-doped materials.125 The dependence of FWHM on temperature is described using the following equation,
|
 | (16) |
Γ represents the full width at half maximum that varies with temperature,
S is the Huang–Rhys parameter,
k is the Boltzmann constant,
hυ is the effective phonon energy, and
T signifies the temperature. The extent of thermal quenching varies from one material to another. The thermal quenching is described as an effect of electron–phonon interaction. It depends on the phonon energy (
hυ) and
S. If the phonon energy and
S are larger, the stronger the electron–phonon interaction results in increased non-radiative relaxations. The thermal stability is associated with these values, and we simplify
eqn (16) by expanding

as

and further simplified, and
eqn (16) is squared,
|
 | (17) |
Approximating

and

.
Eqn (17) is simplified into eqn (18),
|
 | (18) |
Linearizing the above equation by taking
y =
a +
bx,
Γ2 or FWHM
2 is taken along
y-axis,
kT along
x-axis,
b = 5.57 ×
S ×
hυ, is the slope, and
a = 5.57 ×
S × (
hυ)
2 is the intercept. Thus, the phonon energy and the
S values are obtained by plotting the FWHM
2 vs. kT graph (
Fig. 12). The phonon energy is 0.07022 eV, and
S = 0.06517 for the 575 nm peak. On comparing the obtained values with the literature available, we can confirm that synthesized CAO–2 Dy samples show excellent thermal stability due to weaker electron–phonon interaction (lower value of
S and
hυ).
126,127
 |
| Fig. 12 The linear fit of FWHM2 as a function of 2kT for 575 nm peak. | |
The activation energy must be calculated using the Arrhenius equation to explore the thermal quenching properties.128
|
 | (19) |
The initial intensity is denoted as
I0 at the starting temperature, while
I represent the intensity at temperature
T. Here,
C stands for a constant, Δ
E signifies the activation energy, and
k is the Boltzmann constant. On linearizing the equation,
|
 | (20) |
The slope of
versus
graph (
Fig. 11(d)) gives Δ
E = 0.20051 eV.
Table 8 compares the reported systems with CAO–2 Dy phosphors regarding their thermal stability and activation energy. The data indicate that the CAO–2 Dy phosphor demonstrates superior thermal stability and activation energy, rendering it a promising candidate for optoelectronic applications.
Table 8 Comparison of optimized phosphor's thermal stability and activation energies with previously reported phosphors
Phosphor |
Temperature range (K) |
Thermal stability (%) |
Activation energy (eV) |
Ref. |
CaLiLa(PO4)2:Dy3+ |
303–553 |
65 |
0.250 |
112 |
SrLu(PO4)3:Dy3+ |
298–473 |
68 |
0.214 |
113 |
K3ZnB5O10:Dy3+ |
303–483 |
82 |
0.520 |
114 |
K3Y(PO4)2:Dy3+ |
303–483 |
75 |
0.370 |
129 |
LiCaBO3:Dy3+ |
100–480 |
— |
0.420 |
130 |
Li3Ba2Gd3(WO4)8:Dy3+ |
298–523 |
62 |
0.352 |
131 |
Na2Y2TeB2O10:Dy3+ |
300–475 |
75 |
0.230 |
132 |
NaGdTiO4:Dy3+ |
298–633 |
— |
0.200 |
133 |
Y2CaB10O19:Dy3+ |
303–663 |
84 |
— |
134 |
Ca3LuAl3B4O15:Dy3+ |
300–500 |
85 |
— |
135 |
Ca2Al2O5:Dy3+ |
303–483 |
68 |
0.200 |
Present work |
4. Conclusions
This work effectively synthesized Ca2Al2O5 phosphors doped with Dy3+ through the conventional solid-state reaction technique. XRD analysis confirmed the formation of a pure phase, with no significant shifts in peak positions observed upon Dy3+ doping, indicating that the host lattice retained its structural integrity across all doping levels. SEM analysis of the surface morphology revealed agglomerated particle formations, characteristic of high-temperature solid-state synthesis processes. Optical characterization via DRS identified distinct Dy3+ absorption peaks and a reduction in the optical band gap upon introducing the dopant into the host matrix, underscoring the impact of Dy3+ incorporation. PL spectra exhibited the characteristic emission peaks of Dy3+ ions, corresponding to the 4F9/2 → 6H15/2 (blue) and 4F9/2 → 6H13/2 (yellow), and 4F9/2 → 6H11/2 (red) transitions. 2 mol% Dy3+ doping yielded the highest emission intensity, with chromaticity coordinates within the cool white light region, rendering it suitable for lighting applications. TDPL studies demonstrated significant thermal stability, with the phosphor maintaining substantial luminescence at elevated temperatures. The calculated activation energy was determined to be 0.200 eV, highlighting the lower probability for non-radiative losses. In conclusion, the exceptional optical properties, robust thermal stability, and emission in the visible white-light spectrum position make Dy3+-doped Ca2Al2O5 is identified as a promising phosphor candidate for applications in solid-state lighting and other optoelectronic devices.
Author contributions
Vidya Saraswathi. A: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Writing - original draft, Writing - review & editing; Tejas: Synthesis, Formal analysis, Writing, review; S. Masilla Moses Kennedy: Instrumentation, Formal analysis; A. Princy: Instrumentation, Formal analysis; M. I. Sayyed: Proofreading, Review & editing; Aljawhara. H. Almuqrin: Review & editing; Vikash Mishra: Formal analysis, Review & editing; Sudha. D. Kamath: Supervision, review and editing. All authors have read and agreed to the published version of the manuscript.
Conflicts of interest
There are no conflicts to declare.
Data availability
The data that support the findings of this study are available from the corresponding author upon reasonable request.
Acknowledgements
The authors express their gratitude to Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2025R2), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.
References
- S. Ye, F. Xiao, Y. X. Pan, Y. Y. Ma and Q. Y. Zhang, Phosphors in phosphor-converted white light-emitting diodes: recent advances in materials, techniques and properties, Mater. Sci. Eng., R, 2010, 71, 1–34, DOI:10.1016/j.mser.2010.07.001.
- Y. Li, M. Gecevicius and J. Qiu, Long persistent phosphors – From fundamentals to applications, Chem. Soc. Rev., 2016, 45, 2090–2136, 10.1039/c5cs00582e.
- Y. Pan, M. Wu and Q. Su, Comparative investigation on synthesis and photoluminescence of YAG:Ce phosphor, Mater. Sci. Eng., B, 2004, 106, 251–256, DOI:10.1016/j.mseb.2003.09.031.
- A. C. Berends, M. A. Van De Haar and M. R. Krames, YAG:Ce3+ Phosphor: From Micron-Sized Workhorse for General Lighting to a Bright Future on the Nanoscale, Chem. Rev., 2020, 120, 13461–13479, DOI:10.1021/acs.chemrev.0c00618.
- Y. Hu, W. Zhuang, H. Ye, S. Zhang, Y. Fang and X. Huang, Preparation and luminescent properties of (Ca1−x,Srx)S:Eu2+ red-emitting phosphor for white LED, J. Lumin., 2005, 111, 139–145, DOI:10.1016/j.jlumin.2004.07.005.
- R. Selomulya, S. Ski, K. Pita, C. H. Kam, Q. Y. Zhang and S. Buddhudu, Luminescence properties of Zn2SiO4:Mn2+ thin-films by a sol–gel process, Mater. Sci. Eng., B, 2003, 100, 136–141, DOI:10.1016/S0921-5107(03)00084-9.
- K. B. Kim, Y. Il Kim, H. G. Chun, T. Y. Cho, J. S. Jung and J. G. Kang, Structural and optical properties of BaMgAl10O17:Eu2+ phosphor, Chem. Mater., 2002, 14, 5045–5052, DOI:10.1021/cm020592f.
- D. V. Sampaio, N. R. S. Souza, J. C. A. Santos, D. C. Silva, E. J. S. Fonseca, C. Kucera, B. Faugas, J. Ballato and R. S. Silva, Translucent and persistent luminescent SrAl2O4:Eu2+,Dy3+ ceramics, Ceram. Int., 2016, 42, 4306–4312, DOI:10.1016/j.ceramint.2015.11.108.
- O. Arellano-Tánori, R. Meléndrez, M. Pedroza-Montero, B. Castañeda, V. Chernov, W. M. Yen and M. Barboza-Flores, Persistent luminescence dosimetric properties of UV-irradiated SrAl2O4:Eu2+, Dy3+ phosphor, J. Lumin., 2008, 128, 173–184, DOI:10.1016/j.jlumin.2007.07.006.
- R. Aroz, V. Lennikov, R. Cases, M. L. Sanjuán, G. F. de la Fuente and E. Muñoz, Laser synthesis and luminescence properties of SrAl2O4:Eu2+,Dy3+ phosphors, J. Eur. Ceram. Soc., 2012, 32, 4363–4369, DOI:10.1016/j.jeurceramsoc.2012.06.013.
- J. Tian and W. Zhuang, Thermal stability of nitride phosphors for light-emitting diodes, Inorg. Chem. Front., 2021, 8, 4933–4954, 10.1039/d1qi00993a.
- Q. Wei, J. Ding and Y. Wang, A novel tunable extra-broad yellow-emitting nitride phosphor with zero-thermal-quenching property, Chem. Eng. J., 2020, 386, 124004, DOI:10.1016/j.cej.2019.124004.
- N. C. George, A. Birkel, J. Brgoch, B. C. Hong, A. A. Mikhailovsky, K. Page, A. Llobet and R. Seshadri, Average and local structural origins of the optical properties of the nitride phosphor La3−xCexSi6N11 (0 < x = 3), Inorg. Chem., 2013, 52, 13730–13741, DOI:10.1021/ic402318k.
- R. J. Xie, N. Hirosaki, M. Mitomo, K. Takahashi and K. Sakuma, Highly efficient white-light-emitting diodes fabricated with short-wavelength yellow oxynitride phosphors, Appl. Phys. Lett., 2013, 52, 13730–13741, DOI:10.1063/1.2182067.
- W. T. Chen, H. S. Sheu, R. S. Liu and J. P. Attfield, Cation-size-mismatch tuning of photoluminescence in oxynitride phosphors, J. Am. Chem. Soc., 2012, 134, 8022–8025, DOI:10.1021/ja301593z.
- J. Ding, Y. Wei, W. Liu, Y. Li, Q. Wu and J. Zhou, Highly efficient and thermally stable narrow-band cyan-emitting aluminum oxynitride phosphor for WLEDs and FEDs, Chem. Eng. J., 2021, 403, 126382, DOI:10.1016/j.cej.2020.126382.
- X. Xu, Q. Shao, L. Yao, Y. Dong and J. Jiang, Highly efficient and thermally stable Cr3+-activated silicate phosphors for broadband near-infrared LED applications, Chem. Eng. J., 2020, 383, 123108, DOI:10.1016/j.cej.2019.123108.
- V. B. Bhatkar, S. K. Omanwar and S. V. Moharil, Combustion synthesis of silicate phosphors, Opt. Mater., 2007, 29, 1066–1070, DOI:10.1016/j.optmat.2006.04.006.
- M. Zhao, Q. Zhang and Z. Xia, Structural Engineering of Eu2+-Doped Silicates Phosphors for LED Applications, Acc. Mater. Res., 2020, 1, 137–145, DOI:10.1021/accountsmr.0c00014.
- M. Kalidasan, K. Baskar and R. Dhanasekaran, Investigation of Er3+,Yb3+,Nd3+ doped yttrium calcium oxyborate for photon upconversion applications, Solid State Sci., 2016, 57, 9–15, DOI:10.1016/j.solidstatesciences.2016.05.001.
- L. C. Oliveira and O. Baffa, A new luminescent material based on CaB6O10:Pb to detect radiation, J. Lumin., 2017, 181, 171–178, DOI:10.1016/j.jlumin.2016.09.009.
- I.-E. Kwon, B.-Y. Yu, H. Bae, Y.-J. Hwang, T.-W. Kwon, C.-H. Kim, C.-H. Pyun and S.-J. Kim, Luminescence properties of borate phosphors in the UV/VUV region, J. Lumin., 2000, 87–89, 1039–1041 CrossRef CAS.
- V. Singh, V. Natarajan and J. J. Zhu, Studies on Eu doped Ba and Zn aluminate phosphors prepared by combustion synthesis, Opt. Mater., 2007, 29, 1447–1451, DOI:10.1016/j.optmat.2006.07.003.
- Z. Huang, B. Chen, B. Ren, D. Tu, Z. Wang, C. Wang, Y. Zheng, X. Li, D. Wang, Z. Ren, S. Qu, Z. Chen, C. Xu, Y. Fu and D. Peng, Smart Mechanoluminescent Phosphors: A Review of Strontium–Aluminate-Based Materials, Properties, and Their Advanced Application Technologies, Adv. Sci., 2023, 10, 2204925, DOI:10.1002/advs.202204925.
- X. Chen, Z. Xia, M. Yi, X. Wu and H. Xin, Rare-earth free self-activated and rare-earth activated Ca2NaZn2V3O12 vanadate phosphors and their color-tunable luminescence properties, J. Phys. Chem. Solids, 2013, 74, 1439–1443, DOI:10.1016/j.jpcs.2013.05.002.
- D. Song, C. Guo and T. Li, Luminescence of the self-activated vanadate phosphors Na2LnMg2V3O12 (Ln = Y, Gd), Ceram. Int., 2015, 41, 6518–6524, DOI:10.1016/j.ceramint.2015.01.094.
- P. Dang, D. Liu, Y. Wei, G. Li, H. Lian, M. Shang and J. Lin, Highly Efficient Cyan-Green Emission in Self-Activated Rb3RV2O8 (R = Y, Lu) Vanadate Phosphors for Full-Spectrum White Light-Emitting Diodes (LEDs), Inorg. Chem., 2020, 59, 6026–6038, DOI:10.1021/acs.inorgchem.0c00015.
- T. Leśniewski, Evolution of the full energy structure of Mn4+ in fluoride phosphors under high pressure conditions, Phys. Chem. Chem. Phys., 2023, 25, 14449–14462, 10.1039/d3cp01045g.
- Y. H. Kim, J. Ha and W. Bin Im, Towards green synthesis of Mn4+-doped fluoride phosphors: a review, J. Mater. Res. Technol., 2021, 11, 181–195, DOI:10.1016/j.jmrt.2021.01.011.
- M. Ye, C. Yang, A. Wang, G. Chen, D. Yuan and W. Zhou, Advancing Red-Emitting Fluoride Phosphors for Highly Stable White Light-Emitting Diodes: Crystal Reconstruction and Covalence Enhancement Strategy, Inorg. Chem., 2023, 62, 12130–12137, DOI:10.1021/acs.inorgchem.3c01709.
- C.-T. Yeh, Y.-I. Chou, K.-S. Yang, S.-K. Wu and C.-C. Wang, Luminescence material characterizations on laser-phosphor lighting techniques, Opt. Express, 2019, 27, 7226, DOI:10.1364/oe.27.007226.
- C. Cozzan, G. Lheureux, N. O’Dea, E. E. Levin, J. Graser, T. D. Sparks, S. Nakamura, S. P. Denbaars, C. Weisbuch and R. Seshadri, Stable, Heat-Conducting Phosphor Composites for High-Power Laser Lighting, ACS Appl. Mater. Interfaces, 2018, 10, 5673–5681, DOI:10.1021/acsami.8b00074.
- J. Y. Cho, K. Y. Ko and Y. R. Do, Optical properties of sol–gel derived Y2O3:Eu3+ thin-film phosphors for display applications, Thin Solid Films, 2007, 515, 3373–3379, DOI:10.1016/j.tsf.2006.09.029.
- R. P. Rao, Tb[sup3+] Activated Green Phosphors for Plasma Display Panel Applications, J. Electrochem. Soc., 2003, 150, H165, DOI:10.1149/1.1583718.
- S. Tripathi, R. Tiwari, A. K. Shrivastava, V. K. Singh, N. Dubey and V. Dubey, A review reports on rare earth activated AZrO3 (A = Ba, Ca, Sr) phosphors for display and sensing applications, Optik, 2018, 157, 365–381, DOI:10.1016/j.ijleo.2017.11.017.
- W. Wang, S. Yan, Y. Liang, D. Chen, F. Wang, J. Liu, Y. Zhang, K. Sun and D. Tang, A red-light-chargeable near infrared MgGeO3:Mn2+,Yb3+ persistent phosphor for bioimaging and optical information storage applications, Inorg. Chem. Front., 2021, 8, 5149–5157, 10.1039/d1qi01158h.
- Y. Wei and J. Wang, X-ray/γ-ray/Ultrasound-Activated Persistent Luminescence Phosphors for Deep Tissue Bioimaging and Therapy, ACS Appl. Mater. Interfaces, 2024, 16, 56519–56544, DOI:10.1021/acsami.4c11585.
- H. Suo, C. Guo and T. Li, Broad-Scope Thermometry Based on Dual-Color Modulation up-Conversion Phosphor Ba5Gd8Zn4O21:Er3+/Yb3+, J. Phys. Chem. C, 2016, 120, 2914–2924, DOI:10.1021/acs.jpcc.5b11786.
- N. Tyagi, A. A. Reddy and R. Nagarajan, KLaF4:Er an efficient upconversion phosphor, Opt. Mater., 2010, 33, 42–47, DOI:10.1016/j.optmat.2010.07.014.
- F. Huang, Y. Gao, J. Zhou, J. Xu and Y. Wang, Yb3+/Er3+ co-doped CaMoO4: a promising green upconversion phosphor for optical temperature sensing, J. Alloys Compd., 2015, 639, 325–329, DOI:10.1016/j.jallcom.2015.02.228.
- J. M. Kalita and M. L. Chithambo, Phosphorescence of beta irradiated Sr4Al14O25:Eu2+,Dy3+ – A persistent luminescence phosphor, J. Lumin., 2024, 272, 120664, DOI:10.1016/j.jlumin.2024.120664.
- N. Zhang, Y. T. Tsai, M. H. Fang, C. G. Ma, A. Lazarowska, S. Mahlik, M. Grinberg, C. Y. Chiang, W. Zhou, J. G. Lin, J. F. Lee, J. Zheng, C. Guo and R. S. Liu, Aluminate Red Phosphor in Light-Emitting Diodes: Theoretical Calculations, Charge Varieties, and High-Pressure Luminescence Analysis, ACS Appl. Mater. Interfaces, 2017, 9, 23995–24004, DOI:10.1021/acsami.7b06840.
- P. J. Dereń, D. Sztolberg, B. Brzostowski and B. Bondzior, Spectroscopic properties and Judd–Ofelt analysis of LaAlO3 monocrystal doped with Tm3+ ions, J. Lumin., 2016, 178, 400–406, DOI:10.1016/j.jlumin.2016.05.049.
- Z. Fu and B. Liu, Solution combustion synthesis, photoluminescence and X-ray luminescence of Eu3+-doped LaAlO3 nanophosphors, Ceram. Int., 2016, 42, 2357–2363, DOI:10.1016/j.ceramint.2015.10.032.
- M. Ayvacikli, A. Ege and N. Can, Radioluminescence of SrAl2O4:Ln3+ (Ln = Eu, Sm, Dy) phosphor ceramic, Opt. Mater., 2011, 34, 138–142, DOI:10.1016/j.optmat.2011.07.023.
- M. Ayvacikli, A. Ege, S. Yerci and N. Can, Synthesis
and optical properties of Er3 and Eu3 doped SrAl2O4 phosphor ceramic, J. Lumin., 2011, 131, 2432–2439, DOI:10.1016/j.jlumin.2011.05.051.
- T. Qi, H. Xia, Z. Zhang, S. Kong, W. Peng, Q. Zhao and Z. Huang, Improved water resistance of SrAl2O4:Eu2+,Dy3+ phosphor directly achieved in a water-containing medium, Solid State Sci., 2017, 65, 88–94, DOI:10.1016/j.solidstatesciences.2017.01.006.
- R. Aroz, V. Lennikov, R. Cases, M. L. Sanjuán, G. F. de la Fuente and E. Muñoz, Laser synthesis and luminescence properties of SrAl2O4:Eu2+,Dy3+ phosphors, J. Eur. Ceram. Soc., 2012, 32, 4363–4369, DOI:10.1016/j.jeurceramsoc.2012.06.013.
- T. Cui, P. Ma, Y. Sheng, K. Zheng, X. Zhou, C. Xu, H. Zou and Y. Song, Preparation of CaAl2O4:Eu2+,Nd3+ and SrAl2O4:Eu2+,Dy3+ long afterglow luminescent materials using oil shale ash, Opt. Mater., 2017, 67, 84–90, DOI:10.1016/j.optmat.2017.03.052.
- M. Freeda and T. D. Subash, Preparation and Characterization of Praseodymium doped Calcium Aluminate nanophosphor (CaAl2O4:Pr) by sol–gel method, Mater. Today: Proc., 2017, 4, 4266–4273, DOI:10.1016/j.matpr.2017.02.130.
- B. S. Shashikala, H. B. Premkumar, G. P. Darshan, H. Nagabhushana, S. C. Sharma, S. C. Prashantha and H. P. Nagaswarupa, Synthesis and Photoluminescence Studies of an Orange Red Color Emitting novel CaAl2O4:Sm3+ nanophosphor for LED Applications, Mater. Today: Proc., 2017, 4, 11820–11826, DOI:10.1016/j.matpr.2017.09.100.
- M. N. Singh, L. R. Singh and A. G. Barua, Effects of doping concentration on thermoluminescence parameters of CaAl2O4:Re3+ (Re3+ = Dy3+, Sm3+, Tm3+) prepared by combustion method, Radiat. Phys. Chem., 2021, 188, 109631, DOI:10.1016/j.radphyschem.2021.109631.
- D. Jia, X.-J. Wang and W. M. Yen, Electron traps in Tb3+-doped CaAl2O4, Chem. Phys. Lett., 2002, 363, 241–244, DOI:10.1016/S0009-2614(02)01170-3.
- V. Singh, R. P. S. Chakradhar, J. L. Rao and H. Y. Kwak, Enhanced blue emission and EPR study of LaMgAl11O19:Eu phosphors, J. Lumin., 2011, 131, 247–252, DOI:10.1016/j.jlumin.2010.10.006.
- Ü. H. Kaynar, S. C. Kaynar, M. Ayvacikli, Y. Karabulut, G. O. Souadi and N. Can, Influence of laser excitation power on temperature-dependent luminescence behaviour of Ce- and Tb-incorporated BaMgAl10O17 phosphors, Radiat. Phys. Chem., 2020, 168, 108617, DOI:10.1016/j.radphyschem.2019.108617.
- K. B. Kim, K. W. Koo, T. Y. Cho and H. G. Chun, Effect of heat treatment on photoluminescence behavior of BaMgAl10O17:Eu phosphors, Mater. Chem. Phys., 2003, 80, 682–689, DOI:10.1016/S0254-0584(03)00110-X.
- N. Pradal, A. Potdevin, G. Chadeyron, P. Bonville, B. Caillier and R. Mahiou, Spectroscopic study and enhanced thermostability of combustion-derived BaMgAl10O17:Eu2+ blue phosphors for solid-state lighting, Opt. Mater., 2017, 64, 334–344, DOI:10.1016/j.optmat.2016.12.031.
- C. Shen, Y. Yang, S. Jin and J. Ming, Luminous characteristics and thermal stability of BaMgAl10O17:Eu2+ phosphor for white light-emitting diodes, Phys. B, 2010, 405, 1045–1049, DOI:10.1016/j.physb.2009.10.055.
- L. You, R. Tian, T. Zhou and R. J. Xie, Broadband near-infrared phosphor BaMgAl10O17:Cr3+ realized by crystallographic site engineering, Chem. Eng. J., 2021, 417, 129224, DOI:10.1016/j.cej.2021.129224.
- M. Kumar, P. Rajput, P. K. Singh, A. C. Yadav, S. L. Pradhan, V. Baranwal, U. B. Singh, S. N. Jha and F. Singh, Luminescence properties of BaMgAl10O17:Mn2+ nanophosphors, J. Alloys Compd., 2019, 799, 556–562, DOI:10.1016/j.jallcom.2019.05.332.
- L. Wu, X. Tian, X. Wei, Y. Chen and M. Yin, Photoluminescence studies of Eu2+–Yb3+ co-doped BaMgAl10O17 phosphor synthesized by the combustion method, J. Rare Earths, 2012, 30, 1213–1216, DOI:10.1016/S1002-0721(12)60208-7.
- A. Vidya Saraswathi, T. Chennappa, K. Naregundi, A. Princy, S. M. M. Kennedy, A. S. Altowyan, M. I. Sayyed and S. D. Kamath, Unveiling highly sensitive Dy3+ doped BaMgAl10O17 phosphor’s thermoluminescence trap features and temperature dependent luminescence for solid state lighting applications, Phys. Scr., 2024, 99, 085909, DOI:10.1088/1402-4896/ad5876.
- T. Wanjun, C. Donghua and W. Ming, Luminescence studies on SrMgAl10O17:Eu,Dy phosphor crystals, Opt. Laser Technol., 2009, 41, 81–84, DOI:10.1016/j.optlastec.2008.03.009.
- G. Ju, Y. Hu, L. Chen and X. Wang, Photoluminescence properties of color-tunable SrMgAl10O17:Eu2+,Mn2+ phosphors for UV LEDs, J. Lumin., 2012, 132, 1792–1797, DOI:10.1016/j.jlumin.2012.02.036.
- A. Nande, A. N. Yerpude and S. J. Dhoble, Estimation of Judd–Ofelt Parameters for Eu3+-Doped Ca3B2O6, Ca2Al2O5, and Sr3SiO4Cl6 Host Materials, J. Electron. Mater., 2025, 54, 1327–1334, DOI:10.1007/s11664-024-11631-7.
- A. N. Yerpude, V. R. Panse, S. J. Dhoble, N. S. Kokode and M. Srinivas, Photoluminescence properties of Ca2Al2O5:RE3+ (RE = Eu, Dy and Tb) phosphors for solid state lighting, Luminescence, 2017, 32, 1361–1364, DOI:10.1002/bio.3340.
- A. Verma and A. Verma, Synthesis, characterization, mechano-luminescence, thermoluminescence, and antibacterial properties of SrMgAl10O17:Eu phosphor, J. Alloys Compd., 2019, 802, 394–408, DOI:10.1016/j.jallcom.2019.06.209.
- L. A. Xue, Y. Chent and R. J. Brook, The Influence of Ionic Radii on the Incorporation of Trivalent Dopants into BaTiO3, Mater. Sci. Eng. B., 1988, 1(2), 193–201, DOI:10.1016/0921-5107(88)90019-0.
- R. D. Shannon, Revised Effective Ionic Radii and Systematic Studies of Interatomie Distances in Halides and Chaleogenides, Acta Crystallogr., Sect. A, 1976, 32, 751–767, DOI:10.1107/S0567739476001551.
- M. Schmidt, T. Stumpf, M. M. Fernandes, C. Walther and T. Fanghänel, Charge compensation in solid solutions, Angew. Chem., Int. Ed., 2008, 47, 5846–5850, DOI:10.1002/anie.200705827.
- P. Kumar, D. Singh, S. Kadyan, H. Kumar and R. Kumar, Comprehensive investigation of Y2Si2O7:Eu3+ nanophosphors for w-LEDs: structural, Judd–Ofelt calculation and photoluminescent characteristic with high color purity and thermal stability, Ceram. Int., 2024, 50, 34596–34608, DOI:10.1016/j.ceramint.2024.06.267.
- L. Alexander and H. P. Klug, Determination of crystallite size with the X-ray spectrometer, J. Appl. Phys., 1950, 21, 137–142, DOI:10.1063/1.1699612.
- A. Weibel, R. Bouchet, F. Boulc’h and P. Knauth, The big problem of small particles: a comparison of methods for determination of particle size in nanocrystalline anatase powders, Chem. Mater., 2005, 17, 2378–2385, DOI:10.1021/cm0403762.
- H. H. Tian and M. Atzmon, Comparison of X-ray analysis methods used to determine the grain size and strain in nanocrystalline materials, Philos. Mag. A, 1999, 79, 1769–1786, DOI:10.1080/01418619908210391.
- H. Kaur, M. Jayasimhadri, M. K. Sahu, P. K. Rao and N. S. Reddy, Synthesis of orange emitting Sm3+ doped sodium calcium silicate phosphor by sol–gel method for photonic device applications, Ceram. Int., 2020, 46, 26434–26439, DOI:10.1016/j.ceramint.2020.04.224.
- B. C. Jamalaiah and Y. Ramesh Babu, Near UV excited SrAl2O4:Dy3+ phosphors for white LED applications, Mater. Chem. Phys., 2018, 211, 181–191, DOI:10.1016/j.matchemphys.2018.02.025.
- D. N. Game, N. B. Ingale and S. K. Omanwar, Synthesis and photoluminescence properties of NaCaPO4:Eu2+ phosphor for solid state lighting, Optik, 2016, 127, 6204–6209, DOI:10.1016/j.ijleo.2016.04.062.
- H. S. Huang and Z. H. Liu, Enhanced photoluminescence property of CaB2O4:Eu3+ phosphor prepared by calcining the Ca4B10O19·7H2O:Eu3+ precursor, Mater. Res. Bull., 2014, 49, 88–93, DOI:10.1016/j.materresbull.2013.08.010.
- S. P. Tandon and P. C. Mehta, Study of some Pr(III) complexes: interelectronic repulsion, spin–orbit interaction, and bonding, J. Chem. Phys., 1970, 52, 5424–5434, DOI:10.1063/1.1672792.
- W. T. Carnall, P. R. Fields and K. Rajnak, Electronic energy levels of the trivalent lanthanide aquo ions. IV. Eu8+, J. Chem. Phys., 1968, 49, 4424–4442, DOI:10.1063/1.1669893.
- K. J. Albert, E. A. Rathnakumari and S. M. M. Kennedy, Synthesis, photoluminescent properties, and an insight into the Judd–Ofelt analysis of the NaPbBi(2−x)(PO4)3:xEu3+ orthophosphate phosphors for light applications, J. Alloys Compd., 2023, 934, 168047, DOI:10.1016/j.jallcom.2022.168047.
- R. Kiran, A. Princy, S. Masilla Moses Kennedy, V. Mishra, M. I. Sayyed, M. Rashad and S. D. Kamath, Evaluation of luminescent and thermal properties of Dy3+ doped tungstate phosphors for optoelectronic and thermometry applications, Phys. B, 2025, 697, 416712, DOI:10.1016/j.physb.2024.416712.
- K. Linganna and C. K. Jayasankar, Optical properties of Eu3+ ions in phosphate glasses, Spectrochim. Acta, Part A, 2012, 97, 788–797, DOI:10.1016/j.saa.2012.07.031.
- J. Torrent and V. Barrón, Diffuse Reflectance Spectroscopy, 2008 Search PubMed.
- P. Makuła, M. Pacia and W. Macyk, How To Correctly Determine the Band Gap Energy of Modified Semiconductor Photocatalysts Based on UV-Vis Spectra, J. Phys. Chem. Lett., 2018, 9, 6814–6817, DOI:10.1021/acs.jpclett.8b02892.
- H. F. Devi, K. T. Devi and T. D. Singh, Synthesis, Characterization, Optical and Electrical Properties of Citrate Mediated Terbium Doped ZnO Nanoparticles for Multifunctional Applications, Integr. Ferroelectr., 2020, 204, 81–89, DOI:10.1080/10584587.2019.1674976.
- N. Aggarwal, A. Vasishth, K. Kaur and N. K. Verma, Investigation of optical, electrical and magnetic properties of Tb-doped ZnO nanorods, J. Mater. Sci.: Mater. Electron., 2019, 30, 4807–4812, DOI:10.1007/s10854-019-00774-7.
- G. H. Mhlongo, O. M. Ntwaeaborwa, H. C. Swart, R. E. Kroon, P. Solarz, W. Ryba-Romanowski and K. T. Hillie, Luminescence dependence of Pr3+ activated SiO2 nanophosphor on Pr3+ concentration, temperature, and ZnO incorporation, J. Phys. Chem. C, 2011, 115, 17625–17632, DOI:10.1021/jp201142d.
- S. Saha, H. J. Kim, A. Khan, J. Cho, S. Kang and A. V. Ntarisa, Synthesis and luminescence studies of Dy3+ doped Li3Sc(BO3)2 polycrystalline powder for warm white light, Ceram. Int., 2022, 48, 10667–10676, DOI:10.1016/j.ceramint.2021.12.281.
- T. Krishnapriya, A. Jose, T. Anna Jose, C. Joseph, N. V. Unnikrishnan and P. R. Biju, Luminescent kinetics of Dy3+ doped CaZn2(PO4)2 phosphors for white light emitting applications, Adv. Powder Technol., 2021, 32, 1023–1032, DOI:10.1016/j.apt.2021.02.003.
- Y. Zhang, W. Gong, J. Yu, H. Pang, Q. Song and G. Ning, A new single-phase white-light-emitting CaWO4:Dy3+ phosphor: synthesis, luminescence and energy transfer, RSC Adv., 2015, 5, 62527–62533, 10.1039/c5ra12502b.
- S. Saha, H. J. Kim, A. Khan, J. Cho, S. Kang and A. V. Ntarisa, Synthesis and luminescence studies of Dy3+ doped Li3Sc(BO3)2 polycrystalline powder for warm white light, Ceram. Int., 2022, 48, 10667–10676, DOI:10.1016/j.ceramint.2021.12.281.
- W. Tang, Q. Guo, K. Su, H. Liu, Y. Zhang, L. Mei and L. Liao, Structure and Photoluminescence Properties of Dy3+ Doped Phosphor with Whitlockite Structure, Materials, 2022, 15, 2177, DOI:10.3390/ma15062177.
- A. K. Bedyal, A. K. Kunti, V. Kumar and H. C. Swart, Effects of cationic substitution on the luminescence behavior of Dy3+ doped orthophosphate phosphor, J. Alloys Compd., 2019, 806, 1127–1137, DOI:10.1016/j.jallcom.2019.07.305.
- D. L. Dexter and J. H. Schulman, Theory of concentration quenching in inorganic phosphors, J. Chem. Phys., 1954, 22, 1063–1070, DOI:10.1063/1.1740265.
- J. Guo, S. Li, J. Kong, Y. Li, L. Zhou, L. Lou, Q. Lv, R. Tang, L. Zheng, B. Deng and R. Yu, Synthesis and characterization of a new double perovskite phosphor: NaCaTiTaO6:Dy3+ with high thermal stability for w-LEDs application, Opt. Laser Technol., 2022, 155, 108347, DOI:10.1016/j.optlastec.2022.108347.
- Y. Hua, H. Li, Z. Wu, L. Li and J. S. Yu, Double-perovskite structure-driven thermal-stabilized Dy3+-activated yellow-emitting phosphors, J. Alloys Compd., 2023, 968, 171701, DOI:10.1016/j.jallcom.2023.171701.
- L. Yan, G. Zhu, S. Ma, S. Li, Z. Li, X. Luo and B. Dong, Emerging Fe3+ Doped Broad NIR-Emitting Phosphor Ca2.5Hf2.5(Ga,Al)3O12:Fe3+ for LWUV Pumped NIR LED, Laser Photonics Rev., 2024, 18, 2301200, DOI:10.1002/lpor.202301200.
- S. Li, Q. Zhu, J. Xiahou and J. G. Li, Doping Pb2+ in LaAlO3 to generate dual emission centers and an optical storage container for visible and near infrared persistent luminescence, Dalton Trans., 2022, 51, 1112–1122, 10.1039/d1dt03421a.
- A. Santana-Alonso, A. C. Yanes, J. Méndez-Ramos, J. Del-Castillo and V. D. Rodríguez, Down-shifting by energy transfer in Dy3+–Tb3+ co-doped YF3-based sol–gel nano-glass-ceramics for photovoltaic applications, Opt. Mater., 2011, 33, 587–591, DOI:10.1016/j.optmat.2010.10.040.
- P. Haritha, I. R. Martín, K. Linganna, V. Monteseguro, P. Babu, S. F. León-Luis, C. K. Jayasankar, U. R. Rodríguez-Mendoza, V. Lavín and V. Venkatramu, Optimizing white light luminescence in Dy3+-doped Lu3Ga5O12 nano-garnets, J. Appl. Phys., 2014, 116, 174308, DOI:10.1063/1.4900989.
- Y. Hua, H. Li, Z. Wu, L. Li and J. S. Yu, Double-perovskite structure-driven thermal-stabilized Dy3+-activated yellow-emitting phosphors, J. Alloys Compd., 2023, 968, 171701, DOI:10.1016/j.jallcom.2023.171701.
- S. Dutta, S. Som and S. K. Sharma, Luminescence and photometric characterization of K+ compensated CaMoO4:Dy3+ nanophosphors, J. Chem. Soc., Dalton Trans., 2013, 42, 9654–9661, 10.1039/c3dt50780g.
- H. Guo, X. Huang and Y. Zeng, Synthesis and photoluminescence properties of novel highly thermal-stable red-emitting Na3Sc2(PO4)3:Eu3+ phosphors for UV-excited white-light-emitting diodes, J. Alloys Compd., 2018, 741, 300–306, DOI:10.1016/j.jallcom.2017.12.316.
- M. Shaw and M. Fairchild, Evaluating the 1931 CIE color-matching functions, Color Res. Appl., 2002, 27, 316–329, DOI:10.1002/col.10077.
- R. Song, Y. Zheng, H. Li, Y. Mao, K. Xiong and J. Zhu, Charge compensation and solid-state lighting application for dysprosium-activated Ba2TeP2O9 phosphor, J. Alloys Compd., 2022, 912, 165188, DOI:10.1016/j.jallcom.2022.165188.
- T. Krishnapriya, A. Jose, T. Anna Jose, C. Joseph, N. V. Unnikrishnan and P. R. Biju, Luminescent kinetics of Dy3+ doped CaZn2(PO4)2 phosphors for white light emitting applications, Adv. Powder Technol., 2021, 32, 1023–1032, DOI:10.1016/j.apt.2021.02.003.
- M. Behera, R. Panda, R. Arun Kumar, N. K. Mishra, K. Kumar and T. Del Monte, Microwave-assisted combustion synthesis and characterization studies of novel dysprosium doped yttrium calcium borate (Dy3+:Y2CaB10O19) phosphor materials for efficient white light applications, Ceram. Int., 2024, 50, 18146–18156, DOI:10.1016/j.ceramint.2024.02.298.
- S. Som, S. K. Sharma and S. P. Lochab, Ion induced modification of bandgap and CIE parameters in Y2O3:Dy3+ phosphor, Ceram. Int., 2013, 39, 7693–7701, DOI:10.1016/j.ceramint.2013.03.022.
- P. Kumar, D. Singh, I. Gupta and H. Kumar, Influence of Dy3+ ion concentration on structural, photoluminescence and energy transfer mechanism of promising GdSr2AlO5 nanophosphors for white light applications, Ceram. Int., 2023, 49, 29010–29024, DOI:10.1016/j.ceramint.2023.06.173.
- Y. Li, J. Chen and C. Chen, Tunable correlated color temperature of NaSrPO4 phosphors via Dy3+ and Eu3+ co-doping for warm white light-emitting diodes, Optik, 2018, 174, 1–6, DOI:10.1016/j.ijleo.2018.08.055.
- W. Tang, Q. Guo, K. Su, H. Liu, Y. Zhang, L. Mei and L. Liao, Structure and Photoluminescence Properties of Dy3+ Doped Phosphor with Whitlockite Structure, Materials, 2022, 15, 2177, DOI:10.3390/ma15062177.
- T. Wang, Y. Hu, L. Chen, X. Wang and M. He, An intense single-component warm-white-light Sr3Lu(PO4)3:Dy3+ phosphor for white UV-LEDs, J. Mater. Sci.: Mater. Electron., 2016, 27, 13235–13241, DOI:10.1007/s10854-016-5470-9.
- G. R. Dillip, G. B. Kumar, V. R. Bandi, M. Hareesh, B. Deva Prasad Raju, S. W. Joo, L. K. Bharat and J. S. Yu, Versatile host-sensitized white light emission in a single-component K3ZnB5O10:Dy3+ phosphor for ultraviolet converted light-emitting diodes, J. Alloys Compd., 2017, 699, 1108–1117, DOI:10.1016/j.jallcom.2017.01.008.
- K. R. Bhagya, R. B. Basavaraj, K. R. Jyothi, H. Nagabhushana, M. V. Murugendrappa, A. P. G. Prakash, N. M. Nagabhushana and V. N. Hegde, Dy3+ doped Y2MoO6 nanopowders for white light emission: spectroscopic and transport properties for optoelectronic and energy harvesting applications, Colloids Interface Sci. Commun., 2021, 43, 100447, DOI:10.1016/j.colcom.2021.100447.
- P. Rohilla and A. S. Rao, Linear and non-linear photoluminescence studies of Ho3+/Yb3+ co-doped titanate phosphors for photonic applications, J. Alloys Compd., 2022, 928, 167156, DOI:10.1016/j.jallcom.2022.167156.
- P. Rohilla, A. Prasad and A. Srinivasa Rao, Structural and luminescence studies on thermally stable Bi3+-activated Ba3MoTiO8 phosphors for near UV-pumped w-LED applications, Int. J. Appl. Ceram. Technol., 2024, 21, 1208–1219, DOI:10.1111/ijac.14580.
- S. Kaur, H. Kaur and A. S. Rao, UV and blue excited tunable emission of thermally stable Bi3+ sensitized Eu3+ doped calcium aluminozincate phosphor for photonic applications, Spectrochim. Acta, Part A, 2024, 305, 123524, DOI:10.1016/j.saa.2023.123524.
- I. Gupta, D. Singh, S. Singh, P. Kumar, S. Bhagwan and V. Kumar, Study of structural and spectroscopic characteristics of novel color tunable yellowish-white Dy3+ doped Gd4Al2O9 nanophosphors for NUV-based WLEDs, J. Mol. Struct., 2023, 1272, 134199, DOI:10.1016/j.molstruc.2022.134199.
- S. Kaushik, S. Devi, M. Kumar, H. Dalal, A. Srivastava and M. Srivastava, Opto-electronic, crystallographic, and Judd–Ofelt analysis of novel gadolinium-based europium doped BaSrGd4O8 nanophosphor for advanced pc-WLEDs, Mater. Res. Bull., 2022, 126, 111966, DOI:10.1016/j.materresbull.2022.111966.
- R. A. Talewar, S. Mahamuda, K. Swapna, M. Venkateswarlu and A. S. Rao, Spectroscopic studies of Sm3+ ions doped alkaline-earth chloro borate glasses for visible photonic applications, Mater. Res. Bull., 2018, 105, 45–54, DOI:10.1016/j.materresbull.2018.04.033.
- L. Yan, B. Li, Y. Song, Z. Lv, X. Zheng, Q. Wu and Y. Yang, Optical temperature sensing using the multiphonon-assisted anti-Stokes-to-Stokes fluorescence intensity ratio, Opt. Lett., 2017, 42, 3793, DOI:10.1364/ol.42.003793.
- X. Yuan, X. Hou, J. Li, C. Qu, W. Zhang, J. Zhao and H. Li, Thermal degradation of luminescence in inorganic perovskite CsPbBr3 nanocrystals, Phys. Chem. Chem. Phys., 2017, 19, 8934–8940, 10.1039/c6cp08824d.
- C. Wei, D. Xu, Z. Yang, J. Li, X. Chen, X. Li and J. Sun, A novel orange–red emitting phosphor Sr2LuTaO6:Sm3+ for WLEDs, J. Mater. Sci.: Mater. Electron., 2019, 30, 9303–9310, DOI:10.1007/s10854-019-01260-w.
- A. Mondal and J. Manam, Structural, optical and temperature dependent photoluminescence properties of Cr3+-activated LaGaO3 persistent phosphor for optical thermometry, Ceram. Int., 2020, 46, 23972–23984, DOI:10.1016/j.ceramint.2020.06.174.
- D. Wu, L. Liu, H. Liang, H. Duan, W. Nie, J. Wang, J. Peng and X. Ye, LiBAlF6:Cr3+ (B = Ca, Sr) fluoride phosphors with ultra-broad near-infrared emission for NIR pc-LEDs, Ceram. Int., 2022, 48, 387–396, DOI:10.1016/j.ceramint.2021.09.114.
- Y. Yang, Z. Lu, H. Fan, M. Chen, L. Shen, X. Zhang, Q. Pang, J. Chen, P. Chen and L. Zhou, Ultra-Broadband Near-Infrared Phosphors Realized by the Heterovalent Substitution Strategy, Inorg. Chem., 2023, 62, 3601–3608, DOI:10.1021/acs.inorgchem.2c04347.
- M. Zhao, Y. Liu, S. Ma, D. Liu and K. Wang, Investigation of energy transfer mechanism and luminescence properties in Eu3+ and Sm3+ co-doped ZnWO4 phosphors, J. Lumin., 2018, 202, 57–64, DOI:10.1016/j.jlumin.2018.05.030.
- A. K. Bedyal, A. K. Kunti, V. Kumar and H. C. Swart, Effects of cationic substitution on the luminescence behavior of Dy3+ doped orthophosphate phosphor, J. Alloys Compd., 2019, 806, 1127–1137, DOI:10.1016/j.jallcom.2019.07.305.
- A. R. Beck, S. Das and J. Manam, Temperature dependent photoluminescence of Dy3+ doped LiCaBO3 phosphor, J. Mater. Sci.: Mater. Electron., 2017, 28, 17168–17176, DOI:10.1007/s10854-017-7645-4.
- A. Douzi, S. Slimi, E. Madirov, A. Turshatov, B. S. Richards, R. M. Solé, M. Aguiló, F. Díaz, E. Ben Salem and X. Mateos, Structure and luminescence properties of Dy3+ doped quaternary tungstate Li3Ba2Gd3(WO4)8 for application in wLEDs, RSC Adv., 2023, 13, 23772–23787, 10.1039/d3ra02501b.
- Y. Xiang, Y. Zheng, L. Yang, M. Li, Y. Mao and J. Zhu, Exploring a new Dy3+-activated borotellurate phosphor with thermally stable photoluminescence, J. Alloys Compd., 2022, 919, 165837, DOI:10.1016/j.jallcom.2022.165837.
- H. Zhong, X. Li, R. Shen, J. Zhang, J. Sun, H. Zhong, L. Cheng, Y. Tian and B. Chen, Spectral and thermal properties of Dy3+-doped NaGdTiO4 phosphors, J. Alloys Compd., 2012, 517, 170–175, DOI:10.1016/j.jallcom.2011.12.072.
- M. Behera, R. Panda, R. Arun Kumar, N. K. Mishra, K. Kumar and T. Del Monte, Microwave-assisted combustion synthesis and characterization studies of novel dysprosium
doped yttrium calcium borate (Dy3+:Y2CaB10O19) phosphor materials for efficient white light applications, Ceram. Int., 2024, 50, 18146–18156, DOI:10.1016/j.ceramint.2024.02.298.
- F. Gao, W. U. Khan, W. U. Khan, Z. Ye and Y. Zhang, Structural-suppressing concentration quenching in dysprosium single-phase white emission and their application in optical thermometric and white light-emitting devices, Ceram. Int., 2023, 49, 8039–8047, DOI:10.1016/j.ceramint.2022.10.322.
Footnote |
† Electronic supplementary information (ESI) available. CCDC. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d5ma00391a |
|
This journal is © The Royal Society of Chemistry 2025 |
Click here to see how this site uses Cookies. View our privacy policy here.
