Organic synthesis procedures in the scientific literature are typically shared in prose (i.e., as unstructured data), which is not suitable for data-driven research applications. To represent such procedures, there is a well-structured language, named chemical description language (χDL). While automated conversion methods from text to χDL using either a rule-based approach or a generative large language model (GLLM) have been proposed, they sometimes produce errors. Therefore, human review following an automated conversion is essential to obtain an accurate χDL. The aim of this work is to visualize embedded information in the original text with a structured format to support the understanding of human reviewers. In this paper, we propose a novel framework for editing automatically converted χDLs from the literature with annotated text. In addition, we introduce a rule-based conversion method. To improve the quality of automated conversions, a method of using two candidate χDLs with different characteristics was proposed: one generated by the proposed rule-based method and the other by an existing GLLM-based method. In an experiment involving six organic synthesis procedures, we confirmed that showing the outputs of both systems to the user improved recall compared with showing one output individually.
There are several schemes for representing organic synthesis procedures and these can be classified into two levels: (a) a general description that cannot be executable on the platforms3–8 and (b) a detailed description that can be executable on robotic platforms.9,10 At the detailed level, Mehr et al. proposed the chemical description language (χDL).10χDL was designed as a universal chemical programming language that could be executed on any automated platform by translating into platform-specific low-level actions if the actions were feasible on the platforms. Their research group demonstrated the capability of χDL by executing chemical reactions on their robotic platform. Furthermore, several examples that use χDL to execute automated chemical reactions on other platforms have been reported.11,12 An integrated development environment for χDL named ChemIDE and a rule-based natural language processing (NLP) tool for the conversion of organic synthesis procedures from text to χDL have also been proposed.
Because manual information extraction from the chemical literature is a labor-intensive task for domain experts, NLP tools have been developed to support this work. From an early stage, rule-based methods have been developed for the extraction of information, such as compound names, reaction parameters, and actions.3,13–15 For example, ChemicalTagger3 was developed to extract chemical reaction information from the literature. Because the extraction is done by rules, domain experts can see the alignment of raw text and the output if it is visualized. However, rule-based methods sometimes suffer from scalability and flexibility issues against a wide variety of texts. In the past decade, deep learning-based methods have also been developed.16,17 These methods are generally more flexible and robust to data variations and show higher performance than rule-based methods but require large amounts of task-specific data for the training of a model. To enable the training of deep learning models with smaller datasets, bidirectional encoder representations from transformers (BERT)18 were proposed. BERT employed self-supervised pretraining to obtain general natural language patterns and supervised fine-tuning for solving a specific task. To obtain higher performance in domain-specific text, several domain-specific BERTs have been introduced.19–23 For chemistry, ChemBERT22 was proposed. In the past few years, generative large language models (GLLMs), which have shown high performance when trained only with zero or a few training examples, have constituted a trend in NLP tasks.24–26 For chemical information extraction, several works demonstrated the usefulness of GLLMs.11,27–29 However, several challenges, including consistency of the output format and unclear text alignment, hinder the wide application of these models.
For the automated conversion from text to χDL, Yoshikawa et al. proposed a GLLM-based method named CLAIRify11 and compared the performance of CLAIRify with a rule-based SynthReader. CLAIRify employed an iteration cycle of generation by a GLLM (GPT3.5, one of the GPT models31) and the validation of generated code to obtain a syntactically correct output. The outputs of organic synthesis procedures generated by SynthReader and CLAIRify were compared by expert chemists, and the experts often preferred the outputs of CLAIRify over those from SynthReader. In addition, CLAIRify tends to obtain higher recall and lower precision than SynthReader. The experts mentioned that the effects of missing actions are more severe than ambiguous or wrong actions when they determine preferred outputs.
While the focus of these studies was on improving the performance of automatic extraction, the aspect of manually correcting the automatically extracted results was not systematically investigated. However, a human review process is essential to make appropriate χDLs from the literature because these methods did not have 100% accuracy. In the review step, human reviewers need to read the original text.

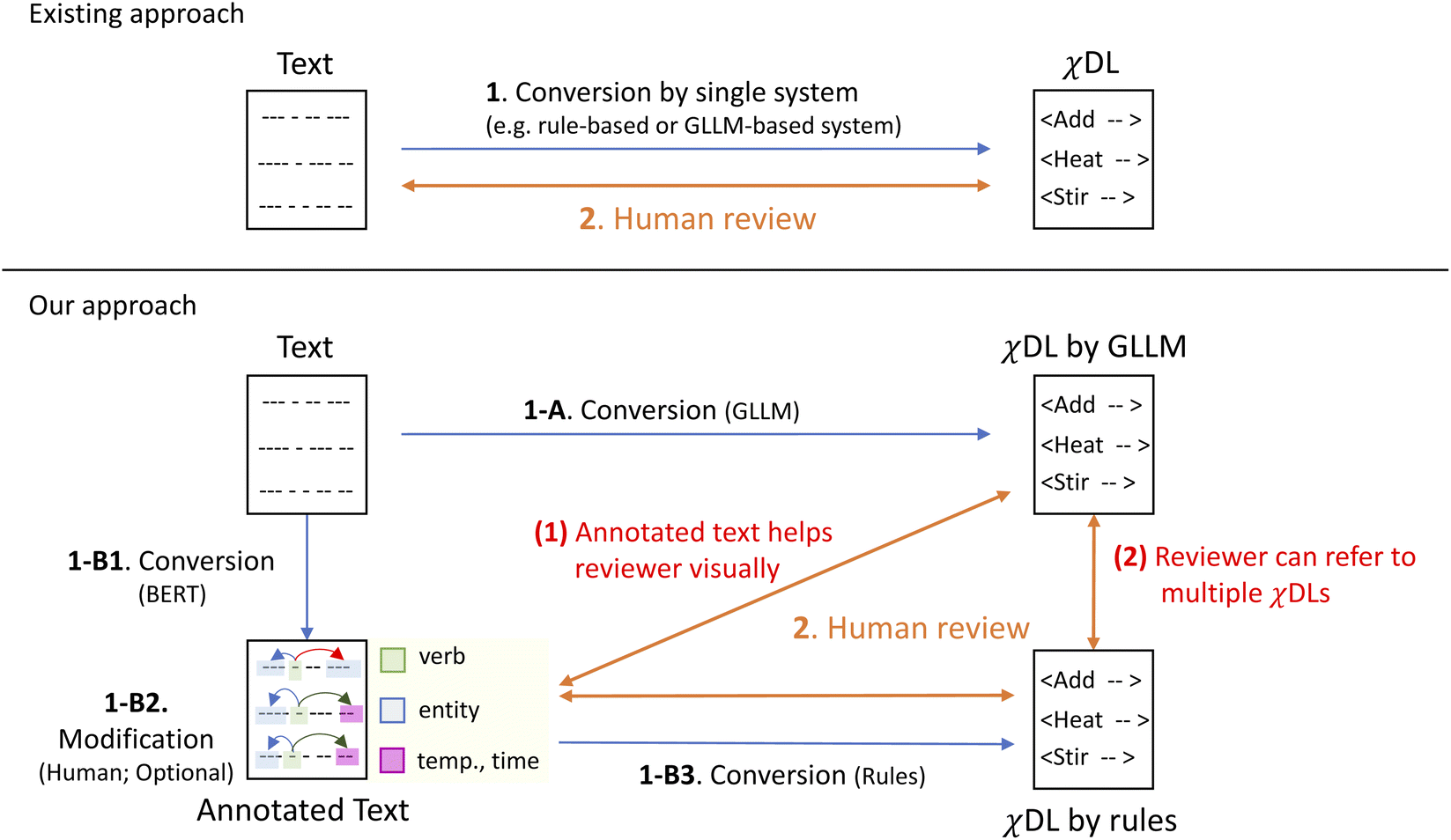

Along these lines, the aim of this work is to visualize embedded information in the original text with a structured format to support the understanding of human reviewers. We propose a novel framework for editing automatically converted χDLs from the literature with annotated text. Fig. 1 shows the overview of our framework. Our framework has two main points. First, to make actions described in plain text easier to understand visually, our framework provides reviewers with annotated text; it annotates action verbs with related entities and parameters. We used the organic synthesis procedures with argument roles (OSPAR) format,8 which was developed in our previous work, as the annotation format. Here, the structuring of procedures is aimed only at the synthesis sections, and no structuring is performed for the purification or analysis sections reported in the literature. This is because purification and analysis involve a wide variety of operations and require the description of equipment-specific procedures, which are currently considered unsuitable for structuring. Consequently, the conversion of text to χDL is also restricted to the synthesis sections in this study. Second, to improve automated conversion quality, we propose a method to use two candidate χDLs with different characteristics. One is the GLLM-based CLAIRify and the other is a rule-based system that was developed in this study. Although CLAIRify achieved higher recall than the rule-based system, there are several cases where only the rule-based systems can find appropriate information. Therefore, it is useful for the user to refer to both results to select appropriate parts from them. By using this framework, the user can recognize the action in the text with annotation and select appropriate action parts from the candidate χDLs. Even if the appropriate actions are not included in either of the converted χDLs, the user can easily identify the lack of action information in the χDLs by seeing the annotation.
In section 2, we first describe the existing schema for annotating text. Then, we introduce the user interface of our framework followed by the proposed rule-based conversion method. In section 3, we describe an experiment we conducted to discuss the comparative advantages of our framework by comparing the conversion result of χDLs by CLAIRify and the proposed system. As a result, we confirmed that the proposed system could find action information, which was not feasible by CLAIRify. We also compare the proposed system with SynthReader and discuss the advantages of the proposed system against the existing rule-based system. We found that the proposed method performed better, in terms of finding explicit actions, which were important for the information extraction task, while SynthReader was better at finding implicit actions.
![]() | ||
Fig. 2 Screenshot of the proposed user interface. The procedure text is based on Okaya et al.,30 with revisions made through pre-processing in the OSPAR corpus. |
NER is a task to find spans of actions, entities, and parameters. Words that represent actions are annotated as REACTION_STEP. Related entities with actions, such as chemical substances, gas, and instruments are annotated as ENTITY. Labels for representing parameters are TIME, TEMPERATURE, and MODIFIER. MODIFIER is information about parameters other than time and temperature used to perform actions, such as atmosphere, way to add compounds, stirring rate, and others.
RE is a task to find semantic roles between the action and entity/parameter. Semantic roles express the relation between a predicate (verb) and its arguments. In the OSPAR format, semantic roles represented by using PropBank-style semantic roles32 are used and each usage of a verb has a set of roles called rolesets. There are three labels in the OSPAR format, namely ARG1, ARG2, and ARGM. ARG1 represents the prototypical patient or theme of the verb. ARG2 represents other arguments that depend on rolesets. ARGM represents parameters that do not depend on rolesets.
After the user clicks the “annotate text” button, the text is converted to the OSPAR format and the result is visualized by brat,33 a web-based annotation tool. Then, the user can see the annotated text in the OSPAR format. If the user is not satisfied with the automatic annotation results, he/she can modify the annotation results by using brat as an annotation tool. This modification has the potential to improve the automated conversion method from the OSPAR format to χDL. By moving a cursor over REACTION_STEP, the user can view a roleset for the action to refer to the modification (Fig. S1†).
Then, the user clicks the “Generate χDL” button above the middle text editor to generate χDL from the OSPAR annotation which is displayed in the brat. The generated χDL can be edited and saved by clicking the “save as file” button as a filename beside the button. The text editor on the right is used for conversion from the text in the top textbox or text shown in brat to χDL by CLAIRify. The buttons around this editor have the same functions as the middle text editor. The user can compare both conversion results and select a better χDL as a base for the reviewing process. When the user finds some mistakes in the base χDL, the user can refer to the other χDL to check the existence of correct action for revising the base χDL.
See ESI† for more details of this user interface.
We used text normalization tools. To normalize the verbs, we used WordNet lemmatizer.36 To interpret numbers in word form, we used text2num37 to convert numbers in word form to numerical form. Additionally, we defined several constants to accurately interpret the parameters expressed in words and convert them into precise values (see ESI†).
Because it was difficult to capture multiple flasks (e.g., compounds A and B were mixed in a flask X and compounds C + D were mixed in a flask Y), we fixed vessel to reactor other than the case that OSPAR argument was a mixture and multiple compounds were written in the argument.
To evaluate each method by considering only actions that were explicit in the text, we labeled implicit actions. We labeled each action into an explicit or implicit action to distinguish them in the evaluation phase because errors from these types of actions had different meanings in an information extraction task. There are two types of implicit actions: (a) initiating stirring after addition of reagents and solvents (StartStir) and (b) stirring for a certain period of time (Stir). We did not consider creating a mixture in a noun phrase such as a solution of sodium iodide (15.0 g, 100 mmol) in acetonitrile (100 mL) because the actions were embedded in the text, unlike the abovementioned actions. When creating the correct χDL, if stirring continues after a Stir, it is treated as an implicit action. Therefore, instead of setting continue_stirring=True as an argument for Stir, it was represented as Stir and StartStir, with StartStir being treated as an implicit action. While we annotated the stopping stirring (StopStir) or heating (StopHeatChill) when the target vessels were not used in subsequent steps, we excluded these actions from the evaluation as they were not critical to reproduce the procedure.
In addition to evaluating each system individually, the combination of CLAIRify with other systems for a practical situation by human review was also examined. The combined recall was calculated by verifying whether the correct answer was present among the χDL actions produced by independently running the two systems. To evaluate close failures, we defined action recall in addition to exact recall. The definitions were the following:
• Exact recall: the proportion of correct actions with only correct parameters among the actions in gold data.
• Action recall: the proportion of correct actions with correct parameters and correct actions with missing/wrong parameters among the actions in gold data.
An example for evaluating a correct action in exact recall and action recall are shown in Fig. 4.
![]() | ||
Fig. 4 An example for evaluating a correct action in exact recall and action recall. While missing and/or wrong parameters are not allowed in exact recall, they are allowed in action recall. |
Other evaluation criteria were the following:
• Liquid/solid handling actions: it was considered as correct action if either mass or volume was specified in an action even if both mass/volume and amount were mentioned in the text. It was acceptable if dropwise=True was not specified for the Add action. It was also acceptable to create the initial mixture in the reactor.
• Stirring actions: when mass or volume were mentioned multiple times in the text, it was considered correct if either mass or volume was specified in an action.
• Temperature control actions: for HeatChill, cases like “between −15 °C and −5 °C” were considered correct if the temperature was set within that range.
SR | Pipe | O2X | CLAIR | SR + CLAIR | Pipe + CLAIR | O2X + CLAIR | |
---|---|---|---|---|---|---|---|
Exact recall | 22/65 | 28/65 | 31/65 | 38/65 | 45/65 | 48/65 | 49/65 |
Action recall | 34/65 | 41/65 | 50/65 | 60/65 | 60/65 | 60/65 | 60/65 |
![]() | ||

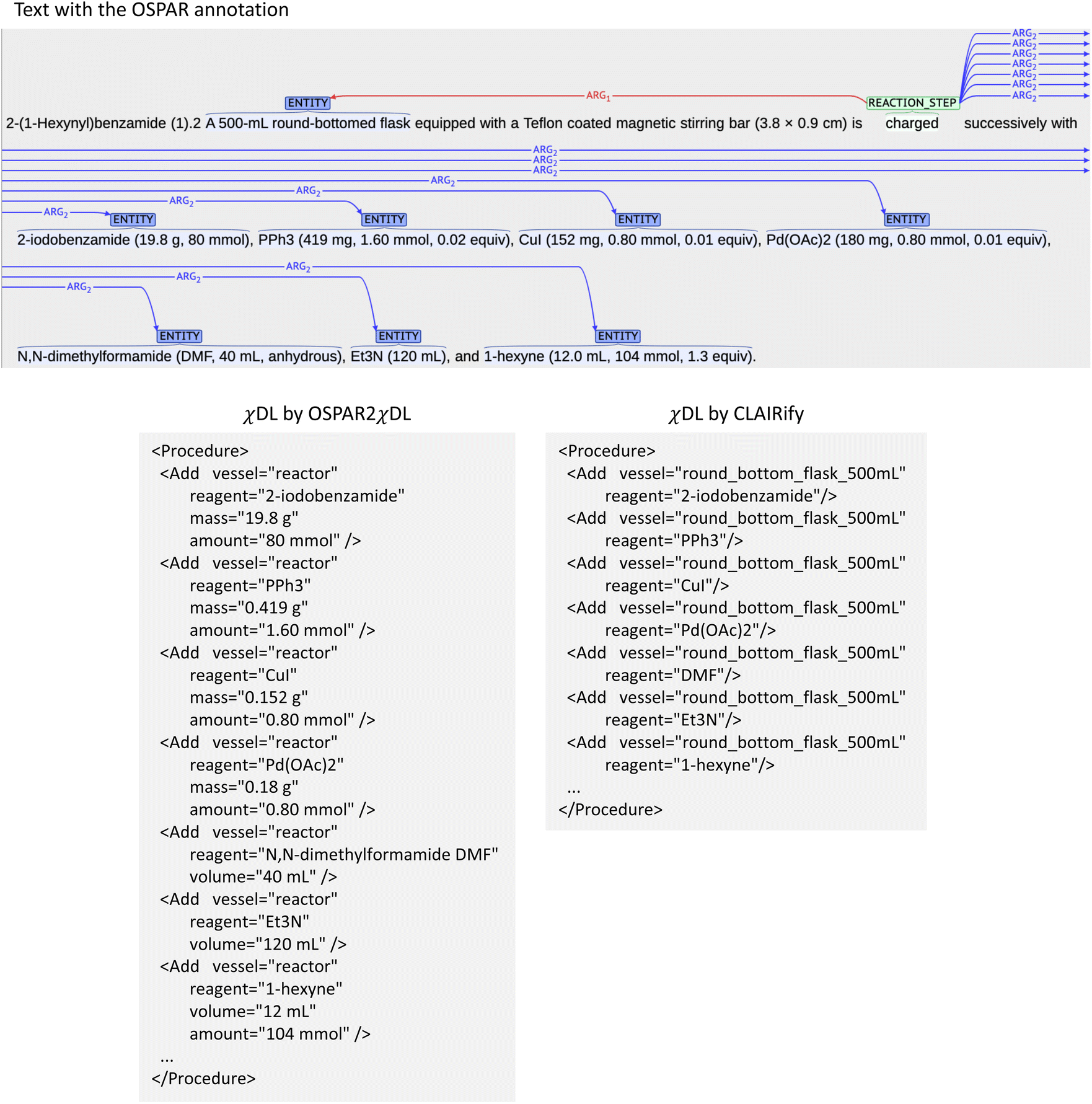

Fig. 5 An example for increased recall by systems other than CLAIRify when CLAIRify did not extract parameters. The procedure text is based on Okaya et al.,30 with revisions made through pre-processing in the OSPAR corpus. |
The proposed Pipeline and OSPAR2χDL showed higher recall than SynthReader in both exact and action recalls. While the evaluation data were small, we confirmed that the OSPAR format could represent enough information and the proposed rule-based conversion was better than SynthReader. A major reason why Pipeline was better than SynthReader was because Pipeline employed BERT-based NER and RE in contrast to rule-based SynthReader, which could not extract entities and relations absent from its templates. As a result, we observed differences in the recall of liquid handling actions such as Add and Transfer, which require recognizing compound names (Table S4†).
We confirmed that the modification of the OSPAR annotation could improve the conversion quality because actions, which were not extracted by Pipeline, were sometimes found by OSPAR2χDL, in terms of both exact and action recall. The main reason for the difference is that ChemBERT sometimes failed to extract compounds. In addition, errors in identifying entity boundaries led to missing parameters. As a result, the recall of liquid handling actions of Pipeline was lower than that of OSPAR2χDL (Table S4†). For examples of these errors, see ESI (Fig. S3†). To improve the information extraction system from the text to the OSPAR format, for example, increasing training data and improving a deep learning-based model were required. If the user annotates procedures for χDL conversion, the annotated procedure can be used as training data of the models for text to the OSPAR format.
There were two common errors that were difficult for rule-based methods when converting the OSPAR format to χDL. The first was an incorrect target vessel for actions because the proposed rules could not consider multiple vessels, as described in section 2.3.2. The second was the missing quantity or mass, as ChemicalTagger failed to determine which parameters belonged to which molecule. For example, o-tolylboronic acid, 10.0 g (73.6 mmol) was not correctly parsed due to the comma after o-tolylboronic acid. While the proposed method was sensitive to the notations of the OSPAR arguments in the text, CLAIRify was robust to these notations thanks to the flexibility of a GLLM.
We also confirmed that combining results of rule-based methods and CLAIRify was effective in increasing exact recalls. To compare the exact recalls of the CLAIRify combined with other systems, Pipeline and OSPAR2χDL showed better results than SynthReader (SynthReader found 7 new actions, Pipeline found 10 actions and OSPAR2χDL found 11 new actions). On the other hand, action recalls of the combined results did not increased by three methods. This result indicates the improved capability of CLAIRify for finding actions. Fig. 5 shows an example of how other systems can improve CLAIRify's recall. In this example, the amount or volume of reagents was not specified by CLAIRify. In other cases, CLAIRify failed to extract the time of addition or the stirring rate, even though these parameters were clearly stated in the text.
SR | Pipe | O2X | CLAIR | SR + CLAIR | Pipe + CLAIR | O2X + CLAIR | |
---|---|---|---|---|---|---|---|
Exact recall | 2/12 | 0/12 | 0/12 | 6/12 | 7/12 | 6/12 | 6/12 |
Action recall | 2/12 | 0/12 | 0/12 | 6/12 | 7/12 | 6/12 | 6/12 |
To enable finding implicit actions by the proposed methods, we need to construct rules to capture these actions in future work. For example, inserting StartStir following multiple Add actions would be considered. Another example is inserting StopStir when the reactor or flask was not used after the previous action.
We found that human reviewers need to be careful with vessel parameters when multiple vessels are used in a procedure. When combining multiple candidate χDLs, reviewers also need to pay attention to the parameters. For example, the vessel names should be standardized to match the notation used in one of the χDLs, and the associated component should be declared in the hardware section. Similarly, the reagents section should be updated when a reagent that used in χDL actions is not declared.
To supplement implicit actions, expertise in chemistry is required because it is necessary to determine when stirring is required and how long the stirring should continue. For example, it is difficult for non-experts to supplement implicit stirring actions after mixing compounds because the stirring time depends on the specific compounds involved.
