Souvik
Pore
and
Kunal
Roy
*
Drug Theoretics and Cheminformatics Laboratory, Department of Pharmaceutical Technology, Jadavpur University, 188Raja S C Mullick Road, 700032, Kolkata, India. E-mail: kunalroy_in@yahoo.com; kunal.roy@jadavpuruniversity.in; Fax: +91 33-2837-1078; Tel: +91 9831594140
First published on 15th August 2024
An external chemical substance (which may be a medicinal drug or an exposome), after ingestion, undergoes a series of dynamic movements and metabolic alterations known as pharmacokinetic events while exerting different physiological actions on the body (pharmacodynamics events). Plasma protein binding and hepatocyte intrinsic clearance are crucial pharmacokinetic events that influence the efficacy and safety of a chemical substance. Plasma protein binding determines the fraction of a chemical compound bound to plasma proteins, affecting the distribution and duration of action of the compound. The compounds with high protein binding may have a smaller free fraction available for pharmacological activity, potentially altering their therapeutic effects. On the other hand, hepatocyte intrinsic clearance represents the liver's capacity to eliminate a chemical compound through metabolism. It is a critical determinant of the elimination half-life of the chemical substance. Understanding hepatic clearance is essential for predicting chemical toxicity and designing safety guidelines. Recently, the huge expansion of computational resources has led to the development of various in silico models to generate predictive models as an alternative to animal experimentation. In this research work, we developed different types of machine learning (ML) based quantitative structure–activity relationship (QSAR) models for the prediction of the compound's plasma protein fraction unbound values and hepatocyte intrinsic clearance. Here, we have developed regression-based models with the protein fraction unbound (fu) human data set (n = 1812) and a classification-based model with the hepatocyte intrinsic clearance (Clint) human data set (n = 1241) collected from the recently published ICE (Integrated Chemical Environment) database. We have further analyzed the influence of the plasma protein binding on the hepatocyte intrinsic clearance, by considering the compounds having both types of target variable values. For the fraction unbound data set, the support vector machine (SVM) model shows superior results compared to other models, but for the hepatocyte intrinsic clearance data set, random forest (RF) shows the best results. We have further made predictions of these important pharmacokinetic parameters through the similarity-based read-across (RA) method. A Python-based tool for predicting the endpoints has been developed and made available from https://sites.google.com/jadavpuruniversity.in/dtc-lab-software/home/pkpy-tool.
The binding of a chemical substance with plasma proteins is a reversible process that significantly affects both the PK and PD properties of the substance.9 A substance generally binds with two types of plasma protein, namely serum albumin (for acidic compounds) and α-1-acid glycoprotein (for basic compounds).10 The extent of plasma protein binding varies with the nature and concentration of the chemical compound. A chemical entity's tissue distribution becomes limited, if its binding with plasma protein is poor. Binding with plasma protein helps to solubilize lipophilic compounds and influence their pharmacokinetics; but if it is too strong, the compound never reaches the minimum concentration required to show any action.11 The fraction unbound (fu) is an essential parameter that determines the concentration for minimum tolerable toxicity threshold, and macromolecular interaction and helps to develop the pharmacokinetic–pharmacodynamic relationship.12 A high plasma protein binding leads to a higher fraction of compounds present in the blood compartment and a low volume of distribution, meaning less partition of that compound within the tissue.11 However, only the free portion of a compound can exert pharmacological action; so the unbound fraction of that compound is essential for the correlation with its observed activity.12 Although a compound may have a high degree of protein binding, only the free portion of the compound can undergo any elimination action, such as metabolism and excretion. This means that the elimination half-life of a compound can increase due to high protein binding.13 The process of protein binding generally serves as a storage mechanism for a chemical substance. As the free portion of a compound decreases, the drug bound to the protein dissociates to maintain equilibrium and prolong the compound's effects.14
Clearance is the process of removing a chemical substance irreversibly from a hypothetical volume of plasma or serum per unit of time. It is an important factor that determines the residence time of a chemical substance within the body.15 The efficiency of the organ in eliminating a chemical substance is represented by the clearance value, with higher values indicating better efficiency. A detailed description of the clearance method is provided in ESI SI-2.†
Therefore, it is crucial to accurately determine the fraction of unbound chemicals and their clearance properties to ensure safety and create effective safety guidelines. Various methods such as equilibrium dialysis, rapid equilibrium dialysis, and ultrafiltration are utilized to estimate the plasma protein binding.12 All of these methods involve a huge amount of cost, time, and resources. In recent years, various computational methods have been employed to develop PK models that estimate the PK properties of chemical compounds. The main advantage of the computational method is that it does not involve any kind of animal experimentation and reduces the wastage of resources and time.
Currently, various data-driven approaches, such as Machine Learning (ML), Quantitative Structure–Activity Relationship (QSAR), and Read-Across (RA), are used to develop predictive models. ML is a branch of artificial intelligence that helps machines to learn and improve their performance based on previous data and helps to predict unknown data.16 There are different ML algorithms, which can be categorized as supervised, unsupervised, and reinforcement, based on their application to data-related problems. Supervised ML is used for labeled datasets, unsupervised ML for unlabeled datasets, and reinforcement for feedback-based learning. In reinforcement learning, the learning agent is rewarded for every right action and penalized for every wrong action.17 ML methods have a wide range of applications, but they also have several disadvantages, they require large amounts of high-quality data, have complex algorithms, and lack interpretation.18 To address the problem of interpretation, presently different explainable methods like SHAP have been adopted for interpreting ML algorithms.19 On the other hand, statistical methods like QSAR are used to develop relationships between molecular structures and the observed activity. In the QSAR model development, compounds with known activity are used, and predictions are made for unknown chemicals.20 QSAR models provide a simple, interpretable model, but the model becomes non-reliable when the size of the dataset is small.21 In such situations, similarity-based methods like RA can be used for prediction, which can be used for both smaller and larger datasets.22 RA is not a statistical approach but uses similarity values to make predictions. The RA method can be classified into two groups: the analog approach (where only one similar compound is used for the prediction) and the category approach (where multiple similar compounds are used for the prediction).23 The RA method is mainly used by regulatory agencies to make regulatory decisions and is also widely used for data gap-filling.21
Previously, a large number of attempts were made to develop in silico models to correlate molecular structure with plasma fraction unbound24–28 and hepatocyte intrinsic clearance.29–32 A quantitative structure–property relationship model was developed by the group of Yun et.al. by using experimentally derived fraction unbound data.24 Esaki et.al. developed a computational method for the prediction of the amount fraction of unbound drugs present in the human brain. By using this model, they tried to estimate CNS toxicity, and for the model development, they used 253 compounds.25 Ryu et.al. and coworkers evaluated the safety and efficacy of different drugs through the evaluation of the drug fraction unbound across 7 different tissues and 5 different species.26 Zhivkova and Doytchinova developed a quantitative structure-plasma protein binding relationships (QSPPBR) model for the prediction of the amount of unbound fraction of a compound present in the plasma. In their study, they used 132 diverse acidic drugs and 178 molecular descriptors for model development.27 Riedl et.al. developed a deep learning model for the prediction of plasma fraction unbound with the tokenized SMILE strings.28 Paixão et.al. developed an artificial neural network for the prediction of hepatocyte intrinsic clearance with calculated molecular descriptors. For this research work, they used 71 drugs for modeling and 18 drugs for evaluation.29 Sternbeck et.al. developed a predictive model with hepatic and microsome intrinsic clearance data for 52 drugs.30 Lombardo et.al. developed a random forest-based machine-learning model with 1340 compounds from human clearance data.31 Nikolic and Agababa developed a QSAR model with 29 drugs of different structures, for the prediction of human hepatic microsomal intrinsic clearance.32
In our research, we have devised various predictive models to determine the length of time different chemical substances remain in the body. These models use plasma fraction unbound and hepatocyte intrinsic clearance parameters to evaluate the body residence time. We have developed separate machine learning-based QSAR models for each type of endpoint data. Our study also examines the impact of plasma fraction unbound on compound clearance, taking into account common compounds found in both data sets. To achieve our objectives, we employed several machine learning models, including random forest, adaboost, gradient boost, xgboost, support vector machine, linear support vector machine, ridge regression, and partial least squares models. Additionally, we analyzed the data sets using a similarity-based read-across method. Ultimately, our goal has been to create predictive model hypotheses for estimating residence time of chemicals within the body which may be helpful for their toxicity assessments.
The descriptors can be classified into different groups like 0D to 7D based on the dimensionality of the descriptor, but generally, 2D and 3D descriptors are used for the QSAR model development. This research work is performed by using only 2D descriptors, to avoid the conformational complexity of the molecular structures. The 2D descriptors also have another advantage over 3D descriptors: the values of 2D descriptors are easy to interpret and reproducible.20 In this work, we calculated a total of 2400 descriptors belonging to the 9 different classes namely: constitutional indices, ring descriptors, connectivity descriptors, ETA indices, functional group counts, atom-centred fragments, atom-type E-state indices, 2D atom pair, and molecular properties.
Here we found that a portion of the data set does not follow the basic assumption of the QSAR analysis which is that similar compounds have similar activity or properties.35 This anomaly behavior is known as the “Cliff” in the descriptor space where drastic changes in the activity or properties occur with small changes in the descriptor values. In other words, if we add or remove a few such data points there will be a significant change in the quality of the QSAR model. The cliff is defined as the ratio of the difference in activity between two compounds to the distance of separation in descriptor space,36 as shown in eqn (1):
![]() | (1) |
Here, we used a similarity-based method for the detection of the activity outliers present in the data set and removed these compounds before model development. We have calculated two similarity-based coefficients sm1 and sm2, for the detection of the activity outliers,37 which are mathematically represented below in eqn (2) and (3):
![]() | (2) |
![]() | (3) |
Also, for a positive compound, PosAvgSim should be greater than NegAvgSim i.e., sm2 should be positive otherwise the compound is considered an outlier. Similarly, for the negative compound, the sm2 value should be negative.
The compounds that are detected as outliers by both sm1 and sm2 coefficients are removed from the data set before model development and used as a true external set for validation. In this work, only from the fu data set we removed the response outliers and a total of 362 compounds were removed before modeling (but kept aside for an external set for making predictions). Here, we used a Java-based in-house tool RASAR-Desc-Calc-v3.0.2 (available from https://sites.google.com/jadavpuruniversity.in/dtc-lab-software/home) for the calculation of sm1 and sm2 coefficients at a default hyper-parameter setting (CTC = 10) by using Euclidean distanced-based similarity method.
Here, we have used Java-based tools datasetDivisionGUI1.2 and ModifiedKMedoid_4 (available from http://teqip.jdvu.ac.in/QSAR_Tools/) to divide the data set. Both the data sets were divided into 3:
1 ratio, and after division training and test sets were subjected to the data pre-treatment using dataPreTreatmentTrainTest1.0 (available from http://teqip.jdvu.ac.in/QSAR_Tools/).
Here, we used the genetic algorithm (GA) and best subset feature selection methods to identify the most significant features for modeling the fu data set. The genetic algorithm was used for the reduction of the initial feature pool, and then the best subset method was used to find the best modellable feature combination. The hyperparameters used in the GA method are the number of iterations, the number of features, cross-over probability, mutation probability, the initial number of equations generated, and the number of equations selected in each generation. The process of feature selection through the GA method is discussed in detail in the ESI SI-2.† Here, we used the prediction error-based metric (mean absolute error) for the convergence of the GA method.
The GA method of feature selection was performed by using the tool GeneticAlgorithm_v4.1_Train (available from http://teqip.jdvu.ac.in/QSAR_Tools/) which uses an error-based fitness score for optimization. This tool was run multiple times using only the training set, and the best feature combinations were selected based on the model's internal quality which is developed with GA-selected features. These selected features were merged and subjected to the best subset feature method using BestSubsetSelectionModified_v2.1 (available from http://teqip.jdvu.ac.in/QSAR_Tools/). This tool develops a multiple linear regression (MLR) model for all the possible combinations of the feature and evaluates its quality metrics. Here, we select the best feature combinations based on the model's internal quality metrics.
The random forest feature importance was used to identify the relevant features of the Clint data set.50 Random Forest is a tree-based machine-learning modelling technique that builds multiple decision trees during model training.51 In the random forest models, the relative importance of a feature can be calculated which is used for the selection of appropriate contributing features. The importance of a feature is calculated based on how much it contributes to the reduction of the impurity (gini impurity) across all the trees in the forest. The feature that leads to a decrease in the impurity significantly is considered to be a more important feature.52,53 Here, we have used the Python-based Scikit-learn module for the calculation of the feature importance and used them for the development of the QSAR models.
In this work, we have used Machine Learning Regression v2.1 and Machine Learning v1.0 (available from https://sites.google.com/jadavpuruniversity.in/dtc-lab-software/home/machine-learning-model-development-guis) tools for the development of the ML models. These tools use a Python-based Scikit-learn module for the development of the models. Here, we optimized the hyperparameters of the ML models using the GridSearchCV method by 5-fold cross-validation using the tool Tuning+CV v1.0 available from the above link.
Here, we developed a SHAP summary plot and local force plot for the determination of the feature contribution globally and locally. In the summary plot, features are distributed along the vertical axis according to their feature importance, and along the horizontal axis, SHAP value distribution is represented. In this plot, each instance is represented by dots which are colored based on the feature value and help to determine the direction of the feature contribution. The local force plot indicates the feature contribution to the prediction for a particular data point and also helps to determine the direction of the contribution, whether positive or negative.
These models were used for the prediction of the compounds with 203 unique Clint data, and for this prediction, we have used model-derived fu data (obtained from the regression-based fu model). These models were also used for the prediction of the compounds having unique fu data points.
The complete working process of this research is graphically represented in Fig. 1.
Modeling method | Training set statistics | Cross-validation statistics | Test set statistics | Hyper-parameter setting | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R 2 | Q LOO 2 | MAEtraining | RMSEC | MAELOO | MSELOO | ShuffleSplit CV | Q F1 2 | Q F2 2 | Q F3 2 | MAEtest | RMSEP | CCC | |||
R 2 ± SEM | MAE ± SEM | ||||||||||||||
RF | 0.75 | 0.66 | 0.35 | 0.50 | 0.41 | 0.34 | 0.64 ± 0.001 | 0.42 ± 0.001 | 0.68 | 0.68 | 0.68 | 0.40 | 0.56 | 0.80 | {‘n_estimators’: 300, ‘min_weight_fraction_leaf’: 0.0, ‘min_samples_split’: 4, ‘min_samples_leaf’: 5, ‘min_impurity_decrease’: 0.0, ‘max_leaf_nodes’: None, ‘max_depth’: 5, ‘criterion’: ‘squared_error’} |
ADB | 0.58 | 0.55 | 0.54 | 0.65 | 0.54 | 0.45 | 0.54 ± 0.002 | 0.56 ± 0.002 | 0.57 | 0.57 | 0.57 | 0.56 | 0.66 | 0.68 | {‘n_estimators’: 200, ‘loss’: ‘linear’} |
GB | 0.74 | 0.68 | 0.36 | 0.51 | 0.40 | 0.32 | 0.67 ± 0.001 | 0.40 ± 0.001 | 0.70 | 0.70 | 0.70 | 0.39 | 0.55 | 0.81 | {‘subsample’: 1.0, ‘n_estimators’: 80, ‘min_weight_fraction_leaf’: 0.0, ‘min_samples_split’: 3, ‘min_samples_leaf’: 4, ‘min_impurity_decrease’: 0.0, ‘max_depth’: 2, ‘loss’: ‘squared_error’, ‘learning_rate’: 0.1, ‘criterion’: ‘friedman_mse’} |
XGB | 0.77 | 0.67 | 0.35 | 0.48 | 0.42 | 0.33 | 0.65 ± 0.001 | 0.43 ± 0.001 | 0.68 | 0.68 | 0.68 | 0.40 | 0.56 | 0.80 | {‘n_estimators’: 100, ‘max_depth’: 3, ‘learning_rate’: 0.1, ‘booster’: ‘gbtree’} |
SVM | 0.75 | 0.69 | 0.32 | 0.50 | 0.37 | 0.31 | 0.68 ± 0.001 | 0.38 ± 0.001 | 0.75 | 0.75 | 0.75 | 0.34 | 0.50 | 0.85 | {‘gamma’: ‘auto’, ‘degree’: 3, ‘C’: 1.0} |
LSVM | 0.59 | 0.57 | 0.49 | 0.64 | 0.49 | 0.42 | 0.57 ± 0.001 | 0.49 ± 0.001 | 0.63 | 0.63 | 0.63 | 0.46 | 0.61 | 0.76 | {‘C’: 10.0} |
RR | 0.61 | 0.60 | 0.49 | 0.63 | 0.50 | 0.40 | 0.59 ± 0.001 | 0.50 ± 0.001 | 0.64 | 0.64 | 0.64 | 0.47 | 0.60 | 0.76 | {‘alpha’: 40.0} |
PLS | 0.61 | 0.60 | 0.49 | 0.63 | 0.49 | 0.40 | 0.59 ± 0.001 | 0.49 ± 0.001 | 0.65 | 0.65 | 0.65 | 0.46 | 0.59 | 0.77 | Component 4 |

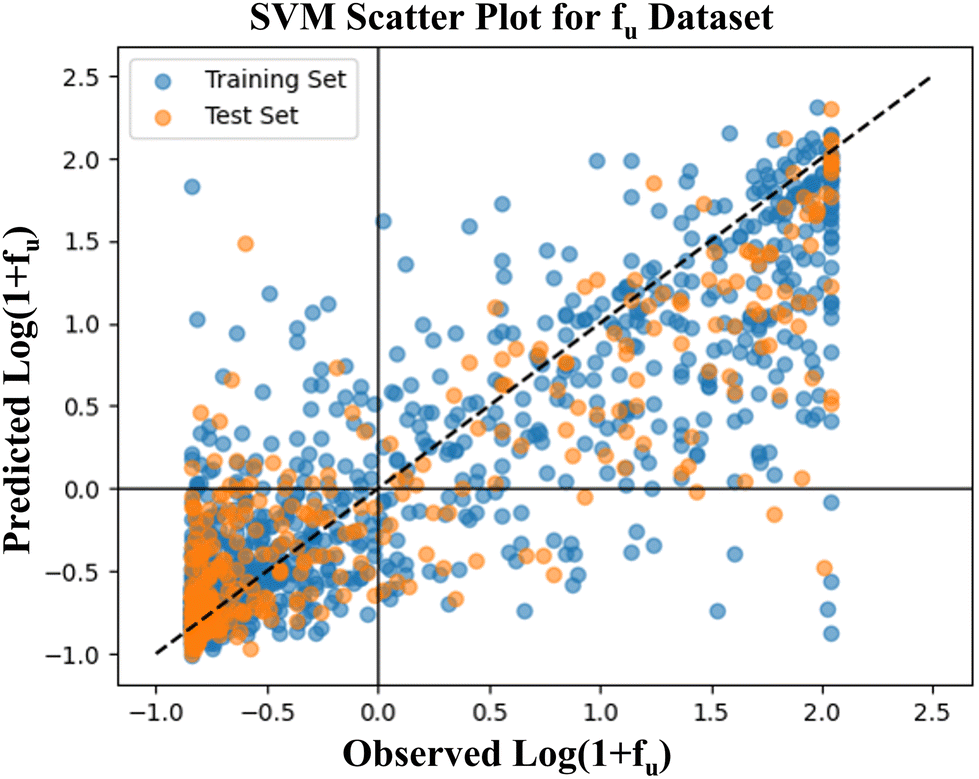

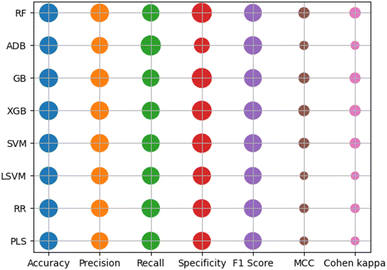

A scatter plot has been generated to visually represent the performance of the SVM model. The X and Y-axes of the plot display the observed and predicted fraction unbound values, respectively, as shown in Fig. 2. The calculated Pearson's correlation coefficient for the scatter plot is 0.869, revealing a robust positive correlation between the observed and predicted values. Here, we developed learning curves for the SVM model by using mean absolute error (MAE) and R2 as the objective functions, which are shown in Fig. S4.† A learning curve is a good diagnostic tool to find out whether the model is going to benefit by adding more training data or not. It also helps to determine whether a model suffers from variance or bias problems. A learning curve is generated by training a model at varying training sizes and testing it on the validation set, finally training and validation set scores are used to determine the model performance.
From Fig. S4,† we can see that with increasing the training size the training and validation curves reach their plateau state, which that means with increasing the training data model performance is not going to change significantly. The small difference between the training and validation curve indicates the good quality of the model. Here, we also developed validation curves for the SVM model with respect to the parameter C and degree by considering R2 and MAE as the objective functions, as shown in Fig. S5.† A validation curve is a good tool to measure the sensitivity of a model with changes in model hyper-parameters visually. From these plots, we can see that the gap between the training and validation curve increases (both R2 and MAE) with C, which signifies that the model performs well for a small C value. On the other hand, the validation and training curves remain constant for the parameter degree which indicates that model performance is not going to be affected by the degree parameter. The residual values of the training and test sets were used to generate the violin plot, which helps to understand the data distribution of different categories, as shown in Fig. S6.† From this plot, we can see that the density or frequency of the data points is higher at values close to zero, which indirectly indicates good prediction quality.

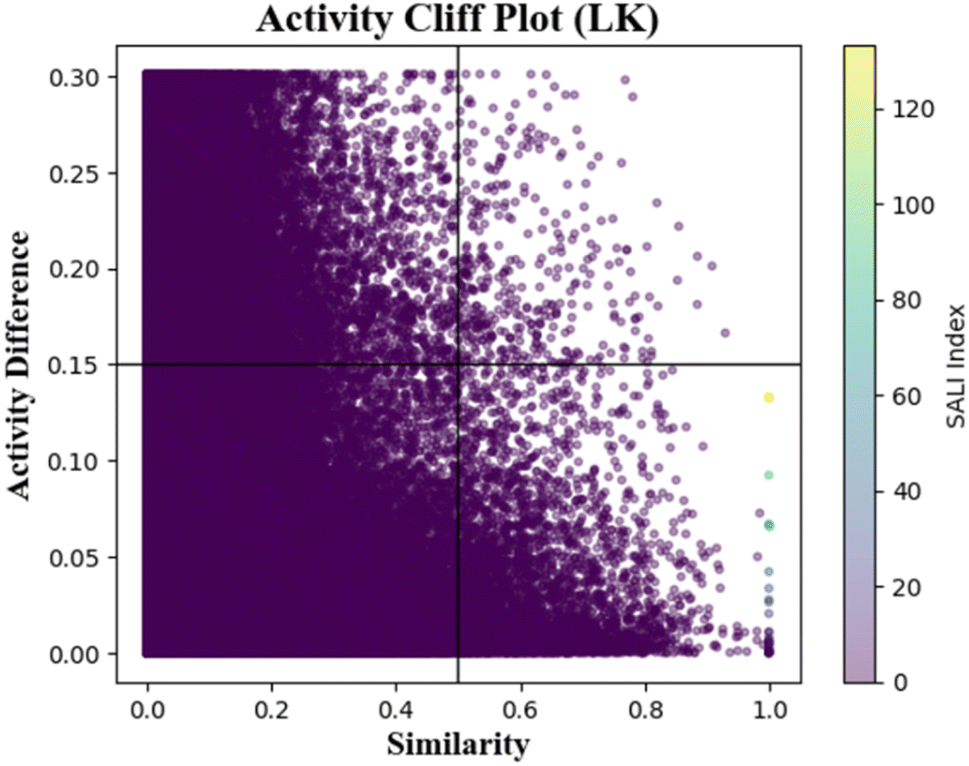

Here, we also performed an analysis to understand the response outliers (activity cliffs) behavior of the data points present in the data set. Here, we calculated pair-wise similarity through the Laplacian kernel similarity function and also calculated the pair-wise difference between the response values. A scatter plot is generated by plotting pair-wise similarity along the X-axis and response value differences along the Y-axis (Fig. 3), and then the plot is equally divided into four quadrants. The compounds that are present in the upper right quadrant have high activity differences although they have higher structural similarity and can thus be considered as activity cliffs.

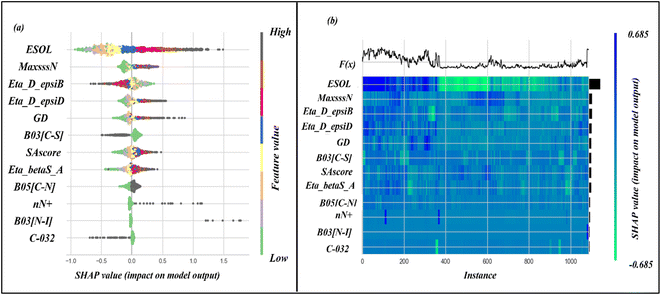

In our study, we conducted a SHAP analysis for the SVM model, which helped us to identify the most crucial descriptors for accurate predictions. We have presented the results in the form of a summary plot and a heat map plot in Fig. 4. The summary plot shows the features arranged on the vertical axis, according to their importance, with the most important features appearing at the top. The horizontal axis represents the SHAP value distribution for all the data points. The SHAP heat map plot shows the global importance of the features and also illustrates how the importance of each feature varies across all data points. Based on these plots, we can conclude that the descriptor ESOL is the most important for accurate predictions, while C-032 has the least importance.
ESOL is a molecular property descriptor that represents the estimated solubility parameter (LogS) for aqueous solubility. It is calculated using the consensus octanol–water partition coefficient (LOGPcons).62 This descriptor shows the highest importance for predictions made by the model. From Fig. 4, we can see that an increasing value of this feature is positively correlated with an increase in the SHAP value for the data points. This indicates that the feature contributes positively to the response value, meaning that an increasing value of this feature increases the amount of unbound fraction of a chemical substance. The positive contribution of this descriptor can be indicated by the compounds 1247 (ESOL = 3.38, log(1 + fu) = 2.02), and 1227 (ESOL = 3.33, log(1 + fu) = 1.94) where compounds have higher ESOL values. The opposite effect can be seen for the compounds where the ESOL values are small such as for compounds 1711 (ESOL = −2.93, log(1 + fu) = −0.71), 598 (ESOL = −2.93, log(1 + fu) = −0.83). The compounds with higher aqueous solubility (ESOL values) indicate that the compounds are more hydrophilic and are thus less prone to bind with the plasma proteins increasing the amount of free compounds in the plasma.63
The second most important descriptor is MaxsssN, which is an atom-type E-state (or electrotopological) descriptor that represents the maximum electronic and topological state of the single bonded nitrogen atom in the molecule (>N−). This descriptor contributes positively to the response value which can be represented by the following example: compound 1518 (MaxsssN = 2.08, log(1 + fu) = 1.11), 1796 (MaxsssN = 2.08, log(1 + fu) = 0.87), and 1501 (MaxsssN = −0.72, log(1 + fu) = -0.23). This descriptor increases polar functionality within a molecule and decreases the probability of binding with the plasma protein which in turn increases the free amount in plasma.64
The Extended Topochemical Atom (ETA) descriptor Eta_D_epsiB can be utilized to quantify the level of unsaturation within a molecule. The ETA descriptors are derived through an H-suppressed molecular graph, where the vertex holds both the molecular core and its valence electronic environment. This measure of ETA amalgamates the core count and valence electron number to derive topochemical indices. Such a tool is beneficial for understanding the chemical properties of a molecule and its potential applications across various fields. The descriptor Eta_D_epsiB can be represented mathematically as, , where ε1 indicates the summation of the epsilon value in a molecule relative to the number of all atoms in the molecule, and ε4 indicate summed epsilon value relative to atoms including hydrogen of the saturated carbon skeleton.65 This descriptor shows a negative correlation to the response variable, which can be depicted by the following examples: compound 1601 (Eta_D_epsiB = 5.05, log(1 + fu) = −0.84), 1525 (Eta_D_epsiB = 4.26, log(1 + fu) = −0.84), 191 (Eta_D_epsiB = −1.23, log(1 + fu) = 1.69), and 913 (Eta_D_epsiB = −1.41, log(1 + fu) = 2.04).
Two other ETA descriptors Eta_D_epsiD (representing the ETA measure of hydrogen bond donor) and Eta_betaS_A (representing the ETA sigma average of the VEM count) show a positive correlation for the response values. The mathematical calculation of the Eta_D_epsiD descriptor can be represented as follows: , where, ε2 indicates the sum of the epsilon count of the molecule except hydrogen atom relative to the number of non-hydrogen atoms (giving a measure of electronegative atom count) and ε5 indicates the sum of the epsilon values of a molecule (for the hydrogen atom, only heteroatoms-connected hydrogen atoms are considered) relative to the number of non-hydrogen atoms and hydrogen atoms connected to the electronegative atom. The Eta_betaS_A descriptor can also be represented mathematically as shown below:
GD (or graph density) is a constitutional index, and it is used to calculate from the hydrogen-suppressed molecular graph, which can be mathematically represented as follows:
The molecular property descriptor, SAscore indicates the synthetic accessibility or ease of synthesis of a molecule. The range of SAscore varies from 1 to 10, where 1 indicates easy to make and 10 indicates very difficult to make. The estimation of the SAscore depends upon fragment contribution and molecular complexity, where molecular complexity indicates the presence large ring, non-standard molecular structure, ring fusion, stereo-complexity, and molecular size.70 This descriptor contributes positively to the response value, which may be due to the increase of molecular interaction with an increase in molecular size and structural complexity. The positive contribution can be represented by the following examples – compound 113 (SAscore = 6.38, log(1 + fu) = 0.84), and 270 (SAscore = −1.86, log(1 + fu) = −0.83).
Two 2D atom pair descriptors B05[C–N] (indicating the presence or absence of carbon and nitrogen atoms at the topological distance of 5), B03[N–I] (indicating the presence or absence of nitrogen and iodine atoms at the topological distance of 3), and one functional group count descriptor nN+ (representing the number of positively charged nitrogen atoms) contribute positively to the response values. The positive contribution of these descriptors indicates that the presence of these fragments leads to a decrease in the amount of compound binding with plasma protein and an increase in the free fraction of the molecule. These fragments generally increase the polarity of the molecule by introducing polar fragments within the structure which in turn decrease protein binding.64 The positive contribution of these descriptors can be represented by the following example: 113 (B05[C–N] = 0.695, log(1 + fu) = 0.84) and 1712 (B05[C–N] = −1.44, log(1 + fu) = −0.78) for B05[C–N]; 1555 (B03[N–I] = 10.94, log(1 + fu) = 2.04) and 1712 (B03[N–I] = −0.091, log(1 + fu) = −0.78) for B03[N–I]; 1215 (nN+ = 9.47, log(1 + fu) = 1.06) and 1712 (nN+ = −0.14, log(1 + fu) = −0.78) for nN+.
The 2D atom pair descriptor B03[C–S] (representing the presence or absence of carbon and sulfur atoms at the topological distance of three) and an atom-centered fragment descriptor C-032 (represents the fragment X–CX–X; where X is any electronegative atom connected to the carbon atom through single bond) contribute negatively to the response value. The negative contribution of these descriptors can be represented by the following example: 1523 (B03[C–S] = 1.88, log(1 + fu) = 0.053) and 228 (B03[C–S] = −0.53, log(1 + fu) = 2.04) for B03[C–S]; 1799 (C-032 = 9.32, log(1 + fu) = −0.78) and 848 (C-032 = 2.99, log(1 + fu) = 1.36) for C-032.

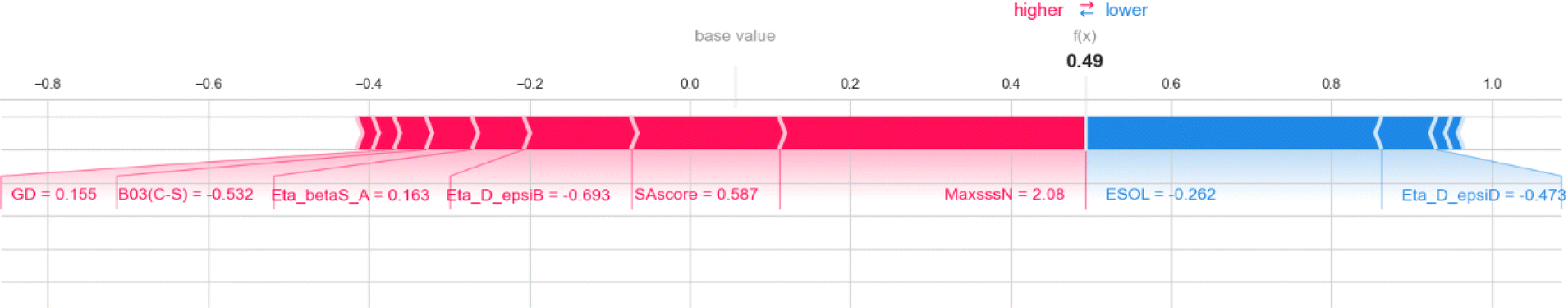

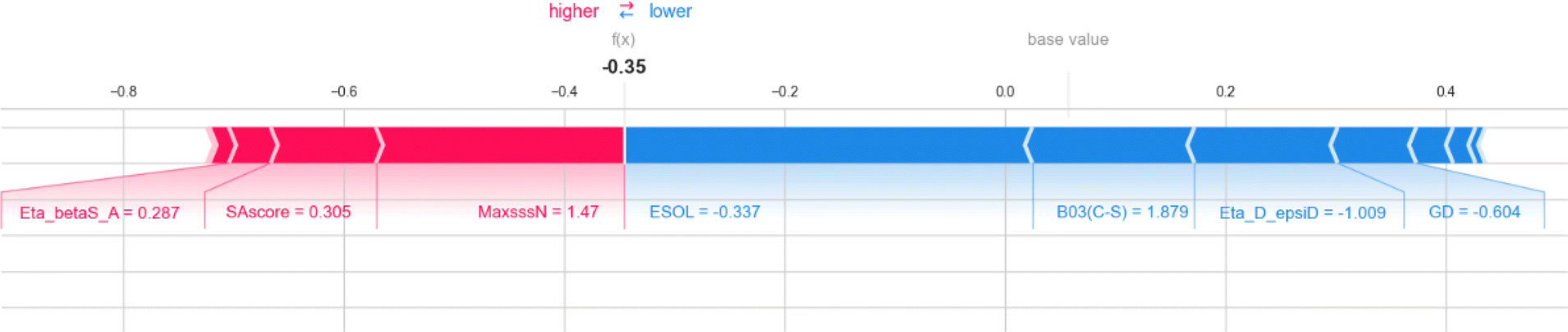

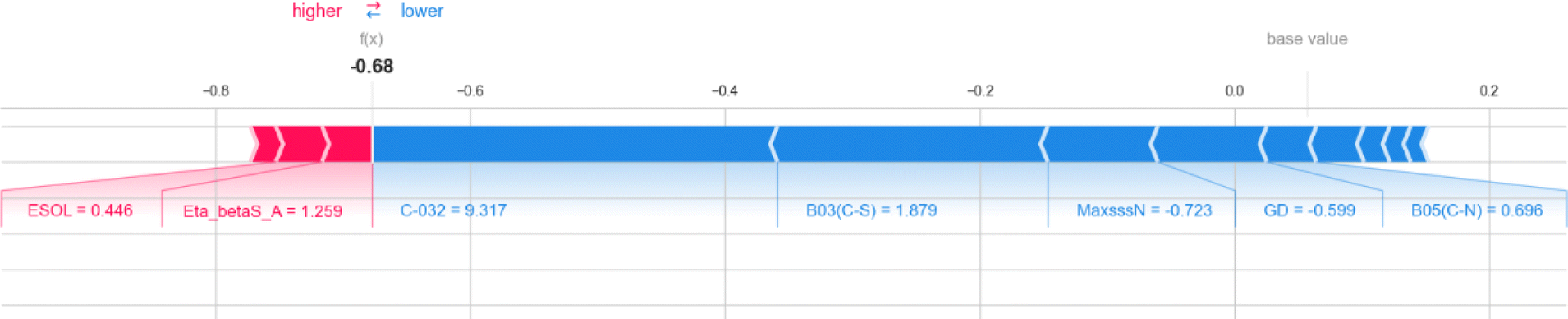

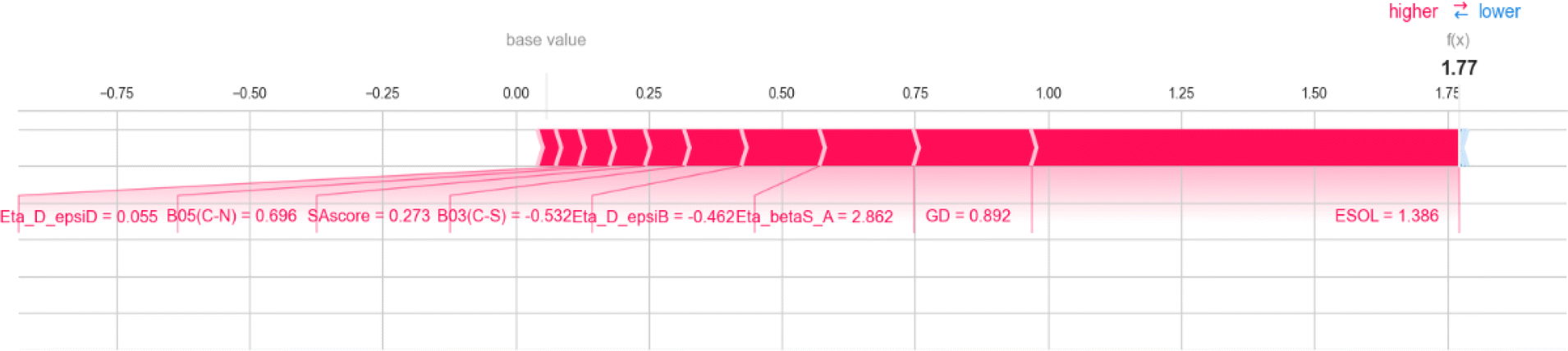

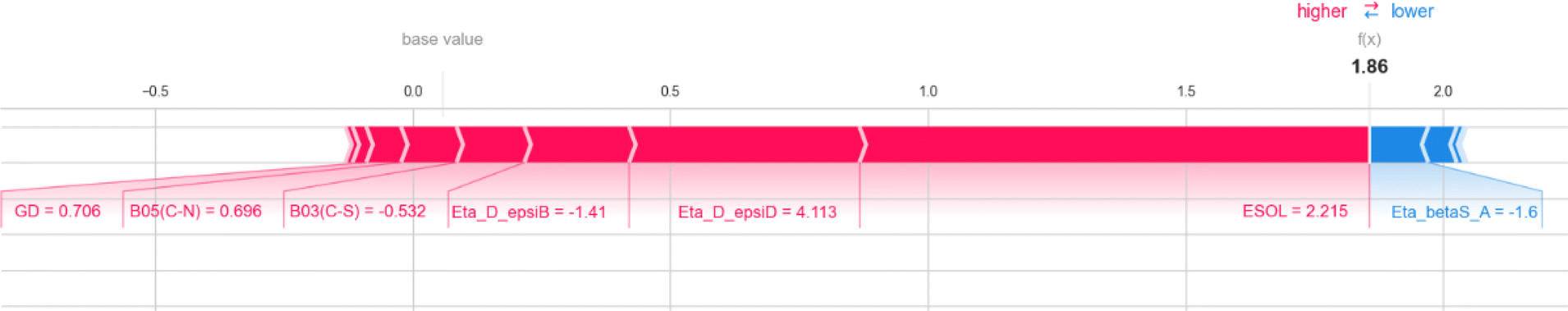

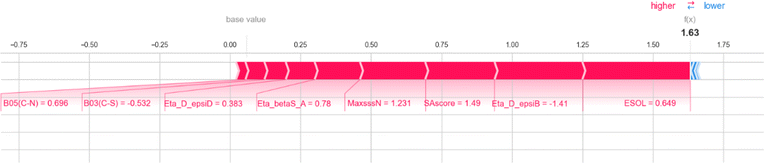

Here, we also represent the feature interpretation through the SHAP local force plot which is shown in Table 2. The local force plot indicates the importance of the feature for the prediction of a particular data point. The positive contribution is indicated by the red color (pushes the model score higher) and the negative contribution (pushes the model score lower) is represented by the blue color. The feature present closer to the separation boundary has the highest importance for the prediction and the impact of that feature is represented by the size of the bar.
Modeling method | Data set | Accuracy | Precision | Specificity | Recall | F1-score | MCC | Cohen κ | ROC-AUC | Cross-validation statistics | Hyper-parameters setting | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Repeated 5 fold CV | Shuffle split CV | |||||||||||||||||
Accuracy | Recall | Precision | F1 score | Accuracy | Recall | Precision | F1 score | |||||||||||
RF | Training | 0.998 | 0.998 | 0.998 | 0.998 | 0.998 | 0.996 | 0.996 | 1 | 0.69 ± 0.003 | 0.70 ± 0.005 | 0.68 ± 0.005 | 0.69 ± 0.003 | 0.68 ± 0.001 | 0.69 ± 0.001 | 0.68 ± 0.001 | 0.68 ± 0.001 | {‘criterion’: ‘entropy’, ‘max_depth’: None, ‘min_samples_leaf’: 1, ‘min_samples_split’: 2, ‘n_estimators’: 700} |
Test | 0.702 | 0.695 | 0.701 | 0.704 | 0.699 | 0.405 | 0.405 | 0.780 | ||||||||||
SVM | Training | 0.710 | 0.685 | 0.660 | 0.763 | 0.722 | 0.424 | 0.421 | 0.791 | 0.66 ± 0.003 | 0.71 ± 0.005 | 0.64 ± 0.005 | 0.67 ± 0.003 | 0.66 ± 0.001 | 0.71 ± 0.001 | 0.64 ± 0.001 | 0.67 ± 0.001 | {‘C’: 1.0, ‘gamma’: ‘scale’, ‘kernel’: ‘rbf’} |
Test | 0.709 | 0.689 | 0.675 | 0.743 | 0.715 | 0.419 | 0.418 | 0.769 | ||||||||||
LDA | Training | 0.660 | 0.642 | 0.622 | 0.699 | 0.669 | 0.322 | 0.321 | 0.718 | 0.65 ± 0.003 | 0.69 ± 0.005 | 0.64 ± 0.005 | 0.66 ± 0.004 | 0.65 ± 0.001 | 0.69 ± 0.002 | 0.64 ± 0.001 | 0.66 ± 0.001 | {‘solver’: ‘svd’} |
Test | 0.663 | 0.640 | 0.605 | 0.724 | 0.679 | 0.331 | 0.328 | 0.731 | ||||||||||
LR | Training | 0.675 | 0.658 | 0.643 | 0.708 | 0.682 | 0.351 | 0.350 | 0.724 | 0.66 ± 0.003 | 0.69 ± 0.005 | 0.64 ± 0.005 | 0.67 ± 0.003 | 0.66 ± 0.001 | 0.69 ± 0.001 | 0.64 ± 0.001 | 0.66 ± 0.001 | {‘C’: 10.0, ‘penalty’: ‘l1’, ‘solver’: ‘liblinear’} |
Test | 0.667 | 0.649 | 0.631 | 0.704 | 0.675 | 0.335 | 0.334 | 0.734 |
Here, we have also explored the final modeled training and test sets through different similarity-based read-across methods. The read-across predictions were made at the default hyper-parameter settings (σ = 1, γ = 1, CTC = 10) with a classification threshold value of 0.5. The results for the read-across prediction are represented in Table S3 in ESI SI-2† in terms of different classification metrics.
In this analysis, we created learning curves for the Support Vector Machine (SVM) model using accuracy and F1 score as our objective functions, as shown in Fig. S8.† The learning curve was generated by training the model with increasingly larger training sets and testing it on the validation set. From the generated plots, we can see that the learning curve for both the training and validation sets come closer together and reach a plateau as the size of the training set increases when accuracy is the objective function. This indicates that adding more training data will not lead to an improvement in the model performance. The small gap between the training and validation learning curve suggests that the model has low variance error. However, when we use the F1 score as the objective function, the learning curves for both the training and validation sets become similar, indicating the robustness of the model. Here, we also generated a validation curve for the SVM model at different values of the hyper-parameter C. According to the observations made in Fig. S9,† it can be inferred that the score of the training set is significantly higher than the validation set as the value of C increases. This implies that the optimal result is obtained at a lower value of C. Here, we have generated a ROC curve (Fig. 6) for the SVM model and calculated the corresponding ROC-AUC scores for the training and test sets, the scores obtained were 0.79 and 0.77, respectively. These scores are indicative of the model's strong predictive power, which is a desirable characteristic for any model. It is worth noting that the SVM model's performance was found to be consistent across both sets, which suggests that it is capable of generalizing well to new data. These findings serve to highlight the potential utility of the SVM model as a tool for classification tasks in related domains.
![]() | ||

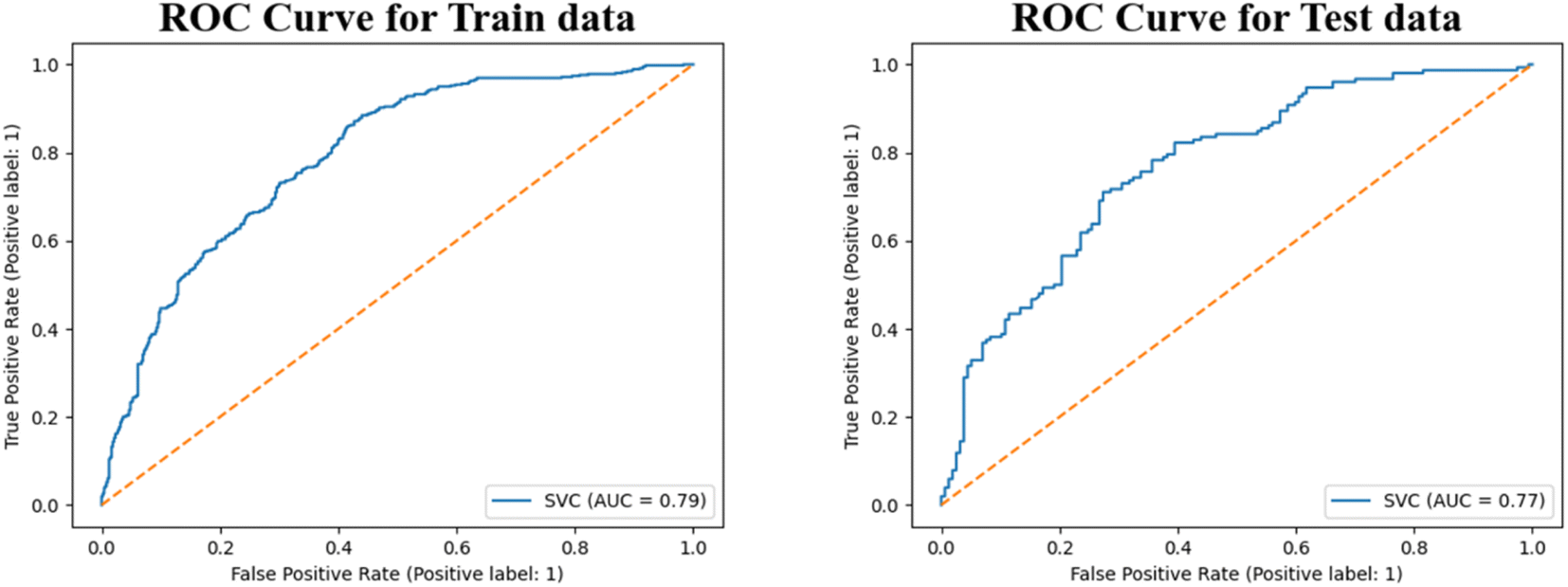

Fig. 6 Receiver operating characteristic (ROC) curve for the SVM model (hepatocyte intrinsic clearance data). |
The SHAP analysis was performed in this research work to determine the feature importance for the prediction made by the model. Here, the feature importance is represented through the SHAP summary and heatmap plots, which are shown in Fig. 7. From these plots, we can see that the descriptors LOGPcons and N% have the highest importance to the response.
![]() | ||

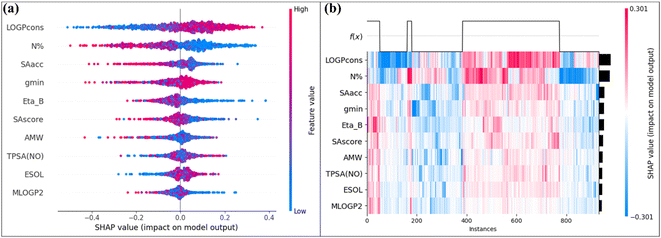

Fig. 7 (a) SHAP summary plot (b) SHAP heatmap plot for the SVM model (hepatocyte intrinsic clearance data). |
The molecular property descriptor LOGPcons indicates the octanol–water partition coefficient of a molecule, and it shows a positive effect on the hepatocyte intrinsic clearance. This descriptor provides information about the hydrophobicity of an organic molecule. The ability of a chemical to penetrate through a biological membrane is controlled by its hydrophobicity. An increase in hydrophobicity results in an increase in tissue perfusion of the chemical. Additionally, the metabolic clearance of the chemical by the liver also increases, indicating a positive role of this descriptor.71 The descriptor N% is a constitutional descriptor that represents the percentage of nitrogen atoms present in the molecule. In the presence of a higher percentage of nitrogen atoms, the polarity of a molecule is enhanced and lipophilicity is reduced. This reduction in lipophilicity leads to a reduction in the metabolic clearance of a molecule which signifies the negative effect of this descriptor.72 The descriptor SAacc is a molecular property descriptor that represents the surface area for the H-bond acceptor atom which is obtained from the P_VSA-like descriptors. The electronegative atoms containing loan pairs generally act as hydrogen bond acceptors and contribute to the polarity of a molecule. The negative effect of this descriptor indicates that with an increase in hydrogen bond acceptor atom surface area, the intrinsic clearance of a chemical is reduced. The atom type E-state descriptor gmin represents the minimum atom Electronic state value within the molecule and this descriptor generally represents the polarity of a molecule.73 The ETA descriptor Eta_B represents the measure of the branching index for a particular molecule. The hydrophobicity of molecules decreases as the branching in the molecule is increased. The branched organic molecules are more compact and have a lower surface area compared with unbranched molecules. This decreased hydrophobicity leads to a decrease in the metabolic clearance of the molecule which signifies the negative effect of this descriptor for most of the data points. The descriptor SAscore is a molecular property descriptor that represents the ease of synthesis of a molecule (i.e., the complexity of the molecular structure). The SAscore estimation generally depends on the structure of the fragments present in the molecule. The value of the SAscore increases with an increase in the molecular complexity that is in the presence of a fused ring system, large ring, stereo-complexity, etc. The descriptor AMW belongs to the constitutional indices which indicate the average molecular weight of a molecule across all constituted atoms. This is one of the simplest descriptors that contain information regarding atomic composition. These two descriptors SAscore and AMW generally represent the molecular size, which is a limiting factor for drug metabolism. Both of these descriptors show a negative effect on the hepatocyte clearance. In general, smaller molecules tend to have higher intrinsic clearance rates compared to larger molecules. The reason for this is that larger molecules may have limited access to metabolizing enzymes within hepatocytes or may be metabolized at a slower rate due to their size. Additionally, the size of a molecule can affect its ability to be taken up by hepatocytes and to pass through cell membranes, which can further influence its metabolism and clearance rate.74 The molecular property descriptor TPSA(NO) indicates the topological polar surface area which is calculated from the polar contribution of the nitrogen and oxygen atoms. This descriptor is calculated by summing the surface contribution provided by the electronegative atoms. This descriptor can be mathematically represented as follows: , where Ni is the frequency of the ith atom in the molecule and Giis the surface contribution. The molecular property descriptor ESOL represents the estimated aqueous solubility (LogS) value for a particular molecule. This descriptor is generally derived from the consensus LOGP value of a molecule. The last descriptor MLOGP2 shows the least importance for the model prediction, which indicates the squared logarithmic octanol–water partition coefficient (LogP2) value derived by Moriguchi. This descriptor probably penalizes the LOGPcons term in the model.
Here, the effect of plasma protein binding on the hepatocyte intrinsic clearance of a chemical substance was also explored through different types of classification-based predictive models. The models were developed with the compounds having both types of response parameters and used for the prediction of the compounds having single response values. Here, we developed four different machine learning models namely – random forest (RF), support vector machine (SVM), linear discriminant analysis (LDA), and logistic regression (LR), and all the models were developed with standardized descriptor values. The results of these models are represented in Table 4, in terms of training and test set metrics. Here, all the models were developed with the optimized hyper-parameter setting where optimization was performed by the GridsearchCV method with an accuracy objective function. The optimized hyper-parameter settings for all the developed models are also included in Table 4. From these results, we can conclude that the SVM model shows better results compared with other models, in terms of training, test, and cross-validation results. Here, we also performed a cross-validation analysis like 20 times repetitive and 1000 times shuffle split cross-validation with a 30 percent validation size. This cross-validation analysis helps to identify the quality of the model and also helps to compare the models. These cross-validation results are also included in Table 4, and a comparison of the models is visually represented in Fig. S10,† by considering accuracy and F1 score as the objective functions. From these plots, we can see that the SVM model shows better results compared with other models. In this research work, we also performed the read-across analysis with the final modeled training and test sets. Here, read-across predictions were also made at the default hyper-parameter setting with three similarity methods (ED, GK, LK). The prediction quality is represented in Table S4 of ESI SI-2† in the form of classification metrics. As mentioned above, the data sets contain a large number of compounds having both types of response variables, plasma fraction unbound and hepatocyte intrinsic clearance. On the other hand, there are a total of 987 compounds present that have only one type of response variable (either fraction unbound (784) or hepatocyte intrinsic clearance (203)). Here, we have used these compounds as an external set for prediction through different developed models. The prediction has been made for the compounds that have only plasma protein fraction unbound data, through the developed machine learning models and made available in ESI SI-1.† The compounds with only intrinsic clearance data were also used for the predictions. However, for these compounds, the fraction unbound data is derived from the SVM model for human plasma fraction unbound. These predicted values are also made available in the ESI SI-1 file.† These predicted values were then compared with the experimental value and represented in Table 4 through different classification-based quality metrics.
Modeling method | Data set | Accuracy | Precision | Specificity | Recall | F1-score | MCC | Cohen κ | ROC-AUC | Cross-validation statistics | Hyper-parameter setting | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Repeated 5 fold CV | Shuffle split CV | |||||||||||||||||
Accuracy | Recall | Precision | F1 score | Accuracy | Recall | Precision | F1 score | |||||||||||
a External set – compounds (203) having only experimental hepatocyte intrinsic clearance (Clint) data. | ||||||||||||||||||
RF | Training | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.68 ± 0.004 | 0.67 ± 0.005 | 0.68 ± 0.005 | 0.68 ± 0.004 | 0.68 ± 0.001 | 0.67 ± 0.002 | 0.68 ± 0.001 | 0.67 ± 0.001 | {‘criterion’: ‘gini’, ‘max_depth’: None, ‘min_samples_leaf’: 1, ‘min_samples_split’: 3, ‘n_estimators’: 250} |
Test | 0.713 | 0.704 | 0.695 | 0.731 | 0.717 | 0.426 | 0.425 | 0.805 | ||||||||||
External seta | 0.60 | 0.65 | 0.53 | 0.65 | 0.65 | 0.19 | 0.19 | 0.65 | ||||||||||
SVM | Training | 0.736 | 0.714 | 0.689 | 0.784 | 0.746 | 0.475 | 0.472 | 0.820 | 0.68 ± 0.003 | 0.73 ± 0.005 | 0.66 ± 0.005 | 0.69 ± 0.004 | 0.67 ± 0.001 | 0.73 ± 0.001 | 0.66 ± 0.001 | 0.69 ± 0.001 | {‘C’: 3.0, ‘gamma’: auto, ‘kernel’: ‘rbf’} |
Test | 0.697 | 0.681 | 0.657 | 0.739 | 0.709 | 0.396 | 0.395 | 0.7923 | ||||||||||
External seta | 0.66 | 0.69 | 0.55 | 0.75 | 0.72 | 0.30 | 0.30 | 0.66 | ||||||||||
LDA | Training | 0.659 | 0.637 | 0.584 | 0.735 | 0.683 | 0.323 | 0.319 | 0.727 | 0.66 ± 0.004 | 0.73 ± 0.005 | 0.64 ± 0.005 | 0.68 ± 0.004 | 0.66 ± 0.001 | 0.73 ± 0.002 | 0.64 ± 0.001 | 0.68 ± 0.001 | {‘solver’: ‘svd’} |
Test | 0.720 | 0.694 | 0.657 | 0.785 | 0.737 | 0.445 | 0.441 | 0.772 | ||||||||||
External seta | 0.69 | 0.75 | 0.69 | 0.70 | 0.72 | 0.38 | 0.38 | 0.71 | ||||||||||
LR | Training | 0.658 | 0.633 | 0.571 | 0.746 | 0.685 | 0.322 | 0.317 | 0.714 | 0.65 ± 0.004 | 0.74 ± 0.005 | 0.63 ± 0.005 | 0.67 ± 0.004 | 0.65 ± 0.001 | 0.74 ± 0.002 | 0.63 ± 0.001 | 0.68 ± 0.001 | {‘C’: 0.1, ‘penalty’: ‘l1’, ‘solver’: ‘saga’} |
Test | 0.709 | 0.683 | 0.641 | 0.777 | 0.727 | 0.422 | 0.418 | 0.745 | ||||||||||
External seta | 0.65 | 0.69 | 0.57 | 0.71 | 0.70 | 0.28 | 0.28 | 0.68 |
Here, we also generated learning curves for the SVM model with accuracy and F1 score as objective functions which are shown in Fig. S11.† From, these plots we can see that the training and validation curves become linear and closer to each other with an increase in the training size. This suggests that adding more training data is not going to improve the performance of the model. The small gap between the training and validation curves also indicates the quality of the developed model. The learning curves for the training and validation sets with the F1 scoring function look similar which also indicates the good quality of the model. Here, we also generated validation curves for the SVM model at the varying values of the parameter C, which is shown in Fig. S12.† From these plots, we can see that the difference between the scoring function for training and the validation curves increases with an increasing value of C, which suggests that the model becomes robust at the lower value of C. For the SVM model, we also generated a ROC curve and calculated the corresponding AUC-ROC score for both training and test sets, as shown in Fig. 8. The obtained AUC-ROC scores for the training and test sets are 0.82 and 0.79 which suggest that the models have good predictive power.
![]() | ||
Fig. 8 Receiver operating characteristic (ROC) curves for the SVM model (for modeling Clint by taking fu as a descriptor). |
Here, we also performed the SHAP analysis to determine the importance of the features for the response parameter. The feature importance is represented in Fig. 9, in the form of a SHAP summary and a heatmap plot. From these plots, we can see that the plasma protein binding (log(1 + fu)) has the highest importance for the clearance. The plot analysis signifies that protein binding exerts a significant limiting effect on clearance. This observation underscores the importance of protein binding in the context of metabolism and elimination. Specifically, the study highlights the negative correlation between protein binding and clearance rate. Here, other descriptors like LOGPcons, mindssC (atom type E-state indices that represent the minimum electronic state of double bond–single bond–single bond C atoms), ESOL, and gmin show positive contributions and the descriptors like Eta_B and SAacc show negative contributions.
PK parameter | Author | Model type | Modelling algorithm | Data set composition | n des | Metrics |
---|---|---|---|---|---|---|
Protein binding | Ingle et al.75 | Regression (fu) | Random forest (best model) | n training = 1045, ntest = 606 | 10 | Training set: R2 = 0.52, MAE = 0.146, RMSE = 0.214 |
Test set: R2 = 0.51, MAE = 0.131, RMSE = 0.218 | ||||||
Watanabe et al.76 | Regression (fu) | Support vector machine (best model) | n training = 2192, ntest = 546 | 391 | Test set: R2 = 0.73, MAE = 0.100, RMSE = 0.145 | |
Esaki et al.25 | Regression (unbound fraction of drug in the brain [fu, brain]) | Gradient boost (best model) | n train = 144, ntest = 36 | 53 | Cross-validated: R2 = 0.64, RMSE = 0.48 | |
Test set: R2 = 0.63, RMSE = 0.48 | ||||||
Sun et al.77 | Regression (modeling of protein binding parameter, fb) | Random forest (best model) | n train = 967, ntest = 870 (3 merged test set) | 26 | Cross-validation (10-fold CV): R2 = 0.76, RMSE = 0.17, MAE = 0.13 | |
Test set (overall): R2 = 0.59, RMSE = 0.18, MAE = 0.13 | ||||||
Zhivkova et al.27 | Regression (fu) | Linear regression | — (the whole data set contains 132 acidic drugs) | 16 | Training set: R2 = 0.771, q2 = 0.737 | |
Present study | Regression | Support vector machine | n train = 1088, n test = 362 | 12 | R 2 = 0.75, Q LOO 2 = 0.69, MAE = 0.32, Q F1 2 = 0.75, Q F2 2 = 0.75 | |
Hepatocyte intrinsic clearance | Paixão et al.29 | Regression (Clint) | Artificial neural network | n train = 71, ntest = 18 | 21 | Training correlation = 0.953, training RMSE = 0.236 |
Test correlation = 804, test RMSE = 0.544 | ||||||
Pirovano et al.78 | Regression (Clint) | Linear regression | n train = 79, ntest = 39 | 5 | R adj 2 = 0.67, QLOO2 = 0.62, RMSELOO = 0.76, Rext2 = 0.62, RMSEext = 0.80 | |
Ekins and Obach79 | Regression (Clint) | Multiple linear regression | n train = 18, ntest = 26 | 4 | R 2 = 0.88, RMSE = 0.28, Rext2 = 0.79 | |
Li et al.80 | Regression (Clint) | Multiple linear regression | n train = 36, ntest = 13 | 13 | R 2 = 0.85, RMSE = 0.28, Rext2 = 0.73 | |
Present study | Classification (Cl int ) | Support vector machine | n train = 932, n test = 309 | 10 | Training set: recall = 0.76, specificity = 0.66, accuracy = 0.71, precision = 0.68 | |
Test set: recall = 0.74, specificity = 0.68, accuracy = 0.71, precision = 0.69 |
The data we have used in our study was published recently (November 2022)81 and no QSAR modelling work on this data has been published yet (as far as our knowledge goes). Therefore, we have used the standard machine-learning (ML) algorithms to correlate the endpoints with the structural features and developed predictive models. In this present study, our main motive was not only to develop ML-based QSAR models but also to extract the important structural features from the present data set which are responsible for the variation in the endpoint values. The parameters fraction unbound (fu) and hepatic intrinsic clearance (Clint) are complex and multifactorial endpoints. They are influenced by a number of factors including physiological, pharmacological, and biochemical elements. Attempting to model these endpoints solely based on structural features is challenging due to the intricate interplay of these various influences. Also, here we have used large data sets of diverse compounds for the modeling purpose. Considering the complexity of the endpoints and the large number of compounds used for modeling, the performance of the developed models is satisfactory. Further, we have also developed a Python-based tool that can predict the modeled endpoints (fu and Clint) for new or unknown chemicals using the best (SVM) models. This tool is now available from https://sites.google.com/jadavpuruniversity.in/dtc-lab-software/home/pkpy-tool.
