Connectivity stepwise derivation (CSD) method: a generic chemical structure information extraction method for the full step matrix

Abstract

Emerging advanced exploration modalities such as property prediction, molecular recognition, and molecular design boost the fields of chemistry, drugs, and materials. Foremost in performing these advanced exploration tasks is how to describe/encode the molecular structure to the computer, i.e., from what the human eye sees to what is machine-readable. In this effort, a chemical structure information extraction method termed connectivity step derivation (CSD) for generating the full step matrix (MS_F) is exhaustively depicted. The CSD method consists of structure information extraction, atomic connectivity relationship extraction, adjacency matrix generation, and MS_F generation. For testing the run speed of the MS_F generation, over 54 000 molecules have been collected covering organic molecules, polymers, and MOF structures. Test outcomes show that as the number of atoms in a molecule increases from 100 to 1000, the CSD method has an increasing advantage over the classical Floyd–Warshall algorithm, with the running speed rising from 28.34 to 289.95 times in the Python environment and from 2.86 to 25.49 times in the C++ environment. The proposed CSD method, that is, the elaboration of chemical structure information extraction, promises to bring new inspiration to data scientists in chemistry, drugs, and materials as well as facilitating the development of property modeling and molecular generation methods.

---

1. Introduction

In long-standing practice in the chemistry, drugs, and materials fields, the development quantitative structure–property relationship (QSPR)¹ models has contributed to the reduction of time and resource consumption compared to experimental measurements of properties of interest and to the empirical design of target substances.^2–4 With the advancement of machine learning (ML) and even deep learning⁵ techniques, QSPR shows tantalizing promise in the prediction of chemical, drug, and material properties (e.g., density,⁶ viscosity,⁶ dissociation constants,⁷ and conductivity⁸) as well as reaction kinetics,⁹ selectivity,¹⁰ yield,¹¹etc.

One of the universal paradigms for QSPR models^12–14 is adopting algorithms such as artificial neural networks (ANN), support vector machines, or multiple linear regression (MLR) to capture the linear or non-linear relationships between chemical structure descriptors and their target properties.^15–19 The descriptor is the numerical form of the chemical structure.¹ The simplest is the 1D descriptor, which is based on molecular formulae to represent molecules, such as the number of atoms, atom type, and molar mass.¹ Besides, there exist topological descriptors, norm descriptors, physicochemical descriptors, structural descriptors, quantum chemical descriptors, and so on. Among them, the topological and norm descriptors could be obtained by extracting the 2D structural information of molecules and converting it into numerical form.

For instance, with the descriptor from Dragon, Sadeghi et al.²⁰ developed a quantitative structure–activity relationship model for the half-maximal inhibitory concentration (IC₅₀) of PI3Kγ using MLR and ANN. Souyei et al.²¹ utilized descriptors computed with Dragon and established MLR analysis to establish a model for predicting the thermal energy of aliphatic aldehydes. The open-source cheminformatics toolkit RDKit offers descriptor calculation functions. Innumerable works have successfully developed QSPR models and designed novel molecules adopting the descriptor from RDKit, and so on. Recently, adopting the descriptor from RDKit, Yang et al.²² established the ML-QSPR model for gas permeability of polyimide (PI) membranes to He, H₂, O₂, N₂, CO₂, and CH₄, and high-throughput screening of over 9 million hypothetical PIs to obtain the novel ultra-permeable candidates. The norm descriptor²³ was proposed and refined during the long-term work of our group. Based on the norm descriptor, the QSPR models of organic properties with considerable accuracies were established, e.g., critical pressure, critical volume, and critical temperature,²⁴ and further extended to specific systems' property predictions like ionic liquids,²⁵ cyclodextrins,²⁶ and PIs.²⁷

An essential part of computing descriptors, including the norm descriptor, to describe key information about the molecular structure is to obtain the connectivity relationships between the atoms (or positional relationships of the atoms). The full step matrix (MS_F), see eqn (1), is considered as one of the significant transformation forms for obtaining information about the connectivity relations between atoms in the 2D molecular structure.

where s_i,j represents the steps between atomic indices i and j.

Through the MS_F, one can describe how an atom in the molecule reaches all remaining atoms by the shortest step. It is worth mentioning that the MS_F contains the adjacency matrix,²⁸i.e., the case where one atom reaches another atom via one chemical bond. Some of the primary approaches to improve further the precision of QSPR models include incorporating information about the 3D spatial structure of atoms (e.g., coordinates, angles) into the descriptors^29,30 and using the expertise of the predicted system to augment the descriptors. By extending the MS_F from the 2D molecular structure to the 3D molecular structure,^31–33 as well as superimposing the atomic property information with the atomic connectivity information contained in the MS_F, it is possible to achieve the aforementioned approaches. The computer-generation process of the extended-connectivity fingerprints (ECFP)³⁴ based on the Morgan algorithm and simplified molecular input line entry system (SMILES)³⁵ also includes reading the connectivity relationships between atoms. More efforts have focused on providing clear explanations for modelling QSPR and designing novel molecules^36–38 by descriptors. Descriptions of the process for converting from molecular structure graphs (i.e., what the human eye sees) to the adjacency matrix or even MS_F (i.e., what is machine-readable) are rare. In this present effort, a generic chemical structure information extraction method for MS_F is well-described for reference and flexible use by relevant researchers.

It is worth mentioning that the Floyd–Warshall^39,40 algorithm in graph theory is a dynamic programming algorithm for solving the shortest paths between all pairs of nodes in a graph. The Floyd–Warshall algorithm is applied to calculate the shortest paths between all pairs of atoms in the molecular topology graph to generate the MS_F, as used in the RDKit^18,19 toolkit. A function that qualitatively describes the running time of the Floyd–Warshall algorithm, i.e. the time complexity, is O(n³) (n is any size of the input, where n is the number of atoms). Thus, as the number of atoms in the topology graph increases, the MS_F generation time grows in a cubic manner. Adopting the Floyd–Warshall algorithm to generate MS_F for organic small molecule systems consisting of mostly molecules with less than 100 atoms has an acceptable run-time. Nevertheless, when applying it to molecular systems with repeating structures (e.g., polymers, metal–organic frameworks), the running time is non-negligible. Meanwhile, the large dataset in the prediction task or the vast structural space in the molecular design task will further increase the run-time consumption.

In this effort, a chemical structure information extraction method termed connectivity step derivation (CSD) for generating MS_F is depicted, along with reduced runtime compared to the classical Floyd–Warshall algorithm. The universal MOL file, GJF file of the computational chemistry package Gaussian,⁴¹ and HIN file of the HyperChem software⁴² are shown as examples for analyzing the whole process from the file structure to the MS_F generation. Moreover, to test the speed of MS_F generation by the CSD and Floyd–Warshall methods, a total of more than 54 000 molecular structures containing the three systems of organic molecules, polymers, and MOF are collected from NIST,⁴³ PubChem,⁴⁴ PolyInfo,⁴⁵ and ToBaCCo⁴⁶ with 39 469, 9397, 2588, and 3189 molecular structures, respectively.

2. Methodology

The CSD method consists of four main parts: structure information extraction, atomic connectivity relationship extraction, adjacency matrix generation, and MS_F generation. The complete method is presented in Fig. 1.

Fig. 1 Schematic diagram of the CSD method.

2.1 Structure information extraction

Opening the MOL, GJF, and HIN files with Notepad software, the file contents will be as shown in the left, middle, and right parts of Fig. 2, respectively. All three files contain atomic types, atomic coordinates, and bonding relationships between atoms. In the case of the MOL file (Fig. 2), the atomic types and their coordinates are in lines 5 to 16; for the GJF and HIN files (Fig. 2), they are in lines 6 to 17. The minor differences in atom information are related to the storage of information at the front of each file. For example, the “12 12” shown in line 4 of the MOL file (Fig. 2) is the number of atoms and the number of chemical bonds in the molecule, respectively.

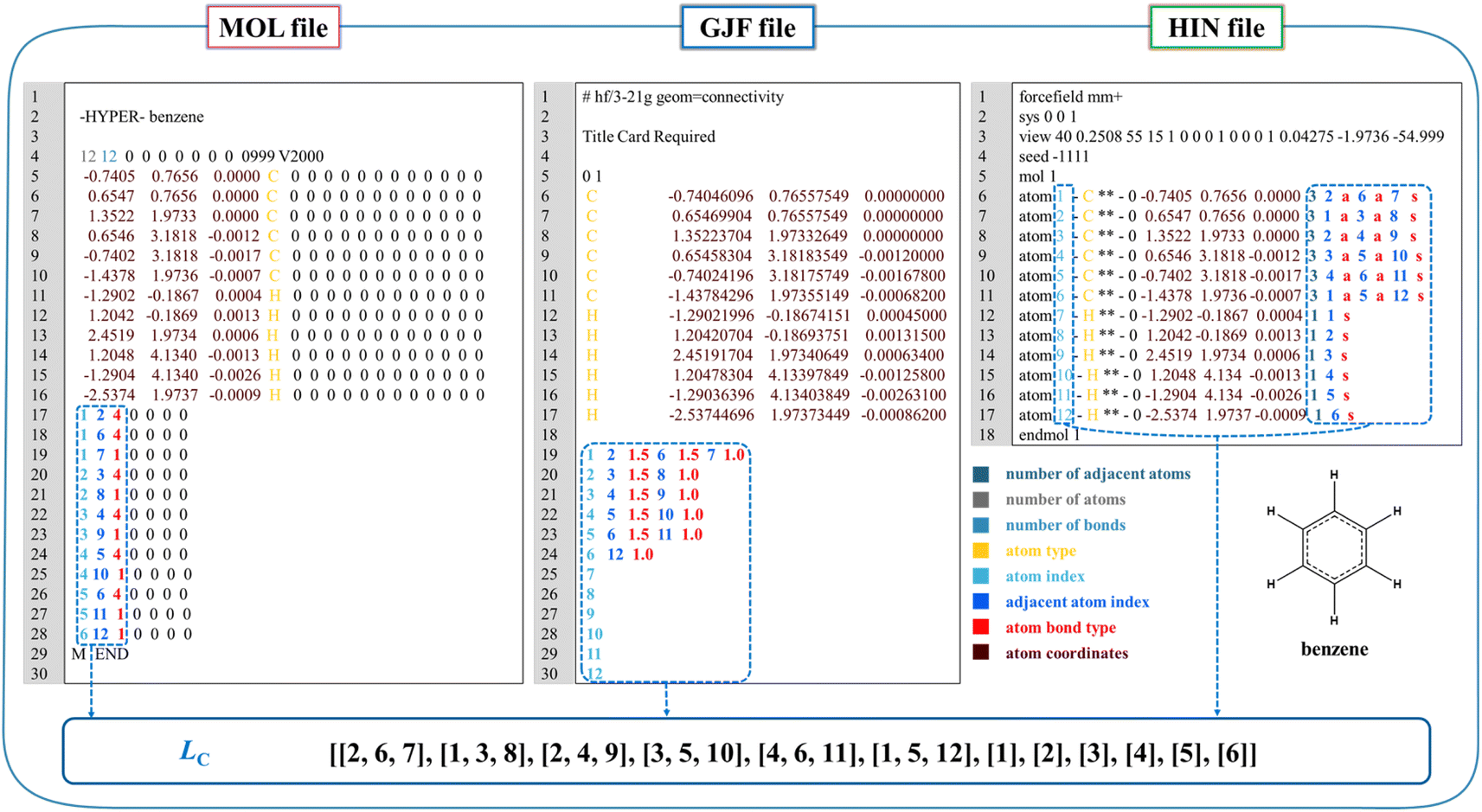

Fig. 2 Taking the benzene molecule as an example, the information in its MOL (left), GJF (middle), and HIN (right) files is shown, and the storage of adjacent atoms in the form of a list L_c is schematically illustrated.

The descriptions of bonding relationships between atoms are different in the MOL, GJF, and HIN files. In the MOL file, the atomic relationships are extracted in groups of three characters. Like the one illustrated in Fig. 2, lines 17 to 28, the key block consists of key rows, where each row represents a key and follows the format of the first nine characters: aaabbbccc. When the number of atoms in the molecule is less than 1000, the ‘aaa’, ‘bbb’, and ‘ccc’ characters correspond to the meanings listed in Table 1. For GJF and HIN files, the atom connection information between atoms is separated by the empty strings with the symbol numbers of the two atoms and their chemical bond types. For example, line 19 in the GJF file and the end of line 6 in the HIN file indicate that atom 1 is connected to atoms 2, 6, and 7, corresponding to aromatic, aromatic, and single bonds, respectively. Note that the three files are not identical in their schematic representation of bond types. In the MOL file, the bond types are labeled as shown in the meaning of ‘ccc’ in Table 1; for the GJF file, the aromatic bond appears to be marked as ‘1.5’, the single bond is marked as ‘1.0’, and the double bond is marked as ‘2.0’; whereas for the HIN file, the single bond is labeled as ‘s’, the double bond is labeled as ‘d’, the triple bond is labeled ‘t’, and the aromatic bond is labeled ‘a’.

Table 1 Meaning of ‘aaa’, ‘bbb’ and ‘ccc’ used to represent atomic bonding relationships in the MOL file

Area	Definition	Content
aaa	First atom index	Starting from 1, less than 1000
bbb	Second atom index	Starting from 1, less than 1000
ccc	Bond type	(1) Single bond; (2) double bond; (3) triple bond; (4) aromatic bond; (5) single or double bond; (6) single or aromatic bond; (7) double or aromatic bond; (8) any bond

---

2.2 Atomic connectivity relationship extraction

Encoding the atomic connectivity relationships in a molecular structure into a computer-readable form, such as the list, is an indispensable step in generating the adjacency matrix and the MS_F. One way of encoding atomic connectivity relationships is shown in eqn (2).

L_c = [LM_i] LM_i = [m_j] (2)

where L_c stores the adjacent atom and m_j is the index of atoms adjacent to atom index m_i.

In the MOL file, the first three characters on line 4 represent n₁, while characters 3–6 denote n₂. The connection relationships of the atoms are saved from line n₁ + 5 to line n₁ + n₂. Each line contains a group of three characters. The first two digits of each line are recorded by iterating through these lines to obtain the connection relationships of all atoms. For example, within line 17 of the MOL file data, “1 2…” (refer to Fig. 2), the number 2 is first stored in the LM₁, followed by the storage of the number 1 in LM₂.

In the GJF file, the file content blocks are separated by blank lines, and the 3rd to 4th blocks are related to atomic connectivity. When extracting connectivity information from each line, the contents are split by empty spaces. Specifically, if the first element m_i is a number, the subsequent pairs of elements store the neighboring atoms' information with m_i. For example, within line 19 of the MOL file data “1 2 1.5 6 1.5 7 1.0” (see Fig. 2), the numbers 2, 6, and 7 are first stored in the LM₁, followed by the storage of the number 1 in LM₂, LM₆, and LM₇.

In the HIN file, the atom connectivity is delineated with the character “atom” at the beginning, and each element is separated by empty strings. Thus, splitting by the empty strings yields a set of elements, where the second element holds the current atom index as m_i, the 11th element stores the count of atoms adjacent to the atomic index m_i, and the subsequent elements store information about the neighboring atoms. For instance, for line 6 (see Fig. 2) in the HIN file, the numbers 2, 6, and 7 are recorded into LM₁ and the number 1 is stored in LM₂, LM₆, and LM₇.

2.3 Adjacency matrix generation

The adjacency matrix (MS_a) of a molecule can be generated by storing the atomic connectivity relationships in computer-readable form (see eqn (3)).where s_i,j = 1 represents the step between atomic indices i and j as 1, i.e., only one chemical bond between atom i and j.

The adjacency matrix is a square matrix with dimensions equal to the number of atoms in the molecule, where the indexes of both rows and columns correspond to atomic symbols. As an example, the H-suppressed benzene molecule is illustrated in detail with the adjacency matrix generation process, which is displayed in Fig. 3. After the extraction of structural information completes, the computer-readable list L_c containing information about the atomic connectivity relationships is stored. For the L_c shown for the H-suppressed benzene molecule, it is indicated that atoms 2 and 6 are connected to atom 1, and similarly, atoms 1 and 3 are connected to atom 2…… After that, the atom connectivity stored by L_c is filled into an all-zero matrix with dimensions equal to the number of atoms in the molecule. Specifically, taking the numbers of the two bonded atoms as row and column numbers, respectively, number “1” in the MS_a represents a direct bonding between two atoms. Based on the rule above, the atom connection relationship information of all atoms stored in L_c is filled into the all-zero matrix, i.e., the adjacency matrix. The generation of the adjacency matrix for benzene molecules containing hydrogen atoms is illustrated in Fig. S1.†

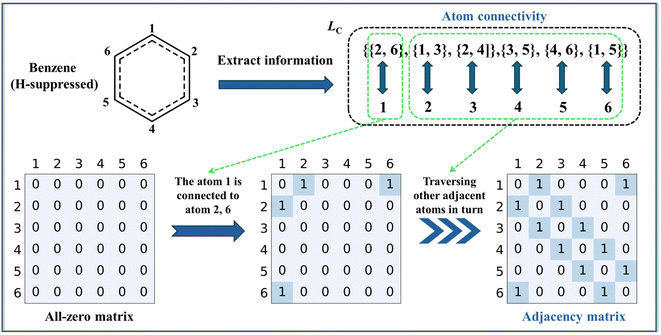

Fig. 3 Complete process of extracting atomic connectivity relationships from the H-suppressed structure of the benzene molecule and storing them in list form (i.e., L_c) which in turn generates the adjacency matrix. Note: The adjacency matrix is converted from the relationship between two atoms in a molecule connected by a chemical bond. Thus, the adjacency matrix of the benzene molecule is populated with 1 in row 1, columns 2 and 6 because atom 1 is connected to atoms 2 and 6 by an aromatic bond.

2.4 The full step matrix generation

On the basis of generating the adjacency matrix, the list of steps for MS_F generation in the CSD method is given as follows and is illustrated in Fig. 4, where the step size (k) denotes the step passed from one atom to another.

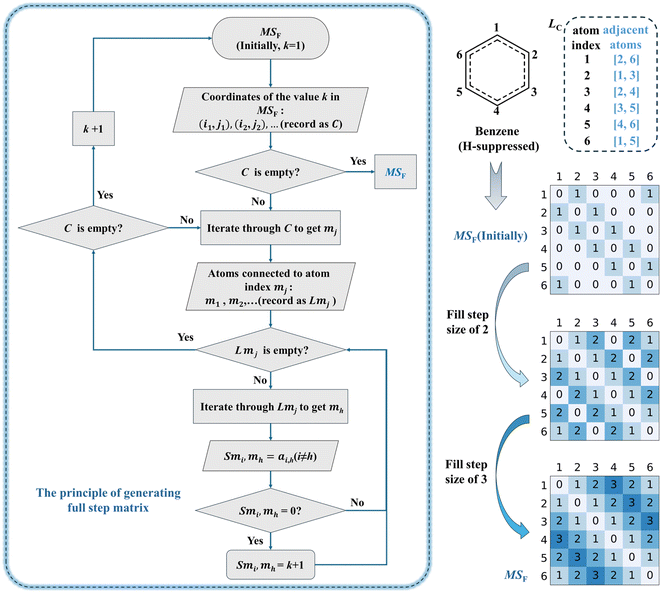

Fig. 4 Flowchart of the steps to generate the MS_F in the CSD method (left) and illustration of MS_F generation from the H-suppressed benzene molecule (right). A schematic illustration of the generation of the MS_F from the adjacency matrix of the H-added benzene molecule is shown in Fig. S2.† Fig. S3 and S4† show the MS_F generated from H-suppressed poly(1,3-phenylene pyrrolidone) molecules and cubane molecules. Note: The MS_F is converted from the relationship between two atoms in a molecule that are bonded together by a minimum number of chemical bonds. That is, if atoms are regarded as nodes and chemical bonds are regarded as edges, the MS_F is converted from the shortest path between two nodes. Thus, the MS_F of the benzene molecule is padded with 2 in row 1 and column 3 because a minimum of 2 aromatic bonds needs to be passed between atom 1 and atom 3. The process of generating MS_F of the three-dimensional structure⁴⁷ is demonstrated using cubane as an example.

(1) Obtain the adjacency matrix (matrix initially containing only 0 and 1, and k is 1).

(2) Identify atom pairs with the step size of k in the MS_F and store the coordinates of matrix in the C (i.e., (i₁, j₁), (i₂, j₂), …), representing directly connected atoms pairs.

(3) If the C is empty, indicating the current MS_F has been fully generated, end the entire process, else continue to procedure (4).

(4) Iterate through the C to get the element m_j.

(5) Find all atoms adjacent to atom index m_j, and record them in the LM_j (i.e., m₁, m₂, …).

(6) If the LM_j is empty, indicating there is no atom adjacent to atom index m_h currently, continue to procedure (10), else continue to procedure (7).

(7) Iterate through the LM_j to get element m_h.

(8) Record the a_i,h(i ≠ h) from MS_F as s_mi,mh.

(9) If the s_mi,mh is 0, indicating that the current position has never been filled before, fill the value of s_mi,mh with k + 1, then proceed to procedure (6). If the s_mi,mh is not 0, continue to procedure (6).

(10) If the C is empty, indicating the traversal of current atom pairs with the step size of k in MS_F is complete, continue to procedure (11), else continue to procedure (4).

(11) k plus 1 and continue to procedure (1).

3. Results and discussion

3.1 Datasets

For testing the generating speed of the MS_F, molecular structures containing three systems: organic molecules, polymers, and MOFs, are collected. More than 70 000 organic molecules are collected from the NIST database. Also, compounds with CIDs 1 to 10 000 are retrieved from the PubChem database. Polymer structures mostly originated from the PolyInfo database with 2640 PIs. Over 30 000 MOF structures (CIF files) have been generated employing ToBaCCo. The datasets from NIST, PubChem, and PolyInfo were validated using RDKit. However, since the CIF structures cannot be recognized by RDKit, the MOF data validation was conducted using the provided MOFX-DB database.⁴⁸ The dataset ultimately used for testing consisted of 39 469 organic molecules originating from NIST, 9397 compounds from the PubChem database, 2588 unique polyimide ring repeating unit²⁷ structures, and 3188 MOF structures.

Fig. 5 illustrates the distribution of the number of atoms in the structures from the four sources. Among them, the substances in the NIST database consist of 3 to 93 atoms, with a concentration between 5 and 40 atoms. Collected from the PubChem database, compounds range from 3 to 186 atoms, with a central concentration between 20 and 100 atoms. The number of atoms in the polyimide repeat unit ranges from 10 to 127 and concentrates between 20 and 100 atoms. Of note, in the MOF structures, there exist MOF molecules with the number of atoms ranging from 30 to 900. Those MOF structures collected for testing have a major distribution of atoms between 100 and 800.

Fig. 5 The frequency distribution of the number of atoms in the structures from the four sources. (a) NIST, (b) PubChem, (c) Polymer, and (d) MOF.

3.2 Runtimes of the CSD method

The time complexity of the Floyd–Warshall algorithm is O(n³), while the CSD algorithm is approximately O(n²), where n represents the atom numbers. Therefore, with the increase in the number of atoms, the calculating time of MS_F generated by the Floyd–Warshall algorithm increases cubically, while the calculating time of the CSD algorithm is close to quadratic. This becomes especially evident when the number of atoms is large, where the gaps between the two algorithms become extremely apparent.

To evaluate the generation speed of MS_F across the collected datasets, the performance of self-implemented Floyd–Warshall algorithm and CSD algorithm programs in the Python environment is compared and the performance of RDKit and CSD algorithm programs for the same task in the C++ environment is evaluated. Additionally, given that RDKit is implemented in C++, the CSD algorithm is also implemented in C++ to ensure a fair comparison of performance across the collected datasets in the C++ environment. Furthermore, due to RDKit not being able to generate MS_F from CIF files, a C++ program is implemented for the Floyd–Warshall algorithm as an alternative for testing purposes in the MOF dataset in the C++ environment. To illustrate the results, a fitting of the structure results is performed using the equation y = a × n^b, and the fitting curves and coefficient can be seen in Fig. 6 and 7, and Tables 2 and 3.

Fig. 6 Time-test results for generating the MS_F of structures from the four sources with the CSD algorithm and the Floyd–Warshall algorithm encoded in the Python environment. (a) NIST, (b) PubChem, (c) Polymer, (d) MOF, and (e) compute the multiplicative difference in time in the NIST, PubChem, Polymer and MOF datasets.

Fig. 7 Time-test results for generating MS_F of structures from the four sources with the CSD algorithm and the Floyd–Warshall algorithm encoded in the C++ environment. (a) NIST; (b) PubChem; (c) Polymer; (d) MOF; and (e) compute the multiplicative difference in time in the NIST, PubChem, Polymer and MOF datasets.

Table 2 The fitting coefficient table of CSD algorithm and Floyd–Warshall algorithm in the Python environment^a

Datasets	CSD (Python)		Floyd–Warshall (Python)		f(n)	The number of atoms scope
	a 1	b 2	a 2	b 2
a Note: n is the number of atoms, and .
NIST	2.14 × 10^−6	1.87	4.08 × 10^−7	2.99	0.19n^1.12	n ∈ [3, 90]
PubChem	1.36 × 10^−6	1.99	4.51 × 10^−7	2.97	0.33n^0.98	n ∈ [3, 186]
Polymer	2.09 × 10^−6	1.91	4.24 × 10^−7	2.98	0.20n^1.07	n ∈ [10, 127]
MOF	1.36 × 10^−6	2.00	3.68 × 10^−7	3.01	0.27n^1.01	n ∈ [30, 900]

---

Table 3 The fitting coefficient table of the CSD algorithm and Floyd–Warshall algorithm in the C++ environment^a

Datasets	CSD (C++)		Floyd–Warshall (C++)		f(n)	Scope
	a 1	b 2	a 2	b 2
a Note: n is the number of atoms, and .
NIST	1.69 × 10^−7	1.54	4.63 × 10^−7	1.69	2.74n^0.15	n ∈ [3, 90]
PubChem	1.11 × 10^−7	1.69	1.62 × 10^−8	2.44	0.15n^0.75	n ∈ [3, 186]
Polymer	1.43 × 10^−7	1.63	2.81 × 10^−7	1.88	1.97n^0.25	n ∈ [10, 127]
MOF	1.55 × 10^−8	2.01	5.58 × 10^−10	2.96	0.04n^0.95	n ∈ [30, 900]

---

As depicted by NIST in Fig. 6(a) and Table 2, the Floyd–Warshall algorithm demonstrates a computation time 0.19n^1.12 times that of the CSD algorithm for MS_F calculation. This disparity becomes pronounced, reaching 29.45 times when the atom count comprises 90. In PubChem, as shown in Fig. 6(b) and Table 2, a similar phenomenon emerges, with the Floyd–Warshall algorithm requiring 0.33n^0.98 times that of the CSD algorithm, notably evident as the atom count approaches 180, resulting in an increase of approximately 53.81 times in computation time. In Polymer, as shown in Fig. 6(c) and Table 2, the Floyd–Warshall algorithm's computation time is 0.2n^1.07 times that of the CSD algorithm, particularly noticeable as the atom count encompasses 120, showing 34.04 times the computational time. Finally, in MOF, as shown in Fig. 6(d) and Table 2, the Floyd–Warshall algorithm takes 0.27n^1.01 times that of the CSD algorithm to compute the MS_F, which escalates to 260.68 times as the atom count climbs to 900. Additionally, as depicted in Fig. 6(e), within the NIST, PubChem, Polymer, and MOF datasets, the computational time of the Floyd–Warshall algorithm closely approximates a linear multiple relationship with that of the CSD algorithm.

Hence, in the Python environment, the Floyd–Warshall algorithm remains feasible for small molecule computations, while its efficiency significantly diminishes for large molecular structures, rendering it impractical. Conversely, the CSD algorithm consistently exhibits exceptional performance and stability, even with increasing atom count.

As illustrated by NIST in Fig. 7(a) and Table 3, RDKit (based on the Floyd–Warshall algorithm) exhibits a computation time 2.74n^0.15 times that of the CSD algorithm (in the C++ environment, and the following is in the same environment) for calculating MS_F. This difference becomes evident, reaching 5.39 times when the atom count is 90. In PubChem, as depicted in Fig. 7(b) and Table 3, a similar trend emerges, with RDKit requiring 0.15n^0.75 times that of the CSD algorithm, notably evident as the atom count approaches 180, resulting in 7.18 times the computation time. In Polymer, as shown in Fig. 7(c) and Table 3, RDKit computation time is 1.97n^0.25 times that of the CSD algorithm, particularly noticeable as the atom count reaches 120, showing 6.51 times the computational load. Finally, according to MOF, as shown in Fig. 7(d) and Table 3, RDKit takes 0.04n^0.95 times that of the CSD algorithm to compute MS_F, which escalates to 23.06 times as the atom count climbs to 900. Furthermore, in Fig. 7(e), across the PubChem and MOF datasets, the computation time of the Floyd–Warshall algorithm closely aligns with a linear multiple relationship observed with the CSD algorithm. As the quantity of molecules rises, the discernible gap in computation widens. In the NIST and Polymer datasets, the difference in computational time between the two algorithms is relatively small in terms of the multiple relationships.

Given that the MOF dataset involves a wide range of the number of atoms in the structure, we have counted the changes in the computation time of the CSD algorithm and the Floyd–Warshall algorithm in the C++ and Python environments for every increase of 100 atoms in the molecule from 100 to 800 atoms as listed in Table 4. Clearly, the order of calculation of the two algorithms in the two environments is CSD (C++) < Floyd–Warshall (C++) < CSD (Python) < Floyd–Warshall (Python) at the same level of number of atoms. Moreover, even if the calculation time of the CSD algorithm in the Python environment increases with the number of atoms in the molecule, it is acceptable compared to the calculation time of applying the Floyd–Warshall algorithm in the Python environment. When the number of atoms in the molecule increases to 600 atoms, the Floyd–Warshall algorithm calculates the MS_F of one molecule in the Python environment in more than 1 min, which may consume valuable time of the researchers. Overall, the calculation time of the Floyd–Warshall algorithm in the C++ environment is considered manageable for small molecule datasets, but it is much longer for large molecule datasets. Nevertheless, the CSD algorithm consistently shows outstanding performance and stability, even as atom counts increase.

Table 4 The CSD algorithm and the Floyd–Warshall algorithm calculate the time of change in the number of equally spaced atoms in the MOF dataset under C++ and Python environments

Algorithm (environment)	Number of atoms
	100	200	300	400	500	600	700	800
CSD (C++)	0.0002	0.0007	0.0015	0.0026	0.0041	0.0059	0.0081	0.0106
CSD (Python)	0.0136	0.0544	0.1224	0.2176	0.3400	0.4896	0.6664	0.8704
Floyd–Warshall (C++)	0.0005	0.0036	0.0120	0.0281	0.0544	0.0933	0.1473	0.2187
Floyd–Warshall (Python)	0.3853	3.1042	10.5192	25.0062	48.9494	84.7390	134.7699	201.4414

---

4. Conclusions

In this contribution, a generic chemical structure information extraction method, the CSD method, is elaborately presented for the generation of MS_F, subsequently allowing flexible calculation descriptors. Taking MOL, GJF, and HIN files as examples, the complete process of structural information extraction, atomic connectivity relationship generation, adjacency matrix generation, and MS_F generation was described. It was tested on more than 54 000 molecular structures encompassing organic molecules, polymers, and MOF systems, showing that the CSD method enhances the classic Floyd–Warshall algorithm for improved speed. In the Python environment, within the collected dataset, the computational speed of the CSD algorithm demonstrates an advantage over the Floyd–Warshall algorithm when the number of atoms exceeds 5. When the number of atoms reaches 900, the advantage increases significantly, reaching up to 260.68 times faster. Similar trends are observed in the C++ environment, where for datasets with more than 13 atoms, the CSD algorithm consistently outperforms the Floyd–Warshall algorithm. Particularly, when the number of atoms reaches 900, the advantage can be as high as 23.06 times faster. In datasets containing fewer than 13 atoms, only a few cases show slightly slower performance for the CSD algorithm.

The proposed CSD method, that is, the elaboration of chemical structure information extraction, promises to bring new inspiration to data scientists in chemistry, drugs, and materials. Meanwhile, understanding the process of chemical structure information extraction may give rise to the birth of new critical molecular representation methods to facilitate the development of property modeling and molecular generation techniques.
