Electronic and photocatalytic properties of N/F co-doped anatase TiO₂

Abstract

The crystal structure, formation energies, electronic structures and effective masses of charge carriers of N/F co-doped anatase TiO₂ were investigated by first principle calculations. We have found that the incorporation of the N atom will be easier in the presence of the F dopant. Second, the impurity band of N/F co-doped TiO₂ has no spin polarization and smaller effective mass, which improves the photogenerated carriers' mobility and separation. Moreover, it has a lower band edge energy, which increases the oxidation ability of the photogenerated holes. Thus, we explained the mechanism of the enhancement of photocatalytic efficiency of N/F co-doped TiO₂ observed from experiments.

---

1. Introduction

TiO₂ has attracted much interest and been widely utilized in photoelectrochemical devices, photovoltaic solar cells and the atmospheric environment, because of its low cost, nontoxicity, chemical inertness, oxidizing potential and high photocatalytic activity.^1–4 However, practical applications of TiO₂ have been restricted by its large intrinsic band gap. Thus, it can only be excited by ultra-violet (UV) light (about 5% of the solar spectrum).^5–7

Doping nonmetal or metal elements is considered to be a promising method to reduce the absorption threshold of semiconductor-based photocatalysts (TiO₂, ZnO etc.) and to move it from UV to visible light (about 45% of the solar spectrum).^8–12 However, it is generally found that single element doped TiO₂ has limited visible light photocatalytic performance.^13–18 Such as, although much work has suggested that N doping of TiO₂ extends the optical absorption edge into the visible light region, increased photocatalytic efficiency is still limited.^15,19 On the other hand, co-doping two elements in TiO₂ demonstrates remarkable enhancement of photocurrent and photocatalyst effect, such as B and N co-doping,²⁰ C and N co-doping,^21,22 C and F co-doping,²³ N and S co-doping,^24,25 and N and F co-doping.^26–30 Among them, N and F co-doping are particular interesting, because the formation of the impurity levels (ILs) effectively lowering the bulk band, and charge compensation effect between N and F atoms reducing the recombination rate of photogenerated electron–hole pairs.⁹

However, there is almost no relevant theoretical study performed on the influence of photogenerated carrier effective mass and ORR over the enhanced photocatalytic efficiency of the N/F co-doped TiO₂. Thus, a systematically first principles study was conducted on the crystal structures, formation energy, electronic structures and effective masses of charge carriers. The results show that the Ti-rich growth condition is favorable to all doped TiO₂; meanwhile, the incorporation of the N atom into the TiO₂ will be promoted in the presence of the F dopant. Moreover, N/F co-doped TiO₂ not only greatly improves the photogenerated carriers' mobility and separation, but also increases the oxidation ability of the photogenerated holes; especially N_s–F_s co-doped TiO₂. This explains why ˙OH radical dominates the process of photocatalytic degradation of methylene blue.

2. Computational methods

First-principle density functional theory (DFT) calculations are performed using the CASTEP code. Norm-conserving pseudopotentials and Perdew–Burke–Ernzerhof for Solids (PBESOL) function of the generalized gradient approximation (GGA) are used for the electron–ion interactions and exchange-correlation potential, respectively.^31,32 All simulations are carried out for a 2 × 2 × 1 supercell with 16 Ti atoms and 32 O atoms. In the N-doped system, we only consider the N atom substitutes the O atom (N_s), which is consistent with the previous experimental results.^15,26 For co-doped TiO₂ model, N atom and F atom are simultaneously introduced into the supercell of TiO₂, they substitutes the O atom (N_s or F_s) or occupy the interstitial position (N_i or F_i). This is resulted in four different kinds of N/F co-doped TiO₂, namely, N_s–F_s-, N_s–F_i-, N_i–F_s- and N_i–F_i-co-doped TiO₂. In addition, we have considered the physical doping position of N and F atoms, and calculated the total energies of all possible configurations (based on the doped distance between N and F), as shown in ESI Fig. S1.† Only the most stable configurations for each case of doped TiO₂ are shown in Fig. 1. The doping concentration (atom ratio) of the N or F ranges is chosen as around 2.08%, similar to the concentration used in the experiments.^26,29,33,34

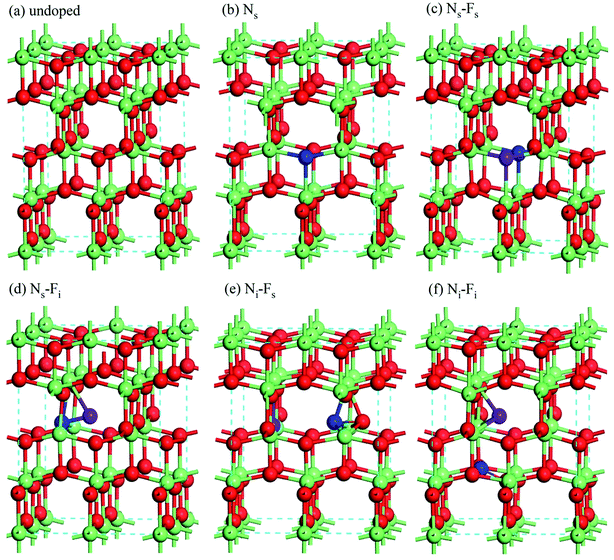

Fig. 1 The crystal structures of undoped and doped TiO₂, where green, red, blue and purple balls are the Ti, O, N and F atoms, respectively.

The cutoff energy with 750 eV and 4 × 4 × 3 k-point sampling set are sufficiently large for the systems considered. The convergence tolerance of energy, maximum displacement, and maximum force are 5.0 × 10⁻⁶ eV per atom, 5.0 × 10⁻⁴ Å, and 0.01 eV Å⁻¹, respectively. On the other hand, DFT calculations underestimate the band gap, and DFT+U, as the improvement of standard DFT can overcome this situation. In this work, U values was selected 7.0 eV for Ti elements based on the calculated band-gap for anatase TiO₂ as a function of the U parameter in our previous work.³⁵ And, the energy for the band gap (E_g) of undoped anatase TiO₂ is 3.05 eV, which is consisted with the experimental value (3.20 eV) and other DFT+U and HSE06 calculated values.^36,37

We calculated the E_f to assess the stability of all the doped systems:

E_s = E_doped − E_undoped − mμ_N − nμ_F + xμ_O (1)

where E_doped and E_undoped are the total energies of doped and undoped TiO₂. The m and n denotes the number of N and F atoms doped into the supercell of TiO₂, respectively. The x represents the numbers of O atoms substituted by dopants atoms. In view of the growth of TiO₂ being a dynamic process, the formation energy is unfixed and depends on the growth condition (changing from O-rich condition to Ti-rich condition). Relations between μ_O and μ_N, μ_F, μ_Ti are satisfying the equations:

μ_Ti + 2μ_O = μ(TiO₂) (2)

μ_N + 2μ_O = μ(NO₂) (3)

3μ_F + μ_O = μ(OF₃) (4)

Under O-rich condition, μ_O is the chemical potential of the ground-state of the O₂ molecule; μ_Ti, μ_N and μ_F are obtained by the eqn (2), (3) and (4), respectively. Under Ti-rich condition, the μ_Ti is the chemical potential of Ti bulk, while μ_O, μ_N and μ_F are calculated by the eqn (2), (3) and (4), respectively. The simulation bond lengths of the O₂, NO₂ and OF₃ molecules are close to the experimental value.³⁸

3. Result and discussion

3.1 Crystal structure and formation energies

Table 1 lists the calculated lattice constants of the undoped and doped TiO₂. The lattice constants of undoped TiO₂ is consistent with the previous experimental results.³⁹ Overall, the effect of dopants and various doped models on the lattice constants and volume is very minor, within 0.74% and 1.37%, respectively. The reason may be that the atomic radius of the dopant is similar to that of the O atom. However, further observation from Fig. 1 found that dopants significantly affect the local structure and thus the electronic properties dramatically.

Table 1 The equilibrium supercell lattice constants a, b and c with unit Å. V is the volume of all systems with unit ų. E_f (Ti-rich and O-rich) E_F, E_g, E_max, E_CBM and E_VBM are the calculated formation energy, Fermi level, band gap, the maximum energy gap in the band gap, the energy of CBM and VBM, respectively, with unit eV. m* is the carrier effective mass compared with electronic mass

System		TiO2	Ns	Ns–Fs	Ns–Fi	Ni–Fs	Ni–Fi
a		7.551	7.587	7.564	7.573	7.565	7.602
b		7.551	7.543	7.607	7.554	7.595	7.550
c		9.627	9.615	9.589	9.696	9.655	9.695
V		548.91	550.25	551.74	554.67	554.74	556.45
Ef	Ti-rich	—	−1.79	−6.92	−3.73	−4.77	−0.01
	O-rich	—	5.77	4.01	4.68	3.63	5.89
EF		6.41	4.08	4.09	3.65	4.10	5.19
ECBM		9.46	7.06	6.47	6.70	6.72	6.79
EVBM		6.41	4.08	3.53	3.65	3.48	3.74
Eg		3.05	2.98	2.94	3.05	3.24	3.05
Emax		3.05	1.88	2.39	3.05	2.61	1.49
m*	CBM	0.35	0.38	0.40	0.42	0.46	0.39
	IL	—	5.43	1.21	—	2.73, 1.08	1.63, 2.10, 2.27
	VBM	0.92	1.28	0.95	1.30	1.25	1.21

---

We have calculated the E_f to assess the stability of dopants into TiO₂, as shown in Table 1. All of them are positive (or negative) under O-rich (or Ti-rich) conditions. Negative E_f suggests that dopant tends to enter the TiO₂ lattice. Thus, this confirms that the N(F) atoms prefer to substitute the O atom under Ti-rich conditions, since more oxygen vacancies are present in this case.^29,34 Meanwhile, the E_f of these doped systems have the relative relationships: E_f(N_s–F_s) < E_f(N_i–F_s) < E_f(N_s–F_i) < E_f(N_s) < E_f(N_i–F_i) under Ti-rich conditions. Thus, N_s–F_s co-doped TiO₂ is the most stable system, due to its lowest E_f(−6.92 eV). Moreover, the E_f of all co-doped TiO₂ (except for N_i–F_i co-doped TiO₂) is smaller than N doped TiO₂ indicates that the incorporation of the N atoms into the TiO₂ will be easier to achieve in the presence of the F dopant. Further, considering the relationship between E_f and μ_O, a variety of N/F co-doped TiO₂ can be synthesized by controlling the flow of O₂ and supplying enough energy.

3.2 Electronic properties

To demonstrate how doped atoms modify the electronic properties of TiO₂, the band structures and partial density of states (PDOS) of individual Ti, O, N and F atoms of all the systems are shown in Fig. 2 and 3, respectively. And the E_g, the Fermi level (E_F), the maximum energy gap in the band gap (E_max), the energy of conduction band minimum (CBM) (E_CBM) and valence band maximum (VBM) (E_VBM) are listed in Table 1.

Fig. 2 The band structures of undoped and doped TiO₂, where the blue full (red dash) lines represent the spin up (spin down) states and the horizontal dashed lines denote the Fermi level (E_F).

Fig. 3 PDOS of undoped and doped TiO₂, the vertical dashed lines denote the Fermi level (E_F).

The band gap of TiO₂ is mostly controlled by O-2p and Ti-3d states, but the ILs of the dopants can also modify it. Thus the dopants can fine tune the band gap of the doped system. The details of the band gap tuning can be described as the followings.

For N_s doped TiO₂ (Fig. 2b and 3b), the valence band now has the half-filled N_s-2p state which is just above the original VBM, while the conduction band (CB) remain unchanged. Thus, the valence band (VB) lifts toward to the CB and the E_g is reduced by 0.07 eV. Similar to this, the filled IL of the N_s–F_s co-doped TiO₂ (Fig. 2c and 3c) is also above the VBM. Thus, the E_g is lowered to 2.94 eV compared to undoped TiO₂. For the case of N_s–F_i co-doped TiO₂ (Fig. 2d and 3d) and N_i–F_i co-doped TiO₂ (Fig. 2f and 3f), the ILs overlap the original VB and CB, thus the band gap remains the same. For the case of N_i–F_s co-doped TiO₂ (Fig. 2e and 3e), the filled ILs locate in the middle of the band gap. And the VB is lowered due to missing one O atom. Thus the band gap increases compared to the undoped TiO₂. This verifies that N and F atoms can modulate the electronic structure of the TiO₂, by changing the position and amount of ILs. Furthermore, the spin polarization states present in the N_s doped TiO₂ is not observed in the co-doped system due to the charge compensation effect between N and F atom.

Overall, the doped system only reduces the band gap below 0.11 eV. In other words, the maximum red-shifted optical absorption edge is only 15.3 nm. However, the ILs in the band gap not only reduce the E_g, but also separate and promote photo-excited electrons pumping from the VB into the CB. These characteristics are likely to improve visible light photocatalytic activity. More details will be discussed later.

3.3 Effective mass of photogenerated carriers

We all know that the limited number of density of states and the low charge carrier mobility in the flat ILs limits its role as a stepping stones for electronic transition, and the electrons are easily annihilated by recombination with holes. The carrier mobility has been calculated according to the equation μ = eτ/m*, where τ is the mean free time, m* is the effective mass (both related to the curvature of the band level).^40,41 Smaller efficient masses mean higher carrier mobility. The m* of all the systems were presented in Table 1. The results show that there is a flat IL (m* = 5.43) in the N_s doped TiO₂ that limits the separation of photogenerated carriers. In contrast, all co-doped systems have smaller m*, especially N_s–F_s co-doped TiO₂ (m* = 1.21). Thus, this IL suppresses the recombination rate. We believe that N_s–F_s co-doped TiO₂ will have the highest photocatalytic efficiency.

3.4 Band edge energy and photocatalytic properties

The band edges energy (E_VBM and E_CBM) determines the redox potential of the semiconductor photocatalyst. Fig. 4 and Table 1 indicate that the E_VBM and E_CBM of all doped TiO₂ move down to the low energy region (more than 2.33 eV), compared with the undoped TiO₂. Such as, the oxidizability of photogenerated holes at the VBM is enhanced 2.33–2.93 eV, while the reducibility of photogenerated electrons at the CBM is reduced 2.40–2.99 eV. Moreover, the band edges energy of N/F co-doped TiO₂ move more to the lower energy region compared with N_s doped TiO₂. So, they have greater ability to modify the redox potentials; especially the N_s–F_s co-doped TiO₂.

Fig. 4 The E_CBM and E_VBM of undoped (green dotted line) and doped (blue and red line) TiO₂.

On the other hand, O₂⁻ ion and ˙OH radical all are important oxidants in the process of photocatalytic degradation of methylene blue. The degradation mechanism is shown in Fig. 5. On the surface of TiO₂, O₂⁻ ions are reduced by the photogenerated electrons from the O₂, while ˙OH radicals are oxidized by the photogenerated holes from the OH⁻. Thus, all doped systems tend to produce more ˙OH than O₂⁻ during the photocatalytic process. For that, as discussed above, we conclude that N_s–F_s co-doped model can explain the mechanism of enhanced photocatalytic activity in the recent experiments that the ˙OH radical played a leading role during the visible light photocatalytic process.^33,42–45 Meanwhile, volumes were 550.25 and 551.74 ų for N_s doped and N_s–F_s co-doped TiO₂. This expanded surface area also promotes the photocatalytic ability of N_s–F_s co-doped TiO₂.

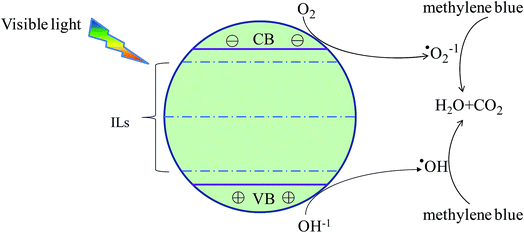

Fig. 5 The mechanism for photocatalytic degradation of MB by doped TiO₂ under visible light irradiation.

4. Conclusions

In summary, the crystal structure, formation energy, electronic structures and effective masses of charge carriers of N doped and N/F co-doped TiO₂ were investigated by first-principles calculations. We have found that the Ti-rich growth condition is beneficial to all doped TiO₂. Meanwhile, the incorporation of the N atom into the TiO₂ will be easier to achieve in the presence of the F dopant. N/F co-doped TiO₂ has no spin polarization, smaller effective mass and lower band edge energy. They, especially N_s–F_s co-doped TiO₂, not only greatly improve the photogenerated carriers' mobility and separation, but also increase the oxidation ability of the photogenerated holes. Thus, we have explained the mechanism of the enhancement of photocatalytic efficiency of N/F co-doped TiO₂ observed by experiments. Moreover, this work also provides new insights into synthesis and design of the various-doped TiO₂ by controlling the flow of O₂ during sample preparation.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work is supported by the National Key Research and Development Program of China (No. 2016YFA0300803), the National Basic Research Program of China (No. 2014CB921101), the National Natural Science Foundation of China (No. 61474061, 61674079). Jiangsu Shuangchuang Program and the Natural Science Foundation of Jiangsu Province of China (No. BK20140054). Computational resources were provided by the Jilin University.
