Jaeyun
Moon
and
Austin J.
Minnich
*
Division of Engineering and Applied Science, California Institute of Technology, Pasadena, California 91125, USA. E-mail: aminnich@caltech.edu
First published on 31st October 2016
Pure amorphous solids are traditionally considered to set the lower bound of thermal conductivity due to their disordered atomic structure that impedes vibrational energy transport. However, the lower limits for thermal conductivity in heterogeneous amorphous solids and the physical mechanisms underlying these limits remain unclear. Here, we use equilibrium molecular dynamics to show that an amorphous SiGe nanocomposite can possess thermal conductivity substantially lower than those of the amorphous Si and Ge constituents. Normal mode analysis indicates that the presence of the Ge inclusion localizes vibrational modes with frequency above the Ge cutoff in the Si host, drastically reducing their ability to transport heat. This observation suggests a general route to achieve exceptionally low thermal conductivity in fully dense solids by restricting the vibrational density of states available for transport in heterogeneous amorphous nanocomposites.
Allen and Feldman introduced categories of vibrational modes in amorphous solids known as propagons, diffusons, and locons.11,12 Propagons are propagating and delocalized phonon-like plane waves that typically possess long wavelengths compared to the interatomic spacing. Diffusons are modes that scatter over a distance less than their wavelength and thus transport heat as a random-walk. Locons are non-propagating and localized modes that are unable to transport heat in harmonic solids.12,13
This classification has been widely used to interpret experiments and calculations of transport in amorphous materials, particularly for pure a-Si. For instance, numerical works using equilibrium molecular dynamics (EMD) and lattice dynamics (LD) have attempted to determine the fraction of heat carried by each type of vibration. In their original work, Allen et al. reported that ∼20% of thermal conductivity of a-Si is from propagons (≲3 THz) whereas the rest are from diffusons (3–17 THz) and none is from locons (≳17 THz).14 He et al. reported that although only 3% of the mode population is propagons, they transport up to 50% of the heat due to their long propagation distances.15 Calculations by Larkin and McGaughey indicate that propagons have a lifetime scaling of ω−2 which suggests that these modes are plane-wave-like and are propagating.13 Wei and Henry have reported that frequency modes above ∼17 THz are highly localized and do not contribute to thermal conductivity using Green-Kubo modal analysis for a-Si.16
Experimental works have qualitatively confirmed some of these predictions.17–19 Sultan et al. reported that modification of the surface of an amorphous SiN membrane changes the thermal conductance of the membrane, indicating the importance of propagons for heat conduction.20 They estimated that propagons are responsible for ∼40–50% of thermal conductivity in amorphous SiN using kinetic theory. Braun et al. reported that diffusons are the dominant heat carriers for films of thickness less than 100 nm, while the propagon contribution is present in thicker films.19
Although pure amorphous solids are typically assumed to achieve the lower limit of thermal conductivity, some works have examined how this limit may be broken. In semi-crystalline solids, it is well known that composites can possess exceptionally low thermal conductivity due to thermal boundary resistance.21 This effect has been exploited by Chiritescu et al.22 to achieve ultralow thermal conductivity in disordered WSe2 nanolaminates below the minimum thermal conductivity predicted by the Cahill–Pohl model,23 although a recent theory work suggests that the experiments agree with this model if anisotropy is taken into account.24 Wingert et al. reported that crystalline silicon nanotubes with shell thicknesses as thin as 5 nm have a low thermal conductivity of 1.1 W m−1 K−1, lower than that of the amorphous counterpart via a phonon softening effect.25 Dechaumphai et al. experimentally observed an ultralow thermal conductivity of 0.33 ± 0.04 W m−1 K−1 at room temperature in amorphous multilayers made of Au and Si.26 Computationally, Norouzzadeh et al. used MD to study the thermal conductivity of an a-SiGe alloy with different Ge content and observed thermal conductivity values below those of the constituent materials.27 Giri et al. used NEMD to examine the role of the interface of amorphous SiGe superlattices and amorphous Si/heavy-Si superlattices, concluding that increasing mass-mismatch in amorphous superlattices results in higher Kapitza resistances, leading to low thermal conductivity.28
Although these works have suggested that thermal conductivities of heterogeneous amorphous solids below those of the pure constituents are achievable, key questions remain. Some of these works have interpreted their results with a phonon gas model, which is of questionable validity for diffusons and locons, and others have used the concept of thermal boundary resistance to explain their observations. In particular, the latter approach implicitly assumes that vibrational modes of the two solids composing the interface are well defined. However, if the inclusion in the nanocomposite is sufficiently small, the vibrational modes of the composite may not coincide with the vibrations of the pure materials. In this case, the nature of the vibrations in the composite solids and hence the lower limits of thermal conductivity in heterogeneous amorphous solids remain unclear.
Here, we examine heat transport in amorphous SiGe nanocomposites consisting of a Ge inclusion in a Si host matrix. We find that these structures can possess thermal conductivities that are significantly smaller than those of the constituent materials, with the minimum thermal conductivity reaching as low as 32% of that of the amorphous Si host. Lattice dynamics analysis demonstrates that the presence of the Ge cluster drastically enhances localization of vibrational modes with frequency above the Ge cutoff in the Si host, leading to a remarkable decrease in thermal conductivity. These results demonstrate a mechanism for achieving remarkably low thermal conductivity in fully dense amorphous materials that may be useful for solid-state thermal insulation and highly sensitive thermopile detectors.
Subsequently, the domain was quenched at a rate of 10 K ps−1 to 300 K and equilibrated in an NPT ensemble at 300 K for 20 ns to relax the structure to equilibrium pressure. Because volume and pressure fluctuate in MD simulations, we computed the average atom positions over the last 100 ps to ensure the domain was not under strain. The resulting mean pressure was on the order of 0.1 bar. This domain was then thermostatted in an NVT ensemble for 10 ns using a Nose–Hoover thermostat. After an additional NVE equilibration for 50 ps, the heat fluxes were computed for 1.6 ns in NVE ensemble.
We computed the thermal conductivity of the various structures using the Green–Kubo (GK) formalism, which relates the thermal conductivity to the heat current autocorrelation function by
(1) |
Fig. 2(a) shows the HCACF normalized by 〈J(0)·J(0)〉 for a-Si. The autocorrelation function converges quickly to 0 in less than 0.5 ps for a-Si. The HCACF convergence times of na-SiGe are on the order of 10 ps. The resulting thermal conductivity of a-Si obtained from the integral of the autocorrelation function versus integration time is depicted in Fig. 2(b). The thermal conductivity of a-Si is determined by taking the average between 5 and 20 ps. The thermal conductivity of a-Si with respect to temperature for 4096 atoms with SW potential is plotted in Fig. 2(c) and compared with works by Larkin and McGaughey13 and Lv and Henry.16 At 300 K, thermal conductivity from this work is 1.55 ± 0.20 W m−1 K−1 which is in agreement with these works. Consistent with ref. 16, weak temperature dependence of thermal conductivity is observed. Direct comparison to experimental results is difficult as thermal conductivity of a-Si varies significantly by the fabrication process, hydrogenation, heat treatment, and defects, but experimental thermal conductivity typically ranges from 1 to 6 W m−1 K−1 at room temperature.15,17,18,34

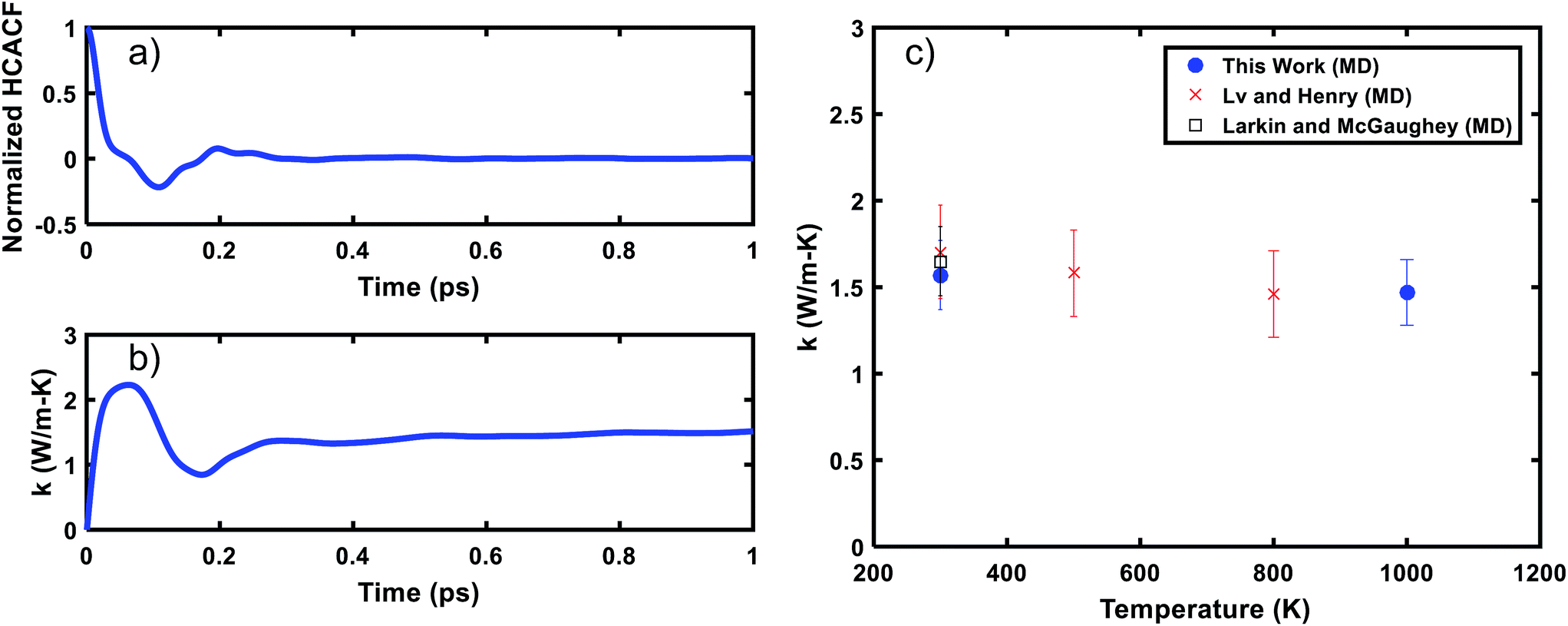

Fig. 2 (a) Normalized heat current autocorrelation function versus time. (b) Thermal conductivity integral calculated by eqn (1)versus time. The thermal conductivity of a-Si is determined by taking the average between 5 and 20 ps. (c) Thermal conductivity versus temperature (blue circles), comparison with the works by Larkin and McGaughey (black squares),13 and Lv and Henry (red crosses)16 utilizing 4096 atoms, SW potential, and GK formalism at temperatures from 300 K to 1000 K. No temperature dependence is observed. |
Fig. 3 Thermal conductivity of na-SiGe versus Ge content. The minimum thermal conductivity of 0.50 ± 0.17 W m−1 K−1 is observed with 55% Ge content. |
To understand the mechanism behind the reduction in thermal conductivity, we first examine the vibrational density of states (vDOS) of the a-Si and a-Ge constituents in na-Si0.45Ge0.55 shown in Fig. 4(a). The vDOS is computed from
(2) |
We confirm this hypothesis by first calculating the inverse participation ratio (IPR), which is a measure of how many atoms participate in the motion of a particular eigenmode. The IPR is given by
(3) |
Fig. 4(b)–(e) show the IPR for a-Si, na-Si0.90Ge0.10, na-Si0.45Ge0.55, and a zoomed-in view of the IPR of na-Si0.45Ge0.55 from 5 to 15 THz. The IPR for a-Si, Fig. 4(b), shows that locons are observed primarily over around 17 THz, consistent with prior works.12,16 As Ge atoms are introduced in the nanocomposite in na-Si0.90Ge0.10, we observe locons in the medium-frequency region around 10 THz. For na-Si0.45Ge0.55, all the vibrational modes above around 10 THz are localized. The corresponding locon mode fractions are 7%, 9%, and 31% for a-Si, na-Si0.90Ge0.10, and na-Si0.45Ge0.55, respectively. In other words, na-Si0.45Ge0.55 has the lowest thermal conductivity and also more than 4 times the number of locons than a-Si, suggesting localized modes in Si are associated with the low thermal conductivity of the nanocomposite. We also note that vibrational modes with higher IPR than 0.0012 are present at low frequencies. We have verified that these modes are due to the finite size of the computational domain and disappear as the size of the system increases.
We next confirm that these localized modes reside in silicon by calculating the local vibrational density of states, defined as40
(4) |
(5) |

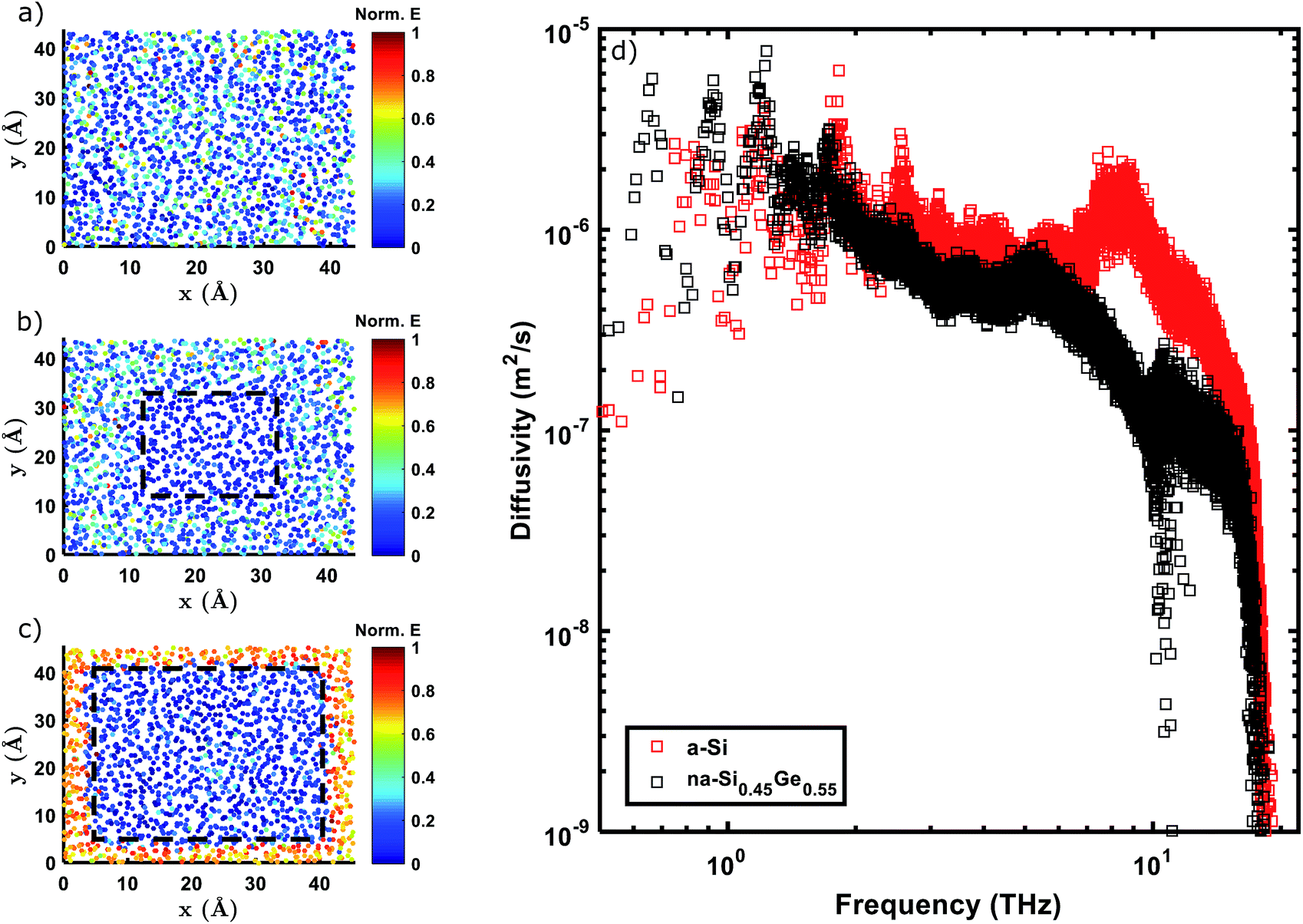

The spatial energy distribution is shown in Fig. 5(a)–(c) for a-Si, na-Si0.90Ge0.10, and na-Si0.45Ge0.55, respectively. The distribution has been normalized by the maximum energy of an atom in the domain. We plot cross section x–y plane in the middle of z axis for clear visualization. It is apparent that for a-Si the spatial distribution of locons is randomly distributed. As Ge content is increased, however, we observe that locons are located in Si atoms. This result confirms that vibrational modes over around 10 THz are increasingly localized as Ge content grows and that these locons are indeed localized in a-Si atoms.
The drastic increase in locon population in na-SiGe suggests that the origin of the low thermal conductivity in na-SiGe is due to conversion of delocalized modes in a-Si to locons. To verify this hypothesis, we calculate the thermal diffusivities using the harmonic heat flux operator. The thermal conductivity of a solid is given by
(6) |
(7) |
The results suggest a simple explanation for the low thermal conductivity of the nanocomposite. In a-Si, nearly the full vibrational spectrum contributes to heat conduction as indicated by the calculated thermal diffusivities and associated small locon population. In the nanocomposite, diffusons with frequencies above the soft Ge cutoff frequency become localized, impeding their ability to transport heat. In effect, the soft inclusion restricts the vibrational spectrum available to conduct heat because many Si vibrational modes are not supported in the inclusion.
Another interesting consideration is why the thermal conductivity of the composite is less than the intrinsic thermal conductivity of the amorphous Ge. The explanation can again be identified from the locon population and the density of vibrational states. The locon population of a-Ge is found to be 8% compared to 31% of na-Si0.45Ge0.55, which means there are more vibrational modes that are able to transport heat than in na-Si0.45Ge0.55. Although the a-Ge has a lower cutoff frequency than a-Si, its density of states is the same as that as a-Si because the atomic number densities are identical. However, in the nanocomposite, only a fraction of the modes in Si with frequencies below that of the Ge cutoff are able to conduct heat; therefore, the composite contains fewer states with non-negligible thermal diffusivities than a-Ge. As a result, the thermal conductivity of the composite may be lower than those of both the stiff host and softer inclusion.
Many prior works have interpreted thermal conductivity reductions in amorphous or disordered heterogeneous solids using the concept of thermal boundary resistance between the adjacent layers.4,26,28 However, this interpretation relies on the vibrational mode properties of individual constituents separately. Our analysis shows that the vibration mode characters change drastically from a-Si to na-SiGe, suggesting that thermal boundary resistance is not a well-defined concept in the amorphous nanocomposites studied here as the vibrational modes of the constituent materials cannot be separated. Instead, it is the change in character of the overall vibrational modes of the composite that leads to the low thermal conductivity.
