Di(p-methoxyphenyl)amine end-capped tri(p-thiophenylphenyl)amine based molecular glasses as hole transporting materials for solid-state dye-sensitized solar cells

Thanh-Tuân Bui*a, Said Karim Shahbcd, Xavier Sallenavea, Mamatimin Abbasbc, Gjergji Sinia, Lionel Hirsch*bc and Fabrice Goubard*a
aLaboratoire de Physicochimie des Polymères et des Interfaces (LPPI), Université de Cergy-Pontoise, 5 mail Gay Lussac, Neuville-sur-Oise, 95031 Cergy-Pontoise Cedex, France. E-mail: tbui@u-cergy.fr; fabrice.goubard@u-cergy.fr
bUniv. Bordeaux, IMS, UMR 5218, F-33607 Pessac, France. E-mail: lionel.hirsch@ims-bordeaux.fr
cCNRS, IMS, UMR 5218, F-33607 Pessac, France
dDepartment of Physics, Abdul Wali Khan University, Mardan, Khyber Pakhtunkhwa, 23200 Pakistan

Received 21st April 2015 , Accepted 28th May 2015

First published on 28th May 2015


Abstract

Three tris(thienylphenyl)amine-based molecular glass hole transporting materials were synthetized, characterized and incorporated in solid state dye-sensitized solar cells. Devices using these compounds as solid hole conductors show relatively high Voc thanks to good energy level matching between them and the associated D102 indoline dye. However, they yield relatively low Jsc and FF compared to Spiro-OMeTAD based control devices, which is due to an order of magnitude lower conductivity with respect to Spiro-OMeTAD. Maximum solar-to-electrical energy conversion efficiencies of 1.2% under standard illumination condition was obtained. Stability tests of unsealed devices in air under continuous illumination have been performed and devices based on new compounds have kept up to 80% of their initial efficiency.


1. Introduction

In recent years, the development of small molecules for photovoltaic devices has received considerable interest. A huge number of molecules have been designed, synthetized, and characterized for use as active materials in organic solar cells1 or as hole transporting materials (HTMs) in hybrid organic–inorganic photovoltaics.2–4 Compared to polymers, small molecules exhibit many outstanding advantages such as structural versatility, unique molecular weight as well as relatively easy purification processes. Despite their tendency to crystallization, small molecules can form stable amorphous materials above ambient temperature if their structures are meticulously designed.5 The most successful molecular HTM is 2,2′,7,7′-tetrakis(N,N-di-4-methoxyphenyl-amine)-9,9′-spirobifluorene (Spiro-OMeTAD) which was firstly reported by Grätzel et al. in 1998.6 To date, the Spiro-OMeTAD based cell efficiencies have been higher than 7% after optimizing doping conditions by cobalt complex and in combination with high molar extinction coefficient organic dyes.7 Using perovskite as light harvester, Spiro-OMeTAD based cells have shown impressive efficiencies,8 even reaching 20.1% as confirmed in November 2014 by NREL. The success of Spiro-OMeTAD is due to its stable amorphous film (relative high glass transition temperature), relative high solubility, appropriate oxidation potential versus light harvesting materials (dyes or perovskites), and transparency in the visible spectrum with no absorption screen effect compared to dye. Despite offering the best performance yet achieved in a molecular hole conductor based cell, Spiro-MeOTAD suffers from a relatively low hole mobility.7,9 Novel HTMs other than Spiro-OMeTAD have also been investigated and most of them are amine related compounds,4,10,11 exhibiting suitable electrochemical oxidation potentials, good charge transport, good thermal and morphological stability. Only few examples of successful non-amine derivative HTMs have been reported,12 Among amine derivatives, triphenylamines (TPA) having pseudo-3D conjugated architecture constitutes an attractive class of materials.13 Recently, we have reported on several series of star-shaped TPA based materials.2,14 Combined experimental and theoretical studies have shown that these molecular glasses have suitable characteristics for use as HTM in solid-state DSSCs.15

In the present work, we report the design, synthesis and photovoltaic properties of new star-shaped p-type amorphous organic semiconductors based on tris(4-(thiophen-2-yl)phenyl)amine cores (Fig. 1). Methyl moiety has been added in the thiophene ring to increase the dihedral angles between the adjacent rings, reducing the π-conjugation pathway and leading to blueshifts in optical absorption. Each arm of these molecules is end-capped by a di(4-methoxyphenyl)amino moiety. These electron rich end-capping groups will be seen to modulate electrochemical properties of targeted compounds. Methoxy groups enhance pore filling properties of these molecules by (i) rendering them more soluble in organic solvents and (ii) making them more hydrophilic and increasing dye-sensitized TiO2/HTM affinity. Additionally, the presence of methoxy groups in para positions of phenyl rings of the diphenylamino moiety has been shown to favor charge transport properties.16 We have incorporated these molecules as HTMs in solid state D102-sensitized DSSC. The photovoltaic performances of obtained devices will be presented and discussed.


image file: c5ra07226c-f1.tif
Fig. 1 Molecular structures of 1–3.

2. Results and discussion

2.1 Synthesis

The synthetic route toward studied compound is outlined in Fig. 2. Compounds 1 and 3 were obtained as reported in our preliminary work.2
image file: c5ra07226c-f2.tif

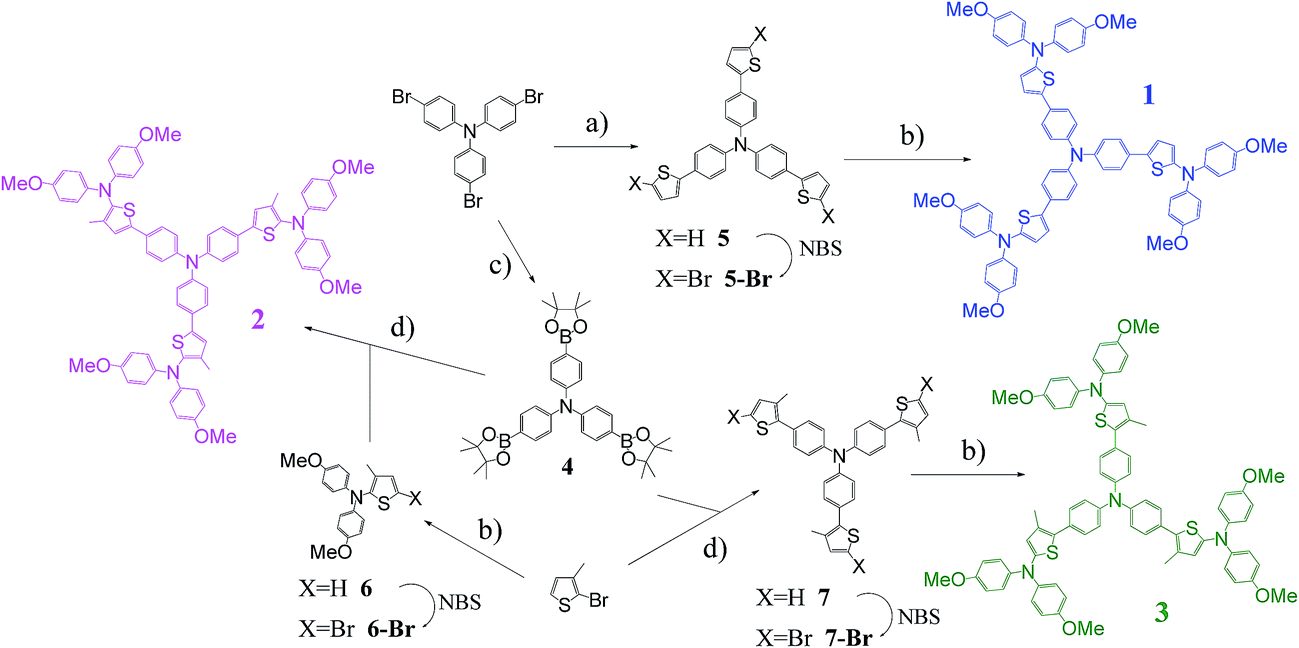

Fig. 2 Synthesis of 1, 2 and 3. Reagents and conditions: (a) 2-(tributylstannyl)thiophene, Pd(PPh3)4, toluene, 120 °C, 16 h. (b) 4,4′-Dimethoxydiphenylamine, NaOtBu, Pd(dba)2, P(tBu)3, toluene, 100 °C, 72 h. (c) 2-Isopropoxy-4,4,5,5-tetramethyl-1,3,2-dioxaborolane, n-BuLi, −78 °C, THF, 16 h. (d) Pd(PPh3)4, K2CO3 2 M, Aliquat 336, toluene, 90 °C, 72 h.

N-(3-Methyl-2-thiophenyl)-N,N-di(4-methoxyphenyl)amine 6 was obtained from the Pd-catalyzed amination of 2-bromo-3-methylthiophene2 and di(4-methoxyphenyl)amine. 6 was then subjected to a brominating reaction leading to 6-Br. Finally, 2 was constructed from tris(4-(4,4,5,5-tetramethyl-[1,3,2]dioxaborolane)phenyl)amine2 and 6-Br by means of a threefold Suzuki cross-coupling reactions. Structures of intermediates and final compounds were fully elucidated by NMR and mass spectrometry. As expected, 1–3 have good solubility in common solvents such as dichloromethane, chlorobenzene, toluene, etc. Their good solubility renders them suitable for solution processing of electronic devices.

2.2 Thermal properties

Thermal properties of 1–3 were investigated by thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC)17 under argon atmosphere. The TGA and DSC curves of 1–3 are shown in ESI (Fig. S1). The thermal decomposition (Td) and the glass transition (Tg) temperatures were summarized in Table 1. Synthesized compounds showed significant thermal stability with Td values superior to 300 °C which are high enough for the applications in optoelectronic devices. Glass forming properties of 1–3 were revealed by DSC. They were obtained as amorphous materials as confirmed by DSC. All compounds exhibit relatively high glass transition temperatures (Tg) ranging from 74 to 99 °C. 1 exhibits the highest glass transition at 99 °C. The introduction of a methyl moiety on the outer position of thiophene ring (against triphenylamine core) does not affect the thermal properties of resulting molecules 2 (Tg = 96 °C). However, the methyl moiety on the inner position of thiophene ring (molecule 3) significantly decreases thermal stability (Td of 3 is lower by 115 °C than that of 1) and glass transition temperature (Tg = 74 °C). This trend was confirmed by comparative TGA analysis of corresponding precursors 5 (Td = 373 °C) and 7 (Td = 287 °C).
Table 1 Thermal, optical and electrochemical properties of investigated HTMs and that of D102 dye. The HOMO and LUMO energies (B3LYP/6-31G(d,p) energies are given in parentheses)
Compd MW, g mol−1 Tga, (°C) Tdb, (°C) λmax (solid), nm λmax (solution)c, nm λonsetc, nm Eoptgapd, eV EOnsetOxie, (V/Fc+/Fc) IPSS (εHOMO)f, (eV) EASS (εLUMO)g, (eV)
a Determined from DSC analyses in argon at heating rate: 20 °C min−1.b 5% weight loss in TGA analyses in argon at heating rate: 20 °C min−1.c In dilute THF solution.d Eoptg = hc/λonset = 1240/λonset.e In dichloromethane solution containing TBAPF6 as supporting electrolyte (0.1 M), 100 mV s−1.f IPSS = (EOnsetOxi + 4.8).g EASS = IPSSEoptg.
1 1173.47 99 428 420 406 449 2.76 0.07 4.87 (−4.36) 2.11 (−1.09)
2 1215.54 96 397 401 397 439 2.83 0.12 4.92 (−4.45) 2.09 (−1.12)
3 1215.54 74 313 389 382 435 2.85 0.1 4.90 (−4.39) 2.05 (−0.93)
D102         490 556 2.23 0.29 5.09 2.86


2.3 Geometry and electronic properties of compounds 1–3

The geometries of compounds 1–3 are shown in Fig. 3. The methyl substituents in 2 and 3 are found to increase the dihedral angles between the adjacent rings by roughly 17° (from 42.8° to 60.4°) and 14° (from 24.9° to 38.7°) respectively, as compared to 1. However, increasing the steric hindrance in the middle of the conjugated backbone of each arm (compound 3) is expected to prevent to a larger degree from a compact packing as compared to the positioning of methyl groups at the end of the arms (compound 2), where some steric hindrance is already present, this difference might be at the origin of the lower Tg value of compound 3 as compared to 1 and 2.
image file: c5ra07226c-f3.tif
Fig. 3 Geometry of compounds 1–3 obtained at the B3LYP/6-31G(d,p) level in “gas phase”. A selection of dihedral angles is shown.

A selected set of MOs corresponding to compounds 1–3 are shown in Fig. 4. In the three cases, the HOMOs are localized in the TPA and thiophene rings, exhibiting very small contributions from the DPA groups. These HOMO distribution patterns, along with the general geometrical shape of compounds 1–3 will be seen to strongly impact the charge-transport properties of these molecules.


image file: c5ra07226c-f4.tif
Fig. 4 HOMO and LUMO pictograms corresponding to compounds 1–3 (B3LYP/6-31G(d,p) level).

HOMO and LUMO energies are given in Table 1. Due to the larger size of the lobes on the LUMOs as compared to HOMOs, the thiophene methylation in the proximity of the TPA phenyl groups results in strong destabilization of the LUMO of 3 as compared to 1 (decrease in π-conjugation efficiency at the Ph–Th junction), and in slight stabilization of the HOMO (decrease of HOMO anti-bonding character at the Ph–Th junction). Inspection of HOMO and LUMO of 1, indicates stabilization for both orbitals upon thiophene methylation near the DPA position (compound 2 with respect to 1).

2.4 Electrochemical and optical properties

Cyclic voltammetry has been employed to investigate the redox behavior of synthesized molecules and to estimate the ionization potential (IPSS) and electron affinity (EASS), which, in view of Koopmans' theorem, are good approximations of the HOMO and LUMO energy respectively. The cyclic voltammograms of 1–3 showing their first oxidations are shown on Fig. S2 in the ESI and related data is summarized in Table 1. IPSS and EASS values were estimated by using the ferrocene (Fc) ionization potential value (4.8 eV vs. vacuum) as the standard. The first oxidation potentials could be attributed to the formation of radical cation of the triphenylamine core. These compounds have onset oxidation potentials of approximately 0.1 V/Fc+/Fc, which could match with the D102 dye (0.29 V/Fc+/Fc). The IPSS values determined from the oxidation onset potential values of 1–3 with respect to Fc+/Fc range between 4.87 and 4.92 eV. Compared to the IPSS of D102 dye (5.09 eV, Table 1) sufficient driving force for hole injection from D102 to the HTM can be deduced (0.22, 0.17, and 0.19 eV respectively for 1–3). This suggests that 1–3 could be potential HTM in D102-sensitized solar cells.

Optical properties of 1–3 were examined in dilute THF solutions and in thin film solid state. UV-vis absorption spectra were given in Fig. 5 and related data are summarized in Table 1. Absorption of indoline dye (D102) used in the present work as light harvester in DSSC devices were also given for comparison purpose.


image file: c5ra07226c-f5.tif

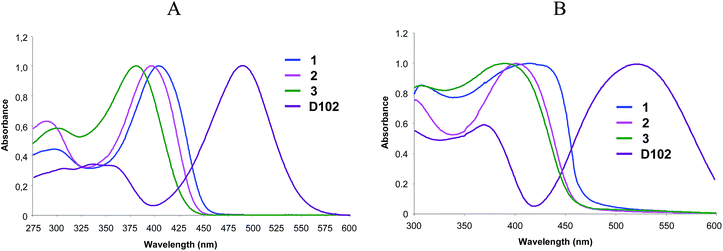

Fig. 5 UV-vis absorption spectra of 1–3 recorded in dilute THF solution (A) and thin films (B), the D102 UV-vis absorption spectra are also given in both figures.

All compounds have similar optical behaviors in dilute solution. They have a strong absorption band located in the UV/near visible spectral domain (375–425 nm). Theoretical absorption spectra (Fig. S3) indicate that the intense low energy band is due to HOMO → LUMO, LUMO+1 transitions. In the case of compound 3, the introduction of methyl group into the thiophene ring near the TPA moiety results in increased Ph–Th dihedral angle (Fig. 3) and decreased of π-conjugation efficiency. Compared to compound 1, the decreased HOMO energy and the increased LUMO energy of compound 3 (Table 1) result in gap opening and blue-shift of the absorption band. Smaller gap opening in the case of compound 2 results in smaller absorption blueshift as compared to 1. The optical band gaps (Eoptg) of 1–3 were also estimated from the edge of the first of the absorption peak in solution (Table 1). By subtracting the optical band gap from the IPSS, the EASS was estimated. All spectra recorded in solid state are slightly redshifted in comparison with the spectra recorded in solution, which is consistent with some backbone-planarization and intermolecular polarization effects in solid state. The absorption band maximum of compound 1 in THF solution is redshifted from 404 nm to 420 nm in drop casted film. It is important to note that, the main absorption band of D102 dye used in this study is centered in the visible spectral region (Fig. 5). The three triphenylamine derivatives exhibit therefore no- or slight absorption overlap with the dye, thus avoiding harmful absorption competing between HTM versus the dye.

2.5 Electrical & photovoltaic properties

In addition to thermal/morphological stabilities and a good Dye/HTM energy level matching, HTMs have to have good charge conductivity. Conductivity of the molecules was then studied using exactly the same doping conditions as used for solar cell devices with optimum concentrations of lithium bis(trifluoromethylsulfonyl)imide salt (Li-TFSI) plus 4-tert-butyl pyridine (tBP). Fig. 6 shows the IV curves of films with two probes measurement.
image file: c5ra07226c-f6.tif

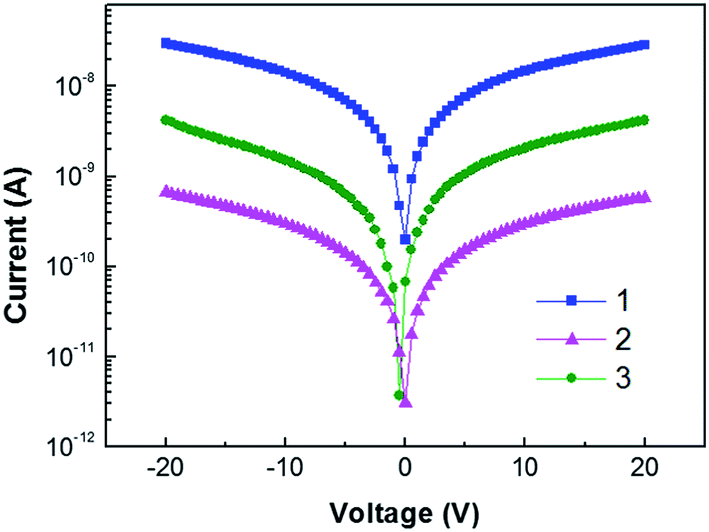

Fig. 6 IV curves of the doped films of compound 1–3 spin coated from chlorobenzene.

Derived conductivity of compound 1 is 9.73 × 10−5 S m−1, while compound 2 and 3 show relatively lower conductivities with 5.3 × 10−7 S m−1 and 3.33 × 10−6 S m−1 respectively, compared to the value 8.3 × 10−4 S m−1 of Spiro-OMeTAD.11 These small conductivity values seem to stem from a collective effect of different electronic and structural factors: (i) the intramolecular reorganization energies are relatively large (0.39, 0.31, and 0.38 eV for 1–3 respectively, B3LYP/6-31G(d,p) level in gas phase). (ii) The HOMOs have missing contributions from that DPA moieties (Fig. 4 and S4a), which are important for easy HOMO–HOMO electronic couplings between adjacent molecules. (iii) Due to the localization of the HOMOs inside the steric barrier created by the DPA moieties (Fig. 3 and S4b), the interaction between the TPA–Th moieties (the HOMO-bearing moieties) of adjacent molecules is expected to result in large-distance HOMO–HOMO couplings (see Fig. 4b–d). Addition of methyl groups into the thiophene ring induces distortions of the average π plane due to steric hindrance and consequently may enlarge π–π stacking distance, resulting in decreased charge transport ability of 2 and 3 as compared to 1.

The compounds 1–3 were subsequently incorporated in solid state D102-sensitized solar cells as hole transporting layers. JV curves under 100 mW cm−2 AM 1.5 G illumination are presented in Fig. 7. Best device performance parameters are listed in Table 2.


image file: c5ra07226c-f7.tif
Fig. 7 JV characteristics of ss-DSSCs using compound 1–3 as hole transport layers tested under 100 mW cm−2 AM 1.5 G illumination.
Table 2 Best device performance parameters of ss-DSSCs with compound 1–3 as hole transport layers tested under 100 mW cm−2 AM 1.5 G illumination
HTM Jsc (mA cm−2) Voc (V) FF PCE (%)
1 3.0 0.79 0.51 1.20
2 1.8 0.87 0.29 0.46
3 1.85 0.81 0.29 0.44


Rather high values of Voc were obtained from all the compounds, reaching even to 0.87 V for compound 2. Highest Jsc (3.0 mA cm−2) and fill factor (51%) were achieved from the device based on compound 1, yielding PCE of 1.2%. Both devices based on compound 2 and 3 gave low fill factor of only 29%, as well as low Jsc of around 1.8 mA cm−2. Obviously, evidenced by our conductivity measurements, poor charge transport properties of these latter two compounds comparing to compound 1 hindered their ability to efficiently extract the photo-generated charges to the electrode.

It is interesting to look at performance stability of these new molecules. As reference, we also included benchmark hole transport molecule Spiro-OMeTAD in our study. Measurement of the devices was carried out in air, without encapsulation with continuous illuminations for more than two hours. The evolution of device performance parameters are shown in Fig. 8.


image file: c5ra07226c-f8.tif
Fig. 8 Stability measurement of ss-DSSCs with 1–3 and Spiro-OMeTAD as hole transport layers. Devices were tested without sealing; in air under continuous illumination at 100 mW cm−2 AM 1.5 G.

Unlike Spiro-OMeTAD device, the devices with all the new compounds did not evidence initial burn-out. On the contrary, all of them showed an initial enhancement in device performance. Decline in overall PCE mainly followed the trend in Jsc in all the devices, which takes into account all the processes from charge generation to collection in a cell. Notwithstanding rather low device performance of the devices based on these new molecules, they did show relatively high stability. When we compare the final performances with the highest values of these compounds, Spiro-OMeTAD retained 27% of PCE after 140 minutes under continuous illumination, while compound 1, 2 and 3 kept 51%, 80% and 57% respectively.

3. Conclusion

In summary, novel di(4-methoxyphenyl)amino end-capped tri(4-thiophenylphenyl)amine based molecular glasses were synthesized and characterized in detail. The synthetic routes highlighted Pd-catalyzed reactions and allowed the preparation of highly soluble compounds using short multistep syntheses in relatively good yields. Thanks to their glass forming properties (Tg varies from 74 to 99 °C), these molecules are able to stay in amorphous state allowing the realization of a thin film with good contact with the nanostructured inorganic layer. Additionally, their HOMO energy levels are in good alignment with that of D102 dye rendering them suitable for use in solid-state dye-sensitized solar cell. Indeed, all these molecules yielded rather high Voc, reaching even 0.87 V in solid state DSSC devices. Large variation in conductivity was observed when methyl groups were introduced in the thiophene ring. The compound without methyl group showed highest conductivity and best performance in ss-DSSC devices with PCE of 1.2%. Comparison of device's stability of cells fabricated from HTM 1–3 with that fabricated from Spiro-OMeTAD was carried out in continuous illumination in air without encapsulation. It puts into evidence that these new molecules were rather stable keeping more than 50% of the highest performance (even 80% for compound 2) as compared to 27% in Spiro-OMeTAD device.

4. Experimental section

4.1 General remarks

Materials. All used chemicals and solvents were purchased from chemical companies and used as received, unless otherwise mentioned. Toluene was dried by distillation from sodium metal. Purification of products was performed by column chromatography on silica gel from Merck with a grain size of 0.04–0.063 mm (flash silica gel, Geduran Si 60) eluting with analytically pure solvents. For analytical thin layer chromatography, “60 F254” aluminium substrates coated with silica gel from Merck were used.
Instrumentation & measurements. NMR (1H & 13C) spectra were recorded on a Bruker DPX-250 FT-NMR spectrometer. Chemical shifts18 are given in ppm using the residual solvent signal as internal reference. High resolution mass spectrometry was performed by the Small Molecule Mass Spectrometry platform of IMAGIF (Centre de Recherche de Gif). UV-vis spectra were measured on a Jasco (V-570) UV-vis-NIR spectrophotometer. Thermogravimetric analysis (TGA) was carried out on a TA Instrument Q50 TGA under argon flow at a heating rate of 20 °C min−1. The temperature of thermal degradation (Td) was measured at the point of 5% weight loss. Differential scanning calorimetry17 was performed on a TA Instruments Q100 calorimeter, calibrated with indium and flushed with argon. The oxidation potential (Eox) of the investigated compounds were measured in THF by cyclic voltammetry, scan rate 100 mV s−1, with tetrabutylammonium hexaperclorate (0.1 M) as a supporting electrolyte in a standard one-compartment, three-electrodes electrochemical cell under an argon stream using a “SP300 BioLogic” potentiostat. The working, reference and counter electrodes were platinum disk (Ø = 1 mm), silver wire pseudo-reference, and stainless steel gauze electrodes, respectively. Ferrocene was used as an internal standard, and the potentials were referred to the reversible formal potential of this compound.

4.2 Materials synthesis

The synthesis of 1, 3 and their different intermediates have been reported in the literature previously.2
N,N-Bis(4-methoxyphenyl)-3-methylthiophen-2-amine18. In a dry Schlenk equipped with magnetic stir bar and under argon, 2-bromo-3-methylthiophene (0.5 g, 2.82 mmol), bis(4-methoxyphenyl)amine (0.97 g, 4.23 mmol), palladium(II) acetate (81 mg, 0.36 mmol), sodium tert-butoxide (1.08 g, 11.3 mmol) and dry toluene (10 mL) were charged. The mixture was then degassed by argon purging for 30 min. Tri-tert-butylphosphine (57 mg, 0.28 mmol) was added via syringe. The mixture was heated at 100 °C for 3 days and allowed to cool to room temperature. The mixture was diluted with toluene (30 mL), washed with water, dried over MgSO4 and concentrated. The crude product was purified by flash column chromatography eluting with CH2Cl2/cyclohexane (1[thin space (1/6-em)]:[thin space (1/6-em)]3) to yield a pale yellow oil (630 mg, 68%).

1H NMR (250 MHz, CDCl3, δ): 7.02–6.90 (m, 5H), 6.84–6.73 (m, 5H), 3.78 (s, 6H), 1.94 (s, 3H). 13C NMR (63 MHz, CDCl3, δ): 156.2, 137.4, 135.6, 134.6, 129.2, 127.1, 123.4, 115.4, 56.2, 12.5.

5-Bromo-N,N-bis(4-methoxyphenyl)-3-methylthiophen-2-amine (6-Br). To a solution of 6 (600 mg, 1.84 mmol) in DMF (20 mL) was added N-bromosuccinimide (328 mg, 1.84 mmol) at 0 °C. The solution was stirred for 3 h at room temperature. The total reaction was confirmed by TLC. The solution was poured into water (20 mL) and chloroform (30 mL) was added to the mixture. After phase separation, the aqueous layer was extracted with chloroform (2 × 20 mL). The organic layer was washed with HCl 1 N solution (4 × 20 mL), water (2 × 20 mL), dried over MgSO4 and concentrated. The crude product was purified by flash chromatography on silica gel with CH2Cl2/cyclohexane (1[thin space (1/6-em)]:[thin space (1/6-em)]3) as eluent to give pale yellow oil (600 mg, 80%).

1H NMR (250 MHz, CDCl3, δ): 6.95 (d, J = 8 Hz, 4H), 6.81 (d, J = 7.8 Hz, 4H), 6.48 (s, 1H), 3.80 (s, 6H), 1.97 (s, 3H). 13C NMR (63 MHz, CDCl3, δ): 156.1, 137.8, 137.4, 137.1, 133.6, 128.4, 116.4, 113.1, 56.2, 11.8.

Tris(4-(5-(4,4′-dimethoxydiphenylamino)-4-methyl-2-thiophenyl)phenyl)amine18. In a dry Schlenk equipped with magnetic stir bar and under argon, 6-Br (0.5 g, 1.23 mmol), tris(4-(4,4,5,5-tetramethyl-[1,3,2]dioxaborolane)phenyl)amine (171 mg, 0.27 mmol), dry toluene (80 mL) and K2CO3 2 M solution (20 mL) were charged. The mixture was then degassed by argon purging for 30 min. Aliquat 336 (3 drops) and Pd(PPH3)4 (59 mg) were added. The mixture was heated at 90 °C for 3 days and allowed to cool to room temperature. The mixture was diluted with toluene (30 mL) and after phase separation; the organic layer was washed with brine (2 × 20 mL), water (2 × 20 mL), dried over MgSO4 and concentrated. The crude product was purified by column chromatography eluting with CH2Cl2/cyclohexane (7[thin space (1/6-em)]:[thin space (1/6-em)]3) to yield a pale yellow solid (250 mg, 76%).

1H NMR (250 MHz, CDCl3, δ): 7.42 (d, J = 8.5 Hz, 6H), 7.05 (d, J = 8 Hz, 12H), 6.98 (d, J = 8.4 Hz, 6H), 6.88 (d, J = 7.9 Hz, 12H), 6.78 (s, 3H), 3.83 (s, 18H), 2.08 (s, 9H). HRMS (ESI+): calculated for M+: 1214.4145, found: 1214.4116.

4.3 Device fabrication and characterization

For conductivity measurement, the doped solutions used for DSSC devices were spin coated on glass substrate. Hole transport molecules were dissolved in chlorobenzene (200 mg mL−1), by heating and stirring the solution at 80 °C for 30 minutes. Optimized doping concentrations of lithium bis(trifluoromethylsulfonyl)imide salt (Li-TSFI) dissolved in acetonitrile (170 mg mL−1) and 4-tert-butylpyridine (tBp) are 1[thin space (1/6-em)]:[thin space (1/6-em)]19.3 and 1[thin space (1/6-em)]:[thin space (1/6-em)]40.8 in volume ratio respectively. Au metal stripes with width of 0.05 mm and length of 2.5 mm were deposited. Keithley 4200 semiconductor analyser was used to record IV curves. For ss-DSSC devices, fluorine doped tin oxide (FTO) glasses were used as working electrode. One third Part of FTO was etched away using HCl and Zn powder and cleaned by consecutive sonication in acetone, ethanol and isopropanol for 15 minutes and dried. The substrates were then treated in UV–ozone for 15 minutes. A thin compact layer of TiOx was deposited using spin coating from the solution of titanium(IV) isopropoxides (TIPP) diluted in ethanol at the concentration of 0.05 M and HCl was added in order to have a water to TIPP molar ratio (rw) of 0.82 and a pH of 1.9. The samples were annealed at 450 °C for 20 minutes with subsequent cooling at 70 °C. The films were then treated with TiCl4 in water (220 μL/100 mL) for 30 minutes at 70 °C followed by rinsing with water and heating again to 450 °C for 20 minutes. Mesoporous TiO2 films were spin coated on top of the compact layer using a widely available Ti nanooxide paste (SOLARONIX) diluting in ethanol. The films were then slowly heated to 500 °C followed by again TiCl4 treatment. The mesoporous TiO2 electrodes were placed for 1 hour in organic dye (D102) solution (0.15 mg mL−1) in a mixture of acetonitrile and tert-butanol (1[thin space (1/6-em)]:[thin space (1/6-em)]1). The dye coated mesoporous films were rinsed in ethanol and dried in air overnight. 40 μL doped solution was deposited onto each film at room temperature and left for 1 minute before spin coating at 3500 RPM for 20 s in air. After spin coating, the films were kept for 24 hours in air. A 100 nm of Ag was deposited by thermal evaporation to complete the device structure. The device area, as defined by the overlap between the ITO and Ag electrodes, was 8.6 mm2. Current–voltage (JV) characteristics of the devices were examined in air under illumination of an AM 1.5 set at 1000 W m−2 with a calibrated silicon radiometer (Akoos). Stability of the ss-DSSCs without sealing was tested under continuous illumination in air for 2 hours.

4.4 Computational details

All the calculations were performed in the frame of DFT19 theory employing the B3LYP20 functional with Gaussian 09 program21 The geometry optimizations for all the molecules were carried out without symmetry constraints by using the 6-31G(d,p) basis set, followed by frequency calculations. The absorption spectra of the molecules were calculated by mean of time dependent density functional theory method (TDDFT)22 with the 6-31G(d,p) basis set. The theoretical absorption bands were obtained by considering a band half-width at half-maximum of 0.2 eV.23

Acknowledgements

The authors thank the Agence Nationale de la Recherche (ANR) for funding (FMOCSOLE Blanc SIMI 9 2010 project).

References and notes

  1. J. Roncali, P. Leriche and P. Blanchard, Adv. Mater., 2014, 26, 3821 CrossRef CAS PubMed.
  2. T.-T. Bui, L. Beouch, X. Sallenave and F. Goubard, Tetrahedron Lett., 2013, 54, 4277 CrossRef CAS PubMed.
  3. T.-T. Bui and F. Goubard, Mater. Tech., 2013, 101, 102 CrossRef; T.-T. Bui and F. Goubard, EPJ Photovoltaics, 2013, 4, 40402 CrossRef.
  4. G. Puckyte, B. Schmaltz, A. Tomkeviciene, M. Degbia, J. V. Grazulevicius, H. Melhem, J. Bouclé and F. Tran-Van, J. Power Sources, 2013, 233, 86 CrossRef CAS PubMed; A. Michaleviciute, M. Degbia, A. Tomkeviciene, B. Schmaltz, E. Gurskyte, J. V. Grazulevicius, J. Bouclé and F. Tran-Van, J. Power Sources, 2014, 253, 230 CrossRef PubMed.
  5. Y. Shirota, J. Mater. Chem., 2005, 15, 75 RSC; R. R. Reghu, J. V. Grazulevicius, J. Simokaitiene, A. Miasojedovas, K. Kazlauskas, S. Jursenas, P. Data, K. Karon, M. Lapkowski, V. Gaidelis and V. Jankauskas, J. Phys. Chem. C, 2012, 116, 15878 Search PubMed.
  6. U. Bach, D. Lupo, P. Comte, J. E. Moser, F. Weissortel, J. Salbeck, H. Spreitzer and M. Gratzel, Nature, 1998, 395, 583 CrossRef CAS.
  7. J. Burschka, A. Dualeh, F. Kessler, E. Baranoff, N.-L. Cevey-Ha, C. Yi, M. K. Nazeeruddin and M. Gratzel, J. Am. Chem. Soc., 2011, 133, 18042 CrossRef CAS PubMed.
  8. H. Zhou, Q. Chen, G. Li, S. Luo, T.-b. Song, H.-S. Duan, Z. Hong, J. You, Y. Liu and Y. Yang, Science, 2014, 345, 542 CrossRef CAS PubMed.
  9. T. Leijtens, J. Lim, J. Teuscher, T. Park and H. J. Snaith, Adv. Mater., 2013, 25, 3227 CrossRef CAS PubMed.
  10. B. Xu, E. Sheibani, P. Liu, J. Zhang, H. Tian, N. Vlachopoulos, G. Boschloo, L. Kloo, A. Hagfeldt and L. Sun, Adv. Mater., 2014, 26, 6629 CrossRef CAS PubMed; P. Qin, S. Paek, M. I. Dar, N. Pellet, J. Ko, M. Grätzel and M. K. Nazeeruddin, J. Am. Chem. Soc., 2014, 136, 8516 CrossRef PubMed; J. Xiao, L. Han, L. Zhu, S. Lv, J. Shi, H. Wei, Y. Xu, J. Dong, X. Xu, Y. Xiao, D. Li, S. Wang, Y. Luo, X. Li and Q. Meng, RSC Adv., 2014, 4, 32918 RSC.
  11. T.-T. Bui, S. K. Shah, M. Abbas, X. Sallenave, G. Sini, L. Hirsch and F. Goubard, ChemNanoMat, 2015 DOI:10.1002/cnma.201500014.
  12. J. Liu, Y. Wu, C. Qin, X. Yang, T. Yasuda, A. Islam, K. Zhang, W. Peng, W. Chen and L. Han, Energy Environ. Sci., 2014, 7, 2963 Search PubMed; L. Zheng, Y.-H. Chung, Y. Ma, L. Zhang, L. Xiao, Z. Chen, S. Wang, B. Qua and Q. Gong, Chem. Commun., 2014, 50, 11196 RSC.
  13. Z. Ning and H. Tian, Chem. Commun., 2009, 5483 RSC; H. Kageyama, H. Ohishi, M. Tanaka, Y. Ohmori and Y. Shirota, Adv. Funct. Mater., 2009, 19, 3948 CrossRef CAS PubMed; H. Kageyama, H. Ohishi, M. Tanaka, Y. Ohmori and Y. Shirota, Appl. Phys. Lett., 2009, 94, 063304 CrossRef PubMed; S. Roquet, A. Cravino, P. Leriche, O. Aleveque, P. Frere and J. Roncali, J. Am. Chem. Soc., 2006, 128, 3459 CrossRef PubMed.
  14. N. Metri, X. Sallenave, L. Beouch, C. Plesse, F. Goubard and C. Chevrot, Tetrahedron Lett., 2010, 51, 6673 CrossRef CAS PubMed; J. Zhang, X. Sallenave, T.-T. Bui, F. Dumur, P. Xiao, B. Graff, D. Gigmes, J. P. Fouassier and J. Lalevée, Macromol. Chem. Phys., 2015, 216, 218–227 CrossRef PubMed.
  15. N. Metri, X. Sallenave, C. Plesse, L. Beouch, P.-H. Aubert, F. Goubard, C. Chevrot and G. Sini, J. Phys. Chem. C, 2012, 116, 3765 Search PubMed; A. K. Diallo, N. Metri, F. Brunel, X. Sallenave, F. Goubard, O. Margeat, J. Ackermann and C. Videlot-Ackermann, Synth. Met., 2013, 184, 35 CrossRef CAS PubMed.
  16. A. Sakalyte, J. Simokaitiene, A. Tomkeviciene, J. Keruckas, G. Buika, J. V. Grazulevicius, V. Jankauskas, C.-P. Hsu and C.-H. Yang, J. Phys. Chem. C, 2011, 115, 4856 Search PubMed; V. Mimaite, J. Ostrauskaite, D. Gudeika, J. V. Grazulevicius and V. Jankauskas, Synth. Met., 2011, 161, 1575 CrossRef CAS PubMed.
  17. T. Arita, J. Yoo, Y. Ueda and T. Adschiri, Nanoscale, 2010, 2, 689 RSC.
  18. M. Pupek, D. Krzyzanowska-Golab, T. Dyla, A. Lemanska-Perek, R. Jankowska and I. Katnik-Prastowska, Clin. Biochem., 2009, 42, 654 CrossRef CAS PubMed.
  19. W. Kohn and L. Sham, Phys. Rev., 1965, 140, A1133 CrossRef.
  20. C. T. Lee, W. T. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 37, 785 CrossRef CAS; A. D. Becke, J. Chem. Phys., 1993, 98, 5648 CrossRef PubMed.
  21. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, B. Mennucci, G. A. Petersson, H. Nakatsuji, M. Caricato, X. Li, H. P. Hratchian, A. F. Izmaylov, J. Bloino, G. Zheng, J. L. Sonnenberg, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, J. Montgomery, J. E. Peralta, F. Ogliaro, M. Bearpark, J. J. Heyd, E. Brothers, K. N. Kudin, V. N. Staroverov, T. Keith, R. Kobayashi, J. Normand, K. Raghavachari, A. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, N. Rega, J. M. Millam, M. Klene, J. E. Knox, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, R. L. Martin, K. Morokuma, V. G. Zakrzewski, G. A. Voth, P. Salvador, J. J. Dannenberg, S. Dapprich, A. D. Daniels, O. Farkas, J. B. Foresman, J. V. Ortiz, J. Cioslowski and D. J. Fox, Gaussian 09, Revision B.01, Gaussian Inc., Wallingford CT, 2009 Search PubMed.
  22. M. E. Casida, C. Jamorski, K. C. Casida and D. R. Salahub, J. Chem. Phys., 1998, 108, 4439 CrossRef CAS PubMed; R. Bauernschmitt and R. Ahlrichs, Chem. Phys. Lett., 1996, 256, 454 CrossRef; E. K. U. Gross and W. Kohn, Adv. Quantum Chem., 1990, 21, 255 Search PubMed; E. K. U. Gross and W. Kohn, Phys. Rev. Lett., 1985, 55, 2850 CrossRef; E. Runge and E. K. U. Gross, Phys. Rev. Lett., 1984, 52, 997 CrossRef.
  23. R. Dennington, T. Keith and J. Millam, V. GaussView, Semichem Inc., Shawnee Search PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra07226c
