Rapid synthesis of rGO–MoO₃ hybrids and mechanism of enhancing sensing performance to H₂S

Abstract

Hybrids of reduced graphene oxide (rGO)–MoO₃ nanorods were synthesized successfully by a facile in situ solution growth method under a relatively low temperature of 150 °C for 1 h. The structure and properties of the hybrids have been characterized by XRD, SEM, TEM, Raman, PL and XPS analysis. The sensing performance of pure MoO₃ and rGO–MoO₃ hybrids to H₂S were examined, the results indicate that the hybrids exhibit higher response and lower operating temperature compared with the pure MoO₃ nanorods, especially, the 2.5 wt% rGO–MoO₃ hybrid exhibits the highest sensitivity and the fastest response to H₂S, which makes them promising candidates in the field of gas sensors for detection of H₂S gas. The sensing mechanism for MoO₃ to H₂S which is enhanced is also discussed in detail from rGO action in the hybrid and formation of a hetero-junction at the interface of the hybrid.

---

1 Introduction

With the development of industry, various toxic gases are increasingly released into the air, resulting in serious environmental pollution.¹ As a colorless and “rotten egg smell” substance, hydrogen sulfide (H₂S) is very harmful to both the human body and the environment.² Therefore, it is very important to develop H₂S sensors with good sensing performances for the monitoring and control of H₂S gas. Gas sensors based on metal oxide semiconductors, such as SnO₂, ZnO, WO₃ and MoO₃, etc. have attracted much attention because of their structure stability, low cost, and facile fabrication, and are well known to be effective devices in detecting flammable and toxic gases with enough sensitivity.^3–7 MoO₃ has been recognized to be promising sensing material for detection of H₂S, but pure MoO₃ usually exhibits lower sensitivity and higher operating temperatures. Therefore, many attempts have been employed to improve the gas sensing performance of MoO₃, for example, loading of noble metal, doping of element or forming of composites, etc.^8–12 Recently, graphene has attracted a great deal of attention owing to its good conductivity, superior chemical stability and high specific surface area, as well as its potential applications in photocatalysis, energy storage and sensor fields.^13,14 The reduced graphene oxide (rGO) can be obtained by reducing of the oxide graphite (GO) that results from oxidizing of graphite using modified Hummer's method.¹⁵ More recently, incorporating of rGO in metal oxides to construct the hybrids have attracted widely interest, which will help the generation of the novel sensing materials that sensing performance over the constituent counterparts due to their synergetic or complementary effect.^16–20 Choi et al.²¹ reported the SnO₂/rGO mixtures that exhibited response of 34 to 5 ppm H₂S at operating temperature of 200 °C, and the response and recovery times were about 100 s. Jiang et al.²² synthesized Fe₂O₃/rGO composites via a super critical CO₂-assisted thermal method and the lowest detect limit of 10 ppm H₂S was obtained using chemiluminescence measurement at 130 °C. However, the hybrids of rGO–MoO₃ are still rarely reported, and application for detection of H₂S is much more less, even if for pure MoO₃. There have been development two hybrids related to MoO₃ with rGO, that is, Yang et al.²³ prepared MoO₃–rGO composites by hydrothermal method at 180 °C for 24 h, but did not involve the application of the materials. Noerochim et al.²⁴ prepared MoO₃–rGO composites via a two-step microwave hydrothermal and the composites were applied to cathode materials of lithium batteries. Therefore, the development of facile and practical methods to structure sensing hybrids still remains a challenging issue. Herein, we assembled the MoO₃ nanorods on the rGO nanosheets via a facile in situ microwave hydrothermal method and enhanced sensitivity and reduced the operating temperature for detection of H₂S. Table 1 listed the response of MoO₃–rGO hybrid to H₂S in this work compared with that of other metal oxides/rGO hybrids reported in literatures.

Table 1 Response of rGO–MoO₃ hybrid to H₂S in this work compared with the responses of other metal oxides/rGO composites reported in literatures

Materials	Synthesis method	Operating temp. (°C)	Response/H2S concentration	Tresponse/Trecovery
rGO–MoO3 hybrids	In situ microwave hydrothermal method	110	44.7/40 ppm	109/36 s
Fe–MoO3 (ref. 8)	Hydrothermal method	270	184.1/100 ppm	15/34 s
α-MoO3/CuO^9	Hydrothermal method	270	272/10 ppm	40/40 s
α-MoO3/ZnO^10	Hydrothermal method	270	30/10 ppm	13/29 s
RGO–SnO2 (ref. 21)	Electrospinning	200	34/5 ppm	3.3/1.9 min
Fe2O3/graphene^22	Super critical CO2-assisted thermal method	190	Intensity change of chemiluminescence/15 ppm	0.5/30 s
Graphene–MoO3 (ref. 23)	Hydrothermal method	—	—	—
MoO3–graphene^24	Two-step microwave hydrothermal method	—	—	—

---

2 Experimental

2.1 Synthesis of reduced graphene oxide (rGO)

Under the condition of stirring and ice bath, a 9 : 1 mixture of concentrated H₂SO₄/H₃PO₄ (90 : 10 mL) was added to a mixture of 1.0 g of graphite flakes and 6.0 g of KMnO₄ in three-neck flask. After stirring for 20 min, the reaction was then ultrasonicated for 2 h at a power level of 250 W. The reaction was cooled to room temperature and poured onto ice-water of 100 mL with 30% H₂O₂ (1.5 mL). The dispersion was centrifuged under 5000 rpm for 10 min, and the supernatant was decanted away. The remaining precipitate was then washed several times with 30% HCl solution in a cycle of centrifugation and decantation, and finally washed with ethanol and ether. The product was allowed to dry at room temperature for 12 h. Exfoliation of graphene oxide (GO) was achieved by ultrasonication of the dispersion on an ultrasonic bath. For preparation of rGO, 0.8 g of glucose was added to 40 mL of homogeneous exfoliated GO dispersion (1.0 mg mL⁻¹), followed by stirring for 30 min. Then 0.4 of aqueous ammonia solution (25%, w/w) was added to the resulting dispersion. After being vigorously shaken for a few minutes, the mixture was kept in a microwave oven (WX-8000 microwave system) for 15 min at 120 °C. The resulting black dispersion was then filtered and washed with distilled water several times, and the obtained rGO was re-dispersed in water for further use.

2.2 Synthesis of MoO₃–rGO hybrids

A certain amount of rGO was dispersed in 20 mL of deionized water and sonicated for 2 h to yield rGO nanosheets solution A. 1.21 g of Na₂MoO₄·2H₂O was dissolved in 40 mL of deionized water to form solution B. Then the solution B was added to the solution A and kept stirring for 20 min. After the mixture was gently stirred for 10 min, 4 mL of HCl (6 M) was added slowly into the solution with stirring at room temperature. The reaction solution was then transferred into a 100 mL Teflon-lined autoclave and kept in a microwave oven (WX-8000 microwave system) at 150 °C for 1 h. The autoclave was allowed to cool to room temperature naturally, the obtained precipitate was collected by centrifugation, washed several times with deionized water and ethanol, and dried at 70 °C under vacuum overnight. For comparison, a series of rGO–MoO₃ hybrids were synthesized by changing the rGO content. Pure MoO₃ nanorods were also prepared through a similar procedure only in the absence of rGO.

2.3 Characterization

Crystallographic information for the samples was collected using powder X-ray diffraction (XRD, Shimadzu XRD-600 diffractometer, copper Kα radiation with λ = 0.154 nm), operated at 45 kV and 40 mA. Scanning rate of 10° min⁻¹ was applied to record the patterns in range of 3–70° (2θ). The product morphology was examined by field emission scanning electron microscopy (FESEM, Hitachi S-4700, 20.0 kV), a transmission electron microscope (TEM). PL spectra were recorded from 345 to 630 nm at room temperature with a 325 nm excitation (RF-5301PC spectrometer). X-ray photoelectron spectroscopy (XPS) spectra were recorded on an X-ray photoelectron spectrometer (VG ESCALAB-MK) with aluminum Kα radiation. The Raman spectroscopy was performed on a laser Raman spectrometer (Renishaw inVia) using a visible laser (λ = 532 nm) at room temperature.

2.4 Sensor fabrication and gas-sensing test

The pure MoO₃ and rGO–MoO₃ samples were mixed respectively with ethanol to form paste, and then drop-coated onto the surface of a ceramic tube with Au electrodes and a Ni–Cr heating coil that was inserted through the ceramic tube to construct a sensor. The sensor was aged at the certain temperature for several days in order to improve the structure stability of the sensing material and the stability of sensor resistance. The sensing responses of aged samples were measured to different concentrations of H₂S (5–80 ppm) using a JF02E gas sensor test system. The operating temperature of the sensor was adjusted by varying the voltage through an electric heating system. The resistance of the sensor in air (R_air) and in the air-test gas mixture (R_gas) was recorded, respectively. The response for reducing gas H₂S is defined as the ratio of R_air/R_gas. The response time and recovery time of the sensor were measured as the time taken for the sensor output to reach 90% of its saturation after applying or switching off the gas in a step function.

3 Results and discussion

3.1 Structure and morphology of MoO₃ and rGO–MoO₃ hybrids

The X-ray diffraction (XRD) spectra of graphite, GO, rGO, α-MoO₃ and rGO–MoO₃ hybrids are shown in Fig. 1. The characteristic diffraction peak of as-prepared GO is at 10.1° corresponding to an interlayer distance of 8.9 Å as shown in Fig. 1b.^25,26 For XRD, the interlayer spacing of the materials is proportional to the degree of oxidation. Also, the spectrum of GO had no peak at around 26° with an interlayer distance of 3.4 Å, indicating that the starting material (pristine graphite, 2θ = 26.5, Fig. 1a) were not present in the sample.²⁷ Based on the XRD patterns of products in Fig. 1d–g, all the peaks in the spectra of as-prepared MoO₃ and rGO–MoO₃ hybrid can be indexed to the orthorhombic phase of MoO₃ (JCPDS no. 05-0508) with lattice constants: a = 3.962 Å, b = 13.858 Å and c = 3.697 Å.^7,23 For the as-prepared rGO–MoO₃ hybrid, no typical peaks belonging to graphene oxide in 10.1°, indicating that the successful reduction of graphene oxide. In addition, the characteristic broad diffraction peak with low intensity around 24.6° corresponding to rGO (Fig. 1c) are not observed besides these representative diffraction peaks of MoO₃, it can be ascribed to the low amount and low diffraction intensity of rGO, compared to the characteristic peaks of MoO₃ between 20 and 30°.^20,24,28

Fig. 1 XRD patterns of (a) graphite, (b) GO, (c) rGO, (d) as-prepared MoO₃ and (e–g) rGO–MoO₃ hybrids.

Fig. 2a presents the representative FESEM image of MoO₃ nanorods, showing the prepared MoO₃ nanorods with length of several micrometers and diameters in the range of 100–200 nm. FESEM and HRTEM Images (Fig. 2b and d) reveal further information about the morphology and structure of the rGO–MoO₃ hybrid. The rGO shows a typical wrinkled morphology in the TEM image and the MoO₃ nanorods with a typical length of about several micrometers and a diameter of about 100 nm are overlapped and surrounded by rGO. The distribution of random MoO₃ nanorods on the rGO sheet and their intimate contact can also be confirmed by the TEM image in Fig. 2d. From typical FESEM image of prepared rGO nanosheets shown in Fig. 2c, a crumpled layered structure with several stacking layers is obviously seen.

Fig. 2 FESEM images of α-MoO₃ (a), rGO–MoO₃ (b), rGO (c) and TEM image of rGO–MoO₃ hybrid (d).

Raman spectra of GO, rGO, rGO–MoO₃ and MoO₃ are shown in Fig. 3. Two characteristic bands were observed in Raman spectrum of GO (Fig. 3a), 1352 cm⁻¹ (D band) is attributed to the local defects/disorders and 1602 cm⁻¹ (G band) can be assigned to the sp² graphitized structure.^17,23,27 After its reduction with glucose in the hydrothermal process, the Raman spectrum of as-prepared rGO (Fig. 3b) also exhibits the presence of D and G bands at 1344 and 1585 cm⁻¹, respectively. Raman spectrum of the rGO–MoO₃ hybrid (Fig. 3c) reveals that the D and G bands appear at about 1344 and 1585 cm⁻¹, which confirms the existence of rGO.²³ It should be noted that the frequency of the G and D bands in the rGO–MoO₃ are very similar to that observed in the rGO. However, the decrease in the D/G intensity ratio, compared to GO, indicates an increase in the size of the in-plane sp² domains and lower defects and disorders of the graphitized structures following the hydrothermal process.^19,29 In addition, the peaks at 243, 284, 336, 375, 665, 817 and 994 cm⁻¹ of the rGO–MoO₃ hybrid curve and MoO₃ curve fit well with the structure of MoO₃ reported in previous report.^24,30 The Raman bands at 994 cm⁻¹ and 817 cm⁻¹ can be assigned to the asymmetrical and symmetrical stretching vibrations of the terminal Mo=O bonds while the band at 665 cm⁻¹ is attributed to the asymmetrical stretching vibration of O–Mo–O bonds.²⁴ Peaks observed in the range of 100–400 cm⁻¹ correspond to various bending modes of α-MoO₃ crystal.

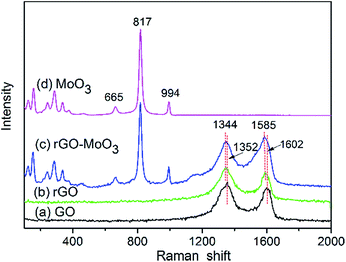

Fig. 3 Raman spectra of GO (a), rGO (b), rGO–MoO₃ (c) and MoO₃ (d).

Fig. 4 shows the PL spectra observed with an excitation wavelength of 325 nm for the rGO–MoO₃ hybrids with different rGO content, respectively. It is well known that MoO₃ can absorb photons with energy exceeding the forbidden energy gap of MoO₃ and generate excited electrons. The excited electrons jump from basic state to excitation state, and then fluorescence emission is produced when the excited electrons come back to basic state. As observed in Fig. 4, the PL intensity of α-MoO₃/2.5 wt% rGO is lower than that of rGO–MoO₃ with rGO content of 0 wt%, 1.25 wt% and 5 wt%, because the PL emission originate from the recombination of excited electrons and holes, the lower PL intensity indicates a lower recombination rate of photo-generated electrons and holes.³¹ The lower PL intensity was explained as the surface nanometer carbon materials which can show collective polarization modes and sensitize semiconductors. The rGO has a high charge-carrier mobility of 20 000 cm² V⁻¹ s⁻¹, so it is very possible that the incorporation of rGO might enhance the charge separation,¹⁹ which effectively promote the sensing response and photocatalysis of rGO–MoO₃.

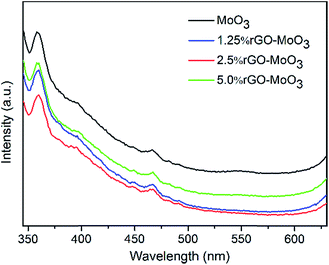

Fig. 4 PL spectra of MoO₃ and rGO–MoO₃ hybrids with different rGO content.

The composition and surface chemical states of as-prepared GO, rGO and rGO–MoO₃ composites can be further provided by XPS. Deconvolution of the C 1s peak of GO (Fig. 5a) shows the presence of different oxygen-containing functional groups with binding energies at about 284.8, 286.7, 287.9, and 288.6 eV, which can attributable to the sp² hybridized carbon (C=C), C–O, C=O, and O–C=O species, respectively.^27,32 This shows that high levels of oxidation of the GO sheets have occurred during the exfoliation. The C 1s spectra of rGO (Fig. 5b) were compared by deconvoluting each spectrum into three peaks that correspond to the following functional groups: carbon sp² (C=C, 284.8 eV), epoxy/hydroxyls (C–O, 286.7 eV), and carboxylates (O–C=O, 289.1 eV). After the reduction, the C=O signal disappeared and the C–O (286.7 eV) signal decreased markedly in intensity, suggesting the effective elimination of the oxygen-containing group in rGO. The ratio of peak intensity for C–O and C–C bonds in rGO is dramatically decreased compared to that of the as-synthesized GO, suggesting the effective reduction of GO. For rGO–MoO₃ (Fig. 5c), the ratio of peak intensity for C–O and C–C bonds in rGO–MoO₃ is further decreased compared to that of the as-synthesized rGO after microwave hydrothermal treatment process. The XPS of the Mo 3d shows the presence of two well-defined peaks (Mo 3d_5/2 and Mo 3d_3/2) at 232.6 and 235.7 eV (Fig. 5d), respectively.^32,33 The binding energy and spin–orbit split-ting (ΔMo 3d = 3.1 eV) are in good agreement with those reported for Mo⁶⁺, which are for α-MoO₃, suggesting that the α-MoO₃ nanorods were located on the rGO sheets.

Fig. 5 XPS spectra: C 1s peaks of GO (a), rGO (b) and rGO–MoO₃ hybrids (c); Mo 3d spectra of rGO–MoO₃ hybrids (d).

3.2 Gas sensing properties

Fig. 6 shows the sensor responses of the rGO–MoO₃ hybrids in different rGO content to 40 ppm H₂S gas at different operating temperatures. Many reports have demonstrated that the response of a semiconductor sensor is greatly affected by the operating temperature.^4,5,12 As shown in Fig. 6, the response of pure α-MoO₃ increases with increasing the operating temperature when the operating temperature is under 110 °C, which can be attributed to the fact that the thermal energy is high enough to overcome the activation energy barrier of chemisorption and surface reactions. When the operating temperature increases to 110 °C, the response reaches a maximum value of 21.8 and the temperature at which the response exhibits a maximum value is termed as optimum operating temperatures. If the temperature is further enhanced is under 110 °C, the amount of adsorbed gas on material surface will decrease with temperature, leading to the decrease of sensor response owing to decrease of reaction rate. When the desorption rate of gas is equal to the adsorption rate of gas, the maximum loading of chemisorbed ions is reached at the optimum temperature, resulting in the highest response.

Fig. 6 Sensing responses to 40 ppm H₂S of rGO–MoO₃ hybrids with different rGO content.

Fig. 6 also shows the responses of rGO–MoO₃ hybrids with different rGO content to 40 ppm H₂S at the operating temperature of 70 to 220 °C. It also indicates that the H₂S sensing properties are strongly influenced by rGO content in hybrid. It can be seen that the sensor response at 110 °C continuously increases when the rGO content varies from 1.25 to 2.5 wt%, and then decreases from 2.5 to 5 wt%. Accordingly, 2.5 wt% is believed to be the optimum rGO content and is chosen to test the transient gas-sensing properties herein after. Maximum response of 44.7 obtained with 2.5 wt% rGO–MoO₃ to 40 ppm H₂S is observed at 110 °C, which is 2.1 times of that obtained with pure α-MoO₃.

Fig. 7 shows the sensor responses of pure α-MoO₃ (black curves) and 2.5 wt% rGO–MoO₃ hybrid (red curves) to H₂S gas with different concentrations at the same operating temperature. It is found that the sensor response values of the hybrid to 5–80 ppm H₂S gases are obviously higher than those of pure α-MoO₃. Furthermore, the hybrid can detect H₂S gas concentration down to 5 ppm at operating temperature of 110 °C, however, the pure α-MoO₃ nanorods have almost no response to H₂S gas with a concentration less than 20 ppm.

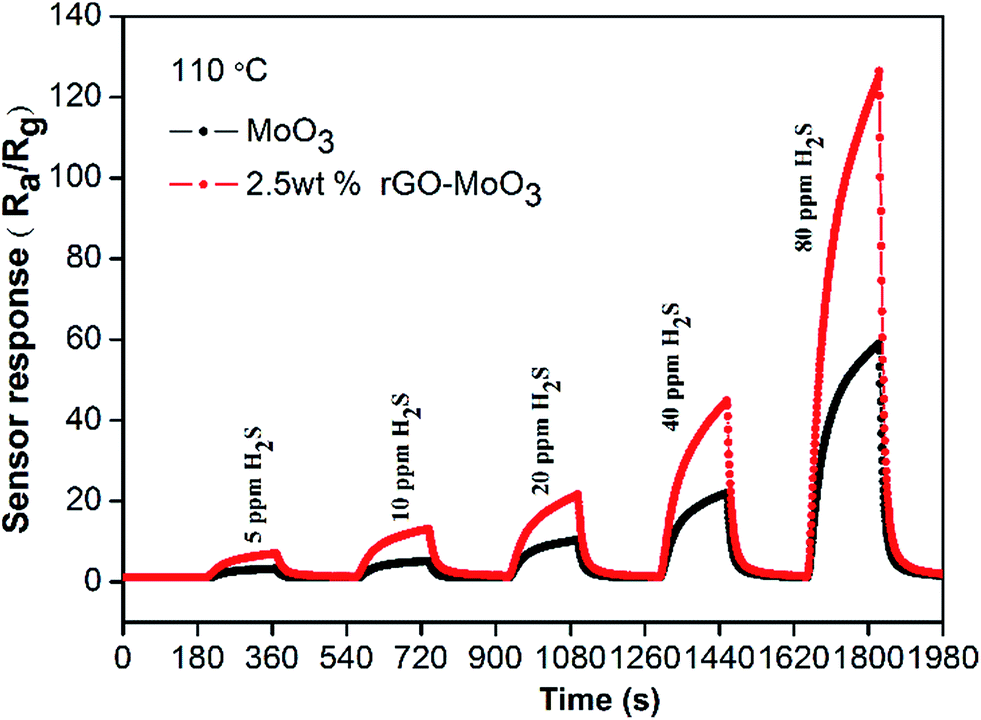

Fig. 7 Transient responses of α-MoO₃ and 2.5 wt% rGO–MoO₃ hybrid to different H₂S concentrations.

The selectivity is one of important gas sensing properties for sensing materials. The cross sensing between H₂S and other harmful reducing gases such as methanol, ethanol, acetone, NH₃ and CO is still one of the major problems for practical H₂S sensor. Fig. 8 shows the selectivity of H₂S (20 ppm) to 100 ppm of ethanol, NH₃, acetone, methanol and CO for the sensor based on the 2.5 wt% rGO–MoO₃ hybrid at operating temperature of 110 °C. This result clearly demonstrates that the sensor based on the annealed hybrid not only has high response to H₂S but also exhibits high selectivity to reducing gases, such as ethanol, acetone, NH₃, methanol and CO. So, the hybrid synthesized by microwave hydrothermal treatment process is a promising sensing material for efficient and selective detection of H₂S.

Fig. 8 2.5 wt% rGO–MoO₃ hybrid based sensor response for different gases.

The stability study is extremely important for the practical gas sensor. In the experimental process, we have attend to the stability of sensing response. Owing to the lower optimum temperature, the stability is rather good as shown in Fig. 9.

Fig. 9 Stability of the sensor based on 2.5 wt% rGO–MoO₃ hybrid to 40 ppm H₂S at 110 °C.

3.3 Sensing mechanism of 2.5 wt% rGO–MoO₃ hybrid

The reasons enhanced gas sensing for 2.5 wt% rGO–MoO₃ hybrid to H₂S can be understood from following two factors: firstly, according to the gas sensing mechanism of semiconducting metal oxide, when the MoO₃ nanorods were exposed to air, a low conductance state of depletion layer will form on the surface of MoO₃ and form chemisorbed oxygen ions at surface of α-MoO₃ nanorods.³⁴ Moreover,

Ο_2(gas) → Ο_2(ads) (1)

Ο_2(ads) + e⁻ → Ο_2(ads)⁻ T < 100 °C (2)

Ο_2(ads)⁻ + e⁻ → 2Ο_(ads)⁻ 100 °C ≤ T ≤ 300 °C (3)

the n-type semiconductor MoO₃ direct contact with metallic rGO, the electrons will migrate from the rGO to the MoO₃ due to the difference of their work function until to the equilibrium is achieved at interface between the MoO₃ and the rGO,³⁵ that is, the Fermi level becomes equal in the entire hybrid, which makes the depletion layer becomes thick, leading to the resistance of hybrid in air is further increased. That is, renders the surface of the MoO₃ nanorods makes more n-type. However, once the MoO₃ is exposed to the reducing gas of H₂S, the adsorbed H₂S molecules at surface of the material reacts with adsorbed oxygen ions and release electrons into the conducing band of MoO₃, leading to resistance decrease of MoO₃ (Fig. 10). The equations of oxidizing reaction are written as following:^8,10

H₂S_(gas) → H₂S_(ads) (4)

H₂S + 3Ο_(ads)⁻ → SΟ₂ + H₂Ο + 3e⁻ (5)

Fig. 10 Adsorption and reaction model of the sensing process on α-MoO₃/rGO hybrid sensor surface.

Meantime, the rGO as an important role in hybrid facilitates the electrons transfer from the H₂S molecules to MoO₃, which also makes the hybrid resistance in H₂S gas further decrease. In brief, the incorporating of rGO increases the resistance of hybrid in air and decreases the resistance of hybrid in H₂S gas. According to response definition to reducing gas of H₂S, the sensing response is significantly enhanced for the hybrid under relatively low operating temperature. Secondly, graphene as a support material is mainly due to that the ultrathin flexible graphene layers not only provide a support for anchoring well-dispersed metal oxides but also work as a highly conductive matrix for enabling good contact between the MoO₃ and rGO. When MoO₃ nanorods were loaded on the surface of the rGO nanosheets, the sensitization effect is attributed to increased surface area due to the large specific surface area of the graphene nanosheets and to enhanced electron transport in hybrid structures, which will facilitate gas adsorption, diffusion and reaction on material surface, leading to the sensing properties is significantly enhanced for the hybrid under relatively low operating temperature. However, detailed understanding of the role of rGO in the sensing mechanism of hybrid remains still lacking.

4 Conclusions

The rGO–MoO₃ hybrids were prepared by the MoO₃ nanorods in situ grew on the surface of rGO. The sensing test results indicate that the response of the 2.5 wt% rGO–MoO₃ hybrid is 2.1 times higher than that of the pure MoO₃ sample at 110 °C. The hybrid not only has high response and low operating temperature but also exhibits good selectivity, fast response and recovery that are 109 s and 36 s, respectively, to 40 ppm of H₂S. The possible mechanism of the enhanced gas sensing characteristics is attributed to the potential synergic or complementary effect of heterojunction. Our present work provides a facile and effective method for efficient and selective detection of H₂S.
