Design strategy and research progress of NaTi₂(PO₄)₃ anode/electrolyte interface in aqueous sodium ion batteries

Abstract

Aqueous sodium-ion batteries (ASIBs) have emerged as promising candidates for large-scale energy storage systems due to their superior safety, cost-effectiveness and environmental friendliness. Among various anode materials, sodium titanium phosphate (NaTi₂(PO₄)₃, NTP) as a NASICON-type compound with its high theoretical capacity, excellent sodium ion conductivity and good structural stability. However, the electrochemical performance of NTP anodes used for ASIBs is significantly hindered by electrode–electrolyte interface instability resulting from the hydrogen evolution reaction (HER), electrode dissolution and unstable solid electrolyte interphase (SEI) in aqueous electrolytes. This review systematically outlines recent advances and technological innovations in the design strategies of NTP anode/electrolyte interfaces to address the previously underexplored interfacial challenges between NTP anode materials and aqueous electrolytes in ASIBs. Subsequently, the proposed solutions, including electrolyte compositional optimization, interfacial coating modification and SEI interface modulation, to the abovementioned issues are correspondingly summarized and discussed. Finally, the development direction and future prospective of NTP anode/electrolyte interface research is further discussed, providing a guidance for the design of high-performance ASIBs.

---

1 Introduction

Throughout the industrialization process, traditional fossil fuels, such as coal, oil, and natural gas have long dominated the global energy supply. These fuels were formed over geological timescales and release greenhouse gases including carbon dioxide, methane, and nitrous oxide during combustion, which are considered to be major contributors to global warming.^1,2 It is worth noting that the depletion of these non-renewable resources exhibits a significant difference from the increasing trend of global energy demand. In this context, the development and utilization of green renewable energy sources, such as wind, solar, and tidal power, are increasing due to their environmental benefits and widespread availability.^3–5

However, these energy sources face critical challenges, including uneven geographical distribution and inherent intermittency, which render their generated electricity incompatible with direct grid integration.⁶ Dynamic characteristics such as diurnal cycles and seasonal fluctuations further impose stringent demands on existing energy storage technologies. Due to the global energy structure transition and the rapid development of renewable energy, efficient, safe, and low-cost energy storage technologies have become a research hotspot.^6,7 Energy storage can be achieved through various methods, including chemical, electrochemical, electrical, mechanical, and thermodynamic energy storage.⁸ Unlike conventional methods such as pumped hydro, electrochemical energy storage technology has become a critical component of modern energy systems due to its advantages, including adaptability to different locations, short construction times, quick response, and high efficiency.^6,9,10 These attributes make it essential for integrating renewable energy sources and enhancing grid stability in modern power infrastructures. Electrochemical energy storage uses reversible chemical reactions to convert chemical energy into electrical energy and vice versa, thus enabling energy storage.^6,11 Based on electrode materials, these systems are mainly categorized into sodium-ion batteries (SIBs), lithium-ion batteries (LIBs), lead–acid batteries (LAs), sodium–sulfur batteries (NaS), nickel–cadmium batteries (Ni–Cd), and nickel–zinc batteries (Ni–Zn). Table 1 compares the performance characteristics of these secondary batteries. Among the secondary battery systems being investigated, LIBs are widely used in energy storage systems due to their high energy density, large capacity, long cycle life, and fast charge/discharge capabilities.¹² However, the sustainable development of this technology faces geological constraints due to lithium's relatively low crustal abundance of only 20 ppm. In contrast, sodium is the fourth most abundant element in Earth's crust.¹³ Therefore, SIBs have emerged as promising candidates for large-scale energy storage systems, owing to their abundant sodium resources and economic viability.^14–16 Their electrochemical mechanisms, analogous to LIBs, further enhance their practicality.^17,18

Table 1 Comparison of parameters for various secondary battery^3,9,13,19

Secondary battery types	Specific energy [Wh kg^−1]	Efficiency [%]	Lifetime (cycles)	Nominal cell voltage
SIBs	80–150	80–85	3000	2.8–3.5
LIBs	200	85–100	1000–4500	3.6–3.8
LAs	35	70–90	500–1000	2.1
NaS	100–250	75–90	2500	2.78–3.2
Ni–Cd	50	70–80	1500	1.2
Ni–Zn	75	70	500	1.73

---

Among various SIBs configurations, aqueous SIBs (ASIBs) utilizing aqueous electrolytes demonstrate distinct advantages, including enhanced safety, superior ionic conductivity, environmental compatibility, and simplified assembly conditions compared to their organic electrolyte counterparts.^20–22 Specifically, the advantages and disadvantages of ASIBs and other aqueous batteries are presented in Table 2. ASIBs exhibit remarkable merits compared to other aqueous battery technologies, particularly in the context of large-scale energy storage applications. Firstly, the elemental abundance of sodium fundamentally mitigates reliance on scarce resources such as lithium, nickel, and rare earth elements, ensuring sustainable supply chains for grid-scale deployment. Secondly, the inherent safety advantages stem from dual mechanisms: (i) utilization of non-flammable aqueous electrolytes eliminate combustion risks, and (ii) the absence of dendritic sodium deposition mechanisms prevents internal short circuits-a critical advancement over conventional alkali metal batteries. Thirdly, the system demonstrates superior environmental compatibility through elimination of heavy metal contaminants (e.g., plumbum (Pb), Cd), aligning with global sustainability initiatives and carbon neutrality objectives. Finally, the high ionic conductivity of aqueous media enables exceptional rate performance and low-temperature operation, overcoming limitations of organic electrolyte systems. These synergistic advantages position ASIBs as a transformative technology for next-generation low-cost, safe and sustainable energy storage solutions. In addition, ASIBs operate via a reversible sodium-ion intercalation/deintercalation mechanism within electrode materials, analogous to the “rocking-chair” paradigm observed in lithium-ion systems (as shown in Fig. 1).

Table 2 Advantages and disadvantages of various aqueous batteries^23–27 (ASIBs; AZIBs: aqueous zinc-ion batteries; ALIBs: aqueous lithium-ion batteries; LAs; NiMH: nickel–metal hydride battery)

Aqueous battery types	Advantages	Disadvantages
ASIBs	Rich resources, low-cost, superior ionic conductivity, superior safety performance, environment-friendly, low production cost	Narrow electrochemical window, hydrogen evolution reaction and oxygen evolution reaction, high solubility of sodium-based compounds
AZIBs	Environmentally friendly, sufficient energy density, superior safety performance	Zinc dendrite growth, cathode material dissolution, low coulombic efficiency, hydrogen evolution reaction
ALIBs	Environmentally friendly, excellent kinetic properties, superior safety performance	Narrow electrochemical window, severe hydrogen evolution reaction, current collector corrosion
LAs	Highly recycled, straightforward charging mechanism, advantageous cost/performance ratio	High weight, low energy density, short cycle life, poor low-temperature performance
NiMH	Environmentally friendly, long cyclic life, good tolerance to overcharge and overdischarge	Low energy density, large volume, memory effect

---

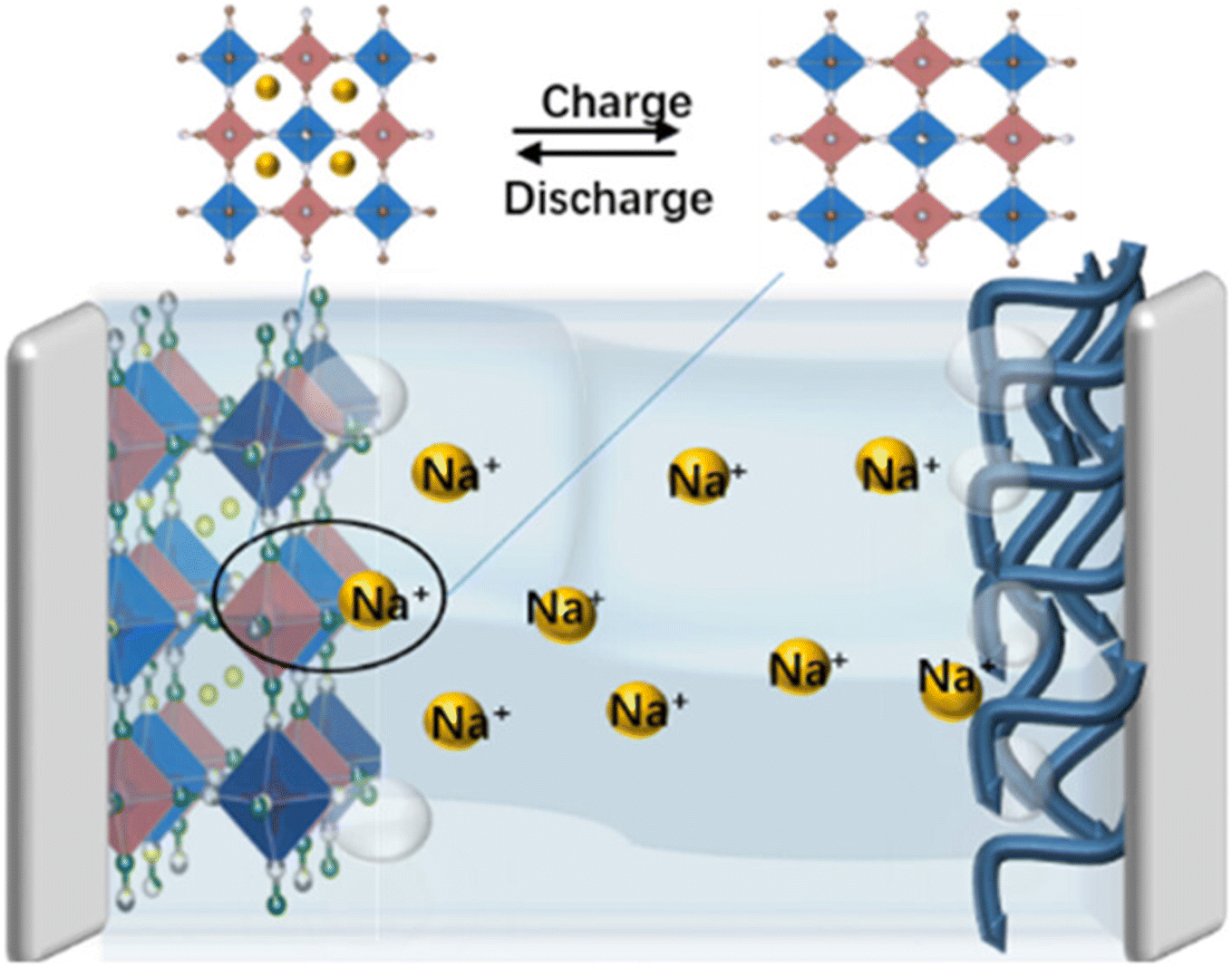

Fig. 1 Schematic diagram illustrating the working principle of an ASIB during charge/discharge cycles.²⁸

Despite these merits, ASIBs face critical challenges that hinder practical implementation. The narrow thermodynamic stability window of aqueous electrolytes (1.23 V)²⁹ imposes stringent voltage limitations, beyond which detrimental water electrolysis occurs through hydrogen evolution reaction (HER).^30,31 Secondly, the high solubility and chemical instability of numerous sodium-containing compounds in aqueous electrolytes significantly compromise electrode stability, energy density, and cycle life. In addition, the original SEI may be predominantly composed of inorganic species such as Na₂CO₃, NaF, or sodium oxides in aqueous electrolyte environments.^32,33 These materials exhibit high brittleness and poor ionic conductivity, coupled with inadequate mechanical compliance to accommodate electrode volume variations during cycling, ultimately leading to detrimental structural fractures within the SEI layer. These issues further restrict viable anode material selection.^29,34,35 Collectively, these limitations underscore the imperative to develop innovative strategies for electrode material optimization and robust electrode–electrolyte interface engineering in ASIB systems.

Among various anode candidates, sodium superionic conductor (NASICON)-type materials have attracted significant attention due to their unique crystallographic configuration.^36,37 The NASICON-type phase consists of an open three-dimensional framework of TiO₆ octahedra and PO₄ tetrahedra, where 2 TiO₆ octahedra are separated by 3 PO₄ tetrahedra, with which they have shared all their corner oxygens but no edges or faces (Fig. 2a).^38,39 This material demonstrates exceptional chemical stability, extended cycling durability, and inherent safety advantages, positioning it as a superior anode candidate for ASIBs.⁴⁰ Specifically, sodium titanium phosphate (NaTi₂(PO₄)₃, NTP) has emerged as a particularly promising anode material for ASIBs,^41,42 owing to its unique structural characteristics.^43,44 The three-dimensional open framework of NTP contains large internal pore channels. Each NTP unit cell can accommodate two Na⁺ ions through intercalation, forming the Na₃Ti₂(PO₄)₃ phase (Fig. 2b), corresponding to a theoretical specific capacity of 132.8 mAh g⁻¹,³⁹ which is conducive to the rapid diffusion of Na⁺ and high ionic conductivity,^45,46 thereby enabling long-term cycling stability.³⁹ Additionally, NTP exhibits an appropriate negative voltage window. Electrochemical tests reveal that the redox potential of the Ti⁴⁺/Ti³⁺ couple in NTP is −0.6 V versus the standard hydrogen electrode (SHE) (typically ∼0 V vs. SHE under neutral conditions), slightly higher than the hydrogen evolution potential. This characteristic maximizes the working voltage of ASIBs from the anode perspective.⁴⁷ Despite these advantages, the NTP anode/electrolyte interface in ASIBs suffers from severe side reactions and poor interfacial stability,^30,48 resulting in low practical specific capacity and short cycle life, which critically limits further improvement of its electrochemical performance.

Fig. 2 Schematic illustration of the crystal structure. (a) Schematic illustration of the NASICON-type structure.³⁹ (b) Schematic illustration of the NTP structure.⁴⁷

The rational design and optimization of the anode/electrolyte interface represent a critical pathway to address the aforementioned challenges. This interface not only governs the Na⁺ transport kinetics, but also dictates the cycling stability and rate capability of the battery. Despite the growing interests in ASIBs, regarding the interfacial issues between NTP anode materials and aqueous electrolytes, there has been a notable lack of comprehensive review articles systematically addressing the abovementioned critical challenges (i.e., HER, electrode dissolution, and unstable SEI). In this sence, this review systematically summarizes recent advances and technological innovations in the design strategies of NTP anode/electrolyte interfaces to address the previously underexplored interfacial challenges between NTP anode materials and electrolytes in ASIBs. Subsequently, the proposed solutions, including electrolyte compositional optimization, interfacial coating modification and SEI interface modulation (Fig. 3), to the abovementioned issues are correspondingly summarized and discussed. Based on a critical study of existing literature, potential solutions are proposed to guide future interface design and performance optimization of NTP anode materials for high-performance ASIBs.

Fig. 3 Schematic illustration of the challenges and design strategy of NaTi₂(PO₄)₃ anode/electrolyte interface in ASIBs.

2 Design strategy

To address the abovementioned issues, researchers have proposed various design strategies for the NTP anode/electrolyte interface, including electrolyte compositional optimization, interfacial coating strategies and SEI interface modulation.

2.1 Electrolyte compositional optimization

Electrolytes are the key ion pipeline connecting the cathode and the anode in the battery system.⁴⁹ Its composition (e.g., solvents, salts, and additives) and physicochemical properties (e.g., viscosity, ionic conductivity, and thermal stability) significantly affect the performance and life of the battery. In particular, the stability of the NTP anode/electrolyte interface depends on the ability of the electrolyte to promote rapid transport of Na⁺, while inhibiting parasitic side reactions and degradation. Electrolytes with custom compositions can facilitate the formation of a robust SEI layer, mitigate the interfacial impedance, and inhibit the decomposition of the electrolyte on the electrode surface. The optimized electrolyte can enhance the formation of a stable SEI layer, reduce the impedance, and prevent the electrolyte decomposition on the electrode surface, thus significantly improving the stability and reliability of the NTP anode/electrolyte interface.

2.1.1 “Water-in-salt” highly concentrated aqueous electrolytes. Highly concentrated electrolytes are particularly effective in suppressing the activity of water, which is crucial for enhancing battery performance and longevity. By minimizing the presence of water, these electrolytes can significantly widen the electrochemical stable potential window (ESPW) of the electrolyte, allowing for a greater range of operating voltages without the risk of electrolyte decomposition. Additionally, the reduced water activity helps to decrease interfacial side reactions between the electrode and the electrolyte, which are often responsible for the formation of unwanted byproducts and the degradation of the electrode material. This ultimately leads to a more stable and efficient battery system with improved cycle life and safety characteristics.

Suo et al.⁵⁰ pioneered the concept of water-in-salt (WIS) electrolyte, which is defined as an aqueous solution with a weight-to-water ratio of dissolved salt to water higher than 1. The application of WIS electrolyte has successfully widened the ESPW of aqueous electrolyte to 3.0 V and enabled the stable operation of high-voltage aqueous batteries. This concept began to be used in aqueous lithium-ion batteries. This concept, initially applied in aqueous lithium-ion batteries, has gained traction due to its promising results. With the extensive research on ASIBs in recent years, this method has also been successfully applied to ASIBs, further expanding its applicability and practicability in the field of advanced battery technology.^51,52 However, the formation of WIS electrolytes is heavily dependent on the solubility of the salt. The relatively lower solubility of sodium salts compared to other alkali metal salts may limit the range of applications of WIS electrolytes in ASIBs. For example, the solubility (9–10 mol kg⁻¹) of typical sodium salts with fluorinated anions, sodium triflate (NaOTF) and sodium (bis(trifluoromethane sulfonyl)imide) (NaTFSI), is less than half that of their Li or K counterparts at room temperature.^52,53 Therefore, to address this issue, Jiang et al.⁵⁴ designed a new ultra-high salt concentration WIS electrolyte with inert cations by dissolving tetraethylammonium triflate (TEAOTF) and NaOTF salts in water (9 mol NaOTF + 22 mol TEAOTF). The electrolyte not only realizes a wide voltage window of 3.3 V (Fig. 4a), but also effectively inhibits the dissolution of electrode materials during the cycling process. Due to the large radius of the TEA⁺ cations (calculated value of 3.6 Å), they are not embedded in the positive and negative electrode materials, avoiding the cation co-embedding problem commonly found in mixed cation electrolytes. In addition, the TEA⁺ and OTF⁻ anions interact weakly in this new type of ultra-high salt concentration electrolyte, resulting in a relatively low viscosity and high conductivity even at 31 m ultra-high salt concentration. The Na_1.88Mn[Fe(CN)₆]_0.97⋯1.35H₂O (NaMnHCF)//NaTiOPO₄ full battery assembled with this electrolyte was cycled between 0.7 and 2.6 V (Fig. 4b). And it showed excellent electrochemical performance at both low multiplicity (0.25C) and high multiplicity (1C), with capacity retention of 90% after 200 cycles at 0.25C and capacity retention of 76% at 1C after 800 cycles (Fig. 4c and d).

Fig. 4 Battery performance after optimization of an inert WIS high-concentration electrolyte. (a) The electrochemical voltage window of 9 mol per kg NaOTF electrolyte and Na inert-cation-assisted WIS electrolyte (9 mol per kg NaOTF + 22 mol per kg TEAOTF) at the scanning rate of 10 mV s⁻¹.⁵⁴ (b) The 1st, 4th, and 10th charge–discharge curves of full battery from 0.7 to 2.6 V at 0.25C.⁵⁴ (c) The long-term cycling performance of the full battery at 0.25C.⁵⁴ (d) Long-term cycling performance of the NaMnHCF//NaTiOPO₄ full battery.⁵⁴

2.1.2 Low-concentration electrolytes. However, high concentrations of electrolytes, although beneficial in some ways, bring several drawbacks such as increased manufacturing costs, impaired ion transport and limited temperature adaptability,^34,55 These issues are particularly concerning as they deviate from the original design intent of aqueous batteries, which are intended to cost-effective and versatile. In contrast, conventional salt-in-water electrolytes, although simpler and less costly, suffer from a narrow ESPW (<2.5 V). This limitation leads to the energy density and cycle lifetime of ASIBs, hindering its performance and practical applicability.^56,57

Therefore, there is an urgent need for a balanced approach to address the inherent stability and efficiency of the water battery system without compromising the inherent economic and operational advantages of the water battery system. To address the above limitations of WIS electrolytes while simultaneously expanding the ESPW of aqueous electrolytes, researchers have developed bisolvent-in-salt electrolytes incorporating organic cosolvents. Nian et al.⁵⁸ demonstrated that introducing dimethyl sulfoxide (DMSO) with a molar fraction of 0.5 into aqueous electrolytes (e.g., 2 mol NaClO₄ in H₂O) could significantly delay the HER onset potential by up to 1.0 V. DMSO as a hydrogen bond acceptor replaces the weak hydrogen-bonding interactions between H₂O–H₂O with stronger DMSO-H₂O hydrogen bonds (Fig. 5a and b), thereby eliminating free water molecules in the electrolyte. This reduction in water activity effectively suppresses HER. This strategy demonstrates that manipulating hydrogen bonding between water molecules represents an effective and versatile strategy to suppressing the HER in aqueous electrolytes. Shang et al.⁵⁹ proposed a general strategy for selecting hydrogen-bond-capturing solvents, wherein the solvents must possess lone electron pairs to serve as hydrogen bond acceptors and exhibit stability in aqueous environments.

Fig. 5 Schematic illustration showing the design strategy and battery performance after optimizing the electrolyte. (a) Schematic diagram of the HER process.⁵⁸ (b) H-bond patterns between DMSO and water molecules.⁵⁸ (c and d) Schematic showing design strategies for aqueous electrolytes with a wide ESPW.⁶⁰ (e) Linear sweep voltammetry curves of different electrolytes at a scanning rate of 10 mV s⁻¹.⁶⁰

Approaching from the perspective of weakening hydrogen bonding interactions experienced by water molecules, Peng et al.⁶⁰ proposed the use of weak-polar molecules as co-solvents of aqueous electrolytes to achieve a wide ESPW by comparing the effects of strong and weak-polar solvents on the ESPW of aqueous electrolytes. They prepared aqueous electrolytes with weak-polar co-solvent (AEWPS-5.3 m) as an example of a weakly polar molecule, 1,3,6-hexanetricarbonitrile (HTCN), to achieve an ESPW of 3.5 V at a relatively low concentration (Fig. 5e). In Fig. 5e, the blue curve corresponding to the 17 mol WIS electrolyte exhibits two small kinks at −1.5 V and 1.8 V, potentially indicative of decomposition processes involving residual impurities or side reactions within the high-concentration electrolyte system. As one of the weak-polar co-solvents, the weak interaction between HTCN and water helps to weaken the hydrogen bonding of water molecules and indirectly enhances the O–H bonding and stability of water molecules (Fig. 5c and d), thus effectively broadening the ESPW of the aqueous electrolyte. In addition, HTCN can also act at the electrode–electrolyte interface inhibiting the dissolution of transition metal ions and stabilizing the structure of electrode materials. Based on the designed electrolyte, Na₂FeFe(CN)₆‖NaTi₂(PO₄)₃ achieves an ultra-long cycle life of 10 000 cycles, and at the same time, the energy density reaches 71 Wh kg⁻¹, showing the great potential of aqueous sodium electrodes for large-scale energy storage.

2.2 Interfacial coating modification

Interfacial coating modification is a sophisticated technique aimed at enhancing the performance and longevity of NTP negative electrodes in battery systems. This process involves the precise construction of a protective layer on the surface of the NTP electrode, which serves as a barrier to isolate the direct contact between the electrolyte and the electrode material. The primary objectives of this protective layer are to enhance other interfacial properties, such as improving the electronic conductivity and structural stability of the NTP anode interface. Furthermore, the protective layer can inhibit the interfacial side reactions, leading to the degradation of the electrode and electrolyte against dissolving the electrode material.

2.2.1 Carbon coating. Carbon coating is a simple and effective interfacial modification method to improve the electronic conductivity and structural stability of NTP anode. Wu et al.⁶¹ adopted the synthesis method of using carbon nanotubes and graphite as carbon sources, which were introduced at the precursor mixing stage or used as conductive additive after synthesis. The study compared the effects of different carbon materials and addition methods on the electrochemical properties of NTP, and found that graphite was superior to carbon nanotubes in inhibiting NTP grain growth and improving electronic conductivity, while carbon nanotubes were more favorable for rapid electron transport in the electrode structure. The results demonstrate that the composite material combining graphite-coated NTP with post-synthetically incorporated carbon nanotubes (CNTs) as conductive additives exhibits optimal comprehensive performance. Specifically, this composite delivers outstanding cycling stability in aqueous electrolytes, achieving an 86% capacity retention after 100 consecutive charge/discharge cycles at a 1C rate (Fig. 6a). He et al.⁶² synthesized NTP/C composites by modified Pechini method and pyrolysis treatment, retaining an appropriate amount of carbon as a conductive and coated on the active material. The experimental results showed that the NTP/C composites exhibited higher capacity, cycling performance and multiplicity performance compared with the pure phase NTP (Fig. 6b). The discharge capacity of the NTP/C composites was 128 mAh g⁻¹ at 2C and the discharge capacity was still maintained at 90.4% after 50 cycles (Fig. 6c). Hou et al.⁶³ developed hollow carbon-coated NTP nanocubes (NTP@C) through a facile hydrothermal synthesis at ambient temperature for ASIB anodes (Fig. 6d–f). The NTP@C anode material exhibited remarkable electrochemical performance, delivering a reversible capacity of 125 mAh g⁻¹ at 0.1C with negligible capacity degradation even after 1000 cycles under varying current densities (Fig. 6j). This exceptional cycling stability underscores the structural integrity and electrochemical robustness of the carbon-coated NTP composite, affirming its durability and practicality for ASIB applications (Fig. 6g–i). When paired with a Na_0.44MnO₂ (NMO) cathode in deep eutectic electrolyte, the NTP@C‖NMO full cell demonstrated exceptional cyclability over 3500 cycles while delivering a high energy density of 50.0 Wh kg⁻¹ (Fig. 6k). Notably, the implementation of an anode capacity compensation strategy enabled the NMO cathode to achieved an ultrahigh reversible capacity of 75 mAh g⁻¹ in this electrolyte system, effectively suppressing Mn dissolution through dynamic potential regulation. This synergistic approach resulted in full cells combining remarkable rate capability and unprecedented cycle stability (90% capacity retention after 3500 cycles), positioning this architecture as a promising candidate for grid-scale energy storage applications.

Fig. 6 Electrode performance after carbon coating. (a) Discharge capacity versus cycle number of NTP/G + CNTs.⁶¹ (b) The first cycle of the cyclic voltammetry curves of NTP, NTP/G and NTP/C composites (scan rate of 0.5 mV s⁻¹).⁶² (c) Discharge capacity versus cycle number at 2C for NTP/C and NTP/G composites.⁶² (d and e) Scanning electron microscopy (SEM) images at different magnifications (inset in e: magnified SEM).⁶³ (f) High-resolution transmission electron microscopy (TEM) image.⁶³ (g) CV curves at a scan rate of 0.5 mV s⁻¹.⁶³ (h) Typical charge/discharge profiles for the initial few cycles at a rate of 0.2C.⁶³ (i) Rate-capabilities of hollow and bulk NTP@C nanocubes.⁶³ (j) Long cycling performance of hollow NTP@C nanocubes at different rates.⁶³ (k) Cycling performance of full cell at the current rate of 5C.⁶³

2.2.2 Polymer coating. The polymer coating has excellent flexibility and ionic conductivity, which significantly improves the performance and life of the battery electrodes. It effectively alleviates volume fluctuations in the charge–discharge cycle, thus preventing battery failure due to structural degradation and expansion.^64–67 Furthermore, the coating plays a crucial role in inhibiting the dissolution of the NTP negative electrode into the electrolyte, thereby maintaining the integrity of the electrode material. Its ionic conductivity facilitates efficient ion transport between the electrode and the electrolyte, ensuring a high charge–discharge rate and maximizing the overall energy efficiency.

Alexander I. Mohamed et al.⁶⁸ introduced polypyrrole (PPy) as a coating for NTP through a high-energy ball milling process and found that a 5 wt% PPy coating (∼8 nm thick) significantly inhibited the unwanted side reactions with the electrolyte, increasing the capacity retention rate from 10% (uncoated) to 57% after 50 cycles and stabilizing the electrochemical impedance; whereas, an excessively thick coating (20 wt%, ∼23 nm) can hinder Na⁺ diffusion and lead to material deactivation. Despite the problems of limited sodium ion diffusion and the need to optimize the coating thickness, this study provides new ideas for the development of more efficient energy storage materials.

2.2.3 Surface nitriding. Compared with carbon and polymer coating methods, nitriding offers advantages of simplicity, cheapness and high efficiency. Additionally, the nitriding process shows significant benefits in the application of sodium-ion battery anode materials. Liu et al.⁴⁷ used solvothermal and ammonia nitriding methods to coat TiN on the surface of NTP (Fig. 7a), which successfully made the anode material have higher electrochemical performance. The structure of NTP will not be changed during the nitriding process, but the Ti⁴⁺ in the material can be reduced to Ti³⁺. The nitrogen atoms can be doped into the material to form a TiN layer on the surface of the material, which significantly improves the electronic conductivity of the NTP material. As the nitridation duration increases, the amorphous TiN layer thickens, leading to a significant improvement in electrical conductivity. However, an excessively thick amorphous layer may impede Na⁺ diffusion across the electrode/electrolyte interface, thereby compromising rate capability and cycling stability. Experimental results demonstrate that the electrode material subjected to a nitridation treatment of 1.5 h achieves optimal performance, balancing enhanced conductivity with efficient ion transport (Fig. 7b). The TiN-coated NTP material has higher specific capacity and better cycling stability, and the TiN-coated NTP has an initial capacity of up to 131.9 mAh g⁻¹, and still maintains 92 mAh g⁻¹ after cycling for 100 times at 2C (Fig. 7c). The nitride-treated NTP material has higher conductivity and better electrochemical performance, which provides a new choice of anode material for ASIBs.

Fig. 7 Synergistic effects of nitridation and carbon–nitrogen co-coating on electrode performance. (a) HR-TEM images of the TiN modified NaTi₂(PO₄)₃ (nitriding for 1.5 h).⁴⁷ (b) The profiles of cyclic voltammetry (CV) of the TiN modified NaTi₂(PO₄)₃ electrodes in 1 M Na₂SO₄ at 0.5 mV s⁻¹ sweep rate.⁴⁷ (c) The cycling performance of samples at 2C.⁴⁷ (d) Schematic fabrication process of HNTP@PNC film.⁶⁹ (e) Cyclic voltammetry (CV) curves comparison at 5 mV s⁻¹ of PNC film and HNTP@PNC film.⁶⁹ (f) Galvanostatic charge–discharge (GCD) curves at 1.10 A g⁻¹.⁶⁹ (g) Long-term cycling performance with the corresponding coulombic efficiency at 5.50 A g⁻¹ of HNTP@PNC film.⁶⁹

He et al.⁶⁹ developed a facial template-free solvothermal method to synthesize rugby-like NTP nanoparticles with well-defined hollow structures. These hollow-structured NTP (HNTP) particles were uniformly encapsulated within cross-linked porous N-doped carbon nanofibers (denoted as HNTP@PNC) via electrospinning and carbonization processes (Fig. 7d), directly serving as a binder-free anode for flexible ASIBs. Theoretical calculations revealed that the N-doped carbon (NC) coating on NTP significantly enhances electronic conductivity and accelerates Na⁺ diffusion kinetics (Fig. 7e and f). Benefiting from its unique hollow architecture, continuous conductive network, and favorable synergistic effects, the HNTP@PNC electrode delivers a high capacity of 108.3 mAh g⁻¹ at 5.5 A g⁻¹ and exhibits impressive cycling stability with 97.2% capacity retention after 3000 cycles (Fig. 7g). Furthermore, a flexible quasi-solid-state ASIB was successfully assembled by employing the optimized HNTP@PNC film as the anode and a CNTF@KZHCF (potassium zinc hexacyanoferrate-coated carbon nanotube films) electrode as the cathode. This device achieves a high output voltage plateau of 1.6 V, along with a remarkable volumetric capacity of 24.5 mAh cm⁻³ and an energy density of 39.2 mWh cm⁻³, outperforming most reported flexible aqueous rechargeable energy storage systems. These exciting results provide valuable new insights into the design of advanced binder-free NTP-based anodes for next-generation wearable ASIBs.

2.3 SEI interface modulation

The modulation of the SEI interface is crucial for the performance of drainage sodium-ion batteries. A well-formed SEI layer effectively prevents unwanted reactions between the electrode material and the electrolyte, reducing dissolution–precipitation behavior during charging and discharging, further enhancing the stability and reliability of the battery.⁷⁰ Given the narrow ESPW of ASIBs, the stability and composition of the SEI layer are particularly important. By optimizing the SEI layer, the electrochemical performance of the NTP negative electrode can be significantly improved, leading to better charge and discharge efficiency as well as higher energy density.

2.3.1 In situ formation of stable SEI interface. Stable SEI interface can be formed in situ on the NTP surface by methods, such as adding electrolyte additives, effectively inhibiting the occurrence of side reactions and electrode dissolution. Construction of SEI on the anode surface can kinetically suppress the HER. Due to the much higher solubility of NaF (>40 mg mL⁻¹ at 25 °C) than LiF (<1.34 mg mL⁻¹ at 25 °C) in water, LiF-rich SEI formed in aqueous Li-ion batteries are much less stable than NaF-rich SEI formed in aqueous sodium electrolyte.⁷¹ Wang et al.⁷² used adiponitrile (ADN) as a functional co-solvent to prepare hybrid electrolytes by dissolving NaTFSI salt in ADN/water mixed solvent, where the molar ratios of Na, H₂O, and ADN were 1 : 1 : x (x = 1, 2, etc.) (abbreviated as AWE). With this hybrid electrolyte, almost all water molecules are confined in the primary solvation shell of Na⁺ (Fig. 8a). This unique solvated structure lacking free water molecules not only enables the formation of NaF-rich SEI, but also effectively inhibits HER. In addition, the oxidative decomposition potential of the electrolyte is also elevated due to the inherent high anodic stability of ADN, which ultimately widens the ESPW to 2.75 V (Fig. 8b). Hybrid electrolytes can also alleviate electrode dissolution problems due to the lack of free water molecules. Paired with this electrolyte, the Na₃V₂(PO₄)₃/NaTi₂(PO₄)₃ full cell has good cycling stability, achieving an average coulombic efficiency of 99.6% and a capacity retention of 71% over 1000 cycles (Fig. 8c).

Fig. 8 Mechanism and performance of realizing in situ SEI protection in ASIBs. (a) Unique solventized structure lacking free water molecules.⁷² (b) ESPW of AWE and 9 m NaTFSI obtained by linear sweep voltammetry on Pt foil electrodes.⁷² (c) Long term cycling performance of Na₃V₂(PO₄)₃/NaTi₂(PO₄)₃ full cell at 5C.⁷²

Xu et al.³³ used the iron-based Prussian blue system as a model and chose Na₂C₄O₄ (NCO) as a functional additive, which successfully solved two key problems. For one thing, NCO effectively compensates the sodium defect of the anode material and realizes the two-electron reaction of iron-based Prussian blue. Secondly, the SEI on the NTP particles showed a denser layer with an increase in thickness of 10 nm after the addition of NCO (Fig. 9a and b). The decomposition product of NCO, CO₂, reacted with Na⁺ and was deposited on the surface of the NTP anode, and a Na₂CO₃-rich and stable SEI layer was constructed in situ on the surface of the NTP anode. The robust SEI protective layer can effectively alleviate the continuous Na consumption and H₂ precipitation from the NTP anode in the high-concentration electrolyte system, which is often regarded as a key factor for the excellent cycling stability of ASIBs. In addition, compared to the iron-based hexacyanoferrates (FeHCF)‖NTP counterpart, the full cell constructed using FeHCF and NTP anodes along with an appropriate amount of NCO has a reversible capacity of 144 mAh g⁻¹ at 0.2C and an excellent cycling stability of 15 000 cycles at 10C with a retention rate of 85% (Fig. 9c–e).

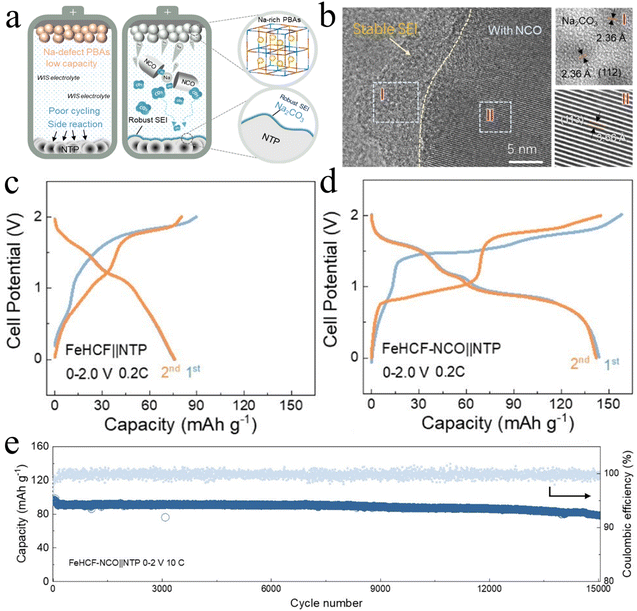

Fig. 9 Mechanism and performance evaluation of in situ SEI protection in ASIBs. (a) Schematic illustration of NCO additives for sodium supplementation with simultaneous construction of SEI interface in PBA-based full ASIBs.³³ (b) The cryo-TEM images of and elemental EDS mapping.³³ (c and d) The initial three charge–discharge profiles of FeHCF‖NTP and FeHCF–NCO‖NTP ASIBs at 0.2C. (e) The long-term cycling performance of FeHCF–NCO‖NTP ANIBs at 10C.³³

2.3.2 Artificial SEI regulation. By constructing a functionalized protective layer or artificial SEI on the surface of NTP anode material, its interfacial stability in aqueous electrolyte was improved, as well as inhibiting the electrode dissolution. Although strategies such as increasing salt concentration or introducing organic cosolvents have been demonstrated as effective approaches to suppress water activity,^73,74 the construction of artificial interphase layers at electrode surfaces to regulate interfacial water structures represents a more economical and efficient strategy compared to regulating water aggregation states in the bulk electrolyte. This emerging methodology shows significant potential for enhancing both energy density and cycling stability in aqueous battery systems.

For instance, Liu et al.⁷⁵ developed a composite material comprising a sodiated perfluorosulfonic acid polymer (Nafion-Na) and NaX zeolite molecular sieve (Fig. 10a), which was coated onto the surface of an NTP anode. This approach established a Na⁺-conductive or ion-sieving interphase protective layer. The engineered interphase selectively enables the permeation of dehydrated sodium ions while effectively suppressing water decomposition and dissolution of electrode materials, thereby leading to a marked improvement in the cycling lifespan of the battery (Fig. 10b). The electrode coated with this ion-sieving interphase layer extends the ESPW of a 2 mol kg⁻¹ (2 m) NaOTF low-concentration electrolyte to 2.70 V (Fig. 10c). Furthermore, the Na₂MnFe(CN)₆//NaTi₂(PO₄)₃ battery retains 94.9% of its initial capacity after 200 charge–discharge cycles at 1C, demonstrating exceptional cycling stability. When integrated with emerging electrolyte modifications, this molecular sieve-derived interphase delivers amplified benefits for the long-term operation of ASIBs.

Fig. 10 Schematic illustration and electrochemical performance of artificial SEI protected ASIBs full cells. (a) Molecular-sieving process for desolvation of hydrated Na⁺ ions.⁷⁵ (b) TEM spectra and of Nafion-Na/NaX.⁷⁵ (c) ESPWs of 9 m NaOTF on the unprotected working electrode and 2 m NaOTF, on unprotected, Nafion-Na protected, and Nafion-Na/NaX protected working electrodes at a scan rate of 1.0 mV s⁻¹.⁷⁵ (d) Schematic for the charge/discharge processes involving possible re-action pathways at the modified NTP/C anode with the PPY protective interphase layer.⁷⁶ (e) The NTP/C anodes modified under 0.9 V in Na₂SO₄ solutions with varying amounts of PY at 5C rate.⁷⁶

Polypyrrole (PPY) conductive polymers have been used to coat NTP in ASIBs due to their excellent electrical conductivity and stability. This coating aims to enhance the electrochemical performance of NTP by improving charge transfer and providing structural stability during cycling.⁶⁸ However, due to the uncontrolled preparation process, PPY conductive polymers may have some difficulties in forming a uniformly distributed coating on the NTP surface. Therefore, the in situ synthesis of PPY on the NTP surface may not be easy, further promotion of PPY attachment on the NTP surface is needed.

For that reason, Wang et al.⁷⁶ attempted electrochemical oxidative polymerization to construct a protective interphase layer of artificial PPY on the carbon-coated NTP (NTP/C) anode surface in an electrolyte solution containing pyrrole (PY) additives. This interphase layer can inhibit the side reactions at the electrode/electrolyte interface and improve the chemical stability of the anode. By optimizing the polarization time and the amount of PY additive, a uniform and dense interfacial layer was ex situ obtained, which effectively prevented the direct contact between the NTP active substance and the aqueous electrolyte, thus improving the chemical stability of the anode. The modified NTP/C anode exhibited higher discharge capacity, better cycling stability, and higher coulombic efficiency during the charge–discharge cycle (the charging and discharging process is shown in Fig. 10d). The modified anode with a PPY coating thickness of about 24 μm exhibited higher charge–discharge capacity (228.6 mAh g⁻¹), higher coulombic efficiency (>95%) (Fig. 10e), and better cycling stability. When the oxidation modification time was 30 or 60 min, the PPY layer was thicker and denser, which could better cover the NTP/C substrate and improve the chemical stability of the anode.

The above strategies aim to address the aforementioned challenges faced by NTP materials in aqueous electrolytes from various angles, and have all demonstrated their good effects. In order to comparative study these NTP anode/electrolyte interface electrocatalytic systems for ASIBs, their categories, advantages and challenges were comprehensive summarized in Table 3.

Table 3 Comparative studies of NTP anode/electrolyte interface electrocatalytic systems for ASIBs

Categories	Representative materials/strategies	Advantages	Challenges
Surface coating modification	Nafion-Na/NaX molecular sieve composite^75	Suppressing HER	High cost (e.g., Nafion materials)
Structural design optimization	Hollow carbon-coated NTP nanocubes^63	Shorter ion diffusion pathway, buffering volume expansion, better rate performance	Complex fabrication process, challenges in controlling nanostructures
Composite material synergy	PPy coating,^76 N-doped carbon nanofibers encapsulated hollow NTP structure^69	Good electronic conductivity and cycling stability	Poor interfacial compatibility, material ratios require precise adjustment
Electrolyte engineering	High-concentration NaOTF electrolyte,^54 weakly polar molecule-HTCN^60	Lower water reactivity, minimal side reactions, wider ESPW	High costs, inferior compatibility with electrodes
Interface SEI layer regulation	Constructed NaF-rich SEI and Na2CO3-rich SEI^33,72	Stable SEI, inhibiting electrodes dissolution	Long-term stability of SEI to be verified

---

3 Conclusion and outlook

In summary, the interface problems between the NTP anode and aqueous electrolyte in ASIBs are mainly characterized by HER triggered by the narrow ESPW, and electrode dissolution and unstable SEI formation, resulting in low energy density and short cycle life. Significant progresses have been made in the design of advanced NTP anode–electrolyte interface in ASIBs through electrolyte compositional optimization, interfacial coating modification and SEI interface modulation. In terms of electrolyte system innovation, the electrolyte developed can extend the voltage window to more than 3.3 V, which not only inhibits the electrode dissolution and hydrogen precipitation side reaction, but also realizes a high capacity retention of the full battery after many cycles. For NTP anode materials, the surface coating strategy effectively improves the electronic conductivity and structural stability to achieve an excellent capacity and longer duration. Regarding SEI regulation, the strategies of in situ formation of stabilized SEI and construction of artificial SEI are favor of inhibiting side reactions and improving battery performances. These proposed solutions are of great significance for addressing the aforementioned challenges faced by NTP in aqueous electrolytes.

However, these efforts still face challenges: (1) although the surface coating of NTP material can inhibit the side reaction in the short term, the uniformity of coating, long-term stability and bonding strength with NTP body are insufficient. It is easy to peel or rupture during the cycling process, which leads to the reappearance of interfacial failure. (2) While the optimized electrolyte can widen the electrochemical window, it may decompose with cycling or participate in irreversible reactions, leading to the failure of interface protection after electrolyte depletion. (3) In situ SEI is difficult to form a stable and uniform protective layer due to the conflict between the high activity of water molecules in the aqueous electrolyte and the low potential of NTP operation, while artificial SEI is limited by the weak bonding between the coating and the substrate, the contradiction between the ion transport efficiency and the mechanical strength, as well as the imbalance between the complex preparation process and the cost of scaling up.

In conclusion, nevertheless aqueous NTP anode presents certain challenges, their electrochemical performance can be substantially enhanced through targeted strategies such as interface modification, electrolyte optimization, and SEI membrane modulation. Future research should continue to focus on the development of new materials and electrolytes, as well as the application of advanced interface engineering methods to promote the further development and application of ASIBs. In sight of the future development of ASIBs, this paper proposes the following prospects:

(i) Development of new materials: the new material is of great significance for improving the overpotential of hydrogen evolution and stabilizing the contact with the aqueous electrolytes. With its unique chemical structure and physical properties, the composite NTP material can effectively reduce the activation energy barrier of hydrogen evolution reaction, thus significantly increasing the overpotential of hydrogen evolution, so then to improve their stability and electrochemical properties in aqueous electrolytes.

(ii) Electrolyte optimization: explore and optimize new alkaline or neutral electrolytes to inhibit hydrogen and electrode dissolution and improve the overall performance and life of the battery. Specifically, in the future, we need to focus on the synergistic optimization of electrode and electrolyte to develop a new composite system with a wide voltage window and low cost. The electrolyte formulation of ASIB should be designed to disrupt the hydrogen bonding network, thus widening the ESPW of the electrolyte, inhibiting hydrogen precipitation by the electrolyte on the NTP surface, and stabilizing the electrode/electrolyte interface.

(iii) Interface engineering: the employment of sophisticated interface engineering techniques, such as atomic layer deposition (ALD) and spray coating technology, facilitates the formation of a stable artificial SEI with high ionic conductivity on the anode material surface. This artificial SEI established between the electrolyte and the electrode interface, effectively alleviates the problems such as the hydrogen precipitation reaction and the electrode solubility. Therefore, these improvements can help to significantly improve the cycle life and coulomb efficiency of the battery, thus improving the overall performance and reliability of the energy storage system.

Data availability

No primary research results, software or code have been included and no new data were generated or analysed as part of this review.

Author contributions

Chenyang Zhao: literature review, performed study, data analysis and writing original draft, Ying Liu: literature review, data curation, discussion, Yang Shao: literature review, data curation, discussion, Feng Li: literature review, data curation, discussion, Dong Zhao: literature review, data curation, Xiaoping Yang: conceptualization, supervision, project administration, writing & review and editing, Fang Cheng: conceptualization, supervision, writing & review and editing, Zhengfu Zhang: supervision, writing & review and editing.

Conflicts of interest

The authors declare that they have no known competing financial interests.

Acknowledgements

This work was supported by Yunnan Fundamental Research Projects (Grant Number: 202301BE070001-004) and the National Natural Science Foundation (Grant Number: 52464035).
