Deciphering the role of LiBr as a redox mediator in Li–O₂ aprotic batteries

Abstract

Lithium–oxygen batteries (Li–O₂) represent a highly promising category of energy storage systems, primarily owing to their elevated theoretical energy density. Nevertheless, their effective deployment is significantly impeded by challenges such as inadequate reversibility and the presence of undesirable parasitic reactions. Recent investigations have turned to redox mediators, specifically lithium bromide (LiBr), as a potential solution to improve reaction kinetics and minimize overpotentials in these systems. This research presents a comprehensive analysis of the effects of three distinct solvents – dimethoxyethane (DME), tetraethylene glycol dimethyl ether (TEGDME), and dimethyl sulfoxide (DMSO) – on both the electrochemical performance and reaction mechanisms of LiBr-mediated lithium–oxygen cells. The findings indicate that singlet oxygen (¹O₂), which contributes to cell degradation through secondary reactions, is generated only in the presence of TEGDME as the electrolyte solvent. In contrast, while both DME and DMSO enable oxygen evolution without forming singlet oxygen, only DME exhibits chemical stability under the operating conditions of LiBr-mediated Li–O₂ cells. Furthermore, a comparative analysis of the redox mediation effects arising from lithium iodide (LiI) and LiBr across various solvent environments reveals that the activation of the singlet oxygen release pathway occurs when the Lewis acidity and basicity of the oxidized redox mediator and the solvent are aligned—for example, when both behave as weak acids/bases or as strong acids/bases. This study elucidates the nuanced interactions between solvents and redox mediators, thereby contributing to the advancement of more efficient lithium–oxygen battery systems.

---

Introduction

Aprotic Li–O₂ batteries are considered a promising technology to address the increasing demand for energy storage systems. These devices can potentially deliver outstanding performance thanks to their gravimetric energy density (up to 3458 Wh per kg with Li₂O₂ as the discharge product) and high operating potential (i.e. 2.96 V vs. Li⁺/Li⁰).¹ The redox processes involved in the functioning of a Li–O₂ cell are the dissolution (discharge) and deposition (charge) of lithium at the lithium metal anode and the Oxygen Reduction Reaction (ORR, discharge) and Oxygen Evolution Reaction (OER, charge) at the carbonaceous cathode. In aprotic electrolytes, the ORR and OER lead to the formation and dissolution, respectively, of the non-conductive solid lithium peroxide.²

Some key drawbacks must be faced before achieving the practical implementation of these systems: in particular, the high overpotentials required during the charge process, i.e. the oxidation of lithium peroxide to molecular oxygen, must be efficiently lowered to avoid undesired processes that lead to early performance decay of the cell.^3,4 Among the strategies to suppress singlet oxygen (¹O₂) in Li–O₂ batteries, quenching mechanisms have been explored. Molecules such as triphenylamine (TPA) and its brominated derivative can capture ¹O₂ and convert it to ground-state oxygen, effectively reducing parasitic reactions and improving battery stability.^5,6 Another effective method to avoid singlet oxygen production is to introduce soluble catalysts named Redox Mediators (RMs), which are currently being explored and proposed in the literature to favour the oxidation of Li₂O₂ at lower overpotentials and preserve the cell components from degradation.^7,8 RMs are oxidized at the cathode surface and then diffuse to Li₂O₂ deposits where they oxidize the peroxide anion to molecular oxygen, acting as electron carriers and allowing the lowering of the charge potential.⁹

Adding lithium halides, LiX, to the electrolyte solution is a promising and cost-effective strategy to employ the redox couples of halide species, in particular X⁻/X₃⁻ and X₃⁻/X₂, as redox mediators.¹⁰ LiI is a widely studied RM that shows interesting results,^11,12 although it also raises additional concerns regarding the stability of cell components.¹³ More recently, LiBr was also proposed as an electrolyte salt and redox mediator by Kwak et al.,¹⁴ highlighting some advantages of this RM against LiI: a higher oxidizing power due to the higher standard potential of the redox couple Br⁻/Br₃⁻; a more efficient formation of Li₂O₂ during discharge and little to no competition between bromide chemistry and the ORR/OER. These differences are consistent with our findings reported in ref. 16, where LiI was tested in the same solvent systems used in the present study for LiBr. In Kwak et al.'s report, LiBr performance was particularly promising when using diglyme (diglyme = diethylene glycol dimethyl ether) as electrolyte solvent, while a decay of the cell performance along with a worsening of the charge/discharge overpotentials was observed using TEGDME as solvent.¹⁴ This behaviour deviates from that observed in the case of LiI,¹¹ and the fundamental origin of such a different performance outcome when varying between very similar solvents has not been further explained up to now. Based on Pierini et al.'s calculations,¹⁵ we hypothesized that, similarly to the LiI case, the promotion of singlet oxygen release due to the introduction of the RM could be involved. The oxidation of a cluster of (Li₂O₂)₄ by Br₃⁻ was thermodynamically favoured in both highly polar solvents like DMSO and ethereal solvents,¹⁵ suggesting that in the case of LiBr singlet oxygen generation could be favoured also in low-polarity media, in contrast with the case of LiI.

In fact, in a previous study,¹⁶ we observed that the use of LiI coupled with a high-polarity solvent like DMSO, where the oxidation of Li₂O₂ by I₃⁻ corresponds to a ΔG < 0 (ref. 15), leads to a significant increase of the amount of ¹O₂ evolved during the oxidation of Li₂O₂ by the redox mediator.

The implications of using LiBr on the degradative processes in the Li–O₂ cell need to be widely explored in order to design an appropriate electrolyte formulation to maximize the performance of this promising RM. With this aim, we carried out a study employing LiBr 200 mM + LiTFSI 1 M in monoglyme (DME)/tetraglyme (TEGDME)/dimethylsulfoxide (DMSO) solvents, to determine the fundamental origin of different performance outcomes within the same class of solvents and the same range of polarity in the case of DME and TEGDME (ε_r = 7.2 and 7.4, respectively^17,18), and to also highlight the effect of a sharp change in polarity using DMSO (ε_r = 46.8 (ref. 19)). The 200 mM LiBr concentration was chosen to ensure the best reversibility of the ORR/OER processes, as indicated by the preliminary tests reported in Fig. S1.

Materials and methods

Electrolytes

High-purity 1,2-dimethoxyethane (monoglyme; DME) [anhydrous, 99.5%, inhibitor-free], tetraglyme (TEGDME) [tetraethylene glycol dimethyl ether, anhydrous, ≥99%] and dimethyl sulfoxide (DMSO) [Sigma-Aldrich, anhydrous, ≥99%] were purchased from Sigma-Aldrich and dried over 4 Å molecular sieves for at least 1 week before use. Battery grade LiTFSI (lithium bis(trifluoromethanesulfonyl)imide extra dry <20 ppm of H₂O, Solvionic) was used as received. LiBr (Reagent-Plus®, ≥99%, Sigma-Aldrich) was dried under vacuum at 50 °C for 48 h before use. Electrolyte solutions of LiTFSI 1 M + LiBr 200 mM in DME/TEGDME/DMSO were prepared in an Ar filled glovebox (Iteco Eng SGS-30, H₂O <0.1 ppm).

Electrochemical measurements

An EL-CELL ECC-Air test cell was used to perform electrochemical experiments. The internal configuration of the cell employed for all the measurements is as follows: Li(−)/Separator-Electrolyte/GDL(+)/Ni Foam/Gaseous O₂ (1 bar). A glass fiber separator (Whatman, 1.55 mm thickness, 18 mm diameter) soaked in 1 M LiTFSI + 200 mM LiBr in DME/TEGDME/DMSO electrolytes was employed. 15 mm discs of a commercial carbonaceous Gas Diffusion Layer (GDL, MTI Corp.) were used as cathodes. A metallic lithium foil was used as the anode. A nickel foam disc (16 mm diameter) was used above the GDL to ensure a homogeneous O₂ impregnation. Cell assembly was performed in an Ar filled glovebox (Iteco Eng SGS-30, H₂O <0.1 ppm). The Li–O₂ cells were filled with pure O₂, setting a static final pressure of 2.0 bar in the cell volume (head space 4.3 cm³). Galvanostatic cycling tests were run on (−)Li⁰|LiTFSI 1 M + LiBr 200 mM in DME|GDL(+), (−)Li⁰|LiTFSI 1 M + LiBr 200 mM in TEGDME|GDL(+) and (−)Li⁰|LiTFSI 1 M + LiBr 200 mM in DMSO|GDL(+) cells at 0.1 mA cm⁻² with a limited capacity of 0.2 mA h cm⁻² and cut-off potentials of 2.0 and 3.6 V vs. Li⁺/Li⁰, using a Maccor Series 4000 Battery Test System.

Ex situ experiments

The fluorescent probe DMA [9,10-dimethylanthracene, 99%] and bromine (Br₂, Suprapur®, 99.9999%) were purchased from Sigma-Aldrich and used as received. A set of reference DMA solutions, at the concentrations of 0.5–1–2.5–5–7.5 and 10 µM, was prepared in each solvent (DME/TEGDME/DMSO) for the construction of the calibration lines. The reaction solutions were prepared in each solvent according to the following scheme:

Solution A: 5.15 mg of 9,10-dimethylanthracene were dissolved in 5 mL of the chosen solvent to obtain a 5 mM solution. The solution was then diluted with the same solvent to 0.2 mM of DMA.

Solution B: 10 µL of pure Br₂ and 33.7 mg of dry LiBr were added to 4.85 mL of the chosen solvent to obtain a 40 mM solution of Br₃⁻. The solution was then diluted with the same solvent to 0.2 mM.

Equal volumes of solutions A and B were mixed to obtain a 0.1 mM solution of both Br₃⁻ and DMA. A portion of the as-prepared solution was further diluted 10× and its fluorescence and UV spectra were recorded as references before adding Li₂O₂. Excess Li₂O₂ was added to the other portion of the A + B solution to perform Li₂O₂ oxidation with Br₃⁻ in the presence of a 1 : 1 quantity of DMA as a singlet oxygen trap, and then the final solution was diluted 10× and its fluorescence and UV spectra were recorded. The preparation of both the reference and the reaction solutions was carried out under an Ar atmosphere in a MBRAUN UniLab glovebox [H₂O, O₂ ≤1 ppm].

The measurements were carried out in sealable Hellma quartz fluorescence cuvettes 117104F-10-40, to prevent the exposure of the solutions to air moisture and oxygen. Fluorescence measurements were performed with a Fluoromax-2 spectrofluorometer (Jobin Yvon-Spex), in the 392–600 nm range with an excitation wavelength of 388 nm (slits 1.1/1.1 nm) and at a temperature of 25 °C. UV spectra were recorded with a Varian Cary 5E UV-Vis spectrophotometer. Sealable fluorescence quartz cuvettes were also employed for the acquisition of Raman spectra.

Spectra of the 40 mM solution of Br₃⁻ before and after adding Li₂O₂ were recorded in TEGDME and DMSO as solvents. Raman measurements were carried out with a DILOR LabRam confocal micro-Raman equipped with a He–Ne laser source at 632.7 nm.

Computational details

Simulations of Raman spectra of Br₃⁻ and Br₂ were carried out using density functional theory (DFT) at the M062X/def2-TZVP level. Simulations of FTIR spectra of dimethyl sulfide and methanesulfonic acid were carried out by DFT at the wB97X/def2-TZVPP,²⁰ NoFrozenCore level of theory, with the Orca package distribution, version 5.03.²¹

Results

LiBr redox mediation in DME

When charged up to 3.6 V with no limit capacity (Fig. S1b), the Li–O₂ cell containing LiTFSI 1 M + LiBr 200 mM in DME shows a charge profile closely matching the discharge, indicating good reversibility and efficient utilization of the redox mediator under these conditions. Moving to prolonged cycling conditions, the charge/discharge capacities achieved during the galvanostatic cycling of the same cell formulation with a limited capacity of 0.2 mAh cm⁻² at J = 0.1 mA cm⁻² are reported in Fig. 1a. This electrolyte formulation allows a stable functioning of the LiBr-mediated cell, with an excellent reversibility of the ORR/OER for at least 60 cycles. In line with this, the potential curves reported in Fig. 1b indicate both a good discharge profile and a low-overpotential, stable charge performance. Only after 50 cycles, a mild worsening of the discharge process is observed, as indicated by the higher overpotential at which the 50th discharge takes place, likely due to a reduced oxygen concentration at the reaction interface caused by cumulative minor irreversibilities. The slight shift of the discharge plateau towards higher capacities observed in the 10th and 50th discharges is likely due to a moderate accumulation of Br₃⁻ during charge, which is by consequence reduced in correspondence with the very early stages of discharge at higher potentials than 2.75 V (i.e. the ORR onset). It is important to underline that in the case of the use of LiI as the redox mediator, the impact of the I₃⁻ accumulation is large,²² while it is almost negligible in the case of LiBr mediation. This aspect indicates that LiBr offers better performance in ethereal solvents, thanks to the very high overpotentials required for the reduction of Br₃⁻ on the carbon cathode that make this process non-competitive with the ORR during discharge. On passing, we would like to stress that, although the technological validation of this electrolyte formulation for Li–O₂ necessarily requires much more extended cycling in terms of limiting current/capacities and cycle number, here our goal is to demonstrate the fundamental behaviour of LiBr as a redox mediator in three different solvent media. In this respect, the presented galvanostatic tests, even if limited to 60 cycles, offer a solid experimental basis to prove in which chemical environments LiBr drives or limits parasitic degradation reactivities. This experimental validation aims at consolidating our hypothesis that redox mediators and electrolytes are strongly interplayed and the impact of solvation on the thermodynamics and kinetics of redox mediation is not banal and cannot be fully explained by simple considerations starting from the acceptor/donor numbers of solvents. The good stability of the electrochemical performance of LiBr in DME suggests that this electrolyte formulation leads to limited parasitic chemistries and the possible suppression of ¹O₂ release beyond the quantities expected by the Boltzmann distribution, as calculated in eqn (S1). To confirm this hypothesis, an ex situ study on the oxidation of Li₂O₂ by Br₃⁻ in DME was performed. Excess Li₂O₂ was added to a 0.1 mM solution of Br₃⁻ in DME, in the presence of 0.1 mM of DMA (the ¹O₂ trap). The reaction solution was then diluted to 0.01 mM in order to record its UV and fluorescence spectra. Simultaneously, another aliquot of the initial solution was diluted to 0.01 mM (of Br₃⁻ and DMA) and its UV and fluorescence spectra were recorded as a reference of the spectral response of the solution before adding Li₂O₂. Fig. 2a illustrates the UV spectra of the reaction solution before adding Li₂O₂ and after 1 h and 1 week. The baseline of pure DME is reported as a blank. The UV signal of Br₃⁻ is localized at ∼280 nm: this position is assigned by comparison with the shape and position of the Br₃⁻ UV signal in aqueous solution observed in the literature.²³ One hour after the addition of Li₂O₂, a sharp decrease of the Br₃⁻ signal can be observed, indicating its consumption in the oxidation reaction with lithium peroxide.

Fig. 1 (a) Discharge/charge capacities achieved by a Li–O₂ cell with LiTFSI 1 M + LiBr 200 mM in DME electrolyte, cycled at J = 0.1 mA cm⁻², Q_lim = 0.2 mAh cm⁻², and V_cut-off = 2.0–3.6 V vs. Li⁺/Li⁰, for 60 cycles. (b) Voltage profiles of the 1st, 10th and 50th cycles.

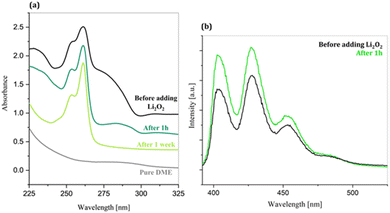

Fig. 2 (a) UV spectra of pure DME (grey) and a solution of Br₂ 10 µM + LiBr 40 µM + DMA 10 µM in DME before (black) and after (1 h, dark green and 1 week, light green) adding excess Li₂O₂. (b) Fluorescence spectra of a solution of Br₂ 10 µM + LiBr 40 µM + DMA 10 µM in DME before (black) and after (green) adding excess Li₂O₂.

The complete disappearance of the Br₃⁻-related signal is observed 1 week after the onset of the reaction. The UV spectral response during the Li₂O₂ oxidation by Br₃⁻ in DME highlights that not only is the reaction spontaneous but also occurs with relatively fast kinetics. It is worth mentioning that when LiI is used as the RM, the oxidation of Li₂O₂ in glymes is either not spontaneous¹⁵ or strongly kinetically hindered,¹² while in the case of LiBr the analogous reaction is thermodynamically as supported by both theoretical calculations¹⁵ and experimental evidence. Additionally, the Li₂O₂ oxidation by Br₃⁻ in DME occurs without the evolution of ¹O₂, as indicated by the comparison of DMA fluorescence spectra before and after adding Li₂O₂ (Fig. 2b). In fact, the increase in the fluorescence signal of DMA observed after adding Li₂O₂ was demonstrated to result solely from an interaction between DMA and Li₂O₂, with no contribution of the OER mediated by Br₃⁻ to the intensity variation of the DMA spectrum. When excess Li₂O₂ is added to a 10 µM solution of DMA in DME (Fig. S2), the same increase in intensity is observed (see Table S1).

LiBr redox mediation in TEGDME

LiBr performance as a redox mediator in TEGDME was first studied by Kwak et al.,¹⁴ who had already observed the worsening of the cell operation in this solvent compared to the shorter-chain diglyme. The observations discussed in the previous paragraph for DME as battery solvent are in line with the picture that emerges from the work of Kwak et al. Overall, it appears that both DME and diglyme (DEGDME), which differ by only a –O–(CH₂)₂– unit, are suitable solvents for LiBr employment, while earlier performance decay is to be expected for longer chain glymes such as TEGDME. This marked performance difference within the same class of solvents is specific to LiBr and was not observed in the case of LiI, nor for many other RMs.²⁴ In Fig. 3, the electrochemical behaviour of a Li–O₂ cell containing LiTFSI 1 M + LiBr 200 mM in TEGDME as electrolyte, cycled at J = 0.1 mA cm⁻²Q_lim = 0.2 mAh cm⁻² between 2.0 and 3.6 V vs. Li⁺/Li⁰, is reported. Early failure of the charge process is observed starting from cycle 12, from which the charge capacities continuously decrease (Fig. 3a). The charge/discharge potential profiles shown in Fig. 3b highlight the occurrence of critical parasitic chemistries: in the 10th cycle, the contribution of the Br⁻ redox to the discharge capacity extends to almost half of the total capacity, indicating that accumulation of Br₃⁻ during charge due to inefficient redox mediation occurs. In the 50th cycle, a three-plateau discharge profile is observed. The first plateau at ∼3.4 V, which is related to excess Br₃⁻ reduction, is less extended than in the 10th discharge; however, the ORR-related plateau at ∼2.7 V is shorter due to the presence of a third plateau at ∼2.4 V, hinting that additional undesired processes are occurring alongside the ORR. Observing the charge profiles, it appears that in the 10th charge only an increase in overpotential occurred, while a radical change in the electrochemical process is evident in the 50th cycle.

Fig. 3 (a) Discharge/charge capacities achieved by a Li–O₂ cell with the LiTFSI 1 M + LiBr 200 mM in TEGDME electrolyte, cycled at J = 0.1 mA cm⁻², Q_lim = 0.2 mAh cm⁻², and V_cut-off = 2.0–3.6 V vs. Li⁺/Li⁰ for 60 cycles. (b) Voltage profiles of the 1st, 10th and 50th cycles.

Such differences between the performance outcomes in DME and TEGDME may indicate that, despite the identical class of ethereal solvents, the ¹O₂ evolution channel activates in the solvent, i.e. TEGDME, that has a slightly larger dielectric constant and a slightly smaller acceptor number. The ex situ experiments performed to understand the fundamentals of LiBr mediation in TEGDME are reported in Fig. 4. When the reaction solution (40 mM Br₃⁻ + 40 mM DMA + excess Li₂O₂ in TEGDME) was monitored over time by Raman spectroscopy, the consumption of Br₃⁻ was confirmed (Fig. 4a): a monotone decrease in the Raman Br₃⁻ signal intensity centered at 175 cm⁻¹ is evident, strongly indicating that the oxidation of Li₂O₂ has occurred. The assignment of the peak at 175 cm⁻¹ to LiBr₃ is confirmed by both the literature (ref. 10) and theoretical calculations (Fig. S3). In Fig. 4b, the fluorescence spectra of the singlet oxygen trap DMA before and after adding Li₂O₂ in the reaction solution of Br₃⁻ 0.1 mM + DMA 0.1 mM in TEGDME are reported. A decrease of the fluorescence intensity indicates that part of the DMA in solution reacted with ¹O₂ forming the non-fluorescent DMA-endoperoxide.

Fig. 4 (a) Raman spectra of a solution of Br₃⁻ 40 mM in TEGDME before adding excess Li₂O₂, after 5 hours (dark blue) and after 12 hours (light blue). (b) Fluorescence spectra of DMA before (black) and after 1 hour (blue) of adding Li₂O₂ to the reaction solution of 0.1 mM Br₃⁻ + 0.1 mM DMA.

From the calibration plot reported in Fig. S4, it was possible to estimate that the amount of DMA that reacted with ¹O₂ was around 1.9% of the initial concentration. The 1 : 1 reaction stoichiometry between DMA and ¹O₂, in forming DMA-endoperoxide, therefore implies that at least ∼1.9% of the total molecular oxygen evolved in its singlet state. This result is comparable with that obtained for LiI redox mediation in DMSO reported in our previous study¹⁶ and demonstrates that LiBr is also able to open an alternative pathway for ¹O₂ evolution enabling its production far beyond the quantities expected from the Boltzmann distribution. Apparently, the key difference lies in the interplay between polarity (dielectric constant) and the Lewis acidity (acceptor number) of the solvent and the Lewis basicity of the redox mediator. LiI is the precursor of the strong Lewis base I₃⁻ and it leads to ¹O₂ generation only in a high-polarity solvent, DMSO, that is a strong Lewis acid with a large acceptor number. In a low polarity/weak Lewis acid solvent like TEGDME, LiI mediates a ¹O₂-free Li₂O₂ oxidation. In contrast, LiBr is the precursor of the weak Lewis base Br₃⁻ and activates the release of singlet oxygen in a low-polarity solvent, TEGDME, that is a weak Lewis acid, whereas in DME, a low polarity solvent but with intermediate Lewis acidity (i.e. acceptor number intermediate between TEGDME and DMSO) the Li₂O₂ oxidation mediated by LiBr is ¹O₂-free.

LiBr redox mediation in DMSO

A different behaviour of LiBr-mediated Li–O₂ batteries is observed when DMSO is used as electrolyte solvent. In Fig. 5, the cycling performance of a Li–O₂ cell with LiTFSI 1 M + LiBr 200 mM in DMSO is reported. Already starting from the 18th cycle (Fig. 5a), the discharge process becomes inefficient, likely due to the lack of molecular oxygen in the cell head compartment. The scarcity of oxygen supply may derive from an inefficient charging process, as can be deduced by the shape of the charge potential profiles of the first cycles (Fig. 5b), indicating the onset of a parasitic process activated at ∼3.6 V. Based on the observation of the preliminary electrochemical tests with no limit capacity (Fig. S5), it appears that this process involves not only the oxidations of Br⁻ to Br₃⁻ and Li₂O₂ to O₂, but also the oxidation of electrolyte components, hindering the actual OER. As a consequence, the accumulation of Br₃⁻ (or Br₂) occurs cycle by cycle due to the progressive lack of Li₂O₂ formed during discharge. We can speculate that the high polarity of DMSO allows the involvement of the second redox couple of LiBr within the potential window employed for the galvanostatic cycling of the cell, i.e. 2.0–3.6 V vs. Li⁺/Li⁰, with the oxidation of Br₃⁻ to Br₂ occurring at ∼3.6 V. In fact, it was observed that this reaction occurs at lower potential in DMSO (3.9 V) than in ethers (4.1 V)⁹ in an Ar atmosphere, and since these values are further lowered in the presence of O₂ (ref. 14) it is reasonable that the Br₃⁻/Br₂ oxidation is the process occurring at ∼3.6 V in the charge profiles reported in Fig. 5b. Qualitatively, it was observed that, upon the recovering and washing of the cathodes, only the one cycled in DMSO caused the fresh solvent to turn orange (Fig. S6), supporting the presence of high quantities of Br₂ in the electrolyte after the cycling procedure. Once formed, Br₂ is able to decompose DMSO to dimethyl sulfide, formaldehyde and methanesulfonic acid, according to the scheme elucidated by Aida et al.²⁵

Fig. 5 (a) Discharge/charge capacities achieved by a Li–O₂ cell with the LiTFSI 1 M + LiBr 200 mM in DMSO electrolyte, cycled at J = 0.1 mA cm⁻², Q_lim = 0.2 mAh cm⁻², and V_cut-off = 2.0–3.6 V vs. Li⁺/Li⁰ for 60 cycles. (b) Voltage profiles of the 1st, 10th and 50th cycles.

Based on these evaluations, it is likely that the short cycle life of the Li–O₂ cell cycled with the DMSO-based electrolyte can be safely attributed to the chemical instability of DMSO in the presence of Br₂. Although the production of ¹O₂ is in this case reasonable due to the theoretical predictions,¹⁵ it has to be kept in mind that the oxidizing power of Br₂ towards the solvent and the Li salt may also be the most relevant aspect leading to cell failure.

The ex situ experiments performed to study the oxidation of Li₂O₂ by Br₃⁻ in DMSO are reported in Fig. 6.

Fig. 6 (a) Raman spectra of a solution of 40 mM Br₃⁻ in DMSO before (black) and after 5 minutes (red) from adding excess Li₂O₂. (b) Fluorescence spectra of DMA before (black) and after 1 hour (red) from adding Li₂O₂ to the reaction solution of 0.1 mM Br₃⁻ + 0.1 mM DMA.

In Fig. 6a, the presence of the Br₃⁻ Raman signal before adding Li₂O₂ is evident. Its band shape is significantly different from that observed in ethers (see Fig. 4a) and has the typical broad aspect of the Br₂ signal (Fig. S3), which is likely because the Br₃⁻ species exists mainly as a Br₂⁺Br⁻ complex. In the Fig. 6a it is possibile to observe that the consumption of Br₃⁻ is complete in a few minutes from the reaction onset, indicating a very fast kinetics of the Li₂O₂ oxidation by Br₃⁻ (or Br₂) in DMSO. In Fig. 6b are reported the DMA fluorescence spectra for the 1 : 1 reaction mixture with Br₃⁻ in DMSO before and after the addition of an excess of Li₂O₂, clearly indicating that the Li₂O₂ oxidation is not accompanied by singlet oxygen evolution in this case. In fact, the fluorescence intensity of DMA is not affected by the occurrence of the reaction. This result is in perfect agreement with our previous considerations about the apparent need for a match between the Lewis character of the RM and the electrolyte solvent despite its polarity: DMSO is a strong Lewis acid characterized by a large acceptor number whereas Br₃⁻ is a weak Lewis base. Overall, LiBr redox mediation in DMSO, a high polarity solvent, seems to follow an alternative mechanism compared to low polarity ethers, which allows ¹O₂-free Li₂O₂ oxidation. In the case of DMSO, however, the performance outcome of LiBr as a RM remains unsuccessful due to the solvent instability and to the formation during the charge not only of Br₃⁻, but also of the more oxidizing Br₂.

Post-mortem characterization of the positive electrodes

Fig. 7 reports the SEM images and corresponding EDX mapping of the gas diffusion layers after their cycling in the DME, TEGDME and DMSO based electrolyte formulations, which will be referred to as GDL_(DME), GDL_(TEGDME) and GDL_(DMSO), respectively.

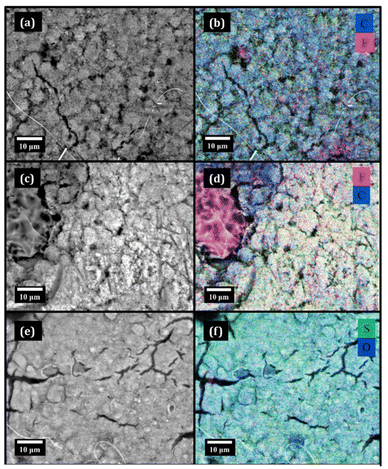

Fig. 7 Scanning electron microscopy images (5.000× magnification, working distance of 8.44 mm, 15 kV electron beam energy) of (a) GDL_(DME), (c) GDL_(TEGDME), and (e) GDL_(DMSO). Corresponding EDX elemental mapping of (b) GDL_(DME), (d) GDL_(TEGDME), and (f) GDL_(DMSO).

In line with the electrochemical observations, GDL_(DME) (Fig. 7a and b) maintains a good morphology after cycling, similar to that of the pristine GDL (Fig. S7), along with a clean surface free of significant deposits of degradation products. In fact, the EDX elemental mapping reported in Fig. 7b and the corresponding quantitative analysis (Table 1) indicate carbon as the main component, with small amounts of fluorine and sulfur that likely derive from the moderate degradation of the TFSI⁻ anion. GDL_(DME) composition deviates less than the other postmortem samples compared to the composition of the pristine GDL (Table S2). The main difference lies in the oxygen content, which increased after cycling, consistent with the formation of a natural cathode–electrolyte interphase (CEI) formed from DME derivatives.

Table 1 EDX elemental quantitative analysis of gas diffusion layers cycled with different electrolyte formulations

Sample	Atomic%
	C	O	S	F	Ni
GDL(DME)	45.29	32.42	3.78	13.11	3.32
GDL(TEGDME)	15.84	51.62	1.07	24.07	4.67
GDL(DMSO)	24.72	53.19	13.10	6.48	1.64

---

This picture is further supported by the ATR-FTIR spectrum of GDL_(DME) (Fig. 8a), where the main spectral features belong to TFSI⁻ and Li₂CO₃, except for the band at ∼1000 cm⁻¹ ascribable to the –Si–O–Si– bonds of the glass fiber separator and to other minor components in the –C–O–C– region²⁶ belonging to ether-derived byproducts on the CEI.

Fig. 8 ATR-FTIR spectra of (a) GDL_(DME) and reference spectra of LiTFSI, Li₂CO₃ and the Whatman glass fiber separator. (b) GDL_(TEGDME) and reference spectra of PVDF, LiTFSI, Li₂CO₃ and the Whatman glass fiber separator. (c) GDL_(DMSO) and reference spectra of DMSO, Li₂SO₃ (theoretical), LiTFSI, Li₂CO₃ and the Whatman glass fiber separator.

In Fig. 7c it is possible to observe that in the case of GDL_(TEGDME), after cycling, large portions of this cathode are constituted by amorphous and likely organic material, which also appeared to be very sensitive to the electron beam of the SEM microscope. From the EDX mapping (Fig. 7d) and elemental quantification (Table 1) it was found that these regions are fluorine-rich, with no remarkable sulfur content. This hints that these byproducts are derived from the cathode polymeric binder, which is polyvinylidene fluoride (PVDF). In fact, the absence of significant amounts of S suggests that the degradation of LiTFSI, the only other source of the fluorine apart from PVDF, is likely not involved at all in the formation of these deposits. The degradation of the polymeric binder leads to the loss of cathodic active material, i.e. carbon, in large parts of the cathode surface. The ATR-FTIR spectrum of GDL_(TEGDME) is reported in Fig. 8b and shows signals that match those of PVDF and, to a minor extent, those of LiTFSI. The small amounts of sulfur that are related to the LiTFSI-derived byproducts appear to be located not in correspondence with the fluorine-rich deposits, but only on the remaining carbon surface (see Fig. S8). Overall, from the characterization of the cycled cathode, it is observed that the polymeric binder of the GDL is the cathode component that undergoes the majority of the undesired reactions occurring during the battery functioning.

The involvement of ¹O₂ in the degradation processes occurring on GDL_(TEGDME) is likely, since carbon and PVDF are usually stable towards the other reactive species such as superoxide and peroxide that are unavoidably formed during the battery operation in all the electrolyte formulations. This evidence is also in line with the recent findings of Zor et al.,²⁷ who reported no relevant ¹O₂-related degradation of the electrolyte components. This implies that in the case of ¹O₂ evolution, various cell components, including the electrode binder, are preferentially attacked.

The SEM images and EDX elemental maps of GDL_(DMSO) are reported in Fig. 7e and f and confirm the accumulation of byproducts during the battery operation. The surface of the GDL is covered by a thick film-like layer mainly formed by the degradation of DMSO and secondarily TFSI⁻, according to the relative quantities of S and F detected by EDX elemental quantification (Table 1). The cathode–electrolyte interphase is composed of uniformly distributed sulfur and localized oxygen-rich regions (Fig. 7f). In the ATR-FTIR spectrum of GDL_(DMSO) (Fig. 8c), the diagnostic signal of S=O stretching at 1044 cm⁻¹ (ref. 28) is intense, indicating the presence of other DMSO-related byproducts. Among them, Li2SO3 is likely to be present since there are compatible peaks between 900 and 1100 cm−1 in the sample spectrum. The presence of dimethyl sulfide and methanesulfonic acid, the main byproducts expected by the Br₂ induced decomposition of DMSO,²⁵ is also compatible with the GDL_(DMSO) spectrum as highlighted in Fig. S9.

Post-mortem characterization of the negative electrodes

Fig. 9 shows the morphology and elemental mapping obtained by SEM/EDX of Li metal anodes after cycling in different electrolytes, hereafter referred to as Li_(DME), Li_(TEGDME) and Li_(DMSO).

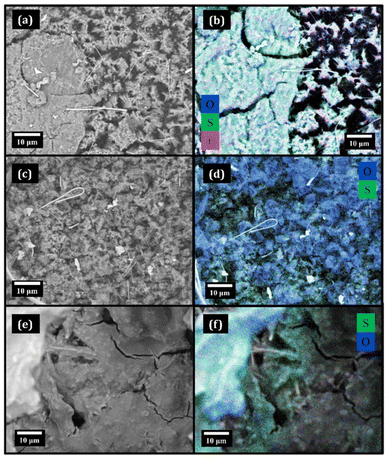

Fig. 9 Scanning electron microscopy images (5.000× magnification, working distance of 8.44 mm, 15 kV electron beam energy) of (a) Li_(DME), (c) Li_(TEGDME), and (e) Li_(DMSO). Corresponding EDX elemental mapping of (b) Li_(DME), (d) Li_(TEGDME), and (f) Li_(DMSO).

In Fig. 9a, the SEM image of Li_(DME) clearly shows anode deterioration in the presence of dendritic structures, indicating a less than optimal anode functioning in the DME-based electrolyte. In analogy with other Li metal battery systems, in Li–O₂ cells dendrites lead to Li detachment and loss of electrical contact that compromise the cell functioning, which simultaneously pose a severe safety hazard due to the possibility of short circuits.²⁹ The corresponding EDX elemental mapping in Fig. 9b indicates oxygen-rich regions, hinting that the degradation of the ether solvent occurred. The significant amounts of S and F on the Li surface (see Table 2) also indicate the presence of TFSI⁻ fragments in the Solid Electrolyte Interphase (SEI).

Table 2 EDX elemental quantitative analysis of lithium metal anodes cycled with different electrolyte formulations

Sample	Atomic%
	C	O	S	F	Ni
Li(DME)	36.09	16.58	10.67	32.10	3.49
Li(TEGDME)	12.75	76.36	2.79	6.94	—
Li(DMSO)	46.17	20.20	17.75	11.70	3.67

---

The morphology of Li_(TEGDME) in Fig. 9c appears different, showing predominantly mossy lithium. Thus, also in this case the uniformity of the Li morphology is compromised after the battery cycling, but the composition of the SEI layer is remarkably better with respect to the Li_(DME) case. In fact, both the elemental mapping (Fig. 9d) and the quantitative analysis (Table 2) show oxygen as the major component. Usually, the presence of oxygen matches that of lithium, an element that cannot be detected by EDX spectroscopy. Thus, a rich and relatively uniform distribution of oxygen on the Li metal anode suggests the presence of a very thin SEI layer originating from byproducts formed by the reactions of Li with the electrolyte. Low amounts of S and F on the Li surface indicate mild TFSI⁻ degradation that always occurs during the formation of the natural SEI layer on Li anodes. The improved stability of the TEGDME-based electrolyte towards Li metal compared to the DME case is explained by the TEGDME tendency to complex Li⁺ within the LiTFSI ionic couple thanks to its longer chain.³⁰ This intermolecular interaction has already been demonstrated to play a key role in protecting the ether from oxidation,³¹i.e. the hydrogen abstraction from methylene groups by nucleophilic agents.³²

The Li_(DMSO) anode (Fig. 9e) shows some separator fibers that are incorporated in a thick film, mainly composed of S and O (Fig. 9f). Significant quantities of carbon are also present in the electrode surface (Table 2), supporting the occurrence of severe degradation of electrolyte components. As in the case of GDL_(DMSO), the relative amount of S is higher than that of F, indicating that sulfur-containing byproducts derive mostly from DMSO. The Li metal anode appears consumed in the parasitic processes and covered with an insulating film that affects the reversibility of the plating/stripping processes.

Conclusion

Employing LiBr as a redox mediator in Li–O₂ batteries leads to radically different outcomes varying the solvent media. The optimal reversibility of cathodic reactions, i.e. ORR and OER, is obtained in DME, while critical issues arise in the other solvents, i.e. TEGDME and DMSO. The cathode functioning in TEGDME is affected by ¹O₂-induced parasitic processes. Conversely, in DMSO, LiBr redox mediation appears to follow a different mechanism allowing ¹O₂-free OER but, at the same time, enabling DMSO decomposition induced by Br₂. The Li metal anode functioning is not directly correlated with the cathode operation, since the worst Li morphology was found in the DME case. This implies that Li metal protection must be addressed independently.

In summary, our study underscores the critical role of solvent effects on the intricate interplay between the redox mediator, lithium superoxide (LiO₂), and the TFSI⁻ anion in dictating singlet oxygen (¹O₂) release pathways in Li–O₂ batteries. It is well known that the choice of solvent significantly influences the solvation of these species, affecting the redox potentials, ion pairing, and overall electrochemical stability of the electrolyte. Specifically, the degree of Lewis acidity and basicity of the solvent, coupled with its dielectric constant, dictates the extent to which LiO₂ and TFSI⁻ are solvated, subsequently influencing the reaction kinetics and the propensity for ¹O₂ generation. A mismatch in the Lewis characteristics of the solvent and redox mediator can promote parasitic reactions and the formation of ¹O₂, ultimately contributing to cell degradation. Understanding and tailoring the solvation environment is therefore crucial for suppressing ¹O₂ formation and optimizing the performance and lifespan of Li–O₂ batteries. Therefore, the most promising approach for a reversible operation of an aprotic Li–O₂ battery is the employment of a RM with Lewis basicity contrasting the corresponding Lewis acidity of the electrolyte solvent, in parallel with a tailored Li metal protection strategy that limits the parasitic chemistries originating at the negative side.

Author contributions

All authors contributed equally to this work.

Conflicts of interest

There are no conflicts to declare.

Data availability

Data for this article, including raw spectral data, electrochemical data, and microscopy images, are available at SAPIENZA Open DATA, at https://doi.org/10.13133/UNIROMA1/TAIQ8Y.

Supplementary Information is available. See DOI: https://doi.org/10.1039/d5ta04150c.
