“Impurity”-driven tunable organic room temperature phosphorescence via conformational regulation in multi host/guest systems

Abstract

The presence of trace amounts of impurities can have unprecedented effects on the luminescence features of organic room temperature phosphorescent (ORTP) materials, requiring conscientious investigation. In this study, we have compared the photoluminescence properties of biphenyl-4-carboxylic acid (BCA) and biphenyl-4,4′-dicarboxylic acid (BDCA), synthesized via two distinct synthetic routes—Friedel–Crafts (FC-BCA or FC-BDCA) and cross-coupling (cc-BCA or cc-BDCA) pathways and observed remarkable orange phosphorescence in FC-BCA or FC-BDCA which was absent in cc-BCA or cc-BDCA. Our investigations identified traces (<0.3 mol%) of diphenylbenzil based impurities, formed as byproducts during Friedel–Crafts acylation of biphenyl, responsible for the RTP activation in FC-BCA or FC-BDCA. Bicomponent solids prepared by deliberately doping traces of DPB into various organic matrices ensued tunable RTP color (green to red) with high quantum yield (26.4%) and a lifetime of up to 1.6 ms. Comprehensive experimental investigations substantiated with theoretical studies revealed that photoexcited conformational dynamics of guest DPB are responsible for RTP color variation concertedly involving multiple energy transfer channels, e.g., singlet-to-singlet (SSET) and triplet-to-triplet (TTET). It presents a novel trace doping strategy for developing RTP materials with tunable optical features by synergistically controlling the ground and excited state geometries of a single guest molecule, which is rarely reported in the literature. Furthermore, by employing a suitable host matrix, we successfully stabilized a linear conformer of guest DPB in the ground state, which is otherwise unstable, and resulted in improved quantum yield. Simultaneously, we report unusual RTP from commercial BDCA, which we suspect to be caused by the presence of diphenylbenzil-based impurities, reiteratively emphasizing the importance of exercising caution whenever a system exhibits unusual properties.

---

Introduction

In recent years, purely organic room temperature phosphorescent (ORTP) materials have attracted tremendous attention as a sustainable alternative to their metal-based counterparts. Owing to their low cost, ease of modulation, and lower toxicity, they find potential applications in a wide variety of fields like organic light-emitting diodes (OLEDs),¹ bioimaging,² anticounterfeiting technology,³ etc. However, the realization of RTP from organic materials is a challenging task due to lower population of triplet excitons attributable to inefficient intersystem crossing (ISC) resulting from weak spin–orbit coupling.⁴ Besides, triplet excitons are susceptible to quenching induced by molecular motion and triplet oxygen. As a result, there has been a long-standing belief that RTP from organic molecules can only be observed under inert conditions and at cryogenic temperatures. In the past few years, significant advancements have been made in this area through various strategies e.g. crystallization,⁵ matrix rigidification,⁶ heavy atom incorporation,⁷ host/guest systems,⁸ singlet-triplet energy modulation,⁹ etc. to realize and engineer ORTP emission, circumventing the obstacles. However, seldom was any focus given to the purity (or impurity) profile of such materials. Traces of impurity can have unprecedented influence on the characteristics of a material.¹⁰ Optical properties, especially phosphorescence, are very sensitive to the composition of materials which has been known since the early twentieth century.¹¹ However, concerns about the existence of impurities have been largely overlooked due to strenuous separation and characterization of trace impurities, and lack of adequate mechanistic understanding. Lately, the investigation on the effect of impurities has gained pace and several earlier reports on ORTP have been revisited. The credit goes to the advancement of analytical and characterization techniques that the origin and structures of the trace impurities have been successfully elucidated, which led to a valid interpretation of the observed luminescence, or even, in some instances, disapproved the earlier interpretation of observation.¹² For instance, in 2021, the Liu group revealed the inconsistency in the photophysical properties of carbazole and some of its derivatives derived from two different sources, i.e., commercial and lab synthesized carbazole.^12a Detailed investigation revealed an isomeric impurity, benzoindole, responsible for unusual RTP in commercial carbazole and subsequent derived materials. This remarkable finding invalidated many earlier reports and interpretations provided for the observed RTP from carbazole derivatives. In a similar study, the Marder group rejected an earlier report that claimed to observe RTP from crystalline boric acid, and rather indicated it to be stemming from an unidentified impurity.^12b More recently, the Hudson group showed a handful of arylboronic esters emitting persistent RTP as the crude product, which disappeared after purification.^12h All these reports demonstrate the dramatic impact of trace impurities on RTP, hence emphasizing careful evaluation of sample composition. Nevertheless, they enriched our understanding of RTP mechanisms, providing valuable insights into designing new ORTP materials.

In this work, unusual RTP from biphenyl-4-carboxylic acid (BCA) and biphenyl-4,4′-dicarboxylic acid (BDCA), obtained from the reaction of biphenyl with oxalyl chloride under Friedel–Crafts conditions, is reported. Notably, BCA obtained from a commercial source (com-BCA) or synthesized in the lab (cc-BCA) following other procedures did not show any RTP. On the other hand, commercial BDCA (com-BDCA) exhibited similar RTP, which intensified upon crystallization. However, the BDCA synthesized in the lab from a cross-coupling (cc-BDCA) reaction did not show any such delayed luminescence. These exciting observations prompted us to investigate the origin of RTP in biphenyl-4-carboxylic acid (FC-BCA) and biphenyl-4,4′-dicarboxylic acid (FC-BDCA) obtained from the Friedel–Crafts reaction, and com-BDCA. We contemplated common impurities that might be present in both FC-BCA and FC-BDCA, possibly generated during the Friedel–Crafts reaction. After a strenuous analysis, impurities were indeed detected, which were characterized to be diphenylbenzil (DPB) and its derivative (DPB-COOH) (Scheme 1). Furthermore, to confirm the observation, we independently synthesized DPB in the lab to carry out further investigations. When DPB was doped into pure BCA or BDCA, it induced very similar luminescence even at 0.005 mol% doping content. DPB itself exhibits RTP—but it is feeble in solution and intensifies upon crystallization with a concomitant increase in the lifetime to 0.24 ms. Interestingly, we noticed a considerable shift in the RTP profiles in solution and in the crystalline state, attributable to its propensity for excited state conformational dynamics due to differential geometrical preferences in the ground and excited states, as revealed by theoretical studies. Furthermore, a strong dihedral angle (between the α-carbonyls) dependence of the RTP emission color was predicted, which led us to screen different host matrices to concertedly control the ground and excited state geometries of DPB, ensuing tunable RTP emission—green to orange red (Scheme 1). Simultaneously, we were able to stabilize the linear conformation of DPB at the ground state, which is otherwise unstable. As revealed by the detailed spectroscopic and theoretical studies, a rigid host matrix and host-to-guest energy transfer are the plausible attributes of the enhanced RTP performance in this dopant-based single-guest/multi-host system. In addition, our investigations indicate that the diphenyl-4,4′-dicarboxylic acid obtained from commercial sources contains similar diphenylbenzil-based impurities, engendering RTP in com-BDCA.

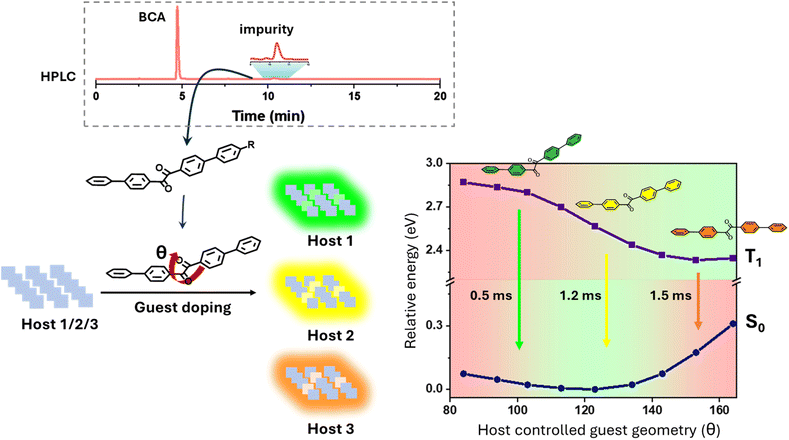

Scheme 1 Schematic representation of tunable RTP in a multi host/guest system by guest geometry control.

Results and discussion

Friedel–Crafts reaction of biphenyl

In previous work from our group, we reported that biphenyl-4-carboxylic acid (BCA) sensitizes terbium (Tb³⁺) and europium (Eu³⁺) in terbium and europium cholate hydrogels, respectively, and we utilized those luminescent gels for various applications.¹³ The dicarboxylic acid analogue, i.e., biphenyl-4,4′-carboxylic acid (BDCA) has been extensively used for the synthesis of metal–organic frameworks (MOFs) including lanthanide (Ln)-based MOFs.¹⁴ We intended to investigate Ln³⁺ sensitization mediated by BDCA within a supramolecular scaffold. Accordingly, we proceeded to synthesize BDCA following the Friedel–Crafts acylation pathway, wherein biphenyl was treated with oxalyl chloride (see the SI for details).¹⁵ Subsequent column purification of the crude product led to the isolation of a compound (major fraction) which exhibited bright orange luminescence under UV light. The corresponding spectral measurement showed dual emission at 300–400 nm and 500–700 nm (Fig. 1). As depicted in Fig. 1d, NMR clearly indicated it to be biphenyl-4-carboxylic acid, hereinafter labelled as FC-BCA. We isolated another fraction, essentially a mixture of the desired compound BDCA (FC-BDCA) and BCA (FC-BCA), which also exhibited orange emission under UV light (Fig. S1).

Fig. 1 (a) Illustration of the column purification of the yellowish crude product obtained from the Friedel–Crafts (FC) acylation of biphenyl with oxalyl chloride. (1) The non-polar fraction moved with the solvent front, (2) fraction that resulted in an intense orange emissive (when held under a UV lamp) material (FC-BCA), and (3) polar fraction, a weakly orange emissive solid. (b) Photographs of FC-BCA in ambient light (top) and under a UV lamp (bottom). (c) Steady-state emission spectra (λ_ex 315 nm) of FC-BCA. (d) ¹H NMR (CDCl₃, 400 MHz) of FC-BCA.

Origin of delayed emission in FC-BCA

The steady-state photoluminescence spectra of FC-BCA exhibited dual emissions centered at 340 nm and 575 nm. However, when the luminescence was recorded in the time-gated mode with a delay time of 0.2 ms, only a structured emission centered at 575 nm was observed as the short-lived emission at 340 nm phased out (Fig. 2a). Gate-time dependent emission spectra further confirmed the long-lived nature of the lower energy emission (575 nm) with a lifetime of 1.34 ms (Fig. 2b and S2a). The decrease in luminescence intensity with an increase in temperature ascertained the phosphorescence nature of this delayed luminescence (Fig. 2c). Therefore, singlet and triplet emissions are most likely responsible for dual emissions at 340 nm and 575 nm, respectively. Surprisingly, the 575 nm emission was absent in samples procured from commercial sources (com-BCA) (Fig. 2d and e). However, a broad emission at 342 nm was indeed observed in the steady-state mode. Similarly, BCA synthesized (cc-BCA) by us from a coupling reaction exhibited a single emission band at 340 nm (Fig. S2b).

Fig. 2 (a) Steady-state and gated (gate/delay time: 0.2 ms) emission spectra (λ_ex 315 nm) of FC-BCA. (b) Emission decay profile of FC-BCA (λ_ex 315 nm; λ_em 575 nm). (c) Gated emission spectra (delay time: 0.2 ms; λ_ex 315 nm) of FC-BCA at different temperatures. (d) Photographs of pure BCA (crystallized commercial BCA) in ambient light (top) and under a UV lamp (bottom). (e) Steady-state and gated (gate time: 0.2 ms) emission spectra (λ_ex 315 nm) of commercial BCA. (f) HPLC chromatogram of FC-BCA and pure BCA (cc-BCA) (inset: zoomed trace for FC-BCA monitored at 300 nm) (solvent: 80% ACN-water with 0.2% AcOH). (g) Synthetic scheme for the esterification of FC-BCA. (h) Elucidated structure of the isolated impurity (DPB-COOMe). (i) Structure of DPB-COOH.

Therefore, we reasoned that the 340 nm emission of FC-BCA must be the intrinsic fluorescence of BCA and that the RTP at 575 nm was possibly caused by impurities.

To rationalize the origin of RTP in FC-BCA, it was indispensable to isolate and elucidate the structure of the impurity. Repeated column chromatography of FC-BCA did not improve the purity, which might be due to comparable R_f values of BCA and the impurity on the silica gel, or a strong intermolecular interaction between them. Moreover, the apparently clean NMR of FC-BCA was not informative (Fig. 1d), since a mere trace amount of a foreign impurity, undetectable by NMR, can be sufficient to activate RTP. Following several futile attempts, only during high-performance liquid chromatography (HPLC) analysis, we detected a weak peak corresponding to a ‘foreign substance’ at t_R = 10.4 min along with BCA (t_R = 4.7 min) when monitored at 300 nm (Fig. 2f).

It was hard to differentiate the impurity peak from the baseline when monitored at the λ_max of BCA, i.e., 270 nm because of the red shifted absorption maxima of the impurity, as revealed by the photodetector array (PDA) detector of our HPLC system (Fig. S3). We collected HPLC fractions corresponding to the t_R = 10.4 min peak from multiple injections, but the recovered amount was too little (<1 mg) for subsequent characterization studies. However, the bicomponent solid solution obtained from a mixture of pure BCA and the HPLC concentrate resulted in similar RTP, which was discernible in the time-gated spectrum (Fig. S4). Thus, this confirmed that the substance appearing at t_R = 10.4 min in the chromatogram was indeed responsible for RTP induction. In order to isolate the impurity from the bulk material, we esterified biphenyl-4-carboxylic acid by treating FC-BCA with MeOH under acidic conditions with the anticipation that methyl biphenyl-4-carboxylate would significantly differ in polarity from biphenyl-4-carboxylic acid as well as from the impurity and might lead to a better separation of the trace component (Fig. 2g). We indeed isolated an unknown compound in a minute amount (1.5 mg), which was characterized to be an unsymmetrical diphenylbenzil derivative (analytical data in SI, S5), DPB-COOMe (Fig. 2h). This led us to contemplate that the trace amount of the corresponding acid, i.e., DPB-COOH which was present at a concentration of ∼0.2 mol%, might be responsible for RTP induction in FC-BCA. Appearance of a peak at 10.4 min in the HPLC chromatogram of aq. KOH treated DPB-COOMe, resembling the one in FC-BCA, further confirmed our speculation (Fig. 2i and S6).

Symmetrical diphenylbenzil also induces RTP

Phosphorescence from benzil is known since the mid-twentieth century.¹⁶ However, the phosphorescence intensity is very weak in solution at room temperature, attributable to the non-radiative deexcitation of the triplet state. In 2013, Gong et al. reported crystallization-induced room temperature phosphorescence from benzil and its derivatives, facilitated by the impediment of intermolecular motions in crystals.¹⁷ We reasoned that the symmetrical diphenylbenzil (DPB) (Fig. 3a), like DPB-COOH, could also be formed in the reaction of biphenyl with oxalyl chloride and with it being less polar than DPB-COOH or BCA, likely gets eluted down with the initial fractions during the purification of the crude product on silica gel. To validate our assumption, we synthesized DPB in the lab and subjected it to HPLC studies along with the concentrated initial fractions, which were obtained during column purification of the Friedel–Crafts reaction crude product (Fig. 1a, sample 1; details in the SI). The presence of the DPB peak in the chromatogram of the concentrate confirmed its formation (Fig. S7). Interestingly, as depicted in Fig. 3b, DPB incorporated BCA (DPB@BCA) also exhibited intense RTP, similar to that of DPB-COOH@BCA. Therefore, diphenylbenzil and its derivatives engender remarkable RTP when doped into BCA, even in trace amounts (<0.5 mol%). Due to easier synthetic access to DPB, we considered DPB as our model compound for further investigations.

Fig. 3 (a) Structure of DPB. (b) Steady state emission (λ_ex 320 nm) spectrum of DPB@BCA. Steady state emission (λ_ex 310 nm) spectra of DPB (10 µM) in ACN at (c) 298 K and (d) 77 K (inset: photograph of the frozen solution under UV light). (e) Excitation (λ_em 535 nm) and emission (λ_ex 410 nm) spectra of crystalline DPB at room temperature (298 K) (inset: photograph of crystals in ambient light (top) and under UV light (bottom)). (f) Photoluminescence decay profile (λ_ex 410 nm; λ_em 535 nm) of crystalline DPB at 298 and 77 K. (g) Crystal structure of DPB deduced from SCXRD data obtained at 298 K and 120 K. Various intermolecular interactions with their respective interatomic distances in the DPB crystal at (h) 298 and (i) 120 K (calculated using Mercury²¹ software). (j) Ground (S₀) and excited state (S₁ and T₁) optimized geometries of DPB. (k) Dihedral angle (between α-carbonyls) dependent potential energy curves of S₀, S₁ and T₁ states (relative to S₀ optimized geometry).

Photophysical properties of diphenylbenzil (DPB)

To comprehend the role of DPB in inducing RTP in the solid bicomponent mixture, we conducted a detailed photophysical investigation of DPB. DPB exhibits maximum absorption at 310 nm (Fig. S8a), considerably red-shifted compared to that of simple benzil¹⁷ (λ_abs 260 nm). This shift in absorption maxima can be ascribed to the extended conjugation which stems from additional phenyl groups at the 4, 4′ position of the benzil unit. As illustrated in Fig. 3c, it exhibited a structured, weak emission in solution, centered at 560 nm with shoulders at 530 and 620 nm. The corresponding excitation maximum, observed at 310 nm, correlated well with its absorption profile (Fig. S8b). Upon purging the solution with N₂, a marked enhancement (∼5-fold) in luminescence intensity was observed, attributable to the mitigation of triplet quenching by dissolved oxygen, thereby confirming the triplet origin of the emission (Fig. 3c). It is worth mentioning that no noticeable peak corresponding to singlet emission (fluorescence) was detected. Therefore, the observed emission is entirely of triplet origin.

When a solution of DPB in ACN was cooled to 77 K, an intense green emission was observed with an average lifetime of 17 ms (Fig. 3d and S9). As shown in Fig. 3d, the spectrum differed considerably from that obtained at room temperature with the λ_max moving from 560 nm to 550 nm. The remarkable increase in phosphorescence intensity and lifetime at 77 K very likely resulted from the restricted motion of DPB in a frozen solution. The observed shift in the phosphorescence profile possibly stems from the excited state conformational dynamics of the DPB molecule, a phenomenon known for benzil.¹⁸ In the excited state, it adopts a flattened conformation with a larger dihedral angle between the carbonyls, whereas the ground state is thermodynamically more stable in a twisted geometry with a relatively smaller angle between the carbonyls (vide infra). Therefore, DPB emits from two distinct geometries in rigid (77 K) and non-rigid (298 K) environments, resulting in the observed spectral shift.

Unlike in solution, crystallized DPB exhibits intense perceivable RTP under UV light, with a lifetime of 0.24 ms (Fig. 3e). Except for a slight shift in the emission maximum, 535 and 550 nm in crystal and solution, respectively, the emission profile was found to be similar to that of the frozen solution (77 K), indicating that the emitting species have similar geometries in both the environments. However, the excitation profile was found to be broad, extending to 410 nm, possibly because of multiple intermolecular interactions in the crystal (Fig. 3e). Notably, when crystalline DPB was cooled to 77 K, the emission intensity further intensified with a concomitant increase in phosphorescence lifetime to 2.12 ms (Fig. 3f) implying that at ambient temperature the molecules in the crystal still possessed some residual motion.

Single crystal analysis

To understand the molecular packing and intermolecular interactions in the crystalline state, single crystal X-ray diffraction (SCXRD) analysis of DPB was carried out at room temperature (298 K, CCDC 2427014) and low temperature (120 K, CCDC 2427013). As illustrated in Fig. 3g, DPB adopts a twisted geometry with the α-dicarbonyls oriented at 122° with respect to each other. The phenyl groups of the biphenyl moiety are positioned in different planes, forming a dihedral angle of 32° and intermolecularly stacked along the b axis (Fig. S10). The crystal parameters and geometries were similar at both temperatures (Table S1 and Fig. 3g). However, the extent of intermolecular interactions was noticeably different (Fig. 3h and i). For example, at 77 K, the closest non-bonding distance between carbonyl-O and aromatic-H is 2.661 Å, which is smaller than the sum of their van der Waals radii (O: 1.52 Å; H: 1.20 Å), suggesting a stronger C–H⋯O interaction. At 298 K, the same distance is 2.728 Å, pointing at a weaker C–H⋯O interaction. Similarly, at lower temperature the π⋯π interaction arising from the stacked phenyl rings with a spacing of 3.995 Å is stronger than that at room temperature, where the phenyl rings are 4.060 Å apart. Furthermore, we generated Hirshfeld¹⁹ surfaces to visualize the extent of various intermolecular interactions (Fig. S11). The red contours on the Hirshfeld surface close to the carbonyl oxygen indicated a strong C–H⋯O interaction at low temperature. Therefore, the decrease in various interatomic distances with a concomitant drop in cell volume and increase in density implies that as temperature decreases, the crystal packing becomes more compact, resulting in stronger intermolecular interactions (Table S1). This explains the increase in the phosphorescence intensity and lifetime at 77 K.

Theoretical investigations

In order to understand the photoexcitation dynamics of DPB, we conducted theoretical investigations. The ground (S₀) state geometry was optimized by density functional theory (DFT) using the B3LYP exchange-correlation functional and 6–31 + g(d) basis set and the excited (S₁ & T₁) states were optimized by TDDFT using the CAM-B3LYP exchange–correlation functional and 6–31 + g(d) basis set. As depicted in Fig. 3j, S₀ has a twisted geometry with the carbonyls oriented at 117°; whereas the excited state is thermodynamically more stable in a flattened conformation (∼173°). Furthermore, the dihedral angle dependent potential energy curves for S₀, S₁ and T₁ clearly demonstrate a differential conformational preference in the ground and excited states (Fig. 3k). Therefore, the shift in the phosphorescence profile of the dilute solution of DPB at 298 K and 77 K stems from two distinct geometries of the emitting species. At 298 K, the free molecules in the solution quickly relax to a flattened or linear geometry post photoexcitation and emit lower energy photons. While at 77 K, when molecular motions are restricted in the frozen state, DPB is forced to emit from the S₀ optimized geometry, resulting in a blue-shifted emission profile.

The natural transition orbital (NTO) analysis of the S₀–T₁ transition in S₀ (117°), T₁ (173°) and crystal geometries (122°) revealed that the holes and electrons are localized over the carbonyls with a strong n–π* nature of the S₀–T₁ transition (Fig. S12). Strong n–π* nature and high SOCME 〈T₁|Ĥ_SO|S₀〉 between S₀–T₁ further explained the observed RTP in DPB. Furthermore, we looked at the oscillator strengths, relative energies of S_n and T_n, and the corresponding SOC matrix elements at different geometries. The oscillator strengths, summarized in Table S2, indicate that the experimental absorption maxima at 310 nm arise from the S₀–S₃ transition (π–π*), and the absence of emission from singlet state (fluorescence) is attributable to small oscillator strength (10⁻³–10⁻⁴) for the S₀–S₁ transition. Additionally, there exist multiple triplet states below S₁, with high S₁–T_n SOC. The NTO analysis of these states shows a change in the nature of the transition from n–π* in the case of S₁ to π–π* for T₂/T₃ which follows El-Sayed's rule²⁰ for enhanced ISC (Fig. S13). This opens ISC channels to populate the triplet state; S₁ to T₂ being the most probable pathway with high SOCME (>20 cm⁻¹). Therefore, the negligible oscillator strength of the S₀–S₁ transition, presence of multiple ISC channels and strong T₁/S₀ SOC promote efficient triplet emission.

Mechanism of RTP from DPB@BCA

With a comprehensive understanding of conformational dynamics of guest diphenylbenzil, we delved into detailed photophysical studies of DPB@BCA, prepared by externally doping diphenylbenzil in biphenyl-4-carboxylic acid, to elucidate the underlying mechanism of RTP in trace ‘impurity’ doped BCA. BCA doped with variable mol% of the guest was prepared by solvent evaporation from solutions of BCA containing variable amounts of DPB. As depicted in Fig. 4a, even 0.005 mol% of DPB induced observable RTP, which increased with the dopant concentration. Upon excitation at 320 nm, emission peaks at 340 nm, 515 nm, 575 nm and 635 nm emerged in the steady state photoluminescence spectrum, where the higher energy emission (340 nm) corresponds to host fluorescence. While in the time-gated mode, only peaks at 515 nm, 575 nm and 635 nm were seen, as the short-lived host fluorescence phased out within the applied gate window (Fig. S14a). The delayed emission resembled that of DPB in solution at room temperature (Fig. 4b), indicating the guest origin of the observed luminescence, with a lifetime of 1.5 ms (Fig. S14b).

Fig. 4 (a) Steady-state emission spectra (λ_ex 320 nm) of DPB@BCA at various dopant concentrations. (b) Photoluminescence spectra of DPB in ACN (298 K) and a BCA solid matrix. (c) Photoluminescence spectra (λ_ex 360 nm) of 0.5 mol% DPB@BCA at 298 and 77 K. (d) Schematic representation of guest incorporation inside the BCA matrix. Photoluminescence measurement at cryogenic temperature indicates that DPB adopts a linear conformation inside BCA.

The corresponding excitation (λ_em 575) spectrum exhibited a broad signature, with multiple local maxima at 320, 360 and 490 nm (Fig. S15a). However, the RTP profile was independent of the excitation wavelength (Fig. S15b), as well as remained unchanged irrespective of the guest concentration.

There are several reports where the origin of RTP in the host–guest system has been attributed to the crystal defects induced by the trace amounts of guests.^12a,c,12g However, no noticeable changes in the powder X-ray diffraction (PXRD) patterns for pristine BCA and 0.5 mol% DPB@BCA ruled out any morphological effect in our system (Fig. S16). Next, we carried out a detailed analysis of the RTP lifetime to extract more information. RTP decay profiles were obtained at different excitation and emission wavelengths. Interestingly, a comparable lifetime (1.4–1.5 ms) was observed in all combinations irrespective of dopant concentration (Table S3). Therefore, emissions at 515, 575 and 635 nm must originate from the same electronic state. Moreover, a single exponential decay indicates that the emission takes place from an exclusive molecular species/geometry, and no other competitive pathway is involved.

We arbitrarily chose a 0.5 mol% guest-doped system to conduct subsequent studies. We investigated the emission at a cryogenic temperature (77 K). To our surprise, it ensued orange emission, which was in sharp contrast to DPB in solution as it was green luminescent at cryogenic temperature. Spectral measurements revealed that the emissions at 77 K and 298 K were identical (Fig. 4c). However, the luminescence lifetime increased to 2.3 ms which followed a single exponential decay, ascertaining the triplet nature of the emission (Fig. S17). Therefore, unlike in the solution, DPB does not undergo any conformational change upon photoexcitation when incorporated into the BCA matrix. DPB seems to have a fixed geometry and the position of the RTP peak at 575 nm indicates that it most likely adopts a linear geometry (with the carbonyls oriented at about ∼173°) in the host matrix (Fig. 4d). Therefore, the BCA matrix selectively stabilizes a flattened conformation of DPB in the ground state; otherwise, the flattened conformation is thermodynamically stable only in the excited state, as manifested by theoretical and solution state studies. We scrutinized the excitation and absorption spectra of the host and guest@host to understand the mechanism of RTP, revealing an excellent correlation between the absorption and excitation spectra (Fig. S18). Interestingly, the spectral features of DPB@BCA RTP excitation (λ_em 575 nm), which is extended till 520 nm, is similar to BCA fluorescence (λ_em 340 nm) in the lower wavelength region, say to 320 nm (Fig. S18). Therefore, it is likely that under higher energy excitation, the host absorbs energy and relays it to the guest via energy transfer (ET), singlet-to-singlet (SSET) or triplet-to-triplet (TTET), with its feasibility being substantiated by the relatively higher S_n and T_n energy levels of BCA compared to those of DPB (Table S4 and Fig. S19). To be certain about the ET mechanism, the fluorescence lifetime of BCA was determined with and without the dopant.

The fluorescence lifetime of pristine BCA is itself too short (1.38 ns) to reliably be compared with that of the doped system. Nevertheless, a decrease in host lifetime was observed with an increase in guest concentration—the average lifetime dropped to 0.98 ns in 2.8 mol% DPB@BCA, indicating host-to-guest SSET under higher energy excitation (Fig. S20). However, the contribution of TTET cannot be ruled out in this case.

Furthermore, the spread of the RTP excitation profile to a longer wavelength, 330–500 nm, might result from the direct excitation of the guest or the presence of a charge transfer band. Like in a solution where DPB is in a molecularly dispersed state, a guest doped at such a lower concentration, e.g., 0.5 mol%, will be similarly dispersed inside the host–guest solid solution. However, unlike in solution, DPB exists in a linear conformation in the BCA matrix that may give rise to the observed bathochromic shift in excitation/absorption. TDDFT calculation indeed suggested a slightly different absorption profile for the linear conformation of DPB where the simulated spectrum of the linear conformer is about 30 nm shifted from that of the twisted conformer (Fig. S21). However, none of them have any significant absorption beyond 400 nm. Since neither BCA nor DPB absorbs beyond 400 nm, we reasoned that the broad low-intensity excitation band centered at 490 nm emerges from the charge transfer transition. Theoretical investigations unveiled the presence of a mixed state consisting of both charge transfer (CT) and local excitations (LE), which is characteristic for a one-to-one host–guest complexation (Fig. 5a). According to TDDFT calculation, the peak at 490 nm can be assigned to a mixed (CT + LE) state, with singlet and triplet energies of 2.39 eV and 1.83 eV, respectively (Fig. S22). It is worth reiterating that as evident from the experimental data, RTP emission originates exclusively from the guest triplet state (³LE_G), irrespective of the excitation wavelength. Therefore, at higher energy excitation (HEE), the matrix absorbs the excitation energy and relays it to the guest, whereas lower energy (LEE) irradiation induces a CT transition which in turn feeds the closely positioned LE_G, resulting in guest-centered emission (Fig. 5b).

Fig. 5 (a) NTO (S₀ → S₁) of BCA and the DPB complex showing formation of the mixed state, exhibiting of charge transfer (CT) and local excitation (LE) characteristics. (b) Simplified Jablonski diagram illustrating various photophysical events leading to RTP in DPB@BCA solid solution. Solid and dashed (cyan: SSET, purple: TTET, and red: ISC) arrows represent radiative and non-radiative transitions, respectively. The absence of any noticeable emission from the mixed state can be attributed to its poor value of SOCME (T₁/S₀) compared to that of guest DPB (linear conformer of DPB is considered as DPB adopts a flattened geometry in the BCA matrix).

RTP color tuning by the multi-host/guest strategy

The conformational variability in DPB and its influence on luminescence provides an opportunity to modulate the RTP color by synergistically controlling the ground and excited state geometries through a multi-host strategy. The remarkable RTP from DPB@BCA further encouraged us to explore other aromatic hosts. We chose biphenyl (BiPh), benzophenone (BP), benzoic acid (BA) and naphthalene (NaPh) due to the conducive positioning of their T₁ relative to DPB, which can potentially facilitate host-to-guest TTET, resulting in enhanced RTP (Fig. 6a). We also included poly(methyl methacrylate) (PMMA) as a non-aromatic polymeric host. All the hosts were recrystallized, and the purity was ascertained by HPLC before proceeding with the study (Fig. S23a). Guest@host materials can be prepared by solvent evaporation or the melt-casting method (details provided in the SI). To carry out a comprehensive investigation, we prepared 0.5 mol% DPB embedded materials and formation of solid solutions was confirmed by differential scanning calorimetry (DSC) measurements (Fig. S23b). The bicomponent solids exhibited RTP with variable emission color, ranging from green in PMMA to orange red in naphthalene (Fig. 6b). A similarity in the PXRD patterns of the pristine host and guest@host eliminates any influence of crystal defects on the observed RTP (Fig. S24). Instead, the conformation of the emitting species, i.e., DPB, seems to determine the emission color. A systematic spectroscopic investigation was carried out to rationalize the host dependency of RTP. Bicomponent materials containing aromatic hosts showed two sets of peaks in the steady-state photoluminescence spectra––emission at a shorter wavelength (300–400 nm) corresponds to intrinsic host emission, whereas the lower energy structured emission at 490–630 nm was similar to DPB emission in solution, suggesting that the emission at room temperature takes place from a linear conformation of DPB (Fig. S25). However, the PMMA matrix resulted in green RTP (540 nm), similar to that of crystalline DPB. Therefore, the intramolecular motion of DPB is strictly restricted in PMMA and forced to emit from a twisted conformer, ensuing green RTP. The Commission Internationale de l'Éclairage (CIE) plot of the RTP emission demonstrates host-dependent tunable emission from green to orange-red (Fig. 6c). The RTP lifetime varied (within a short range) across different host matrices—0.46 ms in BP to 1.45 ms in BCA (Table S5). Notably, the BiPh host resulted in a maximum quantum yield (Φ_RTP) of 26.4% (Table S6).

Fig. 6 (a) Schematic representation of guest doping into multiple hosts (respective T₁ energy²² is mentioned within parentheses). (b) RTP profile (gate time: 0.2 ms) of guest@host (guest concentration: 0.5 mol% in aromatic hosts and 1 wt% in PMMA) with various hosts. (c) Commission Internationale de l'Éclairage (CIE)-1931 plot of the RTP from 0.5 mol% DPB@BA/BP/NaPh/BiPh/BCA and 1 wt% DPB@PMMA. (d) Photoluminescence decay profiles (λ_ex 380 nm; λ_em 417 nm; monitoring the host emission lifetime) of BP and 0.5 mol% DPB@BP. (e) Steady-state photoluminescence spectra (λ_ex 380 nm) of anthracene and 0.5 mol% DPB@anthracene (inset: structure of anthracene).

Luminescence measurement at 77 K shed light on the geometry of DPB embedded in different host matrices (details in SI, Fig. S25). Briefly, in benzoic acid and the benzophenone host, it adopts a twisted geometry and experiences enough flexibility to undergo excited state conformational relaxation, as evident from distinct emissions at ambient and cryogenic temperatures. Therefore, they ensure a sufficiently rigid environment to activate guest RTP, but not enough to restrict geometrical relaxation. However, DPB is stabilized in a liner conformation inside the biphenyl matrix, as evident from identical phosphorescence profiles and mono-exponential luminescence decay. Therefore, biphenyl (BiPh) behaved like biphenyl-4-carboxylic acid (BCA), which may be attributed to the common biphenyl functionality in both the hosts. In contrast to other bicomponent materials, DPB@NaPh exhibited excitation-dependent dual emission at 77 K. When excited at 420 nm, emission at 530 nm dominated, whereas 365 nm excitation resulted in a structured emission centered at 580 nm. We reasoned that the volatility of naphthalene exposed the surface DPB molecules that no longer experienced matrix stabilization and eventually adopted a twisted conformation. On the other hand, DPB in the bulk host is stabilized in a linear geometry. The presence of two molecular species results in an excitation-dependent dual emission at 77 K—emission at 530 nm originating from the aggregated DPB molecules at the host surface, whereas DPB dispersed in the bulk host emits at 580 nm (see the SI for a detailed discussion). Thorough analysis of RTP excitation profiles of all the host–guest materials highlights some common features. For instance, a part of the RTP excitation spectra, high energy excitation, resembles the fluorescence excitation of the pristine host, implying RTP sensitization through host-to-guest energy transfer. On the other hand, lower energy excitation directly excites the embedded guest molecules. As described earlier, the decrease in BCA fluorescence lifetime and the conducive positioning of its triplet state strongly indicated ET processes. In a similar study, we compared the phosphorescence lifetime of benzophenone (BP) with and without guest doping. We monitored the phosphorescence decay at 417 nm to minimize interference from the guest emission. As shown in Fig. 6d, the phosphorescence lifetime of BP dropped from 0.35 ms in the pristine host to 0.19 ms in 0.5 mol% DPB@BP, attributable to the host-to-guest triplet-to-triplet energy transfer (TTET). Furthermore, to validate the role of host triplet energy, we selected a host with its T₁ lying below that of DPB, which would potentially quench the guest emission. We considered anthracene as its T₁ (1.83 eV) is energetically lower than that of DPB in either of the extreme geometries, twisted or linear. As anticipated, no distinguishable guest emission emerged from DPB@anthracene (Fig. 6e), clearly demonstrating that the properties of these bicomponent materials are strongly influenced by the host triplet energy. Moreover, we explored acyclic acids like palmitic acid and succinic acid as host matrices, but the emission was very weak, with Φ_RTP <1% for 0.5 mol% DPB-embedded materials (Fig. S26). Therefore, suitable aromatic hosts that can effectively restrict molecular motion and sensitize guest emission are necessary to activate RTP. We also investigated the stability of the doped systems, which ranges from weeks to months and depends on the host material. For example, the solid solutions in BCA, BiPh and NaPh were found to be stable for at least two months, whereas those in BP and BA were stable for 2–3 weeks when stored at 4 °C.

Unusual RTP in com-BDCA

Commercial biphenyl-4,4′-dicarboxylic acid (com-BDCA) is usually produced by a Friedel–Crafts reaction that proceeds via benzil type intermediates.^15b Therefore, it is plausible that com-BDCA may contain trace amounts of diphenylbenzil derivatives. We were curious to investigate the emission profiles of BDCA obtained from commercial sources (Aldrich and Fluka). As shown in Fig. 7a and S27a, com-BDCA exhibited an intense and broad fluorescence, with a maximum at 400 nm, in the steady-state mode, but no distinct lower energy (∼570 nm) emission peak. However, when the spectra were obtained with a 0.2 ms gate-time, weak emissions at 515, 570 and 625 nm were observed. The positions of the peaks were comparable to the RTP emissions of our lab-prepared bicomponent materials with a lifetime of ∼1.3 ms (Fig. 7b and S27b). Therefore, RTP in com-BDCA is discernible only in the time-gated mode as intense BDCA fluorescence, which shadows the weak phosphorescence, phases out within the applied gate window. Furthermore, to prove that the source of this weak RTP is some impurity in the commercial samples, we synthesized BDCA in the lab via a cross-coupling reaction (cc-BDCA), which did not show any noticeable emission at around 570 nm, not even in gated spectra (Fig. 7c). However, just like com-BDCA, intrinsic fluorescence with λ_max at 400 nm can be observed in the steady-state spectrum. Next, we embedded DPB in cc-BDCA. Interestingly, it activated the RTP with emission peaks at 515, 570 and 625 nm, which even showed up in the steady-state spectrum, with a lifetime of 1.4 ms (Fig. 7d and e). Therefore, the RTP in com-BDCA must be induced by some trace impurities, very likely by diphenylbenzil based impurities (Fig. 7f). Unfortunately, despite several attempts, we could not detect any potential impurities by HPLC (Fig. S28), possibly because the concentration was too small to detect, and it requires <0.01 mol% of DPB to activate RTP. Nevertheless, we crystallized com-BDCA to increase its purity. Surprisingly, the RTP intensity increased upon crystallization (Fig. S29), which can be attributed to the ordered arrangements of BDCA molecules that efficiently impeded molecular motion of the impurities incorporated in the crystals.

Fig. 7 (a) Photoluminescence spectra (λ_ex 340 nm) and (b) RTP decay profile (λ_ex 340 nm; λ_em 570 nm) of commercial BDCA (Aldrich). (c) Photoluminescence spectra of lab synthesized BDCA (cc-BDCA). (d) Emission (λ_ex 340 nm) and (e) RTP decay profile (λ_ex 340 nm; λ_em 570 nm) of 0.1 mol% DPB-embedded pure BDCA (cc-BDCA). (f) Schematic representation of the diphenylbenzil-based impurity in commercial BDCA.

Conclusions

In conclusion, this exploratory research describes how the comparison between two different sources of biphenyl-4-carboxylic acid (BCA), synthesized from two different synthetic routes in combination with strenuous analytical exercise, led us to successfully isolate and characterize trace impurities that engendered remarkable RTP in organic matrices. Diphenylbenzil (DPB) and its derivatives activate intense and tunable RTP in organic matrices even at < 0.1 mol% concentrations, facilitated by simple mixing such as solvent evaporation or melt-casting. The comparison of luminescence properties at cryogenic and ambient temperatures, host luminescence lifetimes, DSC and XRD analysis complemented with TDDFT studies shed light on the mechanism of RTP in bicomponent solid solutions, which suggested that the observed RTP was purely of guest origin. However, multiple energy transfer pathways, such as SSET or TTET and the generation of mixed states (CT + LE), have been elucidated, leading to enhanced RTP performance. The variation in RTP color is attributed to the host controlled photoexcited conformational dynamics of dipenylbenzil, revealing a novel approach for developing RTP materials with tunable optical features by concertedly controlling the ground and excited state geometries of a single guest molecule. Notably, with a careful selection of the host environment, we could selectively stabilize the linear geometry of DPB at the ground state, which is otherwise infeasible, resulting in good quantum efficiency for lower energy RTP. This easy-to-prepare, trace ingredient doping strategy represents a facile way of designing RTP materials with high efficiency, tunability and low-cost, which can find potential applications in time resolved (bio)imaging, multicolor display, information encryption, etc. During our investigation, Chen et al. reported two benzil derivatives, 4,4′-dimethylbenzil and 4,4′-di-tert-butylbenzil, exhibiting cyan to yellow RTP in different polymeric hosts, where some of them stabilized the ground sate geometry of the phosphor.²³ However, unlike our present studies, no selective stabilization of the linear geometry was reported, resulting in poor RTP quantum yield for lower energy emission.

Our investigation simultaneously raises suspicion regarding the purity of biphenyl-4,4′-dicarboxylic acid obtained from commercial sources (com-BDCA). We showed that com-BDCA exhibits RTP which is absent in lab-synthesized BDCA (cc-BDCA), strongly indicating the presence of benzil-based impurities. However, the identity of the impurities remains elusive. In line with the growing concerns on the impact of impurities on RTP emission, our finding reiteratively emphasizes the conscientious analysis of sample purity and being apprehensive about the justification forwarded to explain the observation, especially when a system exhibits unusual properties.

Author contributions

A. D. carried out all the experimental work. U. S. performed theoretical calculations. S. K. P. and U. M. supervised the project. A. D. wrote the initial draft. U. S., S. K. P. and U. M. edited the manuscript. All authors have given approval to the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

CCDC 2427013 and 2427014 contain the supplementary crystallographic data for this paper.^24a,b

All the experimental and computational data are provided in the supplementary information (SI). Supplementary information is available. See DOI: https://doi.org/10.1039/d5sc08129g.
