The glass transition width and its dependence on fragility, nonexponentiality and nonlinearity

Abstract

This paper presents a comprehensive and critical analysis of the glass transition width or the reduced width observed in simulated differential scanning calorimetry (DSC) heating and cooling scans. The study employs the Tool-Narayanaswamy-Moynihan model (TNM) for 24 diverse materials, encompassing inorganic glasses, organic polymers and molecular glassy systems. The analysis reveals an important novel finding. The width (or the reduced width) of the glass transition cooling scan is shown to be inversely proportional to the activation energy (h*/R), or fragility index (m), as well as the sum the non-exponentiality β and nonlinearity x parameters, following the relationship: [(h*/R) × (β + x)]⁻¹ or [m × (β + x)]⁻¹. With precise determinations of T_g and , the estimated sum of (β + x) achieves an accuracy comparable to Hutchinson's established peak shift method.

---

1. Introduction

The glass transition, defined as the continuous transformation of a supercooled liquid into a glassy state upon cooling to sufficiently low temperatures, is an essential feature of all glassy materials, including organic polymers, oxides, chalcogenides, metallic alloys, and molecular systems. This phenomenon is primarily kinetic; nonetheless, it exhibits distinct thermodynamic characteristics – such as a step change in heat capacity or thermal expansion coefficient – resulting from the loss of configurational degrees of freedom as molecular motion is arrested.

Over 30 years ago, Moynihan's work¹ established a correlation between the width of the glass transition region (as measured by Differential Scanning Calorimetry, DSC) and the activation energy (h*/R) for the structural relaxation of high-T_g inorganic glasses. Moynihan defined a dimensionless parameter, C, as a constant specific to certain inorganic glasses.^1,2 This parameter is derived from the reciprocal temperatures at the onset (1/T_g) and end of the glass transition on a DSC thermogram:

The eqn (1) is valid provided that the ratio of cooling to heating rates |q_c/q_h| remains fixed. Moynihan¹ also determined that T_g and for a given glass remain invariant, within experimental error, as long as the cooling/heating rate ratio stays within the range of 0.2 to 5. This correlation was later extended to molecular glasses by combining DSC and dielectric relaxation data and utilizing the F_1/2 fragilities.³

However, this extension of the Moynihan correlation has been challenged. Johari et al.⁴ used simulations to show that a simple relationship between the DSC endotherm width and the non-Arrhenius temperature dependence of a liquid's kinetic property requires explicitly including the distribution of relaxation times. The method's general applicability was further questioned by Hancock et al.,⁵ who tested it on various pharmaceutical glass-forming materials. They concluded that the conditions required for eqn (1) to be universally applicable with a constant C are not met for a wide range of glassy materials.

Pikal et al.⁶ later provided a detailed analysis of experimental data for (poly)vinyl pyrrolidone, sucrose, and trehalose. Their approach, which combined various experimental procedures combined with simulations of theoretical curves, was equivalent to the comprehensive Tool-Narayanaswamy-Moynihan (TNM) formalism. Within this work, Pikal et al. found that a modification of Moynihan's original equation provides a much better correlation for both their experimental and simulated data.⁶ This modified equation incorporates the stretched exponential parameter β (a measure of non-exponentiality) to more accurately describe the relaxation behaviour of these glassy materials. They reformulated eqn (1) to account for this non-exponentiality:

In this equation, and C′ is a constant.

Building on this, Chen et al.⁷ reported that the reduced glass transition width, ΔT_g/T_g, is influenced by the fragility index, m = (h*/RT_g)/ln(10), and the stretched exponential parameter, β. In contrast, they found no significant relationship between the nonlinearity parameter (x of the TNM model) and ΔT_g/T_g. More recently, Bogdanova and Kocherbitov⁸ applied this formalism to a sucrose–water system and arrived at very similar conclusions, corroborating the findings of Chen et al. This convergence suggests that the relationship between fragility, non-exponentiality, and the width of the glass transition may hold for a broader class of glassy materials.

In his seminal papers,^9,10 Donth utilized the glass transition width determined from DSC thermograms even earlier than the aforementioned studies.^1–8 By assuming mean temperature fluctuation within cooperatively rearranging regions (CRRs), Donth proposed a method to estimate average size of these thermodynamic subsystems based on the shape of thermal relaxation spectrum. This approach has since been applied to the analysis of conventional, modulated, and fast DSC data for polymers, a-Se,¹¹ and metallic glasses.¹² Recently, Schawe et al.,¹³ compared the characteristic length of dynamic heterogeneities across a wide range of glass-formers. Their work discussed the correlation between chemical structure, the size of dynamic heterogeneities, and the macroscopic kinetics of the glass transition, revealing nearly universal behaviour among studied systems.

Previous studies^1–8 were restricted to analyzing heating DSC curves, typically measured or simulated immediately after a prior cooling from equilibrium supercooled liquid well above the glass transition. This paper provides a comprehensive and critical analysis of the glass transition width within a DSC thermal cycle, utilizing simulated cooling and subsequent heating curves based on TNM parameters for 24 diverse materials, including inorganic glasses to organic polymers and some molecular systems. The results indicate that the width of the cooling DSC curve exhibits an inverse proportionality to the material's fragility and to the combined sum of the non-exponentiality (β) and nonlinearity (x) parameters.

2. The TNM model

The Tool-Narayanaswamy-Moynihan (TNM) formalism, an important model for structural relaxation in glassy materials, integrates three fundamental concepts. The first concept, introduced by Tool,^14,15 posits that relaxation time depends on both temperature T and the material's actual structure, represented by the fictive temperature T_f. The fictive temperature essentially defines the temperature at which an equilibrium supercooled liquid would possess the same structure as the non-equilibrium glass. It is defined by an empirical equationwhere 0 < x ≤ 1 is the nonlinearity parameter, h*/R is the effective activation energy and A is an adjustable parameter. An alternative approach provides a natural separation of T and T_f. Building on the Adam–Gibbs¹⁶ cooperative relaxation theory, Hodge¹⁷ derived the following expression for relaxation time:where τ₀ is a constant and Q = N_As*Δμ/k_BC. In the Adam–Gibbs theory, s* and Δμ represent the minimum entropy required for rearrangement and the activation energy for a single rearrangement, respectively. The parameter T₂ is conceptually similar to the Fulcher or Kauzmann temperature and C is the extrapolated value of the configurational heat capacity at that temperature. In the equilibrium state above the glass transition where T_f = T, eqn (3b) reduces to the Vogel–Fulcher–Tammann equation with T₀ = T₂. Comparing eqn (3a) and (3b), the nonlinearity can be expressed as T₂/T_g ≅ (1 − x).

The second essential concept was introduced by Narayanaswamy.¹⁸ According to his model, the structural relaxation should be linear in terms of the material (or reduced) time defined by

Material time quantifies how fast individual processes take place during physical aging, effectively reflecting the existence of a material ‘inner clock.’ While Dyre¹⁹ later utilized the nonlinear fluctuation-dissipation theorem to derive the TNM phenomenological theory and suggested a pathway connecting this concept with material time in rheology, it is interesting to note that Hopkins²⁰ proposed a similar concept for stress relaxation in viscoelastic substances under varying temperature even earlier than the Narayanaswamy's seminal paper. More recently, Douglas and Dyre²¹ have suggested that the inherent harmonic mean-square displacement – which emphasizes the behaviour of the slowest-moving particles – is likely the key quantity controlling material time.

The third fundamental concept integrates Tool's fictive temperature with the material-time concept. Mazurin et al.²² and Moynihan et al.,^23,24 employed the stretched exponential function, ϕ, to account for the nonexponentiality of the structural relaxation, as shown in eqn (5).

ϕ = exp(−ξ^β) (5)

In this equation, the non-exponentiality parameter 0 < β ≤ 1 is inversely proportional to the width of the distribution of relaxation times. Together, eqn (3a), (4), and (5) fully constitute the Tool-Narayanaswamy-Moynihan formalism, a cornerstone model for understanding structural relaxation in glassy materials.^23,24

3. Simulation of DSC curves in the glass transition range

The structural relaxation is usually simulated in terms of evolution of the fictive temperature for a well-defined time-temperature protocol. This protocol captures the entire thermal history of a glassy material from the very first moment of its departure from metastable equilibrium supercooled liquid well above the glass transition. The structural relaxation can be described by combining the material-time concept (eqn (4)), and the Boltzmann superposition principle for any given time-temperature protocol.²⁴

For practical implementation, the protocol is often discretized into several consecutive steps, which may involve a heating/cooling ramp or isothermal annealing. For the TNM model, the evolution of the fictive temperature during continuous heating or cooling at a constant rate q_k = dT/dt (negative for cooling) then can be expressed²² by eqn (6a) and (6b):

where T_ini is the initial temperature corresponding to the metastable equilibrium supercooled liquid, where T_f(T_ini) = T_ini. Eqn (6a) represents an implicit function for the relaxation time τ_k, as its expression depends on the function's value itself – specifically, the fictive temperature at the end of the previous step, T_f,k−1. The heating or cooling experiment is modelled using small discrete temperature steps, ΔT_k ≈ 100 mK, with the fictive temperature calculated iteratively at the end of each temperature step, using eqn (6a) and (6b). To maintain linearity within these subintervals, ΔT_k must be sufficiently small that T_f decays by less than approximately 100 mK between steps. The temperature derivative of the fictive temperature dT_f/dT following the n-th step is obtained from the following equation²⁴

Fig. 1b shows a thermal cycle, illustrating the simulated cooling (#1) and subsequent heating (#2) curves from eqn (6) and (7) using an identical scanning rate q = ±10 K min⁻¹. The cooling (dT_f/dT) curve exhibits a simple sigmoidal shape, contrasting sharply with the more complicated heating curve, which features kinetic phenomena such as a minimum (undershoot) and maximum (overshoot). Fig. 1a clearly indicates that the limiting fictive temperature T_lim is identical for both scans – a characteristic result for this type of thermal cycle. T_lim is situated close to the inflectional point of the cooling curve and the extrapolated onset of the heating curve (T_g).

Fig. 1 The fictive temperature T_f and its derivative dT_f/dT, calculated using eqn (6) and (7) for the TNM parameters: h*/R = 51.2 kK, ln(A/s) = 90.8, x = 0.96, β = 0.84. The temperature program used was T_ini = 310 °C, q_c = −10 K min⁻¹, q_h = +10 K min⁻¹. Open triangles mark inflection points. Full circles and full squares indicate the extrapolated inflectional tangent intersection with dT_f/dT = 0 and dT_f/dT = 1 lines, respectively. Inflectional tangents for heating data are represented by dashed lines, while those for cooling data use solid line. Arrow indicates limiting fictive temperature.

The derivative dT_f/dT in fact corresponds to the heat capacity C^N_p, which is equivalent to a DSC curve scaled between 0 and 1:

where C_pg and C_pl are heat capacities of the glass and supercooled liquid, respectively. Any experimental DSC data can easily be converted to C^N_p versus T dependence by using the eqn (8).

To demarcate the lower end of the glass transition region for DSC heating curve Moynihan¹ used “extrapolated temperature of onset of rapid rise of the C_p vs. T curve, T_g”, as shown in Fig. 1b. To demarcate upper end of the glass transition for heating DSC data “the extrapolated temperature of completion of the overshoot, was used.” However, this manual approach is inadequate for the precise numerical analysis of simulated DSC data. To overcome this limitation, we propose a refined numerical procedure. Step 1: the inflection points of the simulated DSC heating data are first determined numerically; step 2: tangents are then calculated at these inflection points using linear regression, based on 10 to 20 adjacent data points to ensure a correlation coefficient greater than 0.9999; step 3: the intersections of these tangents define the characteristic temperatures: T_g is the intersection with dT_f/dT = 0, and is the intersection with dT_f/dT = 1. The dashed lines in Fig. 1b illustrate this; the same procedure was similarly employed for the analysis of simulated DSC cooling data, which is represented by the solid line in Fig. 1b.

4. Results and discussion

Table 1 presents a selection of previously reported Tool-Narayanaswamy-Moynihan (TNM) parameter sets for 24 diverse materials, encompassing a wide range of properties. The apparent activation energies of these materials span from 12 to 225 kK. Similarly, the nonlinearity parameter x varies from 0.10 to 0.96, and the non-exponentiality parameter β ranges from 0.23 to 0.86. This broad range ensures a comprehensive test of validity of the eqn (1) and (2) across different material types.

Table 1 The TNM parameters for selected non-crystalline materials reported in literature^17,24–43

Material	h*/R [kK]	−ln(A/s)	x	β	Ref.
PVC	225.0	622.0	0.10	0.23	17
PMMA	138.0	357.8	0.19	0.35	17
PS bulk	83.4	212.5	0.18	0.43	25
ZBLA	165.0	282.6	0.19	0.50	26
Li2O·SiO2	111.8	150.8	0.27	0.48	27
PC	150.0	353.6	0.22	0.54	28
Glycerol	16.0	81.0	0.29	0.51	29
EG gel	12.0	75.5	0.46	0.39	26
PVAc	71.3	223.6	0.35	0.57	30
PS	126.6	334.7	0.29	0.69	31
Se	42.8	133.0	0.42	0.58	32
TPD bulk	109.5	321.0	0.64	0.37	33
B2O3	45.0	75.6	0.40	0.65	24
LiCl gel	12.0	70.5	0.67	0.39	26
ASAHI plate glass	73.0	83.8	0.45	0.62	34
As2S3	32.4	62.1	0.31	0.82	35
Se70Te30	34.5	100.0	0.43	0.73	36
As2Se3	41.0	85.5	0.49	0.67	37
(GeSe2)30(Sb2Se3)70	62.1	120.0	0.52	0.67	38
(GeS2)30(Sb2S3)70	60.2	113.0	0.57	0.72	39
NBS711	45.0	57.4	0.65	0.65	40
P-SK57	82.2	101.5	0.75	0.77	41
(GeS2)50(Sb2S3)50	51.2	90.8	0.75	0.86	42
(GeTe4)60(GaTe3)40	40.9	91.9	0.96	0.84	43

---

A complete DSC thermal cycle, – specifically, cooling scan #1 (−10 K min⁻¹) from the equilibrium supercooled liquid at T_ini to a temperature well below T_g, followed by subsequent heating scan #2 (+10 K min⁻¹) back to T_ini – was calculated using eqn (6) and (7) for all TNM parameter sets listed in Table 1 (see SI). These simulated curves are analyzed separately in the following sections.

4.1. Analysis of simulated DSC heating scans

Moynihan's proposed eqn (1) suggests that , derived from simulated DSC heating scans (+10 K min⁻¹), multiplied by the reduced activation energy of structural relaxation h*/R, should equal a constant parameter, C. However, our analysis of 24 diverse materials from Table 1 demonstrates that C depends on the non-exponentiality parameter β (Fig. 2a), a finding previously observed by several authors.^6–8 For the specific range of β the values of C approximate Moynihan's proposed constant (C ≅ 4.8).¹

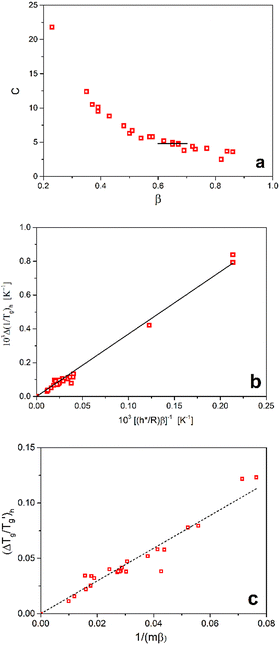

Fig. 2 Analysis of heating DSC scans (q_h = +10 K min⁻¹) following cooling from equilibrium supercooled liquid (q_c = −10 K min⁻¹), simulated using the TNM parameters from Table 1 (points). (a) Dependence of parameter C (eqn (1)) on β. (b) Glass transition width (eqn (9)) as a function of [(h*/R) × β]⁻¹. (c) Reduced glass transition width (eqn (10)) as a function of [m × β]⁻¹. Solid and dashed lines represent linear regressions, with slopes D = 3.69 ± 0.06 and D′ = 1.48 ± 0.04, respectively.

Eqn (1) can thus be reformulated into a different form

that resembles eqn (2) proposed by Pikal et al.⁶ A plot of Δ(1/T_g)_h vs. [β(h*/R)]⁻¹ should produce a straight line passing through the origin, with a slope equal to D, as illustrated in Fig. 2b. Linear regression confirms this relationship, yielding a proportionality constant D of 3.69 ± 0.06 (R² = 0.993).

Alternatively, the reduced glass transition width can be expressed . Eqn (1) can then be rewritten in the following form

where m is the fragility index and D′ ≅ D/ln(10). The fragility index in this study is defined as m = (h*/RT_g)/ln(10), although alternative definitions of fragility have recently been discussed in the literature.⁴⁴ A plot of should yield a straight line passing through the origin (Fig. 2c). Linear regression validates this relationship, with the proportionality constant D′ found to be 1.48 ± 0.04 (R² = 0.980).

4.2. Analysis of simulated DSC cooling scans

A similar relationship to eqn (1) can be assumed for cooling DSC scansThe determination of T_g and followed the procedure detailed in Section 3. The inflection point was first calculated numerically from the simulated DSC cooling data. A tangent was then fitted to this point via linear regression of twenty nearest data points, ensuring a correlation coefficient better than 0.9999. As illustrated by a solid line in Fig. 1b, T_g and are defined by the intersection of this tangent line with dT_f/dT = 0 and dT_f/dT = 1, respectively.

In contrast to the heating scan analysis, Fig. 3a illustrates that the parameter E for cooling process is dependent on the sum of both nonexponentiality and nonlinearity parameters, specifically (β + x). Consequently, eqn (11) can be rewritten as

Thus, a plot of Δ(1/T_g)_c vs. [(h*/R) × (β + x)]⁻¹ is expected to yield a straight line that passes through the origin (Fig. 3b). The proportionality constant F, determined via linear regression, is 9.7 ± 0.2 (R² = 0.992).

Fig. 3 Analysis of cooling DSC scans (q_c = −10 K min⁻¹) from equilibrium supercooled liquid, simulated using the TNM parameters from Table 1 (points). (a) Dependence of parameter E (eqn (11)) on (β + x). (b) Glass transition width (eqn (12)) as a function of [(h*/R) × (β + x)]⁻¹. (c) Reduced glass transition width (eqn (13)) as a function of [m × (β + x)]⁻¹. Solid and dashed lines represent linear regressions, with slopes F = 9.7 ± 0.2 and F′ = 4.10 ± 0.07, respectively.

Similarly, mirroring the observation for the heating scan, the reduced glass transition width for cooling can be expressed as

where m = (h*/RT_g)/ln(10) is the fragility index and F′ ≅ F/ln(10). A corresponding plot of versus [m×(β + x)]⁻¹ should also produce a straight line passing through the origin (Fig. 3c). The proportionality constant F′ found by this linear regression is 4.10 ± 0.07 (R² = 0.992).

If the glass transition width Δ(1/T_g)_c is obtained from the cooling scan, eqn (12) can potentially be used to estimate the value of the sum (β + x), provided the activation energy is known. However, such an estimated value is often distorted (usually overestimated), carrying an error margin of about 0.2. Very similar results are obtained when applying eqn (13). Applying the same procedure to heating scans provides even less reliable results; the error margins for the values of β obtained from eqn (9) and (10) exceed 0.2. The primary challenge across all these estimations lies in the uncertainties associated with the accurate determination of Δ(1/T_g)_h and . It appears that even the modified procedure detailed earlier in this paper does not provide satisfactory results for accurately determining the nonexponentiality and nonlinearity parameters.

As already pointed out by Johari et al.,⁴ it is advantageous to use a more self-consistent method for determining Δ(1/T_g) and . In this approach, T_g is defined as the temperature at which the normalized heat capacity (C^N_p ≡ dT_f/dT) equals a specific value z. Subsequently, is determined as the temperature where the normalized heat capacity reaches a value 1 − z. Fig. 4 illustrates this determination for DSC cooling scans at different scanning rates calculated for PVC and As₂S₃.

Fig. 4 Determination of the T_g and (for z = 0.15) from simulated cooling DSC scans for PVC (a) and As₂S₃ (b). Curves are shown for various scanning rates using TNM parameters listed in Table 1.

Fig. 5a represents a plot of Δ(1/T_g)_c versus [(h*/R) × (β + x)]⁻¹, determined using DSC cooling scan at −10 K min⁻¹ and a value z = 0.15 for all TNM parameter sets listed in Table 1. Linear regression of this data yields the proportionality constant F = 9.33 ± 0.05 (R² = 0.999). Similarly, Fig. 5b shows a plot of versus [m×(β + x)]⁻¹ for the same TNM parameter sets and z value. The resulting proportionality constant F′ is 3.98 ± 0.03 (R² = 0.998). These dimensionless constants, F and F′ ≅ F/ln(10) are invariant across different cooling rates and TNM parameter sets. They solely depend on quantity z that has been used for their determination. Table 2 provides their values for selected values of z.

Fig. 5 Analysis of simulated cooling DSC scans (q_c = −10 K min⁻¹) using TNM parameters from Table 1 (points). (a) Glass transition width defined by eqn (12). (b) Reduced glass transition width defined by eqn (13). Lines represent linear fits with F = 9.33 ± 0.05 (solid line) and F′ = 3.98 ± 0.03 (dashed line). T_g and values were determined using the procedure defined in Fig. 4 with z = 0.15.

Table 2 The proportionality constants defined by eqn (12) and (13), determined for various values of parameter z as illustrated in Fig. 4

z	F	F′
0.01	25.2 ± 0.4	10.8 ± 0.3
0.05	16.1 ± 0.1	6.9 ± 0.1
0.10	11.89 ± 0.06	5.08 ± 0.05
0.15	9.33 ± 0.05	3.98 ± 0.03
0.20	7.39 ± 0.04	3.15 ± 0.02
0.25	5.84 ± 0.04	2.49 ± 0.02
0.30	4.45 ± 0.03	1.90 ± 0.01
0.35	3.24 ± 0.03	1.38 ± 0.01
0.40	2.13 ± 0.02	0.904 ± 0.008

---

4.3. Estimation of nonexponentiality and nonlinearity

Utilizing the method detailed in Fig. 4 (for z ≥ 0.15) for cooling DSC scans allows for estimation of (β + x) values from eqn (12) and (13) with significantly higher precision than achievable with Moynihan's method, assuming the activation energy (h*/R) or fragility m is known (Fig. 3 and 5). The error margin for the resulting (β + x) values is typically less than 0.1. This accuracy aligns with the typical error in the nonlinearity parameter x estimated via the peak shift method proposed by Hutchinson,^45,46 and validated in recent extensive testing.⁴⁷ Paradoxically, the method suggested by Johari et al.⁴ does not perform adequately for the heating scans for which it was originally proposed; the linear fit is considerably poorer and the error margins significantly exceed those of the corrected Moynihan's method.

Moynihan et al.^23,48 established that the glass transition temperature T_g is related to cooling rate q_c by the following equation:

Fig. 6 displays the T_g derived from cooling scans of PVC using data from Fig. 4, plotted in accordance with eqn (14). The slope of the linear ln|q_c| versus 1/T_g plot directly yields the activation energy h*/R. For PVC we determined h*/R to be 225.5 ± 0.8 kK (R² = 0.9999), and for As₂S₃ 33.37 ± 0.02 kK (R² = 1). These values slightly overestimate (by about 0.5–1 kK) the parameters used in TNM model calculation of cooling curves, which appears to be an inherent characteristic of eqn (14).⁴⁹ Nearly identical values are obtained for data, confirming that both linear dependences are parallel. Consequently, their differences remain constant regardless of the scanning rate: Δ(1000/T_g)_c = 0.1270 ± 0.0002 K⁻¹ for PVC and 0.2676 ± 0.0001 K⁻¹ for As₂S₃. By inserting these values Δ(1/T_g)_c, (h*/R) and F (for z = 0.15) into eqn (12) we estimate (β + x) values of 0.33 for PVC and 1.08 for As₂S₃. Similarly, we can find the reduced glass transition widths: for PVC and 0.1153 ± 0.0059 for As₂S₃. By inserting these values, fragility m and the proportionality constant F′ (for z = 0.15) into eqn (13) we estimate (β + x) values of 0.32 for PVC and 1.09 for As₂S₃. All calculated values exhibit good agreement with the established parameters for these materials listed in Table 1.

Fig. 6 Determination of the activation energy (h*/R) and the glass transition width Δ(1000/T_g)_c using the cooling curves for PVC and As₂S₃ presented in Fig. 5.

Combining eqn (12) and (14) yields the following relationship:

where ln|q₁/q₂| = ln|q₁| − ln|q₂| is obtained at the constant value of 1000/T, as indicated in Fig. 7b. An obvious advantage is that, according to this relationship, the sum of the parameters (β + x) can be estimated even without explicit knowledge of the activation energy value.

Fig. 7 (a) Determination of T_g and (at z = 0.3) from simulated cooling DSC scans of (GeTe₄)₆₀(GaTe₃)₄₀ glass at various scanning rates using TNM parameters from Table 1. (b) Evaluation of ln|q₁| and ln|q₂| at 1000/T = 2.4 K⁻¹ based on the cooling curves presented in Fig. 7a.

Fig. 7a displays the calculated curves for various cooling rates of the (GeTe₄)₆₀(GaTe₃)₄₀ chalcogenide glass,⁴³ including the determination of the T_g and values for z = 0.3. Fig. 7b presents the linear dependencies ln|q_c| versus 1000/T, from which ln|q₁| and ln|q₂| are determined. Linear regression of these plots yields ln|q₁/q₂| = 2.40 at 1000/T = 2.4 K⁻¹. Using eqn (15) and the factor F corresponding to z = 0.3 (Table 2), an estimate of (β + x) = 1.85 ± 0.03 is obtained, which agrees well with the parameters for this material listed in Table 1. Similarly, ln|q₁/q₂| values of 8.92 for PVC and 28.76 for As₂S₃ are estimated from the data shown in Fig. 4. Applying eqn (15) with F corresponding to z = 0.15, yields (β + x) estimate of 0.32 ± 0.03 for PVC and 1.05 ± 0.03 for As₂S₃; these results closely match the values in Table 1. While the nonlinearity and nonexponentiality parameters cannot be extracted separately from the glass transition width of cooling DSC scans alone, they can easily be resolved from the temperature down-jump and up-jump experiments of the same magnitude.^50,51

Measuring DSC cooling curves across a wide range of scanning rates can be challenging. The primary difficulty lies in achieving high cooling rates, particularly at lower temperatures. Conversely, at low cooling rates, a significant level of noise can complicate experimental data, especially for systems exhibiting only a small change in ΔC_p in the glass transition region. Given these limitations, dilatometric experiments, especially modern implementations like spectroscopic ellipsometry,⁵² appear to be more suitable. If the glass transition cannot be reliably measured across different cooling rates, then eqn (15) is inapplicable. However, the parameter E, defined by eqn (11), remains applicable for (β + x) estimation in a single-cooling-rate experiment if the activation energy is known. Fig. 8a illustrates the dependence of E as a function of 1/(β + x) for all materials listed in Table 1 (points corresponding to data sets shown in Fig. 4 and 7 are highlighted).

Fig. 8 (a) Dependence of the parameter E (calculated by eqn (11)) on 1/(β + x). Green points represent data for all materials listed in Table 1. Solid lines represent linear regression fits. T_g and values were determined from cooling scans using the procedure shown in Fig. 4 for z = 0.15 (R² = 0.996) and z = 0.30 (R² = 0.992). Open triangles represent data reported by Chen et al.⁷ (b) Dependence of the parameter C (calculated by the eqn (1) using data shown in Table 1) on 1/β (red points). T_g and values were determined from heating scans according to the procedure described in Section 3. The solid line represents a linear regression fit (R² = 0.975). Open squares represent data and corresponding linear fit (R² = 0.857) extracted from Chen et al.⁷ Highlighted points represent data sets shown in Fig. 4 and 7.

The solid lines in Fig. 8a represent the result of linear regression: E = −0.42 + 9.61/(β + x) for z = 0.15 and E = 0.47 + 3.88/(β + x) for z = 0.30. For a rough estimate of the nonexponentiality, the parameter C, defined by eqn (1), can be used analogously. Fig. 8b illustrates its dependence on 1/β for all materials listed in Table 1. The determination of T_g and was performed according to the numerical procedure detailed in Section 3. The solid line in Fig. 8b represents the linear regression result: C = −3.84 + 5.57/β.

In their study, Chen et al.⁷ utilized the original Moynihan¹ graphical method with DSC experiments at a 20 K min⁻¹ heating rate to determine the T_g and values for approximately 70 molecular, metallic, oxidic, and other glass-forming systems, and reported their TNM parameters. The open data points shown in Fig. 8b represent the parameter C calculated for this dataset. The linear regression C = −4.84 + 6.59/β of Chen's data set is weaker (R² = 0.857) compared to stronger correlation observed for materials in Table 1 (R² = 0.975). More importantly, the slope of the C vs. 1/β dependence is steeper compared to our dataset (dashed line, Fig. 8b). This suggests that, the specific proportionality constant C might depend slightly on the methodology used to determine T_g and values.

Chen et al.⁷ do not provide measured cooling DSC curves; however, these curves can easily be obtained by simulation using the TNM parameters they report. In Fig. 8a, the open points represent the parameter E obtained by eqn (11), using the T_g and values determined via the Johari method (as described in Section 4.2, with z = 0.15 and 0.30, for simulated cooling curves at q_c = −10 K min⁻¹). The results show excellent agreement with both the data and the linear fit for all materials listed in Table 1. This demonstrates that the Johari method provides highly robust and reliably reproducible T_g and values, facilitating meaningful comparison across different materials. Consequently, the proportionality constant E remains invariant for a given value of z. In contrast, the analysis of heating scans may introduce systematic inaccuracies in the glass transition width that significantly exceed typical expectations.

5. Conclusions

The glass transition width Δ(1/T_g) or the reduced width derived from DSC heating and cooling scans was comprehensively analyzed across 24 diverse materials, including inorganic glasses, organic polymers, and select molecular systems. An analysis employing the Tool-Narayanaswamy-Moynihan (TNM) model revealed significant differences between the cooling and heating processes.

The width of the glass transition during cooling scans from metastable equilibrium supercooled liquid is independent on scanning rate. Instead, it is inversely proportional to the activation energy or the fragility index m, and the sum of the nonexponentiality β and nonlinearity x parameters: [(h*/R) × (β + x)]⁻¹ or [m × (β + x)]⁻¹. Notably, applying the method proposed by Johari⁴ for cooling DSC scans allows for the estimation of the (β + x) value with an accuracy comparable to that achieved via the established Hutchinson's peak shift method.^45,46

In contrast the glass transition width of heating scan is influenced by both the current heating rate and the previous cooling rate. This width is inversely proportional to the activation energy or fragility, and solely the nonexponentiality parameter: [(h*/R) × β]⁻¹ or [m × β]⁻¹. However, the β value estimated from the glass transition width of heating scans is considerably less accurate than the (β + x) derived from cooling scans.
