Controlled sulfidation of silver: a pathway to Ag₂S for short-term synaptic emulation

Abstract

Neuromorphic computing demands scalable, energy-efficient synaptic devices, yet conventional synthesis routes impose prohibitive cost and complexity barriers. This work presents a transformative strategy for material design in which room-temperature exposure to hydrogen sulfide gas converts thermally deposited silver films into phase-pure monoclinic α-Ag₂S, a superionic conductor well-suited for electrochemical metallization (ECM) switching. Structural characterization confirms complete FCC-to-monoclinic phase transformation within 48 hours. Planar Ag/Ag₂S/Ag memristors fabricated from these films exhibit robust unipolar resistive switching with exceptional reproducibility across 16 devices. Systematic pulse-train studies reveal consistent short-term plasticity (STP) behavior, with volatile retention averaging ∼49 seconds at 100 µA compliance. This synthesis approach eliminates vacuum processing requirements, enabling the scalable production of high-performance α-Ag₂S switching layers. This positions ECM devices as accessible and practical elements for neuromorphic hardware.

---

1 Introduction

The exponential growth of data-intensive applications has intensified the demand for computing architectures that transcend the von Neumann bottleneck inherent to conventional digital processors. Neuromorphic computing, inspired by the brain's massively parallel and energy-efficient signal processing, has emerged as a promising paradigm shift.¹ Synaptic devices are at the core of neuromorphic systems, enabling in-memory computation and adaptive learning capabilities.² Recent demonstrations of memristor-based artificial synapses have achieved femtojoule-scale switching operation, delivering multilevel analog-conductance modulation³ and highly efficient synaptic behavior. Such features facilitate the hardware implementation of both short-term plasticity (STP) and long-term potentiation (LTP),⁴ key attributes of biological learning processes. The choice of switching mechanism determines whether a device can exhibit both STP and LTP. Several competing approaches have been explored. Valence change memory relies on oxygen vacancy migration through dielectric oxides, offering high on/off ratios but suffering from discrete, non-linear resistance switching and high switching energies.⁵ Phase-change memory achieves impressive data retention through crystal-to-amorphous transitions, but requires crystallization temperatures exceeding 400 °C, which are incompatible with flexible substrates.⁶ Neither approach naturally encodes both STP and LTP in a single device architecture. Among resistive switching (RS) mechanisms, electrochemical metallization (ECM) has distinguished itself through its reversible resistive switching properties. In contrast to Valence Change Mechanism (VCM) and Phase Change Memory (PCM) systems, ECM devices operate through voltage induced formation and dissolution of metallic filaments, achieving precise and gradual analog control of conductance states. In ECM devices, active metal electrodes (such as Ag or Cu) undergo electrochemical oxidation under an applied bias. The resulting reaction drives cation migration through solid electrolytes. Cations are subsequently reduced at inert electrodes. This reduction forms conductive filaments.⁵ The geometry and thickness of these filaments are closely correlated with pulse amplitude, width, and repetition frequency, governing the transition between transient and persistent conductance states. This mechanism naturally segregates STP from LTP. Transient filament formation under intermittent stimulation produces a volatile conductance enhancement characteristic of dynamic synaptic behavior.⁷

Metal sulfides have gained prominence as ECM electrolytes. They exhibit superior ionic conductivity (>10⁻³ S cm⁻¹). They support mixed Ag⁺/electron transport. Their temporal dynamics resemble those of biological synapses, surpassing the performance of oxide-based counterparts. Transition metal sulfides include α-Ag₂S³, MoS₂,^8,9 WS₂,¹⁰ SnS₂,¹¹ and Sb₂S₃.¹² Sulfur-vacancy-assisted ion migration within these materials supports pulse-dependent synaptic plasticity, while the stimulation frequency governs the transition between volatile and non-volatile memory states. Consequently, sulfide-based ECM devices allow precise tuning of STP/LTP ratios via pulse parameters an essential feature for implementing metaplastic learning in neuromorphic architectures.⁷

Beyond stable long-term modulation, the transient or short-term memory (STM) responses of such devices are equally critical for real-time neuromorphic functions. STM, which emulates the short-lived synaptic activity seen in biological systems, reflects recent input history rather than permanent storage.⁷ Volatile STM behavior can be harnessed for temporal filtering, noise suppression, and dynamic signal preprocessing, enabling selective response to time-correlated.^13–15 This fading-memory characteristic is particularly beneficial for reservoir computing, spike-based encoding, and adaptive sensory perception, where temporal correlation and nonlinearity improve pattern recognition and learning efficiency.¹⁶ Moreover, STM devices are especially attractive for event-driven sensing, edge-AI, and IoT tasks, as they provide energy-efficient transient memory and on-device data processing without frequent refresh operations, setting them apart from conventional non-volatile.^17,18

Silver sulfide (α-Ag₂S) presents unique advantages among metal sulfides due to its monoclinic phase stability at ambient temperature (below 450 K), exceptional ionic conductivity (10⁻² S cm⁻¹), and mechanical ductility contrasting sharply with brittle conventional semiconductors.^19,20 The stoichiometric α-Ag₂S phase provides electronic conductivity approximately 10⁶ times lower than the superionic β-phase, enabling controlled resistance modulation essential for stable synaptic operation.^21–23 Despite these advantages, conventional synthesis routes remain challenging: solution-based processes require multi-step precipitation with precise pH control, while vacuum deposition demands high temperatures (>200 °C) that often lead to phase impurities and increase production cost.^20,24–26

Recent studies have shown that exposing Ag-based films or nanostructures to H₂S gas provides a simple and efficient route for forming Ag₂S under mild conditions. Baghirov et al. reported vapor-phase sulfidation of Ag nanowires in PVA matrices to yield AgNW/PVA/Ag₂S nanocomposites,²⁷ and also demonstrated similar transformations in GO/AgNW composites.²⁸ These reports established the viability of H₂S-induced sulfidation; however, they primarily addressed morphological and optical modifications rather than resistive switching performance.

In this work, a cost-effective and straightforward technique for synthesizing Ag₂S films by exposing thermally synthesized Ag films to H₂S gas in a closed beaker is presented. The process, which transforms FCC Ag into monoclinic Ag₂S, is notable for its minimal steps and use of inexpensive chemicals. Achieving the formation of Ag₂S films at room temperature remains a significant challenge, underscoring the value of the proposed method. With precise control over the exposure conditions, Ag₂S films were successfully synthesized. This innovative approach enables the subsequent investigation of the behaviour of Ag/Ag₂S/Ag devices, highlighting their potential for neuromorphic applications.

2 Experimental procedure

2.1 Chemicals used

Silver wire with a purity of 99.99% was obtained from Hydro Pneo Vac Technologies, India. Sodium sulfide hydrate in flake form (Na₂S·xH₂O) was sourced from HiMedia Laboratories Pvt. Ltd, India. Concentrated sulfuric acid (H₂SO₄, 98%) was purchased from M/s Loba Chemie Pvt. Ltd, India. Additionally, Milli-Q water was utilised throughout the experimental procedures.

2.2 Experimental details

Glass substrates were meticulously prepared to ensure surface cleanliness and activation before deposition processes. Initially, the substrates were immersed in a chromic acid solution for 24 hours to remove organic contaminants and enhance surface adhesion properties. They were then thoroughly rinsed with Milli Q water to eliminate residual acid. Subsequent cleaning involved immersion in Labolene solution and rinsing with hot water to remove particulate matter and residual chemicals. Furthermore, they were ultrasonicated sequentially in Milli-Q water, acetone, and isopropyl alcohol to effectively remove impurities and organic residues. Finally, the substrates were dried using hot air to prevent recontamination and maintain a pristine surface suitable for subsequent material deposition and characterisation.

2.3 Deposition of Ag₂S thin film

A thin, 100 nm layer of Ag film was deposited onto a glass substrate using thermal vapour deposition. Subsequently, the deposited film underwent a critical exposure phase to H₂S gas inside a closed beaker. This was carried out within a fume hood environment. The generation of H₂S gas was executed with precision by combining 250 mg of sodium sulphide (Na₂S) with a 1 : 1 (v/v) aqueous sulfuric acid solution (H₂SO₄). The process was repeated every 8 hours to consistently generate H₂S gas in a controlled experimental environment. The substrate was later annealed at 60 °C for 2 hours × 6 to eliminate excess sulphur residue. The film was optimised for varying durations (6, 12, 24, 48, and 72 hours) and quantities of Na₂S (250 mg, 500 mg, 1 g, 1.5 g, and 2 g). The optimal conditions were 48 hours duration and 1.5 g of Na₂S. The schematic diagram of the procedure is shown in Scheme 1.

Scheme 1 Schematic diagram illustrating the passage of H₂S gas over the Ag-deposited glass substrate.

2.4 Ag₂S-based RRAM device fabrication

Silver electrodes were thermally deposited onto the Ag₂S film through a shadow mask to define a lateral Ag/Ag₂S/Ag device structure. The electrodes were spaced 110 µm apart, with a uniform thickness of 150 nm. This planar configuration enabled in-plane electrical measurements. The device was subsequently evaluated for resistive switching and synaptic behaviour.

3 Results and discussion

3.1 Analysis of structural changes

The interaction between Na₂S and H₂SO₄ results in the formation of H₂S gas, which, when exposed to the Ag film, triggers structural changes that lead to the formation of an Ag₂S layer. The reaction is given in eqn (1) and (2).

Na₂S (s) + H₂SO₄ (l) → H₂S (g) + Na₂SO₄⁻ (l) (1)

Ag (s) + H₂S (g) → Ag₂S (s) + H₂⁻ (g) (2)

Ag in its FCC structure undergoes a transformation to form monoclinic Ag₂S upon exposure to H₂S gas. The process involves a chemical reaction where H₂S gas reacts with the surface of the Ag, causing the S atoms to diffuse into the silver lattice. This diffusion leads to the nucleation and growth of Ag₂S on the Ag-deposited glass substrate. Scheme 2 illustrates the structural transformation of Ag thin film to Ag₂S.

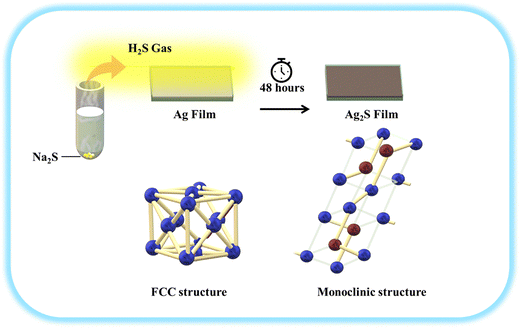

Scheme 2 Schematic representation of the structural changes from Ag to Ag₂S.

The crystal structure changes from the highly symmetrical FCC lattice of pure Ag to the less symmetrical monoclinic lattice of Ag₂S. In this new structure, Ag atoms occupy different lattice positions than in their original arrangement, resulting in a distinctive monoclinic unit cell characteristic of acanthite, the mineral form of Ag₂S. This structural transformation is driven by the incorporation of S atoms, which disrupts the original metallic bonding in Ag and leads to the formation of ionic bonds characteristic of Ag₂S.

3.2 Structural and morphological analysis

The XRD patterns of thermally deposited Ag films subjected to sulfurization for durations ranging from 6 to 72 hours are shown in Fig. 1a. The untreated Ag film (AS-00) exhibits distinct diffraction peaks at 2θ ≈ 38.04° and 44.20°, corresponding to the (111) and (200) planes of FCC Ag (ICDD 04-0783).^29,30 Upon sulfurization, notable changes in both peak position and phase composition occur as a function of reaction time. In AS-06 and AS-12, the Ag (111) peak shifts to higher angles (38.50° and 38.52°), with the (200) peak also shifting to 44.72° and 44.78°, respectively. These shifts toward higher 2θ values indicate a reduction in interplanar spacing, attributable to compressive strain in the silver lattice.³¹ At these initial stages, sulfur species (S²⁻) do not directly substitute Ag⁺ in the lattice. Instead, they may adsorb on the surface or occupy interstitial voids near the surface of the silver lattice. This chemisorption induces localized compressive lattice distortion, as the metallic lattice contracts to accommodate the foreign species.^23,29 Consequently, early sulfurization is governed by surface adsorption and interstitial diffusion mechanisms rather than substitutional lattice replacement.

Fig. 1 (a) Visual inspection of Ag films after sulfurization for 6, 12, 24, 48, and 72 hours, along with the untreated Ag reference. (b) SEM image of pristine Ag film. (c) SEM image of the Ag₂S film after 48 hours of sulfurization. (d) XRD patterns of Ag films (AS-00 to AS-72) corresponding to different sulfurization durations. (e) and (f) EDS elemental mapping of the 48-hour Ag₂S film showing the distribution of (e) Ag and (f) S.

At 24 and 48 hours (AS-24 and AS-48), the intensity of the Ag peaks diminishes substantially, and new peaks corresponding to monoclinic Ag₂S (ICDD 14-0072) begin to emerge. These include reflections at 2θ ≈ 29.38° (021), 31.40° (–112), 33.52° (111), 34.00° (022), 34.60° (022), 36.70° (013), 37.64° (–103), 40.62° (031), and 43.30° (200).^32,33 The appearance and intensification of these Ag₂S peaks confirm the phase transition from metallic Ag to Ag₂S. Some Ag₂S peaks show minor shifts toward lower 2θ angles, indicative of tensile strain introduced by the substitution of larger S²⁻ ions (184 pm) for smaller Ag⁺ ions (126 pm), resulting in lattice expansion.^34,35 In contrast, the XRD pattern of the AS-72 sample reveals no discernible diffraction peaks, indicating a complete loss of long-range crystallinity. This suggests that extended sulfurization leads to structural degradation or over-saturation of sulfur, which likely results in film corrosion or the formation of an amorphous phase.^23,29,31,36 Table 1 gives XRD peaks and corresponding planes for AS00-AS72 samples.

Table 1 XRD peak positions (2θ) and corresponding (hkl) planes of Ag and Ag₂S phases for samples AS-00 to AS-72

	AS-00	AS-06	AS-12	AS-24	AS-48	AS-72
Ag 2θ (°)	38.04 (100)	38.50 (100)	38.52 (100)	38.10 (100)		—
	44.20 (200)	44.72 (200)	44.78 (200)
Ag2S 2θ (°)	—	29.56 (111)	37.56 (−103)	29.38 (021)	31.40 (−112)	—
				29.56 (111)	33.52 (111)
				34.00 (022)	34.30 (022)
				37.20 (121)	34.60 (022)
				41.14 (031)	36.70 (013)
					37.56 (−103)
					40.62 (031)
					43.30 (200)

---

SEM analysis revealed S-induced corrosion, highlighting distinct morphological differences between Ag (Fig. 1b) and Ag₂S (Fig. 1c) films. The Ag film exhibited a relatively smooth and continuous surface, indicative of uniform distribution and high film quality.^30,37 In contrast, the Ag₂S film displayed a rougher texture with increased void content, attributed to the incorporation of S atoms. The presence of S within the lattice promoted defect formation and altered the crystal structure, as larger sulfide ions replace smaller Ag ions. This substitution led to lattice expansion, resulting in a more densely packed crystal structure. EDS analysis confirmed the elemental distribution of Ag and S, as shown in Fig. 1e and f, respectively, illustrating the elemental mapping of the Ag₂S film.^29,36,38 These results confirm the transformation of Ag from the FCC phase to the monoclinic phase of Ag₂S after 48 hours of sulfurization. A higher angle shift of Ag and Ag₂S peaks is observed with increasing reaction time, attributed to the transition from FCC Ag monoclinic Ag₂S. This phase transformation is driven by the rearrangement of atoms within the crystal lattice, resulting in a denser monoclinic unit cell and reduced interplanar spacing.^39,40

3.3 IV characteristics

The I–V characteristics of the Ag₂S film were investigated, revealing RS behaviour. The planar Ag/Ag₂S/Ag memristive device, fabricated with an inter electrode spacing of 110 µm, exhibited reproducible unipolar RS behavior, as shown in Fig. 2a. The forming process required an initial high voltage sweep around 60 V, with the first switching event occurring at 48.7 V, indicated by a sharp current jump from 3.57 µA to the compliance limit of 10 µA. With successive cycles (Fig. S3), the set voltage decreased and stabilized in the range of 4.5–5.5 V for both 10 µA and 100 µA compliance (Fig. 2b and c), suggesting filament conditioning and lowered formation barriers. The reset transitions occurred consistently between 0.1 and 1 V, without polarity reversal, confirming a unipolar switching mechanism driven by Joule heating-induced filament dissolution. The current jump also changed from 0.023 µA to 10 µA (memory window 434) and 0.064 µA to 100 µA (memory window 1562.5), respectively, for 10 µA and 100 µA compliance. Similar behaviour has been widely reported in ECM-based Ag devices and is attributed to field-driven ion transport and thermally triggered rupture of metallic filaments.^41,42

Fig. 2 (a) 1st RS cycle at 10 µA, RS graph at (b) 10 µA and (c) 100 µA. (d–f) Conductance potentiation and decay under 100 µA (green) and 10 µA (blue) current limits following pulsed stimulation.

Endurance tests were conducted at two compliance current levels. At 10 µA, the device sustained stable switching over 100 cycles, whereas at 100 µA, stable operation was maintained for 25 cycles (Fig. S1a and b). The memory window, defined by the resistance ratio between the high-resistance state (HRS) and the low-resistance state (LRS), increased from 1.75 × 10² at 10 µA to 2.34 × 10³ at 100 µA. This level of variability falls within the range typically reported for Ag₂S and other chalcogenide-based ECM systems.^26,43,44 The resistive switching and conductive characteristics of the Ag/Ag₂S/Ag devices prepared with different reaction times (AS 06, AS 12, AS 24, and AS 72) are provided in the supplementary information (Fig. S4 and S5). Samples AS 06–AS 24 show linear switching behavior, whereas AS 72 shows negligible conductivity. In comparison, AS 48 exhibits clear resistive switching behavior, indicating that a 48 hour reaction time is appropriate for device operation.

Device-to-device variability was rigorously evaluated across 20 fabricated devices, with 16 exhibiting successful and reproducible switching behavior. Statistical distributions from these functional devices reveal a forming voltage of 60 ± 15 V (Fig. 3a), SET voltage of 5 ± 2 V (Fig. 3b), RESET voltage of 1 ± 0.5 V (Fig. 3c), LRS resistance of 0.1 ± 0.05 MΩ (Fig. 3d), and HRS resistance of 0.2 ± 0.05 GΩ (Fig. 3e), yielding a robust memory window of ∼10³ (Fig. 3f). Notably, all 16 devices demonstrate consistent short-term plasticity emulation (Fig. 3g).

Fig. 3 Statistical distribution and synaptic conductance characteristics of the resistive switching devices. (a–f) Violin plots showing device-to-device variation (16 devices) of the key switching parameters: (a) forming voltage, (b) set voltage, (c) reset voltage, (d) low-resistance state (LRS) resistance, (e) high-resistance state (HRS) resistance, and (f) memory window. (g) Conductance (G) as a function of time under consecutive pulse stimulation, demonstrating short-term synaptic plasticity (STP) like conductance dynamics.

In pristine Ag₂S planar devices, the stoichiometric Ag₂S layer exhibits high resistivity without pre-existing conductive paths, necessitating a substantial electroforming voltage (∼60 V, equivalent to ∼0.55 MV cm⁻¹) across the 110 µm electrode gap imposed by shadow mask limitations. This voltage drives Ag oxidation at the anode, Ag⁺ ion migration, local supersaturation, nucleation, and dendritic filament formation to establish the conductive pathway.⁴⁵ Scaling down the electrode gap is anticipated to significantly lower the forming voltage, enhancing device scalability and practicality for neuromorphic applications. The RS mechanism is based on the electrochemical metallization process. Upon positive bias, Ag atoms at the active electrode oxidize (Ag → Ag⁺ + e⁻), releasing Ag⁺ ions into the Ag₂S matrix. These ions migrate under the electric field and are reduced (Ag⁺ + e⁻ → Ag⁰) near the counter electrode, initiating filament nucleation. During the RESET process, local Joule heating dissolves the filament, thereby returning the device to HRS. The dynamic balance between filament formation and rupture underpins the observed RS behavior (Scheme S1a). The involvement of filament instability, especially under low to moderate compliance, has been mechanistically verified using kinetic models and thermal energy competition between filament surface and volume terms. Although a higher compliance current injected more Ag ions, the resulting filament structure remained volatile (Scheme S1b). This behavior is consistent with observations reported by La Barbera et al.,²⁰ who demonstrated that increased current compliance may lead to denser dendritic branching rather than thicker filaments. Their findings suggest that filament shape, particularly the density and connectivity of dendritic branches, can influence synaptic retention properties. Even at high current compliance, filaments composed of thin, branched structures tend to dissolve rapidly, maintaining STP characteristics. In this case study, the persistence of volatile switching and limited retention extension strongly suggests a similar morphology. Although direct imaging was not performed, the retention dynamics and electrical behaviour correlate well with this model. Such filament morphology governed by electrical history and current compliance can be tailored to emulate transient synaptic functions in neuromorphic systems.^20,46

The device exhibited compliance, current-tunable switching, and retention behaviour, with well-defined ON/OFF ratios, endurance stability, and synaptic-like short-term memory. The ability to mimic biologically relevant plasticity through purely electrical control makes this planar Ag₂S platform a promising candidate for future low-power, short-term memory modules in neuromorphic architectures.

4 Conclusions

This study demonstrates a scalable, room-temperature strategy for synthesizing phase-pure α-Ag₂S films via controlled H₂S sulfidation of thermally deposited silver. Structural analysis confirms the complete transformation of FCC Ag to monoclinic Ag₂S within 48 hours, eliminating the need for high-temperature or vacuum-based processing. Planar Ag/Ag₂S/Ag memristors fabricated using this method exhibit highly reproducible unipolar resistive switching with excellent device-to-device uniformity, as evidenced by statistical distributions of forming voltage, SET/RESET voltages, HRS/LRS resistance levels, and memory window from 16 out of 20 devices.

The devices display robust STP governed by an electrochemical metallization mechanism, characterized by volatile conductance retention averaging ∼49 s at 100 µA compliance and high-to-low resistance ratios exceeding 10³. This current-tunable volatility closely emulates the temporal dynamics of biological synapses, validating the material's potential for dynamic signal processing tasks. By combining a low-cost, ambient synthesis route with reliable synaptic functionality, this work establishes α-Ag₂S as a practical and accessible electrolyte for energy-efficient, neuromorphic short-term memory applications.
