Atomistic simulation study of diamond doping based on machine learning potential

Abstract

Diamond is regarded as a highly promising semiconductor material due to its outstanding physical properties. However, achieving efficient p-type and n-type doping remains a significant challenge. In this work, we systematically investigate the B–O and B–S co-doping behaviors in diamond using molecular dynamics and Monte Carlo hybrid simulations based on machine learning potentials. The results indicate that the dopant ratio determines the formation type of impurity complexes, thereby governing the overall electronic properties of the material. Our simulations reveal that a B : O ratio of 4 : 1 leads to the exclusive formation of B₄O complexes, which exhibit the lowest formation energy (− 1.92 eV) and a low ionization energy (0.11 eV), making them a promising co-doping strategy for high-quality p-type diamond. For B–S co-doping, a B : S ratio of 1 : 1 results in BS complexes with significantly reduced formation energy compared to S single-doping and a low ionization energy (0.56 eV), meeting the requirements for n-type diamond, while a B : S ratio of 4 : 1 is more suitable for p-type diamond. These findings emphasize the critical role of precise dopant ratio control in obtaining high-performance p/n-type diamond semiconductors and provide atomic-scale mechanistic insights for the controllable synthesis of co-doping diamond.

---

1 Introduction

Diamond exhibits exceptional electrical, mechanical, and thermal properties, including a wide band gap, high carrier mobility, high breakdown field strength, extreme hardness, and superior thermal conductivity.^1–7 These characteristics have marked it as one of the most promising semiconductors for radiation-resistant, high-temperature, high-power electronic devices. A primary objective in diamond semiconductor research involves the realization of diamond p–n junction fabrication. However, the preparation of high-quality p-type and n-type diamond remains a significant challenge.^8–12

As an intrinsic insulator, doping is essential to achieve suitable p-type or n-type semiconductors in diamond. The electron and hole mobilities in pristine diamond are 4000 cm² V⁻¹ s⁻¹ and 3800 cm² V⁻¹ s⁻¹,¹³ respectively. However, it is challenging to achieve these values in practice, primarily due to diamond's exceptionally dense and stiff lattice structure, which creates a significant barrier to efficient doping. Furthermore, as the doping concentration increases, the crystalline quality of diamond degrades.¹⁴ Since crystalline quality critically influences the electrical properties of diamond, this degradation leads to a rapid reduction in carrier mobility.^15,16 Therefore, achieving a balance between the electrical properties and crystalline quality of diamond requires dopant elements with shallow impurity energy levels and high solid solubility within the diamond lattice.

Boron has been recognized as the predominant dopant for p-type diamond, with typical doping concentrations ranging from 16 to 18 at cm⁻³.^17,18 However, higher doping concentrations invariably introduce significant lattice distortion, thereby degrading the hole mobility.¹⁹ Liu et al.²⁰ introduced a limited quantity of sulfur (S) during the growth of boron-doping diamond. It was found that appropriate incorporation of S not only enhanced the boron doping efficiency to 1.2 × 10² at cm⁻³, but also resulted in a room-temperature hole mobility of 853 cm² V⁻¹ s⁻¹. Compared to the preparation of p-type diamond, the design and fabrication of n-type diamond semiconductors pose even greater challenges. The primary dopant species for n-type diamond comprise lithium (Li), nitrogen (N), phosphorus (P), and sulfur (S).^21–24 Nevertheless, these single-element doping approaches have not yielded satisfactory performance, primarily due to excessively low solid solubility of impurity atoms and the high ionization energies associated with their incorporation. In recent years, increasing research efforts have been dedicated to co-doping with two elements. Using first-principles calculations, Zhou et al.²⁵ demonstrated that in B–N co-doping systems, the solubility of N atoms increases progressively with boron incorporation, achieving a donor energy level of 0.23 eV. Similarly, Fan et al.²⁶ theoretically investigated the B–P system, achieving n-type diamond with a shallow donor level of 109 meV and significantly reduced formation energy compared to single P-doping. These results suggest that co-doping offers a promising solution to the challenges in diamond semiconductor research, as it can lower the formation energy of impurity atoms, improve the crystalline quality of diamond, and enable dopant–dopant interactions that effectively reduce ionization energies.

While previous computational studies have primarily relied on first-principles calculations, this approach limits the ability to sample a wide range of doping configurations. Due to the vast configuration space involved in co-doping, manually enumerating all possible doping configurations is a challenging task. Furthermore, the kinetic evolution of local atomic structures around impurity atoms over extended timescales, as well as their relative stability, remains largely unexplored. This gap in understanding hinders the development of effective co-doping strategies and the accurate prediction of the electronic structures in doped diamond.

Molecular dynamics simulations using machine learning potentials have emerged as powerful tools to address the aforementioned challenges.^27–30 This approach combines the accuracy of ab initio methods with the ability to simulate large systems over extended timescales.^31–33 In this study, we employ the B–O and B–S co-doping strategies as prototype systems to comprehensively explore the co-doping configuration space, investigate their kinetic evolution, and elucidate their impact on electrical properties. To achieve this, we first developed deep neutral network potentials that can accurately model these B–O and B–S co-doping systems. The local atomic structures around the impurity atoms have been explored through atomistic simulations. Using these potentials, we performed atomistic simulations to characterize the local atomic structures surrounding the impurity atoms. Based on these results and the newly predicted atomic doping complexes, we propose new promising doping strategies in diamond.

2 Method

2.1 DFT setup

All AIMD and DFT calculations were performed using the Vienna Ab initio computational simulation package (VASP)^34,35 with projection-enhanced plane waves (PAW),³⁶ using the general gradient approximation (GGA) of Perdew–Burke–Ernzerhof (PBE) functional,^37,38 was employed as the exchange–correlation functional. The Grimme's DFT-D3 correction³⁹ was applied to include long-range van der Waals interactions. The energy convergence criterion was set to 10⁻⁵ eV. After convergence tests, the K-point mesh was defined as 3 × 5 × 5 and the plane-wave cutoff energy was set to 600 eV (see Fig. S1).

2.2 DeepMD setup

Accurate interatomic interaction potential is crucial for molecular dynamics studies of diamond doping. However, the co-doping scheme generates a vast number of possible configurations with highly complex interatomic interactions, so we need to describe the interatomic interactions precisely. In this paper, we mainly choose the DeePMD method developed by Zhang et al.^40,41 to construct DNNs, which follows the strategy pioneered by Behler and Parrinello,^42,43 and can dramatically improve the computational efficiency of molecular dynamics while maintaining first-principle accuracy. We employed the DeePMD-kit package (v2.2.3)⁴⁴ to construct two neural networks: an embedding network and a fitting network. The embedding network maps the local environment of each atom to a high-dimensional feature vector, which serves as a descriptor. The fitting network then takes the descriptors output by the embedding network as its direct input and maps these descriptors to the corresponding atomic energy contributions. The architectures of the embedding network and the fitting network were configured as (25, 50, 100) and (240, 240, 240), respectively. The cutoff radius was set to 7.0 Å and the descriptors were smoothly decayed from 6.5 Å to 7.0 Å. These networks were trained using the ADAM optimizer with an exponential decay of the learning rate from 1.0 × 10⁻³ to 1.0 × 10⁻⁸. The loss function was minimized during the training process:

In the loss function of the DeePMD method, α_E, α_f and α_ξ represent the pre-factor weights for the energy, force, and virial tensor, respectively. Here, Δ denotes the deviation between the predicted values from the DeePMD model and the training data: N is the total number of atoms in the system, E represents the energy per atom, F_i is the force acting on the i-th atom, and the virial tensor ξ is defined by the formula . The weighting coefficients for the energy, force, and virial terms in the loss function are dynamically adjusted within the ranges of 0.02–1, 1000–1, and 0.02–1, respectively. The deep neural network potential employs a training step size of 2.0 × 10⁶ per iteration for parameter optimization.

2.3 Molecular dynamics simulations

Molecular dynamics simulations were performed using the LAMMPS program,⁴⁵ employing an isothermal–isobaric (NPT) ensemble with temperature regulated by the Nosé–Hoover thermostat^46,47 and pressure controlled via the Parrinello–Rahman barostat,⁴⁸ utilizing a 2 fs timestep; the simulation system comprised 8000 atoms with periodic boundary conditions applied in all three dimensions.

2.4 Hybrid molecular dynamics/Monte Carlo simulation

To efficiently explore stable impurity configurations in co-doping diamond, we employed a hybrid molecular dynamics (MD) and Monte Carlo (MC) simulation strategy implemented in LAMMPS,⁴⁵ cyclically alternating between two steps: an MD relaxation phase conducting conventional MD simulations to achieve local equilibrium and relax lattice stresses at specified temperature/pressure conditions, followed by an MC atom-swapping using LAMMPS's fix atom/swap command to randomly select impurity atoms and adjacent carbon atoms for attempted atomic-type exchanges, with each swap evaluated via the Metropolis acceptance criterion based on system potential energy changes (ΔE) and simulation temperature (T); this iterative MD/MC cycle enables efficient sampling of diverse impurity spatial configurations while preserving kinetic relaxation, thereby identifying energetically optimal impurity distributions.^49–52

2.5 Formation energy calculation

The magnitude of formation energy determines the solid solubility of impurity atoms in diamond. The formation energy of impurity X in charge state q is defined as:

E_f[qX] = E_tot[X,q] − E_tot[C,bulk] − ∑i_xμ_x − q[E_F + E_V + ΔV], (2)

in which, E_tot[X,q] denotes the total energy of the diamond structure containing impurity atom X at charge state q, and E_tot[C,bulk] represents the total energy of intrinsic diamond. Meanwhile, i_x indicates the number of atoms of species X (carbon or impurity), where i_x < 0 corresponds to incorporating X atoms and i_x < 0 signifies removal of X atoms. μ_x is the chemical potential of element X. In this calculation, the chemical potentials for B and O atoms are derived from gas-phase references (B₂H₆ and O₂). E_F and E_V denote the Fermi-level and valence band maximum (VBM) of intrinsic diamond, respectively. ΔV is the electrostatic potential alignment correction between intrinsic and doped diamond. All formation energies in this work are calculated for charge-neutral states (q = 0).

2.6 Ionization energy calculations

To directly compare the electrical properties of these configurations and quantify carrier contributions, we calculated ionization energies using the thermodynamic transition level ε(q1/q2) defined as:where E_tot[X,q1] and E_tot[X,q2] denote the total energies of the doped diamond system at charge states q1 and q2, respectively. E_v and ΔV are defined in eqn (2). The acceptor ionization energy E_A = ε(0/−), while the donor ionization energy E_D = E_g − ε(0/+), where E_g is the bandgap of pure diamond.

3 Results and discussion

3.1 Training of DNN potential

The reliability of DNN potential crucially depends on the choice of the configurations in the training set. To comprehensively explore the configuration space of the co-doping systems, we implement an active iterative scheme to progressively refine the DNN potentials.⁵³ First, we constructed a 96-atom (2 × 2 × 3) diamond supercell and randomly substituted carbon atoms to generate single-doping configurations with varying concentrations of B, O, and S atoms, as well as B–O and B–S co-doping configurations with different concentrations and stoichiometric ratios, yielding an initial structural ensemble. These structures then underwent ab initio molecular dynamics (AIMD) simulations in the temperature range of 300–4000 K, with approximately 3000 configurations were extracted from trajectories to form the initial training datasets for both the B–O and B–S co-doping systems, from-which the first-generation DNN potentials.

We then implement an iterative scheme to progressively improve the accuracy of DNN potentials for the two co-doping systems. This scheme follows a feedback loop wherein continuous iterations optimize and expand the dataset through the following steps: (1) exploration of the configuration space via molecular dynamics simulations employing the DNN potential. Extended-timescale MD simulations are conducted at multiple temperatures; (2) representative configurations are selected from the MD trajectory for DFT single-point energy calculations. Structures exhibiting significant discrepancies between the calculated energies or atomic forces and DNN predictions (ΔE > 5 meV per atom or ΔF > 0.3 eV Å⁻¹) were incorporated into the training set. (3) New potentials are retrained using the updated dataset. Ultimately, the training sets for the B–O and B–S systems consist of 32 927 and 22 714 configurations, respectively. Principal component analysis (PCA) of the training datasets, along with representative local atomic structures, is shown in Fig. 1. Both datasets includes not only the liquid and perfect diamond structures, but also the single-doping, co-doping configurations with various relative sites and compositions, ensuring that the DNN potentials have strong descriptive capabilities.

Fig. 1 Principal component analysis (PCA) plots for (a) the B–O and (b) the B–S co-doping systems, alongside the performance of the DNN potentials for energies and forces, are compared with the results from DFT.

To validate the accuracy of the final DNN potentials, we conducted comparative analyses of energy and atomic forces between the DNN potentials and DFT reference results from test datasets. As shown in Fig. 1(a) and (b), the test set for the B–O co-doping system contains 2053 configurations, while the B–S system comprises 1387 configurations. The root mean square errors (RMSEs) for the B–O co-doping MLP are 4.36 meV per atom for energy and 0.24 eV Å⁻¹ for atomic forces. Corresponding RMSEs for the B–S co-doping MLP are 4.64 meV per atom (energy) and 0.26 eV Å⁻¹ (forces). These results demonstrate the accuracy of the DNN potentials in describing the B–O and B–S co-doping systems.

3.2 Structural analysis of B, O, and S single-doping systems

To investigate the effects of doped atoms on the diamond lattice, we first constructed initial structures containing 8000 atoms with three different concentrations of substitutionally single-doping B, O, and S at 0.15%, 0.25%, 0.35%, respectively. These structures were then subjected to 1 ns MD simulations at 300 K under periodic boundary conditions using the NPT ensemble. The resulting configurations are shown in Fig. 2(a)–(c). We conducted a statistical analysis of the average bond-length and bond-angle variations between the impurity atoms and their adjacent carbon atoms during the simulation.

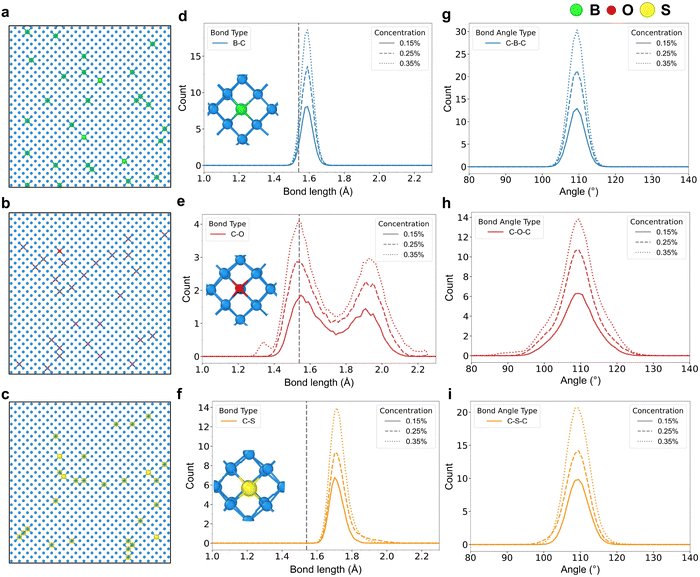

Fig. 2 Structural snapshots of 0.35% (a) B, (b) O, and (c) S single-doping systems. Average variations of (d) B–C, (e) C–O and (f) C–S bond lengths at different doping concentrations. Black dashed lines indicate ideal C–C bond lengths in diamond. Average variations of (g) C–B–C, (h) C–O–C (h), and (i) C–S–C bond angles across different doping concentrations.

As shown in Fig. 2(d)–(f), significant differences are observed in the average bond length variations between impurity atoms and adjacent carbon atoms among the three single-doping systems. The C–O bond exhibits the most pronounced elongation due to the smaller atomic radius of oxygen (∼60 pm) compared to carbon (∼77 pm). This size mismatch induces asymmetric lattice distortion upon substitutional doping, leading to the asymmetrical stretching of the C–O bonds. In contrast, boron (∼85 pm) and sulfur (∼105 pm) incorporation cause more uniform lattice expansion due to their larger radii, resulting in symmetric bond elongation. Sulfur induces the greatest elongation (∼12.06%; weighted average C–S: 1.726 Å) relative to the perfect diamond bond, owing to its largest radius. Boron shows the smallest change (∼3.12%; weighted average B–C: 1.589 Å), consistent with previous computational results.^54,55Fig. 2(g)–(i) present the average bond angle variations between impurity atoms and adjacent carbon atoms in the three mono-doping structures. Oxygen doping induces the largest bond-angle fluctuations because surrounding carbon atoms impose the weakest constraints on it, enhancing the thermal vibration amplitude of oxygen atoms at lattice sites. While boron and sulfur atoms are more strongly constrained by neighboring carbon atoms, leading to weaker vibrations at lattice sites and smaller bond-angle variations. In addition, we calculated the radial distribution functions (RDFs) centered on the carbon atoms within the first coordination shell of the dopants in the three monodoped structures at a concentration of 0.35% (see Fig. S2). Our results show that the C–C RDF of the B single-doping structure is closer to that of pristine diamond. Overall, single-doping B exhibits the smallest bond-length and bond-angle changes, resulting in the least lattice distortion. This explains why p-type diamond with boron doping is relatively easy to fabricate.

3.3 B–O co-doping system

3.3.1 Structural characteristics of the B–O co-doping system. The atomic configurations of impurity atoms in diamond fundamentally determine the electrical properties and crystalline quality, making the exploration of stable configurations in co-doping strategies critically important. To investigate stable B–O co-doping configurations, we first randomly substituted 0.35% boron atoms in a system containing 8000 atoms. Different quantities of oxygen atoms were then randomly substituted to create four co-doping configurations with distinct B : O ratios of 1 : 1, 4 : 3, 2 : 1, and 4 : 1. In this way, we can better understand the impact of boron-rich doping on the system. As an example, Fig. 3(a) displays the initial configuration with a 1 : 1 B/O ratio, illustrating a random doping distribution.

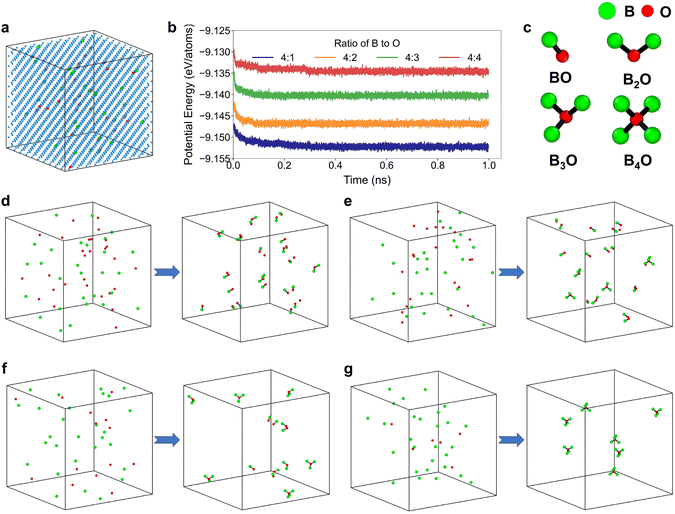

Fig. 3 Hybrid MC/MD simulation of the B–O system with varying B–O ratios. (a) Initial B–O co-doping structure with a B–O ratio of 1 : 1. (b) Potential energies as a function of time for different B–O ratios. (c) Representative B–O complex configuration formed during simulation. Initial and final structures from the simulations for the systems with the B–O ratio of (d) 1 : 1, (e) 4 : 3, (f) 2 : 1, and (g) 4 : 1, respectively.

To explore stable configurations, hybrid molecular dynamics (MD) and Monte Carlo (MC) simulations were performed on these four systems at 300 K (Fig. 3(d)–(g)). Initially, B and O atoms were distributed randomly, with almost no direct chemical bonding between them. As the simulation progressed, the energies of all four system decrease progressively and eventually stabilized around a constant value. We extracted configurations after 1 ns simulation, and compared them to their initial states, as shown in Fig. 3(d)–(g). The results indicate that boron atoms tend to form bonds with oxygen atoms with interatomic distance less than 2.0 Å to reduce the system energy, resulting in the formation of four distinct B–O complexes: BO, B₂O, B₃O, and B₄O, as illustrated in Fig. 3(c). Notably, different B : O ratios yielded distinct B–O complexes. As presented in Table 1, when the B : O ratio is 1 : 1, 78% of oxygen atoms form BO complexes; at a B : O ratio of 4 : 3, 66.67% of oxygen atoms form BO complexes; for a 2 : 1 B : O ratio, oxygen atoms primarily form BO and B₃O configurations; whereas at a 4 : 1 B : O ratio, all oxygen atoms form B₄O complexes.

Table 1 Proportions of various B–O complexes formed under different B–O ratios

B : O	O (%)	BO (%)	B2O (%)	B3O (%)	B4O (%)
1 : 1	14.29	75.00	7.14	3.57	0
4 : 3	9.52	66.67	4.76	14.29	4.76
2 : 1	0	50	7.14	35.72	7.14
4 : 1	0	0	0	0	100.00

---

In addition, we further computed the C–C RDFs of the systems after hybrid MD/MC simulations at four different doping ratios. By taking the carbon atoms within the first coordination shell of the impurity atoms as centers and statistically evaluating their average RDFs with all surrounding carbon atoms over a 1 ns period (see Fig. S3), the results show that the C–C distribution profiles of the complex structures are closer to those of ideal diamond than those of the monodoped systems. This demonstrates that the formation of such complexes effectively suppresses doping-induced lattice distortion, thereby enhancing the structural integrity of diamond.

3.3.2 Formation energy and band structure calculations. Since the electrical properties of atomic regions in diamond dictate the overall device performance, we investigated the electrical characteristics of all the aforementioned configurations. We first constructed 216-atoms (3 × 3 × 3 supercell of diamond) single-doping structures with B and O, as well as co-doping structures containing the four B–O complex configurations discussed earlier. The calculated formation energies are listed in Fig. 4. We can see the single-doping O exhibits high formation energy, which progressively decreases as B atoms bond with O. Specifically, B₂O, B₃O, and B₄O configurations exhibit negative formation energies (E_f < 0), with the formation energy of B₄O being the lowest at −1.92 eV, representing a substantial reduction compared to single-doping boron or oxygen systems. Additionally, the average B–C bond length in the B₄O configuration is calculated to be 1.577 Å (representing a ∼2.4% elongation from the perfect diamond bond), which is reduced compared to the 1.589 Å (∼3.12% elongation) in single B-doping diamond, indicating less lattice distortion.

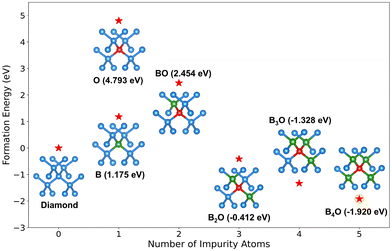

Fig. 4 Impurity formation energy of the B-doping, O-doping, and B–O co-doping systems with different BO complexes.

Subsequently, we calculated the band structures of the aforementioned single-doping configurations and four co-doping complexes, as shown in Fig. 5. These results reveal that O single-doping, BO, B₂O, and B₃O configurations introduce deep-level bands within the bandgap, which is unfavorable for semiconductor device fabrication. Moreover, since oxygen atoms introduce deep-level bands in the bandgap, the B–O co-doping scheme is highly unlikely for n-type diamond synthesis. Conversely, the B₄O configuration exhibits not only the lowest formation energy but also excellent p-type semiconductor characteristics (Fig. 5(f)), enabling high-concentration doping while minimizing crystal quality degradation. Therefore, the B–O co-doping scheme appears more suitable for p-type diamond fabrication, with substantially reduced formation energy compared to B mono-doping. Since our MC/MD simulations demonstrate that different B/O ratios yield distinct complex configurations, and only at B : O = 4 : 1 does the system exclusively form B₄O structures. This highlights that precise stoichiometric control would benefit the synthesis high-performance p-type semiconductors.

Fig. 5 Calculated band structures for different systems: (a) B single-doping, (b) O single-doping, B–O co-doping with the complexes of (c) BO, (d) B₂O, (e) B₃O, and (f) B₄O, respectively.

3.4 B–S co-doping system

3.4.1 Structural characteristics of the B–S co-doping system. Given the suitability of B–O co-doping for p-type diamond fabrication and the greater challenges in n-type diamond synthesis, Tang et al.⁵⁶ demonstrated through first-principles calculations that B–S co-doping provides a viable approach for n-type diamond synthesis. Here, we examined the B–S co-doping system to analyze its effects on crystalline quality and electrical properties across varying stoichiometric ratios. Similar to the B–O co-doping system, we first constructed four co-doping configurations with distinct B : S ratios of 1 : 1, 4 : 3, 2 : 1, and 4 : 1, respectively. Hybrid MC/MD simulations reveal that, similar to the B–O system, boron atoms preferentially combine with sulfur to form four different B–S complexes (Fig. 6(c)). The distribution of these complexes depends strongly on the B : S ratio, as quantified relative to sulfur atoms in Table 2. At a B : S ratio of 1 : 1, 75% of sulfur forms BS complexes; at 4 : 3, B₂S and B₃S dominate; and at 2 : 1, 85.71% of sulfur forms B₂S complexes. While at a 4 : 1 ratio, sulfur exclusively forms both B₄S and B₃S complexes. We also computed the C–C RDFs for the B–S co-doping system after hybrid MD/MC simulations following the same procedure (see Fig. S4). The results demonstrate that the C–C distribution profile is closer to that of pristine diamond compared to the S single-doping system.

Fig. 6 Hybrid MC/MD simulation of the B–S system with varying B–S ratios. (a) Initial B–S co-doping structure with a B–S ratio of 1 : 1. (b) Potential energies as a function of time for different B–S ratios. (c) Representative B–S complex configuration formed during simulation. Initial and final structures from the simulations for the systems with the B–S ratio of (d) 1 : 1, (e) 4 : 3, (f) 2 : 1, and (g) 4 : 1, respectively.

Table 2 Proportions of various BS complexes formed under different B–S ratios

B : S	S (%)	BS (%)	B2S (%)	B3S (%)	B4S (%)
1 : 1	10.71	75.00	14.29	0	0
4 : 3	9.52	38.10	47.62	4.76	0
2 : 1	0	14.29	85.71	0	0
4 : 1	0	0	0	42.86	57.14

---

3.4.2 Formation energy and band structure calculations. We then calculated the formation energies and band structures of S single-doping configurations and the four B–S complexes (Fig. 7 and 8). Our results show that S single-doping and BS systems exhibit n-type diamond characteristics, while the B₃S and B₄S configurations demonstrate p-type behavior. In addition, formation energy comparisons reveal that S single-doping has the highest E_f in n-type diamond, while B₄S has the highest in p-type systems. As the B : S stoichiometric ratio plays a crucial role in determining the resulting complex configuration, synthesis of n-type diamond via B–S co-doping requires strict B : S = 1 : 1 control, while p-type diamond necessitates B : S = 4 : 1.

Fig. 7 Impurity formation energy of the B-doping, S-doping, and B–S co-doping systems with different BS complexes.

Fig. 8 Calculated band structures for different systems: (a) S single-doping; B–S co-doping with the complexes of (b) BS, (c) B₂S, (d) B₃S, and (e) B₄S, respectively.

Additionally, we quantified B–C and C–S bond lengths under both ratios. at B : S = 1 : 1, the average B–C and C–S bond lengths are 1.562 Å and 1.729 Å, respectively, and at B : S = 4 : 1, they are 1.573 Å and 1.647 Å, respectively. For B : S = 1 : 1 configurations, C–S bond lengths approximate those in S single-doping systems, while B–C bonds are significantly shorter than in B single-doping diamond. In B : S = 4 : 1 configurations, both B–C and C–S bonds are markedly shorter than in their corresponding single-doping systems. This indicates B–S co-doping effectively facilitates impurity incorporation while mitigating lattice distortion. Consequently, the B : S stoichiometry plays a crucial role in governing the electrical properties and crystalline quality of diamond.

3.5 Ionization energy calculations

In the B–O co-doping scheme, the B₄O configuration is the onley one that avoids introducing deep-level bands within the bandgap while also exhibiting the lowest formation energy, making it the optimal choice for p-type diamond formation. In the B–S co-doping system, the BS configuration demonstrates n-type diamond characteristics, whereas B₃S and B₄S exhibit p-type behavior, with their formation energies significantly lower than those of S single-doping. To evaluate the electrical properties of these structures, we calculated ionization energies for key configurations as listed in Table 3.

Table 3 Ionization energies for different doping ways

Defect	Ionization energies/eV
B	0.31 (0.37,^57 0.40^58)
S	0.36 (0.30,^56 0.15^59)
B4O	0.11
BS	0.56 (0.55^56)
B3S	0.70
B4S	0.36

---

The calculated B single-doping ionization energy of 0.31 eV is in close agreement with the value reported in references.^57,58 The B₄O configuration exhibits an ionization energy of 0.11 eV, representing a 0.20 eV reduction compared to B single-doping. For n-type systems, S single-doping and BS complexes have ionization energies of 0.36 eV and 0.56 eV, respectively. Meanwhile, the p-type B₃S and B₄S configurations exhibit ionication energies of 0.70 eV and 0.36 eV, respectively, confirming shallow acceptor characteristics. Overall, ionization energy calculations provide further evidence that the B–O co-doping scheme with a B : O ratio of 4 : 1 is optimal for p-type diamond fabrication. In contrast, within the B–S co-doping system, a B : S ratio of 1 : 1 is ideal for synthesizing n-type diamond, while a ratio of 4 : 1 favors p-type diamond formation.

4 Conclusion

In summary, we developed two distinct DNN potentials that capable of accurate modeling the B–O and B–S co-doping systems. Molecular dynamics simulations using these potentials systematically quantify variations in average bond lengths and angles in B, O, and S single-doping configurations. Hybrid Monte Carlo/molecular dynamics (MC/MD) simulations explored a vast number of configurations under varying stoichiometries for both co-doping systems. First-principles calculations demonstrate that for B–O co-doping at a B : O ratio of 4 : 1, the B₄O configuration exhibits a 0.11 eV ionization energy and the lowest formation energy (−1.92 eV), confirming its optimal shallow p-type behavior. In the B–S co-doping system, the BS complex (with an ionization energy of approximately 0.56 eV) shows shallow n-type characteristics, while B₃S (approximately 0.70 eV) and B₄S (approximately 0.36 eV) exhibit shallow p-type properties, all with substantially reduced formation energies compared to S-monodoping. Thus, dopant ratio control governs electrical properties: B : O = 4 : 1 optimizes p-type diamond via B–O co-doping, while B : S = 1 : 1 enables n-type, and B : S = 4 : 1 facilitates p-type diamond in B–S co-doping. This work provides fundamental theoretical support for the synthesis of high-quality p/n-type diamond semiconductors.

Author contributions

Yiheng Yan: writing – original draft, review & editing, conceptualization, investigation, formal analysis, data curation. Yaochen Yu: writing – review & editing, investigation, formal analysis. Junwei Hu: investigation, formal analysis. Xuechen Sun: investigation, formal analysis. Qinlan Luo: writing – review & editing, formal analysis. Zengyong Chu: writing – review & editing, conceptualization, formal analysis, methodology. Jiayu Dai: writing – review & editing, conceptualization, investigation, formal analysis,. Haiyang Niu: writing – review & editing, conceptualization, methodology, formal analysis, funding acquisition, supervision.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Data availability

The data supporting the findings of this study are available within the article and its supplementary information (SI). Supplementary information is available. The Supplementary Information includes DFT convergence test results and radial distribution function (RDF) analyses of different systems. See DOI: https://doi.org/10.1039/d5cp03568f.

Additional data can also be obtained from the corresponding author upon reasonable request.

Acknowledgements

H. N. thanks the support from the National Science Fund for Excellent Young Scientist Fund Program (Overseas) of China, and the Research Fund of the State Key Laboratory of Solidification Processing of China (grant no. 2024-ZD-01), and the Fundamental Research Funds for the Central Universities. Q. L. was supported by the National Natural Science Foundation of China (grant no. 22408393), the fund of the State Key Laboratory of Solidification Processing of China (grant no. SKLSP202410). J. D. was supported by the National Natural Science Foundation of China (grant no. 12534013) and the Science and Technology Innovation Program of Hunan Province (grant no. 2025ZYJ001, 2021RC4026).
