Effect of variable solubility on reactive convective dissolution

Abstract

Chemical reactions can influence convective dissolution arising from density changes when a solute A dissolves into a host phase containing a reactant B. In this theoretical study, we examine the conditions that optimize the convective dissolution of A into the host phase when A reacts with B via an A + B → C reaction and the compositional change by the reaction reduces the solubility of A in the solution. Through numerical simulations, we explore how this variable solubility affects the reaction–diffusion–convection (RDC) concentration distributions and the flux of A at the interface. We classify the different density profiles based on key parameters such as the ratio of the initial concentration of B and the initial solubility of A, the individual contributions of each species to the total solution density and a parameter quantifying the influence of the reaction on the solubility of A. Taking into account the variable solubility of A allows to reach new regimes where, for instance, there is no longer any influence of the initial concentration of B on the mass transfer when B is in excess. We also show that, if C strongly decreases the solubility of A, the flux can even be lower than its nonreactive counterpart. These results contribute to understand the conditions where reactions can enhance or reduce the transfer of solutes into a host phase, a question relevant to many applications such as carbon dioxide storage in geological formations.

---

1 Introduction

Upon dissolution of a solute in a host phase, buoyantly unstable density stratifications can lead to convective dynamics in partially miscible systems. This is the case for two-liquid stratifications,^1–6 when a solid dissolves in a liquid^7,8 or when a gas enters into an aqueous host phase^9–15 for instance. The importance of these physicochemical phenomena has been highlighted, notably in the context of industrial synthesis of chemicals,^10,11 to enhance oil recovery techniques^16,17 or to optimize the geological sequestration of carbon dioxide (CO₂).^18–22 In the context of carbon capture and storage (CCS), the dissolution of CO₂ is analysed through both experimental^{12–14,23–26} and theoretical^{18,19,27–33} studies. Upon dissolution of a solute in a host phase, density changes can arise leading to an unstable stratification of a denser phase above a less dense one in the gravity field, such as in CO₂ sequestration. The resulting convective dynamics are influenced by reactions with species dissolved in the host fluid,^{5,6,10–12,18–21,34–42} salinity,^14,43 the presence of impurities,^44,45 heterogeneities⁴⁶ and pressure.^14,43

In this work, we focus on a reactive system in which a species A dissolves into a host phase containing a reactant B and C is produced in the host phase via a simple A + B → C reaction. The reaction consuming A and B modifies the solute concentrations, which can influence the fluid properties such as the density of the solution.^12,34,41 The temporal evolution of the dissolution flux of A is directly influenced by the reaction and by the density stratification leading to the buoyancy-driven convection.^{11,12,34,41,47–54} The base-state reaction–diffusion (RD) concentration profiles of A, B and C have been compared to the nonreactive diffusive (D) case, leading to a classification of these profiles according to the influence of the parameters of the problem on the density field in the host phase.^47–55 Reaction–diffusion–convection (RDC) density profiles have been classified both experimentally and theoretically.^{1,2,6,10–12,34,50,56} A reaction consuming A can slow down or accelerate the development of the buoyancy-driven convection compared to the nonreactive diffusion–convection (DC) case, leading to stabilizing or destabilizing cases.^{12,47,50,52,54}

In most studies focusing on the convective dissolution between partially miscible phases, the solubility of A in the host phase is considered to be constant in time.^{5,6,12,34,36,41,43,47,50–56} However the solubility of a species in a solution depends, among others, on the concentration of other solutes.^43,57 In the context of CO₂ sequestration, for instance, its solubility is known to decrease with an increase of the salinity of the solution.^{14,43,58–62} Recently, some works^48,49 have made the hypothesis that the reactant A is directly and entirely converted into the product C at the interface. In that case, the sum of the concentrations of A and C is a constant. The influence of a variable solubility on the RD dynamics in the host phase has been characterized recently to unify these cases, making the hypothesis that the product C linearly decreases the solubility of A.⁶³ Additionally, the influence of a variable solubility of A on dissolution-driven convection has also been studied in the absence of reaction with a DC model.⁶⁴

In this framework, our goal is to analyze the influence of a variable solubility on the reactive convective dissolution dynamics. In particular, we show that, if the compositional change by the reaction sufficiently decreases the solubility of A, it inhibits the mass transfer of A into the host phase. We analyze the effect of varying the initial concentration of B in the host phase, which controls the reaction rate. We finally discuss the classifications of the density profiles as a function of the parameter quantifying the decrease of the solubility of A by the reaction.

This work is structured as follows. The model system and the equations are presented in Section 2. The numerical results are discussed in Section 3, with analysis of the influence of three parameters on the dynamics: the variable solubility of A, the initial concentration of B and the contribution to the density of C. The RDC density profiles are reclassified and discussed in Section 4. Finally, Section 5 summarizes the study.

2 Model

We consider a partially miscible system with a reservoir of A placed above a host phase containing a reactant B and where A dissolves, as shown in Fig. 1. The gravity field g points downwards along the vertical z̃ axis perpendicular to the horizontal x̃ axis. Within the host phase, a bimolecular reaction occurs where species A reacts with B with initial concentration B₀, forming product C. The reaction rate of the A + B → C reaction is qÃB̃ where q is the kinetic constant and à and B̃ are the concentrations of reactants A and B respectively.

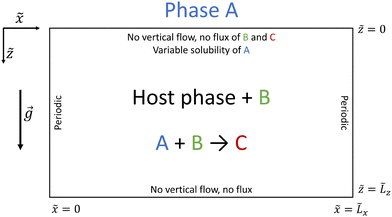

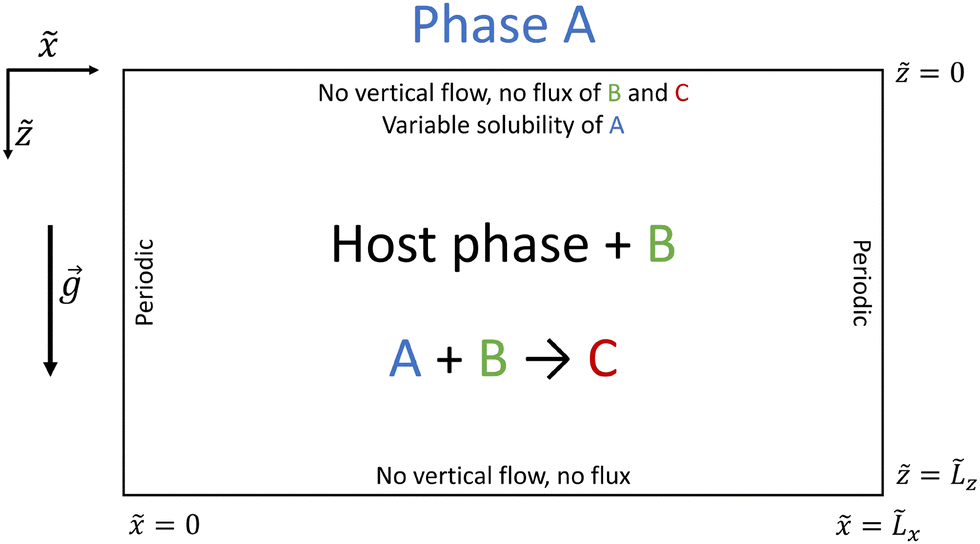

Fig. 1 Schematic of the two-layer partially miscible stratification used to analyse the reactive and convective dissolution of A from the reservoir phase containing pure A into the host phase containing reactant B where the reaction between A and B produces C.

We consider that the system is isothermal, isotropic and homogeneous and that the diffusion coefficients are constant. Furthermore, we assume that no mass exchange occurs from the host phase to the reservoir of A and that the interface separating the two phases remains horizontal and located at z̃ = 0 in the course of time. This allows to focus on the effects of the reaction on the dynamics in the host phase only. The host phase extends from x̃ = 0 to x̃ = L̃_x in the horizontal direction and from z̃ = 0 to z̃ = L̃_z along the vertical direction.

The time, spatial coordinates, velocity, concentrations and pressure are made dimensionless as

where tildes denote dimensional variables. We use the characteristic chemical time scale and RD length scale,^12,41t_c = 1/(qA₀) and where D_A is the diffusion coefficient of A. A₀, used to non-dimensionalize the concentrations A, B and C, is the solubility of reactant A in the initial solution of B with concentration B₀ when C = 0. We also use the velocity scale where Φ is the porosity of the medium. We use the ambient pressure p_a, the hydrostatic pressure ρ₀gz̃ and the characteristic pressure where ρ₀ is the density of pure solvent, μ is the dynamic viscosity of the fluid and κ is the permeability of the porous medium.

The dimensionless equations governing the RDC evolution of the two-dimensional concentrations of A, B and C in the host phase are

where δ_I = D_I/D_A is the ratio of the diffusion coefficient of species I to that of species A. The equation of the evolution of the fluid flow velocity u = (u_x, u_z) is Darcy's law in porous media while the flow incompressibility condition is expressed as a Poisson equation. These equations respectively read in their dimensionless form as

∇p = −u + ρe_z, (3a)

∇²p = ∇·(ρe_z) (3b)

where e_z is the unit vector pointing downwards into the host phase. Darcy's law is coupled to the RDC equations for the dilute species concentrations via an equation of state for the density.²² We assume that the density [small rho, Greek, tilde] of the solution is a linear function of the concentrations of the species:

[small rho, Greek, tilde] = ρ₀ (1 + α_AÃ + α_BB̃ + α_CC̃) (4)

where is the solutal expansion coefficient of species I, c̃_I being its dimensional concentration. A dimensionless density is computed aswhere ρ_c = ΦμD_A/(gκl_c) is the density scale. R_I is the Rayleigh number of species I which quantifies the contribution of this species to the density of the solution:where ν = μ/ρ₀ is the kinematic viscosity of the solution, assumed to remain constant.

The initial conditions are

A(x, z = 0, t = 0) = 1 + ε rand(x), A(x, z > 0, t = 0) = 0, (7a)

B(x, z, t = 0) = β, (7b)

C(x, z, t = 0) = 0 (7c)

where β = B₀/A₀ is the ratio of the initial concentration of B and the solubility of A in the initial solution of B and ε rand(x) is a perturbation of the initial concentration of A introduced at the interface in order to trigger the instability. ε ≪ 1, here chosen as 10⁻³, is the amplitude of the perturbation while rand(x), a function varying randomly along the horizontal coordinate x between −1 and 1, is the modulation of the perturbation.⁵⁴

Assuming that the dimensional solubility of A linearly decreases with the presence of species B or C, for the sake of simplicity and generality, it is expressed as

Ã(z̃ = 0) = A_solvent − σ_CC̃ − σ_BB̃ (8)

where A_solvent is the solubility of A in the pure solvent and σ_I quantifies the influence of species I on the solubility of A. Note that, for a fixed solubility of A as it is considered in most studies, σ_B = σ_C = 0 and the solubility of A in the solvent is the same as in the initial solution of B. Eqn (8) is then modified using Ã(z̃ = 0) = A_solvent − σ_CC̃ − σ_BB̃ + (σ_BB₀ − σ_BB₀) which leads to

Ã(z̃ = 0) = A₀ − σ_CC̃ − σ_B (B̃ − B₀) (9)

where A₀ = A_solvent − σ_BB₀ is the solubility of A in the initial solution of B.

Using the notations L_z = L̃_z/l_c and L_x = L̃_x/l_c for the dimensionless height and width of the system, respectively, the boundary conditions for the dimensionless variables are next defined as

u_z(z = 0) = 0, u_z(z = L_z) = 0 (10a)

u(x = 0) = u(x = L_x), (10b)

A(x = 0) = A(x = L_x), (10d)

B(x = 0) = B(x = L_x), (10f)

C(x = 0) = C(x = L_x) (10h)

where σ_I is a dimensionless parameter quantifying the influence of species I on the solubility of A. The problem depends therefore on eight parameters: σ_B, σ_C, β, δ_B, δ_C, R_A, R_B and R_C.

If all species diffuse at the same rate, i.e. δ_B = δ_C = 1, summing eqn (2b) and (2c) with the given boundary and initial conditions evidences the conservation relation:^12,54B + C = β. Thanks to this relation, we can reduce the number of dimensionless parameters by defining the dimensionless density ρ as

where ΔR_CB = R_C − R_B. In addition, the concentration of A at the interface can be rewritten as

A(z = 0) = 1 − σ_CC + σ_BC = 1 − αC (12)

where α = σ_C − σ_B quantifies the difference in solubility of A in a solution when B is changed in C. In this work, we focus on cases in which the compositional changes induced by the reaction decreases the solubility (α ≥ 0) to align with previous studies^48,54,63 and extend these results. The problem depends on four parameters: α, β, R_A and ΔR_CB.

We numerically solve eqn (2), (3) and (11) with eqn (7) and (10) on a domain with L_z = 2048 and L_x = 3072. Note that the choice of L_z does not influence the results provided the system is long enough along the z axis for the reaction front to be far away from the boundary z = L_z over the times studied. We increase the value of L_z to study more unstable cases, while maintaining the same mesh constraints. For instance, the mapped mesh used for L_z = 2048 contains 63 140 domain elements and 1026 boundary elements. We integrate Darcy's law on COMSOL Multiphysics version 6.0⁶⁵ with an initial time step of 10⁻⁵ and a relative tolerance of 5 × 10⁻³. A variable time step is chosen by the solver, evolving during the simulation if the tolerance is met. With these values, the iterative convergence errors and the discretization errors on the results were smaller than 5%, which was ensured via a mesh-refinement study. The quantitative measures depend on the random initial noise in eqn (7a). Therefore, we averaged the results over 10 simulations with variable noise realizations for each set of values of the parameters to obtain robust results, with an uncertainty quantified as the 95% confidence interval. Note that increasing the number of simulations does not improve significantly the averages presented in the next sections.

3 Nonlinear simulations

Let us start by analyzing the nonlinear convective dynamics in the host phase. We first briefly describe the dynamics in nonreactive cases and then, assuming that δ_B = δ_C = 1 and R_A = 1, we examine the effect of varying the three parameters in reactive cases: α, β and ΔR_CB.

3.1 Nonreactive cases (β = 0)

Upon dissolution of A in a host phase containing no reagent B (β = 0), the diffusive concentration profile A_D(z,t) of A in absence of convection is the classical error function solution of Fick's law . Since the analytical concentration profile of A is known, the diffusive base-state density profile ρ_D is simply and is a function of R_A.

If the density decreases upon dissolution of A or if it does not change (R_A ≤ 0), the nonreactive case is stable. The dynamics are controlled only by the diffusion of A and no convection is observed. Most gases dissolving into aqueous solutions correspond to this nonreactive stable case,⁵⁴ as well as CO₂ dissolving in nitrobenzene for example.⁶⁶

For CO₂ sequestration in saline aquifers for instance, its dissolution into brine typically corresponds to a convectively unstable case where the solute A increases the density of the host phase (R_A > 0). It has been characterized in the literature in absence of reaction.^{7,19,31,32,40,43,67,68} The dissolution creates an unstable density stratification in the gravity field with a denser fluid on top of a less dense one, which is at the origin of buoyancy-driven convection. At first, fingers of the denser fluid sink in the host phase without interacting significantly with each other.^7,31,54 A merging phenomenon between fingers then starts and increases over time, leading to a decrease in time of the number of fingers. Small fingers appearing near the interface, also called protoplumes, finally develop in the reinitiation regime^32,54,68 and join the other fingers. In this work, we focus on these unstable cases by maintaining R_A = 1 and consider the effect of a variable solubility on the reactive-convective dissolution of A in a host phase.

3.2 Reactive cases (β ≠ 0) for R_A = 1

We vary α, β and ΔR_CB to understand their influence on the density profiles and on the flux of A through the interface. In particular, we compare the results of the reactive cases with those of the unstable nonreactive (NR) case. The main objective of this section is to determine for which value of these parameters the dynamics are stabilized or destabilized.

3.2.1 Influence of the variable solubility α of A for β = ΔR_CB = 1. First, we analyze the temporal evolution of the two-dimensional density profiles. If we consider that the solubility of A is constant (α = 0), the growth rate is known to increase in the linear regime.^12,50,54 When the reaction destabilizes the dynamics (ΔR_CB > 0.32),⁵⁴ the development of the fingers is faster than in the NR case, as well as their rate of elongation. Merging phenomena, described in the NR case, are also observed in the reactive case.

The influence of the variable solubility of A on the density distribution is presented in Fig. 2 for three different values of α. For any nonzero value of α, the dynamics are more stable than the corresponding reactive case with α = 0. Indeed, it has been shown in a reaction–diffusion system that when α > 0 increases, the reaction front invades the host phase more slowly.⁶³ Consequently, A and C are smaller at a given depth z while B is larger. The density field being directly correlated to the concentration fields through eqn (11), increasing α leads to a decrease of ρ, which stabilizes the dynamics compared to the α = 0 case.

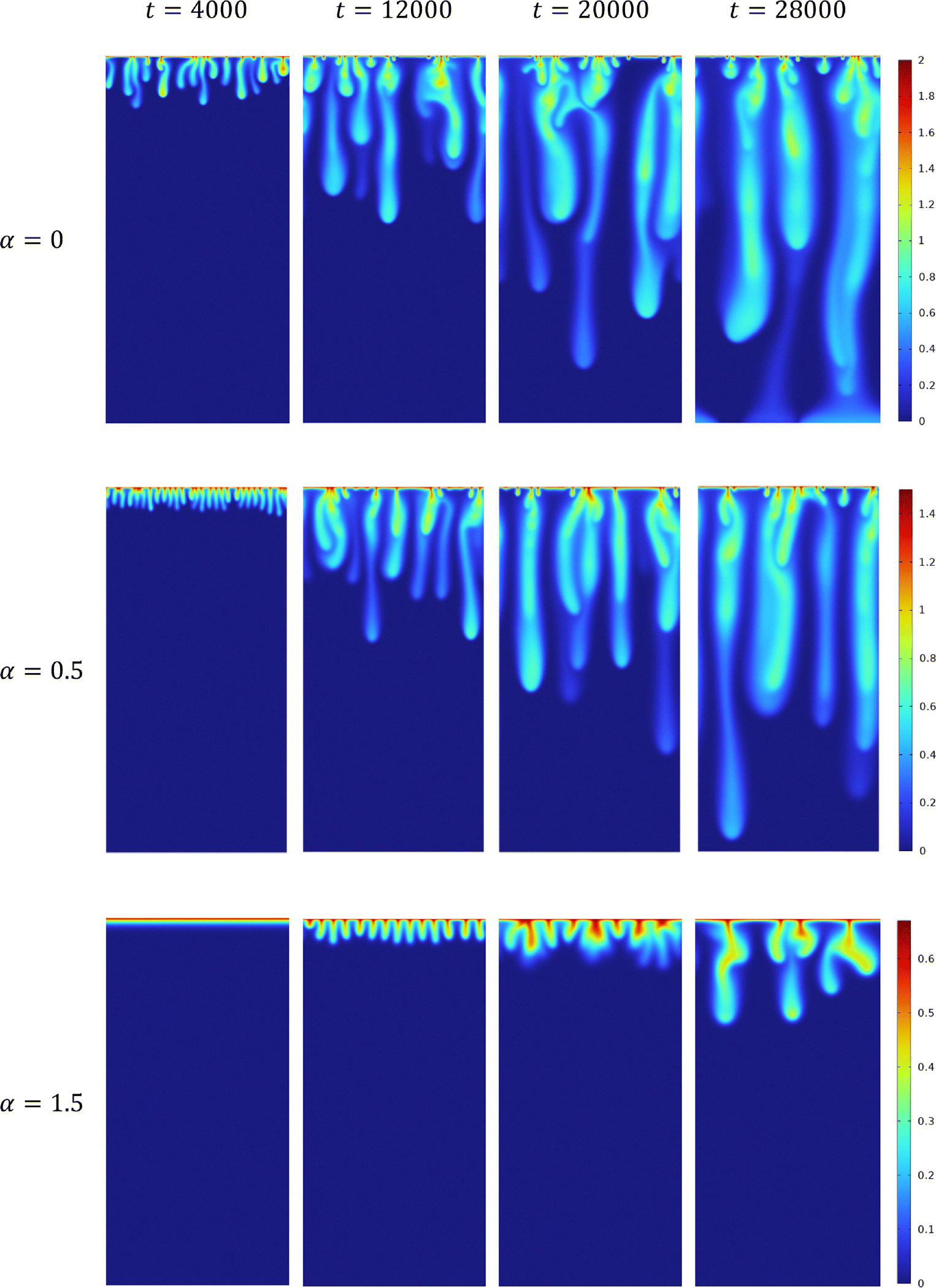

Fig. 2 Temporal evolution of the density field in the host solution in reactive cases with β = ΔR_CB = 1 and α = 0; α = 0.5; α = 1.5, from top to bottom. The density scale varies from 0 (blue) to its maximum value (red) which decreases when α increases. The length of the system is L_z = 6144.

The stabilization of the dynamics due to an increase of α results in a decrease in the initial number of fingers and an increase of the onset time. The dynamics feature less merging or splitting between the fingers. Finally, we note that the maximal amplitude of the change of density decreases when α increases.

The RDC dynamics are also visualized in Fig. 3 using the horizontally-averaged density profile [small rho, Greek, macron](z,t) computed as

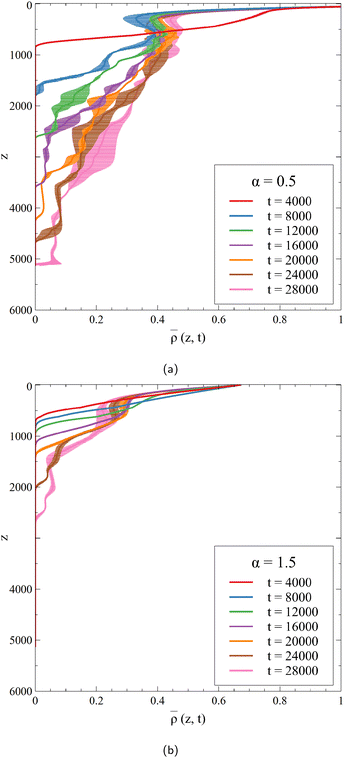

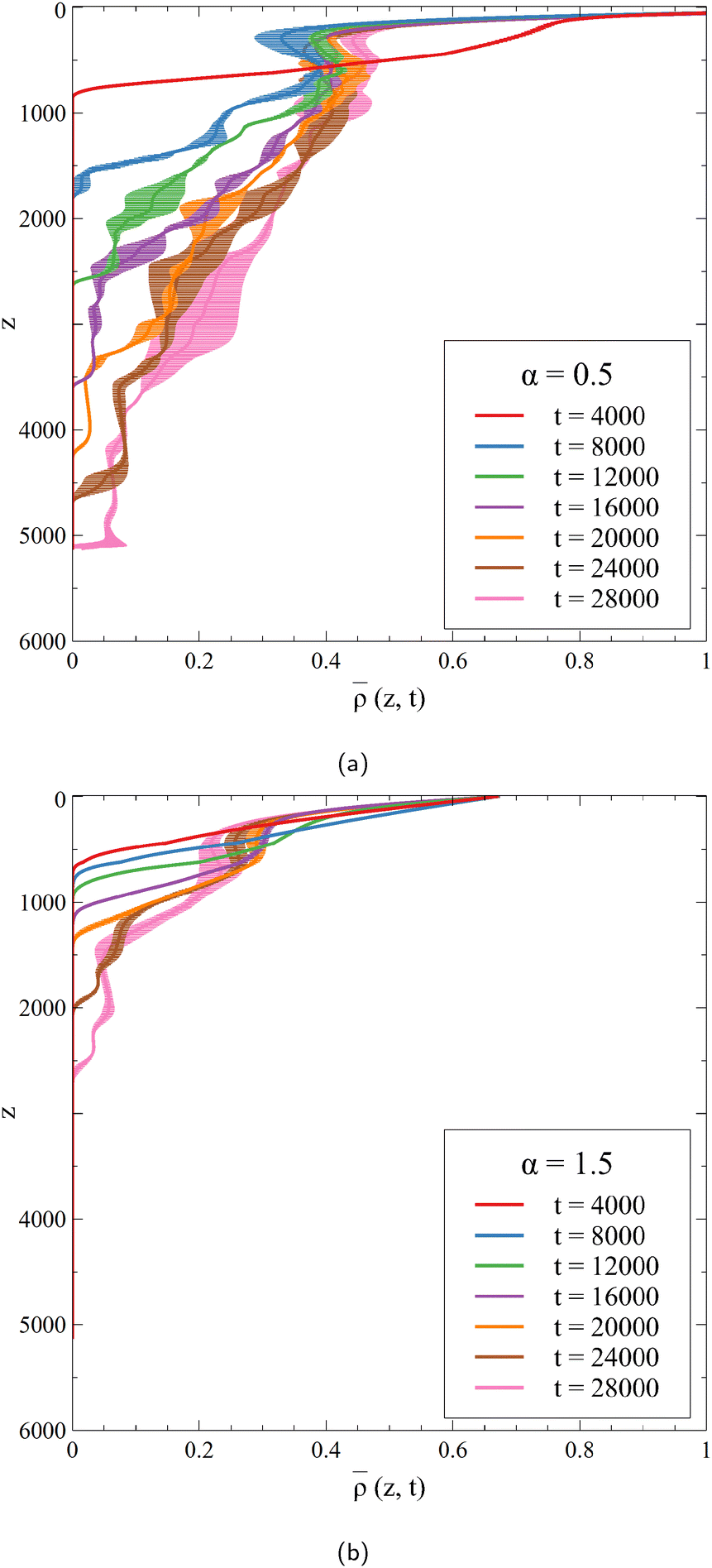

Fig. 3 Horizontally-averaged density profiles of the 2D dynamics of Fig. 2 at different times for (a) α = 0.5 and (b) α = 1.5. Note that the maximum values of the density in the host phase, obtained at the interface (z = 0), are [small rho, Greek, macron]_max = 1.50 when α = 0.5 and [small rho, Greek, macron]_max = 0.67 when α = 1.5. Each curve is averaged over 10 simulations, for which the standard deviation is shown.

At early times, before the onset time of the convection, the density profile is similar to its RD counterpart as convection has not affected the concentration profiles yet.⁴¹ When the formation of the fingers starts, deviations are observed and the density profile is deformed. At a given depth z, the averaged density increases over time, an increase that is less marked when α increases because C is produced in smaller quantities, which corresponds to the stabilization of the dynamics when C inhibits the dissolution of A.

Space-time plots of the density at a given depth (z = 64) are given in Fig. 4 for two values of α. This location is chosen to be sufficiently below the fixed interface so that the convective dynamics are easily observed. The differences in terms of the number of fingers sinking to the bottom of the host phase or in terms of the onset time of the convection are visualized at early times. The lateral drift of fingers⁶⁹ as well as merging and splitting phenomena result in branches in the space-time plots.

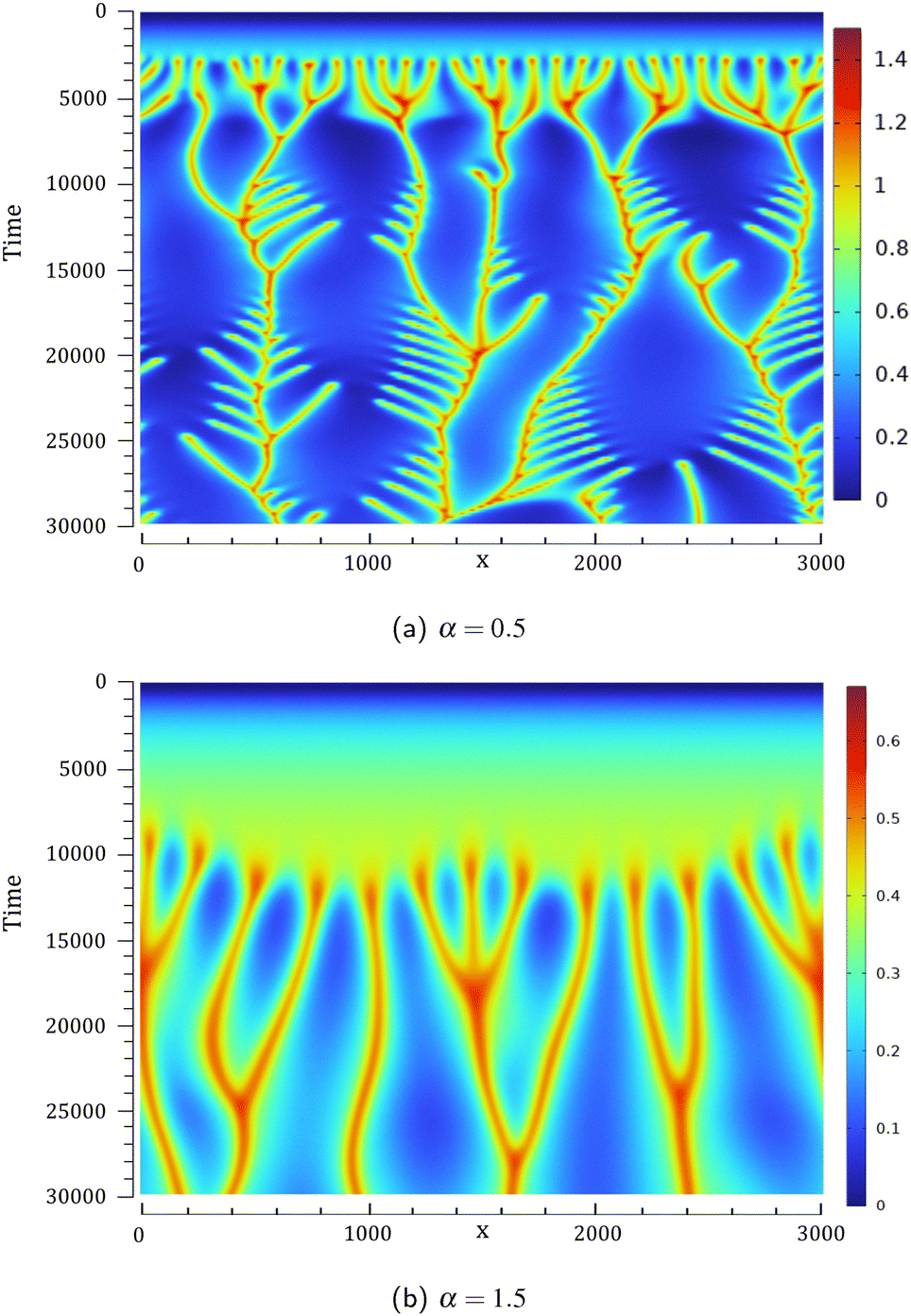

Fig. 4 Space-time plots of the density computed at a horizontal line at z = 64 below the interface for the unstable reactive cases of Fig. 2 with (a) α = 0.5 and (b) α = 1.5. The density scale varies from 0 (blue) to its maximum value (red).

To quantify the storage rate of A into the host phase, we compute the temporal evolution of the dissolution flux of A through the interface. Eqn (14) present the known solutions of the flux: J_D is the analytical diffusive flux of A in absence of reaction and convective dynamics; J_RD is the reaction–diffusion flux that can be computed analytically when α = 0 or numerically when α ≥ 0 in absence of convection;⁶³ the RDC flux of A is computed numerically using eqn (14d).

where γ is the maximum concentration of C and η_f is the asymptotic position of the reaction front, computed numerically in RD systems.

For a constant solubility of A (α = 0), the flux of A is always increased by the reaction.^52,54 However, it has been shown, in the absence of convection, that increasing α decreases this effect until the reaction does not improve the mass transfer anymore when α = 1.⁶³ We compute the temporal evolution of the flux of A in a one-dimensional RD system for 0 ≤ α ≤ 2 in Fig. 5.

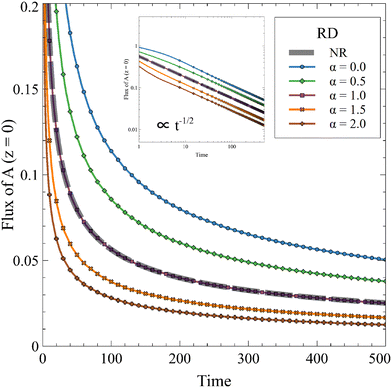

Fig. 5 Temporal evolution of the 1D RD flux of A through the interface for different values of α and β = 1 in absence of convection compared to the nonreactive (NR) case. The inset presents the same evolution on a log–log scale. The reaction increases the flux compared to the diffusive case if α < 1 and decreases it if α > 1.

The RD flux decreases with time, following a diffusive t^−1/2 dependence, because the concentration gradient of A decreases over time. When α increases, C hinders the dissolution of A and the flux tends to the value of the nonreactive case when α = 1. As a reminder, A is then fully converted to C while the asymptotic concentration profile of the product is the same as the nonreactive profile of A. Interestingly, we see that the reaction can decrease the flux of A compared to the nonreactive case if α > 1.

This new result is also observed in the presence of convection, as seen on the temporal evolution of J_RDC in Fig. 6. Again, the flux of A first decreases with time. When the convective dynamics start, i.e. at the onset time of convection t₀, the flux increases because the destabilization of the dynamics makes A sink faster in the host solution. The following changes of the flux are due to the merging and splitting of the fingers. After some time, the RDC flux fluctuates around an asymptotic value. This is well known both in NR dynamics³¹ and in the reactive case where the solubility is constant.⁵⁴ We average the values of the flux at later times (25 000 ≤ t ≤ 30 000) to calculate an asymptotic flux. This asymptotic flux decreases with increasing α, as seen in Fig. 7.

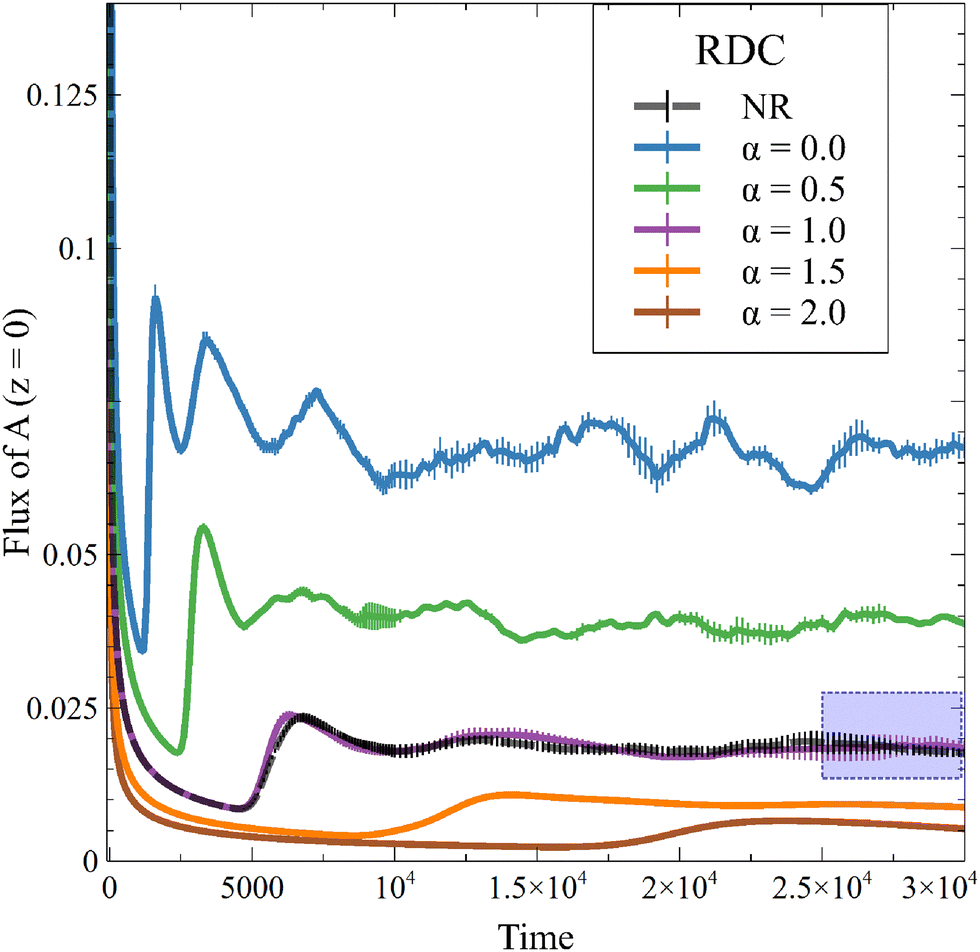

Fig. 6 Temporal evolution of the RDC flux of A through the interface for different values of α and β = ΔR_CB = 1 compared to the nonreactive (NR) case. The area framed in blue represents the time range over which the flux is averaged to give the asymptotic J_RDC in Fig. 7. Each curve is averaged over 10 simulations, for which the standard deviation is shown.

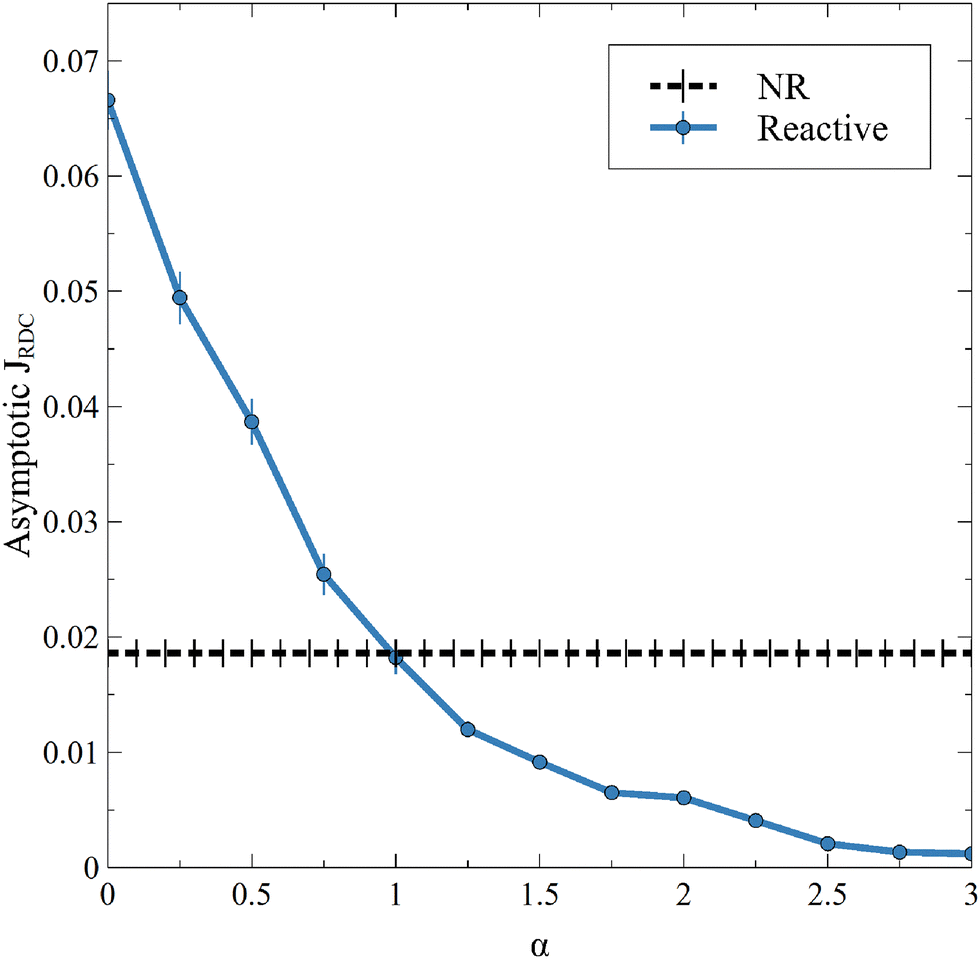

Fig. 7 Asymptotic averaged flux of A through the interface for different values of α and β = ΔR_CB = 1 compared to the nonreactive (NR) case. Each point is averaged over 10 simulations, for which the standard deviation is shown.

As in the RD cases (Fig. 5), the reaction can either increase the mass transfer if 0 ≤ α < 1 or decrease it if α > 1 compared to the nonreactive case. This result changes the conception of the RDC dynamics, given that it is no longer possible to consider that the reaction always improves the mass transfer if the presence of the product sufficiently decreases the solubility of A. Finally, we observe that, for a high value of α, the inhibition of the dissolution of A by the reaction tends to saturate, since increasing α does not significantly decrease the flux anymore. Note that the stabilization of the dynamics when α increases is also seen from the standard deviation (Fig. 3), which decreases with increasing α.

When convection starts, the flux of A deviates from its RD counterpart and increases. The onset time of convection t₀ is computed as the time when the flux starts to depart from the diffusive decay, i.e. here when J_RDC − J_RD > 10⁻⁵. Note that, over the times studied in this work, the flux at t₀ is the global minimum of the flux because convection increases the mass transfer at the interface and J_RDC > J_RD. The dependence of the onset time of the convection t₀ on α shown in Fig. 8 corroborates the fact that the larger α, the later convection starts. Again, the value α = 1 separates cases where convection starts earlier than in absence of reaction (α < 1) from cases where convection starts later (α > 1).

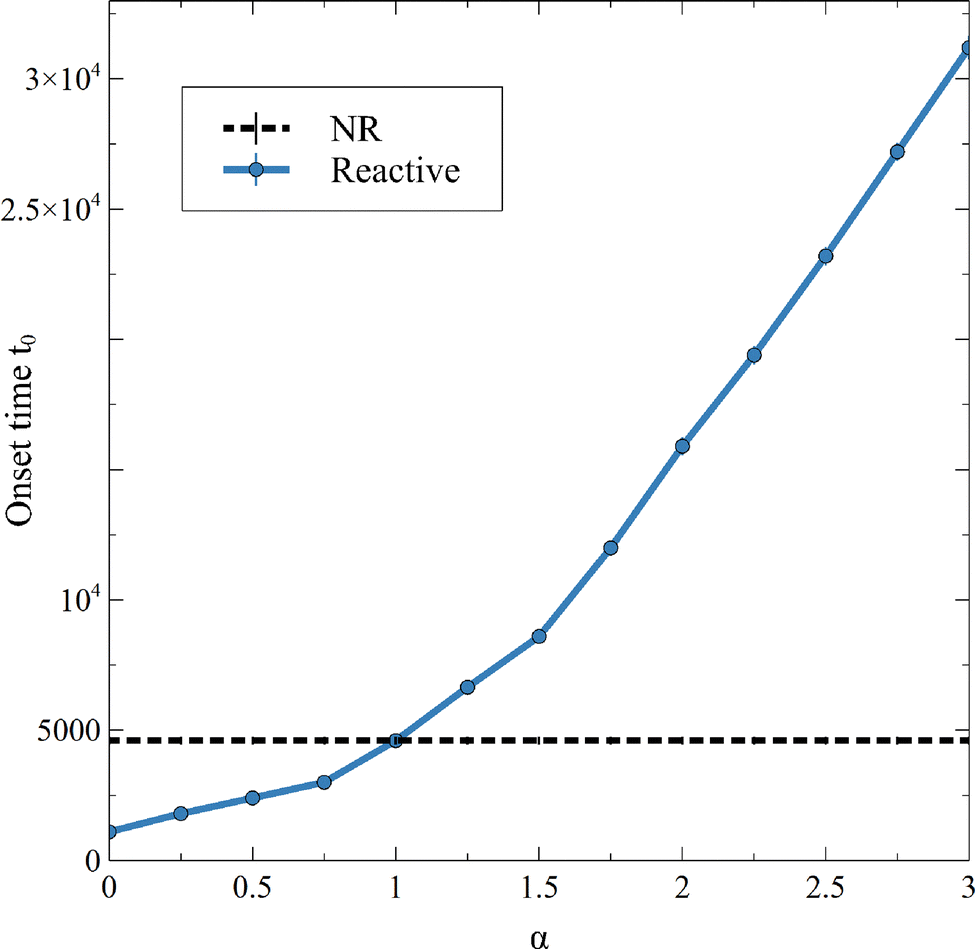

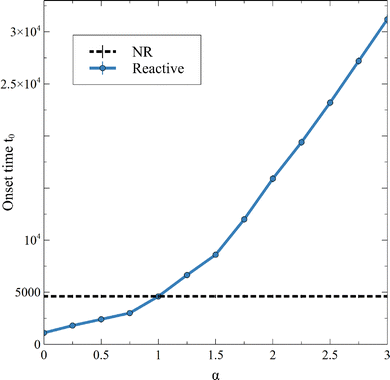

Fig. 8 Onset time of the convection t₀, being the time of the first local minimum of the flux of A, for different values of α and β = ΔR_CB = 1. Each point is averaged over 10 simulations, for which the standard deviation is shown.

3.2.2 Influence of the initial concentration of B (β) for ΔR_CB = 1. The consumption of A by the reaction can increase or decrease the mass transfer relative to the nonreactive case, depending on the value of α. Increasing the initial concentration of B in the host solution results in an increase of this effect of the reaction.^52,54,63 In a reaction–diffusion system, for α < 1, increasing β results for instance in an increase of the rate of advancement of the reaction front into the host phase and an increase of the RD flux of A.⁶³

In previous works where A(z = 0) = 1 at all times, B was always the species limiting the reaction, hence the consumption of A was directly linked to β.^52,54 Here, we consider that A(z = 0) decreases when C is produced. The species limiting the reaction is then A in some cases and B in others, depending on the values of α and β. To determine which reactant is in excess in the (β, α) space of parameters, we consider the boundary condition (12) and state that the minimal value of A (A_min) is obtained for the maximal value of C (C_max), i.e.:

A_min = 1 − αC_max at z = 0. (15)

First, we analyse the cases in which A is in excess, meaning that B → 0 above the reaction front because B is the limiting reagent and the reaction is limited by the diffusion of A towards the reaction front. Since B + C = β, which is the conservation relation presented in Section 2⁵⁴ when δ_B = δ_C, the maximal concentration of the product C_max = β is reached when the limiting reagent B is entirely consumed and B_min = 0. Using C_max in eqn (15) allows to calculate that A is in excess only if , which is always the case when α = 0. Conversely, if B is in excess then A_min = 0 and .

The temporal evolution of the RD flux of A is presented for two values of α as a function of β in Fig. 9. If α < 1, the reaction increases the flux of A compared to its NR counterpart, while the flux is decreased by the reaction if α > 1 because the solutes strongly inhibit the entrance of A in the host phase. In both cases, the effect of the reaction is stronger with increasing β, until B is in excess.

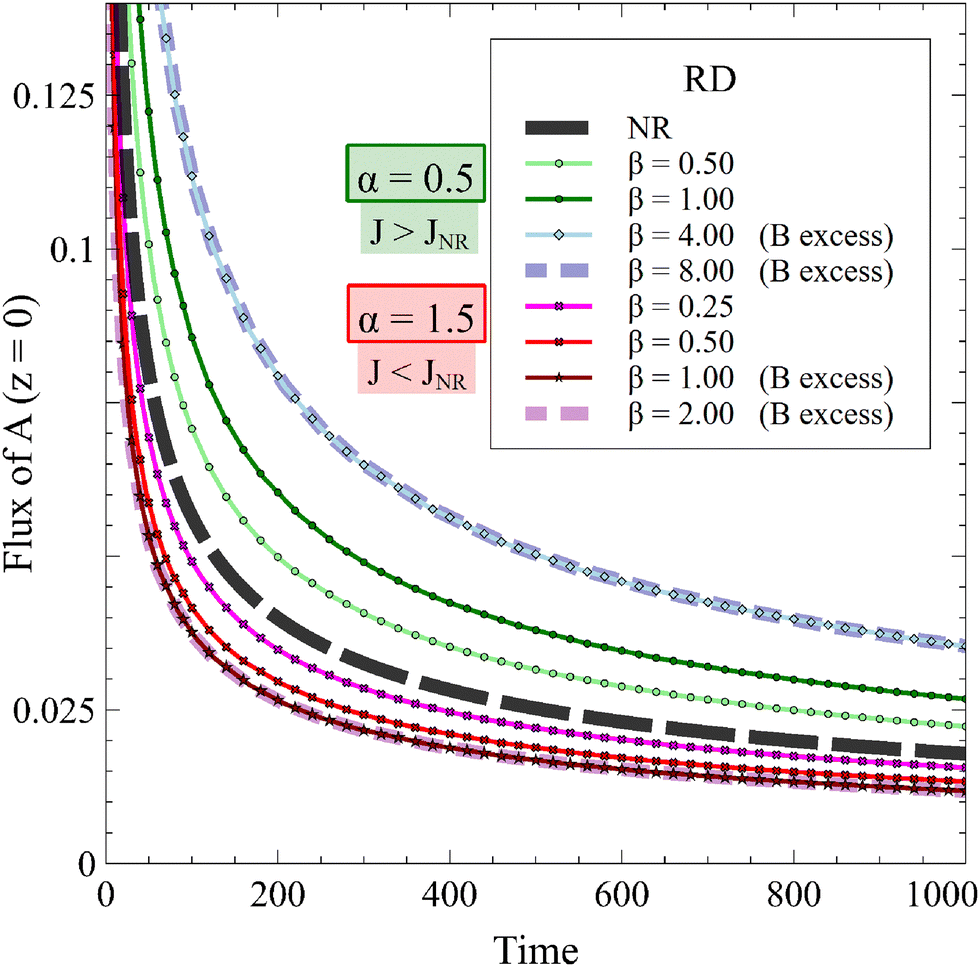

Fig. 9 Temporal evolution of the 1D RD flux of A for α = 0.5 (J > J_NR) or α = 1.5 (J < J_NR) and different values of β in absence of convection compared to the nonreactive (NR) case. The influence of the reaction on the RD flux is increased by β if A is in excess. The flux is not influenced by β if B is in excess.

In Fig. 10, we present the asymptotic RDC flux of A and compare it to the nonreactive case for variable (β, α).

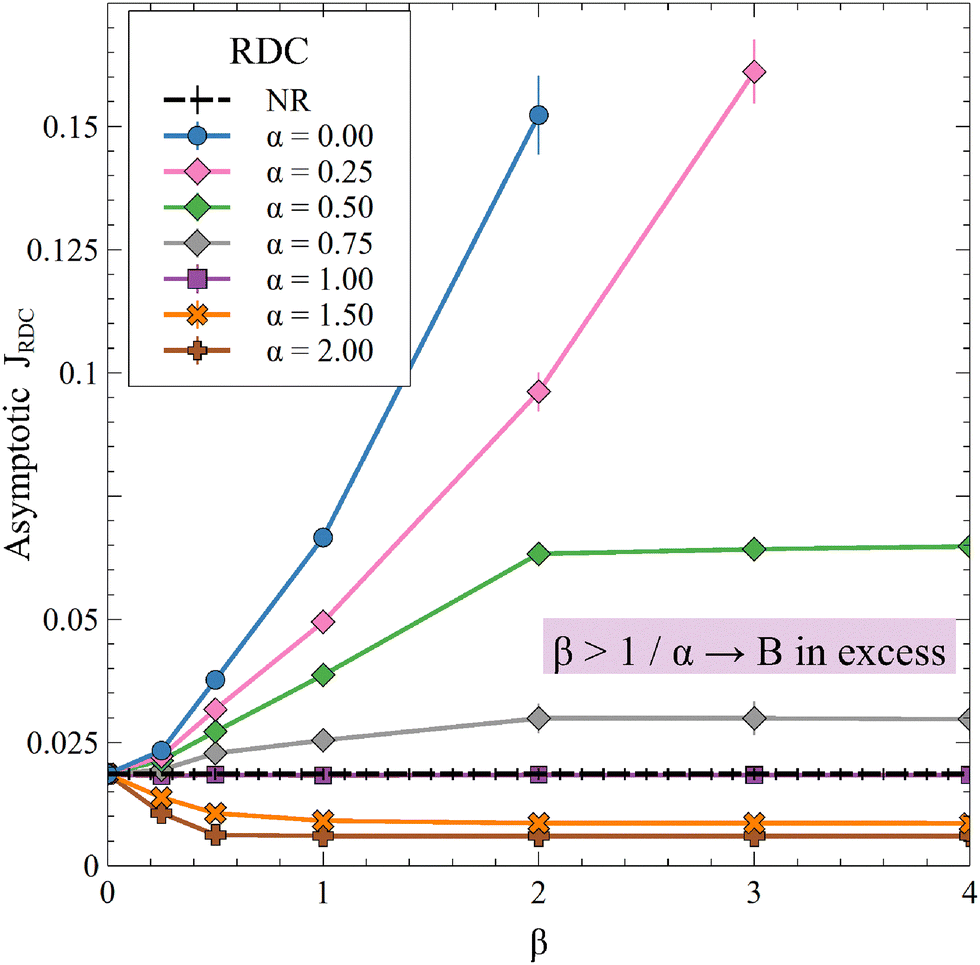

Fig. 10 Asymptotic (25 000 ≤ t ≤ 30 000) averaged RDC flux of A for different values of α and β while ΔR_CB = 1. Each point is averaged over 10 simulations, for which the standard deviation is shown.

The reaction increases the flux compared to the nonreactive flux for all values of α < 1. In these cases, as long as , increasing β enhances the influence of the reaction on the mass transfer which results in an increase of J_RDC, because the concentration gradient increases. Once the reactant B is in excess (β > 1/α) the flux is not influenced by β any longer, the reaction being limited by the solubility of A and not by the initial amount of B anymore. Conversely, increasing β decreases the mass transfer for all values of α > 1. The product strongly decreases the solubility of A in these cases, hence the reaction is quickly limited by A and the asymptotic flux is again not influenced by β once , i.e. when B is in excess. We recall that A + C = ρ = 1 at the interface when α = ΔR_CB = 1 so J_RDC = J_NR for any value of β in that case.

To summarize, the initial concentration of B does not have any influence on the mass transfer of A if B is in excess. The possibility of B being in excess is a novel specific feature of dissolution with variable solubility. Indeed, if α = 0, A is always the limiting species in excess as no substance in the host phase inhibits its continuous dissolution. If A is in excess, the influence of the reaction on the dynamics is directly correlated to β as studied previously in RD systems⁶³ and in the presence of convection.^52,54 If B is in excess (β > 1/α), then the dynamics give a RDC asymptotic flux which saturates.

3.2.3 Influence of ΔR_CB for β = 1. We now focus on the influence of the Rayleigh numbers on the density and the mass transfer. Since R_A = 1 in this work, the density change is controlled by ΔR_CB = R_C − R_B. Increasing its value results in a larger contribution of C to the density and in the destabilization of the dynamics by the reaction. For a constant solubility of A (α = 0), the reactive flux is always larger than its nonreactive counterpart because the mass transfer is increased by the consumption of A due to the reaction. If ΔR_CB = ΔR_crit ≈ 0.32, there is no effect of the reaction on the convective dynamics and the modification of the flux relative to the NR flux of A is only due to the consumption of A.⁵⁰ When ΔR_CB > ΔR_crit, the dynamics are more unstable than in the NR case resulting in an even larger flux. When ΔR_CB < ΔR_crit, the convective dynamics are reduced, thereby decreasing the flux but J_RDC remains larger than J_DC.

It is possible to calculate the direct effect of the consumption of A on the mass transfer in the absence of convection. For a fixed solubility of A (α = 0), the RD flux is always larger than its nonreactive diffusive counterpart and the ratio J_RD/J_D = 1 + β is constant over time.⁵⁴ For any positive value of α, the concentrations are calculated numerically and the ratio is a function of α. To quantify the direct effect of the convection on the flux of A, we divide the RDC flux by this ratio as

where J_conv represents the direct effect of the convection on the flux. The convective flux is either larger than the NR flux, which is the consequence of the destabilization of the convective dynamics by the reaction, or smaller than the NR flux in the stabilizing case. Fig. 11 presents J_conv and compares it to the nonreactive J_DC for several values of ΔR_CB and α.

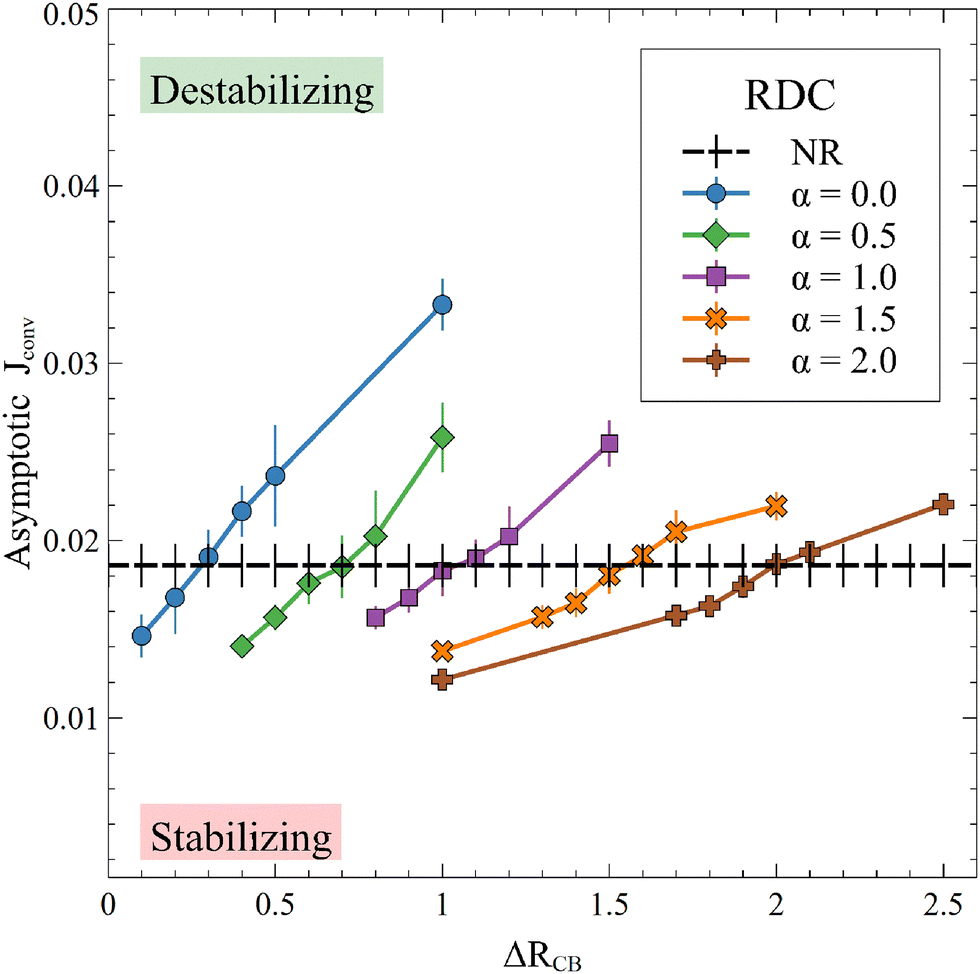

Fig. 11 J _conv as a function of ΔR_CB, i.e. asymptotic (25 000 ≤ t ≤ 30 000) averaged J_RDC flux of A divided by J_RD/J_D to analyse the direct effect of the convection on the flux of A, for different values of α and ΔR_CB while β = 1. Each point is averaged over 10 simulations, for which the standard deviation is shown.

We define ΔR_crit such that J_conv = J_NR if ΔR_CB = ΔR_crit. We compute J_conv for 0 ≤ α ≤ 4 using different values of ΔR_CB and obtain the value of ΔR_CB = ΔR_crit when there is no direct effect of the convective dynamics on the flux. As shown in Fig. 12, we observe that ΔR_crit is a function of α as

ΔR_crit ≃ 0.615 (±0.011) α + 0.345 (±0.015) for 0 ≤ α < 1, (17a)

ΔR_crit ≃ 1.000 (±0.009) α + 0.010 (±0.004) for 1 ≤ α ≤ 4. (17b)

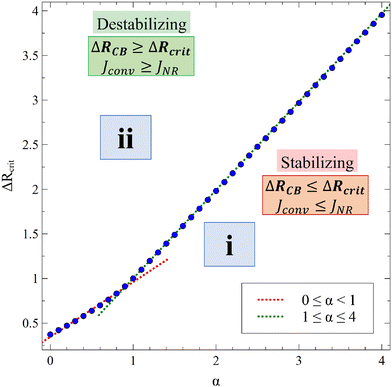

Fig. 12 Classification of the RDC regimes in the (ΔR_CB, α) space when β = 1: regime i (reaction stabilizes the dynamics compared to the nonreactive case) and regime ii (reaction destabilizes the dynamics compared to the nonreactive case). The red and green dotted lines are eqn (17a) and (17b) respectively.

To summarise, when the solubility of A is affected by the reaction, that reaction can inhibit the convective dynamics and decrease the flux relative to the NR case if ΔR_CB < ΔR_crit. Note that the direct effect of the convection, studied via ΔR_CB, must then be coupled to the direct effect of the consumption of A depending on α to study the overall effects of the reaction on the flux.

4 Discussion

We summarize here the results presented in Section 3 and classify the density profiles based on the influence of the parameters on the mass transfer. We first analyze the RD density profiles reconstructed from the concentration fields, then we present the different regimes in the (β, α) and (ΔR_CB, α) spaces of parameters. For each space, the other parameters are kept unitary.

When α < 1, the consumption of A by the reaction increases the transfer of A into the host phase and increasing β increases this effect, provided A is in excess which is the case if (Fig. 10). The density of the solution increases with β and is larger at a given depth for all reactive cases compared to the nonreactive case. The RD density profiles are not affected by β if α = ΔR_CB = 1 and the reaction does not influence the mass transfer or the density profiles. Conversely, the direct effect of the reaction is a decrease of the flux and of the density when α > 1. Most importantly, we observe that in all cases where α ≠ 1, increasing β does not influence the flux if B is in excess (Fig. 10).

We recall that the RD concentration fields, from which the density profiles are constructed, are not affected by ΔR_CB. The specific reactive case in which α = ΔR_CB = ΔR_crit = 1 again corresponds to the diffusive case. We observe that when ΔR_CB < ΔR_crit, the density is smaller at a given depth than its nonreactive value. In these stabilizing cases, the convective dynamics reduce the flux in a RDC system. On the other hand, if the contribution of C to the density is large enough (ΔR_CB > ΔR_crit), the convective dynamics are more important than in a nonreactive case and the dynamics are destabilized because the density, which is the driving-force of the convection, is then larger at a given depth (Fig. 11).

Fig. 13 summarizes the RDC regimes in the (β, α) parameter space. We identify four regimes of interest. In regime I, i.e. α < 1 and , the consumption of A by the reaction increases the flux relative to the nonreactive case. Since A is in excess, increasing β results in an increase of the effect of the reaction, which improves the mass transfer. In regime II, i.e. α < 1 and , the reaction still directly increases the flux (J_RDC > J_NR) but increasing β does not influence the mass transfer anymore because B is in excess. Conversely in regime III, i.e. α > 1 and , the reaction decreases the flux relative to the NR case which is a major difference from the previously studied reactive cases.^52,54 In this regime, increasing β decreases the flux even more. Finally the reaction decreases the flux but the influence of the reaction is not influenced by β in regime IV, i.e. α > 1 and .

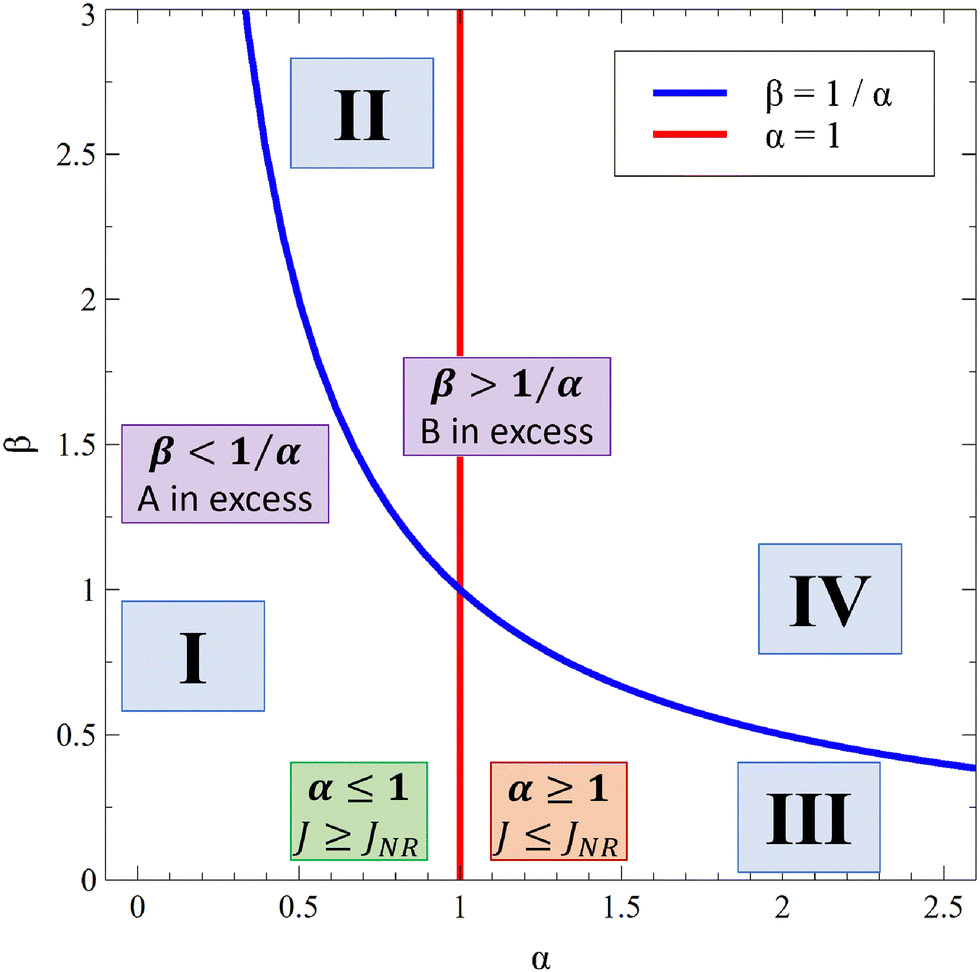

Fig. 13 Classification of the RDC regimes in the (β, α) parameter space: regime I (reaction increases the flux; A is in excess), regime II (reaction increases the flux; B is in excess), regime III (reaction decreases the flux; A is in excess) and regime IV (reaction decreases the flux; B is in excess).

The relation between ΔR_CB and α is summarized in Fig. 12 with two regimes of interest. In regime i, i.e. ΔR_CB < ΔR_crit, the density is mostly controlled by the concentration of A. The decrease of A over time, due to its consumption by the reaction as well as the inhibition of its solubility by the solutes, leads to a stabilization of the dynamics and a decrease of the flux relative to the nonreactive case. In regime ii, ΔR_CB > ΔR_crit, the contribution of C to the density is large enough to compensate for the consumption of A by the reaction. Even if the product inhibits the dissolution of A, it is produced in a sufficient quantity to destabilize the dynamics and increase the mass transfer compared to the nonreactive case.

5 Conclusions

Upon dissolution of a reactant A in a host phase containing a species B in which an A + B → C reaction generates a product C, the solubility of A can be affected by the compositional changes in the host phase. We have computed theoretically the reaction–diffusion–convection concentration profiles (eqn (2)) of the species and the density profile (eqn (11)) when the solubility of A linearly decreases with C (eqn (12)), i.e. A(z = 0) = 1 − αC. To explore the optimal conditions for the transfer of A into the host phase, we have quantified the influence on the flux of A of the variable solubility (α), of the initial concentration of B (β) and of the contribution of C to the density (ΔR_CB). The mass transfer of A is enhanced by the reaction if 0 ≤ α < 1 because the consumption of A increases the gradient of its concentration. We show that the flux is the same as its nonreactive counterpart when α = ΔR_CB = 1 because A is consumed as soon as it enters the host phase. In this limit case, A = 1 − C and ρ = A + C = 1 at the interface. Furthermore, we observe that the mass transfer is decreased by the reaction with regard to the nonreactive flux when α > 1. This new result changes our understanding of reactive convective dissolution since the reaction is not always increasing the flux anymore if the influence of the reaction on the solubility of A is large enough.

Whether the reaction increases the flux (α < 1) or decreases it (α > 1), this effect is enhanced if the initial solution is more concentrated in B, i.e. if β increases. Because the solubility of A can change with the reaction, we may reach cases where A becomes the limiting reactant. This occurs when . As B is then in excess, increasing β does not influence the mass transfer. In the context of CO₂ sequestration, this result highlights the importance of the choice of the sequestration site. Indeed, our results show that it is not always best to choose a concentrated aquifer if the reaction decreases the mass transfer (α > 1) or if B is in excess (no influence of β on the flux) for instance. With regard to the convective dynamics, we observe that an increase of ΔR_CB destabilizes the dynamics and increases the flux for a fixed value of α. Note that below a value of ΔR_CB = ΔR_crit = f(α), the reaction stabilizes the dynamics. This helps our understanding of the direct link between the influence of the variable solubility on the RD concentration profiles and the influence of the consumption of A on the convective dynamics.

The classification of the RDC dynamics provided in this study opens perspectives for future research. Upon dissolution of CO₂ into an aquifer for instance, CO₂ may precipitate through a mineralisation reaction.⁴⁰ It could be valuable to extend the framework to account for situations where precipitation decreases salinity, thereby increasing the solubility of CO₂, corresponding to α < 0. The influence of the precipitation of C could be investigated using the relations found in the (β, α) and (ΔR_CB, α) space of parameters. Furthermore, the influence of the diffusivity of the species on the RDC flux of A could also be studied for a variable solubility of A. Beyond these aspects, while the present model assumes isothermal conditions, future studies could address the role of heat release or absorption that may further impact solubility variations and convective dynamics.
