Phase equilibrium during the synthesis of LiNi_0.46Mn_1.54O₄: comprehensive X-ray & neutron powder diffraction study

Abstract

A combination of synchrotron X-ray powder diffraction (SXRPD) and neutron powder diffraction (NPD) is used to investigate phase equilibrium during the synthesis of LiNi_0.46Mn_1.54O₄ (LNMO) powders from a reagent mixture. A Li-deficient disordered LNMO begins to form at T ≈ 460 °C and as the temperature increases, oxygen release triggers the formation of impurity phases. Advanced structural characterization of quenched LNMO samples, along with in situ SXRPD experiments, reveals that a layered oxide impurity crystallizes between 700 °C and 900 °C. At temperatures of 900 °C and above, this impurity phase transforms into a rock-salt type one, while a Li-rich layered oxide impurity also emerges. This leads to the coexistence of three phases at T ≥ 900 °C: LNMO spinel, rock salt, and Li-rich layered oxide. These transformations affect significantly the composition of the targeted LNMO spinel phase, which highlights the challenges in achieving phase purity with the desired stoichiometry in this complex system. The findings provide valuable insights for optimizing the LNMO synthesis so as to prepare high-performance positive electrode materials.

---

Introduction

LiNi_0.5Mn_1.5O₄ (LNMO) is recognized as a highly promising spinel-type positive electrode material for Li-ion batteries (LIBs). Its high operating voltage of 4.8 V versus Li⁺/Li, driven by the Ni⁴⁺/Ni³⁺/Ni²⁺ redox couples, offers a significant energy density, which is essential for developing next-generation LIBs.¹

LNMO crystallizes in the spinel structural type with different degrees of Mn/Ni ordering. In the fully disordered LNMO phase (Fd3̄m S.G.) Li⁺ cations occupy the tetrahedral 8c sites while Ni and Mn cations are randomly distributed on the 16d octahedral sites. In contrast, in the ideally ordered LNMO phase (P4₃32 S.G.), Li⁺ cations are located at the tetrahedral 8a sites, and Ni and Mn cations occupy the 4b and the 12d octahedral sites, respectively. Disordered LNMO can be prepared by annealing at temperatures above 730 °C under air, while lower temperatures lead to the formation of the ordered LNMO.^2–4 On top of that, oxygen release starts at T ≥ 700 °C under air and at T ≥ 720 °C under oxygen, leading to Ni loss from the LNMO spinel phase as a consequence of the formation of a Ni-enriched rock-salt-type impurity.⁵

The most commonly used route for synthesizing LNMO powders is the solid-state method, which commonly consists of two stages.¹ In the first stage, the reagent mixture undergoes high-temperature annealing at T = 900 °C, leading to significant oxygen loss and to the formation of disordered LNMO along with a large amount of rock salt impurity phase. In the second stage, the powder is annealed at a lower temperature, typically 600–700 °C, which promotes oxygen intake, reduces the amount of impurity phase, and facilitates the formation of ordered LNMO.^2,6

As most LNMO samples described in the literature contain both LNMO spinel and rock salt impurity phases, it is important to distinguish between the composition of the LNMO phase and the overall composition of the samples. According to Cabana et al.,⁵ the rock salt impurity phase is richer in nickel, with a Mn/Ni ratio of 2 : 1, compared to 3 : 1 in the LNMO LiNi_0.5Mn_1.5O₄ spinel phase. This indicates that the formation of the impurity phase alters the composition of the LNMO spinel phase, enriching it with Mn according to LiNi_0.5−xMn_1.5+xO₄.

In several studies,^2,5–8 it was shown that disordered LNMO exhibits superior electrochemical performance at high charge/discharge rates and better cycling stability than ordered LNMO. However, the reasons for this enhanced performance in disordered LNMO are more complex than simply the effect of Ni and Mn disorder. In a previous work,⁹ we demonstrated that the chemical composition of the LNMO spinel phase is a more critical factor in determining the material's performance than the degree of Mn/Ni ordering. Materials with a slight excess of Mn in the LNMO spinel phase showed the most favorable performance at high C-rates and better cycling stability. Therefore, understanding the evolution of the LNMO spinel phase composition is essential for synthesizing the best-performing materials.

Although the LNMO system may seem well-studied, various inconsistencies still exist in the literature. Recently, Stüble et al.¹⁰ and Chen et al.¹¹ demonstrated that Li loss from the LNMO phase occurs at T > 700 °C, leading to the occupancy of Li (8a) sites by transition metal cations. This was shown using in situ laboratory X-ray powder diffraction (XRPD)⁹ and in situ neutron powder diffraction (NPD).¹⁰ Chen et al.¹¹ also suggested that both Ni and Mn atoms can occupy Li sites within the LNMO structure as in situ NPD experiment in the temperature range of 700–800 °C revealed that the atomic density at the Li sites changed non-monotonically: it increased between 700 °C and 750 °C, but began to decrease above 750 °C. Considering that the coherent scattering lengths (b_coh) of Li and Mn have negative values of −1.9 fm and −3.7 fm respectively, while Ni has a positive b_coh of 10.3 fm, they hypothesized that Ni atoms initially occupy the Li sites, but as the temperature increases, Mn atoms start to occupy these sites also. However, since both Li and Mn have negative b_coh values, this non-monotonic change in atomic density at the Li sites might also be related to the fluctuating amount of Li rather than the presence of Mn atoms. Combining NPD and XRPD would enable a more detailed study of these variations in the chemical composition of the LNMO phase. Due to the similarity in the scattering factors of Mn and Ni, XRPD allows for distinguishing between Li and transition metal (Ni and Mn) atoms.

Many discrepancies are also related to the type of impurity phase observed. For example, the in situ temperature-controlled XRPD study of LNMO conducted by Stüble et al.¹⁰ revealed the formation of a rock salt impurity phase, only, under an air atmosphere. Similarly, Pasero et al.³ and Cabana et al.,⁵ who investigated a series of LNMO samples quenched from temperatures in the range of 800–1000 °C under air, also reported the formation of only the rock salt impurity phase. However, Chen et al.¹¹ using in situ temperature-controlled NPD, surprisingly observed the formation of a layered oxide impurity under an Ar atmosphere, while only the rock salt impurity was detected under air. The reasons for the formation of the layered oxide impurity in an Ar atmosphere and the rock salt one in air remain unclear, as both share similar chemical formula of Li_1−xM_1+xO₂. It is possible that the layered oxide phase also forms in air, but due to the limited resolution of laboratory XRPD and NPD, as well as the similarity between the diffraction patterns of layered oxide and rock salt phases, it has not been detected.

In this fundamental study, we investigated for the first time the formation of the LNMO spinel phase (from the reagent mixture) using in situ temperature-controlled synchrotron XRPD (SXRPD) and NPD techniques. Since our previous work demonstrated that a slight excess of Mn positively impacts the electrochemical performance,⁹ we decided to investigate a Mn-rich LNMO sample with a global Mn/Ni ratio of 77/23. The use of SXRPD also allowed us to gain a more detailed understanding of the phase equilibrium and structural transformations occurring in the LNMO spinel and impurity phases during synthesis. Additionally, we extensively employed a quenching procedure so as to thoroughly examine changes in the chemical composition and cation distribution of the LNMO spinel phase through SXRPD and NPD.

Experimental

Synthesis

A pristine Mn-rich mixed nickel–manganese hydroxide sample (with Mn/Ni = 77/23, Ni_0.23Mn_0.77(OH)₂ from Umicore, Belgium) was used hereafter as precursor for in situ SXRPD experiments and for the preparation of quenched samples. It was fired as a 1 : 4 molar mixture with Li₂CO₃ in an alumina crucible in a muffle furnace under a synthetic air and atmosphere (mixture of dry N₂ and O₂) with the following the heating and cooling programs: heating at a rate of 5 °C min⁻¹ up to 500 °C followed by 1 °C min⁻¹ up to 1050 °C and kept for 12 hours at 1050 °C. Subsequently, the powder was cooled down to room temperature within 12 hours to yield a so-called pristine LNMO sample. The quenched samples were prepared by heating the pristine LNMO sample in a tube furnace under synthetic air, using an alumina boat, with the heating rate of 1 °C min⁻¹ followed by annealing for 12 hours at 750 °C, 800 °C, 850 °C, 900 °C or 950 °C. The resulting powders were quickly taken out of the furnace for rapid cooling (quenching) under air. Another series of quenched samples was prepared at 600 °C, 650 °C and 700 °C directly from the mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ without annealing. Additionally, one sample was kept for 2 hours (instead of 12 hours) at 650 °C before being quenched as already described.

Materials characterization

In situ temperature-controlled SXRPD experiments were performed using the BL04-MSPD beamline (ALBA, Spain)¹² with wavelengths of 0.6206 Å and 0.7092 Å in Debye–Scherrer geometry from samples placed in 0.7 mm diameter quartz capillaries. The sample was either the 1 : 4 mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ or the pristine Mn-rich LNMO sample mentioned above. For the experiment under oxygen, the quartz capillary containing the powder was sealed under oxygen atmosphere. For the experiments under air, one-end-open capillaries were used. The samples were heated with a hot air blower (FMB Oxford) positioned above the capillary with the heating rates of 5 °C min⁻¹ up to 500 °C followed by 1 °C min⁻¹ up to 900 °C. The temperature calibration was performed beforehand by measurement of the hot gas temperature at the sample position with an independent thermocouple and further cross-checked by collecting the data around phase transition temperatures for Na₂CO₃ (C2/m → P6₃/mmc S.G. at 483 °C, melting at 851 °C), SiO₂ (α- to β-quartz at 573 °C), NaCl (melting at 801 °C).

An in situ temperature-controlled NPD experiment was performed at the D20 High-Intensity 2-axis Diffractometer (Institut Laue-Langevin, Grenoble, France) with a wavelength of 1.54 Å in Debye–Scherrer geometry. Approximately 5 g of the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ were placed in the middle of the two-end-open quartz tube with outer diameter of 12 mm and inner diameter of 8 mm. To ensure a good contact with the gas atmosphere, the flow of synthetic air was circulating through the sample. The sample was heated in the D20's dedicated furnace equipped with a vanadium heating element, the heating rates being of 5 °C min⁻¹ up to 500 °C and then of 1 °C min⁻¹ up to 800 °C. Due to technical limitations related to the mechanical and chemical stability of the vanadium heating element and the quartz tube, the maximum temperature in the in situ NPD experiment was limited to 800 °C.

The SXRPD patterns of the pristine and quenched LNMO samples, obtained ex situ as described above, were collected at room temperature at the BL04-MSPD beamline (ALBA, Spain), using the same geometry, in sealed 0.7 mm diameter borosilicate glass capillaries. The NPD patterns were collected at room temperature at the D2B High-Resolution Diffractometer (Institut Laue-Langevin, Grenoble, France) with a wavelength of 1.59 Å in Debye–Scherrer geometry. The samples were loaded in vanadium cylindrical holders of 8 mm diameter.

The instrumental profile function of BL-04 MSPD SXPRD diffractometer and D2B High-Resolution NPD diffractometer were determined using Na₂Ca₃Al₂F₁₄ as a standard sample. Treatment of diffraction data and Rietveld refinements were performed using the Jana2006 (ref. 13) and the FullProf suite software¹⁴ packages. Additional Lorentzian broadening observed for superstructure reflections of the ordered LNMO (P4₃32 S.G.), present as signature of small antiphase domains, was refined with FullProf using size model #-2.

Raman spectra were obtained with a confocal LabRAM HR Evolution micro-spectrometer (Horiba) using a 560 nm argon gas laser source and a 600 gr mm⁻¹ grating. Each spectrum was recorded over the range of 100 to 800 cm⁻¹ using a 10.6 mm focal length lens, with a 10-seconds acquisition time and 40 accumulations. To access a reproducibility, Raman spectra were collected at different particles within the samples.

Transmission electron microscopy (TEM) images and electron diffraction (ED) patterns were collected using a JEOL 2000FX microscope, both equipped with double-tilt specimen holders and operated at an accelerating voltage of 200 kV. The powder sample was ground in ethanol, and a droplet of the resulting suspension was deposited onto a lacey carbon grid. The particles selected for study were as isolated and as thin as possible.

Thermogravimetric analyses were performed on a TGA Setaram TAG 2400. The experiments were carried out under air at a heating rate of 1 °C min⁻¹.

Results and discussion

Formation of the LNMO spinel phase from the reagent mixture

Moderate temperature range, from RT to 700 °C. On the SXRPD pattern collected at RT for the mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ (Fig. 1a, bottom), sharp and low-intensity reflections can be assigned to Li₂CO₃ (C2/c space group, ICSD # 66942). The most intense reflection at 2θ ≈ 7.6° corresponds to the Ni_0.23Mn_0.77(OH)₂ layered hydroxide.

Fig. 1 In situ T-controlled SXRPD (a) and NPD data (b) of the mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ collected at room temperature (bottom), at 400 °C (middle) and at 700 °C (top). Contour plots represent the evolution of SXRPD patterns from room temperature to 400 °C, and from 400 °C to 700 °C.

During heating, the lattice parameters of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ increase (thermal expansion). At T ≈ 300 °C, a high-intensity reflection at 2θ ≈ 14.5° appears with the disappearance of the most intense reflection of the Ni_0.23Mn_0.77(OH)₂ hydroxide at 2θ ≈ 7.6°. In other words, the dehydration of the Ni_0.23Mn_0.77(OH)₂ hydroxide occurs through the formation of a new phase.

Thanks to additional experiments (described in ESI and in Fig. S1†), this new phase was identified as ilmenite-type Ni_xMn_2−xO₃ (Fig. 1a, middle). At T > 300 °C the sample consists of three phases: Li₂CO₃, Ni_xMn_2−xO₃ as a main phase and Ni_yMn_1−yO(OH) as an impurity. Upon further heating, at T ≈ 460 °C, new reflections start to appear together with the disappearance of the reflections of Li₂CO₃, Ni_xMn_2−xO₃ and Ni_yMn_1−yO(OH). At T = 700 °C, all the reflections on the SXRPD pattern can be indexed using a face-centered cubic cell described within the Fd3̄m space group (S.G.) with a = 8.2377(2) Å, corresponding to the LNMO phase (Fig. 1a, top).

A similar reaction pathway is observed during the in situ temperature-controlled NPD experiment (Fig. 1b). The dehydration of Ni_0.23Mn_0.77(OH)₂ with the formation of ilmenite-based Ni_xMn_2−xO₃ oxide and Ni_yMn_1−yO(OH) oxyhydroxide also starts at T ≈ 300 °C and is followed by the appearance of LNMO reflections at T ≈ 460 °C. It is important to mention that all the reflections on the NPD pattern at 700 °C can be indexed in the Fd3̄m S.G. (a = 8.2378(3) Å), as for the SXRPD pattern at T = 700 °C. Thus, it shows that the disordered LNMO phase is forming initially during the synthesis.

The observed reaction pathway is also in good agreement with thermogravimetric analysis (TGA) data (Fig. S2a†), collected under air with heating rates similar to those used during the in situ SXRPD and NPD experiments. Severe weight loss starts at T ≈ 300 °C and corresponds to dehydration of Ni_0.23Mn_0.77(OH)₂. The weight loss ends at T ≈ 540 °C, which corresponds to the full disappearance of the reflections of Li₂CO₃, Ni_xMn_2−xO₃ and Ni_yMn_1−yO(OH) in in situ collected SXRPD (Fig. 1a) and NPD (Fig. 1b) patterns.

It should be noted, that the observed weight loss of ≈16% is in a good accordance with the expected weight loss of 15.7% for the overall chemical reaction (eqn (1)) which describes the formation of the LNMO phase with the chemical composition of LiNi_0.46Mn_1.54O₄. According to in situ SXRPD and NPD data, it can be suggested that the chemical reaction is completed already at T ≥ 600 °C, at which only the disordered LNMO phase is observed.

2Li₂CO₃ + 8Ni_0.23Mn_0.77(OH)₂ + 3O₂ = 4LiNi_0.46Mn_1.54O₄ + 2CO₂↑ + 8H₂O (1)

To evaluate the chemical composition of the LNMO spinel phase formed during the in situ experiments, Rietveld refinements from the SXRPD and NPD patterns collected at 650 °C were carried out (detailed description of the Rietveld refinement procedure in ESI†). In the case of SXRPD, the difference Fourier analysis revealed an excess of electron density at the 8a sites (Li sites) and therefore Ni atoms were placed at the Li sites, for the Rietveld refinement which converged to 4.73(8)% Ni in the 8a sites. Experimental points, as well as the calculated and difference plots after the Rietveld refinement of the SXRPD pattern collected in situ at 650 °C can be found in Fig. S2b.†

It is noteworthy that based on SXRPD data, the similar scattering factors of Ni and Mn prevented us from determining whether Ni, Mn, or both at the same time occupy the Li sites. However, due to the opposite signs of coherent scattering lengths b_coh of Ni (10.3 fm) and Mn (−3.7 fm), NPD data can indicate which elements predominantly occupy the Li sites (b_coh = −1.9 fm). The presence of Ni atoms at the Li sites increases atomic density, whereas the presence of Mn atoms decreases it. The difference Fourier synthesis clearly showed an increase in atomic density at the Li sites in this case, indicating that the transition metal atoms mainly occupying the Li sites are Ni atoms. Additionally, the occupancy factors of Ni and Mn at the 16d sites were refined with the constraint Ni + Mn = 100%. As a result, the following chemical formula can be written for the LNMO spinel phase formed in situ at 650 °C during the NPD experiment: (Li_0.93(2)Ni_0.07(2))_8a(Ni_0.424(3)Mn_1.576(3))_16dO₄. The corresponding experimental points, as well as the calculated and difference plots can be found in Fig. S2c.†

According to the results of the Rietveld refinement of the SXRPD and NPD patterns collected at 650 °C, the composition of the LNMO spinel phase does not match the targeted composition of LiNi_0.46Mn_1.54O₄, meaning that the chemical reaction between Li₂CO₃, Ni_xMn_2−xO₃ and Ni_yMn_1−yO(OH) is not yet fully completed at 650 °C. Since only the LNMO spinel phase is observed in the SXRPD and NPD patterns, it can be inferred that amorphous phases, which cannot be detected, may still be present in the sample at this temperature. Our results also suggest that the crystal structure of the initially formed LNMO spinel phase is disordered, as no superstructure reflections of the ordered LNMO phase are observed on the NPD patterns.

To investigate the formation of the LNMO phase at the early stages of the synthesis, we prepared a series of samples quenched under synthetic air at 600 °C, 650 °C and 700 °C (noted as q600 °C, q650 °C and q700 °C) using the same mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂, and heating rates as for the in situ experiments. Additionally, one sample was kept for 2 h at 650 °C before being quenched (noted as q650 °C 2 h). The resulting NPD and SXRPD patterns collected at RT after the quenching can be found in Fig. 2a and b. Those of the q600 °C, q650 °C and q700 °C samples can be indexed in the Fd3̄m S.G., whereas in the NPD pattern of the q650 °C 2 h sample additional low-intense and broad reflections are present, which can be indexed in the P4₃32 S.G. In other words, the superstructure reflections of the ordered LNMO phase are already observed. According to Casas-Cabanas et al.,¹⁵ Kim et al.² and Oney et al.¹⁶ their broadening can be attributed to the formation of small domains of ordered LNMO at the particle level.

Fig. 2 NPD (a) and SXRPD (b) patterns of the quenched samples prepared from the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ under air. Experimental points, as well as calculated and difference profiles obtained after the Rietveld refinement of the NPD (c) and SXRPD (d) patterns of the sample quenched after 2 hours at 650 °C. Selected 2θ° range of the Rietveld plot of NPD data is chosen to demonstrate the fitting of the superstructure reflections of the ordered LNMO phase.

The detailed description of the combined Rietveld refinement of SXRPD and NPD patterns of the q600 °C, q650 °C, q700 °C and q650 °C samples can be found in ESI.† The results are compared in Table 1. For an illustration of the quality of the refinement, experimental points, as well as calculated and difference plots obtained for the q650 °C 2 h sample are given in Fig. 2c and d.

Table 1 Lattice parameters, and Li/Ni and Mn/Ni ratios at the tetrahedral and octahedral sites respectively, compared for the quenched samples prepared under air from the mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂. Results obtained from the combined Rietveld refinement of SXRPD and NPD data

Sample ID	Model	a, Å	Li/Ni, tetrahedra	Mn/Ni, octahedra
q600 °C	Disordered	8.1778(3)	0.956/0.044(1)	1.56/0.44(1)
q650 °C	Disordered	8.1781(2)	0.960/0.040(1)	1.55/0.45(1)
q700 °C	Disordered	8.1765(4)	0.981/0.019(2)	1.57/0.43(1)
q650 °C 2 h	Ordered	8.1746(2)	0.985/0.015(1)	1.54/0.46(2)

---

The results presented in Table 1 align with the data from in situ NPD and SXRPD experiments. At the early stages of the synthesis (≈600 °C), a Li-deficient LNMO spinel phase forms, with Ni atoms occupying the Li sites. As the temperature increases and the chemical reaction progresses, the Li deficiency in the LNMO crystal structure decreases, bringing its composition closer to the LiNi_0.46Mn_1.54O₄ target composition, also achieved after annealing for 2 hours at 650 °C. Furthermore, in these conditions, the ordering of Mn and Ni in the octahedral sites begins, leading to the formation of small ordered domains, approximately 7 nm in size. In other words, increasing the temperature and/or annealing time moves the system closer to its equilibrium state and to the targeted composition.

High-temperature range, from 700 °C to 900 °C. Selected SXRPD patterns collected at given temperatures during in situ experiment can be found in Fig. 3a. With an increase of temperature, reflections of impurity phases appear. Surprisingly, on the pattern collected at 850 °C, the impurity reflection at 2θ ≈ 7.3° closed to the (111) reflection of LNMO cannot be described by the face-centered cubic unit cell of the rock salt impurity.

Fig. 3 Selected 2θ ranges of in situ SXRPD patterns collected for the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ at given temperatures (a). Contour plot representing evolution of the SXRPD patterns from 850 °C to 903 °C during the in situ experiment (b).

Moreover, the broad signature at 2θ ≈ 14.7°, next to the (222) reflection of LNMO, is in fact due to two reflections. In this 2θ range, only the (111) reflection is theoretically present for the rock salt impurity, which implies that this “impurity” possesses lower symmetry than the cubic rock salt. All these reflections can be indeed indexed in a rhombohedral cell described within the R3̄m S.G. with the following lattice parameters: a = 2.953(5) Å, c = 14.53(1) Å (c/a = 4.920(2)). As a conclusion, a layered oxide impurity initially forms during the synthesis and then upon heating, the reflections (006) and (012) of the layered oxide impurity merge into a single reflection with much higher intensity. In fact, the reflections of the impurity phase identified in the pattern collected at 903 °C can be indexed in the Fm3̄m S.G. with a = 4.198(1) Å, showing a transformation from the rhombohedral layered structure to the cubic rock salt structure (Fig. 3b).

Another important structural parameter to be discussed relates to the possible occupation of Li sites by transition metals and we note that the intensity of the (220) reflection (I₂₂₀ ≈ f_8a(Li)²) of the LNMO phase indeed dramatically increases with temperature (Fig. 3a) as a clear signature of the partial occupation of the 8a sites by transition metal atoms (Ni and/or Mn). As discussed above, for SXRPD, similar scattering factors of Ni and Mn do not allow to properly distinguish them. For the Rietveld refinements of the structures from patterns collected in situ at 850 °C and 900 °C, a two-phase model was employed (ESI†). Experimental points, as well as calculated and difference plots are compared for both temperatures in Fig. 4. At 850 °C, the refined amount of Ni at the Li sites in the LNMO spinel phase was found to be 9.1(1)%, and the weight fraction of LNMO 80.5(2)%. At 900 °C, the amount of Ni at the Li sites increased to 16.0(1)%, and the weight fraction of LNMO decreased to 67.0(3)%. Unfortunately, due to technical restrictions, the in situ temperature-controlled NPD experiment was conducted only up to 800 °C (Fig. S3a†). Additionally, the relatively poor crystallinity of the formed LNMO phase and the significantly broader reflections in general, caused by the broader instrumental function of the D20 diffractometer, prevented us from clear distinguishing between layered oxide impurity and rock salt impurity. However, the Rietveld refinement of the structure from the NPD pattern collected at T = 800 °C with the same two-phase model, as for SXRPD, provides reliable descriptions (Fig. S3b†).

Fig. 4 Experimental points, as well as calculated and difference profiles obtained after the Rietveld refinement of the SXRPD patterns collected in situ for the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂: at 850 °C (a) and at 900 °C (b). 2θ ranges are selected to highlight reflections of the layered oxide and rock salt impurities, respectively.

To summarize this section, our in situ SXRPD and NPD study demonstrates that during the first stage of the solid-state synthesis of LNMO at T ≤ 700 °C, the disordered Li-deficient LNMO spinel phase initially forms with Ni atoms occupying the Li sites. This off-stoichiometry in the LNMO phase is attributed to the incomplete chemical reaction between Li₂CO₃ the Ni_xMn_2−xO₃ transition metal oxide and Ni_yMn_1−yO(OH) oxyhydroxide, which are formed after the dehydration of Ni_0.23Mn_0.77(OH)₂ hydroxide at T ≈ 300 °C. The presence of amorphous and/or poorly crystalline phases next to the Li-deficient LNMO spinel phase is anticipated at this stage of synthesis. However, during the annealing of the LNMO sample at T < 700 °C, the ordered LNMO spinel phase forms, indicating that the ordered phase is thermodynamically stable at T < 700 °C.

At T > 700 °C, the oxygen release starts, leading to the formation of impurity phases. In the temperature range of 700–850 °C, a layered oxide impurity is formed, transformed to a rock salt impurity at T > 850 °C. The driving force for the phase transition from the layered oxide to rock salt impurity remains unclear but is most likely nested in compositional changes upon heating, as it is well-known that layered oxides typically possess a Li/M ratio close to one,^17,18 much higher than that observed in rock salt oxides. Unfortunately, the low crystallinity of the LNMO spinel and of the impurity phases, formed during heating of the mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂, prevents us from determining the composition of the impurity phase.

Structural changes in LNMO spinel and impurity phases upon annealing

To improve angular resolution and simplify structural analysis, in situ temperature-controlled SXRPD experiments were performed on the highly crystalline as-prepared LNMO sample. These in situ experiments were performed under both air and oxygen atmospheres to study the impact of partial oxygen pressure on the phase equilibrium. As described in details in the experimental section, this LNMO sample with Mn/Ni = 77/23 (LiNi_0.46Mn_1.54O₄) was prepared from the thermal treatment of a 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂ at T = 1050 °C under a synthetic air atmosphere. The Rietveld analysis is given in details in supplementary information in Fig. S4† and reveals that small amounts of rock salt and layered oxides as impurities are present next to the spinel phase.

Similar phase transformations of the LNMO sample were observed for both atmospheres, air and oxygen, during the heating, and they appeared similar to those observed for the in situ SXRPD experiment performed starting from the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂. Selected SXRPD patterns collected in situ upon heating the LNMO sample at given temperatures can be found in Fig. S5.† From T = 750 °C, the intensity of the reflections associated to the layered oxide impurity increases, as well as the intensity of the 220 reflection of the LNMO phase, showing for that latter an increasing amount of transition metal ions in the Li sites of the spinel structure. Finally, an extended annealing of the sample at 900 °C, in air or in oxygen, causes the phase transformation of the layered oxide impurity to the rock salt impurity (Fig. S6†). A detailed description of the model used for the sequential Rietveld refinement from this data set can be found in ESI,† with the LNMO spinel phase described by the general formula (Li_1−xNi_x)_8a(Ni_0.46Mn_1.54)_16dO₄. The results obtained are detailed in Fig. 5.

Fig. 5 Results obtained from the sequential Rietveld refinements of SXRPD patterns collected for the LNMO sample, in the range of 750–900 °C, under air and oxygen atmospheres. (a) Evolution of the lattice parameter, (b) weight fraction of the LNMO phase, (c) Li content at the 8a sites of the spinel structure, (d)–(f) lattice parameters and c/a ratio of the layered oxide phase, (g) transition metal (M) content at the 3a, M sites of the layered structure, (h) Li content at the 3b, Li sites of the layered structure, and (i) overall Li content in the layered oxide phase. On some graphs, the error bars are smaller than symbol size of data points.

The lattice parameter of the LNMO phase is highly dependent on its composition and on the oxidation states of the Mn atoms. According to the Rietveld refinement from the NPD pattern of the pristine LNMO sample, the LNMO spinel phase has a chemical composition of LiNi_0.41(1)Mn_1.59(1)O₄ i.e. LiNi_0.41(1)²⁺Mn_0.18(1)³⁺Mn_1.41(1)⁴⁺O₄. Upon heating of this pristine spinel sample, oxygen release starts at T ≈ 700 °C, leading to the formation of the impurity phase and to the reduction of the Mn⁴⁺ cations to Mn³⁺. Moreover, according to Cabana et al.,⁵ the impurity phase has a Ni-enriched composition. As a result, the formation of the impurity phase increases the Mn content in the spinel (and consequently the amount of Mn³⁺ cations) which in turn increases its lattice parameters.

An increase in the slope of the lattice parameter change of the LNMO spinel phase with temperature (Fig. 5a) indicates an increase of Mn content. Smaller values of the lattice parameter of the LNMO phase under oxygen can be explained by lower Mn content in the LNMO phase and higher Li content at the 8a (Li) sites (Fig. 5c). It should be noted that a decrease in Li content in the LNMO phase results in additional reduction of Mn⁴⁺ to Mn³⁺ cations. The higher weight fractions of LNMO (Fig. 5b) and Li content in the LNMO phase (Fig. 5c) at a given temperature under oxygen atmosphere, compared to air, can be attributed to the higher partial oxygen pressure, which shifts the equilibrium towards the formation of the LNMO phase.

In the following, changes in the impurity phase will be discussed. The structural relationships between the layered oxide and rock salt are thoroughly discussed in ESI.† The refined lattice parameters a_L and c_L of the layered oxide impurity, along with the calculated c_L/a_L ratio, are given in Fig. 5d–f as a function of the temperature, while the refined M and Li contents at the 3a and 3b sites, as well as the overall Li content in the layered oxide phase, are shown in Fig. 5g–i. A sharp increase in the a_L is observed from T ≈ 825 °C (Fig. 5d), whereas the c_L rises up to T ≈ 870 °C before decreasing (Fig. 5e). The c_L/a_L ratio increases up to T ≈ 820–830 °C (Fig. 5f), and then decreases until T = 900 °C. This evolution suggests an initial increase in the degree of ordering between Li and the transition metals M in the crystal structure of the layered phase at lower temperatures, followed by a decrease in ordering at higher temperatures. In the range of 750–800 °C, there is a rise in Li content at the 3b site (Fig. 5h) and in the overall Li content in the layered oxide phase (Fig. 5i). However, both parameters decrease at T > 800 °C, supporting also a higher disorder of Li and M between the 3a and 3b sites (Fig. 5g and h) and a decrease in the c_L/a_L ratio (Fig. 5f). The chemical formula (Li_1−x−yM_x+y)_3b(Li_yM_1−y)_3aO₂ with x > 0 describes well the disordered layered oxide impurity phase.

During annealing at 900 °C under both atmospheres, this disordered layered oxide transforms to the rock salt phase as highlighted by the merging of the (006) and (012) diffraction peaks in the R3̄m S.G. into a single (111) peak in the Fm3̄m S.G. (Fig. S6†) and by the decrease of the c_L/a_L ratio from 4.95 to 4.90. The Rietveld refinement of the SXRPD patterns collected during heating at 900 °C (Fig. 6a) and after 5 hours of annealing under air at this temperature (Fig. 6b) reveals a decrease in the Li content in the impurity phase: Li_0.84(1)M_1.16(1)O₂ for the first at 900 °C and Li_0.77(1)M_1.23(1)O₂ for the second after being maintained at 900 °C during 5 h. This further confirms that the Li content in the impurity phase controls the phase transition from the rhombohedral layered structure to the cubic rock salt structure.

Fig. 6 Experimental points, as well as calculated and difference profiles after the Rietveld refinements of SXRPD patterns for the LNMO samples: collected at 900 °C during heating (a) and after 5 h of annealing at 900 °C (b).

Additionally, changes in the lattice parameter and weight fraction of the LNMO spinel phase, along with the Li content at the 8a site in its crystal structure, are also observed (Fig. 6). These structural changes in both phases during annealing also indicates that equilibrium states during heating were not fully achieved. Moreover, a pronounced asymmetry in the reflections of LNMO spinel and the impurity phase is observed at high 2θ angles, which can be attributed to strain broadening due to not homogeneous chemical composition of the phases in the sample.

To summarize this section, the following equation (eqn (2)) is proposed to describe the phase equilibrium during the synthesis in the temperature range of 750–900 °C:

LiM₂O₄ = p(Li_1−xM_x)M₂O₄ + qLi_1−yM_1+yO₂ + zO₂↑ (2)

where M = Ni, Mn. The p, q and z coefficients can be calculated from the weight balance equation, if the exact compositions of LNMO and impurity phases were known. During high-temperature synthesis, the crystal structure of LNMO becomes Li-deficient due to the formation of the Li-enriched impurities. The crystal structure of the impurity undergoes the transformation from the rhombohedral layered to the cubic rock salt oxides at T ≥ 900 °C. Due to limiting temperature of the used hot air blower, the described in situ SXRPD experiment with the LNMO sample was performed only up to T = 900 °C. Considering the similar scattering of Ni and Mn atoms, the exact composition of the LNMO phase remains unclear. Therefore, a series of samples quenched from T = 750–950 °C under air was prepared to study the phase equilibrium at T > 900 °C and to combine SXRPD and NPD diffraction for better insights into the composition of the LNMO phase.

Evolution of the composition of the LNMO spinel phase

Selected 2θ ranges of the SXRPD patterns of samples quenched under air from 750 °C, 800 °C, 850 °C, 900 °C, and 950 °C (noted as q750 °C–q950 °C) are shown in Fig. S7.† The same increase, with temperature, of the intensity of the (220) reflection of the LNMO spinel phase was observed, indicating that transition metal cations are occupying the Li sites. However, the crystallinity of these samples declines with an increase of the temperature, making the observed reflections broader. This deterioration of the crystallinity is likely attributed to the inhomogeneity of the composition at the particle level, caused by the quenching procedure.

The detailed procedure of the Rietveld refinements from SXRPD and NPD data of the LNMO samples, quenched from T = 750–900 °C, can be found in ESI.† It should be noted that due to the bad crystallinity of the q950 °C sample and the possible overlapping of the reflections of the LNMO and impurity phases in the SXRPD and NPD patterns, the Rietveld refinements for the q950 °C sample were not performed, using the same model, as for the q750 °C–q900 °C. The Rietveld refinement of the q950 °C is described below.

Combining SXRPD and NPD allows us to clarify the cationic composition at the tetrahedral 8a and octahedral 16d sites in the crystal structure of the LNMO spinel phase. For this purpose, the following structural model was proposed: (Li_cNi_1−y−cMn_y)_8a(Ni_0.5−zMn_1.5+z)_16dO₄. From the Rietveld refinement of the SXRPD data, the c parameter, representing the Li content at the 8a sites, is determined. Subsequently, the Rietveld refinement of the NPD data allows for the refinement of the y and z values, and thus of the occupancy factors of both Mn and Ni at the 8a and 16d sites. Results obtained after the Rietveld refinement of the SXRPD and NPD data are gathered in Fig. 7. The experimental points, as well as calculated and difference plots after the Rietveld refinements can be found in Fig. S8–S11.†

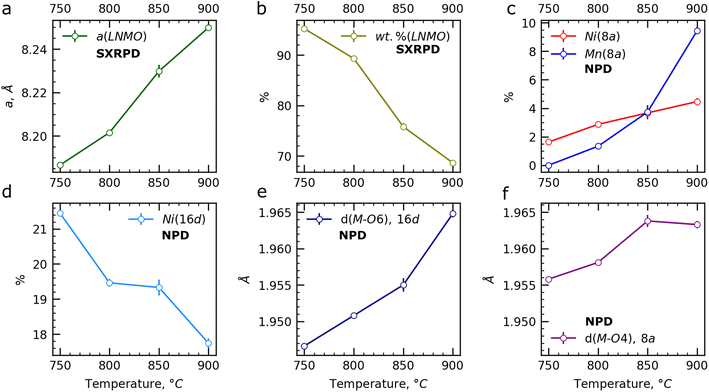

Fig. 7 Lattice parameter (a), weight fraction (b), Ni and Mn content at the Li 8a sites (c), Ni content at the M 16d sites, the Mn content being the complement of Ni in the 16d sites (d), interatomic distances at the 16d (e) and 8a (f) sites in the LNMO spinel phase after the Rietveld refinement of the SXRPD and NPD patterns of the q750 °C, q800 °C, q850 °C and q900 °C samples. The data source of each refined parameter is indicated in bold on the corresponding graph.

An increase of the lattice parameter of the LNMO spinel phase (Fig. 7a) indicates a change of its composition and as previously discussed, this increase can be attributed to the higher amount of Mn³⁺ cations in the structure. Additionally, due to the oxygen release at T ≥ 700 °C under air, the impurity phase forms (Fig. 7b), leading to Li loss from the LNMO phase and to the occupation of the 8a sites by Ni and/or Mn atoms, as shown in the previous section. Surprisingly, the combination of SXRPD and NPD data shows that both Ni and Mn atoms occupy the 8a sites (Fig. 7c). Furthermore, as the temperature increases, more Mn atoms are found at this site, as well as at the 16d sites (Fig. 7d), leading to a Mn-rich and Li-deficient composition for LNMO.

The increase of the average interatomic distance d(M–O) at the 16d site (Fig. 7c) corresponds to the increase of the Mn content at this site. An increase of the average interatomic distance d(M–O) at the 8a site is also observed suggested that Mn²⁺ and Ni²⁺ cations occupy the 8a sites. Indeed, the Mn²⁺ cations possess a larger ionic radius of 0.66 Å (CN = 4) versus Li⁺ (0.59 Å) and Ni²⁺ (0.55 Å) cations, and even more versus Mn⁴⁺ (0.39 Å). Therefore, the increase of the d(M–O) at the 8a sites aligns only with the increase of amount of Mn²⁺ cations at the 8a sites.

It should be noted that Chen et al.,¹¹ using the Rietveld refinement of data collected during in situ NPD under an Ar atmosphere, suggested the occupation of the 8a sites by Mn and Ni atoms. Our combined SXRPD and NPD study of the quenched samples of LNMO confirms this suggestion and allows to propose the chemical compositions of the LNMO phase in these samples (Table 2). As seen in Table 2, the average oxidation state of Mn cations decreases with increasing temperature. However, the average oxidation state of +3.64 for Mn in the q900 °C sample does not clearly indicate the presence of Mn²⁺ cations. The formation of Mn²⁺ cations could be explained by the disproportionation reaction: 2Mn³⁺ → Mn²⁺ + Mn⁴⁺. It can be assumed that Mn²⁺ cations occupy at the 8a sites in the crystal structure of the LNMO spinel phase. However, it is difficult to determine definitively where the Mn⁴⁺ cations are. One possibility could be into the impurity phase as it will be supported in the next section.

Table 2 Chemical compositions and average oxidation states of Mn calculated in the quenched samples from the results of the Rietveld refinement of SXRPD and NPD data, using the structural model (Li_cNi_1−y−cMn_y)_8a(Ni_0.5−zMn_1.5+z)_16dO₄, where c is the Li content at the 8a site, derived from the Rietveld refinement of SXRPD data and fixed in the refinement of NPD data, and y and z are refined parameters in the Rietveld refinement of NPD data

Sample	Composition of the LNMO phase	Mn average oxidation state
q750 °C	Li0.984(1)Ni0.445(3)Mn1.571(2)O4	3.90
q800 °C	Li0.958(4)Ni0.418(6)Mn1.624(6)O4	3.82
q850 °C	Li0.926(6)Ni0.42(1)Mn1.65(1)O4	3.77
q900 °C	Li0.861(4)Ni0.40(1)Mn1.74(1)O4	3.64

---

Formation of the Li-rich layered oxide impurity at T ≥ 900 °C

On the SXRPD pattern of the q950 °C sample, new unknown reflections are observed, that we attributed (Fig. 8) to a Li-rich layered oxide with cell parameters a = 2.857(1) Å, c = 14.34(1) Å (R3̄m S.G.). Indeed, as typically observed for Li-rich layered oxides, main reflections can be indexed in the R3̄m S.G., whereas low-intense, broad and asymmetric (diffuse) superstructure reflections, coming from faults in the stacking of the layers containing ordered Li and transition metal cations, can be described only in the monoclinic C2/m S.G.^19,20

Fig. 8 Comparison of the SXRPD pattern of the Li-rich Li_1.2Ni_0.2Mn_0.6O₂ oxide with the SXRPD patterns of the selected quenched samples. The ranges are chosen to highlight the superstructure reflections of the Li-rich layered oxide (left) and its main reflections (right).

To confirm further the presence of the Li-rich layered oxide phase, a Raman spectroscopy study of the quenched samples was also carried out in comparison with Li_1.2Ni_0.2Mn_0.6O₂ (Fig. 9a). Indeed, Raman spectroscopy was proven to be an efficient tool to probe various types of atomic ordering for both layered and spinel oxides.^16,21 The spectra of the q750, q800 and q900 °C samples correspond to that of the pristine disordered LNMO sample. The band at 635 cm⁻¹ is associated with the stretching of the Li–O bond, where the oxygen is primarily bonded to Mn atoms, enabling the monitoring of the Mn oxidation state.²² This band shifts to lower energies for samples resulting from higher quenching temperatures, as a result of bigger amounts of Mn⁴⁺ cations reduced into Mn³⁺ cations. This is also in good agreement with an increasing intensity of the shoulder observed at ≈655 cm⁻¹, which is attributed to the Jahn–Teller distortion of the Mn³⁺O₆ octahedra. The band at 495 cm⁻¹ corresponds to the Li–O bond stretching, with in this case the oxygen predominantly bonded to Ni atoms. The position of this band changes in parallel to that at 635 cm⁻¹ with the partial substitution of Ni²⁺ by Mn³⁺ upon increasing temperature.

Fig. 9 Comparison of selected Raman spectra of the pristine LNMO, quenched LNMO and Li_1.2Ni_0.2Mn_0.6O₂ samples (a). Comparison of the different Raman spectra that can be obtained for the q900 °C and q950 °C samples, collected from different particles, with the spectra of the q750 °C and Li_1.2Ni_0.2Mn_0.6O₂ samples (b).

The q950 °C sample is significantly different from the others in the range of 250–450 cm⁻¹ and a comparison with that of Li_1.2Ni_0.2Mn_0.6O₂ shows that the bands observed in this range can be assigned to the Li-rich layered oxide phase whose presence was also confirmed by SXRPD.

Additionally, the Raman data suggest an inhomogeneous distribution of phases in both the q900 °C and q950 °C samples (Fig. 9b). In the q950 °C sample, spectra collected from different particles correspond either to the LNMO spinel phase or to the Li-rich layered oxide phase. Similarly, in the q900 °C sample, spectra from different particles align with those of the rock salt phase.

To investigate distribution of the impurity phases at the particle level in the q950 °C sample, electron diffraction (ED) patterns were collected at two different points of the single crystal (Fig. 10). One of the ED patterns can be indexed in the Fd3̄m S.G., corresponding to the LNMO spinel phase (orange zone). The two other ED patterns collected from the second point (white zone) cannot be described by the Fd3̄m S.G. The first can be fully indexed in the R3̄m S.G. in the zone axis [14 7 1]_R, whereas the second, obtained from the first tilting the sample holder of ≈13.3°, changes the zone axis to [8 4 1]_R and shows main spots that can still be indexed in in the R3̄m S.G. and additional lower-intensity spots that can be indexed into the C2/m space group. Those latter are attributed to the cationic ordering within the transition metal layer and the associated diffusive scattering lines to the stacking faults, typical as already reported to Li-rich layered oxides.^23–26

Fig. 10 TEM image of the single crystal in the q950 °C sample and the corresponding electron diffraction patterns collected at different points of this crystal.

Based on SXRPD, Raman spectroscopy and ED data, it can then be concluded that the Li-rich layered oxide impurity phase forms at T ≥ 900 °C. However, the question remains as how many impurity phases are present in the sample at T ≥ 900 °C. As noted earlier, due to the poor crystallinity of the q950 °C sample, if reflections from the rock salt phase are present, they overlap with the reflections of the LNMO spinel phase. Additionally, the Raman data suggest an inhomogeneous distribution of phases in both the q900 °C and q950 °C samples (Fig. 9b). In the q950 °C sample, spectra collected from different particles correspond either to the LNMO spinel phase or to the Li-rich layered oxide phase. Similarly, in the q900 °C sample, spectra from different particles align with those of the rock salt phase. However, it is important to note that the Raman spectra of layered oxides and rock salts appear similar (Fig. S12†), making it difficult to distinguish between these two phases using Raman spectroscopy alone.

To confirm further the presence of the rock salt phase, Rietveld refinements (see details in ESI†) were performed from the SXRPD pattern of the q950 °C sample using both a three-phase model (LNMO spinel, rock salt, and Li-rich layered oxide phases) and a two-phase model (LNMO spinel and Li rich layered oxide phases). The experimental points, calculated profiles, and difference profiles are shown in Fig. S13.† As it can be seen, the three-phase model provides a better fit of the SXRPD pattern: twice lower R_B factor and lower G.O.F. This suggests that during the synthesis of LNMO at T ≥ 900 °C, the sample contains three coexisting phases: LNMO spinel, rock salt, and Li-rich layered oxide.

It is worth noting a certain similarity in phase transformations during synthesis in both LNMO and LiMn₂O₄ spinel systems. In studies by Thackeray et al.,²⁷ Tarascon et al.,²⁸ and Yamada et al.,²⁹ it was shown that during the synthesis of LiMn₂O₄ at temperatures above the onset of oxygen loss, a Li-rich layered oxide Li₂MnO₃ impurity phase also forms. However, the spinel phase undergoes a phase transition from a cubic to a tetragonal structure. The formation of the rock salt phase does not occur. Therefore, it can be assumed that the LNMO spinel phase at high temperatures begins to behave similarly to the LiMn₂O₄ phase, which may be related to the increased Mn content in the LNMO spinel phase. However, in the case of LNMO, the spinel phase does not undergo a phase transition to a tetragonal structure. Yamada et al.²⁹ suggested that the transition from cubic to tetragonal occurs when the oxidation state of Mn cations is less than 3.5. According to our results, the average oxidation state of Mn in the LNMO spinel phase in the q900 °C sample is 3.64. It can be assumed that at higher temperatures, when the average oxidation state of Mn in the LNMO spinel phase drops below 3.5, a transition to the tetragonal phase may occur.

Conclusions

In this study, we employed SXRPD and NPD to investigate phase equilibria during the synthesis of LNMO spinel materials. The LNMO phase begins to form at T ≈ 460 °C during the annealing of the 1 : 4 molar mixture of Li₂CO₃ and Ni_0.23Mn_0.77(OH)₂. By T ≈ 700 °C, only the LNMO phase is observed in the SXRPD and NPD patterns. However, Rietveld refinements of the data reveal that the resulting LNMO phase is Li-deficient, with a small amount of Ni²⁺ cations occupying the tetrahedral Li (8a) sites. This non-stoichiometry is attributed to the incomplete chemical reaction at this stage of synthesis, along with the presence of amorphous and/or poorly crystallized phases. At T > 700 °C, oxygen release occurs from the LNMO sample, leading to the formation of an impurity phase. In the temperature range of 750–900 °C, a layered oxide impurity phase is present in the sample.

The Rietveld refinement results from both the in situ SXRPD experiments and the series of quenched samples show that during synthesis the composition of the LNMO phase significantly deviates from the target composition, with an excess of Mn and a deficiency of Li. By combining SXRPD and NPD to study the series of quenched samples, we established that as Li is lost from the LNMO spinel phase, Ni and Mn atoms begin to occupy the 8a Li sites, with Mn atoms increasingly occupying these sites as the temperature rises. An analysis of the average M–O bond distances suggests that these atoms exist as divalent Ni²⁺ and Mn²⁺ cations. The formation of Mn²⁺ cations could be explained by the disproportionation reaction 2Mn³⁺ → Mn²⁺ + Mn⁴⁺. The results of SXRPD, Raman spectroscopy, and electron diffraction indicate that at T ≥ 900 °C a Li-rich layered oxide impurity phase forms alongside the rock salt impurity, causing the coexistence of three phases during the high-temperature synthesis of LNMO. These findings significantly enhance our understanding of the phase and structural transformations during synthesis and underscore the exceptional complexity of the LNMO system. We believe this work will serve as an excellent guide for the synthesis of LNMO positive electrode materials for LIBs.

Data availability

We certify that the data corresponding to the results reported in our paper “Phase equilibrium during the synthesis of LiNi_0.46Mn_1.54O₄: comprehensive X-ray & neutron powder diffraction study” by Tertov et al. will be available when asked, those mentioned in the manuscript but also in ESI.†

Conflicts of interest

There are no conflicts to declar.
