A process simulation study on the impact of electrochemical discharge on the circularity of lithium-ion batteries using new multi-dimensional indicators

Abstract

Spent lithium-ion batteries (LIBs) contain residual energy, which might be hazardous during storage, transportation, and recycling. Therefore, it is essential to either deactivate or discharge LIBs prior to any mechanical processing step. As recycling is a key activity to transform from a linear economy into a circular one, the evaluation of a discharge step from the perspective of circular economy (CE) is essential but remains largely unexplored. In this work, battery discharge systems using three different Na⁺-based aqueous solutions (i.e., NaCl, Na₂SO₄, and Na₂CO₃) were modelled with HSC® process simulation software. The resulting mass and energy flows were interpreted using a novel methodology involving multidimensional circularity parameters (i.e., statistical entropy, exergy, and exentropy). Statistical entropy only evaluates the concentrating action of different components in a system, without discriminating whether the produced streams are in a usable chemical form or irreversibly changed. Thus, a weighting factor for irreversible transformations was implemented for statistical entropy analysis. Exergy analysis revealed that the discharge systems do not significantly destroy energy, although it was unexpectedly revealed that corrosion aids in exergy preservation by producing highly concentrated hydrogen from the water splitting reaction. To further reconcile the preservation of energy and materials, the recently developed exentropy (χ) analysis was used. Na₂CO₃ was identified as the most promising electrolyte (χ = 0.066) compared to NaCl (χ = −0.055) and Na₂SO₄ (χ = −0.106), providing for the first time a parametrized basis to the idea that electrochemical discharge systems with strong corrosion are inefficient from the perspective of circularity.

---

1 Introduction

Lithium-ion batteries (LIBs) are one of the preferred options for energy storage supporting the decarbonization effects of the energy and transportation sectors.¹ By some estimates, LIB production will have an expected annual growth rate of 22% in this decade,² and there are already more than 2 million LIBs discarded each year.³ The recycling of spent LIBs thus grows in importance as their disposal in landfills causes several issues, from environmental pollution to loss of valuable natural resources.⁴ The need to develop efficient recycling technologies for battery materials is reflected by the large number of articles published in the scientific literature in recent years.^5–7

There is however one important aspect to be considered before the recycling of batteries, especially with direct recycling methods. When spent LIBs have reached their end-of-life (EoL), they are often discarded with residual energy.⁸ This represents an explosion and fire risk during subsequent processing, as the cathode and anode could come into contact with each other during dismantling or crushing. In such cases, the result is a short circuit current flow leading to the uncontrolled release of heat, the ignition of volatile and flammable solvents, and the subsequent inflammation or explosion of batteries.⁹ Neglecting the elimination of residual energy in battery recycling processes represents a potential security risk, particularly considering the increasing volumes of EoL LIBs. Hence, more attention should be given to spent LIB discharge.¹⁰ Therefore, it is necessary to set a discharging step at the start of any LIB recycling process.¹¹

Some authors have recently proposed the deactivation of LIBs during crushing using cryogenic methods, an inert atmosphere, or thermal treatment, but these methods do not discharge the batteries in a strict sense and have no means to recover the remanent energy.¹² The typical approaches for battery discharge can be broadly classified as physical or chemical methods.¹³ Physical discharging refers to those in which an external short circuit is created to discharge the batteries by using a resistor or a discharge cabinet, which are connected to the cathodic and anodic poles of a battery.^13,14 Physical methods also include the use of conductive particles (e.g., metal or graphite powder),¹² which convert the residual charge of batteries into thermal energy by closing the circuit between the positive and negative poles.¹¹ On the other hand, chemical discharge methods utilize salt, acid, or alkaline solutions in which the batteries are immersed for a sufficiently long time.¹³ The discharge mechanisms in this case are electrochemical reactions that consume the remaining power of the battery.¹⁵

All the above-mentioned methods have both advantages and disadvantages. The use of a resistor or discharge cabinet is fast and consumes no chemicals, but it is impractical, and installing many discharge cabinets increases the recovery costs.¹³ Also, the precise details for a resistor discharge are usually not explained in detail in the published literature.¹⁶ Metal powder discharge is efficient but usually unstable and difficult to control, generating a sharp increase in the temperature of the powder,¹² which might further lead to dust explosions.¹⁷ Chemical discharging is simpler since no specialized equipment is required, and it can be applied for larger battery streams independent of their geometrical design. However, the electrochemical discharge rate is reportedly slow when using some electrolytes, and there exists the risk of battery corrosion leading to electrolyte leakage and pollution.¹³ Nonetheless, the chemical discharging method has gained a lot of attention due to the aforementioned advantages and might become the preferable solution in industrial applications.¹¹ Also, the released heat from the batteries during discharging can be absorbed by the solution, which makes the method less risky compared to e.g., powder discharge.¹⁰ The use of solutions for battery discharge is already a widely researched topic, with a growing number of articles with exploration of different discharge media published recently, such as the studies by Wu et al. (2023),¹⁵ Shaw-Stewart et al. (2019),¹⁸ and Nazarov et al. (2023).¹⁹

In electrochemical solution discharge, NaCl is likely the most widely applied salt due to its cost-effectiveness, availability, and low toxicity.²⁰ The use of different concentrations of NaCl in battery discharging has been studied by several researchers, such as Xiao et al. (2020),¹⁰ Nazarov et al. (2023),¹⁹ Yao et al., (2020),²¹ and Torabian et al. (2022).²² However, the use of NaCl also has some drawbacks, such as serious metal corrosion.¹⁰ It has been concluded that galvanic corrosion and organic leakage might be caused by Cl⁻ ions when the anode is destroyed.¹² Therefore, other options have been explored, and the discharging of spent LIBs has been reported with various aqueous solutions of sulfites (e.g., Na₂SO₄, MnSO₄, and FeSO₄), carbonates (e.g., Na₂CO₃, K₂CO₃, and (NH₄)₂CO₃), and phosphates (e.g., Na₂HPO₄ and K₂HPO₄). For example, Shaw-Stewart et al. (2019)¹⁸ studied pole corrosion and the rate of discharge by using 26 different liquid Na⁺, K⁺, or NH₄⁺-based solutions, e.g., different sulfides, carbonates and phosphates. Ojanen et al. (2018)²³ studied the use of FeSO₄, ZnSO₄, and Na₂SO₄, Wu et al. (2022)¹³ combined two different sulfate salts (Na₂SO₄ with FeSO₄ and Na₂SO₄), Wang et al. (2022)²⁴ used Na₂SO₄, Na₂CO₃, and MnSO₄, Xiao et al. (2020)¹⁰ used MnSO₄ and MgSO₄, Rouhi et al. (2021)²⁵ studied the use of K₂CO₃ and Na₂CO₃, and Rouhi et al. (2022)²⁶ studied the use of (NH₄)₂CO₃. From all the different salts explored, Na₂SO₄ is a commonly used electrolyte in addition to NaCl.^15,27 Also, it has been considered that low corrosion is obtained with carbonate salts, therefore being a promising discharging media.^18,23,24

All the studies described above focus either on the corrosion of battery materials or their discharge time. As the discharge step is part of a battery recycling process, and recycling is one of the key activities to shift from a linear economy into a circular one, it becomes relevant to evaluate the impact of discharging strategies from the perspective of circular economy (CE). Presently, the proper manner to measure the circularity of a system remains an open question. The use of scientific, quantitative circularity indicators is a relatively new field, and the application of new evolution methods is necessary.

To the best of the authors' knowledge, the battery discharge systems have not been evaluated before using circularity indicators. To evaluate the circularity of different battery discharge systems, a simulation of three different salt solution discharge systems was conducted using HSC Chemistry® 10-software.²⁸ The salts and the data needed for the discharge simulation were obtained from existing research conducted by others.^20,24,29 As sufficient data are needed to conduct the simulation, the three different salts chosen were (i) NaCl, as it is the most widely used electrolyte due to its low cost;²⁰ (ii) Na₂SO₄, as sulfate forms of Na have been explored as an alternative electrolyte recently;^15,27 and (iii) Na₂CO₃, since the use of carbonates reportedly result in low battery corrosion.^18,23,24 The data obtained from the simulation were used to calculate the necessary data of materials and energy flows for their evaluation through statistical entropy analysis (SEA) and exergy analysis (ExA), respectively. SEA is applied to study the preservation of materials through concentration or dilution action and ExA to study the irreversible energy losses. As both perspectives are important in terms of CE, multidimensional analysis through exentropy, which evaluates both materials and energy preservation in the system simultaneously, was also performed to provide a thorough evaluation of the system's circularity. As has been concluded in the proof-of-concept of exentropy,³⁰ one-dimensional indicators may have contradicting results, so multidimensional indicators are needed.

2 Methodology

2.1 Multidimensional circularity analysis using the exentropy methodology

The exentropy (χ) analysis is a novel approach aimed at simultaneously accounting for materials and energy preservation in transformative systems. A detailed description of the methodology to calculate χ can be found in previously published work.³⁰ However, in consideration to the reader, a brief description of the SEA, ExA, and χ is provided next.

2.1.1 Statistical entropy analysis (SEA) including material losses due to corrosion. The analysis of material flows is fundamental for the study of CE systems. In recent years, SEA in combination with material flow analysis (MFA) has been proposed as a means to examine the preservation of materials at a systemic level by tracing the concentration or dilution of components.³¹ MFA provides a method to systemically account for the flow of all materials present in a process. Fig. 1 shows the interpretation of an electrochemical discharging unit according to MFA, consisting of a transformative process (u) in between stages (q), which is described by streams (s) including different components (i). The numbered streams in Fig. 1 are explained in Table 1 below Fig. 1.

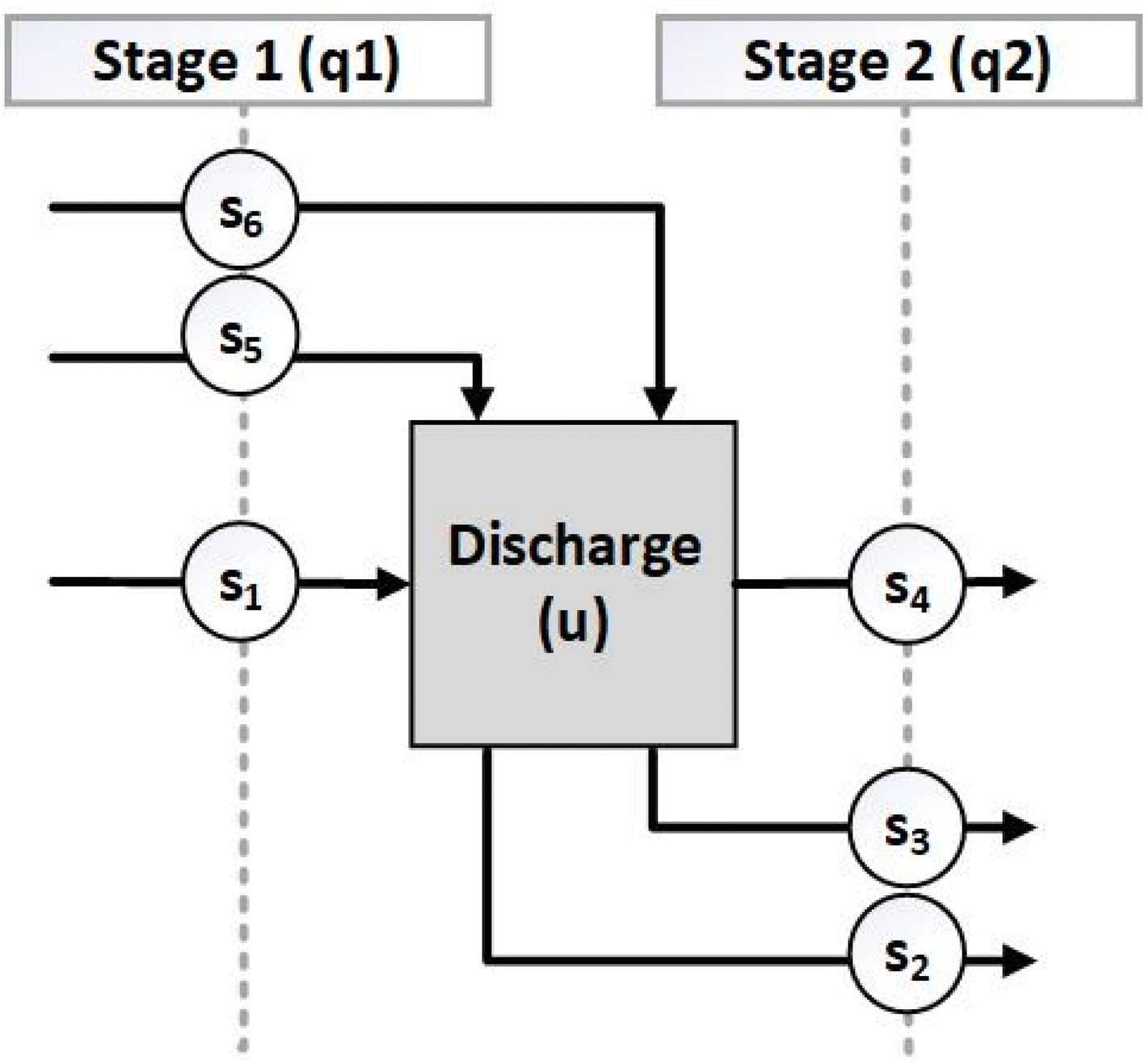

Fig. 1 The discharge system according to the material flow analysis (MFA) outline.

Table 1 Streams in Fig. 1

s1: spent LIBs	s2: discharge residues	s3: off-gas
s4: discharged LIBs	s5: water for water splitting	s6: salt used for discharge

---

The aim in recycling systems is to separate substances from different mixtures, i.e., to concentrate them and consequently reduce their statistical entropy (h). Statistical entropy is calculated using eqn (1):

where h_i,s [bits of information] is the statistical entropy, [dimensionless] is the standardized mass fraction, and c_i,s [fractional] is the concentration of a component i in the stream s. The calculation of the standardized mass fraction requires the use of eqn (2) and eqn (3):

Ẋ_i = ṁ_sc_i,s (3)

where ṁ_s is the mass flow of the stream s, Ẋ_i is the total substance flow of component i in the units of mass flow, and c_i,s [fractional] is the concentration of the component i in stream s.

Eqn (4) describes the sum of statistical entropies in the streams of a certain stage, which is the total statistical entropy of a stage (H_i,q). In recycling processes, the value of the statistical entropy at the first stage is typically the maximum statistical entropy (H_i,q^max) of the process and for simplicity, it is used as a benchmark value to calculate the relative statistical entropy (RSE) as described in eqn (5). With the use of RSE, it is possible to compare elements with different concentrations in the system.

However, there may be a limitation with this definition of SEA as it does not consider whether elements or compounds obtained after transformative units are recovered in a potentially useful form. This becomes particularly relevant in the case of electrochemical battery discharge. As corrosion results in the extraction of metals, they are leached into the discharge solution, and eventually into the residue phase, which can be misinterpreted by SEA as an effective concentration of materials. Evidently, corrosion is undesired when discharging batteries. To properly account for this negative effect, the losses of battery materials into the stream “residues” were interpreted as emissions (i.e., losses to the environment) which are irreversibly diluted in the receiving media (i.e., air, water, or ground).³²

The Practical Handbook of Material Flow Analysis³² proposes a method to include the emissions in the calculation of RSE if all of the component i is directed to the emission stream. However, in our study, only a part of the component i is directed to the emission stream, while the rest is directed to the desired product stream. Therefore, another solution is required to consider both unwanted and useful concentration simultaneously. The approach hereby used was the use of a weighting factor named “transfer coefficient (TC)”.³² The TC describes the partitioning of a substance in a process,³² so in this case it could be used to consider different kinds of concentrations at the same time. The value of the TC for battery materials ending up in the “residue” can be calculated according to eqn (6):

where TC_i,3(TC_loss) is the transfer coefficient for component i in the residues (stream 3), ṁ_i,3 is the mass flow of the component i in the residues, and ṁ_i,1 is the mass flow of component i in the feed (stream 1). The same equation can also be used to calculate the TC for the whole battery by dividing the mass flow of total battery materials in the residues by the battery feed in stream 1.

As the concentration of battery materials into residues contributes to an increase in the value of RSE, the use of the TC as a weighting factor should cause the new RSE value to be higher than the original RSE. Thus, the RSE′ can be calculated as follows (eqn (7)):

2.1.2 Exergy analysis (ExA). Energy preservation is also a relevant dimension to be considered in a holistic analysis of circularity.³³ To that aim, exergy analysis can be used to estimate the irreversible energy losses in transformative processes.³⁴ Both the total exergy (Ex_tot) and exergy of heat in the discharge system (Ex_heat) are calculated by HSC®, which uses eqn (8) and eqn (9) in its calculations.

Ex_heat = q × (1 − T₀/T_heat) (9)

The only required inputs from the user to calculate the exergy content of the streams are n_k (a mass flow or stoichiometric amount of an element or a compound in a stream) and the temperature of each stream. This temperature is used by the software to obtain enthalpies (N) and thermodynamical entropies (S) of species at the given temperature. Thermodynamic entropies in the standard state (25 °C, 1 bar), a standard Gibbs free energy of formation () and elemental exergies of elements (b_k^ref) are also obtained from the software database. The calculation of heat flow (q) requires the temperature of the standard state (T₀ = 25 °C), and the temperature of the heat source (T_heat(°C)).

Unlike energy, exergy does not follow the laws of conservation, and the input exergy might not be equal to the output exergy. A term called exergy destruction (Ex_D) is introduced to write the exergy balance in a conservative form. Ex_D quantifies the energy degradation during a process, being zero only in theoretical cases of fully reversible processes. However, in reality, all transformative stages destroy exergy as a result of thermodynamic entropy generation, making Ex_D a good tool to evaluate the preservation of energy in a system.³⁵ The exergy balance of a process is presented in eqn (10):

Ex_feed + Ex_energy = Ex_products + Ex_waste + Ex_Q + Ex_D (10)

The input exergy on the left side consists of exergy of the materials in the feed (Ex_feed) and input energy (Ex_energy). The output exergy consists of exergy of the materials in the products (Ex_products), materials in waste (Ex_waste), heat losses (Ex_Q), and Ex_D.

For comparative purposes, relative exergy content (REX) reflects the preservation of exergy relative to the total exergy input, making it a normalized parameter useful to compare systems with different flows of input material. In other words, REX describes the ability of a process to conserve energy, and it is defined for each stage by dividing the exergy content at any given stage by the exergy content at the first stage (Ex_max), as in eqn (11).

where is the sum of the exergies of all streams in stage q.

2.1.3 Exentropy (χ) analysis. RSE and REX are useful tools to evaluate the circularity of different systems, but they are independent parameters evaluating only one dimension of circularity, creating possible contradictions regarding the results of the most optimum system.^30,36 Therefore, a combination of these two dimensions is needed to obtain a more robust analysis, as closing the material loops efficiently should be justified by the efficient use of energy in a process. Exentropy analysis is a multidimensional parameter considering both materials’ concentrating action (RSE) and the preservation of useful energy (REX) simultaneously, thus providing more reliable data on CE systems.

When evaluating battery recycling processes, the value of RSE should tend to zero, as the aim is to produce highly concentrated elements or compounds.³⁰ It should be noted that this is not the case in electrochemical discharging systems since this is a pre-processing step that is not aimed at recovering battery materials. While RSE is not expected to approach a value of zero, it should still decrease below one since the input stream is divided into three output streams, as shown in Fig. 1.

Furthermore, the value of REX should remain as high as possible in any system to avoid the loss of useful energy. Thus, the value of RSE should be lower than the value of REX, which indicates that the value of χ should be positive for optimum systems. As was stated earlier, the calculation of RSE′ required the TC as a weighting factor to include the loss of materials into the residues (i.e., waste), so this RSE′ should be applied to evaluate systems where corrosion is present. Thus, for the specific case where irreversible losses of materials are known and quantifiable, exentropy can be calculated using eqn (12).

where χ_q is the exentropy at any given state.

2.2 The simulation of a battery discharging step

The data used for simulation in this paper were taken from the work by Wang et al. (2022),²⁴ who carried out studies of discharge using e.g., NaCl, Na₂SO₄, and Na₂CO₃. According to their report, they submerged the batteries in different concentrations of these saline solutions and conducted measurements of voltages with time using a digital multimeter. They also determined the concentration of the battery elements in the filtrate and the composition of the off-gas by using inductively coupled plasma-mass spectrometry (ICP-MS) and gas chromatography-mass spectrometry (GC-MS), respectively. In addition, we used the work published by Shepard (2022)³¹ to calculate the energy flows and the work by Punt et al. (2022)²⁰ to estimate the metal fractions lost from the batteries into the discharge solution.

HSC Chemistry® 10 -software²⁸ was used to simulate the battery discharge process, as it is an appropriate software used to simulate unit operations involving solid particles and metallurgical refining, which usually are the processing stages in LIB recycling, and our research team has used the software in our previous studies.^30,36 HSC Chemistry® is also the industrial standard in mineral processing simulation software. Although HSC® does not count with an electrolyte discharge module, this was programmed using an empty reaction unit with two input and three output streams. To have a properly functioning unit, the input streams, stream distributions, reactions and reaction rates, energy input and output of the batteries, and off-gas compositions needed to be defined. All these setups are described in this chapter and summarized later in Table 3.

The battery discharge process is a semi-batch process, but for the purposes of HCS, it was modelled as a continuous process. To that aim, the battery discharge kinetics were estimated from the published experimental data on discharge rates and corrosion byproducts obtained with the electrolyte solutions hereby explored.^20,24,29 In the simulation, the capacity of the discharge tank was fixed to treat 100 kg of batteries. Thus, the different times required for discharge with each specific electrolyte solution were considered. According to several studies,^24–26 the safety threshold prior to disassembling and shredding the batteries is a residual voltage of 2 V or below.

The time to reach the voltage limit of 2 V was estimated for each selected electrolyte based on the discharging curves reported by Wang et al. (2022).²⁴ Since the aforementioned reference reported 2.2 V as the minimum voltage reached with Na₂SO₄, this was chosen as the target voltage. Therefore, the feed flow rate of EoL batteries was obtained by dividing the tank capacity (kg) with the discharge time (h). To conduct a fair comparison of different systems, their productivity can be used as the benchmark. Productivity is hereby defined as the number of batches handled per day, and it is calculated by dividing the daily LIB mass input by the fixed tank capacity.

The first input stream to the process consisted of spent LIBs with the composition presented in Table 2. The LIB composition was adopted from the previous work published by our research team,⁵ which describes this composition to be typical for LIBs. The battery cathodes were assumed to be LiCoO₂ (LCO), as it has been a dominant cathode chemistry in LIBs and is expected to represent the battery type that will reach EoL in the subsequent years.^37,38 The anode was assumed to be graphite, as it is the most widely used cathode material. Current collectors were assumed to be Cu and Al, separator polypropylene (PP), binder polyvinylidene fluoride (PVDF), electrolyte a mixture of lithium hexafluorophosphate (LiPF₆) in a 1 : 1 ethylene carbonate (EC)/dimethyl carbonate (DMC) solution, and casing steel.

Table 2 The lithium-ion battery composition used in the simulation

Battery component	Composition (%)
Cathode: LiCoO2	27
Anode: graphite	17
Current collectors: Cu and Al	13
Separator: polypropylene (PP)	4
Binder: polyvinylidene fluoride (PVDF)	4
Electrolyte: lithium hexafluorophosphate (LiPF6) in a 1 : 1 ethylene carbonate (EC)/dimethyl carbonate (DMC) mixture	10
Casing: steel	25

---

To estimate the energy content of the battery feed, the specific power of LIBs with an LCO cathode was assumed to be 600 W kg⁻¹.²⁹ This was multiplied with the mass of batteries in the feed to obtain the total input energies (i.e., 15 kW for NaCl, 2.5 kW for Na₂SO₄, and 6 kW for Na₂CO₃). The batteries were assumed to have an initial voltage of 3.7 V²⁴ and the residual voltage after discharge was assumed to be either 2 V or 2.2 V, as explained earlier. The energy remaining in the batteries (%) was calculated by dividing the residual voltage by the initial voltage and multiplying that with 100%.

The second input stream to the process corresponds to the salt hereby studied (i.e., NaCl, Na₂SO₄, or Na₂CO₃) and the water required to replace the losses associated with water splitting during the discharge reaction. It is thus assumed that the tank contains a constant volume of excess water to fix the concentration of the studied salt at 1 M.²⁴ No output of liquid water is considered, as the amount of it is assumed to be minor in the “residue” stream, which consists of the corrosion products from the batteries and traces of the applied salt. Also, an off-gas stream is included that accounts for the H₂ and O₂ gases evolving from the water splitting. The outline of the simulation model is presented in the ESI in Fig. S1.†

For simplicity, all the corrosion byproducts and some traces of the used salt were assumed to precipitate together into a single stream defined as “residues”. As will be discussed later, the “residue” stream contains species that are not considered recuperable in any practical form. According to multiple studies,^{15,20,23,24,39} both NaCl and Na₂SO₄ cause corrosion during discharge, which may lead to loss of Fe, Al, and Cu, and the leakage of electrolyte into the discharge solution. The corrosion is severe especially with chlorine-containing salts, due to the presence of the Cl⁻ ions in the solution, which leads to the loss of the casing shell and connector poles according to eqn (13) and (14), respectively.³⁹ Also, some of the Cu might be lost according to eqn (15).

Fe + 2H₂O → Fe(OH)₂ + H₂ (13)

Al + 3H₂O → Al(OH)₃ + ¾H₂ (14)

Cu + 2H₂O → Cu(OH)₂ + H₂ (15)

The values in Table 3 show the fraction of materials lost into the discharge solutions. These values were used as reaction rates with the reactions presented above (eqn (13)–(15)) in HSC® to define the mass flow of corroded materials in the “residue” stream. Based on the study by Punt et al. (2022),²⁰ it was assumed that during the NaCl discharge, 89.4 wt%, 1.9 wt%, and 3.0 wt% of Fe, Al, and Cu in the batteries were lost in the discharge solution. With Na₂SO₄, the loss rates were slightly reduced, being 64.2 wt%, 1.4 wt%, and 0.3 wt% of Fe, Al, and Cu, respectively.^20,24 The electrolyte leakage was modelled based on the study by Wang et al. (2022)²⁴ with reported values of 2.36 wt% for NaCl and 0.29 wt% for Na₂SO₄. With Na₂CO₃, it was assumed that no corrosion occurred²⁴ and hence no mass losses were considered in this case. Whenever leakage of LiPF₆ occurred, a reaction with water was assumed, forming LiF, POF₃, and HF^20,40 (eqn (16)). Accordingly, the leaked carbonates (i.e., DMC and EC) from the electrolyte decomposed into methanol (CH₃OH), ethylene glycol (C₂H₆O₂), and CO₂ (eqn (17) and (18)).

LiPF₆ + H₂O → LiF + POF₃ + 2HF (16)

C₃H₆O₃ + H₂O → 2CH₃OH + CO₂ (17)

C₃H₄O₃ + H₂O → CO₂ + C₂H₆O₂ (18)

Table 3 Summary of the data obtained or calculated from the literature and used in the simulation

	NaCl	Na2SO4	Na2CO3	Ref.
Concentration of salt (mol L^−1)	1	1	1	24
Discharge time to reach 2 V (h)	4	24	10	24
Tank capacity for batteries (kg)	100	100	100	This study
Feed (kg h^−1)	25	4.2	10	This study
Starting voltage (V)	3.7	3.7	3.7	24
Final voltage in the simulation (V)	2.0	2.2	2.0	This study
Energy content (W kg^−1)	600	600	600	29
Energy input in LIBs (kW)	15	2.5	6	This study
Energy output in LIBs (kW)	8.1	1.5	3.2	This study
Losses of Fe, Cu, and Al from the batteries into the discharge solution due to corrosion (%)	Fe: 89.4	Fe: 64.2	Fe: —	20, 24
	Al: 1.9	Al: 1.4	Al: —
	Cu: 3.0	Cu: 0.3	Cu: —
Electrolyte leakage (%)	2.36	0.29	—	24
Off-gas composition (vol%)	H2: 94.2	H2: 62.6	H2: 61.7	24, 39
	O2: 5.8	O2: 37.4	O2: 38.3
	Cl2: 0.01

---

As with the corrosion of metals (eqn (13)–(15)), a rate of the electrolyte loss based on the work by Punt et al. (2022)²⁰ was defined in the HSC® simulation to estimate its mass contribution into the “residue” stream.

Another output stream in the process contains the off-gases from the water splitting reaction, where water splits into H₂ and O₂ gases in the negative and positive electrode, respectively.²⁵ The energy of batteries is consumed by the water splitting reaction, and the reaction rate is defined by HSC®. The program calculates it as a function of the energy being drained during the process. The water splitting half reactions for the anode and cathode are presented in eqn (19) and (20), respectively.

2H₂O → O₂ + 4H⁺ + 4e⁻ (19)

2H₂O + 2e⁻ → H₂ + OH⁻ (20)

In a water splitting reaction, the theoretical ratio of H₂ to O₂ is 2 : 1. However, since the corrosion of Fe (eqn (13)) is a competitive reaction competing with the formation of O₂ in the anode (eqn (19)), the off-gas composition ratio of H₂ to O₂ becomes higher than 2 : 1 in corrosive systems.²⁴ In other words, as more severe corrosion of Fe in the electrolyte leads to higher consumption of O²⁻, it inhibits the formation of O₂ gas, leading to a higher purity of H₂ in the gaseous byproducts. Since each electrolyte solution has different electrochemical potentials, the resulting extent of Fe corrosion and water splitting will vary depending on the composition of the discharging system.

Thus, according to the study by Wang et al. (2022),²⁴ the off-gas compositions were assumed to be (i) 94.2 vol% and 5.8 vol% of H₂ and O₂, respectively, for NaCl; (ii) 62.6 vol% and 37.4 vol% of H₂ and O₂, respectively, for Na₂SO₄; and (iii) 61.7 vol% and 38.3 vol% H₂ and O₂, respectively, for Na₂CO₃. A special case is that of NaCl, as in addition to the release of H₂ and O₂, it was assumed that approximately 24 L of Cl₂ gas was released for every 1 ton of spent batteries.³⁹ Thus, in the system with NaCl, the off-gas was assumed to include 0.01 vol% of Cl₂ in addition to H₂ and O₂. All the data presented earlier in this chapter, either obtained or calculated from the literature and required for the simulation, are summarized in Table 3.

3 Results and discussion

3.1 Statistical entropy analysis (SEA)

SEA was conducted to study the concentration of materials in an electrochemical battery discharge system. As explained in the Methodology section, SEA does not consider whether elements or compounds obtained after transformative units are recovered in a potentially useful form and thus, TC_loss was used to consider both unwanted and useful concentration simultaneously.

The battery metals represented in the systems (i.e., Cu, Fe, Al, Li, and Co), as well as H and O, which were present in the battery components but also in the water needed for the discharge and off-gas being produced, were traced in all discharging systems studied here. “Others” contain the rest of the battery elements (i.e., Na, Cl, S, and C), which were not traced in more detail, and the elements of salts (i.e., Na, Cl, S, or C) depending on the system studied. The TC_loss for each element and the total system, and the increased RSE′ according to the TC_loss value were calculated for each element and for the total system as shown in Fig. 2. The exact values of TC_loss and RSE′ for different systems can be found in ESI, Table S1 and S2,† respectively.

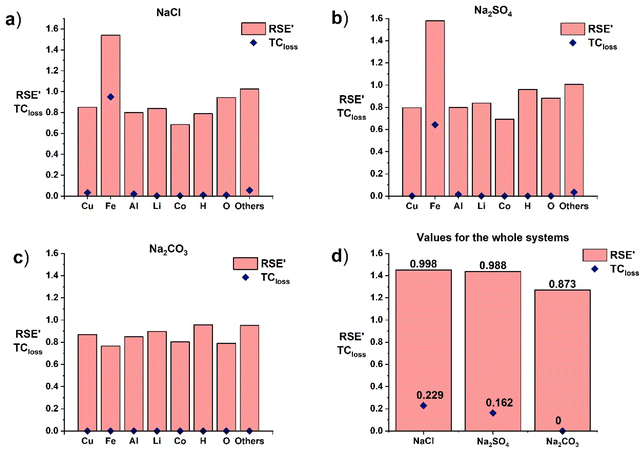

Fig. 2 TC_loss, and RSE′ of different discharging systems: (a) NaCl, (b) Na₂SO₄, (c) Na₂CO₃, and (d) the whole systems.

As seen in Fig. 2, the TC_loss of Fe was the highest for the system with NaCl (Fig. 2a), as the corrosion of battery materials was the most severe with this discharging system. As was mentioned before, chloride ions in discharging solutions react with other ions in the solution causing severe corrosion of the battery metals. The TC_loss value for Fe is also high in the system with Na₂SO₄ (Fig. 2b). However, the TC_loss for other metals affected by corrosion (i.e., Al and Cu) appears to be nearly zero (Fig. 2a and b), as the corrosion rate for these metals was much lower than that for Fe. The system total TC_loss for these two systems was also relatively low, as the overall mass loss remained low. For Na₂CO₃ (Fig. 2c), TC_loss was zero for each component, and thus for the whole system, as no corrosion of battery materials was assumed.

From Fig. 2b, it is also observed that RSE′ of Fe is the highest for the system with Na₂SO₄. Because the system with NaCl contained more water in the input compared to the system with Na₂SO₄, all the elements appear to be more diluted in the feed stream. As the RSE values are dependent on the concentration of the components at Stage 1, lower concentrations at Stage 1 have more effect on the value of RSE at Stage 2. Thus, the value of RSE for NaCl decreased more between Stage 1 and Stage 2, also affecting the value of RSE′. However, the system-level values of RSE′ remained close to unity, which demonstrates in a quantitative manner that more corrosion negatively affects the recovery of materials in the system. This is visualized in Fig. 3.

Fig. 3 Material losses due to corrosion and RSE′.

The RSE′ value for the system with Na₂SO₄ was indeed slightly smaller than that for the system with NaCl. As was already discussed, some of the higher RSE′ values for some elements in the Na₂SO₄ system are caused by the difference in the amount of water fed into the process, but the total RSE′ for NaCl is higher due to the more severe corrosion. The higher amount of corrosion leads to higher TC values for the whole battery system, causing the RSE′ value to be higher compared to the RSE value. However, the difference between the RSE′ values of the NaCl and Na₂SO₄ systems was minor, even though the difference between material losses due to corrosion is more visible. These results corroborate how SEA can be used to identify the best systems in terms of material preservation, favouring those without any corrosion.

3.2 Exergy analysis (ExA)

As energy preservation is also a relevant dimension to be considered in CE, exergy analysis of the electrochemical discharge process was conducted to observe the irreversible losses of energy in the process. A schematic representation of the input (LIB feed, discharge solution, and energy content of batteries) and output (discharged LIBs, residues, off-gas, and Ex_D) exergy streams is presented in Fig. 4.

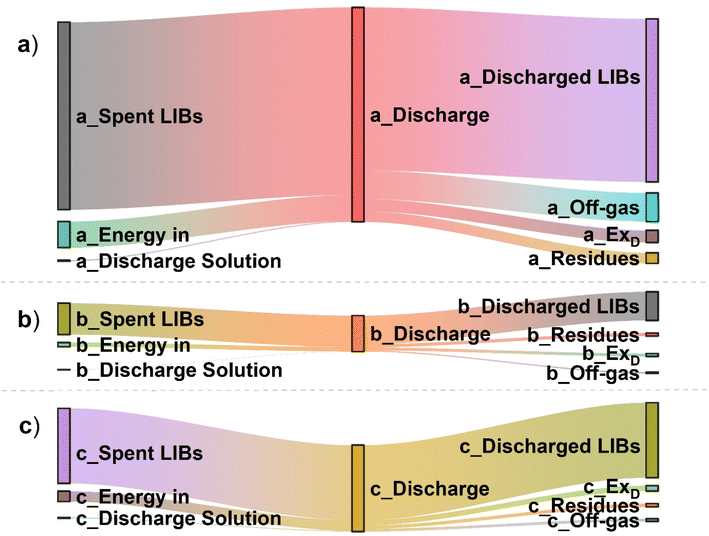

Fig. 4 The exergy content of each stream, with the input rate of spent LIBs in kg h⁻¹, for the three different discharge solutions: (a) NaCl, (b) Na₂SO₄ and (c) Na₂CO₃.

Fig. 4 visualizes that, when more batteries are fed into the process, there is also more exergy flowing into the process, both associated with the materials and the total remaining charge in the batteries. In a day, the total mass of batteries that can be treated is 600 kg, 100 kg, and 240 kg with NaCl, Na₂SO₄, and Na₂CO₃, respectively. According to productivity, these correspond to approximately six, one, and two batches per day. A higher productivity also means that more energy needs to be discharged to reach the safe voltage level of batteries prior to dismantling. In turn, this influences the off-gas production, as more energy is available for the water splitting reaction.

An interesting observation is that the exergy content of the off-gas stream for the system with NaCl is comparatively higher than that obtained with Na₂SO₄ or Na₂CO₃ (Fig. 4). A reasonable explanation is that the dissolution of Fe from the casing competes with the half reaction forming O₂ during the water splitting, so in the corroded systems less gaseous oxygen is being produced.²⁴ In such cases, the “off-gas” stream is composed of highly concentrated H₂, which has a significantly higher b_k^ref (236 kJ mol⁻¹) than O₂ (4 kJ mol⁻¹). Indeed, the off-gas stream produced using NaCl solution consists mainly of H₂ (94.2 vol%), whereas with Na₂SO₄ the H₂ content in off gas is only 62.6 vol% and with Na₂CO₃ 61.7 vol%.

It is also seen that discharge with NaCl solution resulted in the highest Ex_D, but since the input rate of spent batteries is not equal in the different discharge systems hereby studied, the values of Ex_D cannot be directly compared. Consequently, a normalized parameter such as REX is needed. The REX values for all three electrolyte systems, calculated using eqn (19), are shown in Fig. 5.

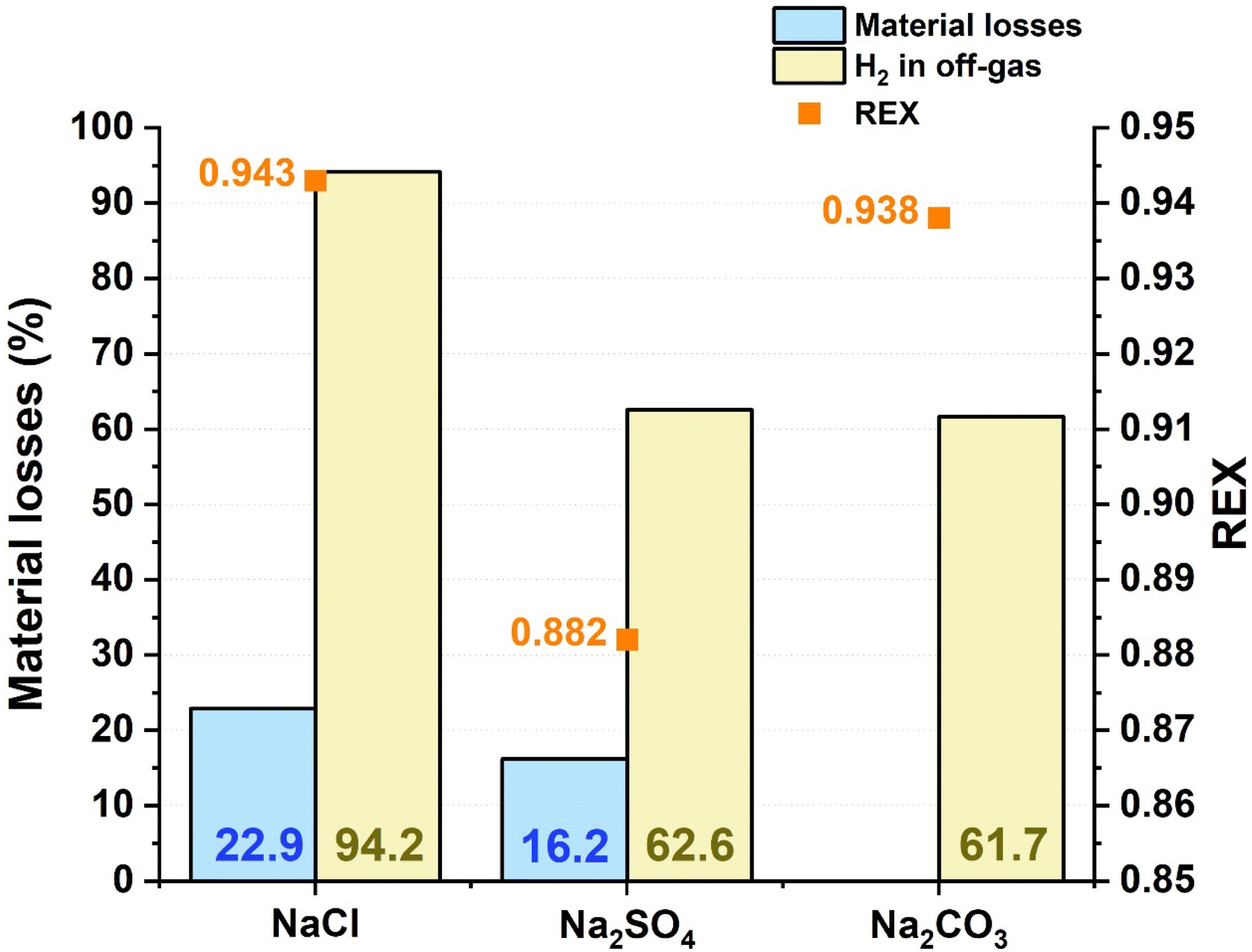

Fig. 5 Relative exergy content (REX), material losses due to corrosion (%), and H₂ vol% in off-gas.

The REX values in Fig. 5 reflect the two main effects contributing to exergy preservation explained above: (i) the generation of a highly concentrated H₂ stream in the case of NaCl, and (ii) the preservation of the intrinsic exergy of materials in the absence of corrosion for Na₂CO₃. As Na₂SO₄ solution is neither an extremely corrosive environment nor one that fully prevents corrosion, it results in the most exergy destructive option.

Overall, all the systems had high REX values, which implies that the loss of useful energy was not significant in any of the discharging systems. As discussed earlier, the mass losses are not substantial in any system, and at the same time the discharged energy is transferred to species with high exergy values, such as H₂. If only this dimension is considered one could argue that corrosion might not be a negative phenomenon, as the exergy content of highly concentrated off-gas appears to be an efficient means for exergy preservation. These seemingly contradictory results to those obtained from the SEA support the need for a multidimensional analysis of these systems to reconcile the effects of materials and energy preservation.

3.3 Exentropy (χ) analysis

From the individual analyses alone, SEA implied that corrosion is harmful in terms of RSE, while ExA implied that corrosion might be beneficial for the production of H₂, which contains high intrinsic energy. To obtain a more robust comparison, exentropy analysis considers both RSE and REX values simultaneously. In the context of battery discharging systems, exentropy analysis considers both material losses due to corrosion and the preservation of useful energy. The results of the exentropy analysis are presented in Fig. 6.

Fig. 6 Exentropy analysis of the three different discharging systems.

As already explained in the Methodology section, positive exentropy values should be obtained for systems where materials and energy are sufficiently preserved. As shown in Fig. 6, negative exentropy values were obtained when using either NaCl or Na₂SO₄ solutions as the discharging medium, implying that these systems are not efficient. Exentropy is thus a parameter capable of identifying the negative impact of irreversible material losses into the corrosion product stream (i.e., residues) even when highly concentrated H₂ is obtained as a byproduct. Therefore, studying the exentropy of different battery compositions might not be efficient, if the corrosion rates would remain the same.

Thus, to obtain high exentropy values, the focus should be on avoiding corrosion as much possible. A relevant question is how to obtain the high productivity possible with NaCl solutions while minimizing the corrosion of battery materials in the discharging system. To approach this issue, one could study either different electrolytes, that would cause no corrosion in the system, or study alternative battery materials, which would not be affected by corrosion in the discharging media used in this study. In any case, this could be a promising study in the future and a way to optimize the battery discharging process using exentropy.

Based on the results of this work, it is important to monitor the composition of side streams (i.e., off-gas and residues) of electrochemical discharge processes in more detail. As seen in Fig. 4, the high H₂ content in off-gas increases its exergy content, so e.g., inhibiting the O₂ production during the discharge process could increase the exergy content of the off-gas making its utilization more profitable. Also, Punt et al. (2022)²⁰ reported that the discharge slurry could provide a secondary source for Fe and Al after drying. In this case, the slurry byproduct may not be treated as a waste stream, thus not affecting the original value of RSE, but finding the means to recover the metals in this stream both efficiently and profitably would remain a challenge.

4 Conclusions

Safe and efficient discharging methods are required for the proper handling of EoL LIBs. Among the various available options, electrochemical discharge is a promising method due to its simplicity, flexibility, and desirability in industrial applications. Hereby, electrochemical discharge with different media was evaluated for the first time using a multi-dimensional indicator (i.e., exentropy) relevant for the CE.

Statistical entropy evaluated the concentrating action of different elements inside the discharge system. However, to reflect that the produced “residue”-stream represents materials that are irreversibly lost, a weighting factor (TC_loss) for RSE was implemented for the first time in this context, revealing that corrosion in discharging systems led towards more unfavourable values of RSE′. On the other hand, exergy analysis disclosed that exergy was not destroyed significantly in any of the systems. Unexpectedly, it also suggested that corrosion leads to exergy preservation by producing highly concentrated hydrogen from the water splitting reaction. Therefore, exentropy analysis is particularly interesting since it considers both the concentrating action of materials and loss of useful energy simultaneously and was able to identify the negative effects of corrosion on the circularity of battery materials.

Accordingly, only systems without corrosion can be considered sufficiently efficient, as positive exentropy values were only obtained in the case of Na₂CO₃ discharge. Ideally, both the discharge time and rate of corrosion should be optimized: systems with fast discharge times with zero corrosion are considered as optimal. This study showed that exentropy analysis can be used to evaluate the circularity of battery discharge systems. However, as the indicator studies material and energy flows, it can be universally applied on any system with those kind of flows within it.

Admittedly, a limitation of this study is that it is based on process simulation models using the modest amount of data available in the scientific literature. To create as realistic a simulation model as possible, the data obtained for it must be accurate. Even in a simple discharging unit like the one analysed in this study, the simulation model requires complex parameters to function properly. The models used would thus benefit from more extensive experimental results, potentially including other discharge media. Also, the so-called voltage rebound effect was not considered in this study, so it is uncertain whether the batteries would be safe to disassemble after the time considered in this study. In addition, as exentropy considers only the material and energy side of the process, adding more dimensions, such as economic or environmental factors, could enhance the results further. These are all interesting aspects to be considered in future studies.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

Minerva Vierunketo: conceptualization, methodology, investigation, writing – original draft, visualization. Anna Klemettinen: conceptualization, methodology, writing – review & editing. Annukka Santasalo-Aarnio: conceptualization, writing – review & editing. Rodrigo Serna-Guerrero: conceptualization, methodology, writing – review & editing, supervision, funding acquisition.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work is part of the HYPER-SPHERE project (Grant No. 341628) supported by the Research Council of Finland.
