Wenjuan
Song‡
a,
Xiaoyue
Duan‡
a,
Poe Ei
Phyu Win
a,
Xiang
Huang
*c and
Jiong
Wang
*ab
aInnovation Center for Chemical Science, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215006, P. R. China. E-mail: wangjiong@suda.edu.cn
bJiangsu Key Laboratory of Advanced Negative Carbon Technologies, Soochow University, Suzhou 215123, P. R. China
cQuantum Science Center of Guangdong-Hong Kong-Macao Greater Bay Area (Guangdong), Shenzhen 518045, China. E-mail: huangxiang@quantumsc.cn
First published on 8th April 2025
Heterogeneous molecular catalysts (HMCs) with cobalt (Co) active sites are potent for the electrochemical oxygen evolution reaction (OER) in energy conversion applications. Such catalysts typically operate through the classical redox-mediated mechanism, where dynamic equilibria of Co2+/3+ and Co3+/4+ redox states are present before and throughout the OER cycle. However, the generation of low-valent Co2+ sites is disadvantageous for catalysis. To address this, sulfate groups embedded in graphene were developed to link a model Co-2,2′-bipyridine complex, resulting in the synthesis of a novel Co-based HMC that generates a specific CoN2O4S1 coordination moiety. These molecular Co sites were induced to oxidize from +2 to +3 oxidation state at open-circuit conditions, due to their proton-coupled electron transfer nature. This process ultimately eliminated the generation of the Co2+ state from its redox equilibrium and efficiently improved the turnover frequencies of Co sites toward OER, showing a two-order dependence on the concentrations of OH− ions. This work provides a novel mechanistic perspective for the rational design of high-performance HMCs.
Heterogeneous molecular catalysts (HMCs) possess molecularly well-defined active sites, benefiting the precise optimization of the redox behaviors and related catalytic performance of active sites.18–20 Such catalysts also have solid states, facilitating device assembly for scaled-up applications.21,22 Sulfur (S)-doped graphene has been identified as a potential support for linking molecules with S heteroatom-based groups and developing HMCs.11,23,24 Due to the relatively larger size and greater electronegativity of S atoms compared to those of C atoms, the incorporation of S atoms leads to local geometric distortion and polarization of graphene. The S heteroatoms exist in multiple configurations as sulfides and their oxidized derivatives, accompanied by electron-rich or deficient states.25–27 These properties can significantly influence the electronic migration capabilities, thereby tuning the oxidation states or redox properties of linked molecular catalysts. This, in turn, can optimize the stability of high-valent Co sites and improve the associated OER performance.
In this study, sulfur-doped graphene was synthesized by a hydrothermal method, in which sulfate groups were constructed to link a model molecule of Co-2,2′-bipyridine (CoN2) complexes. This linking strategy forces the linked molecular Co sites to oxidize from +2 to +3 oxidation state at open-circuit conditions due to their intrinsic PCET property. The Co sites interact with OH− ions, inducing electron transfer that eliminates the electrochemical Co2+/3+ redox processes. The Co sites are spontaneously stabilized at +3 oxidation states and higher, ultimately avoiding the occurrence of the Co2+ oxidation state throughout the OER cycle. Accordingly, the turnover frequencies (TOFs) of Co sites for the electrocatalysis of OER are intrinsically improved.

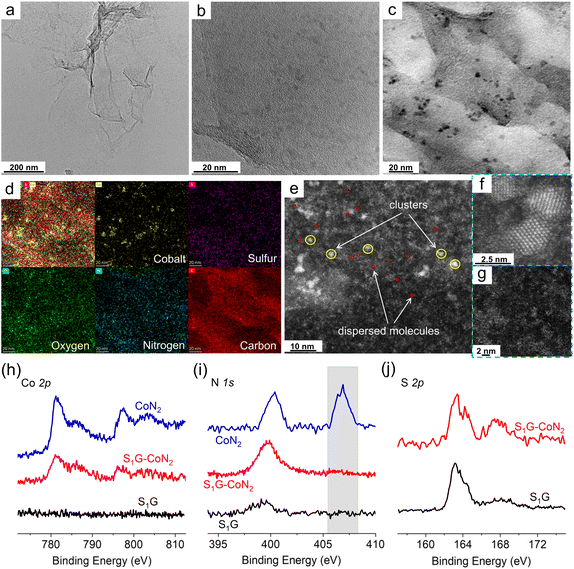

X-ray absorption near-edge spectra (XANES) were employed to verify the oxidation states and coordination spheres of the as-fabricated S1G-CoN2. As shown in Fig. 2a, the Co sites of CoN2 and S1G-CoN2 are both approximately in the +2 oxidation state, as indicated by the rising edges. The coordination symmetry of S1G-CoN2 is more distorted compared to that of CoN2, as demonstrated by the decreased intensity of the pre-edge peak at 7709.7 eV. This implies a ligand change of Co sites, as confirmed by the above XPS surveys. Fourier transform (FT) extended X-ray absorption fine structure (EXAFS, Fig. 2b) data of CoN2 before and after the interaction with S1G show that the Co sites maintain one dominant peak at approximately 1.59 Å in the first shell of Co–N/O scattering paths, indicating that CoN2 did not decompose into Co oxides/hydroxides. In the quantitative least-squares, EXAFS fitting analysis of S1G-CoN2 (Fig. 2c, d, S9 and Table S3†), another Co–S bond at 2.2 Å was identified in addition to the Co–N/O scattering paths. Such fitted bonding data are consistent with previous studies.30,31 Accordingly, the coordination sphere of S1G-CoN2 is considered a CoN2O4S1 moiety.
![]() | ||
Fig. 2 (a) Normalized Co K-edge XANES data of S1G-CoN2, CoN2 and reference samples. (b) The corresponding FT EXAFS data. Fitted data of Co K-edge EXAFS in R (c) and k (d) spaces of S1G-CoN2. |
It was verified that the Co sites served as the active sites for the OER, where OER electrocatalysis was achieved by replacing partial labile ligands with OH− ions. The TOFs of the Co sites were analyzed by normalizing the OER currents with the surface amounts of Co sites on the electrodes, yielding TOFsurf (Fig. 3c and Table S4†). The TOFsurf of S1G-CoN2 reached 0.38 s−1 at an overpotential of 0.35 V, which is higher than those of G-CoN2 and NG-CoN2 and other reported Co-based OER catalysts (Table S5†). The faradaic efficiency (FE) for O2 production on S1G-CoN2 was determined using in-line gas chromatography, which showed values between 98.5 and 99.3% at 10 mA cm−2 (Fig. S11†). A chronoamperometric curve indicates the high durability of S1G-CoN2 for OER catalysis (Fig. S12†). The XRD patterns, Raman spectra, and XPS surveys (Fig. S13–S15†) of S1G-CoN2 did not exhibit significant variations before and after the stability test. Additionally, after the stability test, the electrode was immersed in an ethylenediaminetetraacetic sodium (EDTA) solution for 20 h (Fig. S16†).19 The resultant solution was characterized by UV-vis spectroscopy, showing the characteristic absorbance of the EDTA-Co complex at 540 nm. Under the same conditions, cobalt oxides/hydroxides could not react with EDTA. All these datas suggest that S1G-CoN2 does not decompose into possible oxides or hydroxides during long-term measurements.
To clarify the pH dependence of OER electrocatalysis on the Co sites, CVs of S1G-CoN2 were conducted across an expanded alkaline range (pH 12–14, Fig. S17†). Clear redox features appeared between 0.4 and 0.8 V (vs. Hg/HgO) prior to OER potentials, which are assigned to the Co3+/4+ couple. The Pourbaix slope was fitted to be 59 mV pH−1, representing a typical 1H+–1e− coupled redox process to commence OER (Fig. 4a). The potential dependence of the OER current densities at 0.2 mA cm−2 was fitted to be 135 mV pH−1 (Fig. 4b and S18†). The potential dependence of pH was deconvoluted based on the following eqn (1):
![]() | (1) |
The Tafel slope of 59 mV dec−1 on S1G-CoN2 thus establishes a two-order dependence of log(j) on pH. To verify this result, we measured the pH dependence of OER current density using the galvanostatic method, obtaining a linear slope of 2.09 dec pH−1 (Fig. 4c and S19†), reflecting the two-order dependence of OER on the concentration of OH− ions. The OER on S1G-CoN2 was further investigated by in situ attenuated total reflectance-Fourier transform infrared spectroscopy (ATR-FTIR) measurements (Fig. 4d). At 1.2 V and onward, a wide peak emerged at 840 cm−1, assigned to the Co3+–OH/Co4+O species.33 Combining this with the Pourbaix analysis of the Co3+/Co4+ couple, it is inferred that prior to the OER, one Co3+ site of S1G-CoN2, connected with one OH− ion, decouples from one H+ to generate the Co4+
O species. Above 1.5 V, another absorption peak appeared at 1167 cm−1, assigned to *OOH species, verifying the O–O bonding for the final evolution of O2 on the Co sites (Fig. 4e).34,35
The correlation of Co oxidation states with OER activity was investigated. To probe the impacts of S doping on the oxidation states of the Co sites and related OER activity, we used various S reagents (i.e., mercaptoacetic acid, benzylthiol, and thioanisole) to incorporate S heteroatoms into graphene, resulting in S2G, S3G, and S4G (Fig. S20†) to immobilize CoN2, leading to S2G/S3G/S4G-CoN2. Their Co contents were all approximately at 10−6 mol mgsupport−1 magnitude. However, S2G/S3G/S4G-CoN2 exhibited inferior OER activities compared to S1G-CoN2, as indicated by the electrocatalytic currents and TOFs (Fig. 5a and b). Notably, S2G/S3G-CoN2 with relatively low OER activity, exhibited significant Co2+/3+ redox at 1.0–1.1 V, while S1G/S4G-CoN2, with relatively high OER activity, showed weak Co2+/3+ redox (Fig. 5c). The Co2+/3+ redox peaks were integrated to calculate the electroactive amounts of Co sites, which was then divided by the surface amounts of Co sites on the electrodes, as obtained by ICP-OES. This derived the Co redox responses for each catalyst, which inversely relate to the TOFsurf (Fig. 5d). This phenomenon can be attributed to: (i) the tethered Co sites having different degrees of electronic coupling with graphene, resulting in continuous electronic bands or finite electron energy levels or (ii) a fraction of Co2+ sites being converted into higher oxidation states due to the PCET nature, stabilized under alkaline conditions. As suggested by Surendranath et al.,36 over-strong electronic coupling could lead to an electron continuum at the interface, eliminating the Co2+/3+ and Co3+/4+ redox peaks of connected complexes. However, this is unlikely as S1G/S4G-CoN2 exhibited clear Co3+/4+ redox at higher potentials, which is even more significant than that of S2G/S3G-CoN2 (Fig. 5e). To verify the latter case, we conducted KOH titrations under a UV-vis spectral monitor.
The metal-to-ligands charge transfer (MLCT) band of S1G-CoN2 exhibited a blue shift with the addition of KOH solution, suggesting ligand replacement at the Co sites by the nucleophilic attack of OH− ions (Fig. S21†).11,37 In contrast, S3G-CoN2 exhibited an insignificant shift in the MLCT region under the same conditions. Based on the surveys of Co 2p electron levels (Fig. S22†), the two main peaks shifted to 780.3 eV (2p3/2) and 795.1 eV (2p1/2), and the satellites disappeared after immersing S1G-CoN2 into KOH, indicating the increase in the oxidation state of the Co site to +3. Meanwhile, the Co 2p electron levels of S3G-CoN2 did not change upon immersion in KOH, indicating that the oxidation state of the Co sites remained at +2.

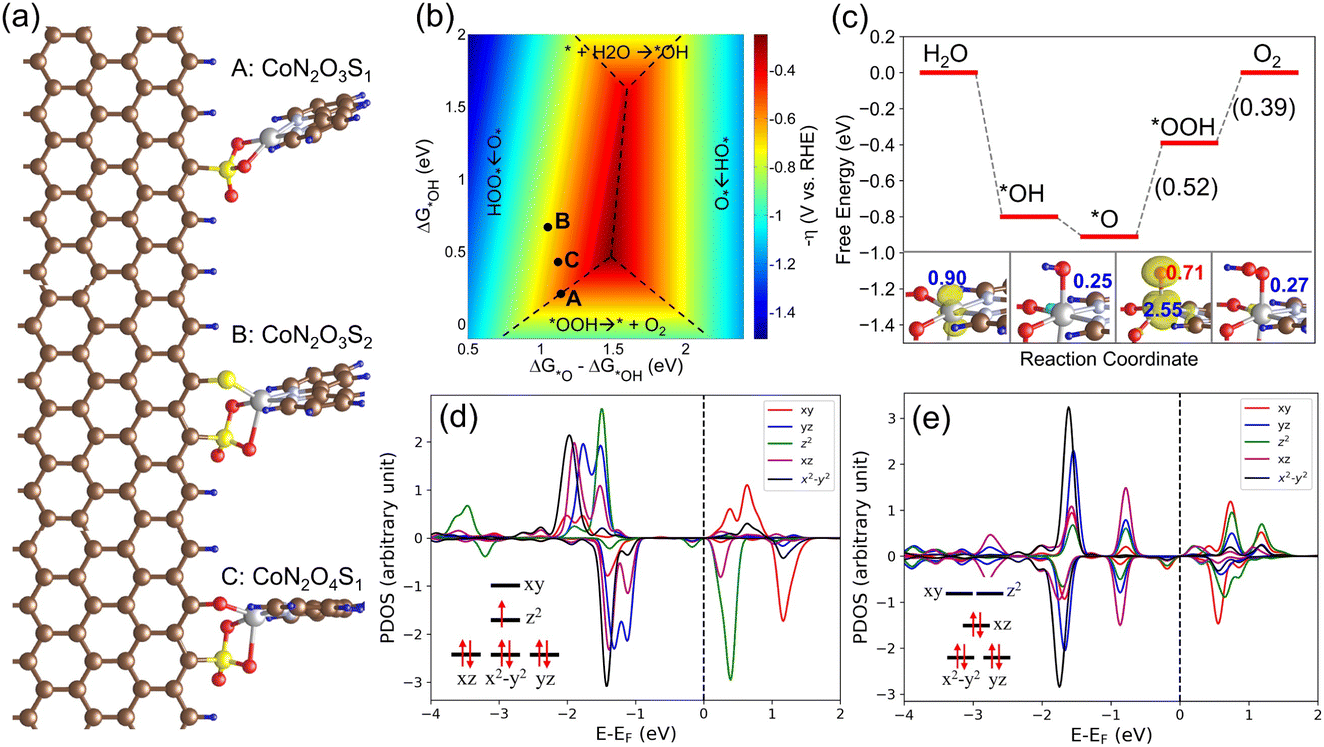

Next, we considered different possible structures of the Co sites of S1G-CoN2 based on the fitted EXFAS data, and S-based groups emerging on graphene, as verified by the XPS surveys (Fig. 6a and S23†). These include a CoN2 molecule anchored to an SO3 group (structure A, CoN2O3S1); an SO3 group and an S group (structure B, CoN2O3S2); and an SO3 group and an O group (structure C, CoN2O4S1). Note that S1G contains a small fraction of N dopants. To verify the impacts of N dopants, we intentionally constructed S, N co-doped graphene, on which CoN2 exhibited insignificant OER activity (Fig. S24†). The OER electrocatalysis was theoretically investigated according to the conventional four-electron mechanism using density functional theory (DFT) calculations.38 This mechanism includes four PCET steps, leading to the formation of three intermediates (i.e., *OH, *O, and *OOH). The calculated OER activities of the above Co sites are presented on a two-dimensional volcano plot, which contains four regions corresponding to the four electrochemical steps of OER (Fig. 6b).
Under the equilibrium potential of OER, we found that water readily deprotonated to form *OH and *O species on the Co sites due to the exothermic nature of these reactions and the very low deprotonation barrier, as revealed before.39 However, the formation of *OOH species from *O is highly endothermic, serving as the potential rate-determining step. This is attributed to the strong bonding between the Co site and the OER intermediates. Specifically, the OER intermediates on structure A exhibit much stronger bonding compared to structures B and C, leading to an overpotential of 0.6 V (Fig. S25†). However, when the Co site bonds to one additional S ligand (structure B), the binding energies of the OER intermediates were weakened by 0.3–0.6 eV, increasing the overpotential to 0.76 V (Fig. S26†). Conversely, a suitable weakening in binding energies (0.1–0.2 eV) was observed on structure C, where the Co site was additionally bonded to one O ligand. It exhibited a low overpotential of 0.52 V (Fig. 6c).
To gain insights into the origin of the high activity of structure C, we analyzed the electronic structures of the Co site during the OER process based on the projected density of states (PDOS), spin density, and magnetic moments. In the pristine structure, the PDOS for the d orbitals of the Co site revealed seven occupied electrons at a low spin state (Fig. 6d), resulting in a magnetic moment of 0.9 μB for the Co site. Upon adsorbing one *OH species, the dz2 orbital was depopulated, reducing the magnetic moment of the Co site to 0.25 μB. A similar scenario was observed in the adsorption of *OOH species (Fig. S27†). These results indicate that the bonding between the Co site and the OER intermediates is highly ionic. Given the 3d74s2 configuration of the Co atom, we assigned the oxidation state of +2 to the Co site in structure C, and +3 to the Co site adsorbing *OH and *OOH species (Fig. 6e). Furthermore, we found that this observation aligns with the octet rule as *OH and *OOH species require one electron each to complete their valence electron shells.40 Therefore, it is reasonable to assign the oxidation state of the Co site to +4 when adsorbing one *O species, which was further verified through its magnetic moment of 2.55 μB, corresponding to an intermediate-spin state. Additionally, we observed that the adsorbed *O species has a magnetic moment of 0.71 μB, showing a radical character. This radical nature is reported to reduce the barrier for O–O formation.41,42 Taken together, our theoretical studies identified that the CoN2O4S1 site has excellent OER performance. Moreover, the formation of adsorbed *OH species on a Co site occurs readily at the OER equilibrium potential, indicating that the oxidation state of Co can easily change from +2 to +3 prior to OER, and the oxidation state of the Co sites varies between +3 and +4 during the OER cycle. This aligns closely with our experimental observations.
Footnotes |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5sc01674f |
‡ These authors contributed equally. |
