Imad Alouiza,
Mohamed Aqilb,
Abdelwahed Charib,
Mouad Dahbib,
Mohamed Yassine Amaroucha and
Driss Mazouzi
*a
aR.N.E Laboratory, Multidisciplinary Faculty of Taza, University Sidi Mohamed Ben Abdellah, Fez, Morocco. E-mail: driss.mazouzi@usmba.ac.ma
bMSN Materials Science, Energy, and Nano-engineering Department, Mohammed VI Polytechnic University, Ben Guerir, Morocco
First published on 10th June 2025
Carbon electrode materials derived from biomass have attracted important interest in studying high-performance electrochemical energy storage devices that are environmentally friendly. Therefore, this study focuses on producing hard carbon (HC) from olive pomace. This is evaluated as a negative electrode in a sodium-ion battery (SIB) with a primary purpose of evaluating the effect of carbonization temperature on HC properties. The preparation of HC from olive pomace was carried out using a chemical activation method with phosphoric acid as an activator and then carbonizing at different temperatures. The generated solid carbon was characterized using various analytical methods, including SEM, HR-TEM, Raman spectroscopy, XRD, FTIR, TGA, and BET. The findings demonstrated that the carbonization temperature significantly affected the morphology, structural characteristics, and disorder level of the synthesized carbon materials. The resultant materials exhibit initial discharge/charge specific capacities for sodium-ion batteries of 307/146, 408/193, and 404/272 mA h g−1 for HC-750, HC-1000, and HC-1250 °C electrodes, respectively, giving an initial coulombic efficiency ratio of 47%, 48%, and 67%. The electrochemical evaluations indicated that HC carbonized at elevated temperatures, particularly at 1250 °C, exhibited superior performance characteristics. Following 100 cycles, a capacity of 248 mA h g−1 was achieved, accompanied by an exceptional capacity retention ratio of 99.9% and good rate capabilities. These results illuminate the significance of the chemical activation process (phosphorus doping) and the carbonization temperature in enhancing electrode performance. By employing this methodology, the utilization of olive pomace effectively yields sustainable biomass-derived HCs in the fabrication of cost-efficient negative materials with enhanced performance for sodium-ion batteries.
Given that sodium is one of the most abundant elements on Earth, this could potentially significantly reduce battery costs.6,7 Furthermore, the possibility of using an aluminum current collector that is cheaper and lighter than copper is a key advantage of this type of technology.8 In fact, research on sodium-ion batteries first began in the 1970s. However, progress is not being accelerated due to the relative ease of handling of sodium-based materials, which are more sensitive to moisture than their lithium counterparts, as well as the competitive energy density of SIBs.9 Nevertheless, in recent years, the rising cost of lithium, cobalt, and nickel, associated with concerns over limited lithium reserves, has reignited interest in SIBs as a potential alternative, prompting the redevelopment of this previously technology.10,11
In order to commercialize SIBs, it is essential to develop highly efficient electrode materials. Thus, the most important components of SIBs, such as cathodes, anodes, and electrolytes, have been the subject of numerous studies in this field. However, the development of stable negative electrode materials for SIBs remains a major challenge.12 Indeed, negative electrode materials must meet essential requirements, such as high reversible load capacity, good efficiency and long cycle.10 Graphite is the most frequently used anode in LIBs due to its abundance, affordability, and non-toxic properties. Nevertheless, the insertion of sodium ions into graphite is difficult due to the small distance between the graphite layers, which cannot easily accommodate the large sodium ions, whose radius is around 36% larger than that of lithium ions.10,13 Therefore, using graphite as the anode of the SIB is not practical. To address this limitation, the focus is on intensive research on alternative materials divided into three major categories according to the reaction mechanism in the process of charging and discharge, namely the insertion of reactions, conversion reactions, and alloy reactions.14 Among these, carbonaceous materials and titanium-based oxides have been investigated for their insertion capabilities.15–17 Furthermore, the conversion reaction examines anode materials such as transition metal oxides and sulfides.14 However, Na-metal alloys are considered promising candidates, especially when combined with a conductive carbon matrix, which enhances their specific capacity and cycling stability. However, materials based on the reaction of alloys and conversions encounter serious disadvantages due to the large volume expansion during the process of insertion/de-insertion of the host material, causing continuous degradation of the electrode structure.18,19 Among these options, hard carbon (HC) is highlighted as a promising candidate for SIB anodes, providing high specific capacity and stability. Despite this, it remains a challenge due to low initial coulombic efficiency (ICE) and limited electrical conductivity.20,21
Recently, several studies have focused on the elaboration of HC from abundant biomass such as peanut shells,22 orange peels,23 sugarcane bagasse,24 tea waste,25 argan shells,26 and date palm pulp.27 These precursors' abundance, low prices, environmental friendliness, and limitless architectural potential make them excellent choices for the synthesis of anode materials for SIBs.28 There are many approaches to improving the electrochemical performance of these hard carbons, including synthesis conditions, porous structure created by an activating agent, and doping technology.29–31 Studies have reported that HC material prepared at high temperatures exhibit high specific capacity, highlighting the correlation between the importance of closed pore volume and its sodium storage capacity.26,27,32 By doping HCs with heteroatoms and introducing functional groups such as oxygen, it can be made to optimize their surface chemistry and enhance the capacity and stability of the solid-electrolyte interface (SEI).31 The HC derived from biomass has high porosity and a controllable pore size distribution. This is important in facilitating sodium ion intercalation and improving cyclic battery performance. These properties make HC obtained particularly suitable for applications in sodium-ion batteries, offering both durability and efficiency.
Olive pomace (OP) is waste product that is usually discarded as part of the olive oil extraction process. This poses several environmental problems. In effect, these residues are generated in large quantities by the olive oil industry, posing waste management problems.33,34 Among the promising approaches to recovering its by-product is the conversion of this waste into hard carbon that can be used in sodium-ion batteries.
This article focuses on studying a simple and efficient synthesis process to prepare hard carbon from olive pomace. For this, after chemical activation of olive pomace raw (OP-R) with phosphoric acid solution, the activated olive pomace (OP-A) is carbonized under an argon atmosphere at three temperatures ranging from 750 °C, 1000 °C and 1250 °C. In order to evaluate the influence of the chemical activation, OP-R was also carbonized directly at 1250 °C without chemical activation step to understand the importance of this step on HC performance. The structural and morphological properties of the produced HC were characterized using different spectroscopic techniques, including thermogravimetric (TG), Fourier transform infrared spectroscopy (FT-IR), scanning electron microscopy (SEM), transmission electron microscopy (HR-TEM), X-ray diffraction (XRD), Raman spectroscopy, and BET surface area measurement. To investigate the electrochemical properties of HCs samples used as anode materials for SIB applications, galvanostatic cycle tests (GCPL), cyclic voltammetry (CV), galvanostatic intermittent titration (GITT), and electrochemical impedance spectroscopy (EIS) were used. Olive pomace's hard carbon has a good specific capacity and cyclic stability, according to electrochemical experiments. This is particularly suitable for applications involving SIBs. Therefore, by valorizing olive pomace for the production of hard carbon, this approach addresses the problems associated with waste management and aids in the advancement of sustainable and effective energy storage solutions.
By using SEM analysis, carbon samples (HCs) derived from OP are examined for their morphology and structure. Overall, the morphology of OP-R is distinguished by a compact surface without pores or curly structures, as shown in Fig. S4.† And, to better observe the effects of the chemical activation step and carbonization temperature on the HC morphology, SEM images are presented in Fig. 2A–D. These samples present an irregular granular morphology with particle sizes around 20–45 μm. Furthermore, the corresponding magnification images show that the HC surface is rough, with heterogeneous particle size distributions and pores of different diameters. These observations can be explained by the release of pyrolysis gas during high-temperature treatment, which causes the formation of porous structures.25
![]() | ||

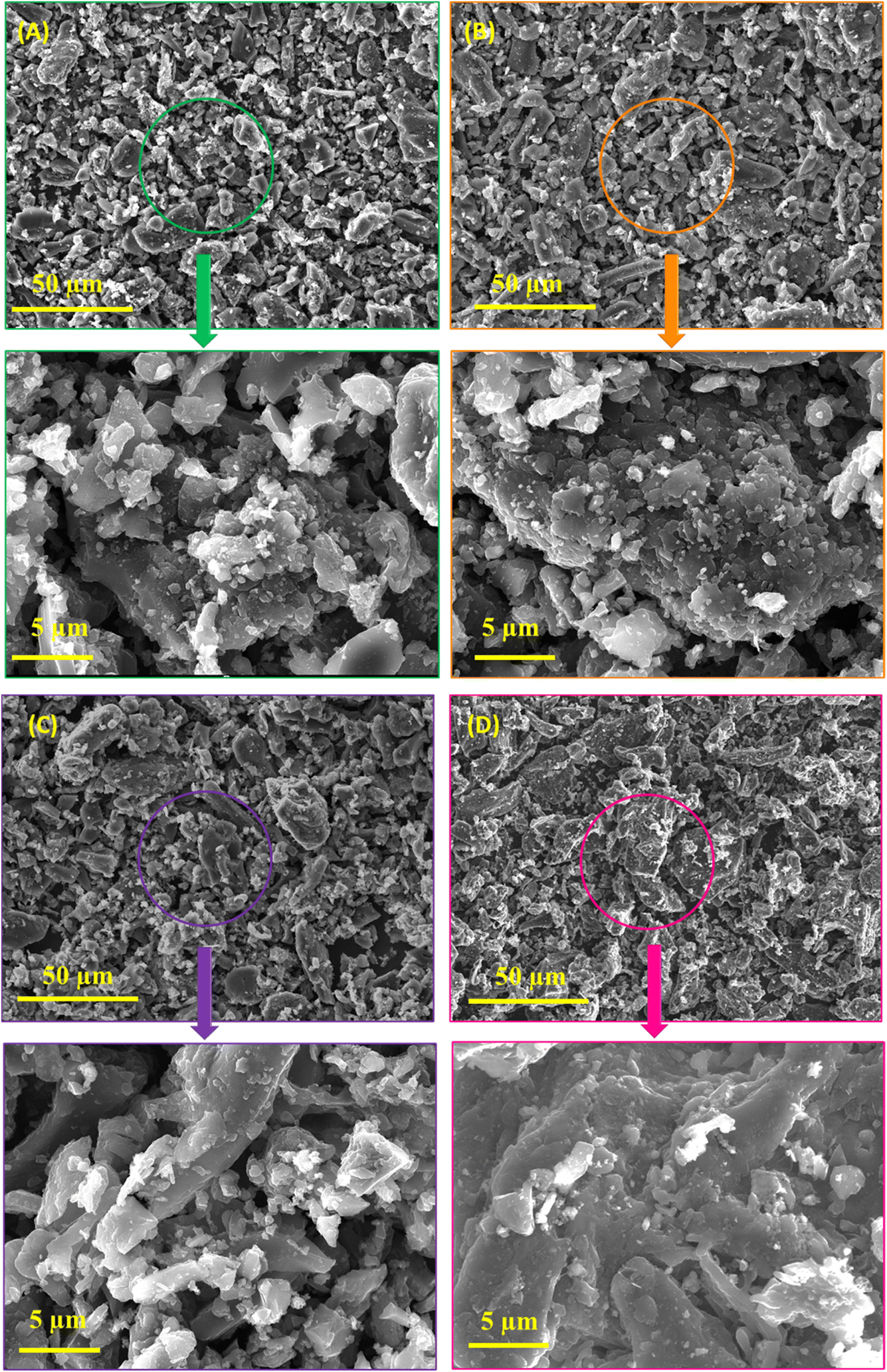

Fig. 2 SEM images and their magnifications of (A) HC-750 °C, (B) HC-1000 °C, (C) HC-1250 °C, and (D) OP-1250 °C. |
According to Fig. 3, the HR-TEM images showed that the carbons obtained are mainly composed of many layers of disordered carbon, which reveals a characteristic typical of amorphous carbon.41 It is also possible to see a small number of parallel graphene sheets. At 750 °C, the HC has a predominantly amorphous structure with disordered carbon layers and an apparent lack of graphitization, indicating initial disordered carbon structures. At 1000 °C, a significant evolution is observed with the appearance of partially graphitic zones and increased surface roughness, indicating better organization of carbon structure. The HC-1250 °C sample shows a more organized structure, which is still a feature of HC, with longer and better-aligned carbon layers. However, the graphitization of OP-1250 °C (Fig. 3D) is less obvious than that of HC-1250 °C, suggesting that chemical activation increases graphitization. As the temperature of the heat treatment increases, the carbon layer becomes longer. The crystalline zones' interlayer distances were found to be 0.51 nm for HC-750 °C, 0.49 nm for HC-1000 °C, and 0.44 nm for HC-1250 °C. These values exceed the required distance (0.37 nm) for sodium intercalation and follow the general trend that distances between layers decrease as pyrolysis temperatures increase.42–44 The main components of HC in basic analysis are carbon (C) and oxygen (O), with the carbon content increasing as temperature increases, except for sample OP-1250 °C (Table S2 and Fig. S6†). We also observe that all HC samples contain phosphorus (P) traces, which decrease with increasing temperature. The presence of several heteroatoms can provide additional sites for sodium accommodation and improve electrolyte wettability, enhancing the sodium storage performance in HCs.39,44 These observations show the important role that carbonization temperature plays in the morphology and internal structure of HC, highlighting the importance of heat treatment conditions to improve the properties of carbon materials.
![]() | ||

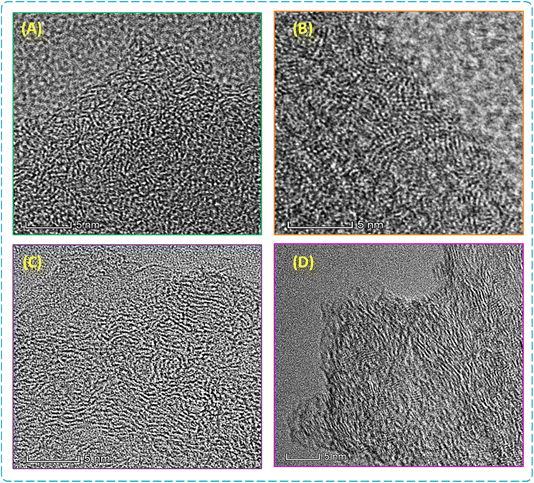

Fig. 3 HR-TEM images of HC samples synthesized at various temperatures. (A) HC-750 °C, (B) HC-1000 °C, (C) HC-1250 °C, and (D) OP-1250 °C. |
Additionally, XRD (Fig. 4A) and Raman measurements (Fig. 4B) confirmed that the resulting HC is graphitized. The XRD diagrams showed that the hard carbon from olive pomace presents two peaks at 24° and 43°. This corresponds to the diffraction of the (002) and (100) planes of disordered carbon, respectively.45 The (002) peaks shift to a higher diffraction angle when the carbonization temperature rises, and d002 decreases due to relative order increases. The d002 values are 0.395, 0.379, 0.373, and 0.382 nm at HC-750, HC-1000, HC-1250, or OP-1250 °C, significantly higher than graphite (0.335 nm). Other parameters are also evaluated from the XRD data, such as the average lateral length (La) and the thickness of graphite-like segments.46 The number (N) of stacked graphene sheets is obtained as N = Lc/d002 (Table 1). La, Lc, and N are expected to increase with temperature if a long-range order develops. The average lateral length increases rapidly and corresponds to the HR-TEM results.
Sample | 2 Tetha | d002 (nm) | FWHM (rad) | Lc (nm) | La (nm) | N Layers | A(D/G) | SBET (m2 g−1) |
---|---|---|---|---|---|---|---|---|
HC-750 °C | 23.27 | 0.395 | 7.87 | 10.429 | 21.061 | 2.722 | 1.798 | 172.87 |
HC-1000 °C | 23.74 | 0.379 | 7.207 | 11.388 | 23.012 | 3.012 | 1.341 | 86.72 |
HC-1250 °C | 23.78 | 0.373 | 6.382 | 12.871 | 25.975 | 3.451 | 1.318 | 7.094 |
OP-1250 °C | 23.77 | 0.382 | 6.934 | 11.837 | 23.927 | 3.089 | 1.357 | 3.124 |
Raman spectroscopy confirmed the development of the microcrystalline structure of graphite in HC, as shown in Fig. 4B. The Raman spectrum of carbon has two broad peaks in the range of 1100–1900 cm−1, with narrow samples having well-ordered graphite networks, the G band situated at about 1580 cm−1 corresponds to the in-plane stretching vibrations of sp2 carbon.47,48 The D band was observed around 1350 cm−1. This mode is inactive in full graphite, but it can be activated by structural disorders, defects, or heteroatom impurities.39,48 Proportional strong D bands show that the HC-1000, HC-1250, and OP-1250 °C samples have numerous structural defects, which are considered to be significant sites for sodium storage in the carbon structure. The Lorentzian fit of the D and G peak areas of the Raman spectra is shown in Fig. S7.† To better assess the microcrystalline structure of the samples, the degree of graphitization of the carbon materials can be determined by analyzing the ratio of the integral area of the A(D/G).44,46 The results of the peak fitting show that A(D/G) decreases with a temperature rise, from 1.74 for HC-750 °C to 1.31 for HC-1250 °C. Graphitic domain growth at higher carbonization temperatures is confirmed by the change in A(D/G) corresponding to previous XRD and HR-TEM above results. This indicates that the structure of the HC can be more graphitic and enhance anode performance in terms of specific capacity and cycling stability.
To determine the BET specific surface area, Fig. 5A shows the N2 adsorption–desorption isotherms of HC samples at different temperatures. The isotherms of HC were similar to type II, suggesting a low porosity of HC. The calculated SBET are 172.87, 86.83, 7.09, and 3.12 m2 g−1 of HC-750, HC-1000, HC-1250, and OP-1250 °C, respectively. This indicates that the specific surface area is directly related to the carbonization temperature. The calculated BET surface area decreases with increasing heat treatment temperature (Table 1). This low surface area of HC-1250 °C could induce limited formation of solid electrolyte interphase (SEI) and thus improve the initial Coulomb efficiency, which is consistent with the electrochemical results. Fig. 5B shows pore distribution with pore volume and diameter values for the various HCs obtained. As the temperature rises, the average pore diameter of the sample decreases pore volume. In combination with other analytical methods such as SEM and HR-TEM, this pattern can be explained by the fact that higher carbonization temperatures lead to micropore closure and eliminate structural flaws, which lowers the pore volume of HC obtained from biomass.
![]() | ||
Fig. 5 (A) N2 adsorption–desorption isothermal curves, and (B) pore size distribution of HC for different temperatures. |
![]() | ||
Fig. 6 CV curves at a scan rate of 0.1 mV s−1 of (A) HC-750, (B) HC-1000, (C) HC-1250, and (D) OP-1250 °C. |
In order to verify the electrochemical stability of the electrodes for different temperatures, galvanostatic curves for HC at a constant current density of 25 mA g−1 over the voltage range of 0.01–2.5 V for 50 cycles are displayed in Fig. 7A. During the first cycle, the discharge capacity for HC-750, HC-1000, HC-1250, and OP-1250 °C was 307, 407, 403, and 358 mA h g−1, respectively. A charge capacity of 146, 193, 272, and 253 mA h g−1 with initial coulombic efficiency (ICE) of 47%, 48%, 68%, and 70%, respectively, followed the sodiation process. Generally, the irreversible capacity loss observed in the initial cycle is due to the decomposition of the electrolyte and the formation of the SEI layer on the surface.41 Based on the above results, including characterization of FT-IR, indicate that an increase in the capacity of the first-cycle of heat temperature rises the availability of the active sites of sodium. These active sites may correspond to defects, voids, and intermediate layers accessible to sodium with HC.50,51 It has also been observed that the HC-1250 °C sample have a higher specific capacity than the HC-750 °C and HC-1000 °C samples. This due to the presence of microstructural properties that enhance storage capacity. However, after the first cycle, all HC electrodes have high coulombic efficiency (CE) and good retention capacity. Thus, the CE of the electrode reaches 99% and 100% in the second cycle and remains stable afterwards. The improvement in cycling performance may be related to a decrease in the surface functional groups of carbon after high-temperature treatment.
The GCPL curves of the samples shown in Fig. 7B provide a better understanding of how Na+ ions are inserted into carbon and how this mechanism develops as a function of carbonization temperatures. Based on the results of cyclic voltammetry (CV), the charge/discharge curves can be classified into two different zones. One that slopes above 0.1 V and one that plateaus below that value. It is widely known that the insertion storage mechanism of Na+ ions varies significantly between these two regions. As shown in Fig. 7B, the plateau's capacity increases significantly with increasing carbonization temperature.52 In contrast, the results show that for HC-750 °C, only a sloping region is observed without a low-potential plateau. This suggests that the capacity observed for HC-750 °C is mainly due to the adsorption of Na+ ions onto active sites on the material surface.51 Conversely, the electrodes of HC-1000, HC-1250, and OP-1250 °C exhibited not only a sloping region but also a plateau in the voltage range below 0.1 V. The charge capacity observed in the plateau region for HC-1000 °C is 76 mA h g−1, representing around 46% of the total capacity. For HC-1250 °C, the plateau capacity rises to 168 mA h g−1, representing 59% of the total capacity (Fig. 7C). These results are comparable to those of previous studies, which have demonstrated that the plateau regime rises with an increase in temperature.41,51 Therefore, extending the plateau region may serve as an effective approach to improving the ICE in HC electrodes.44 As the carbonization temperature rises, the spacing between the carbon layers decreases, which decreases the slope capacity. Conversely, an increase in the size of the nano-cavity leads to an increase in plateau capacity. This observation is confirmed by XRD analysis of hard carbon samples, which shows a decrease in the d-spacing with carbonization temperature rises.
At 25 mA g−1, Fig. 8A presents the cycling performance of HC electrodes and OP-1250 °C electrode. After 100 cycles, the HC-1250 °C electrode displayed a reversible specific capacity of 248 mA h g−1, with a CE around 99.9%. Whereas, HC-1000 and HC-750 °C retained capacity at 161 and 94 mA h g−1, respectively. Furthermore, the OP-1250 °C electrode shows a significantly lower capacity and retention compared to the HC-1250 °C electrode. These results show that the HC-1250 °C electrode has a remarkable high performance, underline the importance of the chemical activation step and the carbonization temperature in the process to produce hard carbon derived from olive pomace, and are in good agreement with the porous structure and active sites in the resulting carbon material. Table 2 presents a list of hard carbons from biomass and mentioned in the literature used as anode for sodium-ion batteries. Some have superior or similar performances in terms of cycles and cycles and CE%. However, this often involves complex processes, long times and very high carbonization temperatures (>1300 °C).26,27,41 Fig. 8B displays the rate performance of HC electrodes with currant densities ranging from 25 to 2000 mA g−1 then returning to 25 mA g−1. It may be observed that HC-1250 °C not only has the highest specific capacitance at a low current density of 25 mA g−1, but also has the best electrochemical rate performance compared to HC-750 °C and HC-1000 °C. Charge capacities of 146, 194, and 282 mA h g−1 at 25 mA g−1 are delivered for the HC-750, HC-1000, and HC-1250 °C electrodes, respectively. In addition, at a higher current density of 2000 mA g−1, these electrodes have capacities of 54, 115 and 224 mA h g−1, respectively. As soon as the current density gradually decreases to 25 mA g−1 after cycling at 2000 mA g−1, the electrodes may return to higher capacities than initially found. This confirms excellent rate capability of the HC electrodes, especially the HC-1250 °C electrode, indicating the remarkable stability of the structure during charge/discharge processes. The properties of HC electrodes are determined by their electronic conductivity and their ability to intercalate sodium ions.49 Increasing the temperature of carbonization can enhance the electronic conductivity of the electrode material. However, at higher current rates, the capacitance decreases because of the plateau region's reduced contribution.41,52
![]() | ||

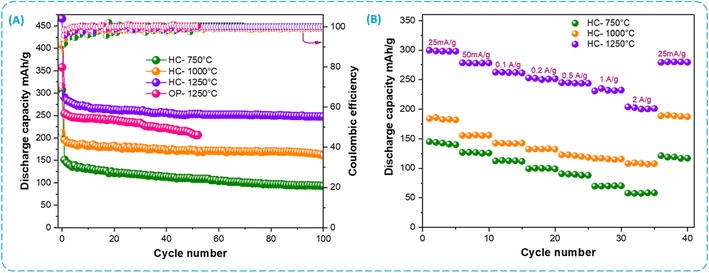

Fig. 8 Electrochemical performance of the HC electrodes at different temperatures (A) capacity retention and the coulombic efficiency, (B) rate performance at different current densities. |
Samples | Current density (mA g−1) | Initial capacity (mA h g−1) | Cycle number | Keep capacity (mA h g− 1) | CE % | Ref. |
---|---|---|---|---|---|---|
Seeds1400 | 25 | 274 | 10 | — | 88% | 27 |
TC1600 | 20 | 203 | 100 | 197 | 66% | 41 |
Argan-1300 | 25 | 360 | 70 | 278 | 86% | 26 |
WHC900 | 30 | 371 | 50 | 240 | 71 | 49 |
MCS-24 | 100 | 545 | 200 | 250 | 47% | 53 |
Hollow carbon | 100 | 537 | 100 | 160 | 41.5% | 54 |
HC-1250 °C | 25 | 403 | 100 | 248 | 68% | This work |
To assess the electrochemical performance of HC derived from the OP, cyclic voltammetry analysis was conducted with various scan rates of 0.1 to 1.2 mV s−1. The resulting CV curves (Fig. 9A) provide insights into the sodium-ion storage mechanisms within different HC structures. Typically, sodium storage behavior can be categorized into two components: (i) a fast reaction governed by capacitive processes and (ii) a slower battery-like reaction. By using the eqn (1),44,55 it is possible to distinguish between these two energy storage mechanisms:
i = a × vb | (1) |
log(i) = b × log(v) + log(a) | (2) |
The value of the slope (b) is used to determine the sodium storage mechanism. If the value of b is close to 0.5, this means that the process is controlled by diffusion. This corresponds to the storage of sodium due to a battery-type reaction with slow kinetics. Conversely, a b value close to 1 suggests that sodium storage is mainly dominated by a fast capacitive mechanism.56 As presented in Fig. 9B, the downward peaks in the discharge part, referred to as the reducer peaks, and the plots of log(i) versus log(v), provide insight into the storage mechanism. The values of b determined for samples HC-750, HC-1000, and HC-1250 °C electrodes were 0.77, 0.55, and 0.46, respectively. These values indicate the transition from a predominantly capacitive mechanism for HC-750 °C to a combined capacitive and diffusion-controlled mechanism for HC-1000 and HC-1250 °C. This suggests that as the carbonization temperature increases, the sodium storage mechanism shifts towards a more diffusion-controlled process, improving the intercalation of sodium ions.
The equation below (3) can be used to determine the contribution of capacitive or intercalation processes to a fixed potential.57
i(v) = k1v + k2v1/2 | (3) |
In order to investigate how carbonization temperature affects the electrochemical properties of HC. Fig. 9D shows the Nyquist plots of impedance spectrums that are generally composed of a semicircle in the high-frequency region and a sloped straight line in the middle and low-frequency zones. These features may be attributed to the charge transfer resistance (Rct) and Warburg impedance (Wo) associated with Na+ ion diffusion in carbonized materials.49 For all composite electrodes, as the carbonization temperature increases, there is a slight decrease in charge transfer resistance (Rct). The HC-1250 °C sample shows the lowest Rct value (130 Ω) compared to the HC-1000 °C (139 Ω) and HC-750 °C (157 Ω) electrodes. A lower Rct indicates faster electrochemical reaction kinetics. These results highlight the importance of optimizing carbonization temperature to improve the electrochemical properties and performance of HC anodes for SIBs.

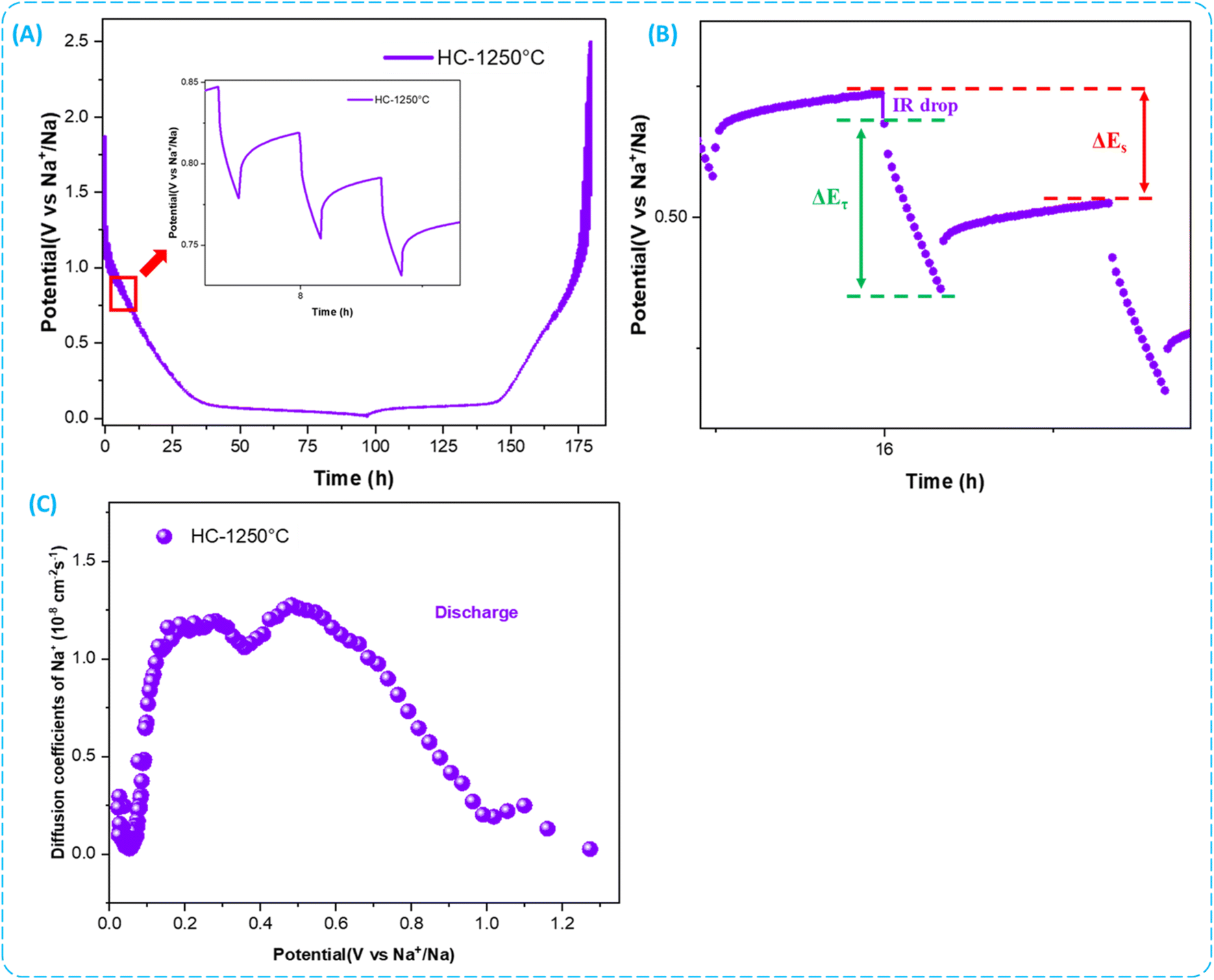

Galvanostatic intermittent titration (GITT) was used to measure the diffusion coefficient of sodium ions to better understand the storage mechanisms of sodium ions. Fig. 10A shows the GITT curves of H-1250 °C. In the GITT tests, sodiation and desodiation were carried out at a constant current density of 20 mA g−1. The diffusion coefficient was calculated according to Fick's second law (eqn (4)):
![]() | (4) |
In summary, the sodium storage mechanism of HC samples made from OP differs depending on the carbonization temperature, highlighting the adsorption, intercalation, and pore-filling mechanisms (Fig. 11). For HC-750 °C, the sodium storage mechanism is mainly dominated by surface adsorption. This is indicated by the predominance of a steep slope in the discharge/charge curves. This indicates that sodium ions mainly bind to active sites on the carbon surface without penetrating deeply into the structure. As the temperature increases to 1000 °C (HC-1000 °C), the storage mechanism transitions to a combination of adsorption and intercalation. The GCPL curves display both a sloping region and a plateau at low potential, suggesting that sodium ions begin to intercalate between carbon layers while still binding to surface sites. This shift is facilitated by an improved structural organization of the carbon, enhancing its storage capacity. For HC-1250 °C, the storage mechanism is mainly dominated by sodium ion intercalation. GCPL curves reveal a well-defined plateau at low potential, characteristic of intercalation, where sodium ions penetrate the interstices between carbon layers. TEM and XRD analyses of HC-1250 °C confirm this ordered structure with well-defined carbon layers, favoring intercalation and pore filling. As the carbonization temperature increases, the spacing between the carbon layers decreases, which facilitates the intercalation of sodium ions and thus increases storage capacity.
![]() | ||
Fig. 11 Schematic illustration of how sodium ions are stored in hard carbons derived from olive pomace at various carbonization temperatures. |
