Minh Thi Nguyena,
Phuong Thu Hab,
Thi Thu Huong Le
c,
Huong Giang Buia,
Ke Son Phanb,
Nhat Huy Chua,
Thi Thu Trang Maib,
Thuy Dieu Thi Ungb,
Anh Tuyet Thi Lea and
Phuong Ha Hoang
*a
aInstitute of Biology, Vietnam Academy of Science and Technology, 18 Hoang Quoc Viet Road, Cau Giay District, Hanoi 100000, Vietnam. E-mail: hph@ibt.ac.vn
bInstitute of Materials Science, Vietnam Academy of Science and Technology, 18 Hoang Quoc Viet Road, Cau Giay District, Hanoi 100000, Vietnam
cVietnam National University of Agriculture, Trau Quy, Gia Lam District, Hanoi 100000, Vietnam
First published on 2nd June 2025
This study explores the powerful capabilities of a floatable photocatalyst, TiO2–Ag immobilized on expanded clay (EC), for photocatalytic antibiotic degradation and pathogen inhibition in aquaculture systems. The porous and floatable nature of EC makes it an ideal carrier for enhancing photocatalytic activity, enabling the easy recovery and reusability of TiO2–Ag. The synthesis of TiO2–Ag/EC is optimized by adjusting TiO2–Ag concentration, integration time, and stirring speed, with a peak Ti content of 2584.51 ± 49.52 ppm achieved under specific conditions (35000 ppm TiO2–Ag, 12 hours integration, 100 rpm stirring). Remarkably, within 2 hours of sunlight exposure, TiO2–Ag/EC (10% w/v) reduced the pathogenic density of Vibrio harveyi, Vibrio parahaemolyticus, and Escherichia coli from 106 CFU mL−1 to under 100 CFU mL−1, maintaining antibacterial efficacy even after seven cycles. Beyond pathogen control, TiO2–Ag/EC degraded over 92% of tetracycline and oxytetracycline at pH 7–9 and achieved up to 95.7% rifampicin removal at pH 5, within 4 hours of sunlight exposure. The degraded antibiotic solution lost its bactericidal activity, suggesting the safety of the formed byproducts for the environment. Notably, at the TiO2–Ag/EC addition ratio of 2.5% w/v, equivalent to a Ti concentration of approximately 62.5 ppm, the material reached a maximum COD removal efficiency of 82.7 ± 2.0% after 40 hours of illumination. These results highlight the potential of TiO2–Ag/EC as a sustainable solution for eliminating antibiotic residues, organic matter, and controlling disease spread in aquaculture environments.
Antibiotics degrade through several processes, including photodegradation, hydrolysis, and biodegradation, with their effectiveness largely influenced by environmental factors such as pH, temperature, and chemical composition.4 Biological methods are favored due to their low cost and environmental benefits, but modern antibiotics have complex chemical structures that can hinder bacterial growth and disrupt microbial metabolism. This challenge complicates bacterial-based degradation methods and raises concerns about the development of antibiotic-resistant genes.5 While physical filtration membranes can adsorb antibiotics, they suffer from frequent clogging, which increases maintenance costs and limits their widespread application.6
Chemical methods using photocatalysts like TiO2–Ag nanoparticles have gained attention for their ability to degrade pollutants effectively. Photocatalysis offers distinct advantages, including the use of light energy to generate reactive oxygen species (ROS) that can break down pollutants under normal temperature and pressure conditions, converting organic contaminants into harmless byproducts like CO2 and H2O.7 ROS can also penetrate bacterial cells, damaging vital components such as proteins, DNA, and lipids, leading to cell death. These properties make photocatalysis a promising approach for addressing antibiotic pollution and controlling pathogenic bacteria in the environment.8 However, a major challenge is the recovery of photocatalytic particles after use. These powder nanoparticles often aggregate or remain suspended in the solution, reducing their active surface area, limiting pollutant interactions, and decreasing light absorption efficiency. Furthermore, the lack of established regulations surrounding the management of photocatalytic materials raises concerns about secondary pollution from nano-sized particles.9
Therefore, in the last few years, attention has been paid to designing the floatable photocatalyst to enable the easy recovery and reusability of the material. In contrast to powder material, floatable photocatalysts owe their unique advantage of direct sunlight irradiation without the attenuation caused by water, hence, enhancing photocatalytic performance.10 In previous research, the expanded clay (EC) carriers were successfully fabricated by pyrolyzing a mixture of clay and rice husk at 1200 °C, followed by rapid cooling. This process results in a rigid, porous structure that efficiently integrates and protects the TiO2–Ag photocatalyst. The floatable nature of expanded clay enhances light exposure and maximizes oxygen involvement in the photocatalytic degradation process at the water/air interface. Preliminary results show that TiO2–Ag immobilized on expanded clay can inhibit Vibrio parahaemolyticus by up to 99% within 2 hours of halogen lamp illumination.11 Building on these findings, the present study will optimize the integration of TiO2–Ag onto expanded clay and evaluate its ability to inhibit a range of pathogenic bacteria and degrade commonly used antibiotics in aquaculture environments. The photocatalytic performance of TiO2–Ag/EC will be assessed under natural sunlight to provide a realistic evaluation of its efficiency in the wastewater treatment process. Ultimately, this research aims to confirm the potential practical significance of TiO2–Ag/EC composites as a sustainable solution for tackling pollution and disease in aquaculture systems.
In the current study, the photocatalytic activity of the TiO2–Ag/EC was assessed under the natural sunlight irritation at the Institute of Biology (VAST), which is located at 21°02′57.2′′N 105°48′06.8′′E. The experiments were conducted during the time of July to September with the measured light density ranging from 70 to 100 klux, and temperature of 30 to 35 °C.
A = log![]() ![]() |
Following each experiment, the TiO2–Ag/EC material was gently rinsed with water and left to air dry at room temperature for approximately 24 hours before being reused in subsequent tests. The experiment was repeated over seven cycles using the same method to assess the stability of the material's antibacterial activity.
H (%) = ((C0 − Ct)/C0) × 100% |
The stability of the TiO2–Ag/EC material for degrading the antibiotic tetracycline was evaluated at an initial concentration of 10 ppm and a pH of 7. After the first cycle, the material was collected and air-dried at room temperature for approximately 24 hours before being reused in subsequent tests. The experiment was conducted in triplicate and repeated for a total of 10 cycles.
ln(C0/Ct) = kt |

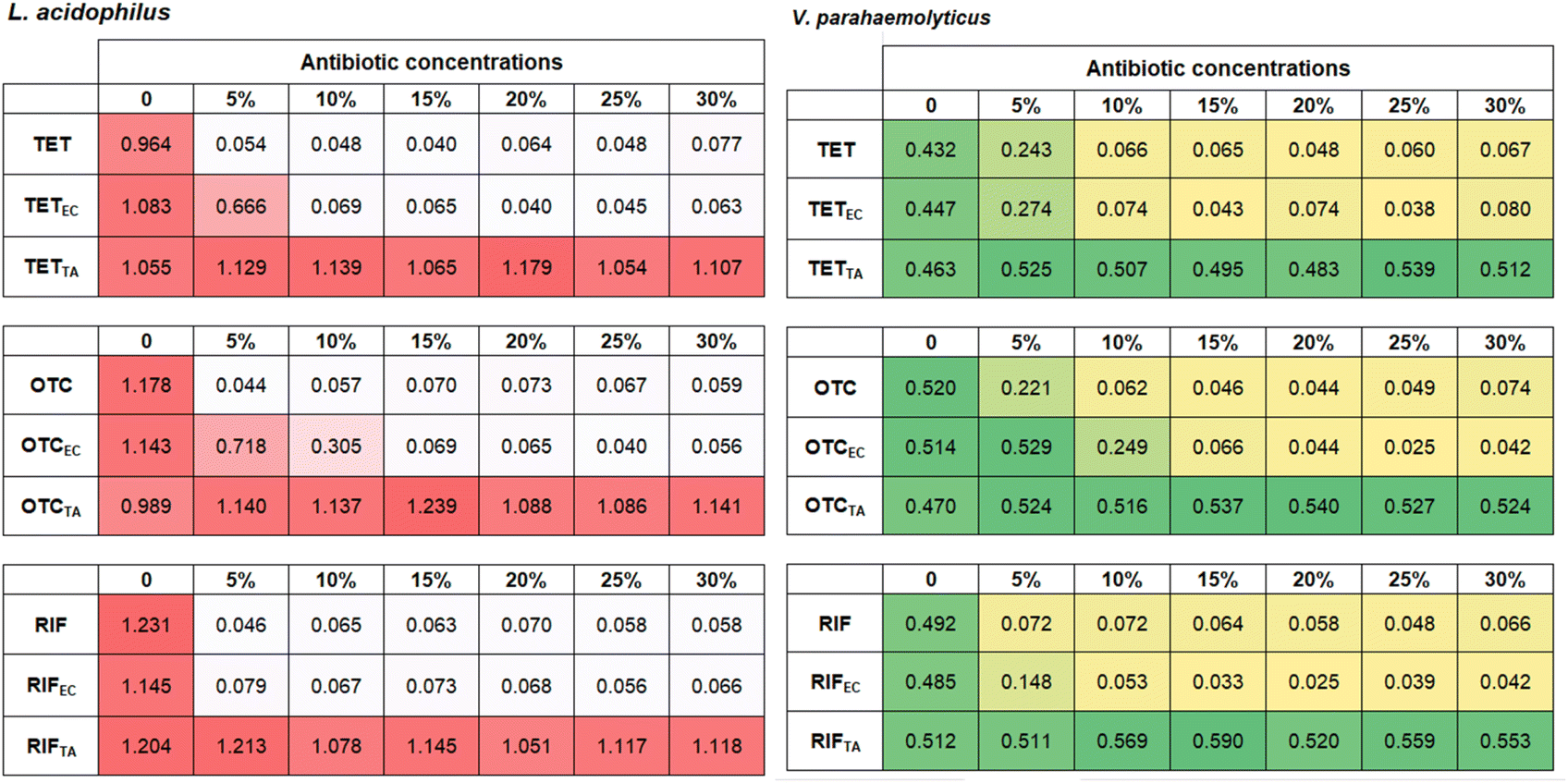

Additionally, control groups were established where the bacterial tubes were supplemented with either: (1) antibiotic solutions that were photodegraded under light using a material that did not contain TiO2–Ag, labeled as TETEC, OTCEC, and RIFEC, or (2) the original TET, OTC, and RIF solutions at a concentration of 10 ppm, pH 7. These were included for comparison with the effects observed from the TETTA, OTCTA, and RIFTA solutions on bacterial growth. The tubes without any added antibiotics served as the negative control.
The experimental model is illustrated in Fig. S1.† After 24 hours of incubation at 35 °C, samples were collected to measure the optical density (OD) of the bacterial solutions at 600 nm. The experimental tubes containing antibiotics that exhibited significantly different (p < 0.05) lower OD600 values compared to the negative control were determined to have reached the minimum inhibitory concentration necessary to inhibit bacterial growth.
Degradation efficiency (%) = ((C0 − Ct)/C0) × 100% |
To assess the impact of the TiO2–Ag/EC material addition ratio on treatment efficiency, six transparent glass beakers were prepared, each containing 1 liter of a solution with a COD concentration of 100 mg L−1. Different ratios of TiO2–Ag/EC material (0.5%, 1%, 2.5%, 5%, and 7.5% w/v) were added to each beaker, and the photocatalytic degradation process was carried out under sunlight. Samples were collected to measure the remaining COD, ammonia, and nitrite concentrations in the environment after each 8 hours exposure period. Based on the obtained results, the appropriate concentration of photocatalytic material addition was selected to achieve high COD degradation efficiency.
When the EC is introduced into the prepared nanoparticle solution, the stirring during the integration process causes the alginate chains, which are bound to the TiO2–Ag nanoparticles, to continue surrounding the EC (Fig. 1a). The Brunauer–Emmett–Teller analysis indicated that the original EC has a total surface area of 2.41 m2 g−1, displaying moderate mesoporosity with an average pore diameter ranging from 8 to 18 nm, along with minimal microporosity. These properties suggest that the outer porous structure of the EC offers optimal docking sites for the nanoparticles, facilitating efficient integration (Fig. S2†). As the TiO2–Ag solution concentration increased from 20000 ppm to 35
000 ppm, and the integration time extended from 6 to 12 to 18 hours, more nanoparticles were incorporated into the EC's surface pores. The integration efficiency peaked at a TiO2–Ag concentration of 35
000 ppm, with the Ti density on the EC reaching its maximum of 2503.95 ± 35.80 ppm after 12 hours. No further increase in Ti content was observed when the integration time was extended to 18 hours (Fig. 1b and Table 1). Additionally, the EDX results clearly demonstrate that the original EC carrier contains a low Ti content of 0.51 ± 0.11% and does not include any silver. In contrast, the Ti content in the fabricated TiO2–Ag/EC significantly increases to 17.22 ± 1.80%, while the Ag content rises to 0.75 ± 0.12%. Furthermore, the immobilization of TiO2–Ag nanoparticles enhances the total surface area of TiO2–Ag/EC to 3.17 m2 g−1 (Fig. S2 and S3†). The distribution of TiO2–Ag nanoparticles on the EC carrier can be observed in the FESEM images at various magnifications (Fig. 2).
![]() | ||
Fig. 1 Integration mechanism of TiO2–Ag onto an expanded clay carrier (a) and impact of integration time and concentration on the immobilization of TiO2–Ag on the EC carrier (b). |
Original EC | Sample | Ti (ppm) | Ag (ppm) | |
---|---|---|---|---|
38.94 ± 5.32 | — | |||
Ti content in TiO2–Ag | Time | Ti content on EC (ppm) | Ag content on EC (ppm) | |
20![]() |
6 h | TiO2–Ag/EC6–20k | 524.32 ± 63.21 | 154.47 ± 24.74 |
12 h | TiO2–Ag/EC12–20k | 597.26 ± 20.40 | 132.63 ± 37.65 | |
18 h | TiO2–Ag/EC18–20k | 755.85 ± 28.53 | 133.66 ± 8.12 | |
25![]() |
6 h | TiO2–Ag/EC6–25k | 685.36 ± 10.06 | 306.71 ± 63.58 |
12 h | TiO2–Ag/EC12–25k | 814.33 ± 30.11 | 116.71 ± 2.76 | |
18 h | TiO2–Ag/EC18–25k | 864.63 ± 6.79 | 226.00 ± 39.93 | |
30![]() |
6 h | TiO2–Ag/EC6–30k | 631.09 ± 89.44 | 354.75 ± 34.21 |
12 h | TiO2–Ag/EC12–30k | 957.00 ± 52.95 | 405.17 ± 52.73 | |
18 h | TiO2–Ag/EC18–30k | 1198.60 ± 42.39 | 350.73 ± 34.85 | |
35![]() |
6 h | TiO2–Ag/EC6–35k | 1691.25 ± 19.02 | 793.5 ± 92.62 |
12 h | TiO2–Ag/EC12–35k | 2503.95 ± 35.80 | 961.62 ± 54.55 | |
18 h | TiO2–Ag/EC18–35k | 2584.51 ± 49.52 | 332.45 ± 23.85 |
![]() | ||
Fig. 2 FESEM images of TiO2–Ag nanoparticles integrated on EC materials at magnifications of 5 k (a), 10 k (b), and 25 k (c). |
In similar research, Kaur et al. optimized the integration of TiO2 onto clay beads for the degradation of the fungicide carbendazim.18 Though the exact Ti content integrated into the support was not specified, the authors found that an initial TiO2 concentration of 20000 ppm, with two integration steps over 24 hours, resulted in the thickest TiO2 layer. However, no further increase in TiO2 thickness occurred after repeating the integration. In contrast, the present study found that the integration of TiO2–Ag reached saturation much more quickly, after just one 12 hours integration step with an initial TiO2–Ag concentration of 35
000 ppm. The difference may arise from the uniform dispersion of TiO2–Ag within the alginate and the continuous stirring that occurred during the integration process in this study, contrasting with the static condition of the TiO2 nanoparticles during the integration process described by Kaur et al.18 This study investigated a novel strategy for improving TiO2–Ag nanoparticles' immobilization efficiency. The approach emphasizes two principal factors. First, alginate chains function as an effective matrix for coating the porous surface of the EC carrier, facilitated by water flow induced through mechanical stirring. However, careful optimization of stirring speed is required to prevent excessive shear stress, which may lead to detachment of the immobilized TiO2–Ag nanoparticles from the carrier surface. Overall, the results demonstrate that the immobilization efficiency is governed by multiple parameters, including the physicochemical properties and concentration of TiO2–Ag, as well as the morphological characteristics of the EC carrier.
Previously, various methods have been employed in previous research to integrate photocatalytic substances into materials, including high-temperature treatment, sol-spray coating, electrodeposition, chemical vapor deposition (CVD), and dip-coating.19 Electrodeposition, for example, allows for the formation of photocatalytic layers with controllable thicknesses tailored to specific structures.20 Dunlop et al. used electrodeposition to coat semiconductor materials with TiO2 under an electric current and subsequently heated them at 500 °C to enhance stability.21 Similarly, thermal treatment is a common method for integrating TiO2 onto carriers, with annealing temperatures around 400 °C promoting the transformation of TiO2 from anatase to rutile, a more stable form.22 However, these techniques, though efficient, are impractical for aquaculture applications due to the significant costs and sophisticated equipment required.
In this research, TiO2–Ag immobilized on electrospun composite (EC) material was tested for its H2O2 production ability. The results, presented in Fig. S4,† showed that H2O2 concentration increased with irradiation time, reaching a peak value of approximately 280 mM after 4 hours. The material demonstrated highly stable H2O2 production, maintaining a concentration of 266.22 ± 13.42 mM even after being continuously tested for 10 cycles. These results provide evidence of the photocatalytic activity of the TiO2–Ag/EC material.
![]() | ||
Fig. 3 Pathogen inhibition ability of TiO2–Ag/EC against V. harveyi (a), V. parahaemolyticus (b), E. coli (c), and TiO2–Ag/EC antibacterial efficacy (d). |
Photocatalyst agent | Light source | Initial pathogen density (CFU mL−1) | Irritation time | Pathogen strain | Antibacterial activity log(N0/Nt) | Reference | |
---|---|---|---|---|---|---|---|
TiO2–Ag/EC | Natural sunlight | 7.7 ×106 | 1st | 120 min | V. harveyi | 6.0![]() |
The presence study |
8.9 ×106 | 7th | 3.2![]() |
|||||
8.0 ×106 | 1st | V. parahaemolyticus | 5.1![]() |
||||
7.8 ×106 | 7th | 2.9![]() |
|||||
7.2 ×106 | 1st | E. coli | 5.8![]() |
||||
8.2 ×106 | 7th | 2.5![]() |
|||||
Ag/TiO2-functionalized ceramic tiles | Xenon lamp (1000 W; λ ≥ 420 nm) | 1 × 106 | 120 min | E. coli | 2–3![]() |
Zhang et al.22 | |
S. aureus | 2–3![]() |
||||||
Salmonella | 2–3![]() |
||||||
Shigella | 2–3![]() |
||||||
Face masks coated with 2% TiO2 | Natural sunlight | 105 | 18 h | E. coli | 3.7![]() |
Ahmed et al.24 | |
S. aureus | 3.34![]() |
||||||
Plastic cutting board coated with TiO2 | UV-A lamp (λmax ∼356 nm) | 107 | 180 min | E. coli | 2.67![]() |
Yemmireddy et al.25 | |
TiO2 -embedded cellulose acetate film | UV-A lamp (λmax ∼356 nm) | 1 × 107 | 360 min | E. coli | 5.2![]() |
Xie et al.26 | |
TiO2/Ag/Ni film | UV | 7.2 × 104 | 10 min | P. fluorescens | 2.48![]() |
Skorb et al.23 | |
2 wt% Ni/TiO2 mesh | UV-A lamp | 1 × 107 | 30 minn | E. coli | 5.17![]() |
Jeong et al.27 | |
Mn- and Co-doped TiO2 | Xenon (with 5% of UV-A and 0.1% of UV-B light) | 1.5 × 108 | 60 min | K. pneumoniae | 6![]() |
Venieri et al.28 | |
Natural sunlight | 3![]() |
To enhance the reuse of TiO2–Ag/EC, the materials were gently rinsed with distilled water and air-dried in the dark at room temperature before undergoing further testing. The results showed that after four cycles of reuse, the TiO2–Ag/EC material retained substantial antibacterial activity, achieving an efficiency of over a 4log reduction (N0/Nt) against V. parahaemolyticus and V. harveyi (Fig. 3). Although the antibacterial efficiency gradually decreased from 5.1–6.0
log reductions to 2.5–3.2
log reductions (N0/Nt) at the 7th reuse, the material remained highly effective at eliminating pathogenic bacteria. It reduced bacterial concentrations from 106 CFU mL−1 to approximately 103 CFU mL−1 within just 2 hours of treatment. The antibacterial performance of TiO2–Ag/EC is comparable to other materials, such as TiO2/Ag/Ni films,23 Mn- and Co-doped TiO2,28 and TiO2 nanoparticles encapsulated in cellulose acetate films,26 as previously reported (Table 2).
Additionally, Joost et al. have suggested that during photocatalysis, reactive oxygen species (ROS) disrupt bacterial cell integrity, leading to the leakage of intracellular components. While titanium dioxide (TiO2) can kill bacteria within 20 minutes, electron microscopy reveals that cell debris may persist on the surface even after 60 minutes of treatment.29 These residual debris can hinder light absorption and block the active sites of the photocatalyst, thereby diminishing its efficacy upon reuse.29,30 Therefore, after bacterial inactivation by TiO2, prolonging the reaction time is essential to ensure complete degradation of the cell components. Besides, methods such as heating, ultrasonic treatment, or the use of basic solutions can effectively eliminate accumulated impurities, thus regenerating the surface of the photocatalyst for future applications.31 Cao et al. reported that heating TiO2 to 420 °C was required to remove all organic compounds adsorbed during the toluene degradation process.32 In contrast, the present study demonstrated that simple water rinsing was sufficient to preserve the antibacterial activity of TiO2–Ag/EC after seven uses, emphasizing the ease of use of the material for preventing pathogen spread in aquaculture systems.
TiO2–Ag typically exhibits an isoelectric point (pHpzc) of 6.6. Hence, at pH levels below this threshold, the material possesses a positive surface charge, whereas at pH values above 6.6, it acquires a negative charge.33 Tetracycline (TET) and oxytetracycline (OTC) are classified as amphoteric substances, possessing the capability to both donate and accept protons. Moreover, the two antibiotics display similar pKa values: pKa1 ranges from 3.27 to 3.30, pKa2 from 7.32 to 7.68, and pKa3 from 9.11 to 9.69.34 At pH levels either below 3 or above 9, TET, OTC, and TiO2–Ag all exhibit the same charge, which leads to electrostatic repulsion and consequently limits the degradation processes. According to Sun et al. reactive oxygen species (ROS) have short lifespans and are easily decomposed as they move away from the photocatalyst surface.35 Therefore, it is crucial to maintain close binding of pollutants to the TiO2–Ag/EC surface to accelerate the photocatalytic reaction rate.
As the pH increases from 3 to 7, the positive charge on TiO2–Ag decreases, while TET and OTC become neutral, reducing electrostatic repulsion and significantly enhancing degradation efficiency. For example, at pH 3, degradation efficiency for TET and OTC was 86.9–89.6%, which increased to 92.3–95.1% at pH 7, with an initial antibiotic concentration of 10 ppm. At pH levels of 7–9, the antibiotic compounds and TiO2–Ag carry negative charges, however, the charge density of both components may still be low, allowing degradation efficiency to remain high, reaching 94.6% for TET and 97.8% for OTC (Fig. 4 and 5).
![]() | ||

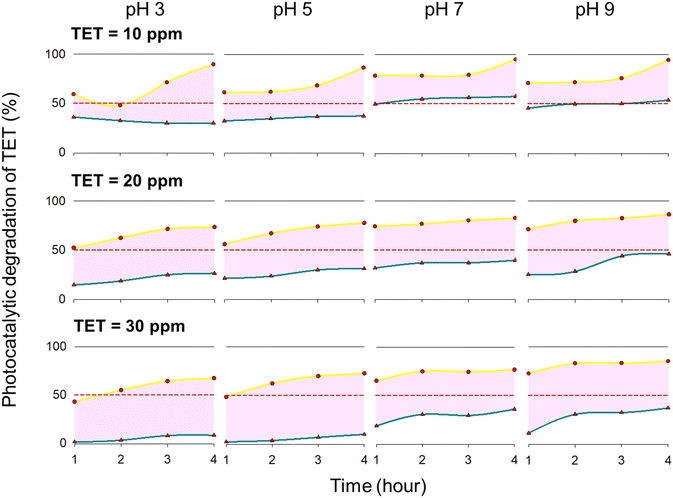

Fig. 4 Photodegradation of tetracycline (TET) by TiO2–Ag/EC material at various environmental pH and initial antibiotics concentrations. |
![]() | ||
Fig. 5 Photodegradation of oxytetracycline (OTC) by TiO2–Ag/EC material at various environmental pH and initial antibiotics concentrations. |
In the photocatalytic degradation process of TET and OTC, it is suggested that the reactive oxygen species (ROS) produced by TiO2–Ag initiate oxidative reactions such as hydroxylation, quinonization, decarbonylation, demethylation, and dehydration. These reactions lead to the cleavage of carbon–carbon (C–C) and carbon–nitrogen (C–N) bonds, disruption of the fused, linearly connected ring structures of the antibiotics, and ultimately resulting in mineralization of antibiotics into harmless end products like carbon dioxide (CO2), ammonium (NH4+), and water (H2O).36
In case of the rifampicin (RIF), the ROS initially cleave the carbon atom bonded to the amino group, triggering demethylation. This process breaks the tetrahydrofuran ring, resulting in mineralization into CO2 and H2O.37 The RIF has the two pKa values of 1.7 and 7.9.38 As the pH shifts from 3 to 5, RIF becomes neutral, while the positive charge on TiO2–Ag decreases, enhancing the binding of RIF to the photocatalyst and resulting in a degradation efficiency of 95.7%. However, RIF degradation is inhibited at higher pH values. At pH 7, 76.7% of the initial RIF concentration (10 ppm) was degraded after 4 hours, while this decreased to 69.9% at pH 9 (Fig. 6).
![]() | ||
Fig. 6 Photodegradation of rifampicin (RIF) by TiO2–Ag/EC material at various environmental pH and initial antibiotics concentrations. |
Simultaneously with the photocatalytic process, antibiotics can directly absorb photons, which alters their chemical structures and contributes to their degradation.39 Compounds with alternating saturated and unsaturated bonds, such as TET, OTC, and RIF, are more likely to undergo direct photon absorption.40 The results showed that the photolysis process could degrade 53.7% to 63.6% of TET and OTC at an initial concentration of 10 ppm (Fig. 4 and 5). However, as the antibiotic concentration increased to 20 or 30 ppm, the photolysis efficiency dropped below 50%. Rifampicin is more resistant to degradation in the absence of TiO2–Ag/EC. At a concentration of 10 ppm (pH 7), only 15.7% of the initial RIF was removed after 4 hours of photolysis, while the addition of TiO2–Ag/EC increased the degradation efficiency to 76.7% (Fig. 6). The obtained results consistent with findings from Dai et al., which reported lower photolysis efficiency for TET degradation compared to photocatalytic treatments.41 Research by Zambrano et al. further emphasizes the effectiveness of TiO2 in antibiotic degradation, revealing that several antibiotics, including tetracycline, ciprofloxacin, sulfadiazine, and sulfamethoxazole, take 100 to 240 hours to degrade under UV-C exposure, while TiO2 enhanced the degradation efficiency to 99–100% in just 3.5 to 15.6 hours.42 These findings proved the critical role of TiO2–Ag/EC in improving the efficiency of antibiotic degradation, highlighting its potential for addressing residual antibiotics in the environment.
To evaluate the stability and reusability of the TiO2–Ag/EC catalyst, we conducted repeated cycles of tetracycline (TET) degradation under identical conditions, initial concentration of 10 ppm at neutral pH (7.0), for up to 10 cycles. As shown in Fig. S5,† the catalyst maintained over 80% removal efficiency for the first six cycles. However, a noticeable decline was observed, with efficiency dropping to below 40% by the 10th cycle.
Interestingly, this decrease in activity does not appear to be associated with the relatively stable concentrations of H2O2 produced by TiO2–Ag/EC in deionized water, as illustrated in Fig. S4.† This suggests that the diminished photocatalytic efficiency may be more related to surface fouling, likely caused by the adsorption of intermediate degradation products rather than to catalyst leaching.
Although we did not directly measure TiO2–Ag leaching in this study, the immobilized nature of the TiO2–Ag on the EC carrier and the consistent ROS generation imply minimal catalyst loss. For practical applications, it is recommend further enhancing catalyst stability by applying a chitosan coating to the TiO2–Ag/EC material. Chitosan is poorly soluble at neutral pH, such as that found in aquaculture environments, and could help prevent the detachment of TiO2–Ag without compromising photocatalytic activity.43
Oxytetracycline | Tetracycline | Rifampicin | ||||
---|---|---|---|---|---|---|
k | R2 | k | R2 | k | R2 | |
pH 3 | 5.45 × 10−3 | 0.99 | 5.53 × 10−3 | 0.95 | 4.92 × 10−3 | 0.97 |
pH 5 | 5.71 × 10−3 | 0.98 | 6.24 × 10−3 | 0.98 | 9.23 × 10−3 | 0.87 |
pH 7 | 6.40 × 10−3 | 0.90 | 7.30 × 10−3 | 0.99 | 4.58 × 10−3 | 0.92 |
pH 9 | 10.83 × 10−3 | 0.99 | 8.31 × 10−3 | 0.98 | 3.45 × 10−3 | 0.95 |
Tetracycline (TET) and oxytetracycline (OTC), both members of the tetracycline antibiotic group, have chemical structures with multiple binding sites for metal ions, such as the β-diketone system (C11, C12), enol group (C1, C3), and carboxamide group (C2).45 These antibiotics form complexes with magnesium ions (Mg2+), which inhibit protein synthesis in the 30S ribosomal subunit, contributing to their antibacterial effectiveness. In this study, the growth of L. acidophilus was completely inhibited at antibiotic concentrations of 5% (0.5 mg mL−1) for both TET and OTC. An increase to 10% concentration also resulted in the inactivation of V. parahaemolyticus bacteria. Nevertheless, after 4 hours of photocatalytic treatment using TiO2–Ag/EC material, over 92% of the TET and OTC content was degraded. As a result, the treated antibiotic solutions, TETTA and OTCTA, lost their ability to inhibit the growth of L. acidophilus and V. parahaemolyticus at the tested concentrations. At the 30% supplementation level, the growth of bacterial strains in TETTA and OTCTA was comparable to those in the negative control, which contained no antibiotics (Fig. 7).
Yuan et al. proposed that reactive oxygen species (ROS) generated during photocatalysis can break the chemical bonds in oxytetracycline (OTC), converting it into harmless byproducts such as 1,4-benzenedicarboxylic acid, 4-oxopentanoic acid, and glycerin.46 Nevertheless, the intermediate products formed during the photolysis of OTC may have altered functional groups but retained a tetra-phenyl structure, allowing them to penetrate bacterial membranes, including those of luminescent bacterial strains.47 Furthermore, in the present study, the photolysis of antibiotics in the presence of EC without TiO2–Ag resulted in only partial degradation of TET and OTC, with efficiencies of 57.5% and 64.0%, respectively (Fig. 4 and 5). As a result, at TETEC and OTCEC concentrations of 15%, the growth of both bacterial strains was effectively inhibited. Similar results were observed with the antibiotic rifampicin (RIF), where L. acidophilus was completely inhibited at a concentration of 5% RIFEC but grew normally in the presence of 30% RIFTA (Fig. 7).
![]() | ||
Fig. 8 Dependence of the COD removal activity of TiO2–Ag/EC on initial COD concentrations: 25 mg L−1 (a), 50 mg L−1 (b), and 100 mg L−1 (c). |
To evaluate the impact of TiO2–Ag/EC concentration on COD removal efficiency, varying concentrations of TiO2–Ag/EC, ranging from 0.5% to 10% w/v, were introduced to a 100 mg L−1 COD solution. As illustrated in Fig. 9, an increase in TiO2–Ag/EC concentration from 0.5% to 2.5% w/v resulted in a reduction of the remaining COD from 33.6 ± 5.5 mg L−1 to 18.4 ± 3.1 mg L−1, achieving a maximum COD removal efficiency of 82.7 ± 2.0% after 40 hours of illumination. Munien et al. revealed that UV illumination with a TiO2 concentration of 600 ppm can achieve a COD removal rate of 25.88% in domestic wastewater.48 Additionally, Orojlou et al. found a significantly higher COD removal efficiency of 94.5% in industrial wastewater at an increased TiO2 concentration of 2000 ppm.49 In contrast, the TiO2–Ag/EC composite was synthesized with an integrated Ti content of approximately 2500 ppm, hence, an addition ratio of 2.5% w/v TiO2–Ag/EC corresponds to a photocatalyst concentration of about 62.5 ppm. Nevertheless, the floatable properties of TiO2–Ag/EC enhance light absorption and oxygen interaction, thereby improving photocatalytic activity. As a result, this material can achieve a COD removal efficiency exceeding 80% when applied to an initial COD concentration of 100 mg L−1 over a treatment period of 40 hours.
![]() | ||

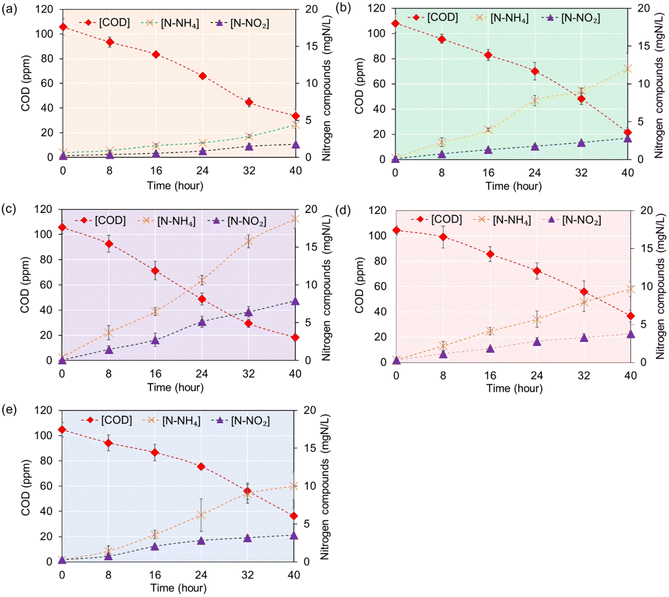

Fig. 9 Effects of various concentrations of TiO2–Ag/EC additions: 0.5% (a), 1% (b), 2.5% (c), 5% (d), and 7.5% (e) w/v on COD removal efficiency. |
However, as the TiO2–Ag/EC concentration increased to 5% and 7.5% w/v, the efficiency subsequently decreased to 65.2 ± 6.7%. A similar phenomenon was reported by Zhang et al., where the rise in the concentration of the photocatalyst KBNNO ([KNbO3]0.9–[BaNi0.5Nb0.5O3−δ]0.1) from 1800 to 2000 mg L−1 did not significantly enhance the removal efficiency of methyl blue dye.50 This phenomenon can be explained by the fact that at lower photocatalyst densities, the number of photons absorbed and converted into reactive oxygen species (ROS) radicals is limited, resulting in lower degradation efficiency. Conversely, when the photocatalyst concentration exceeds a certain threshold, the nanoparticles may shadow one another, which reduces light absorption and overall photocatalytic activity. Therefore, it is essential to identify the minimum concentration of material needed to achieve effective treatment efficiency for each treatment model to reduce investment costs.
In addition to the COD decomposition process, the formation of inorganic compounds such as NH4+ and NO2− was observed, with their concentrations increasing over time (Fig. 9). The reactor containing 2.5% w/v TiO2–Ag/EC demonstrated the most effective performance in degrading organic compounds, resulting in high concentrations of NH4+ and NO2−, measured at 18.7 ± 1.2 mgN L−1 and 7.9 ± 0.2 mgN L−1, respectively. Therefore, a combination of multiple strategies is essential for effectively addressing the nitrogen pollution generated during the degradation of organic compounds in aquaculture systems.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5ra02333e |
This journal is © The Royal Society of Chemistry 2025 |
