B(III)-catalyzed synthesis of spirooxindole and dihydro-2-oxopyrrole under solventless conditions in a ball mill, along with DFT computations

Abstract

Mechanochemical synthesis of heterocyclic compounds is a growing research field due to its simplicity and environmental compatibility. Solvent-free mechanochemical reactions using a ball mill not only eliminate the need for bulky solvents and reduce waste but also open the door to the synthesis of various organic compounds, including common drugs. Combining two different acids, including molybdic acid (MoO₃(H₂O)₃ complex structure) and Lewis acid BF₃, is a smart strategy to prepare a new and porous cluster nano-catalyst with high acidic properties (pH = 1). Here, the MoO₃/BF₃ nano-catalyst was prepared. This heterogeneous acidic nano-catalyst was then investigated for the synthesis of derivatives of nitrogen-containing heterocyclic compounds, such as spirooxindoles and dihydro-2-oxopyrroles, using the Michael–Mannich cyclocondensation method under solvent-free mixer Mill conditions. Which is, a green and environmentally friendly method. These results align with the data obtained from the DFT calculations. Total energy and electronic band gap energy (E_g = E_HOMO − E_LUMO) calculations were performed for all dihydro-2-oxopyrrole and spirooxindoles derivatives synthesized in this work. The type of final structure of the catalyst was determined using different analyses such as analyses FT-IR, XRD, FESEM, EDX, EDS-MAP, TEM, BET, and TGA were performed.

---

Introduction

In recent years, due to the occurrence of serious environmental problems caused by solvents and chemicals, green chemistry has confirmed the need to find suitable alternatives, so the ball mill is known as a useful tool for the synthesis of organic compounds. The synthesis of heterocyclic compounds using advanced mechanochemical and environmentally friendly processes has advantages compared to ultrasound, microwave, and solvent-based methods.^1–4

Recently, heterocyclic compounds, especially nitrogen-containing compounds, form many important organic compounds for natural products, agrochemicals, and pharmaceuticals. For this reason, the formation of compounds containing C–N bonds has been widely investigated in the past decades. Typically, the synthesis of this class of compounds requires significant amounts of solvent, and in most cases, relatively harsh reaction conditions are employed.^5–7

Due to their rigidity and three-dimensional geometric structure, spirocyclic compounds occupy a unique position in organic chemical compounds. The existence of spirocycles was first proposed by von Baeyer in 1900.⁸ Among all spirocyclic compounds, spirooxindole compounds are an important branch of this category. Spirooxoindoles contain a fused spiro ring at C2 or C3 of the oxindole part, they are also a well-known subgroup of indole and form the core of very functional organic structures.^9,10 These important structures are known as the central skeleton of many alkaloids with medicinal activity such as Horsfiline,¹¹ Mitraphylline,¹² and Marefortine.⁹ Spirooxindole compounds are found abundantly in nature have anti-fungal, anti-microbial, and anti-tumor properties, and are useful as an anti-cancer drug in cancer treatment.^13–15 Two examples of spiro compounds in nature that have a spirooxindole system are Spirotriprostatin A and Spirotriprostatin B, which are obtained from Aspergillus fumigatus mold fermentation in a liquid medium and have anti-mitotic and inhibitory properties in the mammalian cell cycle.¹⁶ Another example of this class of spiro substances is an alkaloid isolated from the native jasmine flower of Guatemala, called Gelsemine, it is used as a topical medicine to treat muscular rheumatism, tonsillitis, inflammation of the esophagus, headache, and earache.¹⁷ Rhynchophylline is an antihypertensive, anticonvulsant, headache, non-antagonist. Horsfiline is used in traditional medicine and Mitraphylline has an anti-tumor activity for human brain cells and neuroblasts¹⁴ (Scheme 1).

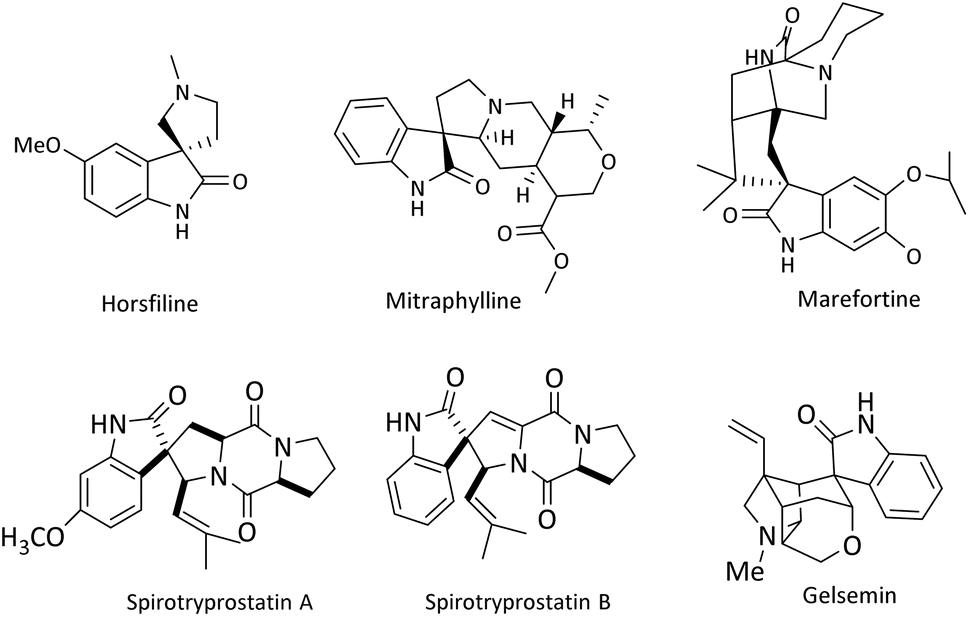

Scheme 1 The structure of some pharmacologically and biologically active heterocyclic compounds containing spirooxindole.

One of the most common methods for the synthesis of compounds with spirooxindole skeleton is the use of isatin compound, considering the pharmacological and medicinal importance of this class of compounds, significant efforts have been made to synthesize spirooxindole compounds, one of the most efficient of which includes The three-component reaction is isatin, malononitrile and compounds with enolizable active C–H such as dimedone, 2-hydroxyphthalene-4,1-dione, and 4-hydroxycoumarin 18. So far, the derivatives of spirooxindoles have been synthesized using many catalysts and different conditions such as Rh₂(OAc)₄, chiral phosphoric acid (R),¹⁹ urea/ChCl,²⁰ piperidine,²¹ Cu(CH₃CN)₄PF₆,²² SiO₂@g-C₃N₄,²³ Fe₃O₄/GO/Au-Ag,²⁴ CaFe₂O₄@MgAl-LDH,²⁵ NiO@g-C₃N₄,²⁶ CoFe₂O₄@SiO₂,²⁷ GN/SO₃H,²⁸ Au.²⁹

Oxopyrrole rings are biologically and pharmacologically important as vital structural parts of natural and unnatural products. Holomycin and thiolutin,³⁰ thiomarinol A4,³¹ and oteromycin³² are some natural bioactive molecules with oxopyrrole rings. In addition, this compound exhibits biological properties such as antitumor,³³ herbicide,³⁴ and pesticide³⁵ activities, as well as compounds containing oxopyrroles as platelet aggregation inhibitors³⁶ cardiac cyclic AMP phosphodiesterase inhibitors,³⁷ endothelial growth factor receptor³⁸ has been reported.

Several methods have been reported for the synthesis of multi-functional dihydro-2-oxopyrroles, the best known Michael–Mannich cyclocondensation reaction method is used, which uses amine, dialkyl acetylene dicarboxylate (DAAD), and formaldehyde.³⁹ Some catalysts that have been reported for the synthesis of this class of compounds are listed here such as 2,6-pyridinedicarboxylic acid,⁴⁰ 4CzIPN,⁴¹ trifluoroacetic acid,⁴² caffeine,⁴³ salicylic acid,⁴⁴ TiCl₄/nano-sawdust,⁴⁵ glycine,⁴⁶ Fe/MWCNTs,⁴⁷ I₂,⁴⁸ A_l(H₂PO₄)₃,⁴⁹ H₃PW₁₂O₄₀/Fe₃O₄@SiO₂-Pr-Pi,⁵⁰ nano-Fe₃O₄@ SiO₂/SnCl₄,⁵¹ UiO-66-SO₃H.⁵²

In this work, MoO₃/BF₃ was prepared and identified as a highly efficient and recyclable acid nano-catalyst using FT-IR, XRD, FESEM, TEM, EDX, EDS-MAP, BET, and TGA analyses. Next, the catalyst was investigated for the synthesis of spirooxindoles and dihydro-2-oxopyrroles using a mixer mill, a green and economical method.

Results and discussion

The MoO₃/BF₃ catalyst was prepared (Fig. 1) and characterized using various analytical techniques, including FT-IR, XRD, FESEM, TEM, EDX, EDS-MAP, BET, and TGA.

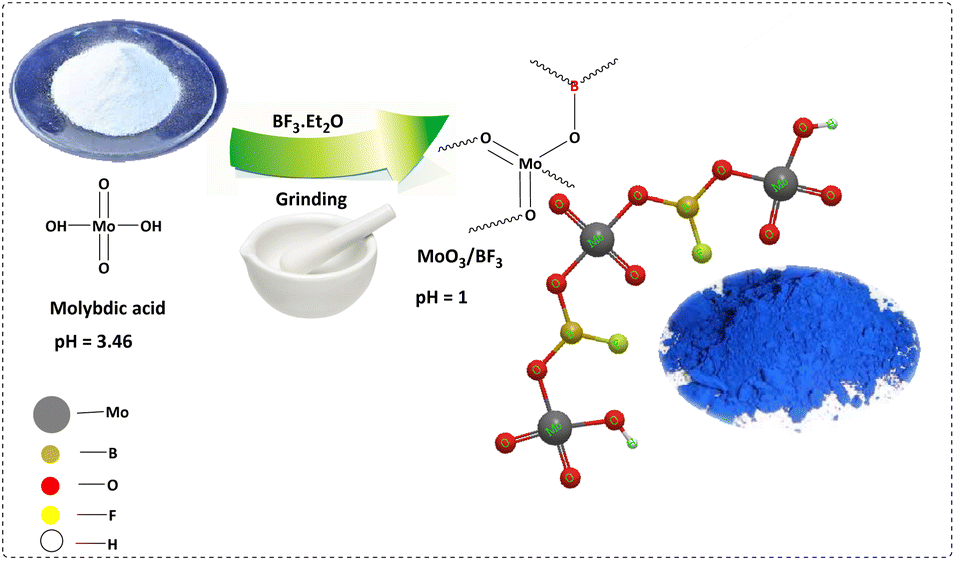

Fig. 1 Preparation of MoO₃/BF₃.

FT-IR of MoO₃/BF₃ nano-catalyst

The FT-IR spectra of molybdic acid (a) and MoO₃/BF₃ nano-catalyst (b) were compared (Fig. 2). The broad absorption band observed in the spectrum (a) at 3338 cm⁻¹ is related to the OH group of molybdic acid. In both spectra, the absorption band at 928 cm⁻¹ corresponds to the stretching vibration of the Mo=O group. In the spectrum (b), the absorption band appearing in the 728 cm⁻¹ and 1280 cm⁻¹ corresponds to the stretching vibrations of the B–F and B–O groups, respectively. According to all these data, the formation of MoO₃/BF₃ nano-catalyst was confirmed.

Fig. 2 FT-IR Spectra of (a) BF₃·OEt₂, (b) molybdic acid, and (c) MoO₃/BF₃.

PXRD (powder X-ray diffraction) of MoO₃/BF₃

The crystallography of the final MoO₃/BF₃ nano-catalyst was evaluated using the X-ray diffraction (XRD) pattern, shown in Fig. 3. All XRD peaks were consistent with the hexagonal phase of MoO₃. A few impurity peaks were observed (▲), probably due to residual by-products formed by Mo⁵⁺ ions. The main peaks are at 2θ = 19.2 b 25.5° and, 29.9° which are characteristic of the hexagonal MoO₃ phase in the final catalyst.⁵³

Fig. 3 PXRD pattern of MoO₃/BF₃ nano-catalyst (the nano-catalyst shows some impurity peaks labeled in the black triangle (▲)).

FESEM and TEM of MoO₃/BF₃ nano-catalyst

In Fig. 4a, the field emission scanning electron microscope image of the final MoO₃/BF₃ nano-catalyst shows a quasi-spherical morphology with a diameter of 43 nm. TEM analysis of the prepared MoO₃/BF₃ catalyst depicts that the catalyst is a nanoparticle (Fig. 4b).

Fig. 4 (a) FESEM image of MoO₃/BF₃ (b) TEM analysis of the prepared MoO₃/BF₃ catalyst at low magnification (100 nm).

EDX and EDS-map of MoO₃/BF₃

Fig. 5a shows the EDX spectrum of the final MoO₃/BF₃ nano-catalyst. As it is clear, all the elements in the final catalyst, including oxygen, molybdenum, and fluorine, have clear peaks. It confirms the presence of oxygen, molybdenum, fluorine, and boron elements in the prepared catalyst with 61.40%, 31.00%, 7.19%, and 0.41%, respectively. EDS-MAP of the final nano-catalyst shows the uniform and homogeneous distribution of elements on the surface of the catalyst (Fig. 5b).

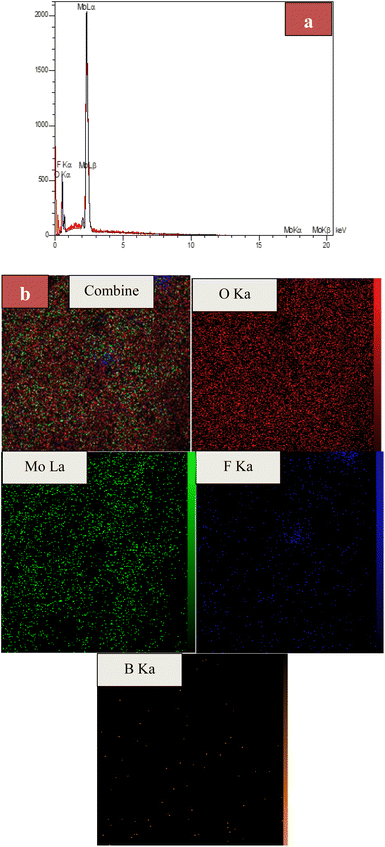

Fig. 5 (a) EDX spectrum and (b) EDS-MAP of MoO₃/BF₃.

BET of MoO₃/BF₃

The BET method was used to evaluate the amount and type of porosity as well as the surface area of the final nano-catalyst. Using the BET chart, the surface area of the MoO₃/BF₃ nano-catalyst was measured as 16.713 m² g⁻¹ (Fig. 6). The adsorption–desorption isotherm of N₂ gas shows a type IV isotherm (Fig. 6) according to the IUPAC classification, which is characteristic of mesoporous and non-porous materials. In Table 1, information related to BJH, pore diameter, and total pore volume, are reported as 0.1689 cm³ g⁻¹, 40.43 nm, and 0.1689 cm³ g⁻¹, respectively.

Fig. 6 N₂ adsorption (blue line)–desorption (red line) isotherm and corresponding diagrams pore size distributions.

Table 1 Summary of porosity parameters of MoO₃/BF₃ nano-catalyst

BET
Vm	3.84 [cm^3(STP) g^−1]
as, BET	16.713 [m^2 g^−1]
C	60.97
Total pore volume (p/p0 = 0.990)	0.1689 [cm^3 g^−1]
Mean pore diameter	40.43 [nm]
Langmuir plot
Vm	5.5722 [cm^3(STP) g^−1]
as,Lang	24.253 [m^2 g^−1]
B	0.2362
t plot
Plot data	Adsorption branch
a1	14.509 [m^2 g^−1]
V1	0 [cm^3 g^−1]
BJH plot
Plot data	Adsorption branch
Vp	0.1698 [cm^3 g^−1]
rp,peak (area)	4.61 [nm]
ap	21.382 [m^2 g^−1]

---

TGA of MoO₃/BF₃

Fig. 7 shows the curve obtained from the thermal weighting of the prepared nano-catalyst. According to this curve, mass reduction is observed at 100–150 °C, which can be attributed to the evaporation of absorbed water and solvents on the surface. The mass reduction occurred in the range of 200–350 °C, which is mainly related to the loss of existing hydroxyl groups. The third mass loss was recorded at 350–400 °C, the results depict that the presence of molecules of water and hydroxyl groups facilitates the stabilization of the hexagonal phase up to 400 °C, while above this temperature, the removal of these components leads to the transformation of the molybdic acid phase, as can be seen from the results, the present catalyst is suitable for the reaction up to 200 °C.⁵³

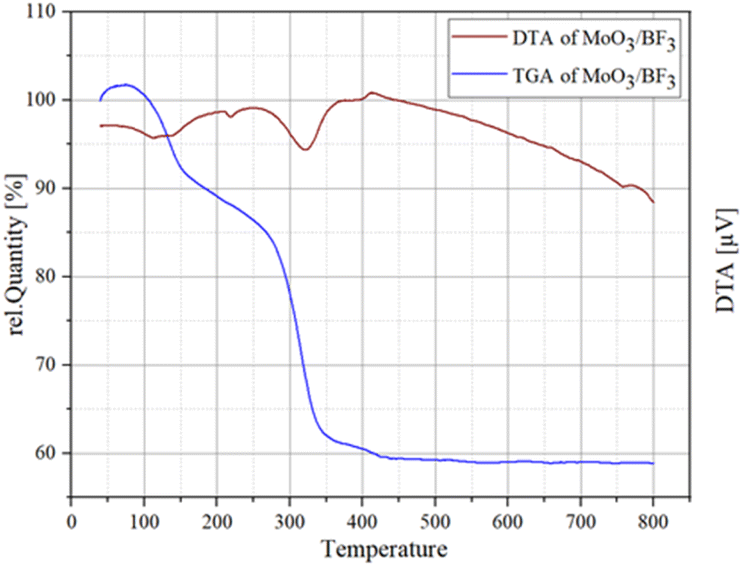

Fig. 7 TGA (blue line) and DTA (red line) curves of MoO₃/BF₃.

The catalytic activity of MoO₃/BF₃ nano-catalyst

The efficiency of the MoO₃/BF₃ nano-catalyst was investigated for the synthesis of nitrogen-containing heterocyclic compounds including, spirooxindoles and dihydro-2-oxopyrrole, by the Michael-Mannich cyclocondensation method and using the mill mixer, which is a safe method for the environment.

To achieve optimal conditions for the synthesis of spirooxindoles, at the outset, in a 10 mL stainless steel vial, with two stainless steel balls with a diameter of 0.8 mm, the reaction between isatin (1 mmol) malononitrile (1 mmol) and dimedone (1 mmol) were selected as model reactions. Then, different amounts of nano-catalyst (0.005 g to 0.02 g) and different solvents and temperatures were investigated to optimize the reaction conditions. The model reaction was carried out in various protic, and aprotic solvents and the absence of solvent. The reaction in the absence of solvent has a better yield than in the presence of solvent. To improve the performance and efficiency and reduce the reaction time, the effect of different frequencies of the mixer mill (10, 15, and 20 Hz) on the response of the model was investigated. The best frequency of the device was estimated to be 20 Hz. When the reaction was performed at lower frequencies, such as 10 Hz, some of the primary material was still present, possibly due to the reduced amount of energy per pulse. The results of this investigation are reported in Table 2. As it is evident, the best result, the highest efficiency, and the shortest time are related to the 0.01 g of the nano-catalyst in the mixer mill with a frequency of 20 Hz at room temperature and solvent-free conditions.

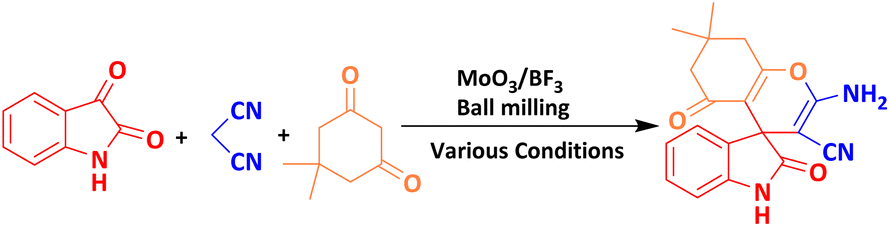

Table 2 Optimization of the reaction conditions for the synthesis of spirooxindole^a

Entry	Conditions	Time (min)	Yield^c (%)
	Solvent/temp. (°C)/catalyst (g)
a Reaction conditions: isatin (1 mmol), 1,3-diketone (1 mmol), malononitrile, or ethyl cyanoacetate (1 mmol) were ground in a 10 mL stainless steel mixer vial with two balls at a frequency of 20 Hz.b Magnetic stirring conditions.c Isolated yield.
1	—/—/—	120	Trace
2	—/—/MoO3 (0.01)	60	43
3	—/—/BF3 (0.01)	60	30
4	—/—/MoO3/BF3 (0.005)	30	64
5	—/—/MoO3/BF3 (0.01)	10	98
6	—/—/MoO3/BF3 (0.015)	10	97
7	—/—/MoO3/BF3 (0.02)	10	97
8^b	—/50/MoO3/BF3 (0.01)	30	89
9^b	—/70/MoO3/BF3 (0.01)	35	73
10^b	—/80/MoO3/BF3 (0.01)	60	73
11^b	H2O/—/MoO3/BF3 (0.01)	60	67
12^b	EtOH/—/MoO3/BF3 (0.01)	60	75
13^b	H2O:EtOH/—/MoO3/BF3 (0.01)	60	70
14^b	MeOH/—/MoO3/BF3 (0.01)	60	67
15^b	CH3CN/—/MoO3/BF3 (0.01)	60	56

---

In the last step, after determining the optimal reaction conditions (MoO₃/BF₃ nano-catalyst 0.01 g, ground in a 10 mL stainless steel mixer mill vial with two stainless steel balls at a frequency of 20 Hz, room temperature, solvent-free), To investigate the generality of MoO₃/BF₃ nano-catalyst in the synthesis of spirooxindoles, different 1,3-diketone compounds were studied (Table 3). The active site of the MoO₃/BF₃ nano-catalyst is boron (B). According to the EDX analysis data, the reported weight percent B content in the prepared nano-catalyst is 0.41%. Here, we used 0.01 g of the catalyst for 1 mmol of substrate for the synthesis of spirooxindole. In this case, 0.01 g of catalyst is 4.1 × 10⁻⁵ g of B, equal to 0.0038 mmol of B. The measured TON and TOF for the model reaction (isatin, malononitrile, and dimedone) are 25 789.47 and 2578.94 min⁻¹ respectively.

Table 3 MoO₃/BF₃-catalyzed synthesis of spirooxindole scaffolds^a

Entry	1,3-Diketone	X	Product	Time (min)	Yield^b (%)	TON (TOF (min^−1))	m.p. (°C) (ref.)
a Reaction conditions: isatin (1 mmol), 1,3-diketone (1 mmol), and malononitrile or ethyl cyanoacetate (1 mmol) were ground in a 10 mL stainless steel vial of mixer mill with two balls at a frequency of 20 Hz, room temperature, 0.01 g catalyst.b Isolated yield.
1	3a	2a		10	98	25 789.47 (2578.94)	290–292 (ref. 54)
2	3a	2b		20	92	24 210.52 (1210.52)	230–232 (ref. 54)
3	3b	2a		10	93	24 473.68 (2447.36)	270–272 (ref. 54)
4	3c	2a		12	92	24 210.52 (2017.54)	293–295 [54]
5	3c	2b		20	89	23 421.05 (1171.05)	210–212 (ref. 54)
6	3d	2a		10	95	25 000 (2500)	244–246 (ref. 55)
7	3e	2a		20	85	22 368.42 (1118.42)	221–224 (ref. 56)

---

To investigate the catalytic activity of MoO₃/BF₃, in the next study, the present nano-catalyst was investigated for the synthesis of dihydro-2-oxopyrrole by the Michael-Mannich cyclocondensation method. To achieve the optimum conditions in the synthesis of dihydro-2-oxypyrrole, the reaction between dimethyl acetylene dicarboxylate (DMAD) (1 mmol), 4-chloroaniline (2 mmol), and formaldehyde (1.5 mmol) in the presence of MoO₃/BF₃ nano-catalyst in a stainless steel vial of 10 mL, with two stainless steel balls with a diameter of 0.8 mm, in various conditions were examined (Table 4).

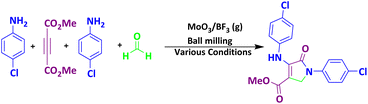

Table 4 Optimization of experimental conditions of MoO₃/BF₃ for the synthesis of dihydro-2-oxopyrrole^a

Entry	Conditions	Time (min)	Yield^c (%)
	Solvent/temp. (°C)/catalyst (g)
a Reaction conditions: DMAD (1 mmol), 4-chloroaniline (2 mmol), and formaldehyde (1.5 mmol) were ground in a 10 mL stainless steel mixer vial with two balls at a frequency of 20 Hz.b Magnetic stirring conditions.c Isolated yield.
1	—/—/—	120	Trace
2	—/—/MoO3 (0.04)	120	64
3	—/—/BF3 (0.04)	120	58
4	—/—/MoO3/BF3 (0.005)	120	Trace
5	—/—/MoO3/BF3 (0.01)	60	30
6	—/—/MoO3/BF3 (0.015)	45	38
7	—/—/MoO3/BF3 (0.02)	45	40
8	—/—/MoO3/BF3 (0.025)	45	59
9	—/—/MoO3/BF3 (0.03)	30	68
10	—/—/MoO3/BF3 (0.035)	30	89
11	—/—/MoO3/BF3 (0.04)	25	95
12	—/—/MoO3/BF3 (0.05)	25	95
13^b	—/50/MoO3/BF3 (0.04)	64	89
14^b	—/70/MoO3/BF3 (0.04)	85	73
15^b	—/80/MoO3/BF3 (0.04)	110	72
16^b	H2O/—/MoO3/BF3 (0.04)	60	72
17^b	EtOH/—/MoO3/BF3 (0.04)	60	80
18^b	H2O:EtOH/—/MoO3/BF3 (0.041)	60	85
19^b	MeOH/—/MoO3/BF3 (0.04)	60	74

---

The scope of this methodology was evaluated using dimethyl\ethyl acetylene dicarboxylate, formaldehyde, and various aromatic amines under optimal conditions and the desired oxopyrroles products were synthesized with good to excellent yields (Table 5). Here, 0.04 g of catalyst was used for 1 mmol of substrate for the synthesis of dihydro-2-oxopyrrole which, 0.04 g of catalyst contains 1.6 × 10⁻⁴ g of B, equal to 0.0151 mmol of B. The measured TON and TOF for the model reaction are 6291.39 and 251.65 min⁻¹ respectively.

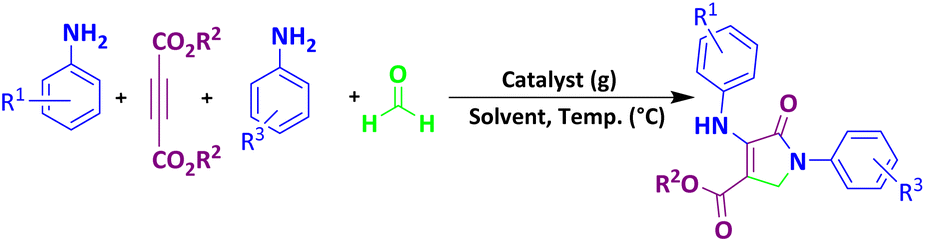

Table 5 Synthesis of dihydro-2-oxopyrrole derivatives in the presence of MoO₃/BF₃^a

Entry	R^1	R^2	R^3	Product	Time (min)	Yield^b (%)	TON (TOF (min^−1))	m. p. (°C) (ref.)
a Reaction conditions: DAAD (1 mmol), aromatic amine (2 mmol), and formaldehyde (1.5 mmol) were ground in a 10 mL stainless steel vial of mixer mill with two balls at a frequency of 20 Hz, room temperature, 0.04 g catalyst.b Isolated yield.

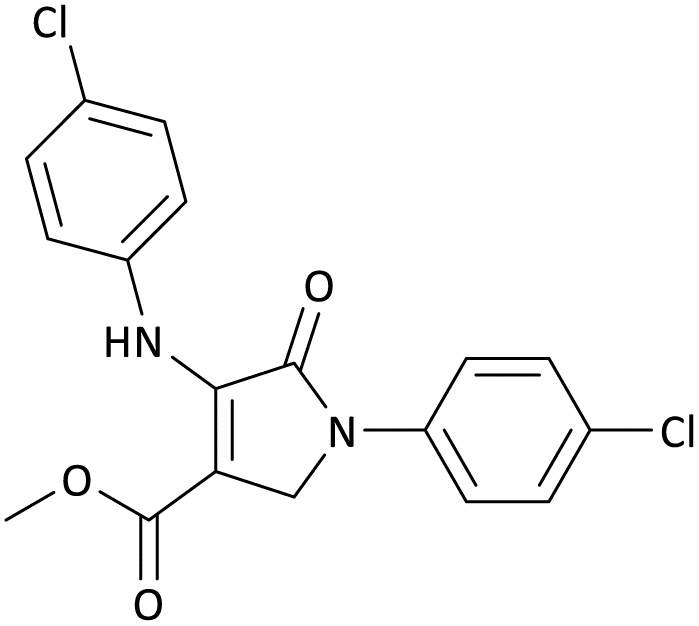

1	4-Cl^−	Me	4-Cl^−		25	95	6291.39 (251.65)	173–174 (ref. 51)
2	4-Cl^−	Et	4-Cl^−		35	90	5060.26 (170.29)	165–167 (ref. 47)

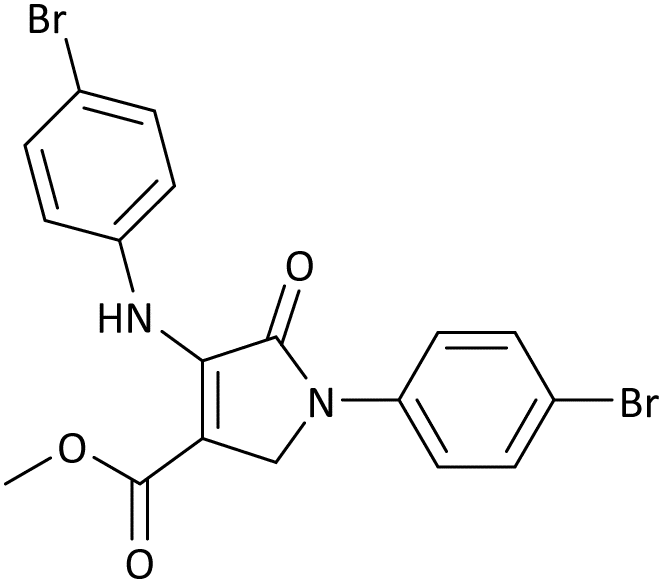

3	4-Br^−	Me	4-Br^−		20	95	6291.39 (314.56)	181–182 (ref. 47)
4	4-Br^−	Et	4-Br^−		25	95	6291.39 (251.65)	165–166 (ref. 51)

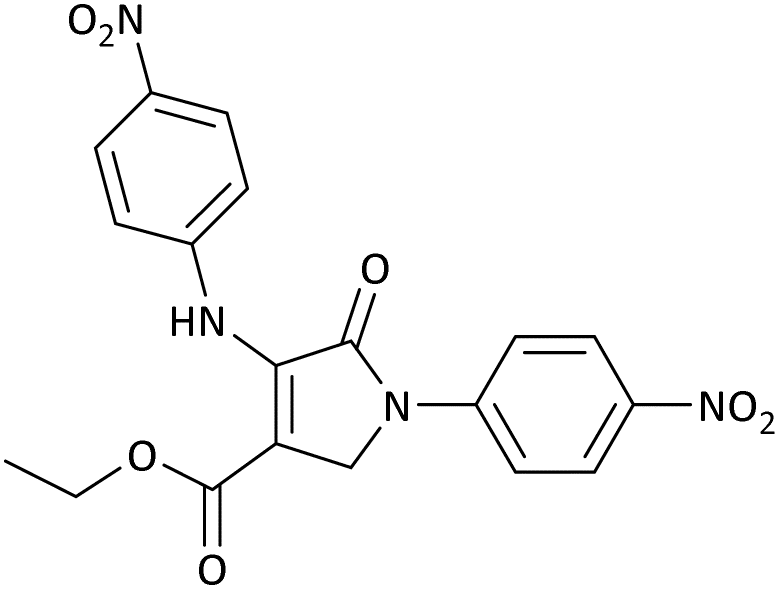

5	4-NO2^−	Et	4-NO2^−		35	95	6291.39 (179.75)	206–208 (ref. 51)
6	3-NO2^−	Me	3-NO2^−		35	90	5960.26 (170.29)	202–204 (ref. 51)
7	3-NO2^−	Et	3-NO2^−		40	80	5298.01 (132.45)	190–192 (ref. 51)
8	4-Me^−	Me	4-Me^−		20	89	5894.04 (294.70)	174–176 (ref. 47)
9	4-Et^−	Me	4-Et^−		25	90	5960.26 (238.41)	125–126 (ref. 51)
10	4-OMe	Me	4-OMe		20	95	6291.39 (314.57)	160–162 (ref. 51)

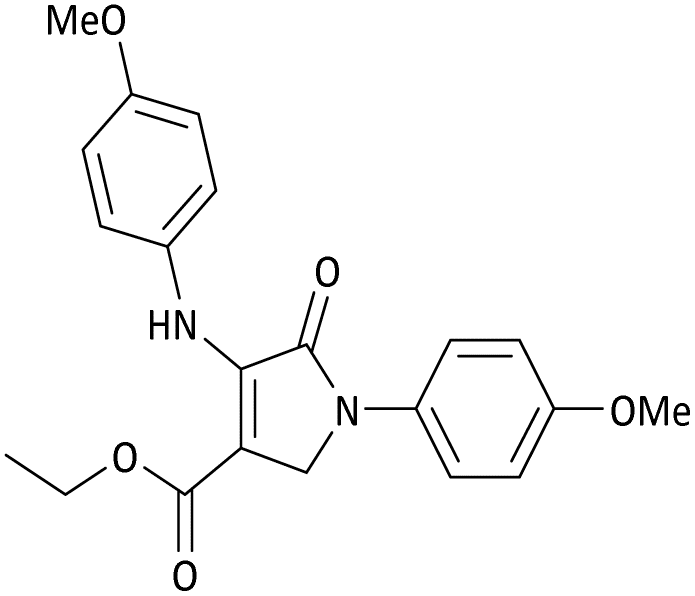

11	4-OMe	Et	4-OMe		25	90	5960.26 (238.41)	152–154 (ref. 51)

---

A plausible mechanism for the synthesis of spirooxindole

The proposed mechanism for the synthesis of spirooxindoles derivatives in the presence of MoO₃/BF₃ nano-catalyst is shown in Scheme 2. At first, the carbonyl group of isatin was activated by BF₃ nano-catalyst, then, by the attack of methylene carbon of malononitrile through Knoevenagel condensation to carbonyl isatin and removal of a water molecule, alkenyl is formed. Then, by increasing Michael between the 1,3-dicarbonyl compound and intermediate (II), compound (III) is formed, and finally, the desired product is obtained by cyclization and tautomerism.⁹

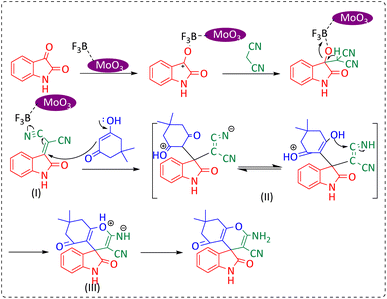

Scheme 2 Proposed mechanism for the synthesis of spirooxindole.

A proposed mechanism for the formation of dihydro-2-oxopyrrole

The proposed mechanism for the synthesis of dihydro-2-oxypyrrole by the Michael-Mannich cyclocondensation method is shown in Scheme 3. In the presence of MoO₃/BF₃ nano-catalyst, a reaction occurs between amine (3) and formaldehyde to create imine (A). Amine (1) and DAAD (2) perform a Mannich-type reaction response to produce intermediate (A) and then enamine (B) performs tautomerization to form intermediate (C) and then the more stable form (D).⁵⁷

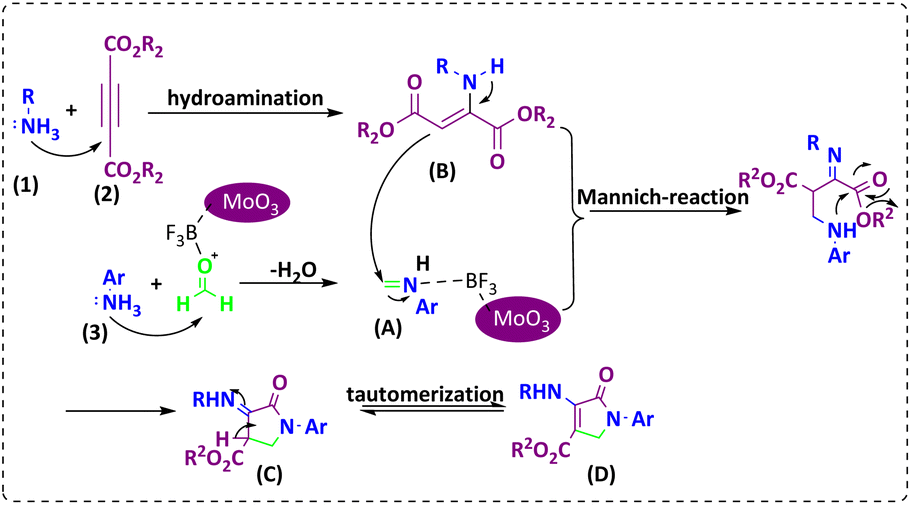

Scheme 3 Suggested mechanism for the synthesis of dihydro-2-oxopyrrole.

To show the efficiency and merit of the nano-catalyst, the model reaction for the synthesis of spirooxindole (isatin, malononitrile, dimedone) and dihydro-2-oxopyrrole (DMAD, form aldehyde, 4-chloroaniline) in the presence of this nano-catalyst was compared with other reported nano-catalysts (Tables 6 and 7 respectively). Easy recyclability, high acid strength (pH = 1), short reaction time, and high efficiency without significant loss of nano-catalyst performance are among the advantages of this nano-catalyst.

Table 6 The comparison result of MoO₃/BF₃ with the reported catalysts in the literature for the synthesis of spirooxindole

Entry	Conditions	Time (min)	Yield (%)	References
	Solvent/temp. (°C)/catalyst
1	H2O:EtOH/—/HPA@HNTs-IMI-SO3H (0.025 g)	15	95	58
2	H2O: EtOH/ref./GN/SO3H (0.08 g)	40	98	28
3	—/80/urea : ChCl (2 : 1) (0.5 mL)	60	95	20
4	H2O: EtOH/80/citric acid (0.038 g)	10	81	54
5	EtOH/—/[bmim]OH (1 mmol)	10	94	59
6	—/—/MoO3/BF3 (0.01 g)	10	98	This work

---

Table 7 Comparison of synthesis of dihydro-2-oxopyrrole with reported protocols

Entry	Conditions	Time (min)	Yield (%)	References
	Solvent/temp. (°C)/catalyst
1	EtOH/65/nano-Fe3O4@SiO2/SnCl4 (0.04 g)	60	97	51
2	MeOH/—/glycine amino acid (10 mol%)	180	93	46
3	MeOH/—/I2 (10 mol%)	60	82	48
4	—/—/MoO3/BF3(0.04 g)	25	95	This work

---

Reusability of MoO₃/BF₃

To check the recyclability of the MoO₃/BF₃ nano-catalyst, the template reaction for the synthesis of spirooxindole (isatin, malonitrile, dimedone) was evaluated under optimal conditions (Fig. 8). The results showed that the nano-catalyst can be reused for up to four consecutive stages without a significant drop in efficiency. After the completion of the reaction, hot ethanol was added to the reaction mixture, and the MoO₃/BF₃ nano-catalyst was separated from the reaction mixture by simple filtration, washed several times with ethanol, then dried at ambient temperature, and used in the subsequent reactions.

Fig. 8 Reusability of MoO₃/BF₃ for the synthesis of spirooxindole.

To determine the recyclability of the MoO₃/BF₃ nano-catalyst, the model reaction for the synthesis of dihydro-2-oxopyrrole, after the completion of the reaction, hot ethanol was added to the reaction mixture and scraped. The MoO₃/BF₃ nano-catalyst was separated from the reaction mixture by simple filtration, washed several times with hot ethanol, dried at ambient temperature, and used in the subsequent steps. The results showed that the nano-catalyst can be reused for up to three consecutive steps without significantly reducing efficiency (Fig. 9).

Fig. 9 Reusability study for the synthesis of dihydro-2-oxopyrrole.

Leaching test

To investigate the leakage of BF₃ from the catalyst during the reaction, the hot filtration leaching test was performed for the synthesis of spirooxindole. The catalytically active particles were removed from the reaction by filtration after 5 min using hot filtration. After hot filtration, the reaction yield did not change and no reaction progress was obtained, which indicates that the nano-catalyst did not leak into the reaction mixture (Fig. 10).

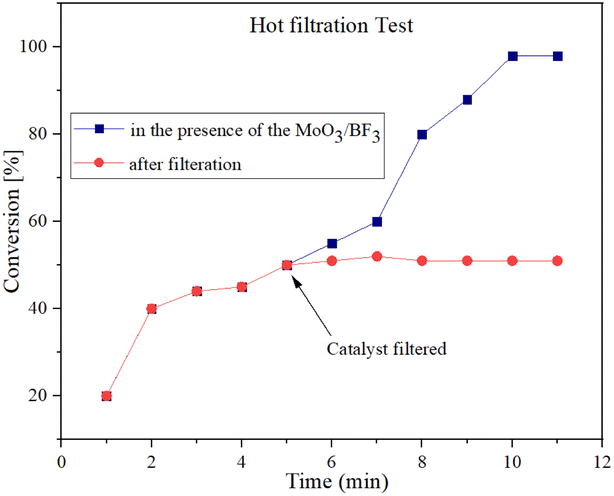

Fig. 10 Hot filtration test and leaching effect to investigate the heterogeneous nature of MoO₃/BF₃.

Methods of computation

In this work, the calculation of the spirooxindoles and dihydro-2-oxopyrrole derivatives to determine the most stable combinations was performed using the method of density functional theory (DFT) by the Becke-3-Lee–Yang–Parr (B3LYP) with a 6–311G (d,p) basis set in the Gaussian 09 W program.^60–66 The total energy and electronic band gap energy (E_g = E_HOMO − E_LUMO) computations for all dihydro-2-oxopyrrole derivatives and spirooxindoles are given in Tables 8 and 9, respectively. The results of these tables demonstrated that the stability of compound 3 in dihydro-2-oxopyrrole derivatives and compound 6 in spirooxindoles is greater than that of the other reported compounds in the 8 and 9 tables, according to stability statistics and total energies.

Table 8 The electronic band gap energy (E_g = E_HOMO − E_LUMO) and total energy computations for all dihydro-2-oxopyrrole derivatives

Entry	R^1	R^2	R^3	R	Etot (a.u.)	Eg = EHOMO − ELUMO
1	4-Cl^−	Me	4-Cl^−		−5938.63329146	0.11524
2	4-Cl^−	Et	4-Cl^−		−1477.74163106	0.11311
3	4-Br^−	Me	4-Br^−		−6185.36730055	0.11763
4	4-Br^−	Et	4-Br^−		−6146.25897292	0.11748
5	4-NO2^−	Et	4-NO2^−		−5469.63456394	0.11415
6	3-NO2^−	Me	3-NO2^−		−1430.52537598	0.11209
7	3-NO2^−	Et	3-NO2^−		−1416.63308118	0.11098
8	4-Me^−	Me	4-Me^−		−1432.05492778	0.11073
9	4-Et^−	Me	4-Et^−		−1480.25623350	0.11203
10	4-OMe	Me	4-OMe		−6185.13898950	0.11751
11	4-OMe	Et	4-OMe		−1480.14731210	0.11101

---

Table 9 The total energy and electronic band gap energy (E_g = E_HOMO − E_LUMO) calculations for all spirooxindoles

Entry	1,3-Diketone	X	R	Etot (a.u)	Eg = EHOMO − ELUMO
1	3a	2a		−1515.34722503	0.17006
2	3a	2b		−1289.35423416	0.13277
3	3b	2a		−1344.01838347	0.14494
4	3c	2a		−1227.12032668	0.13812
5	3c	2b		−1201.12599336	0.07286
6	3d	2a		−1465.41619165	0.17037
7	3e	2a		−1123.55900915	0.07046

---

Furthermore, Fig. 11 displays the optimized structures of compound 3 in dihydro-2-oxopyrrole derivatives and compound 6 in spirooxindoles with total energies of −6185.36730055 and −1465.41619165 a.u., respectively.

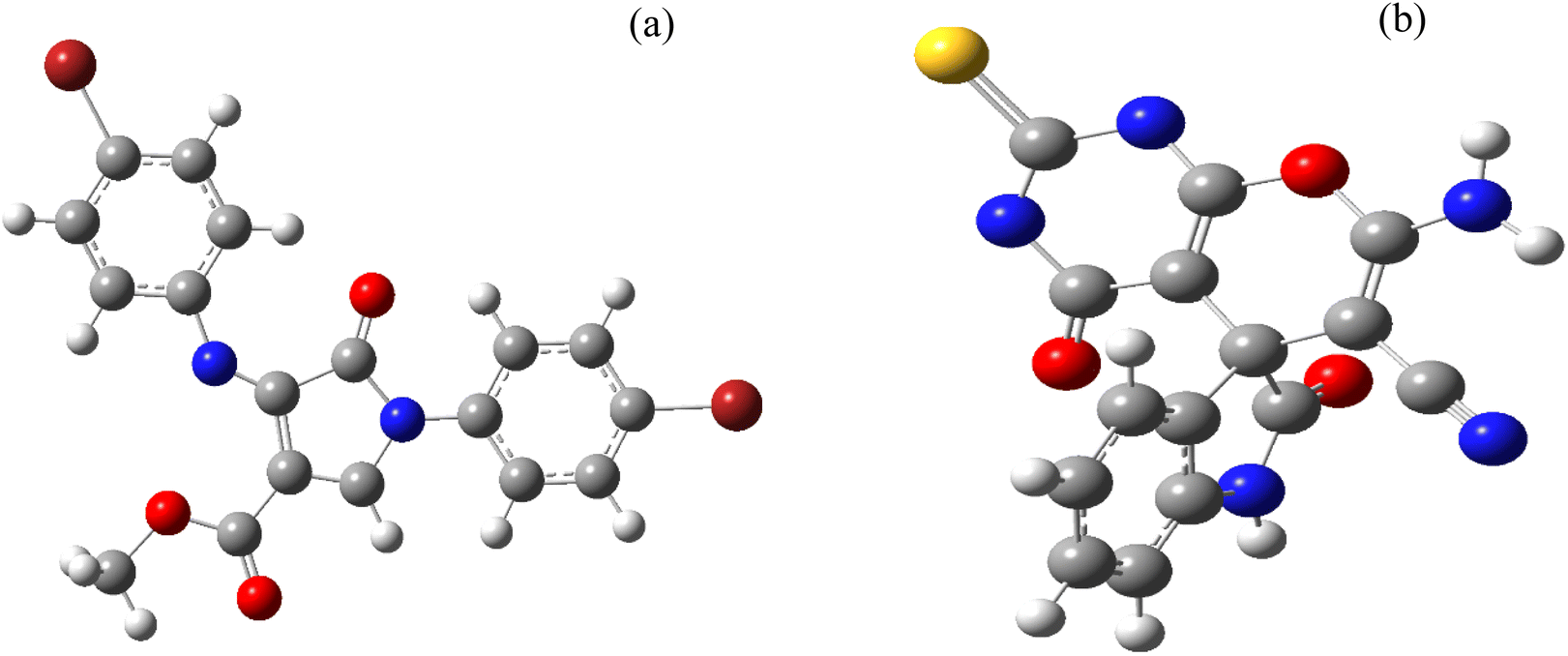

Fig. 11 The relaxed structures for (a) compound 3 in dihydro-2-oxopyrrole derivatives and (b) compound 6 in spirooxindoles.

Based on the electronic band gap energy, total energy, and relaxed structures, we conclude that compound 3 in dihydro-2-oxopyrrole derivatives and compound 6 in spirooxindoles are more stable than the other reported compounds. This finding aligns well with the experimental data.

Experimental section

Materials and methods

Chemicals were purchased from Merck, Fluka, and Aldrich Chemical Companies. ¹H NMR and ¹³C NMR spectra were recorded at 400 and 100 MHz, respectively. Fourier transform infrared (FT-IR) measurements (in KBr pellets or ATR) were recorded on a Bruker spectrometer. Melting points were determined on a Büchi B-540 apparatus. The X-ray diffraction (XRD) pattern was obtained by a Philips Xpert MPD diffractometer equipped with a Cu Kα anode (k = 1.54 Å) in the 2θ range from 10° to 80°. Field Emission Scanning Electron Microscopy (FESEM) was obtained on a Mira 3-XMU. Transmission electron microscopy (TEM) was obtained using a Philips CM120 with a LaB6 cathode and an accelerating voltage of 120 kV. Energy-dispersive X-ray spectroscopy (EDS) of nano-catalyst was measured by an EDS instrument and Phenom pro-X. The EDX-MAP micrographs were obtained on the MIRA II detector SAMX (France). Thermal gravimetric analysis (TGA) was conducted using the “STA 504” instrument. BELSORP MINI II nitrogen adsorption apparatus (Japan) for recording Brunauer–Emmett–Teller (BET) of nano-catalyst at 77 K. The Reactions were conducted using the Mixer Mill model Retsch MM 400 which consisted of two stainless steel vials, each containing two stainless steel balls.

MoO₃/BF₃ preparation

To prepare MoO₃/BF₃ nano-catalyst, boron trifluoride (BF₃·Et₂O) (0.251 mL, 1 mmol) was added drop by drop to molybdic acid (0.08 g, 1.5 mmol) in a crystalline mortar under the hood. The resulting mixture was grinding for 1 hour. After the completion of the reaction (formation of a blue precipitate), the resulting mixture was dried several times with diethyl ether at ambient temperature and used in the required reactions.

Synthesis of spirooxindole derivatives via ballmilling

In a stainless steel mixer mill vial, a mixture of different 1,3-diketones (1 mmol), malononitrile or ethyl cyanoacetate (1 mmol), and isatin (1 mmol) in the presence of MoO₃/BF₃ (0.01 g) nano-catalyst was milled at room temperature at a frequency of 20 Hz. The reaction proceeded at a suitable time until completion. The reaction was monitored by thin-layer chromatography (n-hexane : ethyl acetate, 1 : 3). After the end of the reaction, hot ethanol was added and the reaction mixture was scraped and filtered to separate the nano-catalyst. Then cold water was added to the reaction mixture. The residue appears as a solid.

Synthesis of dihydro-2-oxopyrrole derivatives via ballmilling

In a stainless steel mixer mill vial, a mixture of different DAAD (1 mmol), aromatic aniline (2 mmol), and formaldehyde (1.5 mmol) in the presence of MoO₃/BF₃ (0.04 g) was milled at room temperature at a frequency of 20 Hz. The reaction was monitored by thin-layer chromatography (n-hexane : ethyl acetate, 1 : 3). After the completion of the reaction, hot ethanol was added and the reaction mixture was scraped and filtered to separate the nano-catalyst by simple filtration. In the end, cold water was added to the obtained solution.

Conclusions

In this study, the MoO₃/BF₃ nano-catalyst was successfully prepared and characterized by different analyses such as FT-IR, XRD, FESEM, TEM, EDX, EDS-MAP, BET, and TGA. Briefly, the results concluded that the MoO₃/BF₃ could be considered as a desired catalyst with high acid properties (pH = 1) for the synthesis of nitrogen-containing heterocyclic compounds, such as spirooxindole and dihydro-2-oxopyrrole, using a mill mixer, which is a mechanochemical, green, and economic method. The hot filtration test of the nano-catalyst was performed, and it shows that the present nano-catalyst is heterogeneous and there was no leakage into the reaction mixture. The main advantages of this method are green conditions, short reaction time, high acidity, high reaction efficiency, and recyclability without a significant decrease in its activity. The DFT simulations indicate compound 6 in spirooxindoles and compound 3 in dihydro-2-oxopyrrole derivatives exhibit greater stability than other reported compounds. These findings are consistent with the experimental data.

Data availability

All data generated or analysed during this study are included in this published article.

Author contributions

DM, BFM, HB, and AB designed and performed the research, analyzed the data, interpreted the results, and prepared the manuscript. DM performed the assay and optimized and purified the compounds. HB performed the DFT calculation of compounds. All authors read and approved the final manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors thank the Research Council of Yazd University for the support of this research.

Notes and references

1. A. P. Amrute, J. De Bellis, M. Felderhoff and F. Schüth, Eur. J., 2021, 27, 6819.
2. T. Friščić, C. Mottillo and H. M. Titi, Angew. Chem., 2020, 132, 1030.
3. M. Baláž, in, Environmental Mechanochemistry, Springer International Publishing, Berlin/Heidelberg, Germany, 2021.
4. D. Mallah and B. B. F. Mirjalili, BMC chem., 2023, 17, 10.
5. N. N. Makhova, L. I. Belen’kii, G. A. Gazieva, I. L. Dalinger, L. S. Konstantinova, V. V. Kuznetsov, A. N. Kravchenko, M. M. Krayushkin, O. A. Rakitin, A. M. Starosotnikov and L. L. Fershtat, Russ. Chem. Rev., 2020, 89, 55.
6. M. M. Heravi and V. Zadsirjan, RSC adv., 2020, 10, 44247.
7. M. Aatif, M. A. Raza, K. Javed, S. M. Nashre-ul-Islam, M. Farhan and M. W. Alam, Antibiotics, 2022, 11, 1750.
8. S. Kotha, N. R. Panguluri and R. Ali, Eur. J. Org Chem., 2017, 36, 5316.
9. S. Nasri, M. Bayat and F. Mirzaei, Top. Curr. Chem., 2021, 379, 1.
10. L. M. Zhou, R. Y. Qu and G. F. Yang, Expert Opin. Drug Discovery, 2020, 15, 603.
11. A. Jossang, P. Jossang, H. A. Hadi, T. Sévenet and B. Bodo, J. Org. Chem., 1991, 56, 6527.
12. J. S. Bindra, Chapter 2 oxindole alkaloids. Alkaloids, Chem. Phys., 1973, 14, 83–121.
13. T.-H. M. K. Kang, Eur. J. Pharmacol., 2002, 444, 39.
14. C.-B. Cui, H. Kakeya and H. Osada, Tetrahedron, 1997, 53, 59.
15. L. M. Zhou, R. Y. Qu and G. F. Yang, Expert Opin. Drug Discovery, 2020, 15, 603.
16. S. Coulton, T. L. Gilchrist and G. Keith, Tetrahedron, 1997, 53, 791.
17. A. Dandia, R. Singh, S. Khaturia, C. Mérienne, G. Morgant and A. Loupy, Bioorg. Med. Chem., 2006, 14, 2409.
18. S. S. Panda, A. S. Girgis, M. N. Aziz and M. S. Bekheit, Molecules, 2023, 28, 618.
19. G. Xiao, T. Chen, C. Ma, D. Xing and W. Hu, Org. Lett., 2018, 20, 4531.
20. N. Azizi, S. Dezfooli and M. M. Hashemi, J. Mol. Liq., 2014, 194, 62.
21. F. Yu, R. Huang, H. Ni, J. Fan, S. Yan and J. Lin, Green Chem., 2013, 15, 453.
22. A. P. Antonchick, C. Gerding-Reimers, M. Catarinella, M. Schürmann, H. Preut, S. Ziegler, D. Rauh and H. Waldmann, Nat. Chem., 2010, 2, 735.
23. A. Allahresani, B. Taheri and M. A. Nasseri, Res. Chem. Intermed., 2018, 44, 1173.
24. S. Kavyani and R. Baharfar, Appl. Organomet. Chem., 2020, 34, e5560.
25. M. Salimi, R. Sandaroos and F. Esmaeli-nasrabadi, J. Iran. Chem. Soc., 2021, 18, 1.
26. Z. Amini Moqadam, A. Allahresani and H. Hassani, Res. Chem. Intermed., 2020, 46, 299.
27. K. Hemmat, M. A. Nasseri, A. Allahresani and S. Ghiami, J. Organomet. Chem., 2019, 903, 120996.
28. A. Allahresani, B. Taheri and M. A. Nasseri, Res. Chem. Intermed., 2018, 44, 6979.
29. Y. Liu, X. Shen, P. Zhu, J. M. Hu, X. Wang and S. Ge, Org. Lett., 2024, 26, 4654.
30. L. Ettlinger, E. Gäuemann, R. Hütter, W. Keller-Schierlein, F. Kradolfer, L. Neipp, V. Prelog and H. Zähner, Helv. Chim. Acta, 1959, 42, 563.
31. H. Shiozawa and S. Takahashi, J. Antibiot., 1994, 47, 851.
32. S. B. Singh, M. A. Goetz, E. T. Jones, G. F. Bills, R. A. Giacobbe, L. H. Siobhan Stevens-Miles and D. L. Williams, J. Org. Chem., 1995, 60, 7040.
33. S. S. Tarnavsky, G. G. Dubinina, S. M. Golovach and S. M. Yarmoluk, Biopolym. Cell, 2003, 19, 548.
34. T. K. Hinio, T. G. Machida, A. K. Hino, A. Y. Oume and H. M. Hachioji, U.S. Pat., 4909828, 1990, vol. 828, p. 4909.
35. B. Bohner and M. Baumann, U.S. Pat., 4220655, 1980.
36. A. Shiraki, K. Tadano Sumino and S. Ogawa, Tetrahedron Lett., 1995, 36, 5551.
37. J. W. Lampe, Y. Chou, R. G. Hanna, S. V. D. Meo, P. W. Erhardt, X. Hagedorn, W. R. Ingebretsen and E. Cantor, J. Med. Chem., 1993, 36, 1041.
38. C. Peifer, R. Selig, K. Kinkel, D. Ott, F. Totzke, C. Schächtele, R. Heidenreich, M. Röcken, D. Schollmeyer and S. Laufer, J. Med. Chem., 2008, 51, 3814.
39. F. Mohamadpour, RSC Adv., 2022, 12, 10701.
40. M. M. Khan, S. Khan, S. Iqbal, S. Saigal and R. Yousuf, New J. Chem., 2016, 40, 7504.
41. F. Mohamadpour, Sci. Rep., 2022, 12, 16911.
42. M. Lashkari, M. T. Maghsoodlou, M. Karima and M. Kangani, Chem. Soc., 2018, 63, 3799.
43. F. Mohamadpour, Bull. Chem. Soc. Ethiop., 2019, 33, 149.
44. F. Mohamadpour, M. Lashkari, M. T. Maghsoodlou and R. Heydari, Appl. Chem. Today, 2016, 10, 79.
45. A. Gholami, S. Khabnadideh, Y. Ghasemi, B. Mirjalili, R. Shahmoradi and L. Zamani, Br. J. Pharm. Res., 2017, 16, 1.
46. M. Kaur, A. Priya, A. Sharma, A. Singh and B. Banerjee, Synth. Commun., 2022, 52, 1635.
47. H. Sharghi, J. Aboonajmi, M. Mozaffari, M. M. Doroodmand and M. Aberi, Appl. Organomet. Chem., 2018, 32, e4124.
48. A. T. Khan, A. Ghosh and M. M. Khan, Tetrahedron Lett., 2012, 53, 2622.
49. S. S. Sajadikhah, N. Hazeri, M. T. Maghsoodlou, S. M. Habibi-Khorassani, A. Beigbabaei and A. C. Willis, J. Iran. Chem. Soc., 2013, 10, 863.
50. S. Zafari, R. Ghorbani-Vaghei and S. Alavinia, Can. J. Chem., 2021, 99, 72.
51. B. B. F. Mirjalili, R. Araqi and S. A. Mohajeri, Iran. J. Catal., 2019, 9, 11.
52. R. Ghorbani-Vaghei, D. Azarifar, S. Daliran and A. R. Oveisi, RSC Adv., 2016, 6, 29182.
53. A. Chithambararaj, N. Rajeswari Yogamalar and A. C. Bose, Cryst. Growth Des., 2016, 16, 1984.
54. Z. Karimi-Jaberi and A. Fereydoonnezhad, Iran. Chem. Commun., 2017, 5, 364–493.
55. L. Moradi and Z. Ataei, Green Chem. Lett. Rev., 2017, 10, 380.
56. J. Safaei-Ghomi, Z. Elyasi and P. Babaei, New J. Chem., 2021, 45, 1269.
57. C. Liu, W. Huang, J. Zhang, Z. Rao, Y. Gu and F. Jérôme, Green Chem., 2021, 23, 1447.
58. S. Sadjadi, M. M. Heravi, M. Malmir and B. Masoumi, Appl. Organomet. Chem., 2018, 32, e4113.
59. S. A. Padvi, Y. A. Tayade, Y. B. Wagh and D. S. Dalal, Chin. Chem. Lett., 2016, 27, 714.
60. V. M. Volokhov, V. V. Parakhin, E. S. Amosova, A. V. Volokhov, D. B. Lempert and T. S. Zyubina, Russ. J. Phys. Chem. B, 2024, 18, 28.
61. D. V. Khakimov, I. V. Svitanko and T. S. Pivina, J. Mol. Model., 2024, 30, 1.
62. Y. Umar and A. A. El-Rayyes, Comput. Theor. Chem., 2024, 1231, 114423.
63. N. Mehta and J. M. L. Martin, J. Comput. Chem., 2024, 45, 1017.
64. V. Tognetti and L. Joubert, J. Comput. Chem., 2024, 28, 1.
65. P. Divya, V. S. Jeba Reeda and V. Bena Jothy, J. Mol. Liq., 2024, 400, 124544.
66. P. F. Bissi Nyandou, P. Noudem, C. D. D. Mveme, D. Fouejio and S. S. Zekeng, Chin. J. Phys., 2024, 89, 1862.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5ra01991e

---
