N-doped carbon/Ti₃C₂T_x MXene free-standing films as sulfur hosts for Li–S batteries

Abstract

The performance of sulfur-based cathodes is restricted by the poor conductivity of sulfur and the shuttle effect of lithium polysulfides (LiPSs). Herein, an effective N-doped carbon/Ti₃C₂T_x (NC/Ti₃C₂T_x) free-standing architecture was designed as a sulfur host for achieving high sulfur loadings, considerable electronic conductivity and good LiPS trapping ability to suppress the shuttle effect. Consequently, an excellent electrochemical performance was achieved for the NC-S/Ti₃C₂T_x freestanding structure with a 38% increase in capacity compared with the counterpart electrode of slurry-coated NC-S/Ti₃C₂T_x. Moreover, the NC-S/Ti₃C₂T_x freestanding structure exhibits a high capacity of 1156 mA h g⁻¹ at 0.1C and a high capacity retention of 79.5% after 100 cycles. Moreover, this architecture enabled high sulfur loadings, and thus, a high areal capacity of 3.41 mA h cm⁻² was obtained.

---

Introduction

Rapidly growing demands for efficient and economical energy storage devices promote the development of rechargeable batteries. The state-of-the-art lithium-ion batteries (LIBs) are approaching the energy-density limitation and are not sufficiently powerful for next-generation devices. Lithium–sulfur batteries, with pollution-free and low-cost sulfur-based cathodes, have been attracting increasing interests in recent years owing to their high theoretical specific capacity of up to 1675 mA h g⁻¹ and a theoretical specific energy density of 2600 W h kg⁻¹.^1,2 However, the low conductivity of sulfur, the shuttle effect of lithium polysulfides (LiPSs) and the volume expansion during charge/discharge have greatly restricted the electrochemical performance of lithium–sulfur batteries.^3–6 Ideally, effective hosts for sulfur loading should be electrochemically and mechanically stable to resist the volume expansion and should be conductive. Moreover, strong polar sites should be introduced for anchoring LiPSs during the charge–discharge process to alleviate the shuttle effect. Frameworks based on graphenes,^7–9 carbon nanotubes,^10–12 and metal–organic frameworks (MOFs)¹³ have been extensively reported. However, the weak interaction between LiPSs and carbon materials results in a severe shuttle effect. Nitrogen-doped carbon materials with relatively strong polar sites can be used as sulfur hosts for preventing the LiPS diffusion.^14–18 However, their short-range and long-range electronic conductivities are relatively low.

MXenes (M_n+1X_nT_x, where T represents the surface groups including = O, –F and –OH), a family of 2D materials, have attracted great interest in energy storage fields.^19–24 Ti₃C₂T_x, which is the first reported and most studied MXene, has been extensively reported as a sulfur host owing to its high electrical conductivity (>15 000 S cm⁻¹), considerable mechanical strength and tunable surface terminations.^25–31 To fully utilize the advantages of the high conductivity of Ti₃C₂T_x and the strong polar sites of carbon nitrides, herein, a free-standing film electrode comprising sulfur-infused nitrogen-doped carbon embedded in Ti₃C₂T_x nanosheets (NC–S/Ti₃C₂T_x) is reported.³² On the one hand, the highly conductive Ti₃C₂T_x network provided electronic conduction “highways”, which ensured the full utilization and enabled the fast electrochemical reaction of sulfur electrodes.^33–36 On the other hand, nitrogen doping introduced local strong polar regions in carbon materials. These polar sites interacted strongly with S⁻or Li⁺ in LiPSs to form S–N or Li–N bonds, which enhanced the adsorption capacity and effectively avoided the shuttle effect compared with undoped materials.^37–41 Moreover, NC-S was wrapped between Ti₃C₂T_x nanosheets, which further prevented the diffusion of LiPSs and adapted to the volume expansion. Compared to reported strategies, this strategy avoided the preparation of slurry for scraping, and the preparation process was simpler. Furthermore, as this strategy does not require additional conductive carbon black and binders (such as PVDF), compared with the traditional slurry process, this approach ensured the conductivity of the electrode along with improving the proportion of sulfur.^42,43 Accordingly, the NC-S/Ti₃C₂T_x free-standing cathode exhibited significantly improved electrochemical performances in terms of cycling life, rate capability, and charge transfer resistance, with high sulfur loadings.

Results and discussion

The preparation of a free-standing NC-S/Ti₃C₂T_x film is schematically illustrated in Fig. 1 (experimental details are provided in the ESI†). Hydrothermally synthesized NC spheres were used as hosts for sulfur loading due to their porous structure formed during the carbonization process.^44,45 Besides, nitrogen doping in the cracks of NC by the pyrogenic decomposition of melamine created strong C–N polar anchoring sites.⁴⁶ At 155 °C, the molten sulfur diffused into the defects of the as-obtained NC to form NC-S.⁴⁷ The NC spheres were small in diameter (2 to 10 μm, shown in Fig. S1†), and hence, they were easily encapsulated in free-standing hybrids formed by the Ti₃C₂T_x intersecting sheets, ensuring the structural stability as the sulfur reservoir. Upon vacuum filtration of the solution of monolayer Ti₃C₂T_x MXene colloidal and NC-Ss, followed by a freeze-drying procedure, a free-standing NC-S/Ti₃C₂T_x film was obtained.

Fig. 1 Schematic of the fabrication of slurry coating and free-standing NC-S/Ti₃C₂T_x MXene hybrids.

In order to indicate the surface morphology of the free-standing NC-S/Ti₃C₂Tx film, SEM characterizations were performed. In the microscopic view, the as-obtained NCs exhibited very rough surfaces and inner sections after the hydrothermal reaction and annealing (Fig. 2a and S2a†), which is beneficial to a higher sulfur loading and abundant adhesion sites. After sulfur loading, the sulfur infusion leveled some of the trenches that made the NC-S surface smoother than NC (Fig. 2b). Due to the relatively weak sulfur fixation by NC alone, a duplicate protection mechanism is needed outside of the NC-S.⁴⁸ That is, nitrogen-doped porous carbon is used as a sulfur carrier (NC-S), MXene nanosheets are used to wrap NC-S, and LiPSs are adsorbed by the rich surface groups of MXenes to achieve further sulfur fixation. Fig. S2b and S2c† reveal how NC-S was locked in Ti₃C₂T_x MXene cross-bedding structures. Compared with the NC-S/Ti₃C₂T_x slurry, more homogeneous Ti₃C₂T_x MXene sheets on the film surface (shown in Fig. 2d and e) provide a stronger encapsulation of NC-S. On the one hand, the dense MXene sheet can physically block the shuttle of lithium polysulfides; on the other hand, it can also rely on the rich surface groups of MXenes to chemically adsorb lithium polysulfides. Compared with NC alone, the sulfur fixation effect is more significant.

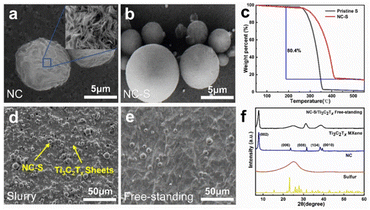

Fig. 2 SEM images of (a) NC and (b) NC-S, (c) TG curves of S and NC-S. SEM images of (d) NC-S/Ti₃C₂T_x slurry and (e) free-standing NC-S/Ti₃C₂T_x film. (f) XRD patterns of sulfur, NC, Ti₃C₂T_x MXene and free-standing NC-S/Ti₃C₂T_x.

Nitrogen adsorption/desorption isotherm measurements were implemented to analyze the surface properties and the pore size distribution. As shown in Fig. S3a,† The NC owns a type IV isotherm with a small hysteresis loop, showing numerous macro- and micro-pores on NCs. The BET measurements presented in Table S1† illustrate that NCs have a large specific surface area up to 489 m² g⁻¹ and a high pore volume of 1.69 cm³ g⁻¹ that guarantee a high sulfur loading. The HK model was employed to calculate the pore size distribution of the slit voids on the NC surface. The plot shown in Fig. S3b† indicates that the slit diameters are mostly between 0.5 and 0.8 nanometers in size, proving the existence of abundant nano-scaled micropores, which are beneficial for strengthening the restraining of LiPSs.⁴⁹ Thermogravimetric Analysis shown in Fig. 2c reveals that the sulfur loading factor of NC-S is 80.4%, which is at a high level compared with the traditional carbon-based host (generally 70%),⁵⁰ and consequently, the sulfur weight content of the prepared free-standing NC-S/Ti₃C₂T_x film is 60.5%. In addition, due to the fixation of sulfur, the sulfur in NC-S has a higher initial decomposition temperature and end temperature, and shows better thermal stability as a whole.

The as-prepared material crystal structure was investigated by XRD. As shown in Fig. 2f, the peaks at 7.9°, 23.7°, 31.6° and 39.5° display the restacking 2D nature of the Ti₃C₂T_x MXene (corresponding to the crystal faces of (002), (006), (008), and (0010), respectively).⁵¹ However, the peaks that refer to sulfur are quite grading because the original crystalline sulfur (S8) became amorphous during the melt infusion penetration process. This plot also indicates that there is almost no residual sulfur on the film surface.

The corresponding EDS elemental mapping of NC (Fig. S4†) illustrates the uniform nitrogen doping of NC. Moreover, the EDS elemental mapping indicates the uniform sulfur attachment to the shallow voids, as shown in Fig. 3f. Similar to what SEM displayed, weaker signals shown in Fig. 3l than in Fig. 3i confirm that fewer sulfur-containing particles exist on the free-standing film surface owing to better sulfur immobilization.⁵²

Fig. 3 SEM images and EDS mappings of C and S of (a–c) NC before sulfur infusion, (d–f) NC-S, (g–i) NC-S/Ti₃C₂T_x slurry and (j–l) the free-standing NC-S/Ti₃C₂T_x film.

To exclusively evaluate the electrochemical performance of the prepared NC-S/Ti₃C₂T_x cathodes, a series of tests were conducted. Fig. 4a presents the cyclic voltammetry results of lithium–sulfur batteries with the NC-S/Ti₃C₂T_x slurry cathode and free-standing NC-S/Ti₃C₂T_x cathode. For the simple mixture slurry cathode, two evident reduction peaks can be found at 1.95 V and 2.25 V that are attributed to the reduction from S₈ to LiPSs (Li₂S_n, 4 ≤ n≤ 8) and a second reduction to Li₂S or Li₂S₂.⁵³ Inversely, the oxidation peak at about 2.48 V corresponds to the multi-stage oxidation of Li₂S/Li₂S₂ to LiPSs and sulfur. The reduction peaks of the free-standing cathode slightly increase (0.03 V), while the oxidation peak decreases (0.01 V) compared with the NC-S/Ti₃C₂T_x slurry cathode.⁵⁴ This is due to the addition of large-area MXene nanosheets and there is no need to use insulating materials such as binders. The conductivity of the electrode is greatly improved compared to the traditional slurry, thereby improving the kinetics of the redox reaction and improving the reversibility of the reaction.

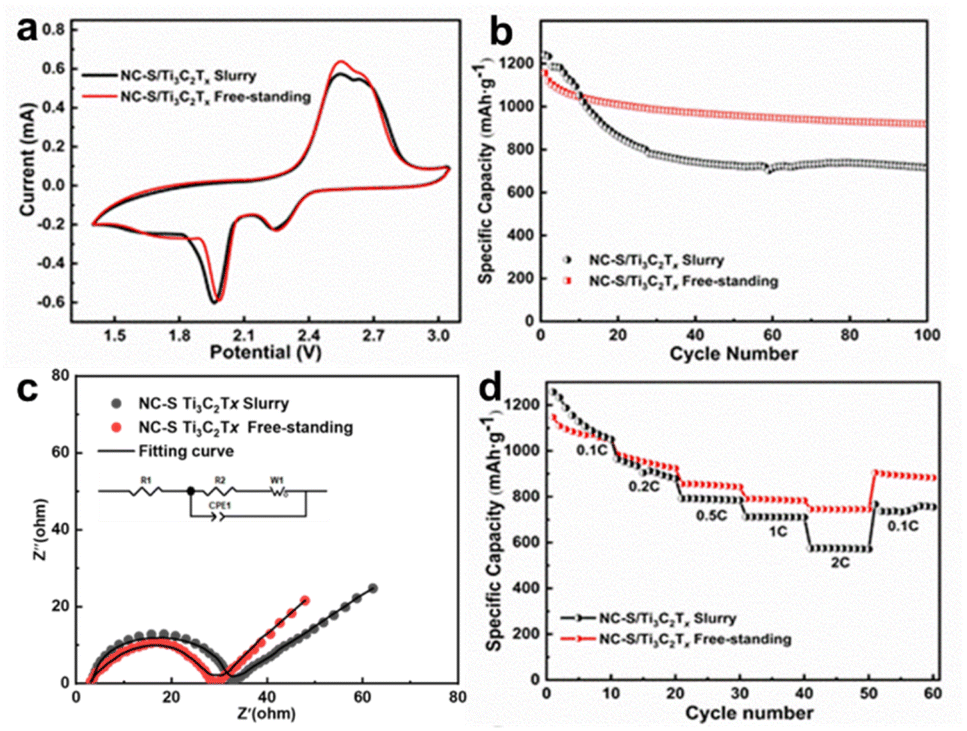

Fig. 4 Electrochemical characterization of the as-prepared Li–S cells. (a) CV profiles of lithium–sulfur cells with NC-S/Ti₃C₂T_x slurry/free-standing NC-S/Ti₃C₂T_x cathodes. (b) Cycling performance at 0.1C of lithium–sulfur cells with the NC-S/Ti₃C₂T_x slurry and free-standing NC-S/Ti₃C₂T_x cathodes at 1.2 mg cm⁻² sulfur loading. (c) Nyquist plots of the lithium–sulfur cells with the NC-S/Ti₃C₂T_x slurry and NC-S/Ti₃C₂T_x free-standing cathodes. (d) Rate performance of the lithium–sulfur cells with the NC-S/Ti₃C₂T_x slurry and free-standing NC-S/Ti₃C₂T_x cathodes.

Fig. 4b shows the cycling performance between NC-S/Ti₃C₂T_x slurry and free-standing NC-S/Ti₃C₂T_x cathodes. Their initial reversible specific capacities are 1240 mA h g⁻¹ and 1156 mA h g⁻¹ (because the NC-S/Ti₃C₂T_x slurry cathode owns lower sulfur percentage caused by the addition of conductive carbon and PVDF, at 48.4%). After 100 charge and discharge cycles at 0.1C, 57.7% and 79.5% of capacities at 715 mA h g⁻¹ and 919 mA h g⁻¹ were retained, respectively. The free-standing NC-S/Ti₃C₂T_x cathode, with a fading rate at 0.21% represents better cycling performance, demonstrating its excellent cycling stability. These results match the charge and discharge plateaus well in Fig. S5,† and the free-standing one shows more distinct and flatter plateaus during the cycles. In Fig. S6,† the coulombic efficiency shows a slight increase during the first ten cycles due to the unstable LiPS dissolution after original cycles, and through comparison, the free-standing network does not affect the coulombic efficiency.⁵⁵ Fig. 4c shows the Electrochemical Impedance Spectroscopy (EIS) test plots. According to the figure, the charge transfer resistance (R_ct) values of the free-standing cathodes (25.6 Ω) are lower than those of the slurry cathodes (29.5 Ω) because of the excellent conductivity of the more regular free-standing NC/Ti₃C₂T_x network. In addition, the smaller arc area at high frequencies accounts for a more robust redox reaction and the curve with a higher slope in the low-frequency zones indicates easier ion diffusion into the free-standing cathode, which strengthens the rate capacities of batteries.⁵⁰

The rate capabilities of the NC-S/Ti₃C₂T_x slurry and free-standing film cathodes are shown in Fig. 4d. Better reversible capacities of 1150, 985, 856, 791 and 746 mA h g⁻¹ were obtained at 0.1C, 0.2C, 0.5C, 1C and 2C with the free-standing cathode. In contrast, the capacity drop of the NC-S/Ti₃C₂T_x slurry cathode-based cell is more pronounced, especially under a heavy current. Therefore, the capacity reservation of the free-standing NC-S/Ti₃C₂T_x cathode during the current density switch to 2C (64.9%) and back to 0.1C (82.4%) was larger than what NC-S/Ti₃C₂T_x slurry cathode possesses (47.0% and 64.2%). At the same time, the electrochemical performance of the two electrodes is better than that of the previous electrode with only a single variable (i.e., only adding nitrogen-doped porous carbon or only adding Ti₃C₂T_x MXene), which proves the synergistic effect of the two materials.^56,57 As shown in Fig. 5a and b, the plateaus drop less for free-standing NC-S/Ti₃C₂T_x cathodes. It means that the two-stage redox reaction continued steadily even at high rates with better refined LiPS shuttle restriction.

Fig. 5 First discharge and charge curves of (a) NC-S/Ti₃C₂T_x slurry and (b) free-standing NC-S/Ti₃C₂T_x cathodes at different rates. Cycling performance and coulombic efficiency of the free-standing NC-S/Ti₃C₂T_x cathode-based cells (c) at 2C and (d) at 0.5C (5.0 mg cm⁻² sulfur loading).

Under heavy current and high sulfur loading, the free-standing NC-S/Ti₃C₂T_x electrode still shows excellent cycling performance. At a 2C measurement, as shown in Fig. 5c, the cell delivers a capacity of 624 mA h g⁻¹ after 200 cycles, resulting in an average capacity depletion rate of 0.12%. The charge/discharge profiles at 2C of the 1st, 50th, 100th, 150th and 200th cycle shown in Fig. S7† confirm the great capacity reversibility because of the stable charge/discharge plateaus.³⁶ When the cathodes were fabricated with a sulfur loading of 5 mg cm⁻², the initial areal capacity was 3.41 mA h cm⁻² at 0.5C with a capacity degradation rate of 0.09% over 200 cycles (Fig. 5d). As summarized in Table S2,† the stable LiPS restraining by polar nitrogen and Ti₃C₂T_x network provides a possibility for the preparation of batteries balancing considerable energy density and cycle rate well.

To verify the outstanding chemical durability of the free-standing NC-S/Ti₃C₂T_x structure, electrodes after 200 charge/discharge cycles at 2C were analyzed. In Fig. 6a, there is almost no macroscopic injury on the film surface, and the cathode can still be removed nondestructively from the separator. The SEM view (Fig. 6c) of the cycled cathode shows that the surface of the film remains undamaged, with no NC-Ss scattered, compared with the uncycled films.

Fig. 6 Comparison of the free-standing NC-S/Ti₃C₂T_x cathodes before and after 200 charge–discharge cycles. (a) Photographs of the cathode films before and after 200 cycles at 2C. SEM image of (b) uncycled and (c) cycled free-standing NC-S/Ti₃C₂T_x films. XPS (d) S 2p spectrum, (e) C 1s spectrum and (f) Ti 2p spectrum of the pristine Ti₃C₂T_x and free-standing NC-S/Ti₃C₂T_x films before and after 200 cycles at 2C.

The XPS investigations were performed to analyze the surface chemistry change of the NC-S/Ti₃C₂T_x film. The overall spectrum indicates that the free-standing film contains mainly C, O, Ti and S (Fig. S8†), and their atomic percentages are 32.36%, 22.93%, 30.99%, and 2.71%, respectively (Table S3†). There are two main peaks: S 2p_3/2 (164.7 eV) and S 2p_1/2 (163.3 eV) in the S 2p high-resolution spectra shown in Fig. 6d. The resolved C 1s and Ti 2p spectra of free-standing NC-S/Ti₃C₂T_x are displayed in Fig. 6e_ii and f_ii, The C 1s core level was matched with four peaks at 281.8, 284.8, 285.9 and 288.7 eV that could be assigned to C–Ti, C–C, C–O, and O=C–O in the pristine Ti₃C₂T_x MXene. Besides, the Ti 2p plot was fitted with three doublets (Ti 2p_3/2 to Ti 2p_1/2) with a 5.6 eV peak gap and an area ratio of approximately 2 : 1. Signals at 455.5 eV and 461.4 eV are related to Ti–C bonds. Peaks located at 462.7 eV, 461.9 eV, 457.1 eV and 456.0 eV correspond to Ti²⁺ and Ti³⁺ states that are associated with the existence of Ti₃C₂(OH)_x and Ti₃C₂O_x. All these factors demonstrate the unoxidized states and chemical interaction of NC-S and Ti₃C₂T_x sheets. After comparing the S 2p XPS surveys before and after cycles in Fig. 6d, the new Ti–S peak (162.8 eV) formation reveals the strong trapping effect (S–Ti–C interaction) between LiPSs and the protective network. The resolved spectra of Ti 2p and C 1s confirm that the free-standing films are preserved well after 200 cycles. We can observe all 4 signals corresponding to carbon-contained bonds in both Fig. 6e_ii and e_iii. Similarly, the Ti 2p spectrum of the cycled free-standing film shown in Fig. 6f_iii also contains all initial peaks. In addition, the relative decrease proportion of C–Ti in the C 1s spectra indicates the breakage of C–Ti bonds after cycles and the increase contribution of titanium oxide due to electrochemical oxidation can also be observed. Furthermore, the cycled Ti 2p spectrum shows an extra signal indicative of Ti–S bonds exactly corresponding to the variation in the S 2p spectra. In conclusion, the almost undamaged free-standing hybrids prove their reliability for sulfur reservoirs.

The superior cycling and rate performances of the free-standing NC-S/Ti₃C₂T_x Li–S batteries are ascribed to the free-standing encapsulation. First, the high electronic conductivity of the NC/Ti₃C₂T_x network remarkably lower the electron transfer resistance, thus improving the sulfur utilization. Second, abundant polar sites of NC and Ti₃C₂T_x MXene can trap the polysulfides well to restrict the shuttle effect. Third, the tight free-standing stacks provide powerful barriers against volumetric expansion, further enhancing the stability performance.

Conclusions

In summary, we have developed a method to fabricate a free-standing NC-S/Ti₃C₂T_x MXene film for Li–S batteries. During synthesis, the nanoscale pores of NC were infused with sulfur, forming a close adhesion. MXene monolayers then wrapped these NC-Ss to constitute an interlaced free-standing composite. The good electronic conductivity of the NC and Ti₃C₂T_x network reduced the electron transfer impedance, thus enhanced the reaction kinetics. With the strong interaction between LiPSs, NC and Ti₃C₂T_x sheets, the free-standing hybrid effectively lowered the lithium polysulfide shuttle in the electrolyte. With these merits, the free-standing NC-S/Ti₃C₂T_x cathodes exhibited outstanding cyclic and rate capacities. This study reported the application of the free-standing NC-S/Ti₃C₂T_x films in Li–S batteries, and they can also be applied in other energy storage devices such as sodium–sulfur batteries.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

R. Hou, J. Tang and B. Xu conceived the ideas and concepts and initiated the research. R. Hou, H. Bai and X. Zhong synthesized the test materials. J. Cheng and J. Gao also conceived the concepts and assisted with the analysis and discussion. R. Hou, J. Cheng J. Tang and B. Xu wrote the manuscript with inputs from all authors.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the Shenzhen Science and Technology Innovation Committee (Grant No. JCYJ20220818100406014), SUSTech Energy Institute for Carbon Neutrality (High level of special funds, G03034K001), the National Natural Science Foundation of China (NSFC) (No. 52302294), GuangDong Basic and Applied Basic Research Foundation (No. 2022A1515111140), the Natural Science Foundation of Top Talent of SZTU (No. GDRC202348), the Chinese College Students Innovation and Entrepreneurship Project (Grant No. S201914325031) and the National Natural Science Foundation of Hubei Province (No. 2020CFB200 and 2023AFB635). We would also like to acknowledge the technical support from SUSTech Core Research Facilities.
