The semiconductor ternary compound lead chromate (PbCrO4) displays promising prospects in pigment and optoelectronic fields. However, previous studies have only focused on its application, neglecting a deep investigation into its molecular vibrational and structural characteristics, such as the influence of interlayer forces. Here, pulse laser deposition was employed for the preparation of highly oriented PbCrO4/LaAlO3 thin films. Ultra-low-frequency Raman spectroscopy revealed 16 Raman modes of PbCrO4. Meanwhile, angle-resolved polarized Raman spectroscopy, an efficient and nondestructive technique, was used to investigate material anisotropy and orientation. The first-order temperature coefficient values (χ) of PbCrO4 obtained by temperature-dependent Raman spectroscopy were vastly different (from −0.0924 to 0.0053 cm−1 K−1). The small χ value is attributed to the weak interlayer van der Waals forces and electron-phonon interactions, indicating a low level of thermal sensitivity. These findings make PbCrO4 an ideal material for crafting high-temperature-resistant pigments and orientation-dependent photocatalysts.
Generally, PbCrO4 can be used as a yellow pigment or photovoltaic anode.12,14,15 Although it is considered a yellow pigment in terms of both brightness value and color saturation value, the addition of phosphor can improve the properties of PbCrO4 significantly.16 As a type of photoanode, PbCrO4 synthesized via the Pechini method not only exhibits remarkable photoactivity, but also experiences a substantial boost in surface charge-transfer efficiency when strategically integrated with partially oxidized graphenes.17–19 Nevertheless, previous studies have only focused on its application, without deeply exploring its molecular structure, particularly its molecular vibrational characteristics. Raman spectroscopy serves as a rapid, non-destructive, and high-resolution method for analyzing the lattice structure as well as the optical and phonon characteristics of materials.20–22 Specifically, angle-resolved polarized Raman spectroscopy (ARPRS) and temperature-dependent Raman spectroscopy have been utilized to conduct a thorough analysis of the molecular vibrational properties of PbCrO4.23 ARPRS, which acquires Raman spectra by changing the angle relationship between polarized incident light and scattered light, enables the investigation of material anisotropy and orientation and can be utilized in diverse areas, such as the study of spatial separation of photogenerated charges in crystals,24 piezoelectric materials,25 anisotropic sensors,26 and various optical devices.27 It is also worth noting that temperature not only has a significant impact on the photoelectric activity but also enables an in-depth study of the phonon anharmonicity of materials.28,29
In this work, highly oriented PbCrO4 thin films were successfully fabricated by a home-built pulse laser deposition chamber, with quality and uniformity assessed through many advanced characterizations. Then, a systematic Raman spectroscopic study was carried out on the as-fabricated PbCrO4 thin film from the perspectives of both optics and thermodynamics. A total of 16 Raman modes were revealed through ultra-low frequency and multi-wavelength Raman spectroscopy. Additionally, partial Raman vibration modes were identified by the ARPRS technology. In addition, the temperature-dependent Raman spectroscopy revealed a decrease in the χ value of PbCrO4 thin films, stemming from weakened interlayer van der Waals interactions and electron-phonon coupling. These findings will make PbCrO4 an optimal material for crafting the next-generation designs of high-temperature-resistant pigments and orientation-dependent photocatalysts.
000 laser pulses was executed to eliminate impurities. Subsequently, the high-quality thin films were successfully deposited onto (111) LaAlO3 substrates (HF-Kejing, LAO) with dimensions of 5 × 5 mm2.30
High-resolution Raman spectra were recorded using a confocal Raman spectrometer (LabRAM HR Evolution, HORIBA) excited with 473 nm, 532 nm and 632.8 nm lasers, respectively, and coupled with an 1800 groove mm−1 holographic grating based on the backscattering geometry. Ultralow-frequency (ULF-532, HORIBA) optical components were used to obtain the Stokes and anti-Stokes spectra with a 100× objective lens (N.A. = 0.90). Temperature-dependent Raman spectroscopy was performed from 77 K to 300 K with a 50× long work distance objective lens (N.A. = 0.50) using a 532 nm laser. ARPRS was also based on the backscattering geometry, and the sample was fixed on the stage under the objective. The polarization direction of the incident laser was adjusted using a half-wave polarizer positioned in the beam path. The analyzer located before the spectrometer entrance was oriented along the y-axis for the horizontal configuration and along the x-axis for the vertical configuration. In all the cases, a silicon crystal was used as a standard for the calibration of the Raman shifts. A low enough laser power (≤0.2 mW) at the surface of the sample and 300 s acquisition time were used to avoid sample damage and enhance the signal-to-noise ratio.
11) and (30
) planes, confirming that the as-synthesized PbCrO4 sample was a pure phase, while the (111) plane corresponds to LaAlO3 (Fig. 1a). No distinct Bragg peaks were detected when 2θ exceeds 60°. Fig. 1b illustrates the rocking curve, and the full width at half maximum (FWHM), precisely measured at 0.192° through a Gaussian fitting procedure, is a direct reflection of the sample's quality. The narrow FWHM value confirms the excellent quality of the sample under investigation.33 Furthermore, the reciprocal space map (RSM) is shown in Fig. 1c. The qx value signifies the scattering vector within the plane, whereas qz denotes the scattering vector vertical to the plane. It reveals that the single peak of the LaAlO3 substrate aligns with the two peaks of PbCrO4 at the lower left, also ensuring the good quality and epitaxial coherence of the PbCrO4 film.34 The AFM image of the sample (Fig. 1d and S2†) intuitively shows that the grain orientation of the PbCrO4 thin film is consistent along the arrow direction. Additionally, the illustration demonstrates that the particle size of PbCrO4 is concentrated at 291 nm. Fig. 1e shows the 3D representation of the AFM image, showing that the grains are consistently columnar and slightly rough. Fig. 1f shows the SEM image of the sample, and the surface of the film is composed of dense irregular PbCrO4 grains, which is a manifestation of the sample belonging to the monoclinic monazite-type structure.
After determining the crystal phases and quality of the sample surface, it is still significant to further explore its internal structure and elemental distribution. Fig. 2a shows the distribution of various elements in the substrate and thin films by EDS, with the high-angle annular dark-field (HAADF) imaging mode. The Pb and Cr elements are concentrated in the PbCrO4 thin film, while La and Al are concentrated in the LaAlO3 substrate. As a common element, O exists in all parts of the sample. At the interface between the thin film and the substrate, all elements exhibit varying degrees of diffusion. Since it is difficult for chemical reactions to occur between LaAlO3 and PbCrO4, this phenomenon should be the irregular diffusion caused by molecular thermal motion.
The EDS results of Fig. 2a indicate a Pb/Cr weight ratio of 19.8%/4.9% (as shown in Table S1†), closely approaching 1/1 when normalized by atomic mass, indicating the high quality of the as-synthesized thin film. Fig. 2b shows the cross-sectional image of the sample. Fig. 2c and d are the HRTEM images and fast Fourier transform (FFT) transformation results of the PbCrO4 thin film, indicating that the crystalline quality of PbCrO4 thin films is superior near the surface compared to that at the interface, as observed in the diffraction pattern obtained from the [210] direction. Fig. 2e and f presents the HRTEM image and FFT transformation results, respectively, of the interface between the substrate LaAlO3 and the initially deposited PbCrO4 thin film. The resolved lattice spacing from the (111) direction of PbCrO4 is 3.7 Å, while for LaAlO3, the resolved lattice spacings are 3.7 Å from the (110) direction and 2.6 Å from the (1
0) direction. The diffraction obtained from the [110] direction reveals the presence of LaAlO3 crystals with good crystalline quality, belonging to the trigonal crystal system. The interface PbCrO4 film with a direction of (111) appears in both results, while the surface PbCrO4 film with good crystalline quality is the focus of this study.
Fig. 3a illustrates the experimental setup for the horizontal-polarized and vertical-polarized Raman scattering of the PbCrO4 samples. The crystal coordinates align with the laboratory coordinates without the need for rotating the sample. By rotating the fast axis of the half-wave plate by an angle equal to half of θ, the polarization of the incident laser is rotated by an angle of θ from the y-axis. θ represents the angle between the incident laser polarization and the original polarization of the Raman signal selected by the analyzer's vertical or horizontal polarization signal before entering the spectrometer. To further explore the various structural properties of PbCrO4, Raman spectroscopy analysis was employed. In the inset of Fig. 3a, the gray arrows depict the laboratory coordinate system (x, y, z), whereas the green arrows represent the crystal coordinate system (x′, y′, z′). The blue two-way arrows indicate the polarization of the incident laser as it reaches the sample. The original polarization of the Raman signal, which corresponds to either a horizontal or a vertical polarized signal selected by the analyzer prior to entering the spectrometer, is denoted by the red two-way arrows.35 Fig. 3b shows the ultra-low frequency of PbCrO4 thin films. This image includes ν
1 ± ν
osc, where ν
1 = 0 and ν

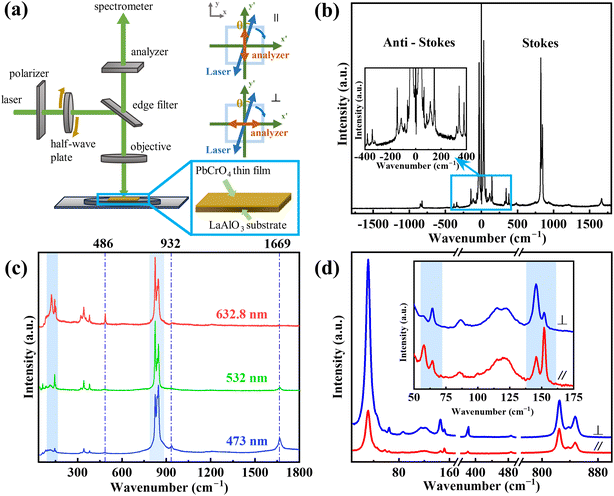

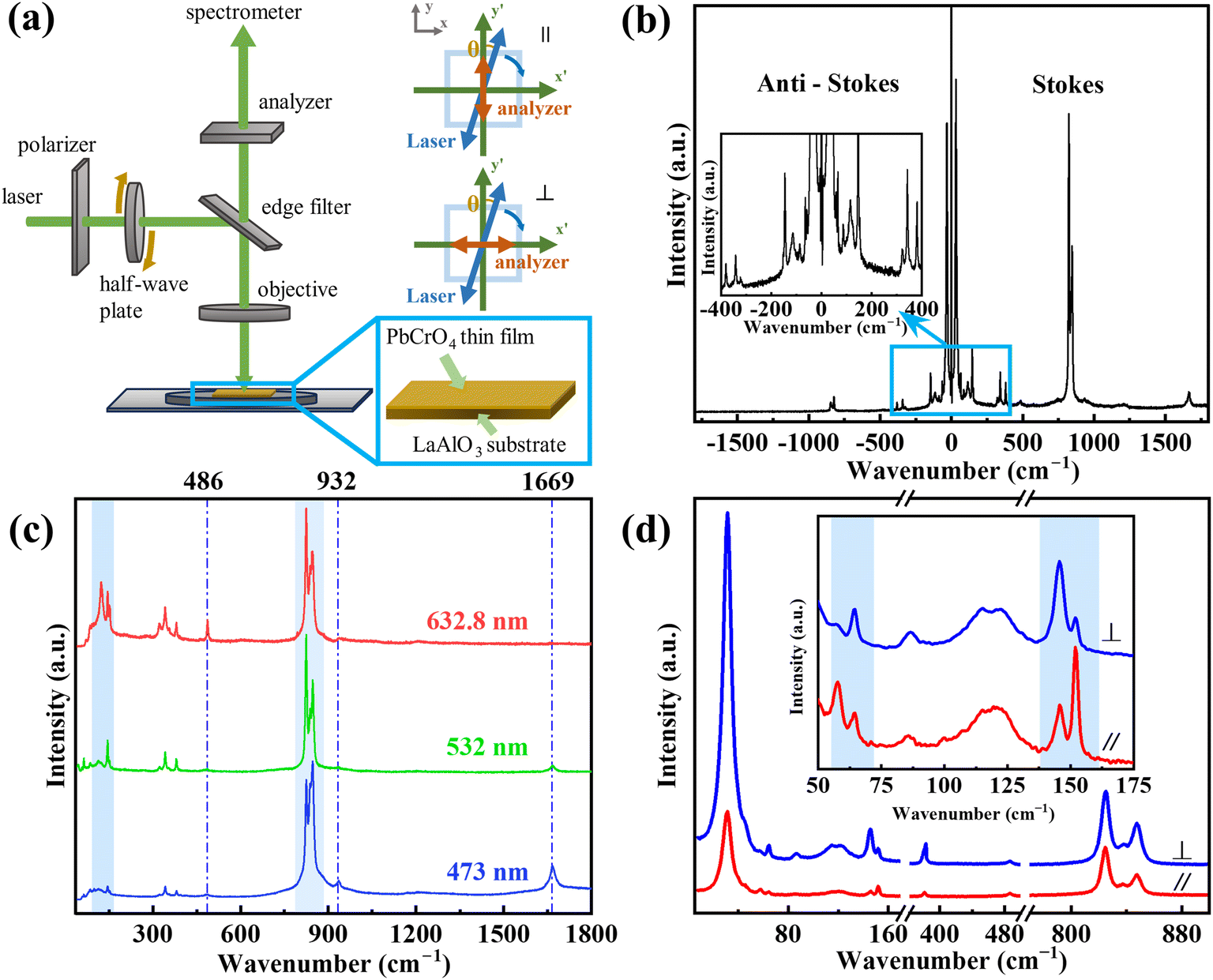

osc = 32, 65, 86, 116, 146, 342 cm−1, etc. Based on the fundamental principles of Raman scattering, Stokes and anti-Stokes scattering spectra are symmetrically distributed on both sides of the Rayleigh scattering. There is no interference from sample fluorescence peaks in the anti-Stokes section, making it easier to identify Raman peaks. The inset is an enlargement of Fig. 3b from −500 cm−1 to 500 cm−1.36,37 A total of 16 Raman modes were revealed through ULF and multi-wavelength Raman spectroscopy. Fig. 3c shows the Raman spectra of the PbCrO4 thin film under laser irradiation at three wavelengths: 473 nm, 532 nm, and 632.8 nm. It is understood that when the excitation wavelength approaches a specific electronic transition, the nature of Raman scattering undergoes a transformation from the conventional “normal” state to a “resonant” mode, which significantly enhances the intensity of the Raman signal. Notably, the peak at 1669 cm−1 conforms to the rule that, as the laser wavelength decreases, the laser energy increases, and consequently, the intensity of the Raman peaks should also increase.
However, the intensity changes of the peaks at 486 cm−1 and 932 cm−1 are contradictory. Meanwhile, within the two marked blue rectangles, the relative intensities of different peaks also vary with the change in laser wavelength. In the resonance process, a particular type of vibrational mode can experience an enhancement in intensity, whereas the intensities of other vibrational modes remain unaffected. In order to reduce the impact of resonance on subsequent experiments, a 532 nm laser with a weak resonance phenomenon was used for the experiment.38 Fig. 3d shows the Raman spectra obtained under laser irradiation with different polarization modes. The differences in Raman peak intensity in Fig. 3d, which are marked by light blue rectangle, indicates the polarization characteristics of the Raman peak, so an ARPRS experiment is needed for the PbCrO4 thin film.
ARPRS is widely used in the study of anisotropy of two-dimensional materials. Laser is incident along the z-axis. For the horizontal polarization mode, the reflected polarized light is collected by the polarizer along the y-axis, while for the vertical mode, it is collected along the x-axis. The experimental setup is shown in Fig. 3a.35 As PbCrO4 has several types of Raman modes, the intensity of their Raman peaks may vary with the incident angle of the laser, while the Raman intensity is expressed as follows:
![]() | (1) |
and
are the unit polarization vectors of the incident laser and scattered Raman signal. The Raman tensor of the P21/n space group is expressed as follows:
![]() | (2) |
direction with a unit polarization vector along the ȳ-axis, we obtained
. The polarization vector fixed by the analyzer is
for horizontal configuration and
for vertical configuration. Then, the intensity of Ag mode can be simplified as follows:
I(Ag,∥) ∝ (b cos θ + d sin θ)2
| (3) |
I(Ag,⊥) ∝ (d cos θ + a sin θ)2
| (4) |

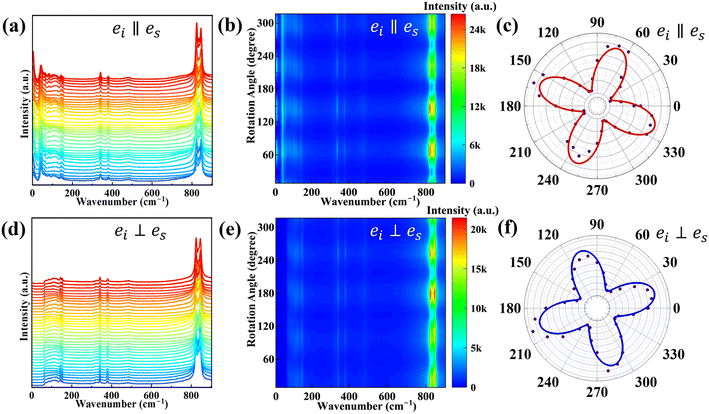

The intensity of Bg is zero in both vertical and horizontal modes.35 After obtaining the expected Raman peak intensity variation of the 16 detectable Raman peaks with the incident angle of the laser, a comparative analysis was performed with the experimentally obtained data. Fig. 4a and d show the original polarized Raman spectra. For the sake of visual intuitiveness, Fig. 4b and e intuitively demonstrate the four-periodicity of Raman peak intensity with the angle changes, which can also be found in Fig. 4c and f. The intensities of these Raman modes are functions of the laser incident angle. The scattered dots are experimental data, and the solid lines are fitting curves. Table S2† shows the fitting result of the experimentally obtained data points with calculated formula (3) for horizontal and (4) for vertical. As can be seen from Table S2,† the Raman peak intensity reaches a maximum every 90° of the incident angles of laser, and also has a minimum at ±45° from the angle, where the maximum occurs. The line connecting any two maximal Raman peaks with an angular interval of 180° indicates the direction of the crystal axis. As can be seen from Fig. 4c and f, the angles corresponding to the maxima in the horizontal mode correspond to the angles of the minima in the vertical mode.39
Temperature-dependent Raman spectroscopic analysis of the as-synthesized PbCrO4 thin film was performed to investigate its thermal conductivity and phonon behavior, as shown in Fig. 5a. In Fig. 5b, the presence of left-tilted lines indicates a blue shift in the Raman peak positions with the increase in temperature. Concurrently, the FWHM of the Raman peaks increases with temperature. Fig. 5c and d illustrate the linear relationship between both the peak positions and the FWHM with the temperature changed. Fig. S3† summarizes the temperature-dependent variations in the peak positions and FWHM values of individual Raman modes of the PbCrO4 Raman spectra, and the model used to describe these shifts in the PbCrO4 thin film can be expressed as follows:
| ω(T) = ω0 + χT, | (5) |
| No. | Wavenumber (cm−1) | Wavenumber slope (cm−1/K) | FWHM slope (cm−1/K) |
|---|---|---|---|
| 1 | 34.5 | −0.0160 | 0.0154 |
| 2 | 137.9 | −0.0684 | 0.0354 |
| 3 | 147.7 | −0.0924 | 0.0379 |
| 4 | 153.7 | −0.0089 | 0.0021 |
| 5 | 342.8 | −0.0044 | 0.0042 |
| 6 | 381.2 | −0.0030 | 0.0038 |
| 7 | 488.2 | −0.0066 | 0.0080 |
| 8 | 823.6 | 0.0053 | 0.0016 |
| 9 | 841.0 | −0.0134 | 0.0022 |
| 10 | 848.7 | −0.0091 | 0.0038 |
Footnote |
