Surface catalytic effect of Ag nanoparticles and influence of dissolved oxygen on photocatalytic reduction of nitrate

Abstract

Photocatalytic reduction of nitrate is a promising green strategy to remove nitrogen pollutants from water bodies. However, it is a considerable challenge to directly reduce nitrate using photogenerated electrons. In this work, a g-C₃N₄/Ag-nanoparticle composite demonstrating high catalytic activity toward nitrate is constructed using an in situ photodeposition method. Based on photoelectrochemical, ion chromatography and nuclear magnetic resonance characterization, Ag nanoparticles were found to exhibit strong surface catalytic activity for reducing NO₃⁻ to NO₂⁻, while g-C₃N₄/Au-nanoparticles exhibited no photocatalytic reduction activity toward NO₃⁻. Additionally, the effects of dissolved oxygen on the photocatalysis system of nitrate reduction are analyzed for the first time.

---

1. Introduction

The massive use of nitrogenous fertilizers in agricultural production and the rapid development of the nitrogen industry have resulted in serious nitrate (NO₃⁻) contamination of underground water and natural water bodies.^1–3 NO₃⁻ can be converted into toxic nitrosamines when ingested by the body, which can induce cellular cancer, malformations and embryotoxicity.^4–7 Thus, removal of NO₃⁻ from water is critical for ensuring environment safety and human health. Compared with traditional methods such as adsorption,^8,9 ion exchange,^10,11 electrodialysis,^12–14 and biological denitrification,^15,16 photocatalytic reduction of NO₃⁻ to N₂ gas is a promising technology.^17,18 However, NO₃⁻ is chemically stable because of the N=O and two N–O bonds with bond energies of 607 and 230 kJ mol⁻¹, respectively. The reduction potential is extremely high for typical semiconductor photocatalysts; e.g., for the first reaction of NO₃⁻/˙NO₃²⁻, it is −0.89 V (vs. standard hydrogen electrode, SHE). Moreover, most reported photocatalytic systems are TiO₂-based photocatalysts requiring various hole sacrificial agents, especially formic acid, which results in high production of ˙CO₂⁻ radicals after oxidation by photogenerated holes and has strong reducibility toward nitrate (E(CO₂⁻/˙CO₂⁻) = −1.81 V vs. SHE) and high selectivity for N₂.^19–23 To replace reducing additives for potential application, high conduction band semiconductors with a higher driving force of photogenerated electrons have been studied to reduce NO₃⁻. For example, ZnS,²⁴ LiNbO₃,²⁵ Pd/GdCrO₃,²⁶ and ZnSe/BiVO₄ (ref. 27) showed photocatalytic efficiency and considerable N₂ selectivity with added sacrificial agents. However, they all require strong UV light illumination owing to their wide bandgaps. Moreover, UV light can be strongly absorbed by NO₃⁻ and NO₂⁻, which will be excited to excitation states, thus facilitating their reduction.²⁸

Development of photocatalysts with a narrow bandgap, i.e. improving the utilization of visible light, is a developing research direction for promoting practical application.^29,30 At present, only few materials, such as oxygen vacancy-enriched P25 decorated with Ag/Cu nanoparticles³¹ and graphitic carbon nitride (g-C₃N₄) decorated with Ag nanoparticles,³² have been reported to exhibit photocatalytic reduction of nitrate performance under visible light, although the selectivity for N₂ is low with NO₂⁻ as the primary product. Furthermore, revealing their working mechanisms is of great significance for the future design of visible light-sensitive photocatalysts. However, the mechanism is not clear to date. Additionally, all previously reported experimental systems worked in an aqueous solution in the absence of dissolved O₂. However, for practical application, the presence of dissolved O₂ in natural water bodies cannot be neglected. Nevertheless, the effects of dissolved O₂ on the photocatalytic reduction of nitrate have not been studied.

Herein, we prepared composite photocatalysts of g-C₃N₄ decorated with Ag nanoparticles (Ag-NPs) and Au-NPs (denoted as CNAg and CNAu, respectively). The surface catalysis activity of Ag-NPs was found to be the dominant mechanism for efficient photocatalytic reduction of nitrate. Moreover, the negative influence of dissolved O₂ in inhibiting nitrate reduction and positive influence in improving oxidation capacity were revealed, providing further guidance for practical applications.

2. Experimental details

2.1 Materials

Urea, silver nitrate, methanol, anhydrous ethanol were purchased from Sinopharm Group Chemical Reagent Co., Ltd. All reagents were of analytical grade and used without further purification. Deionized water (18.2 MΩ) used in all experiments was produced using a Millipore Direct-Q system.

2.2 Synthesis of g-C₃N₄ and g-C₃N₄ decorated with Ag, Au, and Pt nanoparticles

2.2.1 g-C₃N₄ preparation. Graphite phase carbon nitride was prepared by placing 10 g of ground urea in a ceramic crucible, followed by heating at 550 °C with a heating rate of 5 °C min⁻¹ in a muffle furnace for 3 h.³³

2.2.2 Metal nanoparticle decoration. g-C₃N₄ (30 mg) was dispersed in 50 mL of deionized water (18.2 MΩ) and ultrasonicated for 30 min; then, 5 mg of AgNO₃ and 4 mL of methanol were added with ultrasonication for 10 min. The mixture was poured into a quartz photoreactor and continuously bubbled with argon, followed by irradiation with Hg light for 5 min, 30 min, 60 min, and 120 min; the achieved samples were denoted as CNAg-5, CNAg-30, CNAg-60, and CNAg-120, respectively. Similarly, Au and Pt nanoparticle-decorated g-C₃N₄ were prepared by modifying their metal precursors with Hg light for 30 min.

2.3 Characterization

The samples were characterized through X-ray diffraction (XRD, Bruker D8 Advance) using CuKα radiation (λ = 1.54178 Å). Transmission electron microscopy (TEM, JEOLJEM-2010) characterizations were performed at 200 kV. UV-vis diffuse reflectance spectra were performed on a UV-vis spectrophotometer (UV3600-MPC3100). Photoluminescence spectra were recorded on a spectrometer (OmniFluo990LSP) under an excitation wavelength of 310 nm at room temperature.

2.4 Photocatalytic reduction and analysis

Photocatalysis experiment was carried out in a container with a glass sleeve (0.2 L, Quartz). The light source was placed on top of the quartz reactor, and the outer layer was cooled with water. Potassium nitrate was used as a nitrate source for degradation. The initial concentration of nitrate (100 mg L⁻¹) was 10 times the maximum permissible concentration limit in drinking water. The catalyst concentration in the solution was 1.2 g L⁻¹, and methanol was used as a hole sacrificial agent. A 300 W xenon lamp (Microsolar 300) was used as the light source for the photocatalysis experiment. The solution was kept under constant stirring conditions during the whole experiment. After every 60 min, 1 mL of solution was extracted and filtered for ion chromatography measurements (Dionex Aquion and Dionex ICS-600).

The NO₃⁻ conversion rate (C_NO3⁻, %) and N₂ selectivity (S_N2, %) were evaluated using eqn (1) and (2), respectively.

where [X]₀ and [X]_t are concentrations of various nitrogen species initially and at t time, respectively.

2.5 Electrochemical measurements

Firstly, the catalyst ink was obtained by dispersing 3 mg of catalyst in 90 μL of anhydrous ethanol and 10 μL of Nafion, followed by sonication for 10 min. Subsequently, 5 μL of the catalyst ink was coated on an L-shaped glassy carbon electrode and dried to obtain the working electrode. The Ag/AgCl electrode was used as the reference electrode and the Pt electrode as the counter electrode. The electrochemical impedance spectroscopy (EIS) results and Mott–Schottky curves of the catalysts were measured using an electrochemical workstation (CHENHUA, CHI660E, China) in 0.25 M K₂SO₄ solution. Cyclic voltammetry (CV) and linear scanning voltammetry (LSV) were performed in 0.25 M K₂SO₄ and 0.2 g per L KNO₃ solutions. For photoelectrochemical tests, a 300 W xenon lamp was used as the light source.

3. Results and discussion

The morphology of the achieved CNAg composite was determined using TEM (Fig. 1 and S1†). Under a longer photodeposition duration, the size of Ag-NPs gradually increased (Fig. S2†). Fig. 1a shows the morphology of CNAg-30 under a photodeposition of 30 min; Ag-NPs of about 10 nm were loaded onto lamellar-structured g-C₃N₄. The lattice spacing of the exposed crystal faces of Ag-NPs was 0.21 nm, which was attributed to the (200) crystal faces, in accordance with the Fourier-transform image (Fig. 1b). Energy-dispersive X-ray maps (Fig. 1c–f) show the uniform distribution of C and N in g-C₃N₄ and the successful loading of Ag-NPs.

Fig. 1 (a) TEM image, (b) high-resolution image, and (c–f) EDS mapping of C, N and Ag elements of CNAg-30.

Fig. 2a shows the X-ray diffraction pattern of the as-prepared samples. The strong diffraction peak signal near 27.6° corresponds to the interlayer stacking planes of the conjugated heptazine frameworks.³⁴ After photodeposition of Ag for more than 30 min, the reduced Ag-NPs crystallized (PDF# 89-3722). Similar crystallization of Au-NPs is shown in Fig. S3.† Fig. 2b shows the light absorption of the as-prepared samples. The absorption peaks at 470 and 550 nm after loading Ag and Au nanoparticles were attributed to the localized surface plasmon resonance (LSPR) absorption of Ag- and Au-NPs, respectively. The forbidden bandgap of g-C₃N₄ was determined to be 2.8 eV from the Tauc plot (Fig. 2c) using the formula (αhν)^1/n = B(hν – E_g), where n = 0.5 since g-C₃N₄ is a direct bandgap semiconductor. The flat band potential of g-C₃N₄ was calculated to be −1.0 V (vs. SHE) based on the Mott–Schottky curve (Fig. 2d). Next, the conduction band edge of g-C₃N₄ was deduced to be −1.2 V (vs. SHE), according to the empirical formula that the semiconductor's conduction band value and flat-band potential differ by 0.2 eV,³⁵ which was consistent with previously reported results.³⁶

Fig. 2 (a) XRD and (b) UV-vis spectra of different samples. (c) Mott–Schottky and (d) Tauc plot of g-C₃N₄.

Nitrate photocatalytic reduction performances were evaluated (Fig. 3a). Pure g-C₃N₄ showed no reduction effect. The CNAu composites showed no considerable photocatalytic reduction performance either. However, after loading Ag-NPs, the CNAg composites showed significant photocatalytic reduction efficiency toward nitrate. Especially, CNAg-30 exhibited the optimal nitrate reduction rate, and total nitrates were degraded within 1 h. Nevertheless, N₂ selectivity was only about 38% (Fig. 3b) and the predominant reduction product was NO₂⁻ (Fig. S4†), indicating that the reduction driving force was limited under xenon lamp irradiation, which contains limited UV light. The XRD patterns of the samples before and after the cyclic photocatalytic reaction were basically unchanged (Fig. S5†), indicating the relative stability of the as-prepared photocatalyst.

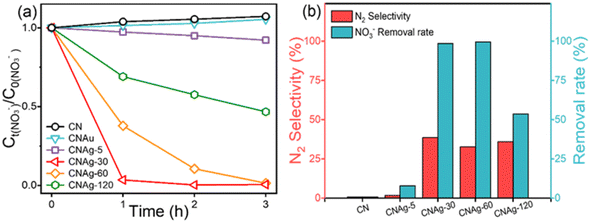

Fig. 3 (a) Nitrate removal dynamics of different samples and (b) removal rates and N₂ selectivity after 3 h of photocatalysis.

The photocatalytic mechanism of CNAg toward NO₃⁻ was revealed by comparing the photoelectrochemical response. A previous work claimed that the adsorbed hydrogen (H*) was the reason for the photocatalytic activity of CNAg.³⁷ However, if H* plays a role in NO₃⁻ reduction, the CNAu composite could reduce NO₃⁻ as it can produce H* too.³⁸ To reveal the function of H*, g-C₃N₄ decorated with Pt-NPs was synthesized (Fig. S6†). However, no nitrate reduction was observed in the CN–Pt system. Thus, H* should not be the real reason for the photocatalytic reduction of NO₃⁻. Other possible mechanisms include specific surface catalytic activity, surface plasmonic hot electrons, or enhanced separation efficiency of photogenerated carriers. The CV curves of CNAg and CNAu in the dark with/without NO₃⁻ illustrate that CNAu has no catalytic effect on NO₃⁻ (Fig. 4a); however, CNAg shows considerably increased catalytic activity with an onset potential of about −0.9 V (vs. Ag/AgCl). LSV curves for different light illumination conditions demonstrate that all the photocatalysts showed a light response (Fig. 4b), with the CNAg composite demonstrating the highest increase in current after light illumination, which is more clearly depicted in Fig. 4c. Under chopped light illumination, the photocurrent of CNAg was significantly higher than that of CNAu or bare g-C₃N₄. The slow response speed of the photocurrent demonstrated that the photocurrent is induced by the reduction of nitrate owing to the slow reaction dynamics. Additionally, the recombination probability of photogenerated carriers decreased after decoration with the metal nanoparticle, especially Ag-NPs, which was demonstrated by photoluminescence (PL) spectroscopy (Fig. 4d). Moreover, the surface photovoltage reveals that the CNAg composite can induce higher separation efficiency of photogenerated charge carriers (Fig. 4e), which can generate higher photocatalytic performance. Electrochemical impedance spectroscopy (Fig. S7†) reveals the CNAg composite has a lower impedance value, which is favourable for the separation and transport of charge carriers. Moreover, the zeta potentials (Fig. 4f) of CN and CNAu are negative, whereas they are positive for CNAg. As NO₃⁻ is negatively charged, electrostatic repulsion will inhibit the adsorption of NO₃⁻ for CN and CNAu, while CNAg can benefit adsorption, which can accelerate the photocatalytic reduction. Thus, based on the significant positive shift of the onset potential of NO₃⁻ reduction without light illumination (Fig. 4a) and no surface photovoltage at the wavelength of LSPR of the Ag- and Au-NPs (Fig. 4e), the surface catalytic activity of Ag-NPs, but not the plasmonic hot electrons, is believed to be the predominant reason for the outstanding photocatalytic NO₃⁻ reduction by CNAg. Furthermore, the Ag-NPs enhanced the separation efficiency of photogenerated electrons and holes, resulting in improved photocatalytic performance. Thus, the small size and large number of Ag nanoparticles should benefit the performance. Characterization results (Fig. 1, S1 and S2†) demonstrate that Ag nanoparticles with photodeposition of 30 min exhibited the optimal balance of size and density (i.e., small size and large density), which can provide more reaction sites that act as electron traps to accelerate the reduction reaction.

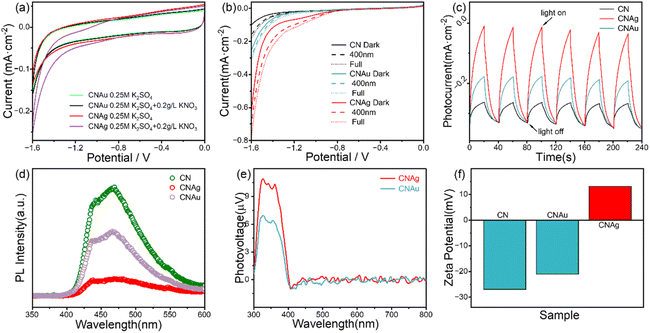

Fig. 4 (a) CV and (b) LSV curves of the CNAg, CNAu under different conditions. (c) Photocurrent responses with chopped light illumination. (d) PL curves, (e) surface photovoltage, and (f) zeta potential of the as-prepared photocatalysts.

Dissolved O₂ has always existed in the real application case; however, the influence on photocatalytic nitrate reduction has not been studied. Fig. 5a depicts the ion chromatography measurement results recorded for a photocatalytic reaction of 6 h, in which the dissolved oxygen in the solution is not excluded in the initial 3 h and removed via argon bubbling in the next 3 h with CNAg-30 as a photocatalyst and methanol as a hole scavenger. When dissolved oxygen is present, a chromatography peak attributed to formic acid gradually increases with the photocatalytic duration, which is further confirmed by NMR hydrogen spectroscopy with a peak located near 8.15 ppm (Fig. 5b).^39–41 Although it has been widely reported that the oxidation of formic acid by holes can generate ˙CO₂⁻ radicals, which can efficiently reduce NO₃⁻,^42–45 the degradation of NO₃⁻ is not observed with dissolved O₂ based on the chromatography peak intensity of NO₃⁻ (Fig. 5a). This is probably attributed to the consumption of photogenerated electrons by reacting with dissolved O₂, producing superoxide radicals (˙O₂⁻), and the inverse oxidation of NO₂⁻ by the resultant hydroxyl radicals (˙OH) or single-linear oxygen (¹O₂).^46,47 Argon bubbling was used to rapidly remove dissolved O₂. Thereafter, electrons and ˙CO₂⁻ could efficiently reduce NO₃⁻, resulting in a rapid reduction in concentration. If the photocatalysis is started in the absence of dissolved O₂, no considerable formic acid and the consequent ˙CO₂⁻ can be produced, and thus, NO₃⁻ is reduced only by photogenerated electrons with limited driving force, which is determined by the conduction band of the photocatalyst. As a result, a large amount of NO₂⁻ (Fig. 5c, NO₂⁻ concentration is represented in blue and NO₃⁻ concentration in red) and low N₂ selectivity (Fig. 5d) are obtained. However, if the photocatalysis is carried out with dissolved O₂ for 3 h followed by subsequent removal of O₂, the reactivated photocatalytic reduction of NO₃⁻ produces no NO₂⁻ and extremely high N₂ selectivity (Fig. 5d) as a result of the supplementary reduction capacity of ˙CO₂⁻ radicals generated from formic acid. Thus, the dissolved O₂ demonstrates a critical inhibition of photocatalytic reduction of NO₃⁻, although it can help produce ˙CO₂⁻ to improve the catalytic activity and N₂ selectivity. As a result, in future research, the design of a photocatalyst or device without influence of dissolved O₂ would be the biggest bottleneck in practical applications.

Fig. 5 (a) Ion chromatogram of photocatalysis with and without dissolved O₂. (b) ¹H NMR spectroscopy of photocatalytic production with dissolved O₂. (c) Evolution of NO₃⁻ and NO₂⁻ during photocatalysis with and without dissolved O₂ and (d) NO₃⁻ removal rate and N₂ selectivity after 3 h.

4. Conclusions

In summary, Ag- and Au-NPs were in situ grown on g-C₃N₄ for nitrate reduction. Ag-NPs showed improved surface catalytic activity and carrier separation efficiency, which significantly enhanced photocatalytic NO₃⁻ reduction. Additionally, CNAg could oxidize methanol to formic acid and, consequently, to ˙CO₂⁻ radicals in the dissolved O₂ atmosphere, which could improve the reduction dynamics and N₂ selectivity. However, the dissolved O₂ in practical cases would be a critical bottleneck owing to the consumption of photogenerated electrons. The work provides new perspectives for subsequent development of solar-driven removal of nitrate from contaminated water.

Data availability

All the data related to this work are available in the main manuscript or ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (Grants No. 52472309, 52232007, 51972308) and HFIPS Director's Fund (Grant No. BJPY2022B03).
