Rheological, electrochemical, and microstructural properties of graphene oxides as flowable electrodes for energy storage applications

Abstract

Interest in novel energy storage and conversion methods has prompted a broad interest in potential applications of conductive, complex materials such as graphene oxide slurries. Investigating the complex rheological, material, and chemical properties of chemically exfoliated graphene oxide suspensions is a potential means to address that interest. The morphological size and clustering, rheology, and electronic conductivity are determined to characterize the properties of graphene oxide (GO) suspensions from variable centrifugation speeds. The evolution of viscosity is then analyzed under oscillatory shear, steady shear, and transient shear characteristics. The resulting microstructure is then analyzed via neutron scattering analysis and imaged with scanning electron microscopy. Small-Angle Neutron Scattering (SANS) of a 500g centrifuged GO suspension determined that particle structure is locally flat sheet-like at lengths below 100 nm, crumpled aggregates of GO sheets with surface roughness at length scales from 200 nm to 2 μm, and a dense mass fractal of overlapping GO sheets extending up to length scales of 20 μm. Increased centrifugation force of the 1000g GO suspension corresponded with lower zero-shear viscosity, yield stress, and less pronounced thixotropic behavior. Rheo-dielectric measurements were conducted on 1000g and 500g GO suspensions to determine the ohmic resistance, electronic conductivity, and specific capacitance. The more fluid-like microstructure of 1000g with smaller monodispered thinning GO sheets in suspension had lower ohmic resistance and higher electronic conductivity compared to the 500g GO suspension with more polydispersed larger aggregates. The 1000g GO suspension had the highest specific capacitance of 4.63 mF cm⁻² at the highest shear rate of 700 s⁻¹ due to the higher frequency of particle–particle collisions during shear within the network of smaller and more intrinsically conductive GO sheets to store charge. Therefore, the results of this study have implications for future studies in flowable carbon nanomaterials in flow battery and flow capacitor technologies.

---

1 Introduction

To address the need for novel energy storage and conversion methods, the application of carbon nanoparticles (CNPs) in systems such as flow batteries has emerged as a promising approach for current and future power and energy demands.¹ There exists a variety of CNP allotropes, or molecular rearrangements of carbon such as graphene nanoplatelets (GNPs) which assemble to form planar, 2D structures, carbon nanotubes (CNTs) that form extended, tube-like 1D structures, and carbon black (CB) particles which are spherical but nanoscopic and are thus considered zero-dimensional.^1,2 The structure of carbon allotropes lends them unique potential in facilitating the electron flow necessary for practical electronic devices. Whether in a dry solid or liquid suspension state, aggregates of carbon particles can transfer delocalized electrons over their surface, with the conductivity of CNPs governed by the varying morphologies of their dry solid and liquid states.^3–6

The influence of the surface chemistry, crystal structure, and particle dimension of microstructure on the conductivity and viscosity of a nanoparticle suspension has been demonstrated in CB particles.² When mixed into an aqueous dispersion, CNPs begin to aggregate, forming a slurry, leading to complex interactions between the individual particles. Optimizing particle agglomeration is necessary to ensure the slurry holds charge with minimal possible viscosity.² At high viscosities, the utility of CNP slurries could be limited by the decreased ease of pumping and increased material quality requirements due to internal friction.⁷ Forming hierarchical structures with CB–CNT composite assemblies can act to reduce viscosity as the hybrid chains possess the advantages of both CB and CNTs, conferring decreased shear forces of CB and increased relative capacitance of CNTs at lower particle concentrations.⁸ Viscosity can also be tuned by coating CB with a dispersal agent, inhibiting agglomeration to promote uniform particle dispersion in the fluid. However, dispersal agents can decrease the conductive properties of the CNP slurry.⁹

Alternate methods of improving the conductivity of nanoparticle slurries can include the integration of other materials into the CNP dispersion. A common example of this can be seen in the mechanical mixing of poly(methyl methacrylate) (PMMA) with CB, a process that acts to increase the localization of the CNPs via the formation of small gaps for electron flow between the introduced PMMA molecules.¹⁰ While decreased shearing resistance can negatively affect the flow characteristics of liquid-phase conductive polymer composites (CPCs), covalent bonding in solid CPC structures positively affects mechanical strength while simultaneously improving electron transport for conductive polymer materials.^11,12 Regardless of the particular CNP or CPC chosen for use, maximum faradaic efficiency can only be achieved by deliberately tailoring device electrodes to the unique properties of the particular slurry.^13,14

Recent investigations have revealed GNPs as another viable nanomaterial for energy storage applications due to their expansive surface area affording them a high charge capacity and capacity for rapid electron exchange.^1,15,16 Scalable methods for the synthesis of GO include chemical vapor deposition, direct liquid-phase exfoliation (electrochemical intercalation and shearing of graphite), and, most commonly, the Hummers' method.^17–19 The most popular variant of the Hummers' method is the “modified” or “improved” Hummers' method.^20–24 The aqueous GO suspension can also be reheated or evaporated to further concentrate the graphene sheets and mixed with other conductive materials such as Nafion polymer, creating more effective conductive pathways by altering the microstructure or interparticle interactions of graphene.²⁵ However, commercially sourced GNPs come at far greater expense than CB, with the particles incurring average costs exceeding $15 USD per gram compared to $0.01 USD per gram.^26–28

CNPs applied to the storage, transport, and conduction of charge must be stored within an electrolyte dispersion to allow the free flow of its constituent CNPs without the deleterious influence of the van der Waals forces and permit the agglomeration of the CNPs.²⁹ When charged, a conductive slurry of nanoparticles can be further aggregated via water addition or, more commonly, sonication.^19,30 An example of sonication can be seen in the fraying and exfoliation of nanoparticles from CNT/ZnO chains into electrolyte fluid.³⁰ These free particles implant themselves on the exposed edges of micelles, isolating them and decrease overall fluid viscosity. Nonetheless, it is vital to balance the maximization of CNP density and the minimization of CNP chain degradation in the slurry.³⁰ Careful sonication of the CNT dispersion is necessary as extended sonication or high frequencies can destroy the nanotubules, rendering them amorphous masses of nanofiber.^31,32

As CNP agglomerates build up, the viscosity of the nanoparticle slurry generally increases, demonstrating complex thixo-elasto-visco-plastic (TEVP) flow properties.³³ Thixotropy describes the time-dependent evolution of the viscosity of a fluid under shear effects on microstructure. Viscoelasticity represents the simultaneity of viscous and elastic characteristics in a material. Plasticity characterizes the threshold of non-zero yield stress above which a fluid undergoes permanent, irreversible deformation; below the threshold, the material deforms elastically.^34–37 Effectively examining the rheology of CNP slurries necessitates a model of the steady-state and transient behavior of a suspension. The Generalized Newtonian Fluid (GNF) models such as the Casson, Carreau–Yasuda, and Herschel–Bulkley models can represent many aspects of steady-state flow behavior but prove unable to discern the transient viscoelastic behaviors of complex flowing materials such as GO dispersions.^38,39 As such, accurately modeling the transient response phenomena produced by thixotropy and viscoelasticity requires more sophisticated constitutive models.^40,41

The thinness of the monoatomic layers of GO permits exceptionally high electron mobility, facilitating the uninhibited flow of electrons through graphene sheets and resulting in outstanding conductivity, with low resistivities (corresponding to high conductivities) on the order of a mΩ cm.⁴² In exploring GO slurries under different flow conditions, the interplay between rheology and bulk electrochemical properties becomes a focal point, specifically the potential impact of shear-induced microstructure buildup and breakdown on ion diffusion. As GO sheets fragment in response to imposed shear stresses, the observed shear-thinning behavior may influence the ability of ions to conduct through the slurry. The dynamic stacking and restacking of numerous GO sheets in the slurry may also further contribute to the overall conductivity of the material.^42,43

The flowability of GO slurries, crucial for redox flow batteries, also influences the material capacitance and electrronic conductivity. The effective particle concentration of the slurry is subject to alteration under varying flow conditions and evolving microstructure, making it a key parameter in the electrochemical performance of the material. The maintenance of a well-structured and flowable electrode comprised of nanoparticles with robust mechanical stability, characteristic of GO, is imperative for sustaining strong electrochemical performance over time.^43,44 Moreover, the flowability characteristics of GO slurries can have broader implications for battery design. These include the optimal coating of substrates within flow batteries to form electrodes and the formation of conductive films.^43,44 For electrochemical flow battery and flow capacitor applications, carbon nanomaterials such as GO are used as a conductive additive to electrolyte resulting in a flowable slurry electrode, therefore there is a fundamental need to study the flow rate dependent charge transfer through particle–particle interaction.^45–47 For the optimization of the electrochemical performance of flowable electrodes in energy storage applications, it is critical to increase the rate of charge transfer in the slurry while lowering the viscosity. There have been recent studies that have focused on suspensions of CB to exhibit shear-thinning properties and an increase in conductivity by characterizing the shear-induced microstructure by probing the rheological and frequency-based dielectric properties with applied shear rates.^48–52

The electrical percolation and mechanical percolation of suspensions can be a result of different particle–particle interactions and length scales. Results of early studies on CB showed both increasing and decreasing conductivity with increasing shear rate.^49,51 The increase in conductivity was attributed to an increase in the frequency of particle–particle collisions due to shear.^48,50,51 Contrary results indicating a decrease in conductivity was due to a decrease in the size of aggregates or the volume fraction of particles in the fluid.^51,52 Percolation theory suggests a decrease in conductivity is a result of a decrease in agglomerate size or volume fraction of particles in a fluid.⁵³ The conductivity with the shear of micron-sized particles such as CB has been well investigated. There are limited studies in probing the conductivity changes and microstructural properties of nano-sized CNPs such as GO in response to shear. Electron transfer can occur through a network microstructure through tunnelling or hopping during shear. Electron hopping occurs in short distances of about 1 nm at ambient temperatures, thus, nano-sized particles are the ideal material to measure it.⁵⁴ Therefore, understanding the shear-dependency on viscosity, conductivity, and microstructure of a suspension can improve the performance of flowable slurries for electrochemical energy storage applications. The frequency-dependent dielectric response of GO suspensions under shear together with the changes in mechanical properties and Rheo-SANS measurements provide an insight into the role of microstructure on the conductivity of the particles in suspension. To our knowledge, there are limited multi-disciplinary studies on probing the length scales of the microstructure, transient rheological properties, and electronic conductivity and capacitance of nanometer-sized GO suspensions with shear rates.

To bridge the current gap in the robust quantitative characterization of CNP slurry electrochemistry in flow, this investigation links GO slurries' electrochemical characteristics and mechanical behavior through the collection and analysis of morphological, rheological, and electrochemical performance results. This study focuses on investigating the properties of GO in aqueous solutions at atmospheric pressure and room temperature conditions relevant operating conditions to electrochemical energy storage device applications. Fig. S9† contains Scanning Electron Microscopy (SEM) images of GO sheets after heated drying at 80 °C showing less prevalence of aggregated GO sheets settling onto substrate likely caused by the high temperature drying process. Section II details the mathematics of the ethixo-mHAWB model and the experimental parameter fitting procedure used to fit and predict the rheological data. Section 3 provides an overview of the materials and methods, with a discussion of the experimental process. Section 4 discusses the results of experiments, followed by the discussion. The remainder of the manuscript serves to conclude the study.

2 Model background and framework

2.1 Enhanced thixotropic mHAWB model

The viscoelasticity demonstrated by TEVP materials has been traditionally modeled via modifications of the Maxwell and Oldroyd-8 frameworks. While these two models can model transient behavior at relatively high shear stress,^55–57 their utility does not extend to the lower range of shear stresses where complex materials can show complex time-dependent behavior. To rectify this weakness, the simple kinetic rate equation governing the evolution of the non-dimensional structure parameter can be substituted with the use of dual elastic and plastic stress terms or the incorporation of the structure parameter into a generalized viscoelastic model.^58–63

The elasticity and plasticity terms are resolved by splitting total strain and its time derivative, the total rate of strain, into two separate terms.^59,62,64 Kinematic hardening theories of plasticity can be used to capture the plastic behavior of a material, integrating both isotropic hardening (IH) and kinematic hardening (KH) into the model description.^64–69 The employment of representative equation parameters for the two hardening terms in the ethixo-mHAWB (modified Horner–Armstrong–Wagner–Beris) model used here is vital in properly modeling the dynamics of fluid systems such as slurries.^69–71

Characterizing the rheology of CNP slurries plays a vital role in enhancing our understanding of the microstructural responses of slurries to stress and strain under different conditions. As a viscoelastic material, the response can be analyzed (i) at steady-state, (ii) small amplitude oscillatory shear (SAOS), representing a fairly limited region of viscoelasticity where outputs vary linearly with inputs, and (iii) large amplitude oscillatory shear (LAOS), which captures the larger spans of the viscoelastic domain.^72–76 The breakdown process of the suspension provides insight into time-dependent flow characteristics. Nonlinear measurements explored by LAOS are decomposed using Fourier transforms, which typically utilize sine inputs for controlled strain and cosine inputs for controlled stress.^72,77–80

The structure of CNPs can be analyzed via rheo-ultra-small-angle neutron (Rheo-USANS) scattering. This details both flow stability and the threshold at which dense agglomerates evolve into more open, smaller variants (transition state) which is informative in assessing the conductive behavior of slurries. This is expressed by the inverse Bingham number, Bi⁻¹, which compares the bulk stress imposed on a suspension to its yield stress. At lower shear rates, Bi⁻¹ < 1, the Bingham number indicates the accumulation of particles in relatively large, dense particles that tend to sediment under dominant yield stress, producing analytic inconsistencies. At Bi⁻¹ > 1, corresponding to high shear rates, the aggregates are smaller, demonstrating an apparent shear-thinning as the yield stress is overcome, indicating the shear-independence of the fractal dimensions of the agglomerates.⁸¹

With the relative increase in the availability of transient experimental data for complex materials, models have been developed to represent the spectrum of TEVP behavior.⁵⁶ One such model, the HAWB model, integrates a generalized White–Metzner–Cross model to better represent the viscoelasticity of deformable particles within a suspension. From the time-varying viscosity Maxwell model (TVM) model, a further improved model introducing the viscoelastic response of a material was developed in the mHAWB method.⁴¹ A subsequent modification to the kinetic equations of mHAWB to include a shear aggregation term for the structure parameter would result in the enhanced thixotropic mHAWB (ethixo-mHAWB) model shown here.^41,71

A full, and more detailed ethixo-mHAWB model description can be found in the following ref. 40, 41, 71 and 73. Here, we will provide an overview of the steady state and transient constitutive equations to ground the subsequent discussion of the fitted data in the rheological underpinnings of the model. The model is a White–Metzner viscoelastic model, integrated with the Cross model to describe the viscosity as a function of shear rate.^40,41,56 This baseline framework for the stress tensor evolution and the rate-dependent viscosity describes the suspension with individual GO particles, or aggregates before they begin forming larger-scale agglomerates during periods of low shear rate.

andwhere G is the elastic modulus, γ₍₁₎ is the rate of strain tensor, and τ_c is the Cross constant, and μ₀ and μ₀ are zero and infinite viscosity, respectively.^40,41,71,73 Expressed in terms of the components in the yx and xx directions and with ve denoting the viscoelastic contribution, the full equations are.^40,41,71,73where b and c are terms in the following equationWe use the subscript ‘s’ in the above equations to represent contributions to total stress from the suspension with individual particles that cannot be broken down further. We will use the subscript ‘A’ to represent the contributions to the total stress from the aggregates and agglomerates as they form and break apart. To accurately model the graphene oxide agglomerate formation, breakdown, and stress contribution, the enhanced thixotropic mHAWB model is linearly superimposed with an agglomerate viscoelastic and an elastic contribution to total stress (as denoted by subscript A).^40,41,71,73 We follow this strategy here with the ethixo-mHAWB model as follows,

σ_tot = σ_yx,ve + σ_yx,A,ve + σ_yx,A,e (8)

The last two terms in eqn (8) will incorporate a thixotropic evolution differential equation, with a scalar thixotropic parameter, λ, to represent the level of microstructure at any time, spanning [0; 1]. Zero represents fully broken-down structure and one represents fully structured agglomerates. We follow an identical approach from the literature,^{33,37,40,41,58–60,63,67–69,71,73} as we do for capturing the GO aggregates' elastic and viscoelastic stress contributions.^43,44,70,74 The following equation describes the evolution of the structure as a function of the shear rate of the suspension,where t_r1 and t_r2 are ratios of structure shear breakdown and build up respectively, and τ_λ is the overall aggregation timescale.^40,41,71,73 Eqn (9) has three terms to describe the evolution of thixotropy: (1) shear breakdown, proportional to shear rate, and λ, amount of structure still present; (2) shear buildup, proportional to (1 − λ); and (3) build-up due to Brownian movement of particles in dispersion, also proportional to (1 − λ).^11,13,14 We note here that we set d = 1/2 per literature for other carbon suspensions.^47,70 The advantage of the kinetic expression used in this manuscript is the fact that in its current form, it can capture the three important mechanisms of GO aggregate and agglomerate breakdown and formation. In eqn (9), for the thixotropic model used here, the steady state data is enough to accurately fit t_r1 and t_r2 due to the time independence of the structure parameter, which permits the decoupling of these variables from transient behavior and association with measured steady state information. Brownian forces contribute to thixotropy by bringing together nearest neighbor GO particles and other aggregates through the random motion of the GO particles in the suspension.^{33,37,40,41,55,58–60,63,67–69,71,73}

This thixotropic modeling incorporates the separating of strain and shear rate into elastic and plastic components from literature^{37,40,41,64–66} where γ = γ_e + γ_p and [small gamma, Greek, dot above] = [small gamma, Greek, dot above]_e + [small gamma, Greek, dot above]_p and is further described by,

where the subscript e represents the elastic component, and subscript p represents the plastic component.^{37,40,41,64–66} The plastic components are involved with irreversible processes, and breakage of structure, while the elastic components are involved with reversible processes and energy storage. The maximum aggregate strain is given as

γ_max = γ_0,Aλ, (11)

where γ_0,A is the aggregate zero shear rate limiting elastic strain. The elastic strain rate is given as

The elastic contribution from the GO microstructure to total stress is

where σ_y,0 is the yield stress. Elasticity has been observed in previous literature and arises from the percolating networks that constitute GO agglomerates undergoing recoverable deformation at low shear stresses.^82–85 The ethixo-mHAWB viscoelastic contribution to total stress from the presence of aggregates and agglomerates is given aswhere G_A is the elastic modulus of the ‘fully structured’ aggregates, μ_A is the viscosity of the aggregates, and m is a fitting parameter, set to m = 1.5 for GO per previous work.^40,41

3 Materials and methods

3.1 Graphene oxide synthesis and particle size analysis

ImageJ was used to determine the graphene particle size distribution of the GO dispersions produced via Hummer's method as described in the ESI.†⁸⁶ Raman spectroscopy was conducted on the resulting GO after chemical exfoliation using Hummer's method. Refer to Fig. S5† for the Raman spectrum with the average intensity ratios of the D-Band to the G-Band corresponding to the presence of oxygenated defects on the edge and basal plane. As shown in Fig. S6 and Table S3,† Raman Spectroscopy was conducted on multiple GO film samples each with the representative spectrum and intensity ratios of D-Band to G-Band and 2D-Band to G-Band confirming the presence of multi-layer GO with oxygen functional groups resulting from the chemical exfoliation process. In order to create GO suspensions from varying centrifugation speeds, a stock 1.1 wt% GO in H₂O was centrifuged at 100g for 5 min to remove any undissolved large aggregates and collecting the resulting supernatant as the basis to create 500g and 1000g GO suspensions as stated in the ESI.† As described below in Section 3.2, the 500g and 1000g GO suspensions were cast onto a SiO₂/Si wafer to conduct SEM to obtain GO particle morphology images which served as the basis for particle size distribution analysis discussed later in Section 4.1. SEM images at a zoom of 950× were first adjusted for brightness/contrast and then converted to binary images. The Paintbrush tool was sparsely used to divide overlapping graphene oxide sheets when the overlaps were obvious upon visual inspection. The Fill Holes function was then used to ensure that graphene oxide sheets presented a solid surface area. The Erode function was used to remove residual pixel noise. The Analyze Particles function was used to determine Regions of Interest (ROIs); a minimum particle size of 0.5 μm² was set as a threshold with no threshold set for maximum. A total of five images and n = 946 particles were analyzed. Moreover, the particle size GO in suspension was probed through Dynamic Light Scattering (DLS). As shown in Fig. S4,† the DLS measurement provided evidence of a clustered GO sheet network of aggregates with a particle distribution between 300 nm to 550 nm coexisting in suspension.

3.2 Scanning electron microscopy

Scanning electron microscopy (SEM) was used to characterize the morphology and size of the GO sheets using a JEOL IT500HRLA SEM (JEOL USA, Peabody, MA, USA). A 30 kV beam voltage was used for imaging. All samples for SEM characterization were prepared by drop casting from a 0.2 mg mL⁻¹ dispersion of GO and ambiently dried onto a SiO₂/Si wafer. SEM image particle size analysis was conducted using ImageJ.⁸⁷ Refer to Fig. S7† for SEM images and Fig. S8† for Energy Dispersive X-ray (EDX) Spectroscopy with elemental composition of the GO film from drop casting a sample of the 500g GO suspension onto a clean SiO₂/Si wafer and drying at room temperature.

3.3 Rheology

All rheological measurements were performed with an ARESG2 strain-controlled rheometer from TA Instruments equipped with cup and bob geometry. For rheological experiments 10 mL of the 500g, and 1000g graphene oxide suspension in water was loaded into the cup portion of the ARESG2. The dimensions of the geometry are as follows: the bob has an inner cylinder diameter measuring 27.7 mm and an outer cylinder diameter of 30.0 mm, with the bob length measuring 41.6 mm. All rheological tests were performed at 25 °C, which was maintained by a Peltier temperature controller. The shear rate never exceeded 1000 s⁻¹ and a preshear of 300 s⁻¹ for 30 s was used before each test to eliminate the initial thixotropic, or memory effects of the sample.^40,41,71 In this work the experimental results will be shown for steady state, small amplitude oscillatory shear (SAOS, amplitude sweep at ω = 12.6 rad s⁻¹; and frequency sweep at γ₀ = 10) and large amplitude oscillatory shear (LAOS).^40,41,71 The LAOS signals presented in this work are for strain and strain rate respectively,

γ(t) = γ₀ sin(ωt), (15)

and

[small gamma, Greek, dot above](t) = γ₀ω cos(ωt), (16)

where ω is the frequency of oscillation in rad s⁻¹ and γ₀ is the strain amplitude. The small amplitude oscillatory shear (SAOS) follows the standard formalism,where n = 1, for SAOS. We note here that eqn (17) is a function of time t, frequency ω, and strain amplitude γ₀. In addition, it is noted that for LAOS n is the running index (when not equal to one), and the upper limit of the summation will go to infinity. The ratio of the magnitude of the third to the first harmonic is a metric of success of our model predictions and calculated as,where the subscript 3 represents the third harmonic values.^40,41,71 Eqn (18) is the relative intensity of the third harmonic normalized by the first harmonic intensity. It is used to measure how well the nonlinear ethixo-mHAWB model fits the collected rheological data. And will be shown on the SAOS predictions in Fig. 4.^40,41,71

3.4 Neutron scattering

Small-angle neutron scattering (SANS) measurements were performed on the NG7-SANS beamline located at the NIST Center for Neutron Research (NCNR) in Gaithersburg, MD.⁸⁷ The graphene oxide particles suspended in water (either H₂O or D₂O) were loaded and sealed in titanium demountable cells with a nominal path length of 1 mm. Scattering data were collected at sample-to-detector distances of 1 m, 4 m, and 13 m (lenses) to provide a combined q range from approximately 0.001 Å⁻¹ < q < 0.5 Å⁻¹, where q = 4πλ⁻¹ sin(θ/2), q is the magnitude of scattering vector, λ is the incident neutron wavelength (6 Å), and θ is the scattering angle.

Ultra-small-angle neutron scattering (USANS) measurements were performed on the BT5-USANS instrument at the NCNR.⁸⁸ The slit-smeared USANS intensity was measured over a significantly lower q-range, spanning from approximately 0.00003 Å⁻¹ < q < 0.003 Å⁻¹, which provided an overlapping q-region with the 13 m (lenses) SANS configuration between 0.003 Å⁻¹ and 0.001 Å⁻¹. The slit-smeared USANS data were de-smeared to compare the SANS and USANS on the same absolute intensities. All data were normalized to an absolute intensity I(q) with units of inverse cm⁻¹ sr⁻¹ (denoted here only as cm⁻¹ as the inverse steradian is redundant in this application) after subtracting the scattering from the empty cell and blocked beam using the NCNR reduction procedures in Igor software.⁸⁹ Lastly, the q-independent incoherent scattering (B) was determined at the high-q plateau and subtracted from the total intensity to give the q-dependent coherent scattering, I(q) − B. The combined SANS and USANS curves were fit using the DREAM algorithm in SasView (version 5.0.5) using a linear-weighted sum of the “lamellar” model and the “correlation length” model.⁹⁰ The details of the model equation, fit parameters, and parameter uncertainties are discussed further in the ESI.†

3.5 Rheo-dielectric measurements

Dielectric spectroscopy measurements of the 500g and 1000g GO dispersions were made under steady shear with dielectric spectroscopy measurements using an ARES G2 strain-controlled rheometer outfitted with the cup and bob Couette system described above. This is coupled with an Agilent 4980A LCR meter operating between 20 Hz to 2 MHz with a redispersion of 1 MHz.⁹¹ The dielectric spectroscopy analysis resulted in impedance (Z) and phase angle (θ) measurements over the frequency range. Each run was completed after waiting 5 minutes at the steady shear (0, 0.1, 10, 100, 700 s⁻¹) before starting any dielectric frequency sweep. Each dielectric sweep from 20 Hz to 2 MHz was performed five times at each shear rate.

3.6 Model fitting and optimization

To fit the model parameters of the ethixo-mHAWB model to the rheological data, we follow the previous protocol established by Armstrong et al., and Horner et al.^{37,40,41,71,73,83,84} The steady-state parameters are fit to steady-state data by minimizing the normalized cost function, F_cost,ss, then held constant (during the transient parameter fit). The best-fit parameters are found using a parallel tempering algorithm, and eqn (19) shown below:^71,72,83,84where y_i is the steady state stress data and f_i is the model prediction. Then, while keeping the steady state parameters fixed, we fit the transient parameters to two or three sets of LAOS data, again with parallel tempering, minimizing the following cost function,where M is the total number of LAOS tests and N is the number of points per experiment.^{37,40,41,71,73,83,84} The model is fit directly to rheology data using the MATLAB ode23s function to integrate the differential equations.^{37,40,41,71,73,83,84} Ode23s can solve stiff systems of odes, while simultaneously maintaining enough accuracy to provide robust fits with all the models tested here.^{37,40,41,71,73,83,84} With the steady-state parameters determined, they are kept constant to predict a series of SAOS (amplitude sweep and frequency sweep), and 3–4 sets of LAOS (different than LAOS chosen for parameter fitting) at a frequency of 1 rad s⁻¹, and at strain amplitudes of 0.5, 1.0, 5.0, 10.0, 50.0 and 100. The predictions for each are shown in Fig. 2–5 below for the 500g and 1000g graphene oxide samples, with cost functions computed for each set of LAOS as,

The small amplitude oscillatory shear is predicted, and F_cost,SAOS computed as follows,

4 Results and discussion

4.1 Particle size distribution analysis

As seen in Fig. 1a and b, GO particle size surface areas range from 0.5–156 μm². Nearly 33% of all GO particles are between 0.5–2 μm² with an approximately exponential decaying particle size distribution from small-to-large surface areas. Particles between 0.5–5 μm² comprise nearly half the total particles (48%) and particles larger than 30 μm² are only 5% of the total distribution. These size distributions accord with previous explorations of applying 2D carbon materials to flow battery applications.⁹² For ImageJ processing steps from SEM images of the GO sheets see Fig. S1 and S10.†

Fig. 1 (a) SEM image of GO sheets drop casted and ambient dried onto a SiO₂/Si wafer with inscribed ImageJ transformation processed with region of interest (ROI) overlapping sheets with drawing tool Analyze Particles (with a min threshold size of 0.5 μm²); (b) histogram with threshold binning with inscribed graphene oxide particle size distribution analysis from ImageJ ROI; area <30 μm² and bin width = 1 μm² with cumulative distribution in red (n = 946 and average area = 6745.6 ± 12.6 μm²); (c) combined SANS and USANS structural measurements (blue circles) of graphene oxide suspension spun at 500g in H₂O and the summed lamellar model fit (solid black line).

4.2 Small-angle neutron scattering

As shown in Fig. 1c, the combined USANS and SANS intensities reveal the in situ structure of a percolating network of GO sheets suspended in water. The probed q-range spans four decades, which corresponds to length scales from approximately 1 nm up to 20 μm as observed in Fig. 1c. The measured intensity (blue circles) was modeled by a summed lamellar-correlation length model (solid black line). The combined lamellar-correlation length scattering model indicates a percolated network of clustering graphene oxide sheets, which captures the high-q scattering from the flat and thin primary sheets, while also capturing the surface-fractal scaling behavior above and below a characteristic correlation length (ξ ≈ 540 nm). The reduced goodness of fit was χ²/N = 3.9, and no polydispersity was applied to any parameters. The best-fit parameters and uncertainties are given in Table S2.†

The qualitative features of the apparent power-law slopes are described in Table S2 of ESI and by eqn (S2)–(S4)† are discussed in three different regions of q, demarcated by vertical dotted lines in Fig. 1c. These regions correspond to high-q (0.006 < q < 0.5 Å⁻¹), mid-q (0.0002 < q < 0.006 Å⁻¹), and low-q (0.00003 < q < 0.0002 Å⁻¹). Within the high-q region, an observed power-law of I(q) ∼ q⁻² indicates scattering from a uniformly flat, sheet-like region of the GO primary particles. The best-fit thickness determined from the lamellar model parameter (δ = 1.1 nm) agrees with the expected thickness of single GO sheets. In the mid-q region at length scales larger than 100 nm, a different power-law exponent (m_q = −3.2 to −3.6) is observed up to an apparent correlation length of 540 nm. This region corresponds to scattering from a surface fractal with a relatively roughened topology which suggests that the graphene sheets do not remain flat in dispersion at length scales above 100 nm and instead begin to fold, crumple, or overlap. At the low-q region below the correlation length, the power-law scaling exponent (n = −3.2) continues up to the largest length scale probed by USANS (2π/q_min ≈ 20 μm). This surface-fractal scaling corresponds to scattering from the rough surface of larger GO clusters. Since a low-q plateau (Guinier region) is not observed, the maximum cluster size can be inferred to have a lower limit of its radius of gyration, R_g,max > 20 μm. Overall, the in situ structure determined from SANS and USANS agrees with the dried structure observed from SEM. Both techniques indicate the percolation of large clusters containing sheet-like graphene oxide primary particles.

Contrast variation experiments were performed to determine the neutron scattering length density (SLD) of GO particles. These experiments were accomplished by collecting SANS measurements of five different solvent ratios (20% to 100% by volume D₂O in H₂O) at the same GO concentration. The resulting particle SLD was estimated as ρ_p = 8.3 ± 0.4 × 10⁻⁶ Å⁻², as shown in Fig. S2.† Using the estimated particle SLD and the known solvent SLD (ρ_H2O = −5.6 × 10⁻⁷ Å⁻²), the total scattering invariant of this two-component system could be computed and used to estimate the total volume fraction of graphene oxide sheets in the 500g sample. The scattering invariant was estimated to be 2.3 × 10⁻⁴ cm⁻¹ Å⁻³, and the total volume fraction of scattering centers (0.15% by volume GO) was estimated after determining the particle SLD and scattering invariant. Lastly, the specific surface area of dispersed particles in solvent (particle surface area per particle volume) is determined by S_v = C_P(2π)⁻¹(ρ_P – ρ_H2O)⁻², in which C_P is the Porod constant determined at the limiting high-q region from a linear fit of I(q) q⁴ as a function of q⁴ (C_P = 2.9 ± 1.8 × 10⁻⁴ cm⁻¹ Å⁻⁴). Assuming the GO particles retain a density of 0.26 g cm⁻³, the specific surface area of GO particles in dispersion was estimated to be S_v = 220 ± 140 m² g⁻¹. Details of the neutron contrast variation measurements, scattering invariant, volume fraction, Porod constant, and specific surface area estimations are described in the ESI.†

4.3 Rheology and TEVP modeling

Fig. 2a–c and 3a–c show the steady state and transient data and ethixo-mHAWB model fits for both the 500g and 1000g GO suspensions respectively. The best fit parameter values of each fit, and comparison are shown in Table 1, below. Recall that the seven steady state parameters are fit to one set of steady state data; while the three transient parameters are fit to two sets of LAOS data at ω = 1 rad s⁻¹ and γ = 5, 10 using the parallel tempering algorithm. Three of the ethixo-mHAWB model parameters are fixed as annotated in Table 1 below, based on best values for similarly structured materials from the literature.^{37,40,41,47,93} Visual inspection of Fig. 2a and 3a show an immediate difference in magnitude of the yield stress, and infinite shear viscosity between the 500g and 1000g GO suspension indicating that the 1000g sample demonstrates fewer effects of residual microstructure, although there is certainly some present. This may be in some part due to the higher shear forces exerted at 1000g centrifugation as well as the 500g process permitting increased particle–particle interactions due to higher sedimentation times. Inspection of Fig. 2b, c, 3b and c also show a significant difference in the magnitudes of the maximum stresses of the two sets of LAOS data, indicating that the aggregates play a significant role in the total stress even during LAOS. It is known that by changing the direction of flow twice a cycle leads to an increase in shear breakage above and beyond only increases in the magnitude of shear rate, or shear stress.^{37,40,41,60,94,95} By comparing the magnitude of the maximum stress of the LAOS data shown below it is clear that the 500g sample has more structure, aggregates, and agglomerates, and this increases the stress over the LAOS cycles.

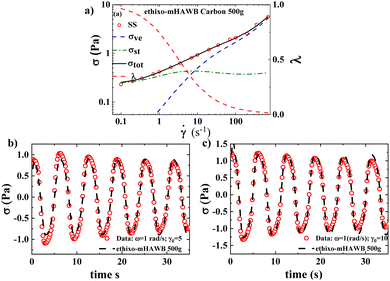

Fig. 2 (a) Steady state fit and data using the ethixo-mHAWB model fit for the 500g GO suspension (red circles data; dashed blue viscoelastic contribution from water backbone and individual graphene oxide particles; green dashed viscoelastic contribution from aggregates; red dashed lambda); (b) and (c) ethixo-mHAWB fits to two sets of LAOS at = 1 rad s⁻¹ and γ₀ = 5, 10 respectively.

Fig. 3 (a) Steady state fit and data using the ethixo-mHAWB model fit for the 1000g GO suspension (red circles data; dashed blue viscoelastic contribution from water backbone and individual GO particles; green dashed viscoelastic contribution from aggregates; red dashed lambda); (b) and (c) ethixo-mHAWB fits to two sets of LAOS at ω = 1 rad s⁻¹ and γ₀ = 5, 10 respectively.

Table 1 Best fit parameter values, and parameter descriptions for the 500g and 1000g graphene oxide suspensions

Parameter	Description	500g GO	1000g GO
μ0,s (Pa s)	Zero shear viscosity of suspension & ind. particles	0.071	0.011
μ∞,s (Pa s)	Infinite shear viscosity of suspension & particles	0.006	0.004
τC (s)	Cross time constant	0.047	0.052
tr1 (s)	Ratio of shear breakdown to Brownian build-up constant	0.384	0.991
tr2 (s)	Ratio of shear aggregation to Brownian build-up constant	0.133	0.058
μA (Pa s)	Agglomerate viscosity	0.263	0.079
σy0 (Pa)	Yield stress	0.229	0.024
d	Power law for shear aggregation (fixed parameter)	0.5	0.5
m	Power law for effect of aggregate viscosity (fixed parameter)	1.5	1.5
γ∞ (Pa s)	Infinite strain (fixed parameter)	1	1
τλ (s)	Time constant of thixotropic evolution	1.112	2.590
GA (Pa)	Elastic modulus of agglomerates	1.013	8.845
Gs (Pa)	Elastic modulus of suspension and particles	4.689	5.250
Fcost (SS)	Normalized cost function of steady state fit	0.0101	0.0056
n (points)	Number of data points of steady state fit	16	16
RSS	Residual sum of squares for steady state fit	0.0260	0.0081
k (par.)	Number of parameters fit to steady state data	7	7
Fcost (trans)	Cost function of LAOS transient parameter fit	0.0024	0.0011
n (points)	Number of data points of transient parameter fit	3992	3992
RSS	Residual sum of squares for transient fit	89.441	19.026
k (par.)	Number of parameters (or cycles) fit to LAOS, transient data	3	3

---

An analysis of Table 1 below quantifies what is shown graphically in Fig. 2 and 3. There is a significant drop in yield stress, and the infinite, zero, and aggregate viscosities. The yield stress drops by an order of magnitude due to the ostensible decrease in the amount of structure present in the 500g vs. the 1000g GO samples. In addition, analysis of the F_cost suggests that the use of the ethixo-mHAWB model for this system seems to have been more justified for the 1000g GO system.^{40,41,60,94,95} Which possesses lower zero-shear (or fully structured) and infinite-shear (or fully-unstructured) viscosities when compared to the 500g slurry.

Fig. 4a and c display the frequency sweeps (performed at γ₀ = 10), while Fig. 4b and d show the amplitude sweeps (performed at ω = 12.6 rad s⁻¹), for the 500g and 1000g graphene oxide systems, showing the data and ethixo-mHAWB model predictions. Qualitatively, the ethixo-mHAWB model seems to capture material viscoelasticity as the frequency increases at constant strain amplitude per Fig. 4a and c, and as the strain amplitude increases at constant frequency per Fig. 4b and d. However, Table 2 makes it clear that based on SAOS F_cost values, the model more accurately predicts the 1000g frequency and amplitude sweeps. This demonstrates again that the lower centrifugation magnitude of the 500g sample has led to a markedly different microstructure from the 1000g sample and that we are nearing the limits of the ethixo-mHAWB model's accuracy for the higher viscosity 500g system.

Fig. 4 Ethixo-mHAWB SAOS predictions (discrete point data; dashed lines ethixo-mHAWB predictions) (a) frequency sweep at γ₀ = 10; and (b) amplitude sweep at ω = 12.6 rad s⁻¹ of the 500g GO suspension; (c) frequency sweep at γ₀ = 10; and (b) amplitude sweep at ω = 12.6 rad s⁻¹ of the 1000g graphene oxide suspension.

Table 2 F_cost comparison for SAOS and LAOS predictions with ethixo mHAwB for the 500g and 1000g graphene oxide suspension

Parameters	500g GO	1000g GO
Fcost,SAOS
Freq sweep; γ0 = 10 (–)	0.0097	0.0121
I3/I1	0.0100	0.0090
Amp sweep; ω = 12.566 rad s^−1	0.0710	0.0084
I3/I1	0.0111	0.0117
Fcost,LAOS
(ω = 1)	0.0203	0.0033
γ0 = 0	0.0260	0.0035
γ0 = 1	0.0230	0.0022
γ0 = 5	0.0087	0.0025
γ0 = 10	0.0166	0.0031
γ0 = 50	0.0275	0.0051
γ0 = 100	0.0671	0.0069
Fcost, averaged	0.0337	0.0079

---

Fig. 5 and Table 2 below show the results of the LAOS predictions of the six sets of LAOS data at ω = 100 rad s⁻¹ and γ₀ = 5, 10, 50, and 100. Qualitatively the model predicts the 1000g LAOS data better than the 500g data. This is again corroborated by the LAOS F_cost values comparison in Table 2.

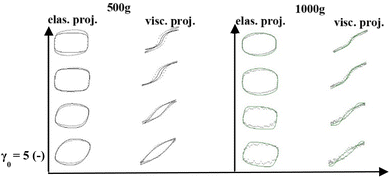

Fig. 5 Ethixo-mHAWB LAOS predictions and LAOS data (discrete points data; dashed lines ethixo-mHAWB predictions) at six different strain amplitudes: γ₀ = 5, 10, 50 and 100 at ω = 1 rad s⁻¹ for the 500g (black lines) and 1000g (green lines) graphene oxide in water suspensions (*note σ values are normalized by σ_max).

Fig. 6a and b are the Cole–Cole plots of the 500g and 1000g graphene oxide suspensions, respectively. Fig. 6c shows the color mapping of δ_t, a solid-like metric and Fig. 6d shows the Cole–Cole legend.⁹³ The Cole–Cole figures are once again demonstrating significant differences in elastic and viscous properties between the 500g and 1000g samples. For example, the magnitude of the stress itself is different by one order of magnitude, and Fig. 6a shows a much more solid-like substance at all the frequency and strain amplitude combinations (from the δ_t color comparison), and the fact that the 500g demonstrates more persistent solid-like behavior during the oscillation at higher strains. As we follow a cycle from steps 1 through 4 over a half-period, we can see that from 1 to 2 to 3 we are in a more solid-like configuration, and moving to point 4 takes us to the more liquid-like configuration of the microstructure, as it is broken down over this portion of the LAOS cycle, with an observable structural recovery as the shear rate decreases.

Fig. 6 (a) Cole–Cole plots of 500g; and (b) Cole–Cole plots of 1000g GO suspensions for six sets of LAOS collected at ω = 1 rad s⁻¹ and γ₀ = 0.5, 1, 5, 10, 50 and 100 ; (c) color mapping for δ_t; and (d) Cole–Cole interpretation legend.^{45,70,74,83–86} Green annotations reflect recorded properties at given step in LAOS cycle.

Fig. 7a–d show the accumulated contour mapping of δ_t and λ over six sets of LAOS at ω = 1 rad s⁻¹ and γ₀ = 5, 10, 50 and 100 for both the 500g and 1000g graphene oxide samples, respectively. The y-axis on each of the subfigures is from 0–6.27 s, the amount of time for a complete LAOS period at ω = 1 rad s⁻¹. We note that there are portions of more ‘liquid-like’ and ‘solid-like’ behavior shown for each figure. The λ values shown in the contour maps below are from the structure predictions of the ethixo-mHAWB model of each LAOS prediction, while the aforementioned δ_t values are computed with the Sequence of Physical Processes (SPP), using key parameters drawn from previous studies.^{45,70,82,93,94,96,97}

Fig. 7 (a) δ_t and (b) λ contour mapping over six sets of LAOS collected at ω = 1 rad s⁻¹ and γ₀ = 0.5, 1.5,10, 50 and 100 for the 500g graphene oxide suspension (note that the y-axis is from 0–6.27 s, a single period of LAOS at ω = 1 rad s⁻¹); (c) δ_t and (d) λ contour mapping over six sets of LAOS collected at ω = 1 rad s⁻¹ and γ₀ = 0.5, 1.5,10, 50 and 100 for the 1000g graphene oxide suspension (note that the y-axis is from 0–6.27 s, a single period of LAOS at ω = 1 rad s⁻¹; and color maps included with each contour map).

4.4 Rheo-dielectric measurements

Electrochemical impedance spectroscopy (EIS) is used for determining the kinetics of electrochemical processes, resistances, and capacitances.⁹⁸ From rheo-dielectric measurements, EIS analysis is conducted to determine the conductivity and capacitance of the GO dispersions under the different conditions of rheology and concentrations. This may permit us to characterize the potential performance of these slurries concerning their performance as potential flowable electrodes.

All rheological measurements were performed with an ARESG2 strain-controlled rheometer from TA instruments equipped with the cup and bob geometry. In this analysis, the bob possesses an outer diameter of 27 mm, an inner diameter of 26 mm, and a length of 34 mm. For rheological experiments, 10 mL of the 500g, and 1000g GO suspension in water was loaded into the cup portion of the ARESG2. The electrical percolation threshold of the GO suspensions in H₂O was determined by probing the frequency-dependent resistance to determine the conductivity. Since the GO suspensions are in a water fluid phase, the contribution of the measured resistance is electronic charge transfer without any ionic contribution.

The samples consisted of 1000g GO in H₂O (∼0.9 wt% GO in H₂O) and 500g sample (∼0.1 wt% GO in H₂O after 500g centrifugation) within a frequency range of 20 Hz to 2 MHz. A stock solution was first made with a low centrifugation speed of 100g for 5 min to remove any undissolved large aggregates by using the resulting supernatant. There was an observed yield stress just by inverting the vial of the GO suspension and appeared to be strongly shear thinning. From the rheo-dielectric measurements, the impedance (Z) (ohms), the frequency (f) (Hz) and phase angle (φ) (radians) were determined. A brief conceptual overview of the EIS method to determine the Nyquist plot can be found in ESI Section 3.† From this data, the resulting complex plane plots of Nyquist plots of imaginary versus real impedance can be calculated using the following equations:

Re(Z) = Z cos(φ) (23)

Im(Z) = Z sin(φ) (24)

In Fig. 8, the Nyquist plots were obtained by plotting ABS[Im(Z)] vs. Re(Z) (absolute value of imaginary impedance versus real impedance) for all the rheo-dielectric experiments to find the corresponding real resistance of the GO samples under the different shear conditions and concentrations. By taking the absolute value, low-frequency inductance contributions and high-frequency capacitance contributions are all shown as positive imaginary impedances above the x-axis, giving the Nyquist plots the observed V-shape instead of the typical semicircle plots and inductance tail at high frequencies. This format serves to particularly highlight the critical frequencies of the material and describe the evolution of impedance, or lack thereof in the case of these experiments, relevant to flow system application.^99,100

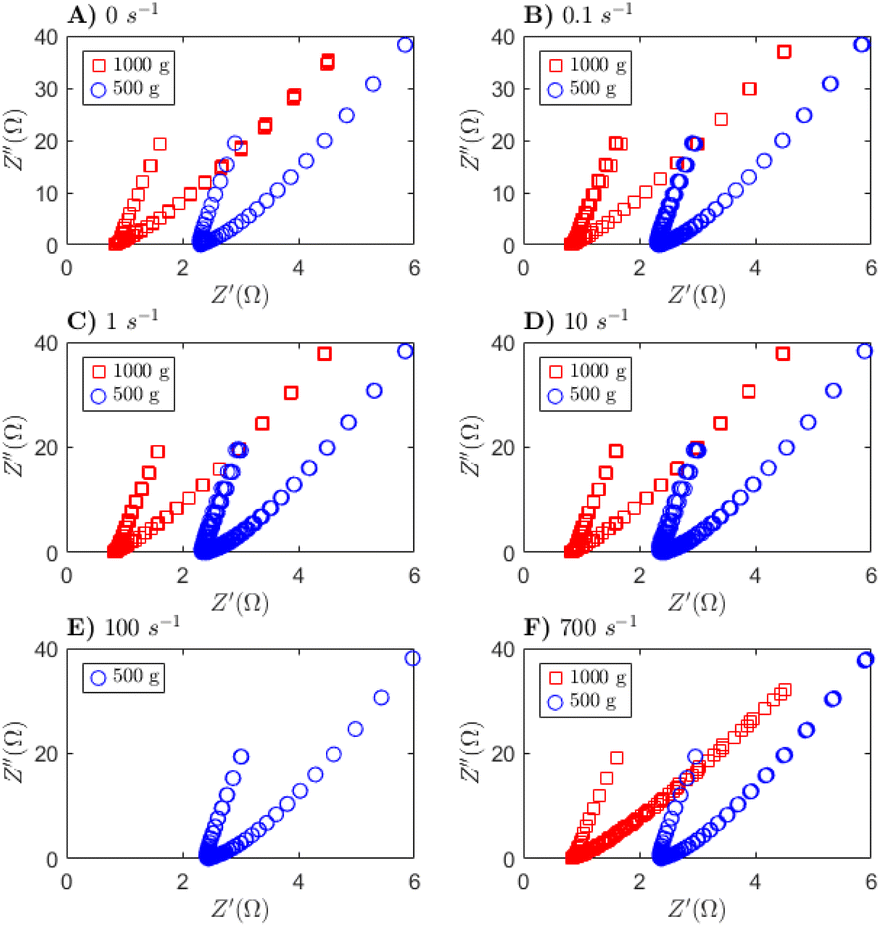

Fig. 8 Impedance in Ω as a function of (A) 0 s⁻¹, (B) 0.1 s⁻¹, (C) 1 s⁻¹, (D) 10 s⁻¹, (E) 100 s⁻¹ and (F) 700 s⁻¹ shear rate for 1000g GO (red) and 500g GO (blue). No data was collected for 1000g GO at 100 s⁻¹.

Since the focus of the data analysis is the determination of the real ohmic resistance for each condition, determining where the x-intercept occurs for the calculation of conductivity is the most important aspect of the Nyquist plots. Analysis of the Nyquist plots determined the ohmic resistance contribution with 0 s⁻¹, 0.1 s⁻¹, 1 s⁻¹, 10 s⁻¹, 100 s⁻¹, and 700 s⁻¹ shear rates. Since each rheo-dielectric measurement involves a frequency sweep from 20 Hz to 2 MHz five times at each shear rate, each Nyquist plot contains the real impedance as the x-intercepts corresponding to the ohmic resistance of the GO suspension. The x intercept of the 1000g GO sample occurred at around a frequency of 10 023.74 ± 0.01 Hz and the 500 g GO sample occurred at a frequency of around 12 619.15 ± 0.01 Hz. The plus or minus (±) Hz refers to the accuracy of dielectric measurement from instrumentation. Table 3 shows each average contribution. The ohmic resistance of the 500g and 1000g at zero applied shear rate is the electronic resistance of the innate microstructure of the GO suspension. The ohmic resistance decreased in the 1000g GO suspension with increasing shear rate. However, the ohmic resistance increased with increasing shear rate in the 500g GO suspension. These changes in ohmic resistance for both 1000g and 500g GO suspensions is due to the difference in the microstructure during steady shear. Determining the ohmic resistance of a flowable electrode suspension can help inform slurry electrode design to minimize ohmic power loss and maximize the electronic conductivity necessary for charge transfer in various flowable electrochemical energy storage devices. Overall, the 1000g GO suspension had a lower ohmic resistance is attributed to the higher loading of GO sheets with 0.9 wt% compared to the more dilute 0.1 wt% 500g GO since interparticle interactions tend to be strongest and most affected by the imposed flow at higher concentrations resulting in enhanced electrical percolation to facilitate the movement of electrons across finite distances despite being under shear. This is evident from the conductivity results in Table 4 comparing 1000g to 500g GO suspensions. Moreover, the rheology results in Section 4.3 show the 1000g GO suspension as being less viscous than 500g and therefore less solid-like since most of the larger particulate has been separated in the sample centrifugation process.

Table 3 Ohmic resistance for 1000g GO and 500g GO at different shear rates

Shear rate (s^−1)	1000g GO [Ω]	500g GO [Ω]
0	0.84321	2.31628
0.1	0.82216	2.34627
1	0.82265	2.40244
10	0.83461	2.41894
100	N/A	2.45011
700	0.83231	2.38442

---

Table 4 Conductivity for 1000g GO and 500g GO at different shear rates

Shear rate (s^−1)	Conductivity [S cm^−1]
	1000g GO	500g GO
0	0.81867	0.29803
0.1	0.83963	0.29422
1	0.83913	0.28734
10	0.82710	0.28538
100	N/A	0.28175
700	0.82939	0.28951

---

From this ohmic resistance data, the conductivity of each GO dispersion within the rheometer geometry is calculated by taking the inverse of the resistivity. Since the diameter of the bob is 27.7 mm, the cross-sectional area A of the bob is calculated at 6.02628 cm². Eqn (S1) (seen in the accompanying ESI)† can then be used to solve for resistivity using the length of the bob l as given by instrument specifications and resistance R from Table 3 above. Taking the inverse of the resistivity value from eqn (S1)† results in the conductivity value for each test in [S cm⁻¹] shown below in Table 4 and Fig. 10. A comparison of reported electronic conductivity values of GO from literature is included in Table S4.† Moreover, as shown in Table 4, the conductivity of the 1000g GO suspension increased with shear rate while the conductivity of the 500g GO suspension generally decreased with shear rate. As confirmed with the rheology results in Section 4.3, the 1000g GO suspension contains more of a finer microstructure comprised of less aggregates and smaller GO sheets because of the centrifugation process. The separation process resulted in a supernatant with more monodispersed GO particles with fewer graphene layer to create the 1000g suspension. These thinner GO sheets have higher intrinsic particle conductivity due to less resistance of the delocalized electrons allowing for more electron mobility through the conjugated double bond structure. Therefore, the 1000g GO suspension has smaller electrical percolation microstructure with enhanced charge transfer through shear-induced collisions of the thinner GO sheets. The thinner and smaller GO particles form a liquid-like microstructure in the 1000g suspension with shorter distances for electron transfer leading to a higher conductivity. The conductivity of the 1000g suspension increased with shear due to more intimate particle–particle points of contact through the collisions taking place between the smaller and thinner GO sheets that are in suspension. However, the conductivity of the 500g GO suspension was four times less with applied shear compared to the 1000g. This lower conductivity in 500g is from the presence of aggregates in suspension and with shear there are less points of contact between GO sheets in the microstructure. The 500g suspension is more polydispersed with larger GO particles forming larger aggregates under shear and more void space in suspension because of the fewer points of contact between the aggregates resulting in higher ohmic resistance for electron transfer and lower electronic conductivity.

Another method used to analyze the internal resistance contributions is to calculate ASR or area-specific resistance (Ω cm²). Table 5 shows the ASR values for each test under different shear rates and concentrations by multiplying the measured resistance values from Table 3 and the calculated bob area using the given instrument parameters. The ASR of the GO suspensions assess the efficacy and performance of GO as a slurry electrode for flowable electrochemical applications.

Table 5 Area-specific resistance for 1000g GO and 500g GO at different shear rates

Shear rate (s^−1)	ASR [Ω cm^2]
	1000g GO	500g GO
0	5.08142	13.95855
0.1	4.95459	14.13926
1	4.95754	14.47776
10	5.02961	14.57722
100	N/A	14.76506
700	5.01576	14.36921

---

From the results of the Nyquist plots in Fig. 8, the specific areal electrochemical capacitance (C_sp) in mF cm⁻² of the 500g and 1000g GO suspensions was determined. Under a constant shear rate across a cross-sectional area within a frequency range of 2 MHz to 20 Hz, the C_sp was determined using the following eqn (25) where f is the frequency in Hz, Z” is the imaginary component of impedance, and A is the geometric area of the rheometer bob in cm²:^101,102

The specific areal capacitance as a function of frequency for the GO suspensions under shear of 0 s⁻¹, 0.1 s⁻¹, 1 s⁻¹, 10 s⁻¹, 100 s⁻¹, and 700 s⁻¹ is plotted in Fig. 9. Across all the applied shear rates in Fig. 9, the specific areal capacitances of the GO suspensions were the highest for 500g GO at 12.6 kHz and the highest for 1000g at 10 kHz. With increasing frequency, the time for charge transfer decreases since the distance for charges to move also decreases.^103,104 In Fig. 9a, the specific areal capacitance of the 500g and 1000g GO suspensions with a zero shear rate at a low frequency of 502 Hz is 0.027 mF cm⁻² and 0.028 mF cm⁻², respectively. With a sweep to higher frequencies, there is a noticeable large increase in specific areal capacitance of 0.97 mF cm⁻² for 500g GO at 12.6 kHz and 0.67 mF cm⁻² for 1000g at 10 kHz which is due to the charge build up in the governing percolating microstructure of GO sheets as primary particles in suspension.

Fig. 9 Specific areal capacitance (C_sp) as a function of (a) 0 s⁻¹ (b) 0.1 s⁻¹ (c) 1 s⁻¹ (d) 10 s⁻¹ (e) 100 s⁻¹ (f) 700 s⁻¹ shear rate for 1000g GO (red) and 500g GO (blue). No data was collected for 1000g GO at 100 s⁻¹.

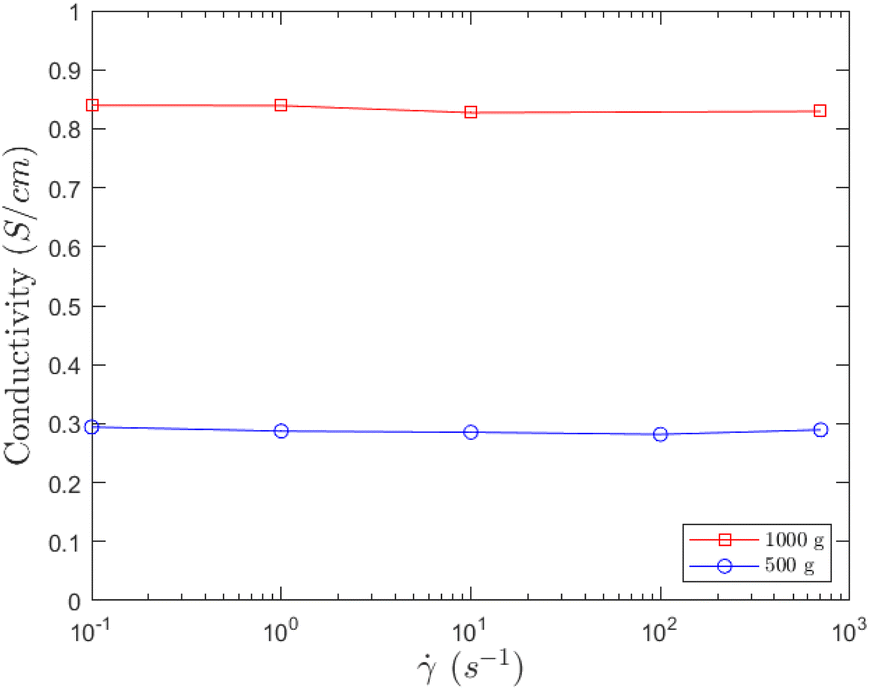

Fig. 10 Conductivity in S cm⁻¹ comparison for 1000g GO (blue) and 500g GO (red) at different shear rates.

The C_sp peaks at 10 kHz and 12.6 kHz for 1000g and 500g GO suspensions, respectively, are the characteristic flip frequencies which determine the Debye relaxation time for the 1000g and 500g GO suspensions to discharge to an equilibrium within an applied electric field.^105,106 The transition from long to short distance charge carrier mobility occurs at these characteristic maximum frequencies.^105–107 The C_sp in both the 500g and 1000g GO suspensions is mostly constant at frequencies below and above the characteristic flip frequency (∼10⁴ kHz) at zero applied shear. The lower C_sp at frequencies below the characteristic maximum flip frequency (<10⁴ kHz) is due to the charge carriers having to move longer distances through the microstructure suspension.^105,106 After applying shear to the 500g and 1000g GO suspension, the charge storage capacitance lowers when shifting to higher frequencies beyond the maximum due to charge carrier confinement within short distances.^105,106 This asymmetric specific capacitance is due to a non-Debye broader relaxation or discharge time because of the charge diploes on the GO particles.^105,106 Despite the lower conductivity compared to the 1000g suspension as shown in Table 3, there was a larger capacitance increase in the 500g GO suspension. This is due to the charge storage within the aggregates of GO in the 500g suspension without any leakage current at low shear rates. There is a shift to a higher flip frequency for the more viscous 500g with more aggregates in suspension since the charge transfer within the microstructure does not occur instantly since it takes time to align dipole moments within the larger GO aggregates.

The specific areal capacitance decreased drastically when sweeping to higher frequencies to 2 MHz indicating a dissipation of this charge build-up in the microstructure of the percolating large clusters of GO sheets. This governing microstructure of the GO sheets in suspension is disrupted by applying a steady shear rate to the GO suspensions thus, impacting the GO sheet–sheet interaction for charge transfer and storage. Therefore, an increase in shear rate of 0.1 s⁻¹, 1 s⁻¹, 10 s⁻¹, and 100 s⁻¹ applied to both the 500g and 1000g GO suspensions decreased the specific areal capacitance at low frequencies such as 502 Hz. Unlike the pristine 500g and 1000g suspensions, there was not a large increase in capacitance with sweeping to higher frequencies such as 10 kHz for 1000g to 12.6 kHz for 500g. The capacitances of the 500g and 1000g in the table insets in Fig. 9b–9e were lower in magnitude at 10 kHz and 12.6 kHz compared to the capacitance of the undisturbed GO suspensions in Fig. 9a. As shown in Fig. 9f, at the largest applied shear rate of 700 s⁻¹, the specific areal capacitance of the 1000g GO suspension was the largest in magnitude across all applied shear rates with 4.63 mF cm⁻². This dispersed microstructure present in the 1000g GO suspension allows for bulk charge transport and not limited to local electron transfer events among particle aggregates. The large specific capacitance at the highest shear is due to the disruption of a system spanning microstructure network of thin GO sheets resulting in an increased frequency of particle–particle collisions. At the highest shear rate of 700 s⁻¹, there are smaller aggregates with more frequent collisions in suspension with higher inter-aggregate distance. The specific capacitance differences between the 1000g and 500g suspensions is dependent on the time scales for electron transfer as a function of the frequency-dependent dielectric response through electron transfer through either localized sites amongst particles or bulk transfer consistent with percolation and the presence of aggregates. This was evident for the 500g GO suspension which had the lowest capacitance of 0.15 mF cm⁻² in higher shear rates and at a higher frequency of 12.6 kHz. Overall, there was decrease in the C_sp at the characteristic maximum flip frequency with increased shear rate of 0.1 s⁻¹, 1 s⁻¹, 10 s⁻¹, and 100 s⁻¹ for all 500g GO suspensions. The same trend for C_sp at the characteristic maximum flip frequency was observed for the 1000g GO suspension with shear rate until a very large increase at the highest shear rate of 700 s⁻¹. Similarly, there was a slight increase of capacitance of the 500g GO suspension of 0.13 mF cm⁻² at 100 s⁻¹ and 0.15 mF cm⁻² at the highest shear rate of 700 s⁻¹. Therefore, there is better shear alignment with the more concentrated suspensions of GO such as 500g where interparticle interactions in the aggregates are the strongest and most affected by the imposed high shear rate at higher concentrations of sheets leading to a higher capacitance of charge storage. However, the increase in specific capacitance in the 1000g GO suspension is due to the likely formation of smaller aggregates of smaller GO sheets with more frequency of collisions during shear collectively storing charge minimizing leakage current.

The 1000g GO dispersion is found to be more conductive than the 500g GO dispersion across all shear rates. This suggests an inverse relationship between increasing centrifugal force and slurry viscosity and conductivity. The previous SANS and rheological analyses suggest that the 500g sample has more residual structure, aggregates, and agglomerates compared to the 1000g GO sample. Due to the dispersed nature of the particle network present in the 1000g GO sample, it will demonstrate less robust mechanical properties compared to the less aligned, more entangled network of the 500g sample. However, the higher centrifugation forces likely permit better intraparticle alignment of the GO flakes allowing for greater ease of electron flow resulting from enhanced conductive pathways. While it could be assumed that the decreasing size of agglomerates with an increasing shear rate would change the conductivity characteristics, it did not impact conductivity for either GO sample.

As such, we judge from the results that effective conductivity and linked properties such as resistance and impedance are not observably dependent on microstructure agglomeration states in GO dispersions. The observable timescales of structural buildup and breakdown are likely far outpaced by conduction suggesting that the flow of electrons throughout the material is contingent upon the construction of the percolated network of the GO particles themselves rather than interparticle interactions. If it is the case that electron transfer pathways are limited to the particles themselves, the resulting electronic resistance may stem from the gaps between particles in suspension.

5 Conclusions

Investigating the complex rheological, material, and chemical properties of chemically exfoliated graphene oxide suspensions after 500g and 1000g centrifugation conditions has allowed us to better understand the interwoven relationships between suspension microstructure and electrochemical characteristics. By characterizing various material properties – shape, size, morphology, structural defects, surface chemistry, and intrinsic conductivity – of the dispersed GO in flowable conditions, we have compiled and assessed an extensive dataset on electrochemically unique materials suitable for use in next-generation redox flow battery technologies. The novelty of the study is the combined rheological, material, microstructural, and electrochemical characterization of GO in suspension which has implications for applications of carbon nanomaterials as flowable electrodes for energy storage applications. Our results probe the microstructural evolution and electronic conductivity of GO sheets in suspension with shear. The more fluid-like microstructure of 1000g with smaller monodispered thinning GO sheets in suspension had lower ohmic resistance and higher electronic conductivity compared to the 500g GO suspension with polydispersed larger aggregates. Therefore, the thin GO sheets in suspension had the highest electrochemical capacitance at the highest shear rate suggesting that the higher frequency of particle–particle collisions of a network of smaller and more intrinsically conductive GO sheets can store higher electrochemical charge within the microstructural suspension.

By fitting the ethixo-mHAWB model to rheometric data, we have been able to predict the complex behavior of the graphene oxide dispersion while simultaneously translating our understanding of bulk properties to a more concrete understanding of how microstructure contributes to system shear-thinning, thixotropy, and viscoelasticity. This was linked to subsequent analysis of the microstructure by SANS and SEM, revealing the aggregation behavior of the individual graphene oxide sheets from their smallest individual morphologies to the crumpled, irregular forms of larger multi-particle agglomerates. The 500g sample was found to have higher zero-shear viscosity, yield stress, and more pronounced thixotropic behavior. Analysis suggested that the more concentrated and dispersed 1000g sample demonstrated a low impedance and maximum electrochemical capacitance at the characteristic flip frequency at 10 023.74 ± 0.01 Hz versus 12 619.15 ± 0.01 Hz. Additionally, it was found that the higher concentration of GO promoted an average of 65% higher conductivity and lower resistance compared to the 500g sample. In this work, the primary particle, aggregate, and agglomerate differences between the microstructures were examined and subsequently revealed the factors most relevant to the flow and microstructural properties of the GO slurry, concurrently demonstrating an inverse correlation between increasing centrifugal force and slurry viscosity and conductivity, informing the use of such GO materials for application in future flow battery technologies. Given this understanding of the relationship between flow and electrochemical performance, the design of these prospective battery technologies can be honed to maximize their effectiveness. New lines of research can be developed in using carbon-based and other flowable nanomaterials for those applications.
