Biobased oleyl glycidyl ether: copolymerization with ethylene oxide, postmodification, thermal properties, and micellization behavior

Abstract

Oleyl glycidyl ether (OlGE) is a highly hydrophobic monomer synthesized from a biobased fatty alcohol and epichlorohydrin. When combined with hydrophilic monomethoxy poly(ethylene glycol) (mPEG) macroinitiators, well-defined, highly amphiphilic AB block copolymers are obtained via anionic ring-opening polymerization (Đ ≤ 1.08). Surprisingly, an investigation of the copolymerization kinetics of OlGE and ethylene oxide revealed an almost ideally random copolymerization (r_EO = 1.27, r_OlGE = 0.78) despite the significant structural differences. Both statistical and block copolymers were investigated regarding their behavior in aqueous solution. The block copolymers of the type mPEG-b-POlGE featured two distinct melting temperatures (T_ms). Besides a melting transition of mPEG, a second T_m is attributed to the crystallization of the cis-alkenyl side chains of the OlGE units. Varying degrees of side chain hydrogenation of the POlGE homopolymer using potassium azodicarboxylate (PADA) allowed for tailoring of the T_m. The thiol–ene click reaction permitted subsequent functionalization. This work does not merely highlight the prospect of novel polyether surfactants, it also suggests the potential of biobased long-chain polyethers for the development of drug delivery systems featuring temperature-controlled release.

---

Introduction

Surfactants play a key role in numerous everyday applications, in which the combination of components with different polarity is required. They typically alter the surface properties of water. These applications include surfactants for cosmetics, coatings, paints, biotechnology, water purification, and many others.^1,2 Polymer surfactants provide a means to tune and finely control these behaviors in manifold ways, due to their vast structural options. Mostly, when discussing polymer surfactants, reference is made to block copolymers. However, the term ‘surfactant’ also includes polysoaps, which are random copolymers of hydrophilic and hydrophobic monomers, among many other architectural configurations. The domain of polymer surfactants is extensive, and comprehensive reviews are available.^1,3 The hydrophilic component of surfactants can either be charged, as seen in examples such as poly(acrylic acid),⁴ quaternized arylamines,⁵ and sulfonates,⁶ or uncharged, as in saccharides,⁷ polyoxazolines,⁸ and poly(ethylene glycol) (PEG).⁹ The industry provides numerous series of ethoxylated compounds as surfactants, such as e.g. Tween®, Myrj®, Span®, Triton X®, and Brij®.¹⁰

Fats and oils represent renewable feedstocks for the chemical industry. Their substantial production volume (208.1 Mt in 2019) enables the cost-efficient supply of a diverse range of linear alkyl and alkenyl alcohols from triglycerides.^11–15 The side product glycerol can be converted to epichlorohydrin and is equally commercially available as Epicerol® in a green process from Solvay. Glycerol is chlorinated twofold with HCl and after one elimination reaction, epichlorohydrin is formed.^16–18 Epichlorohydrin can be utilized to introduce epoxide moieties in molecules.¹⁹ With a growing emphasis on the development of biobased chemicals that do not affect the food chain,^20,21 it is crucial to underscore the effective utilization of triglycerides derived from non-edible oil plants as an alternative to using food crops.²² Moreover, converting waste into chemicals proves to be significantly more economical when compared to biofuel or electricity production.²³ Ethylene oxide, the monomer used to produce PEG can be generated from biobased sources using two primary methods: dehydration of bioethanol to produce ethylene, followed by oxidation^24,25 or electrosynthesis from bioethanol.²⁶ Another viable approach involves production from CO₂ and water.²⁷

The field of drug solubilization via implementation of multifunctional polymer micelles is highly active in research, focusing on the purposeful treatment of diseases. These systems effectively handle the limitations of free hydrophobic drugs such as low solubility, dose-limiting toxicity, and inadequate biodistribution.^28,29 The trigger to release drugs from external stimuli-responsive polymers can be changes in pH, temperature, magnetic fields, light, engineered sensitivities to enzymes, or radiofrequency.^30–32 The lower critical solution temperature of poly(N-isopropyl acrylamide) can be employed to trigger drug release during local hyperthermia.³³ Magnetically responsive nanoparticles (Fe₃O₄ or Fe₂O₃) can be incorporated into micelles or liposomes loaded with drugs while the drug release can be induced by an alternating external field.³⁴ Brazel et al. employed poly(EG)-b-poly(ε-caprolactone) micelles in combination with iron oxide nanoparticles. The release of doxorubicin was demonstrated to occur by melting of the crystalline core when subjected to external magnetic field-induced heating.³⁵ Block copolymers of PEG and glycidyl ethers with a hydrophobic chain have been synthesized and investigated for their use as cosurfactants,³⁶ and show low cytotoxicity for splenic immune cells.³⁷ ABA-type triblock copolymers of these structures can also be employed to prepare thermoresponsive hydrogels, capable of taking up Nile red as a model for a hydrophobic drug. By variation of the alkyl side chain length, the T_m of the hydrophobic block was altered to 49 °C in pure water.³⁸

Here we introduce the monomer oleyl glycidyl ether (OlGE), prepared from oleyl alcohol and epichlorohydrin. This monomer was utilized in anionic ring-opening polymerization (AROP), affording homo- and block copolymers as well as statistical copolymers with ethylene oxide. Long-chain glycidyl ethers permit to modify the properties of highly water-soluble PEG, thereby allowing the fine-tuning of the physical characteristics of aqueous solutions.^9,39 Furthermore, mPEG-b-poly(alkyl glycidyl ether) surfactants were synthesized and the ‘efficiency-boosting effect’ was investigated. The polymers increased the efficiency of medium- and longer-chain surfactants to stabilize water/oil interfaces.³⁶ Analogously, terpenoid-derived systems that cannot crystallize due to their branched structure were explored and showed comparable results.^40,41 We demonstrate that OlGE is a potentially biorenewable and versatile platform for a variety of surfactants.

Experimental section

Information regarding the reagents used, detailed monomer and polymer synthesis, as well as the analysis techniques employed, is available in the ESI.†

Results and discussion

Monomer synthesis

The precursor oleyl alcohol is typically obtained through the hydrogenation of methyl oleate in industrial settings. Conventional industrial methods employ hydrogen gas and catalysts for the hydrogenation of methyl oleate. However, we opted for a more classical reduction method that employs lithium aluminum hydride (LiAlH₄, Scheme 1).⁴² This choice was made to avoid the need for a high-pressure hydrogen gas apparatus. However, when considering large-scale synthesis, hydrogen gas would be the reducing agent of choice. Methyl oleate is a byproduct of transesterification, a process that involves triglycerides commonly sourced from large quantities of bio-derived oils and fats.¹² Additionally, epichlorohydrin can be obtained from both petroleum-based resources and glycerol, which is a byproduct of biodiesel production and is available in abundance from fats and oils.^16,17 The combination of oleyl alcohol and green epichlorohydrin obtained by this pathway results in a completely bio-based monomer.

Scheme 1 Two-step reaction for the synthesis of the oleyl glycidyl ether monomer.

Oleyl glycidyl ether (OlGE) features a long hydrophobic side chain with a cis double bond at the C9 carbon atom. This prevents the side chain from crystallizing at room temperature and can serve as an anchoring point for post-polymerization modification if incorporated along the polymer backbone. The two-step reaction involves the reduction of methyl oleate followed by an etherification of the oleyl alcohol with epichlorohydrin (ECH) via phase transfer catalysis, as illustrated in Scheme 1. Hence, oleyl alcohol and epichlorohydrin underwent a two-phase reaction in the presence of a phase transfer catalyst under highly alkaline conditions, resulting in the formation of OlGE with yields of up to 71%. However, a known side reaction occurred during this process: the deprotonation of ECH with subsequent ring-opening led to 3-chloroallylalcohol. This alcohol is capable of reacting with ECH, leading to the formation of 3-chloroallyl glycidyl ether.¹⁹ The byproduct was effectively removed using Kugelrohr distillation, facilitated by the significant difference in boiling points between the byproduct and OlGE.

All experimental details as well as the characterization are given in the ESI.†

Synthesis of oleyl glycidyl ether-based polymers

All polymers were synthesized using standard AROP techniques. Experimental details along with characterization are provided in the ESI.† For block copolymers, the monofunctional initiator monomethoxy poly(ethylene glycol) (mPEG) with molar masses of 2000 g mol⁻¹ (45 ethylene glycol units) and 5000 g mol⁻¹ (114 ethylene glycol units) was utilized. Prior to polymerization, mPEG was deprotonated to an extent of 90% using KO^tBu with the aid of [18]crown-6 and subsequently, the dried monomer OlGE was added. After the polymerization, the active chain ends were terminated using acidified methanol, and the resulting polymer was purified by precipitation. POlGE homopolymers were synthesized in the same way, but potassium(2-benzyloxy)ethanolate was used as the initiator. Since POlGE homopolymers are not the primary focus of this study, they have been excluded in Scheme 2. In the case of statistical copolymers, CsOH·H₂O was employed as the deprotonating agent. This choice was made to maintain consistency in the experimental procedures between the copolymerization kinetics measurements (as described below) and the actual polymer synthesis. The procedure involved dissolving the cesium(2-benzyloxy)ethanolate initiator salt in dry DMSO and THF, after which dried OlGE was introduced into the reaction vessel. Subsequently, ethylene oxide was condensed to the custom-made anionic flask. Statistical copolymers with an overall number of both repeating units of 120 were targeted. Slight deviations stem from difficult measuring of liquefied EO at −80 °C, as small temperature increases led to a volume expansion of EO in the graduated ampule.

Scheme 2 Synthesis of block and statistical copolymers containing oleyl glycidyl ether by employing AROP techniques.

Table 1 presents a summary of the synthesized polymers, including their characterization data and the intended composition compared to the calculated composition. Notably, all polymers based on oleyl glycidyl ether exhibited narrow dispersities ranging from 1.06 to 1.11. The shift in the SEC traces towards higher molar masses supports the block copolymer formation (Fig. S5 and S6†). Statistical copolymers showed slightly larger dispersities in the range of 1.11 to 1.15, although they still maintained a monomodal distribution, as illustrated in Fig. S9.† SEC analysis revealed an increase in molar mass for all polymers with the incorporation of higher amounts of OlGE. Variations are anticipated due to differences in the hydrodynamic volume behavior compared to the PEG calibration, which is particularly notable for POlGE homopolymers with their long side chains, leading to a bottlebrush-like structure (Fig. S12†). We would like to emphasize that achieving higher molar masses of the POlGE homopolymer was not tested, as this was beyond the scope of our study. It is essential to recognize that the molar mass calculated from SEC should be considered a rough estimate given the relative nature of the method employed. The NMR spectra can be found in the ESI (Fig. S3, S4, S7 and S8†). Differences observed between the theoretical and achieved degree of polymerization can be attributed to contamination by small amounts of OlGE homopolymer, initiated by residual traces of water. These polymers were subsequently removed during the work-up process.

Table 1 Polymer characterization of the OlGE block copolymers, statistical copolymers, and homopolymers

Polymer composition^a	n(OlGE)^th	n(EO)^th	Mn(SEC)^b (g mol^−1)	Mn(NMR)^a (g mol^−1)	Đ^b
a Determined via ^1H NMR analysis.b Eluent THF, PEG calibration, RI detector, ^ththeoretical.
mPEG45-b-POlGE2.4	3	—	3000	2800	1.06
mPEG45-b-POlGE5.0	6	—	4300	3600	1.06
mPEG45-b-POlGE7.5	9	—	4500	4400	1.06
mPEG45-b-POlGE11.3	12	—	4800	5700	1.08
mPEG114-b-POlGE2.9	3	—	6400	5900	1.08
mPEG114-b-POlGE5.8	6	—	7700	6900	1.07
mPEG114-b-POlGE7.3	9	—	8200	7400	1.06
mPEG114-b-POlGE9.9	12	—	9100	8200	1.07
P(EG123-co-OlGE7)	6	114	7500	7800	1.14
P(EG94-co-OlGE13)	12	108	7800	8500	1.15
P(EG103-co-OlGE35)	30	90	16 300	16 000	1.12
POlGE13	10	—	3400	4400	1.07
POlGE25	25	—	5800	8300	1.11

---

Reactivity ratios of OlGE/EO by in situ ¹H NMR copolymerization kinetics

Knowledge of microstructure is crucial to understand polymer characteristics. Depending on the type of monomers and polymerization techniques employed, various microstructures can typically be achieved, ranging from random copolymers to nearly blocklike, tapered structures. These microstructures have a significant impact on various polymer properties such as thermal and mechanical properties, micellization, and solubility among others.^43,44 In our study, we investigated the copolymerization behavior via in situ ¹H NMR analysis. To this end, EO and OlGE were copolymerized at 40 °C in an NMR tube equipped with a Teflon stopcock, using a mixture of DMSO-d₆ and THF-d₈ at a 1 : 5 (V/V) ratio. Cesium 2-(benzyloxy)ethanolate was used as the initiator for the polymerization. Cesium was chosen as a counterion for all statistical copolymers, as it enhances the propagation rate compared to potassium and reduces the time required for the kinetic investigation experiment.⁴⁵ Experimental details are given in the ESI.† Monomer consumption was tracked by observing the monomer resonances at 2.68 ppm for OlGE and 2.58 ppm for EO during the copolymerization. Fig. 1 displays a selection of stacked spectra.

Fig. 1 Stacked selection of ¹H NMR spectra of the copolymerization of OlGE and EO. Zoom-in shows the decrease of the OlGE (orange) and EO monomer signals (blue). Polymerization temperature 40 °C, solvent: DMSO-d₆ and THF-d₈ 1 : 5 (V/V), 400 MHz. As spectra were collected every 2 min for 55 h, only every 200th spectrum is displayed.

Both monomers exhibited nearly complete conversion after 55 hours. The gradual decrease of the signals is illustrated in Fig. 2, which shows the amount of unreacted monomer versus total conversion. Clearly, EO is incorporated more rapidly, while OlGE is consumed at a slightly lower rate. This already suggests that copolymerization is not ideally random.

Fig. 2 Unreacted monomer versus total conversion of the in situ ¹H NMR copolymerization kinetic study of EO with OlGE. Solvent: DMSO-d₆/THF-d₈ 1 : 5 (V/V), 40 °C.

To determine reactivity ratios r_1,2 the data extracted from the kinetic experiment were fitted according to the Jaacks plot.^46–48 For this, the following eqn (1) was used.

In an ideal copolymerization, the following correlation is defined: r₁·r₂ = 1. Both reactivity ratios were determined with the results r_EO = 1.27 and r_OlGE = 0.78 (Fig. S39†). As the coefficient of determination R² was 0.99, an ideal or chain-end independent copolymerization can be concluded. The use of more complex terminal models such as the Meyer–Lowry method⁴⁹ should be avoided as long as the more simple, non-terminal model explains the data well. This principle was coined by Sir William Hamilton as “Ockham's Razor”,⁵⁰ and its application to copolymerization kinetics was already described.⁵¹ The fit is displayed in Fig. S40,† and the results are summarized in Table 2.

Table 2 Summary of different fitting models of the EO/OlGE copolymerization kinetic

Method	Model	rEO	rOlGE
Jaacks	Non-terminal, ideal	1.27 ± 0.01	0.78 ± 0.01	R^2 = 0.99
Meyer–Lowry	Terminal, non-ideal	1.32 ± 0.12	0.80 ± 0.14	NormRes = 0.38

---

The obtained reactivity ratios enable the simulation of the comonomer composition in the course of the copolymerization (Fig. 3), which directly translates to the monomer gradient in the copolymer chains formed. As previously indicated in Fig. 2, EO is initially incorporated with a slight preference during copolymerization. With increasing conversion, approaching full monomer conversion, more OlGE units are incorporated at the chain end. This subtle variation in reactivity ratios results in the enrichment of monomer units towards either the beginning or the terminus of the polymer chains, respectively. We would like to emphasize that this gradient is not pronounced, compared to other systems like the carbanionic copolymerization of isoprene and styrene.⁴⁸ This result is remarkable in view of the large steric bulk of the OlGE monomer in comparison to EO.

Fig. 3 Simulated composition versus total conversion of the EO (blue)/OlGE (orange) comonomer pair for a hypothetical equimolar ratio.

Even though glycidyl ethers (GEs) exhibit a substituted epoxide functionality, usually the correlation r_EO ≈ r_GE ≈ 1 is valid.^37,52,53 This observation is counterintuitive, especially since propylene oxide copolymerizes with a much stronger gradient with EO, which is assigned to the methyl group substitution.⁵⁴ Due to their ability to chelate the counterion and thereby activate the epoxide, glycidyl ethers show a transient “crown ether-effect”.⁵⁵ Since the side chain contains additional oxygen atoms, glycidyl ethers react faster than the unsubstituted EO.^56–58 Bulky and/or inflexible side chains, in contrast, prevent sufficient chelation and also lead to hindered nucleophilic attack of an active chain end at the epoxide functionality, resulting in less favored incorporation.^40,58–60 This finding is confirmed by our study, as the bulky, apolar monomer is less prone to nucleophilic attack, translating to slower incorporation in the growing polymer chain.

Amphiphilic nature and CMC determination of OlGE copolymers

The determination of the CMC is commonly achieved by employing pyrene as a fluorescent probe.^2,61 When pyrene transitions from a polar to an apolar environment, the emission spectrum experiences a pronounced shift towards higher values in the ratio of the I₃ and I₁ bands, correlated to the alteration in the polarity of the surrounding molecules. The experimental procedure used in this work is based on the method described by Zhu et al.⁶² In short, pyrene was mixed with the respective polymer solution in a serial dilution. Then the fluorescence spectra of pyrene were measured at 23 °C, and I₃/I₁ was plotted against the logarithmic polymer concentration. A Boltzmann sigmoidal fit (eqn (S1)†) was performed and the CMC was determined from the inflection point of the fit.^40,61 The graphs are shown in the ESI (Fig. S18–S24).†

The hydrophilic–lipophilic balance (HLB) is an empirical scale ranging from 1 to 20, employed to assess the utility of surfactants in various applications. Higher HLB values are indicative of surfactants with a greater affinity for polar environments, making them suitable for tasks such as solubilization and oil-in-water emulsification. Conversely, lower HLB values denote surfactants with a stronger preference for nonpolar environments, rendering them more appropriate for purposes such as water-in-oil emulsification and foam reduction. The HLB scale serves as a valuable tool for understanding the contrasting characteristics of surfactants.⁶³

Table 3 gives an overview of the synthesized OlGE-containing polymers with their HLB values and the CMC determined by fluorometry. The sole water-soluble compound within the series of statistical copolymers was P(EG₁₂₃-co-OlGE₇), which exhibited a CMC of 24.5 mg L⁻¹. Of the four block copolymers obtained from mPEG₄₅, only two displayed water solubility and had a CMC threshold of 23.8 mg L⁻¹. This observation is attributed to a significant increase in the weight percentage of the hydrophobic block due to the incorporation of additional 2.6 OlGE units, each with a high molar mass of 324 g mol⁻¹, in contrast to ethylene glycol units with a mass of only 44 g mol⁻¹ each. A comparable outcome was noted in the case of block copolymers based on mPEG₁₁₄. The CMCs exhibited a notable reduction from 73.4 to 25.4 mg L⁻¹, with just a slight 2.1 mg L⁻¹ difference between mPEG₁₁₄-b-POlGE_7.3 and mPEG₁₁₄-b-POlGE_9.9. As reported by Lodge et al., the CMC decreases exponentially, but is weakly dependent on the hydrophobic block length for longer blocks and is notably less dependent on the hydrophilic block length.^1,64 Thereby, the difference in CMC between polymers with a small hydrophobic block (mPEG₁₁₄-b-POlGE_2.9 and mPEG₁₁₄-b-POlGE_5.8) is more pronounced compared to block polymers with larger hydrophobic blocks (mPEG₁₁₄-b-POlGE_7.3 and mPEG₁₁₄-b-POlGE_9.9). Noteworthy, all three varieties of copolymers exhibited a CMC threshold of approximately 25 mg L⁻¹. When contrasting our system with existing literature, the CMC of Brij® 98, a twentyfold ethoxylated oleyl alcohol, is reported to fall within the range of 7–29 mg L⁻¹.^65–68 Variations in CMC values for the same compound may arise from differences in measurement methods, among other factors.⁶⁹ Block copolymers of mPEG₁₁₄-b-poly(farnesyl glycidyl ether)_m (m = 5 and 9) showed slightly lower CMCs of 53 and 15 mg L⁻¹, respectively.⁴⁰

Table 3 Hydrophilic–lipophilic balances (HLBs) and critical micelle concentrations (CMCs) of the OlGE-containing copolymers

Polymer	mol% (OlGE)	w% (OlGE)	HLB	CMC (mg L^−1)
a Values could not be determined due to insufficient solubility in water.
P(EG123-co-OlGE7)	5.4	30	14.1	24.5
P(EG94-co-OlGE13)	12.1	50	9.9	n.d.^a
P(EG103-co-OlGE35)	25.4	71	5.7	n.d.^a
mPEG45-b-POlGE2.4	5.1	28	14.4	41.9
mPEG45-b-POlGE5.0	10.0	45	11.0	23.8
mPEG45-b-POlGE7.5	14.3	55	9.0	n.d.^a
mPEG45-b-POlGE11.3	20.1	65	7.1	n.d.^a
mPEG114-b-POlGE2.9	2.5	16	16.8	73.4
mPEG114-b-POlGE5.8	4.8	27	14.5	44.2
mPEG114-b-POlGE7.3	6.0	32	13.6	27.5
mPEG114-b-POlGE9.9	8.0	39	12.2	25.4

---

Dynamic light scattering of OlGE copolymers

Polymer solutions of the water-soluble copolymers were investigated by dynamic light scattering (DLS) to determine the hydrodynamic radius of the respective micelles and larger aggregates. Additionally, the results were compared to TEM observation of the aggregates. The polymer concentration was significantly above the CMC determined via fluorometry. The amplitude autocorrelation function was subjected to a biexponential fit (represented by eqn (S4)†), given that TEM images hinted at the presence of multiple types of aggregates for all copolymers. The diffusion coefficient of each measured angle was received from the relation D = (τ_R·q²)⁻¹. This diffusion coefficient was subsequently plotted versus q² to calculate the z-average diffusion coefficient for each specific aggregate. Additional details on the calculation of diffusion coefficients and hydrodynamic radii are described in the ESI.† A summary of the results obtained from DLS analysis is provided in Table 4. Among the statistical copolymers examined, P(EG₁₂₃-co-OlGE₇) was the only sample that could be analyzed, as the others were insoluble. The block copolymer mPEG₁₁₄-b-POlGE_9.9 was not analyzed by DLS, as a turbid solution was obtained. P(EG₁₂₃-co-OlGE₇) exhibited aggregates with an R_H,1 of 5.31 nm, corresponding to a single chain (micelle), as the comparable mPEG₁₁₄ unimer exhibited a hydrodynamic radius of 2 nm.⁴⁰ In contrast, the larger aggregates displayed a significantly greater R_H,2 of 107 nm. This discrepancy is attributed to chain folding, resulting in the formation of multicompartment micelles. This phenomenon has been discussed in previous studies.^70–72 The corresponding TEM micrograph equally indicates small circular structures as well as larger aggregates but with a smaller radius (Fig. S25†). While they are separated in the dry TEM micrographs, they probably stick to each other in solution, due to hydrophobic interactions between OlGE units in the corona-forming segments of different micelles. This leads to the formation and observation of aggregates with a greater R_H,2. Potemkin et al. described this “stickiness” in a recent study.⁷³

Table 4 DLS results of the investigated water-soluble OlGE copolymers. Index 1 denotes the smaller observed aggregates, whereas 2 denotes the larger observed aggregates

Polymer	D1 (10^−7 cm^2 s^−1)	D2 (10^−7 cm^2 s^−1)	RH,1 (nm)	RH,2 (nm)
P(EG123-co-OlGE7)	4.64 ± 0.03	0.23 ± 0.01	5.3 ± 0.1	107 ± 5
mPEG45-b-POlGE2.4	2.54 ± 0.02	0.51 ± 0.05	9.7 ± 0.1	48 ± 4
mPEG45-b-POlGE5.0	0.51 ± 0.02	0.12 ± 0.01	48 ± 2	206 ± 5
mPEG114-b-POlGE2.9	1.41 ± 0.02	0.35 ± 0.01	17.5 ± 0.2	70 ± 1
mPEG114-b-POlGE5.8	0.55 ± 0.03	0.10 ± 0.01	45 ± 2	240 ± 20
mPEG114-b-POlGE7.3	1.12 ± 0.01	0.21 ± 0.01	21.9 ± 0.2	117 ± 7

---

Block copolymers composed of mPEG₄₅ generally displayed larger R_H,1 values, despite having a significantly greater number of repeating units in comparison to the statistical copolymer. This observation implies the aggregation of multiple chains into micelles. When the size of the POlGE block is doubled, there is a notable four- to fivefold increase in the hydrodynamic radius of both aggregates. This finding aligns with the structures observed in the TEM micrographs (Fig. 4A and B).

Fig. 4 TEM micrograph of mPEG-b-POlGE_n block copolymers in aqueous solution (0.1 g L⁻¹). A: mPEG₄₅-b-POlGE_2.4, B: mPEG₄₅-b-POlGE_5.0, the circular structure in the upper left corner is caused by irradiation damage. C: mPEG₁₁₄-b-POlGE_2.9, D: mPEG₁₁₄-b-POlGE_5.8, E: mPEG₁₁₄-b-POlGE_7.3, F: mPEG₁₁₄-b-POlGE_9.9. Samples were treated with 2% uranyl acetate solution as a negative stain. Original micrographs obtained by the software can be found in the ESI (Fig. S26 and 27†).

The behavior of block copolymers containing mPEG₁₁₄ demonstrates subtle variations. While the hydrodynamic radius (R_H,1,2) for the POlGE_n block (with n = 2.9 and 7.3, C and E) only experiences a slight increase as n increases, the block copolymer with n = 5.8 (D) exhibits a larger R_H,1,2 compared to the one with 7.3 OlGE monomer units. This outcome may seem unexpected, but it can be attributed to the fact that due to the larger hydrophobic block (n = 7.3), there are fewer chains present within the respective micelles compared to mPEG₁₁₄-b-POlGE_5.8, resulting in a reduced aggregation number. Consequently, the hydrodynamic radius does not increase as one might anticipate. The polymer mPEG₁₁₄-b-POlGE_2.9 reveals only small structures in the TEM micrograph, a finding that contrasts with the DLS analysis results indicating clustering in solution. The TEM micrograph of the block copolymer with the largest POlGE part, mPEG₁₁₄-b-POlGE_9.9 (F), displays well-resolved, fibrillar structures. Nevertheless, further analysis has been deferred to a later study. Original TEM micrographs can be found in the ESI (Fig. S25–S27†).

Thermal properties of polymers containing OlGE

PEG plays an important role as ointment base and tailoring the melting point slightly above human body temperature enables softening into a semi-solid during application and even spreading while lasting at the applied area.^9,74,75 The synthesized OlGE (co)polymers were investigated by differential scanning calorimetry (DSC) (Table 5). The thermograms are displayed in the ESI (Fig. S13–S17†). Detection of glass transition temperatures (T_gs) was performed with the second heating curve with a heating rate of 10 K min⁻¹. As OlGE has a long, flexible side chain, the T_g is shifted towards lower temperatures compared to PEG (<−60 °C).⁹ Melting temperatures (T_ms) and melting enthalpies were determined with a 1 K min⁻¹ heating rate. Reducing the heating/cooling rate to 1 K min⁻¹ allowed for ordering of the side chains and prevention of recrystallization. Otherwise, a pronounced recrystallization was detected during the melting event in the measurements with a heating/cooling rate of 10 K min⁻¹ (Fig. S13†). Substituted polyethers are typically amorphous materials. However, due to the elongated and linear structure of the side chain, POlGE displays a distinct T_m, despite the racemic monomer. This indicates a propensity for side chain crystallization. The microphase separation driven by crystallization was previously described in literature with comparable side chains, albeit for polyacrylates or polyesters.^70,76,77

Table 5 Overview of the thermal properties of the OlGE (co)polymers

Entry	Polymer	OlGE, mol%	Tg ^a/°C	Tm ^b/°C	ΔHm ^b/J g^−1
a Heating rate 10 °C min^−1, second heating curve.b Heating rate 1 °C min^−1, second heating curve. In the case of block copolymers, the first Tm and ΔHm denote the POlGE block crystallization, whereas the second denote the PEG block crystallization.
1	POlGE13	100	n.d.	−27.8	32.2
2	POlGE25	100	n.d.	−23.2	63.4
3	P(EG123-co-OlGE7)	5	n.d.	35.7	64.9
4	P(EG94-co-OlGE13)	12	−81	12	46.5
5	P(EG103-co-OlGE35)	25	−80	-41.7	30.3
6	mPEG45	0	−60	—/52.3	—/164.7
7	mPEG45-b-POlGE2.4	3	−75	n.d./48.1	n.d./104.0
8	mPEG45-b-POlGE5.0	10	n.d.	−39.5/42.7	9.0/67.1
9	mPEG45-b-POlGE7.5	14	−78	−46.8/37.2	6.6/48.2
10	mPEG45-b-POlGE11.3	20	−79	−32.1/35.0	21.8/45.4
11	mPEG114	0	−60	—/61.9	—/190.1
12	mPEG114-b-POlGE2.9	2	−79	n.d./57.4	n.d./133.8
13	mPEG114-b-POlGE5.8	5	−80	−50.5/53.7	4.2/108.5
14	mPEG114-b-POlGE7.3	6	−76	−58.0/51.9	0.8/89.8
15	mPEG114-b-POlGE9.9	8	n.d.	−41.3/53.3	10.2/88.9

---

Statistical P(EG-co-OlGE) copolymers

The random incorporation of 5 mol% OlGE in P(EG-co-OlGE) copolymers (Table 5, entry 3) results in a notable reduction in crystallinity, as evidenced by the decrease of the melting enthalpy (ΔH_m) of PEG. For comparison, mPEG₁₁₄ (Table 5, entry 11), which closely resembles the polymer under investigation, was utilized. 12 mol% OlGE (Table 5, entry 4) further inhibited crystallization of the polyether backbone, and the material showed the PEG T_m already below room temperature. When 25 mol% OlGE was incorporated (Table 5, entry 5), the T_m (−41.7 °C) was solely dominated by the OlGE side chain.

mPEG-b-POlGE block copolymers

Block copolymers initiated by mPEG₄₅ showed decreasing ΔH_m with increasing POlGE block (Table 5, entries 6–10), again indicating partial miscibility of the two different blocks. Comparing entries 8 and 9, an unusual behavior appears: with an increasing amount of POlGE (entry 9), the T_m of both copolymer blocks decreased. This indicated a transition zone where both blocks were too small to crystallize. By further increase of the POlGE content, the T_m of the POlGE block increased again (entry 10), whereas the thermal properties of the PEG block remained unchanged. Very similar thermal behavior was observed for mPEG₁₁₄-b-POlGE block copolymers as well: both T_ms decreased with increasing POlGE content (entries 13 and 14), but with higher POlGE content the T_ms elevated again. This indicated that a more effective phase separation between the two polymers contributed to the rise in the T_ms (entry 15).

Post-polymerization modification

Hydrogenation via diimide reduction. Oleyl alcohol exhibits a T_m of 0–5 °C,⁷⁸ in contrast to its fully saturated alcohol counterpart, known as stearyl alcohol, showing a considerably higher T_m of 57 °C.⁷⁹ Accordingly, a similar correlation was expected for the respective GE monomers and the resulting polymers. The POlGE homopolymer exhibited a T_m of approximately −23 °C. To cover a broad range of side chain T_ms, particularly in the physiological range, we aimed at partial to complete hydrogenation as a post-polymerization modification. While copolymerization of saturated and unsaturated monomers is possible, the transfer of a solid monomer via a syringe entails additional effort and may represent a challenge. Moreover, elucidating the reactivity ratios of the GE monomers would be essential. Traditional hydrogenation in organic synthesis involves reacting the unsaturated substrate with hydrogen gas and a palladium catalyst. Although this method is widely used in industrial settings, it requires high pressures and involves handling highly explosive hydrogen, making it impractical in a laboratory environment. Therefore, we turned to the reduction of the double bond using diimide reduction.^80–83 Potassium azodicarboxylate (PADA) was treated with acetic acid in pyridine to generate diimide. This compound transfers hydrogen to the cis-double bond of the OlGE side chain. The degree of hydrogenation was controlled by the amount of PADA equivalents used. In cases of high degrees of hydrogenation, PADA was employed in significant excess. Experimental details can be found in the ESI.† The decrease of the double bond resonance is visible in the ¹H NMR spectra of the hydrogenated polymer (Fig. 5). We achieved a maximum degree of hydrogenation of 95% (H95%), which we refer to as fully hydrogenated. As the copolymers comprise a polyether structure lacking bonds susceptible to cleavage under hydrogenation conditions, SEC still showed monomodal distributions with only minor changes in M_n and Đ (Fig. S46†). Statistical as well as block copolymers were hydrogenated for testing purposes. However, since the melting points of the hydrogenated OlGE monomer overlapped with the PEG part, the changes in thermal properties were uncertain: whether they are attributed to the higher T_m resulting from the hydrogenation of OlGE or a change in PEG crystallization. Therefore, only POlGE homopolymers were included in this study.

Fig. 5 ¹H NMR spectra of POlGE₂₅ and the respective hydrogenated polymers (400 MHz, CDCl₃). The value of H denotes the degree of hydrogenation. The intensity was locally normalized to the initiator benzyl group (gray).

To confirm the anticipated effect of hydrogenation concerning side chain crystallization, the thermal properties after hydrogenation were investigated by DSC (Fig. S48†). With an increasing degree of hydrogenation, the T_m of POlGE₂₅ rises above room temperature and reaches its peak at 51.9 °C when fully hydrogenated. Up to 53% of hydrogenation results in a significant increase of T_m, whereas the difference in T_m decreases with higher degrees of hydrogenation (entries 3 and 4). The melting enthalpy increases only slightly, going from 63.4 to 75.2 J g⁻¹. This relatively small change occurs even though the hydrogenated side chains were expected to be hindered from crystallization due to the assumed miscibility of the saturated and unsaturated side chains. Here, the melting enthalpy is almost independent of the degree of hydrogenation, albeit the melting point increases by 75.1 °C in total. In summary, the hydrogenation experiments show that POlGE can be fully hydrogenated in a post-polymerization modification. With a T_m in the physiological range, copolymers containing OlGE repeating units possess potential for applications in drug delivery systems. Tailoring can be conveniently performed, as no copolymerization of high and low T_m monomers is necessary. Instead, one starting material is sufficient (Table 6).

Table 6 Thermal properties of POlGE₂₅ homopolymer before (H0%) and after hydrogenation at various degrees investigated by DSC

Entry	Polymer^a	Tm ^b/°C	ΔHm ^b/J g^−1
a The value of H denotes the degree of hydrogenation.b Heating rate 1 °C min^−1, second heating curve.
1	POlGE25 (H0%)	−23.2	63.4
2	POlGE25 (H53%)	33.6	69.2
3	POlGE25 (H76%)	43.7	73.0
4	POlGE25 (H95%)	51.9	75.2

---

Not only does the double bond content provide the opportunity to customize thermal properties, but it also allows for the modification of the structure to meet specific requirements. It enables the incorporation of hydroxyl groups or other functional groups, which enables the tuning of hydrophobicity and facilitates further coupling with various other groups.^84–86

Thiol–ene click. The addressability of the internal double bond of the side chains of the OlGE units as a proof of concept reaction was demonstrated by a thiol–ene click reaction with thioglycol in a typical post-polymerization modification. As a model polymer, mPEG₁₁₄-b-POlGE_2.9 reacted with the thiyl radicals generated by irradiation of the photoinitiator 2,2-dimethoxy-2-phenylacetophenone (DMPA) in DCM (Scheme 3).⁸⁷ Detailed experimental information is available in the ESI.†

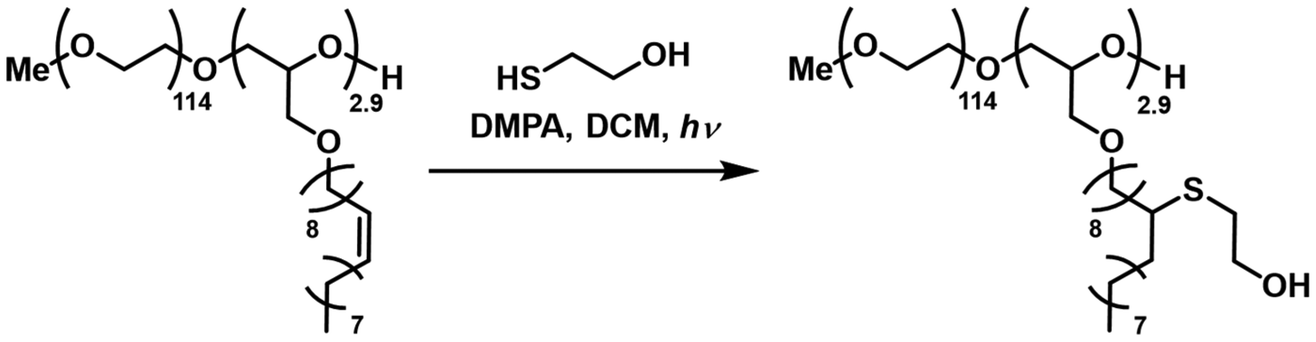

Scheme 3 Thiol–ene click reaction of mPEG₁₁₄-b-POlGE_2.9 with thioglycol. Note that two possible addition products can be present.

Complete conversion was confirmed by ¹H NMR by the disappearance of the double bond and allylic proton signals. The appearance of the methine and methylene group of the respective thioether further confirmed the successful modification (Fig. S42†). SEC revealed a shift towards higher molar masses, again keeping the dispersity constant (Fig. S43†). DOSY NMR confirmed no residual thioglycol precursor after work-up by dialysis (Fig. S44†). MALDI-ToF MS analysis showed the new repeating unit with a molar mass of 402 g mol⁻¹ (Fig. S45†).

Conclusion

Oleyl glycidyl ether (OlGE) has been introduced as a biorenewable, highly apolar epoxide building block for the AROP copolymerization with EO. Investigation of the reactivity ratios revealed a small deviation from ideal statistical copolymerization of OlGE (r_OlGE = 0.78) with EO (r_EO = 1.27), leading to an almost ideally random copolymer structure. This is a remarkable observation, considering the large steric bulk of the OlGE monomer in comparison to EO. In addition to statistical copolymers, using different mPEG macroinitiators yielded block copolymers. Capitalizing on block copolymerization of POlGE with mPEG, amphiphilic polymers were successfully produced. The CMCs of mPEG-based block copolymers show a limit in the same range as the established surfactant Brij® 98. The water-soluble statistical copolymer also showed micelle formation, owing to the long hydrophobic side chains. TEM and DLS revealed spherical and elongated micellar aggregates, which can be explained by the arrangement of the sterically demanding, linear side chains. The utilization of OlGE allows the synthesis of biobased surfactants from readily accessible starting materials. The bulk properties of the polymers showed two distinguishable T_ms. The cis-alkenyl side chain was successfully modified by a thiol–ene click reaction, demonstrating the accessibility and emphasizing the versatility of the hidden functionality. This enables coupling of a wide range of thiol-containing compounds to the polymers. Partial hydrogenation of the double bond with potassium azodicarboxylate (PADA) enables adjusting the melting point of the materials, eradicating the mixing of monomers with high and low side chain T_m, respectively. The achieved range of melting points is suitable for developing potential thermoresponsive drug delivery systems, as it matches the human body temperature. In future drug delivery applications, active pharmaceutical ingredients could be released from micellar solutions, if the T_m of the precisely adjusted side chain is reached.

In brief, our study shows that the biobased novel monomer OlGE and its copolymerization can be employed to generate a wide range of structurally varied polymeric surfactants. This approach can pave the way for replacing traditional petroleum-based surfactants and also unlocks the potential for generating diverse and tailored polymer architectures. “Green” and conveniently modifiable polymers with respect to the requirements of a user, particularly with respect to melting temperatures or hydrophobicity, can offer a future platform for customized drug-delivery systems.

Data availability

The data supporting this article have been included as part of the extended ESI.†

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

The authors thank Monika Schmelzer for SEC measurements, Elena Berger-Nicoletti for MALDI-ToF MS measurements. Frank Depoix and Elisabeth Sehn are acknowledged for introduction to TEM measurements and Lisanne Lörke for experimental support. Rebecca Matthes is thanked for thorough correction of the manuscript.
