Impact of ion intercalation materials on advancing capacitive deionization: from theory to practical

Abstract

Capacitive deionization (CDI) is an innovative technology that relies on the electrostatic adsorption of ions onto the electrode surface. Recently, the use of ion intercalation materials has been shown to be a viable method for increasing electrosorption capacity, which can greatly improve CDI performance. In this review, the most recent developments in ion intercalation, synthesis techniques, electrode performance, applications, and cell design in CDI systems are examined. Furthermore, this review highlights the economic feasibility, cost-effectiveness and development of technologies that use seawater sources to produce drinkable water compared with traditional desalination methods. Additionally, it draws attention to the function of advanced electrode materials in CDI, which highlights the possibilities of composite engineering for increased desalination efficiency. It also discusses the development of reliable and scalable CDI systems with improved capacities for environmentally friendly water filtration.

---

1. Introduction

Water scarcity is a major concern in India due to population growth, increased urbanization, industrial expansion and the effects of climate change. Therefore, access to clean drinking water has grown challenging because of groundwater depletion, declining freshwater supplies, and a rise in contamination from natural sources. The United Nations' World Water Assessment Program (WWAP) report (2017) predicted that by 2030, the world will face a water shortfall of 40% unless resource management improves significantly.¹ To address this issue, there are several water purification techniques, among which reverse osmosis (RO) is one of the most widely used for the water filtration process. The system operates on the principle of applying high pressure to pass water through a semi-permeable membrane, which selectively allows water molecules to pass while blocking dissolved salts, contaminants and impurities. Utilizing seawater resources for producing drinking water via the RO method is imperative; therefore, several RO plants have been installed to produce desalinated water. Nevertheless, RO treatment has some disadvantages despite its effectiveness, such as excessive water waste, high energy consumption, and fouling.^2–4 Because of these drawbacks, researchers have been looking into different purifying methods, including capacitive deionization (CDI), which is an electrochemical technique that selectively eliminates salt ions by forming an electrostatic double layer (EDL) on the surface of electrodes.⁵ Among the array of emerging methodologies, CDI offers a cost-effective solution for brackish water desalination, in which ions with a positive charge are drawn towards a negative charge electrode and vice versa, aiding in the removal of ions from feed water without the use of high-pressure pumps.⁶

CDI has emerged as a promising alternative because it offers an expanded range of ion selectivity for cation removal compared with electrodialysis (ED).⁷ Porous electrodes constitute a critical component in the CDI process, prompting ongoing research efforts aimed at developing efficient electrode materials that present numerous advantages over membrane technology, antifouling, elimination of chemical usage in the process, simplified maintenance, time efficiency, reusability, extended operational lifespan, and reduced process costs.^8,9 Therefore, CDI operates on the principle of adsorbing charged ions onto the electrode from the inlet feed, allowing fresh water to move towards the outlet feed, while absorbed ions subsequently desorb in the next stage, producing concentrated effluent called brine.¹⁰ CDI research has gained momentum since the publication of pioneering articles in 2013 and 2014,^11,12 followed by further advancement in 2015.⁸ Additionally, Welgemoed et al.⁹ explored the development and evaluation of capacitive deionization technology (CDT) as a promising alternative to conventional desalination methods such as RO and ED. Their study highlighted the superior energy efficiency, consuming only 0.594 kW h m⁻³—significantly less than traditional methods—and underscored its potential for scalability and automation in industrial applications. Their findings suggested that CDT could be a key solution in addressing global water scarcity by providing an effective approach to desalinating brackish and seawater sources. The development of electrode materials capable of adsorbing ions at low potential remains a major challenge, although recent innovations have shown improved efficiency. Therefore, CDI technology has evolved beyond desalination to encompass various water purification processes owing to advancements in electrode orientation.¹³ The number of research articles published each year has been steadily increasing (Fig. 1). This suggests that interest in this area is expanding. However, targeted research is necessary to advance useful breakthroughs in emerging challenges, such as energy consumption, long-term stability, and cost-effectiveness.

Fig. 1 Graphical representation of the number of papers published on CDI over the past 12 years to date.

To remove ions from water, CDI uses the principle of electrostatic attraction, in which voltage is supplied across the electrodes immersed in the water solution and partitioned by a separator. The ions in the water are drawn towards the electrode with opposite charges and accumulate there due to electrostatic forces. Water is then successfully deionised by passing it over the electrodes, which removes the ions from the solution, thereby leading to purification. When the voltage is reversed, the ions that have accumulated within the porous electrode materials are discharged, facilitating system regeneration; hence, CDI involves two steps: purification and regeneration.¹⁴ The primary methods for storing ions in electrodes include capacitive electrosorption,^15–19 pseudocapacitive storage^20,21 and ion intercalation. The removed ions are retained in the diffuse region of the two electrodes, forming electrostatic double layers, also known as polarization layers. The CDI stack continuously receives a steady stream of the solution, and the ion concentration in the effluent gradually decreases compared to that in the inflowing solution. Once the polarization layers reach their maximum ion adsorption capacity, reducing the applied voltage causes the ions to be released back into the solution, generating a highly concentrated ion product stream. Ions are not only removed from the solution via surface adsorption but also by the intercalation of ions, which leads to a high salt adsorption capacity (SAC mg g⁻¹).²² When the ions are intercalated into layered materials,²³ the space between the unit cells is increased and the coupling is decreased. Thus, intercalation can change the crystal and electrical structures of the host materials and is beneficial for capacitive deionization by increasing the surface area of the materials. Ion accessibility, stability and decreased coupling between layers, the diffusion barriers are lowered, hence increasing the desalination rates and better overall performance is made possible by improving the ion transport.²⁴ In the literature, the specific energy consumption of brackish water reverse osmosis was reported to be around 0.5–3 kW h m⁻³,^25,26 and it does not require high-pressure pumps, expensive membranes or secondary regeneration wastes. The main ways in which CDI varies from other water treatment methods are in its ion removal mechanism and efficiency, which uses electrical energy to function and makes it more efficient than conventional techniques like distillation or RO. Moreover, it can be developed with flexibility in decentralized water treatment applications due to its scalability and modular design.

Highly porous materials^27,28 are frequently utilised for the electrosorption of ions in CDI and Membrane CDI (MCDI) because of their exceptional chemical, mechanical and thermal stabilities and high specific surface area. Carbon-based materials such as graphene,²⁹ carbon nanotubes,^30,31 ordered mesoporous carbon,³² carbon aerogels^18,33 and hierarchically porous carbon³⁴ are examples of highly porous materials as they have the highest accessible surface area and the best electrical conductivity, making them the most explored electrode materials in the CDI sector.^35,36 In CDI devices, the electric charge at the electrodes is proportional to the energy expended during ion removal, and the charge efficiency can be crucially evaluated by modifying the carbon surface to prevent co-ion ejection,³⁷,³⁸ which can be altered by using,²⁷ tetraethyl ortho-silicates,²⁸ fluoride,³⁹ sodium dodecyl sulphate,⁴⁰ and permanganate ions.⁴¹ Furthermore, it can be achieved by materials, in the development of energy storage and in search of low-cost electrode materials, ion-intercalation materials like Prussian blue analogues (PBAs)^42–45 and MXenes^46–48 have attracted the attention of researchers in the field of CDI. Desalination systems based on intercalation materials also offer more flexibility for the selective removal of desired ions without undergoing any chemical alterations to the electrode. Inserting an ion, often a cation, into interstitial spots allows for ion storage in these materials. This process is favourable because it has the quick kinetics that makes carbon adsorption desirable, and while removing the co-ion repulsion, the ion storage capacity increases. Hence, this paper highlights the latest advancements in electrode materials, including their synthesis strategies, performance and different modes of CDI systems, by ensuring economic viability and cost-effectiveness compared to existing methods. This paper presents an imperative study to develop technologies that use saltwater resources as a supply of raw materials for the production of drinking water, as well as for the electrodes used in the field of desalination.

2. Theoretical foundation to design CDI cells for practical applications

As described in the previous section, CDI operates based on the principles derived from supercapacitors, specifically, the electrical double-layer (EDL) theory and the concept of pseudo-supercapacitors.⁴⁹ CDI is used for both energy storage and water purification because it shares a feature with supercapacitors: the formation of an electric double layer at the electrode–electrolyte interface. This electric field attracts cations and anions from brackish water to the surfaces of oppositely charged electrodes. The process begins by charging the CDI cell with a power source. Once charged, the cell discharges by reversing the potential, separating freshwater and brackish water.

A typical CDI cell consists of several components, such as non-conductive acrylic end plates, current collectors, separators, and electrodes. The design, configuration, materials, and operating environment influence the performance and application of the CDI system. The end plates are equipped with valves for the water inlet and outlet, ensuring proper water flow and structural integrity. Current collectors, which can be made from materials like titanium sheets, graphite plates, graphite films, and stainless steel, play a crucial role in applying voltage across the electrodes. A DC power supply or potentiostat is used to provide a constant voltage to the cell. The assembly consists of alternating layers of end plates, current collectors, electrodes, and separators. For membrane CDI (MCDI), anion exchange membranes and cation exchange membranes are placed between the current collectors and spacers.⁵⁰ The electric field generated within the CDI cell can be adjusted by varying the electrode materials and operating conditions (such as voltage and flow rates), which improves the performance of both water purification processes.

To enhance electrochemical activity, active materials can be coated or drop-cast onto substrates like carbon paper, graphite sheets, stainless steel mesh, nickel foam, or carbon cloth. These substrates provide mechanical support and influence ion transport and charge transfer kinetics, thereby affecting long-term stability, energy efficiency, and ion adsorption capacity. After cleaning, the coated substrates are placed on the current collectors. Separators are used between the current collectors to maintain even water flow while preventing electrode contact. Silicon rubber plates are often used to prevent leakage. Water is pumped into the CDI cell via a peristaltic pump at a controlled flow rate (typically 10 to 50 ml min⁻¹) to ensure that the electrodes are evenly wetted, promoting efficient ion removal. The water conductivity was continuously monitored using a conductivity probe in the solution tank to track the ion removal process during adsorption and desorption. The voltage was maintained between 1.0 and 1.6 V and further optimized to enhance the ion removal efficiency. When an electric field is applied across the electrodes, water ions are attracted to the opposite electrodes. Once the electrodes are saturated, the polarity is reversed, allowing the adsorbed ions to desorb into the solution. All data from the process were recorded for analysis. The separators used in the CDI cell are essential parts that ensure the effective and safe functioning of the CDI cell by permitting smooth water flow and ion passage while preventing electrode short-circuiting. Through the optimization of flow dynamics and the reduction of ohmic resistance, separators enhance energy efficiency and reduce operating expenses.⁵¹ They play a critical role in improving the long-term dependability and durability of such systems.

The CDI system offers several advantages, including minimal secondary emissions, low energy consumption, easy operation, and cost-effectiveness. Due to these benefits, it was awarded the “People's Choice Award” by the World Association of Industrial and Technical Research Organizations in 2020. CDI is especially effective for treating brackish water, which has lower salinity than seawater, making it a promising solution for areas with freshwater scarcity. The overall efficiency of the CDI system depends on the design and construction of the CDI cell, the thickness of the current collectors, and the flow rate of the water. In 2018, Remillard et al.⁵² highlighted the impact of operational factors such as flow rate, hydraulic retention time (HRT), and voltage on CDI performance. They found that although higher voltage improves salt removal, it can also increase electrode oxidation and cause faradaic side reactions, which negatively impact performance. For flow-through CDI (FT-CDI) systems, they discovered that high flow rates and shorter HRT (<5 minutes) optimize performance, whereas in flow-by CDI (FB-CDI), increasing HRT and flow rate enhances salt adsorption capacity (SAC) and salt adsorption rate (ASAR). The current collector thickness plays an important role in the system's efficiency. Thicker collectors provide additional weight and resistance, whereas thinner collectors reduce the electrical resistance, improving the SAC.⁵³ Koller et al.⁵⁴ found that bipolar plates (BPs) made from expanded graphite demonstrated up to 55% higher salt transfer rates than graphite plates (GPs), due to better charge transport and reduced surface roughness. BPs are also more suitable for scaling up FCDI systems because of their mechanical stability, high production efficiency, and affordability. The flow rate of the peristaltic pump also affects system performance. Higher flow rates (50–100 ml min⁻¹) can improve output but decrease in residence time of ions, lowering salt removal efficiency. In contrast, lower flow rates (5 to 20 ml min⁻¹) enhanced the adsorption efficiency.

There are two main charge storage mechanisms: electrostatic interactions (electrical double-layer capacitance, EDLC) and ion intercalation. In carbon-based materials such as activated carbon, carbon nanotubes, carbon aerogels, and graphene, the EDLC mechanism is dominant. In this mechanism, applying a voltage creates an EDL at the electrode–electrolyte interface, forming a double layer. In low-dimensional materials like graphene, quantum capacitance is also important, especially near the point of zero charge (PZC), where the capacitance decreases because of the low density of states.⁵⁵ In graphene electrodes, the electrostatic interaction between graphene and electrolyte ions shrinks the double layer, enhancing the capacitance, especially in thinner graphene electrodes. Although EDLC-based materials offer good reversibility and fast charge/discharge rates, their surface area limitations restrict their ability to adsorb significant amounts of salt. However, in ion intercalation materials, in addition to double-layer formation, the ions intercalate and de-intercalate from the crystal structure, as shown in Fig. 2, thereby boosting the salt adsorption capacity (SAC) and ion storage per unit mass. Hence, the ion intercalation process is significantly more effective than EDLC behaviour for CDI applications because of the deeper ion penetration, which leads to a more effective desalination method. For example, the cyanide-mediated mechanism of PBA and its effect on ion storage were examined in 2022 by Nordstrand et al.⁵⁶ By applying a minimum voltage, the negatively charged cyanide (CN⁻) groups that aligned the holes were drawn towards positively charged sodium ions (Na⁺), stabilizing them close to the electrode walls. Similar to climbing a ladder, the ions move hopping diagonally across neighbouring CN⁻ lined faces, with each CN⁻ group serving as a step. Hence, this mechanism is called the ladder mechanism. Significant differences existed in the energy required for ion transitions, with higher barriers near defects that disrupted the framework and smaller barriers near intact CN⁻ walls. The significance of these configurations in controlling the physical characteristics of PBAs, such as storage capacity and transit efficiency, was brought to light by Simonov et al.⁵⁷ using single crystals and examining their X-ray diffuse scattering patterns. Hence, the development and optimization of CDI technology are promising solutions for water purification and energy storage. Factors such as electrode material selection, current collector design, flow rate, and operational conditions play key roles in enhancing the efficiency of CDI systems. With continued research into new materials, such as ion-intercalating electrodes, CDI technology could revolutionize desalination processes, offering a more sustainable and efficient alternative to traditional methods. Therefore, the implementation of ion intercalating electrode materials has sparked interest in novel ideas for CDI because of the ion intercalating mechanism.

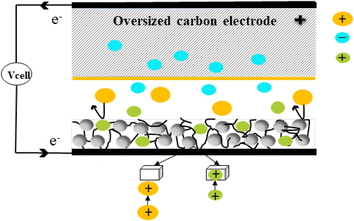

Fig. 2 Schematic representation of the mechanism of ion interaction in an asymmetric CDI cell.

3. Experimental design, types, and modes

Extensive research has been conducted to explore the elements of cell layout, electrode material design, and optimization of operational mode to enhance the ion removal efficacy of the CDI system. The ability of CDI to selectively remove particular ions is one of its main advantages; it offers adaptable water purification solutions for a range of applications. Fig. 3a illustrates the input and output of the desalination process, which uses materials (anion exchange membrane (AEM), cation exchange membrane (CEM), separator, and electrode materials), energy, and chemicals to treat saltwater to produce freshwater, with brine as a byproduct. In Fig. 3b, the graph shows the number of yearly research publications on various materials used in desalination and energy storage applications. Publications on materials like carbon, graphene, and MXenes have increased significantly over time, whereas those with ion-intercalation materials like PBA and MnO₂ have decreased, suggesting a slower rate of research growth. However, because of their high charge storage capabilities and tuneable architectures, ion-interaction materials hold great promise for next-generation energy storage and desalination applications by strengthening their stability and refining synthesis methods.

Fig. 3 (a) Schematic of desalination process inputs and outputs. (b) Graphical representation of the number of papers published based on CDI electrode materials in the past 10 years. (c) Framework of capacitive deionization (CDI) system diagram. (d) Overview of few electrode materials for capacitive deionization (CDI): synthesis methods and key advantages.

3.1. Experimental design

As discussed in the previous Section 2, the desalination experiment required a CDI cell, solution tank, conductivity meter, peristaltic pump, and direct current (DC) voltage source to conduct the CDI adsorption tests, as shown in Fig. 3c. A circulation system was established to facilitate the flow of solution from the solution tank into the CDI cell and back to the tank. Throughout the experiment, the solution flow rate (mL min⁻¹) was kept constant, and a DC source was employed to deliver the DC voltage. A conductivity meter attached to the computer was used to detect the conductivity of the solution in real time, and data were logged every minute. The majority of reported CDI research employs a configuration with two porous electrodes with average thicknesses ranging from 100 to 500 μm, arranged parallel to one another with a small planar gap by a separator between the electrodes through which water can flow. Fig. 3d illustrates the various materials used for CDI applications, along with their various synthesis routes and advantages for CDI cells.

3.2. Operational types of CDI

In a conventional CDI system, two porous electrodes are spatially separated by a channel that allows the flow of solution; initially, both electrodes are polarized through the application of current or voltage, while the influent solutions, containing various ions such as cations, anions, and other contaminants like minerals, salts, and organic compounds, are pumped through the channel. This polarization causes one electrode to acquire a positive charge and another a negative charge. Therefore, the oppositely charged ions in the solution are electrostatically attracted to the electrode surfaces, leading to ion adsorption and water desalination. In the second step, the applied voltage or current is reversed (or turned off), leading to the desorption of the previously adsorbed ions back into the solution. This process regenerates the electrodes and forms a concentrated effluent stream (brine), allowing continuous operation in repeated cycles.⁵⁸ To increase overall performance, scalability, and efficiency in various applications, numerous CDI configurations have been developed throughout time. Each type offers distinct benefits in terms of energy usage, ion removal efficiency and operational adaptability. The primary types are Flow-By CDI (FB-CDI), Flow-Through (FT-CDI), Membrane CDI (MCDI), Hybrid CDI (HCDI), and Flow CDI (FCDI), as shown in Fig. 4a. The evolution of CDI has progressed with various design innovations since the 1960s to increase the energy economy and desalination effectiveness. The oldest known method is FB-CDI, which involves water flow between the stationary porous electrodes and was first demonstrated by Murphy and Caudle in 1967.⁵⁹ Due to co-ion repulsion, this approach exhibits low charge efficiency but offers important insights into electrochemical demineralization. Subsequently, Johnson and Newman et al.⁶⁰ modified the FB-CDI in 1971, which increased the effectiveness of ion removal by forcing water between the porous carbon electrodes by applying an electric field perpendicular to the direction of flow. This arrangement allowed for efficient ion adsorption through a capacitive mechanism, which made it easier for ions to travel towards their oppositely charged electrodes due to the optimized applied voltage. Then, the concept of FT-CDI was proposed, in which water flows through the porous electrodes. The first patent for this invention was filed in Canada by Andelman (CA 2444390 C) in 2002.⁶¹ It explained that an electrochemical desalination process involves the removal of ions by passing water over the porous electrodes. MCDI was experimentally validated by Lee et al. in 2006 (ref. 62) to increase the charge efficiency by introducing ion-exchange membranes into the traditional CDI. This type of CDI showed increased salt removal capacity by selectively allowing counter-ions while blocking co-ions. It became a popular type due to the better desalination performance and lower energy consumption among researchers, but it lacked charge-storage capacity. In 2014, Lee et al. introduced hybrid CDI to boost the charge-storage capacity of electrodes.⁶³ In hybrid CDI, carbon-based materials such as activated carbon, graphene, carbon nanotubes, and carbon aerogels were used as anodes and faradaic materials such as PBAs, TMOs, and other redox-active materials as cathodes were used to utilize both charge-storage and ion-intercalation mechanisms. Therefore, a greater ion removal rate and enhanced cyclic stability were made possible with HCDI, which further minimized the gap between conventional CDI and battery-like charge storage systems. However, because of electrode deterioration, HCDI continued to exhibit limited long-term stability. To overcome the problem of electrode saturation, Jeon et al.⁶⁴ in 2013 proposed FCDI as a continuous flow of suspended carbon particles rather than fixed electrodes like classic CDI; therefore, desalination can continue without the requirement of periodic electrode regeneration. The proposed model is a viable option for large-scale desalination because it can operate for extended periods and is especially useful for treating seawater and high-salinity water. Among all types of CDI, most researchers have combined the advantages of MCDI and HCDI, offering a viable strategy for high-performance CDI applications. In 2018, Santos et al.⁶⁵ used carbon nanotube fiber (CNTF) combined with g-AlO₃ and SiO₃ as the anode and cathode, respectively. With a salt adsorption capability of 6.5 mg g⁻¹ from brackish water (2.0 g NaCl/L), this design improved desalination performance. It showed a low energy consumption of 0.26 W h g⁻¹ of salt removed and a high charging efficiency of 86%. In electrochemical desalination, the hybrid electrode design greatly outperformed conventional CDI systems because of its enhanced surface area optimization and decreased internal resistance. In contrast, vanadium-based intercalating materials, such as vanadium oxide (V₂O₃) and vanadium nitride (VN), are becoming more popular because of their strong redox activity and electrical conductivity, which improve their capacity for ion exchange and charge storage. Hence, in 2024, Wunch et al.⁶⁶ showed the synergetic effect of a VN/V₂O₃ hybrid anode and activated carbon as the cathode, which facilitated high specific capacitance and energy density. In addition to an enhanced charge storage mechanism via pseudocapacitance behavior, this combination is useful for supercapacitor applications. Compared to conventional symmetric CDI electrodes, these ion intercalating materials perform much better electrochemically when employed as anodes, which in turn increases the specific capacitance and desalting efficiency.

Fig. 4 (a) Different types of CDI systems and (b) flow chart of batch and single-pass modes in CDI.

3.3. Operational modes of CDI

The desalination experiments were performed in two operational modes: cyclic (Batch mode) and continuous (Single-pass mode). In the cyclic desalination process, a symmetrical cell was fed by two reservoirs containing identical solutions, and a constant positive direct current was applied until the cell voltage reached a cut-off of 1 V for 1 h and thus concludes the first step. Once the electrodes were saturated, a negative current was applied in the opposite direction until the voltage reached a cut-off of −1 V and was supplied over the cell for 1 h to saturate the electrode. This second step completes one full cycle. The only difference between the two modes of CDI is that single-pass CDI allows continuous operation, i.e., feed water flows continuously through the electrodes; hence, ion removal takes place and continuously purified water is collected, making it suitable for industrial applications requiring a continual supply of cleaned water, whereas batch mode CDI is appropriate for periodic purification cycles, in which regeneration step is required and ions are removed and the regenerated electrodes are used for next cycle, as shown in Fig. 4b. However, both modes can be applied in laboratory experiments, brackish water desalination, Point-of-Use water purification, and water reclamation in Industrial settings.

The initial analysis conducted by Lado J. et al.⁶⁷ revealed that the feed growth concentration of the batch mode test had a favourable effect on SAC, enabling it to achieve greater values at higher concentrations. The highest SAC and the stability of the electrode in the CDI stack were mostly discovered under batch mode; in addition, practically, all previous works in literature took an interest in SAC and concentrated on the numerous ways to enhance the SAC, which can be calculated by using eqn (1).⁶⁸ The following formulae can be used to determine the SAC, ASRR, charge efficiency, energy consumption, and mean deionization rate.

where SAC is the salt adsorption capacity (SAC in mg g⁻¹), C₀ (mg L⁻¹) is the initial NaCl concentration of the feed water, C_i (mg L⁻¹) is the NaCl concentration of the effluent water at the time i; V (L) is the volume of the treated water; v (mL min⁻¹) is the flow rate of the feed water; M (g mol⁻¹) is the molar mass of NaCl; m is the total mass of the material coated (g) and T (s) is the charging time, A_eff is the effective contact area between the flow electrode and the ion-exchange membrane,⁶⁸ where F is the Faraday's constant, 96 485 C mol; I is current density in A m⁻². Results showed that in batch mode, the effluent conductivity during charging declined consistently, whereas in single-pass mode, it decreased immediately and subsequently levelled out. Because of the recycling reservoir, batch mode experiments require less solution volume than single-pass experiments. In batch-mode CDI, the SAC is calculated in accordance with the variation between the initial and final salt concentrations. Because the eventual salt concentration in a recycling reservoir is a function of the total volume of the solution, batch-mode studies are limited by the unknown previous value. The single-pass mode was used with continuous feed water, and the conductivity at the leaving section of the CDI cell was measured to avoid these limitations.⁶⁹ Recent developments include the CDI Ragone plot,⁷⁰ which provides three crucial metrics, including the SAC, mean deionization rate (MDR), and deionization time, to evaluate the desalination performance of single-pass CDI. Because of its large surface area and low cost, AC was initially chosen as the principal electrode material for single-pass CDI systems. The electrosorption selectivity for anions was found to be NO₃⁻ > SO₄²⁻ > F⁻ > Cl⁻ > As, indicating that competing ions influenced arsenic removal. The single pass-CDI removed 76% of the arsenic, lowering the arsenic concentration from 0.13 mg L⁻¹ to 0.03 mg L⁻¹ and fulfilling the drinking water regulations. The process involved continuously pumping groundwater through the CDI cell at a flow rate of 5 ml min⁻¹, where an external voltage of 1.2 V was applied during the electrosorption stage to attract and adsorb ions onto the activated carbon electrodes.⁷¹ After the charging phase, the voltage was removed, initiating the desorption stage, which allowed the concentrated ions to be released back into the solution. This step completed the ion removal cycle and facilitated electrode regeneration. In 2022, Zhang et al.⁷² investigated single-pass CDI with HNO₃-modified activated carbon (AC) electrodes, and found a considerable increase in the fluoride removal efficiency. The improved electrodes exhibited a 13% greater adsorption capacity (3.58 mg g⁻¹) and a 25% improvement in charge efficiency (22.7%) than the unmodified electrodes. The modification increased the specific surface area of AC and hydrophilicity, allowing for greater ion transport while consuming less energy. Furthermore, the modified electrodes preserved 83% of their initial adsorption capacity after five cycles, indicating excellent cycle stability. Recent advances in single-pass CDI have focused on the use of ion intercalation materials to improve desalination performance. Furthermore, Gendel et al.⁷³ employed batch-mode CDI with carbon particle slurries as flowing electrodes (FCDI) in an electrochemical cell. During desalination, a NaCl solution is cycled through the cell, allowing ions to adsorb onto the carbon electrodes. After the desalination efficiency exceeded 99%, indicating very effective ion removal, the charge efficiency varied from 87.6% to 96%. The system efficiency in terms of ion adsorption and energy use was improved. Hence, in 2022, Jiang et al.⁷⁴ used an anion exchange membrane to separate the CDI cell chamber into two, a LiMn₂O₄/C cathode in LiCl solution and a NaTi₂(PO₄)₃/C anode in NaCl solution. When a voltage was applied, lithium ions were released from the cathode, and sodium ions were intercalated into the anode, effectively eliminating salt. This system has an ultra-high desalination capacity of 140.03 mg g⁻¹ at a 20 mM salt concentration. Stable cycling performance exhibited maintained capacity throughout numerous cycles. The single-pass mode demonstrated the excellent desalination efficiency and durability of this dual-ion CDI system, indicating a potential method for future applications. Paroda et al.⁷⁵ used activated carbon powder to create flow electrodes for continuous CDI and capacitive mixing energy generation. The AC had a surface area of 1450 m² g⁻¹ and a 1.01 nm pore size and was suspended in deionized water, homemade river water, or 0.25 M monoethanolamine (MEA) solution to boost CO₂ solubility. Continuous operation was maintained at a flow rate of 2 ml min⁻¹ for desalination and 1 ml min⁻¹ for energy harvesting using an electrochemical potentiostat. Additionally, the increased carbon mass loading increased salt removal weight percent (wt%) by 20 wt%, while the extended cycle duration boosted efficiency. This mode of CDI allows single ion transfer, decreases energy losses and enhances performance. The CDI system, which used MnO₂ as a cathode and NiO as the anode, achieved improved electrical conductivity and a specific adsorption capacity (SAC) of 21.01 mg g⁻¹ in the pH range of brackish water. The oppositely⁷⁶ charged surfaces formed by the dissimilar isoelectric points of MnO₂ (pI = 4.5) and NiO (pI = 10) allowed for easier ion adsorption in single-pass CDI. Because of efficient electrosorption and intercalation, the system demonstrated high efficiency and stability over several charge–discharge cycles. Because single-pass CDI can operate continuously, it outperforms batch-made CDI and is therefore better suited for real-time desalination applications. It guarantees a constant water flow, minimizing downtime and increasing throughput in contrast to batch mode, which necessitates controlled cycles. This ongoing procedure enables more accurate control of desalination performance by real-time conductivity and salt removal monitoring. Furthermore, single-pass CDI removes the difficulties associated with recirculation, thereby lowering the maintenance needs and system design limitations. Additionally, it is an effective and scalable option for large-scale desalination requirements because it can deliver a steady supply of treated water.

4. Electrode materials for CDI

The physical and chemical characteristics of an electrode are important components for increasing the CDI efficiency. Therefore, various research teams have concentrated on developing electrode materials with high salt adsorption capacity (SAC) and an average salt adsorption rate (ASAR). Although porous electrodes with high surface areas improve the CDI performance, their SAC is limited by the absence of an ion intercalation process. The ideal electrode material for CDI depends on several variables, such as conductivity, surface area, chemical stability, and cost-effectiveness (Fig. 5). Thus, choosing high-performance electrode materials with certain qualities is essential for the development of CDI technology. Prussian Blue Analogues (PBAs), Transition Metal Oxides (TMOs), MXenes, Transition Metal Dichalcogenides (TMDs), and Metal–Organic Frameworks (MOFs) are examples of intercalation-based electrodes that show promise in addressing the drawbacks of conventional carbon electrodes⁷⁷ and enhancing CDI efficiency and long-term survivability. Furthermore, the web chart analysis in Fig. 6 shows that in the research carried out over the previous ten years, PBA has shown the greatest SAC among the other materials.

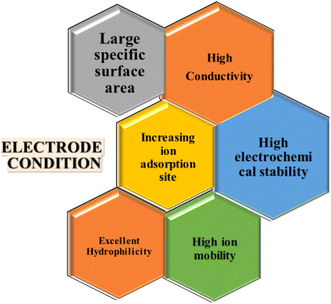

Fig. 5 Schematic of conditions of the electrode materials.

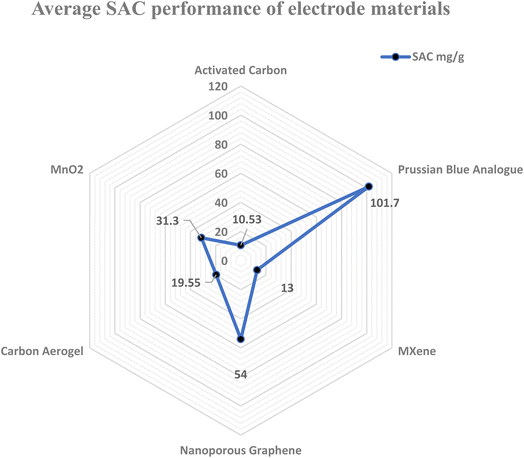

Fig. 6 Web chart showing the average SAC performance of various electrode materials in capacitive desalination.

Carbon-based materials such as activated carbon, carbon aerogels, and graphene with a large surface area may adsorb more ions through the EDLC process, improving desalination efficiency by the formation of an efficient electric double layer.^78–82 Nevertheless, desalination capabilities can be further enhanced by employing ion intercalating materials, which store charge through an intercalation mechanism by insertion and extraction of ions within their structure.^83–85 By employing both electrodes for CDI, the dual mechanism improves the overall desalination performance, increases the capacity for salt adsorption, and improves the efficiency of charge storage compared to carbon alone.^86–89 Hence, non-carbon materials, such as transition metal oxides such as TiO₂, Na_xMnO₂, V₂O₅, and MnO₂, Prussian Blue Analogues such as FePO₄, CoHCF, NiHCF (such as amorphous FePO₄, NaTi₂(PO₄)₃ and Na₂V₂(PO₄)₃, MXenes (such as Ti₃C₂T_x)), and transitional metal dichalcogenides (such as MoS₂, TiS₂), have been explored as alternatives, which offer reversible ion storage mechanisms, improving SAC and ASAR in CDI applications.

4.1. Prussian blue analogues (PBAs)

PBAs have a high desalination capacity because of their open framework structure, which makes ion insertion and extraction more efficient. The high performance of high-entropy PBAs in CDI investigations can be attributed to several benefits. They are also inexpensive and eco-friendly, making them a good choice for large-scale water treatment projects and for successfully resolving water shortage problems worldwide. These materials have exceptional cyclic stability with over 97% capacity retention after 350 cycles because of the incorporation of high configurational entropy, which also improves structural stability and inhibits unfavourable phase transitions. The higher performance of high-entropy PBAs in CDI investigations can be attributed to numerous benefits. These materials have exceptional cycling stability with over 97% capacity retention after 350 cycles because of the incorporation of high configurational entropy, which also improves structural stability and inhibits unfavourable phase transitions. Lei et al.⁹⁰ demonstrated that High Entropy PBAs (HE-PBAs) maintained their efficiency at varying salt concentrations and had a high desalination capacity of 77.24 mg g⁻¹ at 1.2 V. Also, Na⁺ ion diffusion pathways were optimised due to the increased configurational entropy, which accelerated the reaction kinetics and increased efficiency. Additionally, to improve redox kinetics, which are necessary for efficient ion capture during the CDI process, Wang et al.⁹¹ in 2020 incorporated the networks of three-dimensional (3 D) carbon nanosheets with Nickel Hexacyanoferrate (NiHCF), formed a conductive framework that improved charge transfer kinetics, decreased resistance, and improved electron and ion transport. By preventing aggregation, the homogenous dispersion of NiHCF nanoparticles maximized the active surface area available for ion intercalation. In 2024, Li et al.⁹² introduced manganese (Mn) into the NiHCF structure. This decreased the energy barrier for ionic diffusion and increased the electronic conductivity. Furthermore, compared with conventional carbon electrodes, which frequently have poor cycling life, the hybrid structure of Mn–NiHCF coupled with polypyrrole (ppy) showed excellent cycling stability, sustaining performance over 50 cycles. A high charge efficiency of 81% was also demonstrated by optimised Mn–NiHCF/ppy, suggesting efficient use of active sites during desalination.⁸⁰ PBAs have drawn a lot of interest for sodium ion capture applications by reducing the amount of [Fe(CN)₆] vacancies.⁹³ Their high crystallinity greatly increased their conductivity and promoted quick ion diffusion. A high SAC of up to 101.4 mg g⁻¹ at 1.2 V was made possible by effective Na⁺ intercalation and deintercalation by the 3 D open framework of the PBAs. Furthermore, even after 100 cycles, the PBAs showed remarkable cyclic stability, continuing to function without noticeable degradation. The face-cantered cubic (FCC) shape of the Cobalt Hexacyanoferrate (CoHCF) layer offers a large number of redox-active sites, which makes it easier to intercalate and deintercalate Na⁺ ions during the HCDI process. To explain this synergistic effect, Ma et al.⁹⁴ combined CoHCF with conductive polyaniline (PANI), which increased the specific capacitance of composite electrodes, accelerated ion transport, and improved the SAC (30.48 mg g⁻¹) and ASAR (3.66 mg g⁻¹ min⁻¹). By combining conductive carbon nanofibers (CNFs) with PBAs, Wang et al.⁹⁵ showed that conductive networks can be designed by improving electronic conductivity and electrochemical performance. In concentrated NaCl solutions, the PB/CNF combination demonstrated a remarkable SAC of 97.35 mg g⁻¹, which also exhibited outstanding cyclic stability. Additionally, they were designed to be more hydrophilic, which further increased access to the salt solutions and made the active areas for ion adsorption more accessible.

4.2. Transition metal oxides (TMOs)

TMOs, including TiO₂, MnO₂, and V₂O₅, offer high redox activity and ion intercalation properties, making them promising candidates for CDI. However, their intrinsic low electrical conductivity necessitates the development of composites or conductive additives to improve their overall performance. In 2018, Santos et al.⁹⁶ aimed to combine the hybrid architecture of porous CNFs with meta oxides to increase the effective charge storage capacity by optimizing the surface area. In their CDI investigations, they used SiO₂ (silica) as the cathode and γ-Al₂O₃ (alumina) as the anode. According to their findings, brackish water (2.0 g NaCl/L) had a SAC of 6.5 mg g⁻¹. They also showed a high charge efficiency of 86% and a low energy consumption of around 0.26 W h g⁻¹ for salt removal. Subsequently, Yin et al.⁹⁷ discussed the use of 3 D graphene/metal oxide nanoparticle hybrids, especially graphene aerogels combined with metal oxides such as TiO₂, CeO₂, Fe₂O₃, and Mn₃O₄, for enhanced desalination tests. These graphene/metal oxide hybrids demonstrated superior performance in CDI by achieving high electrosorption capacities, with the GA/TiO₂ hybrids reaching a capacity of 25 mg g⁻¹ for NaCl, significantly outperforming pure graphene aerogel and activated carbon. Additionally, the hybrids exhibited rapid electrosorption rates, achieving equilibrium under 200 seconds, and maintained excellent cyclic stability over 1000 cycles, underscoring their effectiveness as high-performance CDI electrode materials. By employing the MnO₂/hierarchical porous carbon (HPC) composite in CDI, the study demonstrated remarkable results, exceeding previously reported values, with maximum SAC (mmol g⁻¹) values of 0.65, 0.71 and 0.76 mmol g⁻¹ for NaCl, MgCl₂ and CaCl_2, respectively. Effective ion intercalation and improved desalination performance were made possible by the exceptional hydrophilicity, low charge transfer, and specific capacitance of 172.2 F g⁻¹ of the MnO₂/HPC composite.⁹⁸ Additionally, due to greater binding interactions within the MnO₂ structure, the composite demonstrated significant selectivity for divalent cations (Ca²⁺ and Mg²⁺) over monovalent cations (Na⁺), indicating its potential for water softening and brackish water desalination applications. In CDI applications, the V₂O₅ material showed notable advantages by achieving a SAC of 55.2 mg NaCl/g V₂O₅, indicating that salt ions were effectively removed. Fat ion diffusion and outstanding structural stability ensured the performance over several cycles. The strong conductivity and low charge transfer resistance were also emphasized in the study, which helped to reduce the energy consumption during desalination to 0.27 kW per h per kg-NaCl.⁹⁹

4.3. MXenes

MXenes, such as Ti₃C₂T_x, are 2D materials with excellent electrical conductivity and hydrophilic surfaces, which enhance ion transport in CDI. Despite these advantages, their SAC has been observed to be lower compared to PBAs, necessitating further optimization. Srimuk et al.¹⁰⁰ used MXene (Ti₃C₂) as the anode and cathode in a CDI setup in an early investigation conducted in 2016. The material leveraged its unique intercalation mechanism, which enabled high charge storage capacity without requiring a large surface area. Both cations and anions could be intercalated effectively by their pseudocapacitance behavior, with an average salt adsorption capacity of 13 mg g⁻¹ and high efficiency exceeding 97%. To improve the ion adsorption capacity, Li et al. introduced bacterial cellulose (BC) fibers to Ti₃C₂T_x MXene cathodes,¹⁰¹ which were able to efficiently control interlayer spacing by improving ion transport and active site exposure. With an enhanced charge efficiency that increased from 82.4% to 91.75%, this MXene/BC composite demonstrated strong hydrophilicity, which improved ion adsorption, high volumetric capacitance (∼1000 F cm⁻³), and outstanding conductivity (∼10 000 S cm⁻¹). Furthermore, the MXene/BC-33% composite showed 66% thermodynamic energy efficiency (TEE), which was greater than that of pure MXene, suggesting increased desalination. Chen et al.¹⁰² combined MXenes (Nb₂CT and Nb₂O₅) and reduced graphene oxide (rGO) for CDI applications in 2023. The dual-confinement of these composites improved the stability, inhibited Nb₂O₅ nanoparticle aggregation, and markedly increased the electrical conductivity. With an average adsorption rate of 4.14 mg g⁻¹ min⁻¹ and NaCl adsorption capacity of 41.07 mg g⁻¹, this hybrid material showed exceptional desalination capability. Furthermore, it demonstrated outstanding long-term stability over 50 cycles with 81% desalination capacity retention. Compared to conventional materials, the dual-confinement structure produced more active sites for ion adsorption and accelerated ion diffusion, leading to better overall performance in CDI applications. Self-stacking was found to occur in MXenes, which hindered their electrochemical performance in all the previous studies; hence, Tan et al. in 2023 (ref. 103) employed MXenes with carbon dots to develop a hybrid composite, in which Ti₃C₂T_x MXene was employed as the cathode material in their investigation, and it was combined with carbon dots (MXene@CDs) in the shape of microflower, which has a low energy consumption of 0.13 kW per h per kg-NaCl, an energy recovery rate of 12.61%, and a high desalination capacity of 86.4 mg g⁻¹ in 10 mM NaCl solution.

4.4. Transition metal dichalcogenides (TMDs)

TMDs, such as MoS₂ and TiS₂, possess layered structures that can accommodate ion intercalation. However, their low intrinsic conductivity presents challenges, and surface modifications or hybridization strategies are required to improve their performance. To develop miniature CDI devices for use in space-constrained contexts, the study by Han et al. ¹⁰⁴ showed that MoS₂-Graphene hybrid electrodes had notable benefits when cast onto the graphite film, attaining a high gravimetric adsorption capacity of 19.4 mg g⁻¹ and a high volumetric adsorption capacity of 14.3 mg cm⁻³. In 2021, Chai et al.¹⁰⁵ successfully designed the MoS₂@CNT-CS composite to provide an effective electrode material for treating brackish water at low concentrations. This innovative structure enhanced the MoS₂ dispersion and provided a strong conductive foundation. Consequently, the electrode exhibited a particular ion selectivity order of Ca²⁺ > Na⁺ > Mg²⁺ > K⁺, with a noteworthy SAC of 25.35 mg g⁻¹ and a quick SAR of 3.9 mg g⁻¹ min⁻¹. To gain knowledge of sodium ion intercalation into material interlayers at the atomic level, Li et al. successfully clarified the ion intercalation process in CDI using TiS₂.¹⁰⁶ This work methodically examined the stacking patterns, intercalation locations, and energetics of intercalated compounds using Density Functional Theory (DFT) simulations. The proposed strategy confirmed the computational techniques and provided insightful information about phase changes during sodium intercalation. Given their encouraging intercalation characteristics, TMDs have emerged as viable options for improving desalination efficiency in CDI applications. Their distinct layered structures provide effective ion insertion, which enhances their salt adsorption capacity. To improve stability, conductivity, and overall CDI performance, future studies should focus on optimizing TMD-based electrodes through structural changes and surface functionalization. Moving this way can open a new path for the development of desalination systems with great efficiency.

4.5. Metal–organic frameworks (MOFs)

MOFs provide tunable porosity and high surface area, making them potential candidates for CDI applications. Their unique structures enable selective ion adsorption, but stability and conductivity enhancements are necessary for practical implementation. To develop a new family for CDI electrodes, Wang et al.¹⁰⁷ introduced MOFs with polypyrrole, which combines high electrical conductivity and a high specific surface area (SSA) of 1176.8 m² g⁻¹, whereas this hybrid enabled efficient electron transfer and salt adsorption of 11.34 mg g⁻¹. Further studies were conducted in comparison of N-doped carbon particles (NCPs) and AC with N-doped carbon tubes derived from MOFs as CDI electrode materials. Tubular construction that decreased diffusion distances, binder-free arrangement that increased accessible surface area, and nitrogen doping improved the reactivity and conductivity of NCTs, as reported by Xu et al. in 2020.¹⁰⁸ These characteristics allowed NCTs to overcome NCPs and Acs by achieving a SAC of 56.9 mg g⁻¹. Furthermore, ion transport and adsorption were improved by the logical design and synthesis of the hollow carbon structure, thereby proving its usefulness in desalination technologies. The incorporation of multi-heteroatom co-doping allowed for much greater improvement by boosting the electrochemical characteristics of the carbon material. Using a graphite sheet as the current collector, Zhang et al.¹⁰⁹ expanded on this strategy by using N, P, and S co-doped hollow carbon polyhedrons derived from MOF-based core–shell nanocomposites (ZIF-8@PZS-C) as the anode material in CDI. Superior ion adsorption and transport were facilitated by the SSA of the anode material, which increased further hydrophilicity, higher electrical conductivity and decreased internal impedance. Consequently, in 500 mg per L NaCl solution, the ZIF-8@PZS-C electrodes exhibited an SAC of 22.19 mg g⁻¹ at 1.2 V.

We systematically evaluated various electrode materials such as Prussian Blue Analogues (PBA), transitional metal oxides (TMOs), transitional metal-dichalcogenides (TMDs), MXenes and metal organic frameworks (MOFs) for their effectiveness in CDI. Our comparative analysis reveals that every class of materials has unique advantages as well as limitations with regard to long-term stability, charge-storage approaches, and SAC. MXenes show high SAC and charge efficiency due to their superior ion transport capabilities, high conductivity and hydrophilicity. In contrast, PBAs have proven popular for hybrid CDI applications because of their quick ion intercalation kinetics and excellent desalination performance. Despite providing redox-driven charge storage, TMOs exhibit poor electrical conductivity, further reducing their overall CDI efficiency. However, the use of optimized TMOs and PBAs in hybrid CDI enhances desalination performance by utilizing EDLC and faradaic charge storage mechanisms.

5. Synthesis strategies for ion intercalation materials

To enhance CDI performance with Prussian Blue Analogues (PBAs), an innovative material in the field of desalination, exhibiting a unique open 3 D framework and efficient ion exchange capabilities. A comprehensive approach encompassing the synthesis, characterization, and electrode design is crucial. The precise selection of transition metal ions (e.g., Fe, Co) of PBAs and bridging cyanide ligands to tailor redox potential and structural stability, impacting ion affinity and transport. The synthesis method includes electrochemical oxidation using hydrothermal,¹¹⁰ co-precipitation¹¹¹ electrodeposition¹¹² sol gel,¹¹³ and many other routes, which significantly influence morphology, particle size,¹¹⁴ crystallinity,¹¹⁵ and pore size,⁸⁵ allowing strategic manipulation of PBA properties. The structure of PBAs allows for the selective exchange of sodium ions (Na⁺) with larger divalent ions like magnesium (Mg²⁺) and calcium (Ca²⁺) from seawater or brine. This selective ion removal not only enhances desalination performance and contributes to the rapid diffusion of ions and water through their porous structure, ensuring high ionic conductivity and efficient ion transport.

5.1. Hydrothermal

Using a straightforward hydrothermal technique, Yang et al. synthesised a MXene VO₂/CTAB-Ti₃C₂ heterostructure that effectively inhibited the re-stacking of Ti₃C₂ layers.¹¹⁶ It exhibited a distinctive lamellar morphology that improved the surface roughness and interlayer spacing, with an SSA of 28.06 m² g⁻¹. This structure outperformed CTAB-Ti₃C₂ (4.36 m² g⁻¹) and was lower than pure VO₂ (33.77 m² g⁻¹). Another study focused on plasma-treated vanadium-based material (NH₄)₂V₁₀O₂₅·8H₂O (P-NVO), synthesized via the hydrothermal method,¹¹⁷ further enhancing its properties by argon plasma treatment. P-NVO exhibited a micro flower-like morphology with a layered crystalline structure and 0.97 nm interlayer spacing, retaining its integrity post-treatment. This morphology increased the surface area for ion adsorption and facilitated Pb²⁺ intercalation, enabling efficient ion transport and storage. The hierarchical nanoneedles improved electrode–electrolyte contact, reducing resistance and enhancing ion diffusion. Plasma treatment introduced oxygen vacancies, creating additional active sites and P-NVO demonstrated a specific capacitance of 204.6 F g⁻¹ at 1 A g⁻¹ and a high adsorption capacity of 49.56 mg g⁻¹ for Pb²⁺ from a 400 mg per L Pb(NO₃)₂ solution, showing superior selectivity for Pb²⁺ over Cd²⁺ compared to traditional carbon electrodes. To enhance the performance of salt adsorption capacity, Tan et al. synthesized a hybrid electrode material composed of Ti₃C₂T_x, MXene and carbon dots (CDs), referred to as MXene@CDs, using a hydrothermal method for CD synthesis and electrostatic self-assembly for composite film formation. The hybrid material exhibited a unique microflower structure that minimized the self-stacking of MXene nanosheets, improving the ion transport and storage capacity for capacitive deionization (CDI) applications.¹⁰³ The morphology featured interspersed MXene nanosheets and CDs, resulting in a flexible, binder-free electrode with a high specific surface area that facilitated enhanced ion diffusion and adsorption. CDI studies showed that the MXene@CDs-2 electrode achieved a high desalination capacity of 86.4 mg g⁻¹ at a current density of 20 mA g⁻¹, with low energy consumption of 0.13 kW per h per kg-NaCl and an energy recovery rate of 12.61%. These results highlighted the significant performance enhancement due to the hybrid structure and demonstrated its potential for efficient water desalination. In 2023, MnO₂/PANI composites were hydrothermally synthesized after hierarchical porous carbon (HPC) was been synthesized from microalgae using a one-pot pyrolysis technique.⁹⁸ The MnO₂/HPC composite showed a multimodal pore size distribution and a large surface area of approximately 175.2 m² g⁻¹, with MnO₂ nanorods uniformly anchored onto the HPC surface. This special morphology and shape promote ion accessibility, buffer volume fluctuations during ion intercalation and deintercalation, and increase electrical conductivity. Furthermore, in advance to research on PBA, Vafakhah et al.¹¹⁸ synthesized sodium vanadium fluorophosphate wrapped in reduced graphene oxide (NVPF@rGO) using the hydrothermal method by mixing precursors in deionized water and heating in a Teflon-lined autoclave. The material exhibited micro-sized (∼3 μm) and nano-sized (<600 nm) morphologies, with the latter providing enhanced electroconductivity and faster ion migration. In capacitive deionization (CDI), the nano-sized particles achieved a high salt adsorption capacity (60 mg g⁻¹) and 98% retention over 500 cycles. These results highlight NVPF@rGO as a promising electrode material for efficient and stable desalination applications.

5.2. Co-precipitation

To enhance charge transfer, high active sites, and reduced ion diffusion, Xu et al.⁸⁹ synthesized Nickel hexacyanoferrate with a carbon nanotube (NiHCF/CNT) composite via a co-precipitation technique that involved acidifying CNTs with sulphuric and nitric acids. The final product had homogenous 300 nm NiHCF particles interconnected by a 3 D network of carbon nanotubes, which further enhanced charge transfer and inhibited NiHCF agglomeration due to its high surface area of 205 m² g⁻¹ and achieved a SAC of 29.1 mg g⁻¹. Furthermore, in 2017, Slawomir Porada et al.¹¹⁹ achieved continuous desalination demonstration within a CDI cell for the first time experimentally and was carried out by intercalating Na⁺ ions from a NaCl solution using redox-active NiHCF nanoparticles, which were synthesized by a solution/precipitation reaction with aqueous reagents using the following synthesis reaction:

NiCl₂ + Na₄Fe(CN)₆ → Na₂NiFe(CN)₆ + 2NaCl and characterized the dynamic, cyclic behaviour of the CDI cell at a salinity typical of brackish water. The general synthesis method is shown in Fig. 7, which shows the synthesis of NiHCF using Na₄Fe (CN)₆ by Lee et al.¹²⁰ in a controlled crystallization reaction with citrate. These results show that the system has a high desalination capacity (59.9 mg g⁻¹) and efficient energy consumption (0.34 W h L⁻¹ for 40% Na ion removal efficiency). PBAs typically exhibit structural flaws and poor electronic conductivity, resulting in weak cycle stability and reduced capacity. To overcome these drawbacks, Ao Gong et al.¹²¹ incorporated iron-based Prussian blue (FeHCF) in a three-dimensional nitrogen-doped carbon framework (3 DNC). The FeHCF@3DNC electrode showed a high desalination capacity of 60.5 mg g⁻¹ and excellent cycle repeatability.

Fig. 7 Schematic of synthesis of nickel hexacyanoferrate.

5.3. Electrochemical method

Research on PBA materials has highlighted the promising potential of various PBA morphologies. In 2010, Sabzi et al.¹²² demonstrated a method for synthesizing nickel hexacyanoferrate (NiHCF) via electrochemical oxidation of nickel in the presence of hexacyanoferrate ions and a nanoporous anodic alumina oxide (AAO) template. This study successfully produced NiHCF nanoarrays with distinct morphologies—nanodots (70–90 nm), nanorods (2–5 μm length, 70–90 nm diameter), and nanotubes (30–50 nm diameter). The electrochemical analysis revealed that NiHCF nanorod arrays exhibited superior current responses and electrochemical performance compared to other morphologies, with their larger surface area (50–100 m² g⁻¹) and reduced diffusion limitations. Furthermore, the CDI studies of NiHCF nanorods showed high specific adsorption capacity (200–300 mg g⁻¹), with Na⁺ ion removal efficiency (up to 90%), and the effective diffusion coefficient was reported as 1.2 × 10⁻⁶ cm² s⁻¹, with peak currents reaching 1.5 mA. Furthermore, Alberto Martinez et al.¹²³ investigated the electrochemical synthesis of some metal–organic frameworks, such as HKUST-1, ZIF-8, MIL-100(Al), MIL-53(Al), and NH₂-MIL-53(Al). This synthesis method has several advantages over traditional hydrothermal methods, including faster synthesis times, milder reaction conditions, and the ability to synthesize MOF nanoparticles with tunable morphologies. The critical synthesis parameters, including solvent, electrolyte, current density, and temperature, significantly affect the yield, crystallinity, and textural characteristics of the final MOFs. Interestingly, the electrochemically synthesized MIL-53 and NH₂-MIL-53 samples exhibit less framework flexibility compared to their hydrothermally synthesized counterparts, which is most probably due to the fast formation kinetics. This would allow the construction of MOF coatings on conductive surfaces, such as demonstrated by the example with HKUST-1which was been synthesised by electrochemical deposition. Alberto Martinez et al. investigated the electrochemical synthesis of some metal–organic frameworks, such as HKUST-1, ZIF-8, MIL-100 (Al), MIL-53 (Al), and NH₂-MIL-53. Ngo Minh Phuoc et al.¹²⁴ in 2020, synthesised ZIF-67 and combined with CNT, which illustrates the investigation of the synthesized ZIF-67@CNT, which enhanced the CDI system. The CDI cell was initially charged for 10 min at 1.2 V and then discharged for 30 min at −0.3 V, and this process was repeated 10 times (Fig. 8c). The electro-adsorption of Na⁺ and Cl⁻ ions onto the electrode surfaces during charging decreased the concentration of the effluent salt, which subsequently increased as electrode saturation took place. The desorbed ions caused the effluent concentration to rise above the influent level during the discharge period (Fig. 8a and b). The SAC of different CDI electrodes is displayed in Fig. 8d, which shows that pristine AC has the lowest SAC (6.01 mg g⁻¹). With 10 wt% CNT, the SAC increased to 7.35 mg g⁻¹, and with 10, 20, and 30 wt% ZIF-67@CNT, it increased to 8.32, 9.98, and 11.32 mg g⁻¹, indicating improvements of 38%, 66%, and 88%, respectively. The combined advantages of the porosity and increased conductivity of ZIF-67 and CNT are reflected in this improvement.

Fig. 8 Variation in the (a) salt concentration of effluent stream and (b) measured current during CDI desalination for 10 cycles. (c) Potential difference applied to the CDI cell (top) and change in effluent concentration magnified from (a) (bottom). (d) Calculated salt adsorption capacity of various CDI electrodes.¹²⁴

5.4. Chemical vapor deposition (CVD)

Further studies on V₂O₅ using chemical vapor deposition (CVD) at 625 °C significantly enhanced the material's electrical conductivity and resulted in a honeycomb structure that provided a high surface area essential for effective ion adsorption during CDI, while the graphene coating improved charge transfer and the morphology remained structurally intact throughout multiple desalination cycles, ensuring stable performance without significant degradation. These findings demonstrated the synergistic benefits of the unique morphology in enhancing electrode performance for CDI applications.

5.5. Calcination/etching

The N, P, and S co-doped hollow carbon polyhedron was been synthesised by using the ZIF-8 template, forming a ZIF-8@PZS composite by calcining/etching.¹⁰⁹ The material had a hollow polyhedron structure of 70 nm with a shell of 8 nm, a surface area of 929 m² g⁻¹, and a pore volume of 1.60 cm³ g⁻¹. By improving ion transport, its mesostructured material achieved a high SAC of 22.19 mg g⁻¹ in 500 mg per L NaCl at 1.2 V. Co-doping enhances hydrophilicity and conductivity, thereby increasing the CDI performance.

5.6. Other synthesis routes

Additionally, synthesis parameters such as temperature, pH, and reactant concentrations are crucial, and hence, in 2021, Arulrajan et al. highlighted how pH (ref. 125) variations are influenced by feed water type and electrode condition. They observed that the pH decreased during the desorption of NaCl solution, whereas tap water containing carbonate and bi-carbonate ions increased the pH. The preferential adsorption of bicarbonate ions during desalination contributed to pH fluctuations, raising concerns about scaling risks at higher recoveries Lumley et al.¹²⁶ demonstrated the structure–composition–property relationships of nickel hexacyanoferrate (NiHCF) by explaining how synthesis conditions, such as temperature and precursor selection, affected the crystallinity, morphology, and electrochemical performance of NiHCF. The redox reactions of Fe ions (Fe²⁺/Fe³⁺) during sodiation and desodiation were coupled with the insertion and release of Na⁺ ions within the NiHCF framework. This study emphasized the influence of the lattice type (cubic vs. rhombohedral), A-site occupancy, and Fe(CN)₆ vacancies on the electrochemical behavior and stability. By analyzing these factors, the authors identified ways to optimize NiHCF for improved performance in capacitive deionization (CDI). The cubic lattice structure with fewer vacancies exhibited higher stability and enhanced Na⁺ storage capacity. These findings contribute to the development of efficient NiHCF-based materials for practical seawater desalination and energy storage applications. Further improvement was made to develop a promising redox-active intercalation electrode material for hybrid capacitive deionization (HCDI) by synthesizing NiHCF@3DC-2, a redox-active intercalation electrode combining PBA nanoparticles with a 3D carbon nanosheet network. The synthesis involves a two-step process: forming a SiO₂-coated citric acid precursor, freeze-drying, and carbonizing under argon to create a porous 3D carbon framework, followed by the in situ growth of NiHCF nanoparticles (10–20 nm) within macropores (0.8–1 μm). This structure enhances ion transport and electron transfer and prevents aggregation, yielding a high ion removal capacity of 107.5 mg g⁻¹ in 20 000 mg per L NaCl with a peak ion removal rate of 11.0 mg g⁻¹ min⁻¹. The material's conductivity, porosity, selective cation intercalation, and cycling stability (90.3% retention over 120 cycles) contributed to its superior performance. To maximize ion transport, Ahn et al. in 2024 (ref. 127) combined cobalt chloride, sodium citrate, and sodium hexacyanoferrate and stirred the mixture for 24 h, then aged and filtered, NaCoHCF electrodes were synthesized using the citrate-assisted controlled crystallization technique. The resultant NaCoHCF had larger dimensions than usual PBA particles, measuring about 5 μm, and a highly crystalline face-centered cubic structure. High desalination rates were achieved, which was made possible by this structure with improved ion transport during CDI and an increased specific capacity of 88 mA h g⁻¹, which further increased effective ion intercalation and deintercalation. Further research focused on MXenes and their composites, in which Taha et al. synthesized titanium oxynitride (Ti_xO_yN_z) nanoparticles via nitridation and annealing TiO₂ in an ammonia atmosphere. This process produced a meso-macroporous structure (∼23 nm pore diameter), enhancing the capacitive deionization (CDI) performance.¹²⁸ The nanoparticles achieved a high salt adsorption capacity (SAC) of 56.6 mg g⁻¹ and retained nearly 100% SAC after 1960 cycles over 110 days. The interconnected porous structure facilitates rapid ion transport and improved electrode-ion interactions. Compared to conventional carbon-based electrodes with lower SAC (∼15 mg g⁻¹) and stability issues, transitional metal oxides such as MnO₂, TiO₂, RuO₂, Fe₂O₃/Fe₃O₄ are integral to the advancement of CDI technologies, offering pathways to more efficient and sustainable water desalination solutions by removing ions by electrochemical methods. The unique properties of TMOs are their high specific capacitance and pseudocapacitive behaviour, making them excellent candidates for the CDI electrode. It can also show both Electrical Double Layer Capacitance (EDLC) or pseudocapacitance (Ion Intercalation mechanism), but most of the TMOs primarily operate through pseudocapacitance, i.e., it stores charge via surface or near-surface redox reactions, involving reversible faradaic reactions due to the intercalation/deintercalation of cations (Na⁺ or K⁺) in its lattice. TMOs such as PBA operate through reversible redox reactions, enabling efficient ion intercalation and charge storage, but other TMOs, such as MnO₂ and TiO₂, are synthesized using techniques like thermal decomposition and chemical precipitation, producing materials with tailored crystal structures and conductivity.¹²⁹ The combination of high capacity, structural stability, and redox activity of TMOs makes them particularly effective in flow-between CDI systems, where energy efficiency and cycling stability are critical. These synthesizing strategies highlight the potential of TMOs, especially PBAs, to advance CDI technologies by improving ion capture efficiency and overall performance.¹³⁰ Manganese oxide (MnO₂)^88,131 and Ruthenium dioxide (RuO₂)¹³² exhibit high specific capacitance due to their ability to undergo reversible redox reactions, enhancing the capacity of CDI applications. The behavioural mechanism also depends on which electrolyte is used for analysis, such as alkaline, neutral and acidic electrolytes. Although the material is the same, the CV behaviour will be different with different electrolytes. MnO₂ exhibits E DLC behaviour in a neutral medium because of its stable environment and prevents extensive redox reactions, limiting the material's response to surface adsorption, whereas, in an alkaline medium, MnO₂ undergoes reversible faradaic reactions of OH⁻, which interact actively with electrode materials. The major advantage lies in engineering the TMOs into various nanostructures to prevent electrode stacking and improve electronic conductivity, thereby enhancing CDI performance. To introduce a new family to the electrode materials of CDI, MXenes emerged as the most promising materials for CDI due to their high electrical conductivity and large surface area. However, it tends to restack, which may degrade the electrochemical performance. Kajiyama et al.⁸⁴ explained that the Ti₃C₂T_x electrode, which was been synthesised using a simple precursor method, shows reversible behaviour because the layered structure allows sodium ions to access and depart during the sodiation/desodiation process. During the initial sodiation, a significant expansion of the interlayer spacing (from 9.7 Å 12.5 Å) is observed due to the insertion of desolvated sodium ions and the penetration of solvent molecules. This expansion is stabilized by the trapped sodium ions and the swelling effect of the solvent, which helps to maintain the increased interlayer distance even in subsequent cycles. Furthermore, faradaic charge storage was established by combining VO₂, a redox-active material, with highly conductive Ti₃C₂–MXenes, improving ion capture above and beyond traditional double-layer adsorption.¹¹⁶ The remarkable desalination performance of NVPF@rGO was facilitated by the creation of a porous conductive network by reduced graphene oxide (rGO), which enhanced charge transfer, preserved electrode integrity, and allowed for rapid Na⁺ intercalation/deintercalation. Although the hierarchical pore structures in both composites offered numerous active sites for ion adsorption, the pseudocapacitive behavior of vanadium in NVPF further enhanced charge storage. Furthermore, their exceptional structural stability guaranteed little degradation; over 500 cycles, NVPF@rGO retained 98% SAC, and over several desalination cycles, VO₂/CTAB-Ti₃C₂ demonstrated significant SAC retention. These materials were incredibly effective for CDI due to their balance of high electrical conductivity, large surface area, optimized pore architecture, and enhanced electrochemical stability. This enables long cycling performance, high adsorption efficiency, and quick ion transport for next-generation CDI applications. Whereas, Metal–Organic Frameworks (MOFs) are emerging as advanced materials for CDI due to their highly customizable structures, high porosity, large surface area, and unsaturated metal centre pores with high thermal and chemical stability and exceptional selectivity.¹³³ MOFs are synthesized through methods like sonochemical synthesis¹³⁴ and microwave-assisted synthesis, which allow precise control over crystal size, morphology, and pore structure.¹³⁵ These techniques ensure that MOFs exhibit the structural stability and functional tunability required for efficient CDI performance. The unique framework of MOFs, which comprises metal ions and organic linkers, allows selective ion trapping and enhanced adsorption capacity. Their customizable pore sizes allow for precise ion sieving, reducing energy consumption and improving desalination efficiency. MOFs are particularly effective in hybrid CDI systems, where their selective ion capture capabilities complement other materials like graphene. The ability to fine-tune their chemical and structural properties through synthesis makes MOFs a promising material for advancing CDI technologies.^136,137 The potential to achieve high performance with minimal energy input positions them as a key component in next-generation desalination solutions. The study by Wang et al.¹⁰⁷ focused on a hybrid material composed of polypyrrole (PPy) nanotubes and a MOF, specifically, a Zeolitic Imidazolate Framework-67 (ZIF-67). When a 2-methylimidazole (2-MeIM) methanolic solution is added, the pre-synthesized PPy nanotubes are dispersed in a Co(NO₃)₂ methanolic solution, where they adsorb free Co²⁺ ions and act as nucleation sites for the development of ZIF-67 crystals. With well-dispersed ZIF-67 polyhedral interlaced with PPy nanotubes and an average diameter of 230 ± 78 nm for PPy nanotubes and an average size of 1.49 ± 0.28 μm for the ZIF-67 particles, the resulting ZIF-67/PPy hybrid displays an interconnected network topology. By lowering the overall bulk electrical resistance, promoting quicker electron transfer, and producing a high desalination capacity (SAC) of 11.34 mg g⁻¹—much higher than the capacities of pure ZIF-67 (3.82 mg g⁻¹) and PPy nanotubes (6.92 mg g⁻¹), this distinctive morphology improves the hybrid's electrical conductivity. This hybrid is a potential option for capacitive deionization (CDI) applications because of the high porosity of ZIF-67 and the strong electrical conductivity of PPy.

The various synthesis methods for ion intercalation materials in CDI are hydrothermal, co-precipitation, electrochemical synthesis, chemical vapor deposition (CVD) and microwave-assisted synthesis. Materials synthesized using the hydrothermal method provide better control over crystal structure, defect engineering, and phase purity, which are essential for increasing ion intercalation capacity. Precise morphological control is made possible by hydrothermal synthesis, which affords distinct crystalline structures that promote effective charge storage and ion transport. It also encourages the development of porous structures and large surface areas, which enhance ion mobility and electrolyte accessibility. In addition, it can provide superior structural and electrochemical properties, maximize SAC, enhance charge storage kinetics, and lower energy consumption in CDI applications which has been represented in Table 1. Hydrothermal synthesis is generally the best method for developing high-performance ion intercalation materials. Furthermore, co-precipitation is more economical and scalable than other methods, although it frequently produces materials with less crystallinity and uneven phase control. Rapid heating is made possible by microwave-assisted synthesis, which improves phase purity and defect generation although more refinement is required to achieve uniform particle size (Table 1).

Table 1 Performance of various electrode materials in capacitive deionization

Sl no.	Materials	Feed concentrations	Flow rate (ml min^−1)	Voltage (V)	SAC (mg g^−1) ref.
1	NiHCF/C	500 mg L^−1	100 ml min^−1	1.2 V	29.1 mg g^−1 (ref. 89)
2	Rhombohedral-NiHCF	0.6 M NaCl		1.4 V	126
3	CoHCF@PEDOT (HCDI)	1 mol L^−1 NaCl		1.2 V	146.2 mg g^−1 (ref. 138)
4	CuHCF (FT & FB-CDI)	50 mM NaCl	0.25 ml min^−1	1.2 V	19 mg g^−1 (ref. 55)
5	FeFe (CN)6 (PB)	500 to 10 000 ppm NaCl	50 ml min^−1 to 950 ml min^−1	1.2 V	120 mg g^−1 (ref. 44)
6	(NH4)2V10O25·8H2O (NVO)//AC (HCDI)	1 M NaCl	10 ml min^−1	1.2 V	49.56 mg g^−1 (ref. 117)
7	MXene@CDs-2	10 mM NaCl	7 ml min^−1	1.2 V	86.4 mg g^−1 (ref. 103)
8	NTP-MXene/rGO	10 mM NaCl	50 ml min^−1	1.8 V	251.55 mg g^−1 (ref. 139)
9	Ti3C2-MXene (FBCDI)	5 mM NaCl	22 ml min^−1	1.2 V	13 mg g^−1 (ref. 100)
10	Na3V2(PO4)3@Carbon	1000 mg L^−1 NaCl	20 ml min^−1	1.2 V	74.0 mg g^−1 (ref. 140)
11	Co3V2O8@C	500 mg L^−1 NaCl	40 ml min^−1	1.2 V	160 mg g^−1 (ref. 141)
12	FeNC	100 ml NaCl	10 ml min^−1	1.2 V	28.88 mg g^−1 (ref. 142)
13	Nb2O5/Nb2CTx-Rgo (HCDI)	1 M NaCl		1.2 V	41.07 mg g^−1 (ref. 102)
14	MnO2/RGO//RGO (HCDI)	500 mg L^−1	10 ml min^−1	1.2 V	52 mg g^−1 (ref. 143)
15	TixOyNz (flow-by CDI)	350 mg L^−1	30 ml min^−1	1.2 V	56.6 mg g^−1 (ref. 128)
16	NVPF@rGO (flow-by CDI)	5000 ppm NaCl	50 ml min^−1	1.2 V	60 mg g^−1 (ref. 118)
17	G-V2O5 (flow-by CDI)	5 mM NaCl	40 ml min^−1	1.4 V	6.7 mg g^−1
18	N-doped carbon quantum dots/vanadium nitride (NCQDs/VN)	10 mM NaCl	40 ml min^−1	1.2 V	8.5 mg g^−1
19	TiO2@CNF (FT-CDI)	15 mM NaCl	5 ml min^−1 to 40 ml min^−1	1.4V	12.5 mg g^−1 (ref. 144)
20	N-doped hollow mesoporous carbon sphere and holey graphene hydrogel (N-HMCS/HGH)	500 mg L^−1	25 ml min^−1	1.4 V	23.71 mg g^−1 (ref. 145)

---

6. Conclusion

A promising approach for desalinating water and removing impurities is capacitive desalination (CDI). The efficiency of CDI systems hinges on ion intercalation, which governs electrode performance and efficiency. The ongoing research aims to enhance electrode materials for improved intercalation, thereby reducing costs and enhancing energy efficiency in CDI systems. In comparison with conventional desalination methods like reverse osmosis (RO), which typically consume 1–3 kW h m⁻³ for freshwater production, CDI offers low energy consumption rates ranging from 0.5 to 1 kW h m⁻³. However, CDI is not devoid of fouling and scaling issues. Identifying the optimal electrode materials remains a challenge despite the mature state of CDI technology. Novel electrode materials capable of faradaic reactions, surface redox reactions, and improved ion electrosorption have been explored to enhance CDI performance. Many distinct ion intercalation materials have been used with different cell topologies, and high SAC has been demonstrated. Much research has been conducted on carbonaceous electrodes because of their large surface area and porosity, which are useful in capacitive desalination. Various electrode materials, including carbon-based, non-carbon-based, and ion intercalation materials, play crucial roles in CDI systems, each with its own set of advantages and drawbacks. With their superior electrical conductivity, carbon-based materials like graphene and activated carbon allow for rapid ion adsorption and desorption during CDI. These materials are cost-effective, readily available and exhibit superior electrical conductivity, making them suitable for large-scale CDI applications. In particular, activated carbon can provide a high surface area for ion adsorption, thereby maximizing the CDI system efficiency. However, these materials typically have lower specific ion storage capacities than intercalation materials and may necessitate larger electrode volumes, potentially leading to bulkier CDI systems. Some carbon materials can even exhibit irreversible ion adsorption, reducing the CDI system's efficiency and lifespan.

In contrast, ion intercalation materials, such as Prussian blue analogues, transitional metal oxides and meta organic frameworks, offer high specific capacities for ion storage and tunability through compositional modifications. Many intercalation materials exhibit excellent ion insertion/extraction reversibility, which is crucial for the long-term stability and efficiency of CDI systems. We can compare a few electrode types in this review to gain a better understanding of their usefulness in CDI applications. The selection of ion intercalation materials or carbon-based materials as CDI electrodes is based on specific application requirements. Compared with carbon-based materials, ion intercalation materials offer superior long-term stability, tunability, and large ion storage capacity. The synergistic interaction between the pseudocapacitive features of intercalation materials and the EDL formation of carbon-based materials has demonstrated promising results for performance enhancement when intercalation materials and carbon-based materials are combined. While certain intercalation-based systems have demonstrated excellent desalination capabilities, most have limited ability to remove anions such as chloride ions. In reality, a hybrid strategy that utilizes the advantages of both electrode types—using carbon-based materials for effective ion kinetics and ion intercalation materials for high-capacity storage—has provided the greatest approach. The design of CDI systems requires careful consideration of these factors to effectively meet the desired performance and cost objectives. Researchers and engineers must continue to explore and innovate electrode materials to further advance the capabilities and efficiency of CDI technology.

To increase the desalination effectiveness of ion-intercalating materials like PBA, structural alterations must be made through composite synthesis. PBA-based composites offer a distinct advantage over traditional carbon-based materials by boosting ion transport kinetics and increasing charge storage capacity. It is possible to design a crystal lattice with enlarged interstitial gaps using controlled synthesis techniques that accelerate ion intercalation and prevent structural deterioration. These changes resulted in a much higher SAC by optimizing the electrochemical performance and mitigating lattice flaws. In addition, improving the control of surface chemistry, porosity, and crystallinity by synthesis parameter adjustment leads to improved adsorption kinetics and ion accessibility. In comparison with carbon-based electrodes, the synergistic effect of PBA and appropriate composite materials resulted in enhanced conductivity, mechanical stability, and greater desalination efficiency. PBA composites are a viable option for next-generation CDI technologies because they can offer improved energy efficiency and longer electrode lifespans by incorporating structural tuning techniques. This study demonstrates the superiority of composite engineering in improving CDI performance and opening the door to the creation of desalination systems with larger capabilities that are robust and scalable.

7. Future perspectives

Investigating Prussian Blue Analogue (PBA)-based CDI architectures that operate without anion exchange membranes is crucial because, despite their impressive desalination capabilities, which range from 20 to 200 mg g⁻¹, PBAs' dependence on AEM raises system costs. The successful desalination of ultra-low salinity water (<100 ppm), a major obstacle for next-generation water purification technologies, is one of the crucial issues that future developments in CDI must address. As the field develops, scientists should consider the complex relationship between the vacancy distribution and physical characteristics of PBAs. They can even implement state-of-the-art methods such as electron diffraction and serial femtosecond crystallography to learn more about structural dynamics. Further improving the ion adsorption efficiency may be possible by precisely controlling the vacancy networks through knowledge of the effects of cooperative Jahn–Teller distortions and alkaline–metal inclusion. To address the difficulties of water shortage, these paths provide fascinating prospects for present-day young researchers to develop CDI systems with enhanced selectivity, reduced energy use, and superior performance.

Data availability

No primary research results, software or code has been included and no new data were generated or analysed as part of this review.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have influenced the work reported in this paper.

Acknowledgements

The author(s) disclosed receipt of the following financial support for the research by the Department of Science and Technology, Ministry of Science and Technology, India [Funding No. DST/TMD/EWO/WTI/DM/2021/236 (G)]. The authors thank the Department of Science and Technology, Ministry of Science and Technology, India, Funding No. DST/TMD/EWO/WTI/DM/2021/236 (G) and REVA University for the Seed Money Grant: RU/EST:CHEM:2022/23.
