Chemical looping hydrogen production from ammonia and water: materials and technoeconomics

Abstract

Ammonia (NH₃) is a promising hydrogen carrier due to high hydrogen density and established infrastructure. We present a novel chemical looping process to produce H₂ from NH₃ oxidation and decomposition and from water splitting, integrating thermochemical redox looping and catalytic reaction. Unlike single-step catalytic NH₃ decomposition, the looping configuration produces high purity H₂ from the water splitting that significantly lowers separation energy and cost. FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ were shown as durable dual-functional oxygen carriers and catalysts, achieving 95% and 99% NH₃ conversion and 39% and 25% water splitting conversion, respectively. The materials’ redox capacities were explained by simultaneous Fe and Co redox reactions and solid-state phase transition between metal (alloy) and spinel. From 450 to 600 °C, Fe redox capacity increased, while Co redox capacity decreased. Kinetic limitations hindered full reduction of FeO_x/YSZ to metallic Fe at 450 °C due to lack of the effective Co catalyst, while thermodynamic limitations prevented complete oxidation of Co metal in Fe_0.5Co_0.5O_x/YSZ. Techno-economic analysis showed the looping process achieves 52% to 86% lower energy and equipment costs than single-step catalytic NH₃ decomposition with different H₂ separation methods.

---

Green foundation

1. This paper presents a novel process of chemical looping ammonia oxidation and decomposition integrated with water splitting (CLAOD-WS). Compared to single-step catalytic NH₃ decomposition, CLAOD-WS gives high purity H₂ to significantly lower separation energy and cost, enabling NH₃ as a promising hydrogen carrier.

2. FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ were shown as durable dual-functional oxygen carriers and catalysts. The materials’ redox capacities were explained by simultaneous Fe and Co redox reactions and solid-state phase transition between metal (alloy) and spinel. The looping process achieves 52% to 86% lower energy and equipment costs than single-step catalytic NH₃ decomposition.

3. Future research can include reactor design and materials chemistry to co-optimize oxygen exchange capacity and catalytic reactivity, so that almost all H₂ is produced from water splitting step rather than NH₃ conversion step, further lowing H₂ separation energy and cost.

1. Introduction

Addressing the Gigaton-scale greenhouse gas (GHG) emissions challenge is critical for mitigating global warming.¹ Clean hydrogen (H₂) produced without GHG emissions offers significant potential to support carbon neutrality, especially in hard-to-decarbonize sectors including industry and transportation.^2,3 Its applications span chemical feedstock, steel production, fuel for heavy-duty transport, industrial/domestic heating, and renewable energy storage.^2,3 To expand clean H₂ utilization, the issue of energy-intensive and costly H₂ delivery needs to be overcome.^1,4 The current cost to produce GHG-free H₂ with water electrolysis is about $4–5 per kg,⁵ while the average cost of transporting and dispensing H₂ can range from $8.17–$9.46 per kg for gaseous tube trailers and $8.31–$11.35 per kg for liquid tankers,⁶ mainly because H₂ compression and liquefaction are expensive and energy-intensive.^7–11 Chemical hydrogen carriers have the potential to help lower energy demand and cost for H₂ delivery.^1,4,12

NH₃ proves to be an excellent hydrogen carrier. Firstly, it possesses a high volumetric and gravimetric hydrogen density compared to several well-known hydrogen carriers (Fig. 1a).^1,12,13 At 298 K and 1 MPa, the volumetric hydrogen density of NH₃ is 60 times that of H₂, and the storage cost of NH₃ is only 3% of H₂.¹ Secondly, NH₃ is vastly utilized as a fertilizer in agriculture; consequently, well-established infrastructure exists in many countries.¹⁴ NH₃ has been easily and safely transported via pipelines, trucks, and rail cargos for many decades.^1,15,16

Fig. 1 (a) Comparison among chemical hydrogen carriers for volumetric and gravimetric hydrogen densities at 0.1 MPa and 240 K. Adapted from references.^{1,12,13,17–20} (b) Chemical looping ammonia oxidation and decomposition integrated with water splitting (CLAOD-WS) process schematic. MO_x is a redox active metal oxide, and M* is a metallic catalyst. Compositions of M and M* may change between the reduced and oxidized states.

Catalytic NH₃ decomposition to H₂ has been extensively studied and catalysts such as noble metals of ruthenium (Ru) and platinum (Pt) or transition metal-based catalysts of nickel (Ni), cobalt (Co), and iron (Fe) have been investigated to give high conversions (>95%) at moderate temperatures (450–600 °C).^4,21–24 In a study on noble metal catalysts by Yao et al., high NH₃ conversion of 96% was achieved at the moderate temperature of 500 °C using nanoparticles of Ru on silica (SiO₂) support.²⁴ In a comprehensive study by Gu et al., Co, Ni, and Fe were synthesized on alumina (Al₂O₃) support, with catalytic NH₃ decomposition at 600 °C revealing conversion rates of 100%, 93%, and 86% for Co, Ni, and Fe catalysts, respectively.²³ Xie et al. tuned CoMoFeNiCu high entropy alloy catalyst nanoparticles dispersed on carbon nanofibers which reached 100% conversion of NH₃ at 525 °C for Co₂₅Mo₄₅Fe₁₀Ni₁₀Cu₁₀. This was compared to bimetallic Co–Mo and monometallic Ru which only reached 46% and 73% conversion, respectively, at 600 °C.²² Tabassum et al. present a Ru-free catalyst composed of a CoNi alloy supported on a K-promoted MgO–CeO₂–SrO mixed oxide, achieving nearly complete NH₃ conversion at 450 °C. The catalyst demonstrates high stability and hydrogen production rates comparable to Ru-based catalysts, highlighting the role of metal–oxide interfaces and promoter effects in enhancing activity and stability.²¹

Oxygen carrier metal oxides have been researched for NH₃ oxidation to nitrogen (N₂) and nitrogen oxides (NO_x). Normann et al. introduced a chemical looping scheme in which NH₃ was oxidized using Fe, manganese (Mn), and Ni-based oxygen carriers; afterwards, the oxygen carriers were re-oxidized by oxygen.²⁵ This work focused on the production of nitric oxide (NO) and H₂O from NH₃ oxidation and concluded that Mn-based oxide demonstrates the best performance in NO formation. In another study, Cheng et al. investigated NH₃ oxidation to NO_x and N₂ using Ilmenite (iron–titanium oxide).²⁶ It was discovered that decreasing NH₃ concentration decreases the selectivity of NH₃ decomposition toward N₂ and increases that toward NO formation. Ruan et al. investigated a chemical looping scheme in which NH₃ was selectively oxidized to form NO using a vanadium pentoxide (V₂O₅) oxygen carrier and then the oxygen carrier was re-oxidized using oxygen gas (O₂).²⁷ This configuration achieved over 95% NH₃ conversion and 100% NO selectivity at 650 °C.

Oxygen carriers have also been studied in thermochemical redox cycles for H₂ production by water splitting.^28–43 The oxygen capacity of the carrier materials comes from either solid phase transformation or oxygen vacancy. One category of the redox cycles uses high temperature to thermally reduce the oxygen carrier. Zhai et al. utilized mixed metal oxides called poly-cation oxides (PCOs) which consist of transition metals Fe, Mg, Co, and Ni. Fe redox in the PCOs provided the redox capacity, while the other redox inactive metals helped tune the oxide phase transformation to lower the reduction reaction temperature for a lower system cost.²⁸ Tran et al. examined the performance of iron aluminate ((Fe_0.33Al_0.67)_3−δO₄) for H₂O and CO₂ splitting reactions. Thermal reduction at 1400 °C was followed by oxidation at elevated pressures (1–10 atm), resulting in enhanced equilibrium extent and reaction kinetics.³⁸ Wexler et al. presented a newly developed perovskite material, Ca_2/3Ce_1/3Ti_1/3Mn_2/3O₃, which exhibits high hydrogen production capacity and stable redox performance. The authors identified that the A-site Ce⁴⁺ reduction is the key to its enhanced water splitting capabilities.⁴³ Tran et al. reviewed the potential of perovskite oxides as redox materials for CO₂ splitting using solar thermochemical methods. This work highlights their lower reduction temperatures, tunable properties, and challenges such as sintering and cycle stability for solar-driven fuel production.⁴⁴ The other category of redox cycles uses chemical reduction for the oxygen carrier. We refer to review articles and book in this area.^45–47

Building on the previous work, we present chemical looping ammonia oxidation and decomposition integrated with water splitting (CLAOD-WS), a novel two-step cyclic process involving redox looping and catalytic reactions for H₂ production from NH₃ and H₂O (Fig. 1b). Here NH₃ is first partially oxidized by a solid oxygen carrier and meanwhile decomposed by a catalyst, to produce H₂, N₂, and H₂O (eqn (1)); secondly, H₂O re-oxidizes the oxygen carrier to produce H₂ (eqn (2)).

δH₂O + MO_x−δ → δH₂ + MO_x (2)

Over CLAOD-WS cycles, the net reaction is the same as NH₃ decomposition producing N₂ and H₂, but looping presents advantages that will translate to significant energy and cost savings shown by this paper. Firstly, it gives two H₂ streams at different purity levels suitable for different applications. On the one hand, the H₂ produced by water splitting step is intrinsically separated from N₂ and NH₃. This H₂ has only unreacted H₂O as impurity and is thus more suitable for high-purity H₂ applications such as fuel cells.^48–50 If necessary, this stream of H₂ mixed with unreacted H₂O can be further purified by removing H₂O, which is simpler than H₂ separation from N₂ and unreacted NH₃ in direct NH₃ decomposition. On the other hand, the low-purity H₂ from the NH₃ conversion step is mixed with N₂, H₂O, and unreacted NH₃, and can be suitable for industrial heating and power generation. Secondly, according to Le Chatelier's principle, chemical looping facilitates NH₃ conversion thanks to the removal of H₂ by the chemical reduction of the oxygen carrier.

Previous literature on system energy and technoeconomic assessments provides information for our analysis of CLAOD-WS in comparison to direct NH₃ decomposition in terms of energy consumption, H₂ production, and process costs. Yun et al. analyzed catalytic NH₃ decomposition plants equipped with various types of H₂ separation systems including pressure swing absorption (PSA) and Pd membranes, where the levelized cost of H₂ (LCOH) was reported between $5–7.5 per kg-H₂.⁵¹ Nordio et al. proposed a H₂ separation system integrated with multiple membrane modules and conducted a comprehensive technoeonomic analysis. This study concluded that LCOH ranges between €3.56 and €12.63 per kg-H₂.⁵² Makhloufi et al. studied a large-scale NH₃ cracking system for clean H₂ production. This plant showed 68.5% thermal efficiency and €4.83 per kg-H₂.⁵³ In another study by Devkota et al., technoeconomic and environmental assessment of an NH₃ decomposition plant equipped with a packed bed reactor concluded that LCOH was $6.05 per kg-H₂.⁵⁴

This study leverages catalytic and redox activities of FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ for CLAOD-WS. We identified the different redox and catalytic properties of Fe and Co. Also, we showed that kinetic limitation and thermodynamic limitation occurred for different materials under different reaction conditions. Stable 50-cycle operation at 600 °C showed the materials’ durability. Our energy and technoeconomic analyses compared CLAOD-WS with direct catalytic NH₃ decomposition systems.

2. Materials and methods

2.1. YSZ supported materials synthesis

Iron oxide and mixed iron–cobalt oxide were synthesized using a modified wet impregnation method. For the iron oxide, Fe(NO₃)₃·9H₂O (Sigma-Aldrich) was mixed with ethanol, and 8% yttria-stabilized zirconia (YSZ8%) ((ZrO₂)_0.92(Y₂O₃)_0.08) (Inframat Advanced Materials) was supplemented to the mixture as the oxygen carrier's support material. The mass of the support material was calculated to be 30% of the total mass of metal oxide and support. The mixture was stirred on a hotplate at 300 rpm for three hours at ambient temperature, followed by heating to 100 °C and stirring for two more hours. At this point, a thick paste was formed which was moved to a box furnace (MTI KSL-1200X) and dried at 200 °C for seven hours (heating and cooling ramp rates were 5 °C min⁻¹). The resulting dry material was ground with a mortar and pestle to obtain a fine powder. Lastly, calcination was carried out under air at 600 °C for three hours (heating and cooling ramp rates were 15 and 5 °C min⁻¹ respectively) in the box furnace. The final product was further ground by mortar and pestle. This sample is denoted as FeO_x/YSZ. For the mixed iron–cobalt oxide, Fe(NO₃)₃·9H₂O and Co(NO₃)₂·6H₂O (Sigma-Aldrich) were mixed with the support following the same procedure. This sample is denoted as Fe_0.5Co_0.5O_x/YSZ.

2.2. Materials looping performance testing

CLAOD-WS experiments were conducted in a U-shaped quartz tube (O.D. = 0.5 in) in a Micromeritics tube furnace. 0.01 g material was uniformly placed inside the tube between quartz wool to form a fixed bed reactor. The reactor was programmed for isothermal reaction temperatures of 450, 500, 550, and 600 °C, with a 15 °C min⁻¹ ramp rate, and three different space velocity values of 6, 18, and 30 L_NH3 (g_solid h)⁻¹. During heating up, 100 sccm of argon (Ar) flowed over the sample. At the determined reaction temperature, the first step began by flowing NH₃ gas balanced with Ar for 12 minutes unless otherwise noted, and consequently, H₂, N₂, and H₂O were produced. Different concentrations of NH₃ (1%, 3%, and 5%) were chosen for space velocities of 6, 18, and 30 L_NH3 (g_solid h)⁻¹, respectively (eqn (S1)†). In the second step, 2% H₂O vapor diluted in Ar flowed over the reduced material for 3 minutes unless otherwise noted; H₂O step space velocity was equal to 12 L_H2O (g_solid h)⁻¹ in all experiments (eqn (S2)†). After each step, 100 sccm of Ar flowed for 5 minutes to purge the reactor and gas lines. A mass spectrometer (Hiden Analytical HPR-20 R&D) and gas chromatograph (Inficon Micro GC Fusion) were used in parallel to detect and quantify the gas mixture in the exhaust line. Potential NO_x was detected at a small amount in the NH₃ step of the first CLAOD-WS cycle for several samples, and no NO_x was detected beyond the first cycle (Fig. S4†).

2.3. Material characterization using XRD

X-ray diffraction (XRD) characterizations were performed using a Rigaku SmartLab X-ray diffractometer at ambient pressure and temperature. The data collection range was 2θ from 20° to 90° with a 0.02° step size and 1.3° min⁻¹ rate. XRD measurements were conducted on NH₃-reduced and steam-oxidized samples. To prepare the NH₃-reduced samples, 0.07 g material was reduced by NH₃ gas for 60 minutes and was carefully protected in a glove box filled with Ar due to their sensitivity to air. To prepare the steam-oxidized samples, the material was first reduced by NH₃ for 60 minutes and then re-oxidized by H₂O for 30 minutes and protected in Ar glove box. To keep the sample shielded from air oxidation, Kapton tape was used to protect the samples when taking the sample from the glove box to diffractometer.

We used 0.07 g sample for XRD and XANES measurements rather than the 0.01 g used for looping performance experiments because 0.01 g sample gave too low signal-to-noise ratio in the characterization results. Also, the 60-minute duration of the reduction step gave stable concentrations of products (N₂ and H₂) for at least 10 minutes in the NH₃ step, meaning the reduction of oxygen carrier was completed and the gas products were exclusively from NH₃ decomposition. Similarly, the 30-minute duration of the re-oxidation step gave zero H₂ product concentration for at least 10 minutes so that steam oxidation of the oxygen carrier was completed.

Refinement and Reference Intensity Ratio (RIR) methods in PDXL software were used to analyze the XRD data to quantify the phase compositions. Using chemical stoichiometry and molar mass of different solid phases, the molar ratio of oxygen to Fe plus Co can be calculated for each material at reduced and re-oxidized states. The difference in this ratio between reduced and re-oxidized samples shows the sample's oxygen exchange capacity normalized by the redox active metals (Fe and Co) molar amount (eqn (3)).

2.4. Material characterization using XANES

X-ray absorption near edge structure (XANES) was conducted by easyXAFS300+ to measure the change in the oxidation state of the Fe and Co. The X-ray source was set at 36 kV and 20 mA to acquire energy absorption spectra ranging from 7000 eV to 7600 eV for Fe K edge and from 7600 eV to 7900 eV for Co K edge. NH₃-reduced and steam-oxidized samples (FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ) and standard materials (Co, CoO, Co₃O₄, Fe, Fe₃O₄, and CoFe₂O₄) were protected against air oxidation using Kapton tape. FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ samples were prepared in the same way as XRD samples. X-ray energy value at 0.5 normalized absorption was defined as the edge energy, and the edge energy of the reduced and re-oxidized samples relative to standard materials allowed us to determine the average oxidation states of Fe and Co in our samples. XANES data was analyzed by Athena software to give normalized absorption (μ) vs. absorption energy.⁵⁵

2.5. Material characterization using SEM

Scanning Electron Microscopy (SEM) images were acquired using the Everhart–Thornley Detector (ETD) of a Thermo Fisher Scientific Apreo Scanning Electron Microscope set at 5 kV and 3.2 nA in the Secondary Electron (SE) mode. As-synthesized or cycled FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ were mixed in deionized water and sonicated at ambient temperature (25 °C) for 5 minutes, a 10 μL droplet of the mixture was placed on an SEM stub covered with carbon tape; afterwards, the stub was dried for 5 hours at 80 °C on a hot plate to remove water.

3. Results and discussion

We conducted five-cycle CLAOD-WS experiments using 0.01 g FeO_x/YSZ or Fe_0.5Co_0.5O_x/YSZ at 450, 500, 550, and 600 °C. Fig. 2a shows reactor outlet gas mixture profile during a 600 °C experiment using FeO_x/YSZ at 6 L_NH3 (g_solid h)⁻¹. Initially, NH₃ was mostly oxidized into H₂O, and then when oxygen carrier capacity was used up, NH₃ was only catalytically decomposed to H₂ and N₂. In water splitting, H₂O re-oxidizes the oxygen carrier to produce additional H₂ until the re-oxidation is complete.

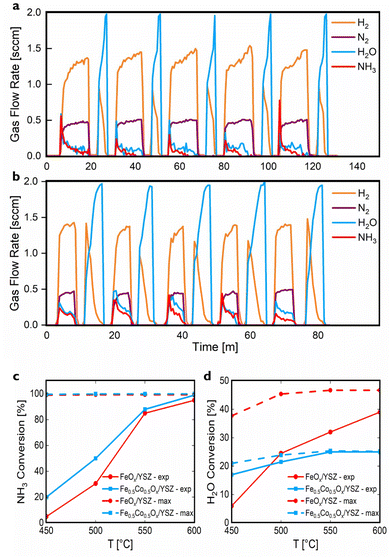

Fig. 2 CLAOD-WS performance for different materials at different temperatures. Reactor outlet gas profiles using FeO_x/YSZ at 600 °C with different step durations of (a) Δt_NH3 = 12 min and Δt_H2O = 3 min, and (b) Δt_NH3 = 5 min and Δt_H2O = 5 min. (c) NH₃ and (d) H₂O conversions dependence on temperature for Fe_0.5Co_0.5O_x/YSZ and FeO_x/YSZ. “max” refers to equilibrium and “exp” refers to average over five-cycle CLAOD-WS experiments. Experiments in (a–d) had space velocities 6 L_NH3 (g_solid h)⁻¹ and 12 L_H2O (g_solid h)⁻¹.

Space velocities and step durations can be adjusted to regulate the relative ratio of H₂ produced from the two steps. As in Fig. 2a, the ratio of H₂ from the NH₃ and H₂O steps was 7.43 : 1, while in Fig. 2b with shorter NH₃ step and longer H₂O step, this ratio became 2.13 : 1. Future research can involve materials chemistry adjustments and process optimizations to enhance high-purity H₂ production from H₂O in the CLAOD-WS system. Also, increasing the space velocity of the NH₃ step from 6 to 30 L_NH3 (g_solid h)⁻¹ only led to minor decay in NH₃ conversion from 99% to 95% for Fe_0.5Co_0.5O_x/YSZ and from 95% to 84% for FeO_x/YSZ at 600 °C (Fig. S1 and S2†). Therefore, sufficiently high conversions were achieved at space velocities suitable for commercial use conditions (≥7.8 L_NH3 (g_solid h)⁻¹).⁵⁶

Experimental results from different temperatures are demonstrated in Fig. 2c, d, S1, and S2.† The solid lines indicate experimental results in Fig. 2c and d, while the dashed lines show thermodynamic equilibrium simulation results via FactSage software, giving the maximum possible conversions of NH₃ and H₂O. Fig. 2c shows an increasing trend in experimental NH₃ conversion as the temperature increases due to kinetics enhancement. Meanwhile, water splitting is improved at higher temperatures (Fig. 2d), specifically in FeO_x/YSZ, because both reaction kinetics and equilibrium H₂O conversion are improved at elevated temperatures.

To measure the materials’ durability, 50-cycle CLAOD-WS were conducted at 600 °C and 30 L_NH3 (g_solid h)⁻¹ space velocity, the most demanding reaction condition in this paper. Over the 50 cycles, FeO_x/YSZ had only slight decays of 1.3% and 0.9% in NH₃ and H₂O conversions, respectively (Fig. 3a). Similarly, in Fig. 3d, Fe_0.5Co_0.5O_x/YSZ gave slight decays of 1.6% and 0.6% in NH₃ and H₂O conversions, respectively. Scanning electron microscope (SEM), showed surface topology and particle size did not change after the 50-cycle experiments (Fig. 3b–f), indicating negligible agglomeration and sintering. Stability assessment of these materials in commercial reactors requires longer duration which is out of the scope of this study.

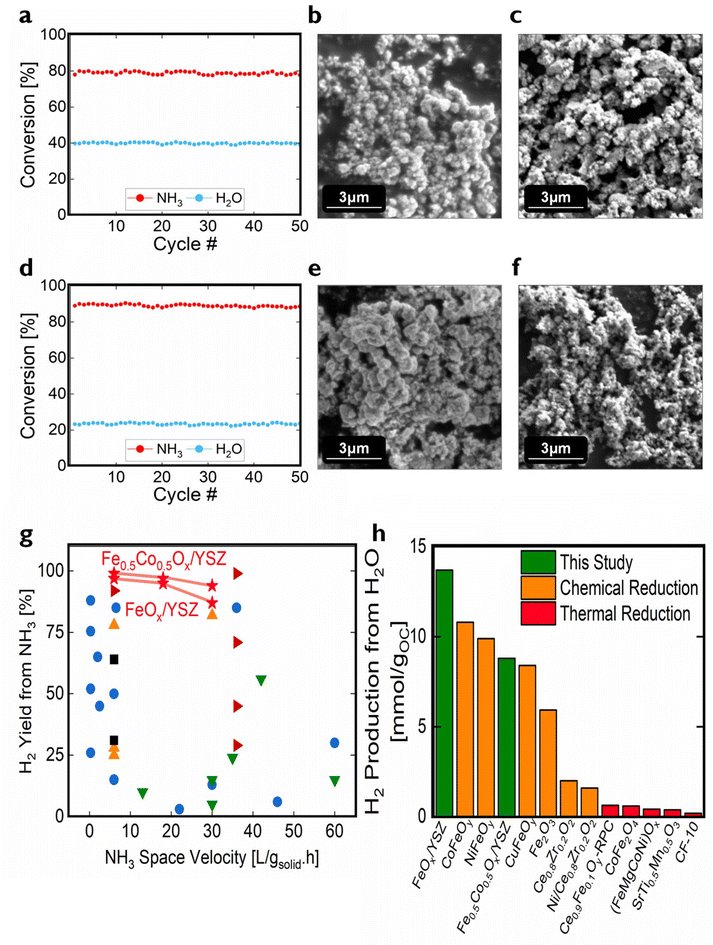

Fig. 3 CLAOD-WS durability and performance comparison with NH₃ decomposition and thermochemical water splitting. (a) 50-cycle NH₃ and H₂O conversions using FeO_x/YSZ at 600 °C, with 30 L_NH3 (g_solid h)⁻¹ for 12 min, 12 L_H2O (g_solid h)⁻¹ for 3 min. SEM images of (b) as-synthesized FeO_x/YSZ, and (c) 50-cycled FeO_x/YSZ. (d–f) are Fe_0.5Co_0.5O_x/YSZ results corresponding to (a–c). (g) H₂ yield from NH₃ in our 600 °C CLAOD-WS experiments (red star, only counting H₂ from the NH₃ step), compared to direct decomposition catalysts in literature ranging 450 °C to 700 °C (blue circle: Fe-based,^23,57–69 black square: Co-based,^66,70,71 orange triangle: Ni-based,^72,73 brown triangle: mixed transition metals,^21,22 green triangle: noble metal-based^74–77). (h) H₂ production in our 600 °C CLAOD-WS experiments (green, only counting H₂ from the H₂O step), compared to thermochemical water splitting in literature (orange: chemical reduction ranging 650 °C to 900 °C,^36,78,79 red: thermal reduction^{28–30,33,37,80–82}).

Fig. 3g compares H₂ yield from NH₃ between chemical looping (only counting H₂ from the NH₃ step) and catalytic NH₃ decomposition in literature. The looping scheme shows high H₂ yields from the NH₃ at a range of space velocities. Fig. 3h compares thermochemical water splitting in literature with our CLAOD-WS experiments in millimoles H₂ production from H₂O per gram of oxygen carrier (OC). FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ are among the best-performing water splitting oxygen carriers.

Other oxygen carriers and catalysts FeO_x/Al₂O₃, Fe_0.5Co_0.5O_x/Al₂O₃, CoO_x/YSZ, NiO_x/YSZ, and Fe_0.5Ni_0.5O_x/YSZ were also synthesized and tested for CLAOD-WS (Fig. S3 and Table S1†). We found that Al₂O₃ is not as effective a support as YSZ. Also, Co and Ni both showed minimal water splitting performance due to limited redox capacity. Additionally, Co is a better NH₃ conversion catalyst than Ni.

Material solid-phase transformation was studied by X-ray diffraction. At 450 °C, Fe_0.5Co_0.5O_x/YSZ was fully reduced by NH₃ to iron–cobalt metallic alloy (Fig. 4a), and then oxidized by H₂O to spinel phase while a portion of Co remained metallic (Fig. 4b), so the steam oxidation limited the redox capacity. With the same reaction conditions, FeO_x/YSZ was partially reduced by NH₃ to metallic iron with a spinel oxide phase remaining (Fig. 4c), and then oxidized by H₂O to complete spinel (Fig. 4d), so the reduction reaction limited the redox capacity. At 600 °C, FeO_x/YSZ was fully reduced by NH₃ to metallic Fe (Fig. 4g); and then fully oxidized by H₂O to spinel (Fig. 4h), giving complete phase transformation and thus high redox capacity. However, the Fe_0.5Co_0.5O_x/YSZ exhibited full reduction to metallic phase but still partial oxidation to spinel phase at 600 °C (Fig. 4e and f), similar to its behavior at 450 °C. Therefore, the elevated temperature more significantly enhanced the redox phase transformation of FeO_x/YSZ than Fe_0.5Co_0.5O_x/YSZ, explaining their looping performance trend in Fig. 2d. Kapton tape was used to minimize XRD samples’ oxidation by air, so amorphous peaks at 2θ of 20° to 30° showed up.

Fig. 4 Solid-state phase transformation of materials for CLAOD-WS. XRD patterns of NH₃-reduced and steam-oxidized samples: (a) reduced Fe_0.5Co_0.5O_x/YSZ, (b) re-oxidized Fe_0.5Co_0.5O_x/YSZ, (c) reduced FeO_x/YSZ, and (d) re-oxidized FeO_x/YSZ at 450 °C; (e–h) are results at 600 °C corresponding to (a–d). (i) Fe–O system, and (j) Fe–Co–O system phase diagrams, where red arrows indicate the equilibrium p_O2 ranges between reduced and re-oxidized states according to simulation. (k) Redox ranges of FeO_x/YSZ (blue) and Fe_0.5Co_0.5O_x/YSZ (red) at 450 °C and 600 °C, concluded from XRD refinement.

The red arrows in Fig. 4i and j indicate the phase transition range at equilibrium conditions of NH₃ reduction and H₂O re-oxidation steps. For Fe–O system, at lower temperatures, the equilibrium phase transition is directly from Fe to Fe₃O₄, whereas at 600 °C the phase transition becomes Fe → FeO → Fe₃O₄. Fig. 4c showed that FeO_x/YSZ was not fully reduced by NH₃ to the metallic phase at 450 °C. Therefore, kinetic limitation prevented FeO_x/YSZ from achieving a fully reduced state at 450 °C. For the Fe–Co–O system, after oxidation at both temperatures, a portion of Co remains in the metallic phase due to thermodynamic limitation, consistent with XRD results. Therefore, thermodynamic limitation prevents metallic Co from being completely oxidized by H₂O and thus limits the redox capacity of Fe_0.5Co_0.5O_x/YSZ compared to FeO_x/YSZ.

By XRD refinement, the oxygen-to-metal molar ratios were calculated for 450 °C and 600 °C looping, and are shown in Fig. 4k. At 450 °C, owing to the full reduction of Fe_0.5Co_0.5O_x/YSZ and its oxidation to mostly spinel phase, the redox capacity of Fe_0.5Co_0.5O_x/YSZ is significantly higher than that of FeO_x/YSZ. At 600 °C, full reduction of FeO_x/YSZ to metallic phase followed by full oxidation to spinel phase resulted in its higher oxygen capacity than Fe_0.5Co_0.5O_x/YSZ. These are consistent with their water splitting capacity performance (Fig. 2d). The redox capacity of Fe_0.5Co_0.5O_x/YSZ is not significantly different between 450 °C and 600 °C based on XRD refinement, so X-ray Absorption Near Edge Structure (XANES) was utilized to further interpret each element's redox behavior.

XANES was conducted to analyze oxidation states of Fe and Co. Fig. 5a and b demonstrate Co K edge XANES spectra of NH₃-reduced and steam-oxidized Fe_0.5Co_0.5O_x/YSZ at 450 °C and 600 °C, along with standard materials Co, CoO, and Co₃O₄. Comparing the edge energy shifts at the normalized absorption of 0.5 gave that at 450 °C, Co underwent an oxidation state variation of 1.49; whereas at 600 °C, Co underwent a much lower oxidation state change of 0.71, proving that Co becomes less redox active at the higher temperature of 600 °C. Fig. 5c and d show the Fe edge XANES results of reduced and re-oxidized Fe_0.5Co_0.5O_x/YSZ along with standard materials of Fe, Fe₃O₄, and CoFe₂O₄. We found that at 450 °C Fe underwent a smaller oxidation state variation than at 600 °C. The oxidation state changes of Co and Fe (Tables S2, S3, and S4, and Fig. S6†) were then weight-averaged based on their mole fractions to result in the overall metal redox capacity of Fe_0.5Co_0.5O_x/YSZ at 450 °C and 600 °C in Table 1. Additionally, Fig. 5e and f show the Fe redox of FeO_x/YSZ. The order of overall oxidation state variation in Table 1 agreed with those of water splitting capacity (Fig. 2d) and oxygen capacity derived from XRD phase transformation (Fig. 4k). At 450 °C, Fe_0.5Co_0.5O_x/YSZ is a more redox-active material, while at 600 °C FeO_x/YSZ becomes more redox-active.

Fig. 5 Simultaneous redox reactions of Fe and Co for CLAOD-WS. XANES results for Co and Fe between NH₃-reduced and steam-oxidized states: Co K edge of Fe_0.5Co_0.5O_x/YSZ at (a) 450 °C and (b) 600 °C, Fe K edge of Fe_0.5Co_0.5O_x/YSZ at (c) 450 °C and (d) 600 °C, and Fe K edge of FeO_x/YSZ at (e) 450 °C and (f) 600 °C.

Table 1 Change in the overall oxidation state of active metals according to XANES

T [°C]	Overall averaged oxidation state variation per mol of active metals (Fe & Co)
	FeOx/YSZ	Fe0.5Co0.5Ox/YSZ
450	1.31	1.59
600	2.86	1.86

---

As discussed earlier, the materials for CLAOD-WS play the dual-role of oxygen carriers and catalysts. XRD and XANES characterizations of NH₃-reduced and H₂O-oxidized samples illustrate their catalytic activity. For 600 °C experiments, XRD results in Fig. 4e and g show that the FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ are fully reduced in NH₃ step to metal phases of Fe and Fe–Co alloy, while the support material YSZ remained unchanged in crystal structure. The XANES experiments (Fig. 5b, d, and f) also show the fully reduced metal phases. Combining the results of XRD and XANES, the metal phases are the active sites for NH₃ decomposition that continues beyond the NH₃ oxidation reaction. High conversions of NH₃ at 600 °C (99% for Fe_0.5Co_0.5O_x/YSZ and 95% for FeO_x/YSZ) show that metal phases are highly catalytically active for NH₃ decomposition at 600 °C. Additionally, we tested as-synthesized and H₂-reduced samples for NH₃ conversion and observed that H₂-reduced samples reach their maximum NH₃ conversion faster than as-synthesized oxides (Fig. S5†), indicating that after reduction of oxides to metal phases, NH₃ conversion is significantly enhanced due to catalytic activity of these active metal sites.

In comparison, at 450 °C, Fig. 4a shows that Fe_0.5Co_0.5O_x/YSZ is fully reduced to Fe–Co metal phase and this phase is responsible for catalytic NH₃ decomposition; however, due to the lower temperature at 450 °C, NH₃ conversion is relatively low (20%). Fig. 4c shows that FeO_x/YSZ is partly reduced to metal Fe phase mixed with Fe₃O₄ spinel phase, resulting in a significantly lower NH₃ conversion of 5% at 450 °C. The XANES experiments for 450 °C samples also agreed with the XRD results. For FeO_x/YSZ, Fig. 5e showed that the oxidation state of Fe is very close to that of Fe₃O₄. For Fe_0.5Co_0.5O_x/YSZ sample, Fig. 5a (Co edge) and Fig. 5c (Fe edge) show that Co and Fe are both reduced to metal phases which are the active phases for NH₃ conversion.

Energy and techno-economic analyses were conducted to assess two systems: (1) Chemical looping ammonia oxidation and decomposition integrated with water splitting (CLAOD-WS) (Fig. 6a), and (2) Catalytic ammonia decomposition (CAD) (Fig. 6b). Major assumptions for both scenarios are: NH₃ conversion is 90%, steam conversion is 40%, reaction temperature is 600 °C, total pressure is 1 atm (except for the PSA where the compressor increases the pressure to 700 kPa), heat exchanger effectiveness is 95%, total H₂ production rate is 10 metric tons per day, and electricity serves as the energy input and is converted to heat when needed and the cost of electricity is assumed to be $0.053 per kWh_e (following utility-scale PV-plus-battery system, class 5, moderate case, market, PTC + ITC, 2030).⁸³ For CLAOD-WS, 5 tons per day of H₂ comes out of each of NH₃ reaction and steam reaction. For CAD, 5 tons per day of H₂ is purified in the separation step, where two types of H₂ separation technologies were analyzed: PSA and Pd-Ag membrane supported on ceramic material. Base case membrane separation has a Second Law efficiency of 20%. The redox or catalyst material is assumed to be replaced 4 times per year,⁸⁴ and we find that the replacement frequency varying from once per year to once per two weeks only changes LCOH by less than 2% for all cases in this work.

Fig. 6 Process schematics with major model parameters of (a) chemical looping ammonia oxidation and decomposition integrated with water splitting (CLAOD-WS), and (b) catalytic ammonia decomposition (CAD). MTPH: metric ton per hour.

In CLAOD-WS, the NH₃ step is the main thermal energy consumer (2.965 MW_th). In CAD, although the chemical reactor is less energy intensive (2.207 MW_th), the H₂ separation requires an energy input of 0.237 MW_e for the membrane and 2.190 MW_e for the PSA. Overall, the CLAOD-WS system is 22.5% more energy-consuming than the membrane-based CAD system and 29.1% less energy-consuming than the PSA-based CAD system.

As Fig. 7a shows, notably, CLAOD-WS process achieves cost savings of 52% and 86% in energy and equipment expenses compared to CAD plants utilizing PSA and membrane systems, respectively. The CLAOD-WS plant requires an annual cost of $8.64 M, 51.8% lower than the CAD plant equipped with membrane separation and 14.8% lower than the CAD plant equipped with PSA separation. Accordingly, the LCOH is $2.5 per kg-H₂ in CLAOD-WS, $5.1 per kg-H₂ in CAD with membrane, and $2.9 per kg-H₂ in CAD with PSA. LCOH refers to the cost per kilogram of H₂ production from both NH₃ and H₂O steps in CLAOD-WS. In addition, thermal energy release in CLAOD-WS can be used to produce hot water byproduct, whose revenue is not included in our economic analysis. Fig. 7b compares the LCOH and total energy consumption rate in the CAD as a function of the membrane's H₂ separation Second Law efficiency, showing the impact of membrane performance.

Fig. 7 (a) Annual cost and levelized cost of hydrogen (LCOH) for CLAOD-WS and for CAD equipped with pressure swing absorption (PSA) or Pd-Ag/ceramic membrane separation. (b) Dependence of LCOH and total system energy consumption rate on H₂ separation membrane Second Law efficiency in CAD process with Pd-Ag/ceramic membrane separation.

4. Conclusions

We have proposed and studied integrated chemical looping NH₃ oxidation and decomposition with water splitting (CLAOD-WS) as a promising novel pathway toward H₂ production from NH₃ and H₂O. FeO_x/YSZ and Fe_0.5Co_0.5O_x/YSZ each played the dual roles of oxygen carrier and catalyst. Looping experiments at 450 to 600 °C and space velocities of 6, 18, and 30 L_NH3 (g_solid h)⁻¹ and 12 L_H2O (g_solid h)⁻¹ were conducted. XRD coupled with phase diagrams illustrated that FeO_x/YSZ is kinetically limited from achieving full reduction at 450 °C, while Fe_0.5Co_0.5O_x/YSZ is thermodynamically limited from complete oxidation under H₂O. Moreover, XRD refinements and XANES results showed the Fe and Co redox activities that explain the overall redox capacity of Fe_0.5Co_0.5O_x/YSZ and FeO_x/YSZ at different temperatures, consistent with the experimental water splitting capacity. Durability of the materials was shown by 50-cycle CLAOD-WS experiments at 600 °C and 30 L_NH3 (g_solid h)⁻¹. Lastly, energy and techno-economic analysis of the CLAOD-WS and catalytic NH₃ decomposition systems indicated that the looping scheme can significantly reduce energy consumption and cost mainly due to the intrinsic H₂ purification in the looping scheme.

Data availability

Further information on materials and code used in the work are available from the lead contact upon reasonable request. Crystallographic data used for XRD data analysis has been deposited at the ICSD and can be obtained from https://icsd.products.fiz-karlsruhe.de/en. Additional data used in this study is available in the ESI.†

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

The authors acknowledge Center for Electron Microscopy and Analysis (CEMAS) and Surface Analysis Laboratory at The Ohio State University (OSU). The research is partly supported by OSU President's Research Excellence Program. A. Arjomand is partly supported by US Department of Energy DE-EE0010733. K. Shank is supported by Distinguished University Fellowship and ENGIE-Axium Fellowship at OSU.
