FNU
Gorky
a,
Levi
Pile
a,
Grace
Jones
a,
Apolo
Nambo
b,
Mourad
Benamara
c and
Maria L.
Carreon
*a
aRalph E. Martin Department of Chemical Engineering, University of Arkansas, 3202 Bell Engineering Center, Fayetteville, Arkansas 72701-1201, USA. E-mail: mc138@uark.edu
bBert Thin Films, LLC., 625 Myrtle St, Louisville, KY 40298, USA
cMaterials Science and Engineering Program, Institute for Nanoscience and Engineering, University of Arkansas, Fayetteville, AR 72701, USA
First published on 9th May 2025
Despite extensive efforts to optimize the single-step production of syngas, hydrocarbons, and oxygenates via plasma catalysis, several challenges remain unresolved. In particular, understanding the various reaction pathways is hindered by the complexity of the reactions and the diverse range of chemical products formed. In this study, our main objective is to evaluate and compare the influence of zirconia on reaction pathways, methane (CH4) and carbon dioxide (CO2) conversions (%), and syngas selectivity (%) relative to the plasma-only route. Experiments were conducted at a low radio-frequency plasma power of 50 Watts without external heating. The results demonstrated significantly enhanced conversions of carbon dioxide and methane when the reaction chamber was packed with zirconia (ZrO2). Methane conversion was observed to be the highest at a rich CO2 feed [CO2:
CH4 (2
:
1)], while plasma only revealed conversion of 20.1%. After packing with zirconia, the conversion increased to 71.2% (3.5 times increment). On the other hand, carbon dioxide conversions were also observed to be the highest at a feed composition of CO2
:
CH4 (2
:
1), with plasma only (13.6%) vs. with zirconia packing (60.9%) revealing a 4.4 times increase. Interestingly, at the rich CO2 feed composition, the syngas product (CO + H2) selectivity increased after packing ZrO2 by 1.1 times for CO and 1.2 times for H2. Optical emission spectroscopy (OES) analysis revealed important insights into the gas phase, with signatures of atomic oxygen (O) being the dominant plasma species in the gas phase under plasma-only conditions, while their intensities plummeted when zirconia was introduced, indicating active oxygen diffusion onto the surface of zirconia. Raman spectroscopy and X-ray photoelectron spectroscopy (XPS) confirmed important surface alterations after plasma exposure and most importantly provided experimental proof on zirconia's oxygen mobility. These findings provided an integral perspective into the design of catalytic materials that enhance oxygen mobility, enabling low-temperature and energy-efficient dry methane reforming for a sustainable future.
Broader contextGlobal energy demands and the urgent need to combat climate change call for innovative approaches that convert raw materials into cleaner fuels. In this context, dry methane reforming (DRM) emerges as a promising route to valorize methane and carbon dioxide, transforming greenhouse gases into syngas. Our research aims to understand the oxygen mobility of zirconia within a low-temperature, electron-mediated plasma environment to unravel mechanistic insights that address two challenges: enhancing syngas yields at room temperature and mitigating catalyst deactivation from carbon deposition. Comprehensive gas phase and surface analysis revealed zirconia's ability to shuttle oxygen between its lattice and surface sustains dynamic redox cycles, encouraging plasma driven activation pathways for methane and CO2 and simultaneously gasifying nascent carbon deposits to prevent coking. Compared with the conventional route DRM, our plasma catalytic system achieves significant reductions in energy input, and prolonged catalyst stability. These findings inform the rational design of oxygen mobility focused materials, paving the way for scalable, decentralized syngas production and next-gen electrified energy conversion technologies. |
CH4 + CO2 → 2CO + 2H2, ΔH° = +247 kJ mol−1 | (1) |
The interest in DRM has grown to utilize CO2 to obtain value-added products and to make use of high CO2 content natural gas deposits that cannot be economically used for steam reforming.1,2
Traditionally, hydrocarbons and oxygenate production has relied on multi-step thermal catalytic processes involving decomposition of CH4 and CO2 at elevated temperatures (800–1000 °C) and pressures (20–50 bar) towards the production of synthetic gas. To further produce essential chemicals, the produced syngas is further processed through another step via the Fischer–Tropsch synthesis (temperatures of 250–350 °C and pressures of 20–50 bar) to produce hydrocarbons and oxygenates, such as alkanes, aldehydes, ketones, and alcohols. While effective, these steps are energy-intensive and economically demanding, driving researchers to explore alternative catalytic routes that reduce energy consumption. The growing urgency to mitigate greenhouse gas emissions while producing value-added chemicals has increased the interest in various catalytic routes such as plasma-catalytic DRM.3,4
The activation of methane and carbon dioxide poses a significant challenge in thermal catalytic processes due to their high bond dissociation energies of 434.2 kJ mol−1 for C–H in CH4 and 530.7 kJ mol−1 for CO in CO2. These conditions necessitate extreme temperatures, which often lead to the decomposition of intermediates, limiting single pass conversions and selectivity. The search for energy alternatives positions non-thermal plasma (NTP) as a promising alternative, enabling efficient activation of CH4 and CO2 under mild conditions (room temperature and atmospheric pressure). By generating high-energy electrons in a low-temperature environment, NTP offers a non-selective but energy-efficient alternative to produce syngas,5–7 hydrocarbons8–10 and oxygenates11–13 in a single step.
Specifically for the partial oxidation of methane (POM), studies have shown that oxygen can effectively activate methane in plasma environments; however, excessive oxidation frequently results in the overproduction of CO2 and undesired byproducts.14 Using CO2 as a milder oxidant offers dual benefits: mitigating two of the most prevalent greenhouse gases while producing valuable chemicals. For the specific case of plasma-catalysts the resulting synergy enables partial oxidation pathways that favor the formation of oxygenates and hydrocarbons as products, presenting an alternative under mild conditions for the DRM.15–17
Catalyst design and plasma-catalyst synergy is critical to advancing plasma-catalytic processes. While precious metals have traditionally dominated catalytic applications due to their superior performance, their high cost and limited availability make them economically unfeasible for large-scale implementation.18 Research has increasingly focused on earth-abundant materials, such as silica, alumina, and zirconia, which offer comparable catalytic performance under specific conditions. However, findings from thermal catalysis do not always translate seamlessly into plasma catalysis, needing a deeper understanding of material behavior under plasma conditions.
In thermal catalytic research, high temperatures (800–850 °C) are required for achieving higher efficiencies of CH4 and CO2 conversions. Supports like silica,19 alumina,20 and zirconia21 are commonly used impregnated with transition metals as catalysts. Zirconia is highly stable over high temperatures making it suitable for sustaining multiple cycles.22 Literature reports, at the relatively low temperature of 600 °C, show that Ni–Zr on MCM-41 achieved 91% methane conversion,23 highlighting the effectiveness of zirconia-based supports even under moderate conditions. Similarly, Pt-impregnated ZrO2 at 700 °C exhibited 80.1% methane and 84.6% CO2 conversion,24 surpassing Ni-based catalysts at the same temperature. The introduction of Ni with a Zr promoter at 700 °C improved the conversion to 73% for methane and 76.7% for CO2,25 displaying the role of metal promoters in enhancing catalytic activity. Overall, zirconia-based catalysts with Pt and Ni–Zr combinations demonstrated higher conversion at lower temperatures with less metal loading, making them more efficient for high-temperature thermal catalysis.
In plasma-catalytic systems, zirconia-based materials displayed promising performances. In particular, zirconia and ceria based oxides like Ni–CexZr1−xO2 within a dielectric barrier discharge (DBD) plasma reactor enable CO2 conversions up to 80% with 100% methane selectivity at temperatures as low as 90 °C, whereas in thermal catalysis temperatures above 300 °C were required to achieve comparable results.26 Plasma activation of CO2 resulted in the formation of CO* and O* species, facilitating enhanced conversion rates at lower temperatures.27–29 Furthermore, hydrogen plasma treatment of Ni-based ceria-zirconia catalysts was found to be an effective alternative to conventional thermal reduction, maintaining similar catalytic activity and strengthening Ni-support interactions.30 The role of Ce and Zr promoters in hydrotalcite-derived catalysts was also examined, displaying that while Zr-containing catalysts exhibited higher activity under plasma conditions, the overall impact of these promoters on catalytic performance remained minimal.31 In plasma catalysis literature, zirconia based materials have been employed for CO2 hydrogenation, however, while designing the materials, the impregnation of multiple metals and ceramics makes it challenging to isolate the individual contributions. In this study, we employed pristine zirconia to investigate the effect of oxygen mobility and its effect towards product distribution during dry methane reforming. Zirconia stands out as an ideal candidate for plasma-catalytic DMR due to its intrinsic oxygen mobility, structural stability under harsh conditions, and potential to mitigate coke formation. Coking, a persistent challenge in methane reforming, significantly degrades catalyst performance by blocking the active surface with carbon build-up.21 The oxygen mobility in zirconia's matrix facilitates the active removal of amorphous carbon species, preventing their buildup and prolonging catalyst life. Furthermore, the porous structure of zirconia offers the possibility to enhance its interaction with plasma, improving methane decomposition towards value added products.
Our group has previously explored NTP (RF and DBD) applications for various chemistries including ammonia synthesis,32–38 dry methane reforming,13 plastics decomposition to fuels,39,40 methane upgrading,8 graphene synthesis from biomass,41 greenhouse gas plasma based membrane separation,42 carbon capture and plasma based desorption,43 using various catalysts such as inorganic metal oxides,35,38,44,45 low-metaling point alloys,46,47 perovskites,34,39 zeolites,8,32,43,48 hybrid materials such as MOFs,13,36,49 and porous organic materials such as CC350 for storage and catalytic applications showing the importance of tailoring materials for plasma.
Although the industry typically produces syngas via coal gasification51 and steam reforming of methane,52 dry methane reforming (DMR) has attracted significant research interest over the past several decades because it incorporates carbon dioxide, a major pollutant, into useful products; however, the DRM reaction has faced major challenges, such as catalyst deactivation due to coking at high temperatures. Building on the extensive literature covering both thermal and plasma catalytic DRM, our study involves lowering the amount of energy required to activate reactants, with the objective of enhancing syngas production, while employing commercial materials like zirconia. Building on extensive studies of both thermal and plasma-catalytic dry reforming of methane, we aimed to minimize the energy needed to activate CH4 and CO2 under low-temperature plasma. To achieve this, we selected commercial zirconia for its exceptional suitability to plasma environments because it combines outstanding thermal stability, chemical inertness to corrosive species, resistance to sintering and phase changes, and high mechanical hardness, which all help it sustaining the energetic particle collisions during plasma discharges. Materials like zirconia, known for its oxygen vacancy, provide a reactive surface that can interact with plasma activated species (CO2*, O*) in a manner conceptually similar to that described in the recent plasma catalytic chemical looping system53 involving Ce0.7Zr0.3O2.54 In addition, zirconia's abundant oxygen vacancies facilitate rapid ion mobility, enabling it to capture and gasify nascent carbon deposits and thus suppress coking. Through this work, we are exploring key reaction pathways in plasma catalytic DRM and demonstrating an energy efficient approach. The overarching goal of our findings is to lay the groundwork for the future development of tailored zirconia-based thin films or membranes, offering a scalable, economically viable route, for converting greenhouse gases into valuable chemicals for sustainable energy conversion.
![]() | ||

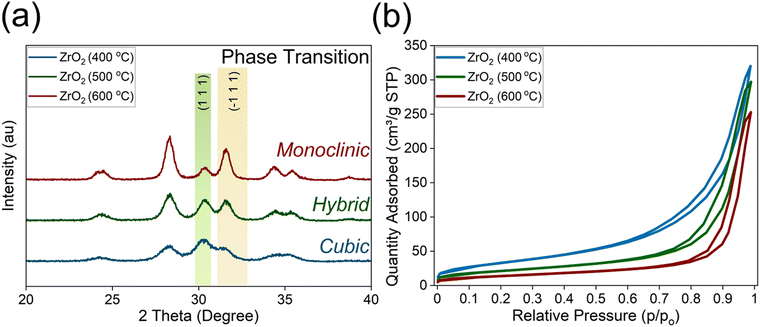

Fig. 1 (a) XRD revealing the effect of calcination temperature on ZrO2 phases; (b) Nitrogen isotherms at different temperatures on different zirconia calcination temperatures. |
We conducted the calcination at 1000 °C, and the sample exclusively shows monoclinic phases (11), with no cubic phase contribution (see Fig. S2, ESI†). This temperature-dependent phase evolution highlighted the critical role of calcination temperature in selecting the desired zirconia phase, with cubic phases being the target for further study due its symmetric configuration. Cubic phases offer high surface areas as evident via physio-chemical properties described in the experimental table (see Table 1). Apart from surface area, it is well reported in the literature for materials like zirconia and ceria that the cubic phases offer enhanced anionic mobility55 and redox properties,56 and the cubic phase also offers lower elastic modulus and higher malleability over other phases such as monoclinic and tetragonal phases.57 Based on the literature, the vacancies (defects) can be co-related with lattice relaxation observed in doped cubic zirconia. This directly implies that lower elastic modulus causes a higher degree of relaxation allowing lower binding energies with oxygen vacancy and improved mobility.58
Sample | ZrO2-400 | ZrO2-500 | ZrO2-600 |
---|---|---|---|
BET surface area (m2 g−1) | 122.45 | 76.23 | 49.79 |
Langmuir surface area (m2 g−1) | 163.96 | 104.19 | 67.51 |
Pore volume (cm3 g−1) | 0.49 | 0.46 | 0.39 |
Pore size (nm) | 14.19 | 22.39 | 29.92 |
Particle size (nm) | 48.99 | 78.70 | 120.48 |
t-Plot external surface area (m2 g−1) | 133.82 | 76.60 | 51.30 |
The zirconia samples calcined at different temperatures revealed significant changes in surface area and structural properties. At 400 °C, ZrO2 exhibits the highest BET surface area of 122.45 m2 g−1 and pore volume of 0.49 cm3 g−1, along with the smallest particle size (48.99 nm), correlating with a cubic XRD phase. As the calcination temperature increases to 500 °C, the BET surface area and pore volume decrease, while pore size and particle size grow, indicating a transition to a hybrid phase exhibiting cubic + monoclinic phases. At 600 °C, the material exhibits the lowest surface area (49.79 m2 g−1) and the largest particle size (120.48 nm), dominated by the monoclinic phase (see Fig. 1b and Table 1).
Similarly, our experimental data revealed unimodal pore size distribution. At a lower calcination temperature (400 °C), the pore size was smaller (6.3 nm), whereas higher temperatures led to an increase in pore width (up to 28 nm) (see Fig. S3, ESI†). The N2-isotherm revealed characteristics of type II isotherms, which were characterized by an initial monolayer adsorption at lower relative pressures, followed by a sharp rise that indicated multilayer adsorption at intermediate pressures. The presence of a hysteresis loop suggests the existence of pores, indicating that capillary condensation had occurred within the pores. This was classified as an IUPAC type H3 loop,59 where the adsorption branch resembled a type II isotherm, and the lower limit of the desorption branch was typically located at the cavitation-induced p/p0. Hysteresis loops of type H3 were associated with non-rigid aggregates of plate-like particles but also appeared when the pore network consisted of macropores that were not entirely filled with pore condensate.59 These results revealed the influence of calcination temperature on zirconia's phase, porosity, and surface characteristics, with lower temperatures favouring the desirable cubic phase. In the literature it is well noted that cubic zirconia facilitates redox reactions, which can further enhance oxygen mobility.60
The effect of total flow rate on methane and carbon dioxide conversion was investigated at the minimal plasma power of 50 W to reduce energy cost. The CO2:
CH4 feed ratio was maintained at 1
:
1, and no external heating was applied over a reaction time of 2 hours. The results indicated a decreasing trend in both methane and carbon dioxide conversion as the total flow rate increased. At 10 sccm, the highest methane and carbon dioxide conversions were observed at 25% and 17.20%, respectively. As the flow rate increased to 25 sccm, the conversions slightly dropped to 19.23% for methane and 15.60% for CO2. Further increasing the flow rate to 40 sccm, 75 sccm, and 100 sccm led to a continued decline in conversions, with the lowest values recorded at 100 sccm (8.77% methane and 7.73% CO2 conversion). The experimental observations revealed that lower flow rates favored higher reactant residence time, possibly increasing the lifetime of active species allowing for more effective plasma-activated reactions on the gas phase. On the other hand, at higher flow rates the lower residence time led to limited reactant activation and increased the possibility to undergo recombination of initial plasma species in the afterglow region, eventually leading to lower conversion efficiencies. The standard deviation values remained relatively small across all conditions, indicating consistent experimental reproducibility.
Finally, the effect of CO2:
CH4 feed ratio on methane and carbon dioxide conversion was examined in the RF plasma reactor at 50 W with a total flow rate of 25 sccm. The results demonstrated that higher methane content in the feed mixture led to increased CH4 and CO2 conversions. The 3
:
1 ratio exhibited the highest conversions, with 26.1% for methane and 17.8% for CO2, while a progressive decrease was observed as the CH4 ratio increased, reaching the lowest values at 1
:
3 CO2
:
CH4 (9.3% methane and 7.8% CO2 conversion). This trend suggested that excess CO2 enhances plasma reactivity, as evident from the experimental data that higher methane rich composition can lead to methane recombination which eventually leads to lower conversion of methane (Fig. 2).

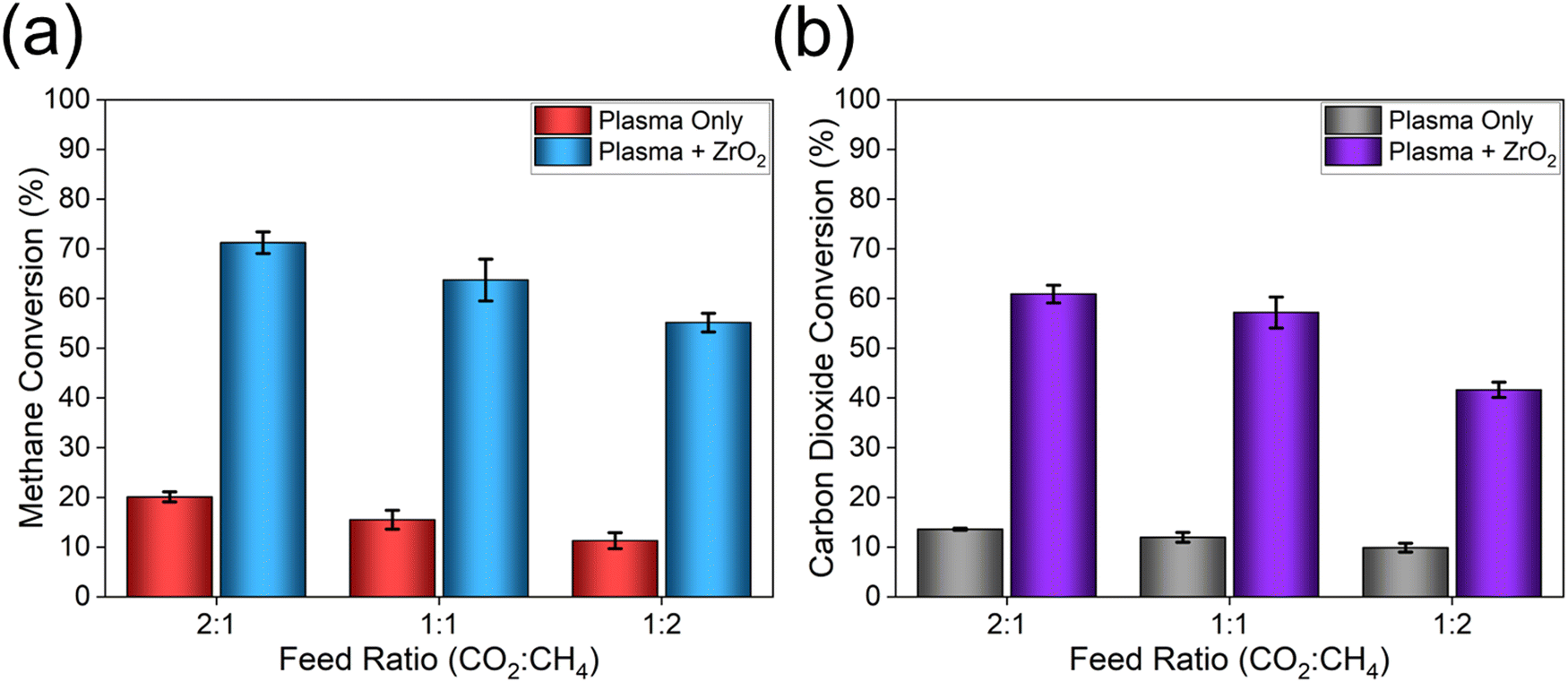

For objectivity, we compared an inert material's (silica) performance with zirconia. At similar parameters previously reported, we compared analytically using no catalyst (plasma only), a packed-bed with fumed silica, and a packed-bed with zirconia, across CO2:
CH4 feed ratios of 2
:
1, 1
:
1, and 1
:
2. In the plasma only setup, methane conversion decreased from 20.1% at a 2
:
1 ratio to 15.5% at 1
:
1 and 11.3% at 1
:
2, while CO2 conversion fell from 13.6% to 12.0% and 9.9%, respectively. Introducing a silica-packed bed boosted performance: methane conversion rose to 42.8% at 2
:
1, 38.4% at 1
:
1, and 35.6% at 1
:
2, with corresponding CO2 conversions of 29.6%, 23.4%, and 18.2%. The zirconia-packed bed delivered the highest conversions in every case, achieving 71.2% methane and 60.9% CO2 conversions at 2
:
1, then 63.7% and 57.2% at 1
:
1, and finally 55.2% and 41.7% at 1
:
2 (see Fig. S5, ESI†). Overall, both packed-bed reactors evidently outperformed the plasma-only setup, with zirconia proving to be the most effective material for methane and carbon dioxide conversions.
This enhanced conversion directly influenced product selectivity, favouring syngas (CO and H2) and C2 alkane and olefins, while suppressing the formation of heavier alkanes and oxygenates. The syngas production varied with changes in the feed ratio (CO2:
CH4). When comparing plasma-only operation to the zirconia-packed system, a notable increase in syngas production was observed after packing with zirconia (see Fig. 4). The comparative syngas selectivity increased +14% after zirconia packing for the CO2-rich feed ratio (2
:
1 CO2
:
CH4), followed by the equimolar feed (1
:
1 CO2
:
CH4) with +10.9% increment in selectivity, and the methane-rich feed (1
:
2 CO2
:
CH4) with +8.5% increment in selectivity.
Interestingly, the highest overall syngas (H2 + CO) production in the packed bed with zirconia occurred at the CO2-rich feed ratio (2:
1 CO2
:
CH4) with 85.06% selectivity, followed by the equimolar feed (1
:
1 CO2
:
CH4) with 74.13% selectivity, and the methane-rich feed (1
:
2 CO2
:
CH4) with 60.23% selectivity. The increased interaction of the zirconia surface with oxygen species likely facilitated CO2 activation, enhancing syngas yield. Additionally, olefin (C2H4) selectivity improved at a methane rich feed ratio (1
:
2 CO2
:
CH4) with plasma only at 14% selectivity and 11.5% with zirconia, suggesting stronger plasma recombination of methane derived active species that leads to olefins. Conversely, alkane production was observed to be the highest at a methane rich feed ratio with ethane (C2H6) selectivity for plasma only vs. zirconia (16.5% vs. 12.8%), while a small fraction of propane (C3H8) selectivity was observed to be slightly higher with plasma only vs. zirconia (1.5% vs. 1.4%). This decline suggests that the selectivity of the products was favoured towards syngas, rather than light hydrocarbons (C2–C3) (see Fig. 4).
In particular, in the case of the methane-rich feed composition (1:
2 CO2
:
CH4) the syngas production, CO selectivity increased from 30.7% for the plasma-only to 35.9% for the zirconia-packed bed, while H2 selectivity significantly increased from 20.8% to 24.2%. The increased availability of active oxygen species on the zirconia surface likely facilitated CO2 activation and oxygen mobility, further improving the syngas yield. Additionally, olefin (C2H4) selectivity decreased from 14.4% (plasma only) to 11.5% (zirconia), displaying no enhancement on methane upgrading towards olefins over zirconia. While alkane production remained relatively higher in plasma only, observed with ethane (C2H6) selectivity (16.5% vs. 12.8%), the propane (C3H8) selectivity remained constant from 1.5% to 1.4% suggesting that the zirconia surface promoted single carbon–hydrogen species consumption into methane reforming towards syngas rather than their recombination to alkane formation (see Fig. 4a). Furthermore, oxygenated compounds such as formaldehyde selectivity slightly increased (2% vs. 3.7%), while acetone production decreased (0.6% to 0.2%). Interestingly, trace amounts of methanol (0.1%) and ethanol (0.05%) were detected only in the zirconia-packed system (Fig. 4b), indicating improved oxygen interaction between plasma and zirconia. The trends observed with rich methane feed improved more with an equimolar feed (Fig. 4c and d) and the best selectivity was observed with the CO2 rich feed 2
:
1 (CO2
:
CH4) (Fig. 4e and f) with minor fraction of oxygenated compounds such as aldehydes, ketones and alcohols. Formaldehyde and acetone were observed to be the highest with plasma only at the CO2 rich feed (5% and 0.9%).
Moreover, we compared the product selectivity performances with the silica packed bed, please see Fig. S6 (ESI†). For syngas, in the plasma-only mode, CO selectivity was 39.5%, rising to 41.1% over silica and to 46.5% over zirconia. Hydrogen selectivity dropped from 23.7% in plasma alone to 18.3% with silica but rose to 27.6% with zirconia. In the case of alkenes, ethylene selectivity increased from 13.1% in the bare plasma to 15.2% on silica before falling to 8.6% on zirconia, while (alkanes) ethane rose moderately from 15.4% (plasma only) to 17.2% (silica) then fell to 11.1% (zirconia). Propane selectivity was low in all configurations but increased gradually from 0.6% to 1.0% to 1.7% across plasma, silica, and zirconia.

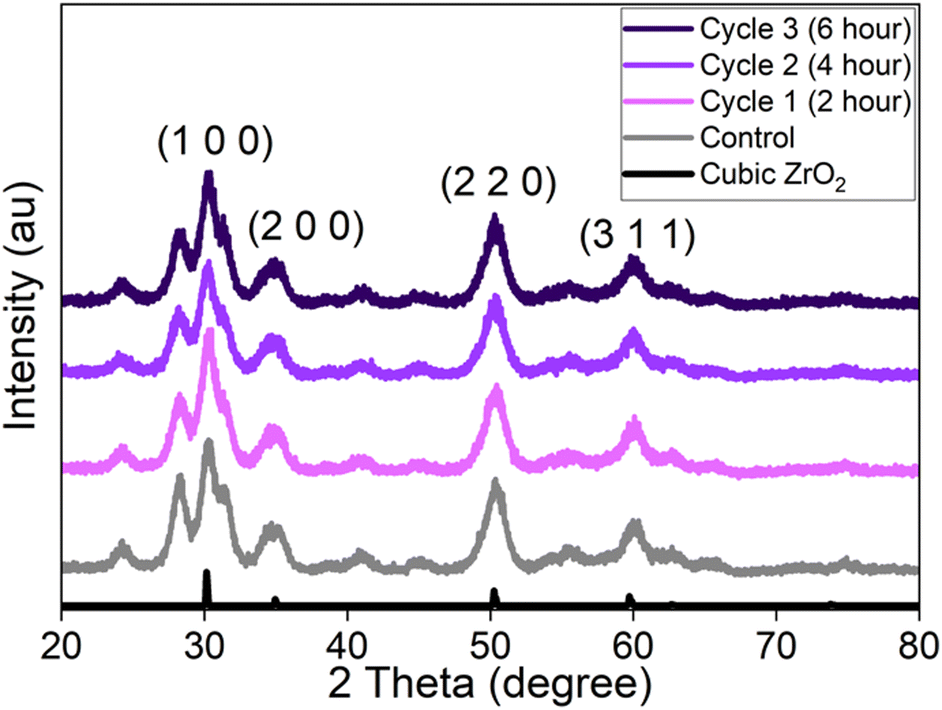

Furthermore, to investigate zirconia's properties after plasma exposure, we conducted experiments with three cycles (6 hours) to check the stability at 50 Watts of RF plasma power. The results revealed no critical changes in crystallinity or phases observed, uncovering robustness for long DRM operations (see Fig. 5).
Similarly, no textural or morphological changes were observed for all three cycles on SEM images (see Fig. S7, ESI†), the zirconia-packed reactor exhibited only minimal declines in activity, highlighting its stability under extended operation (see Fig. S8, ESI†). At a CO2:
CH4 feed ratio of 2
:
1, methane conversion decreased gently from 71.2% in the first cycle to 70.1% in the second and 68.2% in the third, while CO2 conversion decreased from 60.9% to 58.8% and 58.1%, respectively. A similar trend was seen at a 1
:
1 feed ratio, where methane conversion dropped from 63.7% to 61.8% and then to 60.3%, and CO2 conversion dropped from 57.2% to 55.3% and 54.8%. Under methane rich feed (1
:
2), methane conversion only edged down from 55.2% to 53.3% and 52.8%, with CO2 conversion moving from 41.7% to 40.2% then to 39.2%. These slight decreases on the order of 2–3 percentage points over 6 hours demonstrated that zirconia maintained high reactivity and conversion (%) with minimal deactivation over extended plasma exposure.
CO2 activation:
CO2 + e− → CO* + O* (general pathway, OES displays CO* dominance) |
CO2 → CO2+ + e− (ionization) |
CH4 activation:
CH4 + 3e− → CH* + 3H* |
![]() | ||

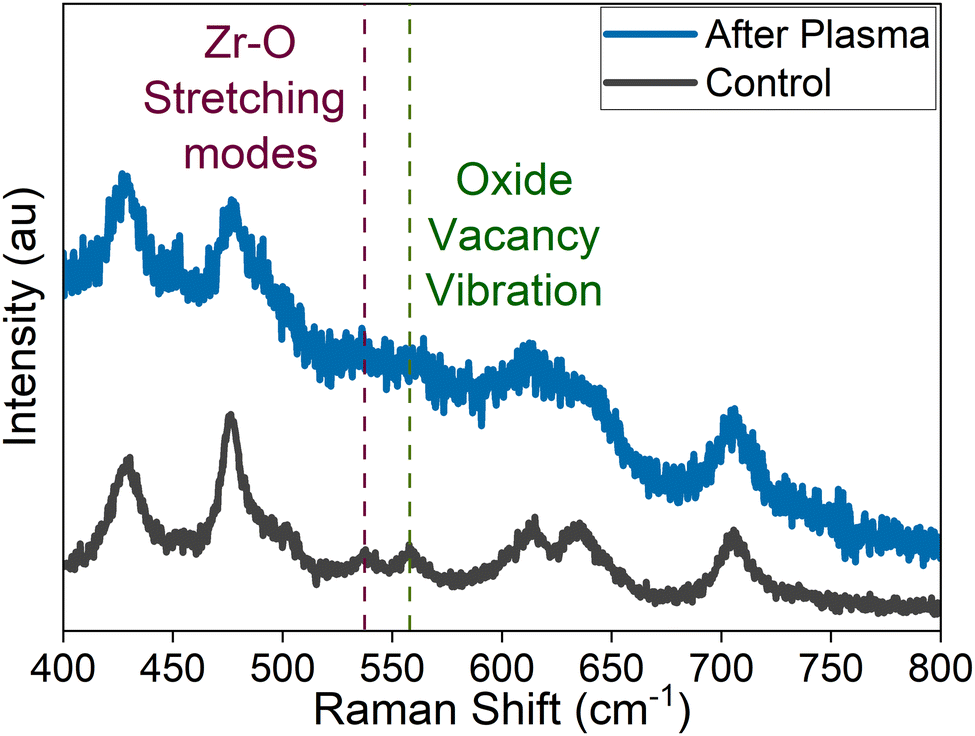

Fig. 7 Comparative Raman spectra of zirconia samples demonstrating the Zr–O stretching mode and oxide vacancy vibration features in control vs. sample exposed after plasma. |
Species | Location | Binding Energy | Control zirconia | Binding energy | After plasma zirconia | |
---|---|---|---|---|---|---|
eV | % Area | eV | % Area | |||
O 1s | Zr–O | Lattice oxygen | 529.39 | 43.9 | 529.11 | 42.2 |
Zr–OH | Surface hydroxyl | 530.93 | 56.0 | 530.51 | 42.9 | |
C–O | Carbon–oxygen | — | — | 532.65 | 14.8 | |
Zr 3d | Zr 3d5/2 | Zr4+ sites | 181.59 | 45.7 | 181.39 | 50.1 |
Zr 3d3/2 | Zr4+ sites | 183.92 | 54.2 | 183.74 | 49.8 |

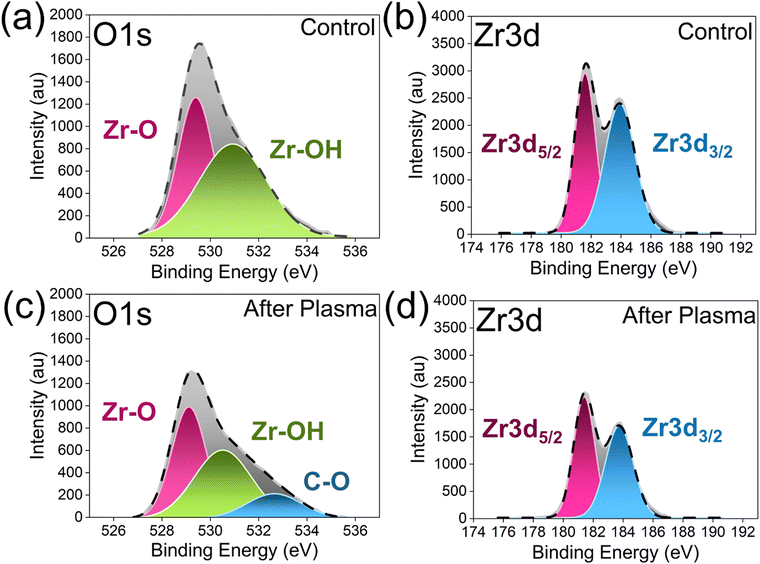

Zr 3d spectra represented the two split peaks which described the spin–orbit coupling, where the 3d electrons split into two distinct energy levels (5/2 and 3/2) for the Zr4+ state. An analysis of the Zr 3d region demonstrated that the Zr 3d5/2 peak shifted from 181.59 eV with a 45.7% area in pure zirconia to 181.39 eV with a 50.1% area after plasma treatment, and the Zr 3d3/2 peak shifted from 183.92 eV with a 54.2% area to 183.74 eV with a 49.8% area which may correspond to the changes in local rearrangements in Zr4+ sites (see Fig. 8b and d). Reported binding energies (eV) were consistent with literature values (see Table S2 for details, ESI†).
Based on the observations it is confirmed that the RF plasma dry methane reforming slightly modified the zirconia surface. These modifications, in turn, supported increased oxygen mobility and accelerated the continuous removal and conversion of surface carbon to CO during the plasma catalytic dry reforming reaction.65–68
![]() | ||

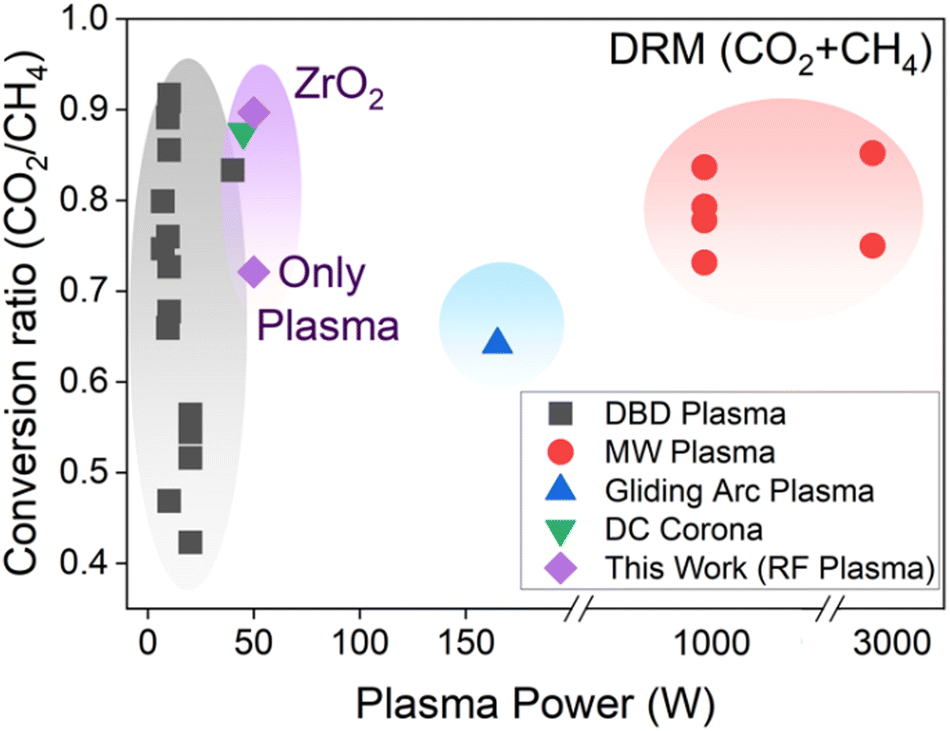

Fig. 9 State of the art plasma-catalytic dry reforming of methane, comparison of (CO2/CH4) conversion ratio vs. applied plasma power (Watts) for DBD,12,13,16,69,70 MW,72,73 GA,71 DC77 and this work with RF plasma at low power. |
It is well noted that major reactions in heterogenous catalysis occur on the surface.61 In this work, zirconia's surface reactions played a critical role in enabling syngas formation due to the presence of oxygen vacancies (VO) facilitating the mobility of atomic oxygen.
On the surface the reaction initiates with CO2 splitting, where CO2 in the gas phase interacts with a zirconia vacancy, leading to the formation of surface adsorbed CO and O species. In order to confirm this, we compared the signatures of plasma only and the zirconia surface when using pure CO2 OES, and interestingly we observed the intensities of the atomic oxygen were extremely high in plasma only and drastically reduced with the zirconia packed system, which implies higher adsorption of atomic oxygen on the zirconia surface (see Fig. S9a and b in the ESI†). Based on the measured species of the gas phase via OES we hypothesize that firstly, methane underwent dehydrogenation, dissociating into CH radicals and atomic hydrogen. On the zirconia surface, the gas phase exhibited stronger CH* (431 nm) signatures compared to plasma only and looking at the selectivity we can observe higher recombination of methane derived active species in the plasma only system. On the other hand, atomic hydrogen (656.3 nm) levels were lower than in plasma only conditions. This implies a higher recombination of hydrogen in the zirconia-plasma system highlighting the impact of the catalyst-plasma synergistic effect in DMR.
A pathway to mitigate carbon deposition (coking) on zirconia's surface is through the reaction of atomic carbon with atomic oxygen to produce CO in the gas phase. In this scenario, the oxygen migration increases due to the presence of vacancies (VO) and oxygen species consumed can be replenish. Finally, hydrogen atoms recombine to form molecular hydrogen (H2 formation). These surface reactions cooperatively improved the syngas generation (see Fig. 10).
CO2 splitting:
CO2(gas) + VO (vacancy in ZrO2) → CO(surf) + O(surf) |
CH4 dehydrogenation:
CH4(gas) → C(surf) + 4H(surf) |
Carbon renewal:
C(surf) + O(surf) → CO(gas) (prevents coking) |
H2 formation:
4H (surf) → 2H2 (gas) |
Footnote |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5ey00069f |
