Incorporating a lithium-deficient layer and interfacial-confined catalysis enables the reversible redox of surface oxygen species in lithium-rich manganese-based oxides

Abstract

Lithium-rich manganese-based oxides (LRMOs) are promising next-generation candidate cathode materials, offering a high discharge capacity exceeding 300 mA h g⁻¹. This exceptional capacity is attributed to the synergistic redox activity of transition metals and lattice oxygen. Nevertheless, the over-oxidation of lattice oxygen in LRMOs leads to capacity fading, severe lattice strain, and sluggish oxygen redox reaction kinetics. Herein, we introduce a lithium-deficient layer and a RuO₂-promoted interface-confined catalysis network on the surface of LRMO (Ru-1). The lithium-deficient layer effectively passivates the surface lattice oxygen by reducing the Li–O–Li configurations at the atomic level. The RuO₂-promoted interface-confined catalysis network successfully captures trace amounts of lost lattice oxygen and catalyzes the reversible reduction of activated O species. This configuration yields a specific discharge capacity of 307 mA h g⁻¹ at 0.1C, with an impressive capacity retention rate of 97% after 300 cycles at 1C. The Ru-1‖graphite pouch cell exhibits a superior capacity retention rate of 85% after 450 cycles at C/3 and the Ru-1‖Li pouch cell exhibits a high energy density of 513 W h kg⁻¹. Our strategies involving the lithium-deficient layer and interface-confined catalysis offer novel insights into protecting the surface and enhancing oxygen reusability within the LRMOs.

---

Broader context

Increasing interest has been directed towards lithium-rich manganese-based oxides (LRMOs) as a leading candidate for next-generation cathode materials. However, challenges such as capacity fading, oxygen evolution, and sluggish oxygen redox kinetics due to the over-oxidation of lattice oxygen persist. To address these issues, we have innovated by integrating a lithium-deficient layer alongside a RuO₂-enhanced interface-confined catalysis network on the surface of LRMOs. The lithium-deficient layer acts to passivate the lattice oxygen activity on the surface of LRMOs by minimizing Li–O–Li configurations at the atomic scale. Meanwhile, the RuO₂ network effectively captures and catalyzes the reversible reduction of the trace amount of lost lattice oxygen. Our strategies of employing a lithium-deficient layer and an interface-confined catalysis mechanism provide critical insights into surface protection and oxygen reusability enhancement within LRMOs, paving the way for the development of robust, high-performance cathode materials.

Introduction

With the growing demand for electric vehicles and portable electronic devices, developing high-energy-density Li-ion battery systems is of great significance.¹ The co-redox properties of transition metals and lattice oxygen confer Li-rich and Mn-rich cathodes with a high specific discharge capacity of more than 300 mA h g⁻¹, suggesting a promising future for the commercialization of high-energy-density batteries.^2–8 Nevertheless, the anion redox processes in lithium-rich manganese-based oxides (LRMOs) that occur at voltages above 4.5 V accelerate the deterioration of the battery performance, causing severe problems like lattice oxygen loss and voltage fade.^9,10 Additionally, the oxygen released during these processes contributes to capacity fading, phase transition and severe strain problems.¹¹ These drawbacks hinder the commercial development and application of LRMO cathodes.

The composition of Li-rich cathode materials can be expressed as xLi₂MnO₃ (1−x)LiMO₂ (M = Ni, Co, and Mn). In the Li₂MnO₃ structure, due to the substitution of some Mn ions by Li ions in the Mn layer, a large number of axial Li–O–Li configurations are formed.¹² Each oxygen atom is coordinated to six Li/M atoms. This structural arrangement decreases the hybridization of certain O 2p orbitals with the d orbitals of the transition metal (TM), leading to an increase in energy compared to fully axial Li–O–M configurations, such as those present in Ni-rich cathodes.^13–16 The Li–O–Li configurations endow LRMO cathodes with the feature of lattice oxygen redox. However, the oxidized lattice oxygen is harmful to the battery system, which will cause capacity loss, voltage fade, non-uniform lattice strain, and serious safety issues.¹⁷ The O₂ is initially released from the surface lattice of LRMOs, with the formation of oxygen vacancies, which are subsequently injected into the bulk lattice of LRMOs.^18–20 The accumulation of these oxygen vacancies ultimately leads to the development of nanovoids, contributing to voltage fading and the formation of a nonconductive interface.²¹

The suppression of oxygen release from the surface lattice is crucial for the overall stability of the material. Previous studies have explored various strategies, including surface coating and the grafting of functional groups, to modify the interface.¹⁹ For instance, Zhang et al. used a heterostructured spinel Li₄Mn₅O₁₂ coating strategy to protect the LRMO surface.²² The spinel coating layer not only hinders the release of oxygen but also accelerates the transformation of Li⁺. Similarly, Sun et al. replaced the surface lattice oxygen with sulfite, effectively shifting the oxidation state from O²⁻ to SO₃²⁻.²³ This charge transfer helps to prevent the degradation of the LRMO interface (caused by over-oxidation of surface oxygen). However, it is important to note that these coating layers do not decrease the oxygen activity of the near-surface lattice, which is intrinsically linked to the redox processes associated with the Li–O–Li configurations in the LRMO lattice. The introduced heterogeneous coating layers often fail to integrate seamlessly with the LRMO lattice, leading to uneven stress during the long cycling process and resulting in the peeling of the coating layer. Moreover, existing literature has paid insufficient attention to the oxygen species that have already escaped from the lattice, such as Li₂O₂, LiO₂, and O₂. The recycling of the released lattice oxygen can effectively reduce the capacity loss and enhance the cycling stability. Therefore, it is essential to consider strategies for reducing the content of Li–O–Li configurations at the interface and capturing the activated oxygen species.

Ruthenium dioxide (RuO₂), as a gas electrode catalyst, exhibits strong affinity for activated oxygen species, effectively capturing the released lattice oxygen species (Li₂O₂, LiO₂, and O₂) and catalyzing their reversible electrochemical reduction.^24,25 Herein, we propose a bifunctional method that employs an acidic Ru³⁺ solution to realize interfacial ion exchange between H⁺ and Li⁺ from the near-surface lattice, thereby creating a lithium-deficient interface. This Li-poor surface significantly diminishes the Li–O–Li configuration, resulting in reduced activity of the lattice oxygen and alleviating oxygen release at the surface. Meanwhile, RuO₂ functions as an interfacial gas adsorption ‘island’, which captures escaped oxygen species and lowers the energy barrier for the reduction of O₂, facilitating the reutilization of lost O₂ from the lattice oxygen, thereby enhancing the reaction kinetics during the electrochemical reduction of released O₂ on RuO₂. The island-like RuO₂ is firmly anchored to the surface of the LRMO, constructing an interface-confined catalysis array that effectively captures and catalyzes the reduction of trace amounts of escaped lattice oxygen. Therefore, the dynamic oxygen evolution equilibrium from the interface to the bulk in the LRMO is changed, effectively mitigating the outward diffusion of lattice oxygen and suppressing the formation of oxygen vacancies in the bulk of the LRMO. The lithium-deficient layer and interface-confined catalysis strategy gravely increase the discharge capacity of the LRMO battery from 230 mA h g⁻¹ to 261 mA h g⁻¹, while also improving the capacity retention rate from 75% to 97% after 300 cycles at 1C. The assembled Li metal pouch cell delivers a high energy density of 513 W h kg⁻¹ and the Ru-1‖graphite pouch cell maintains an excellent capacity retention rate of 85% for 450 cycles. This approach provides new insight into improving the performance of LRMO batteries.

Results and discussion

The LRMO powder was synthesized using the coprecipitation method, and its morphological images are shown in Fig. S1 (ESI†). To reduce the reactivity of the surface lattice oxygen, the LRMO powder was immersed in RuCl₃ solutions at varying concentrations (0.1, 0.2, and 0.6 mg mL⁻¹). These samples are designated as Ru-0.5, Ru-1, and Ru-3, respectively. During the stirring process, Li⁺ ions on the surface of the LRMO are gradually exchanged with H⁺ ions, resulting in the formation of a gradient lithium-deficient layer and a uniform coating layer on the exterior. After filtration, washing with deionized water, and subsequent sintering, rutile RuO₂ was anchored onto the surfaces of the primary LRMO particles (XRD patterns in Fig. S2a and b, ESI†). As shown in Fig. S3 and Table S1 (ESI†), the initial Coulombic efficiencies (ICEs) of the Ru-0.5, Ru-1, and Ru-3 samples at a rate of 1C are 95.8%, 97.1%, and 100.0%, respectively. Correspondingly, their discharge capacities during the first cycle are 309, 307, and 285 mA h g⁻¹. After 300 cycles, the capacity retention rates of these samples are 96%, 98%, and 94%, respectively. As the concentration of Ru³⁺ and the acidity of the solution increase, more Li⁺ ions at the interface of the LRMO are extracted, leading to a reduction in lattice oxygen loss and consequently demonstrating a decrease in irreversible capacity and an increase in ICE. However, when the Ru³⁺ solution concentration is excessively high, the RuO₂ deposited at the interface results in a reduction in the specific discharge capacity of the battery due to a decrease in the LRMO mass. Given its superior electrochemical performance, Ru-1 was selected for a comprehensive investigation.

Fig. 1a shows the schematic diagram of the gradient lithium-deficient layer and the RuO₂ interface-confined catalysis in Ru-1. The high-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) images presented in Fig. 1b and c reveal that the tetragonal RuO₂ is tightly anchored to the surface of the LRMO, exhibiting layered lattice striations. A 4–5 nm transition interlayer is observed between the RuO₂ and the LRMO phase. As illustrated in the energy-dispersive X-ray spectroscopy (EDS) images (Fig. S4, ESI†), all elements, including island-like RuO₂, are uniformly distributed in the Ru-1 sample. The powder X-ray diffraction (XRD) refinement results (Fig. S5, ESI†) demonstrate the characteristic peaks of the LRMO phase accompanied by the distinctive peak of RuO₂, providing compelling evidence for the successful integration of the RuO₂ coating layer in Ru-1. The detailed lattice parameters of the pristine sample and Ru-1 are shown in Table S2 (ESI†). Meanwhile, the inductively coupled plasma atomic emission spectroscopy (ICP-AES) results in Tables S3 and S4 (ESI†) detail the content of each element. The analysis reveals that in Ru-1, the chemical formula for the LRMO component is Li_1.20Mn_0.555Ni_0.158Co_0.080O₂, with RuO₂ constituting 0.46 wt% of the sample. During the ion exchange process, driven by the concentration gradient and the acidic RuCl₃ solution, some Li⁺ ions from the surface of the LRMO bulk material are released into the solution. This effectively reduces the concentration of Li⁺ at the lithium-rich interface, thereby decreasing the number of Li–O–Li configurations and suppressing lattice oxygen oxidation. The electron energy loss spectroscopy (EELS), time-of-flight secondary ion mass spectrometry (TOF-SIMS), and X-ray photoelectron spectroscopy (XPS) results exhibit a gradient distribution of Li⁺ from the surface to the bulk. Fig. 1d illustrates the normalized EELS intensities for the distribution of Li and Mn at the interface boundary between RuO₂ and the LRMO in Ru-1. The pale region corresponds to the RuO₂ coating layer, and the blue region represents the bulk LRMO; between these two regions lies a transitional layer. The signal of Li gradually intensifies from the surface to the bulk, and the signal of Mn maintains a relatively constant level. In contrast, in the pristine sample, both the signals of Li and Mn exhibit minimal variation (Fig. 1e), indicating the presence of a gradient lithium-deficient layer in Ru-1. The raw data without fitting are shown in Fig. S6 (ESI†). Additionally, Fig. 1f and g present three-dimensional TOF-SIMS plots that further corroborate the aforementioned results. As the etching time increases, the Li signal in Ru-1 escalates progressively, whereas the Li signal in the pristine sample remains essentially unchanged. The corresponding 1D TOF-SIMS results are depicted in Fig. S7 (ESI†). To exclude the influence of the surface coating layer on the judgment of Li⁺ concentration, Ru-1 was first etched with argon ions for 360 seconds to eliminate the oxide coating's effect on the Li 1s signal for the XPS analysis. As shown in Fig. S8 (ESI†), after etching, Ru-1 still displays a lower Li 1s signal compared to the pristine sample, indicating semi-quantitatively that the Li⁺ concentration at the interface between the coating layer and the bulk material of Ru-1 is lower than that of the untreated sample.

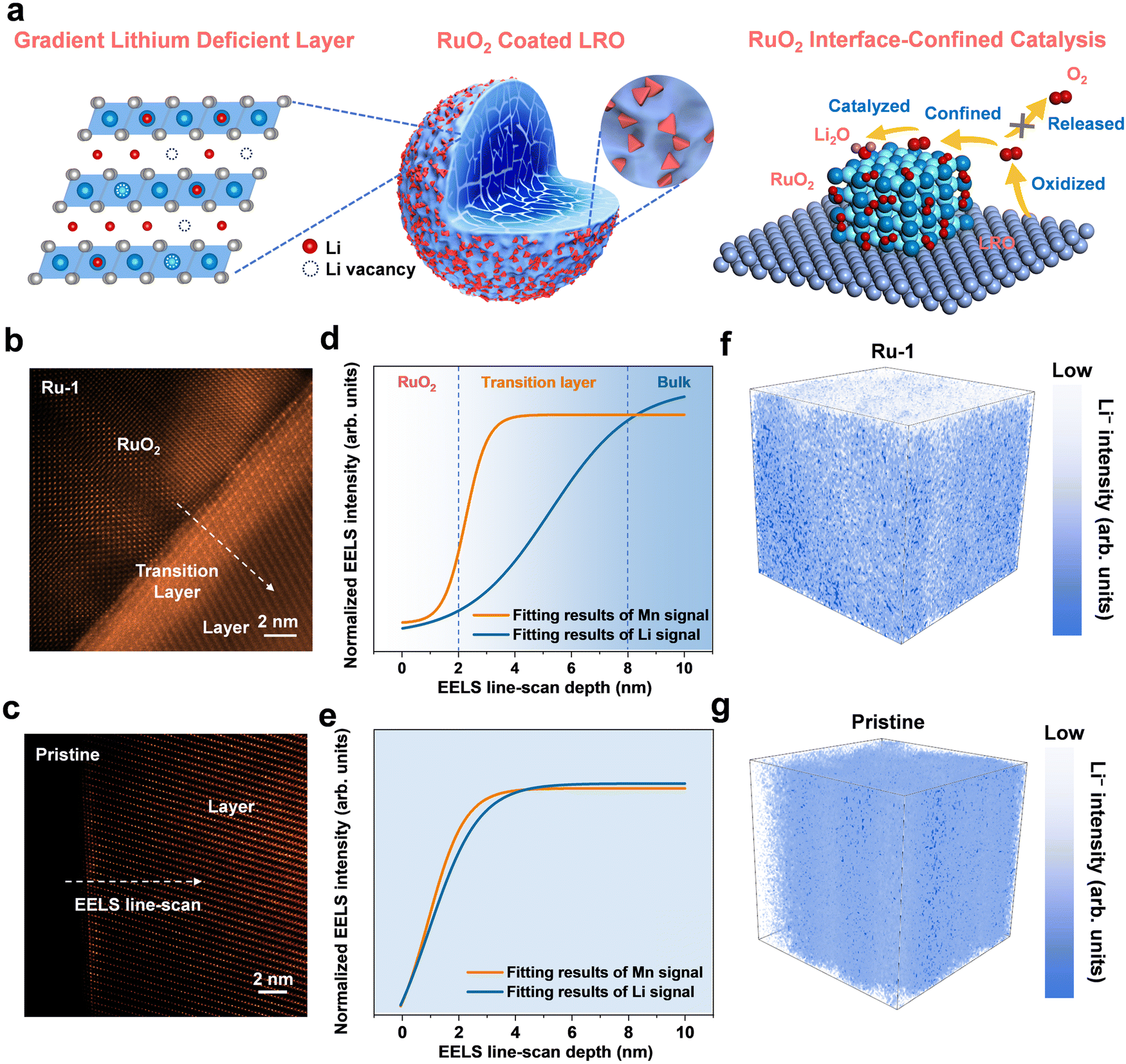

Fig. 1 (a) Schematic diagram of the gradient lithium-deficient layer and RuO₂ interface-confined catalysis in Ru-1. Characterization of a lithium-deficient layer. HADDF-STEM images of (b) Ru-1 and (c) the pristine sample. The normalized EELS intensities of the line-scan from the surface to the bulk of (d) Ru-1 and (e) pristine samples. The 3D plots of the TOF-SIMS Li⁻ intensity of (f) Ru-1 and (g) pristine samples. The blue region corresponds to the high Li content.

In situ surface-enhanced Raman scattering (SERS) spectroscopy is a powerful tool to provide insightful information on the operando surface during the electrochemical processes of batteries. According to Zhou et al., the Raman shift at 850 cm⁻¹ can be attributed to the vibration of the lattice peroxo-like O–O bond, indicating a reversible redox process.²⁶ As shown in Fig. 2a, during the charging process, with the voltage increasing, beyond the signal at 850 cm⁻¹ associated with the lattice O–O bond, a Raman shift appears at 788 cm⁻¹ in the pristine sample, corresponding to the formation of lithium peroxide (Li₂O₂).²⁷ It is noteworthy that the initial formation of the Li₂O₂ signal is followed by a decline when the charging voltage exceeds 4.7 V, suggesting that at higher voltages, Li₂O₂ undergoes further oxidization to produce O₂. The formation and subsequent decomposition of Li₂O₂ imply that lattice oxygen participates in a heterogeneous redox process within the lattice, causing the evolution and oxidation of the Li₂O component. This process is irreversible and contributes to the depletion of lattice oxygen. Conversely, Fig. 2b demonstrates that the introduction of a lithium-deficient layer in Ru-1 ensures the reversible redox reaction of lattice oxygen (at 850 cm⁻¹) without the formation of Li₂O₂.

Fig. 2 Lattice oxygen stability comparison between Ru-1 and the pristine sample. Spectra and contour plots of the in situ SRES tests and the corresponding charge and discharge curves of (a) pristine sample and (b) Ru-1. The XAS O K-edge spectra of (c) the pristine sample and (d) Ru-1. (e) DEMS spectra and the corresponding charge curves of Ru-1 and the pristine sample.

The XPS results (etching depth: approximately 20 nm) of the pristine LRMO and Ru-1 are shown in Fig. S9 (ESI†). At an energy of 533 eV, the violet region corresponds to oxygen-containing species that have been deposited on the surface. The yellow area at 531.5 eV represents oxygen-containing species that are adsorbed onto the surface. The orange section at 530.9 eV is associated with peroxide species (O₂)ⁿ⁻, and the blue region around 530 eV corresponds to lattice oxygen. When charged to voltages of 4.4 V, 4.6 V, and 4.8 V, the Ru-1 sample demonstrates peroxide ratios of 3.9%, 10.7%, and 16.0%, respectively. In contrast, the pristine LRMO sample exhibits a significantly higher proportion of peroxides, reaching 8.0%, 15.1%, and 23.1% at the same voltages. As shown in Fig. 2c and d, the O K-edge X-ray Absorption Spectroscopy (XAS) results reflect the oxidation state of lattice oxygen. The t_2g peak at 532.5 eV is indicative of the electronic transition from O 1s to TM 3d t_2g orbital, while the e_g peak at 530.5 eV represents the electron transition to the TM 3d e_g orbitals. The hump between these two peaks at 531.5 eV is regarded as the oxidation state of lattice oxygen, such as O₂ⁿ⁻. At open circuit voltage (OCV), 4.6 V, and 4.8 V, it can be observed that the signal of O₂ⁿ⁻ at 531.5 eV in the Ru-1 is much lower than that of the pristine sample. Fig. S10 (ESI†) shows the difference of O K-edge XAS spectra between 4.6 V and OCV during the initial charge process. It is evident that there are fewer O₂ⁿ⁻-like species at 4.6 V and 4.8 V in Ru-1, indicating that a smaller amount of lattice oxygen on the surface of Ru-1 has been oxidized owing to the introduction of a Li-poor interlayer. Furthermore, as shown in Fig. 2e, the differential electrochemical mass spectrometry (DEMS) results reveal a lower amount of O₂ evolution for Ru-1 compared to the pristine sample. The XAS data of Mn, Ni, and Co L edges exhibit the dynamic ligand-to-metal charge transfer (LMCT) during the charging process.³ The LMCT process plays an important role in regulating the lattice oxygen redox activity of the LRMO. During the charge process, the electrons are initially extracted from transition metal (TM) 3d orbitals and the TM ions are oxidized to high-valence states, such as Co⁴⁺ and Ni⁴⁺. After that, due to the strong coupling of the lattice oxygen with the TM ions, the electrons of lattice oxygen are partially removed from the O 2p orbitals to the TM 3d orbitals, causing the oxidation of the lattice and the reduction of the TM ions. Initially, Ni and Co are oxidized to a higher valence state, followed by electron transfer from the oxygen non-bonding states to these high-valence metal ions, thereby triggering oxygen redox reactions.^28,29 As demonstrated in Fig. S11–S13 (ESI†), the LMCT process for Ru-1 happens at 4.6 V, which is delayed compared to the pristine sample (4.4 V), meaning higher stability of the surface lattice oxygen in Ru-1. After the discharge process, the Mn in Ru-1 keeps in a higher oxidation state, consistent with its initial state, whereas a significant portion of Mn in the pristine sample is reduced to +3, suggesting substantial O₂ evolution and structure rearrangement on the surface of the LRMO.

The oxidation behaviour of lattice oxygen was further elucidated through the cyclic voltammetry (CV) tests. As shown in Fig. S14a and b (ESI†), peaks A and B correspond to the oxidation processes of lattice oxygen and transition metals, respectively. The ratio of their current intensities, I_A/I_B, serves as a qualitative indicator of the degree of lattice oxygen oxidation. In Ru-1, this ratio is 2.67; whereas in the control sample, the ratio is as high as 3.62, indicating that the oxidation of lattice oxygen in Ru-1 is suppressed. Fig. 3a shows the cycling performance of Ru-1 and the pristine sample at 0.1C. Ru-1 exhibits higher capacity and enhanced cycling stability, maintaining a high discharge capacity exceeding 300 mA h g⁻¹ after 120 cycles. As shown in Fig. 3b, at a current density of 1C, Ru-1 exhibits the highest reversible discharge capacity of 261 mA h g⁻¹. After 300 cycles, it retains a high specific capacity of more than 250 mA h g⁻¹ with a capacity retention rate of 98%. In contrast, the control material delivers a reversible specific capacity of 230 mA h g⁻¹ and a capacity retention rate of 75% after 300 cycles. Moreover, Ru-1 shows a median voltage decay of only 509 mV after 500 cycles, corresponding to a decay of about 1.0 mV per cycle (Fig. S15, ESI†); whereas the pristine sample experiences a large voltage decay of 779 mV after 500 cycles, equating to a decay of about 1.6 mV per cycle. The suppression of voltage decay further illustrates the inhibitory effect of the coating layer on the phase transformation and ion migration within the bulk material. Ru-1 achieves an unprecedentedly high capacity and ICE. Fig. 3c shows the charge and discharge curves of Ru-1 during the first cycle at 0.1C (1C = 250 mA g⁻¹). Ru-1 has an initial efficiency of 97%, while the pristine sample is only 86% (Fig. S16, ESI†), indicating that more lattice oxygen of the pristine sample is irreversibly oxidized and released during the charging process. As shown in Fig. S17 (ESI†), the impedance of Ru-1 is significantly decreased, indicating a higher electronic conductivity of Ru-1. As depicted in Fig. 3e, Ru-1 has superior rate performance. Even at a rate of 5C, Ru-1 still achieves a high discharge capacity of about 185 mA h g⁻¹. In comparison to recent studies (Fig. 3f), Ru-1 demonstrates a competitively high specific discharge capacity and extended cycle stability.^30–45 The detailed data can be found in Table S6 (ESI†). Furthermore, the CV curves at different scan rates for Ru-1 and pristine samples, presented in Fig. S18 (ESI†), indicate improved reaction kinetics for Ru-1. Additionally, the GITT curves (Fig. S19a, ESI†) reveal that Ru-1 exhibits a lower overpotential compared with the pristine sample, with the Li⁺ diffusion coefficients of Ru-1 being higher than those of the pristine sample (Fig. S19b, ESI†). Therefore, the deficiencies of Li in the LRMO structure promote the transport of Li⁺ and accelerate the electrochemical reaction kinetics. To evaluate the electrochemical performance of the full cell, a Ru-1‖graphite pouch cell was assembled. This configuration exhibits a high capacity retention rate of 85% after 450 cycles at C/3 (Fig. 3d) and a high energy efficiency of 91% (Fig. S20, ESI†). Furthermore, a 5.83 A h Ru-1‖Li pouch cell was constructed. As shown in Fig. 3g and h, this pouch cell exhibits a high energy density of 513 W h kg⁻¹. The results of battery test, along with the weight and size measurements of the Ru-1‖Li pouch cell, are shown in Fig. S21 and S22 and Table S5 (ESI†). Meanwhile, a Ru-1‖Li pouch cell keeps a stable discharge capacity for 22 cycles (Fig. S23, ESI†). The electrochemical performances of the Ru-1‖Li pouch cell highlight the significant potential of Ru-1 as a cathode material for high-energy-density batteries.

Fig. 3 Electrochemical performances. Long cycling performances of Ru-1 and pristine sample at (a) 0.1C and (b) 1C. (c) The initial charge and discharge curves of Ru-1. (d) Long cycling performances of the Ru-1‖graphite pouch cell at C/3. (e) Rate performances of Ru-1 and the pristine sample. (f) Capacity retention rate and discharge capacity of Ru-1 compared to recent studies. (g) The initial charge and discharge curves of the 5.83 A h Ru-1‖Li pouch cell. (h) Parameters of the 5.83 A h Ru-1‖Li pouch cell.

In situ XRD provides valuable insights into the phase transitions and strain changes during the charge and discharge processes. Fig. 4a and b present the in situ XRD contour plots for the pristine sample and Ru-1, along with their corresponding charge–discharge curves. The shift of the (003) peak serves as an indicator of lattice distortion within the cathode material. Apparently, a pronounced shift in the (003) peak of the pristine sample signifies substantial lattice distortion, which contributes to the irreversible oxidation of lattice oxygen. Conversely, the (003) peak of Ru-1 remains stable, suggesting minimal lattice distortion and structural change. The Rietveld refinement analysis, conducted using GSAS, indicates that Ru-1 exhibits a volume change of 2.69% during the first charge–discharge cycle, whereas the pristine sample shows a significantly higher value of 3.62%. To further investigate the volume changes and strain behaviour during the charging process, chemomechanical simulations were employed to examine the spatial distribution of Li⁺ concentration in the LRMO and the mechanical stress throughout the Li⁺ extraction process, using COMSOL software. As shown in Fig. 4c and d, driven by the electric field and concentration gradient, Li⁺ ions gradually deintercalate from the lattice. The pristine sample exhibits a gradient distribution of ion concentration that decreases from the interior to the exterior. With the progressive deintercalation of Li⁺, the ion concentration in the pristine sample manifests a gradient that diminishes from the core to the surface. Initially, the interface reaches a state of lithium depletion, experiencing a relatively smaller variation in Li⁺ concentration compared to its original state. However, in Ru-1, as the Li⁺ concentration decreases, the gradient lithium-deficient layer at the interface first attains a state of lower lithium content and then remains unchanged, resulting in a comparatively lower Li⁺ extraction at the interface when compared to the control group. Referring to the strain results from in situ XRD during the charging process, the stress at different delithiation states was simulated using COMSOL. The in situ XRD reveals a positive correlation between lattice strain and the absolute amount of deintercalated Li⁺. Consequently, the strain at the interface is comparatively smaller due to the relatively minor change in Li⁺ concentration at this region compared to the bulk, resulting in the formation of a buffer layer that prevents grain cracking and lattice structure damage. As a result, the peak stress in the Ru-1 amounts to 418 MPa (Table S7, ESI†), specifically within the interior of the interfacial buffer layer. Conversely, the pristine sample records a significantly higher peak stress of 567 MPa, situated at the surface, posing a risk of grain rupture. Therefore, the introduction of a lithium-deficient layer not only decreases the strain within the LRMO lattice on an atomic scale by hindering the release of lattice oxygen but also alleviates the strain at the primary particle level by controlling the lithium diffusion gradient.

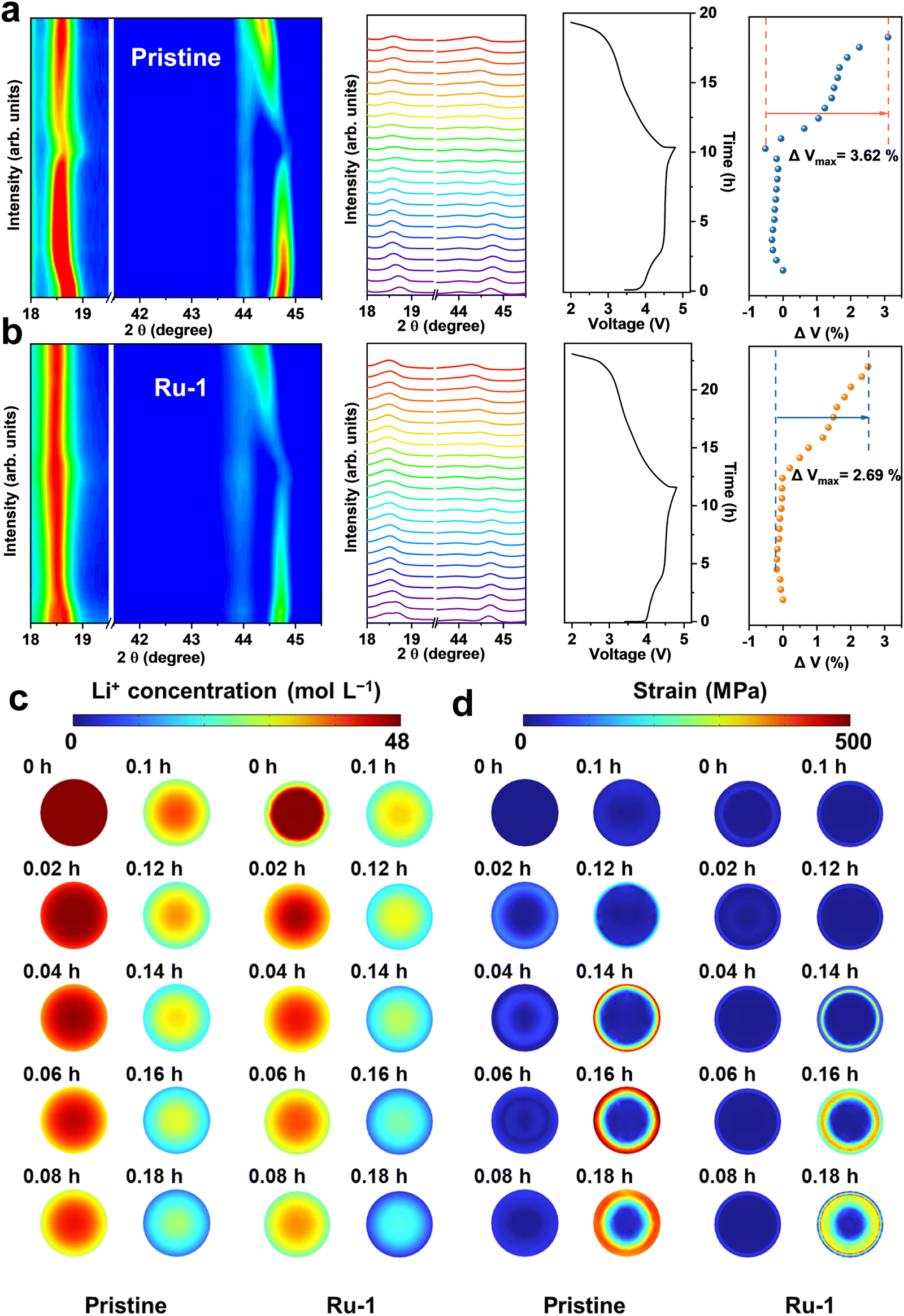

Fig. 4 Strain changes during the electrochemical process. The contour plots and spectra of the in situ XRD results and the corresponding volume changes of (a) the pristine sample and (b) Ru-1. The volume data are derived from GSAS software. Visualization of the (c) concentration and (d) stain changes during the initial charge process.

To explore the impact of the gradient lithium-deficient interlayer on interfacial stability, DFT calculations were conducted on samples with varying lithium contents. It is well established that Li₂MnO₃ serves as the primary oxygen-activating component in LRMO cathodes, imparting anionic redox characteristics to the lithium-rich material through its Li–O–Li configurations. As the lithium content decreases, the number of Li–O–Li configurations diminishes, significantly affecting the electronic density of states (DOS) of oxygen in Li₂MnO₃, thereby altering the redox properties of lattice oxygen. Using Li₂MnO₃ as the reference structure, a series of six models with progressively reduced lithium contents are constructed: Li₃₀Mn₁₈O₄₈, Li₂₉Mn₁₉O₄₈, Li₂₈Mn₂₀O₄₈, Li₂₇Mn₂₁O₄₈, Li₂₆Mn₂₂O₄₈, and Li₂₅Mn₂₃O₄₈. This is accomplished by the substitution of Li atoms in the TM layer with Mn atoms, as illustrated in Fig. S24 (ESI†). These models sequentially reduce the lithium content, mimicking the actual conditions of oxygen-activating components within a gradient lithium-deficient layer. Fig. 5a–f illustrate the distribution of partial electronic density of states for lattice O and Mn in different models. As the lithium content decreases, the proportion of O 2p electrons near the Fermi level (E_F) diminishes, indicating a reduced participation of lattice oxygen in the oxidation reaction. Fig. 5g presents an integrated statistical graph of the electronic density of states for Mn and O within 1 eV below the E_F. A decrease in the lithium content corresponds to a decline in the electron fraction attributed to oxygen within a 1 eV range below the E_F, from 84.2% to 75.5%. Simultaneously, the electron fraction for Mn rises from 15.8% to 24.5%. This shift reflects a decreasing contribution to capacity from oxygen and a corresponding increase from manganese. Notably, the term ‘O’ refers to oxygen atoms bonded to Mn atoms; thus, the electron fraction of O consistently exceeds that of Mn. The lithium-deficient layer suppresses oxygen activity and the coupling between O 2p orbitals with the TM 3d orbitals, thereby delaying the LMCT process in the LRMO, as shown in Fig. S11–S13 (ESI†). This well-controlled oxygen activity contributes to maintaining a high reversible lattice oxygen redox process and enhancing the cycling stability of the LRMO. Subsequently, Li₂MnO₃, Li₃₀Mn₁₈O₄₈, and Li₂₈Mn₂₀O₄₈ are employed as representative models to investigate the diffusive behaviour of Li⁺ within the Li layer, characterized by a decremental lithium gradient. The schematic representations of the diffusion models are delineated in Fig. S25 (ESI†). Fig. 5h illustrates a progressive decline in the energy barrier for Li⁺ diffusion as the lithium content diminishes. This means a lower lithium content facilitates ion transport at the interface within the Li layer, thereby reducing polarization and enhancing the overall electrochemical performance, which aligns with the conclusions derived from GITT results.

Fig. 5 Electron density distributions and diffusion energy barriers of Li-rich components with different Li contents. PDOS plots of (a) Li₃₀Mn₁₈O₄₈, (b) Li₂₉Mn₁₉O₄₈, (c) Li₂₈Mn₂₀O₄₈, (d) Li₂₇Mn₂₁O₄₈, (e) Li₂₆Mn₂₂O₄₈, and (f) Li₂₅Mn₂₃O₄₈. (g) The calculated integrated area of the electron densities of Li₃₀Mn₁₈O₄₈, Li₂₉Mn₁₉O₄₈, Li₂₈Mn₂₀O₄₈, Li₂₇Mn₂₁O₄₈, Li₂₆Mn₂₂O₄₈, and Li₂₅Mn₂₃O₄₈. With a decrease of the Li content, the electron content of oxygen is also lowered gradually. (h) The interlayer Li⁺ transportation energy barriers of Li₂MnO₃, Li₃₀Mn₁₈O₄₈, and Li₂₈Mn₂₀O₄₈.

In comparison to the pristine sample, Ru-1 exhibits extremely high capacity and cycling stability. To understand such performance enhancement, besides the effect of a lithium-deficient interface layer and the suppression of lattice oxygen release, a more in-depth investigation into the function of ruthenium oxide at the interface is warranted. In situ galvanostatic electrochemical impedance spectroscopy (GEIS) tests (Fig. S26, ESI†) were conducted to evaluate the reaction kinetics of the O₂ formation and reduction process. By mathematically converting the GEIS data, the relaxation time distribution (DRT) results can be obtained.⁴⁶ As shown in Fig. 6a, the relaxation time τ ranging from 10⁻² to 10 s and from 10 to 10² s can be ascribed to charge transfer (R_ct) and solid-state diffusion (R_diff), respectively.^23,46 During the charging process, the R_ct of Ru-1 at high voltage surpasses that of the pristine sample, indicating a kinetically inhibited LMCT process and the limited oxidation of lattice oxygen. Nevertheless, upon discharging, the R_ct effectively decreases, indicating a kinetically promoted O₂ reduction process, which can be attributed to the catalytic effect of RuO₂.

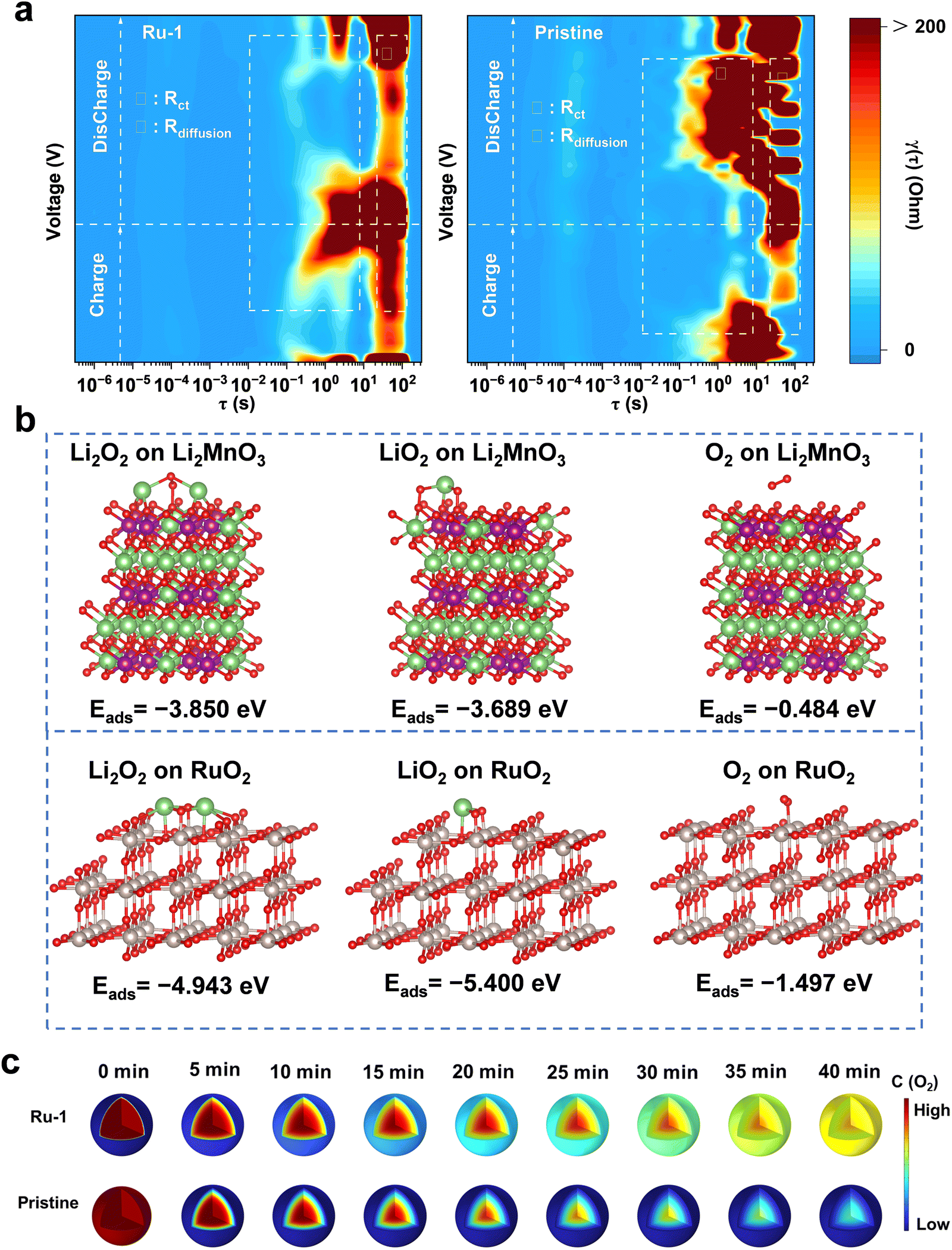

Fig. 6 The adsorption and catalytic capability evaluation. (a) DRT profile transformation from GEIS of Ru-1 and the pristine sample. (b) The models and adsorption energies of Li₂O₂, LiO₂, and O₂ adsorbed on Li₂MnO₃ and RuO₂. (c) O₂ diffusion simulation of Ru-1 and the pristine sample with COMSOL software.

Gibbs free energy pathways were calculated to reveal the catalytic capability of the RuO₂ during the discharge process, specifically the oxygen electrochemical reduction process. The whole electrochemical reduction of O₂ is divided into three distinct processes, each representing an electron donating. As shown in Fig. S27 (ESI†), the rate-determining processes are the electrochemical reduction of Li₂O₂ for both the Li₂MnO₃ and RuO₂, which exhibit the highest free energies among the three reduction processes. Therefore, in these two materials, the reduction of Li₂O₂ governs the extent of O₂ reduction during the discharge process, thereby characterizing the catalytic activity of O₂ in the LRMO battery system, which in turn affects the discharge specific capacity. Evidently, the free energy of Li₂O₂ on RuO₂ is 6.99 eV, which is much lower than that of Li₂MnO₃ (9.02 eV). This indicates that the conversion energy barrier for the whole O₂ electrochemical reduction process is considerably lower on RuO₂ compared to Li₂MnO₃, indicative of the outstanding catalyzing capability of RuO₂. The remarkable adsorption and catalytic performance of RuO₂ facilitate its function as an active site for O₂ adsorption and electrochemical catalysis, thereby promoting the confinement and conversion of activated oxygen species.

Previous studies have demonstrated that the Li₂MnO₃ phase at the LRMO interface exhibits significant capabilities in gas adsorption and catalysis, leading to its selection as a reference for comparative analysis. Through DFT calculations, we evaluated the adsorptive and catalytic properties concerning the active oxygen species Li₂O₂, LiO₂, and O₂ for both Li₂MnO₃ and RuO₂. Fig. 6b presents the adsorption energies of Li₂MnO₃ for Li₂O₂, LiO₂, and O₂, which are measured at −3.850 eV, −3.689 eV, and −0.484 eV, respectively. In contrast, the adsorption energies of RuO₂ for these oxygen species are −4.943 eV for Li₂O₂, −5.400 eV for LiO₂, and −1.497 eV for O₂, all of which surpass those of Li₂MnO₃. The elevated adsorption energy implies that in the Ru-1 sample, even trace amounts of released oxygen will be effectively captured at the interface of the cathode, maintaining electrochemical contact and facilitating interfacial confinement. Conversely, in the pristine sample, the active oxygen species and emitted oxygen are dispersed throughout the battery system, which not only results in the loss of electrochemical interaction and the subsequent failure to reduce the oxidized lattice oxygen, but also introduces grave safety hazards. Meanwhile, the change in O₂ concentration at the RuO₂ containing interface significantly influences the overall O₂ diffusion equilibrium in the primary particle. The distribution of dynamic O₂ concentration is simulated using COMSOL software, as shown in Fig. 6c. For the pristine sample, O₂ undergoes unhindered diffusion and rapidly escapes from the bulk. Within 40 minutes, the O₂ concentration decreases from the surface to the bulk, leading to severe lattice distortion and the formation of oxygen vacancy. Nevertheless, the RuO₂ oxygen sequestration array (blue shell in Fig. 6c, Ru-1, 0 min) preferentially captures oxygen molecules, thereby regulating the equilibrium of O₂ diffusion and inhibiting further O₂ evolution. Therefore, after 40 minutes, the oxygen concentration in Ru-1 is much higher and more evenly distributed than that of the pristine sample. The high O₂ concentration within the Ru-1 lattice is thermodynamically beneficial to hinder the formation of oxygen vacancy.

XRD, Raman, HRTEM, and TOF-SIMS tests were performed on the cathode material to investigate the phase transformation and surface side reaction after 200 cycles at 1C. The phase structure of the pristine sample undergoes notable degradation, while Ru-1 maintains a well-preserved layered structure. As illustrated in Fig. S28 (ESI†), the ratio of I₀₀₃/I₁₀₄ is commonly employed to assess the integrity of the layered structure in the LRMO.⁴⁷ After cycling, the pristine sample exhibits an I₀₀₃/I₁₀₄ ratio of 1.46, significantly higher than the initial value of 1.09, which suggests a substantial alteration in the material's structural anisotropy during the cycling process. Additionally, Raman spectroscopy serves as a valuable tool for monitoring the phase transformation of the cathode material. The Raman shift at 625 cm⁻¹ indicates the presence of a spinel phase component, and the fitting results reveal that the pristine sample exhibits an increased proportion of the spinel phase structure after cycling (Fig. S29, ESI†).⁴⁸ Moreover, the local phase transformation of the cathode material was analyzed. As shown in Fig. S30 (ESI†), the layered structure is well-preserved, and the lattice of the tetragonal RuO₂ at the interface remains unimpaired in Ru-1. In contrast, the pristine sample displays a substantial emergence of rock-salt and spinel phases at the interface, suggesting a profound structural reorganization as a result of lattice oxygen emission. The EDS results (Fig. S31, ESI†) provide the elemental distribution of the Ru-1 sample after 200 cycles. The elements O, Mn, Ni, Co, and F (F arising from the decomposition of LiPF₆) are uniformly distributed on the surface of the Ru-1 secondary particles. Ru is present in an island-like distribution on the surface, similar to the distribution observed in Fig. S4 (ESI†), indicating that RuO₂ remains tightly anchored to the LRMO interface even after 200 cycles. The interfaces of the cycled Ru-1 and pristine samples were investigated through TOF-SIMS analysis. As shown in Fig. S32 (ESI†), the intensity of three-dimension depth signals of the MnF₃⁻, NiF₃⁻, and CoF₃⁻ in the Ru-1 sample is much lower than that of the pristine sample, indicating fewer surface side reactions and slighter transition metal dissolution in Ru-1.⁴⁹ The cathode–electrolyte interface (CEI) fragments, including PO₂⁻, PF₆⁻ and LiF₂⁻, are significantly more concentrated at the interface in Ru-1 compared to the pristine sample, suggesting a robust and compact CEI in Ru-1.^50–52 The corresponding two-dimension overlay mapping images and depth curves are shown in Fig. S33 and S34 (ESI†), respectively. The XRD, Raman, HRTEM, and TOF-SIMS analyses collectively demonstrate that the Ru-1 sample maintains a well-preserved layered structure with minimal phase transformation, while the pristine sample undergoes significant surface and bulk degradation, exhibiting increased spinel and rock-salt phases due to lattice oxygen emission, highlighting the stabilizing effect of RuO₂ at the LRMO interface after prolonged cycling.

Conclusions

In summary, we have developed a bifunctional method that utilizes ion exchange between H⁺ ions and surface Li⁺ to construct a lithium-deficient layer and a RuO₂ interface-confined catalysis network. The lithium-deficient layer effectively prevents the loss of surface lattice oxygen, promotes ion transportation, and alleviates strain within both the lattice and the primary particle. Concurrently, the RuO₂ interface-confined catalysis network powerfully adsorbs the trace amounts of activated oxygen species and accelerates the reaction kinetics of the reduction of O₂. As a result, this approach significantly improves the reversible discharge capacity of the LRMO from 230 mA h g⁻¹ to 261 mA h g⁻¹ at 1C and the capacity retention rate from 75% to 97%. The Ru-1‖graphite pouch cell exhibits a superior capacity retention rate of 85% after 450 cycles at C/3, and the 5.83 A h Ru-1‖Li pouch cell exhibits an energy density of 513 W h kg⁻¹. Our work demonstrates a new feasible strategy for the reutilization of activated oxygen species within the LRMO system, effectively enhancing its battery performance and indicating a promising future for the commercialization of LRMOs.

Author contributions

J. P. S., H. Y., and J. L. S. contributed equally to this work. J. P. S. designed and conducted the experiments, analyzed the data, and drafted the manuscript. H. Y. and Y. Y. supervised the research and manuscript preparation. J. L. S. and X. J. W. carried out theoretical calculations. H. D. Q. and Y. S. performed the COMSOL simulations. M. S. conducted the HADDF-STEM experiments. Y. H. L., Y. Y. and X. H. R. analyzed the XAS data. All authors approved the final version of the manuscript.

Data availability

The authors will supply the relevant data in response to reasonable requests.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (No. 51925207, 52394170, 52394171, U24A2067, 52372239, and U23A20579), the Fundamental Research Funds for the Central Universities (WK9990000170, YD2060002042, and 20720220010), the Liaoning Binhai Laboratory (Grant No. LBLF-2023-03), and the “Transformational Technologies for Clean Energy and Demonstration” Strategic Priority Research Program of the Chinese Academy of Sciences (Grant No. XDA0400202), and the State Key Laboratory of Catalysis (2024SKL-B-003). The authors thank the USTC Supercomputing Center for providing computational resources for this project. The O K-edge, Ni, Co, and Mn L-edge XAS tests were recorded on Beamlines MCD-A and MCD-B (Soochow Beamline for Energy Materials) at the National Synchrotron Radiation Laboratory (NSRL). The SEM, TEM, XPS and ICP tests were performed in the Physical and Chemical Science Experiment Center of the University of Science and Technology of China (USTC). We thank the USTC Supercomputing Center for providing computational resources for this project.
