Marvin
Alberts
*abc,
Federico
Zipoli
ab and
Teodoro
Laino
ab
aIBM Research Europe, Säumerstrasse 4, 8803 Rüschlikon, Switzerland. E-mail: marvin.alberts@ibm.com
bNCCR Catalysis, Switzerland
cUniversity of Zurich, Department of Chemistry, Winterthurerstrasse 190, 8057 Zurich, Switzerland
First published on 25th June 2025

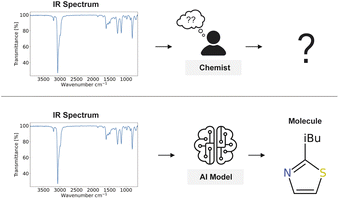

Automated structure elucidation from infrared (IR) spectra represents a significant breakthrough in analytical chemistry, having recently gained momentum through the application of Transformer-based language models. In this work, we improve our original Transformer architecture, refine spectral data representations, and implement novel augmentation and decoding strategies to significantly increase performance. We report a Top-1 accuracy of 63.79% and a Top-10 accuracy of 83.95% compared to the current performance of state-of-the-art models of 53.56% and 80.36%, respectively. Our findings not only set a new performance benchmark but also strengthen confidence in the promising future of AI-driven IR spectroscopy as a practical and powerful tool for structure elucidation. To facilitate broad adoption among chemical laboratories and domain experts, we openly share our models and code.
However, despite its widespread use, determining the complete molecule structure from an IR spectrum remains notoriously challenging. Interpretation of the spectra is often limited to the manual identification of a few functional groups or relies on the use of spectral databases and reference tables for comparison.8–10 The complexity of overlapping bands and coupled vibrations in the fingerprint region (500–1500 cm−1) further complicates the interpretation of the spectra.11 This often limits the amount of information that can be reliably extracted to a few select functional groups (Fig. 1).
The emergence of computational chemistry provided new a framework for understanding vibrational spectroscopy, with various computational approaches enabling the simulation of IR spectra. These techniques aided in the interpretation of IR spectra based on the molecular structure and shed new insights on the relation between vibrations in the molecular structures and the peaks observed in the spectra.12–14 However, the inverse problem, i.e. predicting molecular structures or functional groups directly from experimental IR spectra, has remained largely unsolved through traditional computational approaches.
Recently, artificial intelligence (AI) has developed into a transformative tool across chemistry. Machine learning approaches have shown remarkable success in interpreting NMR spectra,15–21 analysing MS/MS spectra,22–24 and the prediction of functional groups from IR spectra.25–29 These developments have demonstrated the potential for AI-driven methods to overcome traditional limitations in the analysis of spectroscopic data.
Building on this foundation, it has been demonstrated that artificial intelligence can directly predict the molecular structure from IR spectra.30–32 This opened new avenues in analytical chemistry and inspired subsequent perspectives33 and developments.34,35 Wu et al.34 advanced the methodology further, achieving notable accuracy improvements, Kanakala et al.35 developed a contrastive retrieval system to match molecules with spectra and Priessner et al.36 developed a multimodal approach combining IR spectra with other spectroscopic modalities. In this work, we push the boundaries even further by addressing previous architectural limitations, adopting a patch-based spectral representation method, and refining augmentation and decoding strategies. These modifications substantially improve our model's performance, raising the Top-1 accuracy from 44.39% to 63.79% and Top-10 accuracy from 69.79% to 83.95%. The model presented in this work exceeds the previous best-in-class by approximately 9%, effectively becoming the new state-of-the-art. Our findings redefine what is possible, showing that the full potential of IR spectra for structure elucidation is now within reach through specifically tailored architecture and data engineering strategies.
Recently, Wu et al.34 addressed this limitation by introducing a patch-based Transformer model for IR spectral analysis, inspired by Vision Transformers (ViT) originally developed for image data.38 This approach segments the IR spectrum into smaller fixed-size segments or “patches,” effectively preserving richer, fine-grained spectral details. Patch-based Transformers have proven successful across multiple data modalities beyond images, including audio and time-series data, due to their enhanced representational capabilities.39,40 Based on these insights, we implemented a patch-based representation of IR spectra, resulting in substantial improvements in performance.
However, the patch-based representation is not the only recent advancement in Transformer architectures. Xiong et al.41 introduced post-layer normalization, replacing the original pre-layer normalization approach of the vanilla Transformer. This modification optimizes gradient flow during training, leading to more effective and efficient model convergence. Similarly, Gated Linear Units (GLUs), introduced by Shazeer,42 represent an improvement over traditional activation functions such as the Rectified Linear Unit (ReLU) and the Gaussian Error Linear Unit (GeLU). GLUs allow for enhanced model parametrization without additional depth, thus improving model expressivity.43 In this study, we also replaced the standard sinusoidal positional encodings with learned positional embeddings,44 enabling the model to develop more adaptive sequence representations throughout training.
We conducted comprehensive ablation studies evaluating the impact of each of these architectural changes, summarized in Table 1. During pretraining, we incorporated both simulated data from our original study and additional spectra introduced in our recent multimodal dataset,45 substantially increasing our training samples from 634585 to 1
399
806 spectra. For each architectural configuration (as detailed in the table rows), we pretrained a model on simulated spectra, followed by fine-tuning on 3453 experimental spectra from the NIST database—the same dataset utilized in our previous work, obtained in full compliance with NIST's data usage policies.46 To ensure robust evaluation, we implemented 5-fold cross-validation during fine-tuning. Comprehensive results, including Top-5 accuracies, are provided in the ESI, Section 1.†
Layer normalisation | Pos. encoding | GLUs | Patch size | Simulated | Experimental | ||
---|---|---|---|---|---|---|---|
Top-1 ↑ | Top-10 ↑ | Top-1 ↑ | Top-10 ↑ | ||||
Pre- | Sinusoidal | ✗ | 125 | 20.84 | 47.29 | 42.59 ± 2.64 | 78.04 ± 2.81 |
Post- | Sinusoidal | ✗ | 125 | 39.86 | 66.52 | 48.36 ± 3.14 | 81.58 ± 2.08 |
Post- | Learned | ✗ | 125 | 39.78 | 67.19 | 49.55 ± 1.77 | 82.39 ± 0.83 |
Post- | Learned | ✓ | 125 | 42.94 | 69.47 | 50.01 ± 1.53 | 83.09 ± 1.83 |
In Table 1, we demonstrate that each newly introduced architectural component contributes incrementally to improved performance. Throughout these experiments, we maintained a fixed patch size of 125 data points, corresponding to 15 patches per spectrum. Based on these findings, all subsequent experiments employed models incorporating post-layer normalization, learned positional embeddings, and Gated Linear Units (GLUs).
Next, we evaluated the optimal patch size by training models with patch sizes ranging from 25 to 150 data points (Table 2). Performance on experimental data steadily improved with increasing patch sizes, reaching a maximum at a patch size of 75 before subsequently declining. Interestingly, this trend contrasted with the performance observed on simulated data, where smaller patches consistently yielded better results. This discrepancy suggests that, while smaller patches may enhance the model's ability to capture detailed spectral features, they could also promote overfitting during fine-tuning. Supporting this interpretation, the training metrics showed that models using a patch size of 25 had a higher average validation loss than those using a patch size of 75. Complete validation loss curves are provided in the ESI, Section 2.† Based on these results, we selected a patch size of 75 for all subsequent experiments.
Layer normalisation | Pos. encoding | GLUs | Patch size | Simulated | Experimental | ||
---|---|---|---|---|---|---|---|
Top-1 ↑ | Top-10 ↑ | Top-1 ↑ | Top-10 ↑ | ||||
Post- | Learned | ✓ | 25 | 45.73 | 71.30 | 49.81 ± 3.49 | 81.26 ± 1.71 |
Post- | Learned | ✓ | 50 | 44.48 | 70.89 | 51.03 ± 2.82 | 82.35 ± 2.83 |
Post- | Learned | ✓ | 75 | 44.23 | 70.68 | 52.25 ± 2.71 | 83.00 ± 2.14 |
Post- | Learned | ✓ | 100 | 43.49 | 69.72 | 51.72 ± 3.08 | 82.62 ± 2.19 |
Post- | Learned | ✓ | 125 | 42.97 | 69.40 | 50.57 ± 2.59 | 83.57 ± 1.67 |
Post- | Learned | ✓ | 150 | 41.52 | 68.93 | 48.36 ± 3.11 | 82.07 ± 2.13 |
SMILES augmentation, originally proposed by Bjerrum,47 involves enriching the training dataset by including non-canonical SMILES representations. This approach has successfully improved generalization in various molecular prediction tasks, ranging from retrosynthesis to structure elucidation.48–50 By presenting the model with alternative yet chemically equivalent SMILES representations, we encourage better generalization and robustness.
The primary challenge in our pretraining–fine-tuning approach is the significant sim-to-real gap between simulated and experimental IR spectra. This gap leads to a considerable domain shift that the model must bridge during fine-tuning. To address this issue, we introduce a novel augmentation method called pseudo-experimental spectra, defined as simulated spectra transformed to closely mimic experimental spectra. We achieve this transformation using a transfer function implemented as a multilayer perceptron (MLP) with a bottleneck layer. Given the limited availability of experimental IR spectra, we trained the transfer function on 2000 pairs of simulated and experimental spectra. Additionally, molecular fingerprints were included as auxiliary inputs to further improve transformation accuracy. A visual overview of this methodology is provided in Fig. 2, and further details on the architecture, hyperparameter optimization, and performance evaluation are available in the Methods section and ESI, Section 3.†
During pretraining, we expanded our dataset by adding 700000 pseudo-experimental spectra. In the fine-tuning phase, we incorporated an additional, smaller subset of 3000 pseudo-experimental spectra matching the distribution of our experimental dataset. For consistency, two additional augmented spectra per sample were generated using all other augmentation techniques. As shown in Table 3, we observed substantial performance gains when augmenting the dataset with non-canonical SMILES and pseudo-experimental spectra, with all four augmentation techniques demonstrating a synergistic effect when combined. Interestingly, different augmentations contributed distinctly to model performance: pseudo-experimental spectra primarily improved Top-5 and Top-10 accuracies (see ESI, Section 1†), likely due to increased molecular diversity in the training data. In contrast, non-canonical SMILES augmentation significantly boosted Top-1 accuracy but slightly reduced Top-5 and Top-10 accuracies, possibly due to the model encountering multiple equivalent SMILES representations—either facilitating precise prediction or increasing ambiguity. Consequently, we employed all four augmentation strategies for all subsequent experiments.
Pretraining augmentation | Fine tuning augmentation | Simulated | Experimental | ||
---|---|---|---|---|---|
Top-1 ↑ | Top-10 ↑ | Top-1 ↑ | Top-10 ↑ | ||
a Horizontal shifting as implemented in Alberts et al.32 b Gaussian smoothing as implemented in Alberts et al.32 | |||||
Hori.a | None | 43.18 | 68.95 | 50.33 ± 2.37 | 83.15 ± 1.19 |
Smoothingb | None | 42.94 | 67.84 | 48.60 ± 1.74 | 81.90 ± 0.56 |
Pseudo | None | 45.26 | 73.97 | 50.45 ± 1.13 | 83.64 ± 0.93 |
SMILES | None | 50.86 | 70.51 | 54.62 ± 3.06 | 82.65 ± 1.51 |
Hori.a + smoothingb SMILES + pseudo | None | 50.62 | 72.39 | 55.58 ± 1.75 | 84.19 ± 1.78 |
Hori.a + smoothingb SMILES + pseudo | Hori.a | 50.62 | 72.39 | 57.49 ± 1.86 | 84.25 ± 1.46 |
Hori.a + smoothingb SMILES + pseudo | Smoothingb | 50.62 | 72.39 | 56.04 ± 1.85 | 85.06 ± 2.05 |
Hori.a + smoothingb SMILES + pseudo | Pseudo | 50.62 | 72.39 | 55.10 ± 3.00 | 85.19 ± 1.99 |
Hori.a + smoothingb SMILES + pseudo | SMILES | 50.62 | 72.39 | 59.80 ± 1.64 | 80.99 ± 1.33 |
Hori.a + smoothingb SMILES + pseudo | Hori.a + smoothingb SMILES + pseudo | 50.62 | 72.39 | 60.75 ± 1.54 | 81.92 ± 1.74 |
Specifically, we implement three constraint conditions: (1) preventing sequence termination if the partially generated molecule's chemical formula remains incomplete (e.g., missing atoms); (2) enforcing immediate termination when the target chemical formula is satisfied and the SMILES string is valid; and (3) prohibiting token selections that would cause the generated molecule to exceed the atom counts defined by the target formula. This procedure is illustrated in Fig. 3. Applying these constraints on both the filtered NIST dataset (containing molecules with 6–13 heavy atoms) and the complete NIST dataset model performance, achieving an approximately 2% accuracy increase, as detailed in Table 4.
Dataset | N–Molecules | Constrained generation | Experimental | ||
---|---|---|---|---|---|
Top-1 ↑ | Top-5 ↑ | Top-10 ↑ | |||
NIST (6-13 heavy atoms) | 3455 | ✗ | 60.75 ± 1.54 | 77.12 ± 1.43 | 81.92 ± 1.74 |
NIST (6-13 heavy atoms) | 3455 | ✓ | 63.25 ± 1.95 | 79.15 ± 1.09 | 83.56 ± 1.91 |
NIST (5-35 heavy atoms) | 5024 | ✗ | 56.71 ± 1.40 | 71.64 ± 1.68 | 75.62 ± 1.88 |
NIST (5-35 heavy atoms) | 5024 | ✓ | 59.94 ± 1.18 | 74.96 ± 0.86 | 78.46 ± 0.25 |
Table 5 summarizes the performance of all three models across the evaluation metrics. The results demonstrate that our enhanced model consistently outperforms both our previous model and the model by Wu et al.34 across all primary metrics. Notably, for molecular prediction accuracy, our model improves Top-1 accuracy by approximately 19 percentage points over our original model, and by around 10 percentage points compared to the model proposed by Wu et al.34
Structure | Scaffold | |||||
---|---|---|---|---|---|---|
Top-1 ↑ | Top-5 ↑ | Top-10 ↑ | Top-1 ↑ | Top-5 ↑ | Top-10 ↑ | |
Alberts et al.32 | 44.39 ± 5.31 | 66.85 ± 3.08 | 69.79 ± 2.48 | 83.23 ± 1.91 | 91.92 ± 0.88 | 93.11 ± 0.60 |
Wu et al.34 | 53.56 ± 1.13 | 74.18 ± 0.79 | 80.36 ± 0.70 | 89.24 ± 1.10 | 93.48 ± 0.53 | 94.60 ± 0.61 |
Ours | 63.25 ± 1.95 | 79.15 ± 1.09 | 83.56 ± 1.91 | 91.02 ± 1.71 | 94.45 ± 0.81 | 95.36 ± 0.78 |
Additionally, to evaluate the accuracy of functional group prediction, we employed three metrics: mean F1-score, weighted average F1-score, and molecular perfection rate, calculated across 16 functional groups as defined by Fine et al.56 These metrics provide complementary insights into the predictive capabilities of the models. Specifically, the molecular perfection rate measures the model's ability to identify all functional groups in a molecule without error. As shown in Table 6, our enhanced model achieves superior performance across all metrics, further underscoring its advantage over existing alternatives.
To further characterise the performance of the three, we analysed their performance with regards to the heavy atom count, functional group composition, and Tanimoto similarity between predicted and ground truth molecules. We observed a decrease in model accuracy with an increase in the heavy atom count across all three models. When examining performance on subsets containing specific functional groups, our model demonstrates superior Top-1 accuracy compared to Wu et al. across all functional groups, while achieving better Top-5 and Top-10 performance for 11 of 16 functional groups. These findings validate our approach, with further details on the analysis provided in ESI Section 4.†
Rather than replacing human expertise, we envision these models to be used within a collaborative workflow where AI models provide rapid initial predictions from spectroscopic data, enabling chemists to concentrate their expertise on verification, refinement, and interpretation of results. Within such a framework, performance improvements directly enhance system reliability and usability. Our 10% accuracy improvement reduces false suggestions requiring investigation, strengthens initial hypotheses, and increases overall efficiency. These results provide robust evidence that we are at the cusp of a new era in analytical chemistry. Advanced language model architectures hold the potential to revitalise analytical methods previously overlooked due to their modest human interpretability, unlocking unprecedented opportunities for rapid, precise molecular identification using low-cost instrumentation.
For fine tuning we use the NIST EPA Gas phase library consisting of 5228 molecules.46 Two sets were selected from this dataset: One matching the set used in our original paper, consisting of molecules with a heavy atom count ranging from 6 to 13 and elements only including carbon, oxygen, nitrogen, sulphur, phosphorus and the halogens. This reduced the number of samples from 5228 to 3455. We selected a second set matching the heavy atom count and element distribution in our pretraining set consisting of 5024 molecules. We sampled 1625 datapoints from the experimental spectra with the range and resolution matching the spectra in the pretraining set.
(\[[^\]]+]|Br?|Cl?|N|O|S|P|F|I|b|c|n|o|s|p|\
(|\)|\.|=|#|-|\+|\\\\|\/|:|∼|@|\?|>|\|*\$|\%
[0-9]{2}|[0-9])
Layers: 6.
Heads: 8.
Embedding dimension: 512.
Feedforward dimension: 2048.
Optimiser: AdamW.
Learning rate: 0.001.
Dropout: 0.1.
Warmup steps: 8000.
Adam beta_1: 0.9.
Adam beta_2: 0.999.
Batch size: 128.
Loss function: SID.
Activation function: Sigmoid.
Learning rate: 0.001.
Layer: 4.
Bottleneck dimension: 258.
To evaluate the model's ability to predict the correct functional groups, three metrics were used: Mean and average weighted F1-score as well as the molecular perfection rate. The metrics were calculated based on the Top-1 generated molecule for each sample. For each of the 16 functional groups defined by Fine et al.56 the F1-score was calculated and based on the mean as well as average weighted F1-score across the 16 was measured. The molecular perfection rate, as defined by Fine et al.56 was measured by comparing the functional groups present in the ground truth and those in the Top-1 generated molecule.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5dd00131e |
