CopDDB: a descriptor database for copolymers and its applications to machine learning

Abstract

Polymer informatics, which involves applying data-driven science to polymers, has attracted considerable research interest. However, developing adequate descriptors for polymers, particularly copolymers, to facilitate machine learning (ML) models with limited datasets remains a challenge. To address this issue, we computed sets of parameters, including reaction energies and activation barriers of elementary reactions in the early stage of radical polymerization, for 2500 radical–monomer pairs derived from 50 commercially available monomers and constructed an open database named “Copolymer Descriptor Database”. Furthermore, we built ML models using our descriptors as explanatory variables and physical properties such as the reactivity ratio, monomer conversion, monomer composition ratio, and molecular weight as objective variables. These models achieved high predictive accuracy, demonstrating the potential of our descriptors to advance the field of polymer informatics.

---

Introduction

In recent years, data-driven research on polymers, known as polymer informatics, has been gaining attention, with a rapid increase in the number of reported studies.^1–10 Polymers exhibit a wide range of physical properties dictated by various hierarchical parameters, including monomer species, molecular weight distribution, crystal structure, manufacturing process (such as temperature, solvent, and additives), and molding methods (such as film, fiber, and plate). Designing polymers with specific properties is a formidable challenge that often necessitates the exploration of only a subset of these parameters to narrow the vast search space. The availability of high-quality and comprehensive digital polymer databases is essential to facilitate data-driven research in this area. Since 2010, polymer databases such as PoLyInfo,¹¹ Polymer Genome,^12–14 NanoMine,^15,16 and CoPolDB¹⁷ have gradually proliferated. Open-source libraries applicable to polymer informatics, such as RadonPy¹⁸ and XenonPy,¹⁹ have promoted data-driven research in laboratory settings. Additionally, data-driven research efforts increasingly integrate polymer data obtained from high-throughput^20–22 and robot-automated experiments.²³

Another critical aspect of polymer informatics is the definition of appropriate descriptors. For instance, BIGSMILES^24–27 and Polymer Markup Language²⁸ have emerged as string-based descriptors for polymers, serving well in database construction and forming the backbone of data-driven research. However, because string-based descriptors do not directly represent molecular structures or properties, a vast amount of data is typically required to build machine learning (ML) models using these features as explanatory variables. Alternatively, attentive fingerprints of monomers and dimers have been proposed as descriptors for graph attention networks aimed at predicting the physical properties of copolymers.²⁹ However, constructing such networks requires a substantial dataset of up to 4000 data points. Given the difficulties in accumulating extensive data in polymer-synthesis laboratories, even with automated experimental equipment, developing effective descriptors is imperative for constructing ML models capable of predicting the physical properties of polymers, even with limited datasets. In particular, in the search for polymers or copolymers with specific properties obtained by varying monomers or monomer pairs along with process variables (synthesis conditions), selecting appropriate descriptors for monomers or monomer pairs is crucial, because ML models must exhibit high prediction accuracy for untested monomers or monomer pairs to ensure reliable extrapolation accuracy. In our previous study,³⁰ we demonstrated that incorporating density functional theory (DFT) parameters, including the activation barriers and reaction energies of the initial stage of radical polymerization, as descriptors, along with process variables, improved the extrapolation accuracies of copolymer properties (monomer conversion and monomer composition ratio) for monomer pairs not included in the training data. One of the notable achievements of our descriptor was that ML models trained on data from copolymers composed of several monomers could accurately predict the properties of copolymers containing an untested monomer with a different skeleton, a task that conventional descriptors found challenging.³⁰

Therefore, in this study, we computed the descriptors of copolymers, including reaction energies and activation barriers, for 2500 radical–monomer pairs of 50 commercially available monomer species and compiled them into an open database named the “Copolymer Descriptor Database (CopDDB)”. The remainder of this paper is organized as follows: first, the radical–monomer pair descriptors and their calculation methods are described, followed by an explanation of the conversion of radical–monomer pair descriptors to those for copolymers. We then observed the chemical space defined by the descriptors and used them as explanatory variables of ML models in three case studies. In the first and second case studies, we constructed ML models to predict several physical properties using the descriptors in the CopDDB as explanatory variables and validated their predictive abilities. The objective variable in the first case study was the reactivity ratio r₁ from the literature, which is an important parameter used to estimate the monomer composition ratio from the monomer ratio to be prepared (i.e., the copolymerization composition curve). The objective variables in the second case study were the physical properties of binary copolymers, such as the monomer conversion, the monomer composition ratio, and the molecular weights, measured under different monomers and process variables in our previous study.³⁰ In the third case study, we applied Bayesian optimization (BO) with only one step, called one-shot BO, to find the appropriate process variables to achieve the desired physical property using an untested monomer. Through these three case studies described, we have demonstrated the usefulness of CopDDB descriptors.

Methodology for constructing a descriptor database

Preprocessing the monomer dataset

We focused on the 50 monomers shown in Fig. S1 and Table S1.† These monomers include commercially available acrylate monomers, methacrylate monomers, and styrene derivatives listed in “17019 Chemical Products”.³¹ First, we generated the Cartesian coordinates of these 50 monomers from their simplified molecular input line entry system (SMILES) representations using the ETKDGv3 method implemented in the RDKit package. The conformations of each monomer were also generated, and up to five conformers were selected based on the root-mean-square deviations of the heavy atoms, as implemented in RDKit.

Calculating descriptors for radical–monomer pairs

CopDDB includes parameters for radical–monomer pairs ( and M₂) and consists of four types of parameters: (1) reactivity parameters, (2) electronic parameters, (3) geometrical parameters, and (4) other conventional parameters. Parameters (1)–(3) are based on DFT calculations and are referred to as DFT-based parameters. The details of each parameter are as follows.

The reactivity parameters represent the relative electronic energies of the elementary reactions at the initial stage of radical polymerization shown in Fig. 1. Polymerization begins with the addition of an initiator radical to a monomer, which is usually a barrierless process, followed by repeated C–C bond formation with another monomer. Therefore, the reaction energies for the addition of a model initiator radical (the methyl radical) to M₁ at the head and tail positions (ΔE_head and ΔE_tail in Fig. 1, respectively) were calculated. The conformations of the methyl radical adduct to M₁ were generated using an automated reaction-path search method called the multicomponent artificial force-induced reaction (MC-AFIR) method.^32,33 We randomly selected one of the M₁ conformers and placed a methyl radical at a random position, then performed the AFIR calculation with the artificial force between M₁ and the methyl radical. This process was repeated until three successive AFIR searches found the already obtained geometries. The most stable geometries of the head- and tail-adducts were used to calculate ΔE_head and ΔE_tail. Next, the local minima (LMs) and transition states (TSs) along the C–C bond formation pathway (head-to-tail addition) between the head adduct ( in Fig. 1) and monomer M₂ were computed. The reaction pathways for the head-to-tail addition, starting from 20 random initial alignments, were explored using the MC-AFIR method. The obtained pathways (AFIR pathways) were usually close to the real reaction pathways and the energy maximum point on the AFIR pathway could be appropriate for an initial geometry for the geometry optimization of TS. In our case, however, the reaction coordinate was very simple, and the reactive C–C bond distance in a TS was found to be close to 2.28 Å according to our preliminary calculations. Thus, we selected a geometry on the AFIR pathway where the reactive C–C bond distance was close to 2.28 Å, used it as the initial structure for the relaxation calculation by fixing the C–C bond distance, and then carried out the geometry optimization without any constraints (note that the criterion to select an initial geometry was not critical but often affected the computational time). The most stable TS was selected when multiple TSs were obtained. Intrinsic reaction coordinate (IRC) calculations³⁴ were performed to confirm the TS and obtain the structures of the corresponding precursors and products. All precursors, TSs, and products were confirmed by frequency calculations. The energies of the precursor and TS relative to the dissociation limits of and M₂ (ΔE_precursor and ΔE_TS, respectively) and the activation barrier ΔE_barrier (i.e., the energy difference between the precursor and TS) were collected. All AFIR calculations and geometry optimizations (without constraints) were performed at the GFN2-xTB³⁵ and B3LYP-D3/def2SVP^36–39 levels, respectively. The energies and energy gradients were calculated at the GFN2-xTB level using the ORCA program⁴⁰ and at the B3LYP-D3 level using the Gaussian16 program.⁴¹ These computations supported the AFIR calculations and geometry optimizations conducted through the GRRM program.⁴² The activation energies for subsequent polymer elongation were not collected, as the reactivity of the propagating radical is primarily considered to depend on the identity of the monomer unit at the propagating end rather than the chain length and composition. As shown in Table S2,† the activation barriers for C–C bond formation at the same propagating end (with different chains) were similar.

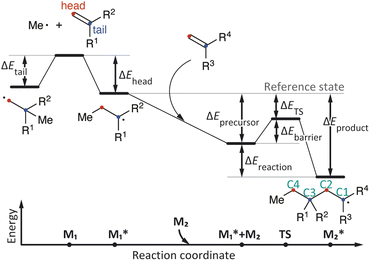

Fig. 1 Initial stage of radical polymerization and the associated energies used for descriptors.

The electronic parameters include frontier orbital energies and energy gaps, calculated for the most stable conformers at the B3LYP-D3/def2SVP level.^36–39 The singly occupied molecular orbital (SOMO) and lowest unoccupied molecular orbital (LUMO) energy levels of and the highest occupied molecular orbital (HOMO) and LUMO energy levels of M₂ were measured. The energy gaps between the SOMO of and the HOMO of M₂, and between the SOMO of and the LUMO of M₂, were determined.

The geometrical parameters include the reactive C–C bond distance and the dihedral angle at the TS of the head-to-tail addition (<C1–C2–C3–C4 in Fig. 1), as well as the volumes and percent buried volumes (%V_bur)⁴³ of the most stable conformers of and M₂. The volume and %V_bur represent the bulkiness of the molecule itself and around the reactive center, respectively. The volume was calculated using the Gaussian16 program, and %V_bur was determined using our own program. In addition, conventional parameters obtained with the ChemDraw program were included, such as the sum of the molecular masses of and M₂, and the partition coefficients (log P) for M₁ and M₂. In summary, CopDDB includes 24 descriptors: seven reactive parameters, six electronic parameters, eight geometrical parameters, and three conventional parameters, for 2500 radical–monomer pairs.

Converting to descriptors for monomer pairs

To apply the descriptors of radical–monomer pairs for constructing ML models of copolymers, appropriate preprocessing of these descriptors is necessary. When synthesizing copolymers from two monomers, M₁ and M₂, the following four reactions occur:



where and represent the radicals with propagating ends M₁ and M₂, respectively, and k_ij is the rate constant for the reaction between and M_j (where i, j = 1, 2) that yields . Therefore, the descriptors for the four types of radical–monomer pairs (, M₁), (, M₂), (, M₁), and (, M₂) must be used as the descriptors for the monomer pairs of M₁ and M₂.

In this study, we present three case studies that utilize the ML approach with CopDDB parameters as descriptors. The first case study focused on the reactivity ratio r₁, which represents the ratio of the reaction rate constants k₁₁/k₁₂. Thus, the DFT-based parameters (seven reactivity, six electronic, and eight geometrical parameters) for (, M₁) and (, M₂) were used as descriptors for the M₁, M₂ monomer pairs, resulting in a total of 38 parameter sets. In the second case study, we focused on the physical properties of five binary copolymers synthesized by combining methyl methacrylate (MMA) with five monomers: styrene (St), glycidyl methacrylate (GMA), 4-acetoxystyrene (PACS), tetrahydrofurfuryl methacrylate (THFMA), and cyclohexyl methacrylate (CHMA). By classifying St, GMA, PACS, THFMA, and CHMA as M₁ and MMA as M₂, the parameter sets for (, M₁), (, M₂), and (, M₁) were utilized as descriptors for the binary copolymers. The same descriptor preprocessing was applied in the third study, which validated the prediction accuracy for another M₁, 2-hydroxyethyl methacrylate (HEMA), using one-shot BO.

Chemical space spanned by the descriptors

The distribution of each descriptor was examined from various points of view. Fig. 2 shows the scatter plots and histograms of representative radical–monomer pair descriptors, such as the activation barrier (ΔE_barrier in Fig. 1), the reaction energy (ΔE_reaction in Fig. 1), and the SOMO–HOMO gap between and M₂ (the distributions of other descriptors are shown in Fig. S2–S5†). The activation barriers ΔE_barrier ranged from 0 kcal mol⁻¹ to 25 kcal mol⁻¹, and were positively correlated with the reaction energy ΔE_reaction, with a correlation coefficient R of 0.74 (Fig. 2a and S3†). Thus, we can say that the C–C bond formations between radical–monomer pairs roughly followed the Evans–Polanyi principle. The reaction energies were negative for most of the radical–monomer pairs, meaning that they were exothermic reactions, but there were also some endothermic reactions. In addition, there was almost no correlation between activation barriers and other parameters that were calculated from isolated and M₂, such as the SOMO–HOMO and SOMO–LUMO energy gaps (see Fig. 2b, S2, and S3†), thus it can be said that the kinetic and thermodynamic stabilities of radical–monomer pairs could only be represented by the energetics in Fig. 1.

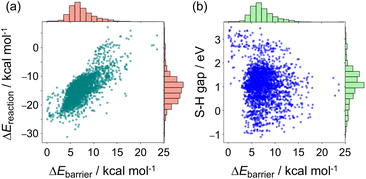

Fig. 2 Correlation of the activation barrier ΔE_barrier (in kcal mol⁻¹) with the reaction energy ΔE_reaction (in kcal mol⁻¹) (a) and the SOMO–HOMO (S–H) energy gap (in eV) (b) along with their histograms.

Here, a “good” descriptor set is expected to yield similar values for molecules with similar properties. For example, monomers with a styrene skeleton, such as St and PACS, are expected to exhibit similar properties compared to other monomers, such as acrylates and methacrylates. In other words, these monomers should be located close together in the chemical space spanned by the descriptor set. To verify this, we focused on the two-dimensional distribution of 2500 radical–monomer pair data points within the chemical space defined by all the descriptors in the CopDDB. As shown in Fig. 3a, the data points corresponding to St and PACS radicals (i.e., radical–monomer pairs of (St*, M₁) and (PACS*, M₁); M₁ = 50 monomers) were localized in a specific region. Similarly, the data points for their monomers (i.e., (, St) and (, PACS)) were also located relatively close by. In contrast, within the chemical space defined by a conventional descriptor set (a list of RDKit descriptors for two monomers M₁ and M₂; see Table S5† for the details), the data points for St and PACS were separated as shown in Fig. 3b. This trend was also observed for alkoxyacrylates (see Fig. S6†). This indicates that the CopDDB descriptors differ significantly from the RDKit descriptors, which were designed to describe the properties of general molecules, and that the CopDDB descriptors effectively capture the specific properties as monomers for radical copolymerization.

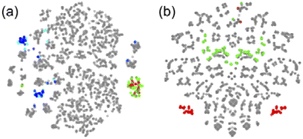

Fig. 3 Visualization of 2500 radical–monomer pair data points within the chemical space spanned by all the descriptors in the CopDDB (a) and the RDKit descriptors listed in Table S5† (b). The data points were projected into two dimensions using t-distributed stochastic neighbor embedding (t-SNE),⁴⁴ with standardized descriptors and a perplexity parameter of 50. In panel (a), the data points for (St*, M₁), (PACS*, M₁), (, St), (, PACS), and the others are shown in red, green, blue, light blue, and gray, respectively. In panel (b), the data points for (St, M₁) and (M₁, St) are in red, (PACS, M₁) and (M₁, PACS) are in blue, and the others are in gray. Here, M₁ and represent 50 monomers in the CopDDB and their corresponding radicals (methyl radical adducts), respectively.

Next, we examined the 2500 radical–monomer pair data points in the chemical space defined by the CopDDB descriptors, along with the representative descriptors. As shown in Fig. 4, data points with high or low activation barriers (depicted in red and blue, respectively) were scattered throughout the chemical space. Focusing on the reaction energy, there were some clusters of data corresponding to highly exothermic (in blue), moderately exothermic (in light green), and slightly endothermic reactions (in red). However, data points with different reaction energies were not widely separated. In contrast, for the SOMO–HOMO and SOMO–LUMO orbital energy gaps, the data points with similar gaps tended to be close together, while those with different gaps were generally further apart. These findings suggest that the orbital energy gaps are likely major factors in characterizing the chemical space defined by the CopDDB descriptors. Nonetheless, other descriptors also could contribute to representing the complexity of this multidimensional chemical space.

Fig. 4 Visualization of 2500 radical–monomer pair data points within the chemical space defined by the CopDDB descriptors, color-coded by activation energy ΔE_barrier (a), reaction energy ΔE_reaction (b), SOMO–HOMO (S–H) gap (c), and SOMO–LUMO (S–L) gap (d).

Applications of the descriptors to ML models

Prediction of reactivity ratios

In the first case study, the reactivity ratio r₁ was featured as an objective variable in the ML models. A dataset of r₁ values was manually collected from the Polymer Handbook.⁴⁵ Another reactivity ratio r₂ (=k₂₂/k₂₁) also shown in the Handbook was converted to the r₁ data because both r₁ and r₂ represent the ratio of the kinetic constants for homopolymerization (k_ij, i = 1, 2) and heteropolymerization (k_ij, j = 1, 2) and their values were identical when the monomer labels 1 and 2 were switched. Although the Handbook includes approximately 4600 data points, only 424 r₁ values were available for the 114 radical–monomer pairs recorded in the CopDDB. The r₁ data from the literature were obtained under various experimental conditions, resulting in a relatively wide distribution of r₁ values for identical radical–monomer pairs. In addition, some radical–monomer pairs had multiple r₁ values, while others had only one. The r₁ data were preprocessed as follows: (1) negative r₁ values, which were physically unrealistic artifacts, were converted to zero, and (2) outliers were deleted manually, as shown in Table S3.† The mean of the remaining r₁ data was used as the objective variable. Fig. 5a shows the distribution of the mean r₁. Few data points exhibit large r₁ values. Considering the composition distribution is crucial, particularly regarding whether r₁ approaches 0 or 1, as larger r₁ values generally indicate substantial inaccuracy.⁴⁶ Thus, we extracted r₁ values less than 1.5, resulting in 97 data points, as depicted in Fig. 5b.

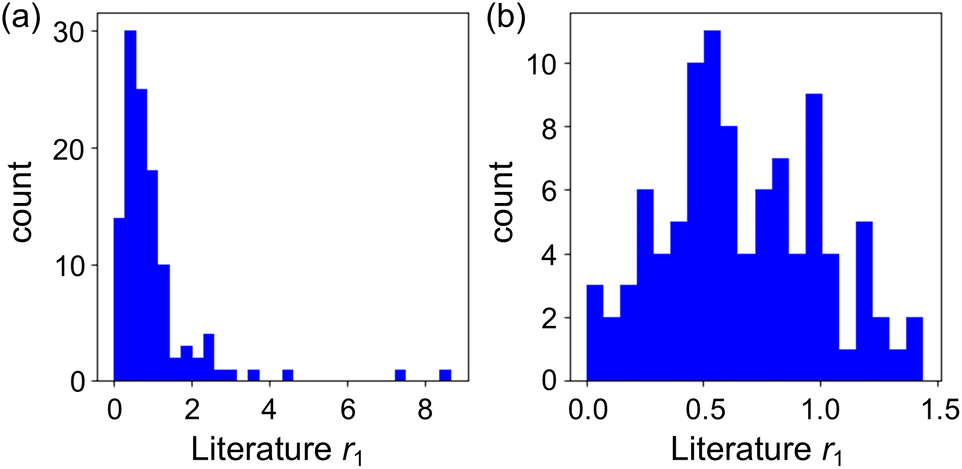

Fig. 5 Distributions of mean r₁ values: (a) for all 114 datasets and (b) for the 97 datasets after preprocessing.

To evaluate the effectiveness of our descriptors, we constructed ML models to predict r₁ values using two different sets of descriptors and compared their prediction accuracies. The first set, obtained from CopDDB, combined DFT-based descriptors for (, M₁) and (, M₂). The second set, derived from the RDKit package, combined descriptors for M₁ and M₂ (details of the descriptors are shown in Tables S4 and S5†). Before constructing the ML models, the descriptors were preprocessed as follows. Descriptors with a correlation coefficient above 0.9 were reduced to one. For those with a correlation coefficient in the range of 0.8–0.9, we manually selected which descriptor to remove based on scatter plots. As a result, 22 DFT-based and 24 RDKit descriptors were retained. The 97 data points were divided into subsets of 87 (∼90%) for training and 10 (∼10%) for testing. Random forest (RF) regression models were constructed, with hyperparameters optimized through 5-fold cross-validation of the training data using the Optuna package.⁴⁷ Model performance was validated using R² scores.

Fig. 6 shows the y–y plots of r₁ values predicted by RF models using the two sets of descriptors. The model using DFT-based descriptors achieved higher R² scores for both training and test data (0.86 and 0.84, respectively) compared to the RDKit descriptors (0.80 and 0.65, respectively). Thus, our descriptors demonstrated excellent performance for ML models, offering better predictive accuracy.

Fig. 6 y–y plots of RF models for r₁ values constructed using different descriptor sets: (a) DFT-based descriptors from the CopDDB and (b) RDKit descriptors. y–y plots with different train/test splits are also shown in Fig. S7.†

Prediction of monomer conversion, monomer composition ratio, and molecular weight

In the second case study, we examined the properties of copolymers synthesized via radical copolymerization of two monomers: MMA and M₁ that represents one of five other monomers—St, GMA, PACS, THFMA, and CHMA. The target properties include the conversions of MMA and the other monomer (MMA_conv. and M₁_conv.), the composition ratio of M₁ (M₁_CR), number-average molecular weight (M_n), and weight-average molecular weight (M_w). These properties were measured under various process conditions, including temperature, flow rate (reaction time), and the ratio of the two monomers, initiator, and solvent, as reported in our previous study.³⁰ The M₁ monomer was also considered a process variable. The list of process variables and corresponding properties is provided in Table S2† of ref. 30.

As discussed in our previous study,³⁰ the DFT-based descriptors demonstrated higher extrapolation accuracy than the RDKit descriptors for predicting MMA_conv., M₁_conv., and M₁_CR. In this study, we extended this approach to predict molecular weights with high accuracy by utilizing the updated CopDDB descriptors and applying additional feature engineering through dimensional compression. We examined two types of descriptors for M₁. One set comprised 66 parameters, which were combinations of the CopDDB descriptors (, M₁), (, MMA), and (MMA*, M₁). The other consisted of nine parameters, derived from compressing the CopDDB descriptors (, M₁), (, MMA), and (MMA*, M₁) into three dimensions each using principal component analysis (PCA)⁴⁸ and variational autoencoder (VAE).⁴⁹ Details of the dimensional compression using the VAE are shown in Fig. S8.† To estimate extrapolation performance, leave-one-monomer (M₁)-out cross-validation (LOOCV) was conducted, following the procedure outlined in Examination 2 of Fig. 3 in ref. 30. The ML models were built using Gaussian progress regression (GPR) with the sum of two Matern kernels, with ν values of 0.5 and 1.5.⁵⁰

Table 1 shows the R² scores of the GPR models built using the three types of parameters mentioned above (see Fig. S9† for the y–y plots). The prediction accuracies for M₁_conv., MMA_conv., and M₁_CR improved when using the compressed parameters, except for M₁_conv. with parameters compressed by PCA. For the molecular weights M_n and M_w, the prediction accuracies were dramatically improved with the compressed parameters. This improvement could be attributed to the reduced number of descriptors, which suppressed overfitting of the training data. Although feature engineering, such as dimensional compression, is sometimes necessary, the descriptors in CopDDB remain valuable for developing ML models of various physical properties of copolymers.

Table 1 R ² scores from LOOCV for each physical property of copolymers composed of MMA and M₁ monomers^a

Descriptors	Original parameters	9 parameters compressed by PCA	9 parameters compressed by VAE
a The predicted values were the averages of five values with different random numbers in the GPR model. M1 represents five monomer species: St, GMA, CHMA, PACS, and THFMA.
MMA conv.	0.60	0.67	0.72
M1 conv.	0.67	0.57	0.80
M1_CR	0.72	0.87	0.82
M n	0.35	0.76	0.67
M w	0.33	0.81	0.73

---

The three-dimensional latent descriptors compressed using PCA and VAE can be regarded as effective descriptors for improving prediction accuracy by achieving a better balance among all objective variables. To verify the importance of the DFT-based descriptors, the loadings of the compressed DFT-based descriptors obtained through PCA are shown in Fig. S10.† This figure confirms the significance of descriptors related to radical reactivity (SOMO and LUMO of radicals, and ΔE_head), transition state energies (ΔE_TS and ΔE_barrier), and the partition coefficients (log P). These factors are indeed crucial in polymer chain elongation reactions and provide information that cannot be obtained from experimental process variables alone. The partition coefficients reflect the hydrophilicity or hydrophobicity of monomers and polymers. The balance between these properties is considered to influence the stability of the copolymer's molecular structure, self-assembly, proton transfer with the solvent, and, ultimately, the molecular weights M_n and M_w.

One-shot Bayesian optimization for a novel monomer

As a third case study demonstrating the effectiveness of CopDDB descriptors, we conducted process optimization for the copolymerization of MMA and a new M₁ monomer, HEMA, using the GPR models trained in the previous section (the second case study). The initial dataset for the GPR model was the same as that in the second case study, consisting of experimental data³⁰ for the copolymerization of MMA with five M₁ monomers (M₁ = St, GMA, PACS, THFMA, and CHMA), along with compressed CopDDB descriptors obtained using VAE. Table 1 indicates that PCA-based compression results in better accuracy than VAE-based ones for the target variable “M₁_CR”. However, VAE provides more balanced predictions for all target variables compared to PCA, with no specific variables showing poor prediction performance. Since future developments towards multi-objective optimization should also be considered, we chose VAE-based compression rather than PCA. Typically, BO requires an initial training set of target molecules, which entails significant experimental cost. However, our approach overcomes this challenge by using data from previously tested molecules that do not contain the target molecules for the initial dataset.

We performed the BO with the target value set to a 50 : 50 composition ratio (i.e., 50% M₁_CR; M₁ = HEMA) for the synthesized copolymer. The objective variable for the GPR model was defined as the squared difference between the target M₁_CR and the measured M₁_CR (note that this BO procedure followed our previous study,⁵¹ in which BO was applied for free radical copolymerization using single-molecular datasets). After training with the initial data, four candidate points, each consisting of five process variables, such as initiator concentration, proportion of HEMA (molar ratio of HEMA to HEMA and MMA in the preparation), reaction temperature, solvent-to-monomer (SM) ratio, and reaction time, were generated within the BO design space shown in Table S6.† These candidate points are summarized in Fig. 7, where the predicted objective variable by the GPR model is color-coded in the partial dependence plots (PDPs),⁵² which confirms that the proposed process variables were sampled within the optimal region (shown in purple in Fig. 7). Focusing on the proposed process variables, three variables such as initiator concentration, HEMA proportion, and reaction temperature were within a narrow range, indicating that only a specific range of these values could achieve the desired HEMA-CR. In particular, the proposed HEMA proportion was limited, ranging from 45.91% to 47.45%, which indicated that the lower proportion of HEMA than MMA in the preparation was required due to their different reactivities. In contrast, a wide range of values was chosen for SM ratio and reaction time.

Fig. 7 Four proposed sets of process variables (shown as white stars) on the PDP color maps for each pair of five process variables within the ranges defined in Table S6.† Color-coded numerical values are the predicted means of the GPR, with colors closer to purple corresponding to values closer to the target HEMA_CR. The detailed process variables are shown in Table S7.†

To validate the proposed process variables (i.e., candidate points), the MMA and HEMA copolymers were synthesized under the four proposed process variable sets. The four observed HEMA_CR values were 49.21%, 49.91%, 47.81%, and 49.21%, all of which were quite close to the desired ratio of 50% (see Table S8† for the detailed results). To validate the effect of reaction time, for which a wide range of values were proposed, we also performed the experiments where only the reaction time was changed to 1/2 and 1/3 of the proposed time. Indeed, the effect of reaction time on the HEMA-CR was quite small, though that on other properties such as the monomer conversions and molecular weights was large as shown in Table S8.† As shown above, we succeeded in proposing process variables to achieve the desired property of copolymers of MMA with an untested M₁ monomer (M₁ = HEMA) because we were able to transfer the search space of process variables for the tested M₁ monomers (M₁ = St, GMA, PACS, THFMA, and CHMA) to that for HEMA via CopDDB descriptors.

Conclusions

In this study, we developed a comprehensive database of copolymer descriptors, termed CopDDB, and made it publicly accessible. The database encompasses 24 descriptors across four categories: reactivity, electronic, geometry, and other conventional parameters. These descriptors were compiled for 2500 radical–monomer pairs derived from 50 distinct monomers, including acrylate, methacrylate, and styrene derivatives. To apply these radical–monomer pair descriptors to copolymer development, a preprocessing step is necessary. Specifically, for reactivity ratio analysis, the ratio of kinetic constants for homopolymerization versus heteropolymerization is used, with descriptors (, M₁) and (, M₂) being relevant input variables for the ML models. In addition, when synthesizing binary copolymers from a specific monomer (e.g., MMA) and other monomers (M₁), descriptor sets such as (, M₁), (, MMA), and (MMA*, M₁) were used as input variables. Our study demonstrated that these descriptors, combined with process variables, successfully predict monomer conversion, monomer composition ratio, and molecular weight of binary copolymers, and can be effectively applied in one-shot Bayesian optimizations. The high accuracy of the ML models underscores the versatility and applicability of our descriptors for innovative copolymer development.

In our current database, the monomer scope is limited to monofunctional monomers, and the descriptor set includes only the energetics of the early stages of polymerization, without considering the energetics of later stages or variations involving different radical initiators and terminators. Expanding the descriptor set will be essential as we broaden the scope to include polymers with multifunctional monomers and physical properties influenced by the energetics of the later stages of polymerization.

Data availability

The Copolymer Descriptor Database, the Python codes for preprocessing the descriptors, and the Cartesian coordinates used to calculate the descriptors are available at the following URL: https://github.com/hatanaka-lab/CopDDB. The data supporting this article can be found in the ESI.†

Author contributions

The manuscript was written with contributions from all authors. All authors approved the final version of the manuscript. The main contributions of each author are as follows: T. Yoshimura: investigation (DB and ML). H. Kato and S. Oikawa: investigation (ML). T. Inagaki: supervision (DB). S. Asano: investigation (EXP). T. Sugawara and H. Ajiro supervised the experimental data (EXP). T. Miyao and T. Matsubara: supervision (ML). M. Fujii and Y. Ohnishi: supervision (DB, ML, EXP). M. Hatanaka: project administration.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This study is based on the results obtained from project JPNP14004, subsidized by the New Energy and Industrial Technology Development Organization (NEDO), JSPS KAKENHI Grant No. JP20K05438, JP23H00288, JP24H01094, and JST Grant No. JPMJPF2221. We thank Ms Yuka Uto, Mr Taro Watanabe, Mr Reon Abe, Mr Yugo Osada, Mr Yuki Shimizu, Ms Asano Tsuchiya, Ms Satomi Toguchi, Mr Daichi Mori, Mr Soshi Ikuta, Mr Yu Ikeda, Mr Taiki Inami, Mr Kazuma Hashimoto, Ms Yuka Maeyama, Ms Riho Somaki, and Mr Shunsuke Nakatani for their assistance in extracting bibliographic data from the Polymer Handbook. We also acknowledge the computer resources provided by the Academic Center for Computing and Media Studies (ACCMS) at Kyoto University and the Research Center of Computer Science (RCCS) at the Institute for Molecular Science.

References

1. N. Adams and P. Murray-Rust, Macromol. Rapid Commun., 2008, 29, 615–632.
2. N. Adams, Adv. Polym. Sci., 2010, 225, 107–149.
3. D. J. Audus and J. J. de Pablo, ACS Macro Lett., 2017, 6, 1078–1082.
4. L. H. Chen, G. Pilania, R. Batra, T. D. Huan, C. Kim, C. Kuenneth and R. Ramprasad, Mater. Sci. Eng., R, 2021, 144, 100595.
5. W. X. Sha, Y. Li, S. Tang, J. Tian, Y. M. Zhao, Y. Q. Guo, W. X. Zhang, X. F. Zhang, S. F. Lu, Y. C. Cao and S. J. Cheng, InfoMat, 2021, 3, 353–361.
6. H. Sahu, H. M. Li, L. H. Chen, A. C. Rajan, C. Kim, N. Stingelin and R. Ramprasad, ACS Appl. Mater. Interfaces, 2021, 13, 53314–53322.
7. T. D. Sparks and D. Banerjee, Matter, 2021, 4, 1454–1456.
8. K. Hatakeyama-Sato, Polym. J., 2023, 55, 117–131.
9. X. L. Liu, C. L. Zhu and B. Z. Tang, Nat. Rev. Chem., 2023, 7, 232–233.
10. S. S. Shukla, C. Kuenneth and R. Ramprasad, Mrs. Bull., 2024, 49, 17–24.
11. S. Otsuka, I. Kuwajima, J. Hosoya, Y. Xu, and M. Yamazaki, 2011 International Conference on Emerging Intelligent Data and Web Technologies, Tirana, Albania, 2011, pp. 22–29.
12. T. D. Huan, A. Mannodi-Kanakkithodi, C. Kim, V. Sharma, G. Pilania and R. Ramprasad, Sci. Data, 2016, 3, 160012.
13. C. Kim, A. Chandrasekaran, T. D. Huan, D. Das and R. Ramprasad, J. Phys. Chem. C, 2018, 122, 17575–17585.
14. A. Chandrasekaran, C. Kim and R. Ramprasad, Lect. Notes Phys., 2020, 968, 397–412.
15. H. Zhao, X. L. Li, Y. C. Zhang, L. S. Schadler, W. Chen and L. C. Brinson, APL Mater., 2016, 4, 053204.
16. H. Zhao, Y. X. Wang, A. Q. Lin, B. Y. Hu, R. Yan, J. McCusker, W. Chen, D. L. McGuinness, L. Schadler and L. C. Brinson, APL Mater., 2018, 6, 111108.
17. K. Takahashi, H. Mamitsuka, M. Tosaka, N. Zhu and S. Yamago, Polym. Chem., 2024, 15, 965–971.
18. Y. Hayashi, J. Shiomi, J. Morikawa and R. Yoshida, npj Comput. Mater., 2022, 8, 222.
19. S. Wu, Y. Kondo, M. A. Kakimoto, B. Yang, H. Yamada, I. Kuwajima, G. Lambard, K. Hongo, Y. B. Xu, J. Shiomi, C. Schick, J. Morikawa and R. Yoshida, npj Comput. Mater., 2019, 5, 66.
20. S. Oliver, L. Zhao, A. J. Gormley, R. Chapman and C. Boyer, Macromolecules, 2019, 52, 3–23.
21. M. Reis, F. Gusev, N. G. Taylor, S. H. Chung, M. D. Verber, Y. Z. Lee, O. Isayev and F. A. Leibfarth, J. Am. Chem. Soc., 2021, 143, 17677–17689.
22. E. C. Day, S. S. Chittari, M. P. Bogen and A. S. Knight, ACS Polym. Au, 2023, 3, 406–427.
23. B. Burger, P. M. Maffettone, V. V. Gusev, C. M. Aitchison, Y. Bai, X. Y. Wang, X. B. Li, B. Alston, B. Y. Li, R. Clowes, N. Rankin, B. Harris, R. S. Sprick and A. I. Cooper, Nature, 2020, 583, 237–241.
24. T. S. Lin, C. W. Coley, H. Mochigase, H. K. Beech, W. C. Wang, Z. Wang, E. Woods, S. L. Craig, J. A. Johnson, J. A. Kalow, K. F. Jensen and B. D. Olsen, ACS Cent. Sci., 2019, 5, 1523–1531.
25. T. S. Lin, N. J. Rebello, G. H. Lee, M. A. Morris and B. D. Olsen, ACS Polym. Au, 2022, 2, 486–500.
26. W. Z. Zou, A. M. Monterroza, Y. X. Yao, S. C. Millik, M. M. Cencer, N. J. Rebello, H. K. Beech, M. A. Morris, T. S. Lin, C. S. Castano, J. A. Kalow, S. L. Craig, A. Nelson, J. S. Moore and B. D. Olsen, Chem. Sci., 2022, 13, 12045–12055.
27. L. Schneider, D. Walsh, B. Olsen and J. de Pablo, Digital Discovery, 2024, 3, 51–61.
28. N. Adams, J. Winter, P. Murray-Rust and H. S. Rzepa, J. Chem. Inf. Model., 2008, 48, 2118–2128.
29. T. Nguyen and M. Bavarian, Polymer, 2023, 275, 125866.
30. S. Takasuka, S. Oikawa, T. Yoshimura, S. Ito, Y. Harashima, T. Takayama, S. Asano, A. Kurosawa, T. Sugawara, M. Hatanaka, T. Miyao, T. Matsubara, Y. Y. Ohnishi, H. Ajiro and M. Fujii, Digital Discovery, 2023, 2, 809–818.
31. The Chemical Daily Co. Ltd., 17019 Chemical Products, (in Japanese) The Chemical Daily Co., Ltd, 2019.
32. S. Maeda and K. Morokuma, J. Chem. Phys., 2010, 132, 241102.
33. S. Maeda and K. Morokuma, J. Chem. Theory Comput., 2011, 7, 2335–2345.
34. K. Fukui, Acc. Chem. Res., 1981, 14, 363–368.
35. C. Bannwarth, S. Ehlert and S. Grimme, J. Chem. Theor. Comput., 2019, 15, 1652–1671.
36. A. D. Becke, Phys. Rev. A, 1988, 38, 3098–3100.
37. C. T. Lee, W. T. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 37, 785–789.
38. S. Grimme, J. Antony, S. Ehrlich and H. Krieg, J. Chem. Phys., 2010, 132, 154104.
39. F. Weigend and R. Ahlrichs, Phys. Chem. Chem. Phys., 2005, 7, 3297–3305.
40. F. Neese, F. Wennmohs, U. Becker and C. Riplinger, J. Chem. Phys., 2020, 152, 224108.
41. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, G. A. Petersson, H. Nakatsuji, X. Li, M. Caricato, A. V. Marenich, J. Bloino, B. G. Janesko, R. Gomperts, B. Mennucci, H. P. Hratchian, J. V. Ortiz, A. F. Izmaylov, J. L. Sonnenberg, D. Williams-Young, F. Ding, F. Lipparini, F. Egidi, J. Goings, B. Peng, A. Petrone, T. Henderson, D. Ranasinghe, V. G. Zakrzewski, J. Gao, N. Rega, G. Zheng, W. Liang, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, K. Throssell, J. A. Montgomery Jr, J. E. Peralta, F. Ogliaro, M. J. Bearpark, J. J. Heyd, E. N. Brothers, K. N. Kudin, V. N. Staroverov, T. A. Keith, R. Kobayashi, J. Normand, K. Raghavachari, A. P. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, J. M. Millam, M. Klene, C. Adamo, R. Cammi, J. W. Ochterski, R. L. Martin, K. Morokuma, O. Farkas, J. B. Foresman and D. J. Fox, Gaussian16, 2016.
42. S. Maeda, K. Ohno and K. Morokuma, Phys. Chem. Chem. Phys., 2013, 15, 3683–3701.
43. H. Clavier and S. P. Nolan, Chem. Commun., 2010, 46, 841–861.
44. L. J. P. van der Maaten and G. E. Hinton, J. Mach. Learn. Res., 2008, 9, 2579–2605.
45. J. Brandrup, E. H. Immergut and E. A. Grulke, Polymer Handbook, Wiley, 4th edn, 2003.
46. N. A. Lynd, R. C. Ferrier and B. S. Beckingham, Macromolecules, 2019, 52, 2277–2285.
47. T. Akiba, S. Sano, T. Yanase, T. Ohta and M. Koyama, Kdd'19: Proceedings of the 25th Acm Sigkdd International Conferencce on Knowledge Discovery and Data Mining, 2019, pp. 2623–2631.
48. I. T. Jolliffe and J. Cadima, Philos. Trans. R. Soc., A, 2016, 374, 20150202.
49. T. Ochiai, T. Inukai, M. Akiyama, K. Furui, M. Ohue, N. Matsumori, S. Inuki, M. Uesugi, T. Sunazuka, K. Kikuchi, H. Kakeya and Y. Sakakibara, Commun. Chem., 2023, 6, 249.
50. C. E. W. Rasmussen and C. K. I. Williams, Gaussian Processes for Machine Learning, MIT Press, 2006.
51. S. Takasuka, S. Ito, S. Oikawa, Y. Harashima, T. Takayama, A. Nag, A. Wakiuchi, T. Ando, T. Sugawara, M. Hatanaka, T. Miyao, T. Matsubara, Y. Phnishi, H. Ajiro and M. Fujii, Sci. Technol. Adv. Mater.: Methods, 2024, 4, 2425178.
52. J. H. Friedman, Ann. Stat., 2001, 29, 1189–1232.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d4dd00266k

---
