Hong-Gyu
Seong
a,
Thomas P.
Russell
ab and
Todd
Emrick
*a
aPolymer Science & Engineering Department, Conte Center for Polymer Research, University of Massachusetts, 120 Governors Drive, Amherst, Massachusetts 01003, USA. E-mail: tsemrick@mail.pse.umass.edu
bMaterials Sciences Division, Lawrence Berkeley National Laboratory, 1 Cyclotron Road, Berkeley, California 94720, USA
First published on 26th September 2024
Disulfide-containing polyolefins were synthesized by ring-opening metathesis polymerization (ROMP) of the 6-membered disulfide-containing cyclic olefin, 3,6-dihydro-1,2-dithiine, which was prepared by ring-closing metathesis of diallyl disulfide. This approach facilitated the production of disulfide-containing unsaturated polyolefins as copolymers with disulfide monomer units embedded within a poly(cyclooctene) or poly(norbornene) framework. The incorporation of disulfides into the polymer backbone imparts redox responsiveness and enables polymer degradation via chemical reduction or thiol-disulfide exchange. This ROMP copolymerization strategy yielded both linear polyolefins, as well as bottlebrush polymers, with degradable segments, thereby broadening the scope of responsive polymer architectures synthesized by ROMP.

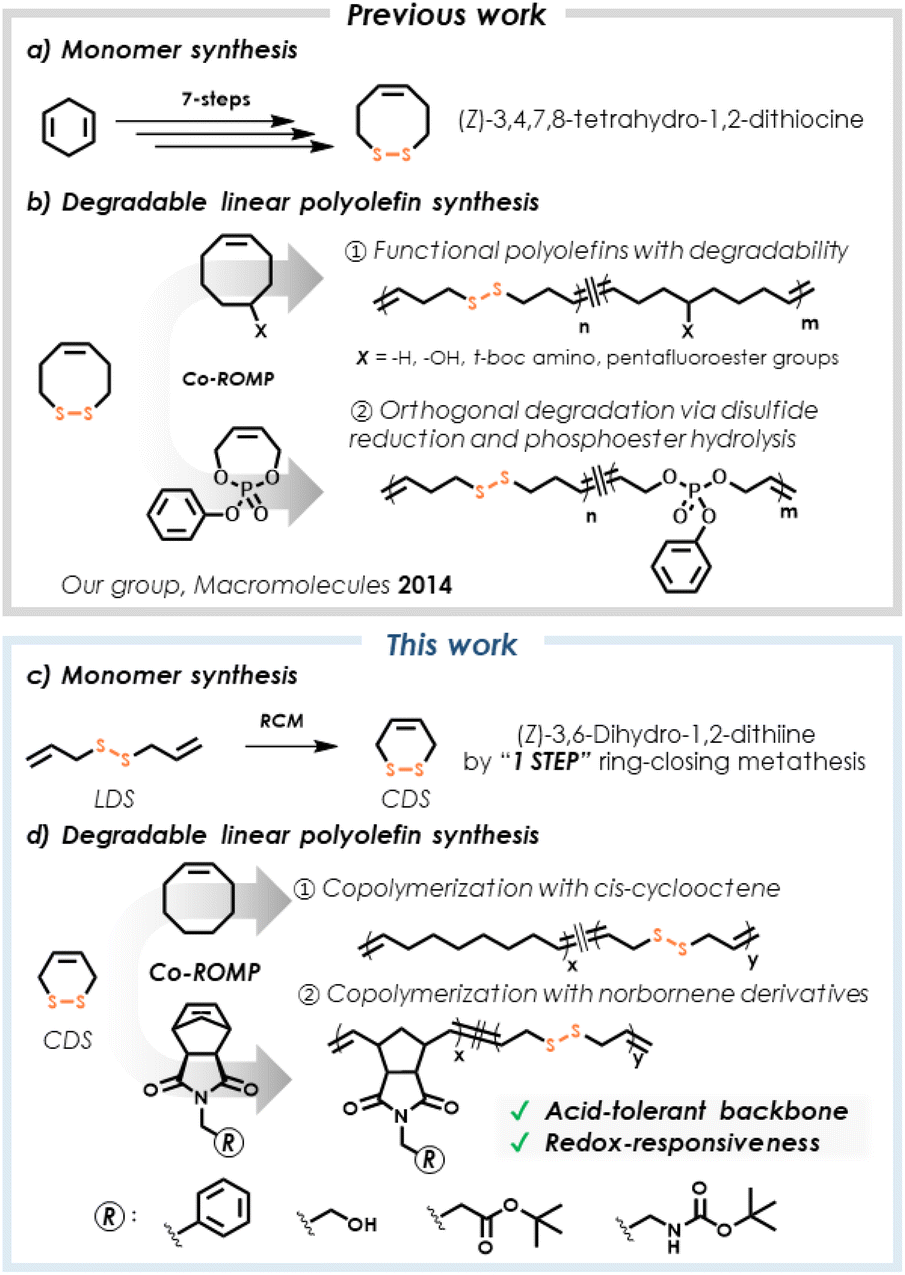

We are interested in synthetic methods that effectively introduce chemical subunits into polymers to serve as handles to promote degradation, recognition, or responsive features. Specific to polyolefins, we previously described ring-opening metathesis polymerization (ROMP) of an eight-membered disulfide-containing cyclic olefin, (Z)-3,4,7,8-tetrahydro-1,2-dithiocine, finding that its copolymerization with other cyclic olefins successfully integrated disulfide units within the polymer backbone (Fig. 1).9 This ROMP copolymerization strategy gave access to a considerable breadth of materials with variable extents of incorporated disulfides which, in turn, allowed for the use of mild reagents to perform reductive degradation and thereby achieve tunable degrees of molecular weight reduction. However, the multistep synthesis required to obtain this particular cyclic olefin monomer imposes limits on its ultimate utility.
Along similar conceptual lines, several researchers have described methods to merge metathesis polymerization with degradable functionality. For example, Schlaad and coworkers synthesized a cysteine-derived macrocycle by ring-closing metathesis (RCM), which was used subsequently in ROMP to yield polyolefins containing esters, protected amines, and disulfides within the same copolymer backbone.10 Strategies that allow insertion of acid-sensitive groups into polyolefins are particularly prominent, with recent example including acetals,11 carbonates,12 esters,13 enol ethers,14 phosphoesters,15 phosphoramidates,16 and silyl ethers.17 Notably, the acid-tolerance of disulfides is advantageous for advancing the scope of multifunctional materials, allowing chemical modification of disulfide-containing polymers that could not be tolerated by acid-labile functionality.18 Moreover, the orthogonality of disulfide cleavage in comparison to other functional groups may drive chemically selective degradation.
Here, we describe the use of the commercially available diallyl disulfide (denoted here as linear disulfide, or LDS), a disulfide-containing diene, for RCM, followed by ROMP of the corresponding cyclic olefin. Recent attempts to use LDS in polymers in different capacities involved generating materials intended for heavy metal removal,19 adhesives,20,21 and degradable structures.22 We describe the RCM of LDS to produce (Z)-3,6-dihydro-1,2-dithiine (denoted here as cyclic disulfide, or CDS, Fig. 1c) under conditions that bias the metathesis equilibrium towards the cyclic olefin (Fig. 2a). This approach represents a one-step synthesis of a disulfide-containing cyclic olefin as a 6-membered ring (Fig. 1c) for studies in ROMP copolymerization with other cyclic olefin comonomers (Fig. 1d), ultimately embedding disulfides within polyolefin backbones, including linear and bottlebrush architectures, via a chain-growth ring-opening mechanism, with subsequent chemically induced degradation via disulfide cleavage. Use of ring-opening chemistry is key, since prior studies using LDS and cis-cyclooctene in mixed chain/step-growth polymerization are limited with respect to achievable molecular weights.23
![]() | ||

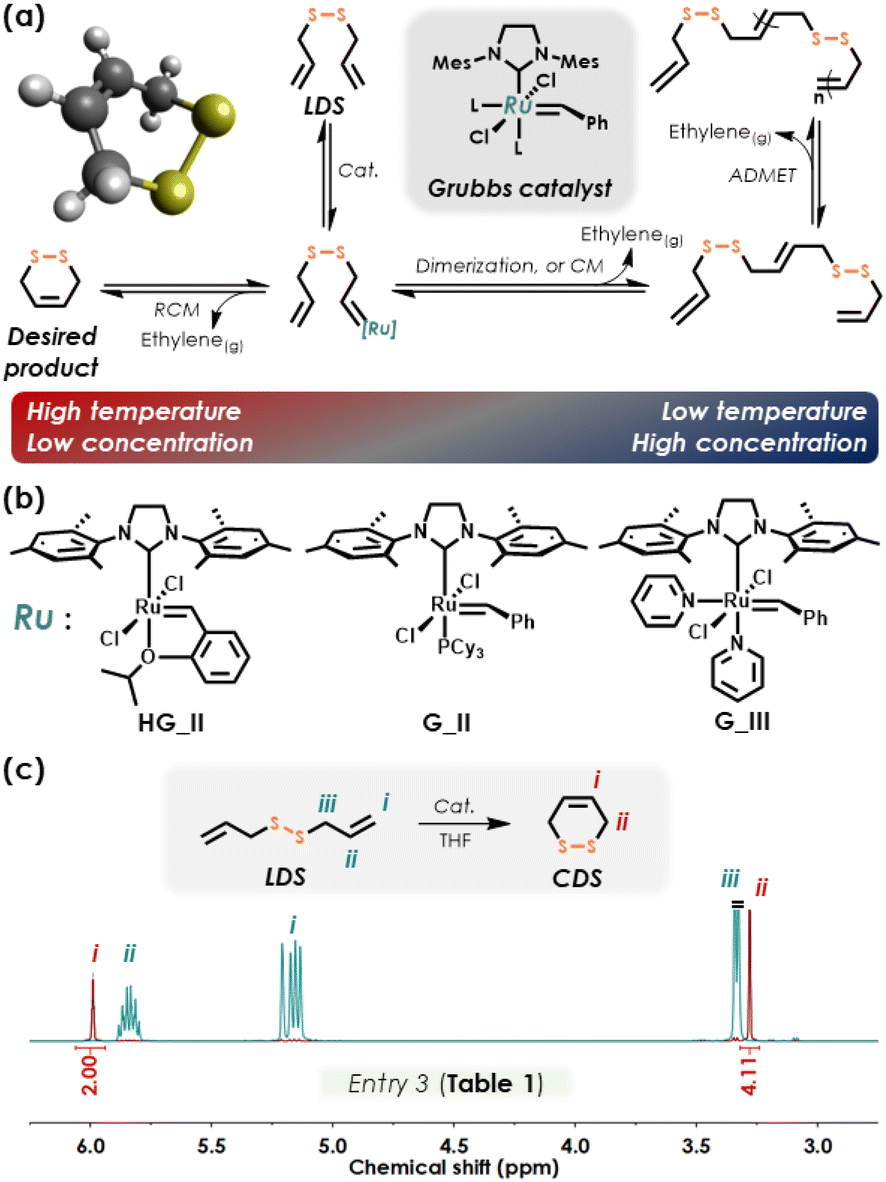

Fig. 2 (a) Metathesis CDS–LDS equilibria ; (b) chemical structures of the ruthenium benzylidene catalysts employed in this work; (c) 1H NMR spectra of LDS and CDS (from Entry 3 in Table 1). |
For RCM of LDS, anhydrous THF was selected for its higher reflux temperature relative to the commonly used DCM and its tendency to deactivate metathesis catalysts,26 which is advantageous in workup protocols.27 The catalysts employed in this study are shown in Fig. 2b. In a typical RCM experiment, 1H nuclear magnetic resonance (NMR) spectroscopy was used to quantify reaction conversion by comparing the allylic proton of diallyl disulfide (5.90–5.78 ppm for 2H and 5.24–5.10 ppm for 4H) to the vinyl protons of CDS (5.99 ppm for 2H) (Fig. 2c). For example, at a 4:
1 molar ratio of LDS (0.01 M) to Grubbs 3rd generation (G_III) catalyst, RCM at 60 °C reached 86% after 5 hours (Entry 1, Table 1 and Fig. S1†). Reducing the catalyst loading to LDS
:
G_III = 19
:
1 resulted in a lower RCM yield of 78% (Entry 2, Table 1). Notably, increasing the reaction temperature to 70 °C increased the RCM yield of CDS to 96% (Entry 3, Table 1), in accord with metathesis equilibrium principles. We note that acyclic dienes generally favor cyclization for 5-to-7-membered rings at low concentration and high temperature.25 Attempted RCM of LDS at 80 °C in THF did not improve product yield (Entry 4, Table 1), which we attribute to effects of catalyst degradation at this higher temperature.28
Entry | [LDS] (M) | Catalyst | Cat. Loading (mol%) | Temp. (°C) | Time (h) | RCM yield (%) |
---|---|---|---|---|---|---|
1 | 0.01 | G_III | 20 | 60 | 5 | 86 |
2 | 0.01 | G_III | 5 | 60 | 5 | 78 |
3 | 0.01 | G_III | 5 | 70 | 5 | 96 |
4 | 0.01 | G_III | 5 | 80 | 5 | 93 |
5 | 0.05 | G_III | 5 | 80 | 5 | 84 |
6 | 0.10 | G_III | 5 | 80 | 5 | <1 |
7 | 0.10 | G_III | 5 | 80 | 24 | 13 |
8 | 0.01 | HG_II | 5 | 80 | 5 | <1 |
9 | 0.01 | G_II | 5 | 80 | 5 | 90 |
The impact of LDS concentration on RCM was examined from 0.01–0.05 M, with higher concentration resulting in lower yield (Entry 5, Table 1). Further increasing LDS concentration to 0.1 M failed to yield CDS (<1%, Entry 6, Table 1) and instead produced oligomers via acyclic diene metathesis polymerization (ADMET) (Fig. 2a). Other catalysts gave widely variable success in LDS-to-CDS conversion: Hoveyda-Grubbs 2nd generation (HG_II) catalyst produced very low yields (Entry 8, Table 1), while yields obtained when using Grubbs 2nd Generation catalyst (G_II) were good (90%, Entry 9, Table 1). Based on screening experiments in Table 1, Entry 3 was selected as optimal; increasing the scale to 0.5 mL of LDS yielded 95% conversion to CDS, obtained as a colorless oil (isolated yield 0.26 g or 64%). Unlike the case of COEs, where both E and Z configurations exist with different ring strains,29 it is noteworthy that CDS as the RCM product exclusively favors the Z configuration, due to constraints of 6-membered rings (Figure 2c, 13C NMR spectrum in Fig. S2† shows a single olefin carbon peak). Ultimately, CDS proved unisolable in 100% purity by distillation or chromatographic methods, with detailed procedures and characterization given in the ESI.†
![]() | ||
Fig. 3 (a) ROMP copolymerization of COE and CDS; (b) 1H NMR spectrum of P-20 from Entry 2 in Table 2; SEC curves eluting with THF with various (c) CDS mol% while fixing [monomer]/[initiator] ratio at 200, (d) total monomer concentration at [COE]![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Entry | [Ma] (M) | [Ma]/[Cat.] | COE![]() ![]() |
COE conv.c (%) | CDS conv.c (%) | CDS per chainc (%) | M n, theo. (kDa) | M n, SEC (kDa) | PDId |
---|---|---|---|---|---|---|---|---|---|
a Total monomer concentration including COE and CDS. b Molar ratio between two monomers. c Calculated based on the peak integration of 1H NMR spectroscopy. d Determined by SEC (THF as a solvent) with polystyrene standards. | |||||||||
1 | 0.5 | 200 | 180![]() ![]() |
91 | 97 | 10 | 22.2 | 19.7 | 1.41 |
2 | 0.5 | 200 | 160![]() ![]() |
83 | 97 | 17 | 22.4 | 16.6 | 1.39 |
3 | 0.5 | 200 | 140![]() ![]() |
72 | 96 | 29 | 22.5 | 6.8 | 1.38 |
4 | 0.5 | 200 | 120![]() ![]() |
60 | 98 | 42 | 22.7 | 7.7 | 1.34 |
5 | 0.5 | 200 | 100![]() ![]() |
48 | 87 | 56 | 22.8 | 6.5 | 1.39 |
6 | 2 | 200 | 160![]() ![]() |
83 | 98 | 17 | 22.4 | 22.0 | 1.55 |
7 | 0.1 | 200 | 160![]() ![]() |
93 | 85 | 8 | 22.4 | 1.6 | 1.46 |
8 | 2 | 50 | 40![]() ![]() |
86 | 99 | 16 | 5.6 | 11.2 | 1.59 |
9 | 2 | 100 | 80![]() ![]() |
86 | 99 | 25 | 11.2 | 17.3 | 1.59 |
10 | 2 | 400 | 320![]() ![]() |
85 | 97 | 14 | 44.7 | 27.7 | 1.59 |
11 | 2 | 200 | 0![]() ![]() |
N/A | 97 | 100 | 23.6 | 1.5 | 1.15 |
Considering the relatively low ring-strain of COE (7.4 kcal mol−1),29 higher monomer concentration is needed to drive metathesis equilibria towards polymer. Targeting a monomer-to-initiator ratio ([monomer]:
[G_III]) of 200, total monomer concentration ([M]) was varied from 0.1 to 2.0 M (Fig. 3d). At higher [M], the formation of low molecular oligomers was suppressed significantly, and the estimated molecular weight of the polymer product was in good accord with the targeted value (Mn, theo) of 22.4 kDa (Mn, SEC = 22.0 kDa, PDI = 1.55, 17 mol% disulfide incorporation, Entry 6 in Table 2). Thus, by adjusting reaction conditions with suitable catalyst selection, RCM of LDS and ROMP of CDS were performed in accord with ring-chain equilibrium principles.10,30 Molecular weight control was achieved in copolymerizations with 20 mol% CDS by tuning the [monomer]/[G_III] ratio from 50 to 400. Although the peak-average molecular weight (Mp) obtained by SEC analysis shifted to higher values (Fig. 3e), a non-linear dependence of Mn was observed (Fig. S20†), which is attributed to the presence of trace amounts of LDS in the reactions, and/or to S–Ru coordination at the ruthenium alkylidene chain-end (Fig. S21†).9 Such Ru–S interactions were confirmed by 1H NMR spectroscopy, where resonances associated with the protons attached to the ruthenium alkylidene upon COE or CDS insertion were observed at 19.03 and 18.34 ppm, respectively (Fig. S21†). The relative intensities of these resonances closely correlated with the COE
:
CDS feed ratio.
Copolymerization of COE and CDS ([monomer] = 2 M) yielded P-20-k (Mn, SEC ∼25.5 kDa, PDI ∼1.57) rapidly (∼1 min) after introduction of G_III (Fig. 3f). SEC traces revealed predominant polymer signal centered at elution volumes of ∼21 mL, with the consistent appearance of oligomeric product at longer elution volumes (∼26 mL), the intensity of the latter decreasing as the reaction progressed. Over time, lower molecular weight product (ostensibly cyclic metathesis products) appeared to be incorporated into growing polymer (vide supra).25 Though a minor component of the overall product mixture, the ratio between the kinetic (oligomer) and the thermodynamic (polymer) products was seen to decrease from 1.4% at 1 min to 0.7% at 180 min (based on ratio of the peak areas in the SEC traces). However, it is noteworthy that secondary metathesis was suppressed significantly by adjusting monomer concentration (Fig. 3c) and the amount of oligomeric product in P-20-k was marginal, overall providing evidence for successful ROMP copolymerization of COE and CDS.
![]() | ||
Fig. 4 (a) Copolymerization of COE/CDS/LDS mixture; (b) SEC (eluting with THF) curves resulting from polymerizations with 0, 10, or 20 mol% LDS; (c) Plot of Mn, SEC and PDI vs. LDS mol%. |
To test the impact of mixed chain/step-growth mechanisms, several polymerizations were performed using LDS in conjunction with CDS and COE. In these experiments, the [COE]:
[CDS + LDS] ratio was fixed at 4
:
1, with variation of the CDS
:
LDS ratio. At 10 mol% LDS (i.e., 1
:
1 CDS
:
LDS), a substantial decrease in Mn was observed (22.0 to 4.6 kDa) (Fig. 4b), which declined even further (to 2.8 kDa) using 4
:
1 COE
:
LDS (i.e., absent CDS, Fig. 4c). Consequently, when using RCM as a method to prepare cyclic olefin monomers for ROMP, the purity of the cyclic olefin is key for realizing desirable ROMP outcomes.
![]() | ||
Fig. 5 (a) ROMP of CDS with norbornene derivatives 1–4; (b) 1H NMR spectrum of P1-20 from Entry 2 in Table 3; SEC curves with variation of (c) total monomer concentration at [1]![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Molecular weight control of copolymers composed of 1 with ∼6–11 mol% CDS was achieved by adjusting the [monomer]:
[G_III] ratio from 50–400 (Entries 2 and 6–8 in Table 3 and MW vs. target DP in Fig. S22†). In each copolymerization, high norbornene conversion was achieved, with Mn values of the polymer products increasing to nearly 40 kDa at higher monomer
:
catalyst ratios. Most copolymerizations involving monomer 1 gave reasonable agreement between target (theoretical) and experimental (SEC-estimated) molecular weights, with the exception of the highest target DP of 400 (Entry 8, Table 3). Further versatility of this disulfide monomer in ROMP was seen in CDS-norbornene copolymerizations conducted with comonomers 2–4 containing hydroxy, t-butyl ester, and t-boc amine pendent groups, respectively. While attempted ROMP of 2 with CDS produced only limited chain growth due to premature precipitation (Table 3, Entry 9), both the t-butyl ester-substituted monomer 3 and t-boc amine-substituted monomer 4 copolymerized cleanly with CDS to yield polymers with Mn, values of >30 kDa and PDI of 1.6-1,7 (Table 3, Entries 10, 11). In all copolymerizations involving norbornene derivatives, CDS incorporation is much lower than for the COE copolymers, which we attribute to multiple interrelated factors, including (1) the substantial ring-strain difference between the two monomers and (2) the relatively fast polymerization of norbornene, even at lower concentrations, that may lead to consecutive CDS units that would exacerbate chelation to the ruthenium catalyst (hypothetical illustration in Fig. S23†). In contrast, the CDS-COE copolymer case allows for higher CDS incorporation due to the more similar ring-strain energies of the two monomers.
Entry | Comonomer | Temp. (°C) | [Ma] (M) | [Ma]/[Cat.] | NBb![]() ![]() |
NB conv.c (%) | CDS conv.c (%) | CDS per chainc (%) | M n, theo. (kDa) | M n, SEC (kDa) | PDId |
---|---|---|---|---|---|---|---|---|---|---|---|
a Total monomer concentration (NB and CDS). b Comonomer used. c Calculated based on peak integration from 1H NMR spectroscopy. d Determined by SEC (THF eluent) with polystyrene calibration standards. e Upon injection of G3 stock solution, the solution became turbid and the product was insoluble in THF and CDCl3. | |||||||||||
1 | 1 | 25 | 2 | 200 | 160![]() ![]() |
>99 | 78 | 8.8 | 44.1 | 28.8 | 1.51 |
2 | 1 | 25 | 0.5 | 200 | 160![]() ![]() |
>99 | 72 | 11.5 | 44.1 | 30.9 | 1.35 |
3 | 1 | 25 | 0.05 | 200 | 160![]() ![]() |
>99 | 0 | 0 | 44.1 | 31.0 | 1.19 |
4 | 1 | 0 | 0.5 | 200 | 160![]() ![]() |
>99 | 0 | 0 | 44.1 | 27.7 | 1.25 |
5 | 1 | 50 | 0.5 | 200 | 160![]() ![]() |
>99 | 76 | 8.6 | 44.1 | 29.5 | 1.28 |
6 | 1 | 25 | 0.5 | 50 | 40![]() ![]() |
>99 | 68 | 5.8 | 11.3 | 10.9 | 1.24 |
7 | 1 | 25 | 0.5 | 100 | 80![]() ![]() |
>99 | 72 | 6.8 | 22.6 | 19.1 | 1.28 |
8 | 1 | 25 | 0.5 | 400 | 320![]() ![]() |
>99 | 72 | 8.8 | 85.8 | 39.6 | 1.32 |
9e | 2 | 25 | 0.5 | 200 | 160![]() ![]() |
— | — | — | 36.7 | — | — |
10 | 3 | 25 | 0.5 | 200 | 160![]() ![]() |
>99 | 57 | 5.8 | 50.2 | 31.4 | 1.58 |
11 | 4 | 25 | 0.5 | 200 | 160![]() ![]() |
>99 | 72 | 9.0 | 52.6 | 32.1 | 1.67 |
