Binding of carbon dioxide and acetylene to free carboxylic acid sites in a metal–organic framework

Abstract

The functionalisation of organic linkers in metal–organic frameworks (MOFs) to improve gas uptake is well-documented. Although the positive role of free carboxylic acid sites in MOFs for binding gas molecules has been proposed in computational studies, relatively little experimental evidence has been reported in support of this. Primarily this is because of the inherent synthetic difficulty to prepare MOF materials bearing free, accessible –COOH moieties which would normally bind to metal ions within the framework structure. Here, we describe the direct binding of CO₂ and C₂H₂ molecules to the free –COOH sites within the pores of MFM-303(Al). MFM-303(Al) exhibits highly selective adsorption of CO₂ and C₂H₂ with a high selectivity for C₂H₂ over C₂H₄. In situ synchrotron X-ray diffraction and inelastic neutron scattering, coupled with modelling, highlight the cooperative interactions of adsorbed CO₂ and C₂H₂ molecules with free –COOH and –OH sites within MFM-303(Al), thus rationalising the observed high selectivity for gas separation.

---

Porous metal–organic framework (MOF) materials have received much interest in the search for sorbent materials for a variety of gases.^1–3 A commonly employed strategy to obtain MOFs with desirable affinity for target gases is to introduce functional groups to the linker, which subsequently line the pore interior and provide binding sites for gas molecules. State-of-the-art studies primarily focus on groups such as halide,⁴ amide,^5,6 hydroxyl^7,8 and amine⁹ groups since they can be incorporated within the protocol for MOF synthesis and the resultant materials often retain their framework structure with the functional group(s) protruding into the pores. Carboxylic acid groups (–COOH), incorporating both lone pairs of electrons and acidic protons, possess high propensity for gases such as CO₂, as has been suggested by computational studies.^10–12 However, due to the preference of carboxylate groups to bind to metal centres, there are only a few reports of porous MOFs that are functionalised with free carboxylic acid sites.^13–20 To date, the molecular details of interactions of carboxylic acid moieties in MOFs with gas molecules have been poorly explored by experiment. Here we report the direct visualisation of binding of CO₂ and C₂H₂ molecules to the free carboxylic acid sites in MFM-303(Al) by a combination of in situ synchrotron X-ray powder diffraction (SXPD), inelastic neutron scattering (INS) and density functional theory (DFT) calculations. These crystallographic and dynamic experiments confirm unambiguously the important role of –COOH and –OH sites in assembling a series of cooperative supramolecular interactions with adsorbed CO₂ and C₂H₂ molecules, leading to excellent adsorption properties.

MFM-303(Al) was prepared by hydrothermal reaction of biphenyl-3,3′,5,5′-tetracarboxylic acid (H₄L) with aluminium chloride in acidified water (pH < 2).²¹ The material, [Al(OH)(H₂L)], is composed of octahedrally-coordinated Al(III) centres, with two bridging hydroxyl groups in trans positions, and each ligand has two –COOH groups that are not bound to Al(III) centres and remain protonated. This is promoted by the use of low pH conditions during the synthesis, with the potential of the carboxylic group interacting with guest molecules within the pores via hydrogen bonding. The structure of the as-synthesised material thus reveals intramolecular hydrogen bonding between neighbouring carboxylic acid groups [O⋯O = 2.637(14) Å], which helps to stabilise the overall structure. This confirms the approach to overcome the inherent preference of carboxylic acid groups to bind to metal centres via the use of strongly acidic conditions combined with multitopic ligands that can support hydrogen bonding. Along the crystallographic c axis the widest aperture is ∼8 Å, and the –COOH groups taking van der Waals radii into account are separated by ca 2.3 Å (Fig. 1). The phase purity of bulk samples of MFM-303(Al) was confirmed by PXRD (Fig. S1†). Desolvated MFM-303(Al) shows a surface area of 724 m² g⁻¹ (Fig. S4†).

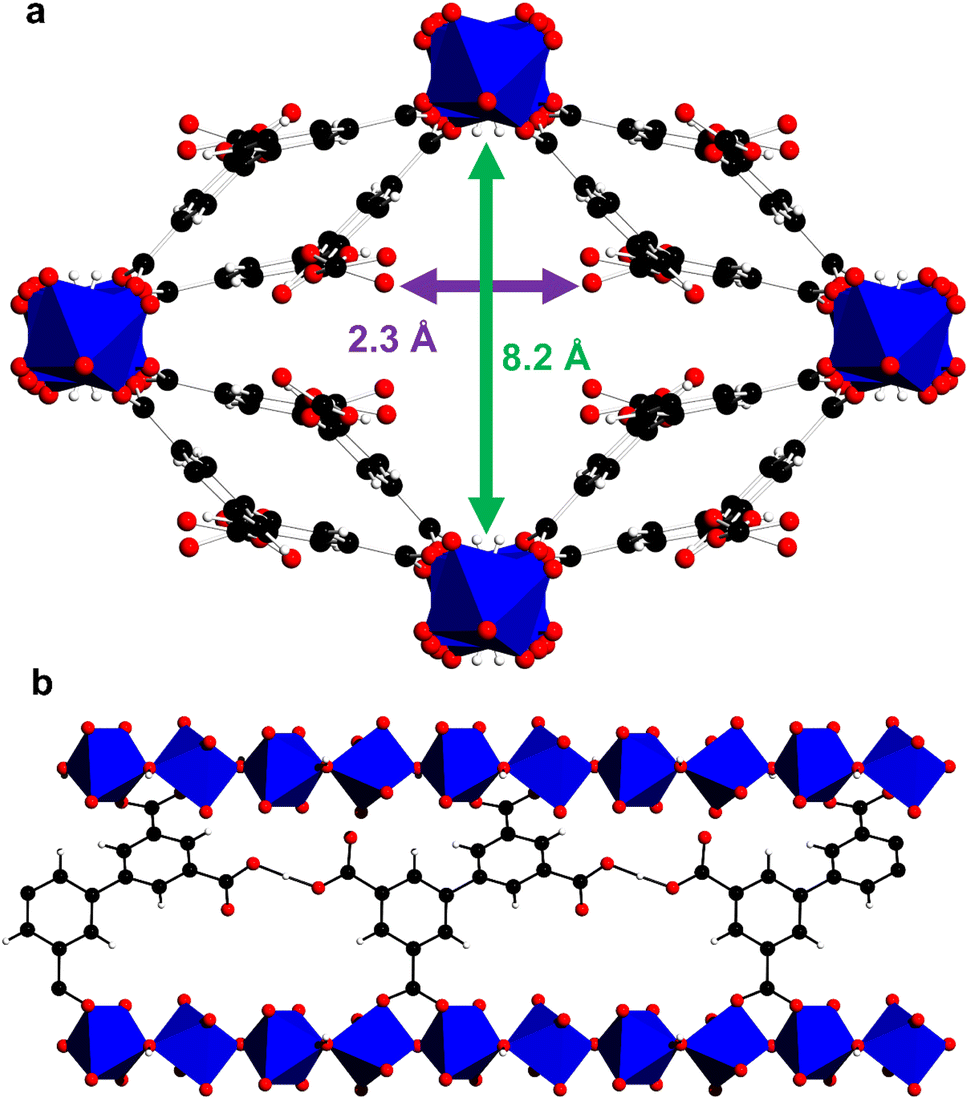

Fig. 1 Crystal structure of as-synthesised MFM-303(Al) (water in the pores have been removed for clarity). (a) View along c axis, and (b) view along a axis showing intramolecular hydrogen bonding between neighbouring free –COOH groups (aluminium, blue; carbon, black; oxygen, red; hydrogen, white; [AlO₄(OH)₂], blue octahedra).

CO₂ isotherms were recorded over a wide temperature range (273–333 K) and showed adsorption–desorption hysteresis, which increased with increasing temperature (Fig. 2a). This is in contrast to many previously reported MOFs, in which hysteresis loops are enhanced at low temperature,^22,23 and implies that MFM-303(Al) has a small degree of temperature/guest-dependant framework flexibility. The isosteric heat (Q_st) and entropy (ΔS) of adsorption of CO₂ were calculated using the van't Hoff equation (Fig. 2b). The value of Q_st decreases from 37 to 33 kJ mol⁻¹ with CO₂ loading up to 0.5 mmol g⁻¹ and then increases to 36 kJ mol⁻¹ between 0.5 and 2.5 mmol g⁻¹. This indicates that the strong binding sites are occupied early on initial uptake of CO₂ and then notable CO₂⋯CO₂ interactions are generated with increasing surface coverage. The value of ΔS decreases continuously with increasing loading, indicating an increase in local order of the system, again consistent with the formation of CO₂⋯CO₂ interactions at higher loadings.

Fig. 2 Adsorption and breakthrough data for MFM-303(Al). (a) CO₂ sorption isotherms recorded from 273–333 K, with inset showing the low pressure region, highlighting the presence of a hysteresis loop with increasing temperature; (b) isosteric heat of adsorption (Q_st) calculated from isotherms using the van't Hoff equation; adsorption isotherms for C₂ hydrocarbons in MFM-303(Al) at (c) 293 K and (d) 333 K; breakthrough plots for 50 : 50 mixtures of hydrocarbons (e) C₂H₂/C₂H₄ (f) C₂H₄/C₂H₆ over a fixed-bed packed with MFM-303(Al) at 333 K and 1 bar (sample mass = 2.33 g; total flow rate = 4 mL min⁻¹).

Pores with restricted geometry or with narrow apertures have been shown to have high potential in the field of molecular separation, particularly where the components of mixtures have similar molecular properties, such as sizes and volatilities.²⁴ Isotherms for C₂ hydrocarbons were recorded on MFM-303(Al) at 273–333 K. Hysteresis loops are present for all the C₂ hydrocarbons and become more prominent at higher temperature (Fig. 2c and d). For C₂H₂, an uptake of 2.65 mmol g⁻¹ is observed at 293 K and 1 bar, which decreases to 2.24 mmol g⁻¹ at 333 K. The hysteresis loop becomes prominent at temperatures above 313 K. For C₂H₄, a lower uptake of 1.75 mmol g⁻¹ was measured at 293 K and 1 bar, decreasing to 1.19 mmol g⁻¹ at 333 K. The hysteresis loop is much more pronounced than for C₂H₂, being apparent for measurements at all temperatures. Meanwhile, an uptake for C₂H₆ of 1.45 mmol g⁻¹ at 293 K and 1 bar was observed, reducing to 0.30 mmol g⁻¹ at 333 K. The values for Q_st for C₂H₂, C₂H₄ and C₂H₆ were measured to be 38–42, 34–32 and 30–24 kJ mol⁻¹, respectively, the order of Q_st values being consistent with the observed uptake capacities and inversely related to the magnitude of the observed hysteresis. This suggests that the adsorbates with the largest molecular size do not enter the framework as readily and once inside become trapped in the pore, which results in a hysteresis loop and a lower value of Q_st but higher ΔS (Fig. S8†). Adsorption of CH₄ shows broad hysteretic loops and much lower uptakes (Fig. S5†).

The presence of hysteresis loops in the isotherms suggests that there is a possible structural change from the activated to the guest-loaded material. The magnitude of the hysteresis loop is inversely proportional to the observed values of Q_st with more strongly interacting adsorbates having a narrower loop. This suggests that the structural change can be modulated by the choice of guest, and molecules with stronger interactions can more readily overcome the energy barrier to re-organisation.²⁵ Also, for the C₂ hydrocarbons, the uptake capacities and values of Q_st are inversely proportional to the kinetic diameter of the adsorbate (Table S3†). The hysteresis loops are dependent on temperature, becoming wider at higher temperature, consistent with other MOFs that feature guest-dependent flexibility;²⁶ this is in contrast to capillary condensation in rigid porous structures.²⁷ Within MFM-303(Al), the intramolecular hydrogen bonding can reorientate from that in the activated empty structure in order to optimise interaction of the –COOH moieties with guest molecules. The presence of flexibility in sorbent materials is often beneficial to gas separations, and materials can breathe and/or undergo a gate-opening response dependent on the size and shape of the molecule. The pressure under which structural transformation occurs is unique for each adsorbent, and thus excellent separation performance and selective uptake of target molecules can be achieved.^28,29

The adsorption selectivity of MFM-303(Al) for equimolar binary mixtures was estimated using ideal adsorbed solution theory (IAST) based upon single-component isotherms.^30,31 Interestingly, MFM-303(Al) exhibits an excellent IAST selectivity of 15.0 for C₂H₂ over C₂H₄ at 1 bar and 293 K (Fig. S11†). This compares well with other MOFs in the literature. For example, at 298 K, MOF-74(Fe) possesses a selectivity of 2.08 (ref. 32) whilst UTSA-100 achieves 10.72 (ref. 33) and NbU-1 reaches 5.9.³⁴ The excellent selectivity is corroborated by comparison to other reported MOFs containing acidic –OH and –COOH groups, such as Ni-gallate³⁵ and NTU-72 (ref. 36) which show exceptional selectivities of 43.7 and 56 for 1 : 99 mixtures, though in these examples their potential for other mixtures of hydrocarbons was not fully explored. A high selectivity for CO₂/CH₄ is also observed for MFM-303(Al) (56.1 at 293 K and 1 bar), which again compares well with other MOFs (Table S2†). Thus, the restricted pores of MFM-303(Al) lead to enhanced selectivity for C₂H₂ and CO₂. Dynamic breakthrough separation of an equimolar mixture of C₂H₂/C₂H₄ and C₂H₄/C₂H₆ was undertaken at 333 K (Fig. 2e and f). Clear separation of components was observed in both cases with selective retention of C₂H₂ and C₂H₄ demonstrating the potential of MFM-303(Al) as a sorbent material for molecular separation.

Two unique binding domains (I and II) for CO₂ have been determined using Rietveld refinement of SXPD data for CO₂-loaded MFM-303(Al) (Fig. 3a–c). Notable interactions are observed between CO₂ molecules and the free –COOH and bridging –OH sites in the pore. CO₂^I (occupancy of 1.0) is stabilised by moderate hydrogen bonding interactions to the bridging hydroxyl group [μ₂-OH⋯O=C=O = 3.21(1) Å] and the free –COOH [O=C=O⋯O = 2.67(1) Å]. CO^II₂ [occupancy of 0.61(1)] shows similar distances to neighbouring –COOH groups [O=C=O⋯O = 2.75(1) Å]. Furthermore, adsorbed CO₂ molecules in the pore form the typical “T” shape arrangement [O=C^I=O⋯CO₂^II = 2.60(1) Å], suggesting that intermolecular dipole interaction also contributes to the packing of CO₂ in the pore, consistent with the values for Q_st.

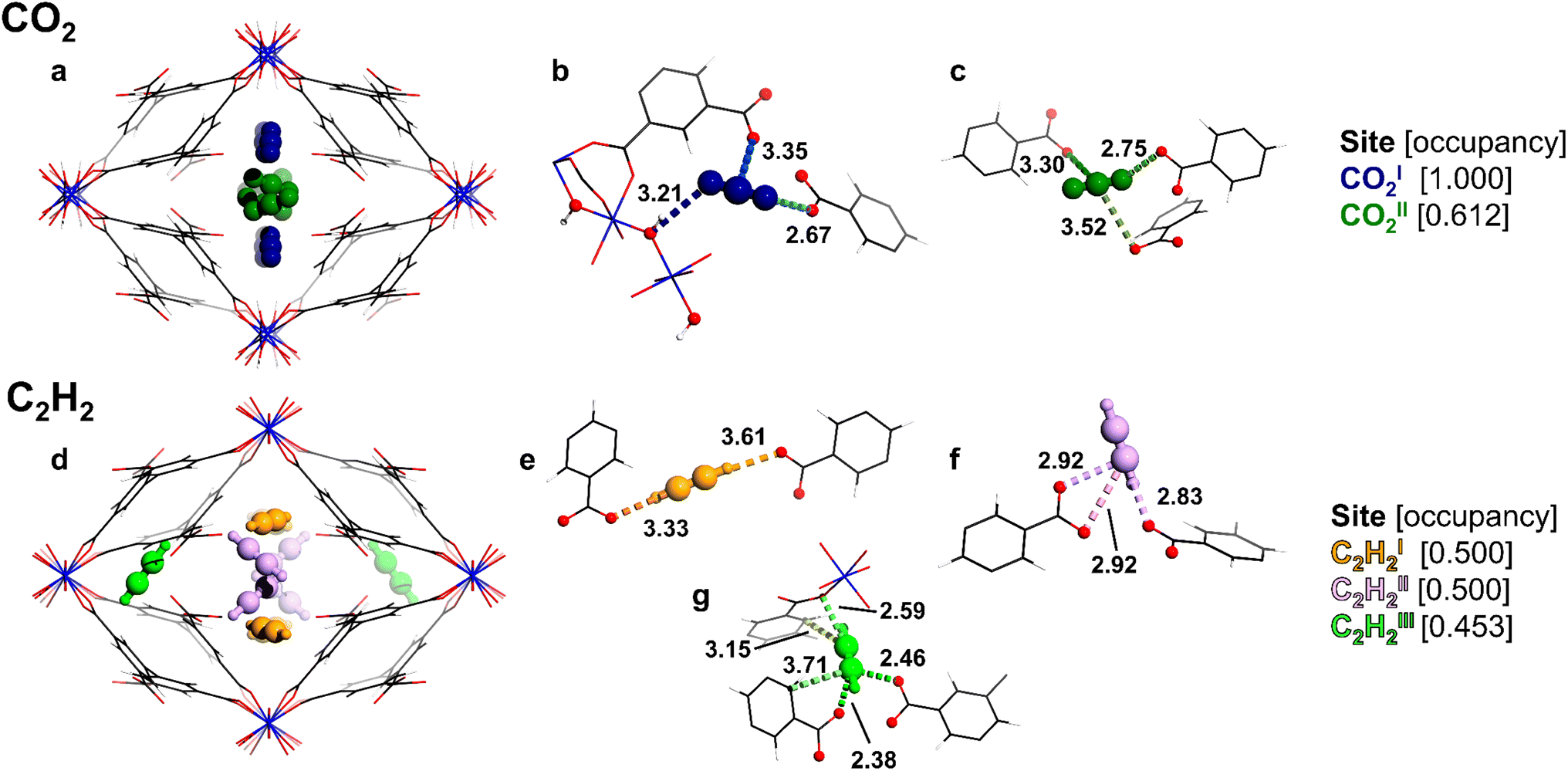

Fig. 3 The crystal structure of gas-loaded MFM-303(Al) determined via Rietveld refinement of high-resolution SXPD data showing two unique sites for CO₂ (a–c) and three for C₂H₂ (d–f) with partial occupancies (aluminium, blue; carbon, black; oxygen, red; hydrogen, white; CO^I₂, dark blue; CO^II₂, dark green; C₂H₂^I, orange; C₂H₂^II, pink; C₂H₂^III, light green). Views down the crystallographic c-axis: (a) and (d) packing of adsorbed molecules; (b) the interaction of CO₂^I with the free –COOH and μ-OH groups of the framework; (c) medium–strong interactions of CO^II₂ with free –COOH groups; (e and f) interactions of C₂H^I₂ and C₂H₂^II with free –COOH groups; (g) interaction of C₂H₂^III with free –COOH groups and the phenyl ring of the framework.

In contrast, three binding sites (I–III) were determined for adsorbed C₂H₂ molecules in MFM-303(Al) (Fig. 3d–g). C₂H₂^I [occupancy of 0.50(1)] is located towards the centre of the pore and forms strong hydrogen bonds between adjacent –COOH sites [H–C≡C–H⋯O = 3.61(5), 3.33(5) Å]. C₂H₂^II [occupancy of 0.50(1)] is oriented differently, but also interacts with –COOH groups [H–C≡C–H⋯O = 2.83(4), 3.42(4) Å], suggesting moderate hydrogen-bonding interactions. Finally, C₂H₂^III [occupancy of 0.45(1)] is in the small pocket at the corner of the pore and is stabilised primarily via confinement effects due to the restricted pore geometry, with contacts to coordinated carboxylate groups [H–C≡C–H⋯O = 2.38(6), 2.46(7) Å] and the phenyl ring [H–C≡C–H⋯C_phenyl = 3.15(5), 3.72(7) Å]. Additionally, strong interactions are found between C₂H₂^III and nearby carboxylate groups with H–C≡C–H⋯O distances of 2.59(4) Å. Thus, the free carboxylic acid sites, along with the hydroxyl group, play a crucial role in binding to these guest molecules. Interestingly, the present study represents the first example of observation of binding of CO₂ and C₂H₂ molecules at free –COOH groups within MOFs.

In situ INS measurements were conducted for MFM-303(Al) as a function of loading of CO₂ and of C₂H₂ (Fig. 4). The difference spectra were obtained by subtracting the INS spectrum of bare MFM-303(Al) from the spectra of gas-loaded samples. DFT calculations of the INS spectra of both the bare and gas-loaded systems show excellent agreement with experimental data, allowing the full assignment of the vibrational modes. The difference spectrum of the CO₂-loaded sample showed several changes. Difference peaks I and II are both combinations of vibrational modes, most significantly the out-of-plane wagging of –OH in the –COOH group, along with aromatic C–H asymmetric bending and C–H out-of-plane bending modes. Peak III is identified as a blueshift of the mode at 959–979 cm⁻¹, assigned to the bridging –OH group rocking parallel and in the plane of the [AlO₄(OH)₂] chain. Peak IV is assigned to a combination of vibrational modes, most significantly the O–H of COOH in-plane wagging and C–O–H deformation, along with a contribution from the aromatic C–H in-plane wagging. For C₂H₂, five notable changes are observed in the difference spectrum. Peak I centred at 667 cm⁻¹ arises from a combination of modes: the bridging –OH along-chain wagging, C₂H₂ bending and aromatic C–H out-of-plane wagging. Peak II is also assigned to a combination of modes, the antisymmetric C–H binding in C₂H₂, and the in-plane wagging of the –OH group of the free carboxylic acid group. Peak III at 850 cm⁻¹ arises from the O–H of the free COOH in-plane wagging mode, whilst peaks IV and V arise from a combination of the aromatic C–H out-of-plane wagging and the free carboxylic acid group O–H in-plane wagging, respectively. These observations on the host–guest binding dynamics are entirely consistent with the crystallographic models determined by SXPD data for CO₂- and C₂H₂-loaded MFM-303(Al) and further confirm the positive impact of free –COOH sites on gas adsorption in MOFs.

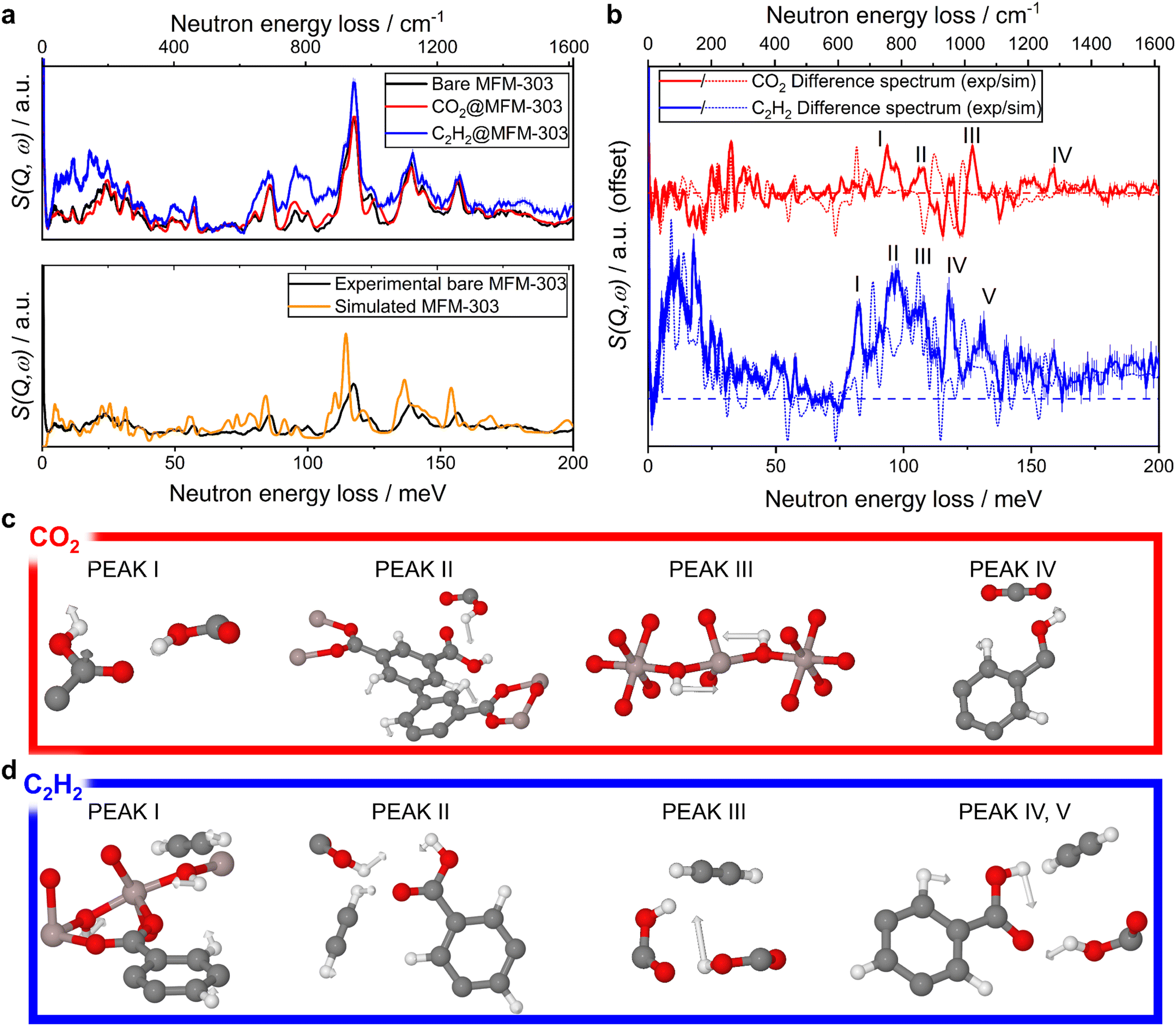

Fig. 4 (a) (top) INS spectra of the activated, CO₂-loaded and C₂H₂-loaded MFM-303(Al); (bottom) comparison between INS spectra of MOF using DFT and experimental INS data. (b) Difference spectra between the bare and gas-loaded MFM-303(Al) with key vibrational modes indicated which change in intensity upon gas loading (dashed horizontal line indicates y = 0 for each spectrum). (c and d) Visualisation of the vibrational modes that correspond to the indicated peaks in the difference spectrum using DFT-calculated INS spectra. The presence of framework flexibility contributes to the observed discrepancies between the simulated and experimental spectra.

MFM-303(Al), bearing free, accessible –COOH groups and incorporating narrow pores, shows selective uptake of CO₂ and C₂H₂. This selectivity is a result of multiple factors: firstly, the larger value of Q_st for C₂H₂ than C₂H₄ shows that MFM-303(Al) has a stronger binding preference, with a lower ΔS indicating more ordered pores when loaded with C₂H₂. The strong interaction of MFM-303(Al) with CO₂ and C₂H₂ was revealed through in situ SXPD and INS/DFT studies with adsorbed C₂H₂ and CO₂ being well-ordered within the structure via interaction with the free carboxylic acid and hydroxyl groups, whilst also being confined within the pores. In comparison, C₂H₄ shows an overall lower uptake and a weaker interaction with the MOF, related also to its larger kinetic diameter. Interestingly, adsorption of small gas molecules in MFM-303(Al) shows hysteresis, which increases with increasing temperature and molecular size of the gas molecules.

MFM-303(Al) illustrates the importance of the free –COOH group in binding with CO₂ and C₂H₂ molecules, and demonstrates that there is much potential in developing MOFs containing free carboxylic acid sites for selective gas separation. More broadly, the incorporation of functional groups on the interior of MOF materials provides favourable binding interactions with target guest molecules, and is a key strategy for improving selective uptake. This can be combined with optimisation of the pore geometry for the target gas molecules, enabling them to pack efficiently within the pores, thus increasing the overall uptake and selectivity. There is a careful balance to be struck, as efficient packing due to restricted pore geometry and volume may lead to an overall lower uptake when compared with materials with larger pore volumes. Thus, it is important to consider if the intended application is molecular separation (with greater emphasis on selectivity) or gas storage (with greater emphasis on total uptake/packing density). This work also emphasises the power of in situ SXPD and INS studies to reveal and understand the nature of host–guest interaction. This deserves further attention in studies of other porous solids showing exceptional adsorption selectivity.
