Research on the underground gasification of lignite through an oxygen enrichment process: insights from experimental study and Aspen Plus process model

Abstract

Underground coal gasification (UCG) can convert coal resources to high-calorific value syngas, which is important for the exploration of resources and the application of clean coal technology. This study investigated the gasification process of lignite in Heilongjiang Province through an oxygen enrichment approach and examined the impact of the oxygen concentration on the gasification efficiency. Furthermore, a high-fidelity Aspen Plus process model was designed to predict the gasification products of lignite. These findings indicate that the abrupt increase in the gasification temperature and pressure is governed by the concentration of oxygen in the gasification agent. An increased concentration of oxygen results in a higher gasification temperature, thereby influencing the thermodynamic reaction processes within the gasifier. The combustion reaction of lignite transitions into a coke reaction when the oxygen concentration is elevated to 90%. At this time, the relative concentration of CO₂ generated from lignite combustion progressively diminished from 78.33%, while the relative concentrations of H₂ and CO produced through coke reactions gradually increased from 3% and 2.07%, respectively. When the oxygen concentration reaches 100%, the relative contents of H₂ and CO generated through gasification reach their respective maxima, measuring 18.90% and 23.91%. The calorific value attained a peak of 6.65 MJ N⁻¹ m⁻³ simultaneously. Furthermore, the ash yield of lignite may be a critical factor influencing the process of underground coal gasification. The gasification efficiency of lignite near T₆ is suboptimal when the oxygen concentration falls below 100%, potentially attributable to the influence of ash. In summary, lignite in Heilongjiang Province can be effectively developed through underground gasification technology via an oxygen enrichment process. Furthermore, the Aspen Plus model we developed can effectively assist in predicting the products of lignite gasification in Heilongjiang Province.

---

1. Introduction

Lignite accounts for 18% of the total global coal reserves and is an important energy supply.¹ The coal resources of Heilongjiang Province, China, are rich, accounting for 36.06% of the province's coal. Lignite is typically distinguished by its elevated moisture content and relatively low calorific value.^2,3 Moreover, spontaneous combustion can easily occur, which greatly increases the cost of transportation and storage. Furthermore, certain sections of the lignite coal-bearing strata in Heilongjiang Province exhibit semicemented diagenesis, resulting in relatively weak rock formations. In contrast, the roofs of some coal seams consist of siltstone, whereas the base is composed of mudstone, providing excellent structural support. However, these formations are constrained by the conditions associated with open-pit and underground mining. Clearly, a new strategy for lignite development is urgently needed. Underground coal gasification (UCG) is a technology for the in situ controlled combustion of coal that can directly convert coal into combustible gases (H₂, CO, CH₄, etc.) underground.^1,4–9 It is considered to be an effective method for recovering deep coal resources, thin coal seams that are difficult to mine via conventional underground methods, and discarding coal resources in abandoned mines.^10–12 This technology reduces the environmental damage caused by coal combustion, has good environmental benefits, and can promote the clean utilization of coal.^13–18 Consequently, in light of the stability constraints of the surrounding rock during the gasification process, it is crucial to investigate underground gasification methods for extracting lignite from stable coal-bearing strata rather than from softer coal-bearing strata in Heilongjiang Province, as this approach significantly enhances resource utilization.

Scholars have experimentally studied the influence of gasification technology on gas production and temperature in the UCG process. It is generally believed that the type of gasification product depends on the thermodynamic conditions of the gasification process and the composition of the gasification agent used.^17,19,20 Gasification media such as air, oxygen, and/or steam are used in gasification engineering.^21,22 Different gasification agents correspond to different gasification processes, but the reactions between coal and gasification media are essentially the same in the gasification process.^15,23,24 The calorific value obtained with oxygen as the gasification agent is generally 1 MJ N⁻¹ m⁻³ higher than that of other gasification agents.^1,2,25 Oxygen and air are widely used gasification agents, but the applicable scenarios of steam need to be selected according to the coal type.^25,26 Moreover, in previous studies, inert process conditions were established by adding nitrogen to gasification agents, which were subsequently used to cool the reactor after the gasification experiment was completed.⁵ Importantly, while the gasification agent significantly influences the gasification products, the intrinsic properties of the coal being gasified must not be overlooked. Several studies have indicated that the efficiency of gasification diminishes as the ash yield in coal increases.^6,27,28 Furthermore, the impact of pressure on gasification products, particularly methane, is markedly significant throughout the gasification process.²⁹ It is evident that the gasification efficiency is influenced by either the gasification environment or the characteristics of the coal itself, presenting a significant issue for further consideration.

In the study of underground coal gasification products, the Aspen Plus model can be employed to predict the composition of syngas generated from underground coal gasification, in addition to the use of physical simulation devices for conducting gasification experiments. Aspen Plus is a globally recognized process for steady-state chemical simulation software that is based on process technology. A process simulation system can be used to visualize the thermal reaction process of coal gasification in a gasifier. Notably, the gas components produced during coal gasification are controlled by various chemical reactions in the gasifier.^30,31 Thus, Aspen Plus software can be used to assist in the study of the entire coal gasification process.³² Scholars frequently employ the thermal balance method for modelling, which assumes that the coal gasification process and its associated chemical reactions achieve thermodynamic equilibrium. By applying the principle of minimum equilibrium energy, this approach predicts the composition, yield, and temperature of the produced gas.³³ Many underground coal gasification models have been constructed under this assumption to predict the perinational process. The LVW and CRIP models, which are two very important theoretical models, are worth mentioning.^31,33 However, the Aspen plus process is relatively complex, and many scholars only rely on coal pyrolysis experiments for design, which is obviously not enough and will lead to ideal simulation results. Thus, it is very important to design an Aspen Plus gasification process that is based on coal pyrolysis data and uses underground coal gasification physical simulation experimental data as calibration samples to achieve accurate prediction of underground coal gasification. Nevertheless, constructing Aspen Plus process models that align with physical simulation experiments to achieve consistent gasification results remains a formidable challenge.

Lignite is considered to be a low-value coal and is abundant in reserves.^3,34 Therefore, its exploration and utilization have attracted much attention from scholars.^1,3,35 The evaporation of water during the gasification of lignite leads to significant heat loss, which consequently results in a low calorific value of the generated gas.^1,2,25 However, the yield of H₂ can be greatly increased by using steam as the gasification agent when there is less water in the coal.⁴ Previous studies have confirmed the feasibility of developing lignite coal seams via underground gasification technology.^1,34 The calorific values of gas produced by lignite from Slovenia and Romania are 6.4 MJ N⁻¹ m⁻³ and 4.8 MJ N⁻¹ m⁻³, respectively.³⁴

On the basis of the above analysis, this study used lignite from the Chaoyang open-cast coal mine in Heilongjiang Province for underground gasification experiments. The Aspen Plus process model was developed on the basis of physical simulation experiments and pyrolysis data. The gasification characteristics of lignite were investigated via an oxygen-enriched process. The variation trend of the gas product relative concentration under different oxygen concentration conditions was elucidated, and the primary controlling factors influencing lignite underground gasification were revealed. Moreover, the present study offers an optimal O₂ concentration ratio scheme for a gasification project in Heilongjiang Province, ensuring the most effective gasification agent utilization. Furthermore, the Aspen Plus process model developed in this study is capable of predicting lignite gasification products specific to Heilongjiang Province, thereby offering a novel approach for the exploration and utilization of lignite resources in the region.

2. Experimental methodology

2.1 Materials

The gasification coal used in this study was collected from the Chaoyang open-cast coal mine in Heilongjiang Province. The maximum reflectance of vitrinite (R_o,max), proximate analysis, and ultimate analysis information of the samples are shown in Table 1. A fixed bed cutting machine was used to cut the sample 0.3 × 0.3 × 0.2 m along the bedding direction for the underground gasification physical simulation experiments. Fig. 1 shows the state of the sample after being placed on the underground gasification simulation platform.

Table 1 R_o,max, proximate, and ultimate analysis information of gasified lignite

Ro,max%	Proximate analysis (%)				Ultimate analysis (%)
	Mad	Aad	Vad	FCad	Cdaf	Hdaf	Odaf	Ndaf	Sdaf	Cldaf
0.42	9.68	26.43	66.50	33.50	60.58	6.37	31.52	0.56	0.91	0.06

---

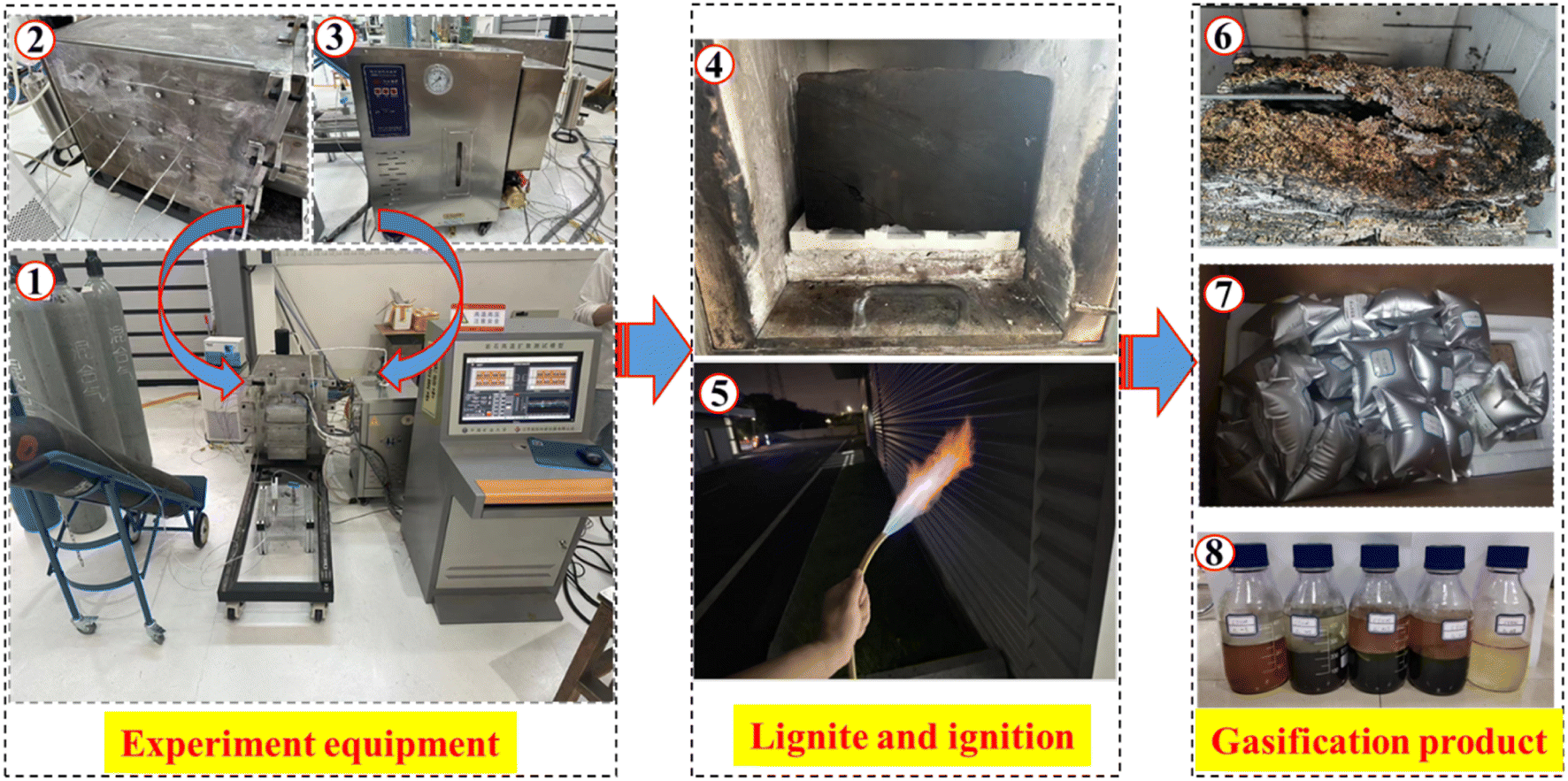

Fig. 1 Experimental apparatus and physical simulation experimental process of lignite underground gasification ((1) the physical simulation apparatus for underground lignite gasification; (2) gasifier; (3) electric simulation steam generator; (4) gasified lignite; (5) syngas firing; (6) char; (7) syngas; (8) Tar).

2.2 Experimental apparatus and process

2.2.1 Physical simulation experimental apparatus. A schematic of the physical simulation experimental apparatus is shown in Fig. 1. It is mainly composed of a simulated gasifier, a gasification agent supply system, a syngas cooling system, a tar separation system, and a thermal coupling temperature detection panel. The space in the gasifier is rectangular, and its size is approximately 0.3 m × 0.3 m × 0.4 m. There are 15 thermal coupling device holes on both sides of the furnace body, which are connected to the thermal coupling device to monitor the reaction temperature. The gasification agent supply system is mainly composed of external gas tanks. Air, O₂, N₂, CO₂, and water vapour can be used as gasification agents. The steam is provided mainly by the electric steam generator. Furthermore, the apparatus is outfitted with valves designed to periodically collect syngas and tar. Syngas can be measured by gas chromatography, and the main gas components, such as H₂, CH₄, CO, CO₂, and N_2, can be determined.²⁵

Fig. 2 shows a schematic of the gasifier, while Fig. 3 shows the position of the ignition point both before and after the gasification experiment. Prior to the experiment, the coal underwent treatment, and six cavities approximately 10 cm in length (number 2 in Fig. 2) were drilled into the coal for the placement of temperature thermocouples (number 1 in Fig. 2). In this experiment, six temperature sensing devices were installed on both sides of the gasifier to monitor the temperature changes in the furnace in real time (Fig. 2). The temperature measuring devices on the left side are named T₂, T₃, T₅, and T₆, and those on the right side are named T₁₁ and T₁₃. Notably, T₂ and T₃ are close to the ignition point (Fig. 3). Accordingly, the lignite here starts gasification earlier. In addition, the lignite at T₂ and T₃ is first in contact with the gasification agent, and its gasification reaction changes due to the concentration of different oxygen concentrations. The thermal response of T₂ and T₃ is more sensitive than that of the other temperature measurement devices.

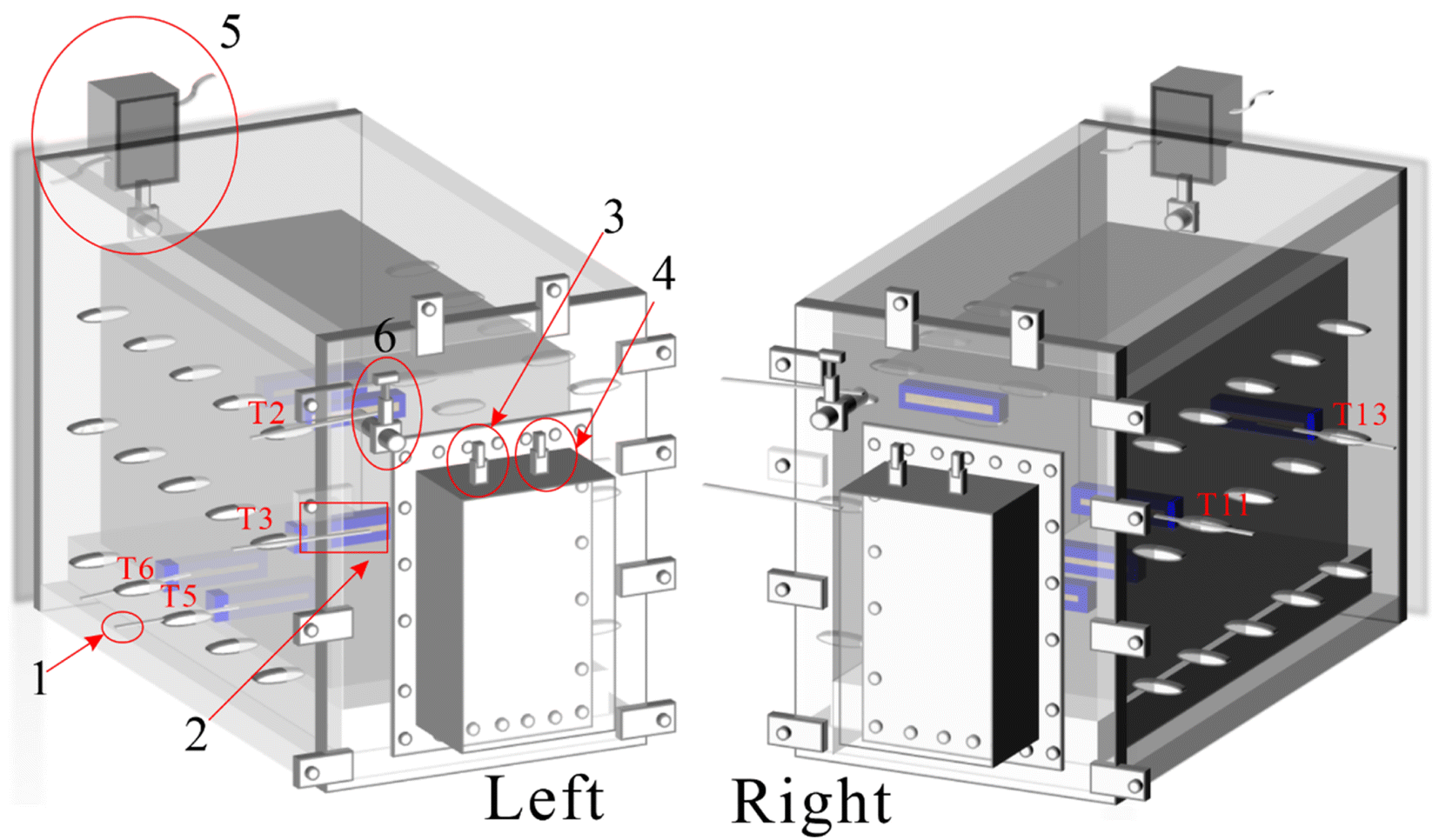

Fig. 2 Schematic representation of the simulated gasifier ((1) temperature sensing devices; (2) hollow cavity; (3) monitoring ignition point temperature device; (4) heating apparatus; (5) condensation apparatus; (6) inlet device for the gasification agent).

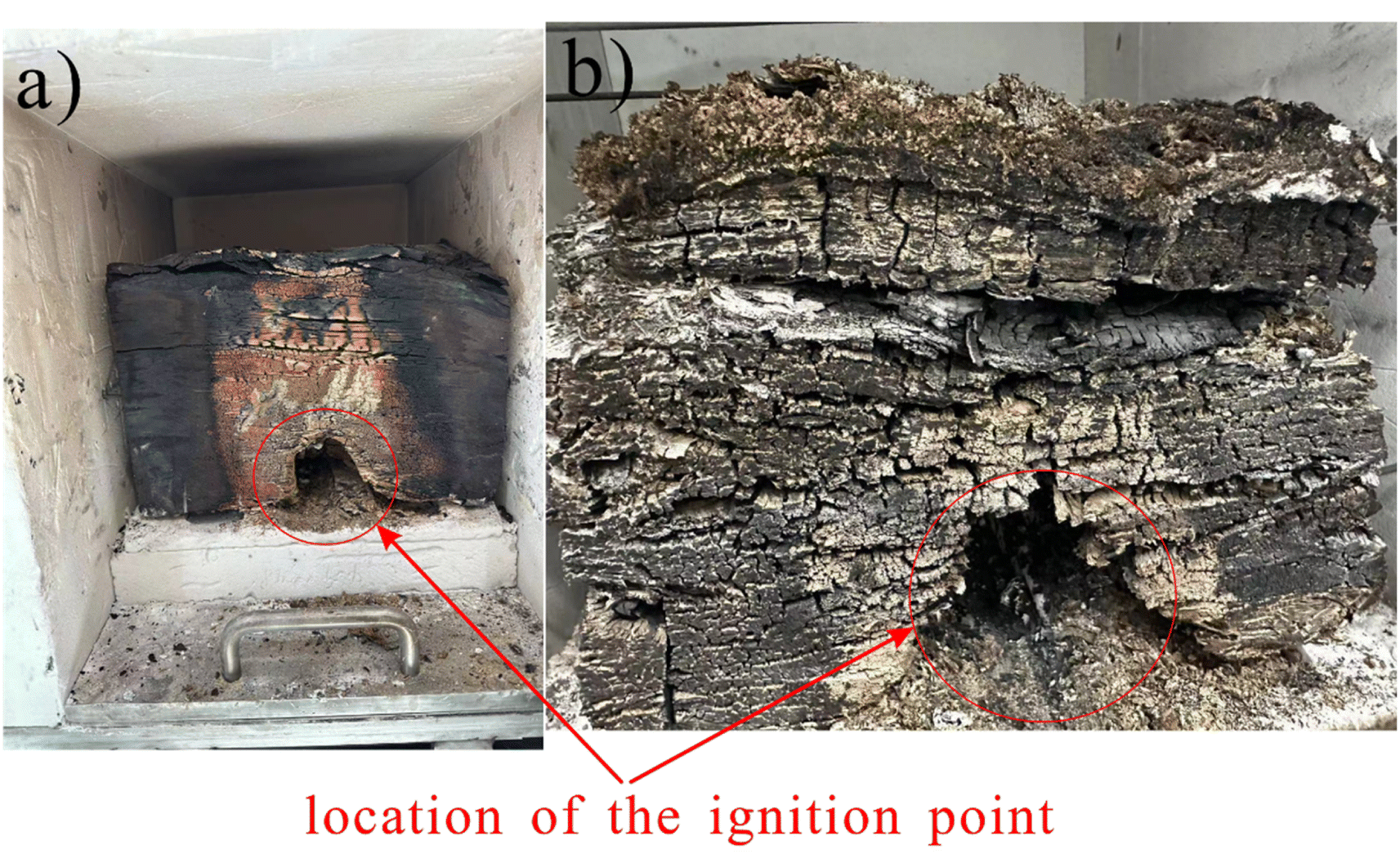

Fig. 3 Position of the ignition point (a) denotes the state of lump coal prior to the gasification reaction; (b) signifies its form subsequent to the gasification process.

Fig. 2 shows the heating apparatus (number 4 of Fig. 2) alongside the temperature sensing device (number 3 of Fig. 2). The operating temperature range of the heating device is between 100 °C and 1000 °C. The heating apparatus is connected to the coal at the ignition point, with the objective of igniting this point and facilitating the heating of the block coal within the gasifier until it reaches the combustion temperature. The gasification agent inlet is positioned at the front of the gasifier (number 6 in Fig. 2). The high-temperature gasification products generated during the experiment are directed into the condensing unit (number 5 of Fig. 2) located at the rear of the gasifier. The condensed product is directed into the gas storage tank for subsequent separation. The tar generated from the gasification process is collected via a mixture of carbon tetrachloride (CCl₄) and methanol (CH₃OH) at the exhaust port of the gas storage tank.

2.2.2 Physical simulation experimental process. The physical simulation experiment can be broadly categorized into three stages: the preparation phase, the execution phase, and the observation and sampling phase. In the preparation phase, five kinds of gasification agents were prepared according to the ratio of oxygen to nitrogen, which were 60% O₂–40% N₂, 70% O₂–30% N₂, 80% O₂–20% N₂, 90% O₂–10% N₂, and 100% O₂. This type of gasification agent has been proven to be applicable to underground gasification experiments on lignite.¹ A cavity approximately 30 cm in length is subsequently drilled into the base of the coal sample (Fig. 3) to function as a channel for coal gasification and to facilitate the connection of the ignition device. The simulated gasifier subsequently undergoes a cleaning process, followed by the sequential completion of loading, wiring, and sealing tasks.

In the execution phase, the five gasification agents are injected into the gasifier in turn according to the order of the oxygen concentration from 60% to 100% for each 120 minutes. The flow rate of the gasification agent was 30 mL min⁻¹. The observation and sampling phases, upon completion of the ignition process, assess the success of ignition by monitoring the temperature variation at T₂. Once the temperature stabilized, gas and tar collection was conducted every 20 minutes. The cumulative collection duration of the gasification products was 10 hours. The temperature and pressure in the gasifier can reach 1000 °C and 0.45 MPa, respectively, when the gasification process is severe. Therefore, this study reduces the reaction efficiency by injecting water vapour into the gasifier to reduce the experimental risk.

2.3 Underground coal gasification balance model

In this study, a thermogravimeter was used to perform slow pyrolysis on the collected lignite samples, and a mass spectrometer was used to test the main components of pyrolysis gas. The experimental results can be used to clarify the pyrolysis characteristics of Cenozoic lignite in eastern Heilongjiang Province and provide a basis for the modelling of Aspen Plus software.

2.3.1 Lignite pyrolysis experiment. After the coal sample was loaded, high-purity nitrogen was injected into the reactor for 5 min, after which the temperature was raised from 27 °C to 900 °C at a heating rate of 10 °C min⁻¹. When the temperature reached 250 °C, 350 °C, 450 °C, 550 °C, 650 °C, 750 °C, 850 °C, and 900 °C, the produced gas was collected and tested. The composition of the produced gas was analysed. The results are shown in Table 2.

Table 2 Pyrolysis composition and content of lignite at different temperatures

Temperature (°C)	Pyrolysis water (%)	Pyrolysis gas (%)	Tar oil (%)	Char (%)	Composition of pyrolysis gas (mL g^−1)
					CO2	C2–C4	CO	CH4	H2
250	3.62	2.05	0.104	94.23	1.06	0.18	0.23	0.23	0.25
350	6.51	3.92	0.128	89.44	3.02	0.35	0.48	0.48	0.39
450	7.42	10.23	0.153	82.20	10.56	0.31	0.98	0.81	0.91
550	9.32	15.32	2.1	73.26	20.14	1.56	5.60	2.50	2.60
650	11.21	18.27	5.68	64.84	35.00	3.50	9.40	4.50	4.20
750	10.51	22.06	7.47	59.96	40.14	5.41	12.22	6.54	10.50
850	10.20	23.51	10.26	56.03	38.10	7.50	16.20	8.45	15.60
900	10.95	26.06	12.68	50.31	35.15	8.50	19.58	12.54	21.65

---

2.3.2 Aspen Plus process model. The pyrolysis process of lignite is consistent with the formation process of char. Therefore, the Aspen Plus process model can be designed on the basis of the pyrolysis data of lignite at different temperatures. As mentioned above, the Aspen Plus process model is designed according to certain rules and assumptions. The design principles of this process model refer to previous studies.^36–38 The process model designed in this study is shown in Fig. 4. The functions and applications of each operational unit in the process flow model are illustrated in Table 3.

Fig. 4 Underground coal gasification model based on Aspen Plus software.

Table 3 Modules and functions of each operational unit in the gasification model

Operational unit	Modules	Functions
B9	RYield	Dried sample
B14, B19	SEP	Gas–solid–liquid separation
DECOMP	RYield	Coal is transformed into elemental form
BURNING	RStoic	Coal combustion
B5, B13, B16, B17	SSplit	Stream separation
GASIFIE	RGibbs	Gasification
B3, B4, B8	RYield	Thermal decomposition of coal and methanation reaction
B18	Mixer	Merging flow streams
B20	Heater	Cooling the gasified products

---

The entire process flow model is divided into five regions, as depicted in Fig. 4, representing the different stages of the gasification process. These stages include wet coal drying (Stage 1), lignite oxidation (Stage 2), reduction (Stage 3), dry distillation zone formation (Stage 4), and component separation (Stage 5). The alignment between the physical simulation experiments and Aspen Plus simulations is demonstrated through three key aspects. Firstly, the model parameters are determined based on proximate analysis, ultimate analysis, and pyrolysis data while the process parameters are adjusted according to the results of physical simulation experiments, as detailed in the Section 3. Secondly, the Aspen Plus process model uses a rich oxygenation process for simulation experiments, which is consistent with the physical simulation experiments. The ratio between the coal intake and the gasification agent flow was determined by combining it with a physical simulation experiment. Specifically, when a coal intake of 60 kg h⁻¹ is simulated, the initial gasification agent flow rate is 180 m³ h⁻¹. Third, the consistency of the relative contents of different gasification products with respect to the oxygen concentration is important. The variation trends of each gasification product illustrated in Fig. 6 and 7 provide compelling evidence for this phenomenon. Both of these results are consistent with the trend of the relative concentration change in the gas products. Consequently, there is a high level of consistency between the gas production from the physical simulation experiment and that predicted by the Aspen Plus process flow model, thus confirming the strong rationality of the constructed process flow model in this study.

The oxygen concentration in the gasification agent can be manipulated as a variable in the Aspen Plus process model simulation to predict the composition and yield of the gasification product, thereby facilitating an analysis of the impact of the oxygen concentration on the resulting gasification product.

3. Results and discussion

3.1 Gasification process characteristics with respect to temperature

In this study, the combustion process of gasification agents is defined in five stages. The temperature information monitored by the six temperature measuring devices in the five gasification stages is shown in Table 4, including the initial, final, and average temperatures of each stage. The temperature change curve of each stage is shown in Fig. 5.

Table 4 Measured temperatures in the five gasification stages

Stage	Temperature (°C)
	T2	T3	T5	T6	T11	T13
I	121.57–404.95	119.20–375.73	32.83–93.93	31.75–65.20	38.62–84.97	42.97–88.84
	277.17	247.99	59.96	46.20	61.66	62.32
II	326.66–658.86	312.49–593.10	94.58–161.20	65.57–101.43	86.20–126.81	89.37–132.90
	554.99	519.10	119.37	83.75	105.64	119.73
III	552.60–796.49	518.23–744.10	160.75–559	101.76–131.30	114.31–311.02	131.51–369.06
	748.83	689.88	347.75	117.20	179.74	234.52
IV	690.47–971.72	678.18–915	550.20–681.90	131.55–144.50	315.57–670.25	369.53–664.30
	892.44	851.74	605.15	139.25	526.74	559.67
V	798.23–1100.20	793.46–1076	669–927.31	121.06–607.30	660.89–906.13	648–868.28
	992.04	986.20	791.97	254.73	771.35	733.99

---

Fig. 5 Temperature and pressure variation curves of each temperature and pressure measurement device during gasification.

In the first stage, the initial and final temperatures of T₂, 3, 5, 6, 11, and 13 are 121.57–404.95 °C, 119.20–375.73 °C, 32.83–93.93 °C, 31.75–65.20 °C, 38.62–84.97 °C, and 42.97–88.84 °C, respectively. These average temperatures are 227.17 °C, 247.99 °C, 59.96 °C, 46.20 °C, 61.66 °C, and 63.32 °C, respectively. The temperature increases linearly with increasing combustion time on the basis of changes in the above temperature points. T₂ and T₃ are close to the ignition point; hence, their initial temperature is much higher than that of other temperature measuring devices. The temperatures of T₅, T₆, T₁₁, and T₁₃ increase slowly, indicating that the combustion area is mainly concentrated at the front end during the initial combustion.

In the second stage, the initial and final temperatures of T₂, 3, 5, 6, 11, and 13 are 326.66–658.86 °C, 312.49–593.10 °C, 94.58–161.20 °C, 65.57–101.43 °C, 86.20–126.81 °C, and 89.37–132.90 °C, respectively. These average temperatures are 554.99 °C, 519.10 °C, 119.70 °C, 117.20 °C, 105.64 °C, and 119.73 °C, respectively. The temperature increased compared with that in the previous stage. The temperature changes in T₂ and T₃ are more obvious. Notably, between the first and second stages, there are obvious temperature fluctuations in the area near the ignition point (T₂ and T₃). This phenomenon is attributed to the replacement of the gasification agent between different gasification stages. This may represent a domain in which advancements are required for physics simulations. Perhaps an independent experiment for each oxygen concentration would yield better results. Nevertheless, given the brief duration of the replacement time, it can be inferred that its influence on the gasification process is minimal.

In the third stage, the initial and final temperatures of T₂, 3, 5, 6, 11, and 13 are 552.60–796.49 °C, 518.23–744.10 °C, 16.75–559 °C, 101.76–131.30 °C, 114.31–311.02 °C, and 131.51–369.06 °C, respectively. These average temperatures are 748.83 °C, 689.88 °C, 347.75 °C, 117.2 °C, 179.74 °C, and 234.52 °C, respectively. Compared with those in the first two stages, the temperatures of T₅, T₁₁, and T₁₃ increased exponentially. This indicates that the combustion area began to extend backwards. Notably, the temperature of T₆ increases slowly, which indicates that the combustion on both sides of the gasifier is not uniform. The left combustion area extends slowly backwards.

In the fourth stage, the initial and final temperatures of T₂, 3, 5, 6, 11, and 13 are 690.47–971.72 °C, 678.18–915 °C, 550.20–681.90 °C, 131.55–144.50 °C, 315.57–670.25 °C, and 369.53–664.30 °C, respectively. These average temperatures are 892.44 °C, 851.74 °C, 605.15 °C, 139.25 °C, 526.74 °C, and 559.67 °C, respectively. The higher temperature area of this stage further extends backwards, and the temperature distribution is more uniform than that of the previous stage. However, the lignite on the left side of the gasifier burns slowly backwards, and the temperature fluctuation at T₆ is relatively small.

In the fifth stage, the initial and final temperatures of T₂, 3, 5, 6, 11, and 13 are 798.23–1100.20 °C, 793.46–1076 °C, 669–927.31 °C, 121.06–607.30 °C, 660.89–906.13 °C, and 648–868.28 °C, respectively. These average temperatures are 992.04 °C, 986.20 °C, 791.97 °C, 254.73 °C, 771.35 °C, and 733.99 °C, respectively. The temperature of each temperature measurement device gradually increase, and the temperature of T₆ increases exponentially as well. This indicates that with increasing oxygen concentration in the gasification agent, the gasification process gradually intensifies. Moreover, the gasification area extends deeper backwards. In addition, at the end of the experiment, the temperature of each temperature measurement device still maintained an increasing trend, indicating that an increase in the oxygen concentration in the gasification agent increased the intensity of the gasification reaction.

3.2 Gasification process characteristics of pressure

The pressure change curve of underground lignite gasification in the gasifier during the simulation process is shown in Fig. 5. The pressure curve shows a downwards trend during the transition time of the five stages, that is, the time period of replacing the gasification agent. The fluctuation trend of the temperature curve is consistent with that of the pressure curve in the first four stages. These findings indicate that the temperature and pressure conditions of the gasifier clearly respond to a short period of gasification agent replacement. As the temperature increases, the pressure also increases in the first four stages, which means that the temperature in the gasifier is closely related to the pressure. This means that the gas production capacity is increasing. The pressure sensor setting of the simulation device was adjusted to ensure the safety of the experiment at the end of the fourth stage and the fifth stage. This directly led to the pressure drop of the gasifier, but it still showed the same pressure change trend as the first three stages did. Previous studies have shown that increasing pressure can improve the efficiency of the gasification process.^1,24,29 Zagorščak et al. demonstrated that under high-pressure gasification conditions, the total energy efficiency improved by 6%.²⁹ The relative content of effective gas components (H₂ and CO) obviously improved when combined with the analysis in Section 3.3.

3.3 Gasification process characteristics of the output syngas

3.3.1 Physical simulation experiment. A gas chromatography analyser (GC-950) was used to detect the components of the collected syngas to analyse the gas production capacity. The test time of each syngas was approximately 28 min. H₂, N₂, CO, CH₄, and CO₂ appeared successively on the spectrum, and the corresponding times were approximately 2 min, 4 min, 5.5 min, 12 min, and 22 min, respectively. Table 5 shows the results of the gas chromatography experiments. The minimum, maximum, and average relative content and calorific value of each gasification product are included in five stages. The changes in the concentration of the output syngas and calorific value during the process of underground coal gasification are shown in Fig. 6.

Table 5 Relative contents and calorific values of various output gases in the five gasification stages

oxygen concentration	H2 (%)	N2 (%)	CO (%)	CH4 (%)	CO2 (%)	Calorific value (MJ N^−1 m^−3)
60%	2.64–12.68	35.32–59.26	3.21–10.33	0.54–1.83	32.02–45.38	0.96–3.65
	6.84	47.09	5.43	1.15	39.48	2.02
70%	0.48–1.19	41.37–49.59	2.07–3.98	0.24–0.42	45.58–54.58	0.42–0.82
	0.73	46.78	3.19	0.31	49	0.62
80%	0.71–1.47	25.75–27.36	1.11–3.05	0.28–0.82	67.61–71.06	0.34–0.90
	1.15	26.62	1.83	0.50	69.91	0.58
90%	3–14.90	9.80–15.61	2.07–8.53	0.75–2.03	64.73–78.33	0.94–3.79
	6.33	13.87	4.10	1.13	74.57	1.77
100%	16.37–18.90	1.37–2.46	8.75–23.91	0.50–3.06	55.51–70.85	3.39–6.65
	17.89	1.78	17.88	1.46	61.10	5.12

---

Fig. 6 Characteristics of the syngas and calorific value in the underground coal gasification experiment: (a) characteristics of the syngas, (b) characteristics of calorific value.

In the first stage, the relative content of H₂ was between 2.64% and 12.68%, with an average of 6.84%. The relative content of N₂ was between 35.31% and 59.26%, with an average of 47.09%. The relative content of CO was between 3.21% and 10.33%, with an average of 5.43%. The relative content of CH₄ was between 0.54% and 1.83%, with an average of 1.15%. The relative content of CO₂ was between 32.02% and 42.17%, with an average of 39.48%. The syngas component is mainly N_2, which is attributed to the high N₂ content in the gasification agent. The gas produced by lignite gasification is mainly CO₂, followed by H₂, CO, and CH₄ in this stage. The calorific value of the gas produced in this stage is between 1.96 MJ N⁻¹ m⁻³ and 3.65 MJ N⁻¹ m⁻³, with an average of 2.02 MJ N⁻¹ m⁻³. The relative content of H₂ in this stage is relatively high, which may be related to the inherent moisture gasification in lignite. This phenomenon was consistent with the work of Zagorščak et al.²⁹

In the second stage, the relative content of H₂ was between 0.48% and 1.19%, with an average of 0.73%. The relative content of N₂ was between 41.37% and 49.59%, with an average of 46.78%. The relative content of CO was between 2.07% and 3.98%, with an average of 3.98%. The relative content of CH₄ was between 0.24% and 0.42%, with an average of 0.31%. The relative content of CO₂ was between 45.58% and 54.58%, with an average of 48.99%. The relative content of N₂ was lower than that of CO₂ in this stage. The syngas is still dominated by N₂ and CO₂, followed by CO, H₂ and CH₄. The average calorific value of gas production in this stage is 0.62 MJ N⁻¹ m⁻³, which is lower than that in the first stage.

In the third stage, the relative content of H₂ was between 0.71% and 1.47%, with an average of 1.15%. The relative content of N₂ was between 25.75% and 27.36%, with an average of 26.62%. The relative content of CO was between 1.11% and 3.05%, with an average of 1.83%. The relative content of CH₄ was between 0.28% and 0.82%, with an average of 0.50%. The relative content of CO₂ was between 67.61% and 71.06%, with an average of 69.91%. The gas composition is still dominated by CO₂, followed by N₂ at this stage. However, the relative contents of H₂, CO, and CH₄ are low. The average calorific value of gas production in this stage is 0.58 MJ N⁻¹ m⁻³. Compared with those in the first two stages, the caloric values in the first two stages tend to decrease.

In the fourth stage, the relative content of H₂ was between 3% and 14.95%, with an average of 6.33%. The relative content of N₂ was between 9.8% and 15.61%, with an average of 13.87%. The relative content of CO was between 2.07% and 8.53%, with an average of 4.10%. The relative content of CH₄ was between 0.85% and 2.03%, with an average of 1.13%. The relative content of CO₂ was between 64.73% and 78.33%, with an average of 74.57%. The gas composition is mainly CO₂, and the relative contents of H₂, CO, and CH₄ increase significantly at this stage. This indicates that the combustion area further extends backwards, which is consistent with the analysis in Section 3.1. In addition, the increase in the relative contents of H₂, CO, and CH₄ also indicates that the ability of lignite gasification is significantly enhanced at this stage. The average calorific value of gas production is 1.77 MJ N⁻¹ m⁻³ in this stage. The calorific value is significantly greater than that in the second and third stages, which further indicates that the gasification capacity of this stage is enhanced.

In the fifth stage, the relative content of H₂ was between 16.37% and 18.90%, with an average of 17.887%. The relative content of N₂ was between 1.37% and 2.46%, with an average of 1.78%. The relative content of CO was between 8.75% and 23.91%, with an average of 17.88%. The relative content of CH₄ was between 0.50% and 3.06%, with an average of 1.46%. The relative content of CO₂ was between 55.51% and 70.85%, with an average of 61.10%. The relative contents of H₂ and CO rapidly increased at the fifth stage and the end of the fourth stage. An increase in the O₂ concentration accelerates the combustion rate and enhances the efficiency of gasification. Notably, the temperature of T₆ began to increase exponentially when the gasification experiment was carried out for 510 min. This indicates that the combustion process gradually intensified around the T₆ region. Moreover, the degree of backwards extension of the left gasification area is greater than that of the first four stages. At this time, the relative contents of H₂ and CO increased to 18.57% and 16.23%, respectively. In addition, the calorific value of gas production reached its highest value at this stage, with an average value of 5.12 MJ N⁻¹ m⁻³. Under the same process conditions, the average calorific value obtained in this stage is essentially the same as that of Polish lignite.²

3.3.2 Aspen plus process model. Owing to the influence of various factors, physical simulation experiments fail to fully capture the intricacies of lignite gasification. Therefore, this study integrates the Aspen Plus process model to investigate the process of lignite gasification under controlled variable conditions. The gas production of lignite is predicted on the basis of the oxygen enrichment process, ranging from 50% to 100% oxygen concentration. As shown in Fig. 7.

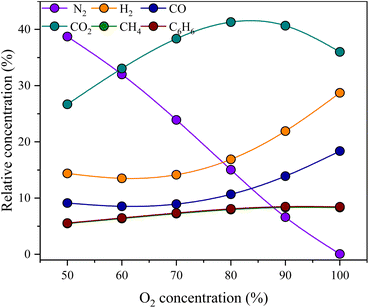

Fig. 7 Changes in the relative product concentration during the oxygen enrichment process.

Fig. 7 clearly shows that the oxygen concentration significantly controls the gas production potential of lignite. Specifically, as the oxygen concentration increases, the relative contents of available gases (H₂, CO and CH₄) increase. This observation aligns with both physical simulation experiments and previous studies on lignite gasification.^1,2,39 Notably, the output of effective gas in the physical simulation experiment is relatively lower than that in the Aspen Plus simulation. Two preliminary reasons can be speculated as follows: (1) the Aspen Plus simulation experiment represents an ideal state model where the gasification process is controlled by reactor parameters, eliminating any intermediate losses during gasification; (2) the lignite samples collected from the Chaoyang open-pit coal mine have higher ash yields, resulting in a reduced yield of effective gas components in the physical simulation experiment. Importantly, this study did not gather samples with low ash yields in this region. Consequently, it is unfortunate that this study is unable to quantitatively assess the impact of ash on the gasification efficiency through comparative experiments.

Previous studies on the relative concentration of CO₂ during underground coal gasification have shown some variations. Certain scholars argue that as the oxygen concentration increases in the gasification process, the combustion reaction within the oxidation zone gradually intensifies, leading to an increase in temperature. Consequently, heat transfer to the reduction zone promotes the reduction reaction between CO₂ and C, resulting in an increased yield of CO and a decreased amount of CO₂.⁴⁰ An increase in the oxygen concentration is believed by some scholars to increase the reaction rate between oxygen and semicoke, thereby promoting more complete combustion and resulting in an elevated CO₂ content.⁴¹

The concentration of CO₂ exhibited a pattern of initial increase followed by a decrease in both the physical and numerical simulation data, with its inflection point occurring at 90% of the oxygen concentration. This consistency validates the rationality of the numerical simulation, as described in Section 2.3. A higher concentration of oxygen leads to improved hydrogen production during lignite underground gasification. However, when the oxygen concentration is less than 80% in both simulations, the yields of hydrogen and other effective components remain low. While a higher oxygen concentration enhances the efficiency of producing gases such as hydrogen, it may also result in the complete combustion of semicoke. At an oxygen concentration of 90%, the semicoke reaches a critical value where the ratio of CO to CO₂ is maximized. After the 90% oxygen concentration was reached, the CO₂ production efficiency gradually decreased.

After a 90% concentration in both simulations, the efficiency of CO₂ production decreases with increasing degree of gasification, whereas the efficiency of the active components (H₂, CO, and CH₄) increases. Furthermore, as the degree of gasification progresses, the tar yield tends to increase. When the oxygen concentration reached 90%, the tar yield remained relatively stable. Increasing the gasification intensity has a certain inhibitory effect on tar output. Drawing from the preceding analysis, it can be inferred that at an oxygen concentration of 100%, the lignite gasification process attains a relatively stable state, exhibiting significant potential for gas production and an increased yield of valuable gaseous components. It is evident that a gasification agent with a 100% oxygen concentration is more appropriate for the underground gasification of lignite in Heilongjiang Province.

3.4 Effect of the oxygen concentration on syngas

The oxygen concentration in the gasification agent is one of the key factors for controlling underground gasification.³² As illustrated in Fig. 5 and 6, at any given stage, when the oxygen concentration remains constant, the temperature, pressure, and concentration of gas products clearly fluctuate. These fluctuations occur at a relatively gradual rate. However, when the gasification reaction stage varies, specifically with changes in the oxygen concentration, the gasification temperature, pressure, and relative concentrations of the gasification products exhibit a stepwise change trend. This finding indicates that the influence of the oxygen concentration on the gasification temperature, pressure, and gasification products is significantly more pronounced than that of the coal used for gasification.

The results of the physical simulation and Aspen Plus process modelling demonstrate that the CO₂ concentration in the syngas tends to increase when the oxygen concentration is 60%, 70%, and 80%. This phenomenon may be attributable to the rapid backwards expansion of the lignite gasification front depth when the oxygen concentration reaches 80%. Notably, the temperature is approximately 300 °C when a large amount of lignite is gasified in the above three stages. The reaction of coal combustion mainly occurs under these temperature conditions, resulting in a higher relative content of CO₂ in the syngas. This phenomenon has generally been observed in previous studies on lignite.^1,25

The relative content of CO₂ in the syngas is stable when the oxygen concentration is 90% and decreases when the oxygen concentration is 100%, which may be related to the strong gasification of lignite around the T₆ region. The temperature of a large amount of lignite is above 300 °C at this time, the combustion reaction of lignite has ended, and CO₂ is not produced in large quantities. In contrast, char gradually reacts with oxygen and water to produce CO, H₂ and CH₄. An increase in the oxygen concentration improves the intensity of gasification but also inhibits the generation of CO₂.

Physical simulations show that the relative contents of H₂ and CO in syngas are greater at the beginning of the first stage of gasification, which may be related to the easy combustion and high temperature of lignite near the ignition point. This phenomenon is not found in the Aspen plus process model. Lignite completes H₂ and CO conversion at a faster rate under the action of higher temperatures, which is consistent with the above analysis. With increasing gasification time, the gasification depth and range gradually increased, and the gasification temperature decreased to approximately 300 °C. This leads to an increase in the relative content of CO₂. In addition, in the second and third stages, the relative contents of H₂ and CO are low.

In theory, the gasification process should be continuous, and the temperature should be gradually increased. However, except for the coal near the ignition point, the deep lignite gasified slowly, and the efficiency was low, which may be related to the high ash yield of the experimental lignite. The higher ash yield (A_d = 26.43% in Table 1) hinders the transfer of gasification to greater depths, which causes the deep coal seam to remain in a low-temperature state for a long time, the relative CO₂ content to increase, and the relative contents of the other components to decrease. Previously reported gasification experiments on low-ash lignite (A_d = 4.41%) were carried out under the same oxygen enrichment process conditions.²⁷ The relative contents of H₂ and CO reached 30.42% and 26.47%, respectively, when the oxygen concentration was 80%. This result was also reported in previous studies.^6,28 Kashyap et al. reported that the volume of H₂, CH₄, and CO in high-ash coal is reduced by 5% compared with that in low-ash coal.⁶ The excessive ash yield affects the gasification rate and increases heat loss, which in turn leads to a decrease in the relative contents of H₂ and CO.

When the gasification depth increases, the temperature increases, and the oxygen concentration increases to 80%, 90%, and 100%, the relative contents of H₂ and CO increase gradually. Furthermore, the relative contents of H₂ and CO still increased after the end of the gasification experiment. This shows that the relative content of combustible gas increases with increasing oxygen concentration and gasification temperature, which may be attributed to the significant improvement in the thermodynamic conditions of the gasification reaction.¹ Notably, the relative content of CH₄ was low at all times. This may be related to the release of pressure in the fifth stage. Previous studies have shown that pressure changes can improve the quality of CH₄ and the recovery rate of volatiles in coal seams.^21,24 In the fifth gasification stage, the average relative content of effective components (H₂, CO, and CH₄) is much greater than that in the other stages. This phenomenon is reflected in both the physical simulation and the Aspen Plus process model. This means that the optimal oxygen concentration for underground lignite gasification in Heilongjiang Province is approximately 100%.

4. Conclusions

In this work, the underground gasification potential of lignite in Heilongjiang Province was investigated. The impact of the oxygen enrichment process on the gasification efficiency and product was thoroughly analysed. The main conclusions are summarized below.

(1) Using the physicochemical properties, along with the physical simulation process and pyrolysis data of lignite, a highly reliable Aspen Plus process model was developed. This model is applicable for preliminarily predicting the gasification efficiency of lignite in various regions of Heilongjiang Province.

(2) The concentration of oxygen is the primary determinant influencing gasification efficiency. It modifies the thermodynamic reaction occurring within the gasifier. The transition from lignite combustion reactions to char reactions occurs when the oxygen concentration reaches approximately 90%.

(3) The optimal oxygen concentration for lignite gasification in Heilongjiang Province was determined to be 100%. At this point, the relative concentrations of H₂ and CO reached their maximum values, denoted as 18.90% and 23.91%, respectively. The calorific value reached the highest value of 6.65 MJ N⁻¹ m⁻³ at the same time.

Data availability

The authors confirm that the data supporting the findings of this study are available within the article.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors are sincerely thankful for the financial support of the National Natural Science Foundation of China (No. 42372182; No. 42130802), a project funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD), and the Fundamental Research Funds for the Central Universities (2020CXNL11). The authors are sincerely grateful to the Editor, the Real-name Reviewers, and the Anonymous Reviewers for your specific comments on our manuscript. Your valuable advice and detailed guidance will benefit us greatly in our now and future scientific research work.
