Guodong Leiab,
Lisong Zhangab,
Mingxia Xuab,
Baoan Liu*ab and
Xun Sun*ab
aState Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China. E-mail: baliu@sdu.edu.cn; sunxun@sdu.edu.cn
bKey Laboratory of Functional Crystal Materials and Device, Ministry of Education, Shandong University, Jinan 250100, China
First published on 19th August 2024
Deuterated potassium dihydrogen phosphate (DKDP) crystals with different deuterium contents have a wide range of applications, such as frequency conversion in high power lasers, electro-optic modulation, and Q-switching crystals for Pockels cells. However, there is a lack of systematic research on the effect of deuterium content on the fundamental structure and properties of these DKDP crystals. To this end, in this study, a series of DKDP crystals with different deuterium contents have been grown using the “point-seed” rapid growth method, and the structure and properties of the crystals have been characterized. The results indicate that as the deuterium content increases, the cell parameter along the a(b)-axis direction gradually increases, and the transmittance gradually increases in the infrared range. A small amount of doping (low H or D ratio) reduces the structural integrity of the crystal, and the crystals at intermediate deuterium concentrations have better crystallinity. The thermal properties of the crystals do no change significantly with the variation in the deuterium content. Overall, these findings can serve as a useful reference for boosting the application of DKDP crystals with various deuterium contents.
At present, DKDP crystals are extensively applied in high-power laser facilities for inertial confinement fusion (ICF) and high-power optical parametric chirped pulse amplification (OPCPA) technology. DKDP crystals with different degrees of deuteration play diverse roles in different devices. In ICF engineering, DKDP crystals are mainly used as frequency doubling converters5 and electro-optic switches.6 The retracing point of DKDP crystals with deuterium content of 12% has been calculated7 to be approximately 1.05 μm, which can be used as a frequency conversion crystals for a 1.05 μm laser with a bandwidth greater than 20 nm. At the National Ignition Facility (NIF) in the USA, DKDP crystals with a deuterium content of 70% are primarily used for third-harmonic generation,8 and in the Laser Inertial Fusion Energy (LIFE) program, Z-cut DKDP crystals with a deuterium content of 98% are used as Pockels cells.8 The gradient deuterium DKDP crystals grown by continuously changing the deuterium content allow the possibility of group velocity matching and an effective conversion process for third-order harmonic generation in broadband lasers.9 At the same time, DKDP crystals can be used as frequency converters for fourth- and fifth-harmonic generation,10,11 facilitating the design of deep ultraviolet lasers.12 In OPCPA technology, DKDP crystals with different deuteration levels play a key role.13 Over the past few decades, OPCPA based on DKDP crystals with a deuterium content of 88.7% has been widely explored for the development of ultra-intense femtosecond laser systems.14 Several researchers have proposed that tens PW superintense lasers can be generated by large aperture DKDP-based OPCPA with bandwidth around 200 nm near the center wavelength of 910 or 925 nm, using DKDP crystals with deuterium content above 90%.15 Besides, the OPCPA system based on DKDP crystal (with a deuterium content of 58.3%) and pumped by 10 kJ level Nd:glass laser has emerged as an effective way to develop 100 PW pulsed lasers with pulse duration below 20 fs.16–18 By adjusting the deuteration level of DKDP crystals (with deuterium content of 70% and 98%) to change their phase matching characteristics, they can offer a wider range of applications in OPCPA.19 In addition, S. B. Bodrov et al. experimentally validated the potential of DKDP crystals as terahertz wave generators.20
The properties of crystal materials are mainly governed by their chemical composition and crystal structure, and the higher electro-optic coefficient and weaker transverse stimulated Raman scattering (TSRS) in DKDP crystals compared to KDP crystals21,22 is closely related to the changes in the crystal structure after deuteration. The homogeneity of the structure is a crucial factor affecting the physical properties of crystals.23 The inhomogeneity of the structure can change the phase-matching conditions, which may lead to spatial variations in the fluence distribution of non-homogeneous output waves or spatial variations in their temporal or spectral properties in the case of broadband sources. These variations have a detrimental impact on the output energy and beam quality for all the waves as well as on the temporal recompression of broadband waves in OPCPA systems,24 and in severe cases, they may cause crystal damage. Crystal transmittance is an important parameter for characterizing the crystal performance, and the high transmittance from near-infrared to ultraviolet bands is the foundation of applying DKDP crystals as frequency conversion devices. All these parameters affect the application of DKDP crystals in different fields. Xu et al. investigated various properties of DKDP crystals with deuterium content of 55%, 65% and 70%.25,26 Wang et al. have studied the nonlinear optical properties of DKDP crystals with a deuterium content of 12%, 70% and 80%.27 However, the effects of partial substitution of H atoms by D atoms on the integrity and properties of DKDP crystals have not been systematically analyzed yet.
With the growing application scope of DKDP crystals, it is of immense significance to examine the effect of deuterium content on the crystal properties. To this end, in this work, a series of DKDP crystals with different deuterium contents have been grown using the “point-seed” rapid growth method, and the structural integrity, transmittance, and thermal properties of the grown crystals are comprehensively investigated, which can provide reference for advancing the application of DKDP crystals with different deuterium contents.
The DKDP crystal was grown by using the point-seed rapid growth method in a 5000 ml glass bottle. The seed crystal was a Z-cut cylindrical KDP crystal, whose diameter and height were approximately 6 mm, and the growth direction was vertical. After cleaning the seed crystal, it was sealed with a special protection device and heated for 24 h, with the growth solution at 20 °C above the saturation point. Subsequently, it was cooled to 2 °C above the saturation point of the solution to remove the protection device and then naturally cooled to 0.5–0.8 °C below the saturation temperature to restore the crystal growth. Next, based on the solubility curve of DKDP and the set growth rate, the cooling curve was used to achieve rapid growth of DKDP crystals under high supersaturation. In all the experiments, FP21 program was adopted to automatically control the water bath temperature, with the temperature control accuracy of ±0.1 °C. The seed crystal rotated in the “positive-reverse-positive” mode with a speed of 77 rpm. The same growth method was used to grow KDP crystals under similar growth conditions.
The integrity of the crystal structure was analyzed by measuring the full width at half maximum (FWHM) of high-resolution X-ray diffraction (HRXRD) peak using a high-resolution X-ray diffractometer (D5005, Bruker-AXS, Germany) under a voltage of 40 kV and current of 35 mA.
No. | Crystal size (mm) | Temperature reduction range (°C) | Growth rate (mm d−1) | Ds (%) | Dc (%) | |
---|---|---|---|---|---|---|
a | c | |||||
a Ds represents the deuterium content in the solution. Here, “X% DKDP” represents the deuterium content in the crystal, the deuterium content of these DKDP crystals (Dc) is calculated according to the deuterium segregation formula,29 the two values of “Growth rate” refer to the growth rate of the crystal in the a-direction and c-direction, respectively. | ||||||
1 | 36 × 40 × 62 | 40.5–33.0 | 0.95 | 2.95 | 90 | 85 |
2 | 43 × 53 × 50 | 42.5–35.7 | 1.77 | 3.33 | 80 | 74 |
3 | 38 × 45 × 47 | 45.0–38.7 | 1.61 | 3.56 | 70 | 62 |
4 | 44 × 47 × 47 | 41.5–33.0 | 1.68 | 3.56 | 60 | 51 |
5 | 44 × 52 × 48 | 42.5–33.7 | 1.63 | 3.00 | 50 | 41 |
6 | 51 × 52 × 45 | 45.5–35.8 | 2.17 | 3.75 | 40 | 32 |
7 | 46 × 47 × 40 | 43.0–32.9 | 2.35 | 4.00 | 30 | 23 |
8 | 43 × 43 × 41 | 44.8–37.0 | 1.54 | 2.92 | 17 | 12 |
9 | 48 × 50 × 36 | 46.0–37.7 | 1.92 | 2.77 | 0 | 0 |
Fig. 1 Photographs of crystals with different deuteration contents grown by point seed technique. In the diagram, the blue grids represent 1 cm each. |
Element (ppm) | Fe | Co | Mn | Mg | Cu | Na | Ba |
---|---|---|---|---|---|---|---|
Raw materials | 0.105 | 0.003 | 0.042 | 0.022 | 0.023 | 0.421 | 0.021 |
Pyramidal sector | 0.585 | 0.030 | 0.014 | 0.072 | 0.099 | 0.948 | 0.177 |
Prismatic sector | 1.561 | 0.060 | 0.025 | 0.133 | 0.085 | 2.740 | 0.430 |
For the crystals obtained by rapid growth method, the impurity metal ion content in the prismatic sector is significantly higher than that in the pyramidal sector. Due to the alternating arrangement of positively charged K+ and negatively charged H2PO4− ions on the (100) surface of the crystal, with H2PO4− arranged on the outermost layer, the (100) surface of the crystal exhibits a negative potential.30 It is clear that metal cations with a positive potential are preferentially adsorbed on the prismatic sector of the crystal.
According to the Landolt–Börnstein table,34 the O–H–O bond length in the KH2PO4 crystal structure at room temperature is 2.487 Å, while in the KD2PO4 crystal structure, the O–D–O bond length is 2.519 Å, indicating an increase in the hydrogen bond length after deuterium atom replaces hydrogen atom. It can be seen in (Fig. 3) that the cell parameter a(b) value increases with the increase in deuterium content, while the c value has no obvious variation trend. This can be attributed to the fact that the O–D bond in the crystal structure is basically perpendicular to the c-axis (as shown in Fig. 3). As the deuterium content increases, the proportion of O–D in the crystal increases, so the value of a(b) perpendicular to the c-axis gradually increases. The lattice constant c is primarily determined by the phosphorus–oxygen tetrahedron, so its variation is small.
The DKDP crystals prepared with different deuterium contents were oriented using an X-ray crystal orientation instrument and cut vertically in the [001] direction (i.e., Z-cut) with a thickness of approximately 6 mm. After rough grinding, the blank surface was polished to an optical plane, and the crystal's rocking curve was measured. The structural integrity of the crystal was characterized by the half peak width of the rocking curve. The FWHM of the rocking curves for (004) and (200) plane of all the crystals is shown in Fig. 4.

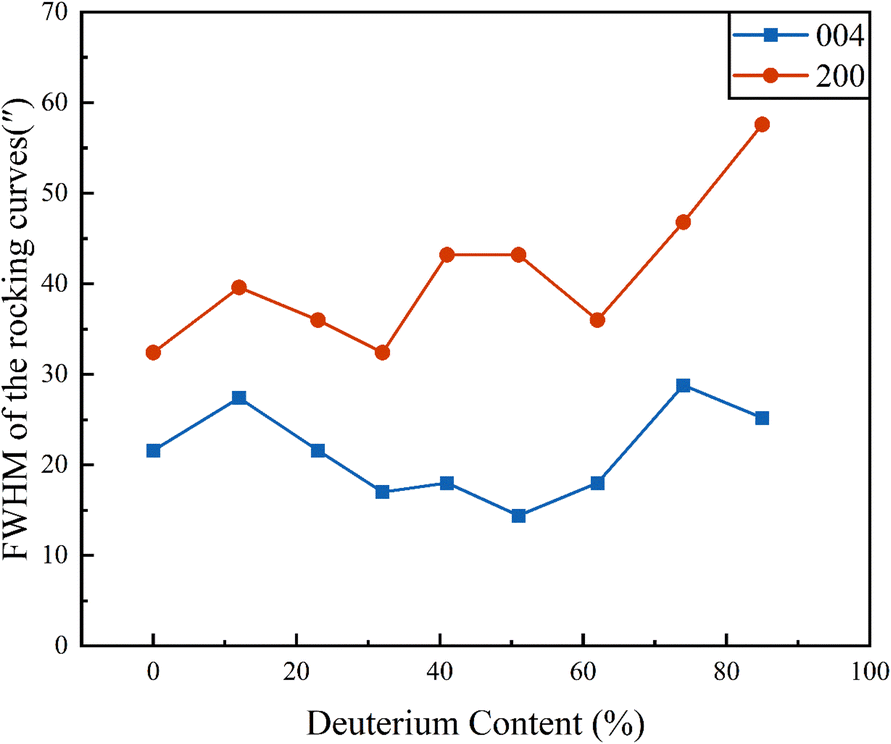

According to Fig. 4, the half peak width of the (004) crystal plane rocking curves of these crystals is relatively large at low deuterium content (12%) and high deuterium content (74%, 85%). This indicates that the 12% DKDP crystal, 74% DKDP crystal, and 85% DKDP crystal have poorer structural integrity than the other crystals, with better integrity observed at intermediate deuterium concentrations. The crystals with low and high deuterium contents can be regarded as low deuterium-doped KDP crystals and low hydrogen-doped DKDP crystals, respectively, indicating that a small amount of doping can reduce the structural integrity of the crystals. Furthermore, Liu et al. demonstrated that there are variations in the homogeneity of the deuterium content in crystals with differing deuterium concentrations, which can also influence the structural integrity of the crystals.35
The half width of the (200) crystal plane rocking curve does not show any obvious regularity, but it is much larger than that of the (004) crystal plane, which is related to the hydrogen bonds parallel to the [100] or [010] direction in the crystal structure. After the hydrogen atom on the hydrogen bond is replaced by deuterium atom, the bond length increases, causing lattice distortion on the crystal plane in this direction due to compressive stress.

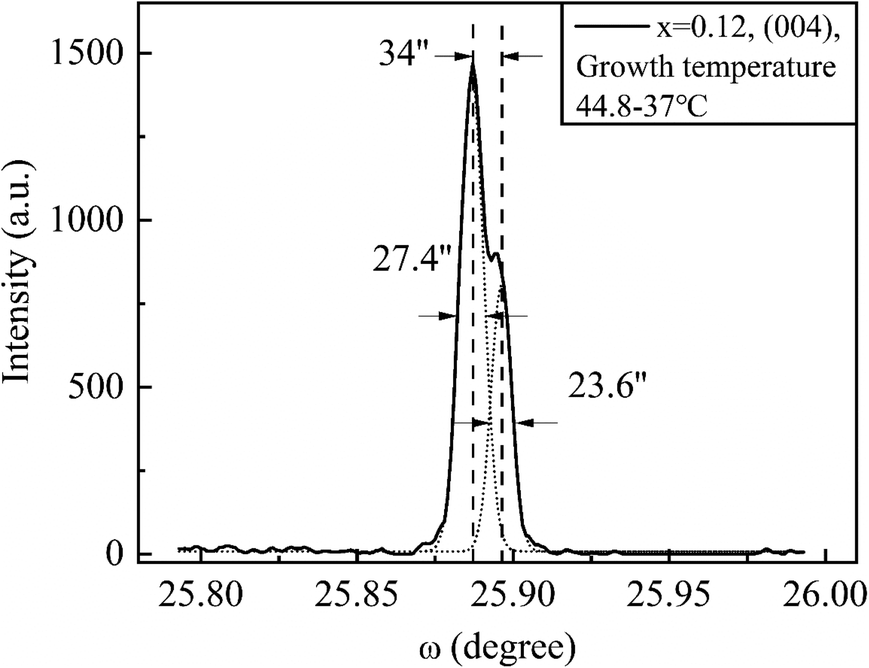

In addition, as shown in Fig. 5, unlike the diffraction patterns of other crystals, additional peaks near the main peak of the (004) crystal plane rocking curve are found in the 12% DKDP crystal. The short-dotted line in the figure is fitted by Gaussian fitting, which is consistent with the experimental curve. The additional peak is separated by 34′′ from the main peak, which is caused by the small angle grain boundaries (≤1′′) within the crystal structure.36 The orientation difference between grain boundaries and the main crystallization direction is 34′′. Although the tilt angle is small, the substitution of hydrogen atom by deuterium atom and the compressive stress generated by hydrogen bond growth between atomic layers lead to the appearance of grain boundaries in the crystal.
Fig. 6(a) and (b) show the transmission spectra of Z-cut slice and frequency tripler-cut slice of DKDP crystals with different deuterium contents. It can be seen that with the increase in the deuterium content, the transmission spectral range of the crystal increases, and the infrared cut-off edge shifts to a longer wavelength. This difference is caused by the substitution of hydrogen atom by deuterium atom in the hydrogen bond, and the binding force of D–O bond is weaker than that of H–O bond.37 Fig. 6(c) shows the transmission spectrum of DKDP crystal with 85% deuterium content. It can be seen that the spectrum of the frequency tripler-cut slice has an obvious red shift with respect of that of the Z-cut slice, and the transmission range is wider. In addition, the ultraviolet absorption of the crystal is slightly increased, which is due to the position of the sample in the cylindrical sector of the crystal. The cylindrical crystal absorbs a large number of metal impurities ions during the growth process due to its apparent negative potential, so the measured samples have obvious absorption peaks in the ultraviolet region. As shown in Fig. 6(d), the crystal shows obvious absorption peaks at 230 nm and 280 nm, which may be caused by the absorption of metal ions (Fe3+).38
Fig. 6 Transmission spectrum of the DKDP crystal (a) Z-cut plate crystal (b) tripler-cut plate crystal (c) 85% DKDP crystal (d) 41% DKDP crystal. |
κ = λ·ρ·Cp | (1) |
The density of the DKDP crystals with different deuterium contents was tested using the buoyancy method at room temperature (test temperature: 30.2 °C), and the crystal density was calculated as follows:
(2) |
The densities of the series of DKDP crystals with different deuterium contents (measured by the buoyancy method) are shown in Fig. 7. It can be seen that the density of the crystal increases with the increase in the deuterium content. This is because deuterium atoms have one more neutron in the nucleus than hydrogen atoms, with an atomic mass of 2. As deuterium replaces more hydrogen, the density of the crystal increases.
The temperature range for the constant pressure specific heat test was 25–120 °C, with a heating rate of 5 °C min−1 and constant pressure nitrogen protection. The sample was a block of 3 mm × 3 mm × 1 mm, with two tangential directions, a and c. From room temperature to 120 °C, the specific heat of the series of deuterium content crystals is shown in Fig. 8, and it can be seen that the specific heat of all crystals is between 0.8 and 1.3 J g−1 K−1.

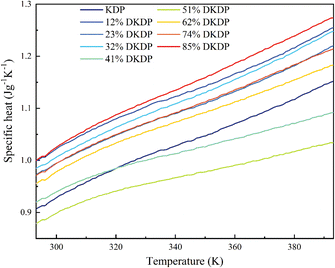

Fig. 8 Temperature dependence of the specific heat of DKDP crystals with different deuteration contents. |
For the DKDP crystal in the tetragonal crystal system, its thermal diffusion coefficient, after being spindle oriented, only has two independent principal values λ1 (=λ2) and λ3. The thermal diffusion coefficients in the [100] direction and [001] direction of crystal crystallography can be measured separately. Samples in the [100] and [001] directions were processed separately, with sample sizes of 4 mm × 4 mm × 1 mm.

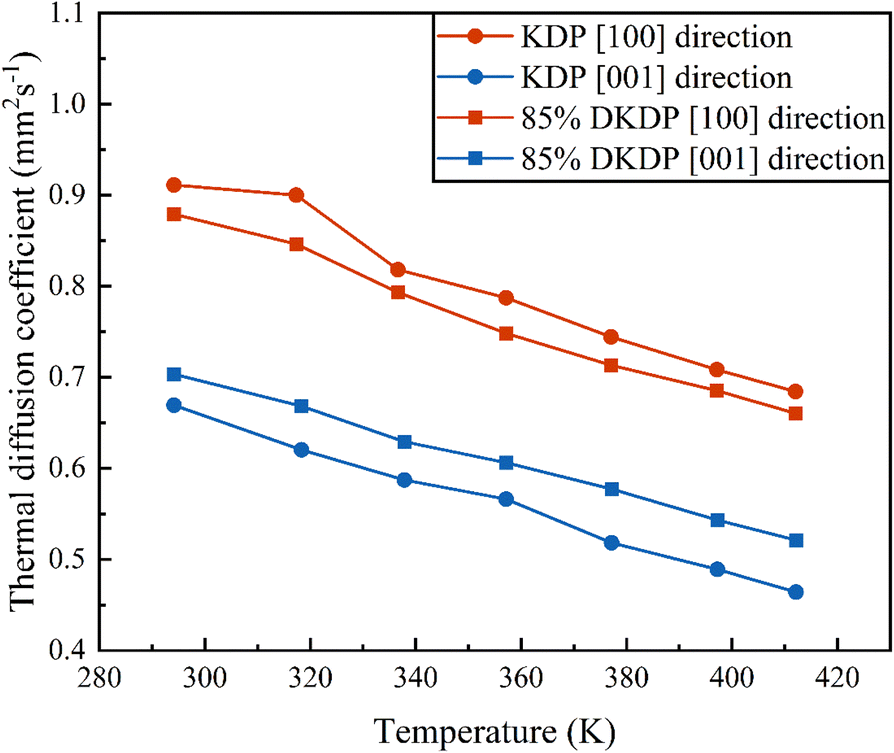

Fig. 9 shows the temperature dependent thermal diffusion coefficients of pure KDP crystals and 85% DKDP crystals. It can be seen that the thermal diffusion coefficient of the crystal decreases with the increase of temperature, and the values of the [100] direction are all greater than the [001] direction.
Based on the measured thermal diffusion coefficients of crystals with different deuterium contents and the density of these crystals previously measured by buoyancy method, the thermal conductivity of a series of deuterium content crystals were calculated using eqn (1). The thermal conductivity of crystals with different deuterium contents at room temperature is shown in Fig. 10. From the figure, it can be seen that the thermal conductivity of DKDP crystal does not show a regular change with the increase of deuterium content in the crystal. The reasons for the analysis are as follows: firstly, the quality of the crystal is closely related to the growth conditions of the crystal. The DKDP crystal sample used in this experiment was obtained by rapid growth using the point seed crystal method, and there were still some conditions that were not completely consistent during the crystal growth process. Secondly, during the rapid growth process of crystals, both pyramidal sector and prismatic sector grow simultaneously. Due to the different surface structures of the two, pyramidal sector and prismatic sector with different crystal quality are finally formed in the crystal. Although the samples for the thermal diffusion experiment are taken from the pyramidal sector of the crystal, the uneven defect distribution generated in the crystal due to growth conditions still affects the thermal diffusion coefficient of the crystal. Therefore, it is not possible to clarify the influence of changes in deuterium content on the thermal diffusion coefficient and thermal conductivity of DKDP crystals, and further experimental research is needed.
As the deuterium content in the crystal increased, the transmittance spectrum range became wider, and the infrared part of the transmittance shifted towards longer wavelengths. This difference is mainly due to the substitution of hydrogen by deuterium in hydrogen bonds, and the binding force of D–O bonds is weaker compared to H–O bonds. The spectrum of the frequency tripler slice shows a significant redshift compared to the Z-slice, with a wider transmittance range. In the ultraviolet region, the crystal exhibited significant absorption peaks at 230 nm and 280 nm, which may be due to the absorption of metal ions (Fe3+). The thermal diffusion coefficient of crystals decreased with increasing temperature, and the values of [100] direction were all greater than the [001] direction. The unexpected defects generated in the crystal due to growth conditions also may affect the thermal parameters of the crystal, making it difficult to observe the effect of deuterium content on the thermal properties of DKDP crystals. These results provide reference for the future application of DKDP crystals with different deuterium contents.
