This work presents a comparative study on the structural, optical and electrochemical characteristics of visible light driven (VLD) reduced titanium dioxide (TiO2−x) nanocatalysts synthesized via inorganic and organic synthetic routes. X-ray diffraction (XRD) patterns, Raman spectra and X-ray absorption fine structure (XAFS) analyses reflected anatase phase titania. Whereas, the quantitative EXAFS fit and XANES analysis revealed structural distortion due to the presence of oxygen and titanium vacancies with low valent Ti states in anatase lattices of certain nanocatalysts, which subsequently leads to better electrochemical and photocatalytic activities. Moreover, owing to the large surface area and mesoporous structures, the Mg–TiO2−x nanocatalysts exhibited enhanced water adsorption and ultimately increased overall water splitting with an OER overpotential equal to 420 mV vs. RHE at a current density of 10 mA cm−2 (Tafel slope = 62 mV dec−1), extended visible light absorbance, decreased photoluminescence (PL) intensity and increased carrier lifetime in comparison with commercial titania.
To overcome these limitations numerous efforts using different approaches have been adopted such as codoping,11,12 introduction of intrinsic defects13 and foreign species into the TiO2 lattice,14,15 crystal facet control16 and the mesoporous structures architecture17 etc. The morphological diversity and tunable conductivity span (semiconducting to metallic) are fascinating features of titania for enhancing optical and electrical properties. The main strategy behind these features is the defect generation that involves the optimization of conductivity, surface features, charge transport behavior and optical band gap energies of titania.18 One way to modulate the electrocatalytic properties of TiO2 nanocatalysts by using support materials (Pd), with suitable facet exposed can give an additional adjusting path to regulate the HER activities of Pd–TiO2 nanocatalysts.19 Another technique for introducing lattice defects on pristine TNTs (titanium nanotubes) is ultrasonication method. This single-atom catalysts (SACs) create triggered chemical traps provides a pathway for controllable assembling stable and highly active single-atomic site catalysts on titania support.20 Dong and co-workers, reported active and stable bifunctional plasma-induced defective TiO2−x nanocatalysts that exhibits dramatically boosted electrocatalytic activity.21 Surface defect engineering can also modulate the electronic structure of nanomaterials and induce new physicochemical properties, thus promoting their electrocatalytic performance for water splitting and CO2 reduction applications. In titania oxygen vacancies (OVs), and Ti3+ defects are common. The oxygen vacancy can significantly affect the electric and optical properties by forming a donor level located at 1.8 eV below conduction band of titania. These defects are responsible for changes in the electronic conductivity and optical properties by providing mid gap states between the valence and conduction bands of titania.22 Defects turn titania from semiconductor to metallic depending upon intensity of structural deformation. Due to oxygen vacancies (OVs), the corresponding titanium atoms are in close proximity and interact electrically, resulting in good conductivity.23
Defects can directly maximize the catalytic performance of nanocatalysts by improving the transport capacity of charge thereby triggering active reactions. In this regard researchers reported efficient electrocatalytic water splitting (i.e., a low overpotential and small Tafel slope) by ultrathin 2D materials.24 Also Ni based single atom catalyst (SAC) supported on GaN, MoS2, Mo2C, g-C2N and graphyne monolayers25 and single atom (SA)-functionalized graphitic carbon nitride (g-C2N) monolayeretc emerged as promising electrocatalysts for CO2 activation and reduction.26–28 These defect structures with high-density active sites provide excellent conductivity, thus increasing the efficiency of various electrocatalysts.
In previous studies, defects have been introduced via different physical and chemical routes like proton implantation,29 laser irradiation,30 hydrogen plasma,31 ionothermal treatment,32 electrochemical oxidation,33 electrochemical reduction,34 nitrogen doping,35 hydrogenation,36 and chemical reduction using Al,37 Mg,38 NaBH4,39 CaH2,40 N2H241 etc. Among these, physical methods tend to be more complex, requiring expensive equipment and resulting in lower defect concentrations which are undesirable in terms of improving intrinsic properties of titania. However, the reduction of high-valence state Ti from Ti4+ to Ti3+ or Ti2+ and the oxidization of low-valence state Ti from Ti2+ or Ti3+ to Ti4+ are reported to be effective chemical methods to induce high defect concentrations in Ti-based oxides.42,43 In comparison with hydrogen, metal elements such as Li, Al, Mg and Zn possess relatively high reducing activities and can partially capture oxygen atoms to leave oxygen vacancies and Ti3+ centers in lattices.37,44 Certain organic acids have also been used as modifier and structure directing agents for titania in order to achieve high surface area, porosity and narrow band gap.17 But there is still lack of systematic investigation and discussion to study the effect of inorganic and organic reducing agents on catalytic properties of titania.
In the present study, visible light driven (VLD) reduced TiO2−x is solvothermally synthesized using inorganic (Mg and Zn) and organic (L-ascorbic acid, citric acid) reducing agents. Acid treatment, in case of inorganic synthesis route further modifies the physicochemical properties of titania by increasing the surface area. The oxygen vacancies (OVs), low coordinated Ti ions (Ti3+) and lattice-strained configuration of synthesized reduced TiO2−x provide ample or sufficient active sites for electrochemical reactions (HER and OER) and extended photoresponse in visible region by modulating electrical conductivity and facilitating charge transfer kinetics, thus exhibiting better electrocatalytic and photocatalytic activities in comparison with pristine titania. Nevertheless, employing the co relational structural characterizations, such as XRD, XANES and quantitative EXAFS calculations, the local chemical environment and symmetry of reduced TiO2−x were also deduced. This study offers a comprehension overview on the physicochemical properties, local atomic arrangements and electronic structures relationship of reduced TiO2−x towards the OER, HER, and dye degradation. Accordingly, this work provides a valuable route to design high-performance, low-cost and non-precious metal oxide based multifunctional nanomaterials for photocatalysis and electrocatalytic overall water splitting.
The schematic synthesis of experimental details of EXAFS, electrochemical and photocatalytic dye degradation studies are given in ESI† S (i–iii) respectively.

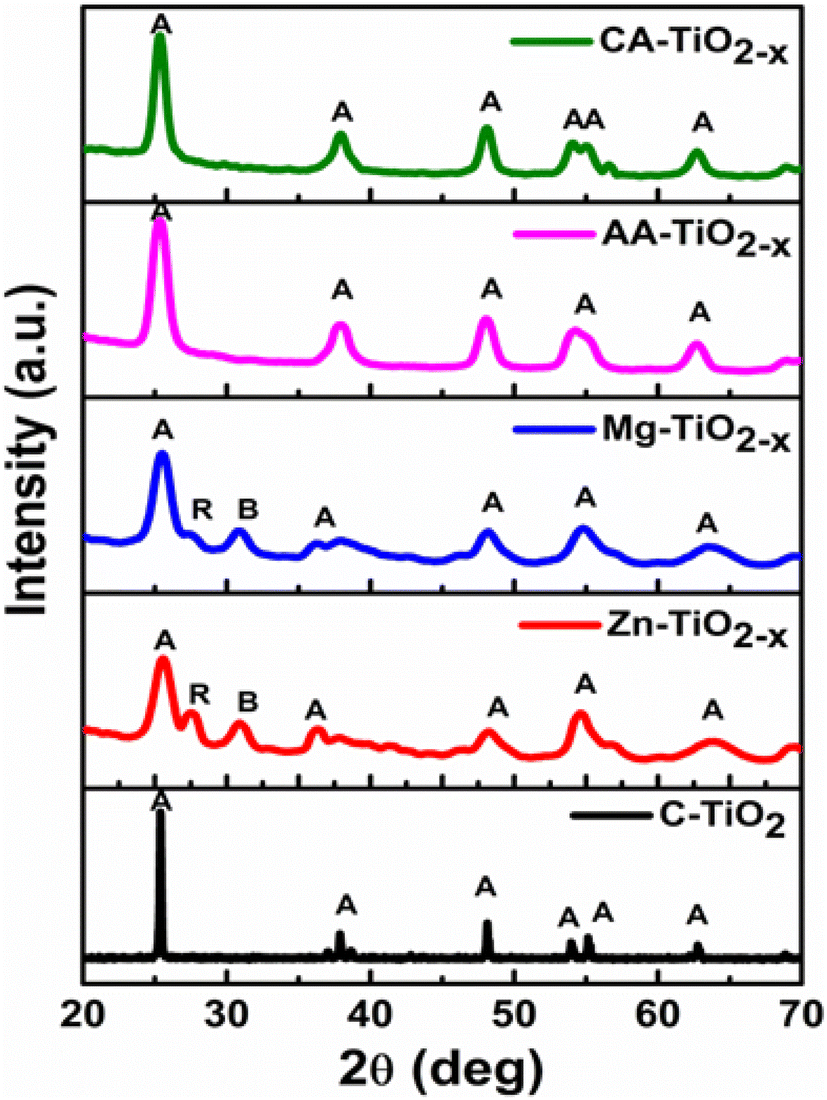

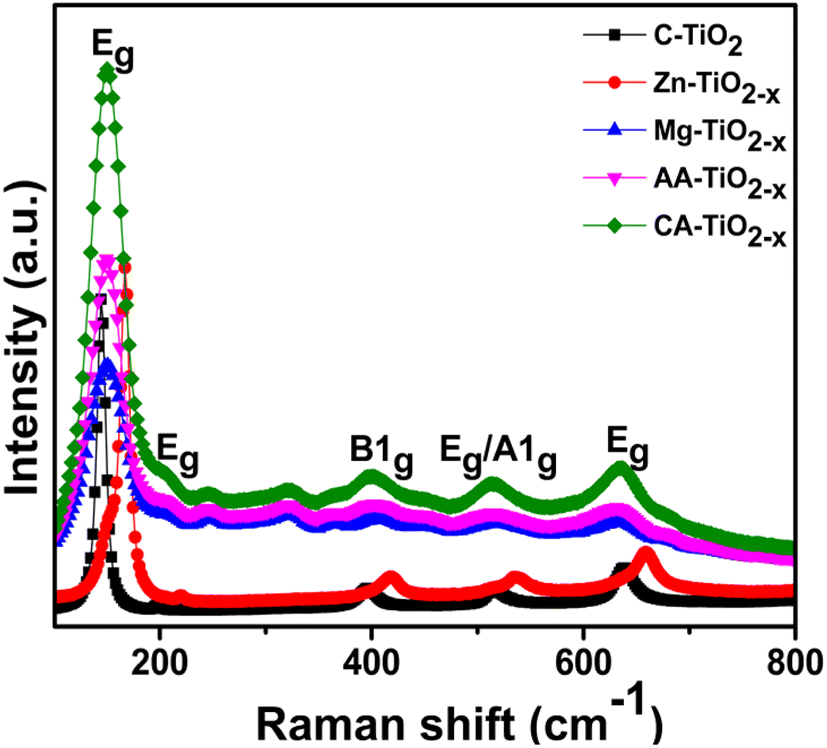

Raman spectroscopic technique was used to investigate all the nanomaterials. The Raman spectra of all samples showed six Raman active modes (3Eg + 2B1g + A1g) of anatase TiO2 (Fig. 2) which was consistent with XRD results and the previous work.38,46 For anatase titania the three bands observed at 147, 198 and 640 cm−1 were associated to Eg mode while bands at 518 and 639 cm−1 were assigned to A1g/B1g (un-resolved doublet) and A1g respectively. Out of these bands, the strongest band observed for anatase was at 147 cm−1.50 However, in comparison with the C–TiO2 nanoparticles, it was observed in Fig. 2 that the frequency of the strongest Eg mode in reduced titania samples displayed a distinct blue shift. This peak originated from external vibration of the Ti–O bonds in titania. The reduced titania samples showed change in intensity and the position of Raman bands in comparison with the commercial titania. As reported earlier, these changes can be associated with the strain, non-stoichiometry, defects and an-harmonic effects. In present case, it can be attributed that during reduction the octahedral symmetry of TiO6 was destroyed on the surface of reduced titania. So, the observed band shifting by the synthesized nanocatalysts can be attributed to the presence of defects (OVs and Tivac)46 that was also confirmed by XAS, absorbance profile, band gap energies and photoluminescence (PL) spectra.

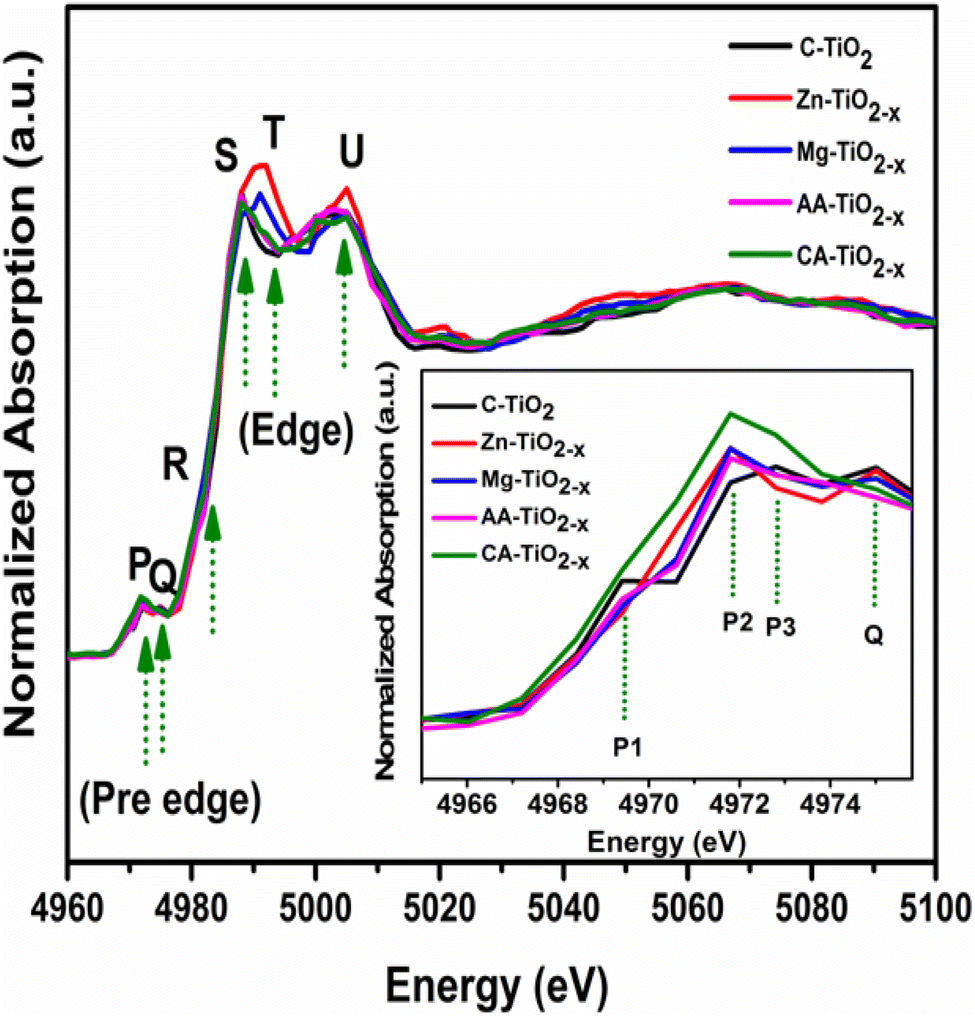

The Ti K-edge (4966 eV) X-ray absorption near edge structure (XANES) spectra of the commercial anatase titanium oxide (C–TiO2) and all reduced titanium oxides, Mg–TiO2−x, CA–TiO2−x, AA–TiO2−x and Zn–TiO2−x are shown in Fig. S1.† These spectra displayed typical pre-edge peaks (P and Q) and above-edge features (R, S, T and U) of TiO2 and the white line for all the materials. The features at the pre-edge regions are insensitive to Ti–O bond length, but are very sensitive to the Ti valence state.51 The inset of Fig. 3, the commercial titania (C–TiO2) showed all the three pre-edge features (P1, P2 and P3) that are characteristics of six-coordinated titanium (Ti6c4+) cations located in the anatase TiO2 local structure (symmetry site). These peaks were formed due to the transfer of 1s core electron to the empty 3d valence states. The peak P1 was attributed to the quadruple transition of 1s electron to the t2g states of octahedral TiO6, whereas, peak P2 and P3 assignments were controversial. However, literature reported studies revealed that P2 was either assigned to the transition of 1s core electron to eg states of octahedral TiO6 or transition to the t2g energy levels of neighboring octahedral.52 The peak P3 was corresponded to the transition of 1s electron to the eg states of neighboring Ti atoms or 4p states of absorbing atoms.52
The observed increase in the intensity of the P2 peak for the Zn–TiO2−x, Mg–TiO2−x and AA–TiO2−x reduced titania (Fig. 3) indicated distortion in TiO6 octahedron or Ti-oxide (tetrahedral or pentahedral coordination) when compared to the commercial titania, which was more pronounced in CA–TiO2. Moreover, for poorly crystalline TiO2, a distorted or defective Ti local environment increased the resonance intensity at the pre-edge peak. These tetrahedral sites were believed to be created by d–p orbital mixing and gave evidence of the presence of five coordinated (Ti5c4+).53 Though the pre-edge features was a result of 1s to 3d electron transitions (Laporte rules forbidden), however these transitions can be partially allowed by non-centrosymmetric orbital character and excited state.51 The weak shoulder peak R was formed due to the 1s to 4p transition and white line peak S was ascribed to the transition of 1s core electron to higher-lying p atomic orbital. It was further identified that commercial titania exhibited well-resolved peaks and sharp features S and T at edge, due to its high crystallinity as indicated in XRD spectra (Fig. 1). On the other hand, the reduced TiO2 materials displayed relatively broader and blurred S and T features due to the decreased crystallinity. The XANES spectrum of Zn–TiO2−x appeared slightly different in near edge region when compared to other reduced titania due to the contribution from the rutile phase, corroborated by XRD pattern (Fig. 1).
The best fits to the Ti K-edge EXAFS of all the samples were performed in R-space from 1.0 to 3.6 Å intervals with Hanning window and in the k range of 2–11 Å−1. The initial four shells of the Ti–Oeq./ax. and Ti–Ti single scattering paths till 3.6 Å with high ranked multiple scattering paths were included in the best fit analysis. The amplitude reduction factor (S02), and energy shift parameter (ΔE0) were set similar for all the scattering paths. Whereas, the change in the half-path length (ΔR) and the mean-square relative displacement (σ2) were refined relatively and the degeneracy of the O and Ti backscatterers (N) were varied accordingly with optimized minimum value of Rfactor to explore the O vacancy and Ti vacancy in the lattice for the reduced titania, achieving the best fit result. The Fourier transforms of the EXAFS data (Fig. 4(a–d)) of commercial titania and reduced titania displayed the first major peak, attributed to the Ti–O coordination shells (Ti0–Oeq. and Ti–Oax.). Whereas, the next peak appeared within the R range of 2–2.7 Å assigned to the first Ti0–Ti1 scattering path of anatase phase, as manifested in Fig. 4(a–d). The fit result manifested slightly lower number of degeneracy of the paths for first (Ti0–Oeq. = 3.8) and second (Ti–Oax. = 1.7) coordination shells of the commercial C–TiO2 when compared to the standard anatase phase lattice (Ti0–Oeq. = 4 and Ti–Oax. = 2), suggesting slight distortion in the TiO6 octahedron.
The AA–TiO2−x nanomaterial exhibited a similar structure as the commercial titania (C–TiO2), demonstrated by the approximately identical values of structural parameters (Table S1†), principally degeneracy of the paths (N) and Debye–Waller factor (σ2). These results clearly indicated the existence of partial OVs in the first and second coordination shell (Ti0–Oeq. = 3.5 and Ti–Oax. = 1.3), suggesting distorted tetrahedral or pentahedral local chemical environment around the Ti for the CA–TiO2−x nanomaterial (Table S1†) corroborated through the corresponding near edge structure (XANES) study. Nevertheless, the considerable lowering in the N values of fourth scattering paths (Ti0–Ti2) with higher values of Debye–Waller factor (σ2) indicated the generation of Ti vacancy in fourth coordination shell at Ti2 site of the lattice (Fig. 4(a and c)) with considerable structural disorder for the Zn–TiO2−x and Mg–TiO2−x nanomaterials. The 3D structure of anatase titania is presented in Fig. S2† where titanium atoms at the different positions along with the axial and equatorial oxygen atoms are also labeled.
Furthermore, SEM and EDX analyses further provided the details about the morphology and chemical composition of the as synthesized materials and commercial TiO2. The SEM images of the commercial titania nanoparticles demonstrated an almost spherical shape as shown in Fig. S3(a and b).† However, compact and agglomerated morphology of all synthesized nanocatalysts as presented in SEM images (Fig. S3† displays SEM images of Zn–TiO2−x (c and d), Mg–TiO2−x (e and f), AA–TiO2−x (g and h) and CA–TiO2−x (i and j)) which can be due to particle size reduction. This compact morphology can be related to the broadened peaks of XRD in comparison with commercial titania which are in a line with particle size calculations. EDX measurement in Fig. S4(a–e)† confirmed that all the nanomaterials were composed of Ti and O elements, implying the absence of any impurity. These results are in a line with the XRD results Fig. 1.
The pore size distribution curves presented in Fig. 5(a) revealed the existence of all reduced TiO2−x samples in mesopore range (2 nm < pore size < 50 nm). The size distribution curves showed the presence of a pore diameter of the synthesized nanocatalysts in the range of 2–7 nm. The mesoporosity of the synthesized nanocatalysts are believed to promote the diffusion and transportation of the reactants from the aqueous phase to the inner and outer surface of the catalysts. The average pore diameters of the materials are tabulated in the Table S2.† The reduced titania synthesized via inorganic routes showed greater pore widths in comparison with other nanomaterials. The nitrogen adsorption–desorption isotherms of all samples are shown in Fig. 5(b).
![]() | ||

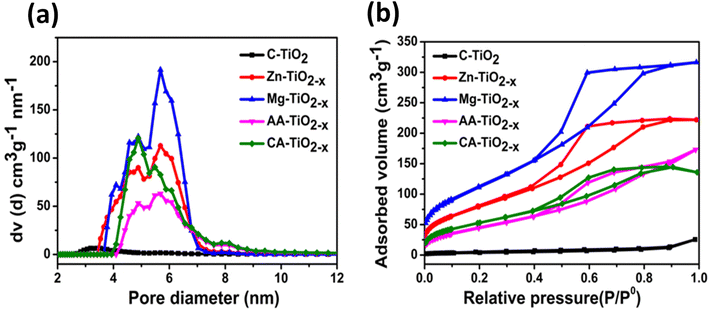

Fig. 5 (a) Pore size distribution plots of the nano-catalysts (b) N2 adsorption–desorption isotherms of all the nanomaterials. |
All the R-TiO2−x catalysts exhibited the type-IV isotherms with a clear hysteretic loop, suggesting the mesoporous features with high energy of adsorption (P/P0).54 More importantly, the reduced TiO2−x synthesized via organic and inorganic routes showed the presence of different types of hysteresis loops. According to the classification (IUPAC), the Zn–R-TiO2−x and Mg–R-TiO2−x catalysts showed the isotherm of type IV with H2 hysteresis loops in the relative pressure (P/P0) range of 0.41–0.9. Type IV isotherms are typical for mesoporous materials. The catalysts showing IV-type isotherm along with the H2 hysteresis loop are believed to possess the cylindrical channels or aggregates (blended) or agglomerates (non blended) of spherical particles55 as observed in SEM images.
The isotherms of AA–R-TiO2−x and CA–R-TiO2−x catalysts were of type IV, having mesoporous structure with H4 hysteresis loop at a relative pressure (P/P0) of 0.4–0.9. These features indicated that these nanomaterials possessed narrow slit pores and a broader inner part. The presence of organic acids significantly alter the surface area and pore structure of titania.46 Table S2† shows the specific surface area (SBET) of 247.925, 342.598, 145.654 and 228.254 m2 g−1 with pore volume (Vp) of 0.335, 0.466, 0.228 and 0.332 cm3 g−1 for Zn–TiO2−x, Mg–TiO2−x, AA–TiO2−x and CA–TiO2−x respectively. In comparison, the commercial titania possessed a barely measurable surface area of 14.243 m2 g−1 and a pore volume of 0.020 cm3 g−1. Out of all nanocatalysts, the Zn–R-TiO2−x and Mg–R-TiO2−x had greater surface area and pore volume resulting in availability of the more active sites for electrocatalytic water splitting. It has been postulated that the acidic conditions during the synthesis significantly enhanced the textural properties of titania.56 It is evident from Table S2† that the reduced titania nanocatalysts synthesized via inorganic routes undergo acid treatment and possessed larger surface area values. The large surface area and mesoporous structure could enhance the water adsorption on the catalyst surface thereby facilitating the water splitting. Therefore, the synthesized mesoporous materials not only can enhance the photocatalysis by effective solar energy harvesting within the mesopores but also provide the surface active sites for water splitting.
The optical properties of all the R-TiO2−x powdered samples and commercial titania were characterized by UV-visible spectroscopy. Fig. 6(a) illustrates the strong absorption exhibited by the commercial TiO2 in ultraviolet region, while the synthesized reduced TiO2−x samples display a broad absorption in the UV-vis region. This absorption band below 400 nm can be ascribed to the band gap excitation of anatase TiO2 that arises due to the transition from 3d orbital of Ti to 2p orbital of O.57 The band gap energies of commercial and the synthesized nanocatalysts were obtained from Kubelka–Munk function equation58(Table S3†). The plots in Fig. 6(b) depicted the reduced band gap energy for reduced TiO2−x nanomaterials i.e., below 3 eV in comparison with commercial titania. The reduced titania samples also presented an extended absorption tail known as urbach which is associated with various defects. It is reported that the new band is created below the conduction band of titania due to the presence of large number of OVs.59 The AA–TiO2−x showed increase visible light absorption, much superior to the commercial anatase that reduced its band gap below 1.5 eV. Thus introduction of defects into the structure of titania augmented the visible light absorption.60 This behavior was further compelled by the XAS data which showed the presence of the two different types of defects in the reduced titania samples.
Conventional methods of PL have been used for decades to understand the properties of titania, specifically, information like the quality of the material, the specific origin and nature of the electronic transitions that can be obtained from PL spectra.61 Generally, steady state photoluminescence (SSPL) spectrum of anatase titania represents three peaks having different type of physical origin i.e., self-trapped excitons (STE), oxygen vacancies (OVs) and surface states.62,63 From Fig. 7 it can be seen that the high intensity emission peak observed for all samples lies in the violet region at 418 nm (2.9 eV). This high intensity peak can be allocated to radiative recombination of STE for bulk TiO2.63 Furthermore, it is clear from Fig. 7 that all nanomaterials showed broader emission peak from 450 nm to 600 nm corresponding to the oxygen vacancy defects (green band located at 1.8–2.5 eV below the conduction band).64 This peak aligns with the presence of oxygen vacancy defects, which is in line with results of UV-visible spectroscopy. The distinct PL peak centered at 525 nm was more prominent in case of the synthesized nanocatalysts. After defect formation, the PL intensity of reduced titania photocatalysts were quenched significantly. This quenching behavior can be related to the defect centers that ultimately facilitate the charge transfer mechanism during photocatalysis.65
![]() | ||
Fig. 7 Steady state photoluminescence (SSPL) plots of the C–TiO2, Zn–TiO2−x, Mg–TiO2−x, AA–TiO2−x and CA–TiO2−x photocatalysts. |
Similar trend was observed for the HER (Fig. 8(c)) by all the modified titania electrocatalysts. Compared with commercial titania all the synthesized nanomaterials displayed lower HER over potential. Xu Jijian et al. reported almost 5 times greater hydrogen production by magnesium reduced titania in comparison with the unmodified titania during the photoelectrochemical water splitting.69 Similarly, Mg–TiO2−x presented lowest HER overpotential i.e., 650 mA cm−2. Table S4† compares the over potentials and Tafel slopes of all the nanomaterials. The enhanced activity of reduced titania nanocatalysts is attributed to their increased surface area and the presence of defects i.e., oxygen vacancies and titanium vacancies.
Cyclic voltammetry (CV) was conducted on all the electrodes between −0.8 and +2.1 V vs. RHE at 50 mV s−1 scan rate (Fig. 8(d)) in alkaline medium. The shape of CV curves of all the reduced TiO2−x electrodes was typical for titanium dioxide materials with a marginal capacitive in anodic region.70 However, all the modified materials showed metal reduction peaks as the electrochemical reaction proceeded; there was a possibility of change in the electronic structure of titania after reducing into the lower oxidation states.71 Thus the conductivity of R-TiO2−x was enhanced in comparison with commercial titania, as the formation of additional energy levels within the band gap is believed to influence the electrical conductivity as well as the optical properties of the material.72 Beyond the metal reduction peak, at more negative potential the hydrogen evolution process was initiated. When the potential was reversed the re-oxidation of the electrodes started. Finally, at more positive potential after 1.5 V the evolution of oxygen observed.
The basic concept behind the enhanced electrocatalytic activity of all the R-TiO2−x nanomaterials is the presence of large surface area and mesoporous structure that provide abundant space for hydrogen and oxygen adsorption. More importantly, the enhancement in conductivity of R-TiO2−x is related to the existence of defect sites (OVs and Tivac). The vacancies induce the perturbation resulting in vacancy channels via vacancy–vacancy, vacancy–strain coupling and vacancy–electron interaction.13 Thus, the commercial TiO2 showed decreased activity, due to its low conductivity and small surface area values.
Electrochemical impedance spectroscopy (EIS) is effective technique for the interpretation of phenomena such as electrocatalysis and corrosion. For analysis purposes, a model is applied to handle the data using equivalent circuits. These electrical circuits consist of different elements e.g., constant phase element (CPE), resistors, inductors and Warburg elements.73 This technique can provide insight into charge transport mechanism.74 For all electrocatalysts the constant phase model (CPE) with diffusion was applied with equivalent circuit presented in Fig. S5.† The solution resistance (Rs), charge transfer resistance (Rct), CPE and Warburg resistance (Rw) are the main parameters of this model. In order to provide additional evidence for the photocurrent response, the EIS was carried out in alkaline medium. In Fig. 9 the Nyquist plots (real Z vs. imaginary Z) of all the samples are shown, where the arc radius of these plots can be related directly to the charge transfer resistance.75 It can be seen from the Fig. 9 that the arc radii of all the samples showed trend similar to the photocurrent response in Fig. 10. The commercial titania nanocatalyst showed a larger impedance with bigger arc (inset of Fig. 9) in comparison with reduced titania samples. Table S4† presents all the fitting parameters of electrocatalysts where the least charge transfer resistance was offered by the Mg–TiO2−x electrocatalyst. Thus, with higher surface area Mg–TiO2−x can effectively decrease the recombination, which in turn leads to the high photocurrent response and improved photocatalytic activity. It is obvious that charge transfer kinetics and the catalytic ability of titania have been improved by defect generation.

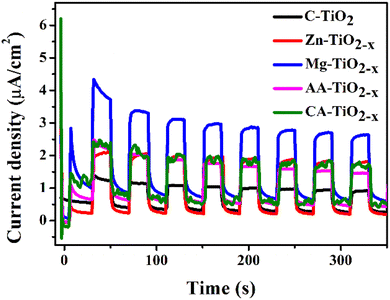

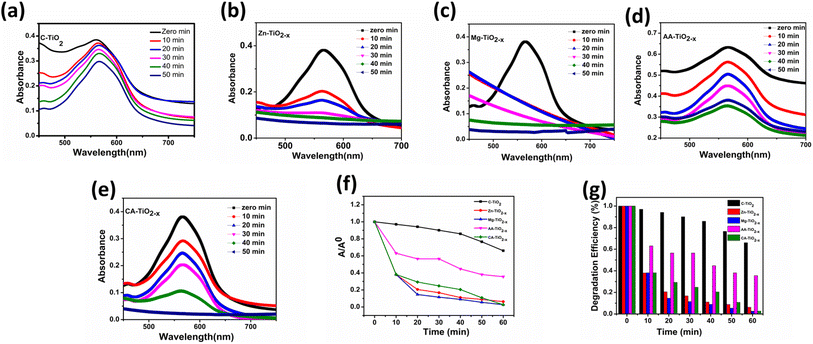

In order to investigate the photocatalytic performance, the absorbance changes of reactive blue (RB-866) dye solution was measured with all photocatalysts in the presence of sunlight. Degradation can be observed (Fig. 11(a–e)) as a decrease in absorbance maximum (λmax) at 565 nm for the reactive blue dye. The Fig. 11(f and g) represents the degradation versus time in the presence of photocatalysts. It is believed that photocatalytic activity depends on the structural, optical and surface properties of a photocatalyst.76 Among all, the Mg–TiO2−x and Zn–TiO2−x photocatalyst indicated superior photocatalytic activity which is consistent with TRPL, photoresponse and EIS results.
In the present study, the enhanced activity by the reduced titania photocatalysts can be ascribed to the increased optical absorption by defects, which facilitates the separation of photo-induced charge carriers. More importantly, the (OVs) in the reduced titania enhanced the visible light response thereby the generation of abundant electron–hole pairs, which were ultimately converted into active ions (˙O2− and ˙OH) to decompose the dye molecules. These results are similar to the magnesium doped titania catalysts that showed better photodegradation of methyl orange dye in the presence of visible light.77 Moreover, the mesoporous materials are suitable for photocatalysis because of the presence of numerous porous passages,46 as large surface area and rich pore structure of R-TiO2−x increased the probability of collision of dye molecules and the adsorbed active species on the catalyst surface. It is believed that the photocatalysis occurs on the illuminated surface, so smaller crystallite size and larger surface area results in fast transfer of adsorbed species from bulk onto the catalyst surface, causing the efficient photocatalytic activity.75
