K₃Mo₂O_5.6F_3.4 and K₃V₂O_3.3F_5.7 – exploring transition metal cation valence and anion distribution in oxyfluorides

Abstract

Oxyfluorides come in many different structures and are highly adaptable in composition, not least because of their mixed-anionic nature. Slight changes, unless specifically looked for, can easily go unnoticed. In this paper, we present two oxyfluorides, K₃Mo₂O_5.6F_3.4 and K₃V₂O_3.3F_5.7, synthesized under high-pressure/high-temperature conditions, and demonstrate the importance of careful analysis of composition, oxidation state and O/F anion distribution for an accurate description of oxyfluorides. Their crystal structures were determined by single-crystal X-ray diffraction and the transition metal cation valences analyzed by X-ray photoelectron spectroscopy (XPS). The O/F anion ratio was calculated using the principle of charge neutrality and the local distribution within the crystallographic framework was studied using bond valence (BV) and charge distribution (CHARDI) calculations. Madelung Part of Lattice Energy (MAPLE) calculations and magnetic measurements provide insight into phase stability and corroborate the mixed-valent nature of the compounds.

---

Introduction

In contrast to their parent compounds, oxides and fluorides, oxyfluorides are a comparatively young and scarcely investigated substance class. Very rare in nature, often unstable and difficult to synthesize, they have been flying under the radar of popular research for a long time. It was only recently that oxyfluorides have started to attract more scientific interest due to their potential use in nonlinear optical materials,¹ batteries,^2,3 transparent glass ceramics,⁴ solar cells^5,6 and deep-red emitting Mn⁴⁺-activated phosphor materials,⁷ to name but a few.

What ultimately determines the properties of a new compound and its usefulness in the above applications is its crystal structure. Oxyfluorides are known for their structural diversity, due in no small part to their mixed-anionic nature.^8,9 Oxygen and fluorine as anions are similar enough to share sites within the same crystallographic framework, yet different enough to have a substantial impact on the local atomic environments and, as a consequence, the optical and electronic properties of the compound in question. An excellent way of probing the boundaries of what is structurally possible are high-pressure/high-temperature experiments, as they allow us to subject samples to extreme conditions and force them to adopt structures that they would not otherwise adopt.

A handful of oxyfluorides of the general formula A₃M₂X₉ (A = alkali metal, M = transition metal and X = O, F) have already been reported in the literature. Most of them crystallize in the structure type Cs₃Cr₂Cl₉,¹⁰ likely limited in terms of structural variety by the size of the caesium cation: Cs₃V₂O₂F₇,¹¹ Cs₃V₂O₄F₅,¹² Cs₃Mo₂O₆F₃ ¹³ as well as the exchange variant Cs₃V_1.5Mo_0.5O₃F₆.¹² As for potassium variants, three representatives containing only pentavalent transition metal cations have been reported before: K₃V₂O₄F₅,^14–16 K₃Mo₂O₄F₅ ¹⁷ and K₃Nb₂O₄F₅.¹⁸ The structure of K₃V₂O₄F₅ has never been elucidated in detail, and two different datasets are available for K₃Mo₂O₄F₅: a powder diffraction file (PDF) entry from 1983 and a complete structure determination from 2012.¹⁹ K₃Nb₂O₄F₅ is the only other known A₃M₂X₉ representative containing potassium and was first reported by our group early last year.¹⁸ While quite similar to K₃V₂O₄F₅ and K₃Mo₂O₄F₅ at first glance, the oxyfluorides reported in the present investigation were synthesized under high-pressure/high-temperature conditions and crystallize in a different structure type, namely Ba₂RbFe₂F₉.²⁰ Another common point of contention in oxyfluorides is the oxidation state of the transition metal cations. This paper is the first report on A₃M₂X₉ type oxyfluorides that includes modern XPS techniques to quantitatively and reliably determine the oxidation states of the transition metal cations and, in turn, O/F ratios. Hereinafter, we explore the complex interplay between these two aspects and investigate their influence on local atomic environments through a detailed study of two new oxyfluorides K₃Mo₂O_5.6F_3.4 and K₃V₂O_3.3F_5.7.

Results and discussion

K₃Mo₂O_5.6F_3.4 and K₃V₂O_3.3F_5.7 were synthesized under high-pressure/high-temperature conditions at 8.0 GPa and 900 °C using a mixture of either KF and MoO₃ or KHF₂ and V₂O₅. The V variant can also be synthesized utilizing certain blends of V₂O₅ and VO₂. For a detailed description of the synthetic procedure, refer to the Experimental section. Transition metal cation oxidation states and their respective concentrations were determined by X-ray photoelectron spectroscopy (see section XPS measurements). The O/F ratio was subsequently calculated on the basis of charge neutrality, resulting in the final compositions K₃Mo₂O_5.6F_3.4 and K₃V₂O_3.3F_5.7.

The crystal structures of K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4

K₃V₂O_3.3F_5.7 crystallizes in the rhombohedral space group R3̄m (no. 166) with the cell parameters a = 5.7442(1), c = 21.0484(6) Å, V = 601.46(2) ų and Z = 3 at T = 300(2) K. Except for the position of the transition metal cations within their octahedral coordination sphere, K₃Mo₂O_5.6F_3.4 crystallizes isotypically to K₃V₂O_3.3F_5.7. In accordance with the size difference between Mo⁶⁺ and V^4+/5+, its cell parameters are slightly larger with a = 5.7983(1), c = 21.1801(5) Å and V = 616.68(2) ų. Details on the single-crystal data and structure refinement process are presented in Table 1. Atomic coordinates, Wyckoff positions as well as equivalent isotropic displacement parameters are included in Table 2 (V) and Table 4 (Mo). Anisotropic displacement parameters can be found in Table 3 (V) and Table 5 (Mo), a comparison of the basic crystal structure parameters and interatomic distances is shown in Table 6.

Table 1 Single-crystal data and structure refinement of K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4 with standard deviations in parentheses

Empirical formula	K3V2O3.3F5.7	K3Mo2O5.6F3.4
Molar mass/g mol^−1	380.27	463.35
Crystal system	Rhombohedral	Rhombohedral
Space group	R3̄m (no. 166)	R3̄m (no. 166)
Powder data
Powder diffractometer	STOE Stadi P	STOE Stadi P
Radiation; wavelength λ/pm	MoKα1; 70.93	MoKα1; 70.93
Temperature/K	295(2)	295(2)
a/Å	5.7390(2)	5.7830(1)
c/Å	21.0414(6)	21.1892(6)
V/Å^3	600.17(3)	613.69(3)
Single-crystal data
Single-crystal diffractometer	Bruker D8 Quest Kappa	Bruker D8 Quest Kappa
Radiation; wavelength λ/pm	MoKα; 71.073	MoKα; 71.073
a/Å	5.7442(1)	5.7983(1)
c/Å	21.0484(6)	21.1801(5)
V/Å^3	601.46(2)	616.68(2)
Formula units per cell Z	3	3
Calculated density/g cm^−3	3.15	3.74
Crystal size/mm^3	0.05 × 0.04 × 0.02	0.02 × 0.02 × 0.02
Temperature/K	300(2)	300(2)
Absorption coefficient/mm^−1	4.0	4.6
F(000)/e	546.4	641.4
2θ range/deg	5.8–75.0	5.8–65.0
Range in hkl	−10 ≤ h ≤ 10	−10 ≤ h ≤ 10
	−10 ≤ k ≤ 10	−10 ≤ k ≤ 10
	−39 ≤ l ≤ 39	−39 ≤ l ≤ 39
Total no. of reflections	10 117	11 993
Independent reflections	439	314
R int	0.0338	0.0350
Reflections with I ≥ 2σ(I)	385	291
Data; parameters	439; 23	314; 28
Absorption correction	Multiscan	Multiscan
Final R1; wR2 [I > 2σ(I)]	0.0271; 0.0622	0.0416; 0.1535
Final R1; wR2 (all data)	0.0310; 0.0655	0.0435; 0.1589
Goodness-of-fit on F^2	1.014	1.019
Largest diff. peak; hole/e Å^−3	0.96; −0.97	1.25; −0.79

---

Table 2 Wyckoff positions, atomic coordinates, equivalent isotropic displacement parameters U_eq (Ų) and site occupation factors for K₃V₂O_3.3F_5.7 (standard deviations in parentheses)

Atom	Wyckoff position	x	y	z	U eq	s.o.f.
V1	6c	0	0	0.39708(2)	0.0235(2)	0.975
V2	6c	0	0	0.4814(8)	0.021(3)	0.025
K1	3a	0	0	0	0.0218(2)	1
K2	6c	0	0	0.20694(3)	0.0274(2)	1
O1	18h	0.4883(2)	−x	0.23110(5)	0.0221(2)	0.55
F1	18h	0.4883(2)	−x	0.23110(5)	0.0221(2)	0.45
F2	9e	½	0	0	0.0569(7)	1

---

Table 3 Anisotropic displacement parameters U_ij (Ų) for K₃V₂O_3.3F_5.7 (standard deviations in parentheses)

Atom	U 11	U 22	U 33	U 23	U 13	U 12
V1	0.0260(2)	U 11	0.0185(2)	0	0	0.01300(9)
V2	0.024(5)	U 11	0.015(5)	0	0	0.012(2)
K1	0.0212(2)	U 11	0.0229(3)	0	0	0.0106(2)
K2	0.0253(2)	U 11	0.0316(3)	0	0	0.0126(2)
O1|F1	0.0245(4)	U 11	0.0211(4)	−0.0016(2)	0.0016(2)	0.0152(4)
F2	0.0514(8)	0.104(2)	0.0331(8)	0.035(2)	0.0175(5)	0.052(2)

---

Table 4 Wyckoff positions, atomic coordinates, equivalent isotropic displacement parameters U_eq (Ų) and site occupation factors for K₃Mo₂O_5.6F_3.4 (standard deviations in parentheses)

Atom	Wyckoff position	x	y	z	U eq	s.o.f.
Mo1	36i	0.004(2)	0.046(2)	0.39116(4)	0.021(2)	0.16
Mo2	3b	0	0	½	0.036(2)	0.08
K1	3a	0	0	0	0.0336(6)	1
K2	6c	0	0	0.20564(9)	0.0327(5)	1
O1	18h	0.4889(2)	−x	0.2306(2)	0.0224(6)	0.933
F1	18h	0.4889(2)	−x	0.2306(2)	0.0224(6)	0.066
F2	9e	½	0	0	0.047(2)	1

---

Table 5 Anisotropic displacement parameters U_ij (Ų) for K₃Mo₂O_5.6F_3.4 (standard deviations in parentheses)

Atom	U 11	U 22	U 33	U 23	U 13	U 12
Mo1	0.015(3)	0.021(2)	0.0262(6)	0.0007(4)	0.006(2)	0.010(2)
Mo2	0.022(2)	U 11	0.063(7)	0	0	0.011(2)
K1	0.0351(7)	U 11	0.031(2)	0	0	0.0176(4)
K2	0.0312(6)	U 11	0.0359(9)	0	0	0.0156(3)
O1|F1	0.0244(9)	U 11	0.025(2)	−0.0021(4)	0.0021(4)	0.0171(8)
F2	0.047(2)	0.070(3)	0.033(2)	0.021(2)	0.0104(9)	0.035(2)

---

Table 6 Comparison of the basic crystallographic data of K₃V₂O_3.3F_5.7, K₃Mo₂O_5.6F_3.4 and K₃Nb₂O₄F₅

Parameters	K3V2O3.3F5.7	K3Mo2O5.6F3.4	K3Nb2O4F5 ^18
Eff. ionic radius (M^n+)/Å for CN = 6	0.68 (V^5+), 0.72 (V^4+)	0.75 (Mo^6+), 0.79 (Mo^4+)	0.78 (Nb^5+)
a/Å	5.7442(1)	5.7983(1)	5.799(2)
c/Å	21.0484(6)	21.1801(5)	21.371(4)
V/Å^3	601.46(2)	616.68(2)	622.4(4)

---

Atoms	A1 = O|F, A2 = F	A1 = O|F, A2 = F	A1 = O|F, A2 = O
M1 occupancy	97.5%	92.0%	100%
M1–A1/Å	1.741(2) 3×	1.66(2)	1.816(2)
		1.83(2)	2.007(2) 2×
		2.034(5)
M1–A1 average/Å	1.741	1.84	1.943
M1–A2/Å	2.1331(3) 3×	1.895(4)	1.9338(8) 2×
		2.106(5)	2.125(2)
		2.253(9)
M1–A2 average/Å	2.1331	2.085	1.998
M2 occupancy	2.5%	8.0%	Not occupied
M2–A1/Å	1.819(9) 3×	2.068(2) 6×
	2.33(2) 3×
M2–A1 average/Å	2.07	2.068
K1–A1/Å	2.789(2) 6×	2.814(2) 6×	2.823(2) 6×
K1–A2/Å	2.8721(2) 6×	2.8991(2) 6×	2.900(2) 6×
K2–A1/Å	2.830(2) 3×	2.818(3) 3×	2.743(2) 3×
	2.9191(2) 6×	2.9492(5) 6×	2.966(2) 6×
K2–A1 average/Å	2.889	2.905	2.892
K2–A2/Å	3.1348(5) 3×	3.181(2) 3×	3.2813(8) 3×

---

The crystal structure of the title compounds can be described with cubic close packings of atoms. The anionic network atoms form distorted cubic close packed arrangements together with potassium atoms, while the transition metal cations occupy a total of 1/6^th of the octahedral voids. As there is an additional shift after every three layers, the cubic close packing is not continuous. A detailed description of the packing of atoms can be found in our previous publication for K₃Nb₂O₄F₅, which also crystallizes in the Ba₂RbFe₂F₉ structure type.¹⁸

Fundamentally, the crystal structures consist of corner sharing [VA₆]ⁿ⁻ or [MoA₆]ⁿ⁻ octahedra (M1) forming wavelike layers in the ab plane (Fig. 1). A second set of slightly elongated octahedra (M2, signified by lighter colors in Fig. 1) acts as bridges between those layers along c. The occupancy of the larger octahedral voids is quite minor at 2.5% for V and 8% for Mo, as they are generally too large to accommodate V^4+/5+ (r_V⁴⁺ = 0.72 Å, r_V⁵⁺ = 0.68 Å) or Mo⁶⁺ (r_Mo⁶⁺ = 0.73 Å) cations. The greater degree of occupancy in the Mo variant can be attributed to the incorporation of Mo⁴⁺, which possesses the perfect size to occupy these octahedral voids (r_Mo⁴⁺ = 0.79 Å). The amount of Mo⁴⁺ present within K₃Mo₂O_5.6F_3.4 was determined by XPS and correlates directly with the occupancy of the M2 octahedral voids in between the main layers (see section XPS measurements). The main M1 octahedral voids are under-occupied in both compounds (to a large extent in K₃Mo₂O_5.6F_3.4, but only slightly in K₃V₂O_3.3F_5.7), so the sum of the occupancies over both crystallographic M positions was constrained to 1. The anion distribution within the title compounds was determined using BV and CHARDI calculations in conjunction with crystallographic data (see section BV, CHARDI and MAPLE calculations). Both compounds likely contain one mixed position occupied by both O and F and one discrete position occupied solely by F. Interestingly, the situation is reversed in K₃Nb₂O₄F₅ with only oxygen present at the discrete site. While this disparity might seem unintuitive at first glance, it is a direct result of the transition metal cation's position within the octahedron. The degree and direction of deflection from the “ideal” central position plays a crucial role in determining which crystallographic sites are suitable for an anion of a given charge and size.

Fig. 1 Comparison of the crystal structures of the previously reported oxyfluoride K₃Nb₂O₄F₅,¹⁸ and its two siblings K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4. An octahedral void, which remains empty in K₃Nb₂O₄F₅ and Ba₂RbFe₂F₉,²⁰ the compound that gives the structure type its name, is occupied to varying degrees in the title compounds. The exact positions of the transition metal cations also vary from compound to compound depending on the occupancy of the anion site. All possible positions are depicted, but of course only one can be occupied per octahedron.

The potassium atoms are coordinated either in a near-perfect cuboctahedral or a distorted anticuboctahedral manner (Fig. 2). The bond lengths are quite similar when comparing the two variants, scaling ever so slightly with the size of the transition metal cation. In K₃Nb₂O₄F₅, the position of the K2 atoms is somewhat shifted, moving closer to the mixed positions and further away from the oxygen positions. In general, one would expect the opposite to be the case due to the more covalent nature of M–O bonds compared to M–F bonds. This specific discrepancy is most likely a result of the, on average, shorter M1–A2 (M = Nb, V, Mo and A2 = O, F) bond lengths in K₃Nb₂O₄F₅ compared to its V- and Mo-based counterparts (Table 6).

Fig. 2 Cuboctahedral coordination sphere of K1 and anticuboctahedral coordination sphere of K2 in K₃Nb₂O₄F₅ (left), K₃V₂O_3.3F_5.7 (middle) and K₃Mo₂O_5.6F_3.4 (right).

Powder X-ray diffraction

Rietveld refinements on powder diffraction measurements of product mixtures 1 (vanadium) and 2 (molybdenum) reveal that both K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4 can be synthesized in high purity. In addition to the bulk target phase, product mixture 1 contains small quantities of an unknown by-product (Fig. 3). Product mixture 2 is composed of approximately 98.5(1) wt% K₃Mo₂O_5.6F_3.4 and 1.5(1) wt% K₃MoO₃F₃ as well as trace amounts of a third unidentified phase (Fig. 4).

Fig. 3 Rietveld plot of product mixture 1. The observed diffraction pattern is plotted in black, the best fit profile in red and the difference curve in blue. Reflection positions of K₃V₂O_3.3F_5.7 are marked in green. Asterisks denote reflections belonging to an unknown side phase. (R_exp = 6.73%, R_wp = 12.55%, R_p = 9.61%, GooF = 1.87, background: Chebychev polynomial of 12^th order).

Fig. 4 Rietveld plot of product mixture 2. The observed diffraction pattern is plotted in black, the best fit profile in red and the difference curve in blue. Reflection positions of K₃Mo₂O_5.6F_3.4 and the minor side phase K₃MoO₃F₃ are marked in green and orange, respectively. Asterisks denote reflections belonging to an unknown side phase. (R_exp = 1.34%, R_wp = 13.46%, R_p = 9.76%, GooF = 10.08, background: Chebychev polynomial of 12^th order).

BV, CHARDI and MAPLE calculations

Theoretical oxidation states of atoms within inorganic compounds can be calculated using mathematical concepts such as BV (bond valence)^21–24 and CHARDI (charge distribution).^25–27 These calculations allow for an evaluation of specific crystallographic positions based on their local environment and may offer valuable information in cases where certain distinctions are difficult or impossible to make using only crystallographic data. For the title compounds, these calculations first hinted at the presence of V⁴⁺ in K₃V₂O_3.3F_5.7 and allowed for a clear assignment of fluorine and oxygen to its two anion positions. Both methods are based on Pauling's well-known concept of bond length/bond strength combined with Hoppe's theory of effective coordination numbers.^28–30 While BV relies on the use of empirically determined parameters for its calculations,^31–33 CHARDI adopts a Madelung-type (point-charge) description of ionic crystal structures using only real observed distances, eliminating the need for pre-determined parameters altogether.³⁴

Bond valence sums (BVSs) for both compounds were calculated for all possible bonding scenarios and subsequently weighted according to their probability of occurrence. Mixed as well as incomplete occupancies were treated by multiplying the bond valence contribution with the occupancy for all affected bonds. CHARDI values were calculated using the program CHARDI2015 developed by Nespolo and Guillot.³⁵ At only 2.5%, occupancy of the V2 site was too low to allow for an accurate prediction of its oxidation state, so it had to be removed for the calculation of CHARDI values.

The calculation results deliver a clear picture regarding the anion distribution in both K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4. Large differences in metal–anion bond lengths typically make identification of the nature of the anion straightforward. In K₃V₂O_3.3F_5.7, V1 is deflected along a special axis towards the mixed positions, simplifying the process of distinction even more so (Table 7). In K₃Mo₂O_5.6F_3.4, the deflection of the Mo atom is more nuanced, resulting in a total of six possible positions within a single octahedron. Although this makes the assignment of anions to specific positions somewhat more difficult and leaves more room for interpretation, the differences in bond lengths to A1 and A2 are still large enough on average to allow a reasonable distinction (Table 8). Anisotropic displacement parameters also support the assignment (see Fig. 1, Tables 3 and 5).

Table 7 Charge distribution in K₃V₂O_3.3F_5.7 calculated using BV (∑V) and CHARDI (∑Q)

	V1	V2	K1	K2	O1|F1	F2
∑V	+4.34	+3.19	+1.42	+1.13	−1.54	−0.91
∑Q	+4.65	—	+1.00	+1.00	−1.55	−1.00
Average	+4.50	—	+1.21	+1.07	−1.55	−0.96
Theoretical value	+4.65	+4.00	+1.00	+1.00	−1.55	−1.00

---

Table 8 Charge distribution in K₃Mo₂O_5.6F_3.4 calculated using BV (∑V) and CHARDI (∑Q)

	Mo1	Mo2	K1	K2	O1|F1	F2
∑V	+5.39	+3.82	+1.44	+1.22	−1.86	−1.28
∑Q	+5.94	+3.96	+0.99	+0.99	−1.96	−1.02
Average	+5.67	+3.89	+1.22	+1.11	−1.91	−1.15
Theoretical value	+6.00	+4.00	+1.00	+1.00	−1.94	−1.00

---

Regarding cation charges, an average calculated charge of +4.50 for V1 was the first indication that +5 might not be the sole oxidation state of V as we had originally assumed (due to the use of V₂O₅ as a starting material). This finding prompted further investigations by magnetic measurements, which indicated a distribution of approximately 1 : 1 for V⁴⁺ : V⁵⁺ (see section magnetic measurements on K₃V₂O_3.3F_5.7) as well as a quantitative determination of the distribution by XPS (see section XPS measurements), suggesting an average charge of +4.65 for the V atoms. While CHARDI makes good predictions across the board, the BV method seems to have some difficulty accurately predicting the charges for positions Mo1 and K1 (both variants) in particular, underestimating the former and overestimating the latter.

In accordance with the increase in octahedron size, the charges for V2 and Mo2 are calculated to be significantly lower at +3.19 and +3.89, respectively, outlining the inadequacy of the larger M2 octahedral void as a host for V^4+/5+ and Mo⁶⁺. While the residual electron density at that position is quite minor in K₃V₂O_3.3F_5.7 at ≈2.3 e Å⁻³ (equating to ≈2.5% V), it is substantial in K₃Mo₂O_5.6F_3.4 at ≈9.8 e Å⁻³ (equating to ≈8% Mo). In contrast, K₃Nb₂O₄F₅, which shares all the main structural features with the two oxyfluorides presented here, but exhibits a different anion distribution and deflection of the transition metal cation, shows essentially no residual electron density at that position.¹⁸ The main M1 octahedral void in K₃V₂O_3.3F_5.7 can host both V⁵⁺ (r_V⁵⁺ = 0.68 Å) and V⁴⁺ (r_V⁴⁺ = 0.72 Å), making it so only very few atoms find their way into the larger, less adequate M2 octahedral void in between the main layers. For K₃Mo₂O_5.6F_3.4, the size difference between the two available transition metal cations is more pronounced (r_Mo⁶⁺ = 0.73 Å, r_Mo⁴⁺ = 0.79 Å), rendering one octahedral void much more suitable for a cation of a given charge than the other.

The Madelung Part of Lattice Energy (MAPLE) of a new compound can be used to validate the proposed structure model by comparing the calculated value to the sum of MAPLE values of the simple (most often binary) components.^36–38 For fluorido- and oxidometalates, a difference between those two values of less than 1% indicates a plausible structure model.³⁹ The values of the target compounds as well as all theoretical components were calculated using the program MAPLE V4 developed by Hübenthal.⁴⁰ Due to a limitation of the program, the heavily under-occupied M2 octahedral sites could not be considered in the calculations. Instead, occupancy of the main M1 sites was increased to 1 to compensate for the missing transition metal cations and achieve charge neutrality. Because both V⁴⁺ as well as V⁵⁺ are located at the same crystallographic position in K₃V₂O_3.3F_5.7, the exact composition could be used for the calculation. The sum of all theoretical components could, however, only be calculated to K₃V₂O₃F₆, as the complexity of the real composition could not be matched using simple binary and ternary components. Oxygen and fluorine are similar enough to still yield a difference in the MAPLE values of only 0.81%, indicating a plausible structure model (Table 9).

Table 9 Comparison between the calculated MAPLE values for K₃V₂O_3.3F_5.7 and the corresponding theoretical starting materials KF (Fm3̄m), VO₂F (R3̄c) and KVOF₃ (C2/m) according to the equation: 2KF + VO₂F + KVOF₃ → K₃V₂O₃F₆. Due to the complex sum formula of the target phase, the O/F ratio does not match exactly

KF (Fm3̄m),^43 kJ mol^−1	908 (×2)
VO2F (R3̄c),^44 kJ mol^−1	18 296
KVOF3 (C2/m),^45 kJ mol^−1	12 384
Σ of starting materials, kJ mol^−1	32 496
K3V2O3.3F5.7, kJ mol^−1	32 762
Difference, kJ mol^−1	266
Difference in %	0.81

---

In the case of K₃Mo₂O_5.6F_3.4, consideration of the “real” sum formula would have necessitated a reduction of the main Mo atoms’ charge from +6 to +5.8. Since we suspect the vast majority of Mo⁴⁺ to be situated at the M2 octahedral site, this reduced charge model does not represent reality, as a difference in the MAPLE values of 6.22% further emphasizes. To compensate for that, a second calculation was carried out using the sum formula K₃Mo₂O₆F₃, essentially ignoring the existence of the approximately 8% Mo⁴⁺ present within the compound. This special treatment leads to a difference in the MAPLE values of 0.44%, indicating a sensible structure solution in the absence of Mo⁴⁺ (Table 10). The small amount of Mo⁶⁺ reduced to Mo⁴⁺ during synthesis can easily be hosted by the much larger M2 octahedral void, as evidenced by BV and CHARDI calculations.

Table 10 Comparison between the calculated MAPLE values for K₃Mo₂O₆F₃ and the corresponding theoretical starting materials KF (Fm3̄m) and MoO₃ (Pbnm) according to the equation: 3KF + 2MoO₃ → K₃Mo₂O₆F₃

KF (Fm3̄m),^43 kJ mol^−1	908 (×3)
MoO3 (Pbnm),^46 kJ mol^−1	25 344 (×2)
Σ of starting materials, kJ mol^−1	53 412
K3Mo2O6F3, kJ mol^−1	53 177
Difference, kJ mol^−1	235
Difference in %	0.44

---

The two sets of calculations for the title compounds further reinforce some of our experimental observations. The V variant is only stable when vanadium is present in both oxidation states +5 and +4 simultaneously. Any attempts at synthesis of the target phase using only V⁴⁺ lead to the formation of K₂VOF₄ instead. Blends of V₂O₅ and VO₂ can, however, be used to synthesize samples of equal purity, as long as the V⁴⁺ concentration does not exceed 35%. Beyond that critical point, K₂VOF₄ is formed as a side phase proportional to the amount of excess V⁴⁺. This suggests either that the V⁴⁺ content is variable within a certain window of approx. 35–58% due to percentage-based in situ reduction of V⁵⁺, or more likely that the reduction is conditional and ceases at approx. 35% to facilitate the formation of the new phase. V₂O₅ has been reported to go through a sequence of transformations from its original state via VO₂ to V₂O₃ upon heating to 600 °C in a vacuum.⁴¹ While obviously influenced by the extreme synthesis conditions in our case, we suspect that this process is likely cut short by the formation of the title phase, limiting the thermal decomposition of V₂O₅.

For the Mo-based compound, we measured several single crystals and found varying amounts of Mo located at the larger M2 octahedral site ranging from 5–8%. With MAPLE calculations predicting a perfectly stable structure for K₃Mo₂O₆F₃ without the presence of any Mo⁴⁺ or occupancy of the M2 site, we do not believe the reduction of Mo⁶⁺ to play a major role in the formation of the new compound. Instead, we suspect that a small but varying amount of MoO₃ naturally decomposes to MoO₂ and O₂ at high temperatures,⁴² leading to the incorporation of Mo⁴⁺ into the M2 octahedral void, which happens to be perfectly sized to host a cation of this nature.

Magnetic measurements on K₃V₂O_3.3F_5.7

The K₃V₂O_3.3F_5.7 sample behaves like a Curie–Weiss paramagnet above 50 K (Fig. 5, top). Fitting of the 10 kOe measurement according to a modified Curie–Weiss law reveals an experimental magnetic moment of 0.95(1)μ_B V atom⁻¹. The Weiss constant is Θ_P = 3.3(1) K and the temperature independent contribution χ₀ = −0.003(1) × 10⁻⁵ emu mol⁻¹. For the ionic formula splitting 3K⁺ 2 V⁴⁺ 2O²⁻ 7F⁻ with solely tetravalent vanadium (d¹ system) one would expect an effective magnetic moment of 1.73μ_B per V⁴⁺ ion.⁴⁷ The simultaneous presence of both fluorine and oxygen, distributed over the same crystallographic sites, does, however, provide a lot of leeway in terms of possible oxidation states for vanadium. Considering a composition of 3K⁺ V⁴⁺ V⁵⁺ 3O²⁻ 6F⁻ with half of the vanadium atoms in the pentavalent state, only half the moment is expected to occur. We can thus conclude, that the sample most likely contains a distribution of domains of compositions K₃V⁴⁺_2−xV⁵⁺_xO_2+xF_7−x with x around 1. Mixed-valence vanadate compounds have previously been reported to possess magnetic moments corresponding to non-integer numbers of electrons.^48–50

Fig. 5 Magnetic properties of a sample with the composition K₃V₂O_3.3F_5.7 (top) Temperature dependence of the magnetic susceptibility and its inverse (χ and χ⁻¹ data) recorded with an external field of 10 kOe (bottom) magnetization isotherms recorded at 3, 10 and 50 K.

The recorded magnetization isotherms are shown at the bottom of Fig. 5. For the 10 and 50 K isotherms, we observe linear increases as expected for paramagnetic materials. The 3 K magnetization isotherm shows a continuous, field-induced increase of the magnetization with the highest magnetization of only 0.26(1)μ_B V atom⁻¹ at 3 K and 80 kOe. Thus, much higher field strengths are necessary for full parallel spin alignment. The low value of the magnetization is also an indication of the low proportion of V⁴⁺ in the studied sample.

XPS measurements

As BV calculations as well as magnetic measurements indicated the simultaneous presence of multiple oxidation states in K₃V₂O_3.3F_5.7, XPS measurements were carried out on both title compounds to be able to experimentally determine the oxidation states as well as their relative concentration. Initial survey spectra of K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4 confirmed the presence of all expected elements along with adventitious carbon (Fig. 6a).

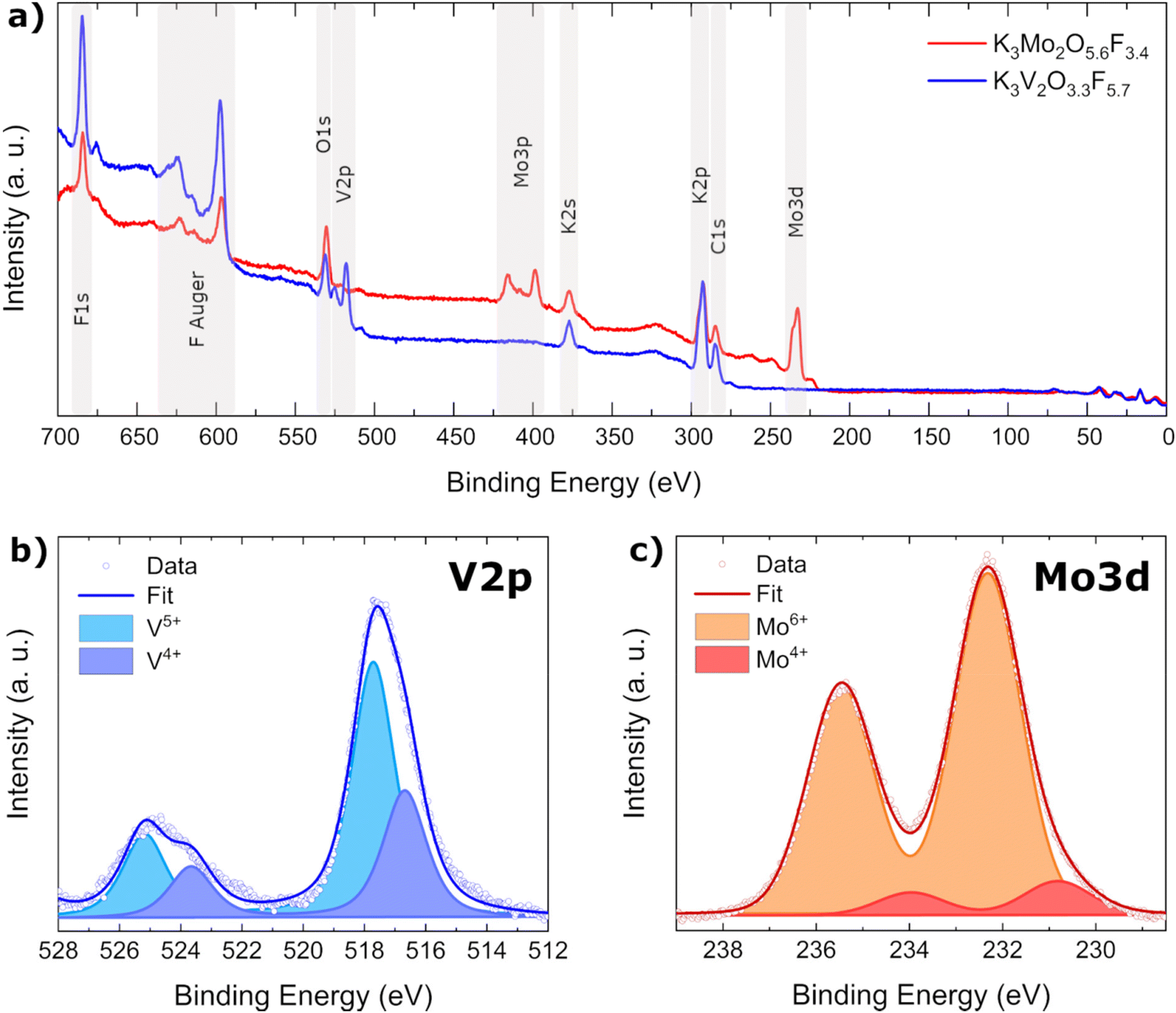

Fig. 6 (a) XPS survey spectra of K₃Mo₂O_5.6F_3.4 (red) and K₃V₂O_3.3F_5.7 (blue) with the most intense core level signals labeled. Detailed scans of the core level peaks are presented in (b) for V2p in K₃V₂O_3.3F_5.7 and in (c) for Mo3d in K₃Mo₂O_5.6F_3.4.

In order to distinguish between individual oxidation states of Mo and V atoms, their respective 3d (Mo) and 2p (V) core level peaks were measured and the data fitted with Voigt profiles to calculate the atomic ratios from the integrated areas (Fig. 6b and c). For details on the fitting procedure, refer to the Experimental section. As indicated by our previous investigations, vanadium is present in two different oxidation states, namely V⁵⁺ and V⁴⁺ in a ratio of approximately 1.9 : 1. Molybdenum also exhibits two different oxidation states: Mo⁶⁺ and Mo⁴⁺. The highly charged Mo⁶⁺ cation is heavily favored, with a ratio of 10 : 1. The amount of Mo⁴⁺ determined by XPS (approx. 9%) is directly proportional to the occupancy of the larger M2 octahedral void in K₃Mo₂O_5.6F_3.4 (approx. 8%).

Having determined concentrations and charges of the cations, it is possible to calculate the amount of oxygen and fluorine present in each compound using the principle of charge neutrality: K₃Mo_1.8⁶⁺Mo_0.2⁴⁺O_5.6F_3.4 and K₃V_1.3⁵⁺V_0.7⁴⁺O_3.3F_5.7.

Conclusion

Oxyfluorides exhibit an incredible degree of compositional adaptability due to their mixed-anionic nature. Even seemingly straightforward synthetic routes can lead to unexpectedly complex products. When both oxygen and fluorine are present as anions, it may no longer be easy to derive cation oxidation states. Similarly, it can be difficult to predict exactly how certain starting materials will behave under a given set of reaction conditions, especially extreme ones. Partial oxidation or reduction of suitable cations during synthesis can alter local atomic environments and influence the distribution of O/F anions in the final product. In some cases, such as with K₃V₂O_3.3F_5.7, mixed valence is crucial for phase stability. In other cases, such as with K₃Mo₂O_5.6F_3.4, cations of different oxidation states can be accommodated in different ways and to varying degrees. The exact influence of cation oxidation state and O/F anion distribution on compound formation and stability is complex and not easily predicted. To accurately describe oxyfluorides and understand their nuances, it is important to consider how the two interact with and influence each other.

Experimental section

Synthetic procedure

Both K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4 were synthesized under high-pressure/high-temperature conditions employing a special multianvil setup for a uniaxial 1000 t frame press (Max Voggenreiter GmbH, Mainleus, Germany). The starting mixtures were prepared in a glovebox (MBraun Inertgas-System GmbH, Garching, Germany) under argon atmosphere by simple weighing and thorough homogenization in an agate mortar. 50.00 mg (0.6402 mmol) KHF₂ (Alfa Aesar, 99+% metals basis) and 33.27 mg (0.1829 mmol) V₂O₅ (Merck, extra pure) in a stoichiometric ratio of 3.5 : 1 served as the starting materials for the synthesis of K₃V₂O_3.3F_5.7. Alternatively, a mixture of V₂O₅ and VO₂ (Alfa Aesar, 99% metals basis) may be used, provided that the concentration of tetravalent vanadium does not exceed 35%. In the case of K₃Mo₂O_5.6F_3.4, a stoichiometric (3 : 2) mixture of 30.00 mg (0.5164 mmol) KF (Fluka, >99.0%) and 49.55 mg (0.3443 mmol) MoO₃ (Merck, >99.5%) proved to yield the purest product. The resulting powders were subsequently transferred into a platinum capsule (99.95%, Ögussa, Vienna, Austria), which was, in turn, placed inside a boron nitride crucible (Henze Boron Nitride Products AG, Lauben, Germany). In the next step, the crucible was inserted into a ZrO₂ sleeve, whose inside is coated with graphite. The graphite acts as a resistive heating element with the ZrO₂ being responsible for keeping the heat inside the reaction chamber. Molybdenum platelets on either side of the cylindrical construction enable conductivity from the graphite oven to the outside. The construction was then inserted into the pressure medium – an octahedron consisting of MgO doped with 5% Cr₂O₃. The octahedral assembly was further surrounded by eight tungsten carbide cubes (Hawedia, Marklkofen, Germany) with truncated corners and held together by six glass fiber reinforced plastic panels. The experimental setup was completed upon placement of the cube into a Walker-type module alongside six steel anvils to allow for a quasi-hydrostatic compression of the sample using a uniaxial (vertical) hydraulic press. More detailed descriptions of various multianvil assemblies can be retrieved from the literature.^51–54

The reaction conditions for the syntheses of the title compounds are identical. First, the starting materials were compressed to 8.0 GPa in 215 min followed by an increase in temperature to 900 °C. The temperature was held constant for an additional 30 min before it was reduced to 350 °C in 60 min. At that point the reaction was quenched, reaching room temperature in a matter of minutes. To complete the experiment, the pressure acting on the assembly was gradually reduced to atmospheric pressure over a period of 900 min. The octahedral assembly was removed from the experimental setup and transferred into a glovebox. The platinum capsule holding the sample was then recovered, separated from other assembly materials and opened to reveal a dark green (K₃V₂O_3.3F_5.7) or deep red (K₃Mo₂O_5.6F_3.4) polycrystalline sample (Fig. 7).

Fig. 7 Photographs of K₃V₂O_3.3F_5.7 (left) and K₃Mo₂O_5.6F_3.4 (right) under an optical microscope at 1.5× magnification. The shade of green of K₃V₂O_3.3F_5.7 can vary quite heavily from experiment to experiment, sometimes appearing almost entirely black.

Single-crystal X-ray diffraction

A glovebox-stored sample of each title compound was transferred onto a microscope slide and covered with perfluoropolyalkylether to prevent oxidation and/or hydrolysis during the selection of suitable single crystals under a polarization microscope outside of the glovebox. Each crystal was subsequently mounted onto a Bruker D8 Quest single-crystal diffractometer (Bruker, Billerica, USA) equipped with a Photon III C14 detector system. Measurements were carried out at an ambient temperature of 300(2) K using MoKα radiation (λ = 71.073 pm) generated by an Incoatec Microfocus X-ray tube (Incoatec, Geesthacht, Germany) in conjunction with a multilayer monochromator.

Diffraction data was collected with the program APEX V2021.4-0.⁵⁵ Data reduction, integration and unit cell refinement were carried out in SAINT-V 8.40B.⁵⁶ A multi-scan absorption correction was applied to the intensity data using the software SADABS-2016/2.⁵⁷ Initially, space groups R3 (no. 146) and R3̄ (no. 148) were considered for structure solution. An ADDSYM^58,59 check in PLATON⁶⁰ indicated the presence of higher symmetry, suggesting space group R3̄m (no. 166) instead. Using the structure refinement and analysis program OLEX2,⁶¹ the structure was solved in the proposed space group R3̄m (no. 166) using SHELXTL-2018/2 ⁶² and refined with the OLEX2.REFINE⁶³ refinement package employing Gauss–Newton minimization. The datasets used for refinement were restricted to angles below 75° for K₃V₂O_3.3F_5.7 and 65° for K₃Mo₂O_5.6F_3.4 to account for limited diffraction intensity at larger angles due to comparatively small crystal size (especially in the case of K₃Mo₂O_5.6F_3.4). Atomic coordinates were standardized using the PLATON subroutine STRUCTURE TIDY⁶⁴ to allow for effortless comparison between the two title compounds and other related structures. All visual representations of the crystal structures were created with DIAMOND 4.6.8.⁶⁵

Powder X-ray diffraction

Powder diffractograms of high-purity K₃V₂O_3.3F_5.7 and K₃Mo₂O_5.6F_3.4 were recorded on a STOE STADI P diffractometer (STOE & CIE GmbH, Darmstadt, Germany) operating in Debye-Scherrer transmission geometry. To prevent reactions with oxygen and/or air moisture, the samples were finely ground and sealed inside soda-lime glass capillaries prior to removal from the glovebox. Ge(111)-monochromatized MoKα₁ radiation (λ = 70.93 pm) diffracted by the sample was recorded on a DECTRIS MYTHEN2 DCS4 detector system. The measurement was carried out at an ambient temperature of 295(2) K across a 2θ range of 2.0–42.0° with a step size of 0.015°. Rietveld refinements of the recorded diffractograms were performed using the software package DIFFRAC^plus-Topas 4.2 (Bruker AXS, Karlsruhe, Germany).⁶⁶

XPS measurements

For XPS measurements, finely ground powders of both title compounds were applied as a thin layer to a conductive adhesive tape using a fine brush. The tape was then stuck onto the sample holders and transferred to an ultra-high vacuum system. Measurements were performed using a non-monochromatic MgKα source (VG) with an excitation energy of 1253.6 eV. The emitted photoelectrons were detected by a hemispherical analyzer (Specs, Phoibos 100) at pass energies of 90 eV for the survey scans and 20 eV for the detailed scans. Due to the inherently low conductivity of powdered samples, a charge induced shift of all binding energies by 5.5 eV (K₃V₂O_3.3F_5.7) and 5.07 eV (K₃Mo₂O_5.6F_3.4) was observed. This was corrected during data processing by shifting the 1s core level peak of adventitious carbon to 284.7 eV and adjusting the rest of the dataset accordingly. To determine the oxidation state and relative concentration of the individual V and Mo atoms, the core level peaks of Mo3d and V2p were fitted using the software XPSPEAK 4.1 ⁶⁷ using Voigt profiles and assuming a Shirley background. To distinguish between oxidation states of vanadium, O1s core level peaks were used as a reference point.⁶⁸ The obtained fit has a full width at half maximum (FWHM) of 1.88 eV with a Lorentzian/Gaussian ratio of 23%. The spin–orbit splitting of the peaks is 7.58 and 7.30 eV for V⁴⁺ and V⁵⁺, respectively. The Mo3d core level doublet was fitted with a FWHM of 1.7 eV, a Lorentzian/Gaussian ratio of 11% and a spin–orbit splitting of 3.15 eV.

Magnetic measurements

The sample with the initial composition K₃V₂O_3.3F_5.7 was pure on the level of X-ray powder diffraction and ground to a fine powder. It was filled into a polypropylene capsule for investigation, using the Vibrating Sample Magnetometer (VSM) option of a Physical Property Measurement System (PPMS) by Quantum Design. The capsule was inserted into a brass sample holder, which was attached to the sample holder rod of the VSM. The sample was then investigated in a temperature range from 2.5 to 300 K through measurements of M(T,H) with applied fields up to 80 kOe. Fitting and plotting of the data was performed with OriginPro 2016G⁶⁹ and graphical editing with the program CorelDRAW2017.⁷⁰
