Ashley M.
Allen
,
Laura N.
Olive
,
Patricia A.
Gonzalez Franco
,
Shiblee R.
Barua‡
,
Wesley D.
Allen
and
Henry F.
Schaefer
III
*
Center for Computational Quantum Chemistry, University of Georgia, Athens, Georgia 30602, USA. E-mail: ccq@uga.edu
First published on 28th August 2024
Fulminic acid (HCNO) played a critical role in the early development of organic chemistry, and chemists have sought to discern the structure and characteristics of this molecule and its isomers for over 200 years. The mercurial nature of the extremely flat H–C–N bending potential of fulminic acid, with a nearly vanishing harmonic vibrational frequency at linearity, remains enigmatic and refractory to electronic structure theory, as dramatic variation with both orbital basis set and electron correlation method is witnessed. To solve this problem using rigorous electronic wavefunction methods, we have employed focal point analyses (FPA) to ascertain the ab initio limit of optimized linear and bent geometries, corresponding vibrational frequencies, and the HCN + O(3P) → HCNO reaction energy. Electron correlation treatments as extensive as CCSDT(Q), CCSDTQ(P), and even CCSDTQP(H) were employed, and complete basis set (CBS) extrapolations were performed using the cc-pCVXZ (X = 4–6) basis sets. Core electron correlation, scalar relativistic effects (MVD1), and diagonal Born–Oppenheimer corrections (DBOC) were all included and found to contribute significantly in determining whether vibrationless HCNO is linear or bent. At the all-electron (AE) CCSD(T)/CBS level, HCNO is a linear molecule with ω5(H–C–N bend) = 120 cm−1. However, composite AE-CCSDT(Q)/CBS computations give an imaginary frequency (51i cm−1) at the linear optimized geometry, leading to an equilibrium structure with an H–C–N angle of 173.9°. Finally, at the AE-CCSDTQ(P)/CBS level, HCNO is once again linear with ω5 = 45 cm−1, and inclusion of both MVD1 and DBOC effects yields ω5 = 32 cm−1. A host of other topics has also been investigated for fulminic acid, including the dependence of re and ωi predictions on a variety of CBS extrapolation formulas, the question of multireference character, the N–O bond energy and enthalpy of formation, and issues that give rise to the quasibent appellation.
In 1800 the English chemist Edward Howard first prepared salts of fulminic acid by reacting mercury oxide, nitric acid, and ethanol.1,13–15 The explosive properties of these salts led Howard to call them “fulminating,” appropriately drawing from the Latin fulminare meaning “to strike like lightning.”1,13,16 However, the primitive methods of quantitative analysis at the time were unable to elucidate the true identity of the compounds. Liebig was particularly fascinated by silver fulminate and in 1824 discovered that its percentage composition was identical to that of the silver cyanate prepared by Wöhler.1,15,17 As such, fulminic and cyanic acids gained widespread acclaim as examples of the newly discovered phenomenon of isomerism.17 Fulminate salts emerged as the predominant detonator for firing projectiles in the 19th century, and Alfred Nobel even introduced fulminate cartridges for the safe use of dynamite.1,14
The quest to definitively establish the bonding in fulminic acid persisted for over a century.1,18–31 Fulminic acid was initially regarded as a two-carbon compound originating from ethanol, leading to many erroneous attempts at structural characterization.1,28–31 However, in 1894 Nef asserted that experimental evidence pointed to a one-carbon CNOH structure for fulminic acid, making it identical to carbyloxime.19–21 A formyl nitrile oxide structure (HCNO) was proposed22 as early as 1899 and favored by a theoretical analysis of free energies by Pauling in 1926,23 but retention of the oxime formula persisted well into the 1950s.1 Proof of the formyl nitrile oxide structure was finally obtained by Beck and coworkers in 1965–66 after the IR spectrum of pure gaseous fulminic acid revealed H–C–N–O connectivity.24,25
Even after the connectivity was ascertained accurately, characterizing fulminic acid still proved elusive, as suspicions grew that the species was quasilinear. This classification is generally given to molecules with a nonlinear electronic minimum but a low barrier to linearity, allowing large-amplitude bending motion that engenders rovibrational spectra reminiscent of a linear framework.7,32 Fitting the microwave spectrum recorded by M. Winnewisser and Bodenseh33 to a linear structure gave rise to a disturbingly short rs(C–H) distance; moreover, the lowest-frequency bending vibration ν5 could not be located by Beck and Feldl25 in the IR spectrum. The first experimental information for ν5 was later obtained from analysis of the rotational transitions of seven HCNO excited vibrational states in 1969.34
Although a wealth of low-resolution microwave, millimeter-wave, and infrared data had accumulated by 1974,35–37 the highly anharmonic, large-amplitude nature of the H–C–N bending vibration of fulminic acid was not clearly established until measurement and analysis in that year of the high-resolution far-infrared spectrum between 180 and 420 cm−1 with 0.1 cm−1 resolution.38 One year later, Stone39 performed a rigid-bender treatment of the ν5 fundamental and overtone bands of HCNO and DCNO and extracted an associated one-dimensional model potential function with an equilibrium H–C–N angle of 161° and a barrier to linearity of 70 cm−1. Shortly thereafter, the anomalous vibrational dependence of the observed rotational constants and l-doubling interactions were analyzed with a simple rovibrational Hamiltonian, placing the H–C–N angle near 170° and the barrier to linearity at only 2 cm−1.40 Substantial improvements in the previous analyses were made in 1979 by Bunker and coworkers,41 who used a semirigid bender Hamiltonian to fit the entire body of known HCNO and DCNO rovibrational energy separations.33–38,42–51 They concluded that vibrationless HCNO is linear within the uncertainty of the analysis but zero-point motion or vibrational excitation of the complementary stretching modes produces a nonlinear minimum on the effective potential curve for large-amplitude H–C–N bending.41 In 1983 Jensen52 extended the semirigid bender Hamiltonian to also account for the ν4 C–N–O bending mode and confirmed the conclusions reached by Bunker et al.41 Technical details of this landmark research41,52 that deemed the molecule “quasibent” are discussed below when our new theoretical results are presented.
High-resolution rovibrational spectroscopy of the ground electronic state of HCNO and DCNO continued in earnest through the early 2000s. Additional infrared bands of HCNO in the 500–657 cm−1 region were characterized;53 moreover, 46 l-sublevel vibrational satellites were assigned in the millimeter wave spectrum involving rotational transitions within excited vibrational manifolds having up to 4 quanta of bending.6 The vibrational band origins of HCNO were ascertained for nearly every state in the 700–7000 cm−1 region, revealing networks of anharmonic resonances.54–57 Far-infrared data for HCNO and DCNO were further refined to a precision of 0.0012 cm−1 (FWHM) in 2000.54 Infrared, far-infrared, microwave, and millimeter wave spectra were obtained and analyzed for five isotopologues of HCNO.58–65 Finally, in recent years the paradigmatic energy levels of fulminic acid involving the H–C–N bending mode have been analyzed via several novel approaches, including Lie algebraic methods,66 as well as quantum monodromy67 and quantum phase transitions68,69 within a champagne-bottle potential.
Even almost two centuries after its initial discovery, fulminic acid and its isomers captivated quantum chemists.32,70–84 Electronic structure computations gave muddled results for the equilibrium geometry of HCNO, as strong dependence on the orbital basis set and electron correlation method were observed. The struggles of early ab initio work with low levels of theory and small basis sets revealed the difficulty of the problem.70,71 In 1982, Farnell, Nobes, and Radom72 obtained a linear equilibrium structure for HCNO at the MP3/6-31G** level and computed harmonic vibrational frequencies as a function of the H–C–N angle; the zero-point vibrational energy of the complementary modes was shown to favor a bent structure, but this correction was not sufficient to overcome the Born–Oppenheimer potential function that favored linearity. In contrast, in 1989 a bent equilibrium structure was obtained at MP2/6-31G** with a nonnegligible barrier to linearity of 0.64 kcal mol−1.73 Similarly, in 1991 both the 6-31G** and 6-311G** basis sets produced bent structures at the MP2 and MP4 levels but linear structures at MP3 and CISD; MCSCF/DZP also gave a bent molecule, while MRCISD computations built on these MCSCF wave functions yielded either linear or bent structures depending on the choice of reference space.74 The robust and newly popularized CCSD(T) theory was applied to HCNO for the first time in 1992 by Rendell, Lee, and Lindh,75 predicting a linear structure upon use of a TZ2P basis set; however, four years later another study found that improving the method to CCSD(T)/cc-pVQZ produced a bent equilibrium geometry with a minuscule 7 cm−1 barrier to linearity.76 This led Albert and Quack85 to comment in a 2007 report that prevailing quantum chemical research had failed to provide a full understanding of the observed rovibrational spectra of HCNO.
More recently in 2008, Mladenović and Lewerenz77 computed both frozen-core and all-electron CCSD(T) results with the cc-pVXZ (X = 2–6) and cc-pCVXZ (X = 2–5) basis sets. The optimized H–C–N bending angle of fulminic acid varied nearly 30° with basis set, but the best results trended toward a true linear equilibrium structure. The CCSD(T) computations were extended in 2009 to the aug-cc-pCVXZ (X = 2–5) family of basis sets, which predicted a linear HCNO structure at the complete basis set (CBS) limit.32 Thus far, only one ab initio study from Cambridge in 1993 has performed full 6-dimensional variational computations for HCNO rovibrational states.78 Practical limitations dictated a rather low level of theory (MP2/DZP) for generating 561 energy points, which were fit to various model potentials constructed from expansions in simple internal coordinates comprising up to 55 terms.78 Considerable difficulty was encountered in obtaining good analytical fits, and the ν5 results proved to be unstable with respect to the choice of model potential.78 While a full 6-dimensional treatment of the HCNO problem was a cutting-edge accomplishment in 1993, the underlying MP2/DZP surface exhibits a bent HCNO minimum with ∠H–C–N = 148.1° and a barrier to linearity of 332 cm−1, features now known to be unrealistic.
To date, the quasibent/quasilinear nature of fulminic acid has not been probed by any high-order coupled cluster method beyond CCSD(T), and the impact of relativistic effects (MVD1) and diagonal Born–Oppenheimer corrections (DBOC) has not been assessed. Moreover, structures at the CBS limit are sparse, and corresponding harmonic vibrational frequencies are nonexistent in the current literature. We have discovered that previous work failed to converge to the ab initio limit and that even more rigorous quantum chemical methods are essential in finally solving the HCNO problem. Therefore, in the present study, high-level electron-correlation methods as extensive as CCSDT(Q), CCSDTQ(P), and even CCSDTQP(H) are employed in conjunction with complete basis set (CBS) extrapolations using the cc-pCVXZ (X = 4–6) basis sets to accurately pinpoint the equilibrium structure, harmonic vibrational frequencies, and relative energies of HCNO via focal point analyses (FPA). Scalar relativistic effects (MVD1) and diagonal Born–Oppenheimer corrections (DBOC) are also studied. The well-established linear HCN molecule was used as a benchmark to demonstrate the extreme accuracy of our computational techniques used on HCNO.
The wavefunction computations were executed using the family of correlation-consistent polarized-valence orbital basis sets cc-pVXZ (X = D, T, Q, 5, 6) and the related core-valence basis sets cc-pCVXZ (X = D, T, Q, 5, 6) developed by Dunning and coworkers.99–101 To make the CCSDTQ(P) and CCSDTQP(H) jobs tractable, the 6-31G* Pople basis set102 was used instead of cc-pVDZ; the legitimacy of this replacement was carefully established. The electronic energies for CCSD(T) and lower levels were computed with the CFOUR 2.0103,104 package, while those of CCSDT and higher levels through CCSDTQP(H) were obtained with the MRCC105,106 program, either as a standalone package or interfaced with CFOUR.
The primary CBS extrapolations of the cc-pCV(Q,5,6)Z Hartree–Fock total energies (EHF) and the cc-pCV(5,6)Z all-electron MP2, CCSD, and CCSD(T) correlation energies (Ecorr) were performed according to the following equations:107,108
EHF(X) = EHF,CBS + be−cX | (1) |
Ecorr(X) = Ecorr,CBS + bX−3 | (2) |
EHF(X) = EHF,CBS + be−(X−1) + ce−(X−1)2 | (3) |
![]() | (4) |
![]() | (5) |
Ecorr(X) = Ecorr,CBS + bX−c | (6) |
Ecorr(X) = Ecorr,CBS + b(X − c)−3 | (7) |
A composite focal point analysis (FPA) scheme113,114 was utilized to obtain CCSDT, CCSDT(Q), CCSDTQ, CCSDTQ(P), CCSDTQP, and CCSDTQP(H) energies targeting the CBS limit. The following correlation increments (δ) were employed:
δ[CCSDT] = Ecorr(CCSDT/cc-pVTZ) − Ecorr(CCSD(T)/cc-pVTZ) | (8) |
δ[CCSDT(Q)] = Ecorr(CCSDT(Q)/cc-pVTZ) − Ecorr(CCSDT/cc-pVTZ) | (9) |
δ[CCSDTQ] = Ecorr(CCSDTQ/6-31G*) − Ecorr(CCSDT(Q)/6-31G*) | (10) |
δ[CCSDTQ(P)] = Ecorr(CCSDTQ(P)/6-31G*) − Ecorr(CCSDTQ/6-31G*) | (11) |
δ[CCSDTQP(H)] = Ecorr(CCSDTQP(H)/6-31G*) − Ecorr(CCSDTQ(P)/6-31G*) | (12) |
EFPA = EHF,CBS + Ecorr,CBS[CCSD(T)] + δ[CCSDT] + δ[CCSDT(Q)] + δ[CCSDTQ] + δ[CCSDTQ(P)] + Δ(MVD1) + Δ(DBOC) | (13) |
A custom Mathematica119 program was written for this research to evaluate composite FPA energies, optimize geometries, and calculate harmonic vibrational frequencies in internal coordinates, all by specifying lists of energy points to be computed with the electronic structure codes and then processing the data upon completion of the sundry jobs. Energy gradients and diagonal quadratic force constants were obtained numerically from customary 3-point single-displacement formulas, whereas off-diagonal quadratic force constants were determined from two additional double displacements [(+, +) and (−,−)]; the displacement sizes were 0.005 Å for bond distances and 0.02 rad for angles. A key to getting results at such high levels of theory was the implementation of highly efficient optimization algorithms. Steps in the optimization of linear structures were found by defining an analytic potential function within Mathematica for the force field expansion complete through fourth order and then minimizing this function via built-in modules; for this purpose, the gradients and quadratic force constants evaluated at the given level of theory were augmented with AE-CCSD(T)/CBS cubic and quartic force constants120 listed in the ESI.† Steps in the optimization of bent geometries were taken via the full Newton-Raphson method elaborated with controlled damping or dilation of the step vector. Finally, the Mathematica program was used for error analyses in which random fuzz of a chosen order of magnitude was added to the input energies followed by recalculation of the final results for geometric parameters and harmonic frequencies. Such simulations were executed 1000 times to ascertain standard deviations in the final results as a function of the imparted uncertainty in the energies. In our computations, the largest final step in the CC iterations was (2.9 × 10−10, 9.8 × 10−11) Eh for energies around (linear, bent) stationary points, while the underlying HF energies were more tightly converged. The key conclusion from our simulations is that such energy convergence yields accuracy better than (10−5 Å, 0.01°, 0.1 cm−1) in the predicted (distance, angles, frequencies). The lone exception is the pair of C–N–O bending frequencies of bent HCNO at the AE-CCSDT(Q)/CBS level, whose accuracy is better than 1 cm−1, despite the numerical difficulties associated with a very nearly linear heavy-atom framework.
T 1 | T 2,max | D 1 | D 2 | C 0 | C 1 | C 2 | C 3 | |
---|---|---|---|---|---|---|---|---|
a At the AE-CCSDTQ(P)/CBS + MVD1 optimized geometries. b At the AE-CCSDT(Q)/CBS optimum geometry. | ||||||||
HCNa | 0.012 | 0.0867 | 0.029 | 0.178 | 0.958 | −0.121 | −0.121 | 0.078 |
Linear HCNOa | 0.018 | 0.0745 | 0.053 | 0.179 | 0.943 | −0.113 | −0.113 | 0.080 |
Bent HCNOb | 0.018 | 0.0746 | 0.053 | 0.179 | 0.942 | −0.114 | −0.113 | 0.080 |
The development of new diagnostics for multireference electronic character and criticism of traditional metrics is an ongoing topic of research.125–129 Fortunately, in the current study we can obtain definitive electronic structure information using MOLPRO130–133 to perform full-valence CASSCF/cc-pVXZ (X = D, T) computations for HCNO and HCN with (16, 13) and (10, 9) active spaces, respectively. The resulting CI coefficients based on CASSCF natural orbitals were virtually independent of whether the cc-pVDZ or cc-pVTZ basis set was utilized or whether the geometries were optimized at the CASSCF level or set to our highest-quality structures. A representative sample of results is given in Table 1. For all three species, the HF reference has C0 > 0.94, and the next most important contributions arise from a pair of π2 → (π*)2 excited determinants with CI coefficients near −0.12. No other configuration has a coefficient greater than 0.08 in magnitude. Such CI coefficients are typical of molecules widely considered to be single-reference species. In brief, HCNO is indeed strongly dominated by a single configuration, and the nature of its electronic structure is very similar to that of HCN. Finally, the similarity of the coupled-cluster diagnostics and CASSCF CI coefficients indicates that a change to multireference behavior is not a factor in the large-amplitude H–C–N bending motion of fulminic acid.
Level of theory | r e(H–C) | r e(C–N) | ω 1(σ) | ω 2(π) | ω 3(σ) |
---|---|---|---|---|---|
HF/cc-pCVQZ | 1.05698 | 1.12326 | 3607.8 | 877.1 | 2408.4 |
HF/cc-pCV5Z | 1.05690 | 1.12319 | 3608.5 | 876.7 | 2407.9 |
HF/cc-pCV6Z | 1.05689 | 1.12319 | 3608.6 | 876.5 | 2407.8 |
HF/CBS | 1.05688 | 1.12319 | 3608.6 | 876.5 | 2407.8 |
AE-MP2/cc-pCV5Z | 1.06264 | 1.15969 | 3475.2 | 727.5 | 2051.0 |
AE-MP2/cc-pCV6Z | 1.06260 | 1.15942 | 3475.3 | 729.8 | 2051.9 |
AE-MP2/CBS | 1.06255 | 1.15907 | 3475.4 | 733.3 | 2053.1 |
AE-CCSD/cc-pCV5Z | 1.06311 | 1.14549 | 3474.9 | 756.6 | 2201.2 |
AE-CCSD/cc-pCV6Z | 1.06303 | 1.14519 | 3475.5 | 758.4 | 2202.5 |
AE-CCSD/CBS | 1.06292 | 1.14478 | 3476.2 | 761.1 | 2204.2 |
AE-CCSD(T)/cc-pCV5Z | 1.06524 | 1.15300 | 3444.6 | 728.5 | 2134.8 |
AE-CCSD(T)/cc-pCV6Z | 1.06516 | 1.15271 | 3445.0 | 730.3 | 2135.9 |
AE-CCSD(T)/CBS | 1.06508 | 1.15232 | 3445.6 | 733.1 | 2137.4 |
AE-CCSDT/CBS | 1.06495 | 1.15175 | 3447.0 | 734.8 | 2144.3 |
AE-CCSDT(Q)/CBS | 1.06509 | 1.15333 | 3443.5 | 728.7 | 2126.7 |
AE-CCSDTQ/CBS | 1.06504 | 1.15303 | 3444.5 | 729.3 | 2130.8 |
AE-CCSDTQ(P)/CBS | 1.06505 | 1.15327 | 3444.0 | 728.6 | 2127.7 |
AE-CCSDTQ(P)/CBS + MVD1 | 1.06491 | 1.15307 | 3444.1 | 728.5 | 2127.3 |
Empirical134,135 | 1.06501(8) | 1.15324(2) | 3442.5(1) | 726.9(2) | 2127.2(4) |
Level of theory | r e(H–C) | r e(C–N) | r e(N–O) | ω 1(σ) | ω 2(σ) | ω 3(σ) | ω 4(π) | ω 5(π) | F 44 | F 45 | F 55 |
---|---|---|---|---|---|---|---|---|---|---|---|
HF/cc-pCVQZ | 1.0526 | 1.1226 | 1.1894 | 3640 | 2499 | 1313 | 647 | 603 | 0.204 | 0.153 | 0.875 |
HF/cc-pCV5Z | 1.0526 | 1.1223 | 1.1898 | 3639 | 2497 | 1310 | 646 | 604 | 0.205 | 0.152 | 0.871 |
HF/cc-pCV6Z | 1.0526 | 1.1223 | 1.1899 | 3639 | 2497 | 1310 | 646 | 604 | 0.206 | 0.152 | 0.870 |
HF/CBS | 1.0526 | 1.1223 | 1.1899 | 3639 | 2497 | 1310 | 646 | 604 | 0.206 | 0.152 | 0.869 |
AE-MP2/cc-pCV5Z | 1.0564 | 1.1706 | 1.1910 | 3529 | 2264 | 1325 | 560 | 283i | −0.0003 | 0.164 | 0.690 |
AE-MP2/cc-pCV6Z | 1.0564 | 1.1703 | 1.1911 | 3528 | 2263 | 1324 | 559 | 273i | 0.002 | 0.163 | 0.687 |
AE-MP2/CBS | 1.0564 | 1.1700 | 1.1911 | 3527 | 2263 | 1324 | 558 | 260i | 0.005 | 0.162 | 0.685 |
AE-CCSD/cc-pCV5Z | 1.0575 | 1.1481 | 1.1978 | 3525 | 2346 | 1291 | 576 | 318 | 0.081 | 0.153 | 0.729 |
AE-CCSD/cc-pCV6Z | 1.0574 | 1.1478 | 1.1977 | 3525 | 2346 | 1291 | 576 | 325 | 0.083 | 0.152 | 0.728 |
AE-CCSD/CBS | 1.0574 | 1.1474 | 1.1976 | 3525 | 2347 | 1291 | 576 | 334 | 0.086 | 0.152 | 0.727 |
FC-CCSD(T)/cc-pCV5Z | 1.0605 | 1.1609 | 1.2041 | 3492 | 2278 | 1266 | 551 | 82i | 0.033 | 0.157 | 0.673 |
AE-CCSD(T)/cc-pCV5Z | 1.0593 | 1.1587 | 1.2019 | 3498 | 2287 | 1272 | 554 | 54 | 0.037 | 0.154 | 0.680 |
FC-CCSD(T)/cc-pCV6Z | 1.0605 | 1.1607 | 1.2042 | 3492 | 2278 | 1266 | 551 | 54i | 0.035 | 0.157 | 0.673 |
AE-CCSD(T)/cc-pCV6Z | 1.0593 | 1.1584 | 1.2019 | 3497 | 2286 | 1272 | 554 | 89 | 0.039 | 0.154 | 0.677 |
FC-CCSD(T)/CBS | 1.0606 | 1.1604 | 1.2042 | 3491 | 2278 | 1266 | 550 | 65 | 0.038 | 0.156 | 0.670 |
AE-CCSD(T)/CBS | 1.0592 | 1.1580 | 1.2019 | 3497 | 2287 | 1272 | 553 | 120 | 0.042 | 0.153 | 0.676 |
AE-CCSDT/CBS | 1.0591 | 1.1570 | 1.2021 | 3499 | 2292 | 1270 | 553 | 146 | 0.045 | 0.152 | 0.676 |
AE-CCSDT(Q)/CBS | 1.0592 | 1.1594 | 1.2034 | 3496 | 2275 | 1261 | 546 | 49i | 0.034 | 0.152 | 0.660 |
AE-CCSDTQ/CBS | 1.0592 | 1.1590 | 1.2029 | 3497 | 2279 | 1265 | 548 | 52 | 0.036 | 0.152 | 0.664 |
AE-CCSDTQ(P)/CBS | 1.0591 | 1.1591 | 1.2022 | 3497 | 2276 | 1268 | 548 | 45 | 0.036 | 0.153 | 0.665 |
AE-CCSDTQ(P)/CBS + MVD1 | 1.0590 | 1.1588 | 1.2024 | 3497 | 2275 | 1266 | 548 | 19 | 0.035 | 0.153 | 0.664 |
AE-CCSDTQ(P)/CBS + MVD1 + DBOC/HF | 1.0591 | 1.1588 | 1.2024 | 3497 | 2275 | 1267 | 548 | 41 | 0.036 | 0.153 | 0.664 |
AE-CCSDTQ(P)/CBS + MVD1 + DBOC/CCSD | 1.0591 | 1.1588 | 1.2024 | 3497 | 2275 | 1267 | 548 | 32 | 0.036 | 0.153 | 0.664 |
All of the vibrational modes of linear HCNO exhibit (cc-pCV5Z, cc-pCV6Z, CBS) sets of HF harmonic frequencies in internal agreement to better than 1 cm−1. In accord with expectation, the HF/CBS stretching frequencies (ω1, ω2, ω3) are too large compared to those of AE-CCSDTQ(P)/CBS by (4.1, 9.7, 3.3)%; however, the HF/CBS overestimation of ω4 (17.9%) is substantially greater than normal for this level of theory. For the AE-MP2, AE-CCSD, and AE-CCSD(T) methods, the cc-pCV6Z ω1–ω4 values are within 1 cm−1 of the corresponding CBS limits, revealing tight basis set convergence. For AE-MP2/CBS the (ω1, ω2, ω3, ω4) errors vis-à-vis AE-CCSDTQ(P)/CBS are (0.9, −0.6, 4.4, 1.8)%; because ω3(AE-MP2/CBS) is peculiarly greater than ω3(HF/CBS) by 14 cm−1, its accuracy is diminished. For AE-CCSD/CBS the (ω1, ω2, ω3, ω4) errors relative to the benchmark are (0.8, 3.1, 1.8, 5.1)%, so that ω2 and ω4 are actually less accurate than their AE-MP2/CBS counterparts. The rather erratic behavior of (ω1, ω2, ω3, ω4) in the electron correlation series settles down at the AE-CCSD(T)/CBS level, which yields values that are slightly too large by (0.0, 0.5, 0.3, 0.9)%. Beyond this level, subtle variations accumulate to net downward shifts. The (P) effect on (ω1, ω2, ω3, ω4) is only (0, −3, +3, 0) cm−1, which indicates strong convergence with respect to electron correlation.
The critical feature of Table 3 is the remarkable variation of the doubly-degenerate H–C–N bending frequency, ω5(π), as depicted for the primary AE coupled cluster series at the CBS limit in Fig. 1. The CBS extrapolations prove to be important in evaluating ω5 with correlated methods, as seen most dramatically by comparing the AE-CCSD(T)/cc-pCV6Z value (89 cm−1) with its CBS counterpart (120 cm−1). At the HF/CBS level, HCNO is a linear molecule with a sizable ω5 = 604 cm−1. However, all AE-MP2 computations give an imaginary frequency at the linear optimized structure; in particular, ω5 = 260i cm−1 at the CBS limit. A rebound effect is provided by AE-CCSD, which gives ω5 = (318, 325, 334) cm−1 in the cc-pCV(5,6,∞)Z computations. Intriguingly, CCSD(T) with basis sets smaller than cc-pCV5Z can yield imaginary ω5 values,76,77 but as the AE-CCSD(T)/CBS limit is approached, ω5 steadily increases to 120 cm−1. The post-CCSD(T) predictions for ω5 continue to waver in a virtually unprecedented manner. Most notably, ω5 = 49i cm−1 results from CCSDT(Q) theory, so that HCNO constitutes a remarkable case in which the perturbative (Q) correlation correction actually changes the qualitative nature of the equilibrium structure. The bending quadratic force constants in Table 3 reveal a surprising aspect about the CCSDT(Q)/CBS imaginary ω5 frequency, viz., the diagonal constants F44 and F55 are both positive, showing that F45 coupling is essential to lowering the vibrational potential energy along the ω5 mode. In other words, simultaneous trans-bending is required to achieve an imaginary frequency.
![]() | ||

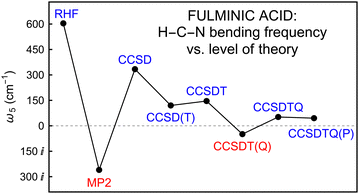

Fig. 1 Variation of ω5 (HCNO) in the all-electron coupled-cluster series at the CBS limit. The quantity actually plotted is |ω5|·sgn(ω52), but the ticks are labeled with the corresponding ω5 values. |
The amazing saga of ω5 for fulminic acid is not complete even at the CCSDT(Q) level! A full accounting of connected quadruple excitations leads back to a linear minimum structure with ω5 = 52 cm−1 for CCSDTQ theory. Thereafter, the (P) effect on ω5 is only −7 cm−1, suggesting that the AE-CCSDTQ(P)/CBS frequency of 45 cm−1 is very near complete convergence, pending inclusion of auxiliary MVD1 and DBOC terms. As observed for HCN, the MVD1 relativistic effects shorten the HCNO bond distances by 0.0001–0.0003 Å; the corresponding changes for (ω1, ω2, ω3, ω4) are merely (0, −1, −2, 0) cm−1. However, MVD1 provides a driving force toward nonlinearity that reduces ω5 to a minuscule 19 cm−1 at the AE-CCSDTQ(P)/CBS + MVD1 level. Therefore, our ultimate conclusion for the Born–Oppenheimer potential energy surface is that HCNO exists as a linear minimum structure with an H–C–N bending frequency barely above zero. Because ω5 is so small, room is thus left for first-order, mass-dependent, non-Born–Oppenheimer terms to influence the equilibrium structure. As shown in Table 3, such terms have a negligible effect on the bond distances and ω1–ω4, yet ω5 is increased to stanch the MVD1 reductions. To ensure reliability, DBOC computations were run with the cc-pCVQZ basis set and both the HF and AE-CCSD methods, the latter providing ω5 = 32 cm−1. One can genuinely say that both the MVD1 and DBOC effects, which are normally just auxiliary corrections, play a decisive role in determining the final equilibrium structure of HCNO, and if the DBOC were to augment rather than compensate for the MVD1 shift on ω5, then vibrationless fulminic acid would be bent rather than linear.
While core electron correlation was fully incorporated and embedded in our FPA analyses of linear HCNO, insight is gained by singling out this effect, which is commonly treated as an auxiliary correction. For this purpose, frozen-core (FC) CCSD(T)/cc-pCV(5,6,∞)Z computations were performed for the re and ωi parameters of linear HCNO (Table 3). The differences between FC and AE results are quite insensitive to basis set and reveal that 1s correlation changes [re(H–C), re(C–N), re(N–O)] by about (–0.001, −0.002, −0.002) Å, in accord with earlier findings on diatomic molecules.136 The concomitant overall shifts in the (ω1, ω2, ω3) stretching frequencies are (+6, +9, +6) cm−1, as expected from Badger's Rule.137 For diatomic molecules such overall shifts can be deceptive, because the direct effect of core correlation is actually curvature reduction of V(r), which is compensated by the indirect effect of re contraction. We find that linear HCNO exhibits the same phenomenon. In particular, evaluating the FC-CCSD(T)/cc-pCV6Z force constants at the AE-CCSD(T)/cc-pCV6Z equilibrium geometry yields (ω1, ω2, ω3) = (3504, 2296, 1277) cm−1, exposing the direct 1s correlation effect as (–7, −9, −5) cm−1. In turn, the indirect effect of bond-length contraction on the stretching frequencies is (+13, +18, +11) cm−1. The sum of these competing effects produces the aforementioned overall phenomenological shifts arising from 1s correlation. In the (cc-pCV5Z, cc-pCV6Z, CBS) cases, the FC → AE CCSD(T) shifts are very striking for ω5: (82i → 54, 54i → 89, 65 → 120) cm−1. Clearly, core correlation is a pivotal factor favoring the linear structure.
Trans-bent HCNO minima are obtained at the AE-MP2/cc-pCV(5,6,∞)Z and AE-CCSDT(Q)/CBS levels of theory by following the imaginary-frequency ω5 mode of the respective linear structures (Table 3). The optimized geometries, barriers to linearity (EB), and harmonic frequencies of these bent HCNO minima are provided in Table 4. The AE-MP2 results for re, θCNO, ω1–ω4, and ω6 of bent HCNO display basis-set convergence that is only slightly less rapid than found for linear HCNO. Such is not the case for the (θHCN, EB, ω5) values of AE-MP2, for which the CBS limit is removed from cc-pCV6Z by (+0.6°, −11.3 cm−1, −15 cm−1). Upon bending, AE-MP2/CBS yields [re(H–C), re(C–N)] elongations of (0.0026, 0.0071) Å and associated (ω1, ω2) reductions of (36, 11) cm−1; simultaneously, re(N–O) contracts by approximately 0.002 Å while ω3 is unchanged. The AE-MP2/CBS θHCN and θCNO angles deviate from linearity by 23.5° and 5.5°, respectively, but these distortions only engender EB = 73 cm−1. A similar comparison between bent and linear AE-CCSDT(Q)/CBS structures shows strikingly smaller differences. The re(H–C) and re(C–N) bond distances elongate by merely 0.0002 Å and 0.0006 Å, respectively, whereas re(N–O) contracts by 0.0002 Å; frequency differences upon bending are no more than 2 cm−1. The CCSDT(Q) (θHCN, θCNO) angles are bent from linearity by merely (6.1°, 1.4°), and the resulting EB = 0.1 cm−1 is shockingly small.
Level of theory | r e(H–C) | r e(C–N) | r e(N–O) | θ HCN | θ CNO | E B | ω 1(a′) | ω 2(a′) | ω 3(a′) | ω 4(a′) | ω 5(a′) | ω 6(a′′) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
AE-MP2/cc-pCV5Z | 1.0591 | 1.1783 | 1.1885 | 155.4° | 174.2° | 92.4 | 3491 | 2253 | 1325 | 555 | 404 | 569 |
AE-MP2/cc-pCV6Z | 1.0591 | 1.1778 | 1.1887 | 155.9° | 174.3° | 83.9 | 3491 | 2253 | 1324 | 554 | 393 | 568 |
AE-MP2/CBS | 1.0590 | 1.1771 | 1.1888 | 156.5° | 174.5° | 72.6 | 3491 | 2252 | 1324 | 554 | 378 | 567 |
AE-CCSDT(Q)/CBS | 1.0594 | 1.1600 | 1.2032 | 173.9° | 178.6° | 0.1 | 3494 | 2273 | 1261 | 546 | 70 | 545 |
The energy profile for the H–C–N bending is so flat that zero-point vibrational energy (ZPVE) of the complementary modes comes into play. In the AE-MP2/CBS case, this ZPVE shift increases the effective barrier to linearity from 73 to 94 cm−1, assuming the geometries are fixed at the re structure. Because the AE-CCSDT(Q)/CBS bending distortions are much smaller, the corresponding ZPVE shift is only +2.5 cm−1. However, this phenomenon overwhelms the tiny 0.1 cm−1 vibrationless barrier and enhances the barrier to linearity. A central question to be answered in future studies on fulminic acid is whether an accounting of complementary-mode ZPVE at a very high level of theory sufficiently amends the positive curvature of the AE-CCSDTQ(P)/CBS + MVD1 H–C–N bending curve to produce a nonlinear minimum for the effective vibrational potential.
Our best level of theory [AE-CCSDTQ(P)/CBS + MVD1] within the Born–Oppenheimer regime predicts that fulminic acid has a linear equilibrium structure with [re(H–C), re(C–N), re(N– O)] = (1.0590, 1.1588, 1.2024) Å and (ω1, ω2, ω3, ω4) = (3497, 2275, 1266, 548) cm−1. Previously, the best theoretical re structures for HCNO came from the AE-CCSD(T) work of Mladenović and coworkers.32,77 Their cc-pCV5Z results exactly match ours, while their CBS extrapolation produced [re(H–C), re(C–N), re(N–O)] distances differing from our corresponding values by (+0.0001, +0.0004, +0.0002) Å. Variations in the CBS extrapolation methods are responsible for these differences. In ref. 32, AE-CCSD(T)/aug-cc-pCV(3,4,5)Z total energies were fit to the three-parameter exponential form of eqn (1). In contrast, our methodology applied eqn (1) only to HF/cc-pCV(4,5,6)Z energies and appended the correlation energy derived from extrapolation of AE-CCSD(T)/cc-pCV(5,6)Z points viaeqn (2).
Our AE-CCSDTQ(P)/CBS + MVD1 prediction of ω5 = 19 cm−1 for linear HCNO warrants assessment with respect to the experimental literature. Using high-resolution rovibrational spectroscopy, Winnewisser and coworkers33–38,42–46 assigned thousands of absorptions for the ground vibrational states of HCNO and DCNO, as well as the ν1 and ν2 fundamental levels of HCNO. The ν5(HCNO) band origin indisputably lies at 224.1 cm−1,38,47 but this frequency is pushed up considerably by the quartic anharmonicity of large-amplitude H–C–N bending. The analysis of experimental data by Bunker et al.41 adopted a sudden/adiabatic model in which the low-frequency H–C–N bending was separated from the complementary vibrational modes. For each vibrational state of the complementary modes, a semirigid bender Hamiltonian was used to fit the observed rotational levels for J ≤ 5 to a two-parameter effective potential function for H–C–N bending comprised of a quadratic and quartic term. For the ground vibrational states of HCNO and DCNO, the resulting curves displayed minima with deviations from linearity of 15.83° and 12.90° and corresponding barriers to linearity of 11.5 and 5.4 cm−1, respectively. Vibrational excitation of the ν1 and ν2 stretching modes increased the effective barriers to linearity to 40.6 and 35.3 cm−1, respectively. The analysis found that for the H–C–N bending potential of the complementary-mode ground vibrational state, the zero-point energy lies at 146.9 cm−1, well above the 11.5 cm−1 barrier to linearity. Thus, the large-amplitude H–C–N motion occurs over the top of a small bump on the potential curve at linearity.
Bunker and coworkers41 finally employed an extrapolation scheme to work backwards from the vibrationally adiabatic H–C–N bending curves for the various states of the complementary vibrational modes; thus, a vibrationless (Born–Oppenheimer) potential function for the pure H–C–N bending mode was inferred. This function displayed a remarkably small barrier to linearity of 0.2 cm−1. A key conclusion was then made: “To within the uncertainties inherent in the fitting procedure, and the uncertainty introduced by the choice of model for the shape of the potential, … the molecule is linear at equilibrium.” Of course, the same uncertainties prevent one from excluding the possibility that the molecule might instead have a very small barrier to linearity on the Born–Oppenheimer surface. Nevertheless, the ultimate conclusion of ref. 41 is in full accord with our best theoretical predictions.
Our AE-CCSDTQ(P)/CBS + MVD1 results show that the H–C bond of fulminic acid has one of the shortest lengths (1.0590 Å) and highest harmonic frequencies (3497 cm−1) known for organic compounds.5,138 For comparison, experimental values for the [re(H–C), ω1] pair are (1.0606 Å, 3495 cm−1) for acetylene,139 (1.0591 Å, 3501 cm−1) for monofluoroacetylene,140,141 and (1.0650 Å, 3443 cm−1) for HCN.134,135 We find the C–N bond in fulminic acid to be 0.0058 Å longer than in HCN, but the associated stretching frequency is 148 cm−1 higher due to coupling with the N–O stretch. The N–O bond distance obtained here for HCNO is 0.017 Å longer than that of the isoelectronic N2O species, and this substantial change is accompanied by a harmonic frequency decrease of 32 cm−1 for the N–O stretching mode.142,143
The characteristics of HCNO can be placed into context by comparison with the properties of other small nitrile oxide compounds XCNO (X = F, Cl, Br, CN, CH3, CF3) that have been investigated by gas-phase, high-resolution rovibrational spectroscopy144–155 and by varying levels of electronic structure theory.152–164 Generally, the XCNO equilibrium structures are strongly dependent on both the orbital basis set and the electron correlation method, as observed in the HCNO case. The propensity for X–C–N bending in these compounds can be understood in terms of a competition between two Lewis structures:
Electron-withdrawing substituents tilt the balance toward the secondary structure and favor bending, whereas electron-donating or π-accepting substituents elevate the importance of the primary structure and maintain linearity. Thus, for the halogen fulminates, the X–C–N angle decreases and the barrier to linearity (EB) increases with increasing electronegativity (X = Br, Cl, F). At CCSD(T)/CBS, fluorofulminate has ∠(F–C–N) = 135.1° and a relatively high EB = 1870 cm−1, so that FCNO is not quasilinear, but rather the first example of a truly bent nitrile oxide.156,157 Employing CCSD(T) with a mixed cc-pV5Z/cc-pVQZ basis set for X/(C,N,O) demonstrated that ClCNO158 and BrCNO160 are more weakly bent with [∠(X–C–N), EB] = (152.2°, 156 cm−1) and (153.1°, 119 cm−1), respectively. This conclusion is supported by the effective barriers to linearity (167, 131) cm−1 derived from spectroscopy144 for (ClCNO, BrCNO). In contrast, acetonitrile N-oxide (X = CH3, electron donating) and cyanofulminate (X = NC, π-accepting) have linear structures at the CCSD(T)/cc-pVQZ and CCSD(T)-F12/aug-cc-pVTZ-F12 levels of theory, respectively.161,164 Interestingly, a gas-phase mid-infrared and ab initio study of CF3CNO was conducted by Havasi and coworkers154 to ascertain the effect of the strongly withdrawing CF3 group on the molecular framework. Their FC-CCSD(T)/cc-pVTZ computations gave a substantially bent structure with [∠(C–C–N), EB] = (148.9°, 174 cm−1), while their experiments suggested but did not prove that the molecule has a near-linear backbone. In summary, the series for bending disposition in XCNO compounds is F ≫ CF3 > Cl > Br > H > CH3 > CN, and the parent fulminic acid lies almost precisely on the cusp for breaking linearity of the equilibrium structure.
E HF | E corr [CCSD(T)] | r e(H–C) | r e(C–N) | r e(N–O) | ω 1(σ) | ω 2(σ) | ω 3(σ) | ω 4(π) | ω 5(π) |
---|---|---|---|---|---|---|---|---|---|
a The applied CBS extrapolation equations from the text are listed in the first two columns along with the X values of the fitted points for the Hartree–Fock (EHF) and CCSD(T) correlation energy (Ecorr). The Schwenke extrapolation schemes112 (Schw, augSchw) do not have explicit extrapolation formulas. | |||||||||
eqn (1) (4,5,6) | eqn (2) (5,6) | 1.05913 | 1.15910 | 1.20229 | 3496.9 | 2275.9 | 1268.1 | 548.3 | 45.3 |
eqn (4) (5,6) | eqn (2) (5,6) | 1.05913 | 1.15910 | 1.20229 | 3496.9 | 2275.9 | 1268.1 | 548.3 | 45.6 |
eqn (1) (4,5,6) | eqn (2) (4,5,6) | 1.05907 | 1.15901 | 1.20231 | 3496.9 | 2275.6 | 1267.4 | 548.4 | 44.4 |
eqn (3) (4,5,6) | eqn (2) (5,6) | 1.05913 | 1.15909 | 1.20231 | 3496.9 | 2275.9 | 1268.0 | 548.1 | 45.9 |
eqn (1) (4,5,6) | eqn (6) (4,5,6) | 1.05921 | 1.15924 | 1.20226 | 3496.9 | 2276.5 | 1269.0 | 548.1 | 44.0 |
eqn (1) (4,5,6) | eqn (7) (4,5,6) | 1.05919 | 1.15920 | 1.20227 | 3496.9 | 2276.3 | 1268.7 | 548.2 | 44.7 |
eqn (1) (4,5,6) | eqn (5) (5,6) | 1.05913 | 1.15919 | 1.20230 | 3496.9 | 2275.9 | 1268.1 | 548.4 | 22.5 |
Schw (5,6) | Schw (5,6) | 1.05913 | 1.15913 | 1.20229 | 3496.9 | 2276.0 | 1268.1 | 548.4 | 37.3 |
augSchw (5,6) | augSchw (5,6) | 1.05913 | 1.15913 | 1.20229 | 3496.9 | 2275.9 | 1268.1 | 548.4 | 39.4 |
ΔEe(HF) | δ[MP2] | δ[Ȼ] | δ[Ȼ(T)] | δ[ȻT] | δ[ȻT(Q)] | δ[ȻTQ] | δ[ȻTQ(P)] | δ[ȻTQP] | δ[ȻTQP(H)] | NET | |
---|---|---|---|---|---|---|---|---|---|---|---|
D e(HCN–O) = −[ΔEe(FPA) + Δ(MVD1) + Δ(DBOC) + Δ(SOC)] ⇒ De(HCN–O) = −(–51.62 + 0.35 − 0.03 + 0.22) = 51.08 kcal mol−1. D0(HCN–O) = De(HCN–O) + Δ(ZPVE) = 51.08 − 2.00 = 49.08 kcal mol−1.a AE-CCSDTQ(P)/CBS + MVD1 reference geometries. Ȼ is shorthand for CCSD. The symbol δ denotes increments in ΔEe with respect to the preceding level of theory in the electron correlation series HF → MP2 → CCSD → CCSD(T) → CCSDT → CCSDT(Q) → CCSDTQ → CCSDTQ(P) → CCSDTQP→ CCSDTQP(H). Brackets signify results from primary CBS extrapolations (eqn (1) and (2)) or additivity assumptions. The sum across each row yields the NET column entry, which approximates the CCSDTQP(H) (or FCI) result with the corresponding basis set. UHF orbitals were employed for O(3P), given that the spin contamination of the UHF reference wavefunction is negligible. (FC, AE) specifies whether a given row pertains to (frozen-core, all-electron) computations. | |||||||||||
6-31G* (FC) | 18.29 | −66.05 | 16.69 | −5.62 | 0.20 | −0.95 | 0.21 | 0.12 | −0.15 | 0.01 | −37.23 |
cc-pVDZ (FC) | 19.77 | −65.98 | 16.12 | −5.92 | 0.22 | −0.96 | 0.24 | 0.14 | [–0.15] | [0.01] | [–36.50] |
cc-pVTZ (FC) | 15.96 | −72.43 | 18.82 | −7.54 | 0.50 | −0.95 | [0.24] | [0.14] | [–0.15] | [0.01] | [–45.40] |
cc-pCVQZ (FC) | 15.34 | −75.39 | 19.48 | −7.91 | [0.50] | [–0.95] | [0.24] | [0.14] | [–0.15] | [0.01] | [–48.70] |
cc-pCVQZ (AE) | 15.34 | −75.96 | 19.53 | −8.07 | [0.50] | [–0.95] | [0.24] | [0.14] | [–0.15] | [0.01] | [–49.38] |
cc-pCV5Z (AE) | 15.18 | −77.16 | 19.82 | −8.18 | [0.50] | [–0.95] | [0.24] | [0.14] | [–0.15] | [0.01] | [–50.55] |
cc-pCV6Z (AE) | 15.16 | −77.69 | 19.95 | −8.22 | [0.50] | [–0.95] | [0.24] | [0.14] | [–0.15] | [0.01] | [–51.01] |
CBS | [15.16] | [–78.40] | [20.13] | [–8.29] | [0.50] | [–0.95] | [0.24] | [0.14] | [–0.15] | [0.01] | [–51.62] |
Our FPA of the reaction energy embeds the 1s effects in the AE-[MP2, CCSD, CCSD(T)] computations with the cc-pCV(Q,5,6)Z basis sets, superseding any auxiliary correction for core correlation. To proceed toward a definitive reaction energy, AE results have been carefully seamed together in Table 6 with frozen-core treatments up to CCSDTQP(H). The inclusion of rows for both FC- and AE-CCSD(T)/cc-pCVQZ effectuates a smooth fusion and yields a new type of construction for FPA layouts. For example, the difference of the NET entries for these two rows gives −0.68 kcal mol−1 as the 1s correlation effect on ΔEe, similar in size to the corresponding bond-energy shift for the NO diatomic.136 The oscillatory pattern for the correlation increments persists with (δ[CCSDT], δ[CCSDT(Q)], δ[CCSDTQ]) = (+0.50, −0.95, +0.24) kcal mol−1, after which the net effect is essentially zero. The 6-31G* and cc-pVDZ increments past the CCSD(T) level are virtually identical, justifying use of the smaller basis set in the extension toward the FCI limit. The final FC-CCSDTQP(H)/6-31G* job on HCNO required 10 weeks of continuous CPU time on a high-performance cluster, yielding an FPA table of unprecedented reach. The coup de grâce is the final increment revealing that hextuple excitations change the reaction energy by only 0.01 kcal mol−1.
The dual extrapolation in Table 6 yields ΔEe(FPA) = −51.6 kcal mol−1, which is appended with Δ(MVD1) = 0.35 kcal mol−1 [AE-CCSD(T)/cc-pCV5Z], Δ(DBOC) = −0.03 kcal mol−1 [AE-CCSD/cc-pCVQZ], and Δ(SOC) = 0.22 kcal mol−1. The last auxiliary term is a spin–orbit correction for the O atom, derived as usual by taking a weighted average of the relative energies (0, 158.265, 226.977) cm−1 pinpointed spectroscopically for the (3P2, 3P1, 3P0) multiplets.174 The final result for ΔEe translates into the vibrationless dissociation energy De(HCN–O) = 51.1 kcal mol−1.
Constructing the ZPVE correction for the HCN–O dissociation energy is complicated by the anharmonicity of the large-amplitude H–C–N bending mode (ν5) of fulminic acid. Fortunately, an optimum effective one-dimensional potential for the ν5 mode is available from semirigid bender fits of high-resolution spectroscopic data, and the vibrational states supported by this potential have been determined by matrix diagonalization of the corresponding effective Hamiltonian.41 As discussed above in Section 3.3, a ZPVE of 146.9 cm−1 is found for ν5 on the adiabatic curve given by the ground state of the complementary vibrational modes.41 Combining this ν5 value with the ZPVEs given by our AE-CCSDTQ(P)/CBS + MVD1 harmonic frequencies (Tables 2 and 3) for the other vibrational modes of HCNO and HCN, we arrive at Δ(ZPVE) = −2.00 kcal mol−1. Hence, we ascertain D0(HCN–O) = 49.08 kcal mol−1, with a rough uncertainty estimate of ±0.15 kcal mol− 1. This bond energy for fulminic acid is over 10 kcal mol−1 larger than the value D0(N2–O) = 38.44 kcal mol−1 given by current thermochemical tabulations175 for the isoelectronic nitrous oxide molecule.
The D0(HCN–O) result obtained in this research by high-level computations provides an important alternative route for the determination of for fulminic acid. Utilizing the precisely known175 values
and
, our D0(HCN–O) yields
. The current ATcT value for this enthalpy of formation (40.81 ± 0.11 kcal mol−1) appears to come essentially from
and the isocyanic acid → fulminic acid isomerization energy of 68.5 ± 0.2 kcal mol−1 surmised in a 2004 computational study.80 This ATcT quantity is in accord with our alternative derivation of
, and the level of agreement is certainly within the collective error bars of the two numbers. Nevertheless, our
result provides valuable new information for the ATcT refinement algorithm.
(1) Previous theoretical work on fulminic acid through the CCSD(T) level is not sufficiently converged to the ab initio limit to definitively solve longstanding, vexing problems posed by this paradigmatic molecule of historical prominence.
(2) For HCN, our best ab initio [AE-CCSDTQ(P)/CBS + MVD1] equilibrium bond distances and harmonic vibrational frequencies match the empirically derived values to within 0.00017 Å and 1.6 cm−1, respectively, constituting a genuine triumph of modern theoretical and experimental chemical physics.
(3) In our final analysis, fulminic acid (HCNO) manifests a linear minimum on the Born–Oppenheimer potential energy surface with [re(H–C), re(C–N), re(N–O)] = (1.0590, 1.1588, 1.2024) Å and (ω1, ω2, ω3, ω4) = (3497, 2275, 1266, 548) cm−1, as provided by the same level of theory [AE-CCSDTQ(P)/CBS + MVD1] that yields essentially exact results for the HCN benchmark.
(4) The extensive series of AE correlation methods applied here with CBS extrapolation to the H–C–N bending frequency of linear HCNO generates phenomenal fluctuations: ω5(π) = (604, 260i, 334, 120, 146, 49i, 52, 45) cm−1 for [HF, MP2, CCSD, CCSD(T), CCSDT, CCSDT(Q), CCSDTQ, CCSDTQ(P)]. With incorporation of MVD1 relativistic effects, ω5 = 19 cm−1 is obtained as the final Born–Oppenheimer frequency. Accordingly, without ZPVE modulation from complementary vibrations, the ω5 mode of linear HCNO is an almost perfect quartic oscillator with a nearly vanishing quadratic component.
(5) Core electron correlation, the diagonal Born–Oppenheimer correction (DBOC), and scalar relativistic effects (MVD1) all play a pivotal role in determining whether vibrationless HCNO is linear or bent; the cooperation of the first two driving forces against MVD1 preserves the linear structure. The influence of 1s correlation on the H–C–N bending frequency is particularly dramatic, as FC-CCSD(T)/CBS yields ω5 = 65 cm−1, but AE-CCSD(T)/CBS gives ω5 = 120 cm−1.
(6) The AE-MP2/CBS method incorrectly favors a bent optimum structure of HCNO that lies 73 cm−1 below the linear form; the associated (θHCN, θCNO) angles deviate from linearity by (23.5°, 5.5°).
(7) Remarkably, the (Q) electron correlation contribution wrongly changes the structure of HCNO from linear to bent; nevertheless, the AE-CCSDT(Q)/CBS barrier to linearity is a microscopic 0.1 cm−1, and the (θHCN, θCNO) angles are bent by only (6.1°, 1.4°) from linearity.
(8) Although both AE-MP2/CBS and AE-CCSDT(Q)/CBS give an imaginary ω5 frequency for linear HCNO, the diagonal force constants F44(H–C–N bend) and F55(C–N–O bend) are both positive; accordingly, favorable F45 coupling via simultaneous trans-bending is necessary to drive the molecule downhill in energy.
(9) With correlated methods the CBS limit for ω5 is reached slowly, making basis-set extrapolations paramount to accurate conclusions. Notably, the AE-CCSD(T)/cc-pCV6Z frequency of linear HCNO is raised by 31 cm−1 upon extrapolation, and at the FC-CCSD(T) level the cc-pCV6Z imaginary ω5 (54i cm−1) actually becomes real (65 cm−1) at the CBS limit.
(10) The energy profile for H–C–N bending in fulminic acid is so flat that complementary-mode ZPVE becomes an important factor; the H–C and C–N bonds elongate upon bending, reducing the ZPVE in these modes, but contraction of the N–O bond may partially compensate for this effect.
(11) Novel work has been completed for linear HCNO investigating the dependence of AE-CCSDTQ(P)/CBS re and ωi values on a litany of CBS extrapolation schemes and substantiating our final predictions. Nonlinear fits to new extrapolation formulas reveal that the all-electron correlation energy within the cc-pCVXZ basis set series exhibits almost perfect X−3 decay for MP2 but either an X−3.5 or (X + ½)–3 dependence for CCSD and CCSD(T).
(12) The D1 and D2 wavefunction diagnostics indicate that HCNO has borderline multireference electronic character, but full-valence CASSCF wavefunctions contradict this notion and show that this issue is not the cause of sensitivity to level of theory.
(13) Core electron correlation contracts the bond distances in HCNO by 0.001–0.002 Å, an order of magnitude more than MVD1. Incorporating 1s correlation causes an overall increase in harmonic stretching frequencies by 6–9 cm−1; however, these frequency shifts are deceptive because the direct effect without geometry relaxation is to decrease ω1–ω3 by 5–9 cm−1.
(14) Fulminic acid has one of the shortest re(H–C) distances and highest C–H stretching frequencies known for organic compounds, perhaps rivaled only by monofluoroacetylene.
(15) The facility of bending in XCNO compounds follows the order CN < CH3 < H < Br < Cl < CF3 ≪ F, with the parent fulminic acid appearing just before the critical point for breaking the symmetry of the linear equilibrium structure.
(16) The dissociation energy De(HCN–O) has been investigated by the first FPA computations to reach the CCSDTQP(H) level (at least for a tetra-atomic or larger system); new ground is thus broken in showing that the final correlation increment in the coupled cluster series for a challenging bond cleavage can be reduced to 0.01 kcal mol−1.
(17) The final N–O bond energy of fulminic acid from cutting-edge FPA computations is D0(HCN–O) = 49.1 kcal mol−1, which is 28% larger than that of nitrous oxide; the 1s correlation effect on D0(HCN–O) is a sizable 0.7 kcal mol−1.
(18) Our final theoretical analysis supports the spectroscopic characterization that fulminic acid is by strict criteria a quasibent rather than a quasilinear molecule, because its true Born–Oppenheimer equilibrium structure is linear but the effective one-dimensional potential for large-amplitude H–C–N bending has a small protuberance at linearity.
The rovibrational quantum structure of fulminic acid remains a worthwhile and inviting target for future theoretical investigations. The current study reveals the severe demands for generating an accurate potential energy surface of full dimensionality for variational computations. A less formidable intermediate goal is to use high levels of theory to map out the most favorable course for H–C–N bending from linearity and rigorously determine the energy profile and complementary-mode ZPVE along this route. Such an endeavor would aim to cement the quasibent status of fulminic acid by showing that the empirical one-dimensional effective H–C–N bending potentials surmised from voluminous spectroscopic data are consonant with purely ab initio quantum chemical computations at the highest possible levels.
