Institut für Optik und Atomare Physik, Technische Universität Berlin, 10623 Berlin, Germany. E-mail: dopfer@physik.tu-berlin.de
First published on 10th July 2024
Diamondoids are a class of aliphatic molecules with cage-like structures and serve as a bridge between small hydrocarbons and large nanodiamond macromolecules. Because their optical properties are highly dependent on the size, shape, and functionalization of the carbon network, they have many applications in the fields of nanotechnology and spectroscopy. Still, much remains to understand the geometric and electronic effects induced by functionalization of diamondoids. To this end, we perform gas phase photoelectron spectroscopy (PES) of functionalized adamantanes using a helium discharge lamp as a photon source and a hemispherical electron analyzer. We present the photoelectron spectra of 1-cyanoadamantane, 1-amantadine, and 2-adamantanol and compare these to the known PES spectra of adamantane, 1-adamantanol, and urotropine, remeasured herein with improved resolution and a more thorough assignment of vibronic features, with the aid of time-dependent density functional theory calculations.
A recent application of adamantane (C10H16), the simplest diamondoid, as a solid propellant for Hall-effect thrusters especially highlights the value of measuring ionization energies (IE) of diamondoid derivatives.13 Whereas large ion thrusters typically use atomic ion propellants, such as xenon or krypton, due to their high mass-to-IE ratio, these fuels are costly and require impractical storage solutions for miniaturized spacecraft.14 Alternatively, adamantane has a similar mass as xenon with a substantially lower IE, potentially offering greater thrust efficiency. Its low molar volume is also beneficial while still having a significant vapor pressure at room temperature.13 The tunability of the IE of diamondoids by functionalization combined with a thorough understanding of their fragmentation patterns may provide new insights into their use as molecular propellants in the future.15
Photoelectron spectroscopy (PES) is a powerful method to study the electronic properties of molecules in all states of matter. The earliest PES studies of isolated diamondoids mostly focused on comparing ionization potentials of simple diamondoids (adamantane, diamantane, triamantane) with their mono-substituted derivatives.16–19 Schmidt presented the first He(I) PES spectrum of both adamantane and urotropine (an isoelectronic nitrogen-substituted equivalent of adamantane) in the range of 7.5–19 eV and made rough orbital assignments of the observed bands by simple SCF calculations.20 This work was extended by several other experimental PES studies of adamantane,18,21–23 as well as some functionalized adamantanes including 1-adamantanol.9,24 The orbital structure of the amino-substituted adamantane, amantadine, was investigated by low-resolution electron momentum spectroscopy.25 Furthermore, Lenzke et al. employed synchrotron total-ion-yield spectroscopy to determine the first IE of the five simplest bare diamondoids.5 Supporting these experimental investigations, several theoretical studies provide insight into the observed band structures.7,26–30 One important outcome of these studies is that the lowest unoccupied molecular orbitals (LUMO) and the LUMO+n orbitals of diamondoids exhibit Rydberg-like character.19 For adamantane, the energy gap between the highest occupied molecular orbital (HOMO) and the LUMO is larger than 6 eV.4,31 The gap becomes smaller as the size of the cage network increases, generally following the principle of a delocalized particle in a three-dimensional box model where the boundary conditions are determined by the cage surfaces.4,5 Thus, diamondoids are excellent analytes for exploring the tunability of optical properties in nanomaterials. The interesting consequence of the large optical gaps in diamondoids is that the absorption spectra for their open-shell cations closely correspond to the PES spectra of the neutral species (after accounting for the first ionization energy) because typically the first several excited states are transitions of the form HOMO ← HOMO−n.26,32,33 Recently, our group recorded the first optical spectra of the adamantane,34 diamantane,35 and 1-cyanoadamantane36 cations in the gas phase by electronic photodissociation spectroscopy (EPD) using a cryogenic ion trap. In each case, the spectra exhibit broad absorption bands with widths between 1 and 2 eV. After ruling out other factors, the broadness of the bands is attributed to ultrafast relaxation (<100 fs) of the excited states and Franck–Condon (FC) congestion of close-lying vibronic excitations. This was further supported by measurements of Ada+ doped into helium-droplets using electronic spectroscopy, which ensures a low-temperature environment of 0.37 K and can observe electronic states below the dissociation limit.32 It is peculiar that the EPD spectrum of the adamantane cation closely resembles previous PES spectra of adamantane despite large differences in the resolution achieved by the two methods (4–8 vs. 320–400 cm−1, respectively) and differences in selection rules.9,34 Fundamentally, the two methods differ in that PES probes the excited ionic states by measuring the kinetic energy of electrons ejected from neutral molecules, whereas EPD first ionizes the neutral and then excites the cation ground state by absorption of a photon. It is known at least for amantadine (C10H15NH2) and cyanoadamantane (C10H15CN), which are functionalized derivatives of adamantane, certain ionizing conditions can cause the adamantyl cage to open, as revealed by infrared photodissociation (IRPD) spectroscopy, which results in more than one isomer and contaminates the spectrum.37–39 PES has the advantage that no measurement is directly made of the nascent ion, meaning that if the cage opens after ionization, it has no effect on the PES spectrum. Nevertheless, considering that absorption spectra of diamondoid cations are remarkably broad at low temperatures, it remains an open question whether high-resolution PES techniques are able to further resolve vibronic features. To our knowledge, only adamantane has been measured by threshold PES, which can discriminate the kinetic energy of photoelectrons with a resolution below 1 meV.29 However, the relatively large step size (13 meV) limited this study from interpreting the broad nature of the band representing the cation ground state. Therefore, further high-resolution investigations are necessary to elucidate the effect of lifetime broadening in the PES spectra of diamondoids.

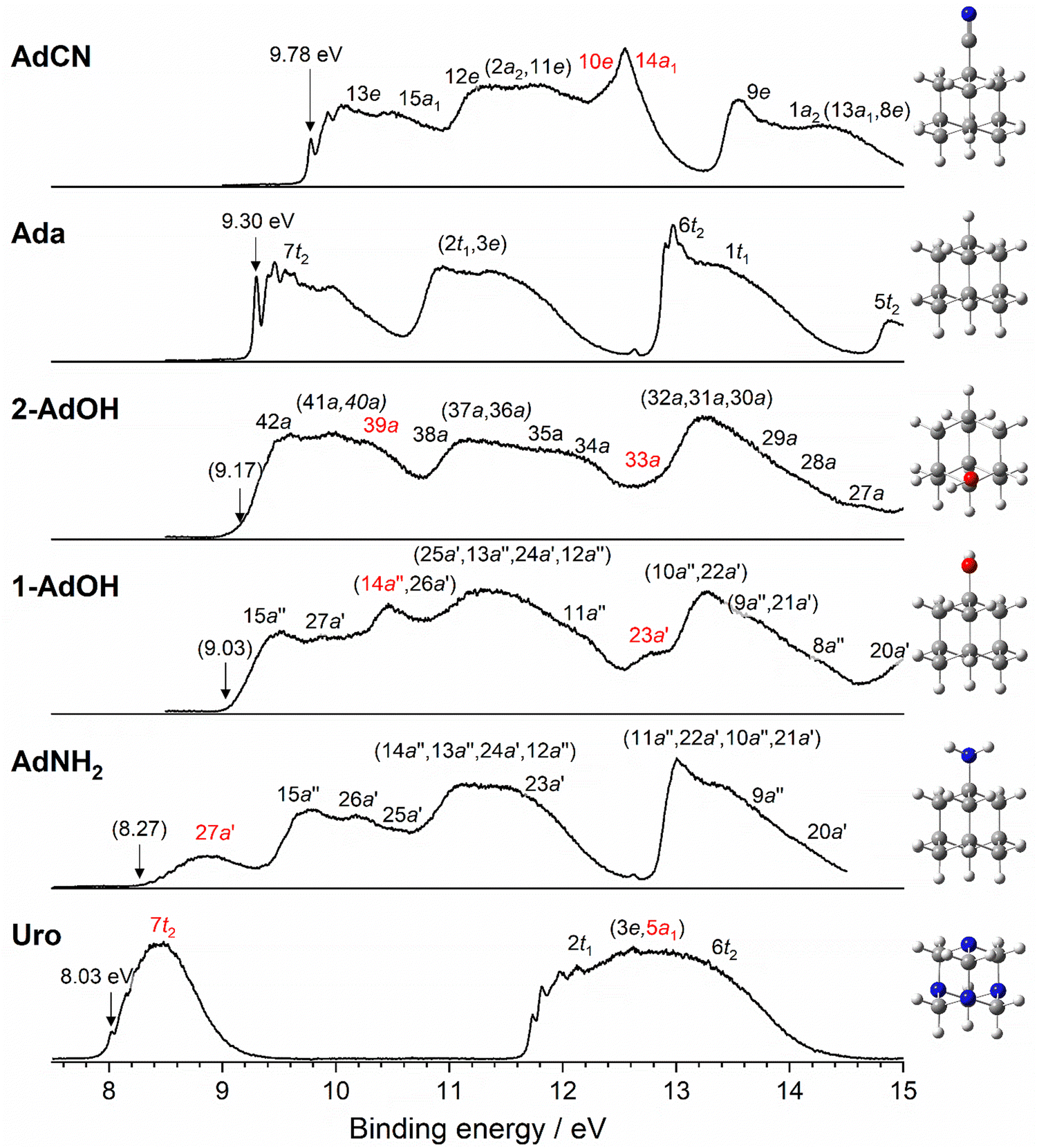

Within this work, we present the He(I) ultraviolet PES spectra of four functionalized derivatives of adamantane (Ada), namely, 1-amantadine (AdNH2), 1-cyanoadamantane (AdCN), 1-adamantanol (1-AdOH), and 2-adamantanol (2-AdOH). Among these, the PES spectra of AdNH2, AdCN, and 2-AdOH are presented for the first time. Additionally, the influence of the functional groups on the adamantyl cage is explored by comparing the Ada derivatives with remeasured spectra of Ada and urotropine (Uro), which is isoelectronic to Ada but has all four CH groups of the cage substituted by N atoms. The experimental spectra are presented together with a detailed analysis of the cation ground state (D0) using Franck–Condon (FC) simulations based on density functional theory (DFT) calculations. The DFT calculations are also used within the framework of Koopman's Theorem (KT) to assign the higher-energy bands arising from excited electronic states of the cation (Dn, where n is the number of the state). In parallel, time-dependent (TD)-DFT calculations determine vertical excitation energies (Ev) to the higher ionic states from the cation ground state in both the optimized neutral (Dn ← D0*) and cation (Dn ← D0) geometries. Finally, we analyze the resultant Kohn–Sham molecular orbitals (MOs) and natural transition orbitals (NTOs) to correlate the first 12 ionic states of Ada to the ionic states of each molecule, providing further insight into the effects induced by the functional groups on the electronic and optical properties of the adamantyl cage.
IEv = E+* − En, |
IEa = E0 + ΔZPE, |
Erel = IEv − E0. |
IEv = IEa + Erel − ΔZPE. |
In some cases, IEa values can be determined experimentally by PES when the FC factor between the ground vibrational states of both the neutral and cation is large (i.e., their geometries are similar). For large organic molecules like diamondoids, however, the bands observed are often broad and convoluted from close-lying vibrational and/or electronic states, making only determinations of IEv values possible. Herein, we make assignments of the ionic states observed in the PES spectra using three methods: (i) an application of KT to Kohn–Sham DFT orbitals, (ii) TD-DFT calculations of vertical excitations (Ev) of the cation in the optimized neutral geometry (D0*), and (iii) TD-DFT of the cation in its relaxed geometry (D0). In the first method, we analyze the canonical molecular orbitals (MOs) of the neutral structure and approximate the vertical ionization energies as the negative eigenenergies (−ε) of the MOs. Previous applications of this method, however, have been shown to not accurately estimate the IEv values observed in the experimental PES spectra of many diamondoids.23 It is generally understood that employing Kohn–Sham orbitals to predict IE values can be prone to many errors and typically underestimates them,9 although certain functionals perform better than others depending on how the electron exchange correlation is handled, among other factors. The second approach uses TD-DFT at the same computational level to determine transition energies into higher electronic states from D0*, following the Born–Oppenheimer approximation. The Ev values are then shifted by the vertical S0 → D0* ionization energy. The last method using TD-DFT calculations from D0 is more applicable to EPD spectra of the cations. Nonetheless, these results are provided in ESI† for comparison.
Correlating the ionic states assigned by TD-DFT to the MOs of the neutral is feasible by also calculating natural transition orbitals (NTOs). These calculations show that in nearly every case, the ionic states relevant to the energy range of the PES spectra consist of transitions involving only two orbitals with significant contribution and are always of the type SOMO ← SOMO−n, where SOMO refers to the semi-occupied molecular orbital. We also shift the eigenenergies of the MOs such that −εHOMO matches the vertical S0 → D0* ionization energy (IEv + εHOMO).
To provide a more complete assessment of the lowest-energy PES bands and assign vibronic features, we also carry out FC simulations for the D0 ← S0 transition at the same temperature as the experiment.41 The obtained stick spectra are then convoluted with a Gaussian line profile having a FWHM of 40 meV to match the resolution of the PES spectrometer. Efforts to optimize the geometries of the excited cation states have been mostly unsuccessful, as has been reported in other studies, likely due to conical intersections and vibronic coupling with nearby states.26,30,33,34,50 Thus, a full FC analysis for transitions into higher ionic states is not considered and beyond the scope of the present work.
The calculated IEa values, using various DFT functionals, are compared in Table 1 to the experimental IEa values. While the B3LYP functional is commonly used in diamondoid studies,7,9,22,28,51,52 the M06-2X functional consistently predicts the IEa value closest to its experimental value.23 In every case besides 2-AdOH, the difference between calculation and experiment (ΔIEa) is 0.2 eV or less. When assuming the local maximum of the first PES bands in each spectrum represents the experimental vertical S0 → D0* ionization energy, the IEv values calculated with the M06-2X functional are in excellent agreement (Table 2). Only the calculated IEv values for Ada and AdCN differ more than 0.12 eV from the experimental IEv. These molecules also have considerably larger ΔZPE corrections by a factor of 2 to 3 compared to the other molecules. This may be related to JT activity as these molecules exhibit broadening in their spectra due to JT distortion and thus IEv is more difficult to extract precisely from experiment.34,36 Nonetheless, their calculated IEv values are also within 0.1–0.2 eV when considering the center of the bands as a better representation of the experimental IEv. Overall, the relaxation energy is rather large for all diamondoids considered, Erel = 0.43–0.77 eV, indicative of their large geometry changes upon ionization.
Molecule | Exp. | B3LYP | CAM-B3LYP | B3PW91 | M06-2X |
---|---|---|---|---|---|
a All values are given in eV. Values in parentheses are estimated. | |||||
Ada | 9.30 | 8.82 | 9.06 | 8.78 | 9.10 |
AdCN | 9.78 | 9.31 | 9.65 | 9.28 | 9.67 |
AdNH2 | (8.27) | 7.89 | 8.05 | 7.87 | 8.17 |
1-AdOH | (9.03) | 8.59 | 8.78 | 8.56 | 8.87 |
2-AdOH | (9.17) | 8.51 | 8.71 | 8.51 | 8.81 |
Uro | 8.03 | 7.77 | 7.95 | 7.76 | 8.08 |
Energies | Ada | AdCN | AdNH2 | 1-AdOH | 2-AdOH | Uro |
---|---|---|---|---|---|---|
a All values are given in eV. Values in parentheses are estimated. b ΔIEv = IEv − Exp. IEv. c ΔIEa = IEa − Exp. IEa. | ||||||
E 0 | 9.39 | 9.91 | 8.23 | 8.96 | 8.90 | 8.12 |
ΔZPE | −0.29 | −0.24 | −0.06 | −0.09 | −0.09 | −0.04 |
−εHOMO | 8.98 | 9.52 | 8.09 | 8.75 | 8.85 | 7.77 |
![]() |
10.70 | 11.18 | 9.86 | 10.36 | 10.52 | 9.49 |
![]() |
9.84 | 10.35 | 8.97 | 9.56 | 9.68 | 8.63 |
IEv | 9.83 | 10.34 | 8.88 | 9.54 | 9.67 | 8.60 |
Exp. IEv | 9.46 ± 0.01 | 10.10 ± 0.02 | 8.89 ± 0.06 | 9.52 ± 0.05 | 9.58 ± 0.05 | 8.48 ± 0.05 |
ΔIEvb | 0.37 | 0.24 | −0.01 | 0.02 | 0.09 | 0.12 |
IEv + εHOMO | 0.86 | 0.82 | 0.79 | 0.79 | 0.83 | 0.84 |
E rel | 0.45 | 0.43 | 0.65 | 0.58 | 0.77 | 0.48 |
IEa | 9.10 | 9.67 | 8.17 | 8.87 | 8.81 | 8.08 |
Exp. IEa | 9.30 ± 0.01 | 9.78 ± 0.01 | (8.27) | (9.03) | (9.17) | 8.03 ± 0.01 |
ΔIEac | −0.20 | −0.11 | −0.10 | −0.16 | −0.36 | 0.05 |
Table 2 also compares IEv to −ε of the HOMO, which should agree according to KT. Here again, the M06-2X functional yields values closest to the experimental IEv and there is a close agreement between the vertical S0 → D0* ionization energy (IEv in Table 2) and −ε. For example, the vertical S0 → D0* ionization energy of Ada is 9.83 eV and −ε of the 7t2 orbital is 8.98 eV (Table 2). These values are notably more similar than for B3LYP or B3PW91. B3LYP yields a vertical S0 → D0* ionization energy of 9.43 eV, while −εHOMO is only 7.60 eV. CAM-B3LYP yields values with closer agreement than M06-2X (−εHOMO = 9.15, IEv = 9.77 eV), but still gives less accurate IEa values than M06-2X when compared to experiment (Table 1). After shifting the MO eigenenergies by 0.85 eV (IEv + ε, Table 2), the KT model using M06-2X is in excellent agreement with the measured spectrum (Section 3.1), and this holds true for all functionalized adamantanes studied herein as well. It has been reported that for large molecular systems, IEv + ε approximates the classical Coulomb electrostatic energy needed to remove an electron from the system, which is not accurately handled in the calculation of DFT Kohn–Sham MO eigenenergies.53 Additionally, if the MO is generally delocalized over a large molecule, IEv can also be approximated by
…(5a1)2(5t2)6(1t1)6(6t2)6(3e)4(2t1)6(7t2)6 |
The PES spectrum reveals four broad bands between 9 and 15 eV, with an evident 0–0 peak appearing at (9.30 ± 0.01) eV. This value matches IEa reported previously19,57 and is consistent with the generally accepted value of (9.25 ± 0.04) eV.58 The first band, appearing between 9.2 and 10.6 eV, is assigned to ionization from the triply degenerate 7t2 HOMO, which has mainly CC bonding character (Fig. S2, ESI†), and results in the 2A1 ground state (D0) and a 2E first excited state (D1, Table S1, ESI†). The second band in the PES spectrum lies between 10.6 and 12.4 eV and is attributed to close-lying ionic states (D2–D5) caused by ionization from the 2t1 and 3e orbitals, which are also CC bonding orbitals. The third band has contributions from the two triply degenerate orbitals, 6t2 (D6/D7) and 1t1 (D8/D9), with σCH and πCH2 bonding character, respectively. Vibronic peaks also appear between 12.8 and 13.1 eV but are not well resolved. Finally, the fourth band, appearing near 14.8 eV, is small and featureless and is assigned to ionization from the close-lying 5t2 (D10/D11) and 5a1 (D12) orbitals, having πCH2 and σCH bonding character, respectively. Also observed is a small peak at 12.6 eV (marked by an asterisk in Fig. 2a), arising from minor water contamination in the vacuum chamber.59
Small differences exist between the KT and TD-DFT models, especially when considering degenerate ionic states. For example, the first transition of the cation, described as D1(2E) ← D0*(2A), has Ev = 0.06 eV (Table S1 and Fig. S3, ESI†). Both Candian et al.29 and Roy et al.30 also calculated Dn ← D0* vertical transitions of Ada using TD-DFT and report similar values. This discrepancy between the ground state and first excited states does not accurately adhere to what should be a symmetry-imposed degeneracy in the D0* (Td) geometry. However, it is a known artifact of linear response DFT, which gives different and somewhat unbalanced treatments to calculating ground state and excited state energies, and this issue has been meticulously discussed elsewhere.60 A far more pronounced splitting of these states is calculated for the D1(2E) ← D0(2A1) transition of the cation (Ev = 1.16 eV) and is the result of its reduced symmetry resulting from JT distortion.34 This value has been verified experimentally by Kappe et al. (Ev = 1.12 eV) for cold Ada+ ions doped into superfluid helium nanodroplets.32 Regarding the second band, the KT model predicts the 2t1 orbital to be slightly higher in energy than the 3e orbital, although previous assignments suggest the order is dependent on the level of theory.18,21,22 The TD-DFT approach indicates that the 2t1 and 3e orbitals undergo splitting and the resulting four ionic states (two 2A2, one 2A1, and one doubly degenerate 2E) of the cation overlap. Again, the ionic states are more separated at the relaxed cation geometry.34 Ultimately, an accurate ordering is nontrivial using computational methods alone, and the resolution of the PES spectrum is insufficient to distinguish a separation of these ionic states. Although neither KT nor TD-DFT can explain the broad nature of the bands, Gali et al. employed a many-body perturbation theory (MBPT) approach to demonstrate convincingly that Ada and other diamondoids exhibit strong electron-vibration coupling in addition to JT distortion, and these effects give rise to various satellite peaks that further broaden the bands,27 in addition to FC congestion (unresolved (ro)vibrational structure) and possibly lifetime broadening.34
Fig. 3 provides an expanded view of the PES spectrum of Ada in the energy range between 9 and 10 eV. The 0–0 peak at 9.30 eV (IEa) has a FWHM of 49 meV, which is slightly broader than the Xe calibration peaks and likely due to sequence hot bands and unresolved rotational structure. Subsequently, four vibronic peaks, labeled A–D, are observed toward higher energy at 9.40, 9.46, 9.55, and 9.63 eV (810, 1290, 2020, 2660 cm−1 above 0–0), respectively. In previous analyses, similar progressions are also reported, but a wide range of values are given by Schmidt20 (734 and 1175 cm−1), Kovac and Klasinc21 (800 and 1260 cm−1), and Candian et al.29 (900 and 1284 cm−1). The FC analysis of the band, represented by the green stick spectrum, is convoluted with a Gaussian line profile (FWHM = 40 meV) to simulate the PES spectrum (red). The results are shifted to align the origin at 9.30 eV. Although the simulated peaks do not closely resemble the measured spectrum in their relative intensities (particularly for the underestimated 0–0 peak), their positions on the binding energy scale are in good agreement and adequately allow for a vibrational assignment. We also note that no contribution from hot bands is observable at 300 K, which is reflected by the simulation. Peaks A and B arise from two fundamental modes, 1210 (ν12 = 886 cm−1) and 910 (ν9 = 1270 cm−1), both of which are symmetric C–C stretching modes combined with C–H bending motions. These modes correspond to JT active vibrations that are excited upon ionization and reduce the high symmetry by distorting the cage. Peak C arises mostly from the 9101210 combination band while peak D is attributed to the 920 overtone. More combination bands and overtones of these modes contribute to the band intensity toward higher energy but become congested and therefore unresolved in the measured spectrum (Table S2, ESI†). Additionally, a broader satellite feature appears near 10 eV (peak E). This feature corresponds to the satellite peak described by Gali et al. and is attributed to electron coupling with 43 different vibrational modes, with the largest contribution belonging to a t2 twisting mode with an energy of 78.2 meV (630 cm−1).27 Nevertheless, a Born–Oppenheimer approach as used here still performs considerably well to interpret the major vibronic features below this satellite peak.
…(11a1)2(7e)4(12a1)2(8e)4(13a1)2(1a2)2(9e)4(14a1)2(10e)4(11e)4(2a2)2(12e)4(15a1)2(13e)4 |

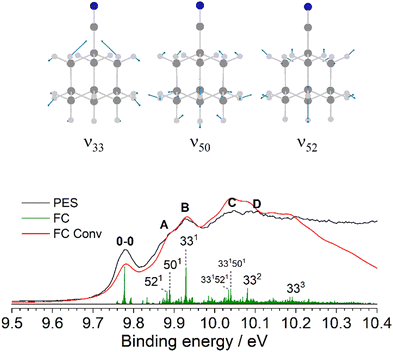

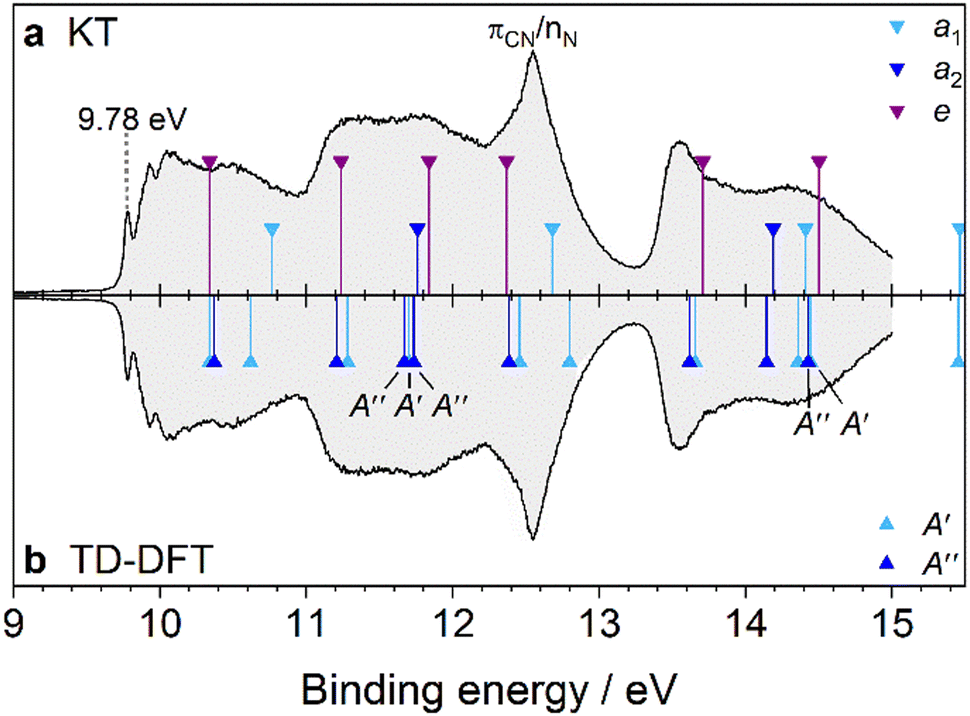

Like Ada, the PES spectrum of AdCN exhibits a well-pronounced IEa band, which lies at (9.78 ± 0.01) eV. To our knowledge, it possesses the highest IEa of any measured pristine or monosubstituted diamondoid to date, due to the small size of the cage relative to higher order diamondoids and the strong inductive effect of the nitrile group.4,9 In the measured energy range, five overlapping bands appear with only the first exhibiting clear vibronic features. This band spans between 9.7 and 10.8 eV and is analogous to the first band of Ada. It is the result of ionization from the 13e and 15a1 orbitals, which are CC bonding orbitals from the adamantyl cage (Table S3 and Fig. S4, ESI†). An expanded view is given in Fig. 5 and the interpretation is again aided by a FC simulation. The convolution of the stick spectrum with 40 meV FWHM yields a band contour (red) that is in excellent agreement with the measured spectrum, although the strength of the origin peak is underestimated, as is the case for Ada (Table S4, ESI†). Again, we see no clear evidence of hot bands at 340 K, except that the 0–0 band is slightly broader than the Xe calibration peak when fitted with a Gaussian profile (47 vs. 40 meV). Four vibronic peaks, labeled A–D, can be distinguished toward higher energy. Peak A appears as a shoulder of peak B near 9.88 eV (+810 cm−1) and is assigned to two close-lying fundamental vibrations, 5210 (ν52 = 848 cm−1) and 5010 (ν50 = 890 cm−1). Peak B, with its maximum at 9.93 eV (+1210 cm−1), is attributed to mode 3310 (ν33 = 1221 cm−1). Peak C at 10.03 eV (+2020 cm−1) is therefore assigned to the combination bands 33105210, 33105010 and peak D near 10.08 eV (+2420 cm−1) is the 3320 overtone. These strongly FC active modes are along the cage-opening coordinates.39 Another feature with a local maximum near 10.5 eV is primarily assigned to ionization from 15a1, which has a calculated IEv of 10.76 eV according to KT or 10.62 eV by TD-DFT. Vibronic coupling that dynamically induces JT distortion could also contribute to this feature, as it resembles the satellite peak previously investigated by MBPT in the Ada spectrum at 10.0 eV.27 It likewise appears approximately 0.7 eV above the first IEa. However, a thorough investigation of these effects is beyond the scope of our study.
The second PES band, spanning between 10.8 and 13.2 eV, is comparable to the second band in the PES spectrum of Ada, as the 2t1 and 3e orbitals in Ada correlate with the 12e + 2a2 and 11e orbitals in AdCN, respectively. However, the nearly degenerate nature of the 2t1 and 3e orbitals in Ada is lost in the corresponding orbitals of AdCN. Substituting one of the primary H atoms in Ada with a CN group results in two of the eigenstates of the 2t1 orbital to mix with the π orbitals of the nitrile group to form the degenerate 12e orbital of AdCN (Fig. S5, ESI†). The 2a2 orbital of AdCN correlates with the remaining 2t1 eigenstate of Ada. Since its Kohn–Sham MO exhibits no CN character, it stands to reason that the 2a2 orbital possesses a similar energy gap from the 13e HOMO as the 7t2/2t1 gap in Ada (1.40 vs. 1.35 eV). Additionally, mixing of the π orbitals of the nitrile group with those of the cage effectively lowers the binding energy of the 12e electrons by 0.52 eV according to the KT model. These arguments then satisfyingly explain the broader nature of the second band in the AdCN spectrum compared to that of Ada.
In the range of 12–13 eV occurs an overlapping and more prominent peak, which is unique to the AdCN spectrum. To interpret this feature, we compare the spectrum to that of acetonitrile (CH3CN), which is a simple alkyl nitrile wherein the adamantyl cage of AdCN (C10H15) is replaced by CH3. The PES spectrum of CH3CN exhibits two bands that lie close together between 12 and 13.5 eV.61 The first contains a distinct progression of peaks and is assigned to removal of a bonding πCN electron. The second is a sharp, “needle-like” band and is typical for an electron being ejected from the nonbonding nitrogen lone pair (nN). In fact, it is generally observed that alkyl nitriles exhibit broader FC-active πCN bands lying slightly below a narrow nN band, and AdCN appears to behave similarly.62 As the size of the alkyl group increases, the bands attributed to the CC and CH orbitals decrease in binding energy and eventually obscure the nN band, as in tertbutylnitrile, (CH3)3CCN.63 Both the KT and TD-DFT models predict 10e to lie 0.3–0.4 eV above 14a1. We therefore rationalize that in the AdCN spectrum, the broadness of the peak, especially on the low-energy side, is likely due to ionization from the 10e orbitals with πCN character (Fig. S4, ESI†). However, this assignment is stated with some reservation as no corresponding resolved features are clearly discernable in the measured spectrum. This would leave the sharp peak at 12.55 eV to be assigned to ionization from the 14a1 orbital, occupied by the nN lone pair electrons.
Lastly, several overlapping transitions are observed between 13.3 and 15.0 eV, yielding a contour that resembles the bands belonging to the 6t2 and 1t1 orbitals of Ada but without displaying any vibronic features. These are attributed to ionic states resulting from ionization of the 9e, 1a2, 13a1, and 8e orbitals. The 9e and 13a1 orbitals correlate with 6t2 of Ada and are separated by 0.70 eV, whereas 1a2 and 8e correlate with 1t1 of Ada. From the TD-DFT perspective, transitions into the D11(2A′′) and D12(2A′) ionic states (corresponding to the JT-split 9e orbitals) are nearly isoenergetic to the D6(2E) ← D0*(2A1) transition in Ada+ (Fig. S5, ESI†). This again is because the 9e orbitals have essentially no influence from the CN group. The 13a1 orbital, however, exhibits strong mixing between the σCN orbital of the nitrile group with one of the 6t2 orbitals in Ada, which increases the binding energy of the occupying electrons.
…(16a′)2(17a′)2(18a′)2(19a′)2(8a′′)2(20a′)2(9a′′)2(21a′)2(10a′′)2(22a′)2 |
(11a′′)2(23a′)2(12a′′)2(24a′)2(13a′′)2(14a′′)2(25a′)2(26a′)2(15a′′)2(27a′)2 |
Fig. 6 shows the first PES spectrum reported for this molecule and four bands between 8 and 15 eV are observed. The first band is weakest in intensity and is a symmetrical FC band exhibiting weak, yet still visible vibronic structure on the low-energy side. It is similar to the lowest-lying band observed in the PES spectra of many alkyl amines that assign the HOMO to the localized lone pair electrons of the NH2 group (nN character). Unlike Ada, IEa is not easily determined due to the broad, gradual rise of the band profile, which begins to increase near 8.30 eV. Five vibronic peaks can be identified (labeled A–E), which progressively become more difficult to discern, at 8.37, 8.45, 8.54, 8.62, and 8.70 eV, respectively. The spacings between the peaks are nearly uniform, with an average energy difference of 80 meV (650 cm−1). The FC simulation (Fig. 7) of the cation ground state predicts the 0–0 origin to have nearly no intensity and that two vibrational progressions make significant contributions to the band intensity (Table S6, ESI†). Assuming the small peak at 8.37 eV (peak A) to be the first vibronic peak, the IEa is calculated to lie at 8.27 eV. Peaks A–D are attributed to a progression of 36n0 (ν36 = 615 cm−1), which is known as the NH2 umbrella inversion mode. A long progression in this mode is expected because the NH2 group becomes nearly planar in the cation upon ionization of the nN electron. Peak E is the start of the unresolved band continuum, caused by FC congestion of many transitions. However, it is also near the calculated energy of the symmetric N–H stretching mode, 110 (ν1 = 3505 cm−1), which forms combination bands with a progression in ν36 toward higher energies, further contributing to the broadness of the band. The predicted frequency of this mode is in close agreement with the fundamental determined experimentally by George and Dopfer37 (3322 cm−1) after applying a scaling factor of 0.95 to account for anharmonicity.
The next three bands in the spectrum have a similar appearance as the first three bands in the PES spectrum of Ada, signaling that the MOs giving rise to these features are mainly localized on the adamantyl cage. Inspection of the Kohn–Sham MOs (Fig. S6, ESI†) and NTOs (Fig. S7, ESI†) illustrates the correlation between the 7t2 HOMO of Ada with the orbitals 15a′′, 26a′, and 25a′ in AdNH2. Furthermore, the other orbitals of Ada correlate with those in AdNH2 as (i) 2t1 → 14a′′ + 13a′′ + 23a′, (ii) 3e → 24a′ + 12a′′, (iii) 6t2 → 11a′′ + 22a′ + 21a′, (iv) 1t1 → 10a′′ + 9a′′ + 20a′, and (v) 5t2 → 8a′′ + 19a′ + 18a′. Such correlations were also discussed by Litvinyuk et al., but with the assumption that the order of the correlating MOs between Ada and AdNH2 is the same.25 They argue that because several of the split orbitals in AdNH2 are still quasi degenerate, the ionic states are separated by large gaps even at their low resolution of 1.5 eV and thus the orbitals of Ada remain almost unchanged by H → NH2 substitution. While this is essentially the case for orbitals correlating with the 7t2 orbitals of Ada, our assignments for the higher energy bands yield new interpretations. For instance, the comparison of the MOs and NTOs reveals the relationship between the D4 and D8 ionic states of AdNH2+ and the D3 degenerate state of Ada+. The 14a′′ and 23a′ orbitals of AdNH2 both exhibit delocalized spatial wavefunctions that correlate with the degenerate 2t1 orbitals of Ada. However, their eigenenergies are separated by 0.42 eV because of the bonding (23a′) vs. nonbonding (14a′′) character of the πNH2 electrons with the cage orbitals. A similar relationship applies to the 10a′′ and 20a′ orbitals, which experience a larger splitting of 0.73 eV. In these cases, the conjugation of the nN lone pair with the alkyl group in the symmetric a′ orbitals increases the transition energies to the respective 2A′ ionic states, whereas the 2A′′ states have lower transition energies with respect to the correlating states of Ada+. In summary, the largest splittings occur for orbitals related to the 7t2, 2t1, and 1t1 orbitals in Ada, as these have the largest overlap with the orbitals contributed by the NH2 group.
…(17a′)2(18a′)2(7a′′)2(19a′)2(20a′)2(8a′′)2(21a′)2(9a′′)2(22a′)2(10a′′)2 |
(23a′)2(11a′′)2(12a′′)2(24a′)2(13a′′)2(25a′)2(26a′)2(14a′′)2(27a′)2(15a′′)2 |
The first PES measurement of 1-AdOH was reported by Bodor et al.,16 however only IEv values were provided without discussion. Tian et al. presented the only available spectrum,24 wherein 1-AdOH was also measured by He*(23S) Penning ionization electron spectroscopy (PIES). Our measurement shows differences in the band intensities and yields slightly more pronounced features due to the improved resolution (40 vs. 80 meV). The first notable difference is a peak at (9.52 ± 0.07) eV, followed by another weak feature near 9.88 eV (Fig. 8). These were previously observed as shoulders to a peak at 10.6 eV by Tian et al.,24 who estimated the IEv values to be at 9.6 and 10.0 eV by the slope of the band contour and compared them to values calculated by Outer Valence Green's Function (OVGF) at 9.25 and 9.61 eV, respectively. Both peaks are well resolved in our spectrum and accurately predicted by our models. We calculate the S0(1A′) → D0*(2A′′) IEv at 9.54 eV, and both KT and TD-DFT give 9.89 eV for the D1(2A′′) state (Table S7, ESI†). The output of the FC simulation for the IE band is shown in Fig. 9. It reproduces the smooth contour seen in the experimental spectrum with no apparent vibronic features. The simulation yields a 0–0 peak with extremely low intensity at 71559 cm−1 (8.872 eV), which is then shifted by 0.16 eV to align the center of the band with the experimental curve (Table S8, ESI†). This gives a best estimate of the experimental IEa near 9.03 eV. The broad band is composed of densely congested vibrational excitations, although no fundamentals are predicted to have pronounced intensity. Instead, various combination bands involving several modes contribute to the convoluted line profile in red. Many of these modes involve activation of the C–C bond that is elongated upon ionization, and the large geometry changes between 1-AdOH and 1-AdOH+ result in small FC overlap.
![]() | ||
Fig. 9 The D0(2A′) ← S0(1A′) transition band from the PES spectrum of 1-AdOH (black) compared to the simulated FC stick spectrum (green) at 335 K, which is convoluted with a FWHM of 40 meV (red). |
At the current resolution, the low symmetry increases the degree of overlapping bands and complicates the ability to interpret the spectrum, especially with regards to identifying the OH orbitals. For comparison, the PES spectrum of 1-diamantanol has also been measured and similarly shows a smooth band contour with no apparent nO band.9 Two possibilities for assigning the nonbonding lone pair orbital are the ground state band at 9.52 eV or the sharper and more prominent peak at 10.46 eV. The MOs suggest that the 15a′′ HOMO is analogous to one of the eigenstates of the AdCN HOMO and the HOMO−1 of AdNH2 (Fig. S8, ESI†), but also possesses nonbonding nO character. However, the 14a′′ HOMO−2 has similar character and it is unclear to access which one correlates more strongly with the 7t2 HOMO of Ada by a visual comparison. Tian et al. assigned both to the two nO lone pairs, stating 15a′′ to be perpendicular and 14a′′ to be parallel to the cage, but with respect to orthogonal reference planes.24 We contend the nonbonding lone pair should be out of plane from the Cs axis, whereas the other will have bonding character between the acidic proton and the cage, analogous to the MOs of H2O. Using another model to describe the nature of the cation ground state, NBO charges at the same level of theory are computed for the neutral and cation ground state of 1-AdOH. The difference of the charges indicates that the cage experiences a net change of +0.787e for S0 → D0. This is similar to the AdCN HOMO, which has net change of +0.891e localized on the cage and contrasts with AdNH2, which experiences a net change of +0.554e on the NH2 group. Although NBO charges represent local charge density at equilibrium, this consideration would seem to indicate that the 15a′′ HOMO more closely correlates with the 7t2 HOMO of Ada. The peak at 10.46 eV is attributed to two quasi-degenerate ionic states, D2 and D3 at 10.51 and 10.52 eV, respectively (Fig. S9, ESI†). The near degeneracy and relative isolation of these states explain the observed peak prominence. The 26a′ orbital, however, correlates closely with the 7t2 HOMO of Ada together with the 27a′ orbital. We therefore correlate the MOs of Ada as: (i) 7t2 → 15a′′ + 27a′ + 26a′, (ii) 2t1 → 25a′ + 13a′′ + 11a′′, (iii) 3e → 24a′ + 12a′′, (iv) 6t2 → 10a′′ + 22a′ + 21a′, (v) 1t1 → 9a′′ + 8a′′ + 20a′, and (vi) 5t2 → 19a′ + 7a′′ + 18a′. The bonding valence OH orbital is 23a′, which is assigned to the small shoulder not observed in the other spectra at 12.73 eV. We find that strong mixing between the adamantyl and OH orbitals induces significant splitting of the Ada 7t2 HOMO, 2t1 HOMO−1, and 1t1 HOMO−4 over an energy range of about 1 eV in each case.

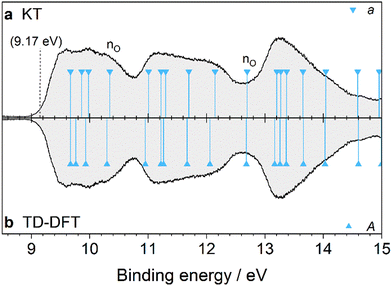

The PES spectrum exhibits several differences from that of 1-AdOH, demonstrating the significant effect of the substitution position on the ionic states (Table S9, ESI†). There are three bands appearing between 9 and 15 eV, the profiles of which are generally broader and smoother in appearance with no distinguishable vibrational fine structure. The onset of the first band is enlarged in Fig. 11 and is compared with a FC simulation of the transition into the cation ground state. The 0–0 peak is calculated at 70958 cm−1 (8.798 eV) with low intensity (Table S10, ESI†). The simulated spectrum is then shifted by 0.37 eV to align it with the experimental band contour to give a best estimate of the experimental IEa near 9.17 eV. After the stick spectrum is convoluted to match the resolution of the spectrometer, the simulated spectrum closely mirrors the measured curve. Four vibrations give the largest contribution to the band intensity: ν38 = 1195, ν50 = 949, ν65 = 506, and ν75 = 68 cm−1. These mainly contribute in the form of combination bands that are highly congested, which explains the smoothness of the band profile. However, the broadness of the band is not fully reproduced by the FC simulation, indicating that there are overlapping ionic states nearby toward higher energy. Both the KT and TD-DFT models match closely to the measured spectrum after adjusting by the vertical S0 → D0* ionization energy. Analyzing the Kohn–Sham MOs identifies 39a, predicted at 10.34 eV, to be a novel OH orbital not correlating with the MOs of Ada and having nO character (Fig. S10, ESI†). The other valence OH orbital is 33a (bonding nO), with a calculated IEv at 12.69 eV. Thus, the valence OH orbitals have slightly lower binding energy when Ada is functionalized at the 2-position compared to the tertiary 1-position.
…(5t2)6(1t1)6(6t2)6(5a1)2(3e)4(2t1)6(7t2)6 |

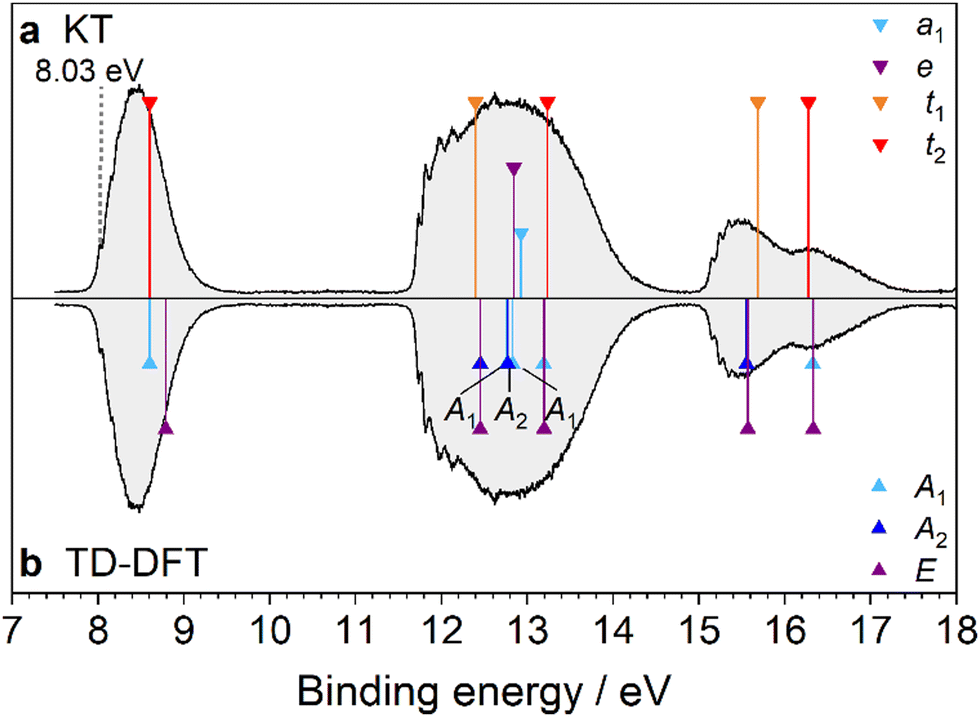

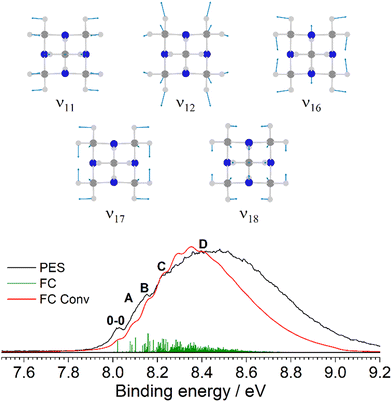

As we are unable to optimize the excited state geometries, we cannot give similar treatment to interpret vibronic features observed in the JT split D2(2A2)/D3(2E) and D9(2A2)/D10(2E) ionic states near 12.45 and 15.56 eV, respectively (Fig. S13, ESI†). For the first progression, we observe a 0–0 band at (11.73 ± 0.02) eV, followed by peaks at 11.81, 11.90 (shoulder), 11.96, and 12.12 eV (650, 1370, 1860, and 3150 cm−1 above the origin, respectively). Two more peaks are observed at 12.62 and 13.28 eV but are not likely to belong to the same state. The peak at 12.62 eV could be contamination of water in the vacuum chamber. The progression seen in the third band near 15.5 eV has an apparent 0–0 band at (15.15 ± 0.02) eV. Subsequent peaks are observed at 15.24, 15.31 (shoulder), 15.34, and 15.41 eV (730, 1290, 1530, and 2100 cm−1 above 0–0).
Lastly, correlation of the MOs of Uro with those of Ada highlights the inductive effect of the nitrogen lone pairs on the ionic states of Uro+. Much of this discussion has been given by Schmidt.20 Isolation of the MOs on the lone pairs significantly lowers the binding energy of the 7t2 and 5a1 orbitals by 1.23 and 2.25 eV, respectively. Meanwhile, conjugation of the lone pair electrons into the CN bonds increases the binding energies of the 2t1, 3e, 1t1, and 5t2 orbitals by 1.21, 1.59, 2.08, and 1.34 eV, respectively. The 6t2 orbitals of Ada and Uro, however, are nearly degenerate as these orbitals are mainly σCH2 bonding orbitals.
![]() | ||
Fig. 14 Correlation diagrams of the MO eigenvalues (−ε) of Ada compared to those of the functionalized adamantanes and Uro. Orbitals in red are attributed to the respective functional groups. |
All derivatives of Ada measured in this work, apart from 2-AdOH, affect one of the tertiary CH groups, and Uro replaces all four with N atoms. Thus, close inspection of the Kohn–Sham MOs with respect to the CH groups provides qualitative insight into the trends observed in the PES spectra. The 7t2 and 6t2 orbitals of Ada show σCH bonding character in all four tertiary CH groups whereas two of the six CH2 groups are bonding and the remaining four are nonbonding with the neighboring H. The 2t1 and 1t1 orbitals have no contributions from the tertiary CH groups and two of the CH2 groups, with the remaining CH2 groups again having nonbonding character. The 3e orbital also has no contribution from the CH groups but shows πCH2 bonding character in all six CH2 groups. Finally, 5a1 has bonding character in all CH and CH2 groups. These descriptions qualitatively agree with the equivalence orbital model used by Schmidt.20 Therefore, we classify the character of the orbitals as: 7t2 (CC, σCH), 2t1 (CC), 3e (CC, σCH), 6t2 (σCH), 1t1 (πCH2), 5t2 (πCH2), and 5a1 (σCH, σCH2).20
Fig. 14a compares −ε values of orbitals that correlate with the 7t2 orbital of Ada. The largest effect is demonstrated in the comparison between Ada and Uro, which differ in their energies by 1.23 eV and is caused by localization of the corresponding MOs in Uro to the nN lone pairs. The largest splitting of the orbital degeneracy, however, is manifested in 1-AdOH, which has a difference of 1.00 eV between 15a′′ and 26a′. As discussed, assignment of the nonbonding lone pair orbitals in 1-AdOH and 2-AdOH is not as straightforward as in the cases of AdNH2 and AdCN because both the HOMO and HOMO-2 orbitals are described by similar spatial wavefunctions. Fig. 14b and c depict the same energy range but separate the 2t1 and 3e orbital correlations for clarity. The 2t1 orbital of Ada again undergoes large splittings with the addition of the OH group. All orbitals corresponding to the 3e orbitals of Ada maintain quasi-degeneracy except for 2-AdOH, which undergoes a large splitting of 1 eV. This observation validates the assignment of the 3e orbital as CH2 bonding in Ada, because only functionalization at the secondary carbon has a noticeable effect. Comparing correlations with the 6t2 orbital of Ada (Fig. 14d) reveals that the nitrile group induces the largest change, with 13a1 and 9e both exhibiting increased binding energy and a large splitting of 0.71 eV between them. 1-AdOH is affected similarly whereas AdNH2 and 2-AdOH exhibit relatively small splittings in their correlated orbitals. 6t2 of Uro is nearly degenerate with 6t2 of Ada. However, considering most orbitals of Uro experience a shift towards higher binding energy by the inductive effect of the N atoms in the cage, similar to the effect of the nitrile group in AdCN, this implies that the 6t2 binding energy of Uro is actually redshifted relative to the nearby orbitals. Fig. 14f again shows that the 5t2 orbital Ada is CH2 bonding as there is quasi-degeneracy for correlating orbitals in the functionalized adamantanes except for 2-AdOH. Lastly, the 5a1 orbital of Uro has a lower binding energy by several eV due to small overlap of lone pair electrons with the remaining hydrocarbon cage orbitals (just like 7t2).
