Why alloying with noble metals does not decrease the oxidation of platinum: a DFT-based ab initio thermo-dynamics study

Abstract

Despite its well-known nobility, even platinum is subject to corrosion under the harsh conditions that many technical applications require. Based on the assumption that the platinum loss is mainly caused by the formation of volatile PtO₂, alloying is a promising strategy to reduce it. This investigation explores the bulk stability of Pt–Au, Pt–Ir, Pt–Re, Pt–W, Pt–Ag, Pt–Rh, Pt–Cu, Pt–Ni and Pt–Co, as well as their oxides, utilizing density functional theory, as well as ab initio and literature thermodynamic data. The alloy model combines special-quasi random structures with thermodynamic properties interpolated from the constituting metals, which are complemented by the configuration entropy. The results suggest that reducing platinum oxidation by alloying decreases the overall nobility of the alloy, since platinum- and oxygen affinity of the alloying metal are related to each other. Despite this limitation, copper was identified as a promising candidate for stabilizing the platinum catalyst in the Ostwald process.

---

1. Introduction

Synthetic fertilizers are without doubt one of the most important accomplishments of chemistry. Synthesis of nitrate on a large industrial scale was accomplished more than a century ago by oxidation of ammonia using the Ostwald process.^1–3 Still, central parts of the mechanism are not completely understood due to the fast^4,5 and highly exothermic reaction^4,6 and the complexity of the reaction network.^4,6 While direct observation is impossible at least for now, computational chemistry may be able to answer some of the remaining questions. One issue in the practical implementation concerns catalyst corrosion: although the platinum catalyst employed in the process is highly active, half of it is lost over the catalyst lifetime due to corrosion.⁷ Techniques to minimize this loss include flow related modifications of the catalyst like knitting and catchment gauzes, as well as alloying the platinum with around 10% rhodium.⁷ While the former two techniques have improved considerably over time, no addition to or replacement of rhodium has been found to further enhance the catalyst stability via alloying, since the mechanism of the corrosion is still not completely known.

By examining worn out catalyst gauzes, it was found, that the surface of the wires is reconstructed extensively in the form of “cauliflower” in the reaction zone (see Fig. 1).^5,7–9 The most advanced mechanism^5,8,10 of their formation postulates Pt-transport through the gas phase, which is powered by the high temperature of localized reaction hot-spots on the surface. The transport process is most likely mediated by PtO₂, since platinum sublimation alone is not severe enough to account for the amount of platinum lost in an oxygen atmosphere. The PtO₂ then either re-deposits nearby or is carried out. Hence, the unusual shape of the structures results from the crystallite extending into the reaction feed, but at the same time also shielding the surface from it.

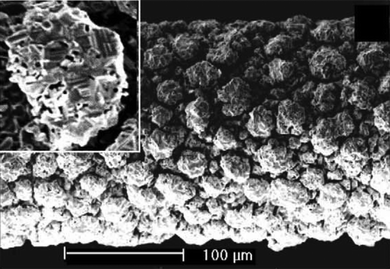

Fig. 1 Platinum catalyst surface reconstruction during ammonia oxidation. Image taken from Hannevold et al.⁸

The Pt–Rh catalyst itself adds another layer of complexity by featuring conflicting properties like the oxidation of rhodium¹¹ on one hand and the ability of platinum to reversibly^4,12 absorb oxygen on the other, as well as oxygen-dependant surface segregation.^13–16 At present, modelling all of these effects at once is not feasible due to vastly different time- and length-scales of catalytic reaction and catalyst degradation. The sheer scale of the reconstruction discussed above however demonstrates that the corrosion of platinum is mostly driven by bulk thermodynamics. Conversely, the influence of the surface is probably too small, to completely prevent the oxidation of a thermodynamically unstable phase, especially at a temperature above 1000 K. Its effect is therefore only kinetic in nature. Consequently, the investigation at hand focusses on screening platinum-rich alloys of Au, Ir, Re, W, Ag, Rh, Cu, Ni and Co for their thermodynamic resistance to oxidation combining periodic bulk-DFT calculations and ab initio thermodynamics with literature data. The stability of the alloys was estimated based on their ideal Gibbs free energy of mixing, which was then used to model their thermic oxidation in dry oxygen or their electro-chemical oxidation under OER conditions. This approach allows for a streamlined treatment of rather different alloys by not considering surface properties, the most important of which are catalytic activity and selectivity, as well as kinetic effects. According to the results, the stability of an alloy against platinum oxidation is closely related to the reactivity of the second metal, which however not only determines its affinity for platinum, but also that for oxygen. An independent adjustment of these two properties is therefore not possible and the resulting concentration-dependence of the overall nobility severely limits the number of viable alloying elements and -compositions. Still, copper was found to optimize both aspects much better than rhodium.

2. Computational details

2.1 Density functional theory calculations

All structures and energies were obtained by means of density functional theory (DFT). The calculations were done spin-polarized using VASP 5.3.5,^17–21 employing the PBE-functional,²² the standard ultrasoft PAW-pseudopotentials provided by VASP,²³ a Monkhorst–Pack–Mesh^24,25 (∼32k-pts Å⁻¹) and Gaussian smearing (sigma = 0.005 eV). Electronic and geometric convergence thresholds were set to 1 × 10⁻⁶ eV and 5 × 10⁻⁶ eV, respectively, and a cutoff of 500 eV was chosen. Gas phase molecules were calculated at the Γ-point only.

2.1.1 Dispersion correction. The investigation at hand compares phases with vastly different mass densities. The common assumption of similar van der Waals interactions is therefore not valid. VASP provides several methods to account for this and a selection of them was tested on platinum and the solid and gaseous modifications of PtO₂. Of these, only the combination of PBE and D3/BJ^26,27 (D4 is not available in VASP 5) provides reliable energies of formation for condensed and gaseous states of matter, whereas the other tested dispersion functionals were found to predict unreasonably low energies for the endothermic formation of gaseous PtO₂ (see Table S3, ESI†). Additionally, many of the methods overestimate lattice constants and bond lengths similar to or even worse, than bare PBE, which is known to underbind.^28,29 This agrees with literature results,³⁰ where nonlocal methods were found to reproduce errors of the underlying GGA functionals. For the computation of thermodynamic properties, which requires vibrational frequencies, a comparison between PBE and PBE-D3/BJ for the above test set yielded negligible entropy differences of about 2 J mol⁻¹ K⁻¹ at 298.15 K. PBE was therefore chosen for this task.

2.1.2 Magnetic structures. Magnetism is not relevant for most of the solid-state calculations because most of the investigated transition elements are not able to collectivize their uncompensated spins. Nevertheless, there are exceptions like the oxides of cobalt and nickel, whose unit cells require adjustments to be compatible with the correct magnetic structure (thereby lowering the respective symmetry from Fd3̄m and Fm3̄m to I4₁/amd and P2/m for Co₃O₄ and CoO/NiO). While all calculations were conducted employing the spin-unrestricted scheme, in some cases the structures had to be pre-relaxed with a set total spin. Especially some of the cobalt alloys were found to not converge without this treatment. Still, the ground state was not found in all cases, which results in a comparatively large scattering of the Pt–Co energies. In contrast, the geometries and energies of molecular phases were determined for fixed integer values of the total spin. Several values were tested for each species and the following magnetic moments were determined: PtO₂ (0μ_B), IrO₂ (1μ_B), IrO₃ (1μ_B), Re₂O₇ (0μ_B), WO₂ (0μ_B), WO₃ (0μ_B), RhO₂ (1μ_B).

2.2 Mean empirical enthalpy correction

Local and semi-local density functional functionals are known to penalize localized electronic states due to the self-interaction error.³¹ This affects radicals (especially oxygen) and -anions, as well as band gaps (Mott–Hubbard- and charge-transfer-insulators³²), especially in transition metal compounds. Unfortunately, there is no method to account for this easily in case of periodic boundary calculations. Wave-function based methods (and hybrid functionals), for example, are prohibitively expensive due to nonlocal terms, whereas alternative methods, like the semi-empirical GGA+U approach, are not transferable between different chemical systems. Slightly different from the oxygen correction scheme by Wang et al.,³³ the oxide Gibbs free energies are therefore adjusted empirically by −38.27 kJ mol⁻¹ per metal atom based on the mean deviation from experimental enthalpies of formation. Averaging is unavoidable here due to missing reference values for some oxides. Still, this procedure nearly halves the standard deviation of the enthalpy to +32.53 kJ mol⁻¹ per metal atom (the error is mostly concentrated on NiO, CoO and Co₃O₄) and allows for a comparison of the oxidation properties to that of other metals, as well as experimental data. The remaining errors should not affect the conclusions of this work, since the energies do not influence the trends versus T. This is due to the smaller, less error-prone normal modes dominating the heat capacity. No correction has been applied to the electrochemical reactions, since molecular oxygen is not involved in this case, while there is no way to determine the oxide component of the error.

The following solid phases were considered for the enthalpy comparison and the calculation of the mean (the literature cited for the metals refers to entropy data): Ir,³⁴ IrO₂,^35,36 Re,³⁷ ReO₂,^38–41 ReO₃,^41,42 Re₂O₇,⁴¹ W,⁴³ WO₂,^44,45 W₁₈O₄₉,^44,45 WO₃,^44–46 Ag,⁴⁷ Ag₂O,⁴⁸ Rh,³⁴ Rh₂O₃,^49,50 RhO₂,⁵¹ Cu,^52,53 Cu₂O,^53,54 CuO,⁵⁴ Ni,^53,55 NiO,⁵³ Co,^53,56 CoO^53,57,58 and Co₃O₄.⁵⁷ Due to unreliable data, the oxide of gold, as well as the ones of platinum were excluded from the averaging (this also prevented an individual adjustment). They were however corrected nonetheless for the sake of consistency.

The enthalpy errors of the gaseous oxides seemingly differ from the solid ones. Including them in the average thus worsens the overall result. A separate or individual correction of the gaseous phases is not an option either, since literature data is scarce and its reliability uncertain (PtO₂,^59–61 IrO₃,⁶² Re₂O₇,⁴² WO₂,⁴⁵ WO₃,⁴⁵ RhO₂^59–61). The reference data for O₂, H₂ and water vapour was taken from the NIST-JANAF tables.⁴⁵

2.3 Crystalline phases

The DFT energies were complemented by an evaluation of the thermodynamic properties to obtain the Gibbs free energy:

G(T) = H(T) − TS(T). (1)

In case of the regular solid phases only phononic contributions to the enthalpy and the entropy were accounted for, which was done using the phonopy package^63,64 (version 2.15.1, accessed 13.06.2022) applying the finite difference method with atomic displacements of 0.01 Å. To obtain a continuous representation of the discrete values provided by phonopy, the heat capacities were fitted to the Shomate equation^65,66within the interval 300 ≤ T ≤ 1300 K. Integration of the heat capacity in eqn (2) yields the vibrational entropyand -enthalpyThe parameters a, f and g were constrained to allow for a perfect reproduction of the respective phonopy values at 300 K. All parameters obtained this way are provided in Table S2 and the corresponding data file in the ESI.† By adding the single-point energy E and the mean empirical enthalpy correction of −38.27 kJ mol⁻¹ per metal atom (0 kJ mol⁻¹ for electrochemical reactions) to H_vib(T), one obtains the total enthalpywhere the thermal expansion of the solid phases is assumed to be negligible.

2.4 Gas phase model

In contrast to the solid state, the translational and rotational degrees of freedom dominate the enthalpy H(T) and entropy S(T) of the gas phase:

H(T) = E + H_trans(T) + H_rot(T) + H_vib(T) (6)

S(T) = S_trans(T) + S_rot(T) + S_vib(T) + S_el(T). (7)

The energy E was determined by means of DFT calculations at the Γ-point using VASP. The contributions to H and S are expressible in terms of their partition functions, which were adopted from Irikura.⁶⁷ Doing so for the translational degrees of freedom yieldsfor the associated change in enthalpy andfor the translational entropy, where R, k_B and h are the universal gas constant, the Boltzmann constant and the Planck constant, respectively. M denotes the total mass of the molecule and the pressure is fixed to p = 1 bar. Eqn (8) already includes the thermodynamic work pΔV = RT. Due to missing one rotational degree of freedom, the enthalpy- and entropy expressions for the rotation of non-linear moleculesdiffer from that of linear ones

H^lin_rot(T) = RT (12)

An additional symmetry number σ is necessary to describe the number of equivalent orientations. The total moment of inertia I was obtained using the determinant of the inertia tensor. Despite being small, the vibrational contributions to the enthalpyand the entropyhave been included to ensure correct behaviour at elevated temperatures. Depending on the molecular geometry, there are either 3N − 6 (non-linear) or 3N − 5 (linear) normal modes (N being the number of atoms). The normal mode frequencies ν_i were obtained using the finite-difference algorithm implemented in VASP with two displacements of 0.01 Å per direction and atom (NFREE = 2), skipping symmetry equivalent calculations (IBRION = 6). In case of Re₂O₇(g) two of the normal modes correspond to internal rotations. These have been modelled as free, symmetric rotors insteadwhere I_rotor and σ_rotor represent the moment of inertia of the rotating fragment and its symmetry. The angles α, β and γ specify the inclination of the rotation axis with respect to the global moments of inertia I_A, I_B and I_C. Finally, a simplified representation of the electronic degrees of freedom was added to the entropy, which considers the 2S + 1 degenerate spin states (S being the total spin in this particular case):

S_el = R ln(2S + 1) (20)

This does not only concern the gaseous oxides of rhodium and iridium, which share a total spin of S = 1/2, but is especially important in case of the triplet ground state of oxygen.

2.5 Random alloys

The alloys with at least fifty percent platinum content were modelled as randomized bulk supercells containing 108 atoms. Alloy randomization was achieved by applying the SQS-scheme by Zunger et al.,⁶⁸ which is implemented in the sqsgenerator package⁶⁹ (version 0.2, accessed 13.06.2022) and provides structures that mimic the properties of fully random alloys. The alloy energies of at least four random structures per composition with a standard deviation of at most 0.53 kJ mol⁻¹ per atom or 6.5% of the mixing energy were fitted to a cubic polynomial describing the total energy E as a function of the composition x, which hereafter refers to the concentration of the non-platinum metal (x₂). The energy of pure platinum was obtained from a separate calculation and fixed in the fitting process. To obtain the Gibbs free energy G(x, T) of the alloy, its energy per metal atom E(x)/n_M was combined with enthalpy- and entropy contributions, which were interpolated between the Gibbs free energies G_i(T) of the two constituting metals i:To avoid expansive cluster expansion calculations⁷⁰ for each alloy, the configurational entropy ΔS_mix(x) was calculated assuming an ideal solution:To estimate the boundaries of the random phase, the alloy data obtained this way is compared to stable intermetallic structures of like composition, which exist for the platinum alloys of copper,^71,72 nickel,⁷³ cobalt⁷⁴ and tungsten.⁷⁵

3. Results

3.1 Alloying

While oxidation of the alloys is the main focus of this investigation, it is tied to their general thermodynamic stability, which will therefore be addressed here first. On a qualitative level, there are four types of alloys:

– Elements forming type sA alloys interact strongly attractive, which favours intermetallic phases over the random structure in most areas of the phase diagram.

– Interactions in type wA alloys are less attractive, hence the disordered phase is stable over a wide range of compositions and temperatures.

– Element combinations of type wR interact weakly repulsive, thereby opening up a miscibility gap at low temperatures.

– The phase diagrams of type sR combinations are completely dominated by the miscibility gap. As a result of this, alloys of this type are only stable for very specific compositions and/or temperatures.

The classification described above can be illustrated by considering the Gibbs free energy of mixing, which compares the alloy to an idealized mixture of its components i:

Fig. 2 depicts ΔG_mix(x, T) of three representative platinum alloys for a temperature interval that covers many technical applications. It is important to note, that these plots should not be mistaken for complete phase diagrams, since besides neglecting liquid phases they do not contain information about phase mixtures. To maintain catalytic activity, a high content of platinum was assumed to be required, so only compositions with 0 ≤ x ≤ 0.5 were investigated. Accordingly, only the face-centred (fcc) structure of the platinum matrix is considered for the disordered alloys, which is favoured at high platinum content and shared by most metals investigated here. The only two exceptions – alloys rich in tungsten (Fig. 2c) and rhenium (Fig. S7b, ESI†), which crystallize in body-centred and hexagonal structures, respectively – are expected to occur only in case of a significant excess of the alloying metal.

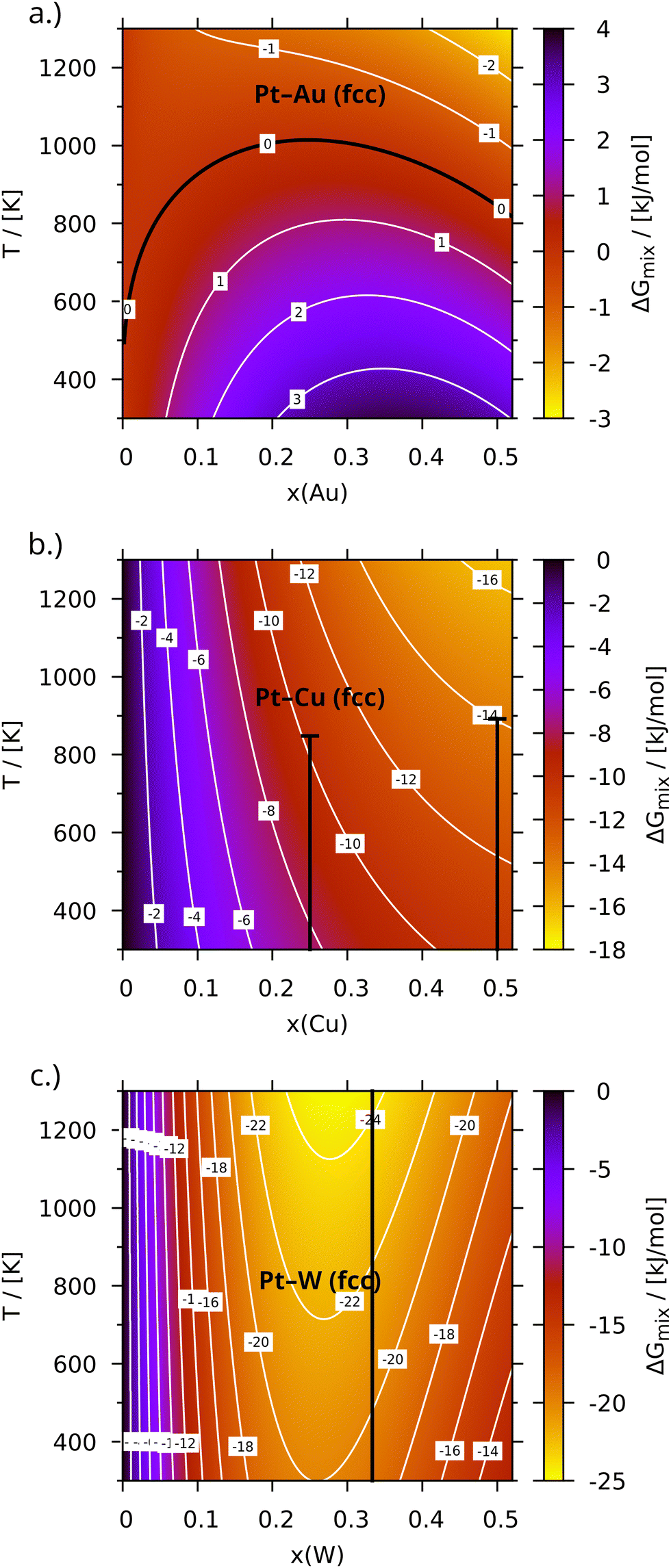

Fig. 2 Gibbs free energy of mixing (ΔG_mix) of Pt–Au (a), Pt–Cu (b) and Pt–W (c) per metal atom mapped onto alloy composition x and temperature T. Vertical black lines represent stable intermetallic phases of like composition.

As can be seen from Pt–Au in Fig. 2a, at high temperatures the configurational entropy completely compensates the repulsive interaction even in sR-type alloys. Likewise, the transition between weakly and strongly attractive categories (see Fig. 2b and c for examples, black bars indicate the stable temperature range of the respective ordered phase) is smooth. The weak/strong-subdivision established at the beginning of this section is therefore somewhat arbitrary. Moreover, it relies on experimental data to some extent. This is in contrast to the general attractive/repulsive character of the interaction, which is unambiguously defined by the sign of the mixing energy. Fortunately though, according to the summary in Table 1, the deviation of the most stable/unstable composition x_min/max from 0.5 might be a viable indicator for the interaction strength, since there are four alloys (Pt–W, Pt–Re, Pt–Au and Pt–Ag) with deviations of more than 0.1. Considering the sparse experimental data and the rather unexpected absence of intermetallic phases in such a well mixing system, Pt–Re is hence relabelled as a type sA alloy (in fact, the existence of regular phases is assumed based on theoretical predictions⁷⁶). A welcome side effect of basing the classification on x_min/max is the connection to the gradient of ΔG_mix along x, which will be important for the oxidation in Sections 3.2 and 3.3. In the discussion below the results will be presented starting with the late 5d alloys, which are most similar to platinum, and ending with the more complex 3d alloys.

Table 1 Classification of the investigated platinum alloys and the properties it is based on (extremal energy ΔE^min/max_mix per metal atom and the corresponding composition x_min/max, oxide energy of formation ΔE_f)

Alloy	ΔE^min/maxmix [kJ mol^−1]	x min/max	Alloyability-type^a	ΔEf/metal atom [kJ mol^−1]	Nobility-type^b
a sA = strongly attractive, wA = weakly attractive, wR = weakly repulsive, sR = strongly repulsive. b N = noble, B = base in comparison to ΔEf (PtO2,s) = −147.67 kJ mol^−1. c Relabelled based on xmin/max.
Pt–Au	5.3	0.38	sR	−19.80 (Au2O3)	N
Pt–Ir	∼6.0	∼0.55	wR	−230.45 (IrO2)	B
Pt–Re	−8.3	0.34	sA (wA)^c	−637.68 (Re2O7)	B
Pt–W	−18.6	0.25	sA	−822.09 (WO3)	B
Pt–Ag	2.6	0.33	sR	−5.91 (Ag2O)	N
Pt–Rh	∼−1.1	∼0.55	wA	−243.29 (RhO2)	B
Pt–Cu	< −8.5	> 0.50	wA	−108.38 (CuO)	N
Pt–Ni	−3.4	0.48	wA	−125.43 (NiO)	N
Pt–Co	−3.8	0.48	wA	−233.78 (Co3O4)	B

---

3.2 Pt-Alloys of Au and Ir

While most considered elements mix attractively with platinum, gold and iridium do not. In Fig. 2a (see Fig. S5b for the iridium results, ESI†) this is indicated by the positive sign of ΔG_mix(x, T) at low temperatures. Even at 1300 K the Gibbs free energy of mixing does not exceed −3 kJ mol⁻¹ for both elements. Still, the miscibility gaps reported in the literature extend up to 1473 K for Pt–Au⁷⁷ and 1300 K in case of Pt–Ir,⁷⁸ indicating an overstabilization of the random phase in our model. An improved description of ΔG_mix can be achieved by combining a cluster expansion model with Monte Carlo sampling⁷⁰ (see for example ref. 79). This is, however, out of the scope for the present screening investigation and even the lower demixing temperatures fall within range of the working conditions of the Ostwald process.

3.2.1 Pt-Alloys of Re and W. The rhenium alloy mixes strongly attractively (type sA), with minimum ΔG_mix(x, T) values ranging between around −10 kJ mol⁻¹ at 300 K and nearly −16 kJ mol⁻¹ at 1300 K for a rhenium content of 25% (Fig. S7b, ESI†). The compositional range is reduced in this case due to rhenium crystallizing in a hcp structure and the related miscibility gap around x ≈ 0.5, which is hinted at by a minimum of ΔG_mix(x, T) along x. The presence of the latter somewhat contradicts the attractive interaction with platinum and indeed calculations by Levy et al.⁷⁶ suggest the existence of Pt₃Re. The behaviour of tungsten (Fig. 2c) is very similar, the only differences being the even stronger interaction with platinum (−20 kJ mol⁻¹ up to −25 kJ mol⁻¹ at x = 0.25) and the intermetallic phase at x = 0.33.^75,80 Still, both elements appear to be useful for alloying, since the limited compositional range is made up for by the steep gradient of ΔG_mix along x, which permits the use of less alloying metal.

3.2.2 Pt-Alloys of Ag. The platinum alloy with silver (Fig. S1a, ESI†) is similar to that of gold (Fig. 2a) but about 3 kJ mol⁻¹ more stable. Based on the large deviation of the miscibility gap's maximum temperature from the experimental phase diagram,⁸¹ the stability is probably overestimated, though. Please note that neither the liquid phase, which is required for the peritectic reaction, nor intermetallic PtAg at low temperatures⁸¹ were considered.

3.2.3 Pt-Alloys of Rh. The Gibbs free energy of mixing of rhodium in platinum (Fig. 7a) is mostly driven by entropic contributions, while the enthalpy of mixing is negligible. Thus, despite being an attractive alloy (type wA) and the default choice for alloying, it needs around 1300 K to reach the Gibbs free energy of mixing of Pt–Re at 300 K.

3.2.4 Pt-Alloys of Cu. Modelling the late 3d platinum alloys is slightly more complicated, since there are order–disorder transitions within the investigated temperature range. For the sake of this discussion, the alloys are assigned to the weakly attractive category. This agrees with the classification based on x_min/max, which was proposed above (see Table 1). The copper alloy (Fig. 2b) outperforms all other wA-alloys in terms of stability (ΔG_mix decreasing from −10.6 kJ mol⁻¹ to −16.4 kJ mol⁻¹ in the chosen temperature interval). This is accompanied by the emergence of the unique L1₃- (Cmmm)^82–84 and L1₁-structures (R3̄m)^72,83,84 for Pt₃Cu and PtCu (please see Table S1 in the ESI† for a complete listing of all considered phases and their thermodynamic properties). Still, the order–disorder transition at 50% copper occurs almost 200 K lower than expected⁷¹ (no data was found for Pt₃Cu), supporting the notion expressed earlier for Pt–Au and Pt–Ir that the stability of the random alloys is overestimated.

3.2.5 Pt-Alloys of Co and Ni. Except for the negligible fcc–hcp transition of cobalt both alloys resemble each other very closely, with ΔG_mix of Pt–Co decreasing from −5.5 kJ mol⁻¹ at 300 K to almost −11.5 kJ mol⁻¹ at 1300 K and Pt–Ni only adding +0.5 kJ mol⁻¹ to this (Fig. S3b and S6b, ESI†). Both elements carry a magnetic moment, which in some cases prevents the identification of the ground state. Especially for compositions with 20% and 30% cobalt the energies are notably less negative than expected (see Fig. S3a, ESI†). Consequently, the transition to the L1₂ structure (Pm3̄m) sets in 450 K too low, whereas the transition at 50% to the L1₀ structure (P4/mmm) deviates by 400 K from the experimental phase diagram.⁷⁴ The analogous nickel deviations of +110 K for PtNi and −40 K for Pt₃Ni on the other hand compare much better to the literature.^73,85,86

3.3 Oxidation of platinum

Despite being known as noble, platinum forms at least one gaseous oxide – which is the main focus of this investigation – as well as several solid oxide phases. While the latter do not contribute to the volatility directly, they may form at the surface, thereby potentially passivating it or acting as a precursor for the formation of PtO₂ vapour. Thermodynamically, the volatilization can be described in three steps (which are not identical to the reaction mechanism). In the first step a platinum atom is released from the alloy:

Pt_(1−x)sM_x·s → Pt_(1−x)s−1M_x·s + Pt. (I)

This is equivalent to increasing x to the final concentration x:

Herein, s denotes the system size in terms of the total number of atoms. Conversely, 1/s can be thought of as the fraction of the system, which is affected by oxidation. In the following calculations s was set to 100 atoms, though reducing it to ten atoms or less does not change the results for the platinum oxidation significantly (it does however affect that of the second metal). Please note, that the intermediate state of the released metal atom, which results from the separation of step I and II, has not been considered explicitly. Hence, in the second step the released platinum atom directly reacts to form the thermodynamically stable oxide:In case of the latter being solid, a third step – subsequent oxidation, decomposition or direct sublimation – is necessary to complete formation of a volatile species:All Gibbs free energies presented hereafter will follow this scheme (negative values signifying oxidation taking place spontaneously). The gaseous product being transported out of the reaction zone by the gas feed renders the third reaction a non-equilibrium process in a technical reactor. As a consequence, this process may take place, regardless of sign.

As can be seen from equations I to III, alloy composition and properties only affect the very first step, whereas the oxidation of the released platinum is identical for all alloys and depends only on the reaction conditions. The four alloy types introduced in the alloying section – strongly attractive (sA), attractive (wA), repulsive (wR) and strongly repulsive (sR) – thus apply here as well. Despite most platinum oxides being solid, the three reaction steps are combined here to assess the resistance against platinum volatilization via PtO₂(g). The total Gibbs free energy of reaction thus reduces to

ΔG_r,Pt(x, T) = ΔG_−Pt(x, T) + G_PtO2(T) − G_O2(T). (25)

G_O2 and G_PtO2 are calculated as described in the computational details. The Gibbs free energy necessary to release one platinum atom from the alloy, ΔG_−Pt, is expressed by

ΔG_−Pt(x, T) = (s − 1)G(x′, T) − sG(x, T). (26)

Eqn (26) implies that ΔG_r,Pt(x, T) is related to the derivative of ΔG_mix(x, T) with respect to x, since the change of the Gibbs free energy is calculated for a constant change in concentration. As a result of this, the trends along x of associated plots oppose each other in Fig. 2 and 3. The dependence on the temperature, on the other hand, is mostly determined by the large entropy difference of the gaseous and solid phases, which results from the latter lacking translational and rotational degrees of freedom. This translates to a declining stability at elevated temperatures for the solid oxides, whose entropy is too small to compensate for the loss of gaseous oxygen, whereas the formation of gaseous metal oxides results in an entropy gain if a maximum of one oxygen molecule is bound in the process. Both states of matter are observed in the oxidation of platinum, which below will be discussed for pure platinum (x = 0) first. As for the Gibbs free energy of mixing, only a representative selection of the results is shown in Fig. 3. The remaining plots can be found in the ESI.†

Fig. 3 Gibbs free energy for the formation of gaseous PtO₂ (ΔG_r,Pt) from Pt–Ir (a), Pt–Cu (b) and Pt–W (c) per metal atom mapped onto alloy composition x and Temperature T. Phases and their boundaries are signified in black.

3.3.1 Oxidation of pure platinum. Besides gaseous PtO₂, four solid phases – α-PtO₂ (P3̄m), β-PtO₂ (Pnnm), Pt₃O₄ (Pm3̄n) and PtO (P4₂/mmc) – were considered as possible oxidation products. Reproducing their very different structures and properties correctly requires the inclusion of dispersion forces, which especially lowers the relative stability of the gaseous- and the layered a-modifications of PtO₂ in accordance with their lower mass density. In the present case, the D3/BJ approach by Grimme et al.^26,27 was chosen to complement the PBE density functional. Consequently, only two oxides are observed in Fig. 3: β-PtO₂ is predicted to be stable at low temperatures. At 663 K the rapidly growing gas-phase entropy of oxygen causes some of it to be released from the solid. The resulting Pt₃O₄ is then stable again up to 1094 K in case of pure platinum (x = 0), where it finally decomposes. Unfortunately, experimental data on the phase transitions between platinum oxides is sparse, especially at moderate or low temperatures and pressures, where equilibration is difficult. Electrical resistance measurements by Berry⁸⁷ suggest a decomposition of β-PtO₂ between 870 K and 920 K. This is consistent with more recent thermogravimetric results by Punnose et al.,⁸⁸ who additionally found Pt₃O₄ between 908 K and 1073 K. Both measurements were conducted in air, where the transition temperatures are lower than in pure oxygen due to the lower partial pressure. A comparison to other theoretical results, like that of Chen and Yang⁸⁹ or Seriani et al.,⁹⁰ is difficult due to differences in the employed models, since either the phonon contribution or the corrections of the DFT oxygen and oxide energies are missing. The seemingly better Pt₃O₄-boundary temperatures of 870 K and 970 K by Seriani et al.⁹⁰ might thus be coincidental and caused by error cancellation. The corrected values for (β-)PtO₂ and Pt₃O₄ calculated here differ by about −10.1 kJ mol⁻¹ and +12.0 kJ mol⁻¹ per platinum atom, respectively, compared to the empirical relation proposed by Wang et al.⁹¹ for example (please see the Table S1 for a complete list of all thermodynamic properties, ESI†). The combined deviation can easily cause a boundary shift of the observed magnitude. It needs to be kept in mind, though, that the metal–oxide transition is much more important for the present investigation.

Gaseous PtO₂, despite being unstable, most likely plays a key role in the corrosion of platinum due to its formation being irreversible in a fixed bed reactor with a directional gas flow. In contrast to the solid phases, its entropy is larger than that of platinum and oxygen combined, which results in a decrease of the Gibbs free energy of reaction from +156.9 kJ mol⁻¹ at 300 K to +146.0 kJ mol⁻¹ at 1300 K, promoting its formation at elevated temperatures. The corresponding enthalpy of formation amounts to +160.6 kJ mol⁻¹ at 298.15 K, whereas the literature data spans values from about 164 kJ mol⁻¹ (ref. 59–61) to 218 kJ mol⁻¹.⁹² Fortunately, changes induced by alloying are not affected by this uncertainty. The following discussion will therefore focus on how alloying alters the relative stability of the alloys compared to pure platinum.

3.3.2 Oxidation of Pt in Au- and Ir-alloys. Pt–Au and Pt–Ir are repulsive alloys of type sR and wR, respectively. These types are characterized by a positive Gibbs free energy of mixing, which lowers the energy required for releasing platinum from alloys with high gold or iridium content, thereby also promoting their oxidation. This is illustrated by Fig. 3a, which presents the Gibbs free energy for forming PtO₂(g) from the gold alloy (see Fig. S5c for the iridium results, ESI†). As can be seen, at 300 K alloying with gold decreases ΔG_r,Pt(x, T) from +156.7 kJ mol⁻¹ to +149.8 kJ mol⁻¹ (to +153.2 kJ mol⁻¹ in case of iridium), which increases the vapour pressure at that temperature by almost 17 times. At 1300 K, on the other hand, the configurational entropy almost compensates the repulsive enthalpy and the gradient of ΔG_r,Pt(x, T) along x nearly vanishes. Another inversion is observed at low x, where decreasing the platinum content slightly increases ΔG_r,Pt(x, T), which results in a small maximum along x (in case of iridium, the maximum less narrow and shifted to larger x). The reason for this is the infinite mixing entropy at x = 0, which translates to a rapidly decreasing chemical potential of gold at low concentrations. Thus, alloying platinum with small amounts of any other metal generally reduces its oxidation tendency. This is also reflected by the boundary between Pt₃O₄ and the metallic state, which is – in contrast to oxide–oxide transitions–composition dependant.

3.3.3 Oxidation of Pt in Re- and W-alloys. Pt–Re and Pt–W are of the strongly attractive type, where the minimum Gibbs free energy of mixing is reached well below x = 0.5. In Fig. 3c, which presents the formation of PtO₂(g) from Pt–W, this translates to a steep increase of ΔG_r,Pt(x, T) to +176.0 kJ mol⁻¹ already at 300 K and x = 0.25 (results for larger x are not discussed due to adjacent intermetallic phases). Alloying with rhenium yields almost +163.4 kJ mol⁻¹ for the same conditions (see Fig. S7c, ESI†). Both values decrease by only about 8.5 kJ mol⁻¹ at 1300 K (the vapour pressures at this temperature are thus reduced to 14% and 44%, respectively). A comparably strong dependence on x was found for the metal–oxide phase transition, which drops by around 175 K in case of alloying with tungsten (around 70 K for rhenium). Unlike the repulsive alloys, all trends are monotonous, since the stabilizing effect of the mixing entropy adds to an already negative mixing energy.

3.3.4 Oxidation of Pt in Ag-alloys. The mixing behaviour of silver in platinum is similar to that of gold. Nevertheless, its mixing energy is smaller, which reduces the gradient of ΔG_r,Pt(x, T) along x and results in a plot that blends properties of Pt–Au and Pt–Ir (Fig. S1c, ESI†). Consequently, the Gibbs free energy of reaction at x = 0.5 is always above that of the gold alloy (+152.4 kJ mol⁻¹ at 300 K, +147.3 kJ mol⁻¹ at 1300 K).

3.3.5 Oxidation of Pt in Rh-alloys. The rhodium alloy belongs into the wA-category, which is represented by Pt–Cu in Fig. 3b (see Fig. 7b for the rhodium plot). Alloys of this type mix attractively over the whole range of x, allowing for synergy with the configurational term at high temperatures. The gradient along x therefore opposes that of the repulsive alloys. In case of Pt–Rh the mixing behaviour turned out to be almost ideal. This leaves the configurational entropy as the only contribution that influences the oxidation, which is not sufficient to compensate the surplus entropy of PtO₂(g). At x = 0.5 ΔG_r,Pt is therefore higher at 300 K (+159.5 kJ mol⁻¹), than at 1300 K (+154.4 kJ mol⁻¹). Still, the vapour pressure at 1300 K decreases to 46% compared to pure platinum.

3.3.6 Oxidation of Pt in Cu-, Ni- and Co-alloys. The late 3d elements are miscible with platinum regardless of composition already at 0 K (type wA). The Gibbs free energy needed for the formation of gaseous PtO₂ therefore steadily increases with x. The largest value of ΔG_r,Pt(x, T) is found for 50% copper at 300 K and amounts to +164.4 kJ mol⁻¹. This is a lower bound to the actual value, since ordered PtCu is preferred at this temperature. At 1300 K, this composition still yields +159.3 kJ mol⁻¹. Alloying nickel or cobalt lowers ΔG_r,Pt to +162.4 kJ mol⁻¹ and +157.3 kJ mol⁻¹ in case of the former and to +163.2 kJ mol⁻¹ and +158.1 kJ mol⁻¹ for the latter. Despite seemingly compensating the influence of temperature on pure platinum, alloying however cannot completely suppress its volatilization, since the weight of the Gibbs energy difference decreases at high temperatures according to exp(−ΔΔG_r,Pt/RT). Still, the difference of ΔΔG_r,Pt = 13.4 kJ mol⁻¹, which was calculated for the copper alloy at 1300 K, is equivalent to a reduction of the PtO₂ vapour pressure by 71%.

3.4 Oxidation of the alloying metal

With some minor adjustments the reaction scheme established for platinum is also valid for the second alloy component. The adaption of eqn (25) for other oxide stoichiometries then yields the following more general expression of the Gibbs free energy of reaction for the oxidation of the alloying metal M:In contrast to platinum, though, releasing M from the alloy decreases x. The final concentration x′ therefore needs to be redefined toThis is equivalent to

Pt_(1−x)sM_x·s → Pt_(1−x)sM_x·s−1 + M. (IV)

Despite the similar reaction sequence, the additional complexity of M denoting more than one element, each of them with its own, distinct oxidation behaviour, still exists. This property, which will be referred to as “nobility”, also needs to be accounted for in the alloy classification scheme introduced in Section 3.1 by subdividing the alloy types. Oxygen affinity and alloyability are, however, not independent of each other, since both are connected to the reactivity. This results in opposing behaviour in terms of stability. Accordingly, elements of subtype N (“noble”), which are comparatively stable with regards to oxidation, usually mix repulsively (the opposite is the case for subtype B, “base”). Since all metals oxidize to some extent, the normalized oxidation energy of the pure metals (without any correction) was chosen as a criterion for assigning them to one of the two subgroups by comparing it to the formation of β-PtO₂ from platinum. The resulting assignments are listed in Table 1.

The following section compares metals with very different properties and not all of them form volatile oxides. Consequently, the Gibbs free energy of reaction ΔG_r,M(x, T) of the most stable oxide phases – regardless of their state of matter – is shown in Fig. 4. Besides the replacement of the gold alloy with that of iridium (gold is not expected to oxidize notably), the plots are similar to that for the oxidation of platinum in Fig. 3. There are however several important differences. Most obviously, the trends along x are inverted due to the complementary element concentration, while the inversion along T is related to the mostly solid oxides, whose entropy is much lower than that of (gaseous) oxygen. Additionally, the oxidized metal being different for each alloy adds an element- and temperature-dependant offset to the Gibbs free energy of reaction. A final detail is the gap at low x, where the amount of the non-platinum metal decreases below x = 1/100 = 1/s, which is equivalent to x = 0. This was implemented, since the configurational entropy (which is based on ln(x)) is not defined for x < 0. At the same time, alloying effects are most prominent at low concentrations due to the logarithm tending to negative infinity.

Fig. 4 Gibbs free energy for the oxidation of the alloying metal (ΔG_r,M) within Pt–Ir (a), Pt–Cu (b) and Pt–W (c) per metal atom mapped onto alloy composition x and temperature T. Phases and their boundaries are signified in black.

3.4.1 Oxidation of Ir in Pt-alloys. Iridium is the only element tested, that is oxygen-affine in comparison to platinum and repulsive at the same time (type wR/B). Fig. 4a therefore exhibits an increase of ΔG_r,Ir for most compositions at 300 K from −218.4 kJ mol⁻¹ at x = 0.1 to −210.0 kJ mol⁻¹ at x = 0.5 due to the positive mixing energy. Above 1000 K the latter is compensated by the configurational entropy, which results in an increase from −13.3 kJ mol⁻¹ to −18.6 kJ mol⁻¹ at 1300 K. Below x ≈ 0.1 the logarithmic mixing term inverts the trend even at 300 K. While iridium oxide is known to be volatile, this is not reflected in Fig. 4a, even though both, the enthalpy of formation and the entropy of IrO₃ at 298.15 K are overestimated⁶² by −32.1 kJ mol⁻¹ and +27.0 J mol⁻¹ K⁻¹, respectively (see Table S1, ESI†). Instead, solid IrO₂ (P4₂/mnm) is observed up to 1300 K, whose properties differ much less from the literature. This implies, that the nobility of iridium – like that of rhenium and tungsten – is at least partly caused by passivation.

3.4.2 Oxidation of Re in Pt-alloys. Similar to Pt–W in Fig. 4c, Pt–Re (type sA/B, see Fig. S7d, ESI†) features a steep drop in ΔG_r,M from −504.5 kJ mol⁻¹ to −561.1 kJ mol⁻¹ at 300 K (−238.6 kJ mol⁻¹ to −330.1 kJ mol⁻¹ at 1300 K) while increasing the rhenium content to 25%. Just a single oxidation state – Re₂O₇ – is found to dominate this temperature interval, though there is a change of its state of matter. A direct comparison of the transition temperature with literature data is not possible due to the neglected liquid state but according to the enthalpies of formation solid Re₂O₇ (P2₁2₁2₁) is −35.8 kJ mol⁻¹ per metal atom too stable,^40,41 whereas the gaseous equivalent differs by −1.7 kJ mol⁻¹.⁴² (which is offset by the 15.7 kJ mol⁻¹ larger^42,93 entropy per metal atom). Adjusting the enthalpy of the solid oxide thus lowers the boundary from 780 K to 635 K. The roles of ReO₂ and ReO₃ might be comparable to that of WO₂ (see below).

3.4.3 The oxidation of W on Pt-alloys. Tungsten (type sA/B, Fig. 4c) behaves very similar to rhenium but eclipses the latter not only in terms of platinum – but also oxygen affinity. ΔG_r,M thus spans a huge range of values, from −596.6 kJ mol⁻¹ and −750.5 kJ mol⁻¹ at 300 K and x = 0.25 to −301.5 kJ mol⁻¹ and −490.3 kJ mol⁻¹ at 1300 K. The large variety of phases described in the literature⁹⁴ is, however, not reflected by Fig. 4c: besides solid WO₃ no other oxide is present. And while WO₂ and W₁₈O₄₉ are limited to very specific conditions⁹⁵ and their occurrence on oxidized tungsten surfaces is likely related to their low oxygen permeability,^96,97 only two of the four expected^98,99 WO₃ modifications (P2₁/c at low – and Pnma at high temperatures) are observed. The latter is not a major concern, though, since the properties of the WO₃ phases are very similar and compare well with the values of Charlu and Kleppa⁴⁴ (please see Table S1, ESI†). The absence of gaseous phases, on the other hand, is not a sign of instability but results from the overwhelming stability of solid WO₃. In fact, the formation of WO₃(g) is predicted to be about half as endergonic, as that of the solid phase. Moreover, the resulting volatility is probably underestimated due to not accounting for the formation of tungstic acid (H₂WO₄)^100,101 or dimerization.¹⁰²

3.4.4 Oxidation of Ag in Pt-alloys. Ag₂O is one of very few oxides, whose enthalpy of formation is severely worsened by the empirical correction (−43.4 kJ mol⁻¹ instead of −15.3 kJ mol⁻¹ ref. 48 per silver atom). But besides raising the corresponding phase boundary by more than 600 K⁴⁸ (see Fig. S1d, ESI†), the impact of this error is limited, since it is only additive and does not influence the observed trends. As a repulsive alloy, Pt–Ag shares several characteristics with Pt–Ir in Fig. 4a, like the small minimum of ΔG_r,M with regards to alloy composition at x ≈ 0.1. Unlike iridium, however, silver is of the noble subtype sR/N, as can be seen from the still small enthalpy of formation. Accordingly, the Gibbs free energy of reaction between x = 0.1 and x = 0.5 only increases from −38.9 kJ mol⁻¹ to −29.4 kJ mol⁻¹ at 300 K (+11.2 kJ mol⁻¹ to +7.0 kJ mol⁻¹ at 1300 K).

3.4.5 Oxidation of Rh in Pt-alloys. The wA/B-classification of the rhodium alloy (Fig. 7c) is only shared by that of cobalt, which is however much easier oxidizable (see below). The corresponding change of the Gibbs free energy of oxidation is negligible at 300 K but grows to nearly −55 kJ mol⁻¹ at 1300 K (+28.3 kJ mol⁻¹ to −26.4 kJ mol⁻¹). Compositions with up to 5% rhodium are thus stable at this temperature, which conforms with the pure oxide dissociating at 1400 K¹⁰³ and the phase diagram by Muller and Roy.¹⁰⁴ Unfortunately, neither of the expected^103,104 Rh₂O₃ polymorphs is observed due to an overcorrection of RhO₂ by −31.5 kJ mol⁻¹.^51,105 Indeed, Rh₂O₃ appears above 956 K, if the oxides are corrected individually based on their enthalpies of formation, which also widens the stable range to x ≈ 0.24 (see Fig. S10c and d, ESI†). According to Jacob et al.¹¹ this is still too narrow, though. Finally, rhodium also forms a gaseous oxide similar to PtO₂, whose formation is slightly more endothermic (ΔH⁰_f = +173.2 kJ mol⁻¹, ΔH⁰_f,lit ≥ +188.9 kJ mol⁻¹ ref. 59–61).

3.4.6 Oxidation of Cu in Pt-alloys. Contrary to expectation the close relation of the copper oxides to superconductivity does not influence their thermodynamic properties noticeably. The remaining enthalpy errors of +9.9 kJ mol⁻¹ (CuO) and +1.7 kJ mol⁻¹ (Cu₂O) per copper atom are however still large enough to lower the CuO–Cu₂O-transition in Fig. 4b by roughly 230 K compared to the hypothetical literature value (at 1 bar CuO melts⁵⁴ well before this happens). Consequently, the Gibbs free energies calculated for the oxidation of copper are likely too positive at high temperatures (+56.6 kJ mol⁻¹ to −19.6 kJ mol⁻¹ at 1300 K), while the low-temperature region remains mostly unaffected (−68.8 kJ mol⁻¹ to −104.3 kJ mol⁻¹ at 300 K). Indeed, the range of stable alloy compositions reduces to about 17% copper at 1300 K, if the oxide enthalpies are corrected individually (see Fig. S10a and b, ESI†). This is slightly smaller than the fully corrected rhodium alloy, which is however not as stable against platinum oxidation. Copper is thus the only element, that can potentially strengthen platinum without oxidizing itself (type wA/N).

3.4.7 Oxidation of Ni and Co in Pt-alloys. Despite all similarities found for the cobalt- and nickel alloys (type wA/B and wA/N, see Fig. S3d and d, ESI†), the elements themselves behave rather differently, since nickel in contrast to cobalt avoids high oxidation states.^106,107 Consequently, with Co₃O₄ a cobalt oxide with two different oxidation states is found to dominate over the whole temperature range, even though its calculated enthalpy of formation deviates by +36.3 kJ mol⁻¹ per metal atom from to the literature value of −305.1 kJ mol⁻¹.⁵⁷ Given that the deviation⁵³ of the prototypical charge-transfer insulators^108–110 CoO and NiO is about twice as large, this is probably related to the self-interaction error.³¹ The Gibbs free energies of reaction calculated for Pt–Co (−210.5 kJ mol⁻¹ to −225.3 kJ mol⁻¹ at 300 K, −39.1 kJ mol⁻¹ to −94.7 kJ mol⁻¹ at 1300 K) and Pt–Ni (−111.7 kJ mol⁻¹ to −132.7 kJ mol⁻¹ at 300 K, +14.8 kJ mol⁻¹ to −47.1 kJ mol⁻¹ at 1300 K) are thus too low as well.

3.5 Electrochemical oxidation

Platinum and its alloys are highly relevant electrode materials, and electrooxidation of platinum-based catalyst materials is a frequently observed degradation mechanism, for example in fuel cells.^111–114 To provide more insight into the thermodynamic behaviour of platinum-based alloys in this context, the model presented in the last sections was adapted to the electrochemical oxidation. This mainly requires the replacement of oxygen by liquid water, with electron holes acting as the electrochemical oxidizer. The Gibbs free energy of liquid water is approximated based on the vapour–liquid phase equilibriumwhere p_vap = 0.032 bar indicates the vapour pressure of water at room temperature and G_H2O,g represents the calculated Gibbs free energy of a water molecule in the gas phase (see Section 2.4 for details). Only total oxidation is considered here, which is preferred for most metals investigated here at typical oxygen evolution (OER) overpotentials.^115–118 In case of Nickel¹¹⁹ and Cobalt¹²⁰ the hydroxides are not stable at strongly acidic conditions. Neither the formation of complex ions, nor the direct dissolution to metal ions, which are usually preferred instead, have been included in the calculations presented below.

The oxidation reaction of the released metal atom M, which can be either platinum or the alloying metal, thus reads

Adapting the model of the computational hydrogen electrode,^121,122 the chemical potential of the protons is defined by the H₂/H⁺-equilibrium. At standard conditions (p_H2 = 1 bar, pH = 0, T = 298.15 and U = 0 V relative to the standard hydrogen electrode), the Gibbs free energy of the protons is therefore identical to that of gaseous hydrogen, while increasing the voltage (U) facilitates the electrochemical reduction of water. The total Gibbs free energy of reaction thus readsThe dependence of the oxidation on voltage (U) and pH is described by the Gibbs free energy of the electron transfer (G_e), which is defined as:Eqn (31) is specified in kJ mol⁻¹ and therefore includes a conversion factor, where F denotes Faraday's constant. The Gibbs free energy G_−M(x, T) needed to release a metal atom is calculated according to the eqn (26) and (24) or (28), respectively, while the Gibbs free energies of the oxides are adopted from the previous sections. The pH is fixed to pH = 0.

Since the release of platinum from the alloy is modelled similarly to the thermal oxidation, the trend with regards to alloying is reproduced in case of the electrochemical oxidation. Fig. 5 illustrates this by plotting the Gibbs free energy of reaction for the oxidation of platinum in the tungsten alloy. As is evident from the more or less horizontal isolines, the dependence of ΔG_U,Pt on x is weak compared to that on U. Due to the effect of alloying being even smaller for the other alloys, none of them are shown here (see the ESI,† for the respective diagrams). While the dependence on the pH is not plotted here in favour of the compositional dependence, a comparison to the Pourbaix diagram of platinum¹¹⁸ is still possible at x = 0 and U = 0, which reveals several differences. Most importantly, there is no dissolution of platinum around 1.0 V. Even though this is expected, as Pt²⁺ was neglected here, it is still not a sufficient explanation for the markedly lower metal–oxide phase transition at 0.81 V (solid black line at ΔG_U,Pt = 0). Besides the enthalpies of formation of the platinum oxides themselves (see the discussion above about platinum oxidation or Table S1 in the ESI†), the lowering of the phase transition is probably caused by components of the calculation, which were not present in the dry reaction with oxygen, for example the energy of water vapour. Judging the quality of the latter requires a suitable comparison, for example the enthalpy of formation, which however also relies on the inaccurate energy of oxygen. Hence, no empirical correction was employed for the electrochemical reactions, even though some of the oxides have special electronic properties on their own. But since the oxide phases very likely differ in their DFT errors, the mean empirical correction cannot account for these deviations anyway. This is especially notable for PtO, which – in contrast to the thermal oxidation – is expected to separate solid PtO₂ and the metallic state in absence of Pt²⁺. This intermediate phase is not observed here, since the PtO–PtO₂ boundary (dashed line in Fig. 5) is shifted below the metal–oxide boundary. Lastly, some of the underlying assumptions of the electrode model probably contribute to the deviations as well.

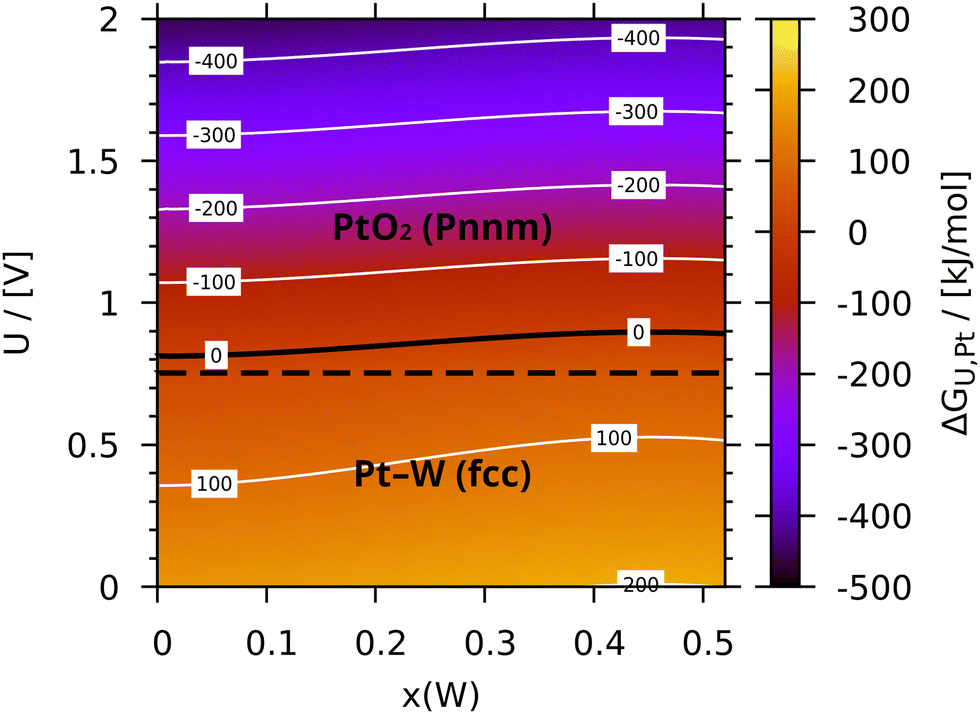

Fig. 5 Gibbs free energy for the electro-chemical oxidation of platinum (ΔG_U,Pt) from within Pt–W per metal atom at 298.15 K and pH = 0 mapped onto alloy composition x and applied voltage U. Phases and their boundaries are signified in black.

The compositional dependence is generally slightly more pronounced for the oxidation of the second metal, where halving the platinum content shifts the isolines by roughly 0.1 V for the majority of the investigated alloys (the direction of the shift is determined by the mixing characteristics). Notable exceptions are the alloys of copper and tungsten (shown in Fig. 6b and c, respectively), the former of which features a transition to Cu₂O, that increases the already larger gradient below 0.66 V, but is unstable with respect to the metallic phase. Pt–W in turn continues a trend already discussed above for the electrochemical oxidation of platinum, namely the emergence of additional intermediate oxide phases – in this case W₁₈O₄₉ (P2/m) between Pt–W and WO₃ – below 0.04 V. In the case of rhenium (figure Fig. S7f, ESI†), two additional phases – ReO₃ (Pm3̄m) and ReO₂ (Pbcn) – are observed below 0.89 V and 0.31 V, respectively (the alloy is stable below 0.29 V, depending on composition). The transition from Rh₂O₃ (Pbca) to RhO₂ at U = 0.55 V, on the other hand, happens well below the metal–oxide transition below 0.60 V. The phases in the iridium (IrO₂ above 0.56 V to 0.59 V), cobalt (Co₃O₄ above U = 0.41 V to 0.31 V) and nickel plots (NiO above 0.55 to 0.44 V) are the same as for the thermal oxidation (see Fig. S5f, S3f and S6f in the ESI†). The same is the case for the oxidation of gold (Au₂O₃-formation above 1.03 V, Fig. S2f, ESI†) and silver (Ag₂O starting to form between 0.72 V and 0.83 V, Fig. S1f, ESI†). The comparability of these results to literature data is limited, since only x ≤ 0.5 was considered here. Moreover, Co,¹²⁰ Ni,¹¹⁹ Cu,¹¹⁵ Ag¹¹⁸ and even Au¹¹⁸ are expected to dissolve at pH = 0, provided the applied potential is sufficiently large. This is neglected here, as is the formation of perrhenate ions¹¹⁷ in case of rhenium. The solid oxides are thus only relevant for the electrochemical oxidation of rhodium, iridium and tungsten.^116,118

Fig. 6 Gibbs free energy for the electro-chemical oxidation of the alloying metal (ΔG_U,M) in Pt–Ir (a), Pt–Cu (b) and Pt–W (c) per metal atom at 298.15 K and pH = 0 mapped onto alloy composition x and applied voltage U. Phases and their boundaries are signified in black.

The low compositional dependence of the metal–oxide transition is also reflected by the intermetallic phases of the late 3d metals (see Table 2). Assuming total stoichiometric decomposition, the corresponding voltages are confined to a rather narrow interval of 0.17 V below the phase transition of pure platinum at 0.81 V (see x = 0 in Fig. 5 for comparison). Accordingly, the nobility-related drop between the Cu- and Co-compounds with like platinum concentration amounts to only 0.13 V even for the PtM with less platinum content. In contrast to this, Pt₂W is only stable up to 0.33 V and PtW already decomposes at 0.09 V.

Table 2 Decomposition voltage U_d of the investigated intermetallic phases at 298.15 K assuming complete oxidation to the stable oxides at these conditions

Compound	Oxide 1	Oxide 2	U d/[V]
a Structure distorted due to magnetic structure.
Pt3Cu (Cmmm)	PtO2 (Pnnm)	CuO (C2/c)	0.80
PtCu (R3̄m)	PtO2 (Pnnm)	CuO (C2/c)	0.76
Pt3Ni (Pm3̄m)	PtO2 (Pnnm)	NiO (P2/m)	0.77
PtNi (P4/mmm)	PtO (P42/mmc)	NiO (P2/m)	0.69
Pt3Co (Pm3̄m)	PtO2 (Pnnm)	Co3O4 (I41/amd)^a	0.76
PtCo (P4/mmm)	PtO (P42/mmc)	Co3O4 (I41/amd)^a	0.63
Pt2W (Immm)	PtO (P42/mmc)	WO3 (P21/c)	0.33
PtW (P6̄m2)	PtO (P42/mmc)	WO3 (P21/c)	0.09

---

4. Discussion

The oxidation of several platinum alloys was investigated based on their Gibbs free energy of mixing ΔG_mix(x, T), which was modelled by combining the ideal mixing energy, interpolation from the pure metals and the ideal configurational entropy. It was observed, that the “alloyability” follows expected reactivity trends of the alloying metals. Thus, ΔG_mix(x, T) of the gold alloy is positive and decreases towards copper and tungsten. This is also reflected by the tendency to form intermetallic phases. Hence, whereas the miscibility gabs observed for platinum alloys of the late 4d and 5d-elements (Au, Ir and Ag) highlights the repulsive interaction with platinum, the attractively mixing 3d-metals tend to form intermetallic phases. In case of the late 3d-metals this results in an order–disorder transition within the investigated temperature range.

The formation of gaseous PtO₂ mirrors the mixing trends for most elements, since atom removal is modelled based on the nominal change in concentration. Thus, one might expect that releasing platinum – thereby increasing x – should be advantageous in case of attractively mixing alloys with high platinum content, since the initial mixing energy is less negative, than the final one. Instead, the opposite is true and platinum oxidation is related to the derivative of ΔG_mix with respect to x. This apparent contradiction is resolved by considering ΔG_mix as part of the binding energy of the released platinum atom. A notable conclusion to be drawn from this is that contrary to intuition very unreactive elements like gold are not suited to stabilize platinum against oxidation, since the stability of the latter in the alloy is not directly related to the that of the elements involved, but to their mixture.

Alloying platinum with one of the very early transition metals instead will not increase the catalyst durability either: while these elements are indeed capable of compensating the volatilization of PtO₂, they have a strong affinity for oxygen themselves. In fact, the formation of – in some cases even volatile – oxides is favourable thermodynamically for most tested elements, thereby opening up another possible route for corrosion. Consequently, the compositional dependence opposes that of platinum oxidation in that higher x promotes oxidation of the second metal, thereby undermining the positive effects of alloying. Hence, alloyability and nobility of the alloying element need to be balanced.

Even though the above general trends still apply, the Ostwald process modifies some of the underlying conditions the results were obtained for. Besides the total pressure, whose influence is small despite covering a range of several bar in actual production plants⁷ (the entropy of oxygen decreases by only ∼20 J mol⁻¹ K⁻¹ at 10 bar and 1300 K), this is especially true considering the composition of the gas feed, which contains ammonia, nitric oxides, and water vapour. This has several possible effects: as for tungstic acid (H₂WO₄),^100,101 the formation of volatile hydrides or hydrates might accelerate the volatilization. Indeed, our calculations suggest the formation of gaseous Pt(OH)₂ from PtO₂ and hydrogen to be exergonic even at 1300 K (−42.1 kJ mol⁻¹). Replacing hydrogen by ammonia is expected to lower this Gibbs free energy of formation to about −116.0 kJ mol⁻¹ due to its endergonic formation at this temperature. Hydrates like Pt(OH)₄, on the other hand, are found to be unstable already at comparatively low temperatures. However, such species could be formed at the surfaces of platinum as intermediates during the formation of the volatile PtO₂ or Pt(OH)₂. Likewise, the amount of surface sites available for oxygen decreases due to the presence of other adsorbates. Since oxygen competes with other reactants for sites, the prediction of corrosion rates requires a more complete picture of the catalytic reaction mechanism than considered here. While the role of the surface in corrosion cannot be overstated, the overall thermodynamic stability of the material is governed by its bulk properties, as is reflected by the total Gibbs free energy. This study identifies two alloys that significantly enhance the stability of platinum in the bulk: Pt–Cu and Pt–W. The following detailed literature discussion about their properties also includes surface information that might impact the above findings.

4.1 Pt–Cu

Considering only the oxidation of the platinum atoms, all late 3d alloys are calculated to outperform the rhodium alloy (Fig. 7b) in terms of suppressing the formation of PtO₂. In this group, copper optimizes the stability of platinum, despite being the noblest of the three metals. Still, the available concentration range is limited by its oxidation, whose dependence on x opposes that of the platinum and can not be extended by taking advantage of the order–disorder transition, since lowering the operational temperature also decreases the selectivity of the ammonia oxidation reaction. Moreover, intermetallic phases tend to be brittle due to decreased dislocation mobility and/or reduced grain boundary cohesion,¹²³ even though the L1₃ and L1₁ phases of Pt₃Cu^82–84 and PtCu^72,83,84 are both superstructures of the fcc random alloy. Given the knitted design of modern ammonia oxidation catalysts,⁷ this might pose a problem for manufacturing.

Fig. 7 Gibbs free energy of mixing (ΔG_mix, a), Gibbs free energy of PtO₂ formation (ΔG_r,PtO2, b) and Gibbs free energy of rhodium oxidation (ΔG_r,Rh, c) of Pt–Rh metal atom. Phases and their boundaries are signified in black.

As is the case for rhodium, platinum-copper alloys are subject to surface segregation. But unlike Pt–Rh^{13–16,124–126} (and most^127,128 other platinum alloys) copper is usually found atop,^128–134 even though contradicting measurements^135,136 and some calculations¹²⁷ indicate the segregation tendency to be weak. Cluster expansion calculations of nanoparticles by Li et al.¹³⁷ suggest, that the presence of oxygen suppresses the preference for platinum segregation at high platinum content due to the stronger oxygen affinity of copper. Not only does this possibly reduce the catalyst activity, it also has implications for stability, since surface atoms are likely more prone to oxidation.

Being situated in the bulk does however not protect the copper atoms either, since noble metal alloys are known to oxidize from within (“internal oxidation”),^138–141 which has also been discussed for Pt–Cu.¹⁴² Even without alloying, platinum has the ability to reversibly integrate oxygen into its structure.^4,12 The latter probably involves a place-exchange of adsorbed oxygen and surface platinum discussed^143–147 in the context of Pt-electrode degradation or interstitial absorption of oxygen atoms^148,149 at high surface-occupation, both of which might be important for PtO₂ formation as well.

Fortunately, DFT calculations^150–153 suggest, that alloying platinum with more electropositive elements electronically saturates it, thereby also reducing its interaction with oxygen. Moreover, segregation of platinum to the surface might limit copper oxidation due to the subsurface platinum acting as a diffusion barrier¹⁵⁴ (copper atoms can however leave the surface on their own to oxidize on top, as was found by Luo et al.^155,156 for copper containing up to 10% platinum).

4.2 Pt–W

The strongly attractive interaction of tungsten with platinum stabilizes the latter even more against volatilization than copper. Accordingly, the intermetallic phase at x = 1/3, which likely crystallizes in a fcc-like superstructure^75,157 as well, was found to be stable over the whole temperature interval. Unlike for copper, however, the calculated Gibbs free energy of mixing of the tungsten alloy decreases rapidly, when approaching the intermetallic composition, which might affect the catalyst stability negatively, if the intermetallic phase cannot be realized for whatever reason. At the same time, the strong compositional dependence at low x can be utilized to leverage the effect of alloying, while still retaining high platinum content. This might be useful to maintain the catalytical properties.

While tungsten is famous for its high thermal and chemical resistance, the latter is based on surface passivation rather than extraordinary thermodynamic stability, as is evident from the highly exergonic oxidation. And although calculations by Ruban et al.¹²⁸ predict platinum segregation for Pt–W, it is known from Pt–Rh, that the presence of oxygen can not only influence, but reverse segregation tendencies.^13,14 Considering the presence of oxygen, it is therefore likely that tungsten will segregate to the surface and passivate it, which will also alter the catalytic properties. Indeed, WO₃ is used as promoter for the NH₃-based selective catalytic reduction of NO to N₂,¹⁵⁸ which suggests it to be inactive, if not detrimental to the Ostwald process. Finally, tungsten is also known to be volatile, which is caused by a multitude of molecular oxide species¹⁰² and accelerated in presence of water vapour due to the formation of tungstic acid (H₂WO₄), which was neglected here.^100,101,159

The benefit of alloying platinum with tungsten in the context of the Ostwald process is therefore dependant on the presence of WO₃ on the surface, and its properties. If passivation of the catalyst indeed occurs, a strategy to circumvent this problem could be utilizing the very strong effect of tungsten on platinum by only alloying the surface or subsurface with small amounts of it to minimize the amount of tungsten at the surface and its thermodynamic oxidation tendency, as well as its volatility. If, on the other hand, the catalyst remains active despite passivation, the high affinity of tungsten for oxygen would be turned into an advantage, since this would allow for alloy optimization based on other criteria. According to a directed literature search, neither the alloy of tungsten, nor that of copper have been tested for the Ostwald process so far.

5. Summary and conclusion

Platinum alloys of several transition metals have been investigated using density functional theory and ab initio thermodynamics to identify elements that thermodynamically stabilize platinum against the formation of volatile PtO₂, which is assumed to mediate the extensive reconstruction of the platinum catalyst in the Ostwald process. It was found that for platinum-rich alloys a high resistance to platinum oxidation is associated with a negative Gibbs energy of mixing, which is however also correlated with a high reactivity of the alloying element. Conversely, the repulsive interaction of very noble elements like gold pushes platinum out of the alloy, thereby facilitating its oxidation. The oxidation tendencies of platinum and the alloying element thus oppose each other and cannot be separated, but only optimized, which limits the overall stability of the alloy and introduces a concentration dependence. Still, alloying is a viable strategy to inhibit platinum oxidation and volatilization under harsh oxidizing conditions, if the affinities of the alloying element for platinum and oxygen are well-balanced. Based on the thermodynamic stability, the platinum alloy of copper is expected to be the most promising candidate in this regard.

Conversely, the elements that can compensate most of the PtO₂ vapour pressure at temperatures as high as 1300 K – tungsten and rhenium – are prone to oxidation themselves. The formation of gaseous Re₂O₇(g) even at moderate temperatures, for instance, rules out the use of Pt–Re alloys for the intended application as a catalyst in the Ostwald process. The lower volatility of tungsten oxides, on the other hand, makes Pt–W an interesting candidate, if the expected passivation of the surface does not affect ammonia oxidation negatively. Rhodium is thus neither the only, nor the optimal alloying element to suppress platinum corrosion.

Data availability

The raw D3/BJ-corrected energies and structures are publicly available at the NOMAD data repository (DOI: 10.17172/NOMAD/2024.08.22-1, Dataset ID: vU6ILzWbROCinlWCLXRZcQ). A second dataset created for raw PBE-data without dispersion correction (DOI: 10.17172/NOMAD/2024.08.21-1, Dataset ID: hwdvWSk6TeaCM5d70F8q_Q) additionally contains either phonopy output files for the regular solid phases (raw thermodynamic results and the force sets to recreate them) or – in case of gaseous phases – vibrational data obtained directly with VASP. The thermodynamic data of the pure phases was processed using two custom scripts based on bash 4.4.20(1), gawk 4.2.1 and gnuplot 5.2, which are available at github (https://github.com/axkf/HEATh, last accessed at 02.09.2024, and https://github.com/axkf/HEATher, last accessed at 02.09.2024). The script used for combining the latter results with the alloy data is not easily portable and therefore not published at the moment. The procedure is however described in detail within the article.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

A. Kafka acknowledges funding for this project by the Fund of the German Chemical Industry (“Fonds der Chemischen Industrie”) with a Liebig Fellowship.
