Md Al Amin Hossaina,
Tamanna Islama,
Javed Masood Khanb,
Md. Tuhinur R. Joy*a,
Shamim Mahbubc,
Salman A. Khand,
Anis Ahmade,
Mohammad Majibur Rahmanf,
Md. Anamul Hoque*g and
Shariff E. Kabirh
aDepartment of Chemistry, Jashore University of Science and Technology, Jashore 7408, Bangladesh. E-mail: joytuhinur@yahoo.com
bDepartment of Food Science and Nutrition, College of Food and Agricultural Sciences, King Saud University, Riyadh 11451, Saudi Arabia
cNuclear Safety, Security & Safeguards Division, Bangladesh Atomic Energy Regulatory Authority, Agargaon, Dhaka 1207, Bangladesh
dPhysical Sciences Section (Chemistry), School of Sciences, Maulana Azad National Urdu University, Hyderabad 500032, Telangana, India
eSylvester Comprehensive Cancer Center, University of Miami, Miller School of Medicine, Miami, FL, USA
fDepartment of Environmental Sciences, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh
gDepartment of Chemistry, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh. E-mail: ahoque_ju@juniv.edu
hDepartment of Chemistry, Jagannath University, Dhaka 1100, Bangladesh
First published on 17th October 2023
The interaction between an antibiotic drug (cefixime trihydrate (CMT)) and a cationic surfactant (tetradecyltrimethylammonium bromide (TTAB)) was examined in the presence of both ionic and non-ionic hydrotropes (HTs) over the temperature range of 300.55 to 320.55 K. The values of the critical micelle concentration (CMC) of the TTAB + CMT mixture were experienced to have dwindled with an enhancement of the concentrations of resorcinol (ReSC), sodium benzoate (NaBz), sodium salicylate (NaS), while for the same system, a monotonically augmentation of CMC was observed in aq. 4-aminobenzoic acid (PABA) solution. A gradual increase in CMC, as a function of temperature, was also observed. The values of the degree of counterion binding (β) for the TTAB + CMT mixture were experienced to be influenced by the concentrations of ReSC/NaBz/NaS/PABA and a change in temperature. The micellization process of TTAB + CMT was observed to be spontaneous (negative standard Gibbs free energy change (ΔG0m)) at all conditions studied. Also, the values of standard enthalpy change (ΔH0m) and entropy change (ΔS0m) were found negative and positive, respectively (with a few exceptions), for the test cases indicating an exothermic and enthalpy–entropy directed micellization process. The recommended interaction forces between the components in the micellar system are electrostatic and hydrophobic interactions. In this study, the values of ΔC0m were negative in aqueous NaBz, ReSC, and PABA media, and positive in case of NaS. An excellent compensation scenario between the enthalpy and entropy for the CMT + TTAB mixed system in the investigated HTs solutions is well defined in the current work.
The term “hydrotrope” (HT) was first introduced by Neuberg in 1916, which refers to an organic molecule that has both hydrophobic and hydrophilic characteristics, like surfactants, and has the ability to increase the dissolution, by the formation of micelle, of certain other organic materials or minerals in aqueous or aquatic solution of salt.25,26 The presence of a hydrotropic molecule can boost its solubility by creating a weak van der Waals contact with a less water-soluble molecule through an appealing dipole–dipole attraction or a weak van der Waals force.27 In the current investigation, we have carried out an analysis of the impact of four HTs- (sodium benzoate (NaBz), sodium salicylate (NaS), p-aminobenzoic acid (PABA) and resorcinol (ReSC)) on the cationic surfactant tetradecyltrimethylammonium bromide (TTAB) by the conductometric measurement technique. These additives have profound biological and real-life applications. Among these chemical compounds, NaBz, and NaS are the salts of benzoic acid, which are frequently used to preserve foods and fruit juices, in addition, to serving as vital ingredients in the creation of resin, dyes, plasticizers, inks, and medicinal goods.28,29 PABA is widely available in nature and utilized in the biomedical industry,30 the PABA's UV-absorbing qualities have led to its widespread application in sunscreen compositions. Its transformation into the specialized azo dyes and crosslinking agents are some of its further applications, in addition, PABA is also employed as a biodegradable insecticide. To improve color durability and shield hair from UV damage, certain hair coloring products contain PABA derivatives. The chemical compound resorcinol (ReSC), with formula C6H4(OH)2, is the 1,3-isomer (or meta-isomer) of benzenediols. Insoluble in chloroform and carbon disulfide, ReSC forms crystals from benzene as colorless needles, which are easily soluble in alcohol, water, and ether.31 In the prescribed treatments, it is present in greater concentrations and is, usually, found in topical acne treatments, which is sold as 2% or less concentration.32 Furthermore, it is also employed to treat hidradenitis suppurativa, however, there is little evidence that it can speed up the healing of the lesions.33 In order to optimize the drug formulation and alter the action of that medicine, it is vital to investigate the mode of utilization of additives in this surfactant–drug system.
A key consideration when developing novel pharmaceutical formulations is the analysis of drug–surfactant interactions. It is possible to evaluate the mechanistic insights and interactions between a medicine and a surfactant using a variety of inquiry techniques by finding out some physicochemical parameters. Also, in most industrial products surfactants have significant uses to achieve the desired stability, activity functions, etc. In these cases, the interactions between solutes (polymer/gels/organic compounds, etc.) and surfactants occurred which significantly modified the aggregation character of the surfactants.34–39 Measurement of conductivity,34–36 surface tension,36–38 light scattering techniques,35,37,38 steady-state fluorescence spectroscopy,36,37 simple and differential UV/visible spectroscopic studies,39 and small-angle neutron scattering (SANS)40 methods were used to evaluate the physicochemical features of the aggregation process of the solutes–surfactant system. In the literature, several studies have revealed the mode of interaction of surfactants and HTs, emphasizing the widespread applications in antibacterial medicines.18–23,40–47 The technological and physiological benefits of mixed micelles, instead of individual surfactant systems, have shown ample scientific, commercial, and pharmacological utilizations and alternative surfactants and HTs mixtures can be developed for drug administration.40 The surfactant's chemical composition, as well as the gel/surfactant ratio, kind of solvent, and test temperature, all had an impact on the interaction's strength and nature.48 It was further demonstrated that the solution characteristics of the drug (ibuprofen)–surfactant mixes (sodium octyl sulfosuccinate), as well as the interactions between the drug and the surfactant were affected by the presence of both simple and hydrotropic electrolyte (aggregation parameters, interfacial properties, and thermodynamics of aggregate formation).43 Alfaifi et al.41 investigated the interactions of hydrotropes ortho-toluidine hydrochloride (o-TDH) and para-toluidine hydrochloride (p-TDH) with phenothiazine drug promethazine hydrochloride (PMH) at different temperatures.
Islam et al.42 also revealed their report that the ceftriaxone sodium drug had the hydrophilic interaction with surfactant TX-100 in the presence of NaS, but for NaBz, this interaction was found insignificant. However, at various temperatures, Rehman et al.34 discovered the presence of electrostatic interactions in the association process of polylactic acid (PLA) with ionic surfactants-hexadecyltrimethylammonium bromide (CTAB) and sodium dodecyl sulphate (SDS), whereas Hanif et al.39 reported benzothiophene (BZT) partitioning in micellar medium was aided by both electrostatic and hydrophobic factors. Rub et al.44 reported that H-bonding and electrostatic contacts are the predominant forces amid TX-100 and MNH in the occurrence of PABA, although hydrophobic interactions are thought to be the dominant force among the component species used in aq. NaBz and NaS media. Paul et al.45 investigated an in-depth mechanistic approach to the hydrotropic solubilization of drug molecules, which is applicable in the pharmaceutical industries. With the unending importance of HTs, especially in the pharmaceutical industry, some future directions for this technique are worth mentioning.
TTAB (Scheme 1), is a cationic surfactant and an organic building block.49,50 It creates hemimicelles and functions as a surface-active aid in the interfacial separation of anionic species produced from acids. In this study, we have used the third-generation antibiotic drug (CMT) (Scheme 1), which is a wide-ranging cephalosporin antibacterial drug, made semi-synthetically from coastal fungi. Similar to penicillin, the beta-lactam antibacterial cefixime prevents the development of cell walls in bacteria by preventing the synthesis of peptidoglycans. It is used to treat infections of urinary tract, throat infections, pneumonia, gonorrhea, and bronchitis. In addition, the drug is a good remedy for skin and soft tissue infections; able to stop group A and B beta-hemolytic streptococci.51 CMT, generally, has a negative charge and is attracted to micelles' positive head groups. Understanding the effects of this interaction on drug–surfactant associations is essential because when a drug is administered, it should interact with the electrolyte molecules effectively.
Currently, there are rare study reports in the literature on the investigation of the interaction of CMT and TTAB in aqueous solutions of HTs. The goal of the current research is to develop the formulation of CMT in micellar solution to get its maximum activity and also to monitor the impact of HTs on the micellization characteristics of cationic surfactant using the conductometric method in aqueous solutions at five distinct temperatures. The physicochemical parameters, like CMC, β, degree of ionization (α), and thermodynamic properties (standard free energy change (ΔG0m), standard entropy change (ΔS0m), and standard enthalpy change (ΔH0m), molar heat capacity (ΔC0m)), and enthalpy–entropy compensation variables were also calculated to examine the interaction between CMT and TTAB. The main purpose of the mixed system is to aid in the enhancement of the solubility of drug. The employed drug is found to be completely soluble within the used concentration in surfactant media. However, structurally it contains both hydrophilic and hydrophobic parts in the structure, but it could not behave like other amphipathic substances (does not form aggregates). Therefore, herein we studied the effect of ionic and non-ionic hydrotropes (HTs) on interaction of antibiotic drug CMT with TTAB surfactant and also deliberate the effect of temperature variation on their interaction. We believe the findings will be useful in adopting cationic surfactants for drug formulation, drug delivery and in enhancing drug penetration to avoid the side effects of drugs on the human body. Also, another important application of worth mentioning will be the use of HTs as additives in drug formulation in the pharmaceutical industries.
Fig. 1 The plot of κ against CTTAB for the TTAB + CMT (0.3 mmol kg−1) mixture in 0.5 mmol kg−1 NaBz solution at 300.55 K. |
The specific concentration in the breakpoint is the concentration at which the surfactant molecules tend to aggregate to form a supramolecular structure, called micelle. The initial macromolecule or micelle forming concentration is called CMC.57–60 The degree of ionization (α) and counter ion binding (β) are so crucial parameters to investigate the micellization process of surfactant and these parameters are closely related to CMC, all these three parameters have been evaluated by the conductometric method in this study. The change in conductivity at the micelle formation state is more clearly noticeable than other methods, furthermore, this method is more reliable and easier to handle than surface tension measurement or spectroscopic method. In Fig. 1, a typical plot of κ vs. CTTAB has been displayed.
To assess the α for the creation of micelle of TTAB + CMT system, the ratios of the slope of the pre-micellar straight-line to the slope of the post-micellar straight-line are employed, i.e., the values of α is estimated by the S2/S1 ratio, i.e., α = S2/S1, where S1 and S2 are the corresponding slopes of the pre-micellar and the post-micellar straight lines, respectively.52 The repulsive forces (electrostatic) among the surfactant head groups increase the magnitude of α, requiring a larger amphiphilic concentration for micellization to occur. Surfactant is employed as a catalyst, because adding it to the reaction medium enhances its surface area.57 It is acknowledged that lower α values result in quicker surfactant micellization and a higher opportunity of micelles forming at lower concentrations of surfactant. Consequently, the value of α was subtracted from one to determine β for the aggregation of TTAB + CMT mixture, i.e., β = 1 − α. The value of CMC of 4.91 mmol kg−1 for the TTAB + 0.3 mmol kg−1 CMT mixture in 0.5 mmol kg−1 NaBz solution at 300.55 K was observed in this study. The reported CMC values for TTAB, found in water at various operating temperatures, generally, vary from 3.74 to 4.39 mmol kg−1.58 It is important to note that utilizing the conductivity technique, Banjare et al.59 experienced a value of CMC of TTAB surfactant in H2O of 3.80 mmol L−1 at 298.15 K. Therefore, HTs have a significant effect on the micellization of TTAB as in the presence of HTs, the CMC value is different from the reported values of pure TTAB in aq. media (Tables 1 and 2).
Medium | cHTs (mmol kg−1) | CMC (mmol kg−1) | α | β |
---|---|---|---|---|
a Standard deviation: CMC = 5%, α = 7%, and β = 7%. | ||||
NaBz + H2O | 0.05 | 5.45 | 0.51 | 0.49 |
0.10 | 5.25 | 0.46 | 0.54 | |
0.50 | 5.18 | 0.42 | 0.58 | |
1.00 | 4.95 | 0.40 | 0.60 | |
3.00 | 6.50 | 0.48 | 0.52 | |
5.00 | 6.86 | 0.51 | 0.49 | |
NaS + H2O | 0.05 | 5.41 | 0.57 | 0.43 |
0.10 | 5.21 | 0.55 | 0.45 | |
0.50 | 5.10 | 0.53 | 0.47 | |
1.00 | 4.58 | 0.56 | 0.54 | |
3.00 | 7.37 | 0.66 | 0.34 | |
5.00 | 8.81 | 0.80 | 0.20 | |
ReSC + H2O | 1.00 | 4.82 | 0.39 | 0.61 |
5.00 | 4.29 | 0.37 | 0.63 | |
10.00 | 3.90 | 0.35 | 0.65 | |
15.00 | 4.06 | 0.37 | 0.63 | |
20.00 | 4.12 | 0.40 | 0.60 | |
25.00 | 4.32 | 0.41 | 0.59 | |
PABA + H2O | 1.00 | 4.38 | 0.30 | 0.70 |
5.00 | 4.70 | 0.32 | 0.68 | |
10.00 | 4.90 | 0.35 | 0.65 | |
15.00 | 5.07 | 0.36 | 0.64 | |
20.00 | 5.11 | 0.38 | 0.62 | |
25.00 | 5.30 | 0.40 | 0.60 |
Medium | CHTs (mmol kg−1) | T (K) | CMC (mmol kg−1) | β |
---|---|---|---|---|
a Standard deviation: CMC = 5%, and β = 7%. | ||||
NaBz + H2O | 0.50 | 300.55 | 4.91 | 0.64 |
305.55 | 5.08 | 0.60 | ||
310.55 | 5.18 | 0.58 | ||
315.55 | 5.38 | 0.44 | ||
320.55 | 5.61 | 0.40 | ||
NaS + H2O | 0.50 | 300.55 | 4.45 | 0.50 |
305.55 | 4.88 | 0.49 | ||
310.55 | 5.10 | 0.47 | ||
315.55 | 5.31 | 0.45 | ||
320.55 | 5.54 | 0.40 | ||
ReSC + H2O | 10.00 | 300.55 | 3.65 | 0.69 |
305.55 | 3.82 | 0.68 | ||
310.55 | 4.00 | 0.65 | ||
315.55 | 4.25 | 0.64 | ||
320.55 | 4.63 | 0.62 | ||
PABA + H2O | 10.00 | 300.55 | 4.26 | 0.68 |
305.55 | 4.43 | 0.66 | ||
310.55 | 4.65 | 0.65 | ||
315.55 | 4.97 | 0.64 | ||
320.55 | 5.20 | 0.62 |

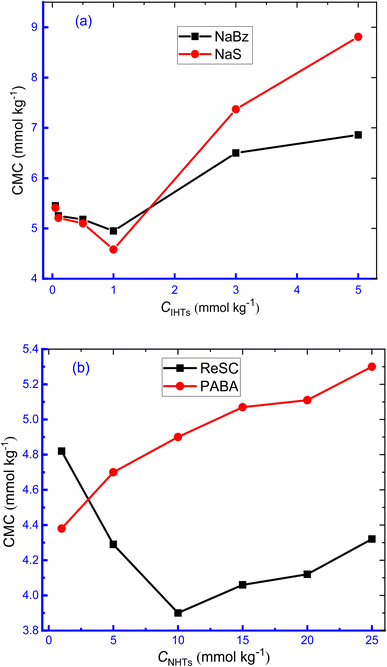

Fig. 2 The changes of CMC with the augmentation of concentration of HTs for the micellization of TTAB + 0.3 mmol kg−1 CMT mixture at 310.55 K (a) IHTs, (b) NHTs. |
With the increase in concentration of IHTs (NaBz, NaS), the values of CMC declined slowly (NaBz: 5.45 mmol kg−1 to 4.95 mmol kg−1, NaS: 5.41 mmol kg−1 to 4.58 mmol kg−1) by rising concentration up to 1.00 mmol kg−1 and then, started to upsurge rapidly with the increase in concentration of HTs (Table 1 and Fig. 2). This finding expresses that the formation of micelle is more favourable at 1.00 mmol kg−1 and less favourable in other studied concentrations. The higher concentration of NaBz and NaS inhibits micelle formation, which results in the augmentation of CMC, as published in the literature.66
The initial reduction of CMC values for the CMT + TTAB mixture with the increase of NaS, NaBz HTs concentration at 310.15 K could be attributed to the effective charge neutralization at the micellar surface, i.e., reduction in repulsion amongst TTA+ ions by SS−/Bz− ions, which results in earlier micelle formation and reduction in CMC.64 The strongly anionic character of the chosen IHTs causes them to bind strongly to oppositely charged surfactant ions when added to TTAB + CMT solutions, which reduces the effectiveness of the head groups area due to the screening effect. This resulted in the development of geometric change from cylindrical to spherical micelles caused by the cationic HTs, implying a strong attractive connection between the two.67 Because of this, the formation of micelles occurs at significantly lower concentrations than in pure water, with the reduction in CMC being influenced by the concentration of HTs.68 A large number of counter ions bind to ionic micelles, and the counterions are primarily bound to micellar surfaces by the electrical fields created by the head groups, as well as by the specific interactions among the head group of ions and the counter ion.64 The abnormal rise in the CMC of TTAB at higher HT concentrations (higher than 1.00 mmol kg−1) appears to be caused by the electrostatic action of ionic HTs and their hydrotropic activity, which results in an increase in solubilizing capacity and a decrease in solvent polarity.69 The high solubilizing capacity stabilizes the surfactant monomers by delaying the formation of micelles and the consequences in the result of enhancing CMC values.
The CMC values of TTAB + CMT mixture in the appearance of PABA showed an increasing trend with increasing concentration of PABA; while in aqueous ReSC solution, the CMC values gradually decreased with rising the concentration to a minimum value and, then, increased again with the increase in concentration. These findings indicate that lower ReSC concentration facilitates the aggregation process and higher concentration functions oppositely. PABA, a nonionic HT, inhibits to micelles formation of TTAB + CMT mixed system that results in an upward trend of CMC value with the rise in concentration. Polymer-based surfactant system (CTAB/PEO system) also experienced an upsurge of micellar concentration with an augmentation of the composition of the polymer.35 Hanif and co-workers39 described the upsurge of CMC for the micellization of SDS with the introduction of benzothiophene (BZT). They illustrated the water structure breaking impact of BZT by disrupting H-bond of water and thereby the micellization of SDS becomes delayed.39 There is a possibility of generation of positively charged nitrogen atom in the resonance structure of PABA, which repels the head group of TTAB and inhibits micellization. Therefore, there is an increase in the values of CMC in the manifestation of PABA. The variation of dielectric constant (DC) in different concentrations of solvent has an effect on the upward trend of the CMC value, hydrophobic nature is another culprit for this trend.70,71 The introduction of organic solvents results in the reduction of DC of water, which enhances the repulsive force between the hydrophilic head group of surface-active agents, consequently, the aggregation of surfactant molecules is delayed resulting in higher CMC value.72–75 Another theory proposed that the solubility of the hydrophobic part of surfactant gets an upsurge due to the reduction of the cohesive force of water molecules in the inclusion of aqueous organic solvents, like HTs. Hence, the interactions between non-polar part of the surfactant and the organic solvent prevent the formation of micelle, i.e., higher concentration of surfactant is required to form micelle. The β values for TTAB + CMT mixture were found to be dependent on HTs concentration, i.e., β values experienced to be increased followed by a reduction with the increase of the concentration of ReSC, NaBz, NaS, while a monotonical reduction was observed for PABA. The reduction of β values for the micellization of cationic surfactant, with the increase of polymer concentration, was also reported in the literature.36 The binding of counterion at the micelle surface reduces the interhead groups' repulsion and, thus, the micellization becomes feasible. The higher counterion binding causes more favorable conditions for the aggregation of surfactant molecules and, thus, an early micellization happens. Our estimated results are well agreement with this phenomenon.
With rising temperatures, it was discovered that the κ of TTAB + CMT mixture in attendance of IHT (NaBz) and NHT (PABA) increased as the mobility of the ions increased with temperature (Fig. 3). Fig. 4 shows the opposite relationship between CMC and temperature for the association of TTAB + CMT mixture in an aqueous hydrotropic medium. For the TTAB + CMT mixed systems in HT solutions, with rising temperature, it was observed that the CMC values increased gradually.
Fig. 3 The plot of κ versus CTTAB for the TTAB + CMT mixture having (a) aqueous solution of NaBz (0.5 mmol kg−1) and (b) aqueous solution of PABA (10 mmol kg−1) at different temperatures. |
The temperature has a paramount effect on the aggregation of any surfactants or drug–surfactant mixture and can alter the micellization environment to change the CMC value or micellar size or shape. In the present study, higher temperature made the system in a disfavorable environment to form micelle, i.e., micelle formed at a greater concentration of surfactants in the presence of both IHTs and NHTs. The CMC values of the TTAB + CMT mixed system in the introduction of NaBz, NaS, ReSC, and PABA showed an upward trend with the rising of temperature of the system. The order in the values of CMC in the existence of these mediums is: CMCNaBz > CMCNaS > CMCPABA > CMCReSC. By changing the water structure, or the kind of hydrations surrounding the monomeric surfactant molecules and CMT-modified TTAB micelle with rising temperature, it is possible to demonstrate how temperature affects the CMC values. The surfactant molecules experience both forms of hydration (hydrophilic or hydrophobic) at their monomeric form, but the aggregated TTAB system is thought to be affected by the hydrophobic hydration. For TTAB or TTAB + CMT mixed solutions, it is anticipated that both hydrophilic and hydrophobic hydration will decrease with the rising of temperature.76 As previously stated, as the temperature rises, a decreasing hydrophilic hydration encourages the production of micelles, whereas a decreasing hydrophobic hydration disfavors the micellization. For these results, there are two chief issues that interfere with the construction of micelle. One of them is the de-solvation (a drop in hydrophilic hydration) of the head group of the amphiphile molecules (TTAB), which encourages the development of micelle and, therefore, causes the CMC to decline. Another significant element that hinders the formation of micelles is the decrease of water arrangement near the non-polar part of TTABs and drugs, i.e., the value of CMC undergoes an upsurge.77 Therefore, whether the values of CMC grow or reduce at the examined range of temperature depends on the extent of the aforementioned two parameters. In the case of the TTAB + CMT mixed system in an aqueous medium, as well as in the presence of HTs, the last factor controlled the process of micellization more significantly than the first one within the range of temperature. Hence, the CMC values of TTAB + CMT mixture in the presence of HTs increase as the temperature rises. Again, the increase of temperature causes higher molecular or ionic motion, and, thus, the counterion binding experiences a reduction with the augmentation of temperature. Similar results were also observed in our earlier study.76,77 Rehman et al.36 also reported the increasing trend of CMC for pure surfactants (SDS and CTAB) or surfactants with polylactic acid (PLA) solution. It was also reported that the micellization of 3-(1-alkyl-3-imidazolio) propane-sulfonate [ImS3-R] was easier at lower temperatures but became disfavoreable at higher temperatures.38 Therefore, the ionic head groups experience higher inter-head group repulsion, and the micellization is delayed.
ΔG0m = (1 + β)RTlnXCMC | (1) |
The standard enthalpy change (ΔH0m) required to generate a micelle was obtained by applying the formula shown below:79
ΔH0m = −(1 + β)RT2(∂lnXCMC)/∂T | (2) |
The temperature dependent nature of lnXCMC can be described by the eqn (3):
lnXCMC = A + BT + CT2 | (3) |
The regressive illustration of least squares can be used to determine the constants A, B, and C in the last equation (eqn (3)). The plot of lnXCMC vs. temperature of micellization of TTAB + CMT mixture in aqueous hydrotropic solution is presented in Fig. 5, and this second-order polynomial fitting curve has been used to determine the values of standard enthalpy change (ΔH0m) of the aggregation process. Table 3 lists the constant values (A, B, and C) for eqn (3). Consequently, the following equation (eqn (4)) was applied to compute the ΔH0m values of the association of surfactant.
ΔH0m = −(1 + β)RT2[B + 2CT] | (4) |
Fig. 5 lnXCMC versus T plot for the assemblage of TTAB + 0.30 mmol kg−1 CMT mixed system in 0.50 mmol kg−1 aq. NaBz solution. |
Medium | CHTs (mmol kg−1) | A | B | C |
---|---|---|---|---|
H2O + NaBz | 0.500 | −1.9098 | −0.0539 | 0.0001 |
H2O + NaS | 0.500 | −41.034 | 0.194 | −0.0003 |
H2O + ReSC | 10.00 | 12.967 | −0.1566 | 0.0003 |
H2O + PABA | 10.00 | −4.2268 | −0.0435 | 0.00009 |
Finally, by using the following equation, the values of the standard entropy change (ΔS0m), for the development of micelle of surfactant mixture, were obtained.78–80
ΔS0m = (ΔH0m − ΔG0m)/T | (5) |
The values of ΔG0m, ΔH0m, and ΔS0m for TTAB + CMT mixture containing 0.30 mmol kg−1 CMT in H2O + HTs medium, obtained at various temperatures, are shown in Table 4. Also, Fig. 6 shows the three-dimensional plot of temperature vs. thermodynamic parameters (ΔG0m, ΔH0m, and ΔS0m) of TTAB + CMT mixed system in the appearance of NaS (0.50 mmol kg−1 in each case) at working temperatures. To define the interactions between the drug and surfactants, the parameters related to thermodynamics, such as ΔG0m, ΔH0m, and ΔS0m play a vital role in this current study. The values of ΔG0m for all studied system were found negative that demonstrates all the experiments under investigation were spontaneous. The −ΔG0m values for cationic surfactant in presence of polymer was also reported in the literature.35 The negative values of ΔG0m decreased with the enhancement of temperature for IHTs, which indicates that the process of micellization was less spontaneous at higher temperatures resembling the upward trend of CMC value,81 while the values of ΔG0m were almost constant in the introduction of NHTs (Table 4). In the literature, both upward and downward trends for −ΔG0m value with the change of thermal condition of experiment for the aggregation process also reported.57,58,77,78
Medium | CHTs (mmol kg−1) | T (K) | ΔG0m (kJ mol−1) | ΔH0m (kJ mol−1) | ΔS0m (J mol−1 K−1) | ΔC0m (kJ mol−1 K−1) |
---|---|---|---|---|---|---|
a Standard deviation: ΔG0m = 4%, ΔH0m = 5%, ΔS0m = 6%, and ΔC0m = 5%. | ||||||
H2O + NaBz | 0.500 | 300.55 | −38.25 | −7.649 | 101.8 | −0.223 |
305.55 | −37.80 | −8.954 | 94.41 | |||
310.55 | −37.86 | −10.40 | 88.42 | |||
315.55 | −34.92 | −10.98 | 75.86 | |||
320.55 | −34.33 | −12.21 | 69.00 | |||
H2O + NaS | 0.500 | 300.55 | −35.35 | −15.40 | 66.39 | 0.671 |
305.55 | −35.35 | −12.34 | 75.32 | |||
310.55 | −35.28 | −9.040 | 84.50 | |||
315.55 | −35.21 | −5.606 | 93.82 | |||
320.55 | −34.38 | −1.997 | 101.0 | |||
H2O + ReSC | 10.00 | 300.55 | −40.67 | −30.12 | 35.11 | −0.965 |
305.55 | −40.91 | −34.86 | 19.80 | |||
310.55 | −40.64 | −39.33 | 4.20 | |||
315.55 | −40.78 | −44.44 | −11.58 | |||
320.55 | −40.55 | −49.45 | −27.75 | |||
H2O + PABA | 10.00 | 300.55 | −39.78 | −13.37 | 87.86 | −0.316 |
305.55 | −39.80 | −14.82 | 81.75 | |||
310.55 | −40.00 | −16.40 | 75.97 | |||
315.55 | −40.11 | −18.06 | 69.88 | |||
320.55 | −40.05 | −19.65 | 63.64 |
The values of ΔH0m and ΔS0m are the key factors in determining the supramolecular interactions between drug (CMT) and surfactant (TTAB) in the presence of HTs. In the present study, the values of ΔH0m for every experimental trial were found negative manifesting the process was exothermic reactions (Table 4). The order of negative ΔH0m values for the different medium at 310.55 K is; −ΔH0m (ReSC) > −ΔH0m (PABA) > −ΔH0m (NaBz) > −ΔH0m (NaS). The negative values of ΔH0m experienced to be augmented with the boost of temperature in NaBz, ReSC, and PABA media, which reveals that the micelle creation scheme is more exothermic at higher working temperatures in these media. This value followed an opposite trend in the NaS medium, while less exothermic in NaS medium. The next parameter, standard entropy change had positive values for all experimental sets of investigation, except the one observed in the aqueous solution of ReSC (315.55 K and 320.55 K) having a negative value.
The ΔS0m value was found a downward trend for aqueous solution of NaBz, ReSC, and PABA, while NaS showed an upward trend with increasing temperature (Table 4). The ΔS0m values that are positive signify a rise in chaos, disturbance, or entropy inside a system. They are linked to phenomena, like heat absorption, phase shifts, and spontaneous processes that cause more systemic disorder. Naturally, a positive ΔS0m is associated with spontaneity. The spontaneous processes tend to occur without an external intervention because they lead to a higher entropy state, which is favored. Consequently, the process of aggregation of TTAB + CMT mixtures was entropically favored and spontaneous, which supports the findings of information obtained by −ΔG0m in this investigation. The observed positive ΔS0m values for TTAB + CMT accumulation may be explained by two issues. The first one involves the demolishing of iceberg configurations by moving the hydrated hydrophobic portion into the micellar core37 of a TTAB + CMT combination. Another factor is that, in contrast to the aqueous surroundings, the degree of rotational flexibility of hydrophobic parts rises in the micellar interior.82,83 Furthermore, the ΔH0m and ΔS0m values jointly reveal that the micellization of TTAB + CMT is controlled by both enthalpy and entropy in all cases, except in ReSC medium at 315.55 and 320.55 K. To find out the interaction between TTAB and CMT, both magnitude and sign of ΔH0m and ΔS0m have been taken under consideration. Additionally, the researcher discloses that exothermic (ion–dipole) interactions, as well as hydrophobic forces, are likely to be responsible for the binding between drug and surfactant for negative ΔH0m and positive ΔS0m values.84 The hydrophobic and exothermic (ion–dipole) interactions are likely to be responsible for the binding force between CMT and TTAB, according to the negative ΔH0m and positive ΔS0m values in the presence of NaBz, NaS, ReSC (except 315.55 K and 320.55 K), and PABA. But the coexistence of electrostatic and hydrophobic interaction is denoted by the −ΔH0m and −ΔS0m values.85 This type of result was found for aqueous ReSC medium at 315.55 and 320.55 K, hence, there was an electrostatic and hydrophobic interaction between TTAB and CMT. A schematic diagram is given in Fig. 7 where the plausible interaction forces between TTAB and CMT drug is demonstrated in the presence of HT.
Fig. 7 A schematic diagram demonstrating the plausible interaction forces between TTAB and CMT drug in the presence of NaBz. |
However, at various temperatures, Rehman et al.36 discovered electrostatic interactions in the association process of ionic surfactants (CTAB and SDS) in polylactic acid (PLA), whereas Hanif et al.39 reported benzothiophene (BZT) partitioning in micellar medium, which was aided by both electrostatic and hydrophobic factors. Rouf et al.35 performed an extensive physicochemical analysis of cationic surfactant and uncharged polyethylene oxide (PEO) mixture, where they described the existence of strong interactions between the components.
(6) |

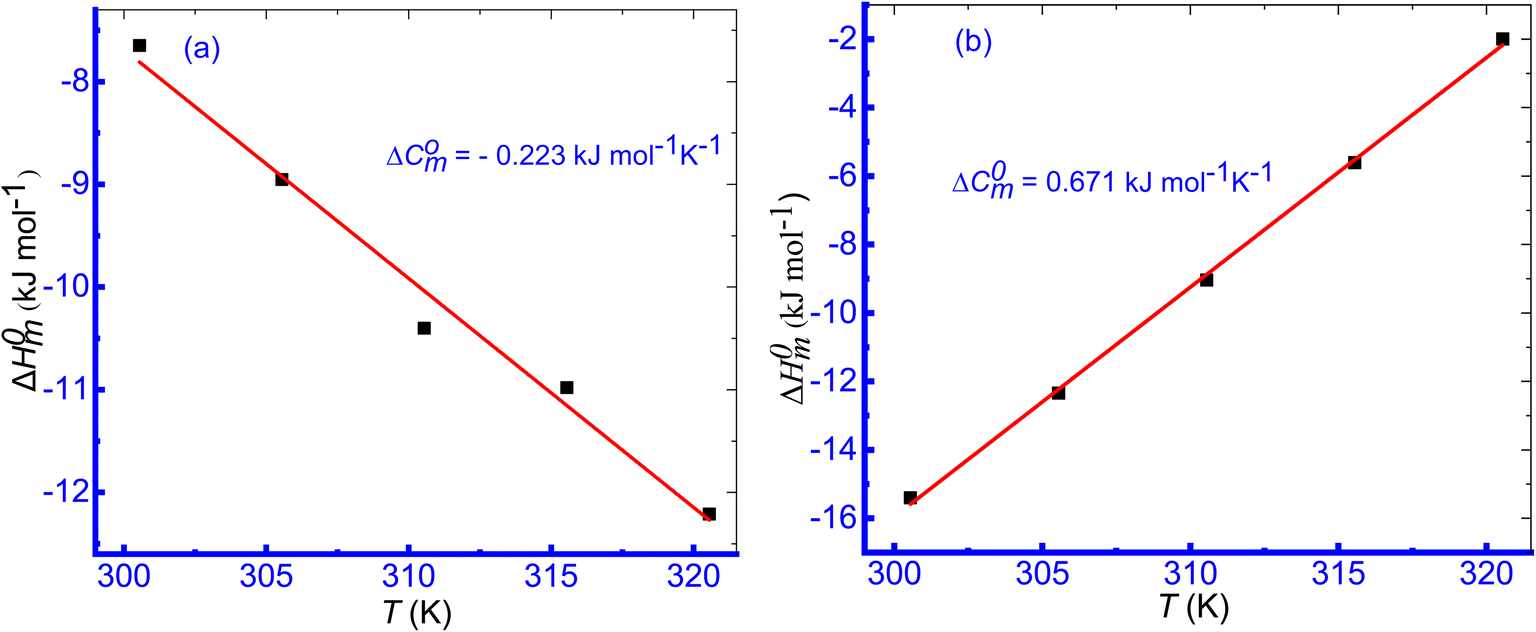

Fig. 8 Plot of ΔH0m vs. T (K) for the TTAB + CMT (0.30 mmol kg−1) system in aq. 0.50 mmol kg−1 solutions of (a) NaBz, and (b) NaS. |
Table 4 summarizes the variations in the values of ΔC0m for the micellization of TTAB + CMT in aq. hydrotropic solutions. The activities and functions of macromolecules, like proteins may be studied using the ΔC0m values of micellization. This makes it useful for improving our understanding of physicochemical characteristics. For micellization of TTAB + CMT mixture, the values of ΔC0m were negative in aqueous NaBz, ReSC, and PABA media. The negative values of ΔC0m of micellization of TTAB + CMT mixture was obtained in aq. NaBz solution, while a positive value was found in aqueous NaS solution. The variations in ΔC0m values demonstrate the reorganization of the surfactant micellar structure in the CMT drug + additives media.
(7) |
Fig. 9 Plot of ΔH0m vs. ΔS0m for the TTAB + CMT (0.30 mmol kg−1) mixed system in 10.00 mmol kg−1 solution of ReSC at different temperatures. |
The resulting enthalpy–entropy compensation parameters in the CMT + TTAB combination were shown to substantially correlate with one another (Table 5). The compensation between enthalpy and entropy for the CMT + TTAB mixed system in the investigated HT solutions is well defined in the current work.
Medium | Csalt (mmol kg−1) | Tc (K) | R2 | |
---|---|---|---|---|
a Standard deviation: . | ||||
H2O + NaBz | 0.500 | −21.01 | 128.8 | 0.9437 |
H2O + NaS | 0.500 | −40.98 | 381.2 | 0.9953 |
H2O + ReSC | 10.00 | −40.85 | 307.1 | 0.9997 |
H2O + PABA | 10.00 | −36.32 | 261.9 | 0.9994 |
Despite the fact that the usual entropy change is still zero, the existence of HTs encourages the micellization of TTAB + CMT mixture due to the more negative values of ΔH0m. The micellar stability mostly depends on the magnitude and sign of , the more negative values of , the higher will be the stability of micelle93 and, again, values also monitor the solute–solute interactions.94,95 The micelle of TTAB + CMT in the presence of NaS and ReSC has greater stability than other solvents as the value of in the presence of NaS and ReSC is more negative. The value of compensation temperature (Tc) was obtained in the range of 128.8–381.2 K in the presences of both IHT and NHT. The R2 value was found in the range of 0.9437–0.9997, which represents the excellent relationship between ΔH0m and ΔS0m in the present study.
