Kinetic analysis of silicon–lithium alloying reaction in silicon single crystal using soft X-ray absorption spectroscopy

Abstract

Silicon has been considered to be one of the most promising anode active materials for next-generation lithium-ion batteries due to its large theoretical capacity (4200 mA h g⁻¹, Li₂₂Si₅). However, silicon anodes suffer from degradation due to large volume expansion and contraction. To control the ideal particle morphology, an experimental method is required to analyze anisotropic diffusion and surface reaction phenomena. This study investigates the anisotropy of the silicon–lithium alloying reaction using electrochemical measurements and Si K-edge X-ray absorption spectroscopy on silicon single crystals. During the electrochemical reduction process in lithium-ion battery systems, the continuous formation of solid electrolyte interphase (SEI) films prevents the achievement of steady-state conditions. Instead, the physical contact between silicon single crystals and lithium metals can prevent the effect of SEI formation. The apparent diffusion coefficient and the surface reaction coefficient are determined from the progress of the alloying reaction analyzed by X-ray absorption spectroscopy. While the apparent diffusion coefficients show no clear anisotropy, the apparent surface reaction coefficient of Si (100) is more significant than that of Si (111). This finding indicates that the surface reaction of silicon governs the anisotropy of practical lithium alloying reaction for silicon anodes.

---

1. Introduction

Lithium-ion batteries have become ubiquitous in our daily lives, powering everything from smartphones to electric vehicles. However, they suffer from low energy density, cost, and safety issues, which hinder their widespread adoption in some applications.¹ The quest to face this challenge has led many researchers to explore the potential of silicon as an anode material for lithium-ion batteries. Its extraordinarily high theoretical specific capacity of up to 4200 mA h g⁻¹ for alloyed silicon Li₂₂Si₅ is approximately eleven times higher than ∼372 mA h g⁻¹ of graphite, which is currently used as anodes.^2,3 In addition, the abundant resources of silicon and its high safety indicate the potential of silicon to revolutionize the energy storage industry.^4–6 However, many have known that typical silicon anodes suffer from huge volume expansion during the lithiation process (up to 400%), leading to capacity fade due to mechanical and electrical integrity failures.^6–9 Furthermore, the slow kinetics caused by the lower diffusion coefficient value of Li in silicon provides an extra challenge for achieving high-performance lithium-ion batteries.^8,10 Therefore, the fundamental understanding of silicon-lithium (Si–Li) alloying reaction mechanism is essential to develop a silicon anode with less capacity degradation during the electrochemical reaction.

One of the origins of capacity degradation is the cracking of silicon particles, which accelerates the further electrolyte decomposition, causing the irreversible charge reaction.^11,12 The cracks are caused by anisotropic lithium diffusion, where inhomogeneous volume expansion and silicon compression cause enormous strain in the particles.^13–16 The scanning electron microscopic studies of electrochemical lithiation into silicon nanowires indicated that the Si–Li alloying reaction exhibits anisotropy properties based on the crystal plane.^13,17–22 Nevertheless, the effect of the anisotropy of the lithiation with silicon of different orientations remains unclear.

Many findings have reported energetically favourable Li–Si alloying reactions in the [110] direction of the Si crystal plane since it experiences less structural degradation and minimizes the amount of capacity lost during electrochemical cycling.^{14,18,20,23–25} Meanwhile, even though stresses are concentrated in the Si (100) crystal plane due to the tensile and compressive forces,^23,26,27 recent findings also indicate that Si (100) has better cycle reversibility and faster Li diffusion compared to Si (111) and (110) due to its better interfacial reaction with lithium.^26,28–30 The simulation study by the finite element method has also successfully demonstrated the crack formation in the (100) direction,²³ which leads to more exposure of the silicon surface to lithium.²⁶ To suppress degradation caused by anisotropy, morphology control such as nanowires and leaf shapes have been proposed.^14,31–33 Moreover, Lau et al. reported that the effect of highly doped n-type silicon single crystal seems to reduce surface fragmentation during initial lithiation.³⁰ Uncovering the anisotropy of the Si–Li alloy reaction will be valuable insight for improving the cycle properties of Si. In this work, we present an approach to observe the lithium alloying mechanism using a straightforward model by employing Sb-doped Si (100) and Si (111) single crystals as the electrode material in the electrochemical system.

Electrochemical of Si–Li alloying reaction consists of the following four processes: (1) desolvation of Li ions, (2) anisotropic lithium ion intercalation to the Si surface, (3) anisotropic diffusion of lithium ions into the Si crystal, (4) phase transformation to the Si–Li alloy phase.^15,21,26 Furthermore, solid electrolyte interphase (SEI) exists in electrochemical reactions using organic electrolytes and forms a complex electrode/electrolyte interface.^34,35

Theoretical studies have been carried out to analyze the anisotropy of alloying reactions, especially at the atomic level.¹⁴ Similarly, the anisotropy of diffusion phenomena with surface reactions has also been analyzed.³⁶ Nonetheless, to the best of the authors' knowledge, experimental attempts to quantify the anisotropy of diffusion phenomena have not been successful. Many attempts have been made to calculate the apparent diffusion coefficient by electrochemical measurements, such as galvanostatic intermittent titration technique (GITT) and impedance spectroscopy.^37–39 It appears that anisotropy phenomena can be analyzed by the electrochemistry of single crystals. However, some results were reported for GITT using thin films, where the apparent diffusion coefficient highly depends on the electrolyte.³⁴ In addition, excessive expansion and compression of silicon cause irreversible changes in the SEI, which in this case, is excluded from the application of electrochemical determination of chemical diffusion coefficient.

In this study, we propose the method of attaching Li to Si single crystals for the Si–Li alloy reaction without SEI formation. That is, the Si–Li alloying reaction can be analyzed by the adhesion of Si and Li with the simple interface of Si|Si–Li|Li. The contact time dependence of the progress of the Si–Li alloying reaction is analyzed for single crystals with Si (100) and (111) planes by Si K-edge X-ray absorption spectroscopy (XAS) measurements. Using the diffusion solution obtained by solving the diffusion equation, the apparent diffusion coefficient inside the silicon single crystal and the surface reaction coefficient on the silicon single crystal can be separated, and their parameters are discussed.

2. Experimental

2.1 Materials

Sb-doped Si single crystals (length: 10 mm, width: 10 mm, thickness: 0.525 mm) were purchased from Crystal Base Co., Ltd. The resistances of Si single crystals (100) and (111) were 0.0018–0.02 and 0.01–0.02 Ω cm, respectively. Si single crystals were immersed in piranha solution (a mixture of H₂SO₄ : H₂O₂ = 2 : 1 in volume ratio) for 30 min and then washed with ultrapure water. In order to remove the surface oxide film, Si single crystals were immersed in 5 wt% of HF for 5 min. Each pretreatment process was always followed by a thorough rinsing using ultrapure water. These samples were enclosed in a laminated bag in a glove box filled with Ar atmosphere to be characterized with X-ray photoelectron spectroscopy (XPS) (PHI5000 Versa Probe 2, ULVAC-PHI, Inc.).

2.2 Electrochemistry

Three-electrodes electrochemical cells (Fig. S1†) were fabricated in an Ar-filled glove box. Pretreated Si single crystals were used as working electrodes, and lithium metal foils (99.9%, thickness: 200 μm, Honjo Metal Co., Ltd.) were used as the counter and reference electrodes. 1 mol dm⁻³ LiPF₆ in ethylene carbonate and ethyl methyl carbonate (3 : 7 in volume ratio, Kishida Chemical Co., Ltd) was used as an electrolyte. After keeping the initial voltage for 1 hour, cyclic voltammogram (CV) measurements were carried out using potentiostat (HZ-7000, Hokuto Denko) at the scan rate of 1 mV s⁻¹ between 0.01 V–2.40 V (vs. Li/Li⁺). Electrochemical impedance spectroscopy (EIS) measurements (voltage amplitude: 10 mV, frequency: 0.1 Hz–1 MHz, VersaSTAT4, AMETEK) were carried out at 25 °C in the thermostat (SU-221, ESPEC) after the voltage was set to 0.01 V (vs. Li/Li⁺). Time dependence was investigated every 1 hour in the same frequency and voltage amplitude mentioned above.

2.3 Contact between Si single crystal and Li

Si single crystals were contacted with Li metal foil at various times using homemade jigs. The jigs were disassembled, and Li metal was removed from Si single crystals. The Si single crystals were put into the transfer vessel for the XAS measurements. These procedures were carried out in an Ar-filled glove box. Si K-edge XAS measurements were performed at the soft X-ray double crystal beamline, BL-10, in the SR Center Ritsumeikan University. Si single crystals were put into a vacuum chamber without air exposure. X-ray was monochromized by InSb (111) double-crystal and XAS was measured in a fluorescence yield mode.

3. Results and discussion

Silicon surface condition is crucial for understanding the initiation of alloying reactions. Si crystals were pretreated with piranha solution and hydrofluoric acid to remove the organic contamination and oxide layer at the surface before assembling into the electrochemical cell. We then examined the chemical state changes of the Si (100) and (111) crystal surface before and after the pretreatment process by XPS (Fig. S2†). O 1s XPS spectra (Fig. S2(a) and (c)†) describe the peak intensity at binding energy 532 eV, which reduces to less than 10% after the pretreatment. This reduction corresponds to the removal of oxide film by HF solution, resulting in a decrease of oxygen atoms ratio in the total spectrum. In addition, Si 2p XPS spectra (Fig. S2(b) and (d)†) show two peaks at 103 eV and 99 eV for pristine silicon single crystal before pretreatment. The peak at the binding energy of 103 eV, which corresponds to SiO_x peak, is no longer traced after the pretreatment. Considering these results, the pretreatment process of silicon crystals before assembling them to the cell is considered essential since the surface reaction in the silicon will determine the Si–Li alloying reaction.

The analysis of lithium alloying reaction by electrochemical measurement was examined. CV measurements were performed to study the electrochemical behaviour of silicon single crystal in different crystal planes. Fig. 1 shows the cyclic voltammograms of Si (100) and Si (111). A sharp reduction peak is confirmed at 0.1 V, suggesting that a large reduction current is induced by Si–Li alloying reaction.^40,41 Oxidation peaks are observed around 0.31 and 0.51 V, corresponding to lithium dealloying from the silicon crystal structure.^29,41 The pattern of the CV profile is consistent with previously reported CVs of silicon single crystal (100) or (111) crystal planes; the cathodic peak below 0.1 V originates from the formation of the Li₁₅Si₄ alloying phase with amorphization, and the two peaks in the anodic process originate from the dealloying from the Li₁₅Si₄ alloying phase to crystalline Si with Li_4.2Si.^30,42–44 To our knowledge, there have been no reports comparing (100) and (111) CVs of silicon single crystals. The coulomb charge during the first cathodic scan is 4.58 × 10⁻⁶ mA h cm⁻² for Si (100) and 2.25 × 10⁻⁶ mA h cm⁻² for Si (111). The current density of the reduction and oxidation current of Si (100) is about two times larger than the Si (111) during the first cycle. This phenomenon can be attributed to the lithium insertion behaviour, which exhibits a higher tendency to diffuse along Si (100) than in Si (111).²⁶ After the second cycle, cathodic currents begin to be observed at higher potentials. This result is consistent with reports of higher lithium alloying potentials after the second cycle as an effect of amorphization.^28,30,45 The cycle-by-cycle current value change indicates that the kinetics varies continuously due to morphological changes on the silicon surface. Therefore, it is difficult to calculate the chemical diffusion coefficient of silicon through CV analysis.

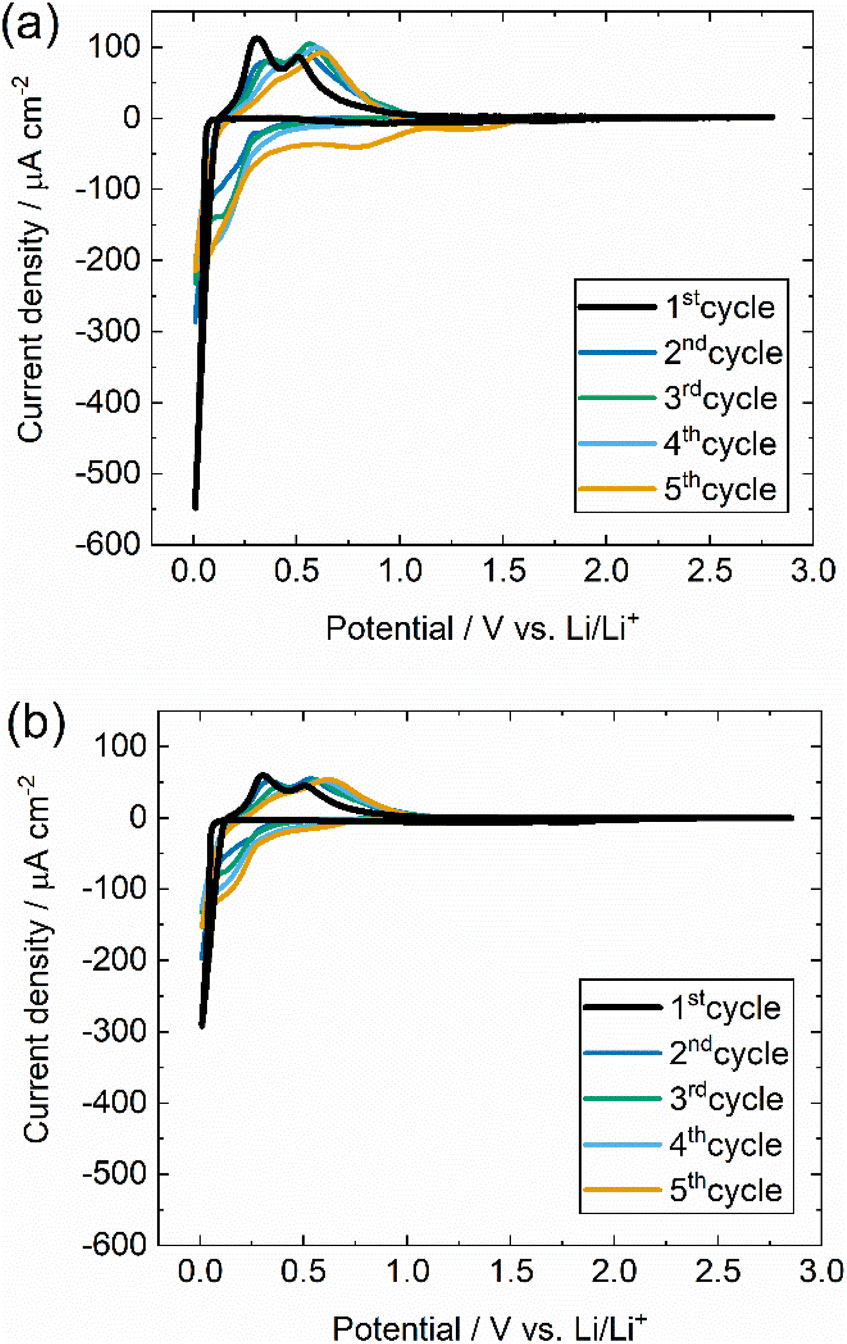

Fig. 1 Cyclic voltammograms of (a) Si (100) and (b) Si (111) single crystal, respectively. The scan rate was set at 1.0 mV s⁻¹, and the scan range was 0.01–2.40 V (vs. Li/Li⁺) for 5 cycles.

The electrochemical process of Si–Li alloying reaction involves the formation of SEI. The time dependence of SEI formation at low potentials is analyzed by EIS. The potential was set to 0.01 V through chronoamperometry measurements. EIS measurements were performed at each hour for a total of 5 hours. The results are plotted in the Nyquist plot shown in Fig. 2, showing an increase in the size of semicircle. In the case of single crystal measurements, the alloying reaction is concentrated on the surface of single crystal at a depth of a few micrometers.⁴¹ The semicircle of the EIS in this measurement corresponds to the reaction at the electrode/electrolyte at the interface. Once the steady state of lithium alloying reaction is reached, increasing the time of the alloying reaction by holding the potential at 0.01 V should not significantly change the size of the semicircle. Therefore, the enlargement of the semicircle over time is likely attributed to the electrolyte decomposition at low potential, leading to the formation of SEI. Consequently, this alteration in the SEI layer influences the impedance behavior. Further analysis was conducted by XAS measurement to investigate the apparent diffusion of lithium in silicon, which could not be evaluated using electrochemical measurement. The silicon single crystals were examined by scanning the potential down to 0.01 V using LSV method and maintained for 5 hours (Fig. S3(a)†). X-ray absorption near-edge structure (XANES) region of Si K-edge XAS spectra shows an energy shift in the initial and alloyed silicon single crystals (100) (Fig. S3(b)†), but the shift is relatively small. The impedance results indicate that holding the potential to the silicon at 0.01 V leads to an increase in Si expansion associated with lithium alloying, further promoting SEI formation and slowing the electrochemical lithium alloying reaction. These results suggest that the continuous formation of SEI occurs at the electrode–electrolyte interface, especially at low potentials. Therefore, the determination of chemical diffusion coefficients by EIS or GITT methods is not applicable.

Fig. 2 Nyquist plots of electrochemical impedance in the frequency range of 0.1 Hz to 1 MHz at the potential 0.01 V vs. Li/Li⁺ for Si (100) after electrochemical Si–Li alloying reaction. Inset figure shows the semicircle at high-frequency region.

The formation of SEI on the surface of silicon single crystals during electrochemical reactions involves complex phenomena that pose challenges to conducting quantitative analysis using XANES. As a strategy to eliminate the SEI formation, the silicon single crystal samples were contacted directly to the lithium metal into a jig, as shown in Fig. 3(a). The overall alloying mechanism of Si–Li alloying reaction may differ between the direct contact and alloying process with the presence of electrolyte. Nevertheless, the underlying principles and reaction phenomena related remain consistent in terms of its chemical potential. The alloying of Li to Si in our direct contact system is derived by the reducibility of lithium which occur at 0 V vs. Li/Li⁺. Meanwhile, the electrochemical potential for Li-alloying reaction for Si anode is approximately 0.1 V vs. Li/Li⁺.¹⁰ By taking this into account, our direct contact method enables a straightforward analysis of the fundamental aspects of the alloying reaction between Si and Li independently from the complex reaction involving the SEI formation. Si K-edge XANES results of Si (100) and Si (111) for various contacted times are shown in Fig. 3(b) and (c), respectively. Compared to Si (111), the peak intensity of Si (100) significantly reduces after 20 seconds of contact with lithium, and the low energy side of the absorption edge is significantly broadened. This result qualitatively indicates that the alloying reaction of Si (100) with lithium takes a shorter time. The peak intensity around 1840 eV reduces, and with the longer contacting time, the entire spectrum shifts to a lower energy level. The significant change of electron density caused by the lithium insertion into silicon is assumed to be responsible for this shift.^15,46 Furthermore, an isosbestic point is observed around 1838 eV for both types of silicon crystal due to the fact that the observed Si–Li alloying reaction is an apparent two-phase reaction system.^19,45,47 From this trend, by decomposing the XANES spectra into the initial Si and lithiated phase components, quantitative information can be obtained on the progress of the alloying reaction.

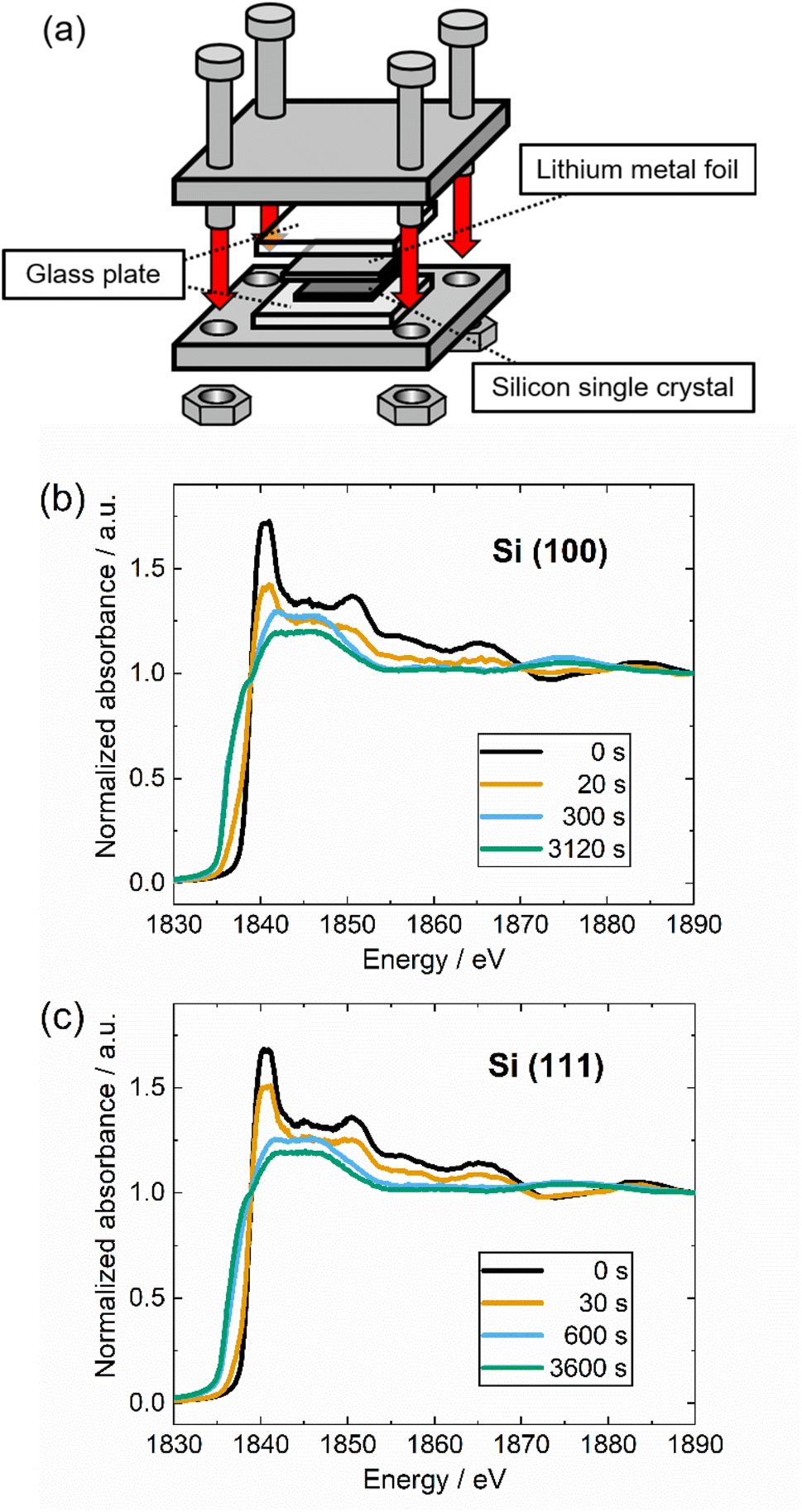

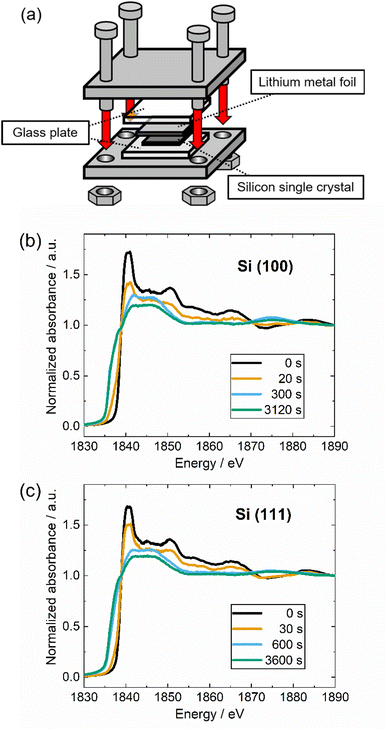

Fig. 3 (a) Schematic of jig to settled lithium metal and silicon single crystal. They were assembled at 10 cN m using torque driver. Si K-edge XANES spectra of (b) Si (100) and (c) Si (111) single crystals at each contacting time with lithium. It is noted that the spectra in (b) and (c) was normalized by one at 1890 eV.

The calculated progression of the lithium alloying reaction versus reaction time from the two-component XANES analysis of Si(100) and (111) are shown in Fig. 4(a) and (b), respectively. For Si (100), the alloying reaction is sufficiently well completed within approximately 100 s after the contact starts, whereas for Si (111) takes approximately 500 s. The apparent lithium alloying reaction can be divided into a lithium insertion process at the silicon surface and lithium diffusion into the silicon subsurface, followed by phase transformation. In this study, the former reaction is regarded as the surface reaction process and the latter as the apparent diffusion process. The surface reaction coefficient and the diffusion coefficient are calculated by fitting the data shown in Fig. 4(a) and (b).

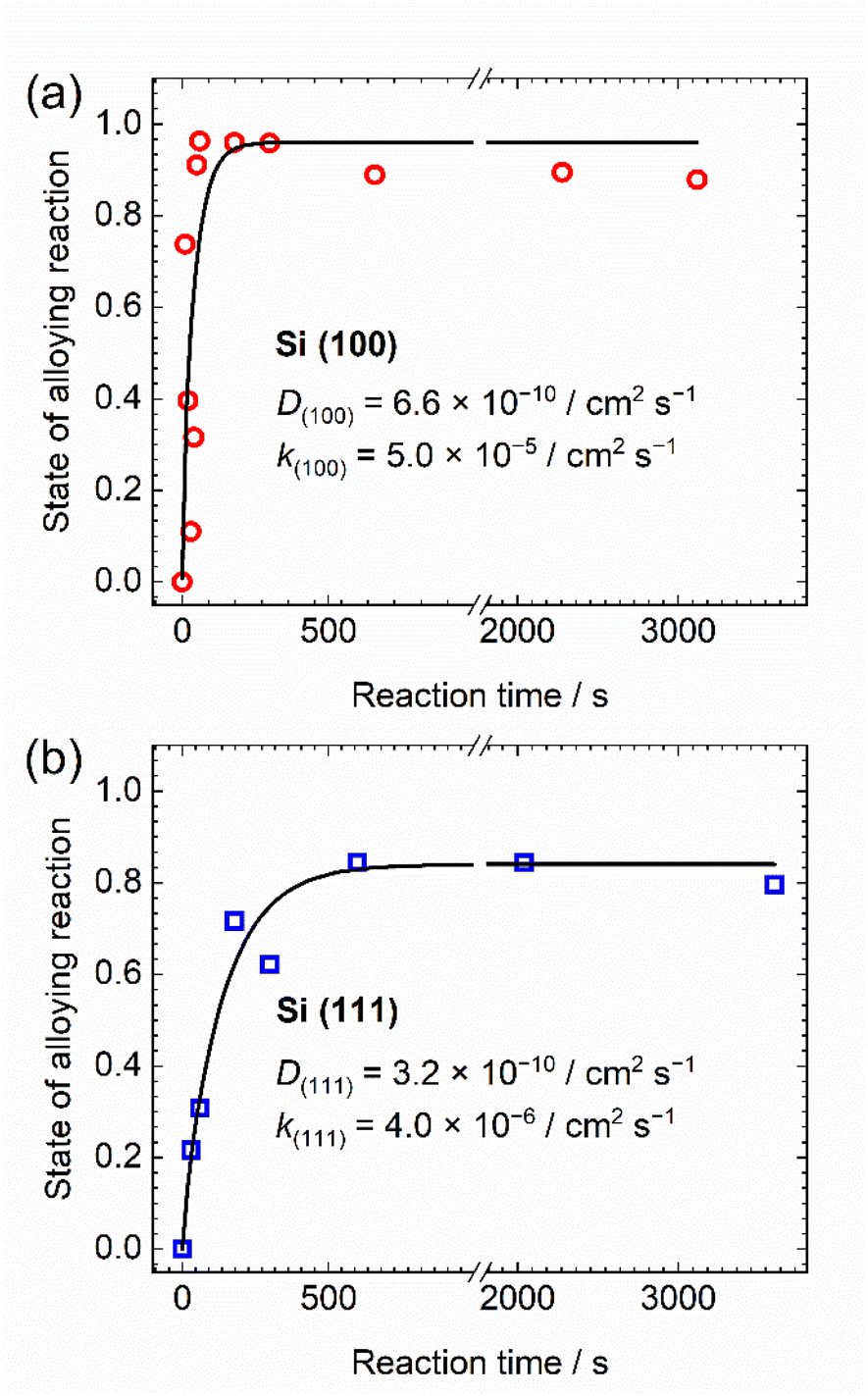

Fig. 4 Relationship between the contacting time and the state of alloying reaction in (a) Si (100) and (b) Si (111) single crystals. These plots were fitted to diffusion solution equation proposed by Crank.⁴⁸

The thickness of the silicon is 0.525 mm, which is thicker than that of a general electrode active material. Therefore, we assumed that the diffusion length was sufficient for the semi-infinite diffusion approximation.⁴⁸ The one-dimensional diffusion equation is given by eqn (1) according to Fick's second law:⁴⁸

where x is the diffusion depth (cm), c(x,t) is the concentration of lithium in silicon substrate (mol cm⁻¹) at the contact time t (s), and D is the apparent diffusion coefficient (cm² s⁻¹). Moreover, the boundary condition is given by the following eqn (2):where c₀ = c(x, 0) = 0 (mol cm⁻¹) is the initial concentration, c_eq is the equilibrium concentration of lithium (mol cm⁻¹) when equilibrium was reached at T (s), and k is the apparent surface reaction coefficient (cm s⁻¹). The following equation is obtained using a variable conversion method under these conditions:where erfc(u) is complementary error function. The erfc(u) can be shown as follows:

The graph plotting eqn (3) is shown in Fig. S4.†

Furthermore, to calculate the reaction ratio at the reaction time t (0 ≤ t ≤ T, T is the equilibrium time of Si–Li alloying reaction) using the eqn (3), we defined M_τ is the amount of molar of Si–Li alloy (mol) at the reaction time τ (s) and M_eq which is the amount of molar of Si–Li alloy (mol) at T, and M_τ/M_eq as reaction ratio. In this work, we assumed that L, which is the depth of Si–Li alloy (cm) at the time of T is equal to the detection depth of fluorescence XAS λ_f (cm) in the eqn (6) because the diffusion length of lithium in Si single crystals can be only detected up to λ_f as follows:⁴⁹

where ϕ = 85° is the incident angle (degree), μ^X_Tis X-ray absorption coefficient of material (cm⁻¹), and μ^F_T is fluorescence X-ray absorption coefficient of material (cm⁻¹). The detection depth λ_f was calculated as 1.19 × 10⁻⁴ cm using eqn (6).

The amount of substance of Si–Li alloy present up to the depth L at the time τ is determined by the integral value up to the depth L. In addition, M_eq was calculated as C_eqL because C(x,t) reached C_eq at the time of T. Therefore, the reaction ratio of M_τ/M_eq at the time of τ as follows:

L=l₁ + l₂ (8)

where l₁ is the depth of Si–Li alloy (cm), and l₂ is the depth of unreacted Si (cm). The following eqn (9) is obtained because c(x,τ) equals to zero at the x (l₁<x ≤ l₂):

In this work, we calculated the apparent diffusion coefficients and surface reaction coefficients using eqn (9) for fitting.

The calculated apparent diffusion coefficients (D) of Si (100) and Si (111) are 6.6 × 10⁻¹⁰ and 3.2 × 10⁻¹⁰ cm² s⁻¹, respectively. In this experiment, lithium in single crystal can diffuse easily to various crystal planes, indicating that the diffusion is not one-dimensional. Hence, even if there is anisotropy of the diffusion coefficient, the apparent diffusion coefficient obtained in this experiment would not differ significantly. On the other hand, the calculated surface reaction coefficients (k) of Si (100) and Si (111) are 5.0 × 10⁻⁵ and 4.0 × 10⁻⁶ cm s⁻¹, respectively. The surface reaction coefficient at [100] is more than one order of magnitude higher because the surface reaction occurs at a two-dimensional interface.

The calculated surface reaction coefficients for Si (100) and (111) in this study show the opposite trend to the energy barrier for surface layer lithiation, as obtained by density functional theory (DFT).^18,26,50 This is likely because the energy barrier calculated by DFT is based on the assumption that the crystal structure remains intact, whereas in actual lithium alloying, the crystal structure is amorphized as lithium penetrates from the surface to the first Si layer.⁴¹ In the actual alloying reaction, amorphization occurs by displacing silicon atoms on the surface. Wang et al. calculated the degree of amorphization progression at each crystal plane by molecular dynamics and found that the crystals are more likely to collapse in the order of (100), (111), and (110).²³ Once amorphized, the cage-like silicon structure which hindered the insertion of lithium is destroyed. As a result, Si (100) reacts more with lithium and accelerates the reaction, leading to a higher surface area.

In order to gain more comprehensive understanding of the structural properties and electric states of the LiSi alloy, future studies can explore the integration of soft X-ray emission spectroscopy (SXES) with synchrotron radiation light source such as XAS.⁵¹ Aoki et al. have demonstrated the applicability of SXES with XRD and SEM in characterizing the structure, composition, and electronic states of similar LiSi alloy systems.⁴¹ Incorporating SXES and XAS would further enhance the structural analysis capabilities for future investigations of LiSi alloy.

4. Conclusion

We have examined the anisotropy of the lithium alloying reaction of Si (100) and (111) single crystal anodes. The electrochemical reaction causes the continuous formation of SEI, which disturbs the steady state for electrochemical analysis for EIS and GITT. The physical contact between lithium metal and silicon crystals allows the alloying reaction without the effect of SEI. Si K-edge XAS provides the state of the alloying reaction. The time dependence of the alloying state provides the apparent diffusion coefficient and the surface reaction coefficient. The apparent diffusion coefficients in Si (100) and Si (111) are not significantly different because practical lithium diffusion in bulk Si is three-dimensional. Nevertheless, the surface reaction coefficient of Si (100) is one order higher than that of Si (111), indicating that the anisotropy of the Li alloying reaction in Si is dominated by the surface reaction.

Author contributions

Nur Chamidah: data curation, investigation, writing – original draft. Akito Suzuki: methodology, formal analysis, writing – original draft. Takeshi Shimizu: visualization. Chengchao Zhong: writing – review & editing. Keiji Shimoda: writing – review & editing. Ken-ichi Okazaki: writing – review & editing. Toyonari Yaji: data curation, investigation. Koji Nakanishi: methodology. Motoaki Nishijima: conceptualization. Hajime Kinoshita: conceptualization. Yuki Orikasa: conceptualization, supervision, project administration, funding acquisition, writing – review & editing.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The part of this work was supported by JSPS KAKENHI Grant Number 19H02694, Ritsumeikan Global Innovation Research Organization, Ritsumeikan Advanced Research Academy, and The Science Research Promotion Fund in Promotion and Mutual Aid Corporation for Private Schools of Japan.
