Synthesis of temperature- and humidity-induced dual stimulation film PU-PNIPAm_n and its independent film formation as a smart window application

Abstract

Dynamic windows, which switch between transparent and opaque states as the temperature changes, can be applied in buildings to reduce building energy consumption. Poly(N-isopropylacrylamide) (PNIPAm) is the most studied thermochromic hydrogel for climate-resilient smart window applications. In addition to its poor mechanical properties and low reaction rate, the PNIPAm hydrogel must be sandwiched between two pieces of glass to form an interlayer in practical applications. Here, durable PU-PNIPAm_n copolymers for smart windows were synthesized by reacting the synthesized poly-NIPAm diols with isocyanate (–NCO) monomer, which greatly improved the mechanical properties of the hydrogel and it was able to form a film alone. These temperature-sensitive films can switch between transparent (>80% transmittance) and opaque (<5% transmittance) states in less than 10 minutes, with no degradation in optical contrast, switching speed, or uniformity after at least 100 switching cycles.

---

1 Introduction

With the growth of the population, the amount of energy used for air conditioning to provide a comfortable and livable environment has increased rapidly. Smart windows can dynamically and reversibly adjust the amount of solar radiation entering a building in response to external stimuli, providing a promising solution for improving energy efficiency.^1–6

Current research on smart windows focuses on stimulus-responsive hydrogel materials, whose modulation process can be automatically regulated by active responses to external stimuli (e.g., voltage input) or passive responses to the surrounding environment (e.g., sunlight intensity, temperature, and humidity).^7–9 The simple construction of automatic passive mode responsive smart windows is usually more suitable for architectural applications than active mode, which is usually achieved using phase-separated thermochromic hydrogels with high coloring efficiency and contrast ratios.³

Poly(N-isopropylacrylamide) (PNIPAm) is a widely explored thermochromic hydrogel with a low critical solution temperature (LCST) of about 32 °C in aqueous solution, close to room temperature.^10,11 When the ambient temperature is lower than T_LCST, sunlight can pass through the window smoothly because of the formation of a single phase due to the hydrogen bond between the amide group and water. When the temperature rises above the T_LCST, the hydrogel becomes opaque due to the dominant hydrogen bonding within the polymer molecule, blocking the sunlight entering the building over the entire wavelength range.

Usually, the PNIPAm-based smart windows were established via sandwiching PNIPAm hydrogel thin film between two pieces of glasses to reduce water evaporation.^12,13 This makes the design and installation of smart windows more complex and invariably increases the final installation cost. This not only increases the cost of window preparation, but also places high demands on window sealing. In addition, the mechanical properties of hydrogel are poor and the size of the sandwich will shrink after a period of use, affecting the efficiency and appearance of the smart windows. These drawbacks of PNIPAm-based smart windows severely limit their commercial application.

In order to broaden the industrial application of PNIPAm-based smart windows, several important requirements need to be fulfilled:

Low cost and easy to manufacture in large areas.

Easy to transport and simple to install.

Long-term reversibility and reproducibility.

Quickly switch between transparent and opaque.

Homogeneously stable materials both above and below the T_LCST.

Polyurethanes (PUs) are a special class of polymeric materials that have been widely applied in biomedical, building construction, automotive, textiles and many other industries due to their superior performance in hardness, elongation, adhesives, strength, modulus, etc.^14–16 In order to improve the strength and modulus of PNIPAm and thus broaden its practical applications. Interestingly, the work of C. W. Park's group first demonstrated that the compressive strength of PNIPAm could be increased by more than 100% when 10% PU was added to the polymer.¹⁷ Subsequently, scientists A. S. Mathews¹⁸ and M. Enomoto¹⁹ et al. also synthesized PNIPAm-co-PU copolymers for controlled urea release and waterproof fabrics for sportswear, respectively. However, scientists did not systematically study the mechanical and temperature–sensitive properties of these copolymers or apply them to smart windows.

In order to increase the strength and modulus of PNIPAm and thus broaden its practical application. In this paper, poly-NIPAm diols are incorporated in the first step of polyurethane synthesis to form polyurethane groups, which are produced by the reaction of alcohols (–OH) and isocyanates (–NCO). The formation of PU-PNIPAm_n copolymer overcomes the defect that the hydrogel can only be encapsulated as an interlayer material to be used as a smart window, and its mechanical properties are far stronger than those of PNIPAm-based hydrogels. Furthermore, so far, this is the first study focused on the synthesis and characterization of PU-PNIPAm_n copolymers for potential application as a smart window.

2 Experimental section

2.1 Materials

5-Isocyanato-1-(isocyanatomethyl)-1,3,3-trimethylcyclohexane (IPDI) and trimethylolpropane tris(2-methyl-1-aziridine)propionate (AZ) were purchased from Wanhua polyurethane Co., LTD (Yantai, China). Polyethylene glycol (PEG, M_n = 1000 g mol⁻¹) was supplied by Shanghai Chemical Reagent Co. Inc., China and dehydrated under reduced pressure at 100–120 °C for 3–4 h. Butane-1,4-diol (BDO) and 3-hydroxy-2-(hydroxymethyl)-2-methylpropanoic acid (DMPA) were purchased from Chengdu Kelong Co. Ltd, China and dried under vacuum at 100 °C. Acetone, butanone, oxolane (THF), [dibutyl(dodecanoyloxy)stannyl] dodecanoate (DBTDL), 2-sulfanylethanol (β-ME), diethyl ether and other common reagents were purchased from Chengdu Kelong Co. Ltd, China and were used as received. N-Isopropylacrylamide (NIPAm, ≥98%) and analytical grade 2-[(2-cyano-5-hydroxypentan-2-yl)diazenyl]-5-hydroxy-2-methylpentanenitrile (ACP) were purchased from Shang Hai Chemical Reagent Co. Inc., China and were used as received.

2.2 Methods

2.2.1 Synthesis of poly-NIPAm diols. Three kinds of poly-NIPAm diols (labeled PNIPAm_n, n = 6, 9, 12) were synthesized by varying the amount of β-ME. The initial reagents and ratios are shown in Table 1.

Table 1 Compositional ratio of monomer and initial reagents

Sample	NIPAm (g)	n (NIPAm/β-ME)	ACP wt%
PNIPAm12	15	12/1	2
PNIPAm9	15	9/1	2
PNIPAm6	15	6/1	2

---

All initial reagents were dissolved in 80 g THF in a 150 mL three necked flask. And the system was purged of oxygen with nitrogen for 30 min at room temperature and heated up to 70 °C with continuous magnetic stirring for 24 h. The reaction mixture was concentrated by reduced pressure distillation at 45 °C, and then added dropwise to about 200 mL of anhydrous ethyl ether and kept in a refrigerator overnight. After filtration, the crude product was dissolved in acetone, and the filtrate was concentrated by reduced pressure distillation at 45 °C and then dried in vacuum at 60 °C for 24 h to obtained pure PNIPAm_n. The yield of the PNIPAm_n was about 96.7%. The process was illustrated in Fig. 1a.

Fig. 1 Synthetic route of the PNIPAm_n (a) and PU-PNIPAm_n (b), (c) schematic of solar transmittance modulation of PU-0.15PNIPAm₁₂ and PU-0.30PNIPAm₁₂, (d) schematic of solar transmittance modulation of PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉.

2.2.2 Copolymerization reaction of poly-NIPAm diol and polyurethanes (PU-PNIPAm_n). PU-PNIPAm_n were prepared by polyaddition reaction using IPDI, PNIPAm_n, PEG, BDO and DMPA. The calculated PNIPAm_n was dissolved in 5 g acetone, and IPDI and DBTDL (DBTDL/monomers = 0.001/1, w/w) were introduced into a 250 mL three necked flask. The reaction was stirred at 85 °C for 3 h to obtain NCO end-capped PNIPAm_n intermediate. Then the dehydrated PEG and DMPA were added to the flask and kept for another 3 h. After lowering the temperature of the system to 70 °C, a stoichiometric amount of BDO was added dropwise and kept for another 3 h to obtain PU prepolymers with the hydroxyl group as the molecular terminal. The viscosity was adjusted with acetone during the reaction. A series of PU-aPNIPAm_n modified polyurethanes were obtained by adjusting the amount of PNIPAm_n added, where a represents the mass percentage of PNIPAm_n in PU-PNIPAm_n. The synthetic formula is shown in Table 2 and the synthetic route is shown in Fig. 1b.

Table 2 Formulas of PU and PU-aPNIPAm_n

Sample	Monomer (g)						wt% (PNIPAmn)
	IPDI	PEG1000	PNIPAmn	DMPA	BDO	AZ
PU	5.14	12	0	1	0.74	1.12	0
PU-0.15PNIPAm12	5.14	9	3	1	0.74	1.12	15.00
PU-0.30PNIPAm12	5.14	6	6	1	0.74	1.12	30.00
PU-0.45PNIPAm12	5.14	3	9	1	0.74	1.12	45.00
PU-0.60PNIPAm12	5.14	0	12	1	0.74	1.12	60.00
PU-0.30PNIPAm9	5.14	6	6	1	0.74	1.12	30.00
PU-0.30PNIPAm6	5.14	6	6	1	0.74	1.12	30.00

---

2.2.3 Preparation of the PU and PU-PNIPAm_n films. The 15 wt% PU or PU-PNIPAm_n solution was homogeneously mixed with 0.1940 g AZ and poured onto a horizontal PTFE mold at room temperature for 72 h, then dried at 60 °C for 24 h to obtain PU and PU-PNIPAm_n cross-linked films with a thickness of about 0.5 mm.

3 Results and discussion

3.1 Structural confirmation of poly-NIPAm diol (PNIPAm_n)

The chemical structure was determined by ¹H NMR spectroscopy (400 MHz, CDCl₃, δ). The ¹H NMR spectrum shows the characteristic peaks of PNIPAm_n, as shown in Fig. 2 (a). As can be seen from the figure, all three PNIPAm_n polymers show a proton of –NH– peak at about 7.46 ppm (a), a proton of methylene peak at about 4.01 ppm (b–d) and a proton of methyl group peak at about 1.16 ppm (e), all without the characteristic peak of protons in –C=CH₂ at about 5.6 ppm,²⁰ demonstrating the successful synthesis of end-hydroxy PNIPAm_n by ACP and β-ME.

Fig. 2 (a) ¹H-NMR (CDCl₃) and (b) FT-IR spectrum of PNIPAm_n.

Fig. 2b shows the FT-IR spectrum of PNIPAm_n polymers and monomer NIPAm. All three PNIPAm_n samples shows N–H stretching vibration peaks around 3291 cm⁻¹, C=O stretching vibration peaks at 1649 cm⁻¹, and N–H bending vibration peaks at 1540 cm⁻¹. In contrast, the characteristic peaks of C=C at 1620 cm⁻¹ and 987 cm⁻¹ disappeared in the spectrum of PNIPAm_n. In addition, the peak intensity of PNIPAm_n at 3438 cm⁻¹ increases dramatically compared to that of NIPAm, indicating that ME and ACP have successfully introduced hydroxyl groups into the final product. These results further demonstrated the successfully synthesis of PNIPAm_n.

In order to investigate the effect of PNIPAm_n with different main chain lengths (different molecular weights) on the properties of PU, the molecular weights of PNIPAm_n were controlled by adjusting the amount of β-ME. As the molecular weight of PNIPAm_n is too large, it will increase the difficulty of copolymer synthesis; too small molecular weight not only makes the separation and purification of the product difficult, but also the addition of a large amount of β-ME makes the molecular weight distribution of PNIPAm_n wider. Therefore, the average molecular weight size of PNIPAm_n designed in this paper is in the range of 1000–5000. By fixing the amount of initiator ACP, the molar ratios of NIPAm to ME were designed as 12 : 1, 9 : 1 and 6 : 1, and three molecular weight sizes and distributions of PNIPAm_n were produced. The molecular weight of PNIPAm_n was determined by GPC, and the results are shown in Table 3. The results showed that the molecular weight of PNIPAm_n decreased gradually with the increase of β-ME content, and the molecular weight distribution also became wider. This is because the higher content of β-ME, the easier it is to terminate the polymerization reaction by free radical collision, resulting in a product with a small molecular weight and a wider molecular weight distribution.^20,21

Table 3 Molar mass and molecular distribution of PNIPAm_n samples

Sample	Mn	Mw	Mw/Mn
PNIPAm12	1776	4643	2.614
PNIPAm9	1614	3854	2.388
PNIPAm6	993	3157	3.180

---

3.2 Preparation of PU-PNIPAm_n composite materials

The structure of PU-PNIPAm_n films were confirmed by ¹H-NMR and FT-IR analysis, as shown in Fig. 3. In the ¹H-NMR spectrum of Fig. 3a, the attribution chemical shifts of protons in PU-PNIPAm_n were labelled, preserving essentially all the peaks of PNIPAm_n. The peaks associated with the presence of protons in the urethane bond of PU-PNIPAm_n at 7.52 ppm (a + h) and 6.99 ppm (d), demonstrating that PU-PNIPAm_n was successfully synthesized by bulk polymerization of PNIPAm_n and IPDI.²²

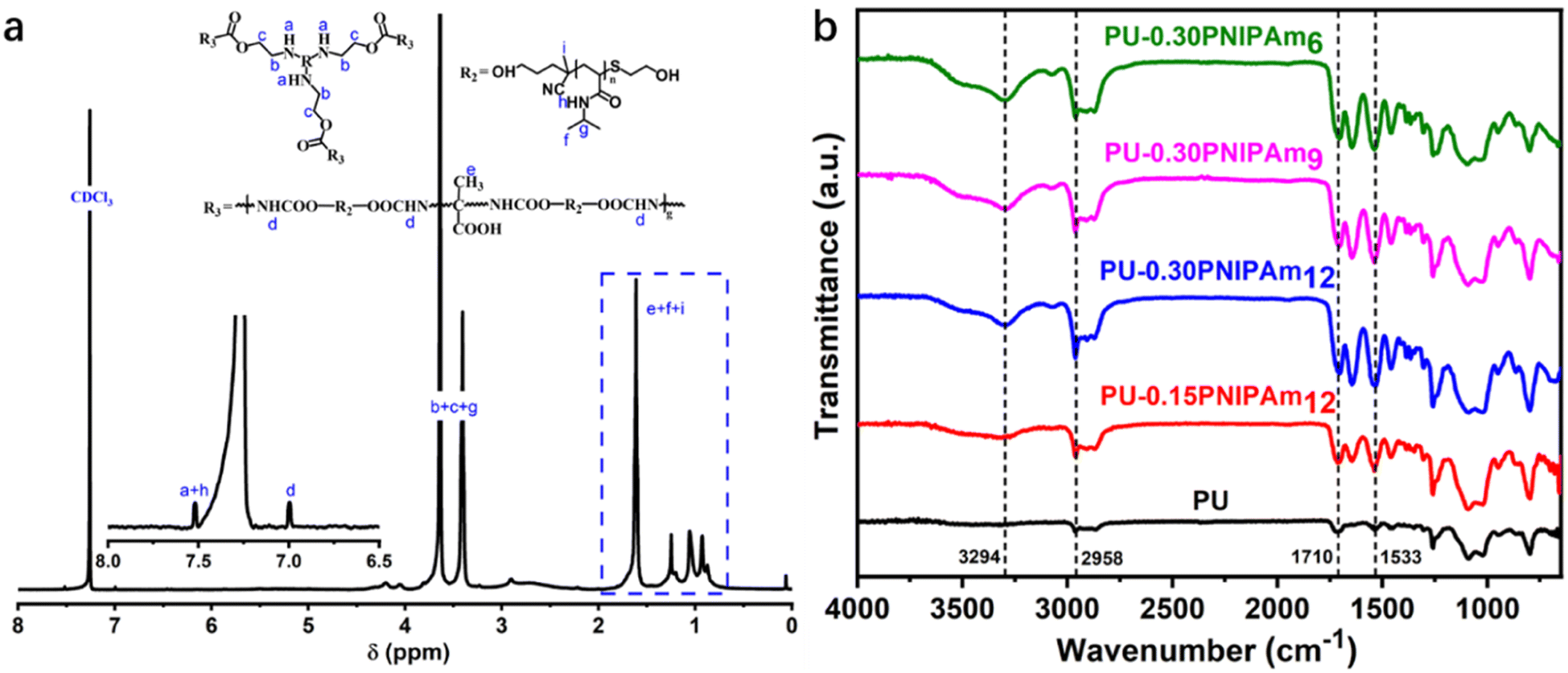

Fig. 3 (a) ¹H-NMR (CDCl₃) spectrum of PU-0.30PNIPAm₁₂ and (b) FT-IR spectrum of PU-PNIPAm_n.

In the FT-IR spectrum of Fig. 3b, all samples revealed strong N–H bending bond at 1533 cm⁻¹, N–H stretching bond at 3294 cm⁻¹ and C=O stretching at 1710 cm⁻¹ demonstrating the successful synthesis of the PU structures. In addition, the characteristic absorption peaks of isocyanate from IPDI at 2256 cm⁻¹ and hydroxyl group from PEG or PNIPAm at 3440 cm⁻¹ disappeared, indicating the involvement of isocyanate and hydroxyl group in the reaction. These results suggest that the PU-PNIPAm_n copolymer was successfully prepared from PNIPAm.

PU is known to be a block copolymer consisting of alternating soft and hard segments. Under certain conditions, the hard segments in the PU chain segments will aggregate together to form crystalline micro-regions, which can be characterized by X-ray diffraction (XRD).^23,24 Fig. 4a and b presents the XRD patterns of PU and PU-PNIPAm_n films. All samples showed a strong diffraction peak at around 2θ = 19°, caused by the crystallinity in the hard domain.^23,24 The peak intensity of these films decreased sharply with the increasing of PNIPAm₁₂ content and decreased slightly with the increasing of PNIPAm_n molecular weight. This means that as the PNIPAm_n content or molecular weight increases, lower long-range order segments are formed in the hard segment. When both PU-0.15PNIPAm₁₂ and PU-0.30PNIPAm₁₂ were swollen 100 times, their strength at 2θ = 19° decreased slightly due to the stretching of the polymer chains after swelling, which reduced the long-range order of the hard segment (Fig. 4c and d).

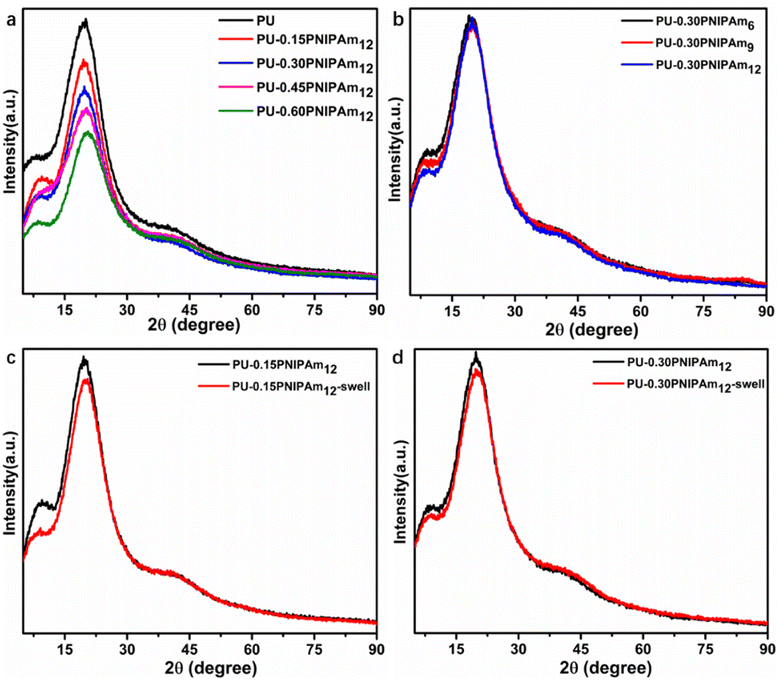

Fig. 4 XRD patterns of the PU and PU-PNIPAm_n films. (a) PU-aPNIPAm₁₂, (b) PU-0.30PNIPAm_n, (c) PU-0.15PNIPAm₁₂ before and after swelling, (d) PU-0.30PNIPAm₁₂ before and after swelling.

All samples were tested by DSC after sufficient swelling in deionized (DI) water. As shown in Fig. 5a, the LCST of PNIPAm₆, PNIPAm₉ and PNIPAm₁₂ were 28.95 °C, 32.69 °C and 36.78 °C, respectively. The LCST of the PNIPAm_n gradually increased with increasing the molecular weight, which was consistent with the results reported previously.^25,26

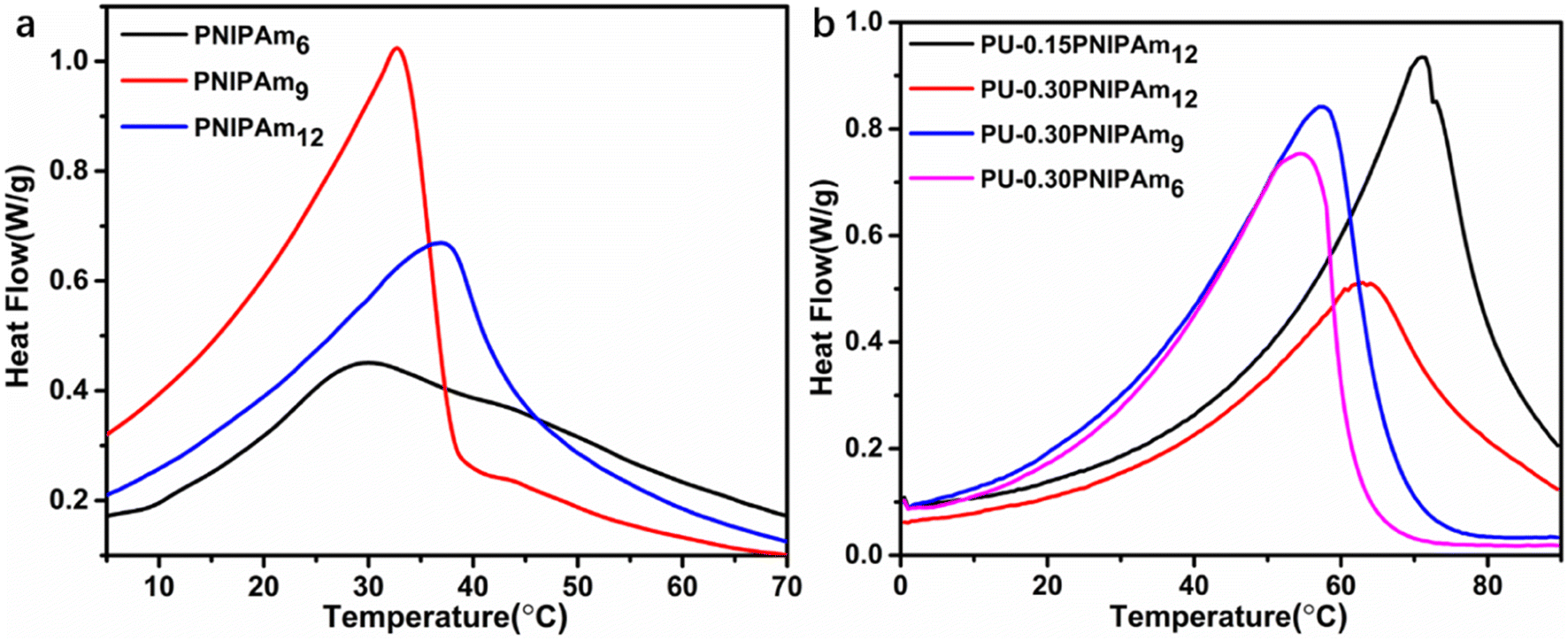

Fig. 5 DSC of all samples. (a) PNIPAm_n, (b) PU-aPNIPAm_n.

As shown in Fig. 5b, the LCST of PU-0.15PNIPAm₁₂, PU-0.30PNIPAm₁₂, PU-0.30PNIPAm₉ and PU-0.30PNIPAm₆ were 70.83 °C, 62.79 °C, 57.47 °C and 54.07 °C, respectively. Compared with pure PNIPAm₆, the presence of many hydrophilic groups promoted the formation of hydrogen bonds, which led to a much higher LCST of the copolymers.¹⁰ However, the LCST of PU-PNIPAm_n were directly related to the molecular weight of PNIPAm_n, and inversely proportional to the amount of PNIPAm_n. Among them, the LCST of PU-0.30PNIPAm₉ and PU-0.30PNIPAm₆ with temperature sensitive effect were both lower than 60 °C, so 60 °C was chosen as the test temperature for later UV-vis-NIR test.

3.3 Thermal stabilities of PU-PNIPAm_n composite materials

Thermogravimetric analysis was performed to investigate the thermal stability of PU-PNIPAm_n films. The TGA and DTG curves of PU and PU-PNIPAm_n are presented in Fig. 6 and the details were summarized in Table 4. All samples presented two stages of decomposition in the region of 160–469 °C, a very slight decomposition due to the thermal degradation of urethane bonds in hard segments, while the other major degradation assigned to the degradation of PEG and PNIPAm_n chains scission of soft segments.

Fig. 6 The thermal stabilities of the PU and PU films: (a and c) TGA and (b and d) DTG curves.

Table 4 Thermal stabilities of the PU and PU-PNIPAm_n films

Sample	T−5 wt% (°C)	Tmax1 (°C)	Tmax2 (°C)	Residual mass (%)
PU	249.20	290.77	381.33	5.25
PU-0.15PNIPAm12	243.91	301.03	383.65	5.81
PU-0.30PNIPAm12	221.97	307.31	384.04	2.02
PU-0.45PNIPAm12	214.56	309.64	386.79	5.60
PU-0.60PNIPAm12	161.63	311.96	378.18	2.39
PU-0.30PNIPAm9	227.59	308.14	383.62	4.97
PU-0.30PNIPAm6	233.74	311.29	380.37	6.68

---

The TGA curves shows that the temperature of 5% weight loss (T_{−5 wt%}) of all samples decreases gradually with increasing PNIPAm_n content (Fig. 6a) or molecular weight (Fig. 6c), indicating that the thermal stability of PU-PNIPAm_n decreases with increasing PNIPAm_n content or molecular weight. This result is consistent with the results of XRD in the previous Fig. 4.

As can be seen from the DTG curves, the main thermal decomposition temperature T_max2 of all samples increases progressively with increasing PNIPAm_n content (Fig. 6b) and molecular weight (Fig. 6d). This decomposition stage is mainly attributed to the thermal degradation of the soft segments, as expected.

The decomposition temperature (T_max1) increased sharply with increasing PNIPAm₁₂ content, but decreased slightly with increasing PNIPAm_n molecular weight. This may be due to the fact that when the content of PNIPAm₁₂ increases, hydrogen bonds tend to form between the molecular chains, thus increasing the decomposition temperature of the hard segment.^18,27 When the same amount of PNIPAm_n is added, the decomposition temperature of the hard segment decreases as the molecular weight increases, due to the formation of lower long-range order segments in the hard segments.^20,27

These results indicated that the thermal stability of PU-PNIPAm_n films is worse than that of PU due to the wide molecular weight distribution of PNIPAm_n resulting in the low regularity of PU. However, the minimum initial decomposition temperature of all films is 161 °C, which is sufficient for practical application of the smart window.

3.4 Mechanical properties and microstructure analysis

In general, the tensile strength of the polymer matrix plays a key role in the mechanical properties of PU-PNIPAm_n films. Fig. 7a shows the typical stress–strain curves of PU-PNIPAm_n films with different content of PNIPAm_n. As well as tensile strength, elongation at break, Young's modulus and toughness values are summarized in Table 5. Comparatively with the pure PU, the ultimate tensile strengths (stress at break), the elongations and the toughness were increased dramatically by increasing the content of PNIPAm₁₂. For example, compared with pure PU, the tensile strength, elongation at break and toughness of PU-0.30PNIPAm₁₂ increased by 346.8%, 416.9% and 1047.1%, respectively.

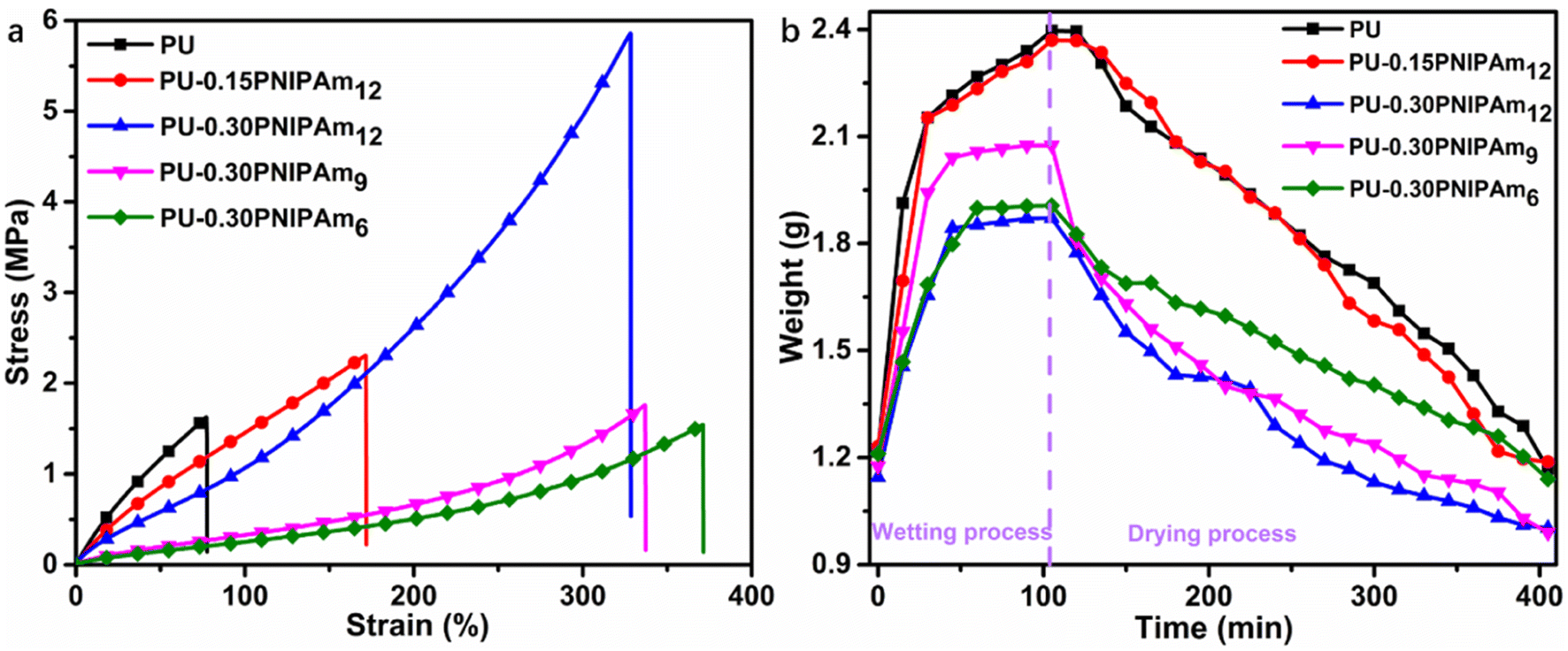

Fig. 7 (a) The tensile stress–strain curves and (b) weight changes of PU-PNIPAm_n films.

Table 5 Mechanical properties of PU-PNIPAm_n films

Sample	Stress (MPa)	Strain (%)	Modulus (MPa)	Toughness (MJ m^−3)
PU	1.56 ± 0.12	79.86 ± 6.49	3.29 ± 0.17	0.70 ± 0.10
PU-0.15PNIPAm12	2.29 ± 0.02	159.36 ± 12.5	2.39 ± 0.16	2.00 ± 0.16
PU-0.30PNIPAm12	5.41 ± 0.40	332.94 ± 6.10	2.18 ± 0.37	7.33 ± 0.18
PU-0.30PNIPAm9	1.70 ± 0.31	344.69 ± 7.5	1.13 ± 0.22	2.22 ± 0.11
PU-0.30PNIPAm6	1.50 ± 0.04	369.86 ± 1.33	0.97 ± 0.06	2.01 ± 0.09

---

These results are attributed to two effects. On the one hand, the molecular weight of PNIPAm_n is much larger than 1000, which increases the flexibility of the soft segment, and the higher the molecular weight, the greater the flexibility.²⁸ On the other hand, the increase in PNIPAm_n content leads to an increase in intermolecular hydrogen bonding, allowing the material to improve the tensile fracture strength and flexibility of the film through an energy dissipation mechanism under the action of external forces.^20,29

It can also be seen from Fig. 7a that the tensile strength of PU-0.30PNIPAm_n decreases with the decrease of PNIPAm_n backbone length, which is due to the decrease of interaction between hard segments, resulting in the microphase separation and the decrease of crystallinity of hard segments. While the elongations and the toughness were increased with decreasing PNIPAm_n backbone length due to the increase of hydrogen bond carbonyl content in hard segments.

Since thermochromic PU-PNIPAm_n films need to absorb a certain amount of water in order to function. Therefore, a 4 × 4 cm PU-PNIPAm_n membrane was immersed in deionized water to study the time required to reach swelling equilibrium, and the results are shown in Fig. 7b. As can be seen from the figure, all samples reached swelling equilibrium in nearly 105 min. The shortest time to reach swelling equilibrium is PU-0.30PNIPAm₁₂, which was about 45 min. After the samples reached the swelling equilibrium, they were removed from water and placed in air, and the weight changes of all the films are shown in Fig. 7b. It takes about 300 min for the PU films to dry out after the swelling equilibrium, regardless of the weather factor. Therefore, this temperature-sensitive PU film can be applied to smart windows.

3.5 Transmittance modulation by PU-PNIPAm_n devices

To investigate the effect of different molecular weights and dosages of PNIPAm_n in films on the solar light regulation ability, the UV-vis-NIR transmittance spectra (200–2500 nm) of all samples are shown in Fig. 8a. As shown in Fig. 8, there are two more transmittance valleys after swelling than before, at approximately 1430 nm and 1930 nm, indicating typical O–H stretching and a combination of O–H stretching and H–O–H bending of water.³⁰ PU, PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉ have higher optical transmission in the swollen state than in the dry state, which is due to a slight increase in volume of the material after swelling in water and increase in intermolecular pores, thus increasing the optical transmittance.

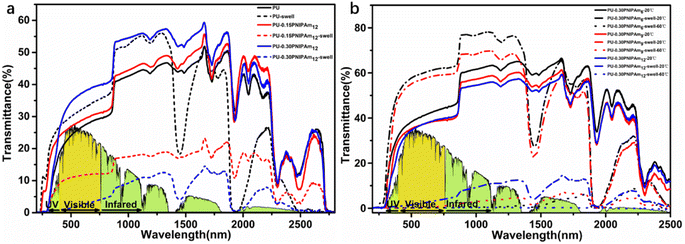

Fig. 8 (a) UV-vis-NIR transmittance spectra of PU and PU-PNIPAm₁₂ films at 20 °C before and after swelling; (b) UV-vis-NIR transmittance spectra of PU-0.30PNIPAm_n films at 20 °C and 60 °C before and after swelling.

As shown in Fig. 8a, PU-0.15PNIPAm₁₂ and PU-0.30PNIPAm₁₂ are sensitive to humidity and can change from colored opaque state to transparent state by adsorption/desorption of water. Both films exhibit a high transmittance transparent state in the dry state, while the transmittance decreases sharply in the swollen state. As shown in Table 6, before and after swelling, ΔT_lum, ΔT_IR and ΔT_Sol were 17.24%, 26.86%, and 22.93% for PU-0.15PNIPAm₁₂ and 34.10%, 42.63%, and 38.96% for PU-0.30PNIPAm₁₂, respectively. Both types of films are hydro-chromic because the film absorbs water, which causes the polymer chains to stretch, causing the polymer chains to lose directionality and thus form a more disordered network, increasing the random scattering of sunlight by the polymer chains and leading to a decrease in light transmission.³¹ In summary, PU-0.15PNIPAm₁₂ and PU-0.30PNIPAm₁₂ can use humidity to control solar regulation, and the regulation capacity increases with increasing amounts of PNIPAm₁₂. This is because when more PNIPAm₁₂ is introduced into PU, some molecular chains tend to aggregate and form small balls after swelling over, generating strong Michell scattering and thus reducing the light transmittance.^31,32 In addition, the color change process depends on the adsorption/desorption of water, and the coloring process requires only the adsorption of water, while the bleaching process requires only the desorption of water under ambient conditions.

Table 6 Comparison of optical properties of different PU-PNIPAm_n films^a,b

Film	PU	PU-0.30PNIPAm6	PU-0.30PNIPAm9	PU-0.30PNIPAm12	PU-0.15PNIPAm12
a ΔTlum/IR/sol (1) = Tlum/IR/sol, 20 °C − Tlum/IR/sol, 20 °C, swell.b ΔTlum/IR/sol (2) = Tlum/IR/sol, 20 °C, swell − Tlum/IR/sol, 60 °C, swell.
Thickness (mm)	0.46	0.44	0.44	0.42	0.40
Tlum(20 °C)	26.30	40.73	36.83	36.60	28.70
Tlum(20°C), swell	32.25	59.53	56.78	2.50	11.46
Tlum(60 °C), swell	—	0.19	0.50	0.14	—
ΔTlum(1)	−5.95	−18.80	−19.95	34.10	17.24
ΔTlum(2)	—	59.34	56.28	2.36	—
TIR(20 °C)	41.58	58.53	53.59	51.82	43.87
TIR(20°C), swell	46.70	67.34	60.63	9.19	17.01
TIR(60 °C), swell	—	1.13	3.40	0.27	—
ΔTIR(1)	−5.12	−8.81	−7.04	42.63	26.86
ΔTIR(2)	—	66.21	57.23	8.92	—
TSol(20 °C)	35.24	51.14	46.61	45.42	37.63
TSol (20 °C), swell	40.75	63.98	58.84	6.46	14.70
TSol (60 °C), swell	—	0.74	2.22	0.22	—
ΔTSol (1)	−5.51	−12.84	−12.23	38.96	22.93
ΔTSol (2)	—	63.24	56.62	6.24	—

---

PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉ films could not respond to humidity, but to temperature. The T_lum of PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉ in the swollen state was relatively high at 20 °C, which are 59.53% and 56.78%, respectively. Both samples in the swollen state exhibit good thermal reactivity, which can be changed from transparent to opaque by heating, thus blocking most of the incoming light, including infrared. As shown in Fig. 8b, when the temperature rises from 20 to 60 °C, the ΔT_lum, ΔT_IR and ΔT_Sol were 59.34%, 66.21%, and 63.24% for PU-0.30PNIPAm₆ and 56.28%, 57.23%, and 56.62% for PU-0.30PNIPAm₉, respectively. In addition, the ΔT_Sol could be further improved by 6.24% when the swollen PU-0.30PNIPAm₁₂ was heated to 60 °C. In conclusion, PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉ can use temperature to control solar regulation, and the regulation ability increases with the increase of PNIPAm_n molecules. Fig. 9 shows the macroscopic photos of all the films in different states and temperatures, from which the actual situation of the films as smart windows applications can be clearly observed.

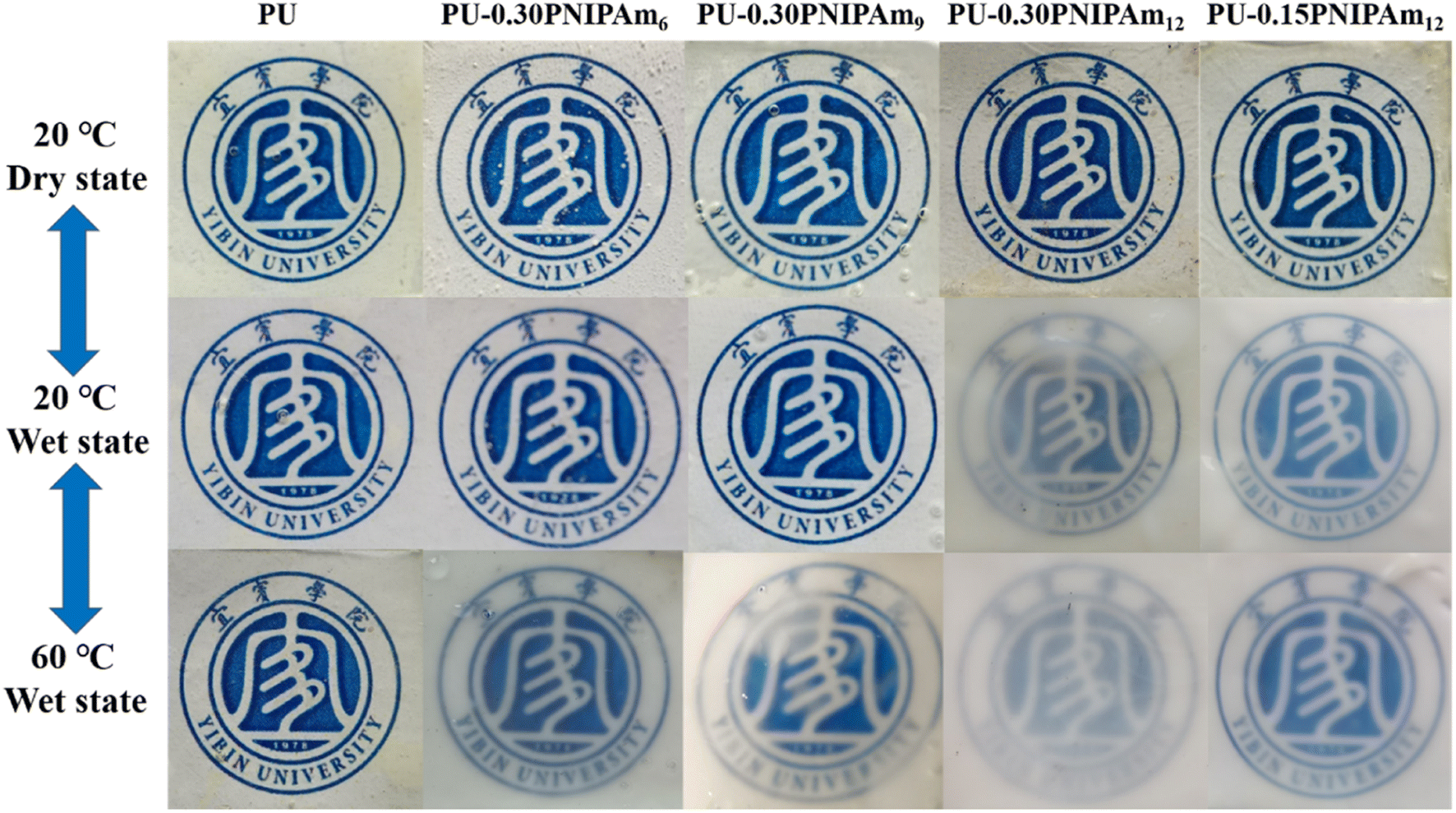

Fig. 9 The digital photographs of all samples at 20 °C (dry state, top), 20 °C (wet state, middle) and 60 °C (wet state, bottom).

Fig. 10 shows the change in optical transparency of the PU-PNIPAm_n smart window at 550 nm after 50 cycles of stimulation. After 50 cycles, the composite smart window exhibited good stability with good reversibility and repeatability of the transparent–opaque transition.

Fig. 10 Reproducibility of transmittance at 550 nm for (a) PU-0.30PNIPAm₆ and (b) PU-0.30PNIPAm₁₂ smart window.

4 Conclusion

In this paper, poly-NIPAm diols are incorporated in the first step of polyurethane synthesis to form PU-PNIPAm_n copolymers. The PU-PNIPAm_n copolymer greatly improves the mechanical properties of hydrogel and overcomes the defect that hydrogel can only be applied to smart windows as a sandwich material. Synthesized PU-0.15PNIPAm₁₂ and PU-0.30PNIPAm₁₂ films have hydro-chromic properties that allow solar modulation using humidity control, and the modulation ability increases with the amount of PNIPAm₁₂. Synthesized PU-0.30PNIPAm₆ and PU-0.30PNIPAm₉ films have thermo-chromic properties that allow solar modulation using temperature control, and the modulation ability increases with the increase of PNIPAm_n molecules. Besides these PU-PNIPAm_n films can switch between transparent (about 50% transmittance) and opaque (<5% transmittance) states in less than 10 minutes.
