Graphene based magnetite carbon nanofiber composites as anodes for high-performance Li-ion batteries

Abstract

For energy storage applications, highly flexible free-standing electrodes are ideal for the fabrication of electrochemical cells. In the present study, reduced graphene doped magnetite carbon nanofiber (rGO/Fe₃O₄ CNF) composite electrodes were prepared using a facile and eco-friendly electrospinning technique. X-ray diffraction (XRD), Raman spectroscopy, and X-ray phosphorescence spectroscopy (XPS) were used to investigate the structural properties and chemical state of the composites. The rGO/Fe₃O₄ CNF composites had a high specific surface area of 253.85 m² g⁻¹ and a pore volume of 0.243 cm³ g⁻¹. The rGO/Fe₃O₄ CNF composites can be employed without any conductive agents as an anode for lithium-ion batteries (LIBs). As a freestanding electrode, the rGO/Fe₃O₄ CNF composite demonstrated a specific discharge capacity of 1514 mA h g⁻¹ at 0.1 A g⁻¹. Furthermore, it demonstrated excellent cycling performance, maintaining a capacity of 1126 mA h g⁻¹ for 200 cycles despite a high current density of 1 A g⁻¹. The enhanced electrochemical performance is ascribed to the flexible freestanding characteristics of the electrode and the synergistic effect between one dimensional (1D) CNFs, Fe₃O₄ nanoparticles (NP) and rGO. Therefore, freestanding rGO/Fe₃O₄ CNF electrodes can be used as potential candidates for practical applications in flexible electronics.

---

Introduction

Nowadays, energy consumption is soaring to unpredictably high levels, resulting in a substantial demand for alternate energy sources.¹ Furthermore, the unprecedented exploitation of natural resources greatly affects the environment. Consequently, it is essential to focus on the development of efficient, environmentally-friendly, and sustainable energy storage systems to address this issue.² Lithium-ion batteries (LIBs) and supercapacitors (SCs), which can power electric vehicles, mobile electronic devices, etc., have gained considerable attention recently.^3–5 LIBs have been regarded as capable power sources in the scientific and industrial domains due to their outstanding qualities, such as their extended lifetime, high capacity, and high energy density.^6,7

It is well known that the electrode materials play a vital role in LIBs.^8,9 Hence, there is a requirement to develop novel electrode materials with exceptional properties to achieve high-performances. Several metal oxides including Mn, Ni, Ti, V, Mo, Co, Fe oxides, etc., have been extensively investigated so far.^10–12 Specifically, Fe oxide composites have found widespread application in energy storage because of their exceptional properties. Fe₃O₄ is unique among the Fe oxides (FeO, Fe₂O₃, and Fe₃O₄) since it shows both capacitive and battery characteristics. Moreover, Fe₃O₄ is a more desirable material for energy storage applications because of its exceptional properties, such as its high storage capacity (928 mA h g⁻¹), accessibility, low-cost, and eco-friendliness.^13–15 However, the electrochemical performance of Fe₃O₄ composites, especially their cyclic performance at high currents, has proven to be inadequate due to poor conductivity, severe constituent agglomeration, and structural uncertainty. Consequently, this deficiency can be solved by tailoring the surface architecture of Fe₃O₄ composites and incorporating conductive agents, such as graphene, activated carbon, carbon nanotubes, etc. into their structure.¹⁶

The use of carbonaceous materials (GO, RGO, CNFs and carbon nanotubes (CNT)) to enhance battery performance and stability has recently witnessed significant growth.^17–19 Hence, these materials can be developed by tailoring their dimensions and doping them with suitable conductive agents. As one of the most practical and cost-efficient methods to develop one-dimensional (1D) electrode materials, electrospinning is considered to be one of the most important techniques. The electrospinning method is a versatile method for constructing hierarchical nanofibers with 1D structures that can be applied to electrochemical applications.^20–22 In addition, it can be integrated with other synthesis approaches, such as hydrothermal and solvothermal, so as to further modify the surface properties.^23–25 In general, it is well known that the performance of a battery will be affected by routine fabrication processes involving polymer binders and conductive carbons. These procedures not only increase the mass of the electrode but also need to follow several procedures and consume a lot of time. Moreover, device level applications require more mechanical strength and flexibility of the electrodes. In this regard, constructing self-supporting electrodes with good conductivity is more desirable.^26,27

Herein, rGO/Fe₃O₄ CNF free-standing electrodes with a large surface area, flexibility and low dimensions are developed. With a high discharge capacity of 1514 mA h g⁻¹ at a current density of 0.1 A g⁻¹ and a stable cycle stability, these composites have also demonstrated an excellent electrochemical performance.

Experimental

Polyacrylonitrile (PAN, M_W = 90k), polymethyl methacrylate (PMMA, M_W = 120k), N,N-dimethylformamide (DMF), Fe acetate and graphene oxide were used without any refinement. Initially, 3.0 g Fe acetate and 0.33 g graphene oxide (GO) were dissolved in 25 mL of DMF. Next, 1.9 g PAN and 1.0 g PMMA were mixed with the above solution and stirred constantly at 75 °C for 6 h. The resultant blended solution was used for the electrospinning process, in which the voltage, flow rate and distance between the syringe and Al foil were 15 kV, 0.4 mL h⁻¹ and 15 cm, respectively. The collected fibers were pre-oxidized in air at 240 °C for 5 h and were carbonized in a nitrogen atmosphere at various temperatures of 550–1000 °C for 5 h. The surface morphology was examined by a FESEM (Model: Hitachi:S-4700) and a TEM (Model: TechnaiF20ST). The phase purity and crystal structure were characterized by XRD (Model: PANalytikal). The vibrational characteristics were determined by Raman spectroscopy (Model: Explora-HORIBA). The oxidation states and stoichiometry were investigated by X-ray photoelectron spectroscopy (XPS) (Model: Thermo scientific). The surface area has been calculated using a surface analyzer (Model: 3Flex). All electrochemical experiments were performed on an electrochemical analyzer (Model: VERTEX). The obtained rGO/Fe₃O₄ CNF composites were punched into 12 mm diameter electrodes which were used as free-standing electrodes. The electrolyte was a 1 : 1, v/v solution of LiPF₆ in 1 M ethylene and dimethyl carbonates. The separator utilized was a Celgard-2400. The cells performed galvanostatic discharge/charge cycles over a potential range of 0.01 and 3.0 V on a battery tester.

Results and discussion

The synthesis protocol for the rGO/Fe₃O₄ CNF composites is presented schematically in Fig. 1. The surface morphology and structural integrity have been examined by FESEM and TEM. Fig. 2a–i shows the SEM images of the Fe₃O₄ CNF composites carbonized at different temperatures. The as-prepared NFs are very smooth and uniform composites with an average diameter of 350 nm (Fig. 2a). The surface architecture is virtually the same after carbonizing at different temperatures. Notably, the composite NFs maintained the surface structure even at 1000 °C, indicating the stabilization of the CNFs.

Fig. 1 Schematic representation for the preparation of rGO/Fe₃O₄ CNFs.

Fig. 2 FESEM images of Fe₃O₄ CNF composites carbonized at various temperatures (a) 0 °C, (b and c) 550 °C, (d and e) 650 °C, (f and g) 750 °C, (h and i) 1000 °C.

Fig. 3a–c presents the SEM images of the rGO/Fe₃O₄ CNF composites. The as-prepared composite NFs are uniform and smooth (Fig. 3a). The roughness of the fibers has been increased as they are composed with Fe₃O₄ and rGO after carbonization. The TEM image of the rGO/Fe₃O₄ CNF composites (Fig. 3d) clearly shows the distribution of the MnO NPs on the CNFs. The lattice spaces that appear in HRTEM images clearly show high crystalline Fe₃O₄ NPs distributed on the CNFs (Fig. 3e). Moreover, rGO is covered on the surface of the Fe₃O₄ particles in the CNFs (Fig. 3e). The selected area electron diffraction (SAED) pattern shows diffraction rings and few spots indicating the distribution of polycrystalline Fe₃O₄ NPs on the CNFs (Fig. 3f). These results agree with the XRD data. Further, the EDS mapping images (Fig. 3g) show a uniform distribution of the Fe₃O₄ in the CNFs.

Fig. 3 FESEM images of the rGO/Fe₃O₄ CNF composites carbonized at various temperatures (a) 0 °C, (b and c) 650 °C, and TEM (d), HRTEM (e), SAED (f) and elemental mapping (g) images of the rGO/Fe₃O₄ CNF composites.

XRD, Raman spectroscopy, and XPS are used to examine the structural properties and chemical state of the synthesized composites. Fig. 4 depicts the XRD pattern of Fe₃O₄ CNF composites carbonized at various temperatures. At 550 °C, the Fe₃O₄ CNF composites only showed a few, very weak peaks. At, 650 °C, the XRD pattern of the rGO/Fe₃O₄ CNF composites showed high intense peaks corresponding to the Fe₃O₄ phase. These peaks are all in accordance with the JCPDS data (card number 1085-1436).²⁸ Increasing the temperature up to 750 °C resulted in the formation of a mixed impurity phase. Therefore, the optimal carbonization temperature was fixed at 650 °C, and the rGO/Fe₃O₄ CNF composites were synthesized. As shown in Fig. 5a, the XRD pattern of the rGO/Fe₃O₄ CNF composites exhibited several broad peaks identical to the Fe₃O₄ CNF composites. All of the XRD patterns belong to the Fd3̄m space group and have lattice parameters of 0.8395 nm, which are well matched with those of pure Fe₃O₄ CNF composites. Therefore, it can be seen that the incorporation of GO does not compromise the integrity of the composite structure. As demonstrated in Fig. 5b, Raman analyses further support the presence of Fe₃O₄ and carbon in the rGO/Fe₃O₄ CNF composite. The rGO/Fe₃O₄ CNF composite showed two peaks in the Raman spectrum, one at 1354 cm⁻¹ (D-band) and the other at 1578 cm⁻¹ (G-band). The ratio between these peaks (I_D/I_G) is 1.01, suggesting that there are more disorders and defects in the composite.^29,30 In addition, the presence of Fe₃O₄ NPs in the composite was confirmed by the presence of weak peaks at 222, 404, and 663 cm⁻¹, which correspond to the E_g, T_2g, and A_1g, respectively. The specific surface area is estimated using BET (Brunauer, Emmett, and Teller) experiments. N₂ adsorption/desorption isotherms were carried out to examine the porosity of the composite. Fig. 5c displays the N₂ adsorption/desorption isotherm profiles of the rGO/Fe₃O₄ CNF composite, which showed a type-IV hysteresis loop, confirming the mesoporous structure of the material.³¹ As shown in Fig. 5d, the majority of the pore distribution is seen within 6 nm. The rGO/Fe₃O₄ CNF composite had a high specific surface area of 253.85 m² g⁻¹ and a pore volume of 0.243 cm³ g⁻¹. The rGO doped composites with high surface area and high porosity are indeed beneficial for electrochemical performance.³²

Fig. 4 XRD patterns of the rGO/Fe₃O₄ CNF composites carbonized at various temperatures.

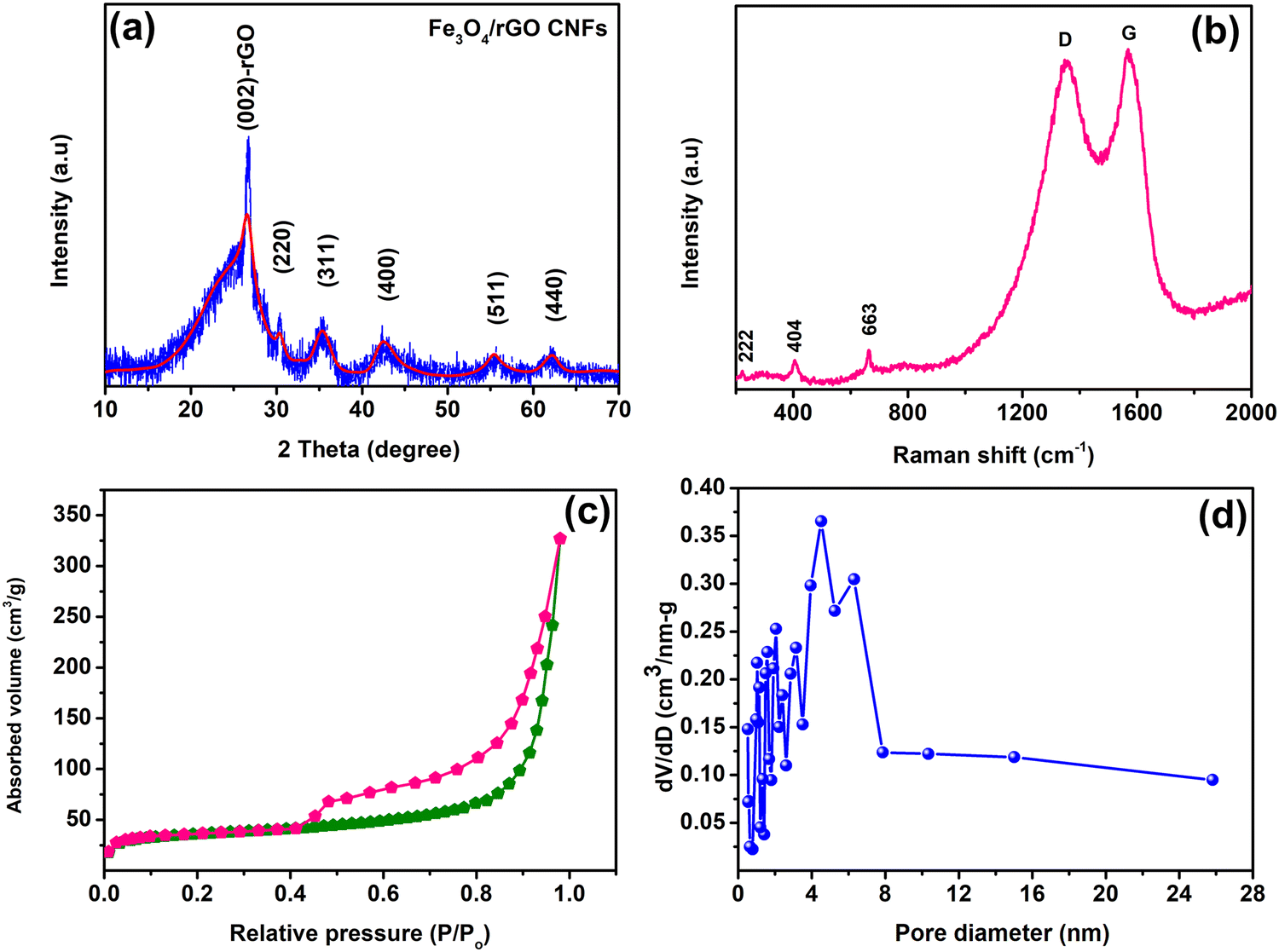

Fig. 5 XRD pattern (a), Raman spectrum (b), nitrogen adsorption/desorption isotherms (c) and pore size distributions (d) of the rGO/Fe₃O₄ CNF composites.

XPS is used to examine the chemical state of the rGO/Fe₃O₄ CNF composite. The XPS spectrum reveals the presence of Fe, C, O, and N components at their respective positions (Fig. 6a). Fig. 6d depicts two peaks associated with Fe 2p_3/2 (711.60 eV) and Fe 2p_1/2 (724.07 eV). By further deconvoluting Fe 2p_3/2, the presence of Ni²⁺ and Ni³⁺ ions in Fe₃O₄ was confirmed by two peaks situated at 710.02 and 712.46 eV. The absence of typical Fe₂O₃ satellite peaks at 719 eV for Fe 2p_3/2 and 729.5 eV for Fe 2p_1/2 confirms the formation of Fe₃O₄. The high-resolution spectrum of C 1s (Fig. 6b) consists of three peaks corresponding to C–C, C–N/C–O and C=N at binding energies of 284.75, 286.34 and 288.36 eV, respectively. The presence of N is also noticed in the spectrum (Fig. 6c) which can improve the active sites for Li⁺ intercalation, by helping with electronic conductivity of the carbon frame, and is favorable in promoting electron transfer and Li⁺ diffusion kinetics, thereby increasing the Li-ion storage.^33,34 The absence of additional peaks in the XPS spectrum of the rGO/Fe₃O₄ CNF composites indicates the structural and chemical stability of the composites.

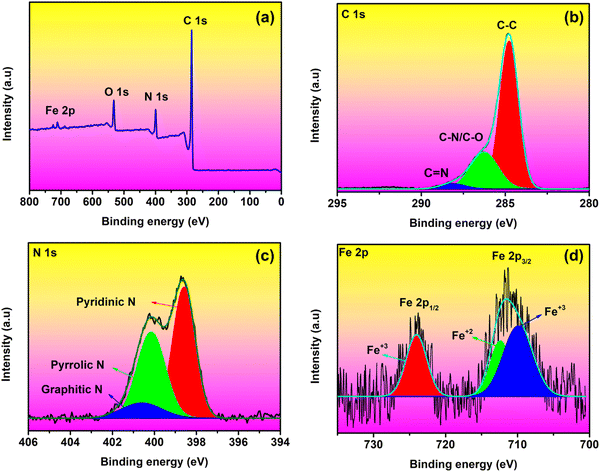

Fig. 6 XPS spectra of the rGO/Fe₃O₄ CNF composites: (a) survey spectrum, (b) C 1s, (c) N 1s and (d) Fe 2p spectrum.

The lithium storage performance of the rGO/Fe₃O₄ CNF composites has been thoroughly investigated. Fig. 7a shows the CV curves of the rGO/Fe₃O₄ CNF composites, which were measured at a scan rate of 0.1 mV s⁻¹ over a voltage range of 0.01–3.0 V vs. Li⁺/Li. During the initial cathodic scan, two peaks at 0.62 and 0.91 V are observed, which are attributed to the conversion of Fe₃O₄ to Fe and the formation of an SEI film, and which disappear in subsequent cycles.³⁵ Two peaks at 1.61 and 1.85 V, indicate the reversible oxidation of Fe⁰ to Fe²⁺/Fe³⁺ during the anodic scan. In subsequent cycles, a peak at 0.91 V vanished while another peak (0.62 V) shifted to 0.79 V, indicating the presence of an irreversible reaction and structural modification from the second cycle. CV profiles exhibit high reversibility and structural integrity throughout the electrochemical reaction after the initial cycle.^36,37

Fig. 7 (a) Cyclic voltammogram patterns and (b) charge–discharge profiles of the rGO/Fe₃O₄ CNF composites. (c) Rate-performance of Fe₃O₄ CNF-550, Fe₃O₄ CNF-650, Fe₃O₄ CNF-750 and the rGO/Fe₃O₄ CNF composites at various current densities. (d) Nyquist plots and (e) long-term cycling performance of Fe₃O₄ CNF-650 and the rGO/Fe₃O₄ CNF composites.

The GCD curves of the rGO/Fe₃O₄ CNF composites recorded in the potential range of 0.01–3.0 V at a current density of 0.1 A g⁻¹ are shown Fig. 7b. The initial curve demonstrates a voltage plateau at 0.79 V, which corresponds to the Fe₃O₄ + 8Li⁺ + 8e⁻ → 3Fe⁰ + 4Li₂O.^38,39 The specific capacity of the rGO/Fe₃O₄ CNF composites was 1514 mA h g⁻¹ at 0.1 A g⁻¹. The enhanced electrochemical performance is ascribed to the flexible freestanding characteristics of the electrode and the synergistic effect between one dimensional (1D) CNFs, Fe₃O₄ nanoparticles (NP) and rGO. The specific capacity observed in this study is much higher than the specific capacities reported in the literature for the various morphologies of the rGO/Fe₃O₄ CNF composites. For instance, Yukun et al. synthesized a Fe₃O₄/SnO₂/rGO ternary composite and reported the initial specific capacity of 1362 mA h g⁻¹. Yand et al. prepared Fe₃O₄/porous carbon composite electrodes that showed a high specific capacity of 1375 mA h g⁻¹.⁴⁰

Table 1 provides a detailed comparison of the current work with other reported literature. Furthermore, the presence of N in the composite is advantageous because it can improve pore affinity to the aqueous electrolyte, increase the active sites for Li⁺ intercalation, and promote electron transfer and Li⁺ diffusion kinetics, thereby increasing Li-ion storage.^48,49 The large capacity loss during the first cycle is a common phenomenon caused by electrolyte decomposition as well as the formation of SEI films on the active material, which becomes stable in subsequent cycles and promotes electrochemical activity.^50,51

Table 1 The electrochemical performance of the rGO/Fe₃O₄ CNF composites in comparison with various iron oxide composites reported in the literature

S. no.	Materials	Initial capacity (mA h g^−1)	Restored capacity (mA h g^−1)	Rate (A g^−1)	Ref. no.
1	rGO/Fe 3 O 4 CNF	1514	1126 (200 cycles)	0.1	Present work
2	Fe3O4 embedded rGO	909	802 (250 cycles)	0.5	13
3	3-Fe/rGO	1290	954 (100 cycles)	0.1	19
4	Fe3O4 porous nanofibers	872	700 (80 cycles)	0.1	41
5	Fe3O4 graphene	1073	637 (50 cycles)	0.2	42
6	C–Fe3O4–C	1350	850 (100 cycles)	0.1	43
7	Fe3O4@MWCNTs/graphene	872	720 (100 cycles)	0.2	44
8	Fe3O4@C yolk–shell	1247	954 (200 cycles)	0.5	45
9	Hollow Fe3O4 nanoparticle	900	832 (60 cycles)	0.1	46
10	Fe3O4@graphene aerogel	941	848 (100 cycles)	0.1	47

---

Fig. 7c depicts the rate behavior of both the pure Fe₃O₄ CNF and the rGO/Fe₃O₄ CNF composites. At current densities of 0.1, 0.3, 0.5, 1.0 and 2.0 A g⁻¹, the final capacities of pure Fe₃O₄ CNF-650 and the rGO/Fe₃O₄ CNF composites were 899, 774, 655, 545, 467 mA h g⁻¹ and 1001, 886, 772, 657, 579 mA h g⁻¹, respectively. When the current density was decreased to 0.1 A g⁻¹, the reversible capacity of the rGO/Fe₃O₄ CNF composites was 1033 mA h g⁻¹. Due to the highly conductive rGO, high specific surface areas, and porous nature of the sample, the rGO/Fe₃O₄ CNF composites demonstrated a high specific capacity and a good rate performance compared to all samples of pure Fe₃O₄ CNF.^52,53

EIS studies are used to look deeper into the electrochemical kinetics. Fig. 7d shows the Nyquist plots of pure Fe₃O₄ CNF and the rGO/Fe₃O₄ CNF composites, which are display as a semi-circle and line. The high-frequency semicircle represents Li ion migration resistance and charge transfer resistance (R_ct), whereas the low-frequency line indicates Warburg impedance.⁵⁵ Obviously, the R_ct value of the rGO/Fe₃O₄ CNF composite is significantly lower than that of pure Fe₃O₄ CNF-650, indicating rapid Li-ions kinetics. These findings prove the efficient electrochemical kinetics of composites doped with rGO. In addition, the NFs skeleton allows for rapid electron transit and Li-ion migration, and it can accommodate the volume change that occurs during charging and discharging.⁵⁶

Fig. 7e shows the cycling behavior of pure Fe₃O₄ CNF-650 and the rGO/Fe₃O₄ CNF composites tested for 200 cycles at a high current density (1 A g⁻¹). After a few early cycles, the capacity was gradually raised and remained constant for 100 cycles for both samples. After 200 cycles, the specific capacity of pure Fe₃O₄ CNF-650 begins to decline slowly and reaches 934 mA h g⁻¹, whereas the specific capacity of the rGO/Fe₃O₄ CNF composite remains stable at 1126 mA h g⁻¹, which is noteworthy and demonstrates the excellent stability of the rGO/Fe₃O₄ CNF composites.⁵⁴ Furthermore, investigations were carried out to comprehend the structural and morphological features of the composite after it had been used in 200 cycles. The XRD pattern and SEM images after 200 cycles are shown in Fig. 8a and b. Interestingly, the major peaks of the XRD confirmed that the rGO/Fe₃O₄ CNF composite maintained its structural integrity. Moreover, the surface architecture of the CNF was not significantly changed. It might be the reason for the exceptional cycling performance of the rGO/Fe₃O₄ CNF composite even after several cycles. Therefore, the rGO/Fe₃O₄ CNF composites have considerable potential as a sustainable material for LIBs.

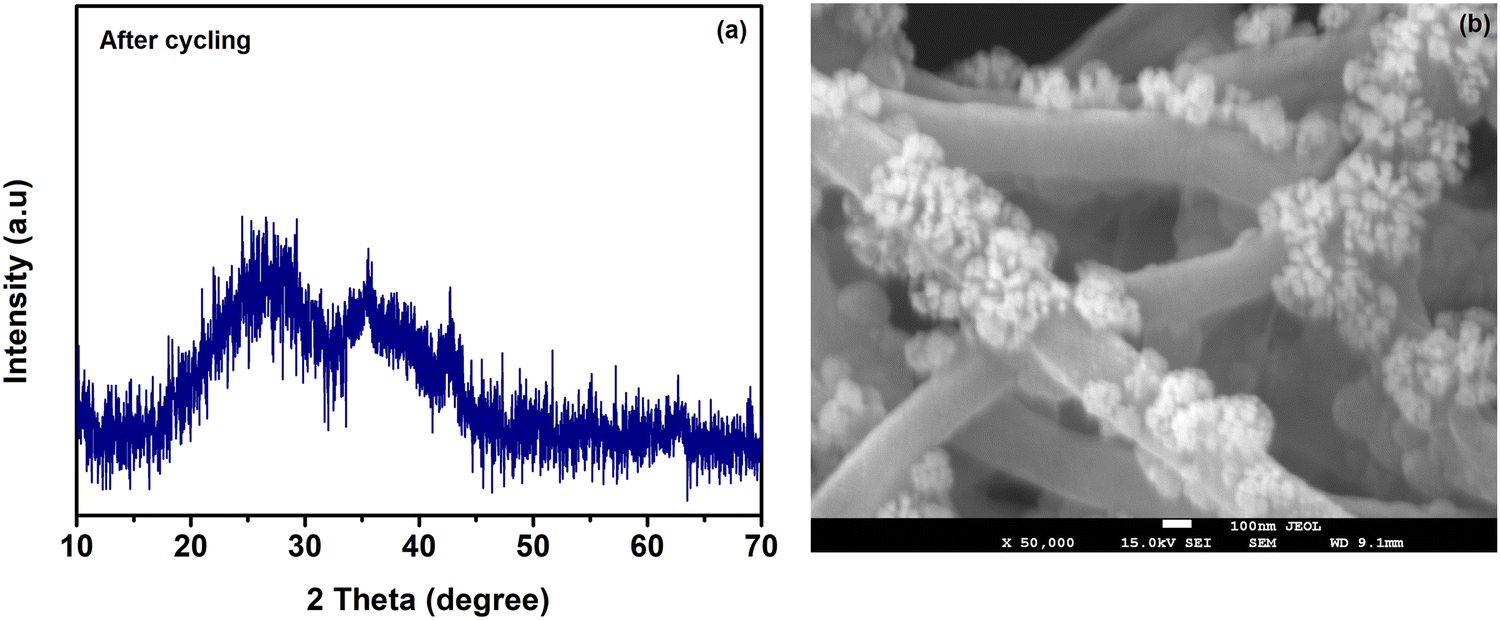

Fig. 8 XRD pattern (a) and SEM image (b) of the rGO/Fe₃O₄ CNF composites after 200 cycles.

Conclusions

The rGO/Fe₃O₄ CNF composites were successfully synthesized by a facile and eco-friendly electrospinning technique and were employed as a freestanding anode material for LIBs. rGO and iron oxide are successfully composited and encapsulated on CNFs during the synthesis. The rGO/Fe₃O₄ CNF composites had a high specific surface area of 253.85 m² g⁻¹ and a pore volume of 0.243 cm³ g⁻¹. The electrode materials that were fabricated delivered a high specific discharge capacity of 1514 mA h g⁻¹ at 0.1 A g⁻¹. Moreover, even at a high current density of 1 A g⁻¹, it maintained a capacity of 1126 mA h g⁻¹ for 200 cycles, demonstrating good cycling performance. Hence, the most promising strategy for practical application in energy storage is the simple and eco-friendly method of synthesizing freestanding electrodes with great flexibility and good conductivity.
