Performance experiments with a gas wave ejector equipped with curved channels and an analysis of the influence of channel angles

Abstract

Gas wave ejectors (GWEs) utilize pressure waves to efficiently transfer energy between gases, and they have broad applications in the chemical industry. In order to improve the performance of GWEs, the influence of bending angles on GWE performance was studied and experiments involving a GWE equipped with curved channels were carried out for the first time in this study. The research results show that when the exhaust angle difference (φ_dout) is ≤−3.9° and the incident angle difference (φ_din) is >5.0° or ≤−5.0°, the equipment performance decreases with an increase in the absolute values of the angle differences. The maximum efficiency of the backward-curved-channel device is 61.6% within the experimental range. The experimental efficiency of the curved-channel device and the static-pressure proportion of the total pressure of the medium-pressure gas are enhanced in comparison with a traditional straight-channel device, and the operating power consumption is relatively reduced. Due to the difference between the gas incident and exhaust angles, the manner in which the performance of the curved-channel device varies with the rotation speed is different depending on the working conditions.

---

1. Introduction

Compared with traditional energy sources such as oil and coal, natural gas, as a safer and cheaper clean fuel, is used much more widely in daily life.¹ Meanwhile, the plentiful global reserves of natural gas could satisfy long-term requirements based on relevant assessments.² Therefore, solutions that can promote the extraction and transportation efficiencies of natural gas have drawn much attention. Commonly, tight gas wells or newly opened wells whose pressures are higher than required for gathering and transportation are throttled to meet unified requirements, resulting in the wasting of the pressure energy of high-pressure gas.³ Meanwhile, the pressures of shallow gas wells and medium/late-stage wells are often lower than the unified requirements and, because of this, turbo-charged mining methods are often applied, which can result in large amounts of power consumption.⁴ To solve the problems mentioned above, static ejectors and gas wave ejectors (GWEs) are often introduced to achieve energy transfer between high- and low-pressure gases. The utilization of excess pressure energy from high-pressure gas to boost low-pressure gas can not only reduce the wasting of gas energy, but this can also increase production from low-pressure wells via conserving energy and reducing emissions. This is an effective way to solve the problem of pressure inconsistency between gas wells.

A static ejector is a stationary device that can realize direct-contact energy transfer between gases. It primarily utilizes the turbulent diffusion of the high-speed jet created by a high-pressure fluid to entrain a low-pressure fluid, and energy transfer between fluids is completed via their direct mixing.^5,6 A static ejector has the advantages of a simple structure and low manufacturing cost,⁷ but it mainly achieves energy transfer via intermolecular collisions, resulting in high levels of viscous dissipation during the transfer process. As a result, when the pressure ratio between the high- and low-pressure gases is small, the isentropic efficiency of this device is low and its pressurization capacity is severely limited.⁸

Compared with a static ejector, a GWE primarily employs pressure waves to transfer energy between gases, making its working efficiency significantly higher than that of a traditional static ejector under applicable conditions. The fundamental components of a GWE include a wave rotor composed of homogeneous channels and fixed end-plates with pressure ports (as shown in Fig. 1). A GWE usually has the advantages of a low rotational speed, simple structure, low manufacturing and maintenance costs, and strong liquid carrying capacity, since the rotor channels serving as the container for gas energy exchange have simple geometry and high strength. It has the potential to provide an effective technical method for resolving natural gas transportation issues, improving chemical engineering energy utilization efficiency, and reducing engineering energy consumption.

Fig. 1 A schematic diagram of the fundamental components of a gas wave ejector.

Currently, wave rotor technology has been successfully applied in the gas turbine top cycle,^9–11 gas expansion refrigeration cycle,^12–14 and some other fields.^15–17 As an important component of wave rotor technology, GWEs have been investigated by several scientific research institutions, as shown in Fig. 2.^12,17,23 Power Jets Co., Ltd¹⁸ first proposed the concept of a GWE, and then Spalding¹⁹ performed preliminary related theoretical research. Kentfield et al.²⁰ of Imperial College London accomplished the first test of this technology in conjunction with a gas-wave divider,²¹ proving that these two three-port wave rotor devices can achieve equivalent efficiency to turbomachinery when the pressures at each port are close enough. Kharazi et al.^22,23 of Michigan State University proposed the application of this technology to the R718 refrigeration cycle, using liquid water to eject and compress water vapor for condensation, instead of using a condenser and first-stage compressor. This can help to reduce the overall structure size and the manufacturing and operating costs of this system by nearly 50%. Hu et al.^27–29 of Dalian University of Technology began to conduct in-depth numerical and experimental research on GWEs based on their extensive experience in the area of gas-wave technology.^24–26 They obtained the complete performance curves of GWEs equipped with straight rotor channels³⁰ and determined the laws governing the effects of parameters such as rotational speed on equipment performance.³¹

Fig. 2 Research progress relating to GWE technology. The numbers in square brackets indicate the reference work from which each panel is adapted.

The research related to GWEs mentioned above has defined appropriate functional wave systems and preliminarily verified the application feasibility of this technology in the field of pressure equalization. However, since all existing gas flow and gas wave theories related to GWEs are based on equal-section straight rotor channels, the GWE devices investigated by various institutions are all equipped with straight channels.^20,27 According to the relevant studies, there is large flow loss in straight channels during the gas injection process.^31,32 Furthermore, the viscous dissipation of gas and other flow losses can be promoted due to the medium-pressure gas being exhausted along the rotor rotational direction. Because the expansion and compression waves are isentropic in theory and the theoretical boosting efficiency of the shock wave can reach more than 75% when the pressure ratio is less than 5.0, the above-mentioned gas flow loss phenomena are proposed to be a major factor affecting the performance of GWEs with straight channels over a certain range of operating conditions.¹² This study applied a curved rotor channel in GWE technology in order to resolve this issue. The mechanism of influence of the channel bending angle on equipment performance was obtained via analyzing the impact of angles on the gas wave and gas flow processes. Also, the practical application effects of curved channels in GWEs were verified via comparative experiments. Different from internal combustion wave rotors or gas wave superchargers, which both employ curved channels to provide shaft power output,^33–36 this research focuses on using a curved channel to reduce the energy loss inside a GWE and improve its working efficiency. The research results can play a certain role in promoting theoretical improvements and extending the application of this technology.

2. Working principles and performance evaluation parameters of a GWE

The essential operating principle of a GWE can be better explained via expanding the wave rotor and pressure ports into an x–t (axial position-time) planar coordinate system. The pressure distribution (as shown in Fig. 3) demonstrates that the high-pressure gas enters into the channels and forms an incident shock wave S to compress the original gas in channels when the channels rotate to connect with the high-pressure port (translation in the plane development). The opening reflection of S happens as the channels move to connect with the medium-pressure port, forming an expansion wave E1 that accelerates the gas in the channels for discharge via the medium-pressure port. When the channels deviate from the high-pressure port, an expansion wave E2 forms to decelerate and depressurize the gas in the channels, and gas discharge comes to a halt when E2 arrives at the outlet end of the channels. Because of E1 and E2, a deep expansion region with pressure lower than the low-pressure gas is generated in the channels, and the low-pressure gas will be sucked into channels when the channels connect to the low-pressure port. A compression wave C is generated during the closing of the medium-pressure port. The low-pressure gas stops entering the channels when C arrives at the inlet end of the channels. The channels close at both ends when they deviate from the low-pressure port, and the intensity of the oscillating pressure waves existing in the channels gradually weakens after multiple reflections. The gas in the channels eventually enters a stable state with a rather uniform pressure distribution before reconnecting to the high-pressure port.

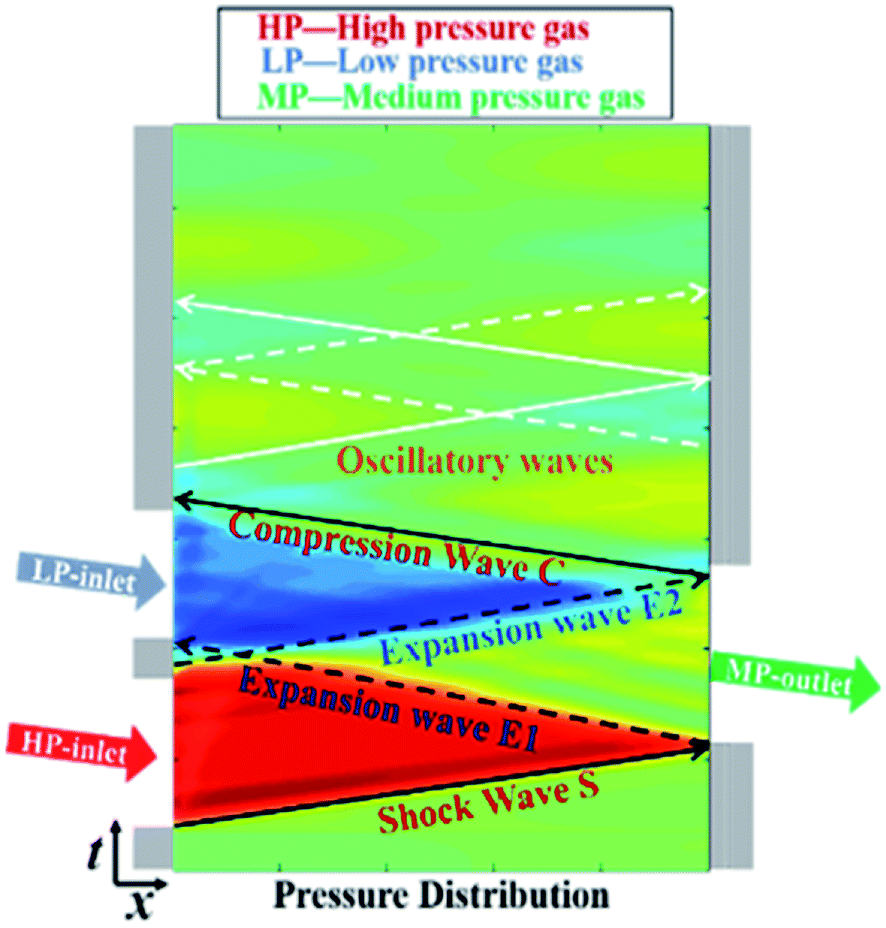

Fig. 3 A pressure contour map of a GWE using an x–t coordinate system.

The energy exchange between gases can be divided into two processes based on the above-mentioned working principle of a GWE: the high-pressure gas expands to output work; and the low-pressure gas is compressed via receiving the expansion work. W_ep and W_eps are used to represent the high-pressure gas actual output work and the isentropic expansion work, respectively, in this study, and they can be expressed as follows:

W_ep = W_epsη_ep (2)

where c_p represents the gas specific heat capacity; m_h and T_h represent the mass flow rate and temperature of the high-pressure gas, respectively; p_mt and p_ht represent the total pressure of the medium-pressure and high-pressure gas, respectively; and η_ep is the isentropic efficiency of the high-pressure gas expansion work output. Similarly, W_com and W_coms are employed to represent the actual compression work and the consumption work when the low-pressure gas is isentropically compressed, respectively, and they can be expressed as follows:where m_l, T_l, and p_lt represent the mass flow rate, temperature, and total pressure of the low-pressure gas, respectively, and η_com is the isentropic efficiency for compressing the low-pressure gas. The total equipment isentropic efficiency is the product of the efficiencies of these two energy exchange processes. Since the actual output expansion work of the high-pressure gas is equal to the actual power consumption for compressing the low-pressure gas, the overall equipment operation isentropic efficiency (η) can be expressed as follows:

In addition to the isentropic efficiency η, as an ejection device, the ejection rate ξ can be given as follows:

and this is employed to indicate the equipment suction capability, which is also an important parameter for evaluating the working performance of a GWE.

The working conditions of a GWE can be represented using the expansion ratio α and the compression ratio β, and the specific expressions of both are as follows:

3. Numerical simulations

3.1 Model for numerical simulations

3.1.1 Construction of a geometry model for curved channels. The bending angles of the wave rotor channels actually refer to the angles of partition (the inner cylinder blades of the wave rotor) between adjacent flow channels. As shown in Fig. 4a, the angles between the partition and the tangent in the opposite direction to rotor rotation are used to define the channel angles in this study, and the angles at the channel inlet and outlet ends are respectively defined as the channel inlet angle φ_pin and the channel outlet angle φ_pout. As shown in Fig. 4b, the angles of commonly used straight channels satisfy the relationship φ_pin = φ_pout = 90°.

Fig. 4 Schematic diagrams of channel angles: (a) curved channels; (b) straight channels.

As shown in Fig. 5a, this paper proposes using the single-directrix scanning method to construct the inner cylinder blades. Via changing the alignment parameters, this method can achieve not only variable channel bending angles but also a smooth transition between angles at both ends. Meanwhile, the thickness of partitions can be ensured to be uniform and the partitions can be radially distributed on the rotor end faces through this construction approach. As demonstrated in Fig. 5b, the single directrix bc used in this paper is a curve segment intercepting the generatrix ao according to the channel length and bending angle requirements, where r represents the radius of the rotor middle surface, and α₁ and β₁ represent the envelope angle (set to 90° in this paper) and the outlet angle of the generatrix ao, respectively.

Fig. 5 Schematic diagrams of the channel forming method: (a) a schematic diagram of blade forming; (b) an extended diagram of a single directrix.

The equation of the arc-type generatrix is as follows:

where the equation of the curvature radius ρ is as follows:and the equation of l is as follows:

l = πr_mα₁t/180 (0 ≤ t ≤ 1) (11)

3.1.2 Numerical simulation method. Numerical simulations can be used to derive the physical field distribution of the complex unsteady flow in the rotor channels that cannot be reliably and thoroughly monitored via current experiments. The numerical simulation method is currently widely used in wave rotor technology,^13,37 and its accuracy and efficiency have been praised by academics and engineering technicians. In this research, the CFD commercial software FLUENT was used to carry out the relevant numerical calculations.

As shown in Fig. 6, the flow domains of the three-dimensional numerical model established in this research primarily consisted of the fixed pressure ports, rotating rotor channels, and static gaps between the ports and channels. The borders of the high- and low-pressure ports were defined as the pressure inlet boundaries, and the border of the medium-pressure port was set as the pressure outlet boundary. The end faces of channels, end faces of pressure ports close to the channels, and end faces of gaps were all set as sliding mesh interfaces to connect each flow domain. Since the motion process of each rotor channel between the pressure ports is identical, the calculation model only considered some channels to save computing resources, and the cyclic motion of channels between the pressure ports was realized via setting periodic boundaries. Except for the above-mentioned boundary surfaces, the other model surfaces were set as walls. Pressure wave propagation and the pressure exchange processes between gases in the rotor channels are extremely fast, and the temperature differences between gases in the flow channels are small, so there is not enough time for heat exchange between the gas and the walls. Therefore, the wall surfaces were all set to be adiabatic. The boundary settings of the calculation model are shown in Table 1.

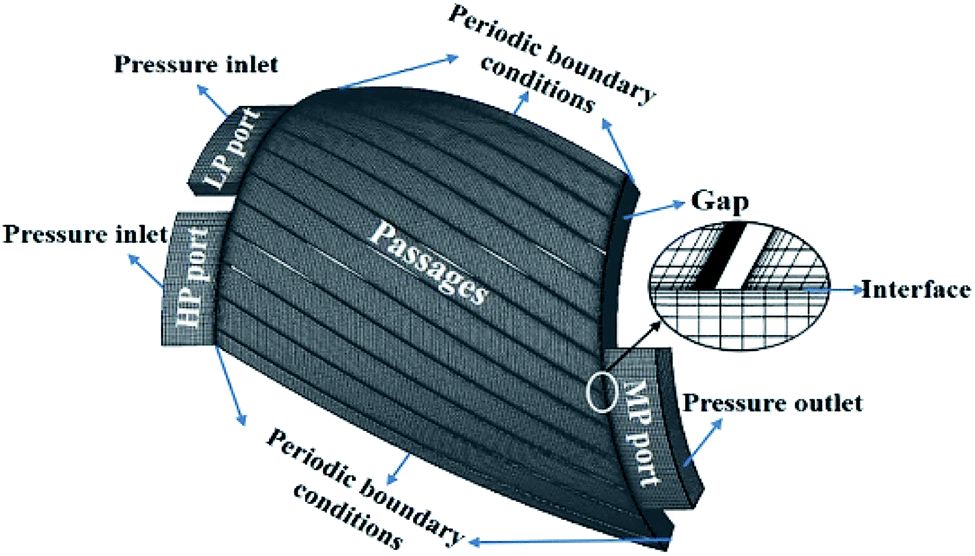

Fig. 6 Schematic diagram of numerical calculation model and meshing.

Table 1 Boundary condition settings for numerical simulations

Part of geometry	Boundary condition type
High-pressure end face	Pressure inlet
Low-pressure end face	Pressure inlet
Medium-pressure end face	Pressure outlet
Interfaces of fluid domains	Sliding mesh interface
Side faces of the passages on both sides of the model	Periodic boundary conditions
Walls	Adiabatic/smooth

---

The fluid medium used in this study was air (at room temperature with pressure less than 0.3 MPa), which can be assumed to be an ideal gas. The state equation is as follows:

p = ρRT (12)

The calculations satisfy the following basic conservation equations used in fluid mechanics:

the mass conservation equation:

the momentum conservation equation:and the energy conservation equation:where p, ρ, T, and u⃑ represent the gas pressure, density, temperature, and velocity vector, respectively; F⃑ represents the external volume force and τ represents the viscous force tensor; and E represents the gas total energy and k represents the effective thermal conductivity.

The turbulent gas flow inside a GWE device always undergoes significant interactions with the walls. The gas incidence and exhaust may generate a strong swirling flow because of channel rotation, and direct contact processes between gases with different pressures in the channels can generate strong interactions. In order to ensure the reliability of calculations, it is critical to select a suitable turbulence model according to the flow characteristics mentioned above. In this research, a new scale adaptive model, the SST-SAS turbulence model,^38,39 was chosen for numerical calculations, considering the computing accuracy and economic requirements. In the stable flow domain, the SST-SAS model behaves like the RANS model; however, in the unstable flow domain it can dynamically adjust the solution structure to capture more turbulent pulsation, so as to yield calculation results similar to the LES model. Because of these properties, the SST-SAS model has excellent computing capabilities for powerful swirling and contact flows. It can not only maintain calculation accuracy for near-wall events, but it can also reveal the vortex flow and other phenomena in detail. Kurec et al.⁴⁰ used PIV technology to prove that the SST-SAS model can accurately calculate the distribution of state parameters in the wave rotor channels, and it can determine gas contact and mixing conditions that cannot be obtained using the classical RANS model. It can save large amounts of computing resources compared with the LES model, and it is perfectly suitable for researching gas wave technology. All the simulations in this study were conducted with double precision to ensure the accuracy of the calculations. Some other related settings used in this study, such as the discrete method, are shown in Table 2.

Table 2 Fluent solver settings used in this paper

Property	Parameter
Dimensions of model	3D
Solver type	Density-based
Time	Transient
Fluid	Air
Density	Ideal gas
Energy model	Activated
Species transport model	Activated
Turbulence model	SST-SAS
Convective flux type	AUSM
Spatial discretization
Flow parameters	Second-order upwind
Turbulent kinetic energy	Second-order upwind
Specific dissipation rate	Second-order upwind
Transient formulation	Second-order implicit
Time step	Minimum = 1 × 10^−6 s
Convergence criteria	1 × 10^−3 for nonaxial velocity components
	5 × 10^−4 or smaller for the rest

---

Because of the regular shape of each flow domain in this model, a hexahedral mesh was used for mesh division. Because the gaps are small and the changing gradients of each physical parameter throughout the channel opening and shutting processes are substantial, mesh refinement was conducted along the interfaces of the pressure ports, rotor channels, and gaps, as shown in Fig. 6. The boundary layer meshes were also set on the channel walls. The optimal number of model cells was determined via grid independence verification. Fig. 7 shows the parameter distribution curves 0.6 ms after the channel started to connect with the high-pressure port. When the number of single-channel cells reaches 4.2 × 10⁴, as shown in Fig. 7a, the calculation model can more accurately capture the low-pressure region (created by the vortex) and the small pressure fluctuations (caused by the multiple compression waves) at the channel entry. At this single-channel mesh scale of 4.2 × 10⁴, the composition distribution curve shown in Fig. 7b is notably different from models using fewer single-channel cells, indicating that this grid size can also capture the contact surface shape more accurately. When the single-channel cell number exceeds 4.2 × 10⁴, the calculation results no longer change, proving that further grid refinement has no effect on the calculation results. Therefore, 4.2 × 10⁴ was chosen as the single-channel mesh division standard in order to economize computing resources and enhance the computing efficiency while ensuring computational correctness. The minimum grid size using this standard was 2.5 × 10⁻⁵ m and the total cell number in this model was about 8.8 × 10⁵.

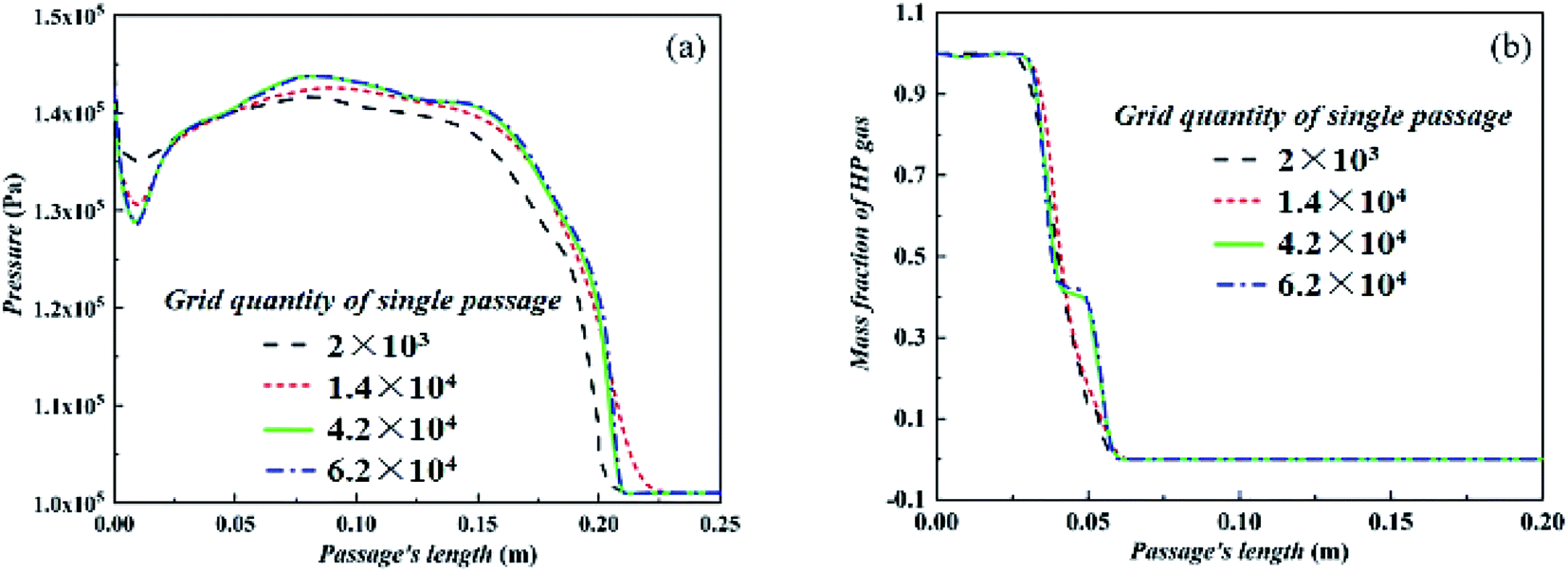

Fig. 7 Grid independence verification: (a) a comparison of pressure distributions; (b) a comparison of component distributions.

3.2 Analysis of numerical simulation results

The effects of bending angles on device performance are closely related to the gas jet direction. As shown in Fig. 8, this paper defines the gas incident angle φ_vin and exhaust angle φ_vout for the convenience of analysis. According to the trigonometric function relationship, these two can be expressed as follows:where v_ro, v_in, and v_out represent the rotor rotational linear velocity, mass average velocity of the incident high-pressure gas, and the axial component of the medium-pressure gas average exhaust velocity, respectively.

Fig. 8 Schematic diagrams of the gas incident and exhaust angles: (a) gas incident angle φ_vin; (b) gas exhaust angle φ_vout.

The incident angle difference φ_din and the exhaust angle difference φ_dout are defined to represent the difference between the channel bending angle and the gas flow angle. The expressions are as follows:

φ_din = φ_pin − φ_vin (18)

φ_dout = φ_pout − φ_vout (19)

In order to compare the effects of forward bending (channel bends in the direction of rotor rotation where the angles satisfy the conditions φ_pin > 90° and φ_pout > 90°), backward bending (φ_pin < 90°, φ_pout < 90°), and reversed bending at both channel ends (φ_pin > 90°, φ_pout < 90° or φ_pin < 90°, φ_pout > 90°) on equipment performance, different models were established and calculated via choosing two values as the channel inlet and outlet angles from the possible selections of 30°, 45°, 60°, 75°, 90°, and 105°.

3.2.1 Influence of the channel outlet angle. Fig. 9a shows the variation of φ_dout with φ_pout under the conditions of α = 1.50 and β = 1.25. The values of φ_dout at the same φ_pout value are basically identical when 45° ≤ φ_pin ≤ 105°, indicating that the gas exhaust angles φ_vout of different φ_pin models in this range are almost the same once φ_pout is fixed. The axial component value of the medium-pressure gas exhaust velocity is almost identical and unaffected by φ_pin in different models. In addition, φ_dout grows approximately linearly with an increase in φ_pout when φ_pin is fixed within the range of 45° ≤ φ_pin ≤ 105°, indicating that the variation of φ_pout does not significantly influence the axial component of the exhaust gas velocity. When φ_pin = 30° with φ_pout = 30°/45°, the bending angles of the channels at both ends become much larger, resulting in a much lower medium-pressure exhaust mass flow rate m_mp and a small axial component of the exhaust velocity v_vout, as shown in Table 3. Therefore, the φ_dout values at φ_pin = 30° are significantly higher than the corresponding values for other φ_pin models when φ_pout = 30°/45°.

Fig. 9 Changing relationships involving φ_dout and η under the conditions of α = 1.5 and β = 1.25: (a) variation of φ_dout with φ_pout; (b) variation of η with φ_dout.

Table 3 A comparison of the calculation results using different angle combinations under the conditions of α = 1.5 and β = 1.25

φpin	φpout	mmp (kg s^−1)	voutv (m s^−1)
30°	30°	0.045	50.2
30°	45°	0.068	63.3
75°	30°	0.078	74.8
75°	45°	0.090	84.3

---

Fig. 9b shows the variation of the total pressure efficiency η, obtained via numerical calculations, with the exhaust angle difference φ_dout at different fixed channel inlet angles φ_pin. η drops dramatically with a decrease in φ_dout when φ_dout ≤ −3.9°. When φ_dout > −3.9°, the η values of the φ_pin = 30° and φ_pin = 45° models essentially remain unchanged as φ_dout increases. When φ_dout > −10°, the η values of the 60° ≤ φ_pin ≤ 105° models increase first and then fall as φ_dout increases. Furthermore, the variation of η is within the range of 9%, and the highest efficiency η value for each model in the 60° ≤ φ_pin ≤ 105° range is achieved when φ_dout is in the range of 4.6–6.3°. Within the calculation range, the isentropic efficiency of the model with φ_pin = 60° and φ_pout = 75° is the highest.

When the channel inlet angle φ_pin is fixed, the variation of the outlet angle φ_pout primarily changes the flow direction of the medium-pressure gas, which impacts the equipment performance. When a traditional straight channel (φ_pin = φ_pout = 90°) is connected to the medium-pressure port, the exhaust gas not only has a velocity component along the channel extension direction (perpendicular to the end faces of the pressure ports in straight channels), but it also has a velocity component in the direction of rotor rotation. Therefore, as shown in Fig. 10c, the exhaust gas flows obliquely in the rotation direction, forming a low-speed and low-pressure region near the right-side wall of the medium-pressure port and causing gas backflow. Furthermore, because of the substantial difference in velocity distributions between the exhaust stream and the low-speed region, vortices form easily at their intersection, which impairs the gas flow and causes a certain amount of flow loss. There are always multiple rotor channels connected to the medium-pressure port at the same time. The velocities and energies of the exhaust gas from these channels are different since each channel is at a different stage of the exhaust process. As a result, the exhaust gas from different channels converges and mixes in the medium-pressure port, resulting in a certain loss of gas energy. Since the exhaust gas from each channel contains a rotational velocity component, the mainstream generated upon convergence is inclined to the rotation direction. Before discharging from the pressure port, the flow direction of the mainstream is changed due to obstruction by the wall. Even if the rotational velocity component of the mainstream is not completely consumed during this collision process, it is difficult to effectively recover this in the medium-pressure port or in the equipment cavity. In addition, after the mainstream is obstructed by the wall and changes direction, it will flow perpendicular to the port end-face and adhere to the wall, causing a certain amount of viscous friction loss in the subsequent flow process. As shown in Table 4, under the calculation conditions, the gas total pressure loss in the medium-pressure port ΔTP can reach 1.83 kPa using the straight channel model because of the above-mentioned flow losses.

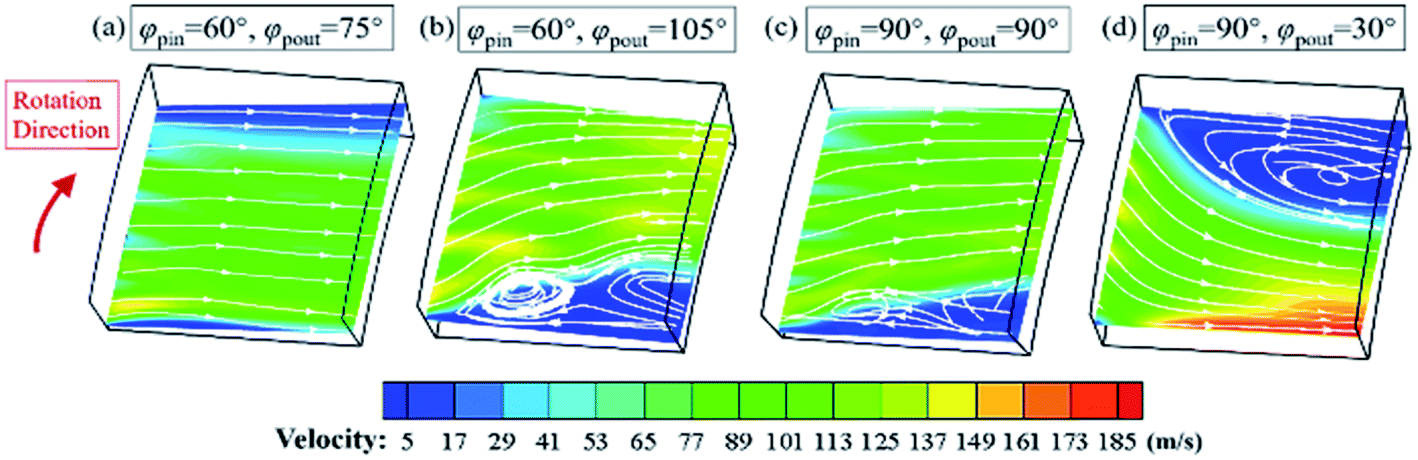

Fig. 10 A comparison of velocity distributions in the medium-pressure port under the conditions of α = 1.5 and β = 1.25 (the white arrow lines show streamlines).

Table 4 A comparison of the calculation results with different angle combinations under the conditions of α = 1.5 and β = 1.25

φpin	φpout	vmpi	ΔTP	φpin	φpout	vmpi	ΔTP
60°	30°	113.9	4.63	90°	30°	107.2	3.40
60°	75°	71.6	1.08	90°	90°	103.5	1.83
60°	105°	123.0	2.51	90°	105°	122.5	2.26

---

Compared with a straight channel, the exhaust angle difference φ_dout of a curved channel with φ_pin = 60° and φ_pout = 105° reaches 33.6°, which is greater than the value of 21.3° for a straight channel. Therefore, the exhaust gas flow inclines more seriously, strengthening the flow losses. The total pressure loss in the medium-pressure port ΔTP rises to 2.26 kPa in this model, as shown in Fig. 10b. The flow loss in the medium-pressure port is also the main reason why the efficiencies of the models with 60° ≤ φ_pin ≤ 90° decrease as φ_dout rises when φ_dout > 5° (as shown in Fig. 9b). The medium-pressure gas exhaust flow rate and velocity of the model with φ_pin = 30° and φ_pin = 45° are smaller than the models with 60° ≤ φ_pin ≤ 90° (as shown in Table 3), and the influence of deflection flow phenomena is also relatively minimal. As a result, within the range of 5° < φ_dout < 25°, the efficiency values of the models with φ_pin = 30° and φ_pin = 45°, as shown in Fig. 9b, are almost identical.

In contrast with the models shown in Fig. 10b and c, since the rotor channels in the φ_pin = 60° and φ_pout = 75° model shown in Fig. 10a bend in the opposite direction to rotor rotation and the gas flows along channels before being exhausted, the medium-pressure gas generated in this model discharges vertically to the channel end-face (the exhausting angle difference φ_dout = 6.3°) with a velocity lower than that of the straight channel. There is no large low-pressure and low-speed region at the right wall of the port, which greatly reduces vortex and backflow phenomena in the exhaust port. Furthermore, in this model, the exhaust velocity of each channel is reasonably average and the directions are nearly identical. During the convergence process of streams from each channel, there are no strong interactions or mixing, and the uniform mainstream does not collide with or adhere to the wall. Instead, the mainstream is directly discharged vertically, reducing the exhaust flow loss in the medium-pressure port. As illustrated in Table 4, compared with the straight model, the total pressure loss in the medium-pressure port of this curved channel can be reduced by nearly 41%, which is one of the main reasons that the model with φ_pin = 60° and φ_pout = 75° has optimal performance, as shown in Fig. 9b.

As shown in Fig. 10d, because the outlet end of the channel with φ_pin = 90° and φ_pout = 30° bends backwards excessively (the exhaust angle difference φ_dout reaches 32.8°), a large amount of exhaust gas flows to the lower sidewall of the medium-pressure port, which connects with the channels earlier, and discharges at high speed, adhering to the wall surface. The above-mentioned flow characteristics of the medium-pressure gas cause the violent collision of gas with the lower sidewall of the port, creating a low-velocity region together with flow vortexes on the upper sidewall of the port, resulting in a significant increase in the total pressure loss in the medium-pressure port (as shown in Table 4). In addition to the reasons mentioned above, Fig. 11b shows the uneven pressure distribution in the medium-pressure port, demonstrating a more fundamental reason for the inferior performance of the device using this angle combination. Different from the clear and regular pressure distribution seen in the model with φ_pin = 60° and φ_pout = 75° (as shown in Fig. 11a), the pressure on the inlet side of the lower sidewall of the medium-pressure port is higher than at other positions in the φ_pin = 90° and φ_pout = 30° model due to the convergence of exhaust gas. The pressure at the port inlet end is also significantly higher than the average pressure of channels in the stable pressure region. As a result, a strong reversed compression wave is created when the channels gradually connect to the medium-pressure port. As shown in Fig. 11b, the pressure at the channel inlet end is significantly enhanced due to the reversed compression wave. There is a backflow phenomenon when the channel connects to the low-pressure port, and this causes energy loss and prevents low-pressure gas inflow. The negative effects of the reversed compression wave are also the primary explanation for the dramatic reduction in the efficiency of the model when φ_dout <−3.9° at each inlet angle (as shown in Fig. 9b). When φ_dout in each model reaches about −32.5°, the efficiency reduction ratio relative to the optimal value exceeds 61%.

Fig. 11 Contour maps of state parameter distributions in the models: (a) the model with φ_pin = 60° and φ_pout = 75°; (b) the model with φ_pin = 90° and φ_pout = 30°.

3.2.2 Influence of the channel inlet angle. Fig. 12a shows the variation of the incident angle difference φ_din with the channel inlet angle φ_pin when the channel outlet angle φ_pout is fixed. When 60°≤φ_pout ≤ 90°, the values of φ_din are nearly identical at the same φ_pin value, indicating that the gas incident angle φ_vin remains almost unchanged at the same φ_pin, and the gas incident velocity is hardly impacted by φ_pout within this range. In the range of 60° ≤ φ_pout ≤ 90°, φ_din increases approximately linearly with an increase in φ_pin, indicating that the change in φ_pin has little influence on the incident velocity. When φ_pout = 30° or 45°, except for φ_pin = 30° (the incident gas flow rate is limited, as shown in Table 3), φ_din values with different φ_pin remain the same as for the other φ_pout values.

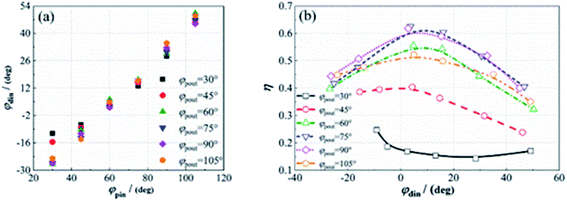

Fig. 12 Changing relationships involving φ_din and η under the conditions of α = 1.5 and β = 1.25: (a) the variation of φ_din with φ_pin; (b) the variation of η with φ_din.

Fig. 12b shows the variation of the efficiency η with the incident angle difference φ_din at each fixed channel outlet angle φ_pout value. When φ_pout is fixed at 30°, η decreases first and then increases slightly with an increase in φ_din. When φ_din rises from −15.5° to 4.4° at a fixed φ_pout of 45°, η increases slightly and reaches to its maximum when φ_din = 4.4°; when φ_din > 4.4°, η declines rapidly with a rise in φ_din. In th range of 60° ≤ φ_pout ≤ 105°, η also reaches its maximum in the φ_din range of 2.5–5.0°, and when φ_din is less than the optimal value φ_dino, the efficiency decline rate is higher than that for φ_pout = 45°. The optimal performance value for each φ_pout displays a tendency of first increasing and then decreasing with the growth of φ_pout under the calculation conditions.

For the convenience of subsequent research, this study defines the entire opening time t_po as follows:

for comparing the opening speed and the degree of opening for a rotor channel, where n is the actual rotational speed of the wave rotor; and w and d_m represent the width and middle diameter of the wave rotor, respectively. Therefore, t_po is inversely proportional to n, and the ratio of the channel opening time t_open to t_po can indicate the degree of channel opening (t_open = 0: a channel starts to connect to the pressure port; t_open/t_po = 1: a channel is fully open).

Fig. 13 shows contour maps of the pressure distributions in channels at an incident pressure ratio α_in of 1.5 (the initial pressure in the channels p_s = 101 kPa) and with t_open/t_po = 0.2. In the channel with the highest efficiency (φ_pin = 60° and φ_pout = 75°), the radial compression wave system created in the initial stage of channel opening is slightly inclined relative to the channel walls, and the inclination degree is significantly less than the channel with φ_pin = 90° and φ_pout = 75° (the entrance angle is the same as a traditional straight channel). The compression wave system in the channel with φ_pin = 60° and φ_pout = 75° is closer to propagating in the direction of channel extension, which can effectively weaken compression wave reflection in the channel with φ_pin = 90° and φ_pout = 75°. When φ_pin = 30°, however, the excessive curvature of the channel entrance causes the left channel sidewall (connecting to the high-pressure port earlier) to impede the propagation of the compression wave system, resulting in multiple reflected waves and local high pressure near the left sidewall.

Fig. 13 A comparison of pressure distributions in channels with t_open/t_po = 0.2 (the white arrow lines depict streamlines).

As shown in Fig. 14a, when the channel is fully connected to the high-pressure port (t_open/t_po = 1.0), the multiple reflections of the compression waves at the channel entrance weaken the strength of the compression wave system, resulting in the pressure distributions at the entrances of the channels with φ_pin = 30° and φ_pin = 90° being much more uneven than that of the φ_pin = 60° channel. This also makes the velocity field at the channel inlet more turbulent, resulting in larger flow vortexes in the channels with φ_pin = 30° and φ_pin = 90°. The vortex in the φ_pin = 90° channel is generated near the left sidewall, which connects to the high-pressure port earlier, while the vortex in the φ_pin = 30° channel is formed when the incident gas flow is blocked from rotating around by the channel wall. As shown in Fig. 14b, since the flow vortexes occupy flow space in the channels and obstruct the incident gas flow, the gas interfaces in channels with φ_pin = 30° and φ_pin = 90° become more distorted relative to the channel wall; this not only increases the friction and collisions between the gas and the walls, but it also strengthens mixing between the incident high-pressure gas and the original low-pressure gas in the channels (especially in the channel with φ_pin = 30°). The energy transfer efficiency between gases is significantly impacted due to the flow phenomena described above. As shown in Fig. 15, the average pressures of gas compressed in the φ_pin = 30° and φ_pin = 90° channels are lower than that in the φ_pin = 60° channel. However, the average moving speed of the wave does not differ much between the different models, which indicates that the optimal port geometry size at various φ_pin values will not be significantly different under the same working conditions and rotational speed.

Fig. 14 A comparison of the parameter distributions in the rotor channels: (a) pressure distributions (the curves show the velocity contours); (b) component distributions.

Fig. 15 A comparison of pressure distributions along the channels.

The gas vorticity magnitude ω_t, given as follows:

obviously indicates the degree of flow distortion and mixing, and the viscous dissipation φ_t:distinctly represents the gas flow viscous loss. As shown in Fig. 16, the vortex strength and viscous dissipation of gas in channels with φ_pin = 60° and φ_pout = 75° are obviously the weakest. Because of the negative effects of incident wave reflection described above, ω_t and φ_t are unevenly distributed in channel 1 of the φ_pin = 90° and φ_pout = 75° model and are higher than that of the corresponding position in the φ_pin = 60° channel. Because of the relative motion between the axial incident gas flow and rotating channel (the channel rotates from left to right in Fig. 16) and the obstruction of the channel entrance by the vortex, friction, collisions, and the steering flow of gas are generated at the right sidewall surfaces in channels 2 and 3 (in the stable incidence stage) of the φ_pin = 90° and φ_pout = 75° model. As a result, a local high-spin and high-viscosity dissipation region forms in these channels, with ω_t and φ_t values that are higher than the peak values in the φ_pin = 60° channel by about 23% and 49%, respectively. Due to obstruction and reflection from the channel left sidewall (which connects to the high-pressure port earlier) in the φ_pin = 30° and φ_pout = 75° channel that is excessively curved, local high-spin and high-dissipation regions arise in the middle positions of the channel entrances. The ω_t and φ_t values are increased by 70% and 150%, respectively, compared with the φ_pin = 60° channel. The various above-mentioned energy losses are the main reasons for the decline in equipment efficiency as |φ_din| increases when 45° ≤ φ_pout ≤ 105° and |φ_din| > 5.0° (as shown in Fig. 12b).

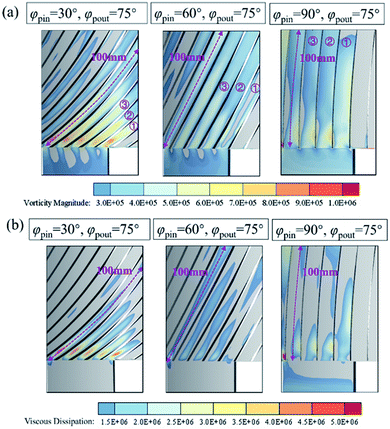

Fig. 16 A comparison of parameter distributions in the channels: (a) vorticity intensity (values below 2 × 10⁻⁵ are not shown); and (b) viscous dissipation (values below 10⁻⁶ are not shown).

4. Experimental section

4.1 Experimental platform

A gas wave ejection experimental system was established in this study, as shown in Fig. 17, in order to verify the numerical simulation results and to clarify the actual improvement effects from the use of appropriate channel bending angles on the GWE performance. The parameters of the relevant components used in this experimental system are shown in Table 5. The operating process is as follows for experiments: first, the frequency converter was controlled so that the GWE equipment rotation speed could reach the set value before gas flowed in; the high-pressure valve was opened slowly to set the pressure of the high-pressure gas to the experimental requirements while fully opening the medium-pressure valve; the equipment low-pressure valve was opened, and the air in the surrounding environment was directly sucked in as the low-pressure gas during experiments; and the medium-pressure valve was closed gradually to adjust the medium-pressure gas pressure when the pressure of the high-pressure gas met the predetermined value. The adjustment of the medium-pressure valve changes the pressure of the high-pressure gas, and these two valves must be dynamically altered at the same time to attain the experimental working conditions. The medium-pressure gas was eventually exhausted to the outside environment through an eduction pipe connected to the GWE medium-pressure port. In the experiments, the pressure, temperature, and mass flow rate of each gas were measured using a micromanometer and pressure sensor, temperature sensor, and vortex flowmeter, respectively.

Fig. 17 A schematic diagram of the components and procedure used for the GWE experimental system with a photograph of the set up.

Table 5 Specific parameters for components used in the gas wave ejector experimental system

Instrumentation	Brand	Measuring/controlling range	Measurement accuracy
Frequency convertor	KEWO	7.5 kW/0–50 Hz	0.01 Hz
Driving motor	HUANGHAI	7.5 kW/0–50 Hz	—
Screw compressor	FUSHENG	1.0/1.05 MPa	—
Temperature sensor	SinoMeasure	−50–250 °C	±0.05%
Pressure sensor	Asmik	0–0.6 MPa	±0.3%
Vortex flowmeter	GALLOP	DN80/DN100	±1.5%
Anemoscope	KANOMAX	0.1–50 m s^−1	±0.1 m s^−1
Micromanometer	YIOU	±100 kPa	0.01 kPa

---

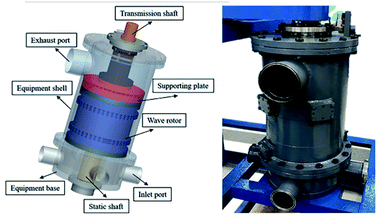

Fig. 18 shows the GWE device that was used in this experiment. The device structure allows for the external adjustment of the gap size and the declination angles between the pressure ports, substantially simplifying equipment installation and debugging. The performances of a traditional ejection rotor (I90O90 rotor) with φ_pin = φ_pout = 90° and an arc curved channel rotor with φ_pin = 60° and φ_pout = 75° (I60O75 rotor, achieving optimum performance under the calculation conditions in this study) were primarily compared in this experiment. Except for the different channel bending angles, the two rotors had identical specifications, such as axial length and middle diameter, in order to avoid interference from other factors and to facilitate rotor exchange. The exact specifications of the wave rotors are shown in Fig. 19 and Table 6.

Fig. 18 The experimental GWE equipment.

Fig. 19 Photographs showing the wave rotor parameters used in the experiments.

Table 6 Geometries of the wave rotors used for experiments in this paper

Geometry	Value	Geometry	Value
φpin of the I60O75 rotor	60°	Passage axial length l	250 mm
φpout of the I60O75 rotor	75°	Number of passages x	72
φpin of the I90O90 rotor	90°	Blade thickness θ	1.5 mm
φpout of the I90O90 rotor	90°	Middle diameter of rotor d	256 mm
Passage height h	16 mm	Passage width w	9.6 mm

---

4.2 Analysis of experimental results

Fig. 20 shows the variation of the isentropic efficiency η with the compression ratio β when the expansion ratio α is fixed at 1.5. The differences in η between experiments and simulations are only in the range of 3–8% for both working conditions, and the variation trends of η obtained via experiments are completely consistent with the numerical calculation results, proving the accuracy of the GWE calculation model employed in this study.

Fig. 20 A comparison between experiments and simulations.

4.2.1 Performance comparison of rotors with different channel angles. Fig. 21 shows the variation of the experimental performance parameters with the compression ratio β when the expansion ratio α is fixed. The efficiency η of both these rotors increases first and then decreases with an increase in β, and the optimal compression ratio β_op to gain the highest efficiency is identical in both cases. η decreases faster with β at β > β_op than it increases with β at β < β_op when α is constant. Despite the fact that the efficiency variations of these two rotors are nearly identical, the efficiency of the I60O75 rotor is basically higher than that of the I90O90 rotor under the same working conditions, indicating that the use of backward bending channels with suitable angles to replace traditional straight channels can effectively improve the comprehensive energy transfer efficiency of a GWE. Within the experimental range of this research, the maximum efficiency of the I60O75 rotor at each α value exceeds 40.4% and the highest value is 61.6%; these values are significantly higher than the values of 35.4% and 48.6%, respectively, for the I90O90 rotor.

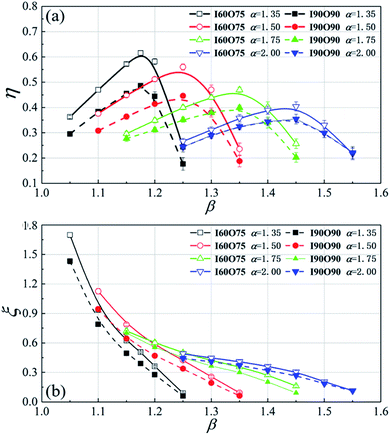

Fig. 21 The values of performance parameters obtained via comparison experiments: (a) changes in η with β and (b) changes in ξ with β at different α values.

The gas incident and exhaust velocities will change with the working conditions according to the above research findings. As a result, when the channel bending angles are fixed, the differences between the gas incident and exhaust angles are different based on the working conditions, resulting in different performance improvements in the case of the I60O75 rotor relative to the I90O90 rotor. At a constant α value, the experimental efficiency difference between these two rotors increases first and then decreases with a rise in the compression ratio β, and the β value corresponding to the maximum efficiency difference increases with rising α. The maximum relative improvement ratio in efficiency at each α value exceeds 14.2% over the experimental range. When α = 1.50 (the expansion ratio used in the numerical analysis), the efficiency increase and growth rate for the I60O75 rotor both reach their maximum values under the conditions of β = 1.25, and the values are 11.3% and 25.3%, respectively. Also, this compression ratio is consistent with the numerical simulation results, which illustrates the correctness of the simulations in terms of the impact of angle on device efficiency to a certain extent.

As shown in Fig. 21b, at each fixed expansion ratio α, the ejection rate ξ of the I60O75 rotor decreases monotonically with an increase in the compression ratio β, which is consistent with the I90O90 rotor. The ξ values of the I60O75 rotor are higher than those of the I90O90 rotor under the same working conditions, proving that the use of backward curved channels with an appropriate bending angle can improve the suction capacity of the GWE. When α is fixed, the improvement in ξ for the I60O75 rotor compared to the I90O90 rotor essentially decreases with an increase in β, and the maximum improvement in ξ at each α value exceeds 5% within the experimental range (when α ≤ 1.5, it reaches 26.6%). The relative improvement in ξ obtained from experiments reaches 8.6% under the working conditions employed in the numerical analysis (α = 1.50, β = 1.25). Within the experimental scope of this study, the highest ejection rate of the I60O75 rotor at each α exceeds 49.0% and the highest value is 169.7%; these values are both higher than the values of 44.2% and 143.1% for the I90O90 rotor, respectively.

The curved channels can not only effectively improve the energy exchange efficiency and the boosting capacity of the GWE, but they can also affect the medium-pressure gas velocity, resulting in the ratio of static pressure as a proportion of the total pressure of the gas products to be different from that using traditional straight channels. As an ejector, a larger ratio of static pressure out of the total pressure usually means a higher utility value of the gas products, and it also indicates that the equipment is more effective in pressurizing the low-pressure gas. In order to compare the capability for improving the static pressure of low-pressure gas, the static pressure increment ratio ψ_msp can be defined as follows:

representing the proportion of static pressure increase out of the total pressure increase for low-pressure gas. Also, the relative compression ratio ψ_com, defined as follows:was used to represent the boosting level of the low-pressure gas at a certain expansion ratio.

Fig. 22a shows the variation of ψ_msp with the compression ratio β. At each fixed expansion ratio α, the ψ_msp values of the two rotors both increase with an increase in β, indicating that the capacity of these two rotors to improve the low-pressure gas static pressure has a positive relationship with β when α is fixed. Meanwhile, the direct utility value of the medium-pressure gas products also rises with an increase in β. Although the ψ_msp variation trends of these two rotors are identical, the ψ_msp values of the I60O75 rotor are always higher than those of the I90O90 rotor under the same working conditions. In particular, when ψ_com ≤ 0.4, the ψ_msp increase of the I60O75 rotor compared with the I90O90 rotor is more than 10%. Despite the fact that the difference in ψ_msp between the two rotors decreases as β increases, the ψ_msp values of the I60O75 rotor are higher than those of the I90O90 rotor by at least 4.2%, even at the maximum relative compression ratio (ψ_com = 0.7). The above experimental results show that the backward-bending channels can effectively reduce the medium-pressure gas exhaust velocity compared with traditional straight channels under various working conditions, so the static pressure proportion of the medium-pressure gas can be higher under the premise of meeting compression ratio requirements. At a fixed expansion ratio, the ability of the curved channels to lift the static pressure of low-pressure gas continues to weaken with an increase in the compression ratio β.

Fig. 22 The experimental results regarding (a) the static pressure increase ratio ψ_msp and (b) the gas loading power consumption P_con.

In addition to differences in the composition of the medium-pressure gas pressure, the influence of channel curvature on the flow velocity and direction of the incident and exhaust gas also causes differences in working power consumption between the curved-channel rotor and the traditional straight-channel rotor. The rotor power consumption caused by the gas flow P_con can be calculated according to eqn (25), where P_w and P_s represent the total power consumption and idling power consumption of the equipment, respectively:

P_con = P_w − P_s (25)

Fig. 22b shows the variations of P_con with the compression ratio β. The P_con values of the I90O90 rotor are always larger than 0, indicating that the flowing gas inevitably generates a certain amount of power consumption during operation. The exhaust gas generated in the I90O90 rotor deflects in the direction of rotor rotation, according to the simulation results, and the P_con values of the I90O90 rotor are mostly used to provide rotational transport velocity for the axially incident gas. As a result, when the expansion ratio α is fixed, P_con gradually drops as β increases with a decrease in the gas flow rate. As shown in Fig. 22b, the P_con value of the I60O75 rotor is close to 0 under the conditions of α = 1.50 and β = 1.25, which is due to the macroscopic flows of the incident and exhaust gas both being in the axial direction, according to the numerical research. When α = 1.50 and β < 1.25, the increase in the flow velocity of the medium-pressure gas generated in the I60O75 rotor channels causes the gas to exhaust in the opposite rotational direction, driving the rotor to rotate. Therefore, P_con becomes negative, indicating that the gas flow reduces the device operating power consumption. With a decrease in β, increases in the medium-pressure gas flow rate and exhaust velocity lead to a continuous drop in P_con, indicating that the effects of the flowing gas on rotor rotation are strengthened. Because the medium-pressure gas output is reduced when α = 1.50 and β > 1.25, the flow velocity of the medium-pressure gas is decreased and the exhaust gas deflects in the rotating direction, like the I90O90 rotor, resulting in P_con > 0. Also, as β increases, P_con rises as well. Under the conditions of other expansion ratios, the P_con variation trends for the I60O75 rotor are similar to the condition of α = 1.50, but the β requirement for P_con = 0 increases as α rises. Under various experimental conditions, the I60O75 rotor can reduce the operating power consumption of the equipment by at least 21.8 W relative to the traditional I90O90 rotor, with a maximum of 473.3 W. The above experimental results show that the curved channels can not only improve the isentropic efficiency of the energy exchange process inside the device, but they can also help minimize the device power consumption, thereby reducing the operating costs and increasing the total application benefits of GWEs.

4.2.2 Influence of rotation speed on the performance of a rotor with curved channels. It can be shown from eqn (16) and (17) and Fig. 8 that the rotor rotation speed has a direct effect on the gas velocity angles and gas angle differences, thereby impacting the rotor efficiency. Fig. 23a shows the variation of the I60O75 rotor efficiency η with the rotation speed n using fixed pressure ports (the pressure ports were designed according to the design speed n_d used in numerical analysis and performance experiments). When the rotation speed deviates from n_d, additional compression waves will be formed in the rotor channels due to the inappropriate opening position of the medium-pressure port, thereby breaking the ideal working wave system.³¹ As a result, η increases first and then decreases with an increase in rotation speed, and there is a certain speed n_i that optimizes the equipment efficiency. However, the n_i values of the I60O75 rotor at each compression ratio are not equal because of variations in the incident and exhaust gas velocities under different compression ratio conditions.

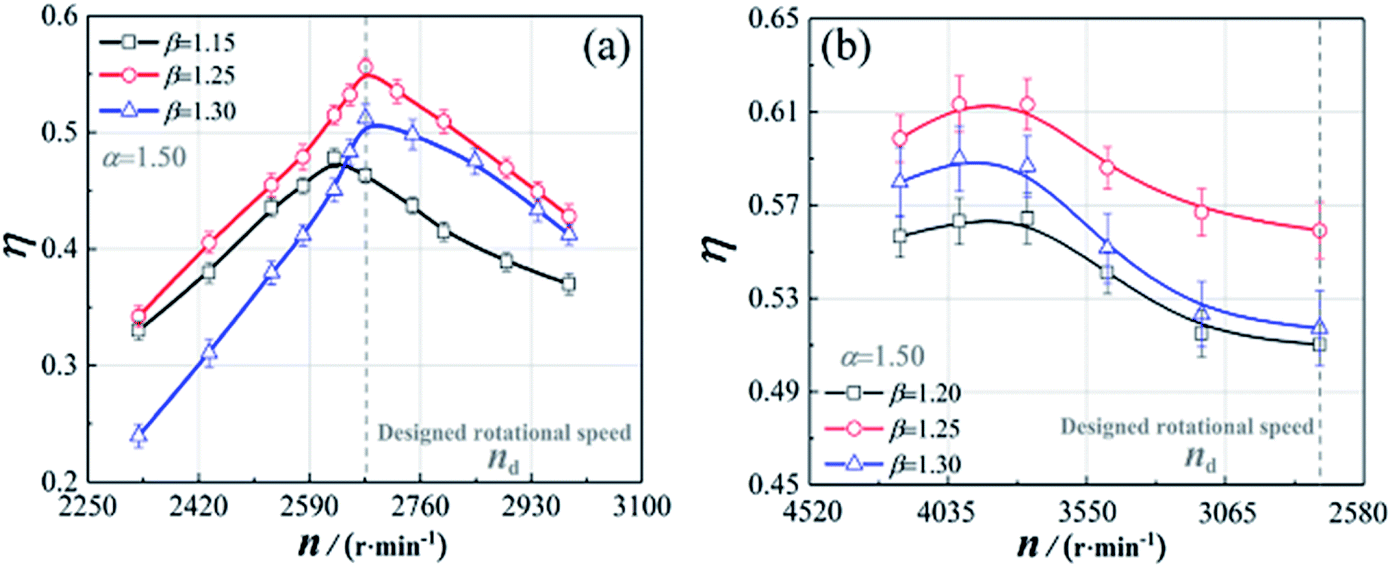

Fig. 23 The variations in the I60O75 rotor efficiency η with rotor rotation speed: (a) fixed pressure ports; (b) pressure ports satisfying optimal matching.

According to the gas flow characteristics in the rotor channels, both the high-pressure gas incident velocity and the medium-pressure exhaust velocity decrease with a decrease in the compression ratio β; alternatively, they rise as β increases. The calculation results show that when β = 1.15, both φ_din and φ_dout at the design speed n_d are no longer the optimal values for achieving the highest equipment performance, and both are lower by roughly 4° relative to at β = 1.25. It can be shown based on Fig. 9b and 12b that the efficiency reduction rate is relatively higher when φ_din and φ_dout are smaller than the optimal values. As a result, when β = 1.15, a slightly lower rotor speed than the design value has no noticeable effect on the opening time of the medium-pressure port, while it can move φ_din and φ_dout closer to the optimal values, resulting in n_i < n_d under these working conditions. The speed n_i that achieves the optimal equipment performance is equal to the design speed n_d when β = 1.30, and the efficiency decline rate as the speed rises at n_d < n < 2844 rpm is smaller than at β = 1.25. Since the incident velocity of the high-pressure gas rises with an increase in β, a slightly higher rotational speed than the design value makes φ_din closer to the optimal value at β = 1.30, reducing the efficiency decline at higher speed.

Relevant research results show that an acceleration of the channel opening process can significantly reduce the flow loss during the incident process and mitigate the damage to the ideal wave system that is generated, since the channels cannot open and close instantaneously when the pressure waves arrive at the channel ends.³² However, according to the numerical analysis results, if the increase in rotational speed amplifies the deviation of the incident and exhaust angle differences from the optimal values, flow losses, such as viscous dissipation, will also be enhanced, which negatively impacts the equipment performance. Therefore, when the pressure ports constantly have the optimal matching relationship with the rotation speed, the influence of changing rotation speed on the rotor performance is governed by a combination of the two influencing factors mentioned above.

Fig. 23b shows the variation of the working efficiency of the I60O75 rotor with the rotation speed n at different compression ratio conditions when α = 1.50. When the compression ratio β is 1.25 (the reference condition for designing the bending angles), φ_din and φ_dout increase from the optimal values of 2.5° and 6.3° to 14.2° and 18.3°, respectively, during the process of increasing the rotation speed from the design value n_d = 2676 rpm to 4260 rpm. According to the previous numerical analysis results, this change in φ_din has a significant negative impact on the equipment efficiency. As a result, even if the channel opening process is accelerated to some extent, the increase in viscous loss caused by the increase in φ_din leads to only a small increase in the equipment efficiency when the rotation speed increases within this range: the maximum increase is less than 6%. The most efficient rotation speed is only 3984 rpm. When n = n_d, the medium-pressure gas exhaust velocity at β = 1.20 is higher than that at β = 1.25, causing the exhaust gas to deflect in the opposite direction to rotor rotation. A certain amount of acceleration helps to weaken this deflection, reducing the flow loss in the exhaust port. As a result, when 2676 rpm ≤ n≤ 3702 rpm, the efficiency improvement ratio at β = 1.20 is slightly higher than at β = 1.25. In addition, the efficiency reduction rate at β = 1.20 is slightly lower than at β = 1.25 when n > 3702 rpm. Because the exhaust velocity at β = 1.30 is lower than at β = 1.25, φ_dout is always greater than 0 over the experimental speed variation range, and the effects of exhaust loss in the medium-pressure port on equipment efficiency only result in a slight change with rotation speed. The incident velocity of high-pressure gas at β = 1.30 is higher than at β = 1.25, and increasing the speed within a certain range is conducive to moving φ_din closer to the optimal value. Furthermore, since the incident pressure ratio is larger at β = 1.30, the effects of acceleration on reducing the incident loss are more obvious.³¹ As a result, the efficiency improvement at β = 1.30 is larger than at β = 1.25 for the same speed increase. When α = 1.50, at each compression ratio within the experimental range, the variations of equipment efficiency with rotation speed exceed 5.4%, while the maximum value reaches about 7.3%.

5. Conclusions

An ejection wave rotor with curved channels was investigated for the first time in this research in order to overcome the defects of gas wave ejectors (GWEs) equipped with traditional straight channels. The mechanism of influence of the channel bending angle on the wave system and gas flow was analyzed, and the first applied experiments involving curved rotor channels in GWE technology were carried out. The following are the main findings of this study.

1. A single-directrix scanning method for the construction of curved rotor channels was proposed in this study. This approach can establish curved channels with different line types and angles via adjusting the basic directrix equation and its key parameters, such as the envelope angle and the outlet angle. The angles at both channel ends can allow a smooth transition using this method, and both end-faces of the channels may remain radially distributed.

2. The angle difference between the gas flow and channel bending has a significant impact on device performance. In the scope of this research, when the exhaust angle difference φ_dout is ≤ -3.9°, the exhaust gas from each channel flows in an opposite direction relative to the rotor rotation in the medium-pressure port; this increases the gas viscosity dissipation and generates reversed compression waves, resulting in the backflow of the incident low-pressure gas. The equipment performance is significantly influenced by the above-mentioned reasons, and the efficiency of the equipment declines with a decrease in φ_dout. In contrast, when φ_dout is >−3.9°, the effects of changing φ_dout on device performance are relatively minimal. When the incident angle difference φ_din is >5.0° or ≤−5.0°, the channel walls reflect or obstruct the propagation of compression waves and the incident gas flow, weakening the wave system and causing a great deal of gas energy loss. As a result, device performance basically deteriorates monotonically as |φ_din| increases.

3. The experimental results from a curved-channel rotor (the I60O75 rotor, the inlet and outlet angles are φ_pin = 60° and φ_pout = 75°), when compared with a traditional straight-channel rotor (the I90O90 rotor), show that backward curved channels can improve the equipment performance under all working conditions within the research range. In comparison with the I90O90 rotor, the equipment efficiency and ejection rate of the I60O75 rotor are improved by 11.3% and 8.6%, respectively, under conditions where the expansion ratio α is 1.50 and the compression ratio β is 1.25. The highest isentropic efficiency of the I60O75 rotor reaches 61.6% within the experimental range.

4. The curved channels can effectively change the velocity and direction of the gas flow, increasing the proportion of static pressure out of the total pressure of the medium-pressure gas and reducing the equipment operating power consumption. Under all experimental working conditions with a relative compression ratio ψ_com ≤ 0.4, the static pressure increase ratio ψ_msp of the I60O75 rotor can be increased more than 10% compared with the I90O90 rotor. The operating power consumption of the I60O75 rotor can be reduced by 21.8–473.3 W compared with the I90O90 rotor under the experimental conditions used in this study.

5. Because the gas jet velocity varies depending on the working conditions, the incident and exhaust angle differences are different according to the working conditions when the device operates at the designed rotation speed with the bending angles used in the I60O75 rotor. The influence of the variations of angle differences on device performance varies as the rotation speed changes. Because the acceleration of rotor rotation can weaken the energy loss generated during the gradual opening and closing of channels, the working efficiency of the I60O75 rotor can be increased by up to about 7.4% with an increase in rotation speed within the experimental range when the rotational speed is optimally matched with the pressure ports.

This study advances theory related to GWEs and it provides a new method for improving their performance. The relevant research findings are useful for the popularization and application of GWEs, and they have some reference value for the research and development of other wave rotor technologies, such as gas wave refrigeration.
