Effects of diluent gases on sooting transition process in ethylene counterflow diffusion flames

Abstract

The impacts of adding diluent gases (nitrogen, carbon dioxide, and helium) either to the fuel side or the oxidizer side on the sooting transition process in ethylene counterflow diffusion flames are investigated experimentally and numerically. A series of ethylene flames ranging from non-sooting to heavy-sooting are studied by gradually increasing the oxygen concentration on the oxidizer side. The optical method is used to analyze flame images, determining the sooting transition process. It is found that whether CO₂ is added to the fuel side or the oxidizer side, the sooting transition process is delayed significantly. This process is slightly delayed when He is added to the fuel side, however, it is promoted when He is introduced to the oxidizer side. The numerical results show that in CO₂-diluted flames, the mole fraction of the main soot precursors C₂H₂, C₃H₃, and C₆H₆ are reduced, which leads to the delay of soot formation. In addition, the H radical decreases while the OH radical increases, both of them are important for soot formation. In He-diluted flames, the concentration of C₂H₂, C₃H₃, and C₆H₆ decreased, as well as H and OH radicals. Moreover, adding He obviously changes the distribution area of products.

---

1. Introduction

The development and progress of human society are inseparable from the consumption of energy. At present, the consumption of fossil energy accounts for about 80% of the total global consumption.¹ The energy of fossil fuels is mainly produced through combustion, which is the main source of air pollutants. The nanoparticles produced by combustion are called soot,^2,3 and are mainly emitted by the incomplete combustion of fossil fuels.⁴ Incomplete combustion of fossil fuels in actual equipment such as gas turbines, boilers, and internal combustion engines will produce soot.^5–7 Soot particles will harm the human respiratory system.⁸ The soot particles can also change the climate, such as changing the absorption of solar radiation, and influencing cloud formation and deposition on snow and ice.^9,10 Therefore, reducing the emission of soot is an important subject. Several researchers have studied soot generation characteristics in actual equipment, providing a strong basis for reducing soot formation.^11,12

To reduce the emission of soot particles, the effects of various diluent gas additives on soot emission in hydrocarbon flames have attracted more and more attention. Helium (He), nitrogen (N₂), and carbon dioxide (CO₂) are currently commonly used diluents. It is well-known that the addition of CO₂ to hydrocarbon diffusion flames can effectively suppress the emission of soot particles. Du et al.¹³ studied the effect of CO₂ and oxygen as additives on soot formation in the diffusion flame, finding that CO₂, whether added to the fuel or oxidizer side, could suppress soot formation chemically. Oh et al.,¹⁴ Liu et al.,¹⁵ and Gülder et al.¹⁶ combined experiment and numerical simulation in laminar diffusion flames and found that the chemical effect of CO₂ would increase the production of O and OH radicals, which were believed to be responsible for soot precursor oxidation. Guo et al.¹⁷ conducted a numerical study on the effect of CO₂ addition on soot formation in an ethylene/air diffusion flame. The result showed that the chemical effect of CO₂ addition was primarily introduced by the reduction of radical H concentration, which suppressed the soot inception and surface growth rate. Some researchers investigated the effect of various diluents on soot production in laminar diffusion flames,^18–20 and they all found that when CO₂ was adopted as the diluent, there was a strong inhibition on soot formation, but there was no virtually noticeable effect on soot suppression when He was used. Gülder et al.²¹ investigated the influence of N₂ dilution and flame temperature on soot formation in diffusion flames and found that the reduction in soot formation is due to both lowered temperature and fuel concentration in dilution experiments. Yen et al.²² focused on modeling the effects of hydrogen and N₂ addition on soot formation in laminar ethylene jet diffusion flames. They found the model was able to qualitatively predict the measured trends of reducing soot concentration as hydrogen or N₂ is added to ethylene or substituted.

The incipient stage of soot formation is of great significance for understanding the nucleation of soot. Ergut et al.^23,24 investigated the effect of temperature and equivalence ratio on the soot onset chemistry in ethylbenzene flames. They determined the onset of soot with observation, measured the concentrations of major species by GC/MS system, and validated with computations. Therrien²⁵ studied the soot onset threshold and flame properties of ethylbenzene–ethanol blends, and found that the concentration of benzyl groups dropped significantly with ethanol addition, resulting in the reduction of key soot precursors. Gleason et al.²⁶ followed quantitatively the transition from parent fuel molecule to polycyclic aromatic hydrocarbons (PAHs) and eventually to soot. They found that only one- and two-ring aromatic compounds could account for soot nucleation. Zhao et al.²⁷ systematically investigated the sooting transition process in iso-octane flame and performed combustion chemistry during the transition process in details.

From the literature above, it can be concluded that the current detailed study on the sooting transition process under different diluents is still lacking. It is of great significance for deeply understanding the influence of different diluents on the sooting transition process of hydrocarbon flames to understand the nucleation of soot and control soot emission. Therefore, in this study, the diluent gas (N₂, CO₂, and He) was added to the oxidizer side or the fuel side, and the changes in the sooting transition process were analyzed by experiments and chemical kinetic simulations, aming to investigate the effects of diluent gases on sooting transition process in ethylene counterflow diffusion flames.

2. Experiments and simulations

2.1. Experimental procedure

The experimental setup consisted of a counterflow diffusion flame platform, a fuel/oxidizer flow-control system and a flame image acquisition system, the architecture of this experimental apparatus was illustrated in Fig. 1.

Fig. 1 Schematic diagram of experimental system.

The counterflow diffusion flame platform was designed by Advanced Combustion Laboratory in NJUST, which had two vertically placed nozzles with a diameter of 6.77 mm for the inner nozzle and a diameter of 14.88 mm for the outer surrounding nozzle. The separation distance between the two nozzles was 8.0 mm. The oxidizer and fuel stream were connected to the lower and upper nozzle, respectively. The shield N₂ could protect the flame from indoor air flow and ensure that the fuel burned in a controlled atmosphere. N₂, He, and CO₂ were chosen as the diluents. The diluent gas was mixed with oxygen and fuel before entering the combustion chamber. The gas flow rates of nitrogen, fuel gas, diluent gas and oxygen were controlled by high precision digital mass flow controllers (Sevenstar, CS200A). The flow rate of the two nozzles was 18.52 cm s⁻¹. The image acquisition system, consisted of a digital single lens reflex camera (Nikon D7100) in manual mode, was used to deal with flame images for distinguishing the sooting transition process. The lens was AF-S NIKKOR 24–85 mm f/3.5–4.5G ED VR without any filter.

The detailed conditions of the flames in the experiment were shown in Table 1. There were five groups of flames were investigated. In Flame A, N₂ was added on both the fuel side and the oxidizer side, which could be regarded as the standard flames for comparison. In Flame B1, CO₂ was added on the fuel side and N₂ was added on the oxidizer side. Flame C1 had a He addition on the fuel side and N₂ addition on the oxidizer side. The compositions of Flames B2 and C2 corresponded closely to Flames B1 and C1, respectively, but in Flames B2 and C2, the diluent gases were added on the opposite side. Here X_O was defined as the oxygen concentration.

Table 1 Experimental conditions

Flame	Fuel side	Mole fraction			Oxidizer side	XO
		C2H4	Diluent gas			Min	Increment	Max
Flame A	C2H4 and N2	0.3	0.7	O2 and N2		0.20	0.01	0.28
Flame B1	C2H4 and CO2	0.3	0.7	O2 and N2		0.32	0.01	0.40
Flame C1	C2H4 and He	0.3	0.7	O2 and N2		0.23	0.01	0.30
Flame B2	C2H4 and N2	0.3	0.7	O2 and CO2		0.32	0.01	0.40
Flame C2	C2H4 and N2	0.3	0.7	O2 and He		0.17	0.01	0.25

---

2.2. Kinetic modeling

The Chemkin/OPPDIF code²⁸ was used to simulate the investigated flames. The reaction mechanism used in this study was developed by the Ranzi et al.^29–31 (CRECK_2003_TOT_HT_SOOT), which contained 452 species and 24 041 reactions.

The boundary conditions were the same as the experiments. Four working conditions in vicinity of the sooting transition process in each group of flames were selected, which covered by the experimental conditions. The detailed conditions of the investigated flames were summarized in Table 2.

Table 2 Simulation conditions

Flames	Fuel side	Mole fraction		Oxidizer side	XO
		C2H4	Diluent gas
Flame A	C2H4 and N2	0.3	0.7	O2 and N2	0.21	0.23	0.24	0.27
Flame B1	C2H4 and CO2	0.3	0.7	O2 and N2	0.32	0.34	0.35	0.38
Flame C1	C2H4 and He	0.3	0.7	O2 and N2	0.23	0.25	0.26	0.29
Flame B2	C2H4 and N2	0.3	0.7	O2 and CO2	0.32	0.34	0.35	0.38
Flame C2	C2H4 and N2	0.3	0.7	O2 and He	0.18	0.20	0.21	0.24

---

3. Results and discussion

3.1. Sooting transition point identification

Fig. 2 showed Flame A images with the oxygen concentration (X_O) changing from 20% to 28%. Soot particles produced blackbody radiation at high temperatures, causing the flame to glow yellow.³² Figura et al.³³ reported that the flame without soot was blue, and the visual observation of a faint yellow luminosity revealed incipient sooting. It can be seen from Fig. 2, the flame color was blue in low oxygen concentrations, which indicated the flame was non-sooting one. As the oxygen concentration increased, a yellow flame gradually appeared above the blue flame, suggesting that the flame was transferring to an incipient sooting state. As X_O continued to increase, a significant yellow luminous sooting region could be found at the flame fuel side. The soot formation just occurred when X_O increased to a critical value, X_O,cr. The X_O,cr was defined as sooting critical transition point here. We might determine the X_O,cr as X_O = 24% where a faint yellow region visible to the naked eye. However, the real X_O,cr was actually smaller because human eyes cannot respond to the flame yellow luminosity sensitively under the condition of stronger blue luminosity. To accurately determine the sooting transition process and critical transition point, this article used the method following ref. 27.

Fig. 2 Flame A images at different oxygen concentration combustion conditions.

All the pixel points in the central axial line throughout the flame were taken, as shown with the yellow dotted line in Fig. 2. The luminosities of tricolor for the target pixel points were obtained, as shown in Fig. 3.

Fig. 3 Profiles of the tricolor luminosity proportion for pixel points in the flame at different O₂ concentrations for Flame A, (a) before transition, (b) in transition, (c) after transition.

In Fig. 3, the three corners of the triangle represented one color, respectively. Defining the lower left corner as blue luminous region, the lower right corner as blue luminous region, and the top corner as green luminous region. From Fig. 3(a), it could be found that most pixels were distributed in the blue luminous region, which meant the flames were blue and few soot particles were formed under these three conditions. Therefore, these conditions could be considered as ones before transition, which was consistent with the flame observation from Fig. 2. In Fig. 3(b), there was a clear transition. The pixels shifted from blue luminous region to red region, indicating that there were blue and yellow layers in the flames at the same time. Thus, the two conditions could be considered as ones in the sooting transition process which corresponded to the gradual appearance of the yellow layer of flame in Fig. 2. More soot particles appeared in the process of formation from X_O = 23% to X_O = 24%. From the analyses above, we could define the critical sooting transition condition as X_O,cr = 22%. Fig. 3(c) showed the post-transition with X_O larger than 24%. In these four conditions, the distribution of pixels was highly centralized from left to right, and less pixels were distributed in the blue region. It could also be seen from Fig. 2, a bright yellow layer appeared in the flame at 25–28% O₂ concentrations. The sooting transition process have been completed and the flame was heavily sooting.

Fig. 4 showed flames at different oxygen concentrations conditions with different diluent gases. Compared to Flame A, the colors of Flames B1 in Fig. 4(a) and B2 in Fig. 4(c) had changed significantly. The blue layers were thicker and more obvious, and the yellow layers were quite weak, especially for Flame B1. As a result, the critical sooting transition condition was very difficult and almost impossible to determine by naked eyes. It can be concluded that no matter CO₂ was added to the fuel side or the oxidizer side, the sooting transition process was delayed significantly, which indicated that the CO₂ could effectively inhibit soot formation. The weaker yellow layer of Flame B1 meant a stronger inhibitory effect when CO₂ was added to the fuel side. Flames C1 in Fig. 4(b) and C2 in Fig. 4(d) were very similar to Flame A visually. It was interesting to note that the sooting transition process of Flame C1 was delayed compared to Flame A, but it was advanced in Flame C2. This phenomenon meant adding He to the fuel side could inhibit the soot formation, but it had a promoting effect when He was added to the oxidizer side.

Fig. 4 Flame images at different oxygen concentration and different diluent gases combustion conditions, (a) Flame B1, (b) Flame C1, (c) Flame B2, (d) Flame C2.

In addition, it was interesting to see that with low O₂ concentration, there was a different in the color of the flames. Although the flames are all blue, the color in Fig. 4(a) and (c) was more towards pure blue. This was because the blue color of the flame was mainly due to CH* and C2* radicals.³⁴ The addition of CO₂ and He changed the concentration and distribution of the above-mentioned free radicals. In addition, the temperature of the flames was also different. These factors led to the difference in the energy radiated by the free radicals, resulting in a different color in the flames.

Taking the pixel points of the above four flames and drew the tricolor luminosity ratio profiles, as shown in Fig. 5. Similarly, the analysis method described above was used to determine the sooting transition process. The sooting transition process of the four flames could be concluded as follows: Flame B1: X_O = 34% to X_O = 36%, Flame C1: X_O = 25% to X_O = 26%, Flame B2: X_O = 34% to X_O = 35%, Flame C2: X_O = 20% to X_O = 21%. The critical sooting transition condition could be determined as X_O,cr = 33%, 24%, 33%, and 19%, respectively. In order to deeply study the sooting transition process, four representative conditions (one condition before transition, two conditions in the transition process, and one condition after transition) of these flames were selected to perform the kinetic study.

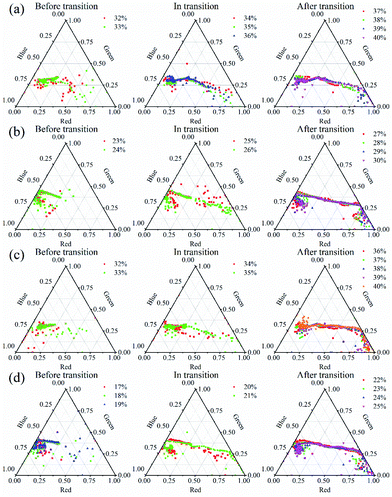

Fig. 5 Different flame profiles of the tricolor luminosity proportion for pixel points in the flame at different O₂ concentrations, (a) Flame B1, (b) Flame C1, (c) Flame B2, (d) Flame C2.

3.2. Simulation results

3.2.1 Temperature profiles. Fig. 6(a)–(e) sketched the flame temperatures of different flame conditions. It could be observed that in sooting transition process (X_O of Flame A: 21–27%, Flame B1: 32–38%, Flame C1: 23–29%, Flame B2: 32–38%, Flame C2: 18–24%), the temperature had an increasing trend. Regarding Flame A as the standard flame for comparison, we could find that the addition of diluent gases affected the temperature distribution and change the position of the maximum temperature. The corresponding peak temperature was displayed in Fig. 6(f). Wang³⁵ concluded that the rise in temperature has two important effects: (a) facilitated the decomposition of fuel into small-molecule soot precursors, and (b) accelerated the oxidation of soot particles. In both of the two rates, the oxidative rate increased faster.³⁶ The peak temperature of Flame B1 was significantly higher than that of Flame A, while Flame B2 was similar to Flame A, which might be the reason why adding CO₂ to the fuel side had a stronger effect on soot formation. However, seeing that the Flame C1 and Flame C2, the temperature decreased compared to Flame A.

Fig. 6 Temperature profiles and peak temperature of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak temperature.

3.2.2 Ethylene fraction profiles and consumption paths. Fig. 7 exhibited the distribution curves of the mole fraction of ethylene. Starting from the upper nozzle of the burner, the mole fraction of fuel gradually decreased in the direction of the flame front and was eventually exhausted at the flame front. With the increase of oxygen concentration, the ethylene was consumed faster. Comparing the five flames, it could be found that the addition of diluents slightly changed the position of the flame front. Flame C1 was the most interesting that ethylene presented a trend of first increasing and then decreasing along the axis. This phenomenon was caused by the high mobility of He. When the helium was added to the fuel stream, it would diffused away rapidly, leaving relatively high concentrations of ethylene, so the mole fraction of ethylene had an increase trend near the fuel nozzle.²⁰

Fig. 7 Ethylene mole fraction profiles of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2.

The reaction pathway analysis of ethylene for different flames were carried out, as shown in Fig. 8. The results showed that the main consumption pathways of ethylene in counterflow diffusion flame was the decomposition of fuel molecules into small alkyl radicals, and secondly was the polymerization into large alkyl radicals. With the increase of oxygen concentration in the sooting transition process, the decomposition of fuel molecules increased. The reason for this phenomenon was that the increasing temperature would promote the scission of C–C bonds. Furthermore, it was worth noting that the important soot precursor C₂H₂ had a significant increase in the transition process. Comparing the five flames, the addition of diluents had little effect on the main consumption paths of ethylene. When CO₂ was added, the conversion of CH₃ to C₂H₆ was inhibited.

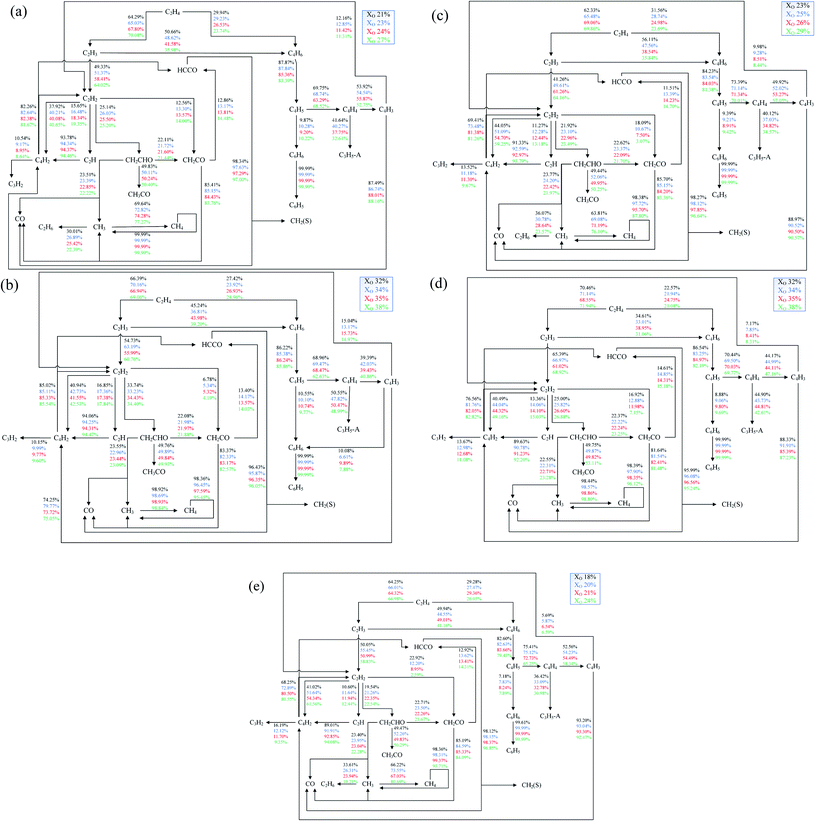

Fig. 8 The reaction paths of ethylene, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2 (percentage of each path's contribution to the consumption of the species at the beginning of the corresponding arrow was marked).

3.2.3 Formation characteristics of important free radicals. In this section, methyl (CH₃), hydrogen radical (H), hydroxyl (OH) and oxygen free radical (O) were selected as important representative radicals to study the sooting transition process.

The concentration profiles of CH₃ radical were exhibited in Fig. 9(a)–(e). In the sooting transition process, the mole fraction of CH₃ showed an increasing trend. The addition of diluents changed the distribution of CH₃ in the flame, which was more obvious in Flames C1 and C2. Fig. 9(f) showed the corresponding CH₃ peak concentrations of different Flames. The CH₃ peaks of Flames B1 and B2 were similar to Flame A. However, the results shown in Flames C1 and C2 indicated that the addition of He had an inhibitory effect on CH₃ formation. This phenomenon was possibly due to the reaction C₂H₃ + CH₃ + M → C₃H₆ + M.²⁰

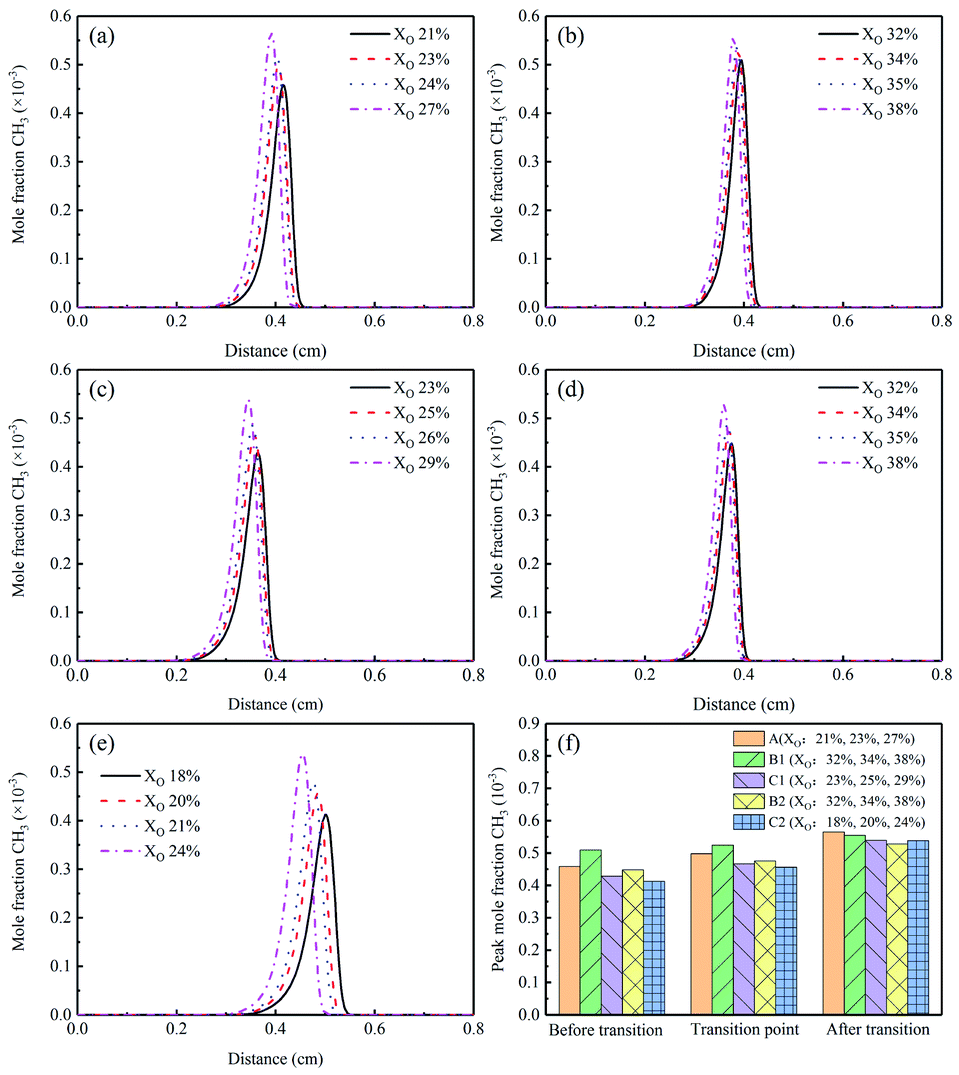

Fig. 9 CH₃ mole fraction profiles and peak mole fractions of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The HACA mechanism proposed by Frenklach et al.³⁷ reported that H free radicals could control the growth of polycyclic aromatic hydrocarbons and were related to the surface growth of soot. Therefore, it was necessary to study the formation characteristics of H.

Fig. 10(a)–(e) demonstrated the H mole fraction of different flames, from which we could see that H mole fraction increased with the increasing X_O in the sooting transition process. The corresponding peak concentrations were shown in Fig. 10(f). Compared to Flame A, the lower peaks of Flames B1, C1, B2, C2 suggested there was a suppression effect on the H radical formation when adding He or CO₂. In Flame B2, this effect was the most obvious. For CO₂-diluted flames, some researchers attributed the inhibitory effect to the important reaction CO₂ + H ⇌ CO + OH.^14,17,38,39 As a result, they all thought that adding CO₂ could reduce the production of H, then effectively inhibit the soot formation.

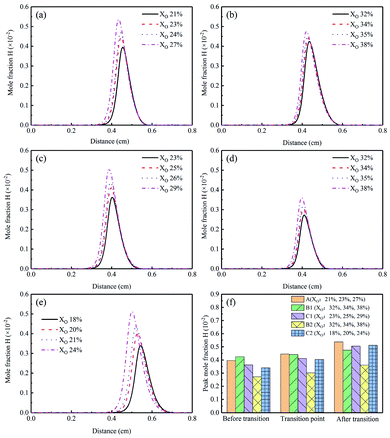

Fig. 10 H mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The mole fraction of OH profiles of the flames examined in this study were presented in Fig. 11(a)–(e). The mole fraction of OH showed a significant increase in the sooting transition process. The corresponding peak concentrations were implied in Fig. 11(f). Flames B1 and B2 showed that the addition of CO₂ had a promoting effect on OH formation, and the effect became stronger when adding to the fuel side. This was due to the important reaction CO₂ + H ⇌ CO + OH mentioned above. Some researchers reported that the chemical mechanism of CO₂ addition could promote the concentrations of O and OH, thereby increased the soot precursor oxidation.^16,40 Therefore, the increase of the hydroxyl in Flames B1 and B2 was one of the factors that CO₂ addition could inhibit the soot formation. More hydroxyl in Flame B1 might explain the stronger soot suppression in the experimental results as shown in Fig. 4. In addition, there was a decrease of OH in Flames C1 and C2.

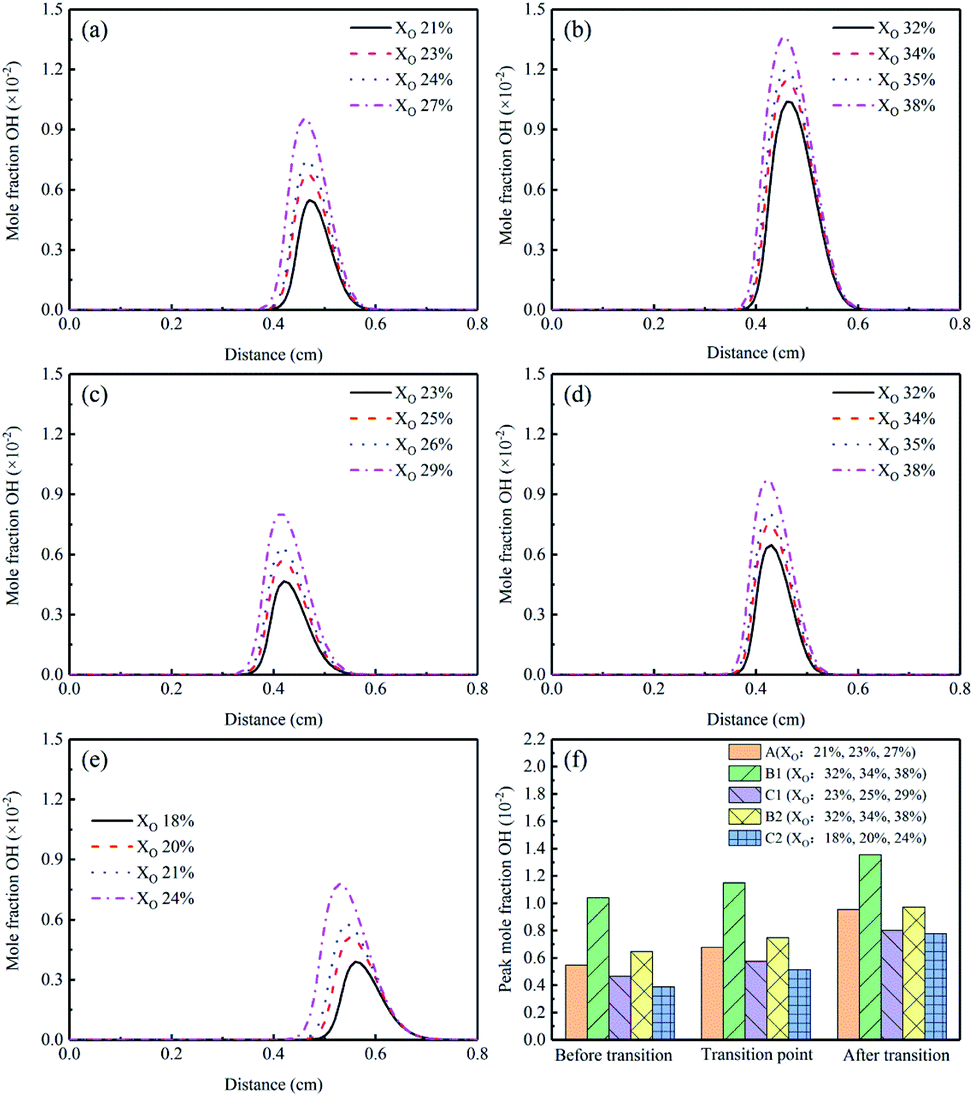

Fig. 11 OH mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The concentration profiles of O were shown in Fig. 12(a)–(e). In the sooting transition process, more oxygen atoms were generated due to the increase in oxygen concentration. The corresponding O peak concentrations were exhibited in Fig. 12(f). Oxygen atoms had an oxidative effect on soot. It was worth to note the Flame B1, the mole fraction of O was the highest. This phenomenon also explained the experimental results that why there was less soot in Flame B1. Moreover, the O was slightly reduced in the Flames C1 and C2.

Fig. 12 O mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

3.2.4 Formation characteristics of important products. Fig. 13(a)–(e) gave the profiles of CO mole fraction. With the increase of X_O in the sooting transition process, the concentration of CO had a significant increasing trend. The corresponding peak concentrations could be obtained in Fig. 13(f). The CO obviously increased in Flams B1 and B2, which was expected as the reaction CO₂ + H ⇌ CO + OH intensified with the addition of CO₂. The results of Flames C1 and C2 showed an inhibitory effect on CO with the addition of He.

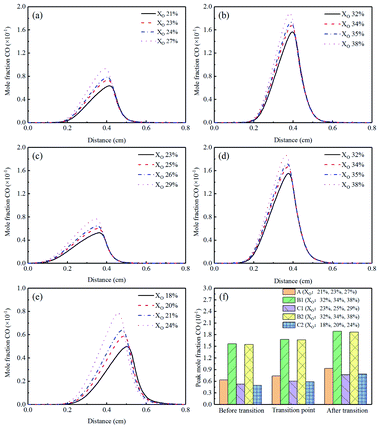

Fig. 13 CO mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

CO₂ was the main product of combustion, and its mole fraction was shown in Fig. 14(a)–(e). CO₂ was added to the Flames B1 and B2, so the two Flames were not discussed here. In Flames A, C1, and C2, the mole fraction of CO₂ increased in the sooting transition process. This was because the increase of temperature with the increase of X_O would intensify the oxidative reactions. The corresponding peak concentrations of CO₂ were displayed in Fig. 14(f). The Flame C1 had a slight decrease trend of CO₂ while the Flame C2 had a small increase trend.

Fig. 14 CO₂ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

3.2.5 Formation characteristics of important intermediates. In this section, methane (CH₄₎, acetylene (C₂H₂), ethane (C₂H₆), propargyl (C₃H₃), propylene (C₃H₆), and benzene (C₆H₆) were selected as important representative intermediates to study their formation characteristics.

The study of Gleason et al.²⁶ reported that small aromatic hydrocarbons controlled the onset of soot nucleation, and the growth basis of polycyclic aromatic hydrocarbons was benzene or phenyl.^6,41 Therefore, analyzing the formation characteristics of C₆H₆ could promote the understanding of soot nucleation. Furthermore, according to Naseri et al.,⁴² C₂H₂ and C₃H₃ played an important role in the formation of benzene. Consequently, in this section, the rate of production and reaction path analysis of C₂H₂, C₃H₃, and C₆H₆ were carried out.

Methane (CH₄) was an important single-carbon hydrocarbon, and its concentration increased with the increasing X_O in the sooting transition process, as shown in Fig. 15(a)–(e). Corresponding peak concentrations could be found in Fig. 15(f). Compared to Flame A, the changes of CH₄ in Flames B1 and B2 were very small. While a significant decrease could be seen in Flame C1 and C2, indicating that adding He inhibited the formation of CH₄.

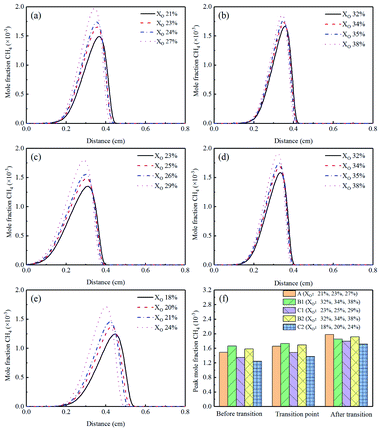

Fig. 15 CH₄ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The nucleation rate of soot was essentially a first-order reaction of acetylene (C₂H₂) concentration.^43,44 Based on the reason, studying the formation characteristics of C₂H₂ was paramount. The mole fraction of C₂H₂ was illustrated in Fig. 16(a)–(e), and the corresponding peak concentrations could be obtained in Fig. 16(f). Its mole fraction increased with the increase of X_O. From the Flames B1 and B2, it could be concluded that the addition of CO₂ had no obvious effect on C₂H₂. Instead, Flames C1 and C2 suggested that there was an inhibitory effect on the formation of C₂H₂ when adding He.

Fig. 16 C₂H₂ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

Fig. 17 showed the rate of production of C₂H₂. The main formation reaction of C₂H₂ was C₂H₃ (+M) = H + C₂H₂ (+M), and the primary consumption reaction of C₂H₂ was O + C₂H₂ = H + HCCO. The rate of other reactions was small and would vary with the diluents. The rate of all reactions became faster with increasing oxygen concentration in the sooting transition process, and the reaction region shifted to the fuel side.

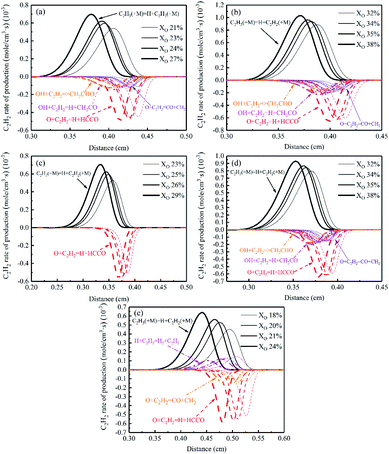

Fig. 17 C₂H₂ rate of production diagrams, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2.

Fig. 18 exhibited the reaction paths of C₂H₂ under different conditions. In these diagrams, the positive value represented the percentage of each path's contribution to the formation of the species at the end of the corresponding arrow (solid line), and the negative value represented the percentage of each path's contribution to the consumption of the species at the beginning of the corresponding arrow (dot line). With different diluent gases, the main products from C₂H₂ were the same, but their ratios were different. C₂H₃ and C₂H₄ were the main sources of C₂H₂. In CO₂-diluted flames, the contribution of C₂H₂ to C₄H₂ was significantly reduced.

Fig. 18 Reaction paths diagrams of C₂H₂ in different Flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2.

In the sooting transition process, with the increasing oxygen concentration, the change of C₂H₆ formation was not sensitive in Flames A and B1, but it showed a decrease trend in Flames C1, B2, and C2, as shown in Fig. 19(a)–(e). The peak concentrations of C₂H₆ in Fig. 19(f) showed that the addition of CO₂ had a promoting effect on its formation. The C₂H₆ was a combustion intermediate produced by the direct reaction of ethylene with hydrogen. For Flame C1, the reason why the concentration of C₂H₆ was higher than Flame A was that the diffusion of helium from the centerline to the periphery of the flame, resulting in an increase of C₂H₄.²⁰

Fig. 19 C₂H₆ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

Based on the fact that the propargyl (C₃H₃) played a vital role in the formation of the first aromatic ring⁴⁵ and polycyclic aromatic hydrocarbons (PAHs), studying the characteristics of C₃H₃ was of great significance. Fig. 20(a)–(e) showed the concentration of C₃H₃ in each diluted flame. With the increase of X_O in the sooting transition process, the concentration of C₃H₃ had an obvious increasing trend. The corresponding peak concentrations were displayed in Fig. 20(f), from which could be found that adding CO₂ and He both inhibited the C₃H₃ formation, and the later were more effective.

Fig. 20 C₃H₃ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The rate of production of C₃H₃ was displayed in Fig. 21. In these figures, C₃H₄-A and C₃H₄-P were isomers of each other. The main formation reactions of C₃H₃ were CH₂ + C₂H₂ = H + C₃H₃, and H + C₃H₄ = H₂ + C₃H₃. The main reactions responsible for C₃H₃ consumption were OH + C₃H₃ = C₂H₃CHO, and H + C₃H₃ = C₃H₄. In Flames A and C2, a formation reaction occurred, CH₂(S) + C₂H₂ = H + C₃H₃. With the increase of oxygen concentration, the reaction rates of the above reactions were obviously faster. The addition of different diluent gases changed the reaction region of these reactions, which was more significant when He was added.

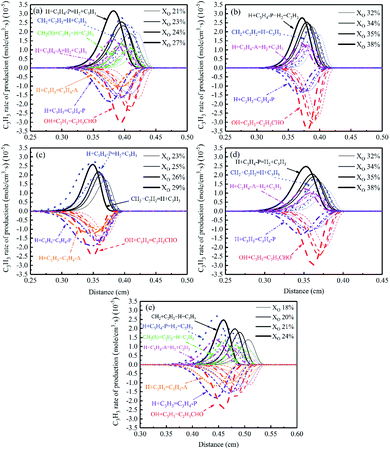

Fig. 21 C₃H₃ rate of production diagrams, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame C1, (e) Flame C2.

The reaction paths of C₃H₃ under different conditions was shown in Fig. 22. In these diagrams, the value represented the percentage of each path's contribution to the formation of the species at the end of the corresponding arrow. The formation of C₃H₃ was mainly due to the unimolecular C–H scission reaction of propyne (C₃H₄). The main source of C₃H₃ is the two isomers of C₃H₄ (C₃H₄-A and C₃H₄-P). And there was an isomerization reaction between two isomers. In the case of high oxygen concentration, it would promote the conversion of C₄H₆ (butadiene and butyne) to C₃H₃.

Fig. 22 Reaction paths diagrams of C₃H₃ in different Flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame C1, (e) Flame C2.

Fig. 23(a)–(e) exhibited the profiles of the C₃H₆ mole fraction, and Fig. 23(f) was a graph of the corresponding peak concentrations. In He-diluted flames, the concentration of C₃H₆ decreased with increasing X_O. However, it had no significant change in N₂- and CO₂-diluted flames. The peak mole fraction of C₃H₆ was shown in Fig. 23(f). The results showed that adding CO₂ promoted the formation of C₃H₆, but introducing He to the fuel side and the oxidizer side respectively had different effect. The concentration of C₃H₆ increased when He was added to the fuel side, while it decreased when He was added to the oxidizer side.

Fig. 23 C₃H₆ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

The concentrations of benzene (C₆H₆) shown in Fig. 24(a)–(e) was of great interest as it was a crucial step in the formation of PAHs, which directly related to soot formation. The C₆H₆ showed an increasing trend in sooting transition process. In CO₂-diluted flames, the change of the curves was not obvious. Fig. 24(f) exhibited corresponding peak concentrations. The concentration of C₆H₆ in both the CO₂-diluted flames and the He-diluted flames was reduced, which suggested CO₂ and He both had an inhibitory effect on C₆H₆. In CO₂-diluted flames, the CO₂ consumed through reaction , and then inhibited the formation of C₆H₆. The was activated methylene, playing an important role in the generation of C₆H₆.⁴²

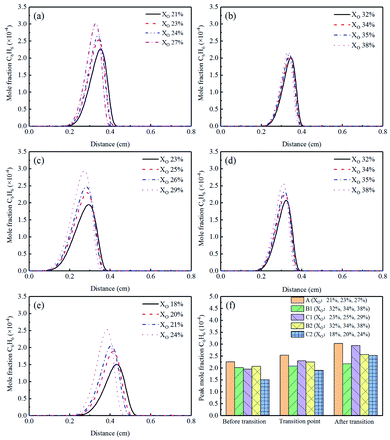

Fig. 24 C₆H₆ mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

Fig. 25 gave the profiles of C₆H₆ rate of production in different conditions. H + C₆H₅ (+M) = C₆H₆ (+M) was the most important formation reaction. In Flames A, B1, and B2, a formation reaction occurred, H₂ + C₆H₅ = H + C₆H₆. In addition, the reaction C₂H₂ + C₄H₅ = H + C₆H₆ also influenced the formation of C₆H₆ in Flames A and B2. The main consumption reaction was H + C₆H₆ = H₂ + C₆H₅. In sooting transition process, as the oxygen concentration increased, the reaction area shifted to the fuel side.

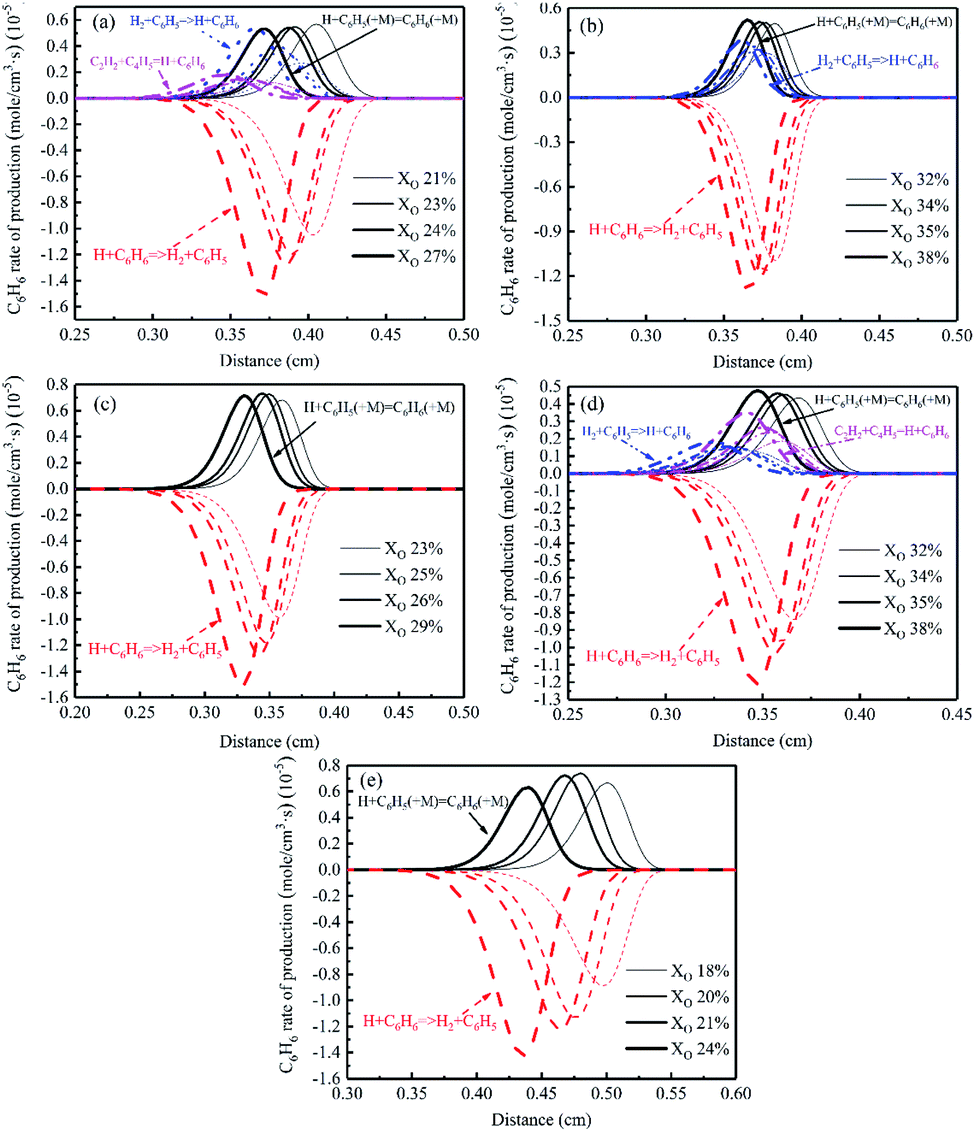

Fig. 25 C₆H₆ rate of production diagrams, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2.

Fig. 26 showed the reaction paths of C₆H₆ under different conditions. The main source of C₆H₆ was C₆H₅, CYC₆H₈, C₃H₃, fulvene, and the reaction between C₂H₂ and C₄H₅. The consumption reaction of C₆H₆ was mainly the conversion of C₆H₆ to C₆H₅. As the oxygen concentration increased, the contribution of C₆H₅ and C₃H₃ to C₆H₆ increased, and the CYC₆H₈, C₄H₅ and C₂H₂ contributed less to C₆H₆.

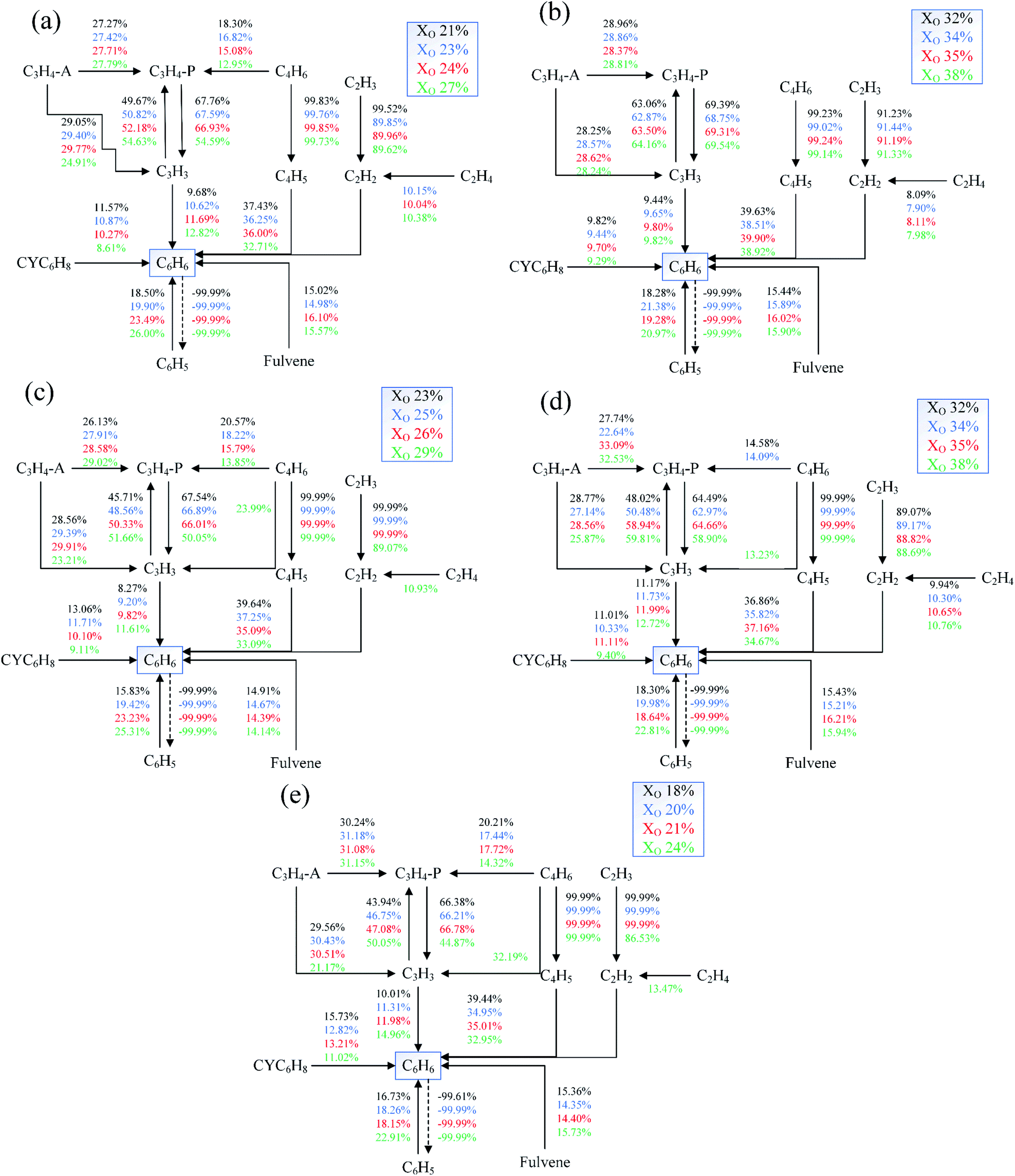

Fig. 26 Reaction paths diagrams of C₆H₆ in different Flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2.

3.2.6 Formation characteristics of small molecular PAHs. PAHs (Polycyclic Aromatic Hydrocarbons) were regarded as soot precursors, we studied some small molecular PAHs, A2 (naphthalene), A3 (anthracene and phenanthrene), A4 (pyrene and isomers).

Gleason et al.²⁶ reported that one-ring and two-ring aromatic played an important part in soot nucleation. Therefore, investigating the formation of A2 (naphthalene) could advance the understanding of the sooting transition process. The simulation results of A2 were exhibited in Fig. 1. It could be seen from Fig. 27(a)–(e) that with the increase of X_O, except for Flame B1, the concentration of A2 had an obvious upward trend. This result indicated that in sooting transition process, the increase of A2 promoted the formation of soot. From the distribution area of A2, it could be inferred that the generation of soot is closer to the fuel side. The peak mole fraction of A2 was exhibited in Fig. 27(f). Both He and CO₂ additions reduced the mole fraction of naphthalene, which was more obvious in CO₂-diluted flames. This phenomenon also proved that the addition of CO₂ can inhibit the formation of soot.

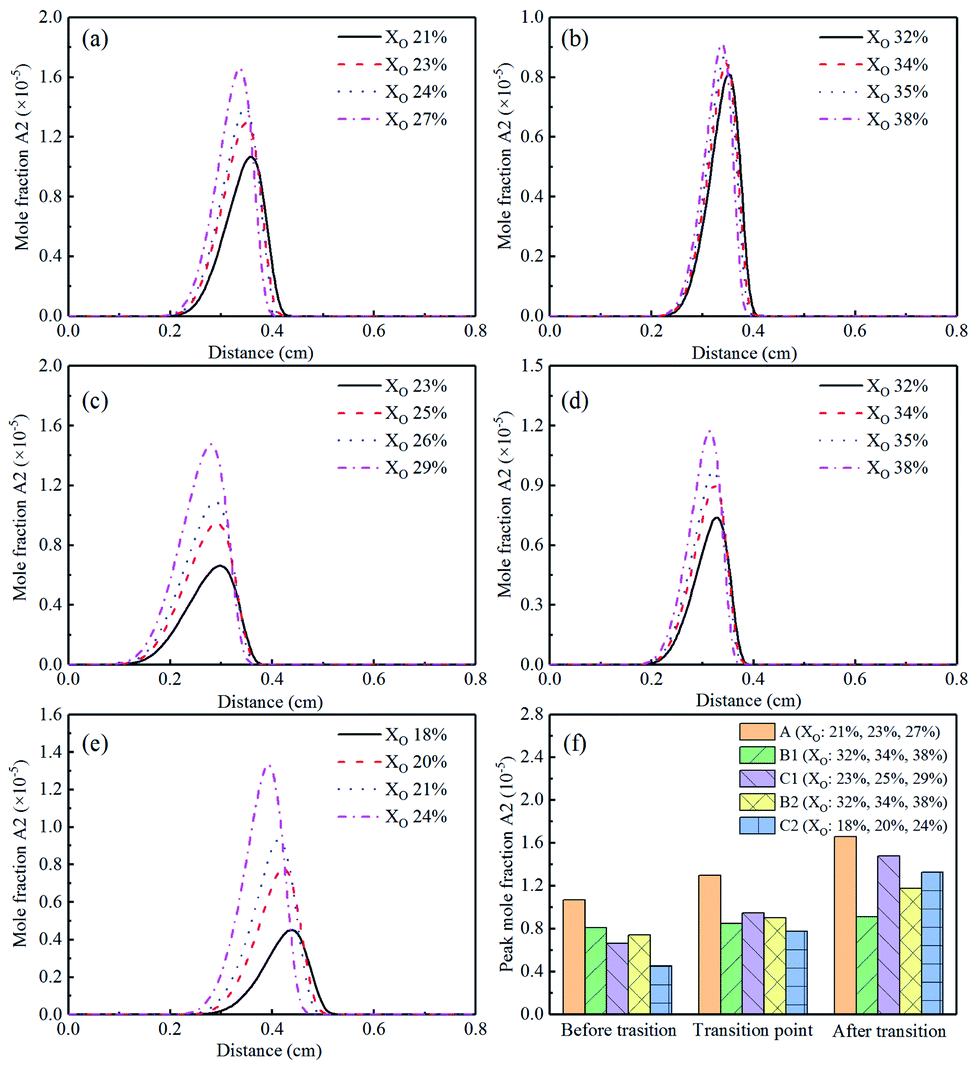

Fig. 27 A2 (naphthalene) mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

Fig. 28(a)–(e) showed the concentrations of A3 (anthracene and phenanthrene). Similar to A2, the mole fraction of A3 had an obvious upward trend with the increase of oxygen concentration during the transition process. It could be concluded from Fig. 2(f) that adding CO₂ and He could inhibit the formation of A3, and the effect was more significant when adding CO₂. A3 was also mainly formed in the region biased towards the fuel side.

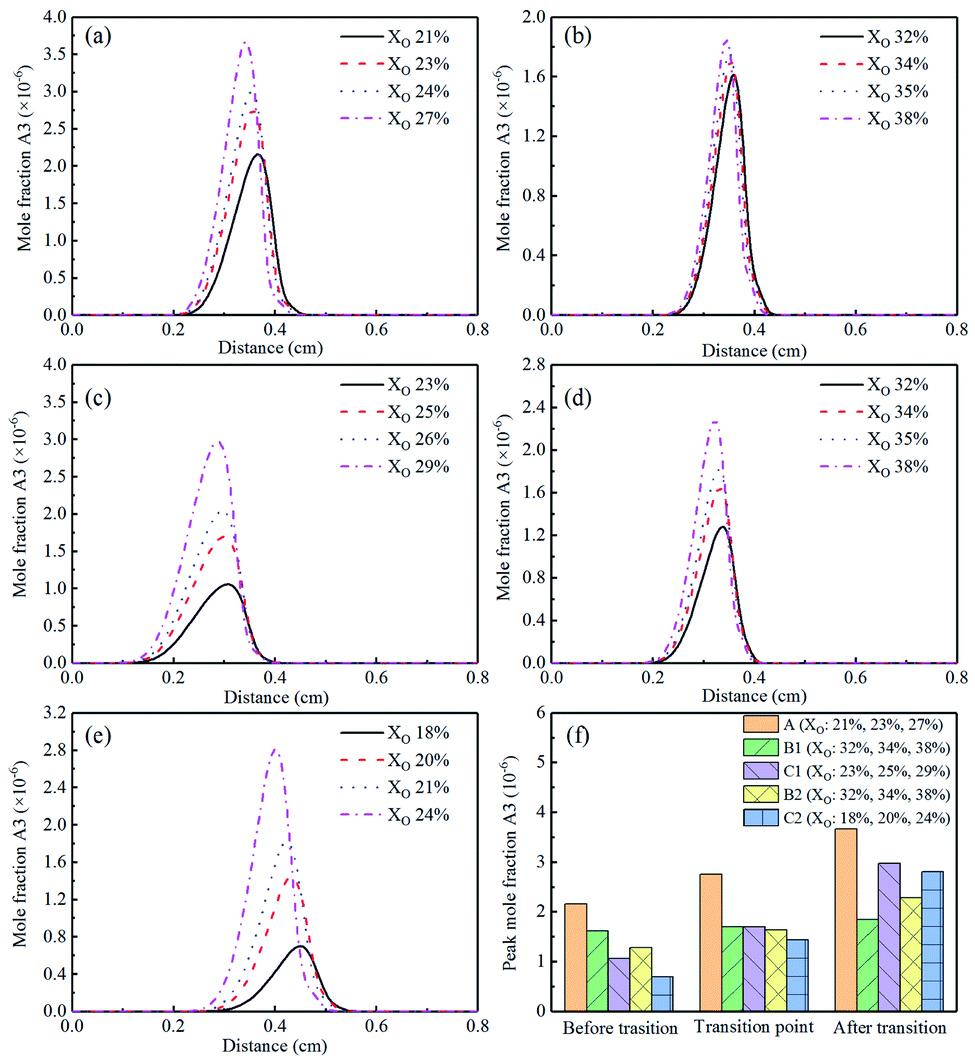

Fig. 28 A3 (anthracene and phenanthrene) mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

Fig. 29(a)–(f) showed the simulation results of A4 (pyrene and isomers). In the sooting transition process, the concentration of A4 has an obvious increasing trend, which was similar to A2 and A3. Combining the curves of A2, A3 and A4, it could be concluded that the changes in the sooting transition process were mainly reflected in the promotion of PAHs growth. Both CO₂ and He could inhibit the formation of PAHs, and the inhibition effect of CO₂ was more significant. Flame B1 was the most interesting because in Flame B1 there was a very slow increase in PAHs as X_O increases. Zhang et al.⁴⁶ reported that gaseous PAHs may also be responsible for the yellow color emissions. This phenomenon was consistent with the experimental results described above: (1) the yellow light of Flame B1 is the weakest (2) the transition process of Flame B1 is the longest.

Fig. 29 A4 (pyrene and isomers) mole fraction profiles and peak mole fraction of different flames, (a) Flame A, (b) Flame B1, (c) Flame C1, (d) Flame B2, (e) Flame C2, (f) peak mole fraction.

4. Conclusions

The sooting transition process was studied in the ethylene counterflow diffusion flames with different diluents (N₂, He, and CO₂). In each diluted flame, the sooting transition process was determined by optical method. The concentrations of major hydrocarbon species and important radicals were investigated by kinetical modeling. The N₂-diluted flames were regarded as the standard flames for comparison. The results were summarized as follows:

(1) The CO₂-diluted flames significantly delayed the sooting transition process, indicating that the CO₂ had an inhibitory effect on soot formation. When CO₂ was added to the fuel side, the weaker yellow luminous sooting region meant a stronger soot suppression effect.

(2) He-diluted flames were the most interesting. When He was added to the fuel side, the sooting transition process was delayed, while to the oxidizer side, the transition process was advanced.

(3) The simulation results showed that adding CO₂ inhibited the formation of H radical and promoted the OH radical formation, which contributed to suppress the soot formation. When CO₂ was added to the fuel side, the concentration of O atom and OH radical increased more significantly, which may explain why less soot was generated in this case.

(4) The concentration of H, OH, and O radicals reduced in He-diluted flames, as well as the important soot precursors C₂H₂, C₃H₃, and C₆H₆. In addition, adding helium significantly changed the reaction region.

(5) In the sooting transition process, the small molecular PAHs (A2, A3, and A4) increased significantly with the increase of oxygen concentration. The addition of carbon dioxide could effectively inhibit the formation of PAHs.

This research could be expected to provide a deep understanding on the effect of different diluent gases on the soot formation, which would be beneficial to the future study on the control of soot emissions.
