High-quality all-inorganic CsPbBr₃ single crystals prepared by a facile one-step solution growth method

Abstract

In this report, a facile one-step solution growth method has been proposed to synthesize high-quality all-inorganic CsPbBr₃ single crystals. High-resolution X-ray diffraction, photoluminescence (PL), and current–voltage techniques have been performed to study the properties of CsPbBr₃ single crystals. The results have shown that the as-grown CsPbBr₃ single crystals exhibited a narrow X-ray rocking curve with a FWHM (full width at half maximum) of 0.043°, a narrow room-temperature PL spectrum with the FWHM of 18.9 nm, and extremely low density of traps (∼5.1 × 10⁹ cm⁻³). The results shown in this work will provide a valuable strategy for the fabrication of high-quality all-inorganic CsPbBr₃ single crystals.

---

Introduction

As emerging materials, lead halide perovskites (LHPs) (ABX₃, A = Cs, CH₃NH₃ (MA), HC(NH₂)₂ (FA), etc.; B = Pb; X = Cl, Br, and I) have attracted tremendous attention in recent years because of their great success in the field of photovoltaic and photodetection technologies due to their remarkable properties such as long charge carrier diffusion length, high absorption coefficient, defects tolerance and low-temperature solution-processed ability.^1–6 For example, the power conversion efficiency of solution-processed planar perovskite solar cells has reached up to ∼25.7% very recently,⁷ which is comparable to commercial silicon-based solar cells. Besides, LHPs have also been recognized as promising candidates for light emission applications owing to their competitive optical properties including efficient photoluminescence (PL), narrow-band emission, weak Auger recombination, high optical gain, and widely tunable energy bandgap.^8–16

Single crystals featured with improved crystalline quality and low density of defects are of vital importance in the development of high-performance optoelectronic devices. LHP single crystals can be grown via a low-temperature solution growth process.^17–23 In general, the LHPs nucleate and grow inside the precursor solution containing raw materials (AX and BX₂) and polar aprotic solvents (such as γ-butyrolactone (GBL), dimethyl sulfoxide (DMSO), and N,N-dimethylformamide (DMF)). In one typical growth process, the supersaturation of precursor solution is achieved through the slow vapor saturation of an antisolvent (VSA).¹⁸ In such a case, the nucleation and subsequent crystal growth can occur at room temperature (RT), but it produces several millimeter-sized single crystals and further limits the crystalline quality improvements due to the slow species transportation and diffusion at the solid/liquid interface under such a low temperature. In another growth process, the growth of organic–inorganic hybrid LHP single crystals has been reported through invariably heating the precursor solution (HPS). In this case, the supersaturation is realized by slow evaporation of solvent under a constant temperature heating process. Similar to the VSA method, the HPS method produces multiple small-sized single crystals. With the assistance of crystal seeding, millimeter-scale LHP single crystals have been obtained, but a high density of defects have been found at the seed boundaries.¹⁸ Recently, an improved method called inverse temperature crystallization has been proposed by Bakr et al.,^19,22 in which the LHP single crystals can rapidly nucleate and grow. However, this method strongly depends on the retrograde solubility behaviors of LHPs, which may limit the variety and quality of as-grown LHPs owing to the limited aprotic solvents available.

Among the typical growth processes mentioned above, the HPS method is simple, low-cost, and convenient, but it has difficulties in growing high-quality large-sized LHP single crystals. In this work, a modified and facile one-step solution growth method has been demonstrated to prepare high-quality centimeter-scale all-inorganic CsPbBr₃ single crystals, where the supersaturation of precursor solution was realized via a combination of the HPS method and oil bath heating. Specifically, the as-grown CsPbBr₃ single crystals exhibited a narrow X-ray rocking curve (XRC), narrow PL spectrum, and extremely low density of traps.

Experiments

Materials

Lead bromide (PbBr₂, >99.5%), cesium bromide (CsBr, >99.5%), dimethyl sulfoxide (DMSO, anhydrous), dimethylformamide (DMF, anhydrous), and silicone oil were used as received.

Growth of CsPbBr₃ single crystals

2.4 mmol PbBr₂ and 1.2 mmol CsBr were added into 3 mL anhydrous DMSO to form precursor solution. The precursor solution was firstly stirred at 80 °C, and then filtered and heated at 140 °C in a silicone oil bath (as schematically shown in Fig. 1a) in sequence. When invariably heating the precursor, the CsPbBr₃ nucleated and grew due to the evaporation of DMSO solvent. The growth process lasted around 5 days. Then, the as-grown CsPbBr₃ single crystals were washed by anhydrous DMF and dried in a vacuum for 2 hours in sequence, and finally stored in a vacuum before they were further characterized. For comparison, reference CsPbBr₃ single crystals were prepared by HPS method with a same recipe. All experiments were carried out under ambient conditions.

Fig. 1 Growth of CsPbBr₃ single crystal. (a) Schematic illustration of experimental setup. Optical images of CsPbBr₃ single crystal captured (b) during the growth and (c) at the end of growth.

Characterizations

The structural properties of as-grown CsPbBr₃ single crystals were characterized by X-ray diffraction (XRD) with Cu Kα radiation of λ = 1.5406 Å. The optical properties of as-grown CsPbBr₃ single crystals were investigated by homemade micro-PL spectroscopy with the excitation of a continuous-wave 405 nm laser. For the excitation power dependence of PL, the excitation power is tuned by an attenuator. The absorption spectra were collected on a UV-VIS spectrophotometer (Agilent Technologies, Cary-8454). The current–voltage (I–V) of Au/CsPbBr₃/Au structured device is recorded by Keithley 2401 source-measure unit, where Au electrodes were deposited by a sputtering method at RT.

Stimulation

The steady-state temperature field distribution of precursor solution (solution 1) in the silica glass beaker which is surrounded by silicone oil (solution 2), was numerically calculated using the COMSOL Multiphysics packages. For simplicity, both solution 1 and solution 2 are defined as water in the simulation process. The inner and outer radius of the beaker are 5.0 and 6.3 mm, respectively, and the solution 1 just fills half of the beaker. The beaker is placed in a silica glass container filled with solution 2. The radius of the container is 50 mm, and the height of solution 2 in the container is as twice as solution 1 in the beaker. The container is placed on a heat source. During the simulations, the module of heat transfer in solids and fluids is adopted, in which the heat flux is added at the interfaces between the system and the external environment. The ambient temperature is set as 293.15 K (20 °C), and the temperature of heat source keeps 413.15 K (140 °C). The material parameters for solution 1, solution 2, and silica glass are imported from the material library of COMSOL.

Results and discussions

As reported, the all-inorganic cesium perovskite materials can exhibit various forms of structures such as CsPbBr₃, CsBr-rich Cs₄PbBr₆, and PbBr₂-rich CsPb₂Br₅ according to the connection manner of [PbBr₆]⁴⁻ octahedra in the unit cell.^24–26 The molar ratio between raw materials (mCsBr : nPbBr₂) is important for the final crystallization from DMSO solvent. In general, either Cs₄PbBr₆ or CsPb₂Br₅ is formed accompanied with the CsPbBr₃ under a slight deviation from a perfect ratio of m : n = 1 : 1 CsBr : PbBr₂.^18,21 To obtain the pure phase CsPbBr₃, it is necessary to add additional PbBr₂ in the precursor solution since the solubilities of PbBr₂ and CsBr in DMSO solvent are quite different (in fact, CsBr is less soluble than PbBr₂ in the DMSO solvent). Herein, the precursor solution was prepared by dissolving CsBr and PbBr₂ with a molar ratio of 1 : 2 in the DMSO solvent. Notably, only one CsPbBr₃ single crystal can be found in the precursor solution during the whole growth process (Fig. 1b). The resulted CsPbBr₃ single crystal is cuboid in shape with a size of ∼7 mm (Fig. 1c). We anticipate that the CsPbBr₃ single crystal would grow even bigger when extending the growth time with sufficient raw materials.

XRD measurements were performed to study the structural properties of as-grown CsPbBr₃ single crystal. As shown in Fig. 2a and S1 (ESI†), the XRD pattern of as-grown CsPbBr₃ single crystal is dominated by the set of (0 0 l)/(h h 0) crystalline plane of orthorhombic CsPbBr₃ without traces of Cs₄PbBr₆ and CsPb₂Br₅. Generally, CsPbBr₃ crystallizes in the orthorhombic space group at RT and it transits to tetragonal and cubic phases at 361 K and 403 K, respectively.^27,28 Interestingly, there is no trace of the tetragonal and cubic phase CsPbBr₃ in the as-grown samples. According to the Bragg equation, the lattice constants are calculated to be a = 8.23 Å, b = 8.29 Å, and c = 11.83 Å, which are consistent with the values of CsPbBr₃ bulk materials (a₀ = 8.21 Å, b₀ = 8.26 Å, and c₀ = 11.76 Å, obtained from the PDF card: 01-072-7929, Fig. 2b). In contrast, orthorhombic phase CsPbBr₃ with slight traces of CsPb₂Br₅ were obtained from the HPS method (Fig. S1, ESI†).

Fig. 2 Structural properties of as-grown CsPbBr₃ single crystal. Powder XRD patterns of (a) as-grown CsPbBr₃ single crystal and (b) CsPbBr₃ bulk material obtained from PDF card: 01-072-7929. (c) (002) XRC curve of as-grown CsPbBr₃ single crystal.

The crystalline quality of as-grown CsPbBr₃ single crystal was further analyzed by high-resolution XRC measurement, and the result is shown in Fig. 2c. A narrower XRC spectrum suggests a higher crystalline quality. As can be seen, the full width at half maximum (FWHM) of (002) XRC is as small as 0.043° (155 arcsec). This is much smaller than CsPbBr₃ single crystal obtained from the HPS method (623 arcsec, Fig. S2, ESI†) and other LHP bulk materials reported in the literature.^18,21,29 Fig. 3a shows the RT PL spectrum of as-grown CsPbBr₃ single crystal. As can be seen, the as-grown CsPbBr₃ single crystal shows a strong and narrow excitonic emission centered at 532.5 nm (3.328 eV) with the FWHM as narrow as ∼18.9 nm (82.5 meV). The narrow PL spectrum can be an indication of the high crystalline quality of as-grown CsPbBr₃ single crystal, which is well consistent with XRC results shown in Fig. 2c. In contrast, the PL spectrum of CsPbBr₃ single crystals prepared by the HPS method slightly blueshifts (∼6 meV) and broadens (∼10 meV) (Fig. S3, ESI†), which may be associated with strain induced by the secondary phase (i.e., CsPb₂Br₅, shown in Fig. S1, ESI†). In addition, a redshift of the absorption edge is observed (Fig. S4, ESI†), which is caused by the optical absorption in the thick CsPbBr₃ single crystal.

Fig. 3 Optical properties of as-grown CsPbBr₃ single crystal. (a) RT PL spectrum of as-grown CsPbBr₃ single crystal. (b) Excitation power dependence of PL emission intensities of as-grown CsPbBr₃ single crystal. The inset in (b) shows the normalized PL spectrum captured under different excitation power.

Besides, the type of exciton transition from as-grown CsPbBr₃ single crystal was then investigated by the excitation power dependence of PL spectroscopy. In general, the relationship between the integrated PL emission intensities (I) and the excitation power (P) follows the eqn (1):³⁰

I ∼ P^k (1)

where k is the power coefficient. Qualitatively, for bound excitons and defect-related transitions, the parameter k is less than 1.0, while for free excitons transition the parameter k is higher than 1.0.³⁰ The PL emission linewidth of as-grown CsPbBr₃ single crystal keeps almost unchanged with the increase of excitation power (Fig. 3b inset), suggesting that the excited excitons recombine via a similar process. Fig. 3b shows the excitation power dependence of PL emission intensities of the as-grown CsPbBr₃ single crystal. The best-fitting gives the power coefficient (k) as 1.45, showing that the RT PL spectra of CsPbBr₃ single crystal (Fig. 3b inset) are dominated by the free exciton transition.

Then, the deep-level charged-trap densities in as-grown CsPbBr₃ single crystal were further calculated with the space charge limited current (SCLC) theory.³¹ Shown in Fig. 4 is the I–V curve of an Au/CsPbBr₃/Au structured device. As can be seen, an ohmic region (I ∼ Vⁿ, n = 1) followed by a steep increase (I ∼ Vⁿ, n > 3) can be observed, indicating the presence of a typical trap-filling region. According to SCLC theory, the trap density (n_trap) is calculated to be ∼5.1 × 10⁹ cm⁻³, from the eqn (2):³¹

n_trap = 2εε₀V_TFL/(ed²) (2)

where ε is the relative dielectric constant of CsPbBr₃ (≈22),³² ε₀ is the vacuum permittivity, e is the electron charge, d is the distance between the Au electrodes (d ≈ 0.88 mm, Fig. S5, ESI†) and V_TFL is the trap-filled limit voltage (Fig. 4). Notably, the trap density of our sample is about 1–2 orders of magnitude lower than similar perovskite single crystals reported in the literature (Table S1, ESI†) and about 7 orders of magnitude lower than spin-coated polycrystalline films.^33–35 Due to the low density of defects, the resistivity of as-grown CsPbBr₃ single crystal is as high as 1.8 GΩ, which is derived from the ohmic region of the I–V curve.

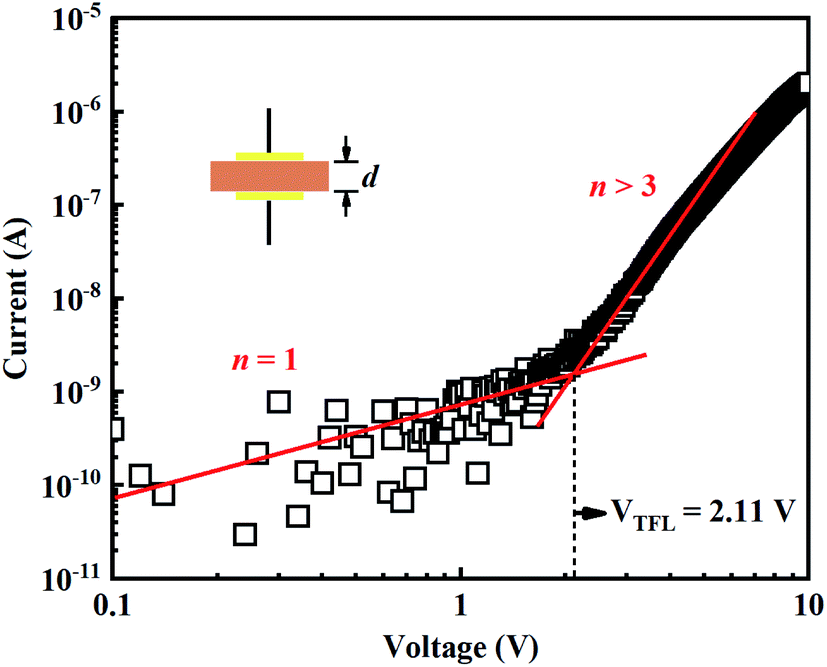

Fig. 4 I–V curve of an Au/CsPbBr₃/Au structured device. The I–V curve is fitted using a power law (I ∼ Vⁿ) (shown as red line).

In the end, the mechanisms of crystal growth of CsPbBr₃ in the oil bath heating process are discussed. For the solution growth method (as shown in Fig. 1a), the growth kinetics of CsPbBr₃ is generally governed by the species transportation and diffusion at the solid/liquid interface. As a result, an uniform distribution of temperature field of precursor solution is prerequisite for growing high crystalline quality and low defects single crystals.³⁶ Here, the steady-state temperature field distribution of precursor solution shown in Fig. 1a was calculated using COMSOL Multiphysics packages, and the result is shown in Fig. 5a. It can be seen that the precursor solution is uniformly heated in the oil bath heating process. In this case, the crystal growth driving force is mainly related to constant and uniform supersaturation induced by the constant evaporation of solvent, which is responsible for the growth of high crystalline quality CsPbBr₃ single crystals with extremely low density of defects. On this basis, the growth process is proposed as follows: initially, the CsPbBr₃ nucleates when the precursor solution approaches saturation concentration (Fig. 5b). After that, a competitive CsPbBr₃ nucleus survives (labelled by blue box) and acts as a seed simultaneously, maintaining the subsequent crystal growth. In contrast, a temperature gradient was found when directly heating the precursor solution on the hot table (Fig. S6, ESI†). In this case, additional crystal growth driving forces related to the precursor concentration gradient can be expected, which accelerates the growth of CsPbBr₃ nucleus before they were re-dissolved. Meanwhile, the rapid growth rate will lead to a high defect density,³⁷ and further deteriorates the crystalline quality of the as-grown CsPbBr₃ single crystals.

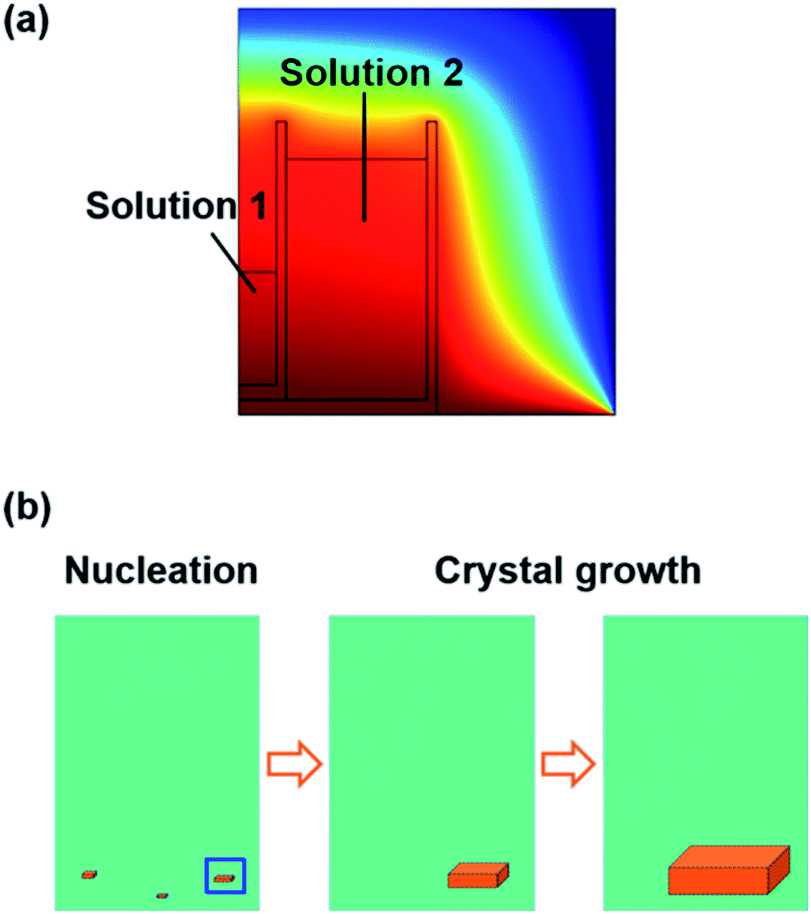

Fig. 5 (a) Calculated steady-state temperature field distribution of the precursor solution (labeled as solution 1) heated on the hot table with an oil bath (labeled as solution 2). (b) Proposed growth process of CsPbBr₃ single crystal.

Conclusions

In summary, we have shown a facile one-step solution growth method for growing high-quality all-inorganic CsPbBr₃ single crystals. By employing the oil bath heating strategy, the as-grown CsPbBr₃ single crystals have shown improved crystalline quality and extremely low density of defects, as verified by structural, optical, and electrical properties investigations. Simulation on the steady-state temperature field distribution indicated that the precursor solution was uniformly heated in the oil bath heating process, providing constant and uniform supersaturation as crystal growth driving force. This work provides a promising way to achieve high-quality all-inorganic CsPbBr₃ single crystals via a facile solution growth method.

Author contributions

Mingming Chen: conceptualization, methodology, writing – review & editing, funding acquisition. Chunxiang Xu: visualization, project administration. Youwen Yuan: investigation, writing – original draft. Yuan Liu: formal analysis, writing – review & editing. Dawei Cao: formal analysis, supervision, and writing – review & editing.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was financially supported by the China Postdoctoral Science Foundation (2018M632196), and the Project of Faculty of Agricultural Equipment of Jiangsu University (NZXB20210202 and NZXB20200215).
