Preconcentration and determination of trace Hg(II) using ultrasound-assisted dispersive solid phase microextraction

Abstract

Defect rich molybdenum disulfide (MoS₂) nanosheets were hydrothermally synthesized and their potential for ultrasound assisted dispersive solid phase microextraction of trace Hg(II) ions was assessed. Ultrasonic dispersion allows the MoS₂ nanosheets to chelate rapidly and evenly with Hg(II) ions and results in improving the precision and minimizing the extraction time. The multiple defect rich surface was characterized by X-ray diffraction and high-resolution transmission electron microscopy. The surface charge of intrinsically sulfur rich MoS₂ nanosheets and their elemental composition was characterized by zeta potential measurements, energy dispersive spectroscopy, and X-ray photoelectron spectroscopy. The cracks and holes on the basal planes of MoS₂ led to diffusion of the Hg(II) ions into the interior channels. Inner-sphere chelation along with outer-sphere electrostatic interaction were the proposed mechanism for the Hg(II) adsorption onto the MoS₂ surface. The experimental data showed good selectivity of MoS₂ nanosheets towards Hg(II) adsorption. The systematic and constant errors of the proposed method were ruled out by the analysis of the Standard Reference Material (>95% recovery with <5% RSD). The Student's t-test values for the analyzed Standard Reference Material were found to be less than the critical Student's t value at 95% confidence level. The limit of detection (3S) was found to be 0.01 ng mL⁻¹. The MoS₂ nanosheets were successfully employed for the analysis of Hg(II) in environmental water samples.

---

1. Introduction

Water pollution due to mercury contamination is an important environmental concern because of its potent detrimental impacts on biological systems, especially its potential lethal impacts on fish, birds and human health.^1–8 Thus, accurate analysis of Hg(II) in environmental and consumable water supplies remains a great challenge for public health and environmental protection.^9–12 Different methods and analytical techniques such as chemical treatment,¹³ electrochemistry,¹⁴ X-ray fluorescence,^15,16 inductively coupled plasma atomic/optical emission spectrometry^17,18 and inductively coupled plasma mass spectrometry^19,20 have been widely used for the analysis of Hg(II), however, direct determination of Hg(II) in real aqueous samples is challenging due to its very low concentrations with complex sample matrices.^21,22 The sample matrices compromise the instrumental detection, accuracy and the limit of quantification.^23,24 Nevertheless, this can be eliminated by sample pretreatment before analysis and thus, an extraction and preconcentration step is often pre-requisite to instrumental determination.^25–27 Considering the nanoadsorbents, solid phase microextraction and dispersive solid phase microextraction (DSPME) is one among the most promising approach for the separation and preconcentration of metal ions presented at trace or ultra-trace level in complex matrix solutions.^28–31 Traditional adsorbents such as ion exchange resin, zeolites, activated carbon and clays have been studied for the adsorption of mercury ions. However, these materials have inherent limitations for mercury extraction due to the poor selectivity, low adsorption capacity, use of high dose of adsorbent, and weak to poor binding affinity. Sulfur rich materials are the excellent adsorbents due to the strong Lewis soft acid–soft base interactions between the mercury and a sulfur site. A number of sulfur containing material have been recently reported to explore the substantial improvements in the adsorption of mercury ions.^32–34 For example, thiol functionalized metal organic frame works,^35,36 sulfur functionalized mesoporous carbon,³⁷ polymers functionalized with sulfur containing ligands,³⁸ metal chalcogenide aerogels³⁹ and layered metal sulfides.^40,41 Nonetheless, the major drawback is that these materials either involves the use of expensive raw materials (such as platinum salt, indium and zirconium) or suffers from sophisticated synthesis steps. Beside this, many of them shows relatively low adsorption capacity due to their low sulfur content or insufficient exposure of sulfur sites to metal ions. Consequently, considering the above challenges it is crucial to explore new adsorbents with advanced adsorption capacity, effective mercury binding sites and importantly, easy to synthesize.

Specifying the plenty of sulfur atoms in MoS₂ which could be a highly potential binding sites for mercury adsorption and assuming the 1 : 1 ratio of S/Hg, the theoretical adsorption capacity of MoS₂ nanosheets for mercury is estimated to be 2506 mg g⁻¹, which is highest among the best reported adsorbents till date.^{27,33,34,36–38} In MoS₂, the Mo and S atom are covalently in-plane bonded forming a layered structure. The individual layers are weakly interacted with each other via van-der Waals forces in an out-of-plane manner, and can be easily dispersed upon ultrasonic treatment and therefore, make the internal sulfur sites accessible for Hg(II) binding.^42,43 Considering this, we synthesized a defect rich MoS₂ nanosheets and studied them for the first time to develop an ultra-sound assisted dispersive solid phase micro extraction (DSPME) method. The formation of defects on the basal planes of MoS₂ may induce the cracks and holes to diffuse the Hg(II) ions into the interior channels. The ultrasonic treatment of MoS₂ nanosheets not only allows a rapid, uniform and closer contact between the active sites of the sorbent and the mercury ions during the entrapping step but also favor the kinetics of mass-transfer and therefore enhance the efficacy and precision of the extraction method and reduces the extraction time. The extracted mercury ions after elution from the sorbent are determined by ICP-OES. In addition, this approach give rise to use lowest amount of sorbent in the range of micro to milligram. In consequences, the method was successfully applied to the accurate determination of mercury concentration in samples from laboratory to real life on a scale of μg L⁻¹.

2. Experimental

2.1 Reagents and solutions

Ammoniummolybdate and thiourea (99% purity) was purchased from Merck (China). Mercury solution (Hg(II); 1000 mg L⁻¹ in 1% HNO₃) was obtained from Agilent (China). Other metal salts were purchased from Sigma-Aldrich (Germany) and used as received. Metal ion solutions were prepared through successive dilutions of the stock (1000 mg L⁻¹) with high purity water (18.2 MΩ cm) obtained from ultra-pure water system (Millipore). The Standard Reference Material (NIST 1641d) stored at −10 °C, was obtained from the national institute of standard and technology (Gaithersburg, USA) and was used after dilution.

2.2 Synthesis of MoS₂ nanosheets

A defect rich MoS₂ nanosheets was synthesized by a one-step hydrothermal method.⁴⁴ Briefly, a 2.0 g of ammoniummolybdate was dissolved with 2.5 g of thiourea in 150 mL of deionized water with vigorous magnetic stirring and transferred to a Teflon-lined autoclave (200 mL). The whole reaction mixture was kept in an air oven at 180 °C for 24 h. After cooling the hydrothermal assembly to the room temperature, the obtained grey–black color product was collected with the aid of centrifugation and washed repeatedly with ethanol and deionized water and dried at 60 °C in a vacuum oven for 6 h. The ICP-OES analyses was carried out to estimate the atomic ratio of Mo : S in the prepared material and was found to be 1 : 2.04.

2.3 Characterization of MoS₂ nanosheets

The X-ray powder diffraction (XRD) patterns of bulk and few layered MoS₂ were recorded on an X-ray diffractometer (XRD Smart Lab Guidance, Rigaku) equipped with Cu-Kα radiation (k = 1.5406 Å) in 2θ ranging from 10° and 60° at a scan rate of 5° min⁻¹. The surface morphology of MoS₂ nanosheets was characterized by high-resolution transmission electron microscopy (HRTEM, Techno, FEI). Samples were sputter-coated with palladium overlayer to avoid charging during the electron irradiation. Energy dispersive X-ray analysis (EDS) spectra for elemental analysis were obtained from an EDS analyzer (Bruker, Germany). The adsorption mechanism and valence state of the constituent elements were observed by X-ray photoelectron spectroscopy (XPS) (Thermo ESCALABA 250XI). Mercury ion concentrations were determined by inductively coupled plasma optical emission spectrometer (ICP-OES, PerkinElmer) at the axial mode of viewing plasma.

2.4 Optimized procedure for DSPME sample preparation

From a stock solution of MoS₂ suspension (5 mg in 100 mL of deionized water), a 1 mL aliquot of MoS₂ nanosheets was dropped to 25 mL of the polyethylene Falcon tube containing 10 mL of 50 μg L⁻¹ of Hg(II) sample solution. The solution pH was adjusted to pH 6 by using 0.1 M of HNO₃ and 0.1 M NaOH. The whole reaction mixture was probe sonicated for 40 s. The act of sonication led to complete dispersion of MoS₂ nanosheets and considerably minimize the sample thickness, and eliminates the heap formation of nanosheets in the sample solution. Later, the sample solution was centrifuged at 4000 rpm for 60 s to collect the MoS₂ nanoadsorbent. Afterward, the MoS₂ nanoadsorbent with adsorbed Hg(II) was agitated ultrasonically with 5 mL of 1.0 M nitric acid for 60 s to elute the sorbed Hg(II). The whole reaction vial was centrifuged to separate both the phases. The eluent with Hg(II) was gathered and evaluated by ICP-OES to identify the Hg(II) concentration.

3. Results and discussion

3.1 Characterization

The prepared defect rich MoS₂ nanosheets were systematically investigated for the structural features and composition studies. The XRD pattern of the synthesized MoS₂ was evaluated and presented in Fig. 1. The appearance of two diffraction peaks at low-angle region (9.8° and 19.4°, Fig. 1), centered at (hkl) (002) and (004), indicates the formation of lamellar structures with enlarge interlayer spacing, corresponds to d-spacing values of 9.4 Å. Fig. 2A and B shows the HRTEM image of MoS₂ nanosheets, illustrates the fine sheets with defect rich surface (encircle with yellow color) along the basal planes, evident by the presence of abundant dislocations and distortions. The defect-rich features was further confirmed by the corresponding selected area electron diffraction (SAED) pattern (Fig. 2C). The corresponding cross-sectional HRTEM image (inset of Fig. 1) shows the interlayer spacing with a value of 9.4 Å, which is far beyond the interlayer spacing values of bulk MoS₂ (6.24 Å). Such an important interlayer elaboration between the two neighboring S–Mo–S sheets could fully expose the interior space of MoS₂. The interior surface possess large number of active sulfur sites are now available for Hg(II) binding, which were before inaccessible as in case of bulk MoS₂. Moreover, the surface defects presented on the basal planes promotes the diffusion of Hg(II) ions to the interior channels of MoS₂ nanosheets. Fig. 3 shows the elemental mapping of MoS₂ after Hg(II) adsorption, observed from the FESEM image, illustrates the presence of Hg(II) along with Mo and S contents, supports the potential adsorption of Hg(II) onto the MoS₂ nanosheets. To understand the adsorption mechanism and the oxidation state of the constituent elements, the wide scan XPS spectra with deconvolution of the core-level peaks were carried out using monochromatic Al K alpha light at 1486.6 eV and an emission angle of 45 with spot size of 500 μm. The XPS analysis data for MoS₂ obtained after Hg(II) adsorption were given in Table 1. Fig. 4A shows the comparative XPS survey spectrum of MoS₂ before and after Hg(II) adsorption, indicates the peaks for Mo, S and Hg at characteristics binding energies. In Fig. 4B, the deconvoluted peaks at the binding energy of 230.8 and 233.9 eV are assigned to the Mo 3d_5/2 and Mo 3d_3/2 element, respectively. The deconvoluted peaks of S 2p element of MoS₂ before and after Hg(II) adsorption were shown in Fig. 4C. The characteristic peaks of S observed at binding energy values of 161.5 and 162.6 eV, were assigned to S 2p_3/2 and S 2p_1/2. After Hg(II) adsorption these S peaks shows a shift to higher binding energies c.a at 161.7 and 163.0 eV, indicates their binding with Hg(II) ions (Fig. 4C). Such a blue shift in binding energies of the S peaks after Hg(II) adsorption was mainly due to the interaction of MoS₂ with Hg(II) ions and thereby resulting in the disparity of the XPS spectra before Hg(II) adsorption.

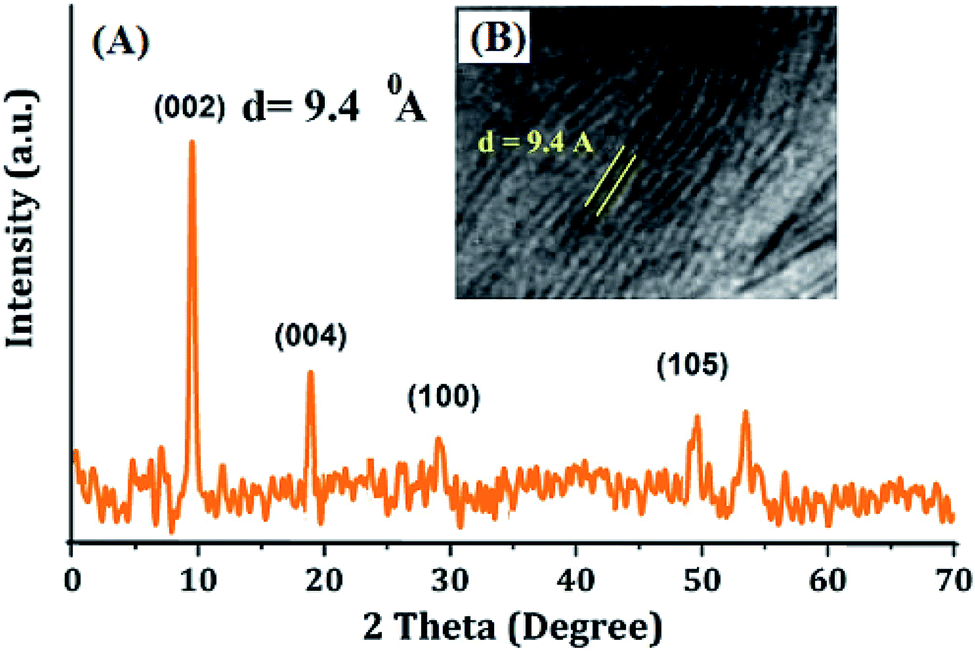

Fig. 1 (A) XRD pattern and (B) cross sectional HRTEM image of MoS₂.

Fig. 2 HRTEM images of (A) MoS₂ nanosheets; (B) basal plane of MoS₂ showing fine structures; (C) corresponding SAED diffraction patterns of MoS₂.

Fig. 3 Elemental mapping of MoS₂ after Hg(II) adsorption.

Table 1 XPS data of MoS₂ nanosheets

Element	Peak position (eV)	FWHM	Area(P) cps	Atomic%
Mo 3d	230.8	0.87	144 917.0	22.04
S 2s	228.0	1.63	18 545.2	23.86
S 2p	161.8	1.05	58 622.5	54.10

---

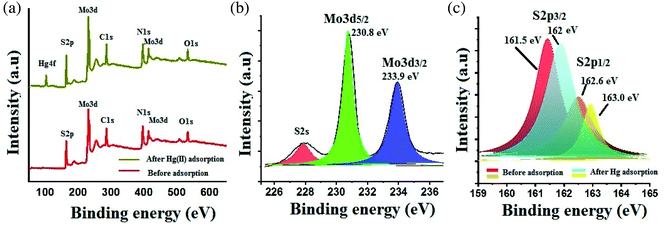

Fig. 4 (a) XPS survey spectra of MoS₂ before and after Hg(II) adsorption; (b) deconvoluted Mo 3d peaks of MoS₂; (c) deconvoluted S 2p peaks before and after Hg(II) adsorption illustrates a shift in binding energies.

3.2 Optimization of experimental conditions

A univariate approach was employed to optimize the important experimental parameters to develop a dispersive solid phase microextraction method using MoS₂ nanosheets.

3.2.1 Effect of the solution pH. The sample pH is an important parameter for the adsorption of metal ions, considering that it influences both the distribution of surface charge of adsorbent and the metal ion species. The impact of solution pH on the adsorption of Hg(II) onto MoS₂ nanosorbent was studied at the pH range of 1–7 with initial Hg(II) concentration of 10 000 μg L⁻¹. For comparison purpose the sorption of Hg(II) at low level concentration (100 μg L⁻¹) was also studied. The observed data are shown in Fig. 5. The Hg(II) sorption beyond pH 7 was avoided due to the precipitation of Hg(II) in basic medium. Also the adsorption/influence of typical alkali and alkaline earth metal which were potentially co-exist with the Hg(II) has been also studied. From Fig. 5, it could be seen that, at higher Hg(II) concentration the adsorption of Hg(II) onto MoS₂ varies at different sample pH. Moreover, at low Hg(II) concentration, no significant effect of sample pH on Hg(II) adsorption was observed (Fig. 5). The adsorption efficiency of Hg(II) increases with the increase of sample pH and reached to maxima at pH 6–7. The surface charge of MoS₂ played an important role in the physico-chemical adsorption.^45,46 From the zeta potential studies of MoS₂, the isotropic electric point (pH_z) of MoS₂ was observed below to pH 1.0 (Fig. 5), indicates that the surface was negatively charged at pH above 1.0 and the sulfur sites are available for chelation with metal ions.⁴⁷ However, at lower pH values, the concentration of hydrogen ions (counter ion) is high enough to compete with Hg(II), due to such competition with counter ions, a decrease in adsorption of Hg(II) was observed. However, above pH 4, the sulfur ions becomes deprotonated and the Hg(II) adsorption significantly increases and reaches to maximum at pH 6–7. According to Lewis hard and soft acid base concept, the Hg–S chelate formation could be a primary adsorption pathway due to the most favorable soft–soft Hg–S interaction.^48–51 Moreover, Hg(II) ions could binds with two sulfur ions to form a chelate at low Hg(II) concentration and with one sulfur ion at higher Hg(II) concentration to form inner-sphere complex, in addition to the outer layer electrostatic interaction between the Hg(II) and negatively charge MoS₂ surface.^51,52 Thus, MoS₂ nanosheets shows a multi-layer adsorption phenomenon, although the physical adsorption might be of minor contribution compared to chemisorption. In conclusion, pH 6 was optimized for Hg(II) extraction in further DSPME experiments. Moreover, no considerable hindrance in the DSPME/adsorption of Hg(II) (100 ppb) was observed in presence of Na⁺, K⁺, Ca²⁺, Mg²⁺, Cl⁻, CO₃²⁻, NO₃²⁻, SO₄²⁻ and PO₄²⁻ ions at varying concentrations (0.25 and 0.5 M) (Fig. 6). This indicates the specific adsorption of Hg(II) onto MoS₂ surface over these co-ions. This selective uptake might be due to the strong soft–soft interactions between Hg(II) and sulfur ions of the adsorbent.

Fig. 5 Effect of sample pH on Hg(II) adsorption at higher (10 000 ppb) and lower (100 ppb) concentrations.

Fig. 6 Effect of co-existing ions at varying concentrations on the adsorption of Hg(II) by MoS₂ adsorbent (Hg(II) 100 μg L⁻¹; adsorbent dosage 1.0 mg; sample vol. 10 mL).

3.2.2 Effect of the sonication time. To optimized the sonication step for complete adsorption of Hg(II) ions, a series of experiments was conducted with 1.0 mg of MoS₂, ultra-sonicated with 10 mL of Hg(II) solution (1 mg L⁻¹) at pH 6 at varying time intervals of 10 to 100 seconds (probe sonication; power 40 W in continuous mode). The adsorbed Hg(II) ions was eluted with 5 mL of 1.0 M HNO₃ and the two phases was separated by centrifugation at 4000 rpm for 60 s. The Hg(II) concentration was measured by ICP-OES. The ultrasonication compared to stirring and shaking increases the area to volume ratio of nanoadsorbent by exfoliating the MoS₂ nanosheets, and therefore enhanced the metal ion adsorption by exposing the hidden active sites. The results are presented in Fig. 7A, shows the gradual increase of Hg(II) adsorption percentage in first 30 s and the complete extraction (100%) was observed from 40 s and upwards up to a sonication time of 100 s. Hence, a 40 s of sonication step was optimized for all further studies.

Fig. 7 (A) Effect of sonication time on the adsorption Hg(II) (adsorbent dose 1.0 mg; Hg(II) conc. 1 mg L⁻¹); (B) effect of adsorbent dose; and (C) effect of trace Hg(II) concentration (0.01–2.0 μg L⁻¹).

3.2.3 Effect of the adsorbent dose. In DSPME, the optimum amount of solid to be taken is of great importance in order to disperse them completely in a given sample volume and to ensure the complete retention of analyte ions. Considering this, the solid-to-liquid (S/L) ratio has been optimized by carried out multiple sets of experiments. To this job, varying amount of solid MoS₂ (100–1200 μg) were disperse in 10 mL of the model Hg(II) solutions (50 mg L⁻¹) in 25 mL of polyethylene falcon tubes. The whole reaction setups were sonicated for 40 s and the sorbed Hg(II) ions were eluted using 5 mL of 1.0 M nitric acid and subsequently determine by ICP-OES. The results are presented in Fig. 7B. The optimum S/L ratio of MoS₂, where the complete adsorption of Hg(II) achieved, was found at 60 μg mL⁻¹, and the same was used for further experiments.

3.2.4 Effect of trace Hg(II) concentration. Several real samples possess trace levels of Hg(II) concentrations and challenge their direct instrumental determination. Thus, requires a sample preparation/preconcentration step before analysis. To analyse the effect of lower Hg(II) concentration, a bench of samples containing varying Hg(II) concentration (0.01–2.0 μg L⁻¹) were set to pH of 6 using 0.1 M of HNO₃ and 0.1 M NaOH. The sample solution was mixed with 0.5 mg of MoS₂ adsorbent and were ultrasonicated for 40 s. To separate both the phases (adsorbent and solution) the whole sample was centrifuged at 4000 rpm for 60 s. The obtained MoS₂ sheets were added with 5 mL of 1 M HNO₃ to elute the adsorbed Hg(II) followed by sonication and centrifugation and ultimately analyzed by ICP-OES to determine the Hg(II). The experiment was repeated thrice (n = 3) and the results are shown in Fig. 7C. The obtained data suggest that the Hg(II) at the concentration above 0.2 μg L⁻¹ was successfully recovered (recovery > 99%), however, for the samples contained 0.15, 0.1 and 0.01 μg L⁻¹ of Hg(II), the mean recovery percentage was decreased to 82, 75 and 68%, respectively, indicates incomplete adsorption of Hg(II) ions due to very low amount of analyte ions. In conclusion, the proposed DSPME method could preconcentrate and quantitavely determined the trace Hg(II) ions down to 0.2 μg L⁻¹.

3.3 Desorption and reusability studies

Considering the reusability of the adsorbent, various stripping agent such as hydrochloric and nitric acids at different molar concentrations (0.5–1.5 M) and volumes (1–5 mL) were studied to elute the adsorbed Hg(II) ions. The Hg(II) loaded adsorbent (10 mg of MoS₂) was mixed with studied eluent and sonicated for 40 s following the centrifugation to gather the eluent and subsequently analysed by ICP-OES. The results are presented in Fig. 8. Among the studied eluent it was found that the 5 mL of 1 M hydrochloric acid eluted 88% of adsorbed ions while nitric acid with same volume and concentration adequately eluted 100% of Hg(II) ions. The whole procedure of quantitative desorption of mercury ions was repeated for 3 times and achieved the recovery > 99.9%, for all sets. Therefore, 5 mL of 1 M nitric acids were used as eluent in all experiments.

Fig. 8 Effect of eluent concentration and volume.

The reusability of the same set of adsorbent was examined to check the method stability. A suitable amount of MoS₂ adsorbent (0.5 mg) was mixed with 10 mL of Hg(II) solution (10 μg L⁻¹). After sonication step, the uptake Hg(II) got eluted using 3 mL of 1 M nitric acids and consequently determined by ICP-OES. The sorption/desorption experiments was repeated several times with the same set of adsorbent. The obtained results suggest that the MoS₂ nanosheets can be reused up to 40 cycles without substantial loss in the adsorption performance. The recovery of Hg(II) ions up to 40 cycles is above 98%, afterward considerable loss in the adsorption of Hg(II) (recovery < 94%) was observed. This might due to the aggregation and/or structural decomposition of the MoS₂ nanosheets.

3.4 Analytical figures of merit

Standard Reference Materials (NIST SRM 1641d) was analysed to evaluate the accuracy of the proposed methodology (Table 2). The Student's t-test value computed for Hg(II) was found less than the critical Student's t-test value of 4.303 for N = 3 at 95% confidence limit. The results presented in Table 2 shows the closeness of the agreement between the measured and a true value without any systematic errors, since the mean Hg(II) concentration value obtained with DMSPE method were statistically insignificant with the reported/certified value. Moreover, the calibration plot obtained by the method of least square, after preconcentrating the standards in the concentration range of 0.3–1000 μg L⁻¹, was found linear with the determination coefficient (R²) of 0.9998 for the regression equation y = 1184.08x − 489.62, at the wavelength of 253.652 nm. To evaluate the intra-day precision of the method, ten replicate samples of 1.0 μg L⁻¹ of Hg(II) was analyzed following the DSPME procedure. The relative standard deviation for replicate measurements was found to be 3.2%, indicates the acceptable closeness of repeated measurements. Similarly, the inter-day precision for the analysis of ten replicate samples of 1.0 μg L⁻¹ of Hg(II) for ten consecutive days was found to be 3.8%. Considering the IUPAC guidelines,⁵³ the limit of detection (LOD) (3S) of the proposed DSPME method was found to be 0.01 ng mL⁻¹ for Hg(II) ions, indicates their potential application in real sample analysis. The LOD was calculated as the concentration of Hg(II) gives a signal intensity equivalent to 3 times the standard deviation of mean blank signal (0.0033 ± 10) of 20 replicate blank measurements (i.e. 3S). The robustness of the method was evaluated by altering the sample pH from 6 to 6 ± 0.5 and the sonication time of 40 s to 40 ± 5 s. No considerable adjustment in the adsorption and recovery of Hg(II) was observed. Furthermore, the suggested approach had no significant drawbacks, and the analytical figures of merit associated with previous reported methods either used nanomaterials or other adsorbents in conjunction with ICP-OES or other sophisticated detection techniques are compared and summarized in Table 3. The present method has comparable or even better detection limit than previous reported methods combined with GFAAS, ICP-OES, and ETAAS detection techniques.^54–58

Table 2 DMSPE method validation by analyzing standard reference material for Hg(II) ion determination

Samples	Certified value (μg L^−1)	Value found after DMSPE method^a (μg L^−1) ± standard deviation	Value of t-test^b
a Mean value for N = 3.b At 95% confidence limit; tcritical = 4.303.
NIST SRM 1641d	Hg(II): 1.56 ± 0.02	1.55 ± 0.03	2.14

---

Table 3 A comparative overview of analytical performance data with literatures

Materials used	Method	LODs (ng mL^−1)	Technique	References
MoS2 nanosheets	Dispersive solid phase extraction	0.01	ICP-OES	This work
Functionalized graphene oxide	Magnetic solid-phase extraction	0.05	ICP-OES	54
Fe3O4@graphene oxide	Magnetic dispersive solid phase extraction	0.25	GFAAS	55
PANI-MoS2	Solid phase extraction	0.06	ICP-OES	56
Functionalized cellulose nanofibers	Solid phase extraction	0.09	ICP-OES	57
Functionalized magnetic nanoparticles	Magnetic solid-phase extraction	0.22	HR CS ETAAS	58

---

3.5 Real sample analysis

Tap water, industrial effluent and river water samples was successfully enriched under optimized experimental conditions and the concentration of Hg(II) ions was determined by ICP-OES. The Hg(II) contamination in industrial effluent and river water samples was found to be 6.28 and 5.13 μg L⁻¹, respectively. The results are illustrated in Table 4. The integrity of the approach was checked out by spiking the samples with recognized amounts of Hg(II) at two different degrees (5 and 10 μg). Recoveries of the spiked Hg(II) ions were ascertained by measuring the recovered amount from the real samples with a 95% confidence level. The mean percentage recoveries of the added Hg(II) were 99.8–100.2% with an RSD ranging 0.05–2.06% for the spiked amount of Hg(II).

Table 4 Determination of Hg(II) ions concentration in real samples using ICP-OES after DMSPE

Samples	Amount added (μg)	Amount found (μg L^−1) ± standard deviation^a	Recovery percent (RSD)^c	Value of t-test^d
a N = 3.b Not detected.c Relative standard deviation.d At 95% confidence level, tcritical = 4.303.
Tap water	0	ND^b	—	—
	5	5.00 ± 0.26	100 (0.05)	0.16
	10	9.98 ± 0.42	99.8 (0.08)	1.53
Industrial effluent	0	6.28 ± 0.08	—	1.55
	5	11.27 ± 0.76	99.8 (0.15)	1.23
	10	16.30 ± 0.83	100.2 (2.06)	1.45
River water	0	5.13 ± 0.50	—	1.50
	5	10.13 ± 0.92	100 (0.10)	1.16
	10	15.12 ± 1.53	99.9 (1.18)	2.36

---

4. Conclusion

Two dimensional MoS₂ nanosheets with widened interlayer spacing could be easily synthesized by hydrothermal method without using any intercalating agents. The material shows excellent selectivity towards Hg(II) with fast adsorption performance. Due to inherent sulfur rich characteristic and large interlayer spacing, the MoS₂ nanosheets advantageously utilized in the DSPME of trace Hg(II) from aqueous samples. The main possible mechanism for the Hg(II) adsorption could be the strong Hg(II)–S complexation along with the electrostatic interaction. The MoS₂ nanosheets was efficient enough for quantitative analyses of the trace Hg(II) on a scale of ng mL⁻¹ without the interference of common co-existing ions. The applicability of the proposed DMSPE method in the extraction and determination of Hg(II) has been verified by analyzing the real water and industrial wastewater samples.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The work was supported by the researchers project number (RSP-2021/400), King Saud University, Riyadh, Saudi Arabia.
